Page 1

MTX1616M-N

Modular Matrix Switcher 16x16

Version: 2015V2.5

User Manual

Page 2

Modular Matrix Switcher 32x32

Comm-Tec Srl 1 www.comm-tec.it

Preface

Read this user manual carefully before using this product. Pictures shown in this manual is for reference only, different model and specifications are subject to real product.

This manual is only for operation instruction only, not for any maintenance usage. The functions described in this version are updated till August 2015. Any changes of functions and parameters since then will be informed separately. Please refer to the dealers for the latest details.

Trademarks

Product model, and logo are trademarks. Any other trademarks mentioned in this manual are acknowledged as the properties of the trademark owner. No part of this publication may be copied or reproduced without prior written consent.

FCC Statement

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. It has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a commercial installation.

Operation of this equipment in a residential area is likely to cause interference, in which case the user at their own expense will be required to take whatever measures may be necessary to correct the interference.

Any changes or modifications not expressly approved by the manufacture would void the user’s authority to operate the equipment.

Page 3

Modular Matrix Switcher 32x32

Comm-Tec Srl 2 www.comm-tec.it

SAFETY PRECAUTIONS

To insure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference.

 Unpack the equipment carefully and save the original box and packing material for

possible future shipment

 Follow basic safety precautions to reduce the risk of fire, electrical shock and injury

to persons.

 Do not dismantle the housing or modify the module. It may result in electrical shock

or burn.

 Using supplies or parts not meeting the products’ specifications may cause damage,

deterioration or malfunction.

 Refer all servicing to qualified service personnel.  To prevent fire or shock hazard, do not expose the unit to rain, moisture or install this

product near water.

 Do not put any heavy items on the extension cable in case of extrusion.  Do not remove the housing of the device as opening or removing housing may

expose you to dangerous voltage or other hazards.

 Install the device in a place with fine ventilation to avoid damage caused by

overheat.

 Keep the module away from liquids.  Spillage into the housing may result in fire, electrical shock, or equipment damage. If

an object or liquid falls or spills on to the housing, unplug the module immediately.

 Do not twist or pull by force ends of the optical cable. It can cause malfunction.  Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to

the device before cleaning.

 Unplug the power cord when left unused for a long period of time.  Information on disposal for scrapped devices: do not burn or mix with general

household waste, please treat them as normal electrical wastes.

Page 4

Modular Matrix Switcher 32x32

Comm-Tec Srl 3 www.comm-tec.it

Table of Contents

1. Introduction ................................................................................................................. 5

1.1. About Modular Matrix Switcher 16x16 .............................................................. 5

1.2. Features ........................................................................................................... 5

1.2.1. Modular Matrix Switcher signal card (changeable cards) ....................... 6

1.3. Package List ..................................................................................................... 6

2. Panel Description ........................................................................................................ 7

2.1. Modular Matrix Switcher 16x16 ........................................................................ 7

2.1.1. Front Panel ............................................................................................. 7

2.1.2. Rear Panel.............................................................................................. 8

2.2. Changeable Cards ............................................................................................ 8

2.2.1. 4I-DV & 4O-DV ....................................................................................... 8

2.2.2. 4I-DS& 4O-DS ...................................................................................... 10

2.2.3. 4I-HD & 4O-HD ..................................................................................... 11

2.2.4. 4I-HS & 4O-HS ..................................................................................... 12

2.2.5. 4I-VG & 4O-VG ..................................................................................... 12

2.2.6. 4I-VA ..................................................................................................... 14

2.2.7. 4I-SD & 4O-SD ..................................................................................... 14

2.2.8. 4I-SS .................................................................................................... 15

2.2.9. 4I-TP & 4O-TP ...................................................................................... 15

2.2.10. 4I-UH & 4O-UH ................................................................................... 16

2.2.11. 4I-UF & 4O-UF ................................................................................... 17

2.2.12. 4I-BT & 4O-BT .................................................................................... 18

3. System Connection ................................................................................................... 19

3.1. Usage Precautions ......................................................................................... 19

3.2. Connection Diagram ....................................................................................... 19

3.3. Application ...................................................................................................... 19

4. Control Operations .................................................................................................... 20

4.1. Front Panel Button control .............................................................................. 20

4.2. IR Remote control ........................................................................................... 20

4.3. RS232 Control ................................................................................................ 21

4.3.1. Connection of RS232 Communication Port .......................................... 21

Page 5

Modular Matrix Switcher 32x32

Comm-Tec Srl 4 www.comm-tec.it

4.3.2. RS232 Communication Commands ..................................................... 22

4.4. TCP/IP Control (Optional) ............................................................................... 31

4.4.1. Control Modes ...................................................................................... 31

4.4.2. Control Modular Matrix Switcher 16x16 via TCP/IP communication

software .......................................................................................................... 32

4.4.3. TCP/IP Configuration ............................................................................ 33

5. Specification ............................................................................................................. 34

5.1. Main Unit ........................................................................................................ 34

5.2. Changeable Cards .......................................................................................... 34

5.2.1. 4I-DV & 4O-DV ..................................................................................... 34

5.2.2. 4I-DS & 4O-DS ..................................................................................... 35

5.2.3. 4I-HD & 4O-HD ..................................................................................... 35

5.2.4. 4I-HS & 4O-HS ..................................................................................... 36

5.2.5. 4I-VG & 4O-VG ..................................................................................... 36

5.2.6. 4I-VA ..................................................................................................... 37

5.2.7. 4I-SD & 4O-SD ..................................................................................... 37

5.2.8. 4I-SS .................................................................................................... 38

5.2.9. 4I-TP & 4O-TP ...................................................................................... 38

5.2.10. 4I-UH & 4O-UH ................................................................................... 38

5.2.11. 4I-UF & 4O-UF ................................................................................... 39

5.2.12. 4I-BT & 4O-BT .................................................................................... 40

6. Troubleshooting & Maintenance ............................................................................... 41

7. After-sales Service .................................................................................................... 43

Page 6

Modular Matrix Switcher 32x32

Comm-Tec Srl 5 www.comm-tec.it

1. Introduction

1.1. About Modular Matrix Switcher 16x16

Modular Matrix Switcher 16x16 is a high-performance video and audio modular matrix switcher supporting max 16 input signal sources and 16 output display synchronously. It supports different video signals with cross switching. Every video or audio signal is transmitted and switched independently to decrease signal attenuation. Modular Matrix Switcher 16x16 supports various changeable cards including HMDI, DVI, VGA, SDI and HDBaseT etc. Users can choose to insert different signal card for different application.

Modular Matrix Switcher 16x16 boasts power off memory and audio signal can be switched separately or jointly with video signal. It has 1 RS232 port and 1 optional TCP/IP port for convenient control from third-party.

With its flexible design, Modular Matrix Switcher 16x16 can be used for different project and tend to be an all-in-one solution. It is the combo solution for multimedia conference rooms, control rooms, broadcasting rooms, shopping center etc. It will handle all the audiovisual management, including the switching, driving, scaling etc.

1.2. Features

 Modular chassis with configurable I/O slots, ranging from 4x4 to 16x16.  Various I/O cards, includes HDMI, HDBaseT, SD/HD/3G-SDI, DVI and VGA cards

(Compatible with YUV, YC & CVBS.) to configure any matrix.

 Truly cross-point switching, any input to any output, regardless signal format.  Support HDMI1.4a, support 3D.  Integrated HDBaseT technology.  Controllable via button, RS232 & optional TCP/IP, also compatible with 3rd parties

control.

 HDCP compliant.  LCD display.

Page 7

Modular Matrix Switcher 32x32

Comm-Tec Srl 6 www.comm-tec.it

1.2.1. Modular Matrix Switcher signal card (changeable cards)

Modular Matrix Switcher 16x16 supports multiple signal cards as listed in the following charts:

Input Cards

Spec Models

Inputs

Signal Format

4I-HD 4 HDMI

4I-HS

HDMI& analog audio

4I-DV

DVI

4I-DS

DVI, HDMI, VGA, AV,

YPbPr

4I-VG

VGA

4I-VA 4 VGA& analog audio

4I-SD

4 inputs& LOOP

SDI

4I-SS

4 inputs& LOOP

SDI

4I-TP 4 HDMI TP, IR, RS232

4I-UH

HDMI& analog Audio

4I-UF 4 Optical Fiber

4I-BT 4 HDBT, RS232, Audio

Output Cards

Spec

Models

Outputs

Signal Format

4O-HD 4 HDMI

4O-HS

HDMI& analog audio

4O-DV 4 DVI

4O-DS

DVI, HDMI, VGA, AV,

YPbPr

4O-VG

4 VGA& Stereo

audio

VGA, analog audio 4O-SD

4 outputs& LOOP

SDI

4O-TP

HDMI TP, IR, RS232

4O-UH

HDMI& analog Audio

4O-UF 4 Optical Fiber

4O-BT

HDBT, RS232, Audio

1.3. Package List

 1 x Modular Matrix Switcher 16x16

 1 x Power Cord

 1 x IR remote (Not include battery)

 4 x Plastic cushions

 1 x RS232 cable

 1 x User manual

Notes: Confirm all the accessories are included, if not, please contact with the

dealers.

Page 8

Modular Matrix Switcher 32x32

Comm-Tec Srl 7 www.comm-tec.it

2. Panel Description

2.1. Modular Matrix Switcher 16x16

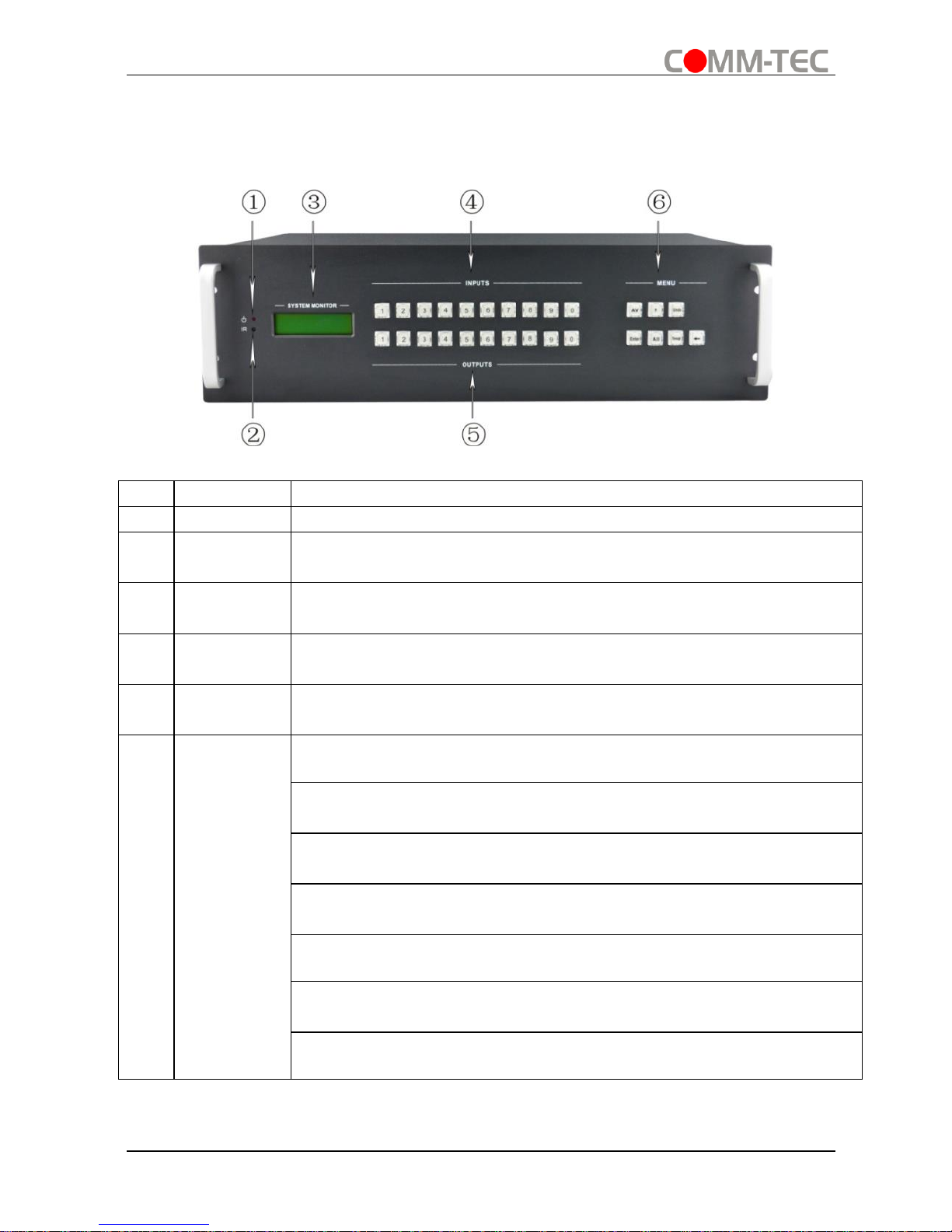

2.1.1. Front Panel

Figure 2- 1 Front Panel of Modular Matrix Switcher 16x16

No.

Name

Description

①

IR sensor, receive IR signal sent from IR remote

②

Power

indicator

Illuminate red once powered on

③

LCD

screen

Display real-time operation status

④

INPUTS

Back-lit buttons for input selection, ranges from 0~ 9, 16 selectable channels in total.

⑤

OUTPUTS

Back-lit buttons for output selection, ranges from 0 ~ 9, 16 selectable channels in total.

⑥

AV: transfer video and audio signal synchronously

‚: division button, to divide the output channels when switching to more than one channel.

UNDO: Undo button, to resume to the status before the command just performed.

ENTER: confirm switching operation. Operation will not be executed by the matrix without confirmation.

ALL: select all input/output channel

THROUGH: To transfer the signals directly to the corresponding

output channels.

: Backspace button, to backspace the last press.

Page 9

Modular Matrix Switcher 32x32

Comm-Tec Srl 8 www.comm-tec.it

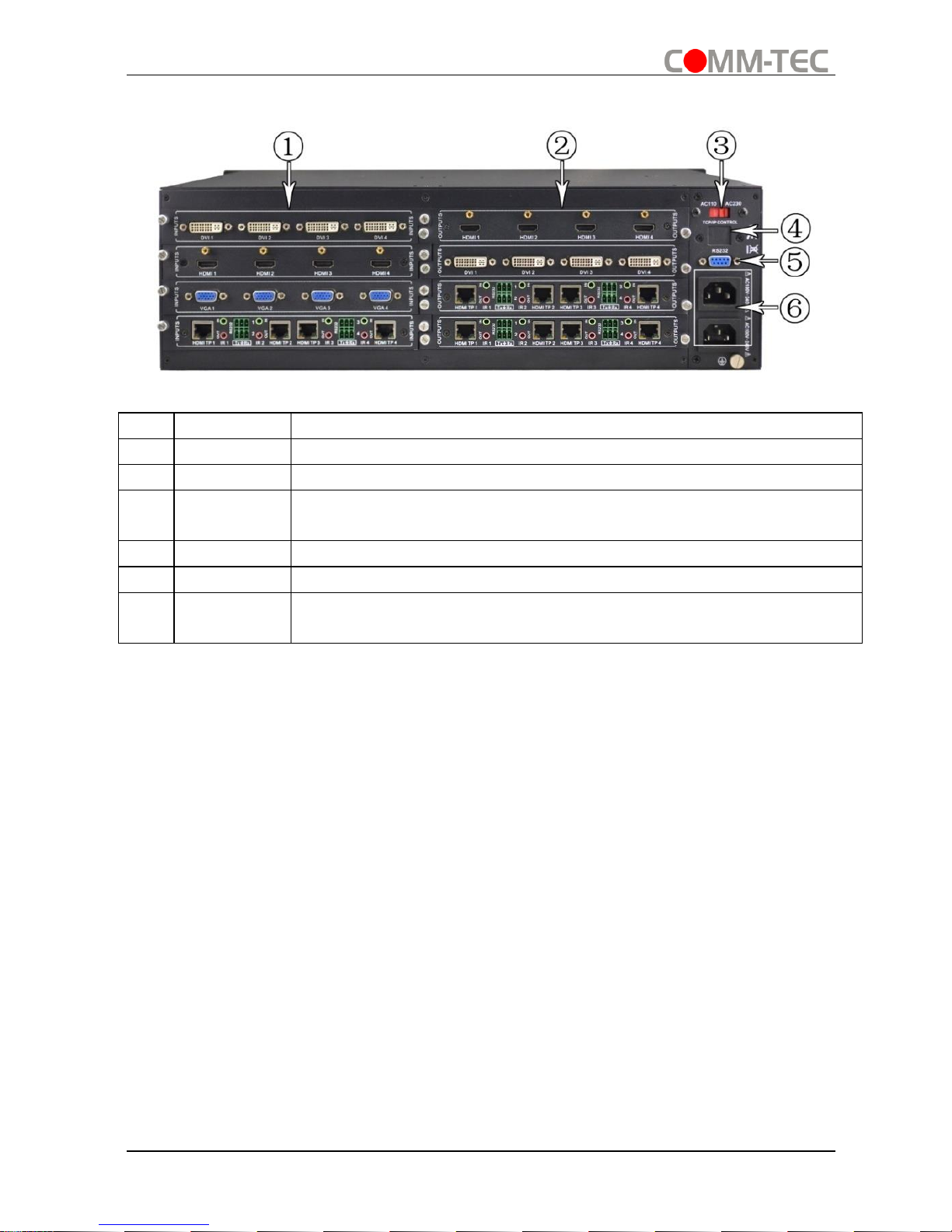

2.1.2. Rear Panel

Figure 2- 2 Rear Panel of Modular Matrix Switcher 16x16

No.

Name

Description

①

INPUTS

Input signal card slots, 4 in total

②

OUTPUTS

Output signal card slots, 4 in total

③

Power switch

Switch between AC110V and AC230V to access different power

④

TCP/IP

(Optional) Used for TCP/IP control port

⑤

RS232

Serial control port, connect with RS232 port of control device.

⑥

Power

ports

Connect with household alternating current power, including one redundant power.

Note: There are only 4 input and 4 output slots for Modular Matrix Switcher 16x16, which enables only 4 input cards and 4 output cards to be installed on Modular Matrix Switcher 16x16. The input/output cards can be changed based on your requests and supports hot plug and play.

2.2. Changeable Cards

Modular Matrix Switcher 16x16 supports expansion through various changeable input/ output cards of different signals including DVI, HDMI, VGA, twisted pair, SDI etc. Here is a brief introduction to the changeable cards.

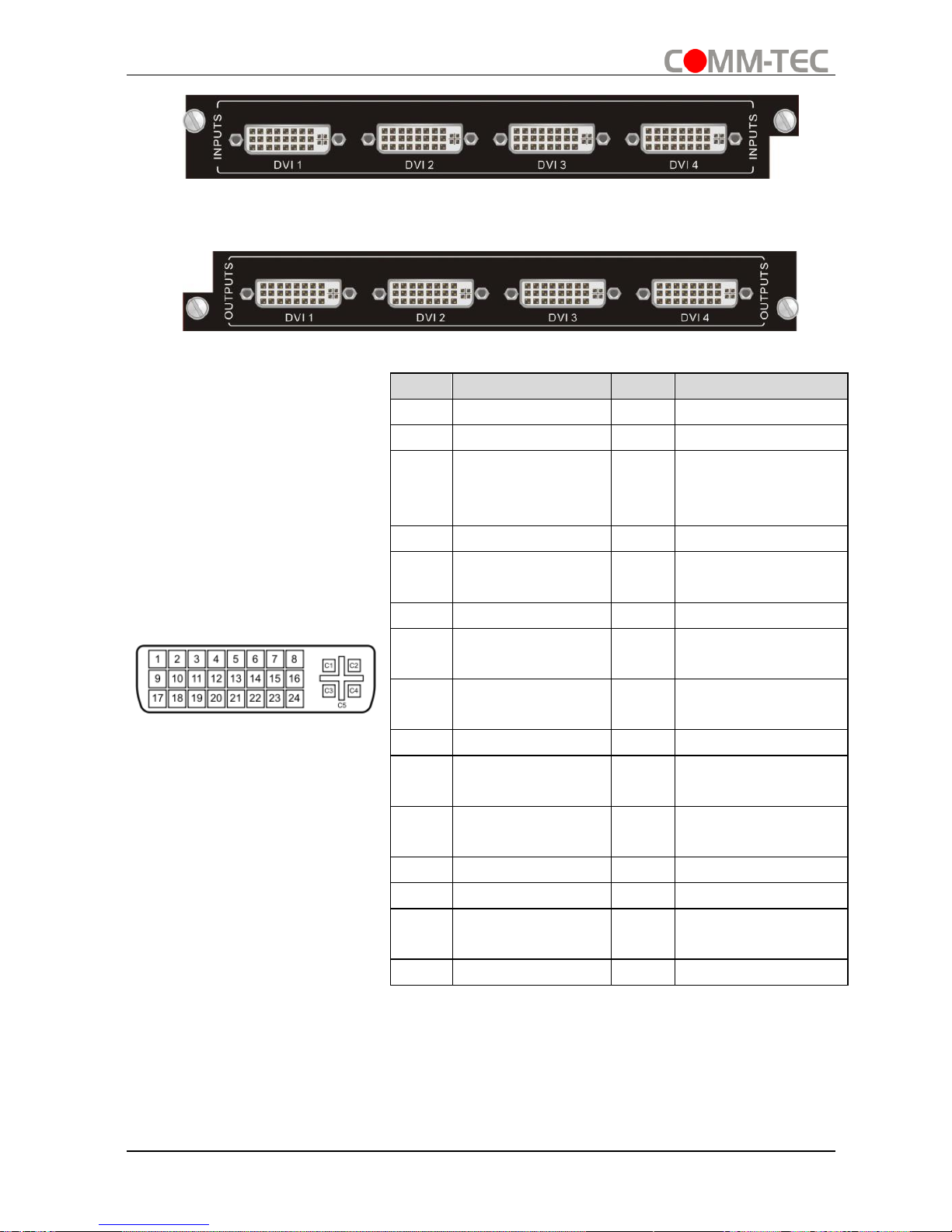

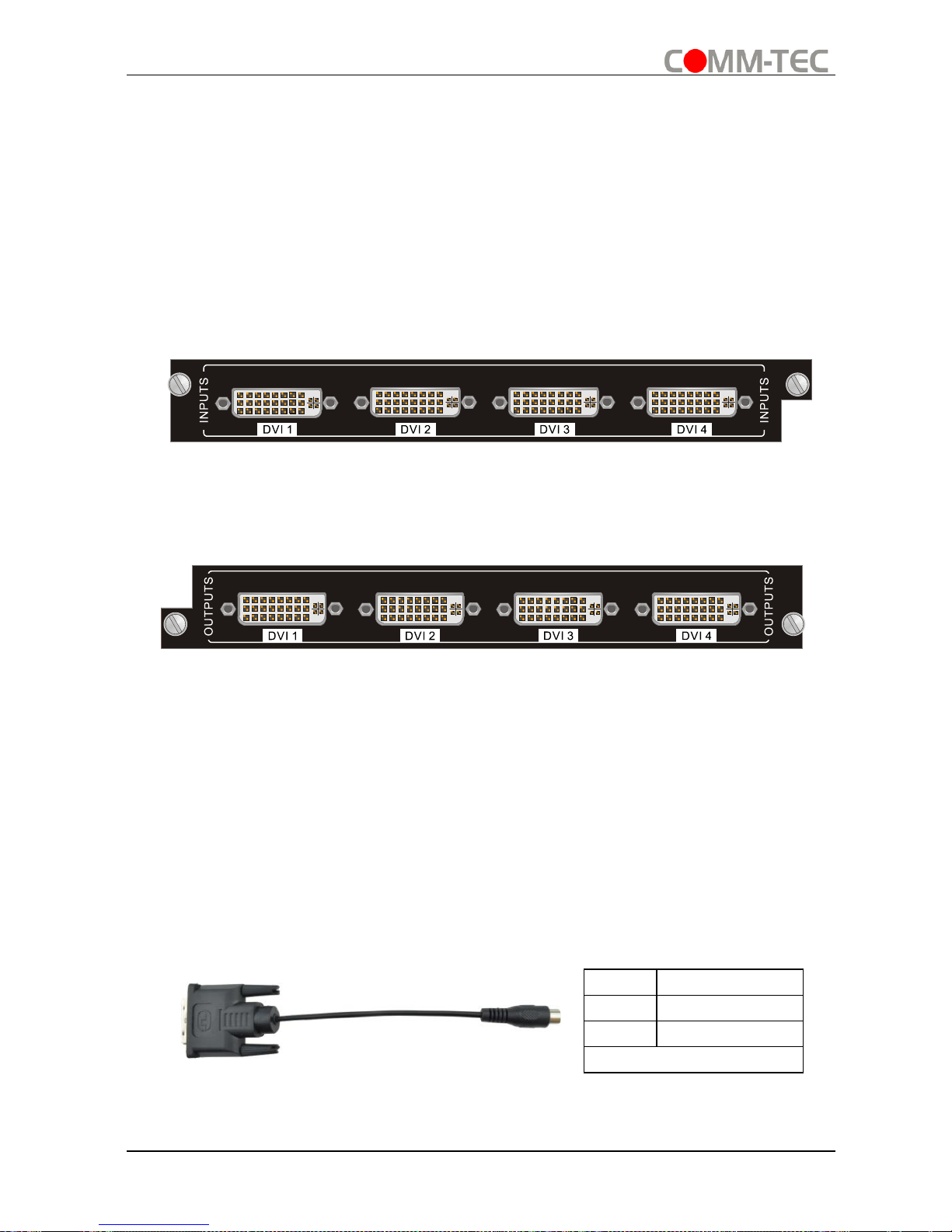

2.2.1. 4I-DV & 4O-DV

DVI signal card. (Please check the specification from 5.2.1) It is fully compatible with HDMI1.3 and HDCP, but not supporting analogy signal. It is embedded EDID management technology, supporting DDC. 4I-DV: input card, maximum four input signal. Input signal can pass to output device

through 4O-DV or other kinds of output cards.

Page 10

Modular Matrix Switcher 32x32

Comm-Tec Srl 9 www.comm-tec.it

4O-DV: output card, maximum four output signal, output signals from 4I-DV, or other

kinds of input cards.

Pin Layout of the DVI-I connector (Dual-Link). (Female)

Function

T.M.D.S.Data2-

T.M.D.S.Data3+

T.M.D.S.Data2+

+5V Power

T.M.D.S. Data 2/4 Shield

Ground (return for +5V, Hsync and Vsync)

T.M.D.S. Data 4-

Hot Plug Detect

T.M.D.S. Data 4+

T.M.D.S. Data 0-

DDC Clock

T.M.D.S. Data 0+

DDC Data

T.M.D.S. Data 0/5 Shield

Analog Vertical Sync

T.M.D.S.Data5-

T.M.D.S.Data1-

T.M.D.S.Data5+

T.M.D.S.Data1+

T.M.D.S. Clock Shield

T.M.D.S.Data1/3 Shield

T.M.D. S. Clock +

T.M.D.S.Data3-

T.M.D.S.Data3+

RED

Analog Green

Analog Blue

Horizontal Sync Analog

GND

Note: Pin C1~C5 are not used in 4I-DV & 4O-DV.

Page 11

Modular Matrix Switcher 32x32

Comm-Tec Srl 10 www.comm-tec.it

2.2.2. 4I-DS& 4O-DS

Seamless DVI signal card. (Please check the specification from 5.2.2) It is fully compatible with HDMI1.3& HDCP, and supports seamless transmission for

high-definition DVI, HDMI, VGA, AV, YPbPr signals. Signal format can be modified via RS232 commands.

It boasts embedded EDID management (only for HDMI/ DVI signal), supporting DDC. 4I-DS: seamless input card, maximum four input signal. It can automatically identify

the format of input signal. Input signal can pass to output device through 4O-DS, or other kinds of output cards.

4O-DS: seamless output card, maximum four output signal. Automatically recognize output signal (HDMI/ DVI), and output resolution is adjustable. Output signal can come from 4I-DS, or from other kinds of input cards. It supports off memory for resolution, signal format, HDCP compliant status.

Note:

1. When 4O-DS works with input cards except 4I-DS, to ensure reliable seamless output, adjust the input signals to any one of the following 5 resolutions: 1024x768, 1280x720, 1600x1200, 1920x1080, 1920x1200.

2. Before using 4O-DS, upgrade the front-board and backboard of Modular Matrix Switcher 16x16. Seek technical assistant from our technical supporters.

3. DVI interfaces on the signal card are same with the interfaces on 4I-DV& 4O-DV. Pin C1~C5 are used in 4I-DS & 4O-DS.

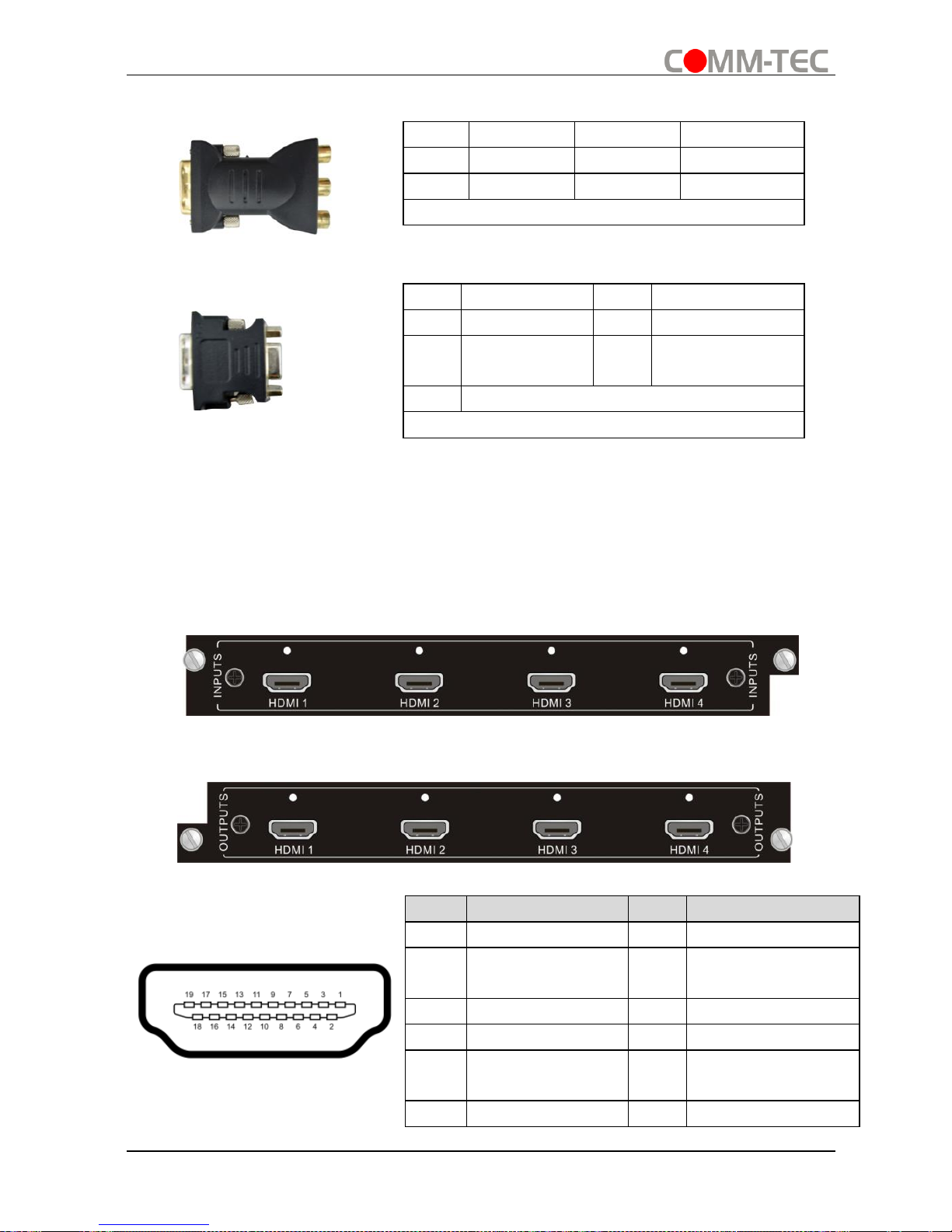

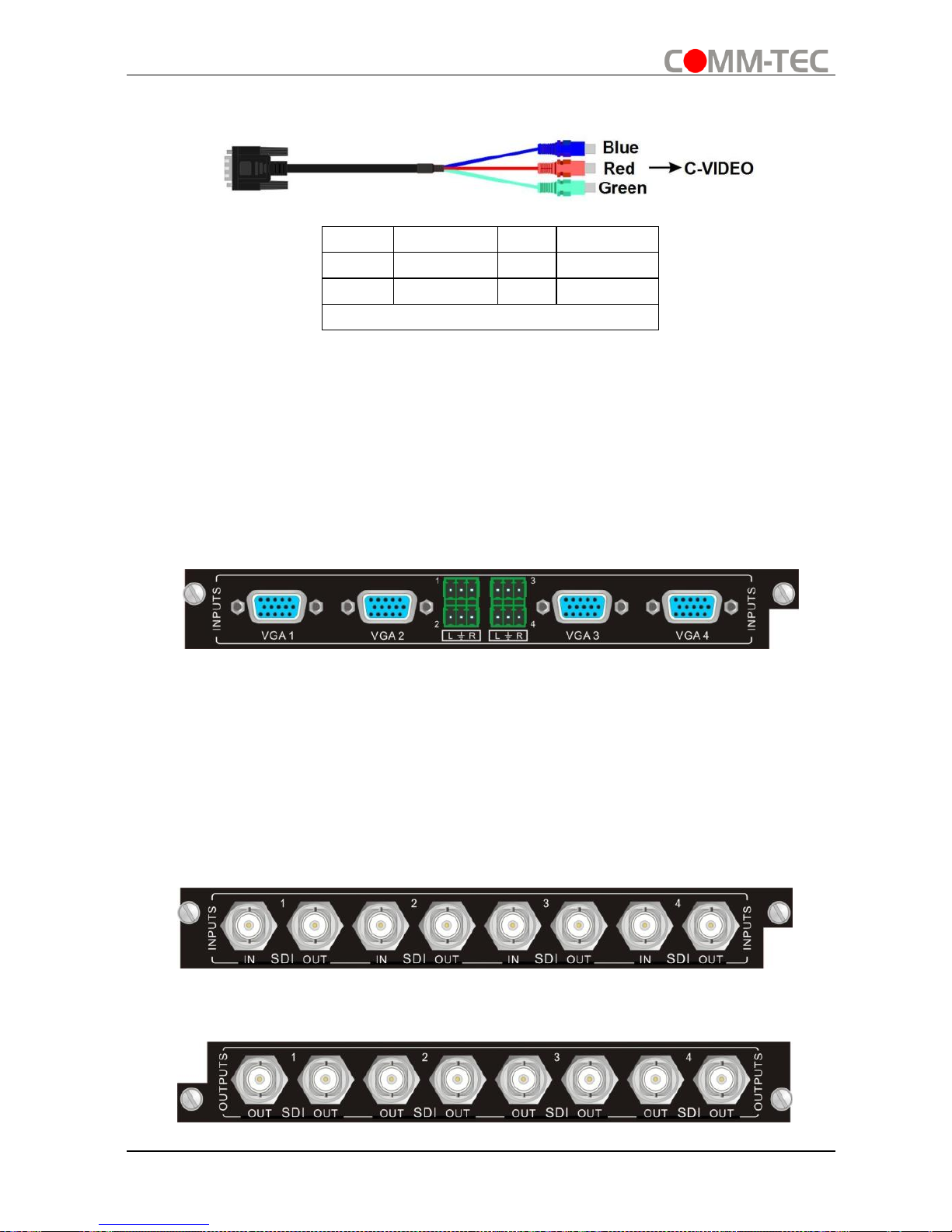

When connecting to VGA, YPbPr or C-VIDEO signal, insert converting cables according to specific pin definitions (see the figures below):

DVI- C-VIDEO:

Signal

Yellow

GND

Other pins are unused.

Page 12

Modular Matrix Switcher 32x32

Comm-Tec Srl 11 www.comm-tec.it

DVI- YPbPr:

Signal

RED

GREEN

BLUE

GND

Other pins are unused.

DVI- VGA (female):

Signal

RED

GND

GREEN

Horizontal Sync Analog

Vertical Sync Analog

Other pins are unused.

2.2.3. 4I-HD & 4O-HD

HDMI signal card. (Please check the specification from 5.2.3) It boasts embedded EDID management, and supports DDC. It’s also compliant with

DVI signal & HDCP. 4I-HD: input card, maximum four input signal. Input signal can pass to output device

through 4O-HD, or other kinds of output cards.

4O-HD: output card, maximum four output signal, output signals from 4I-HD, or other kinds of input cards.

Pin layout of the HDMI connectors (female).

No.

Signal

No.

Signal

TMDS Data 2+

SHELL

TMDS Data 2

Shield

Hot Plug Detect

TMDS Data 2-

+5V Power

TMDS Data 1+

Ground

TMDS Data 1

Shield

DDC Data

TMDS Data 1-

DDC Clock

Page 13

Modular Matrix Switcher 32x32

Comm-Tec Srl 12 www.comm-tec.it

TMDS Data 0+

No Connect

TMDS Data 0

Shield

CEC

TMDS Data 0-

TMDS Clock-

TMDS Clock+

TMDS Clock

Shield

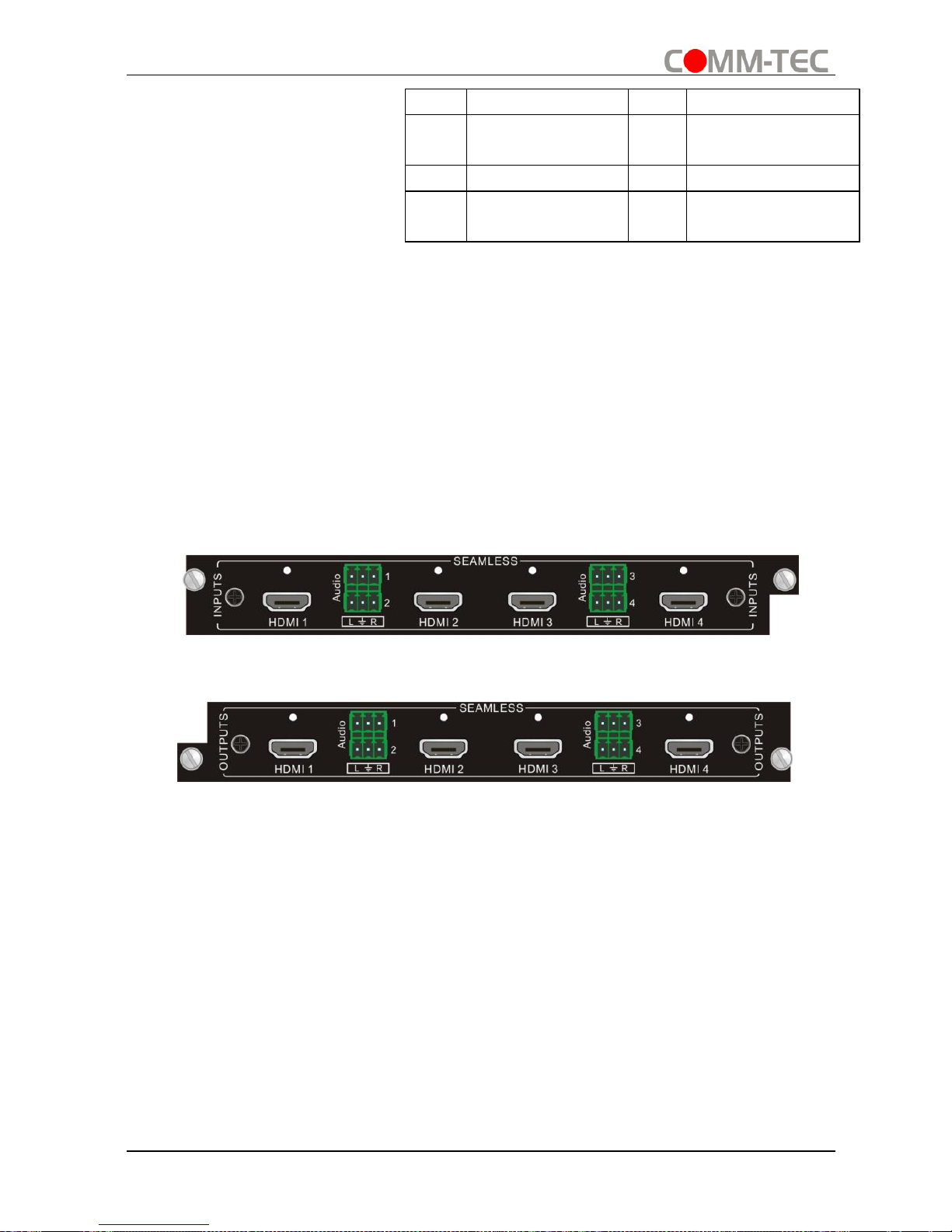

2.2.4. 4I-HS & 4O-HS

Seamless HDMI signal card with auxiliary audio port (Please check the specification from 5.2.4)

It boasts seamless switch that provides real-time audio& video switching; support HDMI1.3& HDCP1.2, compliant with DVI signal;

HDMI embeded audio and auxiliary stereo audio supports PCM format, audio source selectable via designed command (default: HDMI embeded audio);

Built in scaler handles various resolution, output resolution adjustable via command. 4I-HS: input card, maximum four input signal. Input signal can pass to output device

through 4O-HS, or other kinds of output cards.

4O-HS: output card, maximum four output signal, output signals from 4I-HS, or other kinds of input cards.

HDMI connectors of 4I-HS & 4O-HS are same with the 4I-HD & 4O-HD. Note: When 4O-HS works with input cards except 4I-HS, to ensure reliable seamless

output, adjust all the input signals to the same designed resolution: 1024x768, 1280x720, 1600x1200, 1920x1080, or 1920x1200.

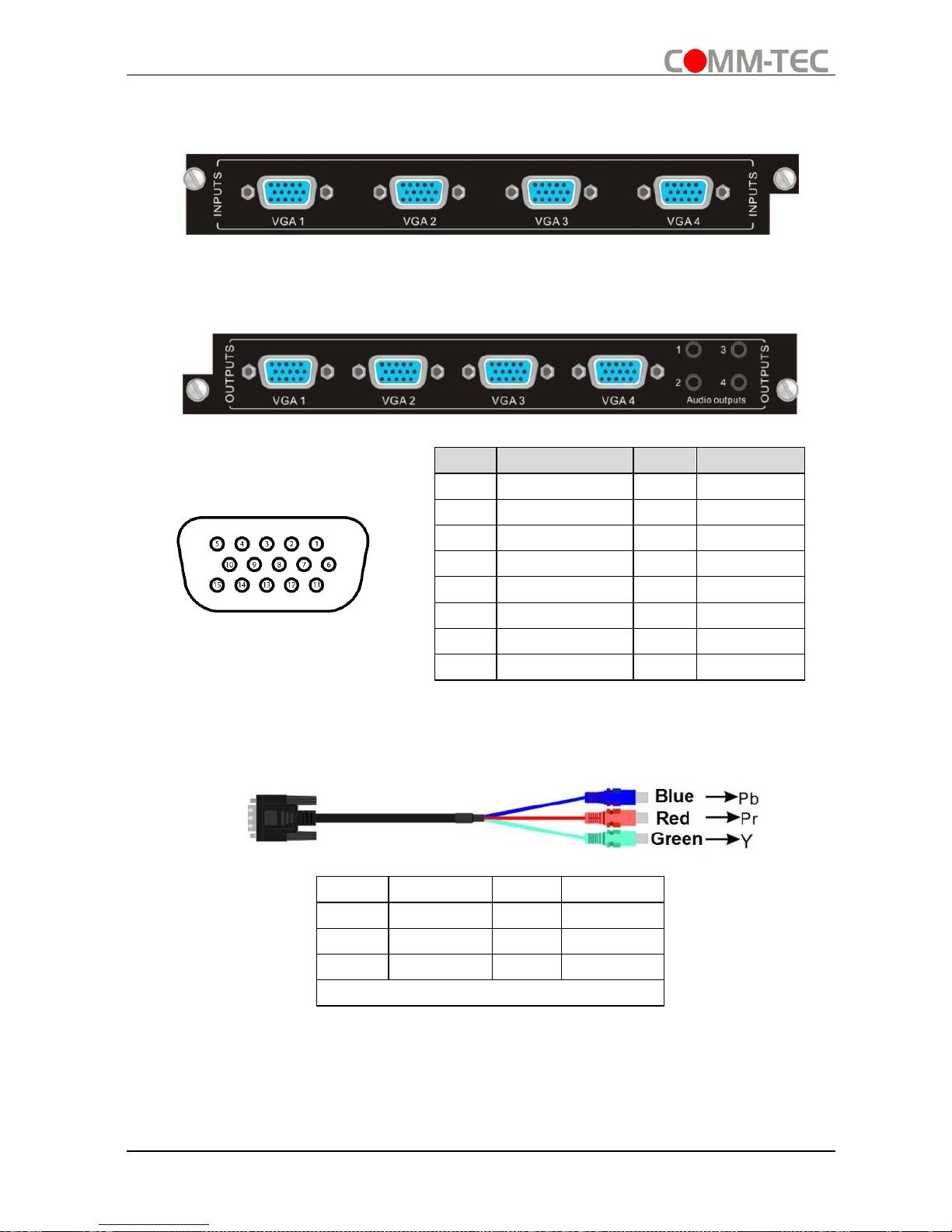

2.2.5. 4I-VG & 4O-VG

VGA signal card. (Please check the specification from 5.2.5) Scale all inputs to 1080p or 1920x1200 The bandwidth is up to 350MHz (-3dB); Input signal can be VGA (RGBHV), YPbPr, S-video, C-video or CVBS; Output card only supports VGA output 4I-VG: input card, maximum four input signal, support VGA (RGBHV), YPbPr, S-video,

Page 14

Modular Matrix Switcher 32x32

Comm-Tec Srl 13 www.comm-tec.it

C-video& CVBS. Input signal can pass to output device through any kinds of output cards.

4O-VG: output card, maximum four VGA output signal and 4 stereo audio outputs, output video signal from 4I-VG, or other kinds of input cards, and output audio signal from the audio of the input signal.

Pin layout of the VGA connectors (female):

Signal

RED

KEY/PWR

GREEN

GND

BLUE

ID0/RES

ID2/RES

ID1/SDA

GND

HSync

RED_RTN

VSync

GREEN_RTN

ID3/SCL

BLUE_RTN

When connecting to YPbPr or C-VIDEO signal, insert converting cables according to specific pin definitions (see the figures below):

VGA- YPbPr:

Signal

RED

GND

GREEN

GND

BLUE

GND

Other pins are not used.

Page 15

Modular Matrix Switcher 32x32

Comm-Tec Srl 14 www.comm-tec.it

VGA- C-VIDEO:

Signal

RED

GND

Other pins are not used.

2.2.6. 4I-VA

VGA signal card. (Please check the specification from 5.2.6) Scale all inputs to 1080p or 1920x1200; Input signal can be VGA (RGBHV), YPbPr, S-video, C-video or CVBS; 4 stereo audio inputs. 4I-VA: input card, maximum four VGA inputs and four stereo audio inputs. Input signal

can pass to output device through any kinds of output cards.

The VGA connector and source connection are same with the 4I-VG.

2.2.7. 4I-SD & 4O-SD

SDI signal card. (Please check the specification from 5.2.7) It is compatible with different SDI signal formats, including SD/HD/3G-SDI (adaptive) Every port has loop output for local monitoring. 4I-SD: input card, maximum four input signal. Input signal can pass to output device

through 4O-SD, or other kinds of output cards.

4O-SD: output card, maximum four output signal, output signals from 4I-SD, or other kinds of input cards.

Page 16

Modular Matrix Switcher 32x32

Comm-Tec Srl 15 www.comm-tec.it

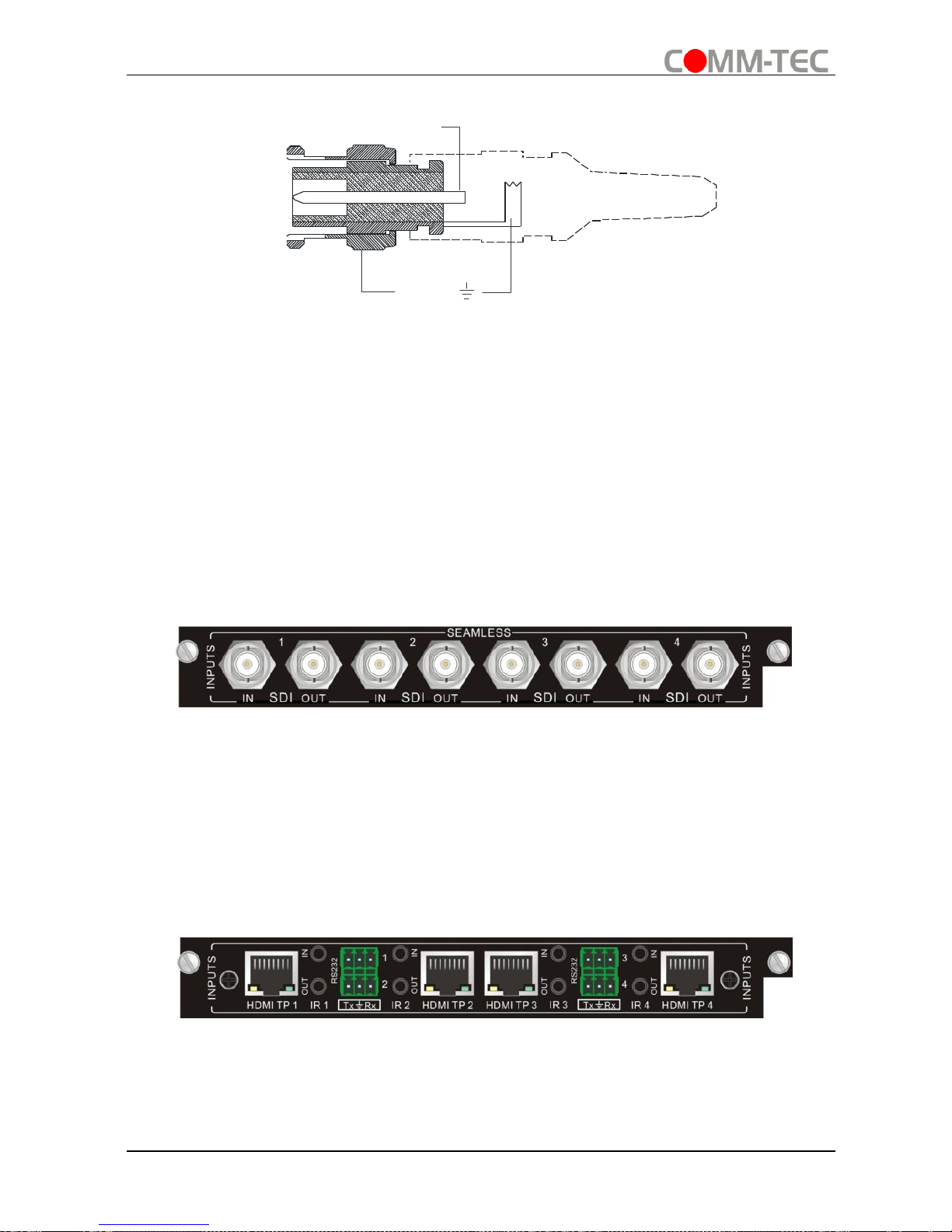

The BNC connector is shown as the figure below.

Sleeve

( )

Tip (+)

BNC Connector

2.2.8. 4I-SS

Seamless SDI signal card (Please check the specification from 5.2.8) It is compatible with different SDI signal formats, including SD/HD/3G-SDI (adaptive),

support seamless transmission for high-definition signal up to 1080p; Auto-detect input resolution and scale to 1080p@60Hz (default resolution, adjustable

via command); Every port has loop output for local monitoring. 4I-SS: input card, maximum four input signal. Input signal can pass to output device

through 4O-SD, or other kinds of output cards.

BNC connectors are same with 4I-SD & 4O-SD’s.

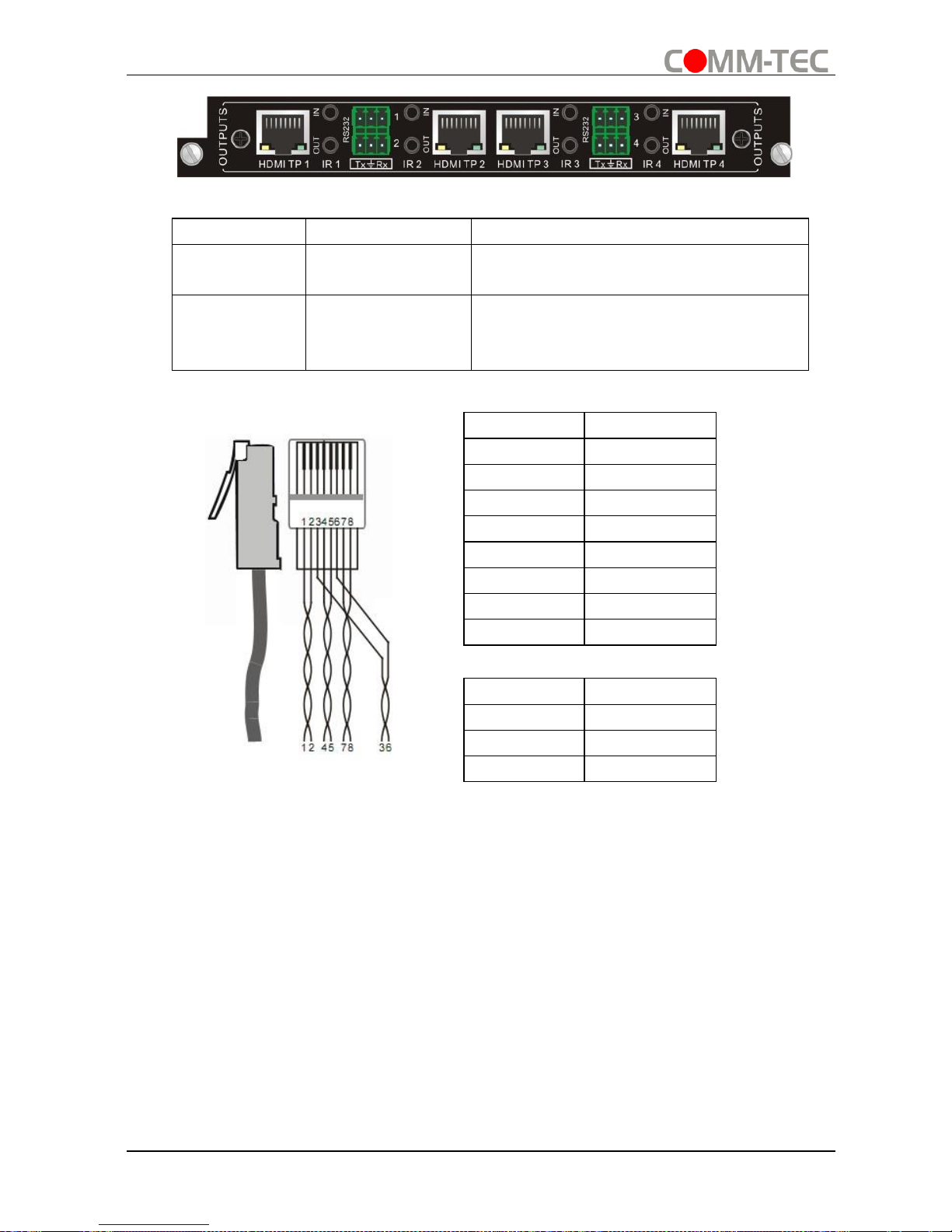

2.2.9. 4I-TP & 4O-TP

Twisted pair card (HDMI/DVI extender). (Please check the specification from 5.2.9) Support HDTV, compatible with HDMI1.3 and HDCP 4I-TP: input card, maximum input four HDMI TP signal. Input signal can pass to output

device through 4O-TP, or other kinds of output cards, need to work with HDBT Transmitters.

4O-TP: output card, maximum output four HDMI TP signal, output signals from 4I-TP, or other kinds of input cards, need to work with HDBT Receivers.

Page 17

Modular Matrix Switcher 32x32

Comm-Tec Srl 16 www.comm-tec.it

How the indicators work:

Color

Definition

Status

Yellow

Power Indicator

Blink once powered on; Turn off when there is no power.

Green

Link Indicator

Light when the port is connected with CAT5e/6; Turn off when there is no connection.

Pin layout of the HDBT connector:

Color

orange white

orange

green white

blue

blue white

green

brown white

brown

1st Group

4--5

2nd Group

1--2

3rd Group

3--6

4th Group

7--8

Notice: Cable connectors MUST be metal one, and the shielded layer of cable MUST be connected to the connector’s metal shell, to well share the grounding.

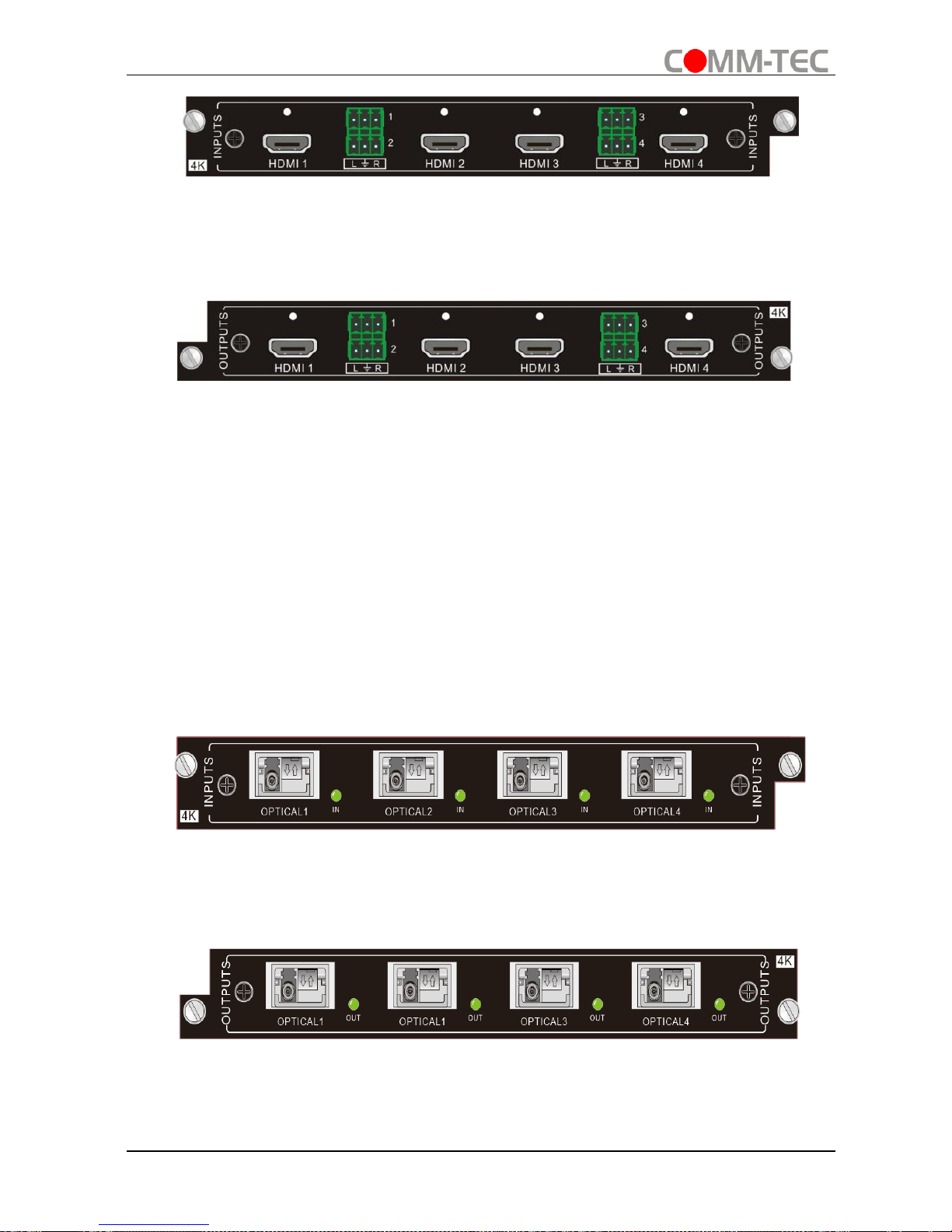

2.2.10. 4I-UH & 4O-UH

4K HDMI signal card. (Please check the specification from 5.2.10) Support HDMI 1.4a& HDCP 1.4 compliance; Compatible with DVI signal; Support

high-definition HDMI source up to 4kx2k, 1080p 3D compliance; Provide auxiliary audio port as supplement to HDMI embedded audio, audio source

selectable via command “AUDIO[X]I[Z].”, [X] stands for output port, [Z] stands for audio source (0 is for HDMI embedded audio, 1 is for analog audio)

It also boasts embedded EDID management. 4I-UH: input card, maximum four input signal. Input signal can pass to output device

through 4O-UH, or other kinds of output cards.

Page 18

Modular Matrix Switcher 32x32

Comm-Tec Srl 17 www.comm-tec.it

Note: When matching with output cards that do not support 4kx2k, adjust the input

resolution to 1080p to enable reliable output. 4O-UH: output card, maximum four output signal, output signals from 4I-UH, or other

kinds of input cards, HDCP compliant status settable via RS232 command

The HDMI connector is same with 4I-HD& 4O-HD’s.

2.2.11. 4I-UF & 4O-UF

4K optical signal card. (Please check the specification from 5.2.11) Work with single-mode/ multi-mode module to realize long-distance optical fiber

transmission, support multi-mode transmission up to 300m and single mode transmission up to 1km.

High bandwidth: 10.2Gbps; Compliant with HDMI 1.4, capable to transmit 4K×2K& 1080P 3D (max) signals;

4I-UF: input card with indicators, maximum four input signal, corresponding indicator illuminates green when there is input signal. Input signal can pass to output device through 4O-UF, or pass through other kinds of output cards.

4O-UF: output card with indicators, maximum four output signal, output signals from 4I-UF, or other kinds of input cards; corresponding indicator illuminates green when there is output signal.

Note:

1. Use the 4I-UF/ 4O-UF with optical fiber transmitter/ receiver.

Page 19

Modular Matrix Switcher 32x32

Comm-Tec Srl 18 www.comm-tec.it

2. Multi-mode transmission may include the following cases: Single-mode optical fiber module& Multi-mode optical fiber cable Multi-mode optical fiber module& Multi-mode optical fiber cable

3. Before using 4I-UF & 4O-UF, upgrade the front-board and backboard of Modular Matrix Switcher 16x16. Seek technical assistant from our technical supporters.

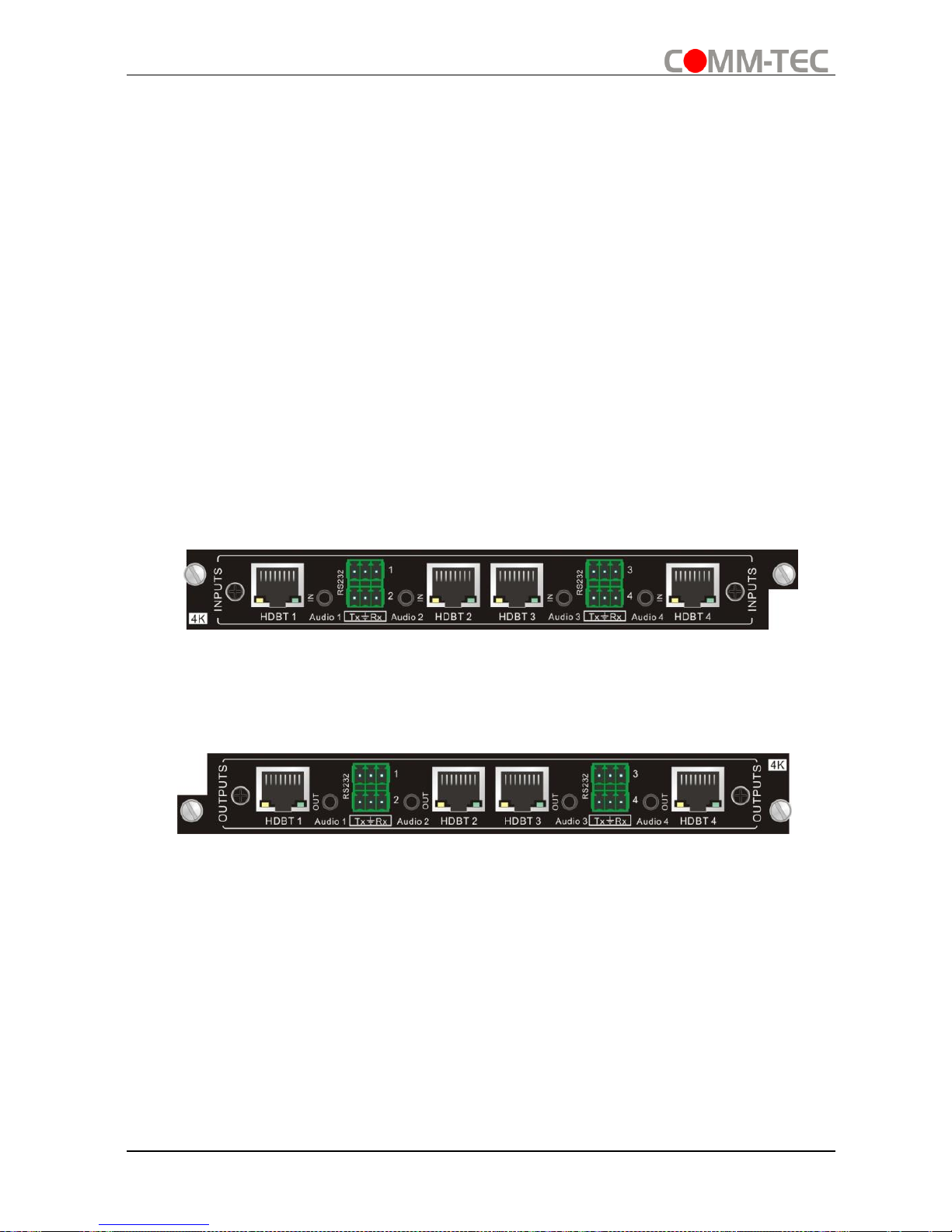

2.2.12. 4I-BT & 4O-BT

4K Twisted pair card (Please check the specification from 5.2.12) Support HDTV, compatible with HDBT 1.0, HDMI1.4a& HDCP1.4; Wide resolution

range from 480p~ 4kx2k, 1080p 3D compliant; Extend HDBT signal up to 70m at 1080p or 40m at 4k; Bi-directional RS232 transmission on single cable; Audio source selectable via corresponding command; Auxiliary audio ports support stereo signal.

It also boasts embedded EDID management. 4I-BT: input card, maximum input four HDBT signal. Input signal can pass to output

device through 4O-BT, or other kinds of output cards, need to work with HDBT transmitters.

Note: When matching with output cards that do not support 4kx2k, adjust the input resolution to 1080p to enable reliable output.

4O-BT: output card, maximum output four HDBT signal, output signals from 4I-BT, or other kinds of input cards, need to work with HDBT receivers.

The indicators and pin layout is the same with 4I-TP & 4O-TP’s. Refer to 2.2.9 4I-TP & 4O-TP for detailed information.

Page 20

Modular Matrix Switcher 32x32

Comm-Tec Srl 19 www.comm-tec.it

3. System Connection

3.1. Usage Precautions

1) System should be installed in a clean environment and has a prop temperature

and humidity.

2) All of the power switches, plugs, sockets and power cords should be insulated and

safe.

3) All devices should be connected before power on.

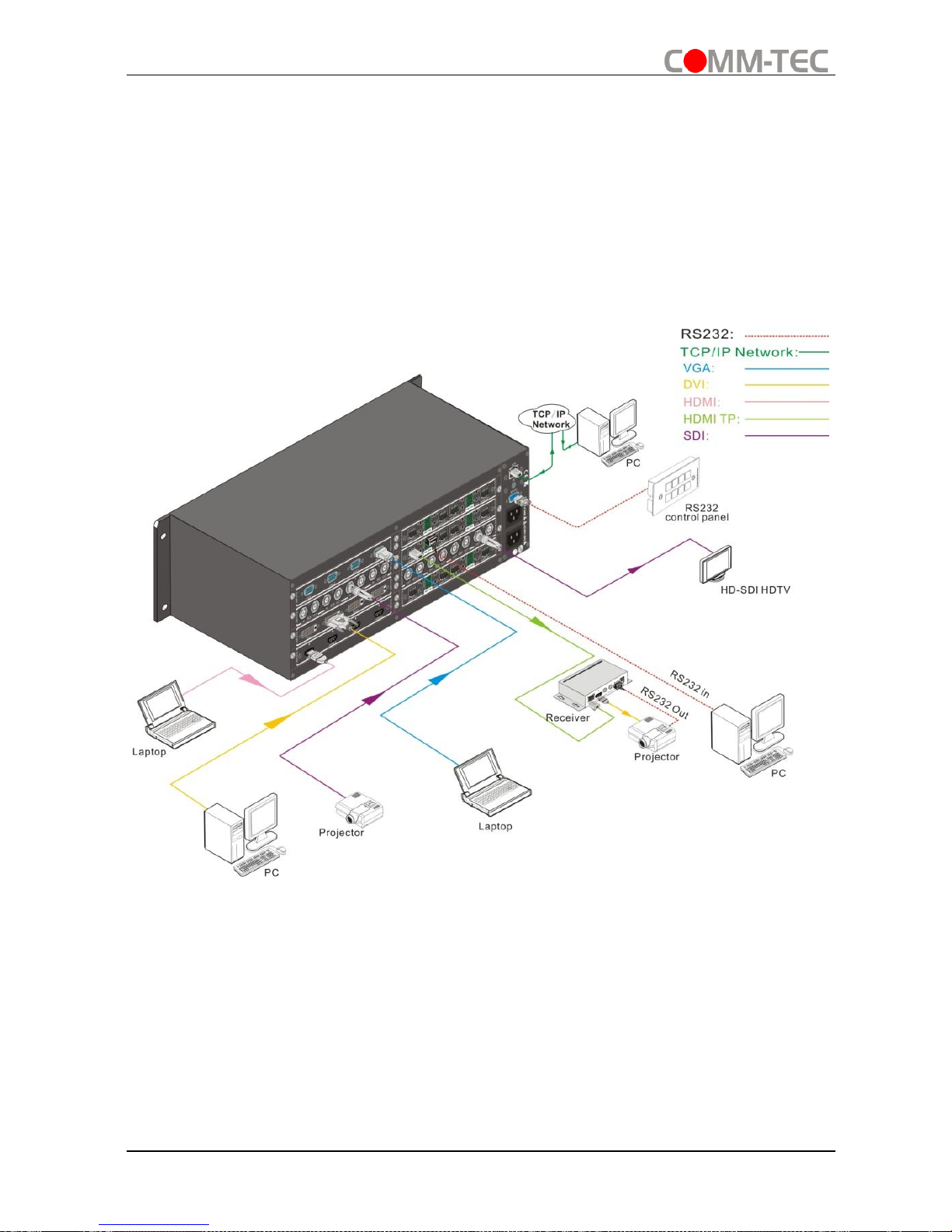

3.2. Connection Diagram

Figure 3- 1 System Diagram

Note: All the input/output signal cards don’t support hot-plug while input& output ports

on the cards support hot-plug.

3.3. Application

Modular Matrix Switcher series has a good application in various occasions, such as radio & television, multi-media meeting room, big screen displaying, television education and command & control center etc.

Page 21

Modular Matrix Switcher 32x32

Comm-Tec Srl 20 www.comm-tec.it

4. Control Operations

4.1. Front Panel Button control

Users can control Modular Matrix Switcher 16x16 rapidly and directly with its front panel buttons. To switch AV signal, please operate the buttons under the following format:

Format: “Input Channel” + “AV” +“Output Channel”+“Enter”

Note:

1) “Input Channel”: Fill with the number of input channel to be controlled,

2) “Output Channel”: Fill with the number of output channels to be controlled. Press

“All” to select all the outputs.

3) Use “,” button to separate multiple I/O channels, and press “ENTER” button to

confirm the operation.

4) The input/output channels on the rear panel are counting from left to right, top to

bottom.

5) The input delay time between two numbers of every input& output channel must be

less than 5 seconds; otherwise the operation will be cancelled.

Example:

1. To transfer input 1 to output 11, press input “1”, output “1” “1” and “Enter”.

2. To transfer signals from input 1 to all output channels, press buttons in this order:

“1”, “All”.

Other Functional Buttons:

Buttons

Description

Operation

UNDO

return to the previous status

Status 1: Input 6 -> output 6 Press input “6” + “AV”+ output 4 to change

the connection. Press “Undo” to return to Status 1.



Backspace the last operation

If you press buttons “1”, “AV”, “2”, “” in order, then “2” will be canceled.

THROUGH

Get straight I/O connection, e.g. input 1-> output 1, input 2-> output

Format: “Input Channel”+”Through” If you press buttons “ALL”, “THROUGH” in

order, then the result will be like input 1 output 1, input 2output 2, input 3output 3 … input 16output 16.

4.2. IR Remote control

With the IR remote, Modular Matrix Switcher 16x16 could be controlled remotely. As

Page 22

Modular Matrix Switcher 32x32

Comm-Tec Srl 21 www.comm-tec.it

the function buttons on the IR remote are the same with the ones on the front panel, the IR remote shares the same operations and commands with the control panel. Press the buttons under below format:

“Input Channel” + “Switch Mode” +“Output Channel”

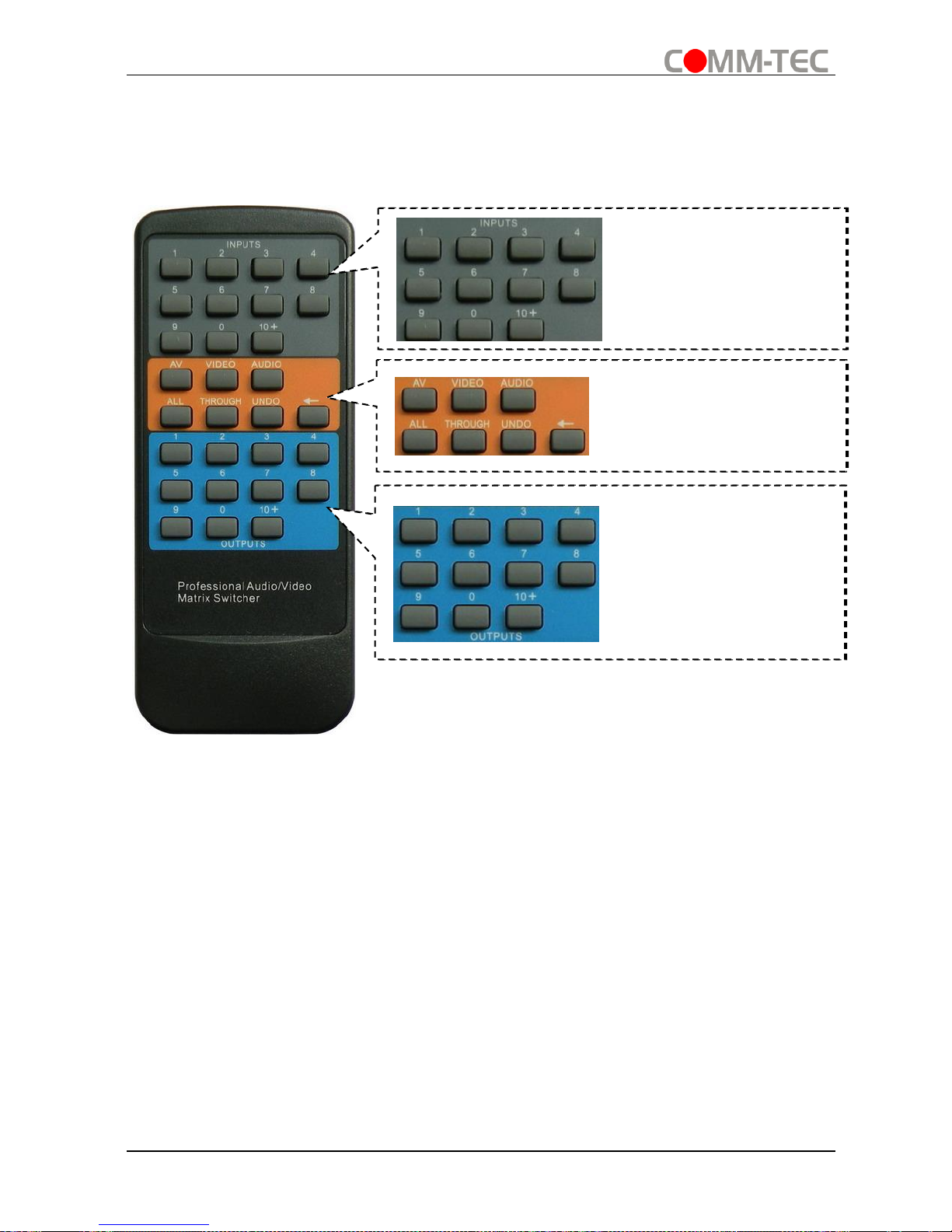

Figure 4- 1 Panel of the IR Remote

4.3. RS232 Control

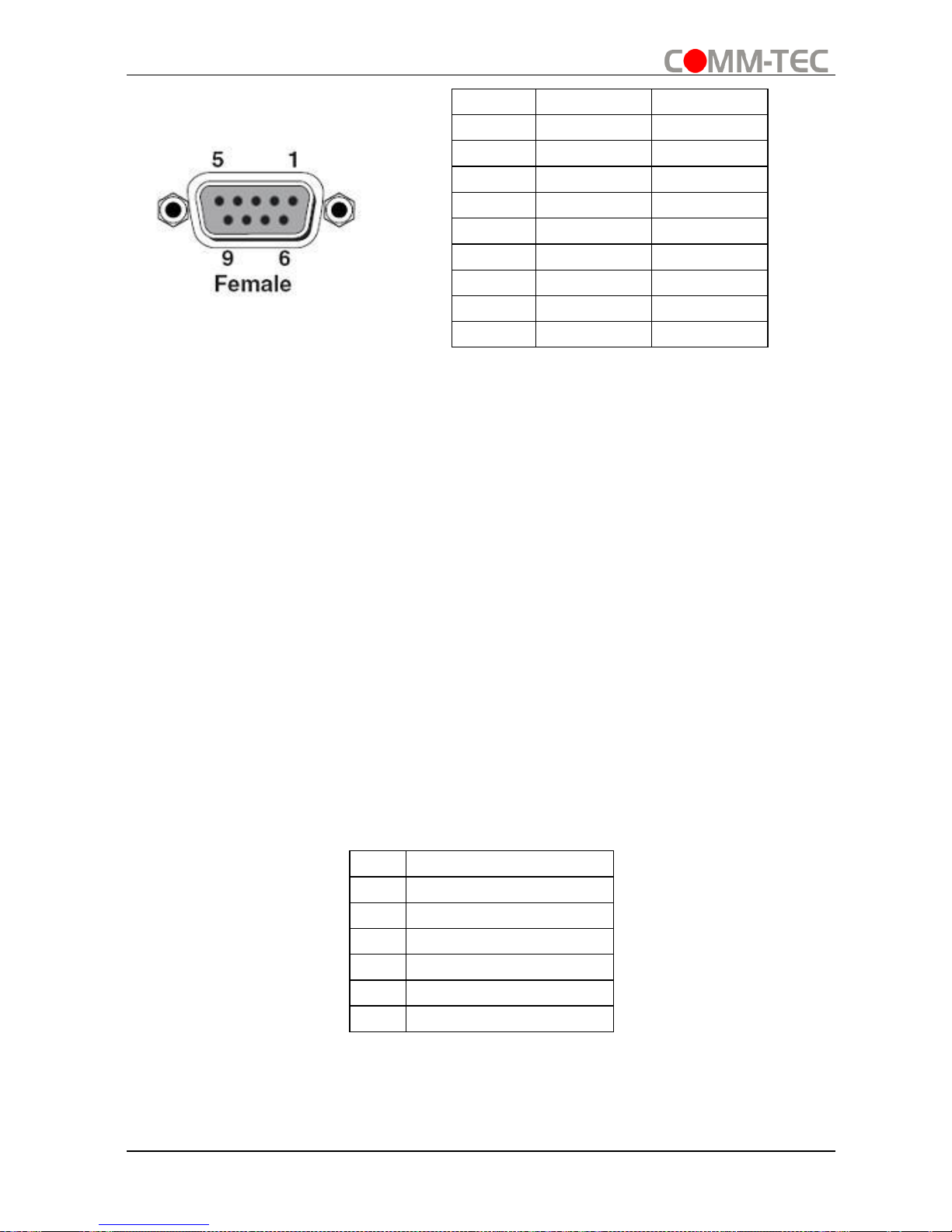

4.3.1. Connection of RS232 Communication Port

Except the front control panel and IR remote, Modular Matrix Switcher 16x16 can be controlled by far-end control system or through the Ethernet control via the RS-232 communication port. This RS-232 communication port is a female 9- D connector. The definition of its pin layout is shown in the table below.

Input channel buttons, including 1~10+

Menu buttons, including switching buttons and function buttons

Output channel buttons, including 1~10+

Input channel buttons, including 1~10+

Menu buttons, buttons VIDEO and AUDIO are not available.

Output channel buttons, including 1~10+

Page 23

Modular Matrix Switcher 32x32

Comm-Tec Srl 22 www.comm-tec.it

No.

Function

N/u

Unused

Transmit

Receive

N/u

Unused

Gnd

Ground

N/u

Unused

N/u

Unused

N/u

Unused

N/u

Unused

When Modular Matrix Switcher 16x16 connects to the RS232 port of a computer with control software, users can control it by that computer. To control the switcher, users need to use RS232 control software.

4.3.2. RS232 Communication Commands

With this command system, users are able to control and operate the Modular Matrix Switcher 16x16 with RS232 software remotely.

Note:

1. Please disconnect all the twisted pairs before sending command

EDIDUpgrade[X].

2. In the commands, “[”and “]” are symbols for easy reading and do not need to be

typed in actual operation.

3. Please remember to end the commands with the ending symbols “.” or “;”.

4. Type the command carefully, it is case-sensitive.

5. Commands pertaining to EDID only avails for signal cards that support EDID

management.

6. Modular Matrix Switcher 16x16 boasts 6 in-built EDID data, the chart below

illustrates the detailed information:

No.

Detailed Information

1080p 2D 5.1CH

1080p 2D 2.0CH

720p 2D 5.1CH

720p 2D 2.0CH

4kx2k 2D 5.1CH

4kx2k 2D 2.0CH

Update in-built EDID data by sending command UpgradeIntEDID[x]..

Page 24

Modular Matrix Switcher 32x32

Comm-Tec Srl 23 www.comm-tec.it

Communication protocol: Baud rate: 9600; Data bit: 8; Stop bit: 1; Parity bit: none.

Command

Description

Feedback

/*Type;

Inquire the models information.

MODULAR1616

/%Lock;

Lock front panel buttons.

System Locked!

/%Unlock;

Unlock front panel buttons.

System Unlock!

/^Version;

Inquire the firmware version.

Vx.x.x

/:MessageOff;

Turn off the feedback command from

the com port. It will only show “switcher

OK”.

Closed The Message Return.

/:MessageOn;

Turn on the feedback command from the com port.

Enabled The Message Return.

Undo.

Cancel the previous operation.

Undo

Demo.

Switch to the “demo” mode, 1->1, 2->2, 3->3 … and so on.

Demo Mode AV: 01->001 … …

[x]All.

Transfer signals from the input channel [x] to all output channels

01 To All

All#.

Transfer all input signals to the corresponding output channels respectively.

All Through.

All$.

Switch off all the output channels.

All Closed.

[x]#.

Transfer signals from the input channel [x] to the output channel [x].

01 Through.

[x]$.

Switch off the output channel [x].

AV: 01 Closed.

All@.

Switch on all the output.

All Open.

[x]@.

Switch on output [x].

01 Open.

[x1]V[x2].

Transfer the video signals from input [x1] to output [x2].

V: 01->001

[x1]B[x2].

Transfer audio& video signal from input [x1] to output [x2].

AV: 01->001

Status[x].

Inquire the input channel to the output channel [x].

V: 01->001 A: 01->001

Status.

Inquire the input channel to the output

channels one by one.

V: 01->001 A: 01->001 … …

Save[Y].

Save the present operation to the preset command [Y]. [Y] ranges from 0 to 9.

Save To F8

Page 25

Modular Matrix Switcher 32x32

Comm-Tec Srl 24 www.comm-tec.it

Recall[Y].

Recall the preset command [Y].

Recall From F8 V: 01->001 A: 01->001 … …

Clear[Y].

Clear the preset command [Y].

Clear F8

PWON.

Work normally.

PWON

PWOFF.

Enter in standby mode.

PWOFF

HDCPON.

Turn on the HDCP output.

HDCPON

HDCPOFF.

Turn off the HDCP output.

HDCPOFF

/V00.

Inquire the version of backboard software.

Vx.x.x

UpgradeIntEDID[x].

Upgrade built-in EDID data. Supports 6 types of EDID data (see Note 6). When the switcher gets the command, it will show a message to send EDID file (.bin file).

EDIDUpgrade[x].

Upgrade EDID data of input ports When the switcher gets the command,

it will show a message to send EDID file (.bin file). Operations will be canceled after 10 seconds.

EDID/[x]/[y].

Set the EDID data of input port [x] to built-in EDID data of type [y]. [y]= 1~6.

EDIDG[x].

Get EDID data from output [x] and display the data on serial port control software.

EDIDMInit.

Reset factory default EDID for every input channel.

EDIDMInit

EDIDM[X]B[Y].

Manually EDID switching. Enable input [Y] to learn the EDID data of output[X]. If there is problem learning the EDID data, it will automatically set the default EDID data for input [Y].

EDIDM2B1

USER/[Y]/[X]:*****;

Custom command for signal cards, [Y]=I/O; [X]= port number; *****: User-definable command, e.g. 0623%

Page 26

Modular Matrix Switcher 32x32

Comm-Tec Srl 25 www.comm-tec.it

0911%.

Restore factory default. All I/O connection will be restored to straight through: 1->1, 2->2,…; saved operation status will remain the same. 4I-HS

USER/I/[x]:02xx%;

Set the brightness of input [x] to xx, xx=00~99

02xx%

USER/I/[x]:03xx%;

Set the contrast of input [x] to xx, xx=00~99

03xx%

USER/I/[x]:04xx%;

Set the saturation of input [x] to xx, xx=00~99

04xx%

USER/I/[x]:05xx%;

Set the sharpness of input [x] to xx, xx=00~99

05xx% USER/I/[x]:0607%;

Set picture’s color temperature

0607%

USER/I/[x]:0608%;

Configure image scale

0608%

USER/I/[x]:0614%;

Configure picture mode

0614%

USER/I/[x]:0617%;

Restore input [x] to factory default.

0617%

USER/I/[x]:0619%;

Set the resolution of input [x] to 1360x768, HD

0619%

USER/I/[x]:0626%;

Set the resolution of input [x] to 1024x768, XGA

0626%

USER/I/[x]:0627%;

Set the resolution of input [x] to 1280x720, 720P

0627%

USER/I/[x]:0628%;

Set the resolution of input [x] to 1280x800, WXGA

0628%

USER/I/[x]:0629%;

Set the resolution of input [x] to 1920x1080, 1080P

0629%

USER/I/[x]:0620%;

Set the resolution of input [x] to 1920x1200, WUXGA

0620%

USER/I/[x]:0621%;

Set the resolution of input [x] to 1600x1200, UXGA

0621% USER/I/[x]:0698%;

Software update

0698%

USER/I/[x]:0686%;

Set the output signal of input [x] to HDMI

0686%

USER/I/[x]:0711%;

Select HDMI embeded audio as audio source

0711% USER/I/[x]:0712%;

Select analog audio as audio source

0712%

4O-HS

USER/O/[x]:0804%;

Set the resolution of output [x] to 1280x720P @60Hz

Resolution Out03 1280x720P

Page 27

Modular Matrix Switcher 32x32

Comm-Tec Srl 26 www.comm-tec.it

USER/O/[x]:0813%;

Set the resolution of output [x] to 1280x1080P @60Hz

Resolution Out03 1920x1080P

USER/O/[x]:0824%;

Set the resolution of output [x] to 1024x768 @60Hz

Resolution Out03 1024x768

USER/O/[x]:0826%;

Set the resolution of output [x] to 1280x1024 @60Hz

Resolution Out03 1280x1024

USER/O/[x]:0837%;

Set the resolution of output [x] to 1920x1200 @60Hz

Resolution Out03 1920x1200

USER/O/[x]:0617%;

Restore output [x] to factory default.

0617%

GetResolution[x].

Capture output resolution of output [x]

USER/O/[x]:0110%;

Enable analog audio output

0110%

USER/O/[x]:0111%;

Disable analog audio output

0111%

4I-VA

USER/I/[x]:0648%;

Switch on audio of input [x]

0648%

USER/I/[x]:0649%;

Switch off audio of input [x]

0649%

USER/I/[x]:0684%;

Set the color space to YCBCR

0684%

USER/I/[x]:0685%;

Set the color space to RGB

0685%

USER/I/[x]:0686%;

Set the input signal to HDMI

0686%

USER/I/[x]:0687%;

Set the input signal to DVI

0687%

USER/I/[x]:0622%;

Set the signal of input channel [x] to VGA.

0622%

USER/I/[x]:0623%;

Set the signal of input channel [x] to YCBCR.

0623%

USER/I/[x]:0624%;

Set the signal of input channel [x] to SVIDEO.

0624%

USER/I/[x]:0625%;

Set the signal of input channel [x] to CVIDEO.

0625%

USER/I/[x]:0626%;

Set the resolution of input [x] to 1024x768@60Hz.

0626%

USER/I/[x]:0627%;

Set the resolution of input [x] to 1280X720@60Hz.

0627%

USER/I/[x]:0628%;

Set the resolution of input [x] to 1280X800@60Hz.

0628%

USER/I/[x]:0619%;

Set the resolution of input [x] to 1360X768@60Hz.

0619%

USER/I/[x]:0621%;

Set the resolution of input [x] to 1600X1200@60Hz.

0621%

USER/I/[x]:0629%;

Set the resolution of input [x] to 1920X1080@60Hz.

0629%

Page 28

Modular Matrix Switcher 32x32

Comm-Tec Srl 27 www.comm-tec.it

USER/I/[x]:0620%;

Set the resolution of input [x] to 1920X1200@60Hz.

0620%

USER/I/[x]:0617%;

Restore input [x] to factory default.

0617%

USER/I/[x]:0606%;

Auto-adjust VGA signal

0606%

USER/I/[x]:0698%;

Update software

0698%

4I-VG

USER/I/[x]:0622%;

Set the signal of input channel [x] to VGA.

0622%

USER/I/[x]:0623%;

Set the signal of input channel [x] to YCBCR.

0623%

USER/I/[x]:0624%;

Set the signal of input channel [x] to SVIDEO.

0624%

USER/I/[x]:0625%;

Set the signal of input channel [x] to CVIDEO.

0625%

USER/I/[x]:0626%;

Set the resolution of input [x] to 1024x768@60Hz.

0626%

USER/I/[x]:0627%;

Set the resolution of input [x] to 1280X720@60Hz.

0627%

USER/I/[x]:0628%;

Set the resolution of input [x] to 1280X800@60Hz.

0628%

USER/I/[x]:0629%;

Set the resolution of input [x] to 1920X1080@60Hz.

0629%

4I-SS

USER/I/[x]:02xx%;

Set the brightness of input [x] to xx, xx=00~99

02xx%

USER/I/[x]:03xx%;

Set the contrast of input [x] to xx, xx=00~99

03xx%

USER/I/[x]:04xx%;

Set the saturation of input [x] to xx, xx=00~99

04xx%

USER/I/[x]:05xx%;

Set the sharpness of input [x] to xx, xx=00~99

05xx% USER/I/[x]:0607%;

Set picture’s color temperature

0607%

USER/I/[x]:0608%;

Configure image scale

0608%

USER/I/[x]:0614%;

Configure picture mode

0614%

USER/I/[x]:0617%;

Restore input [x] to factory default.

0617%

USER/I/[x]:0619%;

Set the resolution of input [x] to 1360x768, HD

0619%

USER/I/[x]:0626%;

Set the resolution of input [x] to 1024x768, XGA

0626%

Page 29

Modular Matrix Switcher 32x32

Comm-Tec Srl 28 www.comm-tec.it

USER/I/[x]:0627%;

Set the resolution of input [x] to 1280x720, 720P

0627%

USER/I/[x]:0628%;

Set the resolution of input [x] to 1280x800, WXGA

0628%

USER/I/[x]:0629%;

Set the resolution of input [x] to 1920x1080, 1080P

0629%

USER/I/[x]:0620%;

Set the resolution of input [x] to 1920x1200, WUXGA

0620%

USER/I/[x]:0621%;

Set the resolution of input [x] to 1600x1200, UXGA

0621% USER/I/[x]:0698%;

Software update

0698%

4I-DS

USER/I/[x]:02xx%;

Set the brightness of input [x] to xx, xx=00~99

02xx%

USER/I/[x]:03xx%;

Set the contrast of input [x] to xx, xx=00~99

03xx%

USER/I/[x]:04xx%;

Set the saturation of input [x] to xx, xx=00~99

04xx%

USER/I/[x]:05xx%;

Set the sharpness of input [x] to xx, xx=00~99

05xx%

USER/I/[x]:0606%;

(For 4I-DS/ VA) Auto-adjust VGA input signal

0606%

USER/I/[x]:0607%;

Set picture’s color temperature

0607%

USER/I/[x]:0608%;

Configure image scale

0608%

USER/I/[x]:0614%;

Configure picture mode

0614%

USER/I/[x]:0617%;

Restore input [x] to factory default.

0617%

USER/I/[x]:0619%;

Set the resolution of input [x] to 1360x768, HD

0619%

USER/I/[x]:0626%;

Set the resolution of input [x] to 1024x768, XGA

0626%

USER/I/[x]:0627%;

Set the resolution of input [x] to 1280x720, 720P

0627%

USER/I/[x]:0628%;

Set the resolution of input [x] to 1280x800, WXGA

0628%

USER/I/[x]:0629%;

Set the resolution of input [x] to 1920x1080, 1080P

0629%

USER/I/[x]:0620%;

Set the resolution of input [x] to 1920x1200, WUXGA

0620%

USER/I/[x]:0621%;

Set the resolution of input [x] to 1600x1200, UXGA

0621%

Page 30

Modular Matrix Switcher 32x32

Comm-Tec Srl 29 www.comm-tec.it

USER/I/[x]:0698%;

Software update

0698%

USER/I/[x]:0686%;

Set the output signal of input [x] to HDMI

0686%

USER/I/[x]:0687%;

Set the output signal of input [x] to DVI

0687%

4O-DS

USER/O/[x]:0201%;

Set the output source of output [x] to YPbPr

0201%

USER/O/[x]:0202%;

Set the output source of output [x] to VGA

0202%

USER/O/[x]:0203%;

Set the output source of output [x] to C-VIDEO

0203%

USER/O/[x]:0804%;

Set the resolution of output [x] to 1280x720P @60Hz

Resolution Out03 1280x720P

USER/O/[x]:0813%;

Set the resolution of output [x] to 1280x1080P @60Hz

Resolution Out03 1920x1080P

USER/O/[x]:0824%;

Set the resolution of output [x] to 1024x768 @60Hz

Resolution Out03 1024x768

USER/O/[x]:0826%;

Set the resolution of output [x] to 1280x1024 @60Hz

Resolution Out03 1280x1024

USER/O/[x]:0837%;

Set the resolution of output [x] to 1920x1200 @60Hz

Resolution Out03 1920x1200

USER/O/[x]:0106%;

Switch on the HDCP compliance of output [x]

0106%

USER/O/[x]:0107%;

Switch off the HDCP compliance of output [x]

0107%

GetResolution[x].

Capture output resolution of output [x]

GetVGAPortMode[x ].

Inquire the output status of VGA port [x] USER/O/[x]:0617%;

Restore output [x] to factory default.

0617%

4I-UH/BT

AUDIO[X]I[Z].

Select audio source for input [X] [X] is port number; [Z] stands for audio source, can be 0 (embedded HDMI audio) or 1 (analog audio)

AUDIO1I0.

Page 31

Modular Matrix Switcher 32x32

Comm-Tec Srl 30 www.comm-tec.it

Examples:

1、 Transfer signals from an input channel to all output channels: [x]All.

Example: Send “3All.” to transfer signals from the input 3 to all output channels.

2、 Transfer all input signals to corresponding output channels respectively: All#.

Example: If this command is carried out, the status of matrix will be: 1->1, 2->2, 3->3, 4->4…… 8->8….

3、 Switch off all the output channels: All$.

Example: After running this command, there will be no signals on all the outputs.

4、 Switch off the detail feedback command from the COM port: /:MessageOff;

But, it will leave the “switch OK” as the feedback, when you switch the matrix.

5、 Switch on the detail feedback command from the COM port: /:MessageOn;

It will show the detail switch information when it switch. Example: when switch 1->2, it will feedback “AV01 to 02”.

6、 Transfer signals from an input channel to corresponding output channel: [x]#.

Example: “5#.” to transfer signals from the input 5 to the output 5.

7、Switch off an output channel: [x]$.

Example: “5$.” to switch off the output 5.

8、Switch signal: [x1] B[x2].

Example: “12B12,13,15.” to transfer signal from the input 12 to output 12,13,15.

9、Inquire the input channel to the output channel [x]: Status[x].

Example: Send “Status3.” to inquire the input channel to the output 3.

10、Inquire the input channel to the output channels one by one: Status.

Example: “Status.” to inquire the input channel to the output channels one by one.

11、Save the present operation to the preset command [Y]: Save[Y].

Example: “Save7.” to save the present operation to the preset command No.7.

12、Recall the preset command [Y]: Recall[Y].

Example: “Recall5.” to recall the preset command No.5.

13、Clear the preset command [Y]: Clear[Y]. Example: “Clear5.” to clear the preset command No.5. 14、EDID management command:. EDIDM[X]B[Y].

Example: “EDIDM5B3.” to enable input 3 to learn the EDID data of output 5.

15、Command for signal cards: USER/[Y]/[X]*****.

Example: “USER/I/7:0623%;” to set the input 7 to support YPbPr signal, the card is plugged in the second input slot of the matrix.

Page 32

Modular Matrix Switcher 32x32

Comm-Tec Srl 31 www.comm-tec.it

4.4. TCP/IP Control (Optional)

4.4.1. Control Modes

TCP/IP default settings: IP is 192.168.0.178, Gateway is 192.168.0.1, and Serial Port is 4001. IP & Gateway can be changed as you need, Serial Port cannot be changed.

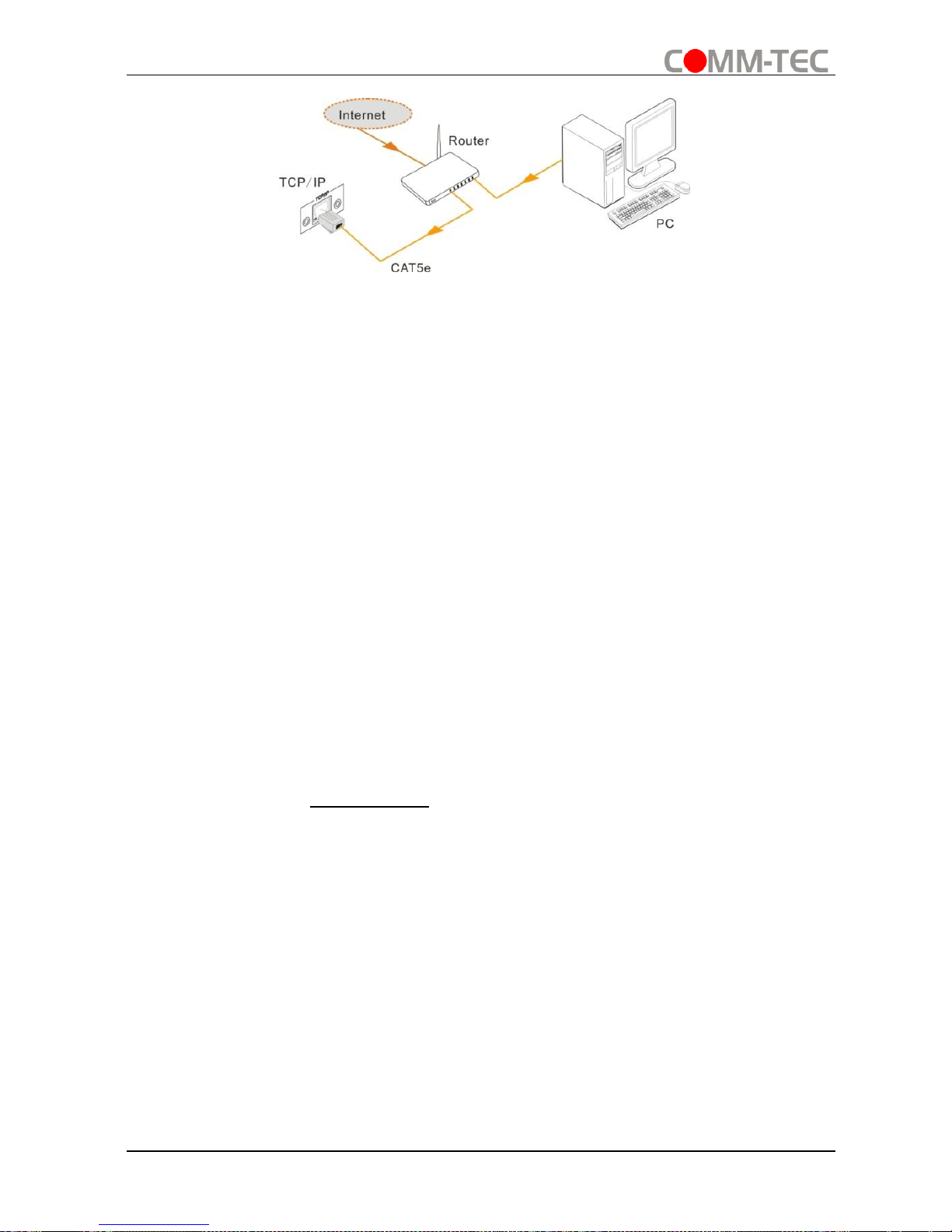

 Controlled by Single PC Connect a computer to the TCP/IP port of the Modular Matrix Switcher 16x16, and set its network segment to the same as the default IP of the Modular Matrix Switcher 16x16 (192.168.0.178).

 Controlled by PC(s) in LAN The Modular Matrix Switcher 16x16 can be connected with a router to make up a LAN

with the PC(s), this make it able to be controlled in a LAN. When control, just make sure the Modular Matrix Switcher 16x16’s network segment is the same with the router. Please connect as the following figure for LAN control.

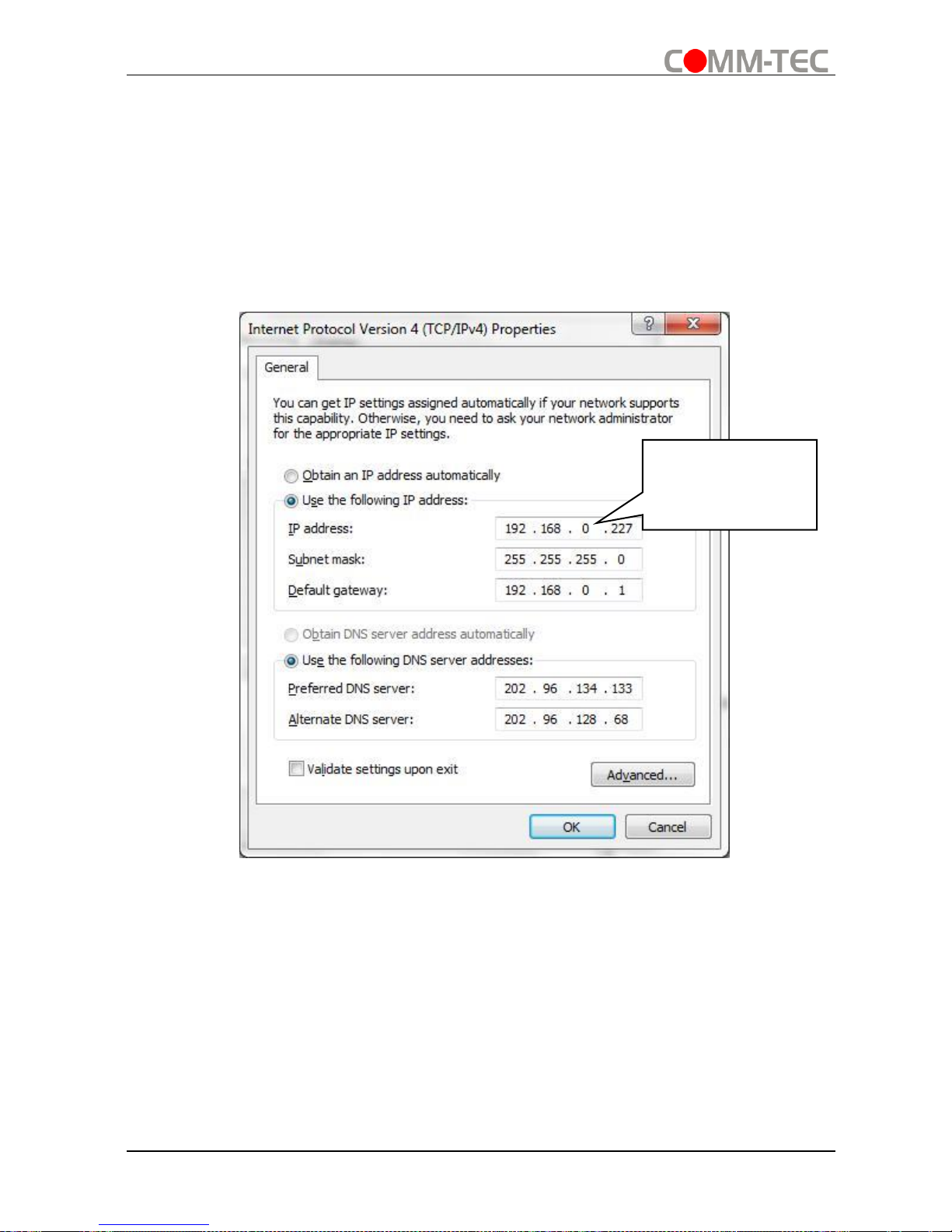

Same network segment as the switcher

Page 33

Modular Matrix Switcher 32x32

Comm-Tec Srl 32 www.comm-tec.it

Step1. Connect the TCP/IP port of the Modular Matrix Switcher 16x16 to Ethernet

port of PC with twisted pair.

Step2. Set the PC’s network segment to the same as the Modular Matrix Switcher

16x16. Do please remember the PC’s original network segment.

Step3. Set the Modular Matrix Switcher 16x16’s network segment to the same as the

router.

Step4. Set the PC’s network segment to the original one. Step5. Connect the Modular Matrix Switcher 16x16 and PC(s) to the router. In the

same LAN, each PC is able to control the Modular Matrix Switcher 16x16 asynchronously.

Then it’s able to control the device via a TCP/IP communication software.

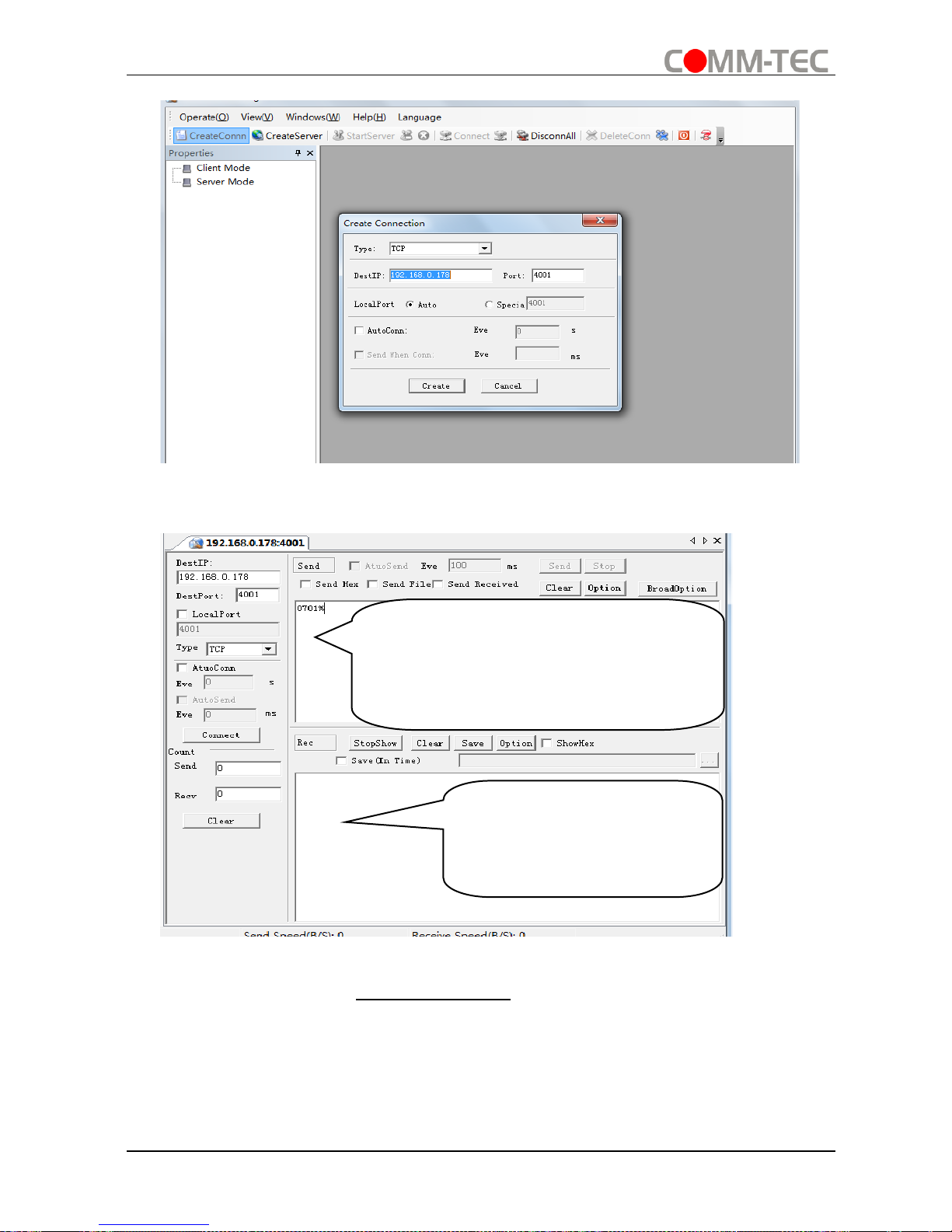

4.4.2. Control Modular Matrix Switcher 16x16 via TCP/IP communication

software

(Exampled by TCPUDP software)

1) Connect a computer and Modular Matrix Switcher 16x16 to the same network.

Open the TCPUDP software (or any other TCP/IP communication software) and create a connection, enter the IP address and port of Modular Matrix Switcher 16x16 (default IP: 192.168.0.178, port:4001):

Page 34

Modular Matrix Switcher 32x32

Comm-Tec Srl 33 www.comm-tec.it

2) After connect successfully, we can enter commands to control the Modular Matrix

Switcher 16x16, as below:

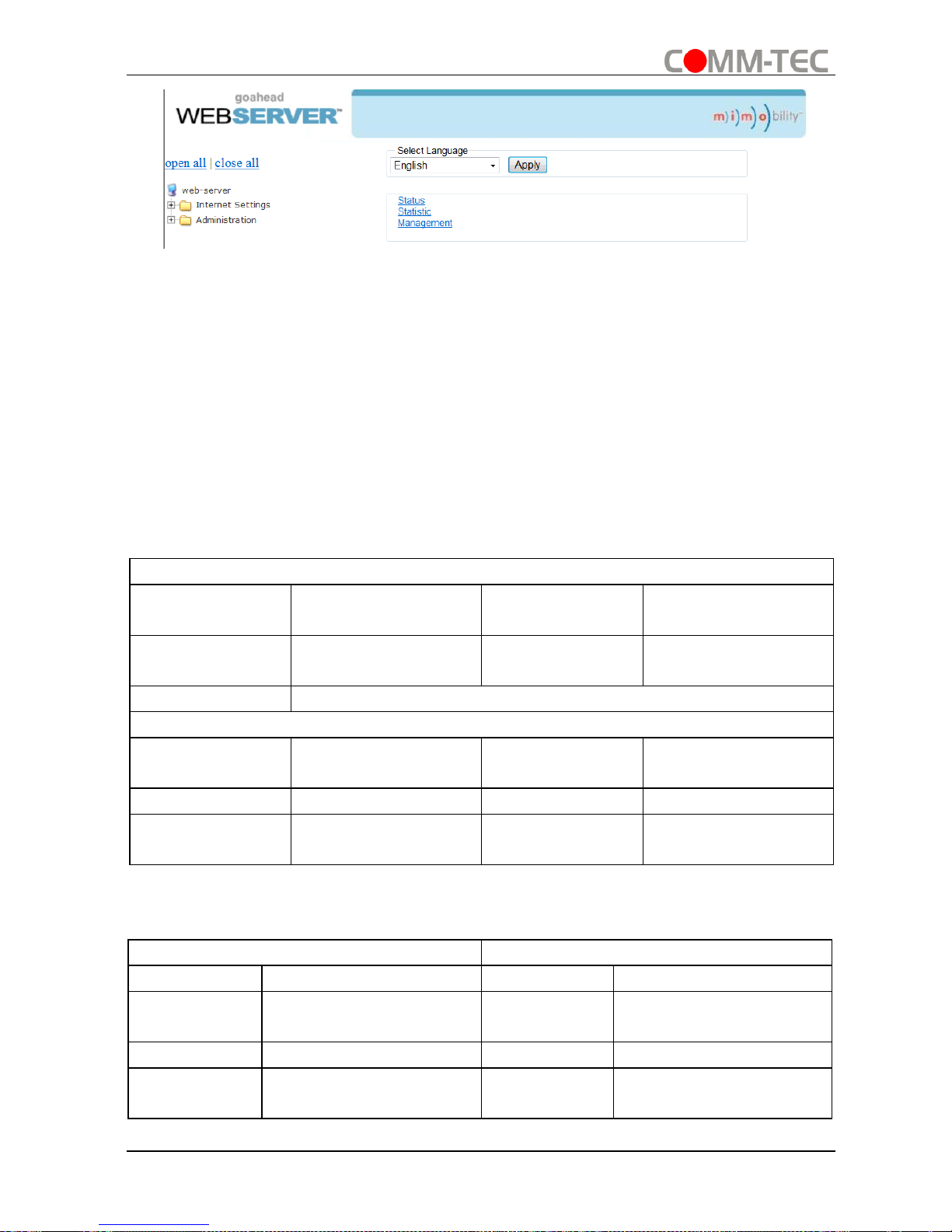

4.4.3. TCP/IP Configuration

Type the designed website 192.168.0.178:100 in your browser. Enter correct username and password to log in the WebServer:

Username: admin; Password: admin Here is the main configuration interface of the WebServer:

Here you will receive the feedback when a command is sent.

Enter your command here. Commands are the same with RS232

commands listed in 4.3.2 RS232 Communication Commands

Page 35

Modular Matrix Switcher 32x32

Comm-Tec Srl 34 www.comm-tec.it

In this interface, you can:

 Change website display language  Modify network settings: Go to Internet Settings -> WAN  Upgrade TCP/IP module: Go to Administration -> Upload Program -> Select

program file -> Start upgrading Reboot the device after upgrading.

5. Specification

5.1. Main Unit

Control parts

Serial control port

RS-232, 9- female D connector

Configurations

2 = TX, 3 = RX, 5 = GND

Installation

Rack Mountable

Front panel control

Buttons Options

TCP/IP control

General

Power Supply

100VAC ~ 240VAC, 50/60Hz

Power Consumption

84W (Max) Temperature

-10 ~ +40℃

Humidity

10% ~ 90%

Dimension (W*H*D)

483 x 133x 320mm (3U high)

Weight

3.5Kg

5.2. Changeable Cards

5.2.1. 4I-DV & 4O-DV

4I-DV

4O-DV

Input

4 DVI

Output

4 DVI

Input Connector

Female DB24+5/HDMI

Output Connector

Female DB24+5/HDMI Input Level

T.M.D.S. 2.9V~3.3V

output Level

T.M.D.S. 2.9V~3.3V

Input Impedance

75Ω

Output Impedance

75Ω

Page 36

Modular Matrix Switcher 32x32

Comm-Tec Srl 35 www.comm-tec.it

General

Gain

0 dB

Bandwidth

340 MHz (10.2 Gbit/s)

Video Signal

DVI 1.0/HDMI 1.3 full digital T.M.D.S signal

Switching Speed

200ns (Max.)

Max Time-delay

5nS (±1nS)

Crosstalk

<-50dB@5MHz

EDID and DDC

Supports Extended Display Identification Data (EDID) and Display Data Channel (DDC) data using DVI and HDMI standards. EDID and DDC signals are actively buffered

HDCP

Compliant with HDCP using DVI and HDMI 1.3 standards

5.2.2. 4I-DS & 4O-DS

4I-DS

4O-DS

Input

4 DVI

Output

4 DVI

Input Connector

Female DB24+5/HDMI

Output Connector

Female DB24+5/HDMI

Input Level

T.M.D.S. 2.9V~3.3V

output Level

T.M.D.S. 2.9V~3.3V

Input Impedance

75Ω

Output Impedance

75Ω

General

Gain

0 dB

Bandwidth

340 MHz (10.2 Gbit/s)

Video Signal

DVI,HDMI,VGA,C-VIDEO ,YPbPr

Switching Speed

200ns (Max.)

Max Time-delay

5nS (±1nS)

Crosstalk

<-50dB@5MHz

EDID and DDC

Supports Extended Display Identification Data (EDID) and Display Data Channel (DDC) data using DVI and HDMI standards. EDID and DDC signals are actively buffered

HDCP

Compliant with HDCP using DVI and HDMI 1.3 standards

5.2.3. 4I-HD & 4O-HD

4I-HD

4O-HD

Input

4 HDMI

Output

4 HDMI

Input Connector

Female HDMI

Output Connector

Female HDMI Input Level

T.M.D.S. 2.9V~3.3V

output Level

T.M.D.S. 2.9V~3.3V

Input Impedance

75Ω

Output Impedance

75Ω

General

Gain

0 dB

Bandwidth

6.75 Gbps

Page 37

Modular Matrix Switcher 32x32

Comm-Tec Srl 36 www.comm-tec.it

Video Signal

DVI 1.0/HDMI 1.3 full digital T.M.D.S signal

Max Time-delay

5nS (±1nS)

Switching Speed

200ns (Max.)

Crosstalk

<-50dB@5MHz

EDID and DDC

Supports Extended Display Identification Data (EDID) and Display Data Channel (DDC) data

HDCP

Compliant with HDCP

5.2.4. 4I-HS & 4O-HS

4I-HS

4O-HS

Input

4 HDMI 4 Analog Audio

Output

4 HDMI 4 Analog Audio

Input Connector

19-pin Type-A Female 3-pin pluggable terminal block

Output Connector

19-pin Type-A Female 3-pin pluggable terminal block

Power Consumption

12W Color Depth

8, 10, 12 bit

Color Depth

8 bit

General

Video Signal

HDMI, DVI

Audio Signal

PCM

Bandwidth

6.75 Gbps

Standards

HDMI1.3& HDCP1.2

Work Temperature

0~50℃

Reference Humility

10%~90%

EDID and DDC

Supports Extended Display Identification Data (EDID) and Display Data Channel (DDC) data

5.2.5. 4I-VG & 4O-VG

4I-VG

4O-VG

Input

4 VGA

Output

4 VGA

Input Connector

Female 15 pin HD

Output Connector

Female 15 pin HD Input Level

0.5 ~ 2.0Vp-p

Output Level

0.5 ~ 2.0Vp-p

Input Impedance

75Ω

Output Impedance

75Ω

Video Signal

VGA (RGBHV), YPbPr, S-video, C-video& CVBS.

Video Signal

VGA

General

Gain

0 dB

Bandwidth

350MHz (-3dB)

Page 38

Modular Matrix Switcher 32x32

Comm-Tec Srl 37 www.comm-tec.it

Switching Speed

200ns (Max.)

Crosstalk

<-50dB@5MHz

5.2.6. 4I-VA

Video

Audio

Input

4 VGA

Input

4 Stereo Audio

Input Connector

Female 15 pin HD

Input Connector

3-pin Pluggable Terminal Block

Input Level

0.5 ~ 2.0Vp-p

CMRR

>90dB @20Hz ~ 20KHz

Input Impedance

75Ω

Input Impedance

>10KΩ

General

Gain

0 dB

Bandwidth

YPbPr:170MHz; C-video:150MHz; VGA:170MHz

Video Signal

VGA (RGBHV), YPbPr, S-video, C-video& CVBS

Switching Speed

200ns (Max.)

Crosstalk

<-50dB@5MHz

5.2.7. 4I-SD & 4O-SD

4I-SD

4O-SD

Input

4 SDI

Output

4 SDI

Input Connector

Female BNC

Output Connector

Female BNC Input Level

0.8Vp-p ± 10%

output Level

0.8Vp-p ± 10%

Input Impedance

75Ω

Output Impedance

75Ω

General

Gain

Unity

Maximum Data Rate

4.95Gbps

Transmission Distance

300M (Max.)

Data rate Lock

Auto

Input Return Loss

<-14 dB @ 1 MHz ~ 1.5 GHz

Input Return Loss

<-14 dB @ 1 MHz ~

1.5 GHz

Video Standard

SMPTE 292M, SMPTE 259M, SMPTE 424M, ITU-RBT.601, ITU-RBT.1120

Data Type

8bit, 10bit, 12bit Audio Bits

per Sample

18 bits per channel, 2 channels (L, R) Switching

200ns (Max.)

Crosstalk

<-50dB@5MHz

Page 39

Modular Matrix Switcher 32x32

Comm-Tec Srl 38 www.comm-tec.it

Speed

5.2.8. 4I-SS

Input

Output

Input

4 SDI

Output

4 SDI

Input Connector

Female BNC

Output Connector

Female BNC

General

Audio Signal

SDI, HD-SDI, 3G-SDI

Color Depth

8, 10, 12 bit

Transmission Distance

1080p≤100M

Max Resolution

1080p

Bandwidth

6.75Gbps

Power Consumption

8.7W

Work Temperature

0~50℃

Reference Humility

10%~90%

5.2.9. 4I-TP & 4O-TP

4I-TP

4O-TP

Input

4 RJ45

Output

4 RJ45

Input Connector

Female RJ45

Output Connector

Female RJ45

Input Impedance

75Ω

Output Impedance

75Ω

Video General

Transmission Distance

1080p≤70M

Bandwidth

6.75Gbps

Resolution range

800x600 ~ 1920x1200

Transmission Distance

70M(Max)

SNR

>70dB@ 100MHz-100M

Return Loss

<-30dB@ 5KHz

HDMI Standard

Support HDMI1.3 and HDCP

Differential Phase Error

±10° @ 135MHz_100M

5.2.10. 4I-UH & 4O-UH

4I-UH

Video Input

Audio Input

Input

4 HDMI

Input

4 Analog

Input Connector

Female HDMI

Input Connector

3.5mm pluggable terminal block

Min.～Max.

T.M.D.S. 2.9V~3.3V

Input

75Ω

Page 40

Modular Matrix Switcher 32x32

Comm-Tec Srl 39 www.comm-tec.it

Level

Impedance

Input Impedance

100Ω (Differential)

Frequency Response

20Hz～20K Hz

4O-UH

Video Output

Audio Output

Output

4 HDMI

Output

4 Stereo

Output Connector

Female HDMI

Output Connector

3.5mm Stereo audio connector

Min.～Max. Level

T.M.D.S. 2.9V~3.3V

Output Impedance

75Ω

Output Impedance

100Ω (Differential)

Frequency Response

20Hz～20K Hz

General

Gain

0dB

Max Resolution

4Kx2K

Transmission Distance

1080P≤70m 4Kx2K ≤ 40m

Switching Speed

200ns (Max.)

Work Temperature

0~50℃

Reference Humility

10%～90%

SNR

>70dB@ 100MHz-100M

Return Loss

<-30dB@ 5KHz

Supported Audio Format

Embedded HDMI audio: PCM, Dobly Digital, DTS, DTS-HD Analog audio: PCM

HDMI Standard

Support HDMI1.4& DVI1.0

EDID& HDCP Management

Compliant with HDCP 1.4; Support manual EDID management

5.2.11. 4I-UF & 4O-UF

4I-UF

4O-UF

Input

4 Fiber Optical

Output

4 Fiber Optical

Input Connector

SPF Fiber Optical Connector

Output Connector

SPF Fiber Optical Connector

Fiber Type

Multi-mode, Single mode

Fiber Type

Multi-mode, Single mode

General

Data Rate

10.2 Gbps

Color Depth

8bit, 10bit, 12bit, 16bit

Work Temperature

0～55℃

Reference Humility

10%～90%

Optical Fiber Mode

Connector

LC connector

Page 41

Modular Matrix Switcher 32x32

Comm-Tec Srl 40 www.comm-tec.it

Resolution

Up to 4Kx2K

Transmission Distance

1km (Single mode transmission, using Single Mode Optical Module and OM3 Single Mode Fiber Cable) 300m (Multi-mode transmission, using Single/ Multi mode Optical Module and OM3 Multi-Mode Fiber Cable)

Data Rate

10.2Gbit/s

5.2.12. 4I-BT & 4O-BT

4I-BT

Video Input

Audio Input

Input

4 HDBT

Input

4 Stereo

Input Connector

4 Female RJ45 (with dual-color indicator)

Input Connector

3.5mm Stereo audio connector

Min.～Max. Level

T.M.D.S 2.9V～3.3V

Input Impedance

75Ω

Input Impedance

100Ω (Differential)

Frequency Response

20Hz～20K Hz

4O-BT

Video Output

Audio Output

Output

4 HDBT

Output

4 Stereo

Output Connector

4 Female RJ45 (with dual-color indicator)

Output Connector

3.5mm Stereo audio connector

Min.～Max. Level

T.M.D.S 2.9V～3.3V

Output Impedance

75Ω

Output Impedance

100Ω (Differential)

Frequency Response

20Hz～20K Hz

Control Part

Control Signal

4 RS232

Control Connector

3-pin pluggable terminal block

Protocol

TCP/IP

General

Gain

0dB

Bandwidth

10.2Gbps

Max Resolution

4Kx2K Crosstalk

<-50dB@5MHz

Transmission Distance

1080P≤70m 4Kx2K ≤ 40m

Switching Speed

200ns (Max.)

Work Temperature

0~50℃

Reference Humility

10%～90%

Supported Audio Format

Embedded HDMI audio: PCM, Dobly Digital, DTS, DTS-HD Analog audio: PCM

Page 42

Modular Matrix Switcher 32x32

Comm-Tec Srl 41 www.comm-tec.it

HDMI Standard

Support HDMI1.4a

EDID& HDCP Management

Compliant with HDCP 1.4; Support manual EDID management

6. Troubleshooting & Maintenance

Problems

Causes

Solutions

Output image with ghost Bad quality of the

connecting cable

Try another high quality cable

Impropriate image setting of the displayer

Adjust corresponding image settings

Output image with color losing or no video signal output

Fail connection

Reconnect the displayer and the matrix

No output image when switching

No signal at the input / output end

Check with oscilloscope or multimeter if there is any signal at the input/ output end.

Fail or loose connection

Make sure the connection is good

The switcher is broken

Send it to authorized dealer for repairing.

IR remote does not work Run out of battery

Change for another battery

IR remote is broken

Send it to authorized dealer for repairing.

POWER indicator doesn’t work or no respond to any operation

Fail connection of power cord.

Make sure the power cord connection is good.

EDID management does not work normally

The HDMI cable is broken at the output end.

Change for another HDMI cable which is in good working condition.

There is a blank screen on the display when switching

The display does not support the resolution of the video source. Switch again.

Manage the EDID data manually to make the resolution of the video source automatically

Page 43

Modular Matrix Switcher 32x32

Comm-Tec Srl 42 www.comm-tec.it

compliant with the output resolution.

Static becomes stronger when connecting the video connectors

Bad grounding

Check the grounding and make sure it is connected well.

Cannot control the device by control device (e.g. a PC) through RS232 port

Wrong RS232 communication parameters

Type in correct RS232 communication parameters.

Broken RS232 port

Send it to authorized dealer for checking.

Cannot control the device by front panel buttons while can control it through RS232 port

The front panel buttons are locked

Send command 50605% to unlock the front panel buttons.

Cannot control the device by RS232 / IR remote / front panel buttons

The device has already been broken.

Send it to authorized dealer for repairing.

If your problem persists after following the above troubleshooting steps, seek further help from authorized dealer or our technical support.

Page 44

Modular Matrix Switcher 32x32

Comm-Tec Srl 43 www.comm-tec.it

7. After-sales Service

If there appear some problems when running Modular Matrix Switcher 16x16, please check and deal with the problems referring to this user manual. Any transport costs are borne by the users during the warranty.

1) Product Limited Warranty: We warrant that our products will be free from defects

in materials and workmanship for three years, which starts from the first day the product leaves warehouse (check the SN mark on the product). Proof of purchase in the form of a bill of sale or receipted invoice must be presented to obtain warranty service.

2) What the warranty does not cover (servicing available for a fee):

 Warranty expiration.  Factory applied serial number has been altered or removed from the product.  Damage, deterioration or malfunction caused by:

 Normal wear and tear  Use of supplies or parts not meeting our specifications  No certificate or invoice as the proof of warranty.  The product model showed on the warranty card does not match with the

model of the product for repairing or had been altered.

 Damage caused by force majeure.  Servicing not authorized  Any other causes which does not relate to a product defect

 Delivery, installation or labor charges for installation or setup of the product

3) Technical Support: Email to our after-sales department or make a call, please

inform us the following information about your cases.

 Product version and name.  Detailed failure situations.  The formation of the cases.

Remarks: For any more questions or problems, please contact:

Comm-tec srl Via Proventa 90, - Faenza - 48018 – RA - Italy Phone: +39 0546 62080 Fax : +39 0546 622090

[email protected]
