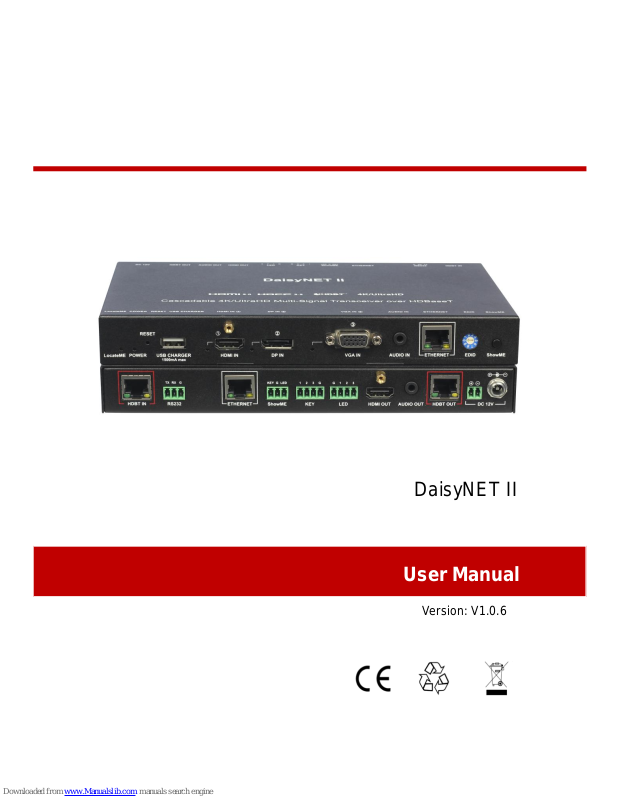

Comm-Tec DaisyNET II User Manual

Download

Version: V1.0.6

DaisyNET II

User Manual

Important Safety Instructions

1. Do not expose this apparatus

to rain, moisture, dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.

6. Clean this apparatus only with dry cloth.

2. Do not install or place this unit in a bookcase, built-in cabinet or in another confined space. Ensure the unit is well ventilated.

3. To prevent risk of electric shock or fire hazard due to overheating, do not obstruct

the unit’s ventilation openings

with newspapers, tablecloths, curtains, and similar items.

4. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

5. Do not place sources of naked flames, such as lighted candles, on the unit.

7. Unplug this apparatus during lightning storms or when unused for long periods of time.

8. Protect the power cord from being walked on or pinched particularly at plugs.

9. Only use attachments / accessories specified by the manufacturer.

10. Refer all servicing to qualified service personnel.

Warnings of FCC

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

-- Reorient or relocate the receiving antenna.

-- Increase the separation between the equipment and

receiver.

-- Connect the equipment into an outlet on a circuit different

from that to which the receiver is connected.

-- Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Table of Contents

Introduction ............................................................................................... 3

Overview ............................................................................................. 3

Features ............................................................................................... 4

Package Contents ................................................................................ 5

Specifications ...................................................................................... 6

Panel Layout ......................................................................................11

Quick Start ................................................................................................14

Connections and Installation....................................................................18

Application Diagram ................................................................................. 20

Web Control .............................................................................................22

Status .................................................................................................23

Configuration ..................................................................................... 25

Advanced ...........................................................................................34

Device List Window ............................................................................39

EDID Management ...................................................................................40

Warranty Terms and Conditions ................................................................. 1

Introduction

Overview

DaisyNET II is a 100m 4K Daisy-chain Presenter with HDBaseT in and HDBaseT out, and utilizes HDBaseT technology as daisy-chain medium to cascade multiple A/V sources, displays or any devices with HDBaseT connection together in a chain to set up an A/V distribution system.

DaisyNET II supports three video inputs including HDMI, Display Port and VGA plus 3.5mm audio in, with HDBaseT input and HDBaseT output for cascading. A local HDMI out with audio de-embedder is provided in the rear side to connect local monitor or zone displays. It has a 2-Port Ethernet Switch built-in so that Ethernet could pass through over HDBaseT for LAN control, or to feed LAN access to sources or displays. RS232 port is used to pass through RS232 commands or control display device. USB charger is also provided to charge mobile devices. It offers ShowME button and Contact Closure to switch sources, and rotary switch for EDID management.

DaisyNET II offers a future-ready Ultra HD A/V switching and distribution solution, and cutting-edge HDMI 2.0 and HDCP 2.2 compatibility. With user-friendly WEB GUI and Telnet API to configure advanced functionality including CEC controller, RS232 controller and Daisy-chain Grouping, it is perfectly suitable for collaboration or presentation in conference and education application.

Features

 HDMI, DisplayPort and VGA plus stereo switching inputs,

local HDMI bypass out with audio de-embedder

 HDBaseT input and output to cascade multiple A/V sources

and displays

 HDMI 2.0 and input supports HDCP 2.2  Supports 4K@60Hz 4:2:0 8-bit up to 70m over Cat5e/Cat6, or

up to 100m over Cat6a/Cat7

 Built in CEC controller and RS232 controller for smart control  Automatic CEC and RS232 command to Power ON/Standby

Display, by detecting input signal status

 Daisy-chain Grouping mode offered to match flexible

application

 LAN control with user-friendly WEB GUI and Telnet API  ShowMe and Contact Closure for source switching  Built in 2-Port Ethernet Switch for LAN control or LAN access  Built in USB Charger up to 5V/1.5A to charge mobile devices  Independent rotary switch for EDID management  Advanced signal re-locking and cable equalization for

multiple daisy-chains

Package Contents

 1 x DaisyNET II  1 x Power Supply (DC 12V 3A)  2 x Phoenix Male Connector (3 Pin 3.5mm)  2 x Phoenix Male Connector (4 Pin 3.5mm)  2 x Phoenix Male Connector (2 Pin 3.5mm)  1 x Mounting Brackets (Pair)

Specifications

Video

Input

1 x HDMI IN, 1 x DisplayPort IN, 1 x VGA IN, 1 x HDBaseT IN

Input Signal Type

HDMI: HDMI 2.0 w/HDCP 2.2, DP: DP 1.2 w/HDCP2.2

Input Resolution Support

HDMI: 4096 x 2160@24/25/30/50/60Hz, 3840 x 2160@24/25/30/50/60Hz, 1080p@24/25/30/50/60Hz, 1080i@50/60Hz, 720p@50/60Hz, 1920 x 1200@60Hz, 1680 x 1050@60Hz, 1600 x1200@60Hz, 1600 x 900@60Hz, 1440 x 900@60Hz, 1400 x 1050@60Hz, 1366 x 768@60Hz, 1360 x 768@60Hz, 1280 x 1024@60H, 1280 x 960@60Hz, 1280 x 800@60Hz, 1280 x 768@60Hz, 1024 x 768@60Hz, 800 x 600@60Hz

1920 x1200@60Hz, 1280x720P@50Hz, 1280x720P@60Hz, 1920x1080P@50Hz, 3840x2160@50Hz, 3840x2160@60Hz, 4096x2160@50Hz, 4096x2160@60Hz.

VGA: 800x600@60 Hz, 1024x768@60Hz , 1280x768@60Hz, 1280x800@60Hz, 1280x960@60Hz, 1280x1024@60Hz, 1360x768@60Hz, 1366x768@60Hz, 1440 x900@60Hz, 1600 x900@60Hz, 1600 x1200@60Hz, 1680 x1050@60Hz, 1920 x1080@60Hz, 1920 x1200@60Hz, 1280x720P@50Hz, 1280x720P@60Hz, 1920x1080P@50Hz,

Output

1 x HDMI OUT, 1x HDBaseT OUT

Output Signal Type

HDMI 2.0 with 4k, HDBaseT

Output Resolution Support

1360 x 768@60Hz, 1280 x 1024@60H, 1280 x 960@60Hz, 1280 x 800@60Hz, 1280 x 768@60Hz, 1024 x 768@60Hz, 800 x 600@60Hz

DisplayPort: 800x600@60 Hz, 1024x768@60Hz , 1280x768@60Hz, 1280x800@60Hz, 1280x960@60Hz, 1280x1024@60Hz, 1360x768@60Hz, 1366x768@60Hz, 1440 x900@60Hz, 1600 x900@60Hz, 1600 x1200@60Hz, 1680 x1050@60Hz, 1920 x1080@60Hz, 1920 x1200@60Hz, 1280x720P@50Hz, 1280x720P@60Hz, 1920x1080P@50Hz, 1920x1080P@60Hz, 3840x2160@50Hz, 3840x2160@60Hz, 4096x2160@50Hz, 4096x2160@60Hz.

1920 x1200@60Hz, 1280x720P@50Hz, 1280x720P@60Hz, 1920x1080P@50Hz

Note: HDMI and HDBaseT inputs support 4:4:4 color sampling except for 4K/UHD resolutions at 50/60 Hz which support 4:2:0 color sampling. HDBaseT out: HDMI 2.0 with 4k@60Hz (Chroma sub-sampling 4:2:0 8-bit only)

Video Impedance

100 Ω

Input Video Level

0.5-1.2 V p-p

Input DDC Level

5 volts p-p (TTL)

Maximum Pixel Clock

300MHz

Audio

Input

1 x Audio in for VGA, DP/HDMI/HDBT embedding audio

Input Connector Type

3.5mm jack

Output

HDMI audio de-embedded, Stereo

Control

Control Method

ShowME, Contact Closure, Telnet, Web GUI

External LEDs

Specifications

2.5 - 3.3 V 5 - 8 mA

General

Operating Temperature

0°C to 45°C (32°F to 113°F) Storage Temperature

-20°C to 70°C (-4°F to 158°F)

Humidity

10% to 90%, non-condensing

ESD Protection

Human-body Model: ±8kV(Air-gap discharge)/ ±4kV(Contact discharge)

Power Supply

DC 12V 3A

Power Consumption

20.52W (Maximum)

Device Dimension (W x H x D)

223mm x 27mm x 124.2mm /

8.78’’ x 1.06’’ x 4.89’’

Product Weight

0.8kg

Certification

CE, FCC

Panel Layout

Front Panel

No.

Name

Description

LocateMe LED

Located a device in the chain, LED

flashes 2 times when click “LocateME” on

WEB

Power LED

Indicate power status

RESET

Press and hold this button for at least five seconds to reset the DaisyNET II

USB CHARGER

Charge USB device

HDMI IN LED

This LED is on if HDMI IN is selected as input

HDMI IN

Connects to HDMI source device

DP IN LED

This LED is on if DP IN is selected as input

DP IN

Connects to DisplayPort source device

VGA IN LED

This LED is on if VGA IN is selected as input

VGA IN

Connects to VGA source device

AUDIO IN

VGA analog stereo audio input

ETHERNET

Connects to a LAN device such as Laptop for LAN access or WEB control

EDID

Rotary switch is provided to offer EDID

No.

Name

Description

management.

Show Me Button

Press this button to switch the input source in turn, or activate remote device when active source detected on remote device in cascaded connection.

ShowMe switch is only effective for active sources, cannot switch to inactive channel, disabled source or source not been detected. By pressing local ShowMe button on current selected device for 3 seconds, it would cancel the device and switch back to the last selected device/source.

Hold press ShowMe button for 10 seconds, input signal LED will blinking twice to start sorting, based on the current device IP sequentially.

Rear Panel

No.

Name

Description

HDBT IN

Connects to HDBT output port of any HDBT device or the other DaisyNET II.

RS232

Connects to a controllable device such as projector as RS232 pass-through

Ethernet

Connects to a LAN device such as IP-based touch panel for LAN control

No.

Name

Description

SHOW ME

Connects to a controller such as keypad to switch sources

KEY

Connects to a controller such as a keypad to select HDMI, DP or VGA source directly. Pin 1 represents HDMI IN, Pin 2 represents DP IN, Pin3 represents VGA IN. Pin G represents Ground.

LED

Connects to a controller such as a keypad to indicate current selected input channel. Pin 1 represents HDMI IN, Pin 2 represents DP IN, Pin3 represents VGA IN. Pin G represents Ground.

HDMI OUT

Connects to a HDMI display device

AUDIO OUT

Connects to audio system such as an amplifier

HDBT OUT

Connects to HDBT input port of any HDBT device or the other DaisyNET II.

Power 10

Connects to power supply with 2-pin phoenix connector

Power 11

DC 12V power input

Quick Start

DaisyNET II could be used flexibly as either transmitter or receiver to support a couple of different installations and applications, because of a local HDMI Out port built in.

Application 1: Chain-type Connection

In Application 1, Device 1 and Device 2 are used as transmitter to connect source, while Device M and Device Z are dedicated receivers to connect multiple displays.

Application 2: Chain-type Connection with Local Monitor

In Application 2, each DaisyNET II in the chain has their local HDMI Out connected with local monitor, so as to show forward or

local source once it’s selected in the chain. Please note only

backward devices could display forward sources, while forward devices can not have their local monitor to show backward sources.

Application 3: Ring-type Connection

In Application 3, the last Device Z has its HDBT OUT connecting to HDBT IN of the first Device 1. As a result, each source selected could be displayed by any monitor in the chain, and fix the issue in chain-type connection that backward sources can not be displayed in forward monitors.

Application 4: Grouping Mode

In Application 3, Device 1 and Device 2 work in Group 1, while Device M and Device Z work in separate Group Z. Devices in different groups can not select or display sources from other

groups. Grouping mode is simply activated by Telnet API or clicking the Daisy-chain Grouping option on the WEB GUI of device, then the video will stop to be outputted to backward devices. For example, set Device 2 in grouping mode to make Device 1 and Device 2 work as Group 1, then Device 3 and all backward devices are in the other group; set Device 2 and Device 4 in grouping mode to make Device 1 and Device 2 in a group, Device 3 and Device 4 work in a group, Device 5 and backward devices in the other group (More details please check Page 23.) Both Chain-type and Ring-type connection could support grouping mode.

Before set up, please take care of below steps:

1. Connect a PC to each device by Ethernet port, log in their WEB GUI to set static IP address and alias name for every device. (Please check Page 18 to learn how to log in WEB GUI.)

2. Connect all devices by HDBaseT ports through Cat cable, make a Chain-type connection firstly and feed LAN access to Ethernet port of any device. Do not make Ring-type connection directly with LAN access, otherwise there will be LAN conflicts and LAN control disabled.

3. Log in WEB GUI of the first device in the chain, input total quantity of devices cascaded within Daisy-chain Sequence and then click Start Sequence. (More details please check Page 22 Daisy-Chain Sequence).

4. Connect the HDBT OUT of the last device to the HDBT IN of the

first device, log in WEB GUI of the first device to click Start Sequence again, then Ring-type connection is set up correctly.

Any DaisyNET II reset, removed, replaced or newly added in the chain, please follow above instruction to configure them again.

Connections and Installation

1. Connect the HDBT OUT port of DaisyNET II 1 to the HDBT IN

port of DaisyNET II 2, connect the HDBT OUT port of DaisyNET II 2 to the HDBT IN port of DaisyNET II 3, and follow to daisy-chain multiple DaisyNET II through HDBT ports by Cat cable.

2. Using quality HDMI/DP/VGA cables to connect different

sources (such as Laptop, PC, Blu-ray, satellite/cable TV, etc.) to HDMI IN/DP IN/VGA IN port of DaisyNET II.

3. Using quality HDMI cables to connect the HDMI display

device (such as Projector, Monitor or TV) to the HDMI OUT of DaisyNET II.

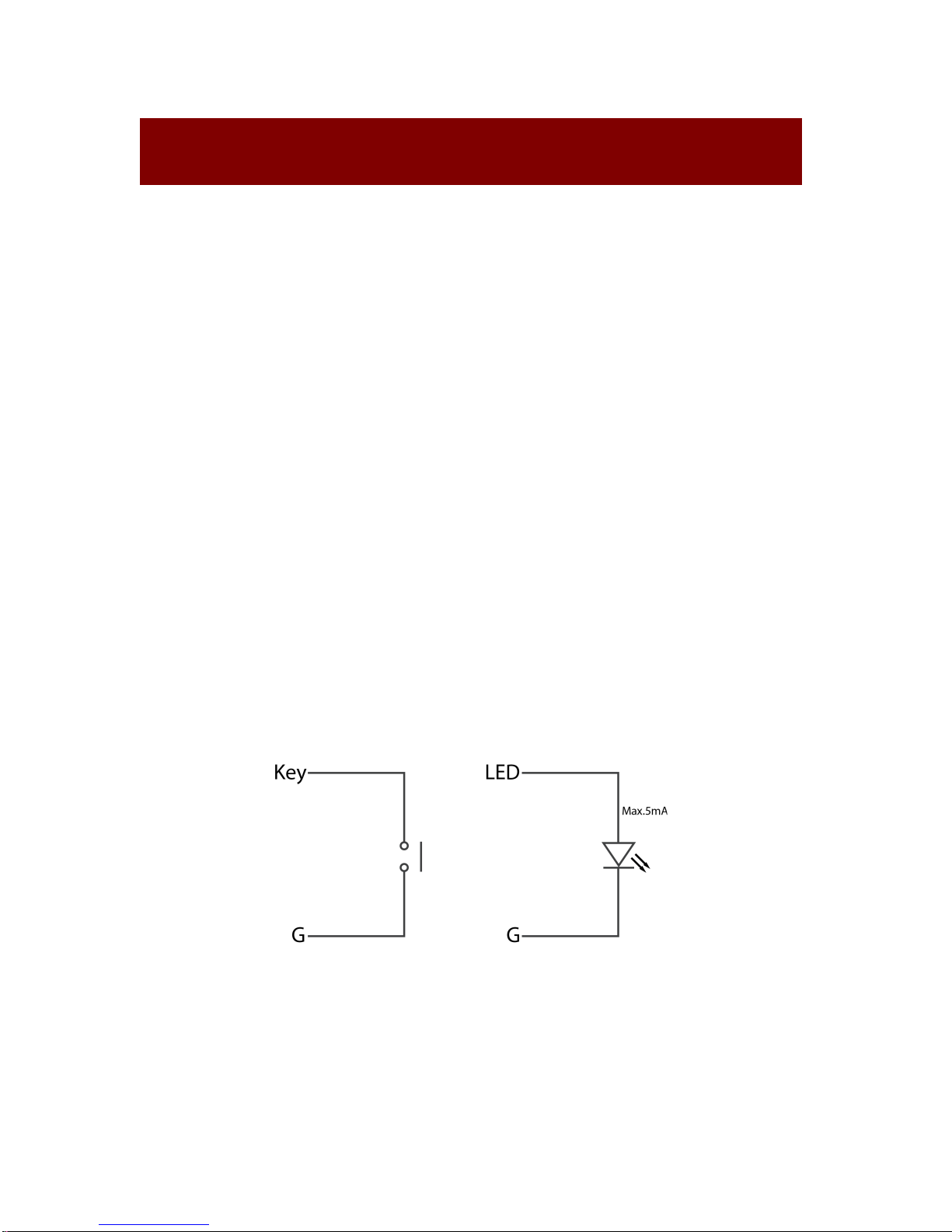

4. Connect a controller such as IP-based touch panel to an

Ethernet port of DaisyNET II, or Contact Closure-based keypad to the ShowME/KEY/LED ports to control. Circuit diagram of Contact Closure ports including SHOW ME, KEY and LED without any resistors as shown:

Specs of the LED:

2.5 - 3.3 V / 5 - 8 mA

5. Power on all devices. Use the ShowMe button, Contact

Closure, WEB GUI or Telnet API command to operate the DaisyNET II.

Note: Quality CAT cables are highly recommended, such as Cat6, AWG 23 or better, S/FTP cable. Please check http://www.hdbaset.org/cables to learn HDBaseT recommended cables.

Application Diagram

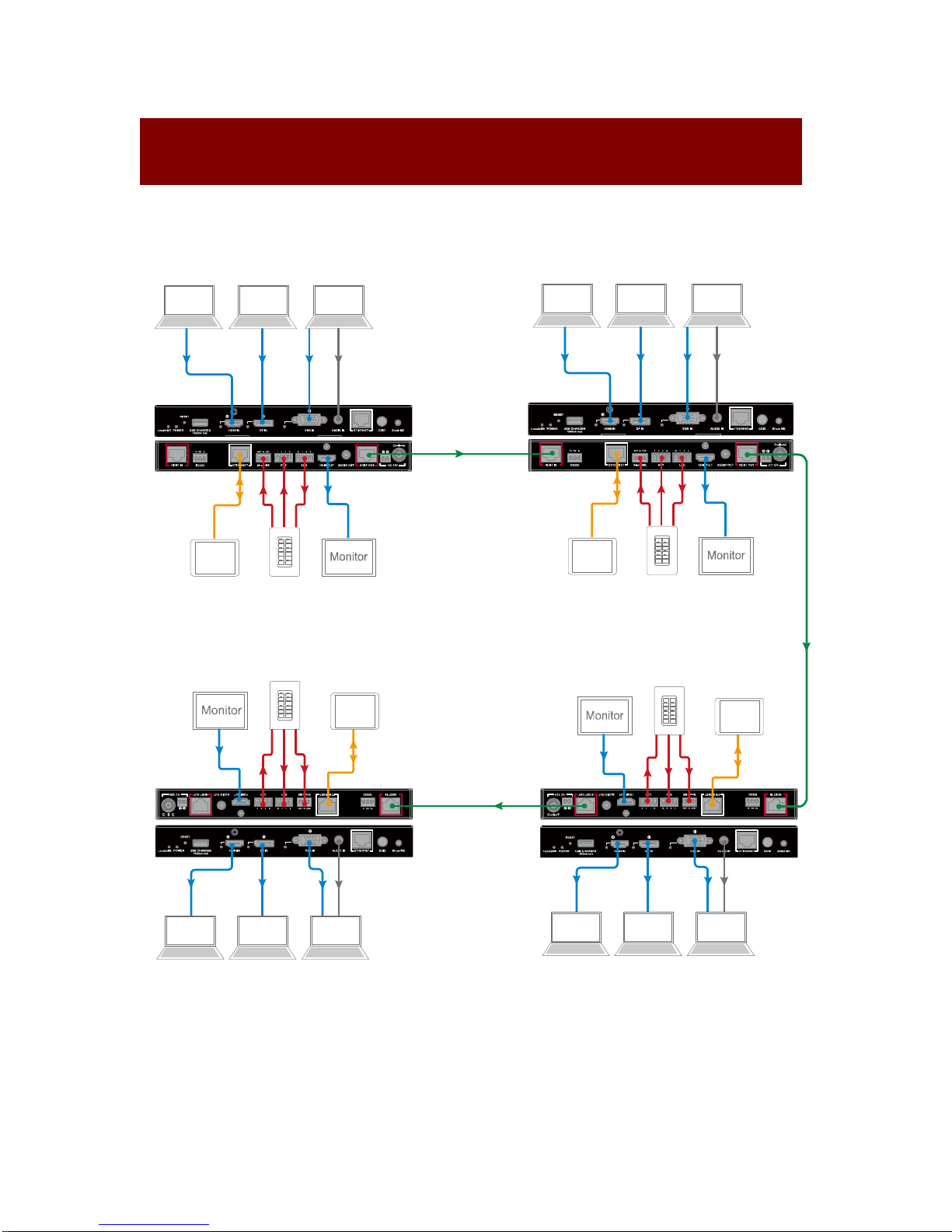

Chain-type Connection:

HDBT

DaisyNET II 4

HDMI OUTEthernet

TouchPanel Keypad Monitor

HDBT

Laptop Laptop Laptop

Audio INVGA INDP INHDMI IN

HDMI OUTEthernet

TouchPanel Keypad Monitor

Lap top Laptop Laptop

Audio INVGA INDP INHDMI IN

DaisyNET II 1

DaisyNET II 2

Touch PanelKeypadMonitor

HDMI OUT Ethernet

Audio INVGA INDP INHDMI IN

Laptop Laptop Laptop

Audio INVGA INDP INHDMI IN

Laptop Laptop Laptop

TouchPanelKeypadMonitor

HDMI OUT Ethernet

DaisyNET II 3

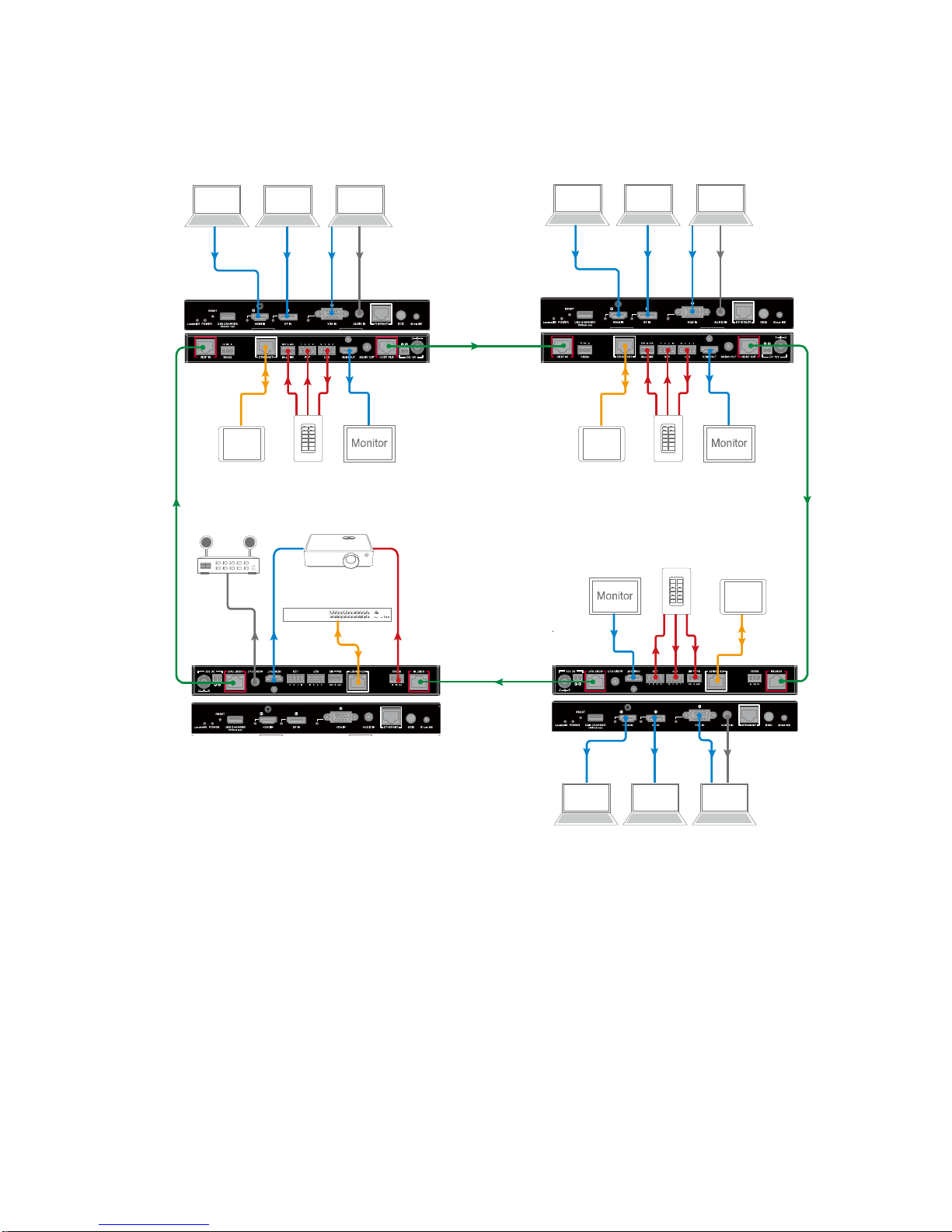

Ring-type Connection:

HDBT

HDMI OUTEthernet

TouchPanel Keypad Monitor

HDBT

Laptop Laptop Laptop

Audio INVGA INDP INHDMI IN

HDMI OUTEthernet

TouchPanel Keypad Monitor

Lap top Laptop Laptop

Audio INVGA INDP INHDMI IN

DaisyNET II 1

DaisyNET II 2

Audio INVGA INDP INHDMI IN

Laptop Laptop Lap top

TouchPanelKeypadMonitor

HDMI OUT Ethernet

DaisyNET II 3

HDBT

DaisyNET II 4

HDMI OUT Ethernet RS232

EthernetSwitch

Projector

Amplifier

Audio OUT

Web Control

DaisyNET II offers a Web GUI for product configuration.

Access the WEB GUI Step 1. Connect DaisyNET II to a computer using a Cat cable.

The default IP address of the DaisyNET II is 192.168.1.121, make sure the computer's IP address is 192.168.1.X (such as

192.168.1.100). Step 2. Type the IP address into a web browser (as seen below).

A login screen will appear:

The default password is admin.

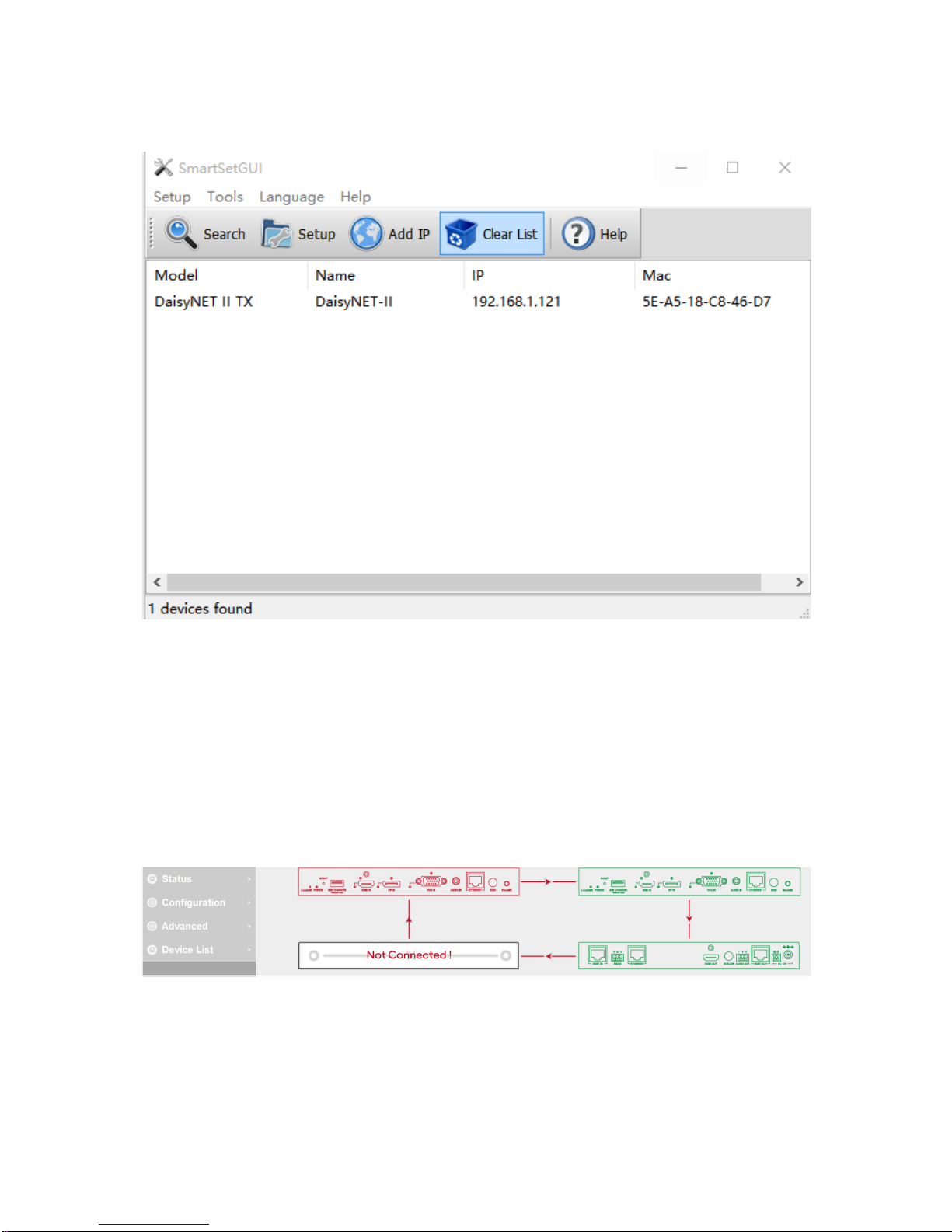

Note: If the IP address of DaisyNET II has been changed, user can search the new IP using SmartSetGUI tool or press the reset button to reset the DaisyNET II.

Run SmartSetGUI tool to obtain the IP address. Click Search, it

will display the new IP address.

WEB GUI Introduction

The WEB GUI contains three sub-menu: Status, Configuration and Advanced.

Status

This sub-menu displays the current status of DaisyNET II.

Device in red represents DaisyNET II working in Show Me mode. Device in green represents DaisyNET II connecting in the chain but not working in Show Me mode. Device in black represents not connecting in the chain.

Click the device icon, it displays the alias name, IP address, sequence, Grouping and input source of the DaisyNET II.

Note:  Mode False represents the DaisyNET II not working in group

mode.

 Mode True represents DaisyNET II working in group mode.

Configuration

There are three sub-menus: Device, Video and Control.

Device

This sub-menu is used to perform the following tasks:

 Locate ME  Alias Name  Daisy-chain Sequence  Daisy-chain Grouping  Network

Locate Me

click LocateME on, the LocateME LED of DaisyNET II will be blinking, by that user can locate which DaisyNET II's WEB GUI is logging.

Alias Name

User can modify DaisyNET II name in case of installation issues when multiple DaisyNET II cascaded. click Apply button to save modifications. Note: The Alias name must be 1~20 characters in length, it could be letters, numbers, space, underscore "_"or dash"-".

Daisy-chain Sequence

User can set the daisy-chain quantity in this column. When multiple DaisyNET II cascaded, it’s recommended to input total quantity of devices cascaded in the chain by logging in the WEB GUI of the first device and then click Start Sequence button. When any DaisyNET II is removed or added in cascaded connection, please log in the first device’s WEB GUI in the chain to reconfigure. By that each DaisyNET II could find out its sequence in the daisy-chain automatically, and it’s particularly necessary for Ring-type Connection.

Note: If the Daisy-chain Quantity inputted is more than devices cascaded in the chain, additional devices would be showed in black in Status page.

Daisy-chain Grouping

User can set DaisyNET II working in grouping mode in this column. DaisyNET II offers Daisy-Chain Grouping mode to meet grouping conference, in case multiple conference groups could be set up and worked independently in cascaded connection. By that each group could only have their local sources to be selected or displayed, and can’t be shared to other groups.

Daisy-Chain Grouping is simply activated by Telnet API or clicking the option on the WEB GUI of device, then the video will stop to be outputted to backward devices. After applying, backward devices can not select or display forward sources, neither been selected or displayed by forward devices.

A cascaded chain could support multiple groups. It’s set up in WEB GUI one by one; Telnet API is also provided to set all or each device independently to work in grouping mode, and cancel it.

Network

The DaisyNET II can be controlled over LAN. There are two IP Mode to choose: Static and DHCP. When users choose Static and modify the IP address then click Apply, this window pops:

Then, it will back to the login Page:

Users should login again. When users choose DHCP and click Apply: Note: Please ensure the device connected the router successful. Otherwise the device will not get IP.

This window pops:

By default, the IP address to access the DaisyNET II is Static. User must configure the IP address of each device firstly and then start the installation, in case of IP conflicts when multiple devices connected directly.

Video

This sub-menu is used to perform the following tasks:

 Auto Switch  HDCP

 EDID

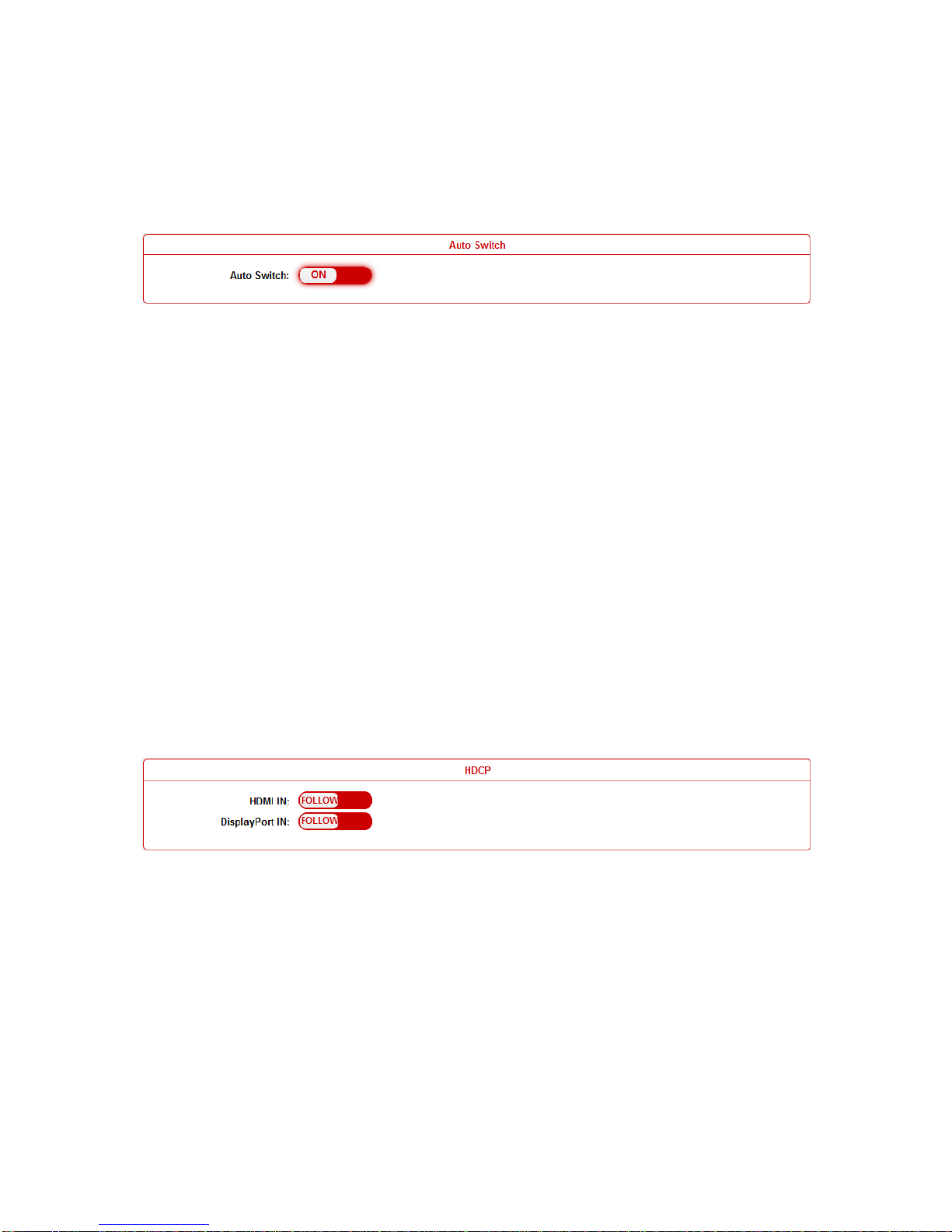

Auto Switch

Users can enable or disable the Auto Switch function in this column. If Auto Switch function is on, that means:  Upon detecting a new input, the device will automatically select

the new input.

 When an active source is removed or signal output is disabled,

it will switch to an active input by checking their priority, HDMI has a higher priority over DP, and DP has a higher priority over VGA

 Once power is restored, it will automatically switch to the

source selected before power restored.

HDCP

Users can set the HDCP ON or OFF for both HDMI and DisplayPort inputs by WEB GUI or Telnet API, which requests specified source to output encrypted or un-encrypted video.

FOLLOW means the source to output encrypted video. OFF means the source to output un-encrypted video. Note: This function is only applied to specified source which could

output encrypted or un-encrypted video depending on the display.

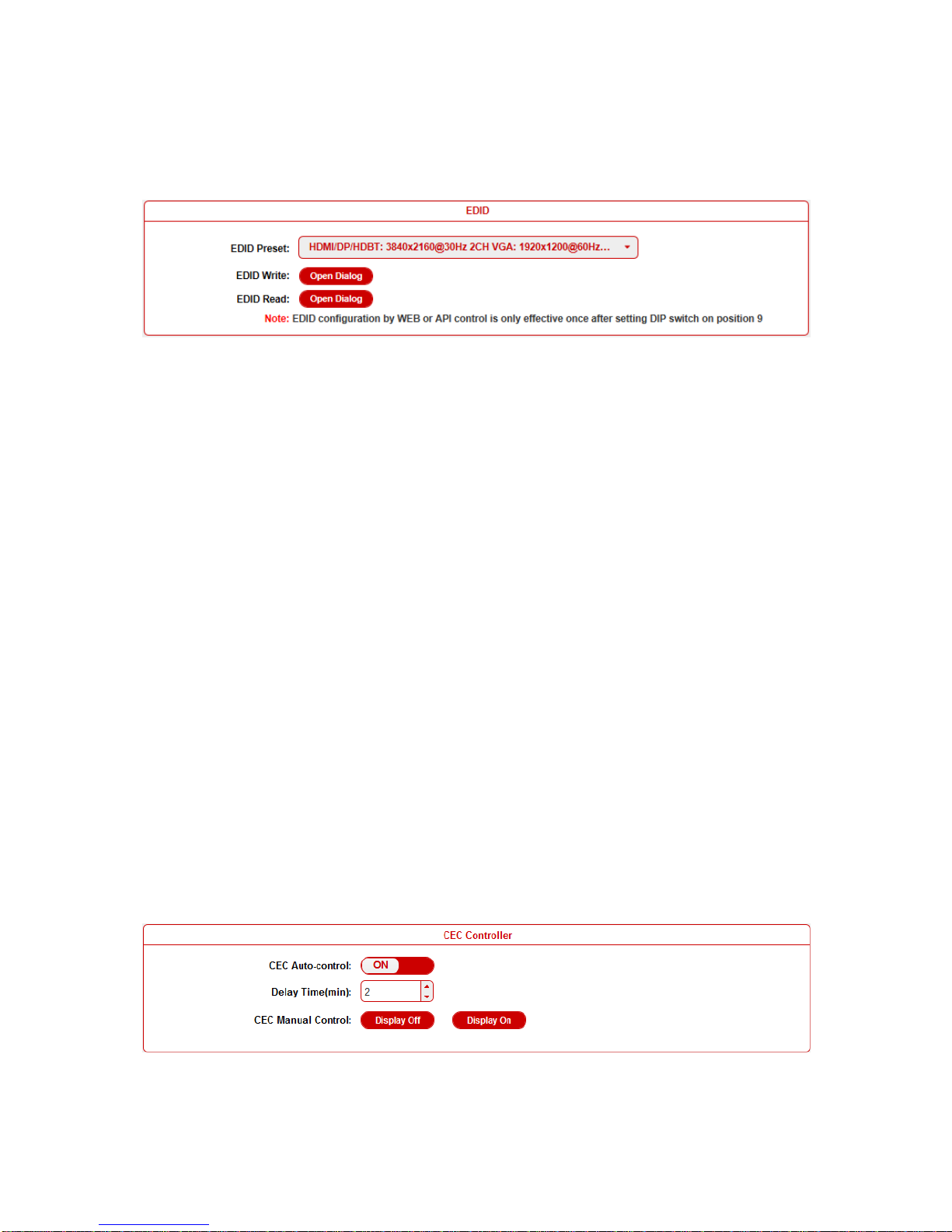

EDID

To set the EDID by WEB GUI, adjust the EDID switch to Position 9 firstly. For example, if user wants to write the HDMI OUT EDID of DaisyNET II 1 to HDMI IN of DaisyNET II 2, log in DaisyNET II 1's WEB GUI, click Open Dialog button of EDID Read, save the Bin file, and then log in DaisyNET II 2's WEB GUI, click Open Dialog button of EDID Write, import the Bin file. Note: For EDID write, HDMI/DP/HDBT supports 256 bytes only, VGA supports 128 bytes.

Control

This sub-menu is used to perform the following tasks:

 CEC Controller  RS232 Controller  RS232 Pass-through

CEC Controller

DaisyNET II is built in CEC controller, and able to turn on/off display by sending CEC commands to display via HDMI output port

automatically. Note: This function is only effective for CEC supported and enabled displays.

CEC Auto control: Enable/disable CEC Auto-control Delay Timing: Set the delay time of turn off display after receiving

CEC command. The range is 0~30 minutes. CEC Manual Control: Turn on/off display by CEC command manually.

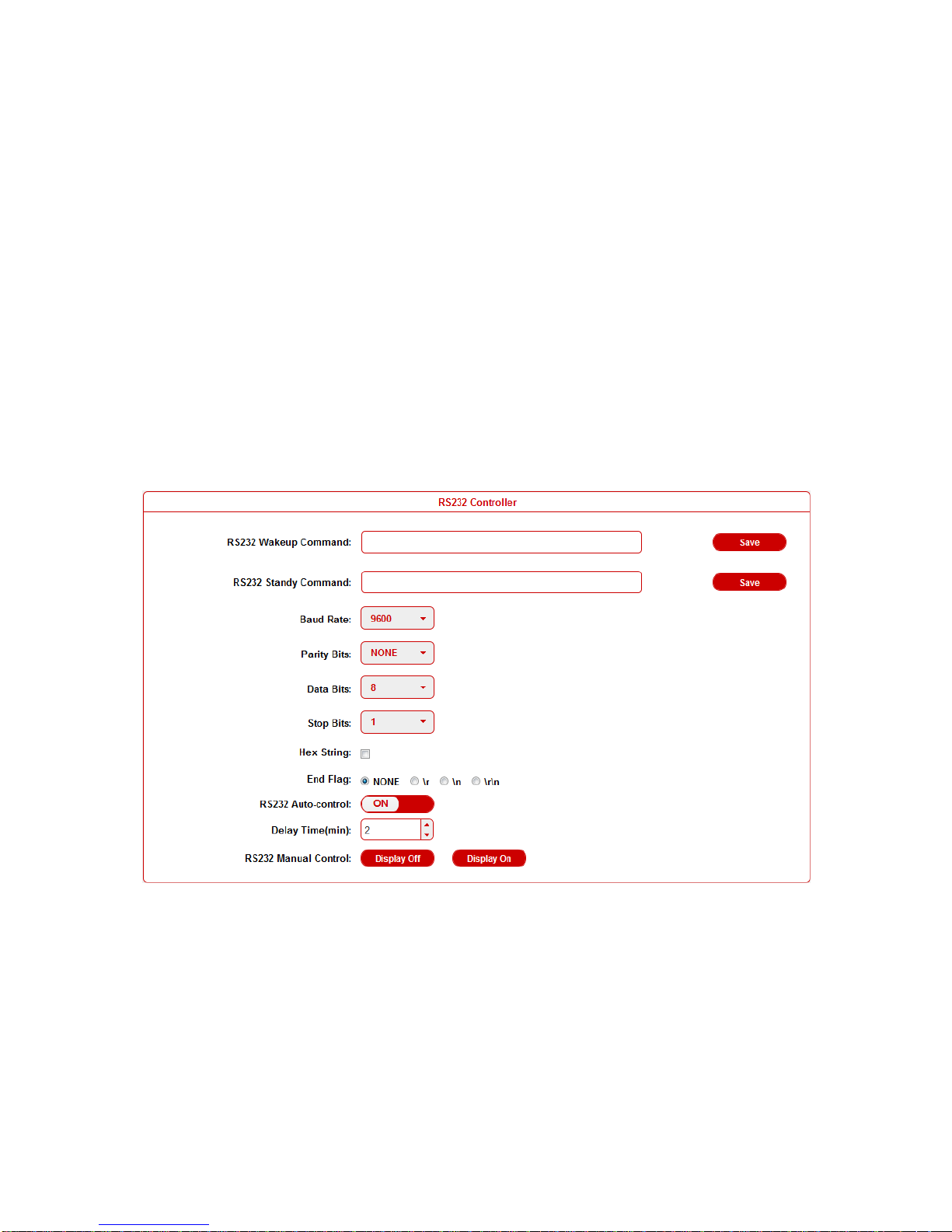

RS232 Controller

DaisyNET II is built in RS232 controller, and able to save RS232 Wakeup and Standby Commands of display and turn on/standby the display through connected RS232 port by auto-detecting source status. RS232 Wakeup Command: Input the RS232 Wakeup Command of connected display, and click Save button. Note: The command length is up to 64 characters.

RS232 Standby Command: Input the RS232 Standby Command of connected display, and click Save button. Note: The command length is up to 64 characters.

Baud Rate: Set the Baud Rate of connected display. Parity Bits: Set the Parity Bits of connected display. Data Bits: Set the Data Bits of connected display. Stop Bits: Set the Stop Bits of connected display. Hex String: Check this option represents the command is

Hexadecimal format. End Flag: Choose the end flag of command. The command could be end with none, "\r", "\n" or "\r\n".

RS232 Auto Control: Enable/disable RS232 Auto-control. Delay Time (min): Set the delay time of display off after receiving

RS232 command. The range is 0~30 minutes. RS232 Manual Control: Turn on/off display manually by RS232 command.

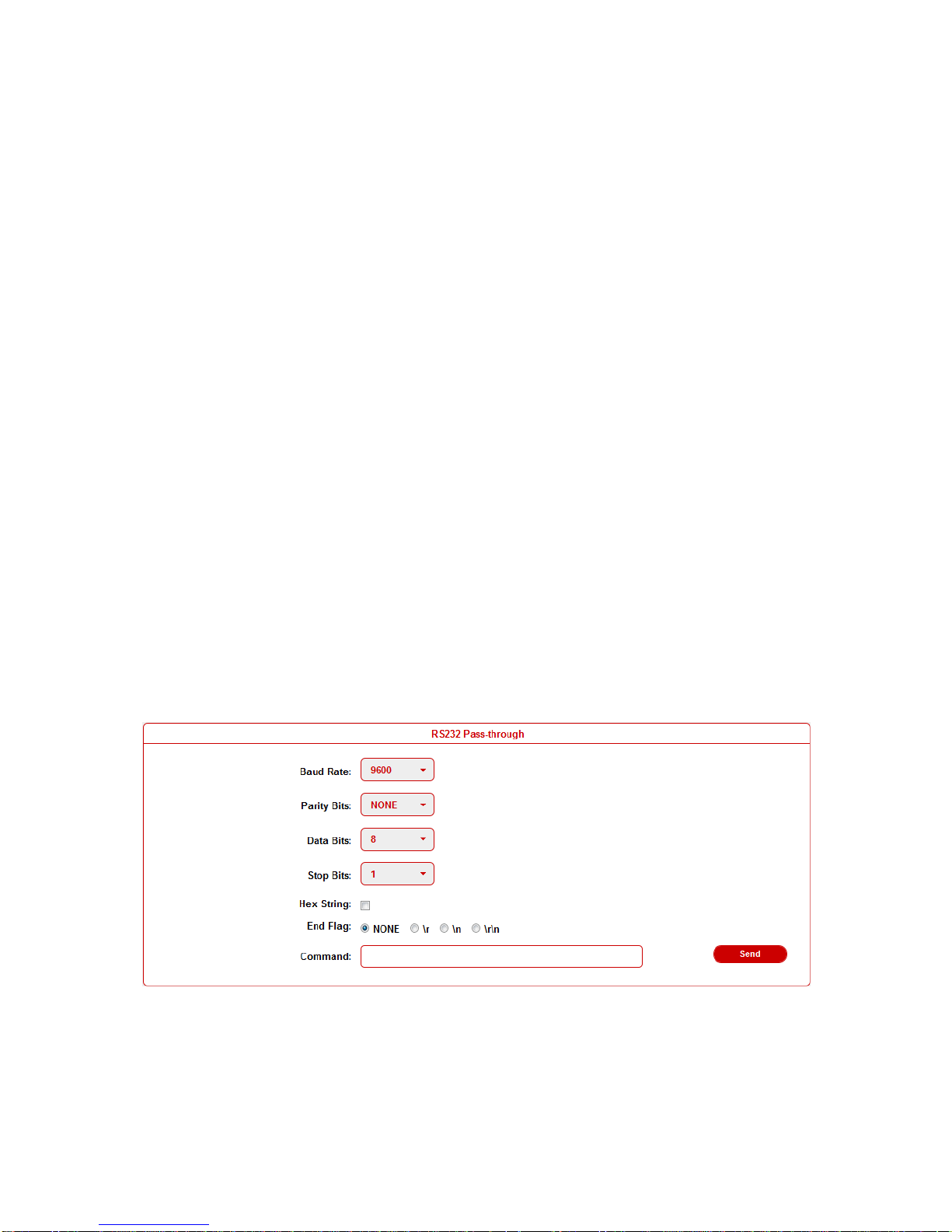

RS232 Pass-through

RS232 pass through is used to send RS232 command manually by Web to selected device out. Telnet API is also provided for this function.

Advanced

This sub-menu is used to perform the following tasks:

 Welcome Menu  Password  System  Firmware

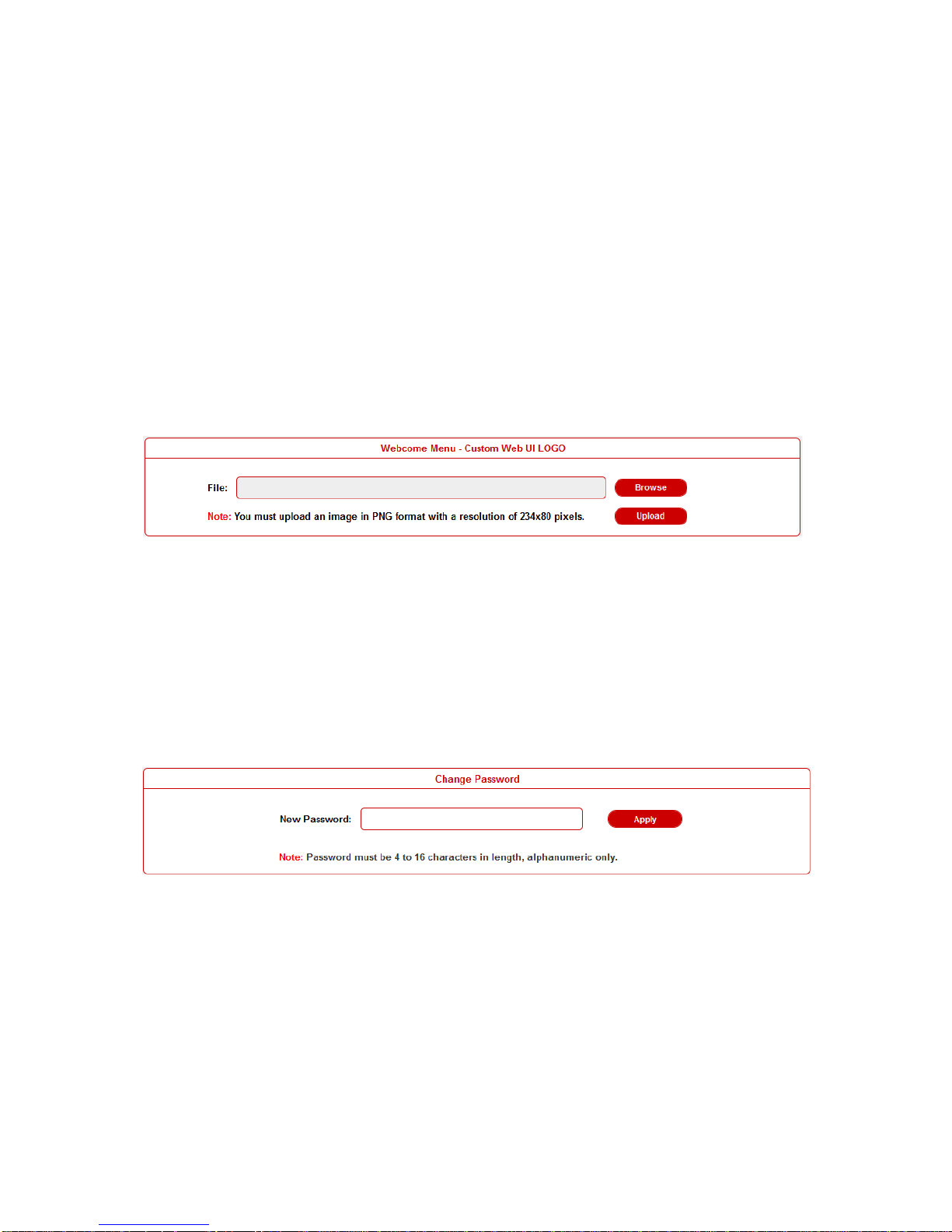

Welcome Menu

User can change the WEB GUI logo if they need. click Browse button to browse the Logo file, and then click Upload button. Note: You must upload an image in PNG format with a resolution of 234x80 pixels.

Password

Input a new login password, click Apply button to save the change. Note: Password must be 4 to 16 characters in length, alphanumeric

only.

System

This sub-menu is used to perform the following tasks:

 System  Automatic Logout

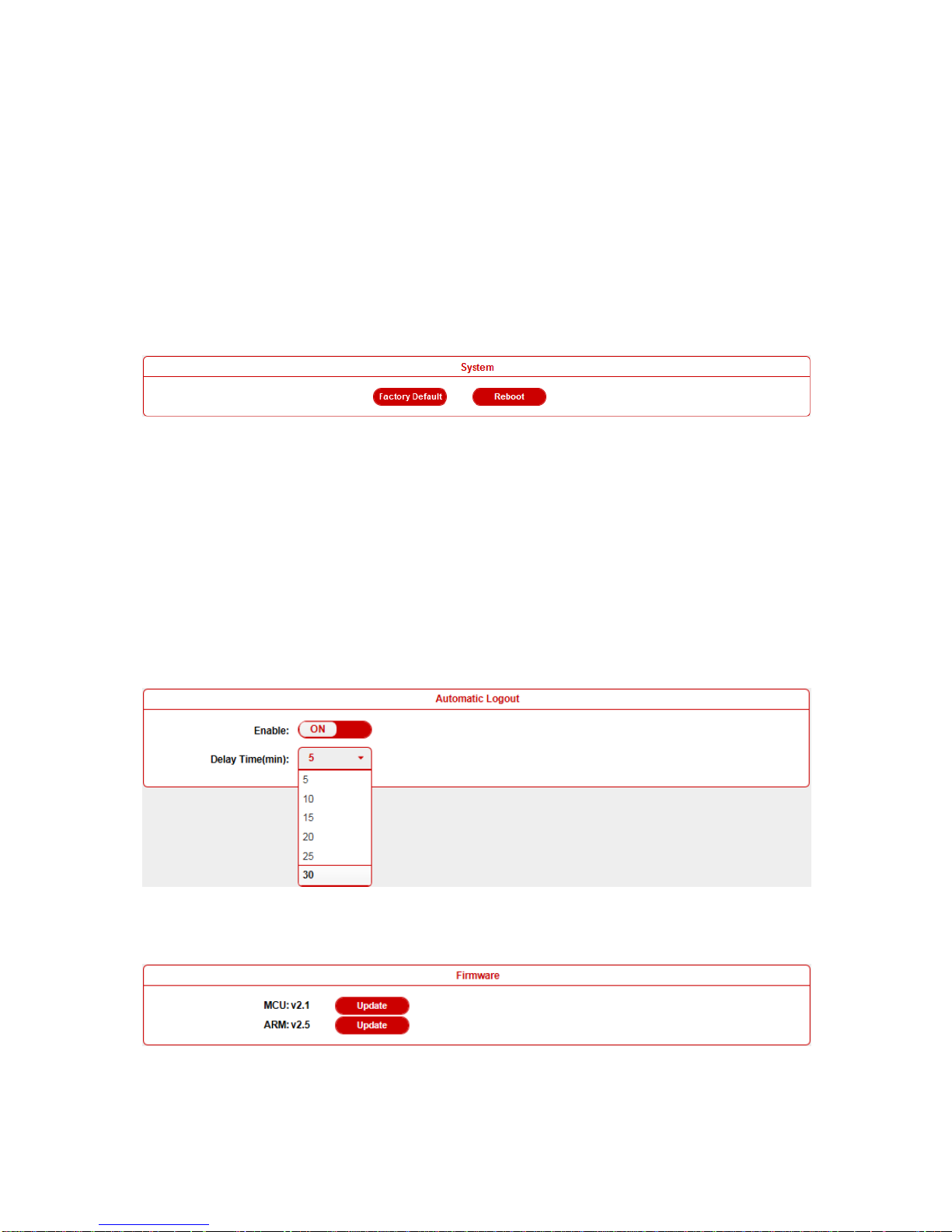

System

Factory Default: click this button to reset the DaisyNET II to factory

default settings.

Reboot: click this button to reboot the DaisyNET II.

Automatic Logout

Enable: Enable/Disable the automatic logout. Delay Time(min): Select 5 means after 5 minutes it will back to

Firmware

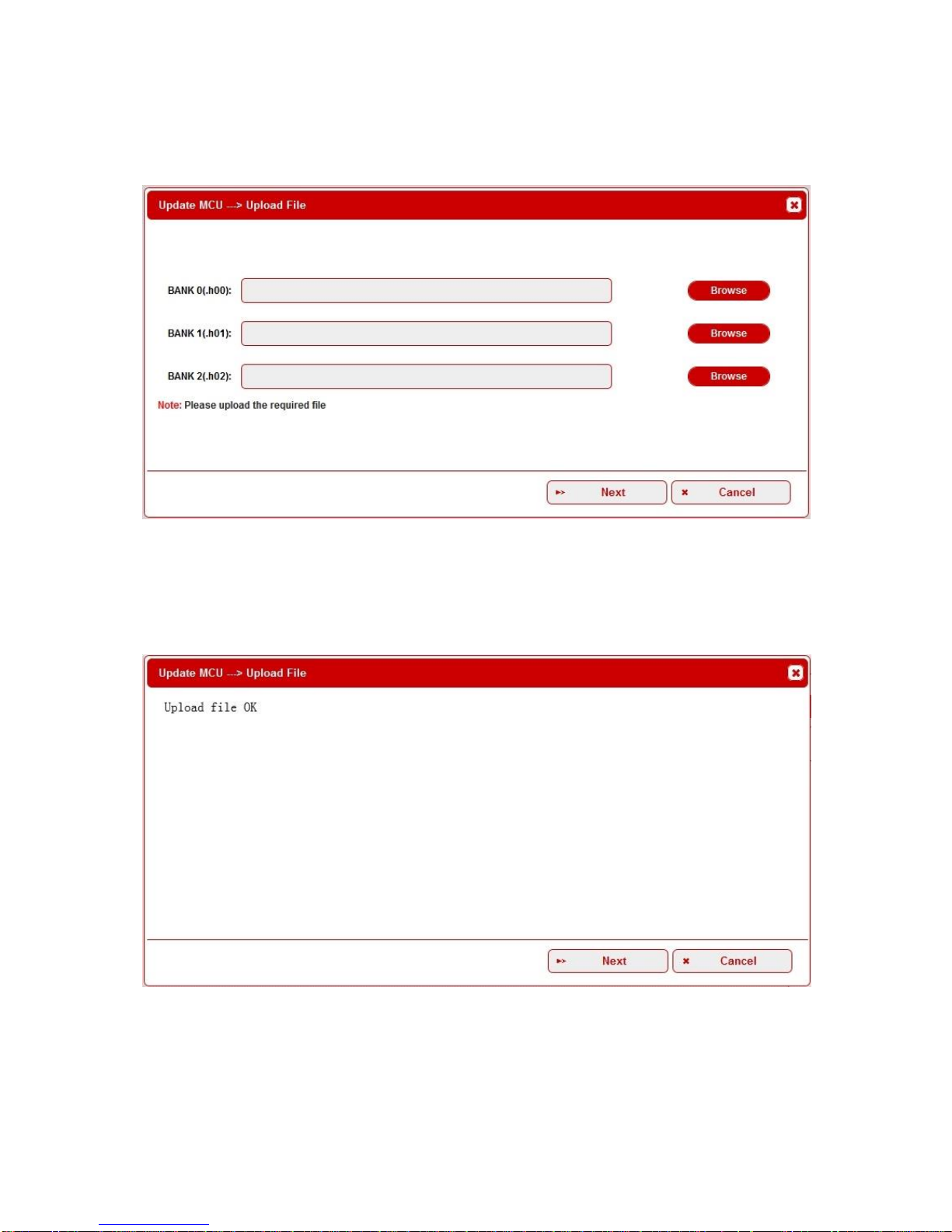

Update MCU

Step 1. click Update button.

Step 2. Browse for the update file

Step 3. Upload File OK, click Next button.

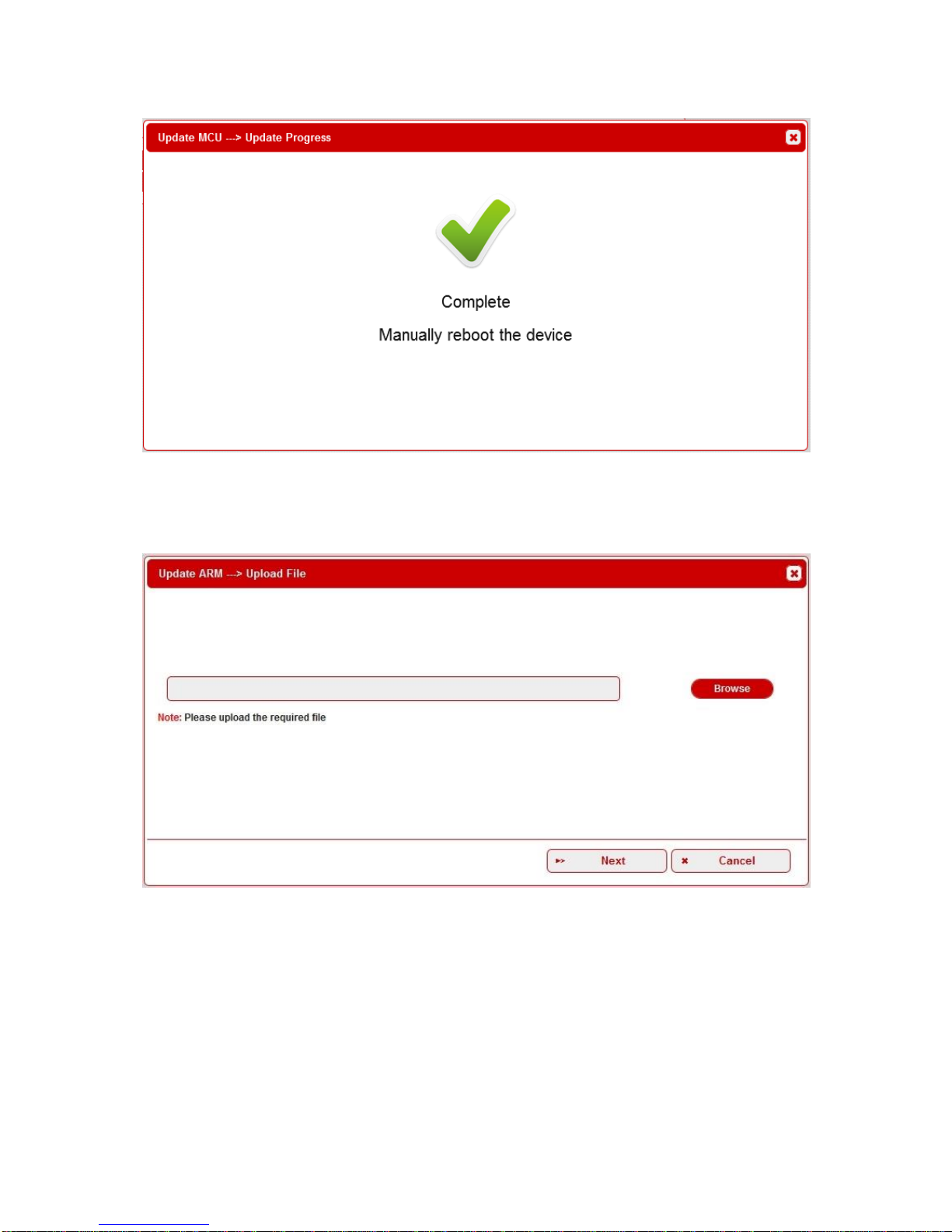

Step 4. It takes about one minute to update. Please restart the

device.

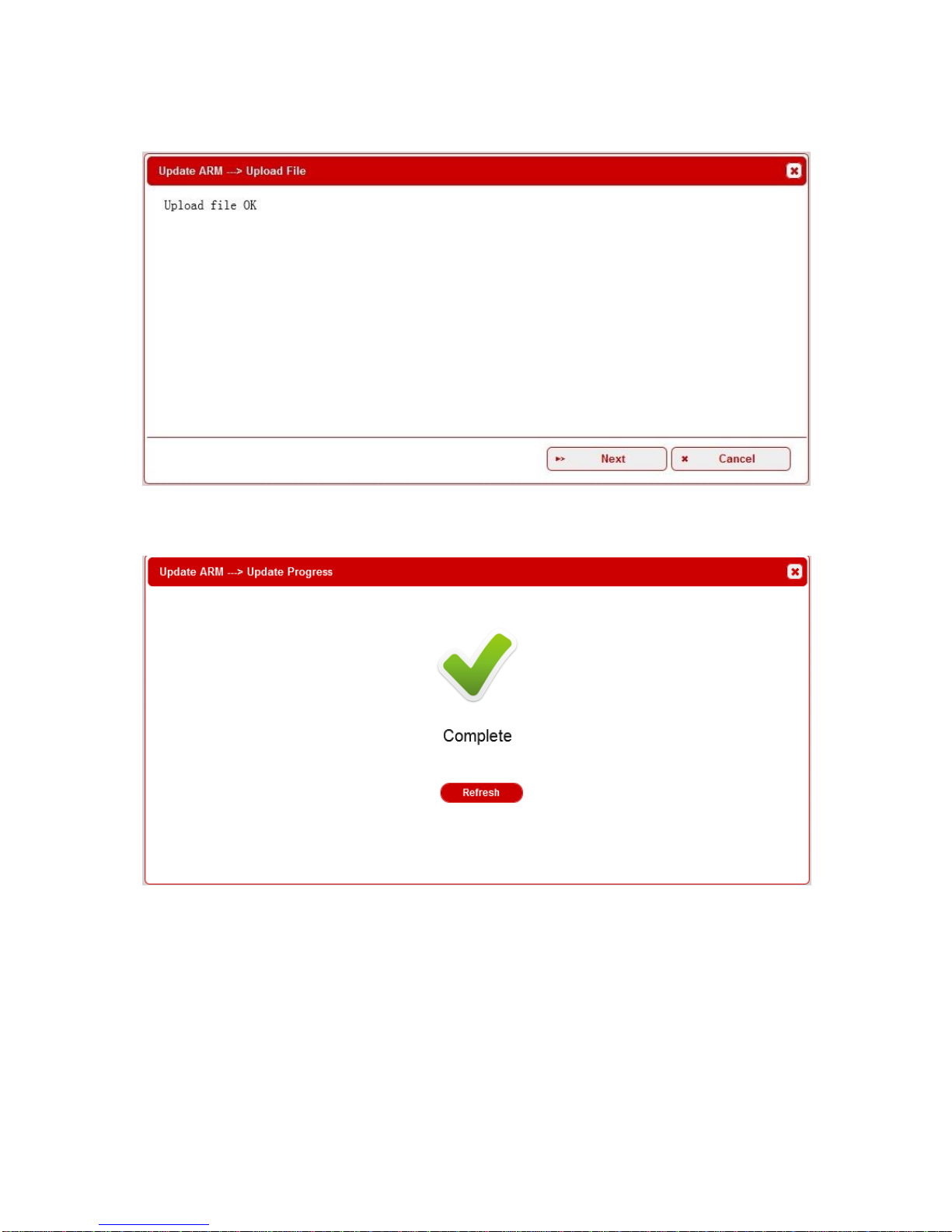

Update ARM

Step 1. click Update button.

Step 2. Browse for the update file.

Step 3. Upload File OK, click Next button.

Step 4. Complete. Close this window.

Note: every time complete the upgrade, please cleaning the

browser to avoid anomalies.

Device List Window

This window displays the name and IP address of current devices. Click the device, it will bring user to the WEB GUI of this device. Click the Refresh to refresh the device list and WEB UI.

EDID Management

EDID (Extend Display Identification Data) is data generated from each display in the system to communicate the capabilities of the device. The DaisyNET II features an EDID copy mode that can be used when the EDID does not meet the installation requirements. The EDID mode has several options available to encourage device communication. Please set it to appropriate position based on the preferred timing of connected display.

DIP Switch

EDID Description

HDMI/DP: 3840 x 2160@30Hz 2CH

VGA: 1920 x 1200@60Hz 2CH

1920 x 1200@60Hz 2CH

1920 x 1080@60Hz 2CH (Default)

1680 x 1050@60Hz 2CH

1600 x 900@60Hz 2CH

1440 x 900@60Hz 2CH

1360 x 768@60Hz 2CH

1280 x 768@60Hz 2CH

1024 x 768@60Hz 2CH

EDID by Web or API control

Warranty Terms and Conditions

Products are backed by Limited 2-year Parts and Labor warranty. For the following cases Grandbeing shall charge for the service(s) claimed for the products if the product is still remediable and the warranty card becomes unenforceable or inapplicable.

1. The original serial number (specified by Grandbeing) labeled

on the product has been removed, erased, replaced, defaced or is illegible.

2. The warranty has expired.

3. The defects are caused by the fact that the product is

repaired, dismantled or altered by anyone that is not from a Grandbeing authorized service partner. The defects are caused by the fact that the product is used or handled improperly, roughly or not as instructed in the applicable User Guide.

4. The defects are caused by any force majeure including but

not limited to accidents, fire, earthquake, lightning, tsunami and war.

5. The service, configuration and gifts promised by salesman

only but not covered by normal contract.

6. Grandbeing preserves the right for interpretation of these

cases above and to make changes to them at any time without notice.

Comm-Tec DaisyNET II User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
