Stop/Exit - Mode selection/stop/back button. Press this key get to the main menu
and to stop charging or discharging process.
Never leave power supply, charger, or battery unattended during use.
Never charge batteries overnight.
Never attempt to charge dead, damaged, or wet battery packs.
Never attempt to charge a battery pack containing cells of dierent chemistries.
Never chage batteries in extremely hot or cold places or in direct sunlight.
Never charge a battery if the leads have been pinched or shorted.
Never connect the charger if the power cable has been pinched or shorted.
Never connect the charger to an automobile battery while the vehicle is running.
Never attempt to dismantle the charger or use a damaged charger.
Never attach your charger to both an AC and DC power source at the same time.
Never connect the input jack (DC input) to AC power.
Alway use only rechargeable batteries designed for use with this type of charger.
Always inspect the battery before charging.
Alway keep the battery away from any material that could be aect by heat.
Always monitor the charging area and have a re extinguisher available at all times.
Always end the charging process if the battery becomes too hot to the touch or begins
to swell.
Always connect the charge cable to the charger rst, then connect the battery next to
avoid creating a short circuit between the charge leads. Reverse this sequence when
disconnecting.
Always connect the positive read leads (+) and negative black leads (—) correctly.
Always disconnect the battery after charging, and let the charger cool between
charges.
Always charge in a well-ventilated area.
If product malfunctions, discontinue usage and contact Common Sense RC toll-free at
866-405-8811.
Always ensure the battery you are charging meets the specications of this charger
and the charger settings are correct. Not doing so can result in excessive heat and
other related product malfunctions, which can lead to user injury or property
damage. Please contact Common Sense RC or an authorized retailer with
compatibility questions.

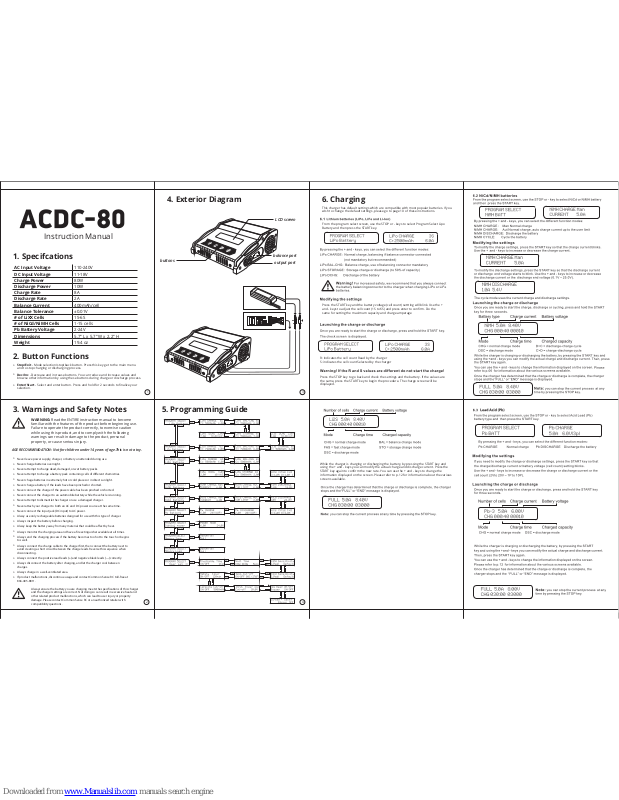

Instruction Manual
AC Input Voltage 110-240V
DC Input Voltage 11-18V
Charge Power 80W
Discharge Power 10W
Charge Rate 8A
Discharge Rate 2A
Balance Tolerance ±0.01V
# of LiXX Cells 1S-6S
# of NiCd/NiMH Cells 1-15 cells
Pb Battery Voltage 2-24V
Dimensions 5.7” L x 5.7” W x 2.2” H
Weight 19.4 oz
Balance Current 400mAh/cell
1. Specifcations
Dec/Inc - Decrease and increase buttons. You can reduce and increase values and
browse other information by using these buttons during charge or discharge process.
2. Button Functions
Enter/Start - Select and enter button. Press and hold for 2 seconds to finalize your
selection.
»
»
»
1
3. Warnings and Safety Notes 5. Programming Guide
4. Exterior Diagram 6. Charging
WARNING: Read the ENTIRE instruction manual to become
familiar with the features of the product before beginning use.
Failure to operate the product correctly, to exercise caution
while using this product, and to comply with the following
warnings can result in damage to the product, personal
property, or cause serious injury.
AGE RECOMMENDATION: Not for children under 14 years of age.This is not a toy.
»
»
»
»
»
»
»
»
»
»
»
»
»
»
»
»
»
»
»
»
»
2
buttons
balance port
output port
LCD screen
3
4
This charger has default settings which are compatible with most popular batteries. If you
wish to change the default settings, please go to page 10 of these instructions.
From the program select screen, use the STOP or - keys to select Program Select Lipo
Battery and then press the START key.
Press the START key and the battery voltage (cell count) settting will blink. Use the +
and - keys to adjust the cell count (1S to 6S) and press enter to confirm. Do the
same for setting the maximum capacity and charge amperage
R: indicates the cell count Read by the charger
S: indicates the cell count Selected by the charger
Press the STOP key to go back and check the settings and the battery. If the values are
the same, press the START key to begin the procedure. The charge screen will be
displayed.
While the charger is charging or discharging the battery, by pressing the START key and
using the + and - keys you can modify the actual charge and discharge current. Press the
START key again to confirm the new rate. You can use the + and - keys to change the
information displayed on the screen. Please refer to p.12 for information about the various
screens available.
The charger’s default setting can be modified. Only modify these setting if you
understand their purpose. Incorrectly adjusting these settings can result in damage to
batteries or charger and personal injury. To modify the settings, use the STOP or - keys
to select the program screen and then press the START key.
This indicates a charger failure. Stop using the charger and contact Common Sense RC or an
authorized retailer.
This indicates a charger failure. Stop using the charger and contact Common Sense RC or an
authorized retailer.
7. Extra information display
8. Error Messages
9. Warranty
ACDC-80
