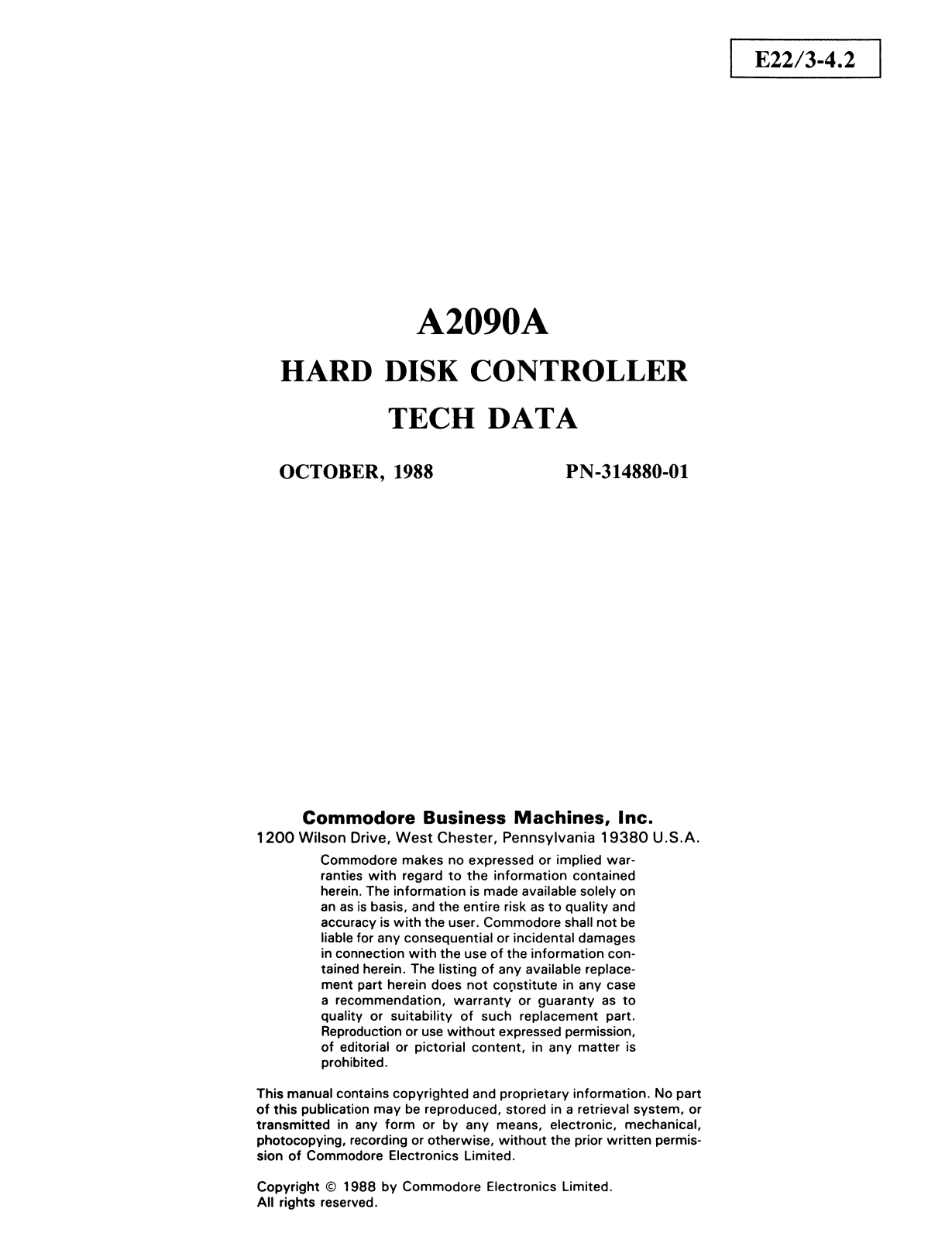

A2090A
HARD DISK CONTROLLER
TECH DATA
OCTOBER, 1988 PN-314880-01
/
J
z.
commodore
COMPUTERS
Page 2
E22/3-4.2
A2090A
HARD DISK CONTROLLER
TECH DATA
OCTOBER, 1988 PN-314880-01
Commodore Business Machines, Inc.
1200 Wilson Drive, West Chester, Pennsylvania 19380 U.S.A.
Commodore makes no expressed or implied war
ranties with regard to the information contained
herein. The information is made available solely on
an as is basis, and the entire risk as to quality and
accuracy is with the user. Commodore shall not be
liable for any consequential or incidental damages
in connection with the use of the information con
tained herein. The listing of any available replace
ment part herein does not constitute in any case
a recommendation, warranty or guaranty as to
quality or suitability of such replacement part.
Reproduction or use without expressed permission,
of editorial or pictorial content, in any matter is
prohibited.
This manual contains copyrighted and proprietary information. No part
of this publication may be reproduced, stored in a retrieval system, or
transmitted in any form or by any means, electronic, mechanical,
photocopying, recording or otherwise, without the prior written permis
sion of Commodore Electronics Limited.
Copyright © 1988 by Commodore Electronics Limited.
All rights reserved.
Page 3
A2090A HARD DISK CONTROLLER

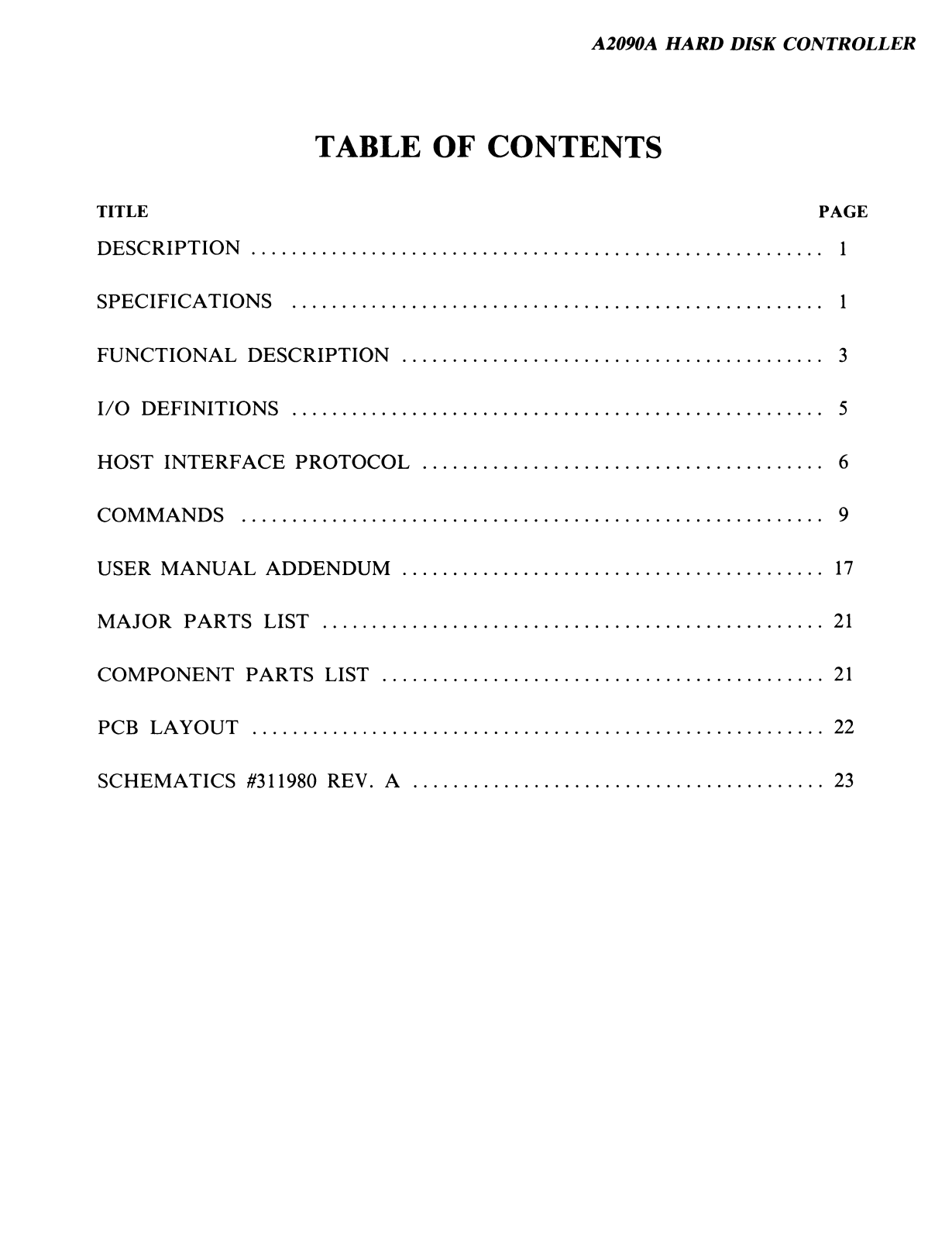

TABLE OF CONTENTS
TITLE PAGE
DESCRIPTION......................................................................................................................... 1
SPECIFICATIONS .................................................................................................................. 1
FUNCTIONAL DESCRIPTION .......................................................................................... 3
I/O DEFINITIONS .................................................................................................................. 5
HOST INTERFACE PROTOCOL ...................................................................................... 6
COMMANDS ............................................................................................................................. 9
USER MANUAL AD D END UM ......................................................................................... 17
MAJOR PARTS LIST ............................................................................................................ 21
COMPONENT PARTS LIST ................................................................................................21

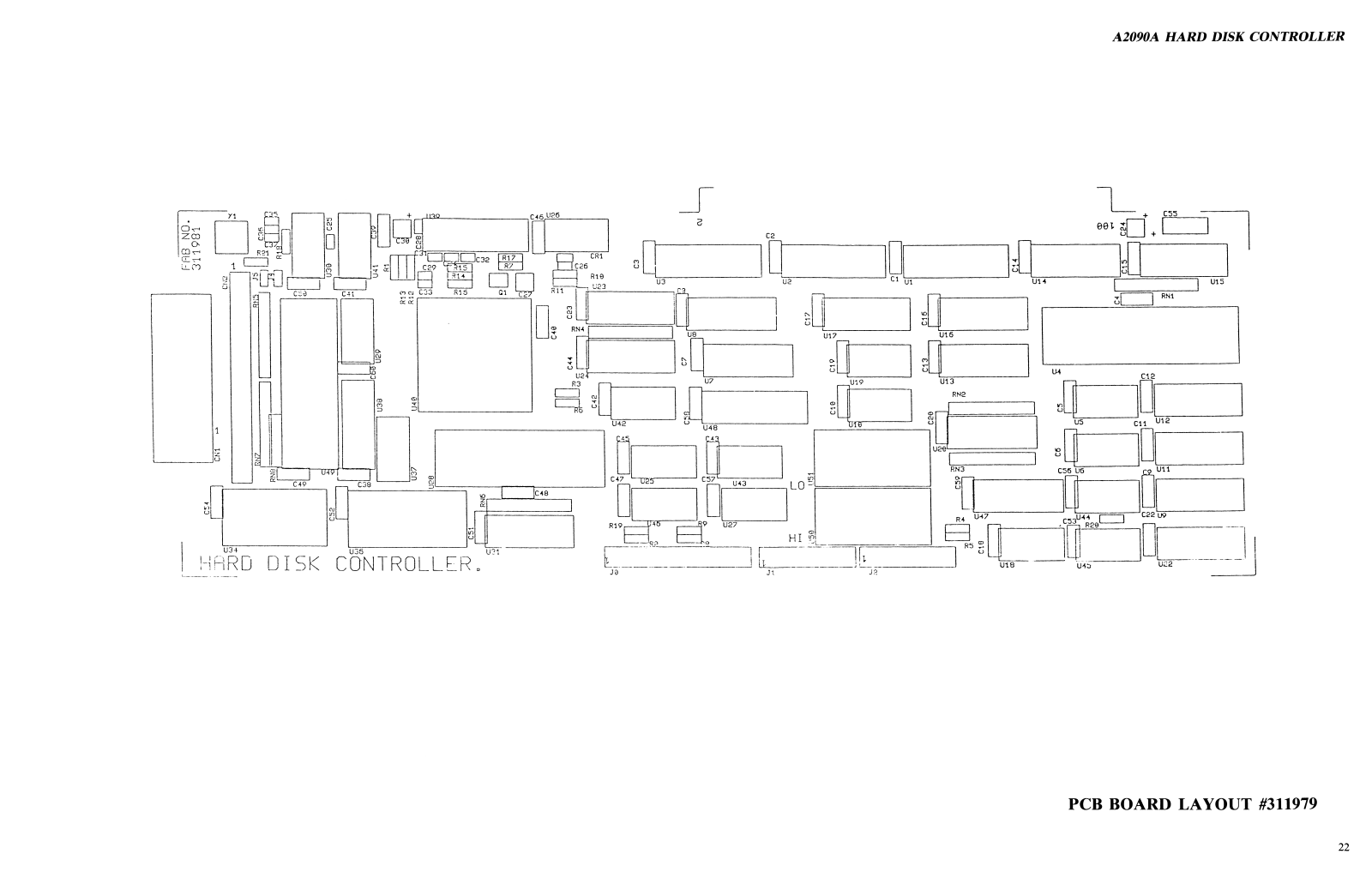

PCB LAYOUT ........................................................................................................................... 22

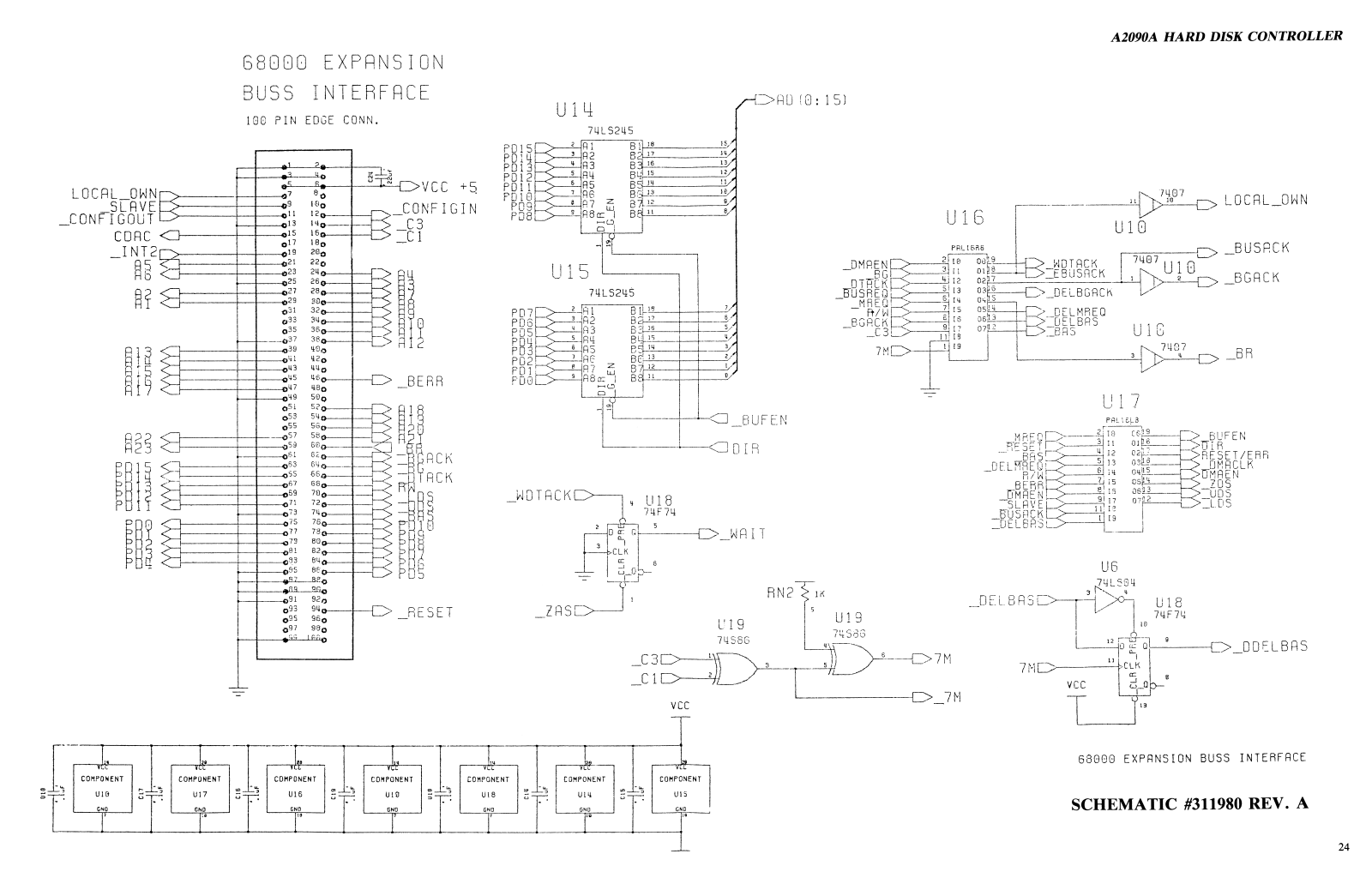

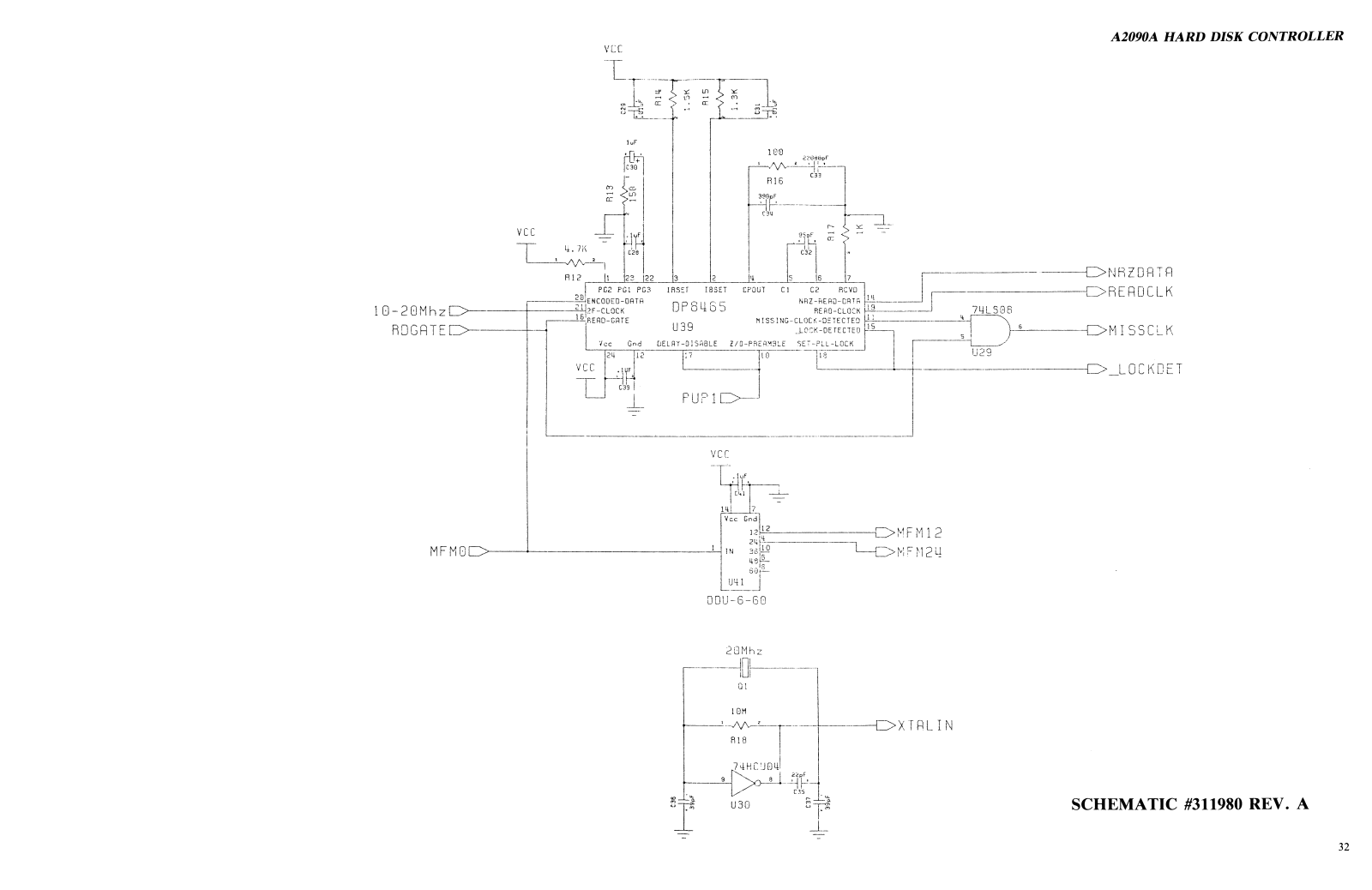

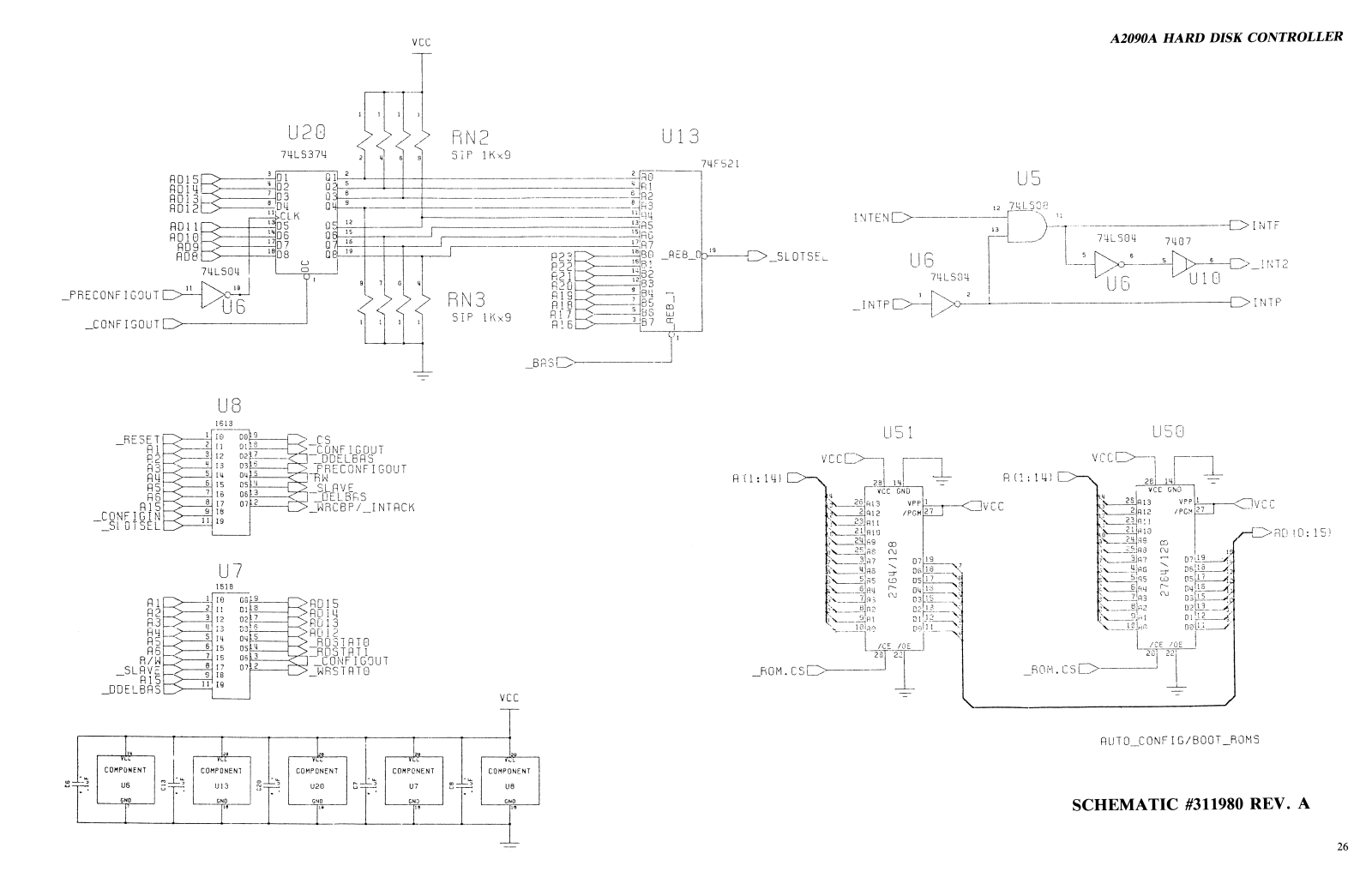

SCHEMATICS #311980 REV. A
23
Page 4
A2090A HARD DISK CONTROLLER

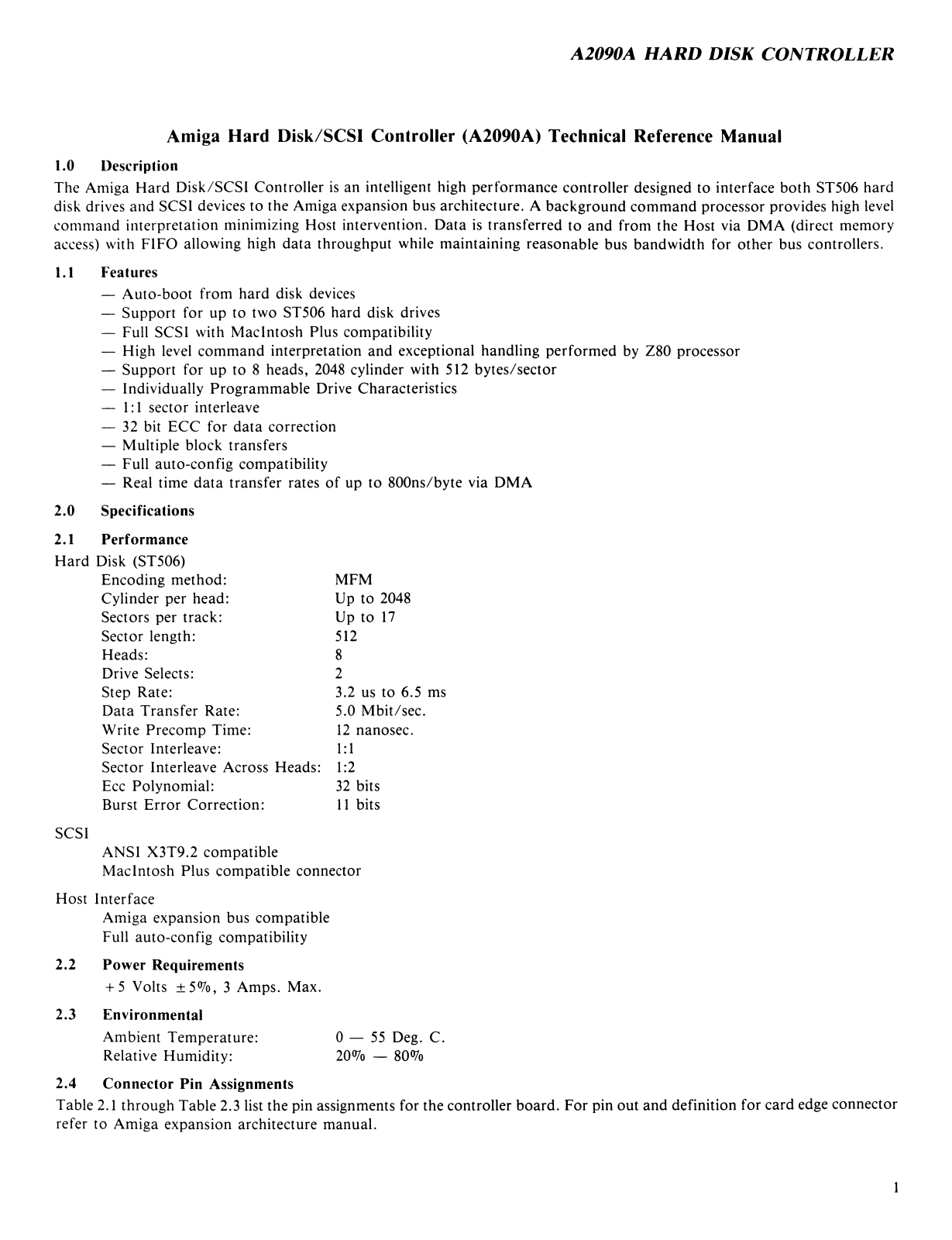

Amiga Hard Disk/SCSI Controller (A2090A) Technical Reference Manual
1.0 Description
The Amiga Hard Disk/SCSI Controller is an intelligent high performance controller designed to interface both ST506 hard
disk drives and SCSI devices to the Amiga expansion bus architecture. A background command processor provides high level
command interpretation minimizing Host intervention. Data is transferred to and from the Host via DMA (direct memory
access) with FIFO allowing high data throughput while maintaining reasonable bus bandwidth for other bus controllers.
1.1 Features
— Auto-boot from hard disk devices
— Support for up to two ST506 hard disk drives
— Full SCSI with Macintosh Plus compatibility
— High level command interpretation and exceptional handling performed by Z80 processor
— Support for up to 8 heads, 2048 cylinder with 512 bytes/sector
— Individually Programmable Drive Characteristics
— 1:1 sector interleave
— 32 bit ECC for data correction
— Multiple block transfers
— Full auto-config compatibility
— Real time data transfer rates of up to 800ns/byte via DMA
2.0 Specifications
2.1 Performance
Hard Disk (ST506)
Encoding method:
Cylinder per head:
Sectors per track:
Sector length:
Heads:
Drive Selects:
Step Rate:
Data Transfer Rate:
Write Precomp Time:
Sector Interleave:
Sector Interleave Across Heads
Ecc Polynomial:
Burst Error Correction:
MFM
Up to 2048
Up to 17
512
8
2
3.2 us to 6.5 ms
5.0 Mbit/sec.
12 nanosec.
1:1
1:2
32 bits
11 bits
SCSI
ANSI X3T9.2 compatible
Macintosh Plus compatible connector
Host Interface
Amiga expansion bus compatible
Full auto-config compatibility
2.2 Power Requirements
+ 5 Volts ±5% , 3 Amps. Max.
2.3 Environmental
Ambient Temperature: 0 — 55 Deg. C.
Relative Humidity: 20% — 80%
2.4 Connector Pin Assignments
Table 2.1 through Table 2.3 list the pin assignments for the controller board. For pin out and definition for card edge connector
refer to Amiga expansion architecture manual.
1
Page 5
A2090A HARD DISK CONTROLLER

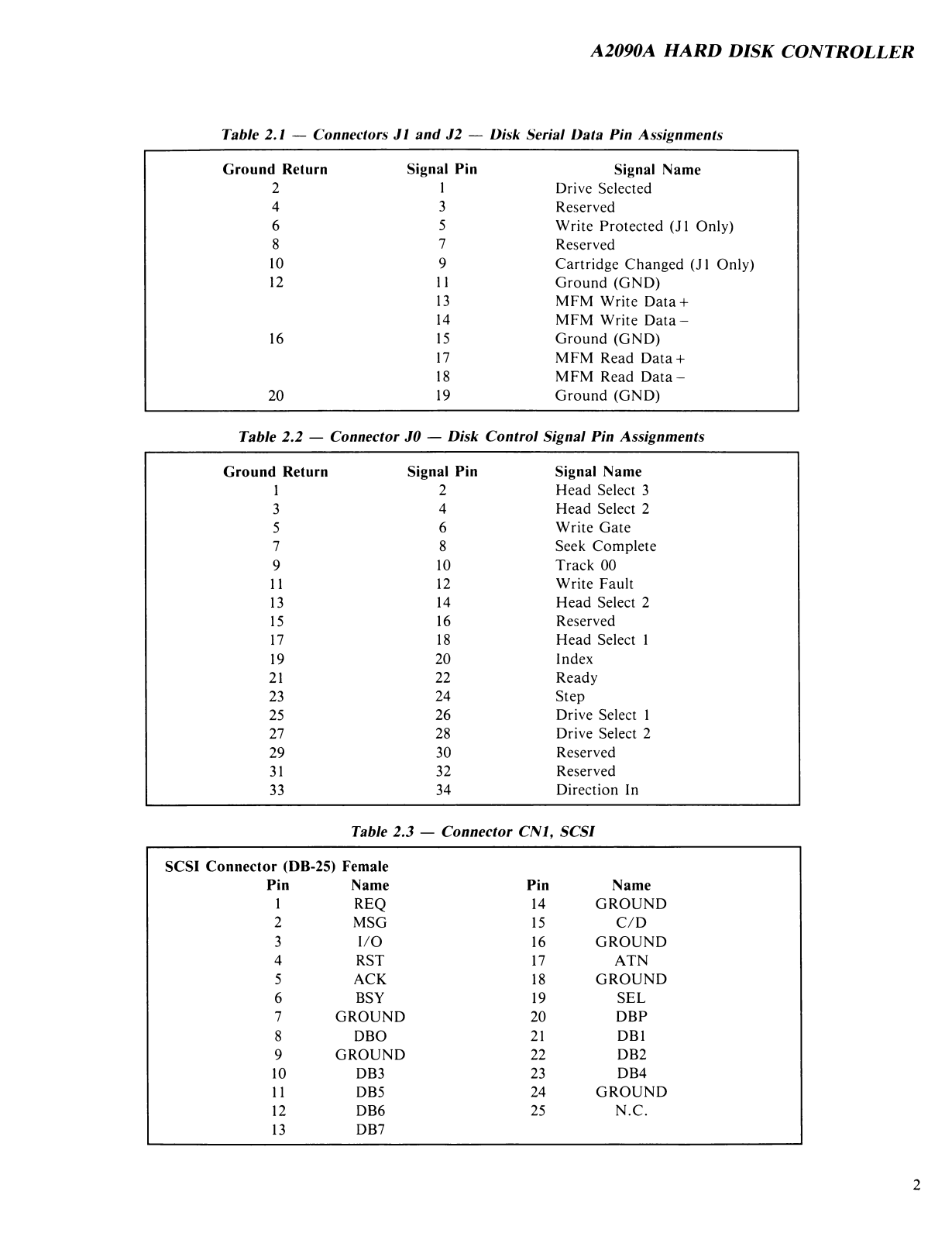

Table 2.1 — Connectors J1 and J2 — Disk Serial Data Pin Assignments
Ground Return
Signal Pin
Signal Name
2
1
Drive Selected
4 3
Reserved
6
5
Write Protected (J1 Only)
8
7
Reserved
10 9
Cartridge Changed (J1 Only)
12 11
Ground (GND)
13
MFM Write Data +
14
MFM Write D ata-
16 15 Ground (GND)
17
MFM Read Data +
18 MFM Read D ata-
20
19 Ground (GND)
Table 2.2 —
Connector JO — Disk Control Signal Pin Assignments
Ground Return
Signal Pin
Signal Name
1
2
Head Select 3
3
4
Head Select 2
5
6 Write Gate
7 8 Seek Complete
9
10
Track 00
11
12
Write Fault
13
14
Head Select 2
15
16 Reserved
17 18 Head Select 1
19
20
Index
21
22
Ready
23
24
Step
25
26
Drive Select 1
27 28
Drive Select 2
29
30
Reserved
31
32 Reserved
33
34 Direction In
Table 2.3 — Connector CN1, SCSI
SCSI Connector (DB-25) Female
Pin
Name
Pin
Name
1
REQ 14 GROUND
2
MSG 15
C/D
3
I/O
16
GROUND
4
RST 17 ATN
5 ACK
18
GROUND
6 BSY
19
SEL
7
GROUND 20
DBP
8 DBO 21
DB1
9 GROUND 22
DB2
10 DB3 23
DB4
11
DB5
24 GROUND
12 DB6
25 N.C.
13
DB7
2
Page 6
A2090A HARD DISK CONTROLLER
2.0 Reference
— 8727 DMA Specification
— Commodore Amiga A500/A2000 Technical Reference Manual
— Motorola 68000 Technical Manual
— Western Digital WD33C93 SCSI Chip Manual
— American National Standard Committee X3T9.2 SCSI Specification

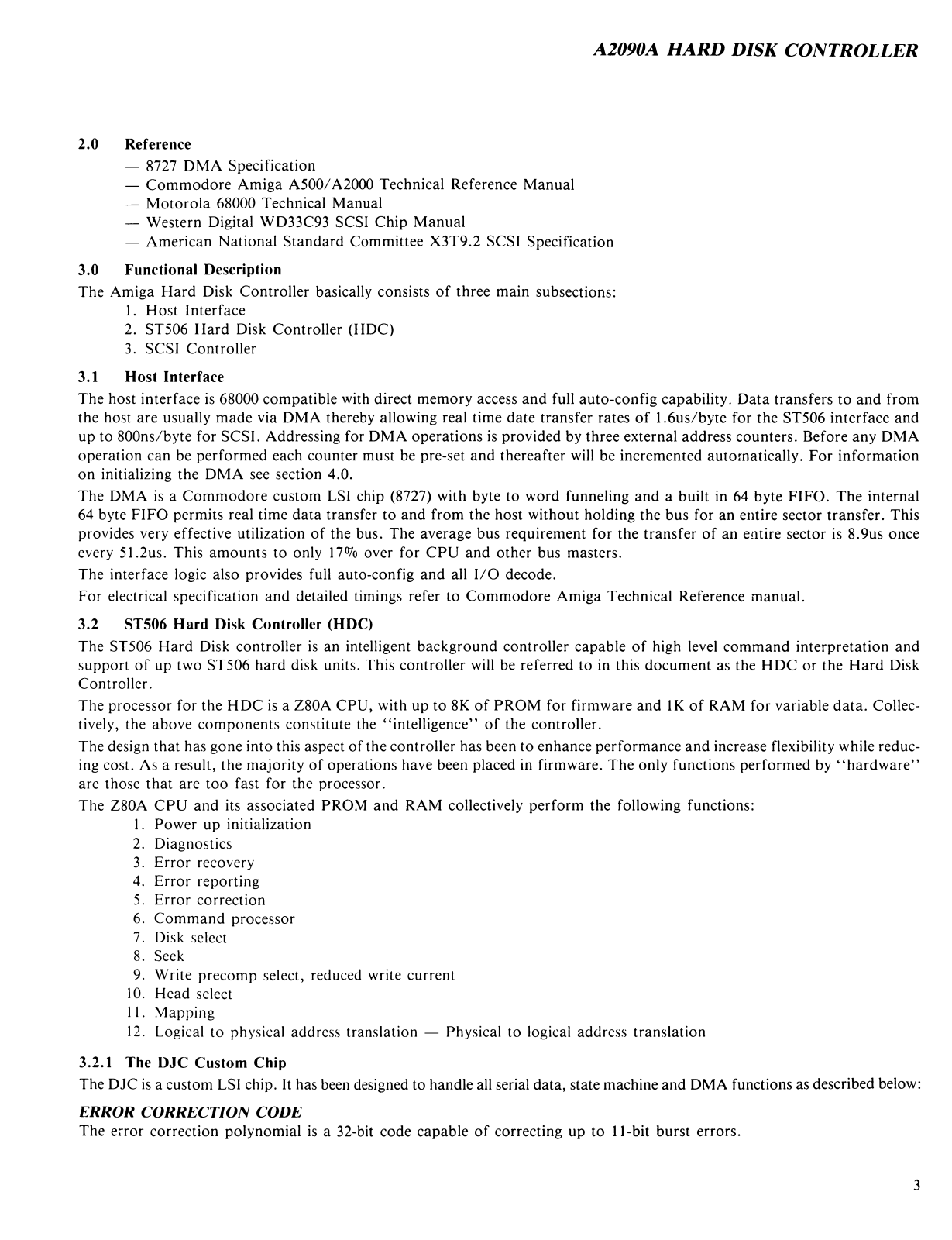

3.0 Functional Description
The Amiga Hard Disk Controller basically consists of three main subsections:
1. Host Interface
2. ST506 Hard Disk Controller (HDC)
3. SCSI Controller
3.1 Host Interface
The host interface is 68000 compatible with direct memory access and full auto-config capability. Data transfers to and from
the host are usually made via DMA thereby allowing real time date transfer rates of 1.6us/byte for the ST506 interface and
up to 800ns/byte for SCSI. Addressing for DMA operations is provided by three external address counters. Before any DMA
operation can be performed each counter must be pre-set and thereafter will be incremented automatically. For information
on initializing the DMA see section 4.0.
The DMA is a Commodore custom LSI chip (8727) with byte to word funneling and a built in 64 byte FIFO. The internal
64 byte FIFO permits real time data transfer to and from the host without holding the bus for an entire sector transfer. This
provides very effective utilization of the bus. The average bus requirement for the transfer of an entire sector is 8.9us once
every 51.2us. This amounts to only 17% over for CPU and other bus masters.
The interface logic also provides full auto-config and all I/O decode.
For electrical specification and detailed timings refer to Commodore Amiga Technical Reference manual.
3.2 ST506 Hard Disk Controller (HDC)
The ST506 Hard Disk controller is an intelligent background controller capable of high level command interpretation and
support of up two ST506 hard disk units. This controller will be referred to in this document as the HDC or the Hard Disk
Controller.
The processor for the HDC is a Z80A CPU, with up to 8K of PROM for firmware and IK of RAM for variable data. Collec
tively, the above components constitute the “ intelligence” of the controller.
The design that has gone into this aspect of the controller has been to enhance performance and increase flexibility while reduc
ing cost. As a result, the majority of operations have been placed in firmware. The only functions performed by “ hardware”
are those that are too fast for the processor.
The Z80A CPU and its associated PROM and RAM collectively perform the following functions:
1. Power up initialization
2. Diagnostics
3. Error recovery
4. Error reporting
5. Error correction
6. Command processor
7. Disk select
8. Seek
9. Write precomp select, reduced write current
10. Head select
11. Mapping
12. Logical to physical address translation — Physical to logical address translation
3.2.1 The DJC Custom Chip
The DJC is a custom LSI chip. It has been designed to handle all serial data, state machine and DMA functions as described below:
ERROR CORRECTION CODE
The error correction polynomial is a 32-bit code capable of correcting up to 11-bit burst errors.
3

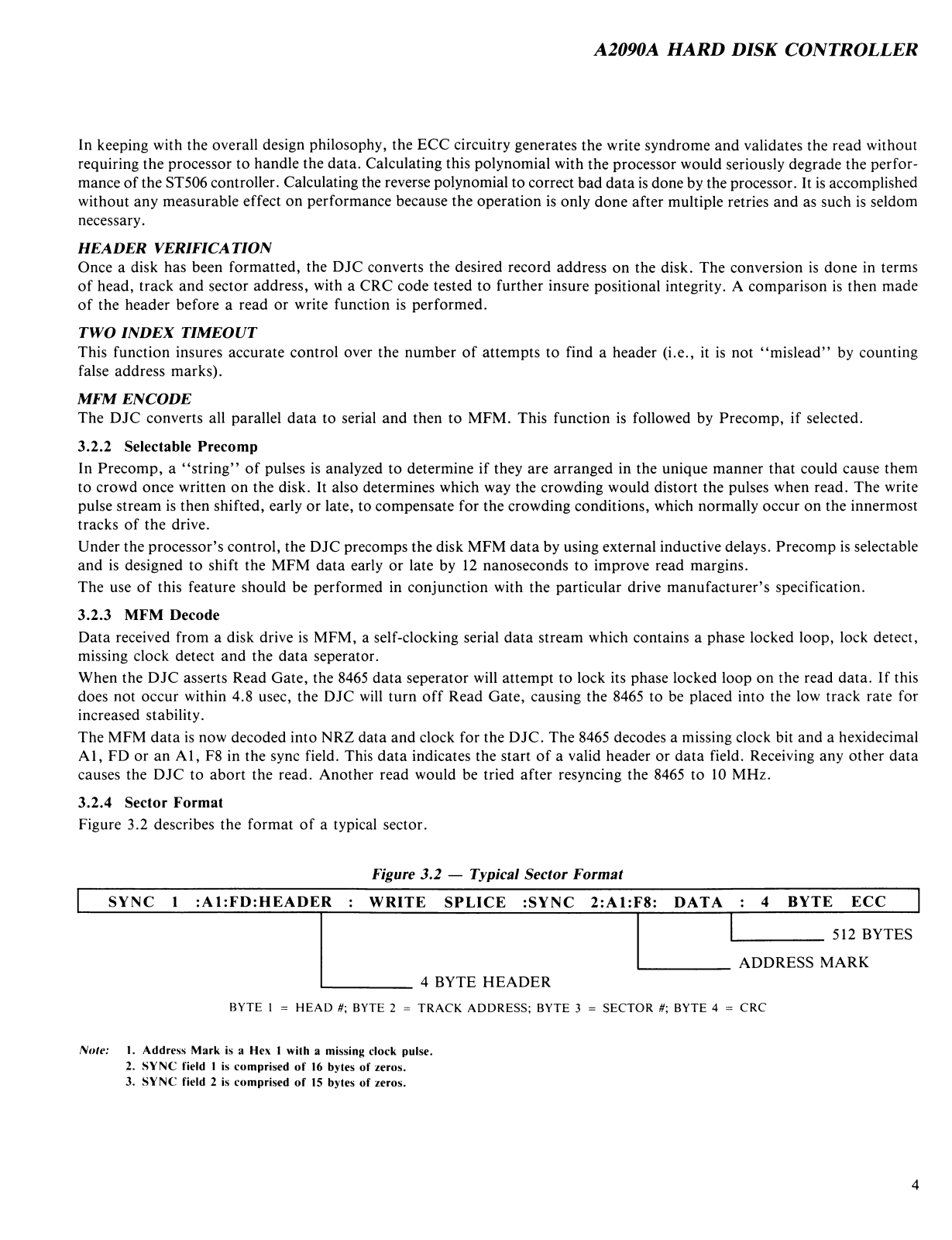

Page 7
A2090A HARD DISK CONTROLLER
In keeping with the overall design philosophy, the ECC circuitry generates the write syndrome and validates the read without
requiring the processor to handle the data. Calculating this polynomial with the processor would seriously degrade the perfor
mance of the ST506 controller. Calculating the reverse polynomial to correct bad data is done by the processor. It is accomplished
without any measurable effect on performance because the operation is only done after multiple retries and as such is seldom
necessary.
HEADER VERIFICATION
Once a disk has been formatted, the DJC converts the desired record address on the disk. The conversion is done in terms
of head, track and sector address, with a CRC code tested to further insure positional integrity. A comparison is then made
of the header before a read or write function is performed.
TWO INDEX TIMEOUT
This function insures accurate control over the number of attempts to find a header (i.e., it is not “mislead” by counting
false address marks).
MFM ENCODE
The DJC converts all parallel data to serial and then to MFM. This function is followed by Precomp, if selected.
3.2.2 Selectable Precomp
In Precomp, a “ string” of pulses is analyzed to determine if they are arranged in the unique manner that could cause them
to crowd once written on the disk. It also determines which way the crowding would distort the pulses when read. The write
pulse stream is then shifted, early or late, to compensate for the crowding conditions, which normally occur on the innermost
tracks of the drive.
Under the processor’s control, the DJC precomps the disk MFM data by using external inductive delays. Precomp is selectable
and is designed to shift the MFM data early or late by 12 nanoseconds to improve read margins.
The use of this feature should be performed in conjunction with the particular drive manufacturer’s specification.
3.2.3 MFM Decode
Data received from a disk drive is MFM, a self-clocking serial data stream which contains a phase locked loop, lock detect,
missing clock detect and the data seperator.
When the DJC asserts Read Gate, the 8465 data seperator will attempt to lock its phase locked loop on the read data. If this
does not occur within 4.8 usee, the DJC will turn off Read Gate, causing the 8465 to be placed into the low track rate for
increased stability.
The MFM data is now decoded into NRZ data and clock for the DJC. The 8465 decodes a missing clock bit and a hexidecimal
Al, FD or an Al, F8 in the sync field. This data indicates the start of a valid header or data field. Receiving any other data
causes the DJC to abort the read. Another read would be tried after resyncing the 8465 to 10 MHz.
3.2.4 Sector Format
Figure 3.2 describes the format of a typical sector.
Figure 3.2 — Typical Sector Format
SYNC 1 :A1:FD:HEADER : WRITE SPLICE :SYNC 2:A1:F8: DATA : 4 BYTE ECC
4 BYTE HEADER
512 BYTES
ADDRESS MARK
BYTE 1 = HE AD BYTE 2 = TRACK ADDRESS; BYTE 3 = SECTOR BYTE 4 = CRC
Note: 1. Address Mark is a Hex 1 with a missing clock pulse.
2. SYNC field I is comprised of 16 bytes of zeros.
3. SYNC field 2 is comprised of 15 bytes of zeros.
4
Page 8
A2090A HARD DISK CONTROLLER
3.2.5 Error Recovery Philosophy
Extensive measures have been taken in the design of the controller to insure reliable data. Selectable precompensation circuitry
and a sophisticated data seperator with two tracking rates are a few examples. Additional effort has been made to reduce
the probability of miscorrection (of having bad data flagged as corrected) through design and options made available to the
systems integrator.
In a write operation the controller only precomps the unique combinations of data that might cause crowding conditions on
the disk. Shifting data early or late by 12 nsec is done to retain as much of the 50 nsec data window as is possible. This reduces
the probability of errors occurring.
In a read operation the data seperator phase lock loop (PLL) provides two tracking rates, a high and a low, which allows
for quick synchronization with the header address in the first case and stable data transfer in the second. The controller only
contributes a maximum of 6 nsec (typically 3 nsec) of window error out of the allowable error window of 50 nsec. This allows
the disk drive to have up to 44 nsec of jitter before error recovery/correction is needed.
The controller uses a 32-bit error correction code that enables an error correction span of up to 11 bits. This computer-generated
code is considered superior to fire codes because it substantially reduces the chances of miscorrection while providing the full
11-bit correction span.
In data recovery and error correction the ECC syndrome must be stable in order to perform a correction. This insures that
multiple attempts are made to recover marginal data before correction data is applied and further reduces the probability of
miscorrection on long (greater than 12-bit) error bursts.
The significance of not correcting data unless the ECC syndrome is stable is that 1) noise induced errors are not corrected
and 2) real errors are corrected quickly without wasting time on useless retries.
The user can improve data reliability by mapping tracks with flaws and by reducing the error correction span. The latter reduces
the odds of miscorrection on large errors (greater than 12 bits) and provides for early detection of a degrading media. The
controller can be programmed to report or not report “soft” errors, on reads that took multiple tries but did not need correction.
Monitoring soft errors is probably the best method of early detection. A correction span of seven (7) bits is thereby suggested
as an optimum in data integrity. An alternate eleven (11) bit correction span could be used as a means to retrieve the data
before the track is mapped.

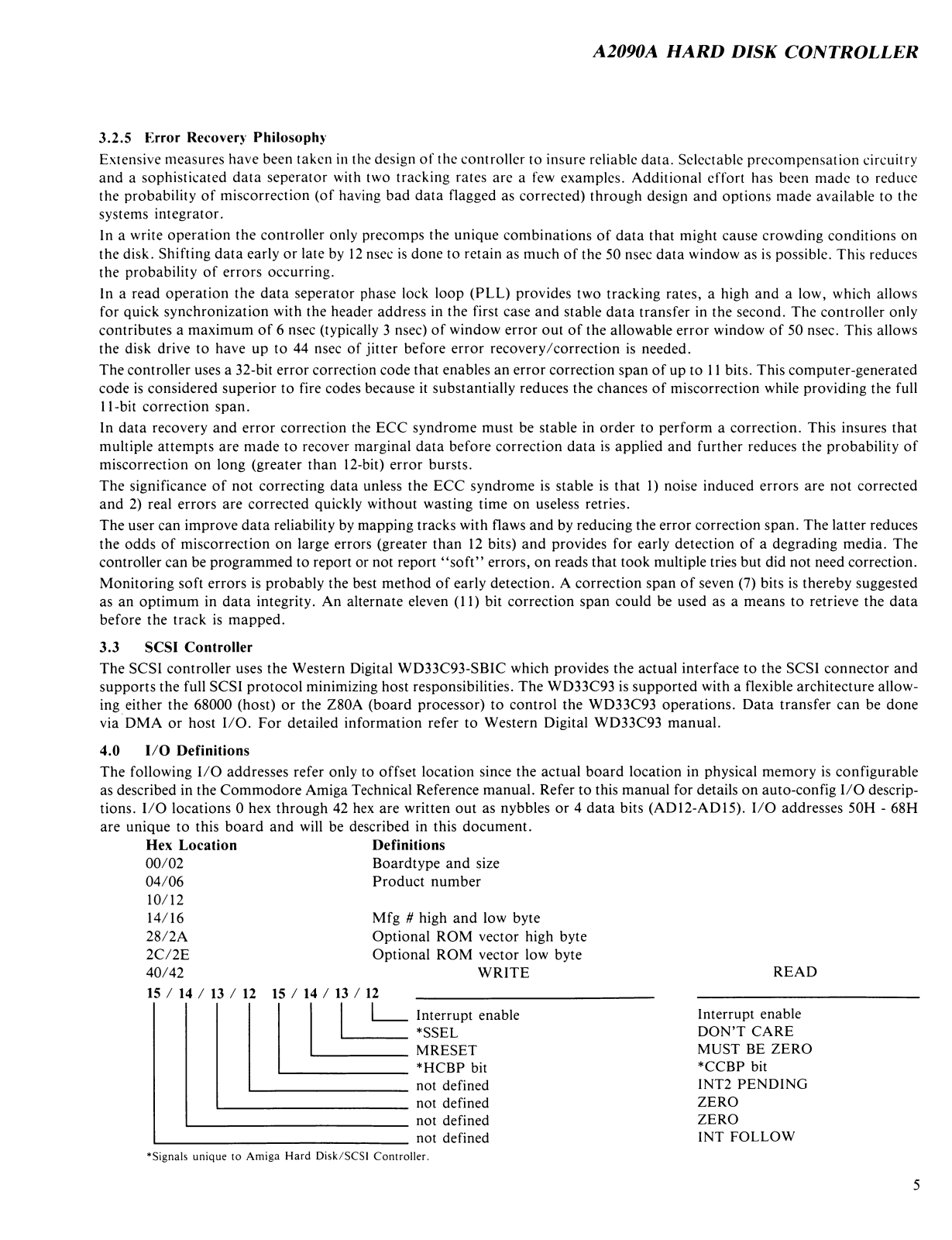

3.3 SCSI Controller
The SCSI controller uses the Western Digital WD33C93-SBIC which provides the actual interface to the SCSI connector and
supports the full SCSI protocol minimizing host responsibilities. The WD33C93 is supported with a flexible architecture allow
ing either the 68000 (host) or the Z80A (board processor) to control the WD33C93 operations. Data transfer can be done
via DMA or host I/O. For detailed information refer to Western Digital WD33C93 manual.
4.0 I/O Definitions
The following I/O addresses refer only to offset location since the actual board location in physical memory is configurable
as described in the Commodore Amiga Technical Reference manual. Refer to this manual for details on auto-config I/O descrip
tions. I/O locations 0 hex through 42 hex are written out as nybbles or 4 data bits (AD 12-AD 15). I/O addresses 50H - 68H
are unique to this board and will be described in this document.
Hex Location Definitions
00/02
04/06
10/12
14/16
28/2A
2C/2E
40/42
15 / 14 / 13 / 12 15 / 14 / 13 /
Boardtype and size
Product number
Mfg tt high and low byte
Optional ROM vector high byte
Optional ROM vector low byte
WRITE
Interrupt enable
*SSEL
MRESET
*HCBP bit
not defined
not defined
not defined
not defined
*Signals unique to Amiga Hard Disk/SCSI Controller.
READ
Interrupt enable
DON’T CARE
MUST BE ZERO
*CCBP bit
INT2 PENDING
ZERO
ZERO
INT FOLLOW
5
Page 9
A2090A HARD DISK CONTROLLER
SSEL
HCBP,CCBP
48H
I/O addresses unique to board
4.1
50H
52H

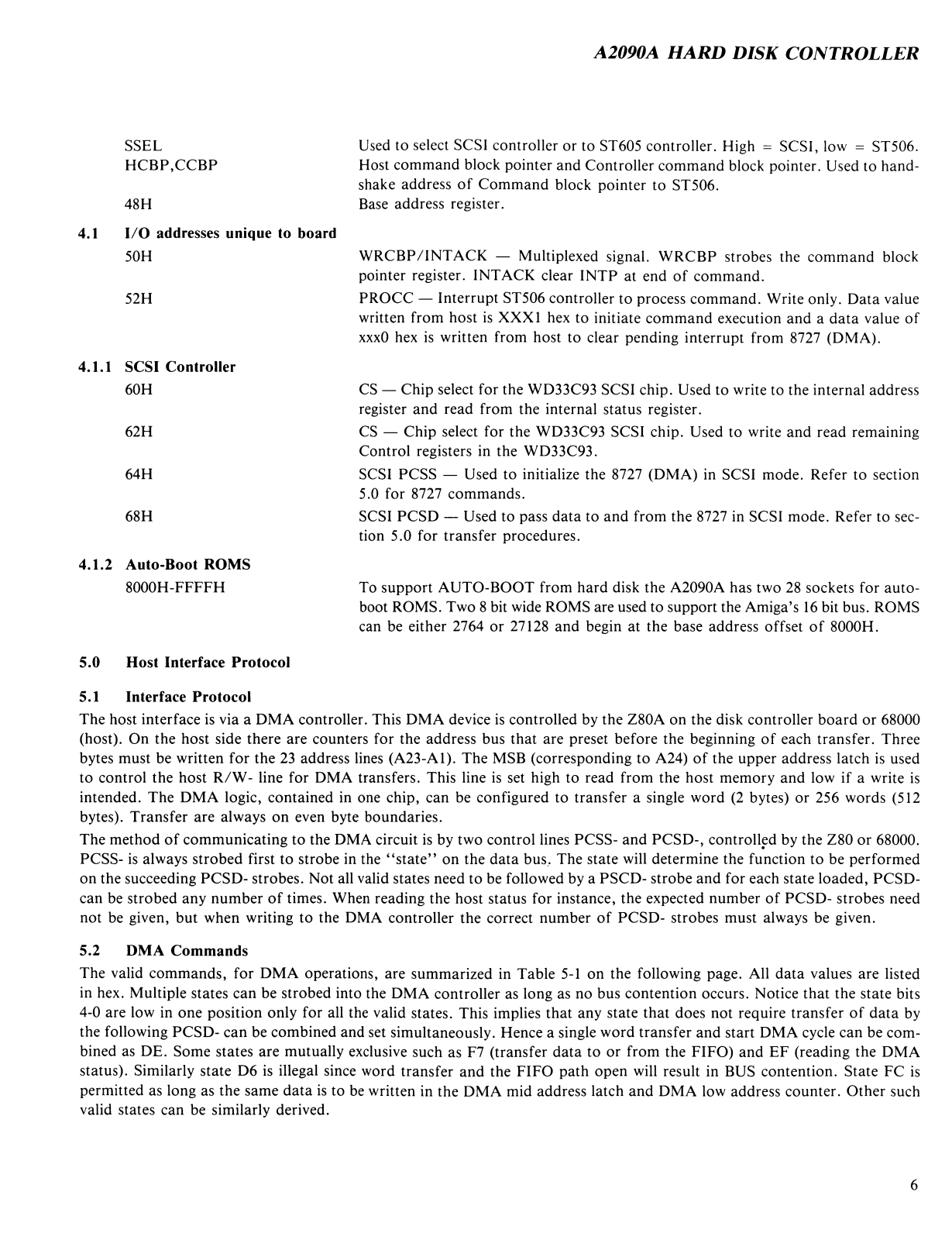

4.1.1 SCSI Controller
60H CS — Chip select for the WD33C93 SCSI chip. Used to write to the internal address
62H
64H SCSI PCSS — Used to initialize the 8727 (DMA) in SCSI mode. Refer to section
68H
Auto-Boot ROMS
4.1.2
8000H-FFFFH
Used to select SCSI controller or to ST605 controller. High = SCSI, low = ST506.
Host command block pointer and Controller command block pointer. Used to hand
shake address of Command block pointer to ST506.
Base address register.
WRCBP/INTACK — Multiplexed signal. WRCBP strobes the command block
pointer register. INTACK clear INTP at end of command.
PROCC — Interrupt ST506 controller to process command. Write only. Data value
written from host is XXXI hex to initiate command execution and a data value of
xxxO hex is written from host to clear pending interrupt from 8727 (DMA).
register and read from the internal status register.
CS — Chip select for the WD33C93 SCSI chip. Used to write and read remaining
Control registers in the WD33C93.
5.0 for 8727 commands.
SCSI PCSD — Used to pass data to and from the 8727 in SCSI mode. Refer to sec
tion 5.0 for transfer procedures.
To support AUTO-BOOT from hard disk the A2090A has two 28 sockets for auto
boot ROMS. Two 8 bit wide ROMS are used to support the Amiga’s 16 bit bus. ROMS
can be either 2764 or 27128 and begin at the base address offset of 8000H.
5.0 Host Interface Protocol
Interface Protocol
5.1
The host interface is via a DMA controller. This DMA device is controlled by the Z80A on the disk controller board or 68000
(host). On the host side there are counters for the address bus that are preset before the beginning of each transfer. Three
bytes must be written for the 23 address lines (A23-A1). The MSB (corresponding to A24) of the upper address latch is used
to control the host R/W- line for DMA transfers. This line is set high to read from the host memory and low if a write is
intended. The DMA logic, contained in one chip, can be configured to transfer a single word (2 bytes) or 256 words (512
bytes). Transfer are always on even byte boundaries.
The method of communicating to the DMA circuit is by two control lines PCSS- and PCSD-, controlled by the Z80 or 68000.
PCSS- is always strobed first to strobe in the “ state” on the data bus. The state will determine the function to be performed
on the succeeding PCSD- strobes. Not all valid states need to be followed by a PSCD- strobe and for each state loaded, PCSD-
can be strobed any number of times. When reading the host status for instance, the expected number of PCSD- strobes need
not be given, but when writing to the DMA controller the correct number of PCSD- strobes must always be given.
5.2 DMA Commands
The valid commands, for DMA operations, are summarized in Table 5-1 on the following page. All data values are listed
in hex. Multiple states can be strobed into the DMA controller as long as no bus contention occurs. Notice that the state bits
4-0 are low in one position only for all the valid states. This implies that any state that does not require transfer of data by
the following PCSD- can be combined and set simultaneously. Hence a single word transfer and start DMA cycle can be com
bined as DE. Some states are mutually exclusive such as F7 (transfer data to or from the FIFO) and EF (reading the DMA
status). Similarly state D6 is illegal since word transfer and the FIFO path open will result in BUS contention. State FC is
permitted as long as the same data is to be written in the DMA mid address latch and DMA low address counter. Other such
valid states can be similarly derived.
6
Page 10
A2090A HARD DISK CONTROLLER

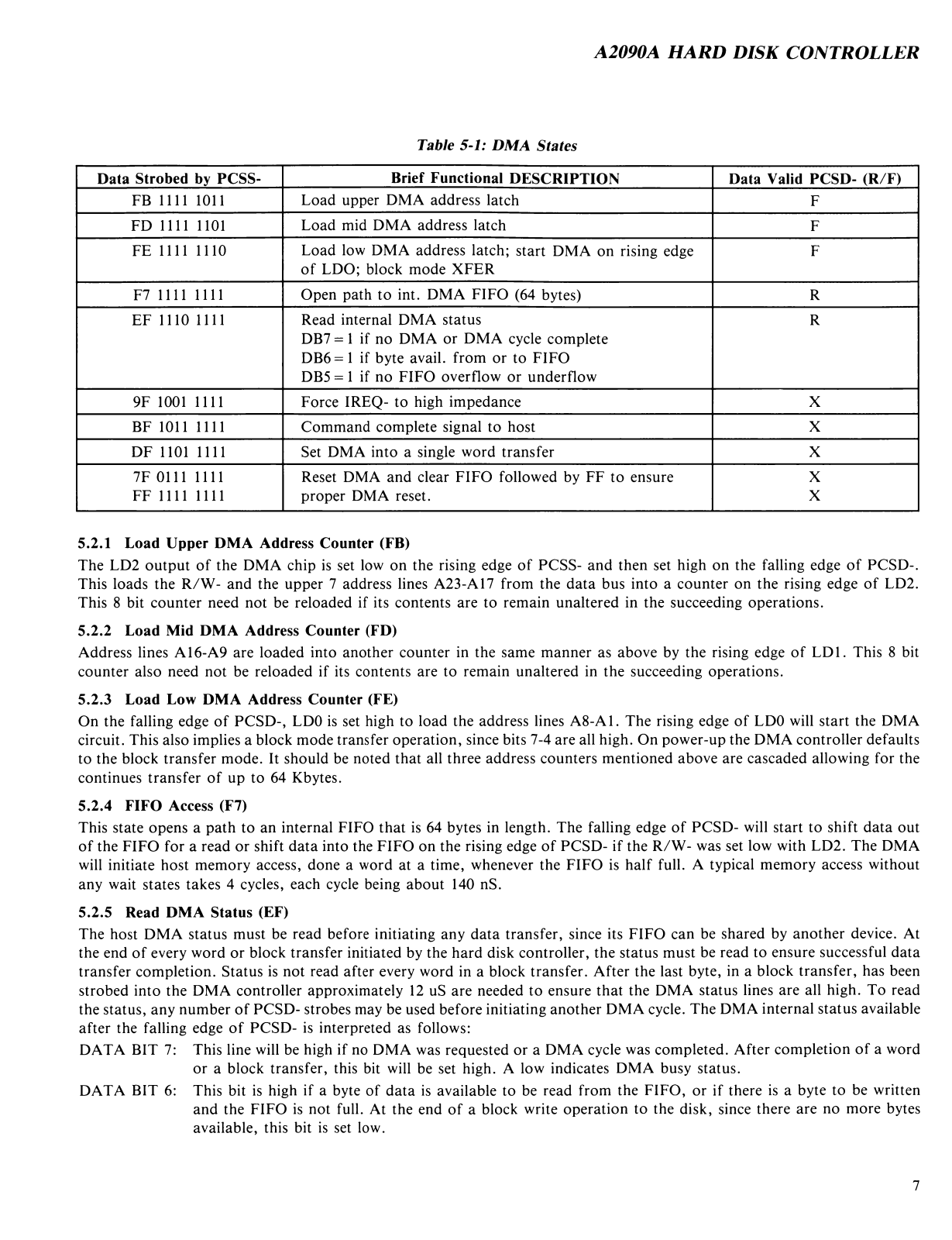

Table 5-1: DMA States
Data Strobed by PCSS-
Brief Functional DESCRIPTION
Data Valid PCSD- (R/F)
FB 1111 1011
Load upper DMA address latch
F
FD 1111 1101
Load mid DMA address latch
F
FE n i l 1110
Load low DMA address latch; start DMA on rising edge
of LDO; block mode XFER
F
F7 m i m i
Open path to int. DMA FIFO (64 bytes)
R
EF 1110 n i l
Read internal DMA status
DB7 = 1 if no DMA or DMA cycle complete
DB6= 1 if byte avail, from or to FIFO
DB5 = 1 if no FIFO overflow or underflow
R
9F 1001 1111 Force IREQ- to high impedance
X
BF 1011 1111
Command complete signal to host X
DF 1101 1111 Set DMA into a single word transfer
X
7F 0111 1111
Reset DMA and clear FIFO followed by FF to ensure
X
ff n i l n i l proper DMA reset. X
5.2.1 Load Upper DMA Address Counter (FB)
The LD2 output of the DMA chip is set low on the rising edge of PCSS- and then set high on the falling edge of PCSD-.
This loads the R/W- and the upper 7 address lines A23-A17 from the data bus into a counter on the rising edge of LD2.
This 8 bit counter need not be reloaded if its contents are to remain unaltered in the succeeding operations.
5.2.2 Load Mid DMA Address Counter (FD)
Address lines A16-A9 are loaded into another counter in the same manner as above by the rising edge of LD1. This 8 bit
counter also need not be reloaded if its contents are to remain unaltered in the succeeding operations.
5.2.3 Load Low DMA Address Counter (FE)
On the falling edge of PCSD-, LDO is set high to load the address lines A8-A1. The rising edge of LDO will start the DMA
circuit. This also implies a block mode transfer operation, since bits 7-4 are all high. On power-up the DMA controller defaults
to the block transfer mode. It should be noted that all three address counters mentioned above are cascaded allowing for the
continues transfer of up to 64 Kbytes.
5.2.4 FIFO Access (F7)
This state opens a path to an internal FIFO that is 64 bytes in length. The falling edge of PCSD- will start to shift data out
of the FIFO for a read or shift data into the FIFO on the rising edge of PCSD- if the R/W- was set low with LD2. The DMA
will initiate host memory access, done a word at a time, whenever the FIFO is half full. A typical memory access without
any wait states takes 4 cycles, each cycle being about 140 nS.
5.2.5 Read DMA Status (EF)
The host DMA status must be read before initiating any data transfer, since its FIFO can be shared by another device. At
the end of every word or block transfer initiated by the hard disk controller, the status must be read to ensure successful data
transfer completion. Status is not read after every word in a block transfer. After the last byte, in a block transfer, has been
strobed into the DMA controller approximately 12 uS are needed to ensure that the DMA status lines are all high. To read
the status, any number of PCSD- strobes may be used before initiating another DMA cycle. The DMA internal status available
after the falling edge of PCSD- is interpreted as follows:
DATA BIT 7: This line will be high if no DMA was requested or a DMA cycle was completed. After completion of a word
or a block transfer, this bit will be set high. A low indicates DMA busy status.
DATA BIT 6: This bit is high if a byte of data is available to be read from the FIFO, or if there is a byte to be written
and the FIFO is not full. At the end of a block write operation to the disk, since there are no more bytes
available, this bit is set low.
7
Page 11
A2090A HARD DISK CONTROLLER
DATA BIT 5: This line is low if the FIFO overflowed or underflowed. This may occur during a disk transfer if the DMA
circuit does not receive a bus acknowledge signal from another device on the 68000 motherboard, before the
FIFO becomes full or empty. Under this condition the FIFO is cleared by the Z80, before any other data
transfer can be initiated.
DATA BITS 4-0: These data lines will be logic zero.

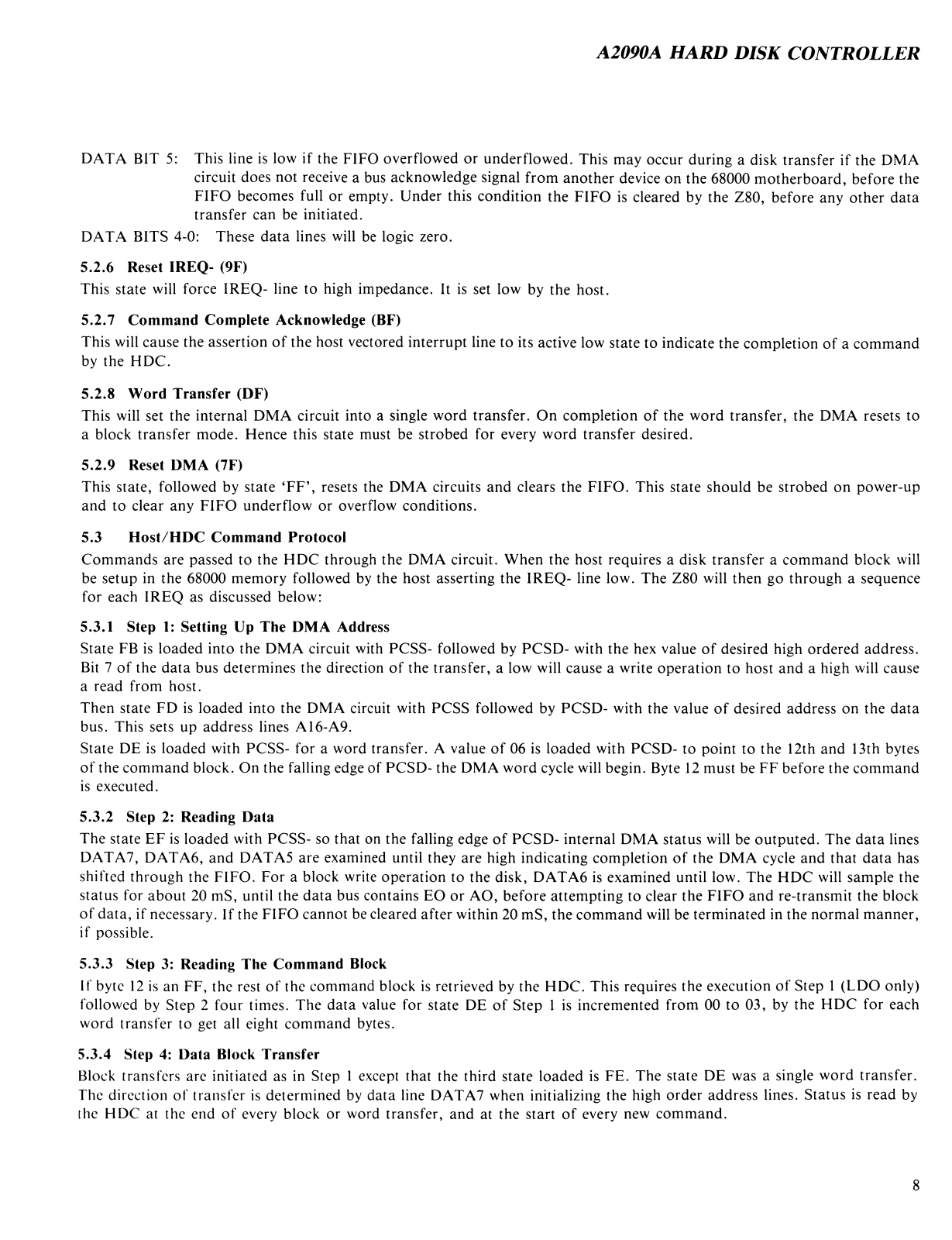

5.2.6 Reset IREQ- (9F)
This state will force IREQ- line to high impedance. It is set low by the host.
5.2.7 Command Complete Acknowledge (BF)
This will cause the assertion of the host vectored interrupt line to its active low state to indicate the completion of a command
by the HDC.
5.2.8 Word Transfer (DF)
This will set the internal DMA circuit into a single word transfer. On completion of the word transfer, the DMA resets to
a block transfer mode. Hence this state must be strobed for every word transfer desired.
5.2.9 Reset DMA (7F)
This state, followed by state ‘FF’, resets the DMA circuits and clears the FIFO. This state should be strobed on power-up
and to clear any FIFO underflow or overflow conditions.
5.3 Host/HDC Command Protocol
Commands are passed to the HDC through the DMA circuit. When the host requires a disk transfer a command block will
be setup in the 68000 memory followed by the host asserting the IREQ- line low. The Z80 will then go through a sequence
for each IREQ as discussed below:
5.3.1 Step 1: Setting Up The DMA Address
State FB is loaded into the DMA circuit with PCSS- followed by PCSD- with the hex value of desired high ordered address.
Bit 7 of the data bus determines the direction of the transfer, a low will cause a write operation to host and a high will cause
a read from host.
Then state FD is loaded into the DMA circuit with PCSS followed by PCSD- with the value of desired address on the data
bus. This sets up address lines A16-A9.
State DE is loaded with PCSS- for a word transfer. A value of 06 is loaded with PCSD- to point to the 12th and 13th bytes
of the command block. On the falling edge of PCSD- the DMA word cycle will begin. Byte 12 must be FF before the command
is executed.
5.3.2 Step 2: Reading Data
The state EF is loaded with PCSS- so that on the falling edge of PCSD- internal DMA status will be outputed. The data lines
DATA7, DATA6, and DATA5 are examined until they are high indicating completion of the DMA cycle and that data has
shifted through the FIFO. For a block write operation to the disk, DATA6 is examined until low. The HDC will sample the
status for about 20 mS, until the data bus contains EO or AO, before attempting to clear the FIFO and re-transmit the block
of data, if necessary. If the FIFO cannot be cleared after within 20 mS, the command will be terminated in the normal manner,
if possible.
5.3.3 Step 3: Reading The Command Block
If byte 12 is an FF, the rest of the command block is retrieved by the HDC. This requires the execution of Step 1 (LDO only)
followed by Step 2 four times. The data value for state DE of Step 1 is incremented from 00 to 03, by the HDC for each
word transfer to get all eight command bytes.
5.3.4 Step 4: Data Block Transfer
Block transfers are initiated as in Step 1 except that the third state loaded is FE. The state DE was a single word transfer.
The direction of transfer is determined by data line DATA7 when initializing the high order address lines. Status is read by
the HDC at the end of every block or word transfer, and at the start of every new command.
8
Page 12
A2090A HARD DISK CONTROLLER

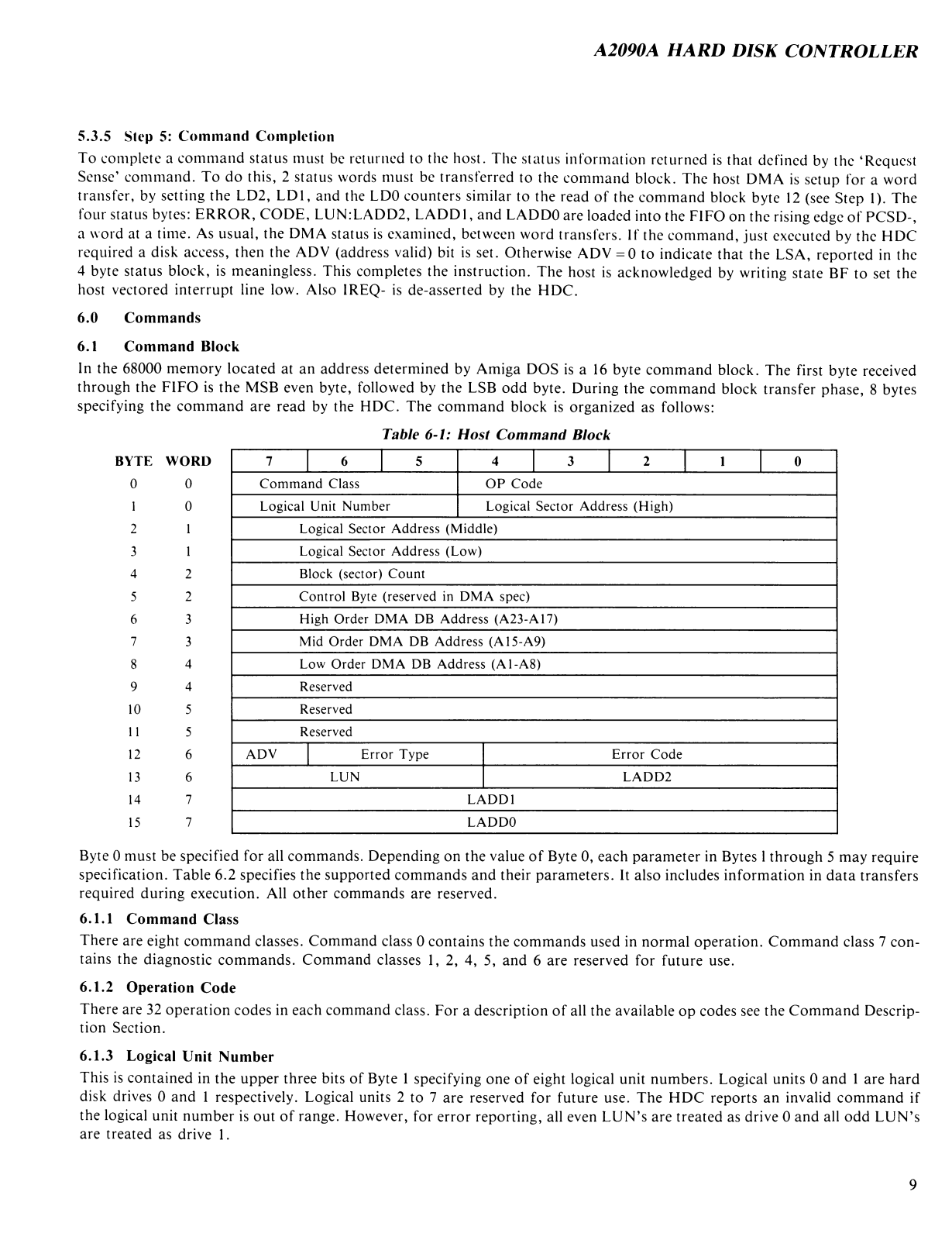

5.3.5 Step 5: Command Completion
To complete a command status must be returned to the host. The status information returned is that defined by the ‘Request
Sense’ command. To do this, 2 status words must be transferred to the command block. The host DMA is setup for a word
transfer, by setting the LD2, LD1, and the LDO counters similar to the read of the command block byte 12 (see Step 1). The
four status bytes: ERROR, CODE, LUN.LADD2, LADD1, and LADDO are loaded into the FIFO on the rising edge of PCSD-,
a word at a time. As usual, the DMA status is examined, between word transfers. If the command, just executed by the HDC
required a disk access, then the ADV (address valid) bit is set. Otherwise ADV =0 to indicate that the LSA, reported in the
4 byte status block, is meaningless. This completes the instruction. The host is acknowledged by writing state BF to set the
host vectored interrupt line low. Also IREQ- is de-asserted by the FIDC.
6.0 Commands
6.1 Command Block
In the 68000 memory located at an address determined by Amiga DOS is a 16 byte command block. The first byte received
through the FIFO is the MSB even byte, followed by the LSB odd byte. During the command block transfer phase, 8 bytes
specifying the command are read by the HDC. The command block is organized as follows:
BYTE WORD
0 0
1 0
2 1
3 1
4 2
5 2
6 3
7 3
8 4
9 4
10 5
11 5
12 6
13 6
14 7
15 7
Byte 0 must be specified for all commands. Depending on the value of Byte 0, each parameter in Bytes 1 through 5 may require
specification. Table 6.2 specifies the supported commands and their parameters. It also includes information in data transfers
required during execution. All other commands are reserved.
6.1.1 Command Class
There are eight command classes. Command class 0 contains the commands used in normal operation. Command class 7 con
tains the diagnostic commands. Command classes 1, 2, 4, 5, and 6 are reserved for future use.
6.1.2 Operation Code
There are 32 operation codes in each command class. For a description of all the available op codes see the Command Descrip
tion Section.
6.1.3 Logical Unit Number
This is contained in the upper three bits of Byte 1 specifying one of eight logical unit numbers. Logical units 0 and 1 are hard
disk drives 0 and 1 respectively. Logical units 2 to 7 are reserved for future use. The HDC reports an invalid command if
the logical unit number is out of range. However, for error reporting, all even LUN’s are treated as drive 0 and all odd LUN’s
are treated as drive 1.
9
Page 13
A2090A HARD DISK CONTROLLER

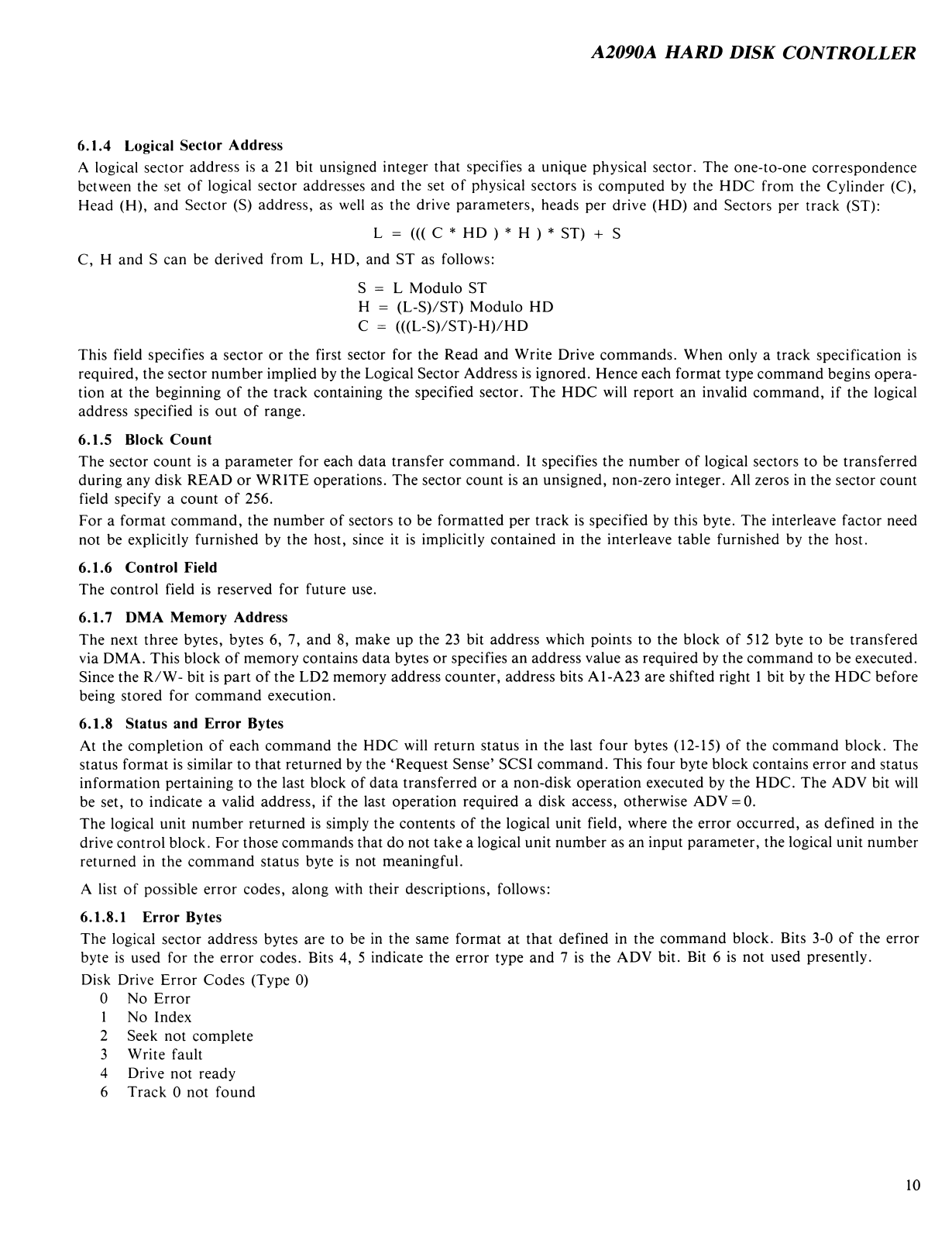

6.1.4 Logical Sector Address
A logical sector address is a 21 bit unsigned integer that specifies a unique physical sector. The one-to-one correspondence
between the set of logical sector addresses and the set of physical sectors is computed by the HDC from the Cylinder (C),
Head (H), and Sector (S) address, as well as the drive parameters, heads per drive (HD) and Sectors per track (ST):
L = ((( C * HD ) * H ) * ST) + S
C, H and S can be derived from L, HD, and ST as follows:
S = L Modulo ST
H = (L-S)/ST) Modulo HD
C = (((L-S)/ST)-H)/HD
This field specifies a sector or the first sector for the Read and Write Drive commands. When only a track specification is
required, the sector number implied by the Logical Sector Address is ignored. Hence each format type command begins opera
tion at the beginning of the track containing the specified sector. The HDC will report an invalid command, if the logical
address specified is out of range.
6.1.5 Block Count
The sector count is a parameter for each data transfer command. It specifies the number of logical sectors to be transferred
during any disk READ or WRITE operations. The sector count is an unsigned, non-zero integer. All zeros in the sector count
field specify a count of 256.
For a format command, the number of sectors to be formatted per track is specified by this byte. The interleave factor need
not be explicitly furnished by the host, since it is implicitly contained in the interleave table furnished by the host.
6.1.6 Control Field
The control field is reserved for future use.
6.1.7 DMA Memory Address
The next three bytes, bytes 6, 7, and 8, make up the 23 bit address which points to the block of 512 byte to be transfered
via DMA. This block of memory contains data bytes or specifies an address value as required by the command to be executed.
Since the R/W- bit is part of the LD2 memory address counter, address bits A1-A23 are shifted right 1 bit by the HDC before
being stored for command execution.
6.1.8 Status and Error Bytes
At the completion of each command the HDC will return status in the last four bytes (12-15) of the command block. The
status format is similar to that returned by the ‘Request Sense’ SCSI command. This four byte block contains error and status
information pertaining to the last block of data transferred or a non-disk operation executed by the HDC. The ADV bit will
be set, to indicate a valid address, if the last operation required a disk access, otherwise ADV = 0.
The logical unit number returned is simply the contents of the logical unit field, where the error occurred, as defined in the
drive control block. For those commands that do not take a logical unit number as an input parameter, the logical unit number
returned in the command status byte is not meaningful.
A list of possible error codes, along with their descriptions, follows:
6.1.8.1 Error Bytes
The logical sector address bytes are to be in the same format at that defined in the command block. Bits 3-0 of the error
byte is used for the error codes. Bits 4, 5 indicate the error type and 7 is the ADV bit. Bit 6 is not used presently.
Disk Drive Error Codes (Type 0)
0 No Error
1 No Index
2 Seek not complete
3 Write fault
4 Drive not ready
6 Track 0 not found
10
Page 14
A2090A HARD DISK CONTROLLER
Controller Error Codes (Type 1)
10 Disk read I.D. error
11 Uncorrectable data error
12 Address mark not found
13 Sector not Found, Read
14 Sector not Found, Write
15 Seek error
18 Correctable ECC error
1A Format error
Command Error Codes (Type 2)
20 Invalid command
21 Invalid sector address
22 Soft header error in read
23 Soft header error in write
24 Soft data error
28 Soft DMA error
Hardware Error Codes (Type 3)
30 RAM failure (HDC)
31 ROM Checksum Error
32 Host DMA status error

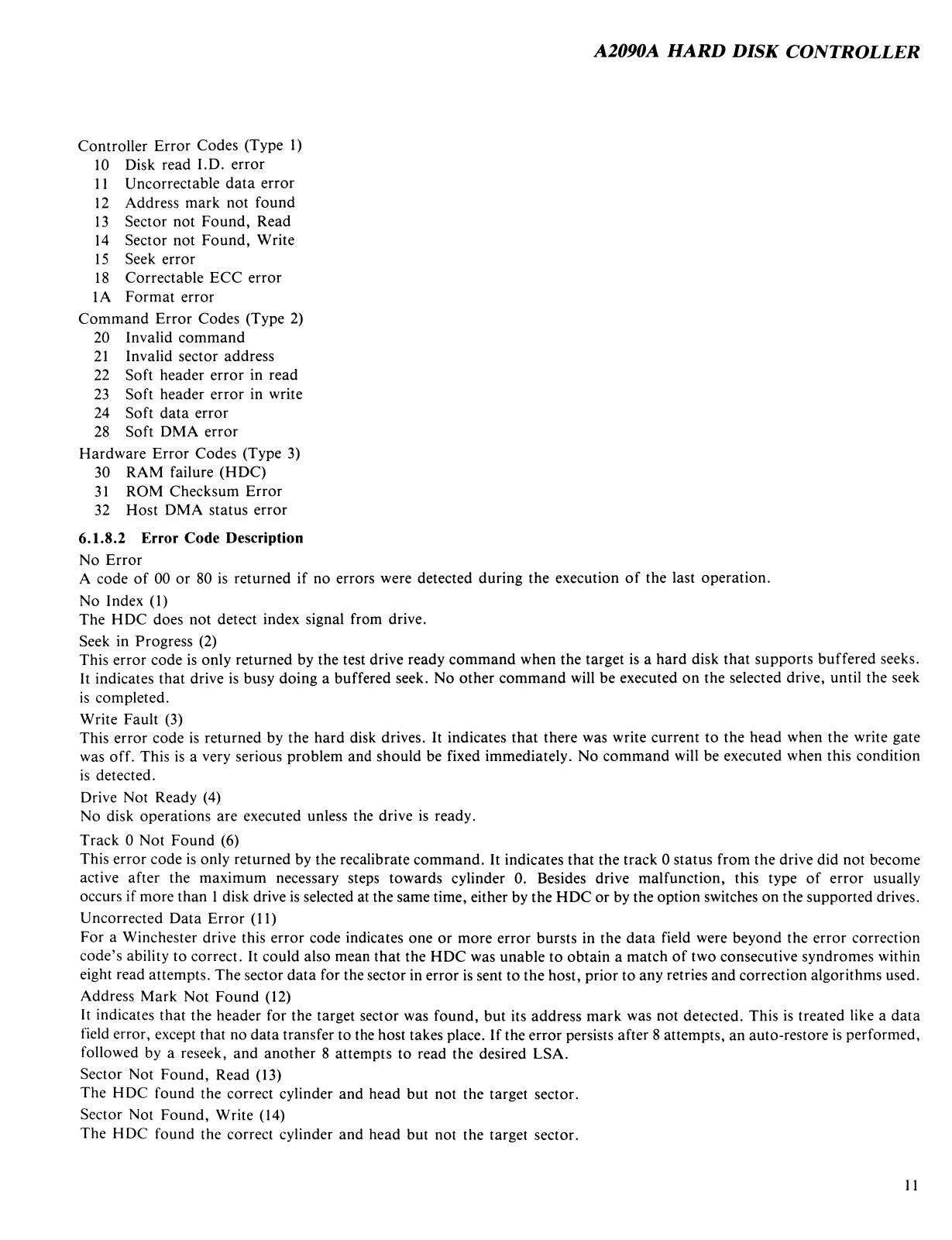

6.1.8.2 Error Code Description
No Error
A code of 00 or 80 is returned if no errors were detected during the execution of the last operation.
No Index (1)
The HDC does not detect index signal from drive.
Seek in Progress (2)
This error code is only returned by the test drive ready command when the target is a hard disk that supports buffered seeks.
It indicates that drive is busy doing a buffered seek. No other command will be executed on the selected drive, until the seek
is completed.
Write Fault (3)
This error code is returned by the hard disk drives. It indicates that there was write current to the head when the write gate
was off. This is a very serious problem and should be fixed immediately. No command will be executed when this condition
is detected.
Drive Not Ready (4)
No disk operations are executed unless the drive is ready.
Track 0 Not Found (6)
This error code is only returned by the recalibrate command. It indicates that the track 0 status from the drive did not become
active after the maximum necessary steps towards cylinder 0. Besides drive malfunction, this type of error usually
occurs if more than 1 disk drive is selected at the same time, either by the HDC or by the option switches on the supported drives.
Uncorrected Data Error (11)
For a Winchester drive this error code indicates one or more error bursts in the data field were beyond the error correction
code’s ability to correct. It could also mean that the HDC was unable to obtain a match of two consecutive syndromes within
eight read attempts. The sector data for the sector in error is sent to the host, prior to any retries and correction algorithms used.
Address Mark Not Found (12)
It indicates that the header for the target sector was found, but its address mark was not detected. This is treated like a data
field error, except that no data transfer to the host takes place. If the error persists after 8 attempts, an auto-restore is performed,
followed by a reseek, and another 8 attempts to read the desired LSA.
Sector Not Found, Read (13)
The HDC found the correct cylinder and head but not the target sector.
Sector Not Found, Write (14)
The HDC found the correct cylinder and head but not the target sector.
11
Page 15
A2090A HARD DISK CONTROLLER
I.D. Not Found (10)
If the ID field cannot be read correctly after all the retries have been exhausted, this error code is set and the operation ter
minated. The HDC searches for the ID field 8 times.
Format Error (1A)
During a check track command the HDC detects one of the following errors:
1) Track not found.
2) Bad ID.
Illegal Parameters (20, 21)
These error codes, invalid command (20), illegal LSA (21), and illegal LUN (22) are self explanatory.
HDC RAM Error (30)
During internal diagnostic the HDC detects a RAM error.
HDC ROM Checksum Error (31)
During internal diagnostic the HDC detects a ROM checksum error.
Host DMA Error (32)
This error code is set whenever invalid status is read from the DMA during any data or command access. For most operations
the status checked is E0 (hex), except for a block write. In this case the valid status checked for is AO.
6.2 Command Description
All commands executed by the HDC are summarized in the table below. Fields of the command block not specified are don’t
cares. Following this summary is a generalized description of the commands.

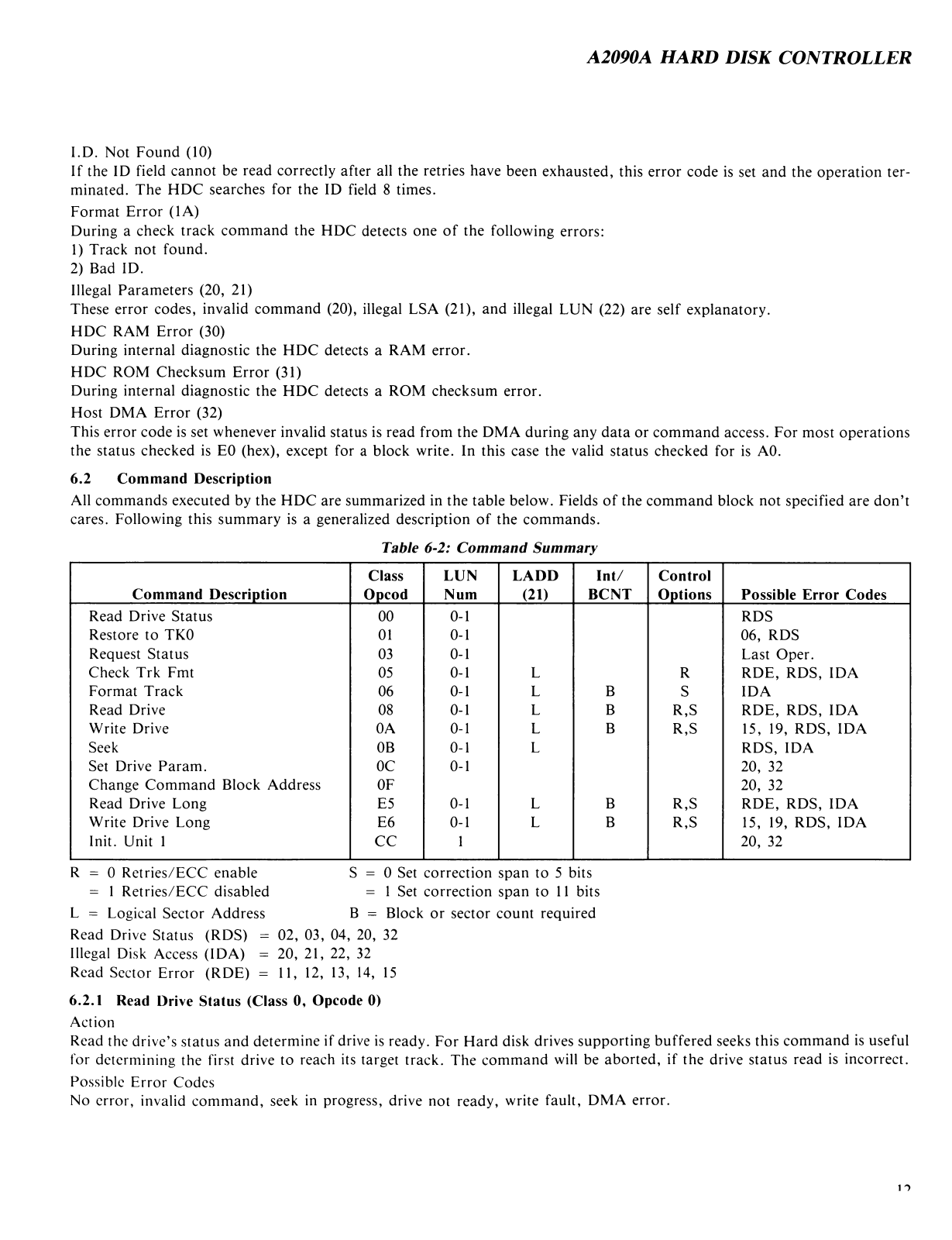

Table 6-2: Command Summary
Command Description
Class
Opcod
LUN
Num
LADD
(21)
Int/
BCNT
Control
Options
Possible Error Codes
Read Drive Status 00 0-1
RDS
Restore to TK0 01 0-1
06, RDS
Request Status
03 0-1
Last Oper.
Check Trk Fmt
05 0-1
L
R RDE, RDS, IDA
Format Track
06 0-1
L B
S
IDA
Read Drive 08 0-1
L B
R,S RDE, RDS, IDA
Write Drive
0A
0-1
L B
R,S
15, 19, RDS, IDA
Seek 0B
0-1
L
RDS, IDA
Set Drive Param. OC 0-1
20, 32
Change Command Block Address
OF
20, 32
Read Drive Long E5 0-1
L B
R,S RDE, RDS, IDA
Write Drive Long E6 0-1 L B
R,S
15, 19, RDS, IDA
Init. Unit 1
CC
1 20, 32
R = 0 Retries/ECC enable S = 0 Set correction span to 5 bits
= 1 Retries/ECC disabled = 1 Set correction span to 11 bits
L = Logical Sector Address B = Block or sector count required
Read Drive Status (RDS) = 02, 03, 04, 20, 32
Illegal Disk Access (IDA) = 20, 21, 22, 32
Read Sector Error (RDE) = 11, 12, 13, 14, 15
6.2.1 Read Drive Status (Class 0, Opcode 0)
Action
Read the drive’s status and determine if drive is ready. For Hard disk drives supporting buffered seeks this command is useful
for determining the first drive to reach its target track. The command will be aborted, if the drive status read is incorrect.
Possible Error Codes
No error, invalid command, seek in progress, drive not ready, write fault, DMA error.
Page 16
A2090A HARD DISK CONTROLLER

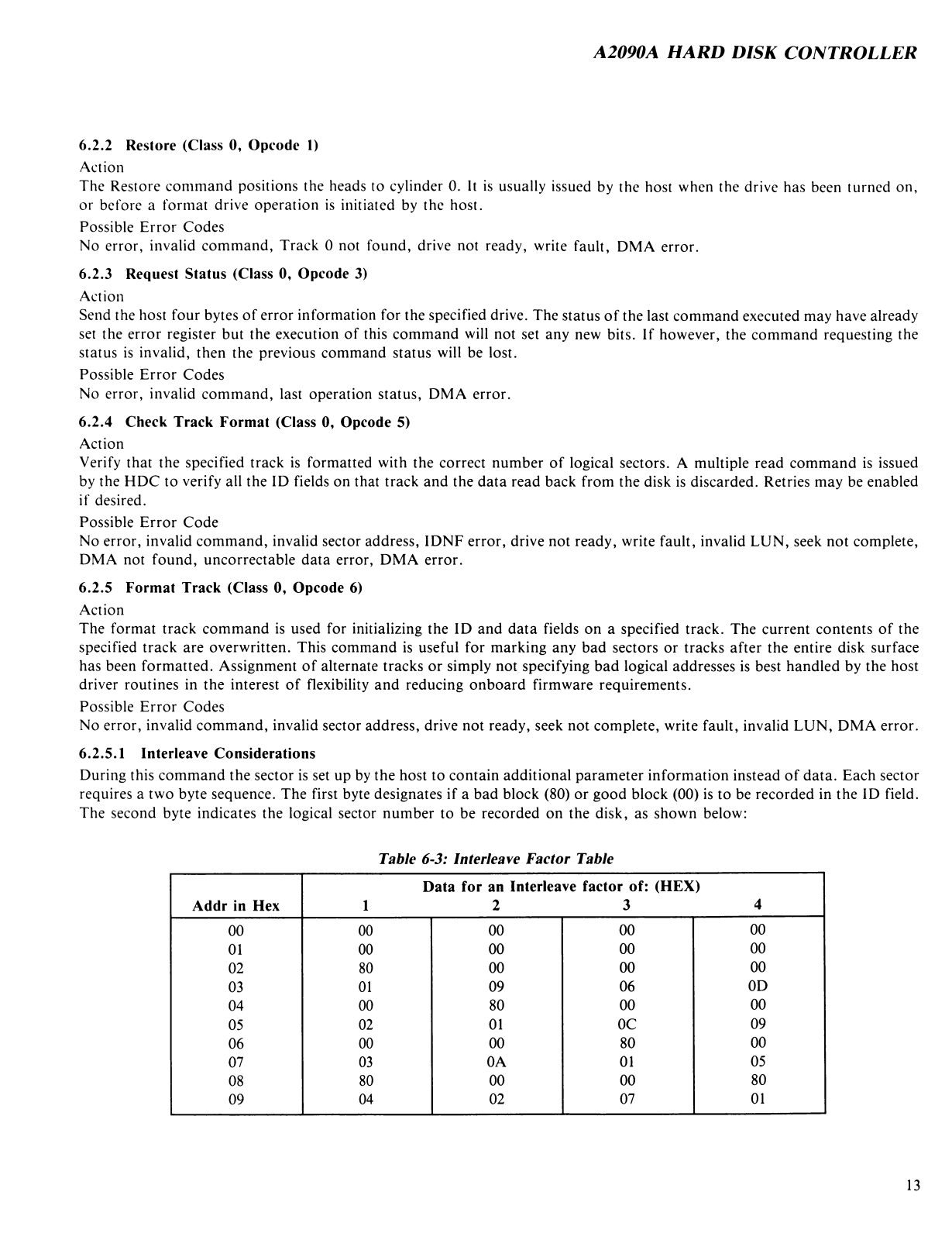

6.2.2 Restore (Class 0, Opcode 1)
Action
The Restore command positions the heads to cylinder 0. It is usually issued by the host when the drive has been turned on,
or before a format drive operation is initiated by the host.
Possible Error Codes
No error, invalid command, Track 0 not found, drive not ready, write fault, DMA error.
6.2.3 Request Status (Class 0, Opcode 3)
Action
Send the host four bytes of error information for the specified drive. The status of the last command executed may have already
set the error register but the execution of this command will not set any new bits. If however, the command requesting the
status is invalid, then the previous command status will be lost.
Possible Error Codes
No error, invalid command, last operation status, DMA error.
6.2.4 Check Track Format (Class 0, Opcode 5)
Action
Verify that the specified track is formatted with the correct number of logical sectors. A multiple read command is issued
by the HDC to verify all the ID fields on that track and the data read back from the disk is discarded. Retries may be enabled
if desired.
Possible Error Code
No error, invalid command, invalid sector address, IDNF error, drive not ready, write fault, invalid LUN, seek not complete,
DMA not found, uncorrectable data error, DMA error.
6.2.5 Format Track (Class 0, Opcode 6)
Action
The format track command is used for initializing the ID and data fields on a specified track. The current contents of the
specified track are overwritten. This command is useful for marking any bad sectors or tracks after the entire disk surface
has been formatted. Assignment of alternate tracks or simply not specifying bad logical addresses is best handled by the host
driver routines in the interest of flexibility and reducing onboard firmware requirements.
Possible Error Codes
No error, invalid command, invalid sector address, drive not ready, seek not complete, write fault, invalid LUN, DMA error.
6.2.5.1 Interleave Considerations
During this command the sector is set up by the host to contain additional parameter information instead of data. Each sector
requires a two byte sequence. The first byte designates if a bad block (80) or good block (00) is to be recorded in the ID field.
The second byte indicates the logical sector number to be recorded on the disk, as shown below:
Table 6-3: Interleave Factor Table
Addr in Hex
Data for an Interleave factor of: (HEX)
1 2 3 4
00 00
00 00
00
01 00
00
00
00
02
80 00
00
00
03
01
09 06
0D
04 00
80
00
00
05
02 01 OC
09
06
00 00 80
00
07 03
0A 01
05
08 80
00 00
80
09
04 02
07 01
13
Page 17

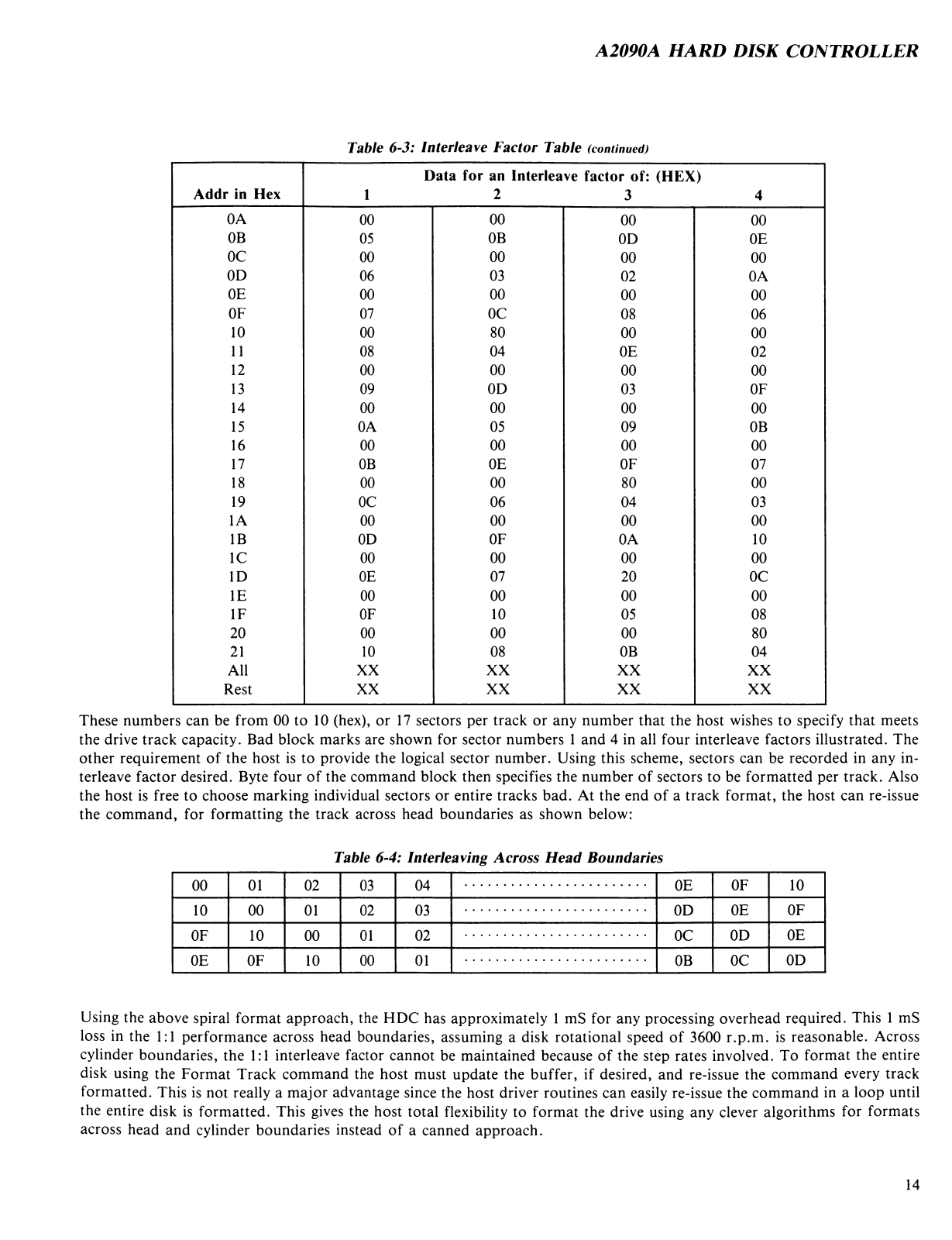

Table 6-3: Interleave Factor Table (continued)
Data for an Interleave factor of: (HEX)
Addr in Hex
0A
0B
OC 00 00
0D
0E
OF 07
10 00 80 00
11 08
12
13 09
14
15
16
17
18
19 OC 06
1A
IB 0D OF
1C
ID
IE
IF
20 00 00
21 10 08
All XX
Rest
1 2 3 4
00
05
06 03
00 00
00 00 00 00
00 00
0A 05 09
00 00
0B
00 00 80
00 00
00 00
0E 07 20 OC
00 00
OF
XX XX
00
0B
OC
04
0D
0E
10
XX XX XX
A2090A HARD DISK CONTROLLER
00
0D 0E
00 00
02 0A
00
08
0E
03 OF
00 00
00 00
OF 07
04
00
0A 10
00 00
00
05 08
00
0B 04
XX XX
00
00
06
00
02
0B
00
03
00
00
80
These numbers can be from 00 to 10 (hex), or 17 sectors per track or any number that the host wishes to specify that meets
the drive track capacity. Bad block marks are shown for sector numbers 1 and 4 in all four interleave factors illustrated. The
other requirement of the host is to provide the logical sector number. Using this scheme, sectors can be recorded in any in
terleave factor desired. Byte four of the command block then specifies the number of sectors to be formatted per track. Also
the host is free to choose marking individual sectors or entire tracks bad. At the end of a track format, the host can re-issue
the command, for formatting the track across head boundaries as shown below:
Table 6-4: Interleaving Across Head Boundaries
00
10 00 01
OF
0E OF 10
Using the above spiral format approach, the HDC has approximately 1 mS for any processing overhead required. This 1 mS
loss in the 1:1 performance across head boundaries, assuming a disk rotational speed of 3600 r.p.m. is reasonable. Across
cylinder boundaries, the 1:1 interleave factor cannot be maintained because of the step rates involved. To format the entire
disk using the Format Track command the host must update the buffer, if desired, and re-issue the command every track
formatted. This is not really a major advantage since the host driver routines can easily re-issue the command in a loop until
the entire disk is formatted. This gives the host total flexibility to format the drive using any clever algorithms for formats
across head and cylinder boundaries instead of a canned approach.
01 02 03
02 03
10 00
01 02 OC
00 01 0B OC
04 0E
0D 0E
OF
0D
10
OF
0E
0D
14
Page 18
A2090A HARD DISK CONTROLLER

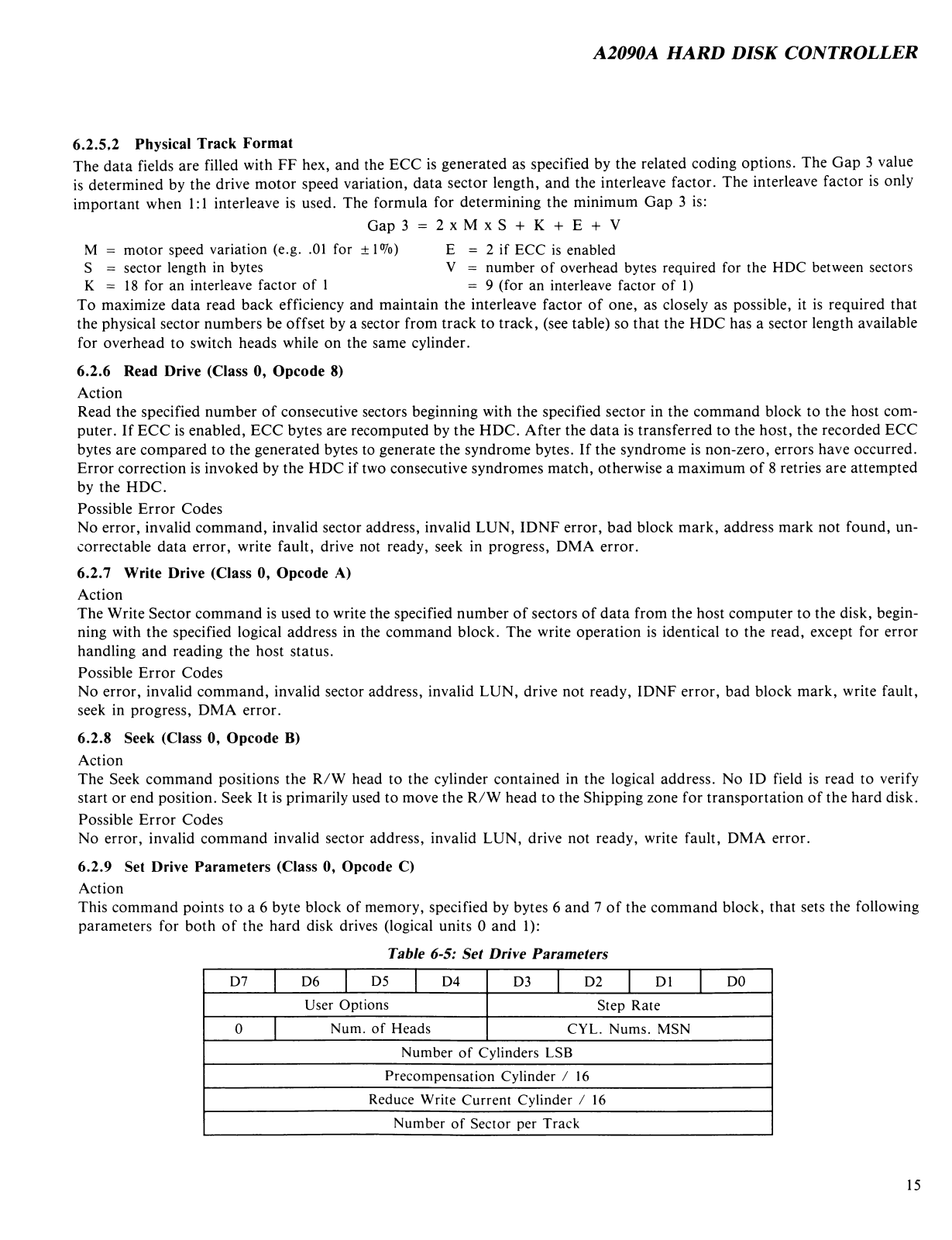

6.2.5,2 Physical Track Format
The data fields are filled with FF hex, and the ECC is generated as specified by the related coding options. The Gap 3 value
is determined by the drive motor speed variation, data sector length, and the interleave factor. The interleave factor is only
important when 1:1 interleave is used. The formula for determining the minimum Gap 3 is:
Gap 3 = 2xMxS + K + E + V
M = motor speed variation (e.g. .01 for ±1%) E = 2 if ECC is enabled
S = sector length in bytes V = number of overhead bytes required for the HDC between sectors
K = 18 for an interleave factor of 1 = 9 (for an interleave factor of 1)
To maximize data read back efficiency and maintain the interleave factor of one, as closely as possible, it is required that
the physical sector numbers be offset by a sector from track to track, (see table) so that the HDC has a sector length available
for overhead to switch heads while on the same cylinder.
6.2.6 Read Drive (Class 0, Opcode 8)
Action
Read the specified number of consecutive sectors beginning with the specified sector in the command block to the host com
puter. If ECC is enabled, ECC bytes are recomputed by the HDC. After the data is transferred to the host, the recorded ECC
bytes are compared to the generated bytes to generate the syndrome bytes. If the syndrome is non-zero, errors have occurred.
Error correction is invoked by the HDC if two consecutive syndromes match, otherwise a maximum of 8 retries are attempted
by the HDC.
Possible Error Codes
No error, invalid command, invalid sector address, invalid LUN, IDNF error, bad block mark, address mark not found, un-
correctable data error, write fault, drive not ready, seek in progress, DMA error.
6.2.7 Write Drive (Class 0, Opcode A)
Action
The Write Sector command is used to write the specified number of sectors of data from the host computer to the disk, begin
ning with the specified logical address in the command block. The write operation is identical to the read, except for error
handling and reading the host status.
Possible Error Codes
No error, invalid command, invalid sector address, invalid LUN, drive not ready, IDNF error, bad block mark, write fault,
seek in progress, DMA error.
6.2.8 Seek (Class 0, Opcode B)
Action
The Seek command positions the R/W head to the cylinder contained in the logical address. No ID field is read to verify
start or end position. Seek It is primarily used to move the R/W head to the Shipping zone for transportation of the hard disk.
Possible Error Codes
No error, invalid command invalid sector address, invalid LUN, drive not ready, write fault, DMA error.
6.2.9 Set Drive Parameters (Class 0, Opcode C)
Action
This command points to a 6 byte block of memory, specified by bytes 6 and 7 of the command block, that sets the following
parameters for both of the hard disk drives (logical units 0 and 1):
Table 6-5: Set Drive Parameters
D7
D6 D5 D4
User Options
Num. of Heads
Number of Cylinders LSB
Precompensation Cylinder / 16
Reduce Write Current Cylinder / 16
Number of Sector per Track
D3 D2 D1 DO
Step Rate
CYL. Nums. MSN
15
Page 19
A2090A HARD DISK CONTROLLER

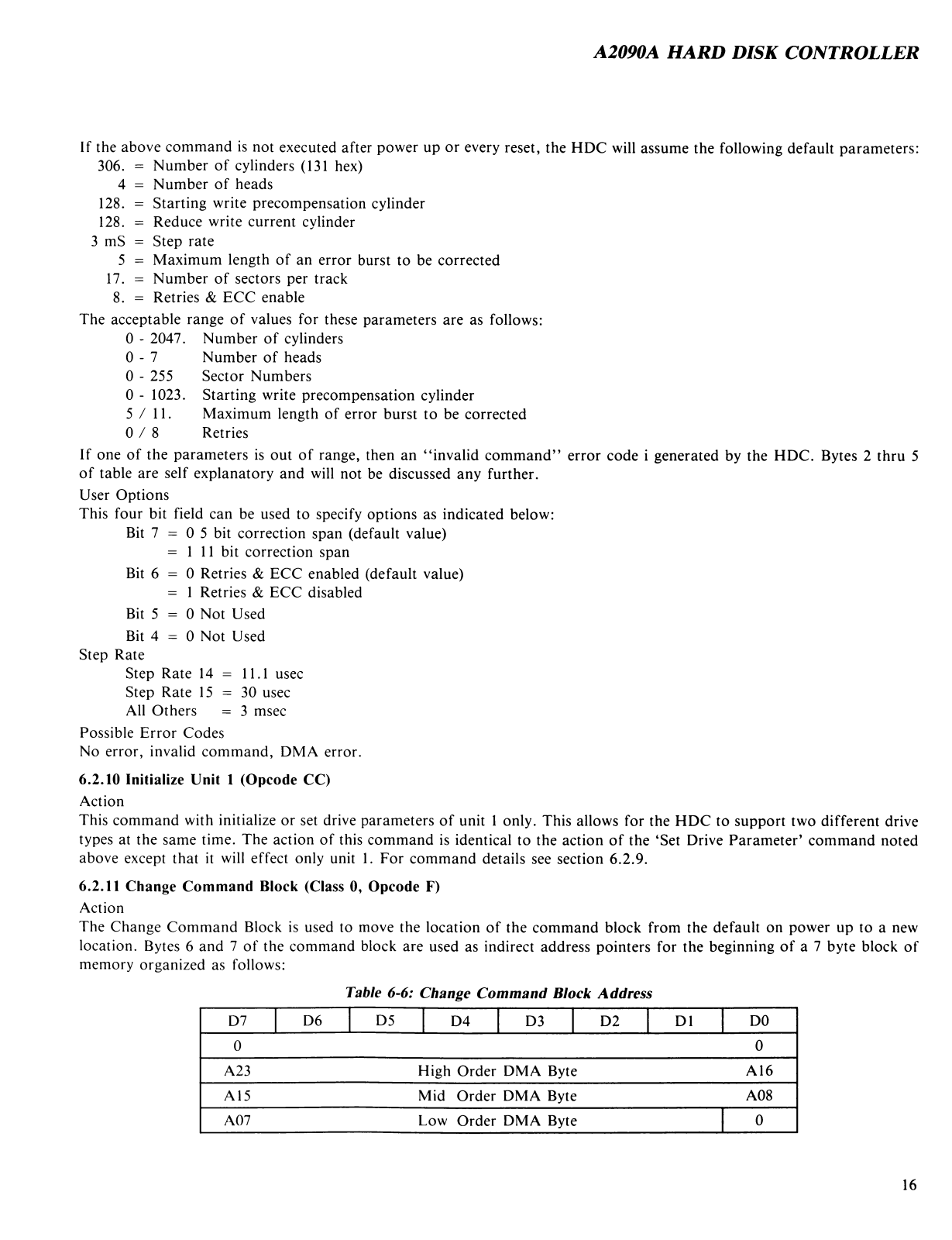

If the above command is not executed after power up or every reset, the HDC will assume the following default parameters:
306. = Number of cylinders (131 hex)
4 = Number of heads
128. = Starting write precompensation cylinder
128. = Reduce write current cylinder
3 mS = Step rate
5 = Maximum length of an error burst to be corrected
17. = Number of sectors per track
8. = Retries & ECC enable
The acceptable range of values for these parameters are as follows:
0 - 2047.
Number of cylinders
0 - 7
Number of heads
0 - 255
Sector Numbers
0 - 1023.
Starting write precompensation cylinder
5 / 11.
Maximum length of error burst to be corrected
0 /8
Retries
If one of the parameters is out of range, then an “ invalid command” error code i generated by the HDC. Bytes 2 thru 5
of table are self explanatory and will not be discussed any further.
User Options
This four bit field can be used to specify options as indicated below:
Bit 7 = 05 bit correction span (default value)
= 111 bit correction span
Bit 6 = 0 Retries & ECC enabled (default value)
= 1 Retries & ECC disabled
Bit 5 = 0 Not Used
Bit 4 = 0 Not Used
Step Rate
Step Rate 14 = 11.1 usee
Step Rate 15 = 30 usee
All Others = 3 msec
Possible Error Codes
No error, invalid command, DMA error.
6.2.10 Initialize Unit 1 (Opcode CC)
Action
This command with initialize or set drive parameters of unit 1 only. This allows for the HDC to support two different drive
types at the same time. The action of this command is identical to the action of the ‘Set Drive Parameter’ command noted
above except that it will effect only unit 1. For command details see section 6.2.9.
6.2.11 Change Command Block (Class 0, Opcode F)
Action
The Change Command Block is used to move the location of the command block from the default on power up to a new
location. Bytes 6 and 7 of the command block are used as indirect address pointers for the beginning of a 7 byte block of
memory organized as follows:
Table 6-6: Change Command Block Address
D7 D6
D5
D4
D3
D2
D1 DO
0
0
A23 High Order DMA Byte
A16
A15 Mid Order DMA Byte
A08
A07
Low Order DMA Byte 0
16
Page 20
A2090A HARD DISK CONTROLLER
Since the host R/W bit, and address bits A23-A17, form the data byte for the host LD2 - counter, the DMA high and middle
order address bytes are shifted right 1 bit position before being used. Since a copy of the previous address is not maintained,
the command status is returned to the new address location specified and not the old one.
Possible Error Codes
No error, invalid command, DMA error.

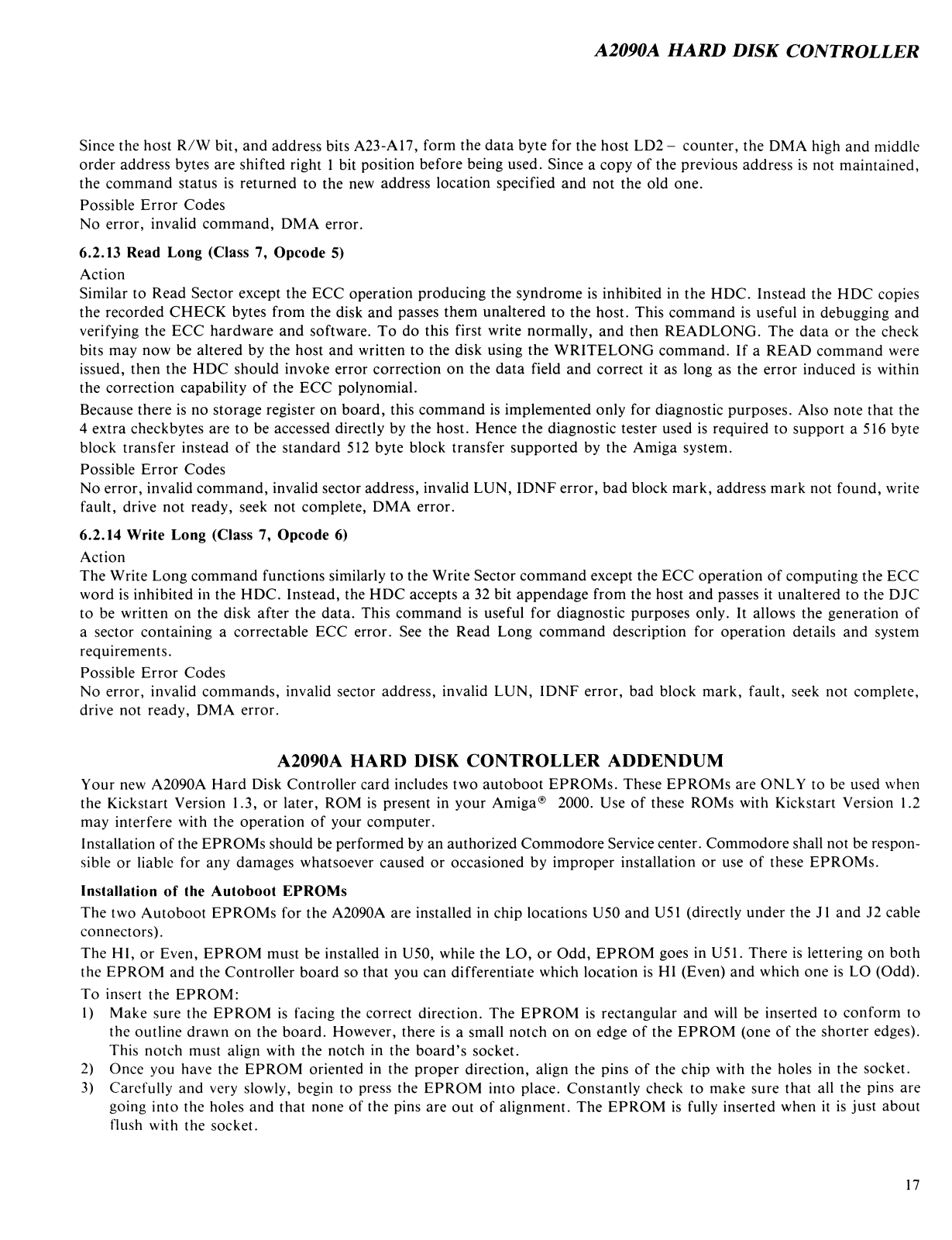

6.2.13 Read Long (Class 7, Opcode 5)
Action
Similar to Read Sector except the ECC operation producing the syndrome is inhibited in the HDC. Instead the HDC copies
the recorded CHECK bytes from the disk and passes them unaltered to the host. This command is useful in debugging and
verifying the ECC hardware and software. To do this first write normally, and then READLONG. The data or the check
bits may now be altered by the host and written to the disk using the WRITELONG command. If a READ command were
issued, then the HDC should invoke error correction on the data field and correct it as long as the error induced is within
the correction capability of the ECC polynomial.
Because there is no storage register on board, this command is implemented only for diagnostic purposes. Also note that the
4 extra checkbytes are to be accessed directly by the host. Hence the diagnostic tester used is required to support a 516 byte
block transfer instead of the standard 512 byte block transfer supported by the Amiga system.
Possible Error Codes
No error, invalid command, invalid sector address, invalid LUN, IDNF error, bad block mark, address mark not found, write
fault, drive not ready, seek not complete, DMA error.
6.2.14 Write Long (Class 7, Opcode 6)
Action
The Write Long command functions similarly to the Write Sector command except the ECC operation of computing the ECC
word is inhibited in the HDC. Instead, the HDC accepts a 32 bit appendage from the host and passes it unaltered to the DJC
to be written on the disk after the data. This command is useful for diagnostic purposes only. It allows the generation of
a sector containing a correctable ECC error. See the Read Long command description for operation details and system
requirements.
Possible Error Codes
No error, invalid commands, invalid sector address, invalid LUN, IDNF error, bad block mark, fault, seek not complete,
drive not ready, DMA error.
A2090A HARD DISK CONTROLLER ADDENDUM
Your new A2090A Hard Disk Controller card includes two autoboot EPROMs. These EPROMs are ONLY to be used when
the Kickstart Version 1.3, or later, ROM is present in your Amiga® 2000. Use of these ROMs with Kickstart Version 1.2
may interfere with the operation of your computer.
Installation of the EPROMs should be performed by an authorized Commodore Service center. Commodore shall not be respon
sible or liable for any damages whatsoever caused or occasioned by improper installation or use of these EPROMs.
Installation of the Autoboot EPROMs
The two Autoboot EPROMs for the A2090A are installed in chip locations U50 and U51 (directly under the J1 and J2 cable
connectors).
The HI, or Even, EPROM must be installed in U50, while the LO, or Odd, EPROM goes in U51. There is lettering on both
the EPROM and the Controller board so that you can differentiate which location is HI (Even) and which one is LO (Odd).
To insert the EPROM:
1) Make sure the EPROM is facing the correct direction. The EPROM is rectangular and will be inserted to conform to
the outline drawn on the board. However, there is a small notch on on edge of the EPROM (one of the shorter edges).
This notch must align with the notch in the board’s socket.
2) Once you have the EPROM oriented in the proper direction, align the pins of the chip with the holes in the socket.
3) Carefully and very slowly, begin to press the EPROM into place. Constantly check to make sure that all the pins are
going into the holes and that none of the pins are out of alignment. The EPROM is fully inserted when it is just about
flush with the socket.
17
Page 21
A2090A HARD DISK CONTROLLER
Autobooting with the A2090A

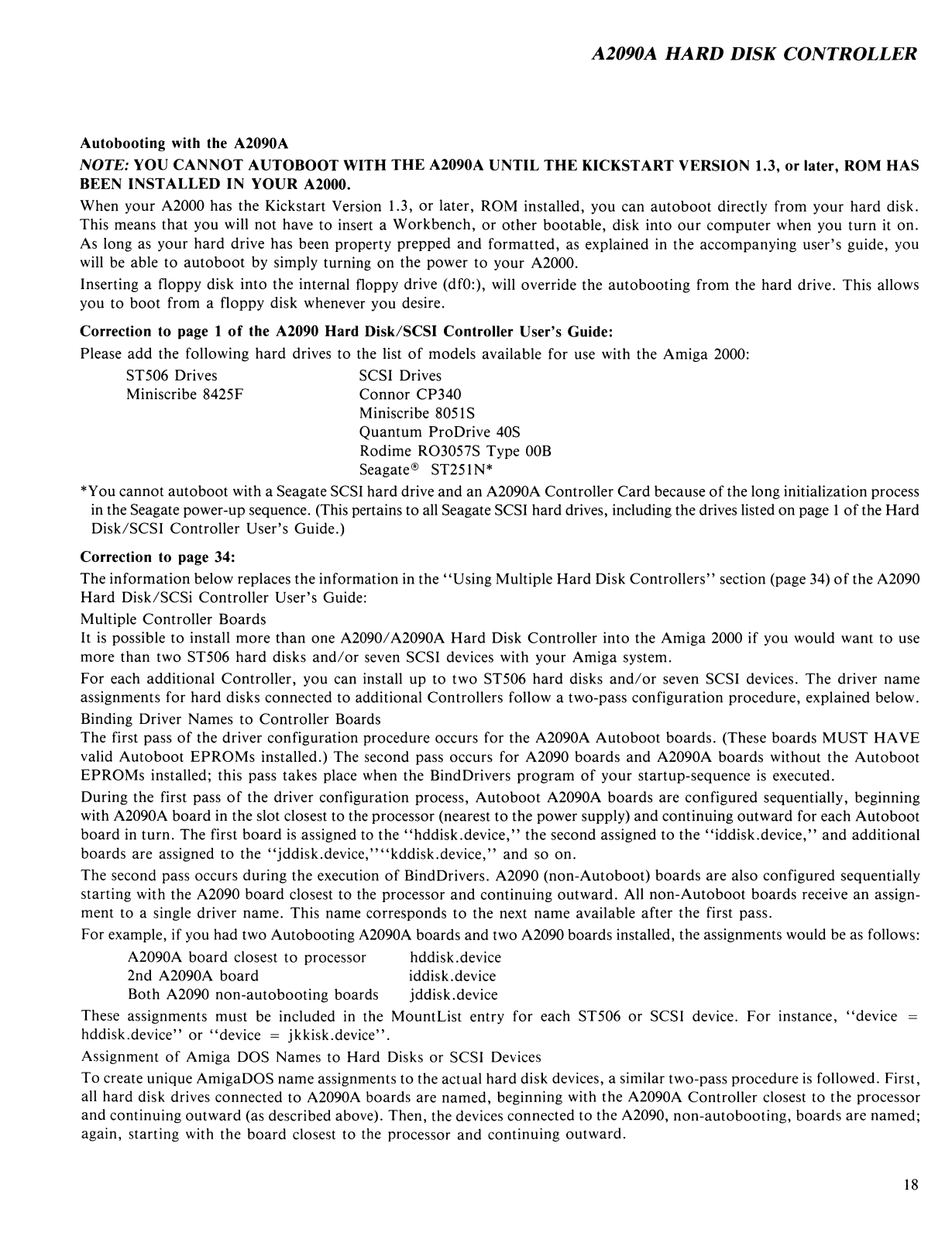

NOTE: YOU CANNOT AUTOBOOT WITH THE A2090A UNTIL THE KICKSTART VERSION 1.3, or later, ROM HAS
BEEN INSTALLED IN YOUR A2000.
When your A2000 has the Kickstart Version 1.3, or later, ROM installed, you can autoboot directly from your hard disk.
This means that you will not have to insert a Workbench, or other bootable, disk into our computer when you turn it on.
As long as your hard drive has been property prepped and formatted, as explained in the accompanying user’s guide, you
will be able to autoboot by simply turning on the power to your A2000.
Inserting a floppy disk into the internal floppy drive (dfO:), will override the autobooting from the hard drive. This allows
you to boot from a floppy disk whenever you desire.
Correction to page 1 of the A2090 Hard Disk/SCSI Controller User’s Guide:
Please add the following hard drives to the list of models available for use with the Amiga 2000:
ST506 Drives SCSI Drives
Miniscribe 8425F Connor CP340
Miniscribe 805IS
Quantum ProDrive 40S
Rodime RO3057S Type 00B
Seagate® ST251N*
*You cannot autoboot with a Seagate SCSI hard drive and an A2090A Controller Card because of the long initialization process
in the Seagate power-up sequence. (This pertains to all Seagate SCSI hard drives, including the drives listed on page 1 of the Hard
Disk/SCSI Controller User’s Guide.)
Correction to page 34:
The information below replaces the information in the “Using Multiple Hard Disk Controllers” section (page 34) of the A2090
Hard Disk/SCSi Controller User’s Guide:
Multiple Controller Boards
It is possible to install more than one A2090/A2090A Hard Disk Controller into the Amiga 2000 if you would want to use
more than two ST506 hard disks and/or seven SCSI devices with your Amiga system.
For each additional Controller, you can install up to two ST506 hard disks and/or seven SCSI devices. The driver name
assignments for hard disks connected to additional Controllers follow a two-pass configuration procedure, explained below.
Binding Driver Names to Controller Boards
The first pass of the driver configuration procedure occurs for the A2090A Autoboot boards. (These boards MUST HAVE
valid Autoboot EPROMs installed.) The second pass occurs for A2090 boards and A2090A boards without the Autoboot
EPROMs installed; this pass takes place when the BindDrivers program of your startup-sequence is executed.
During the first pass of the driver configuration process, Autoboot A2090A boards are configured sequentially, beginning
with A2090A board in the slot closest to the processor (nearest to the power supply) and continuing outward for each Autoboot
board in turn. The first board is assigned to the “ hddisk.device,” the second assigned to the “ iddisk.device,” and additional
boards are assigned to the “jddisk.device,’’“kddisk.device,” and so on.
The second pass occurs during the execution of BindDrivers. A2090 (non-Autoboot) boards are also configured sequentially
starting with the A2090 board closest to the processor and continuing outward. All non-Autoboot boards receive an assign
ment to a single driver name. This name corresponds to the next name available after the first pass.
For example, if you had two Autobooting A2090A boards and two A2090 boards installed, the assignments would be as follows:
A2090A board closest to processor hddisk.device
2nd A2090A board iddisk.device
Both A2090 non-autobooting boards jddisk.device
These assignments must be included in the MountList entry for each ST506 or SCSI device. For instance, “ device =
hddisk.device” or “ device = jkkisk.device” .
Assignment of Amiga DOS Names to Hard Disks or SCSI Devices
To create unique AmigaDOS name assignments to the actual hard disk devices, a similar two-pass procedure is followed. First,
all hard disk drives connected to A2090A boards are named, beginning with the A2090A Controller closest to the processor
and continuing outward (as described above). Then, the devices connected to the A2090, non-autobooting, boards are named;
again, starting with the board closest to the processor and continuing outward.
18
Page 22
A2090A HARD DISK CONTROLLER

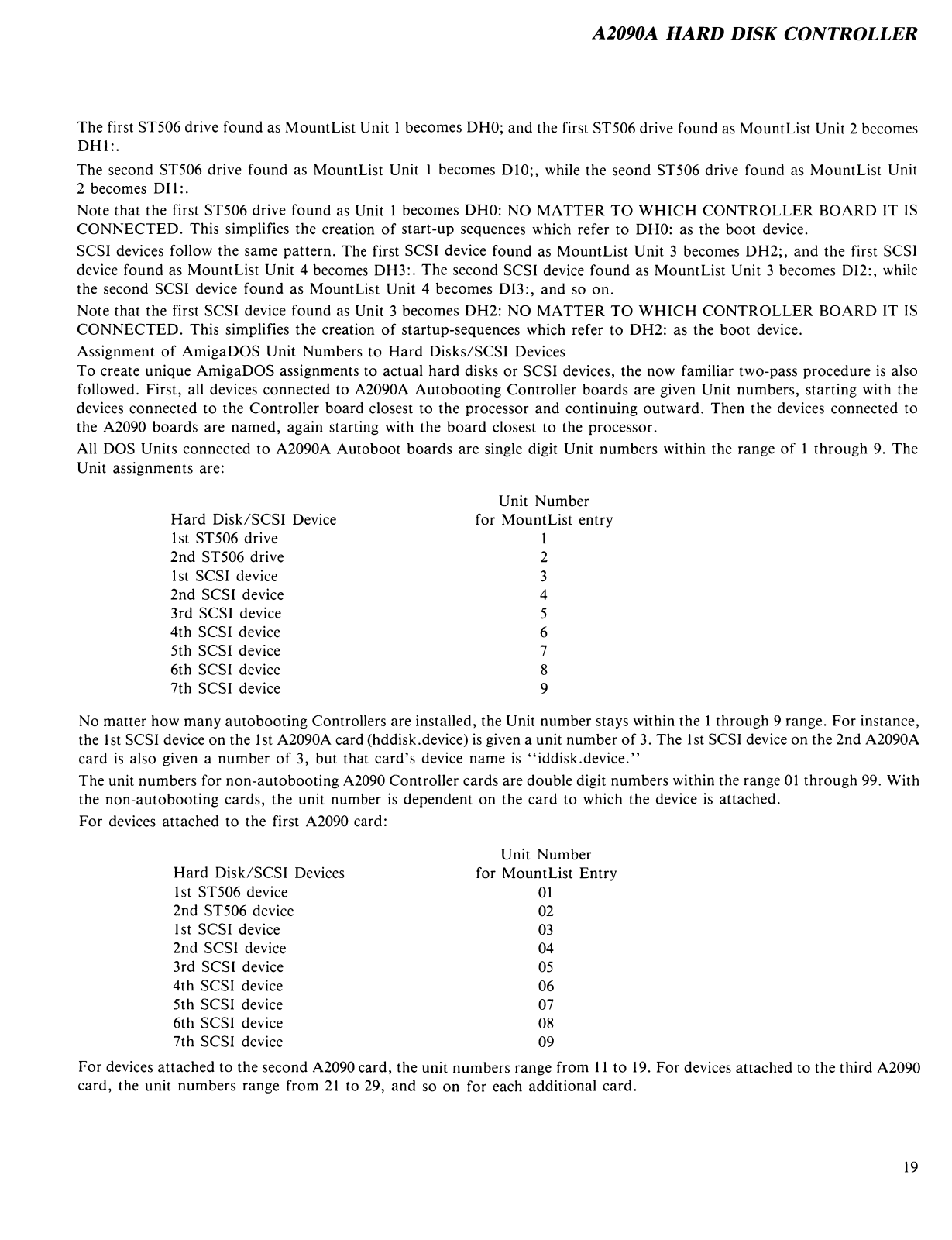

The first ST506 drive found as MountList Unit 1 becomes DHO; and the first ST506 drive found as MountList Unit 2 becomes
DH1:.
The second ST506 drive found as MountList Unit 1 becomes DIO;, while the seond ST506 drive found as MountList Unit
2 becomes D ll:.
Note that the first ST506 drive found as Unit 1 becomes DHO: NO MATTER TO WHICH CONTROLLER BOARD IT IS
CONNECTED. This simplifies the creation of start-up sequences which refer to DHO: as the boot device.
SCSI devices follow the same pattern. The first SCSI device found as MountList Unit 3 becomes DH2;, and the first SCSI
device found as MountList Unit 4 becomes DH3:. The second SCSI device found as MountList Unit 3 becomes DI2:, while
the second SCSI device found as MountList Unit 4 becomes DI3:, and so on.
Note that the first SCSI device found as Unit 3 becomes DH2: NO MATTER TO WHICH CONTROLLER BOARD IT IS
CONNECTED. This simplifies the creation of startup-sequences which refer to DH2: as the boot device.
Assignment of AmigaDOS Unit Numbers to Hard Disks/SCSI Devices
To create unique AmigaDOS assignments to actual hard disks or SCSI devices, the now familiar two-pass procedure is also
followed. First, all devices connected to A2090A Autobooting Controller boards are given Unit numbers, starting with the
devices connected to the Controller board closest to the processor and continuing outward. Then the devices connected to
the A2090 boards are named, again starting with the board closest to the processor.
All DOS Units connected to A2090A Autoboot boards are single digit Unit numbers within the range of 1 through 9. The
Unit assignments are:
Hard Disk/SCSI Device
1st ST506 drive
2nd ST506 drive
1st SCSI device
2nd SCSI device
3rd SCSI device
4th SCSI device
5th SCSI device
6th SCSI device
7th SCSI device
Unit Number
for MountList entry
1
2
3
4
5
6
7
8
9
No matter how many autobooting Controllers are installed, the Unit number stays within the 1 through 9 range. For instance,
the 1st SCSI device on the 1st A2090A card (hddisk.device) is given a unit number of 3. The 1st SCSI device on the 2nd A2090A
card is also given a number of 3, but that card’s device name is “ iddisk.device.”
The unit numbers for non-autobooting A2090 Controller cards are double digit numbers within the range 01 through 99. With
the non-autobooting cards, the unit number is dependent on the card to which the device is attached.
For devices attached to the first A2090 card:
Hard Disk/SCSI Devices
1st ST506 device
2nd ST506 device
1st SCSI device
2nd SCSI device
3rd SCSI device
4th SCSI device
5th SCSI device
6th SCSI device
7th SCSI device
Unit Number
for MountList Entry
01
02
03
04
05
06
07
08
09
For devices attached to the second A2090 card, the unit numbers range from 11 to 19. For devices attached to the third A2090
card, the unit numbers range from 21 to 29, and so on for each additional card.
19
Page 23
A2090A HARD DISK CONTROLLER

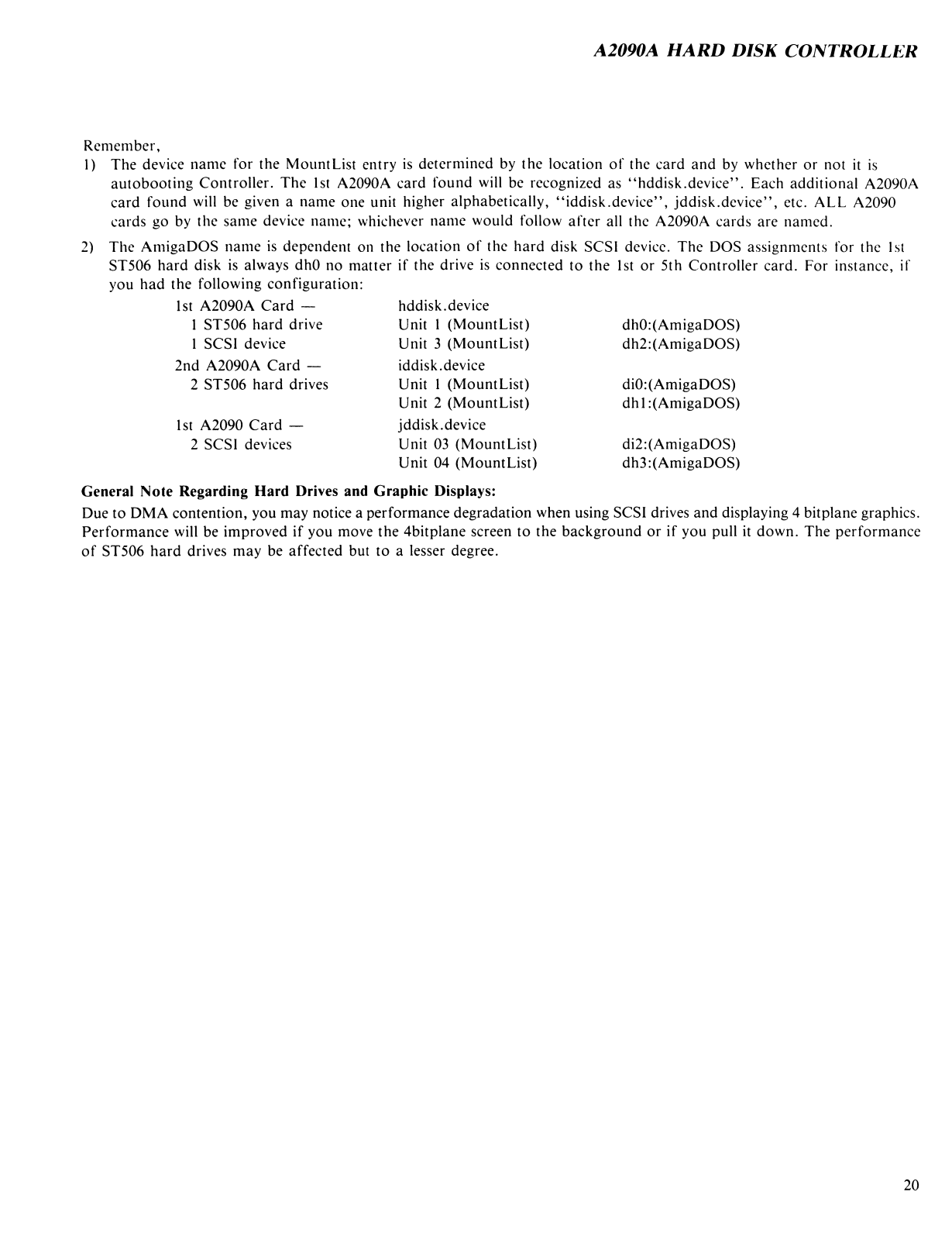

Remember,
1) The device name for the MountList entry is determined by the location of the card and by whether or not it is
autobooting Controller. The 1st A2090A card found will be recognized as “ hddisk.device” . Each additional A2090A
card found will be given a name one unit higher alphabetically, “ iddisk.device” , jddisk.device” , etc. ALL A2090
cards go by the same device name; whichever name would follow after all the A2090A cards are named.
2)
The AmigaDOS name is dependent on the location of the hard disk SCSI device. The DOS assignments for the 1st
ST506 hard disk is always dhO no matter if the drive is connected to the 1st or 5th Controller card. For instance, if
you had the following configuration:
1st A2090A Card —
1 ST506 hard drive
1 SCSI device
hddisk.device
Unit 1 (MountList)
Unit 3 (MountList)
dhO:(AmigaDOS)
dh2:(AmigaDOS)
2nd A2090A Card —
2 ST506 hard drives
iddisk.device
Unit 1 (MountList)
Unit 2 (MountList)
diO:(AmigaDOS)
dhl :(AmigaDOS)
1st A2090 Card —
2 SCSI devices
jddisk.device
Unit 03 (MountList) di2:(AmigaDOS)
Unit 04 (MountList) dh3:(AmigaDOS)
General Note Regarding Hard Drives and Graphic Displays:
Due to DMA contention, you may notice a performance degradation when using SCSI drives and displaying 4 bitplane graphics.
Performance will be improved if you move the 4bitplane screen to the background or if you pull it down. The performance
of ST506 hard drives may be affected but to a lesser degree.
20
Page 24
A2090A HARD DISK CONTROLLER

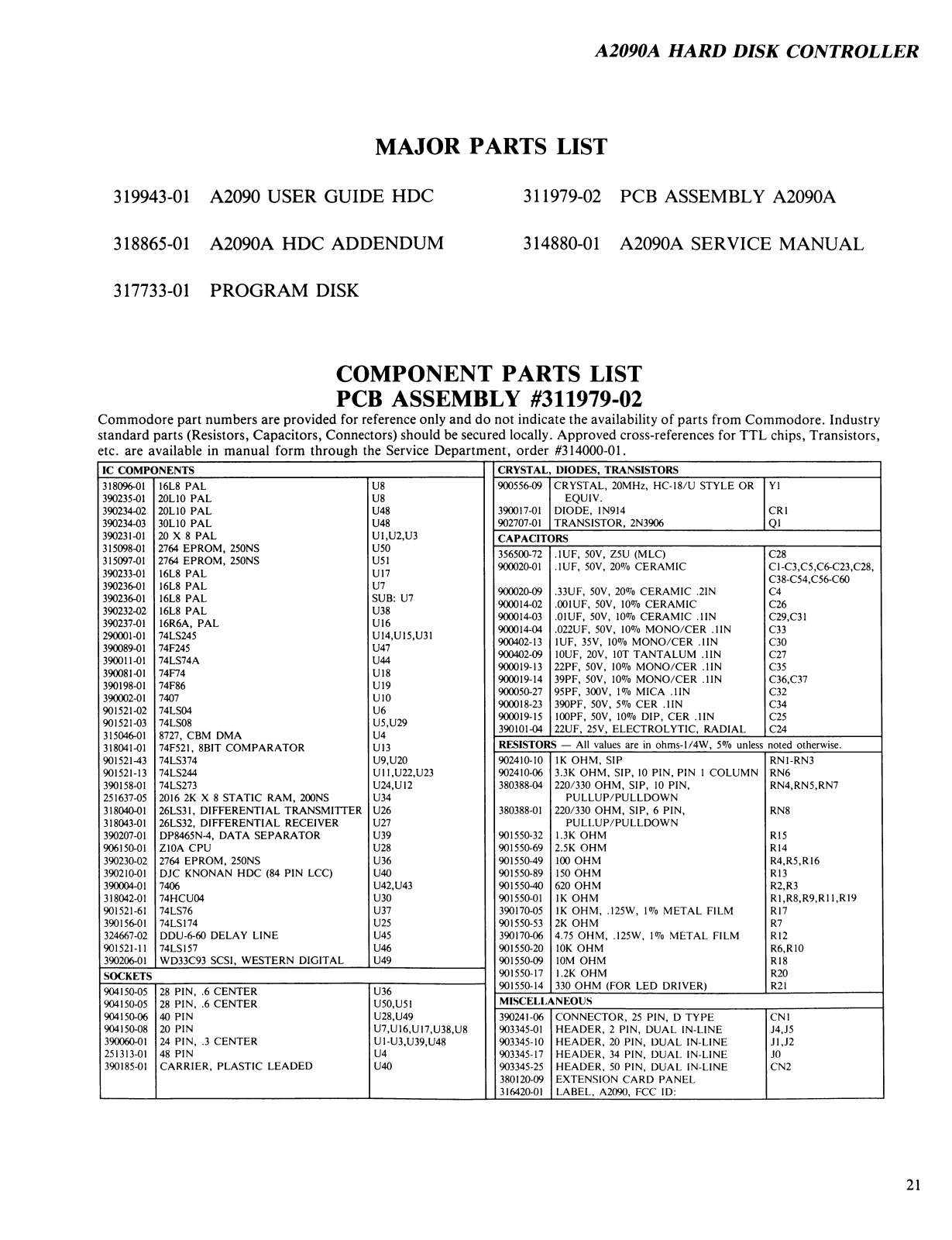

MAJOR PARTS LIST
319943-01 A2090 USER GUIDE HDC
318865-01 A2090A HDC ADDENDUM
317733-01 PROGRAM DISK
311979-02 PCB ASSEMBLY A2090A
314880-01 A2090A SERVICE MANUAL
COMPONENT PARTS LIST
PCB ASSEMBLY #311979-02
Commodore part numbers are provided for reference only and do not indicate the availability of parts from Commodore. Industry
standard parts (Resistors, Capacitors, Connectors) should be secured locally. Approved cross-references for TTL chips, Transistors,
etc. are available in manual form through the Service Department, order #314000-01.
IC COMPONENTS
318096-01 16L8 PAL
U8
390235-01 20L10 PAL U8
390234-02 20L10 PAL
U48
390234-03 30L10 PAL
U48
390231-01 20 X 8 PAL
U1,U2,U3
315098-01
2764 EPROM, 250NS U50
315097-01
2764 EPROM, 250NS U51
390233-01 16L8 PAL
U17
390236-01 16L8 PAL
U7
390236-01 16L8 PAL
SUB: U7
390232-02 16L8 PAL
U38
390237-01
16R6A, PAL
U16
290001-01
74LS245
U14,U15,U31
390089-01 74F245
U47
390011-01
74LS74A
U44
390081-01
74F74 U18
390198-01 74F86
U19
390002-01
7407
U10
901521-02 74LS04 U6
901521-03 74LS08
U5,U29
315046-01
8727, CBM DMA
U4
318041-01
74F521, 8BIT COMPARATOR U13
901521-43
74LS374
U9.U20
901521-13
74LS244
U11,U22,U23
390158-01
74LS273
U24,U12
251637-05
2016 2K X 8 STATIC RAM, 200NS
U34
318040-01
26LS31, DIFFERENTIAL TRANSMITTER
U26
318043-01 26LS32, DIFFERENTIAL RECEIVER
U27
390207-01
DP8465N-4, DATA SEPARATOR U39
906150-01 Z10A CPU
U28
390230-02 2764 EPROM, 250NS
U36
390210-01
DJC KNONAN HDC (84 PIN LCC) U40
390004-01 7406
U42.U43
318042-01
74HCU04
U30
901521-61 74LS76
U37
390156-01
74LS174 U25
324667-02
DDU-6-60 DELAY LINE U45
901521-11
74LS157
U46
390206-01
WD33C93 SCSI, WESTERN DIGITAL U49
SOCKETS
904150-05
28 PIN, .6 CENTER U36
904150-05
28 PIN, .6 CENTER
U50.U51
904150-06
40 PIN U28,U49
904150-08
20 PIN
U7,U16,U17,U38,U8
390060-01 24 PIN, .3 CENTER
U1-U3,U39,U48
251313-01
48 PIN
U4
390185-01 CARRIER, PLASTIC LEADED U40
CRYSTAL, DIODES, TRANSISTORS
900556-09
390017-01
902707-01
CRYSTAL, 20MHz, HC-18/U STYLE OR
EQUIV.
DIODE, 1N914
TRANSISTOR, 2N3906
Y1
CR1
Qi
CAPACITORS
356500-72 .1UF, 50V, Z5U (MLC) C28
900020-01
.1UF, 50V, 20% CERAMIC
C1-C3,C5,C6-C23,C28,
C38-C54.C56-C60
900020-09 .33UF, 50V, 20% CERAMIC .2IN C4
900014-02
.001UF, 50V, 10% CERAMIC
C26
900014-03
.01UF, 50V, 10% CERAMIC TIN
C29,C31
900014-04
.022UF, 50V, 10% MONO/CER TIN
C33
900402-13
1UF, 35V, 10% MONO/CER TIN
C30
900402-09
10UF, 20V, 10T TANTALUM TIN
C27
900019-13
22PF, 50V, 10% MONO/CER TIN
C35
900019-14
39PF, 50V, 10% MONO/CER TIN C36,C37
900050-27 95PF, 300V, 1% MICA TIN
C32
900018-23
390PF, 50V, 5% CER TIN
C34
900019-15
100PF, 50V, 10% DIP, CER TIN
C25
390101-04 22UF, 25V, ELECTROLYTIC, RADIAL C24
RESISTORS — All values are in ohms-l/4W, 5% unless noted otherwise.
902410-10
IK OHM, SIP
RN1-RN3
902410-06
3.3K OHM, SIP, 10 PIN, PIN 1 COLUMN
RN6
380388-04 220/330 OHM, SIP, 10 PIN,
PULLUP/PULLDOWN
RN4,RN5,RN7
380388-01 220/330 OHM, SIP, 6 PIN,
PULLUP/PULLDOWN
RN8
901550-32 1.3K OHM
R15
901550-69 2.5K OHM R14
901550-49 100 OHM R4,R5,R16
901550-89 150 OHM
R13
901550-40 620 OHM R2,R3
901550-01 IK OHM R1,R8,R9,R11 ,R 19
390170-05 IK OHM, T25W, 1% METAL FILM R17
901550-53 2K OHM
R7
390170-06 4.75 OHM, . 125W, 1% METAL FILM
R12
901550-20 10K OHM R6,R10
901550-09 10M OHM
R18
901550-17
1.2K OHM R20
901550-14
330 OHM (FOR LED DRIVER)
R21
MISCELLANEOUS
390241-06 CONNECTOR, 25 PIN, D TYPE CN1
903345-01 HEADER, 2 PIN, DUAL IN-LINE J4,J5
903345-10 HEADER, 20 PIN, DUAL IN-LINE J1,J2
903345-17
HEADER, 34 PIN, DUAL IN-LINE
JO
903345-25 HEADER, 50 PIN, DUAL IN-LINE CN2
380120-09 EXTENSION CARD PANEL
316420-01 LABEL, A2090, FCC ID:
21
Page 25
r-RB NO.
311981
HHRD DISK CONTROLLER
A2090A HARD DISK CONTROLLER
C2
U
U17
U19
UHT
LO:
HI
HIT
ci
U16
U13
RN2
RN3
R4
LW7
R5
U1Q
Cl 2
U5 ci
11
U12
U6
P i
U ll
oU44 1
.......
“ I
C22 U9
R29
---------
'
U4D
UG2
Jl
PCB BOARD LAYOUT #311979
22
Page 26

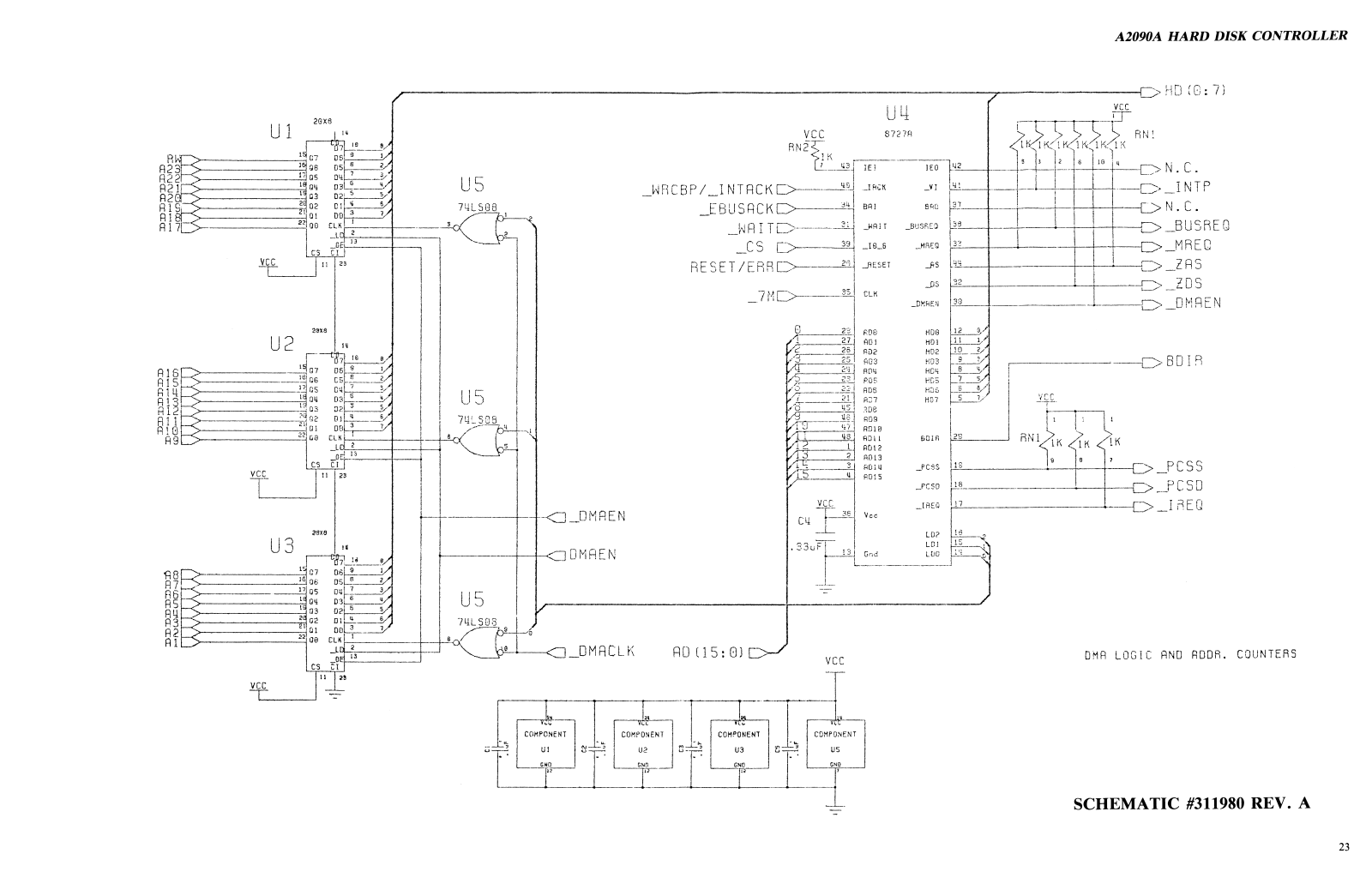

A2090A HARD DISK CONTROLLER
R1S
R1 5
R 1 4
vcc
vcc
VCC
U l
U
u
2
20X8
as
Q5
04
03
02
Q1
QG CLK
CS Cl
IS
07
16
Q6 C5
17
05
IE
Q4
Q3
?G
02
21
fll 0G
22
GS CLK
, cs
29X8
G7
16
Q6
G5
Q4
Q3
02
01
G0 CLK
CS Cl
OS
05
04;
D3
D2
01
DO
_LD
__0E
11
1 9
DS
DU
03
D?
01
LO
_0t
Cl
11 23
OS
05
DU
D3
02
01
DO
J.D.
_0E.
n 23
itl
i S
7 “
> HD (0:7)
U4
IE !
_ irck
BA I
_W A I T
_I0_6
_4*ESET
CLK
f;00
AD 1
RD2
AG3
RD4
ROD
ADS
9.21
?.D8
R09
A010
ROi L
AOl 2
ADI 3
A01 U
ADi 5
Vcc
Gnd
8727A
IE0
_VI
5 A0
J3USREQ
„ mre q
_RS
_PS
JDMAEN
HDG
HD 1
HDD
HD3
HC4
HD5
HD 5
H07
BDIR
_PCSS
__PCSD
_I REG
LD?
LSI
LOG
42
41
37
i 33
33
44
32
3G
15
1 '1
5
3 2
10
6
4
>_INTP
-O N . C.
- O -BUSREO
-O-DHAEN
BDIR
C >_ P CS S
■ O __P C S D
O - I R E Q
>
3
4
DMR LOGIC AND RD DR . COUNTERS
VCC
9
i /
8
:
7
V
6
h/
s/
u
«/
3
U5
741508
_ WR C B P /_ I N T A CK O -
E B U S A C K O
4
. W f l I T O
_C S L>
RN22T
-----------
-----
U3
IS
11
^
RE S E T / E R R O
7 M O -
27
j /
J /
J/
D
74LSQ8
4 ~
SL
so
S L-
/ O
V5
.AW
/ r r
4 7 “
A W
a j ;
26
US
47
43
A -
VCC
-<□ _J3 M A E N
< □ D MR E N
JA
j A
j/
< □ _ D MA C LK RD (15:0) O — ^
1 -
C 4
3 3 u F
13
vcc
“ u.
— 3
. *
2%
Ycv
COMPONENT
m
GNO
%2
ail
TO!
COMPONENT COMPONENT
- a.
— 3
O ~
_ • . •
110
GND GND
12 12
0 —
" (*.
— 3
YCw
113
LJ —
SCHEMATIC #311980 REV. A
23
Page 27
L0CflL_0WN
_S L RV E
X O N F I G O U T
CDR C
_I NT2[~>-
if a
<
A2090A HARD DISK CONTROLLER
6 8 0 0 0 E X PA N S IO N
BUSS IN TE R FA C E
100 PIN EDGE CONN.
PD 1 5
p ^
1 5 fi*
0 7 8 0
©9 IGq
Q11 t? 0
©13 1 4 Q
.
1
1
—
©15 lfiQ
q 17 IS©
©19 20©
©21 22©
&?3 P U0
©25 26© ..
.........
©?7 28© .
u - uv ■ ■
© -R1 3 2 ©
*,33 34
©.35 36©
©37 38©
©39 40©
©41 42©
©43 44©
©45 46©
©47 4RQ
©49 50©
©51 52©
©53 54o
*■*55 56^
vr U
©57 58©
©59 R0O
..a Fi 1 62©
V u
fi R3 RUft
. V M
©5 5 ‘0 6 ©
7 K R 0
o Rq 7no
©71 72©
©73 74 0
©75 76©
©77 7ao
.©79 Bn0
©R1 8?I
vr U
©S3 84©
©85 RR0
**B7_ 8.° 0
V
<*.89 9.0©
nP V
©91 92©
©9 3 9 4 ©
O95 960
0 9? 90o
0-0 1 0Go
w
------
V
CM
' a s .
U
O V C C +5
CO NF IG I N
B '
_C3
Cl
f
l
- O BERR
f
l
- O R ESET
PD 14
PD 1 3
PD 1 2
PD 1 1
PD 10
PD3
PD8
W DT fiC KO
Z R S O
2
3
LU
D cc: Q
Cl.
I
'-CLK
CO
S-°
* U1 8
7 PF 74
_ C 3 0
C I O
RZ> WRIT
vcc
o BUF EN
DMRENp^-
DTHCK L
FU S RE Q lO
' _M R E Q . '
ft/U
BGflCK
_C 3
7 m r > -
U 1 6
PRL16R6
oo!LL
10
01iLL
_ti [2 02ILL
_5l 13
X 14
OFF
04lS_
05O
06U_
07l_L
D EL BR SO -
T > WDTflCK
-O lEB USf lC
- O J3 E L B G A C K
MREO lJ
.JT E 5 E T n
Bf iSO
DELMREQUJ
Pi / W '
BERR
D'MflEN
“"SLAVE
BUSRCK
_0ELBRS
7 H O -
U 1G
K
DELMREQ
"DELBRS
"BflS U1
1/
U 1 7
PPLISL3
r
_____2
10 C 0!
1 3
* 5
; 6
7 7
^ 8
r •
vcc
11 011
4
12 02)
13 0 3 i
14 0415
15 05
! IS 06
9
1 17 07
* ,
1 13
19
I
U6
74LS34
3 r \ »
0 cc Q
•CLK
......
nS—
a_
I
co
d _0
—
13
7407
10
u
7407
19
1 8
_______
____
To
114
13
_______
12
1 1
u i a
74F74
- o
. □ C RL
BU SRC K
BGRC K
4
O -
> BUFEN
_
" BIR
RESET/ERR
TTMREN
_ZDS
■ LDS
BR
DMRCLK
UDS
-o > _ d d e l b r s
_
OWN
68000 EX PANSION BUSS INTERFACE
SCHEMATIC #311980 REV. A
24
Page 28

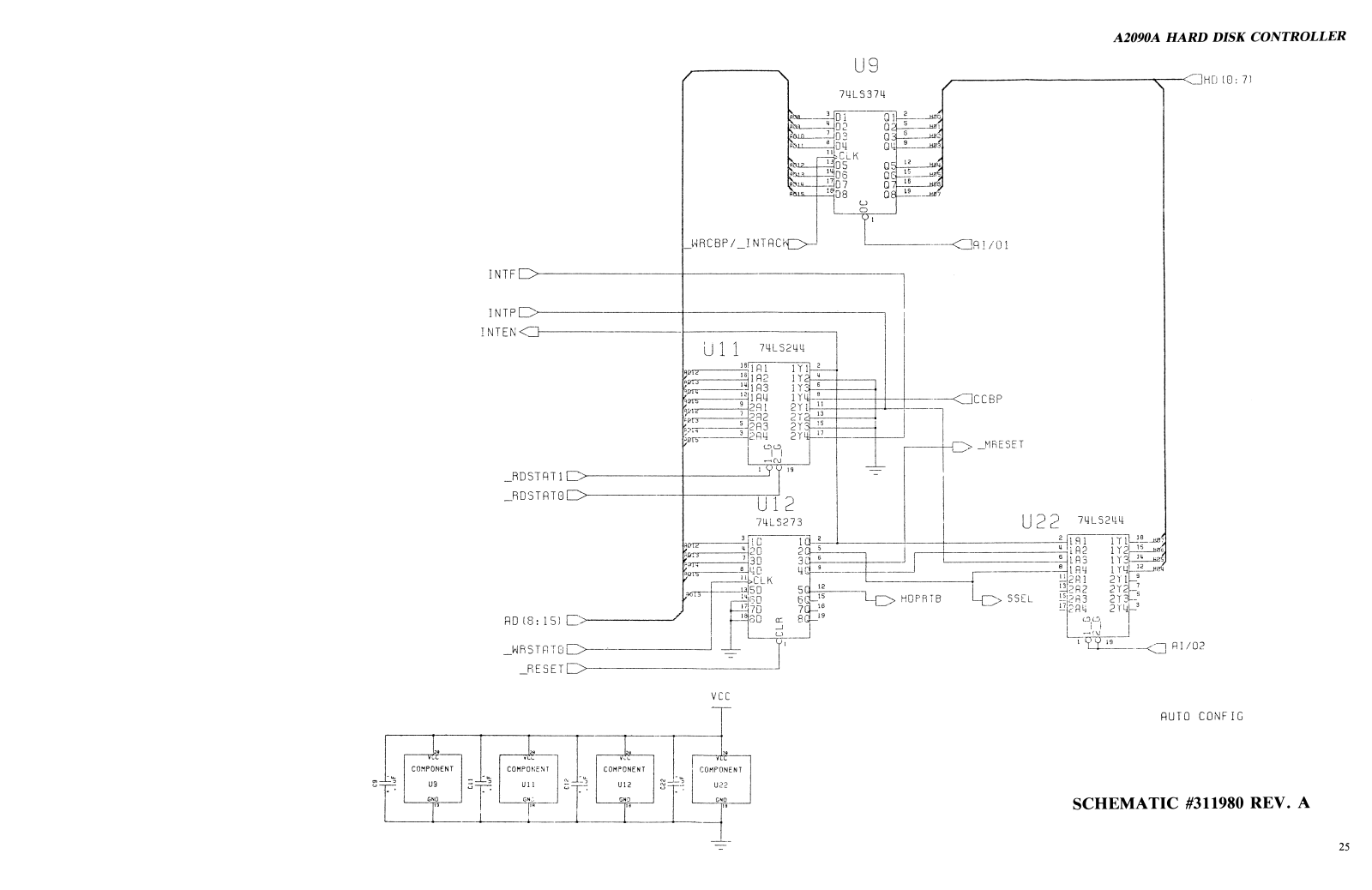

A2090A HARD DISK CONTROLLER
vcc
Ol
AUTO CONFIG
SCHEMATIC #311980 REV. A
25
Page 29
vcc
A2090A HARD DISK CONTROLLER
I NT E N O
741.5:
___
r -
U 6
74LS04
. I N T R O
l
_
7 '4 L S 0 4 74Q7
U 6
-o _ i n -
U1G
I N T P
U8
1613
_c s
C0NF1G0UT
1DDELBRS
. PRECONFIGOUT
B W
SLAVE
1_DELBPiS
WRCBP/ INTACK
U7
1516
U
LJ
SCHEMATIC #311980 REV. A
26
Page 30

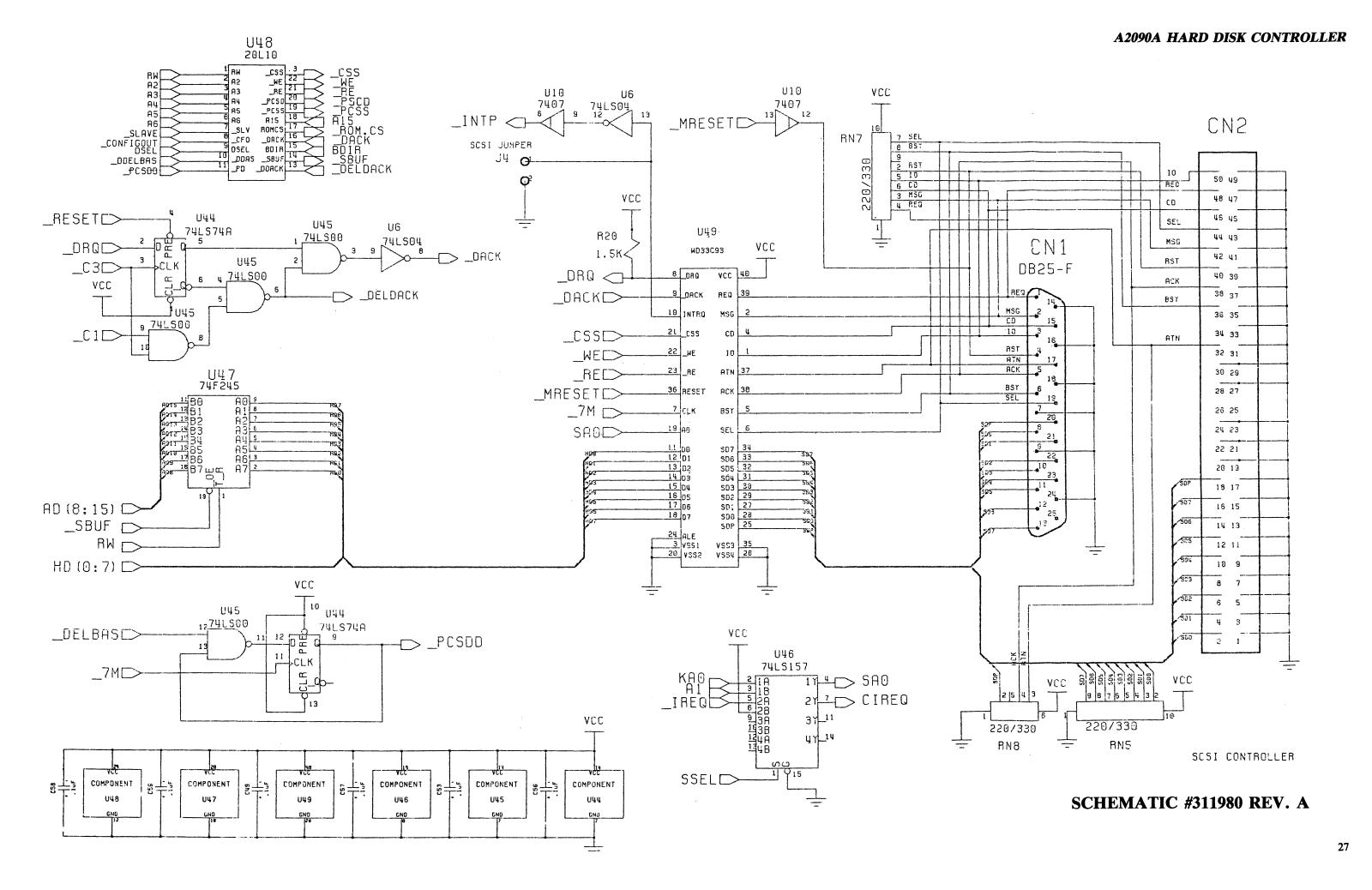

—^ 1
RW
—c 2
02
—c 3
03
—< u
04
—< 5
05
—C 6
06
_SL0VE
_CONFIGOUT
_DDELB0S
_f>C50G
—< 7
— 8
—<r y
OSEL
—< 10
—< ' ii
_RE3ETO
flO (8: 15) O - S
_S8UF O —
RW o
MO (0:7) O
__
--
74LS74R
, -r;
ll
ftfurn D -
£er r~j 8 3
36
87 lucc
U 4 3
20110
RW
P2
P3 RE
fl4
fl5 PC5S
PS PIS
SLV
CFO
OSEL
_D0PS
_FD
U44
U45
6 4 74LS00
UU7
74F245
RQ
8
fll
7
R2
6
R3
5
fl'4
4
R5
3
R6
2
R7
o I
37
CSS
WE
_PCSD
ROMCS
ORCK
BDIR
_.5BUF
JDORCK
JOSS
IRE
_ P S C D
_PCSS
fl l 5
_DflCK
BDIR
U45
l 7 4LS 8Q
- O _ DELDRCK
—
______
nav
hS's
hH
y \ _
VCC
WE
ROM.CS
SBUF
OELDflCK
J4LS04
U6
.1 NTP
8
- £ > JDflCK
SCSI JUMPER
QL
G
U10
7407
8 ^ 3
74LS04
_
DRQ < 3
12 13
R20
1.5K<
DflCKO
_CSSE>
_WEE>
_ R E O
_MRESETC>
_7M £>
u O
S Rr;
HUS’
H&I
f
n/ l
rriSfST
H&5“
fr
<pt<
A2090A HARD DISK CONTROLLER
U6
J^RESETE>-^H>
VCC
>
KflO
n i
IREQ
SSELO-
U46
74LS157
2
Ifl
3
IB
5
2 H
6
2 B
3
3R 3T
li
3B
u
4fl
U
4B
CO CD
i| Vis
IT
2T
4T
220/330
RN8
2 20 / 3 3 0
RN5
SCSI CONTROLLER
SCHEMATIC #311980 REV. A
27
Page 31

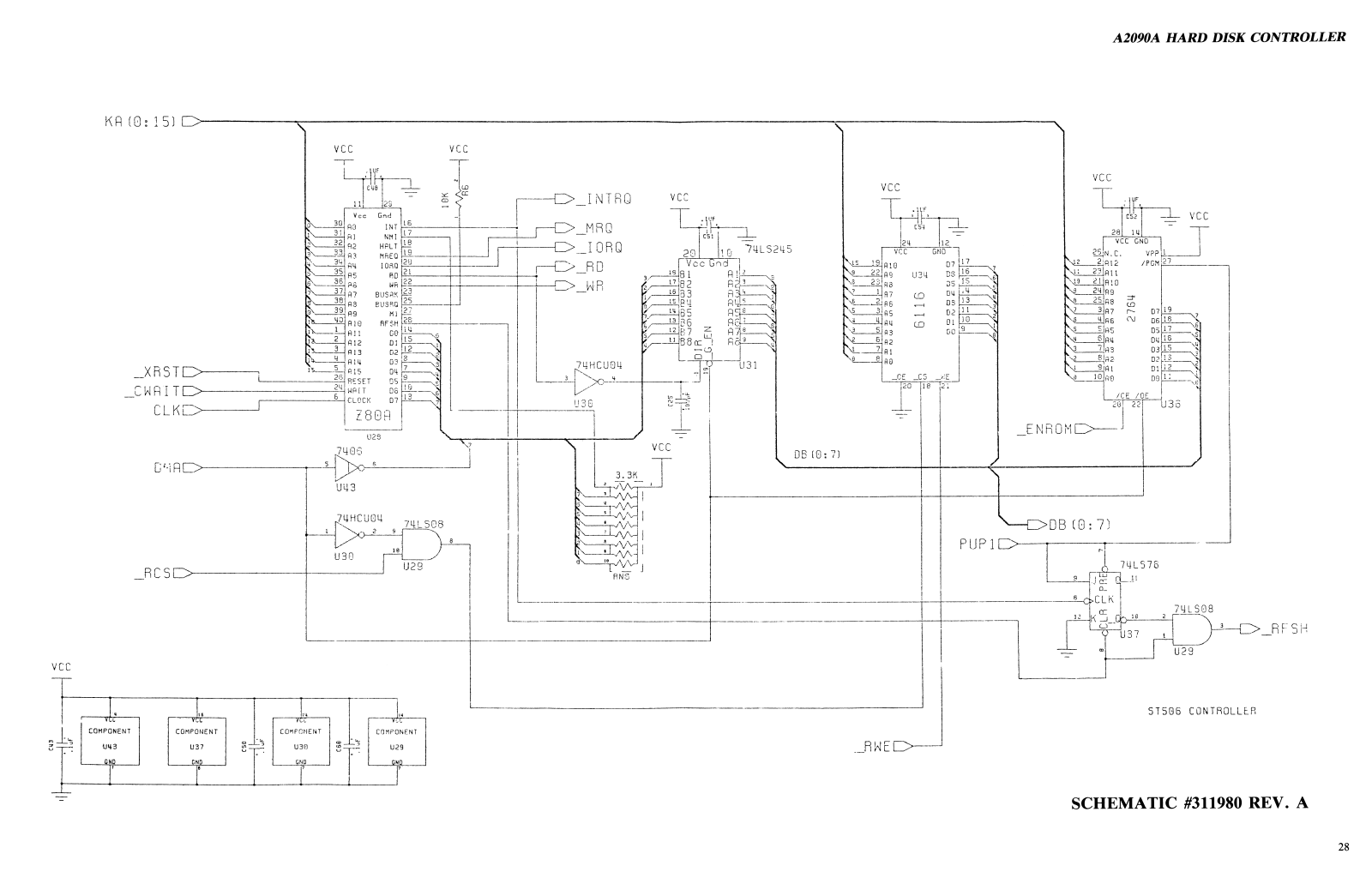

A2090A HARD DISK CONTROLLER
L > RFSH
SCHEMATIC #311980 REV. A
28
Page 32

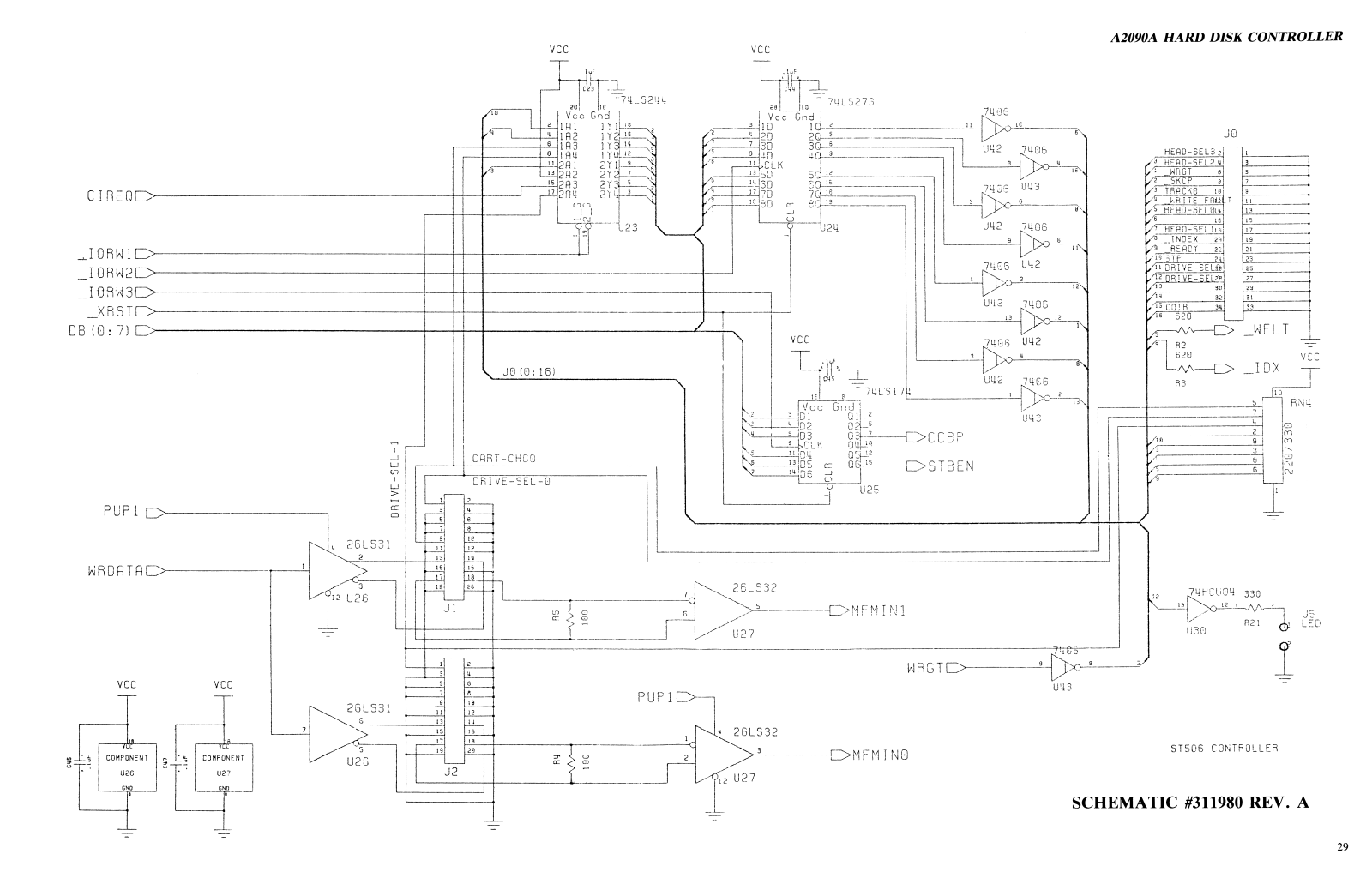

C46
DB
vcc vcc
A2090A HARD DISK CONTROLLER
luf
H h
C 23
1 ,
. loF
.• I | '
1!
C44
"" 7 4 L S 2 4 4
1
_
__
10 20
10
74L. 52 73
C I R E Q O
. I OR W IO
. I 0R W 2O
. IG RW 30
_X R S T O
(Q: 73 E >
18
VLC
COMPONENT
U26
GNO
a
HERD-SEL3j
/S HEflD-SEL? u
A
WRGT e
'2
_.S K C P 3
TRPCK0 i0
•-'4
kR ITE-FRHL
A H E H 0 - S E L Qi 4
A
16
/7 HERD-SELlis
/8
..INDEX 20
A
_R E H D Y 22
no 3TF
/1L [
] R I V E - S E Lfi
02 i
0 R I V F - S E LA*
AT
30
/14
32
A S ,
COIR 34
/is
620
R2
620
3 J
5 J
7 n
5
1 1__________l
13 i
15 [
17 i
19 i
21 [
23
25 .
27
23
31
33 .
WFLT
As
9
/3
3
A
8
6
CO
on
RN'4
JO"
LED
ST506 CONTROLLER
SCHEMATIC #311980 REV. A
29
Page 33

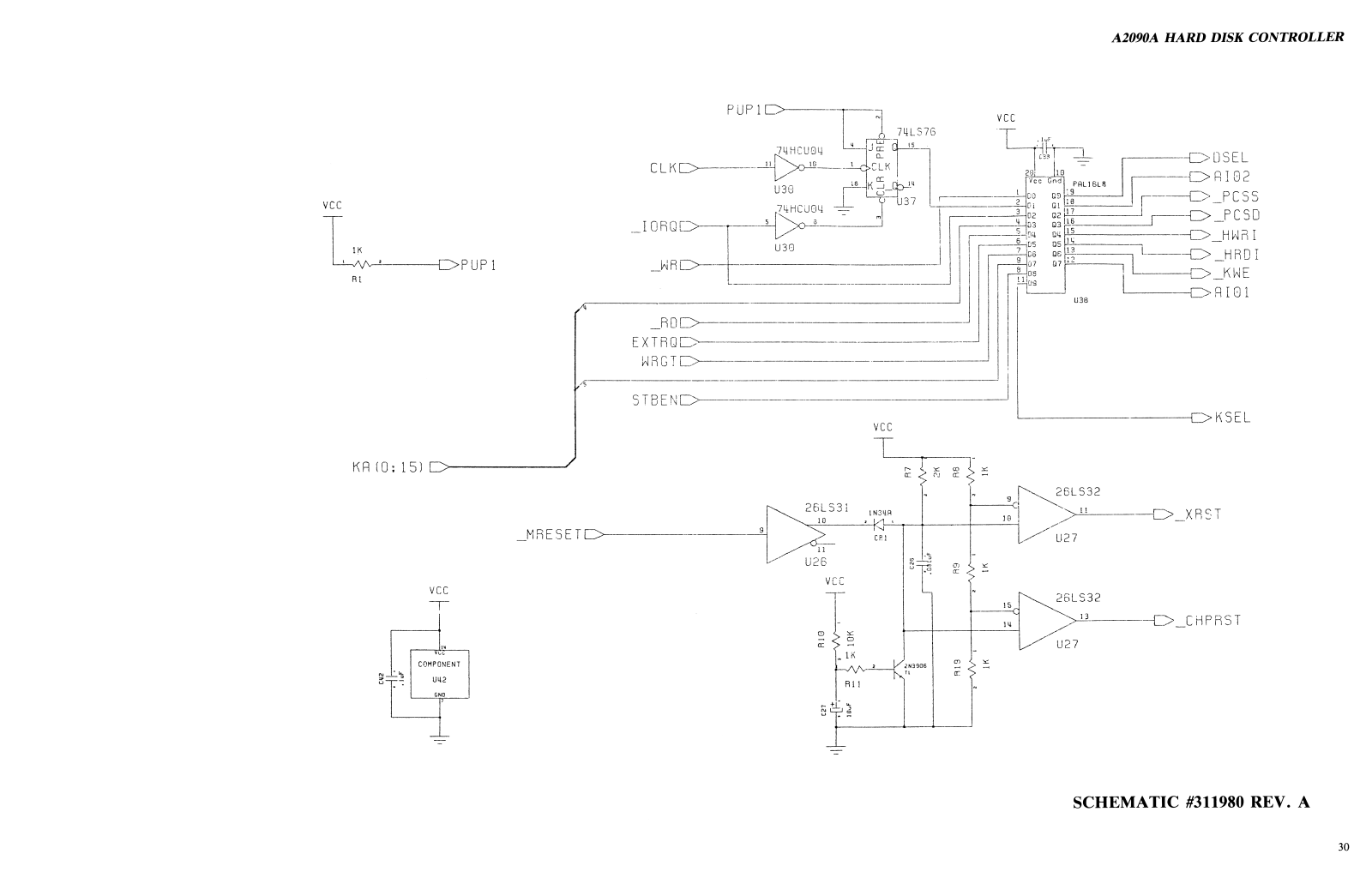

A2090A HARD DISK CONTROLLER
vcc
SCHEMATIC #311980 REV. A
30
Page 34

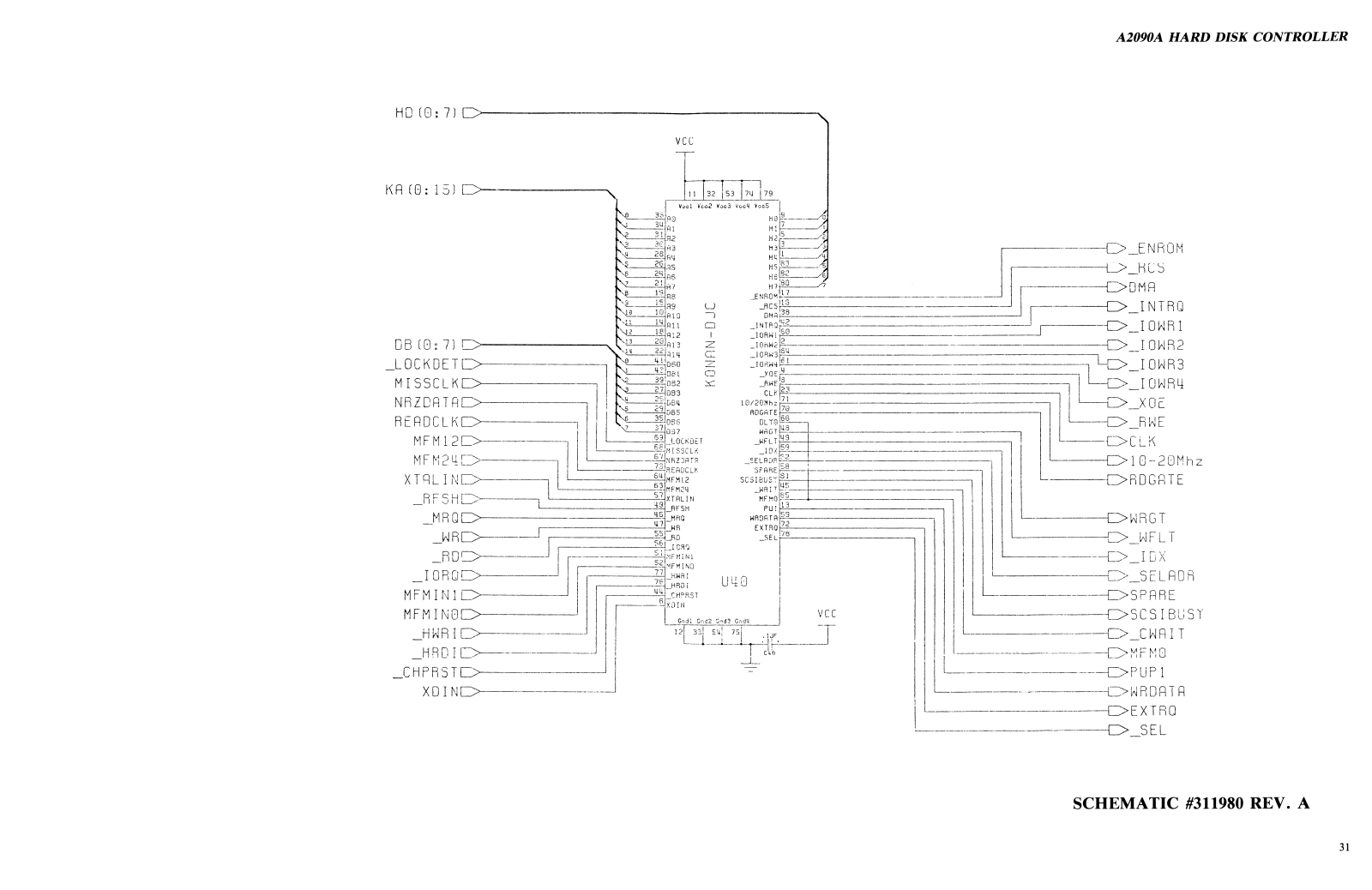

HD (0s 7) O
K fl (0 : 1 5 )
DB (0:7)
_L 0 C K D E T O -
M IS SCL K O-
NRZDRT flE>-
R ER DCLK O -
M F M 1 2 O
M F M 2 !4 R>-
x t r l in c
RFSHL
_ M R Q O
----
_WREI>
--------
_R D L>
----
_ I 0 R 0 O
----
M F M I N I O
----
M F M I N 0 O
----
_FiWR I E >
----
_H R D I EE>
----
.CH PR STO
X D I N O
A2090A HARD DISK CONTROLLER
\
vcc
— r—
1
11
32 | 53
74 j
I 79
28
l i
24
19
22
jTT
4 3
39
29
35
59
Voci Vcc2 Voc3 Vcc4 Vccd-
93
H 8
49
4G
47
55
91
HI
92
H2
93
83
9'4
H4
95 H5
96 H5
9 7
8 7
R8
_ENR0M
93
O
_RC5
910
~ )
DMA
911
CD
_1 NTR0
■912
1
_ ] 0RWI
■913
s''
_10RW2
■914
CD
0RW3
■06Q
_10 RA 4
•OBI
O
_
X 0 E j
•032 DC
RWE
0B3 CLK
034
10/2Q M hz
0B 5 R0G9TE
06 6 DLTG
037
WnGT
J-0C KG E T
WFLT
MiSSCLK _io ;<
NRZD9TP
__S E L 9 D R
READCLK
SF9RE
MFM12
SCSIBUST
8FM24
_WRIT
XTA L IN
MFHQ
_R F S H
PU1
_MRQ
WR09TA
_WR
EXTR0
_RD _ s e l
66
43
43
50
52
77
7P_
44
SI
65
QSQ
MFMIN1
MFMINQ
_KWR[
_ H R 0 i
C H D R S T
U4Q
Gr.dl Grid2 Gnd3 Gnd'4
12
= 4j 7 5 j
-A
S3
3
30
17
_ENR0M
13
H
_
>
33
S4
6 1
23_
71
70
11.
53
72
78
VCC
T
- O D H f l
—0 _ I NTRQ
--0 _ I OWR 1
- O _ I 0 W R 2
L-IZ>_I 0WR3
>_I0WR4
—0 _ X 0 E
- 0 _ R W E
- O C l K
—O 1 0 - 2 0 M h:
—O n D G R T E
- OW R GT
— ED>_W F L T
— C > _ ID X
— H > S E L RD R
-OSPflRE
O S C S I BUST
-C>_CWflIT
■ M F M 3
— O P UP 1
l2> W R D A I R
- OE X TR Q
- O SEL
SCHEMATIC #311980 REV. A
31
Page 35
A2090A HARD DISK CONTROLLER
vcc
2 a M h;
U30
SCHEMATIC #311980 REV. A
Page 36
COMPUTERS
Computer Systems Division
1200 Wilson Drive
West Chester, PA 19380
Page 37
This was brought to you
from the archives of
http://retro-commodore.eu
Loading...
