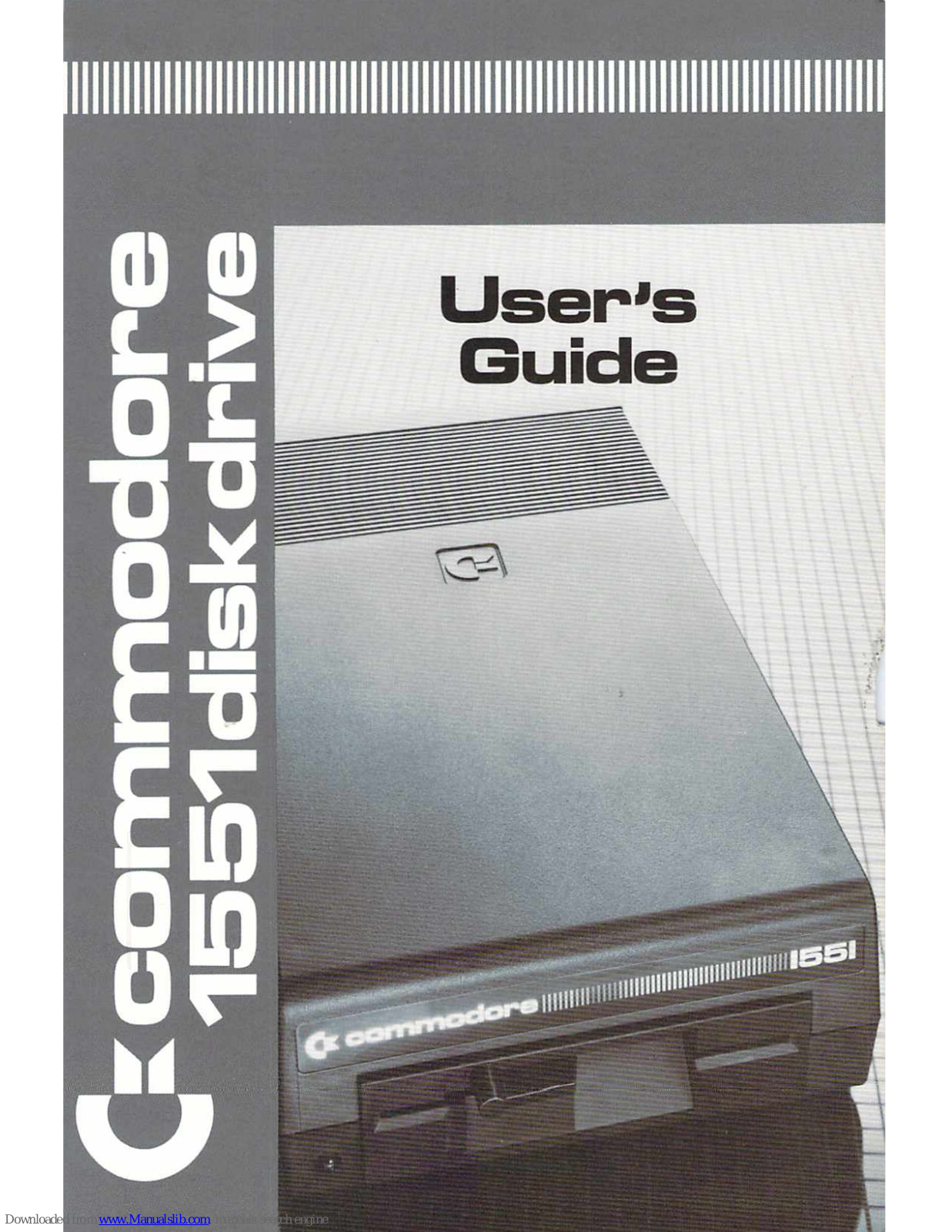

COMMODORE
1551
DISK
DRIVE
USERJS
GUIDE
A
Friendly
Introduction
to
Your
1551
Diek
Drive

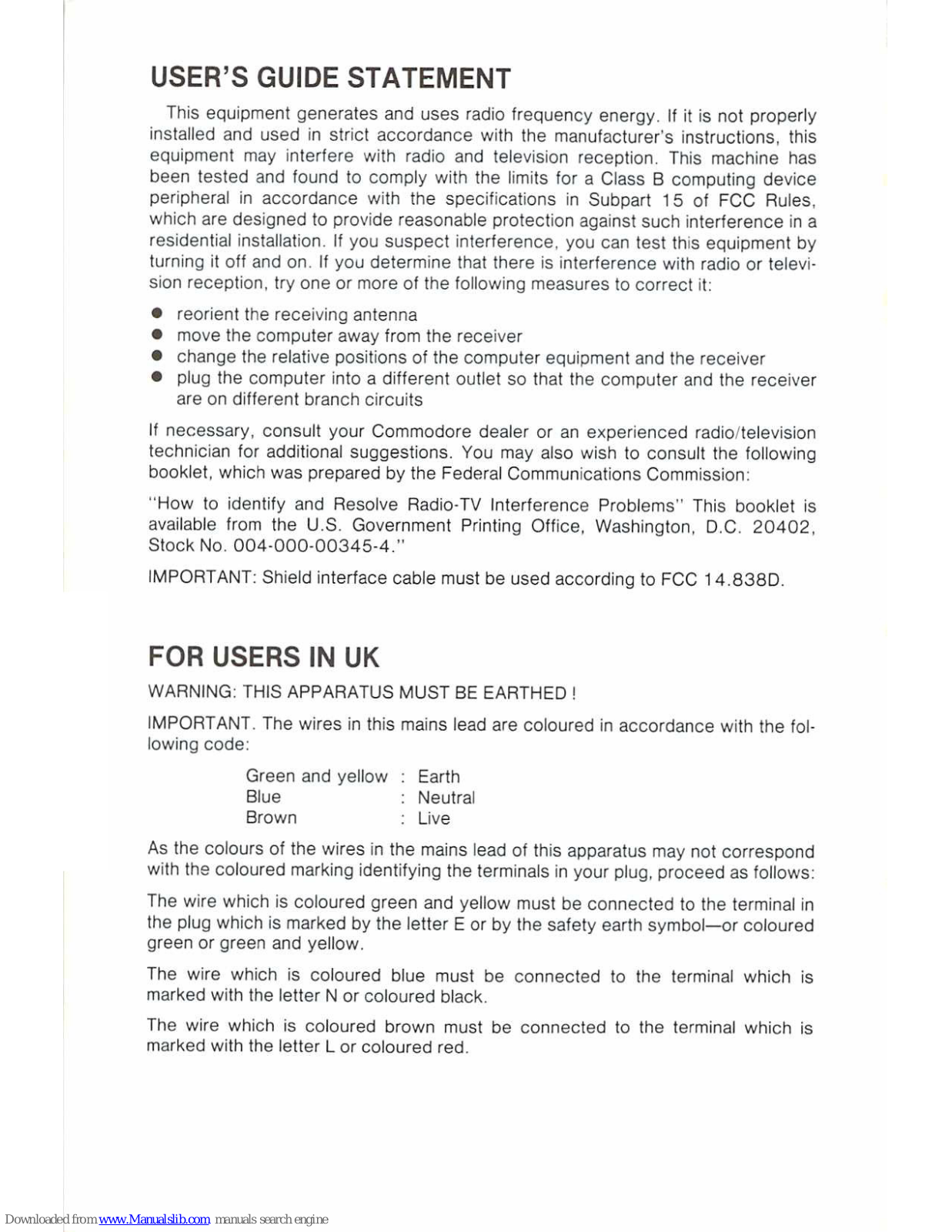

Page 4

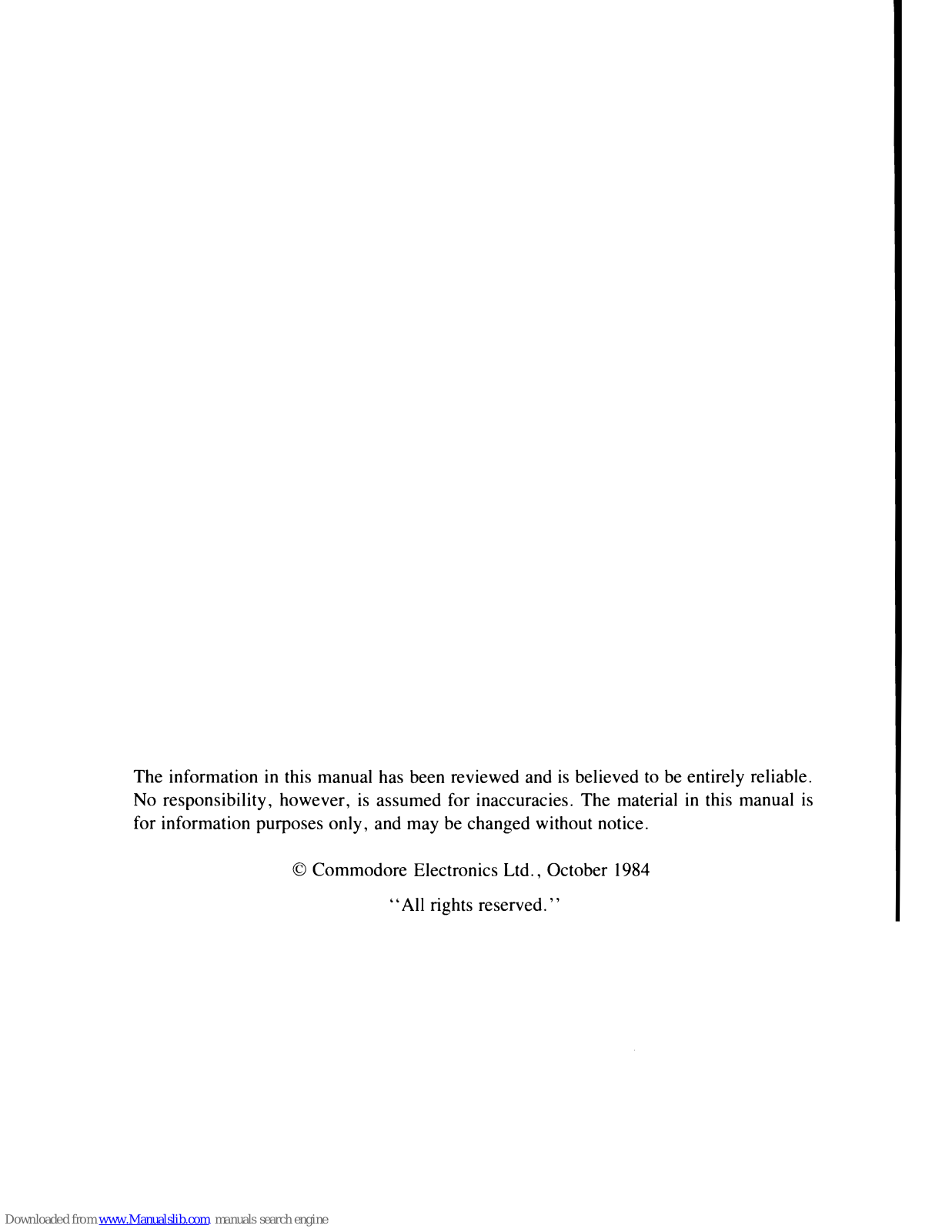

The information
in
this manual has been reviewed and
is
believed to be entirely reliable.
No responsibility, however,
is
assumed for inaccuracies. The material in this manual
is
for information purposes only, and may be changed without notice.
© Commodore Electronics Ltd., October 1984
"All
rights reserved."
Page 5

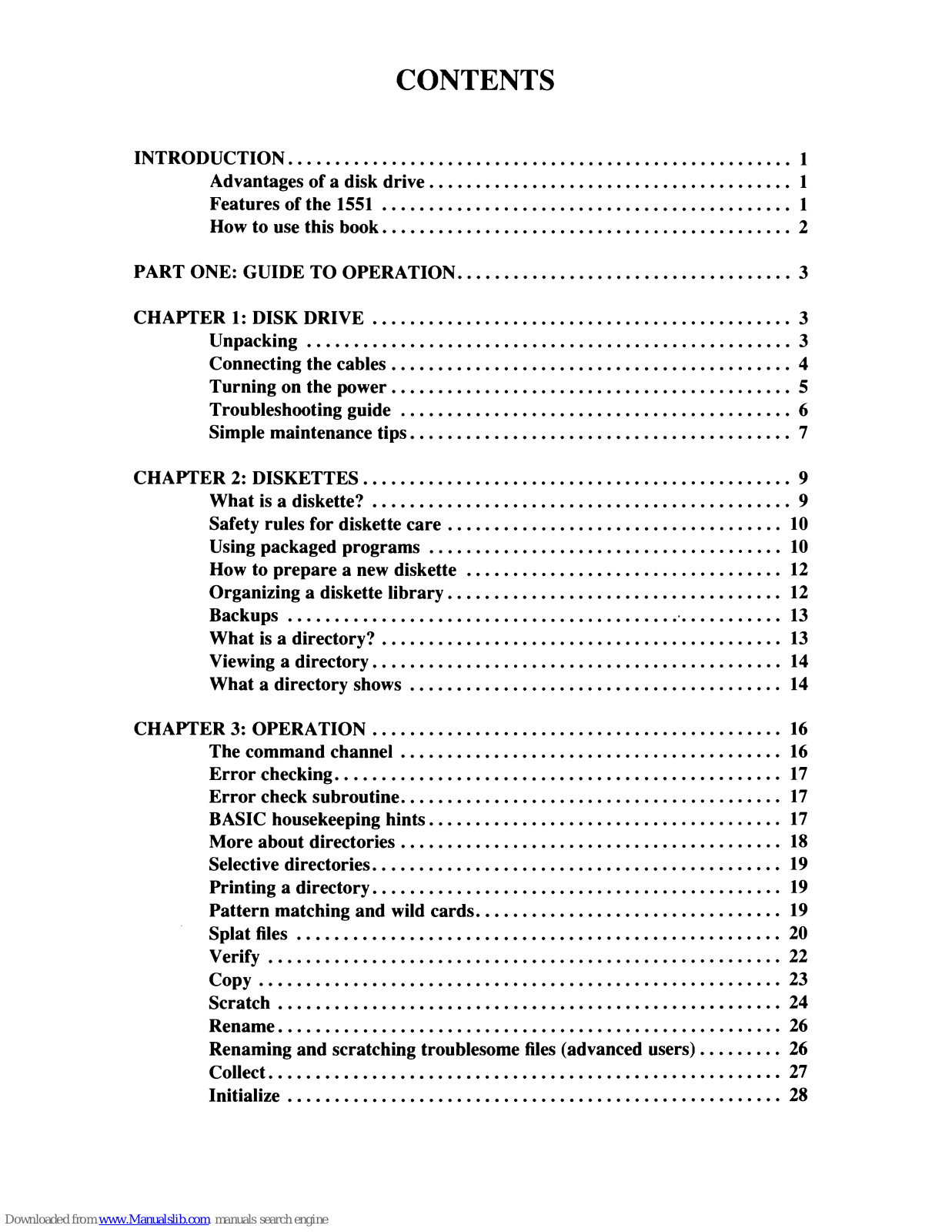

CONTENTS
INTRODUCTION
......................................................
1
Advantages of a disk
drive.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
..
1
Features of the
1551
..•.•.......................................
1
How to use this book. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
PART ONE: GUIDE TO OPERATION
....................................
3
CHAPTER 1: DISK DRIVE
.........•...................................
3
Unpacking
........•..................................•........
3
Connecting the cables . . . • . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
..
4
Turning on the
power.
. . • . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
..
5

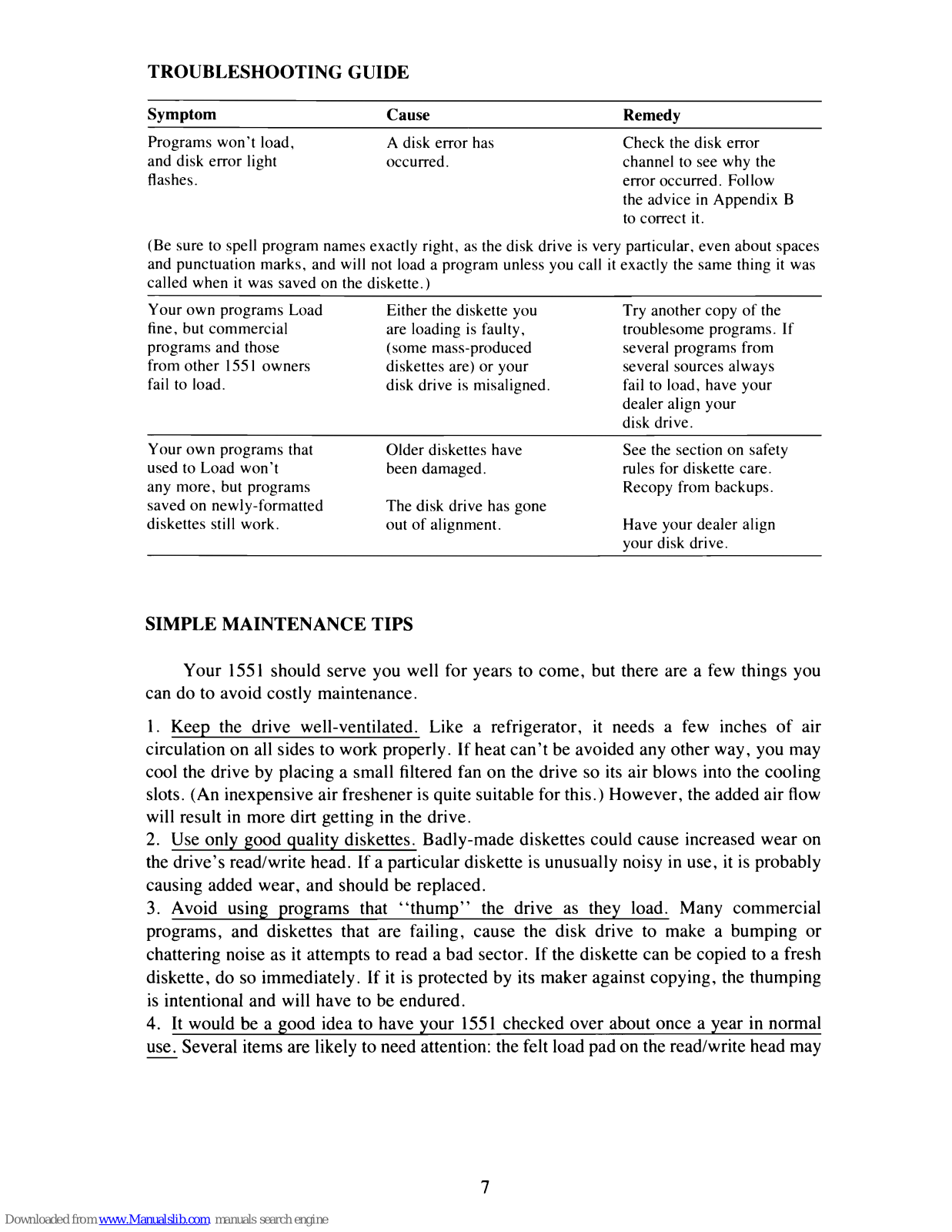

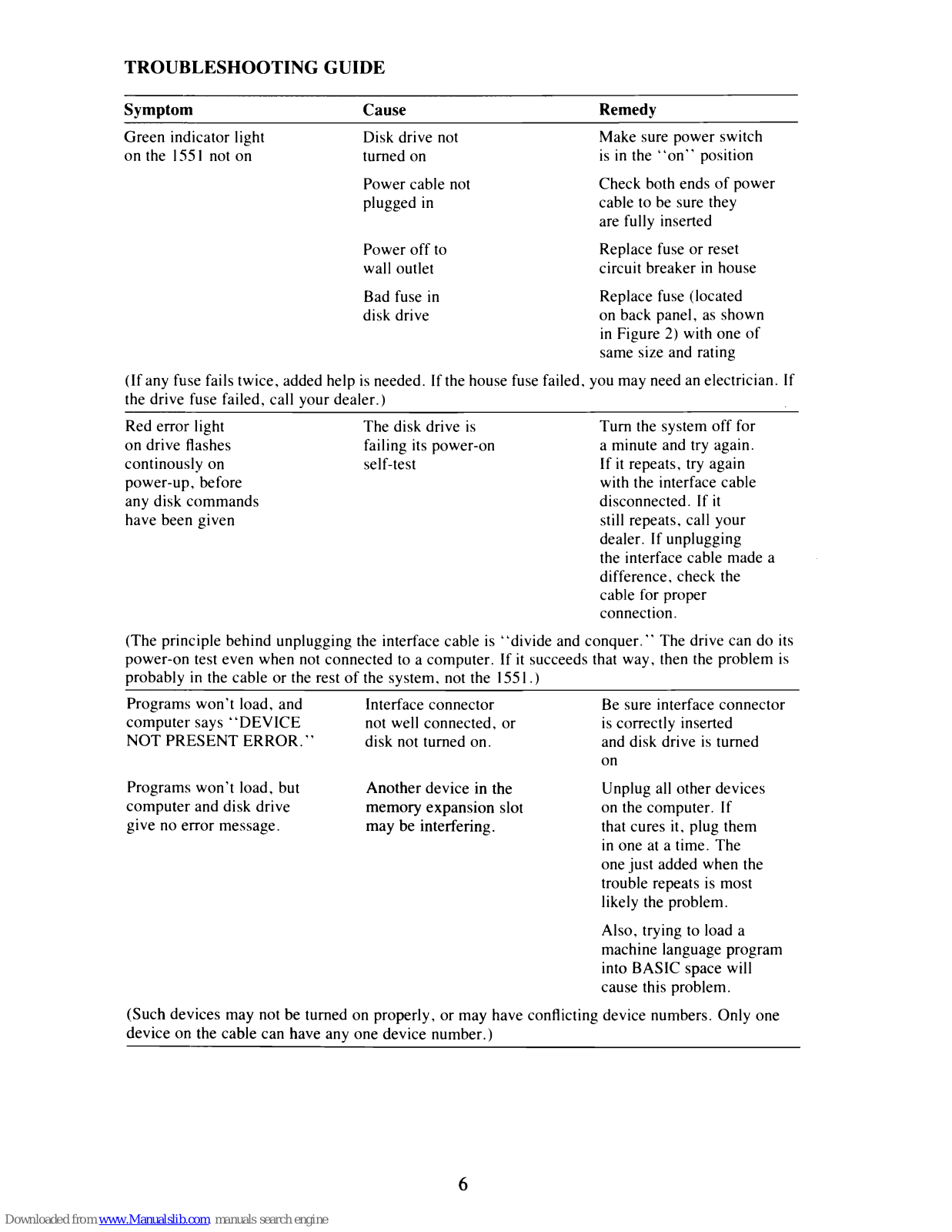

Troubleshooting guide
..........................................
6

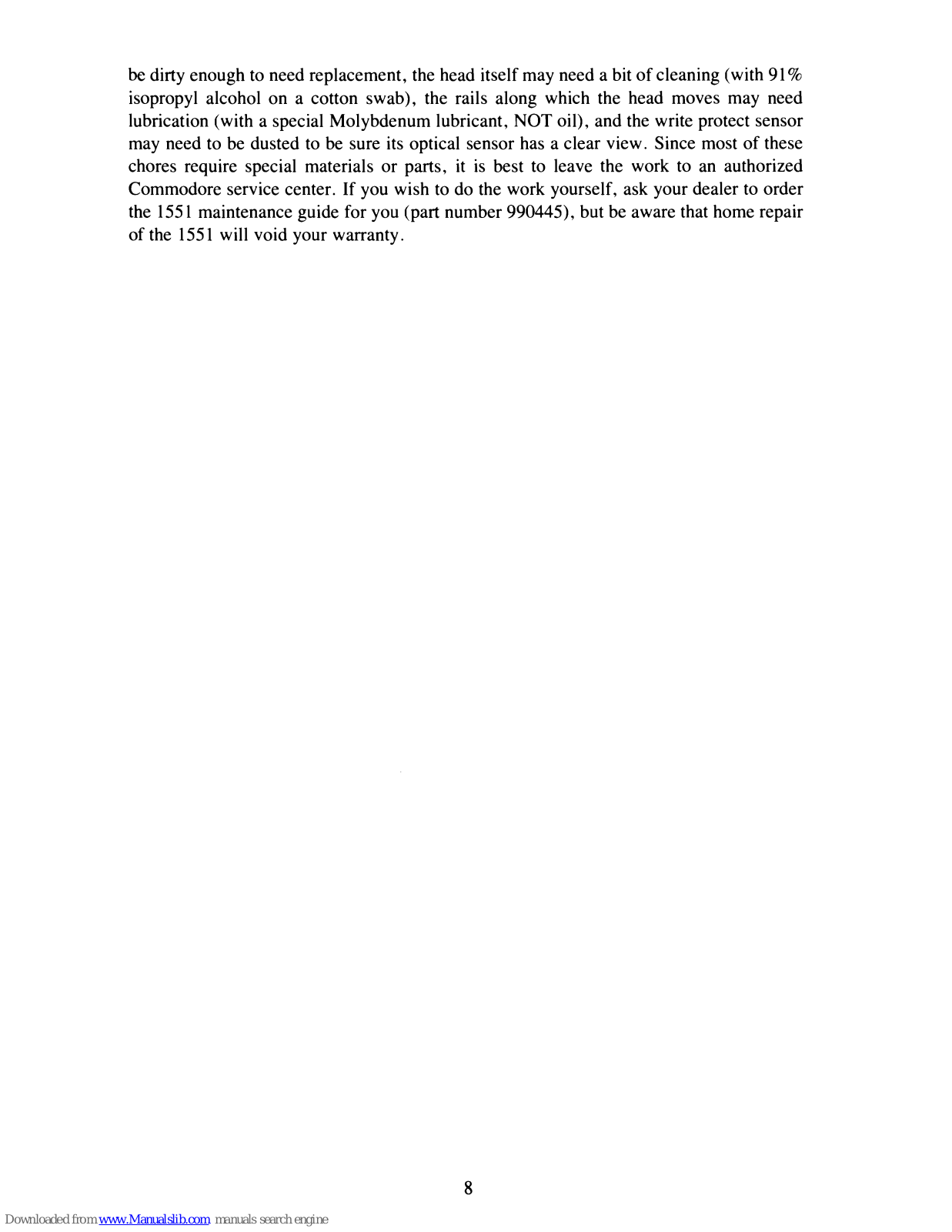

Simple maintenance
tips.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
..
7
CHAPTER 2: DISKETTES
..............•...............................
9
What
is
a diskette?
.•...•.......•..........................•....
9

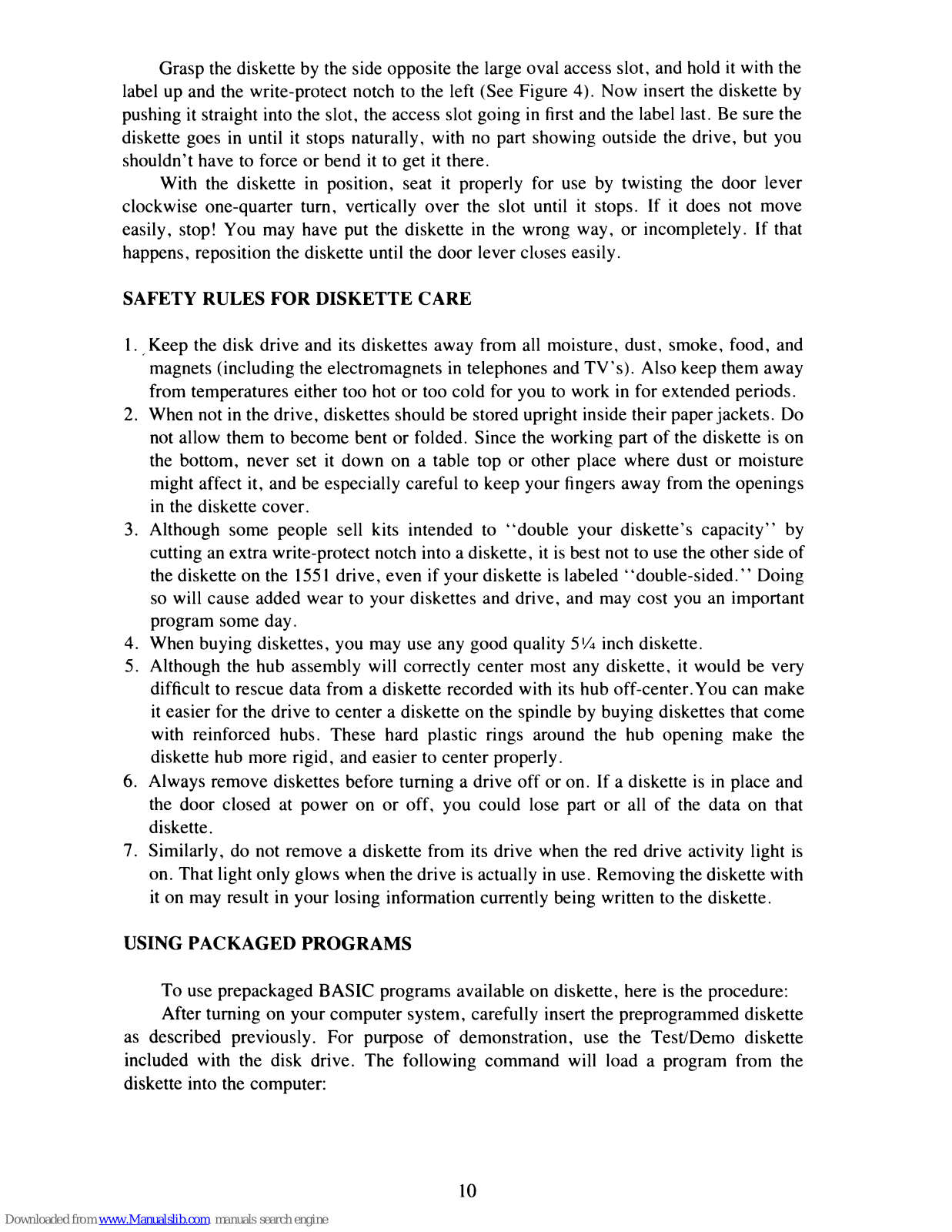

Safety rules for diskette care
.....•..............................
10
Using packaged programs
.......•..............................
10

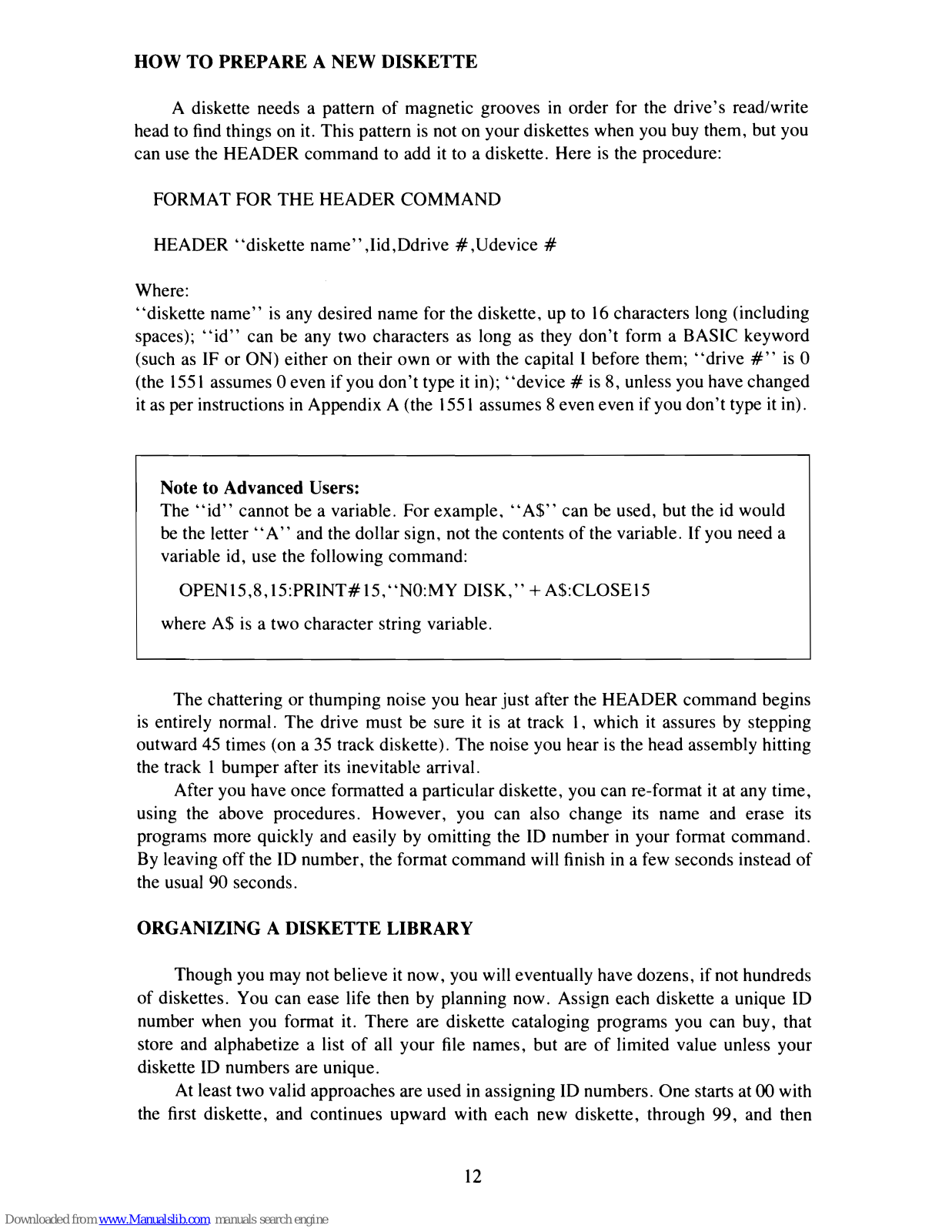

How to prepare a new diskette
...•..........•...............•...
12
Organizing a diskette
library.
. . . . . . . . . . . . . . . . . . . . . . . . . . . • . . . . .
..
12

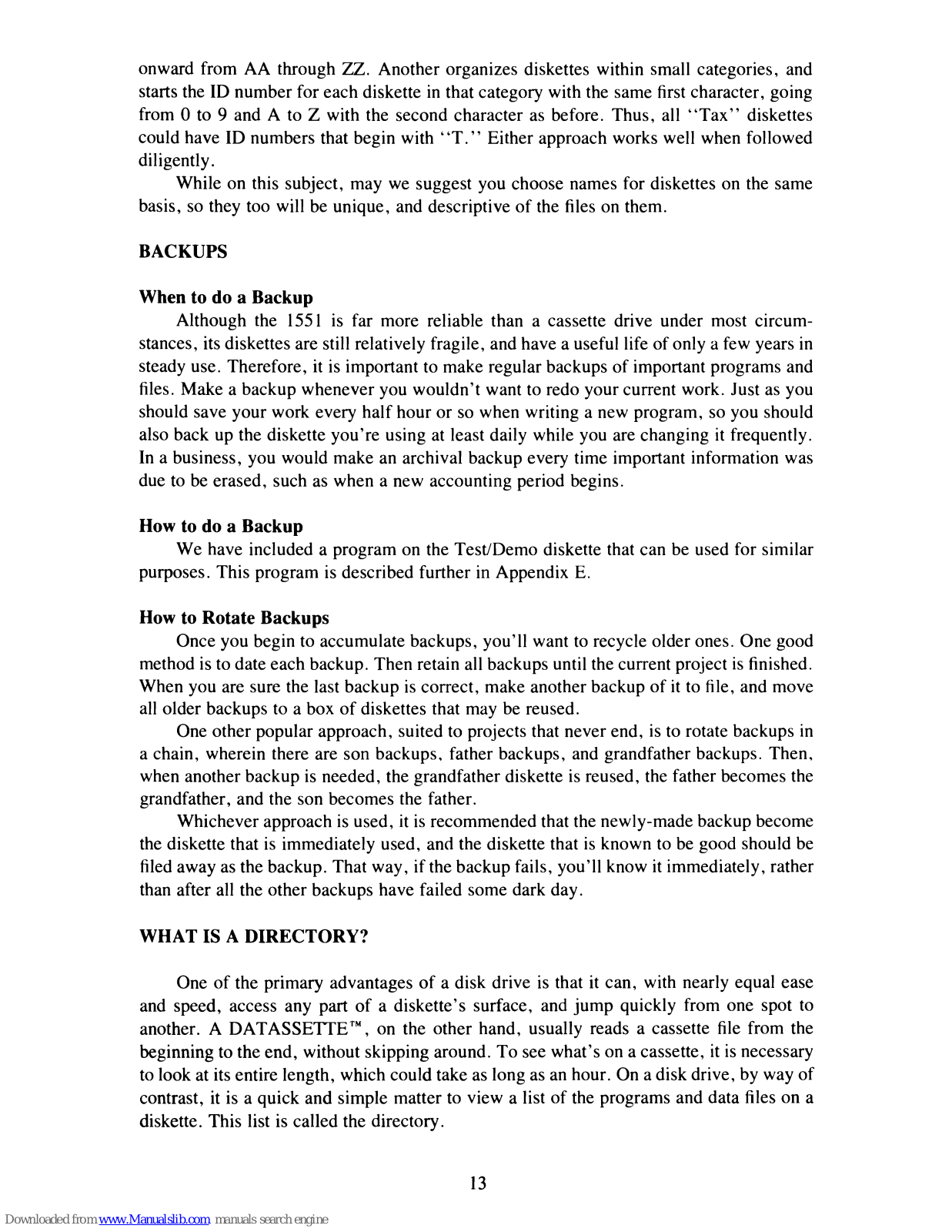

Backups
......................•...................
'
...........
13
What
is
a directory? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
..
13

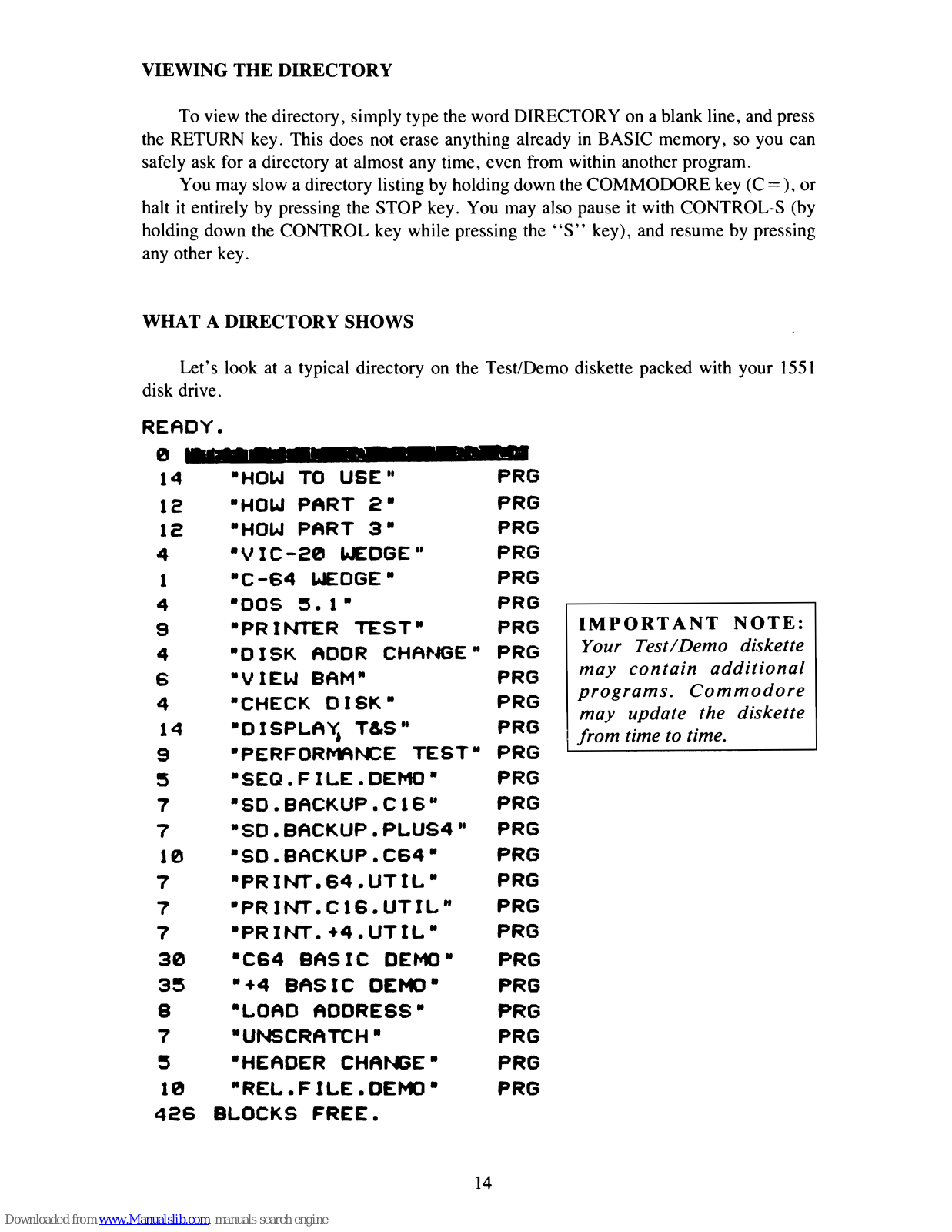

Viewing a directory. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
..
14
What a directory shows
........................................
14

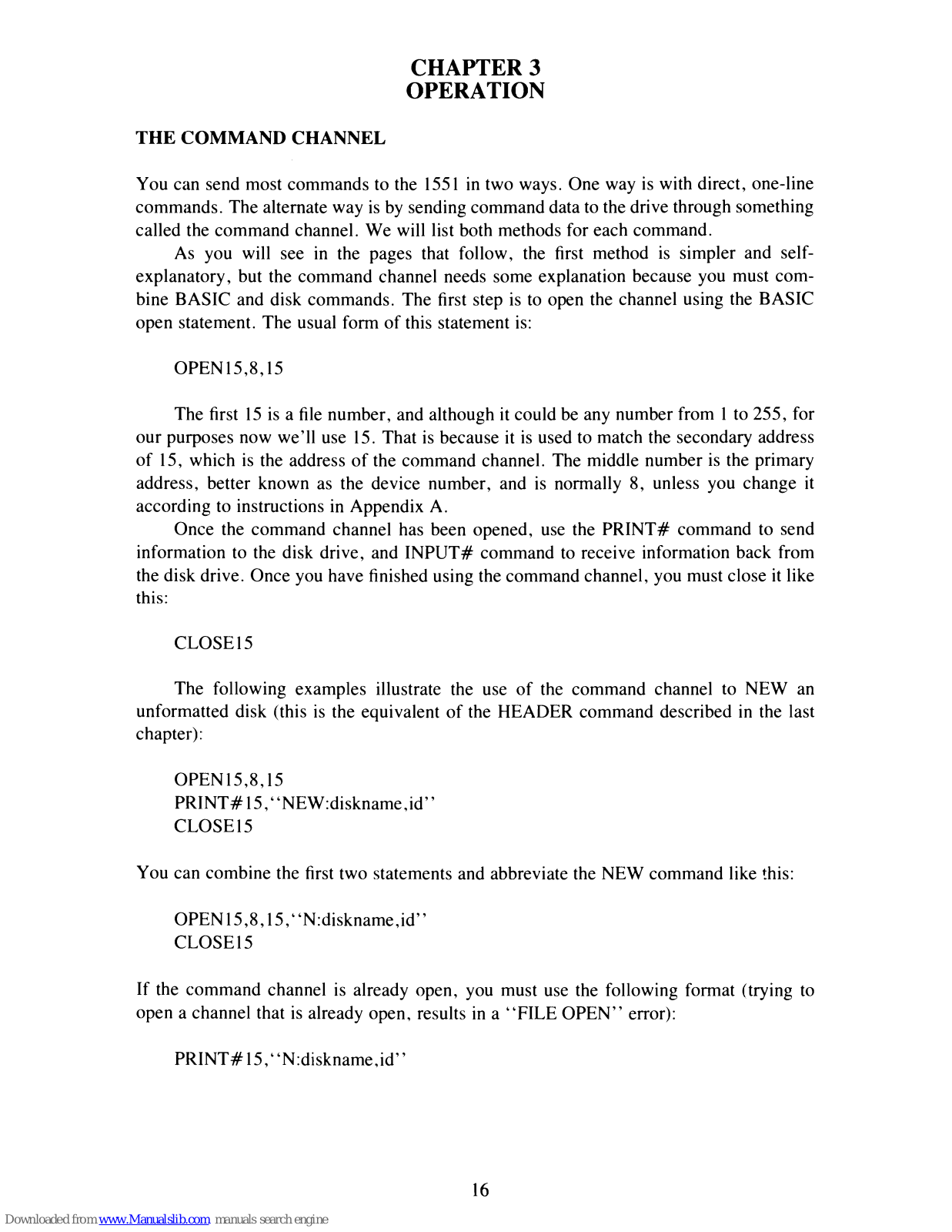

CHAPTER 3: OPERATION . . . . . • . . . . . . . • . . . . . . . . . . . • . . . . . . . . • . . . . . . .
..
16
The command channel . . . . . . . . . . . . . . • . . . . . . . . . . . . . . . . . . . . . . . .
..
16

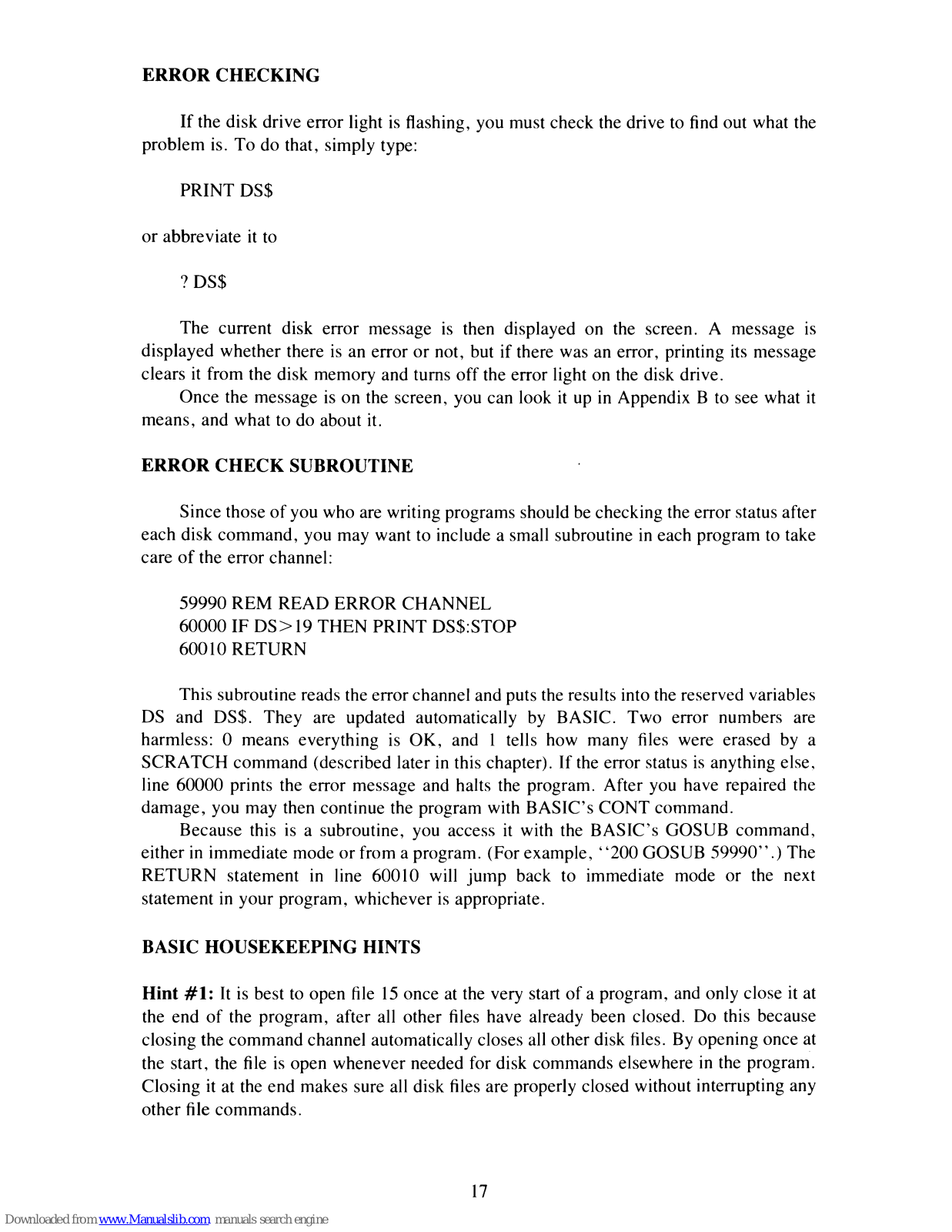

Error
checking. . . . . . . . . . . . . . . . . . . . . • . . . . . . . . . . . . . . . . . . . . . . . .
..
17
Error
check subroutine
.........................................
17
BASIC housekeeping hints. . . . . . . . . . . • . . . . . . . . . . . . . . . . . . . . . . . .
..
17

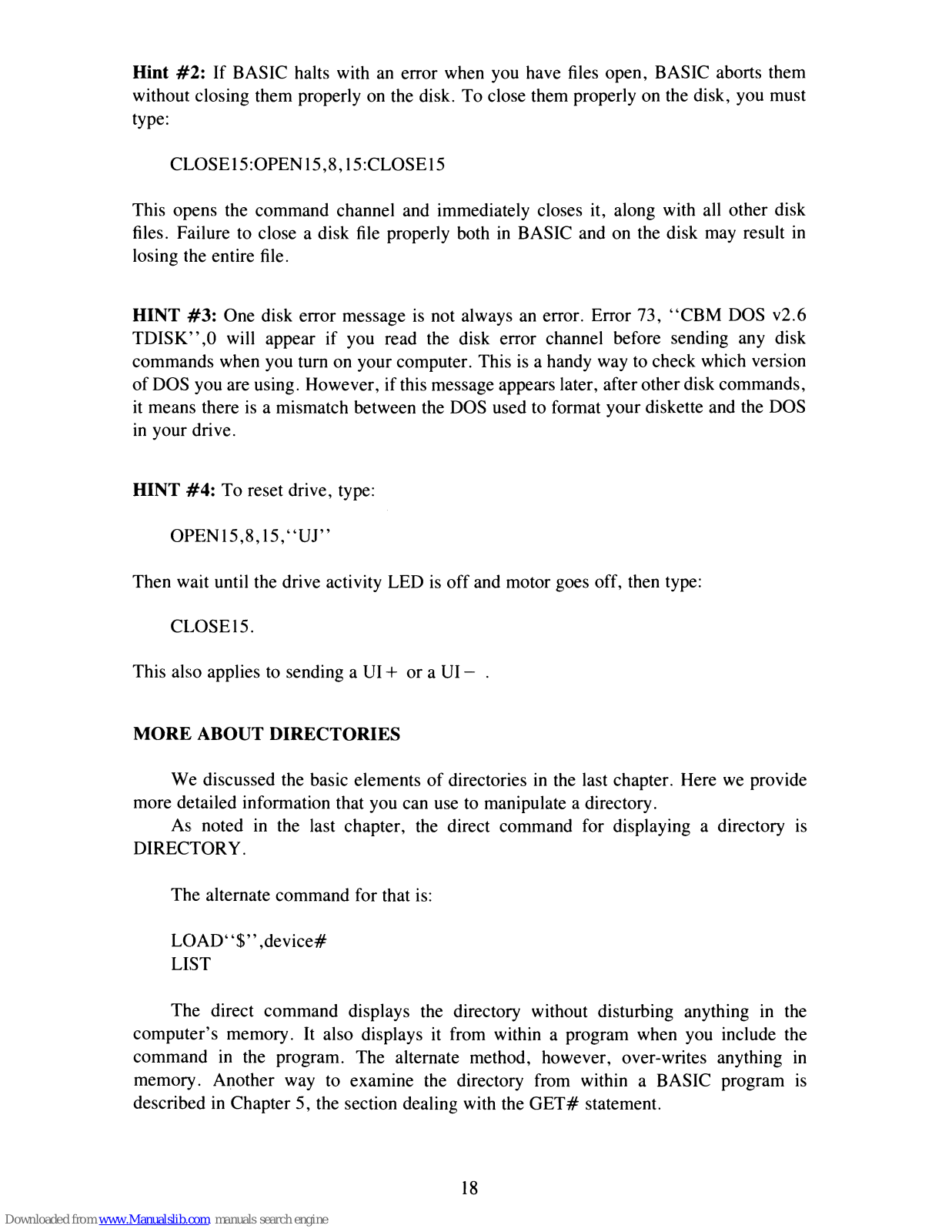

More about directories. . . . . . . . . . . . . . • . . . . . . . . . . . . . . . . . . . . . . . .
..
18

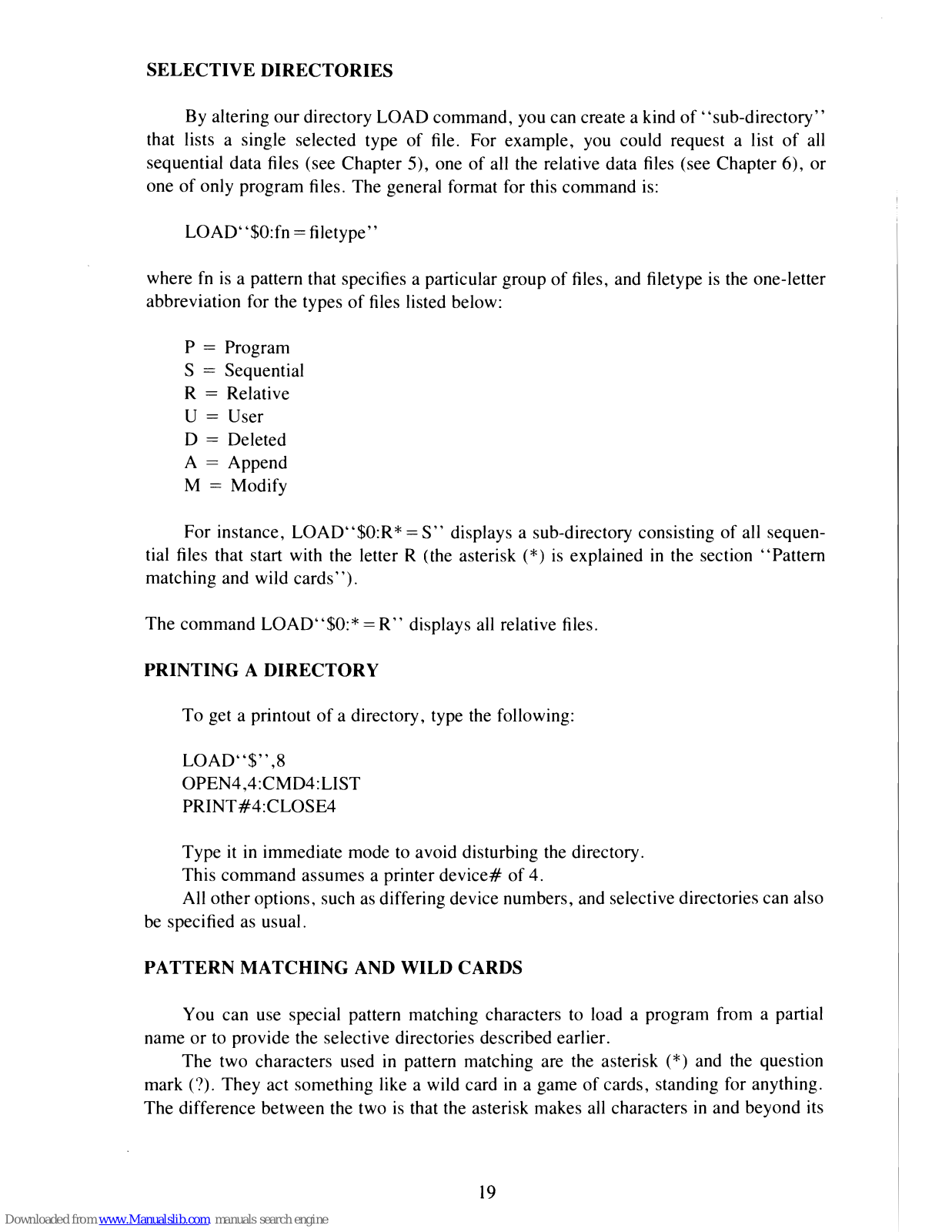

Selective directories
............................................
19
Printing a directory. . . . . . . . . . . . . • . . . . . . . . . . . . . . . . . . . . . . . . . . . .
..
19
Pattern matching and wild cards
.................................
19

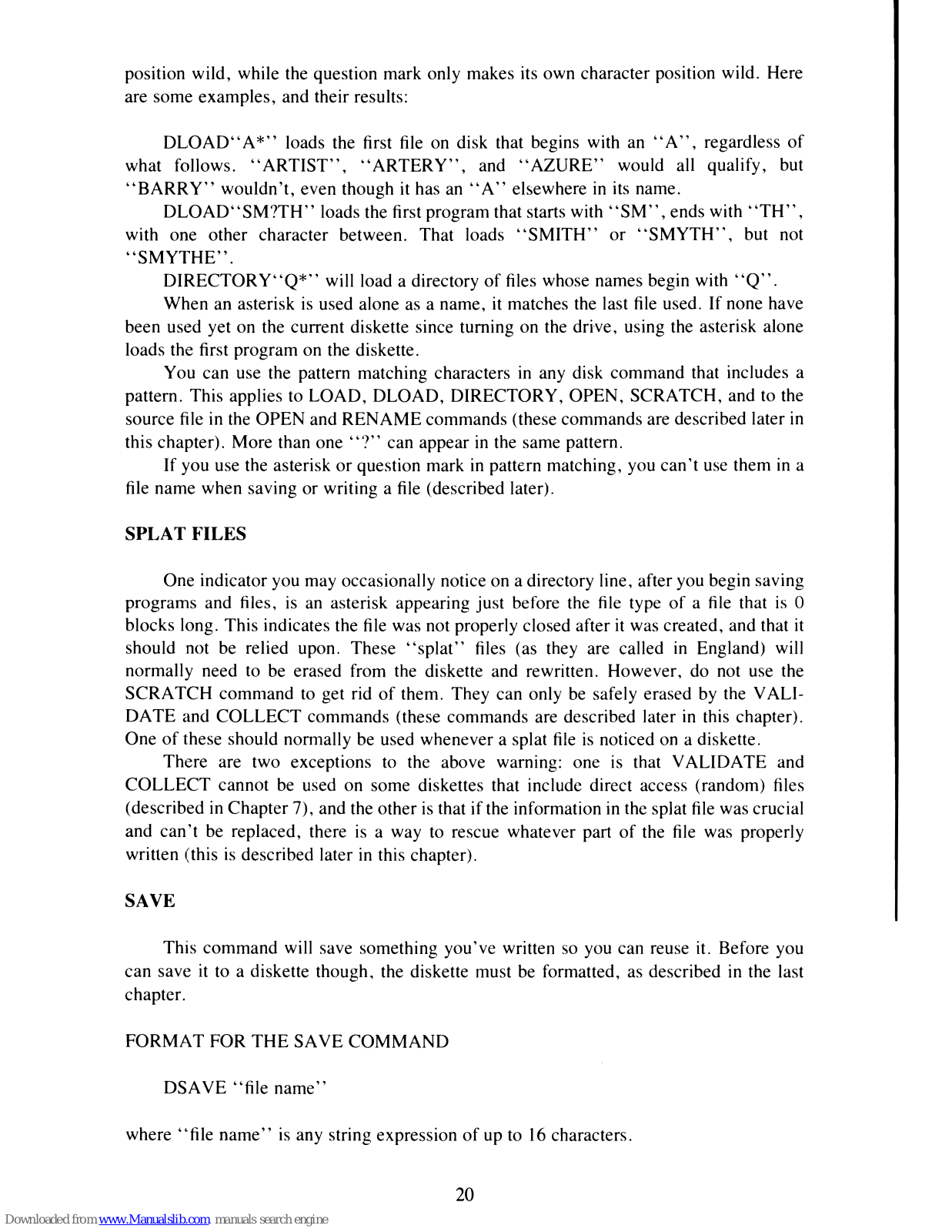

Splat files
..•......................•..........................
20
Verify
.•......................•..............................
22

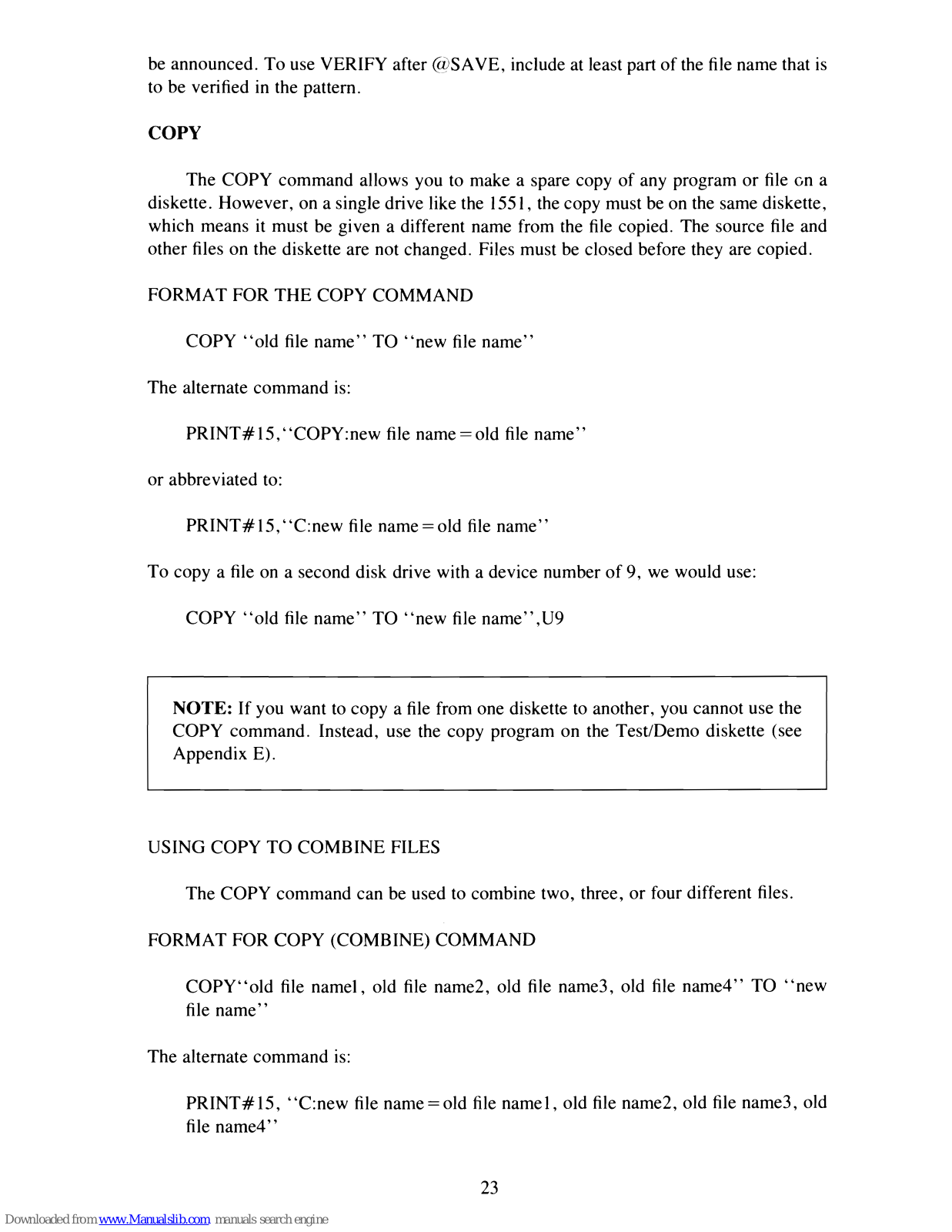

Copy
..•....•................................................
23

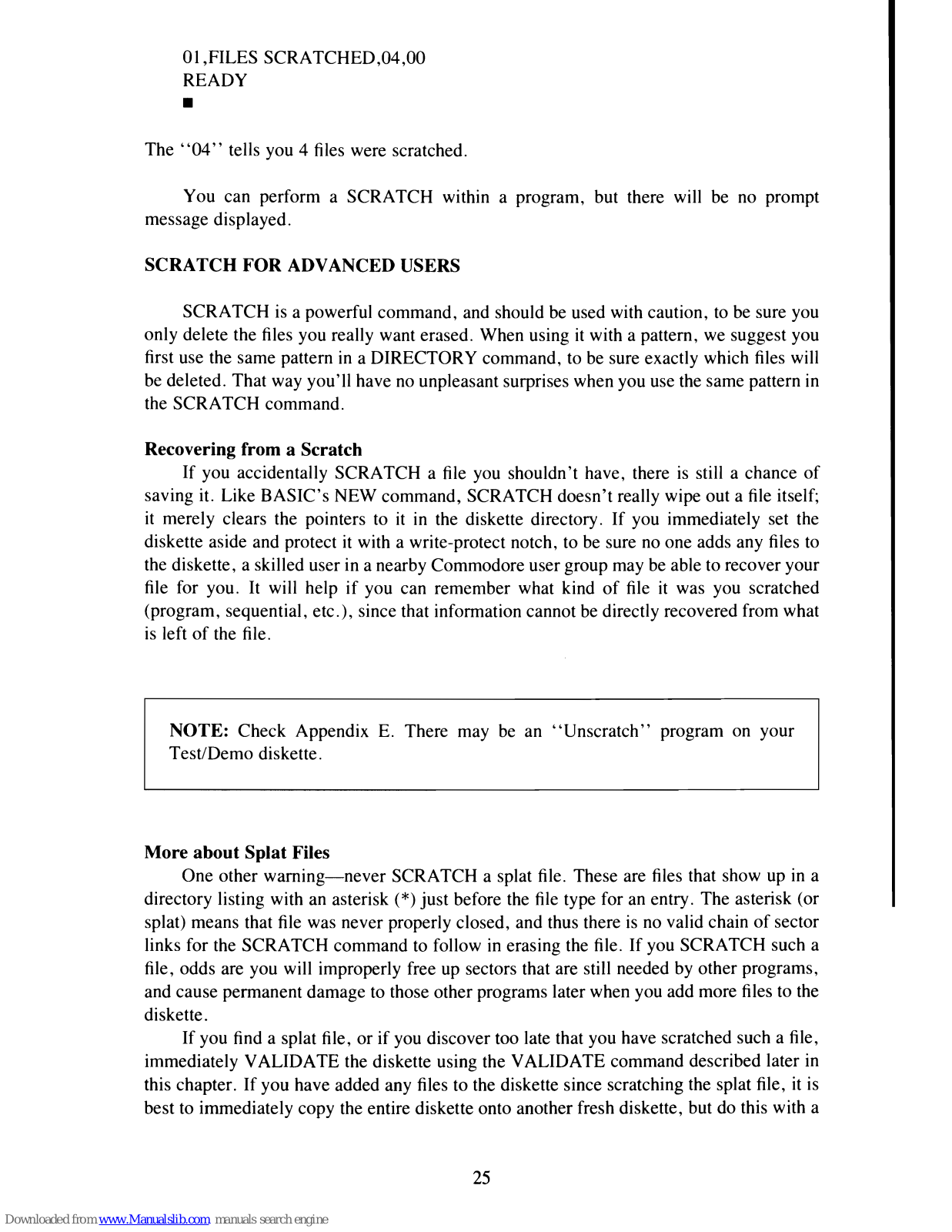

Scratch
•..............•..•....•.......•..............••......
24

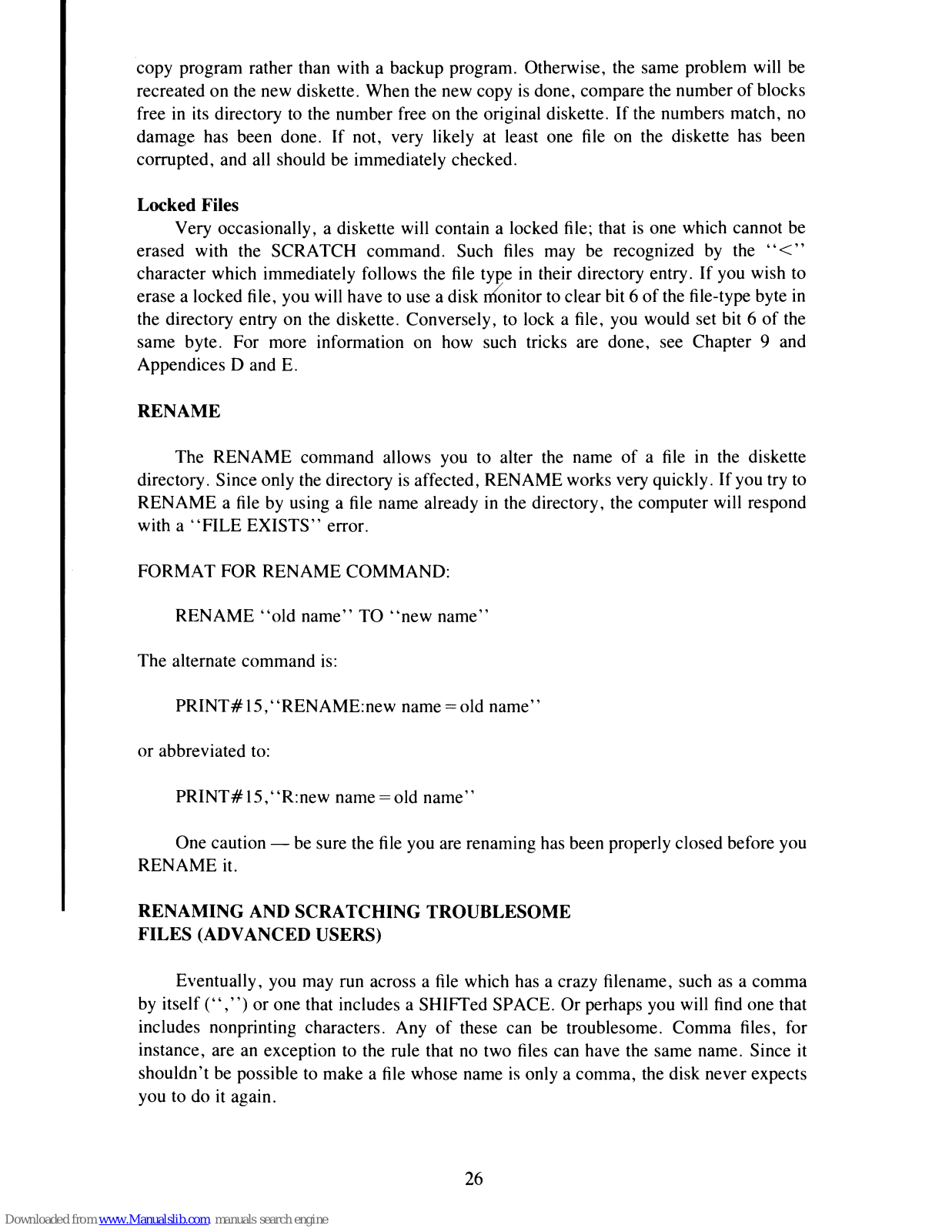

Rename
•......................•..............................
26
Renaming
and
scratching troublesome
files
(advanced users)
.........
26
Collect.
....•..•......................•.....................•.
27

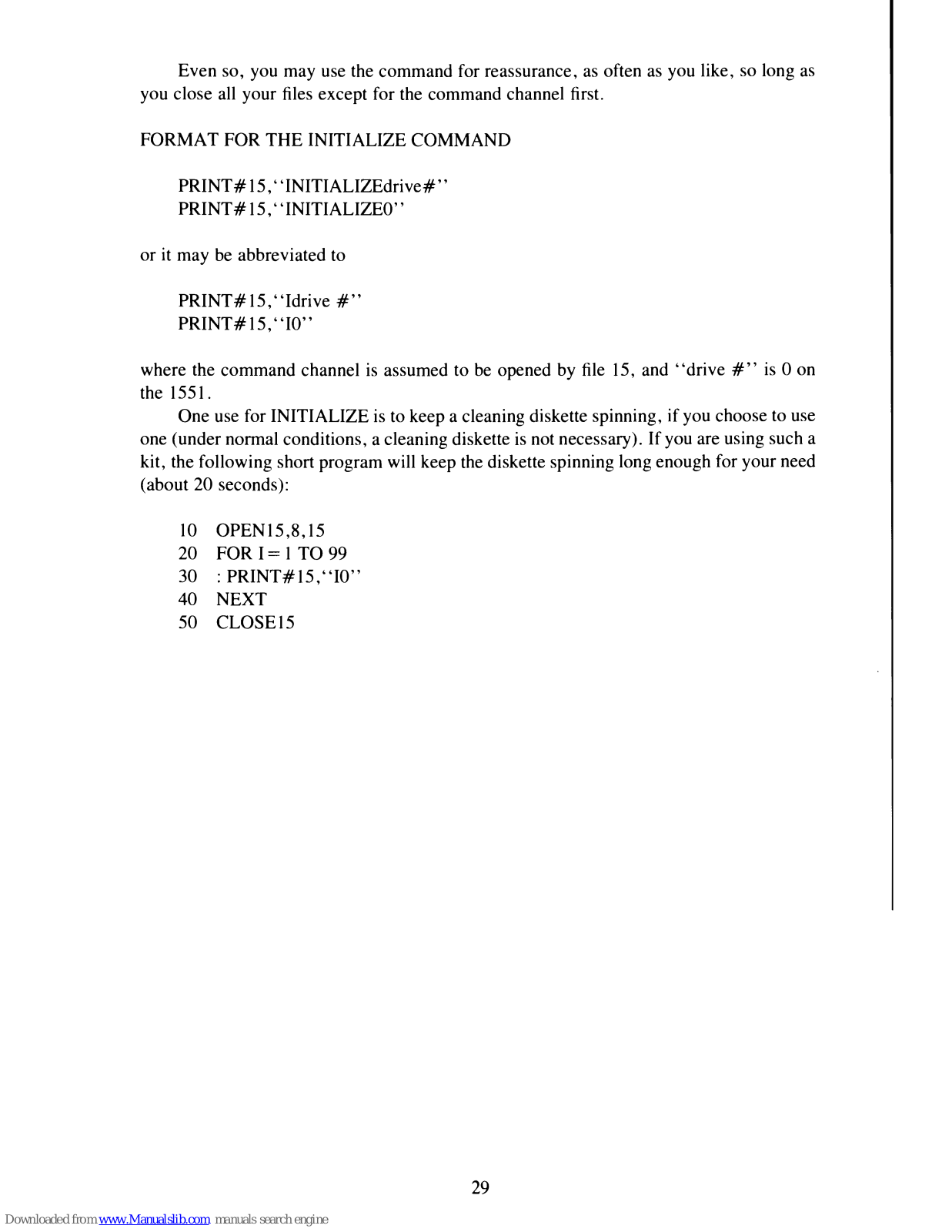

Initialize . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . • . . . . . . . . . . . . . . . . . . . .
..
28
Page 6

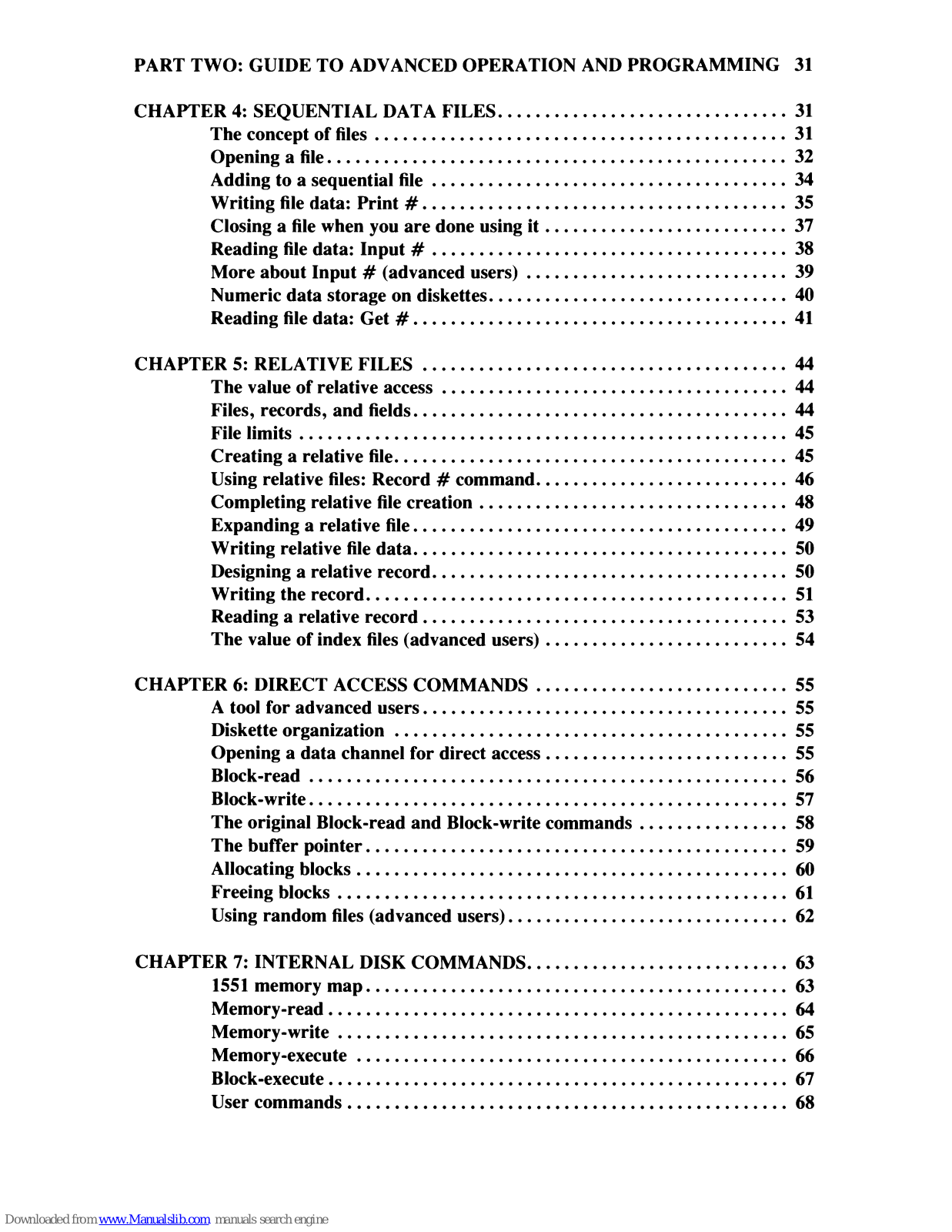

PART TWO: GUIDE
TO
ADVANCED OPERATION
AND
PROGRAMMING
31

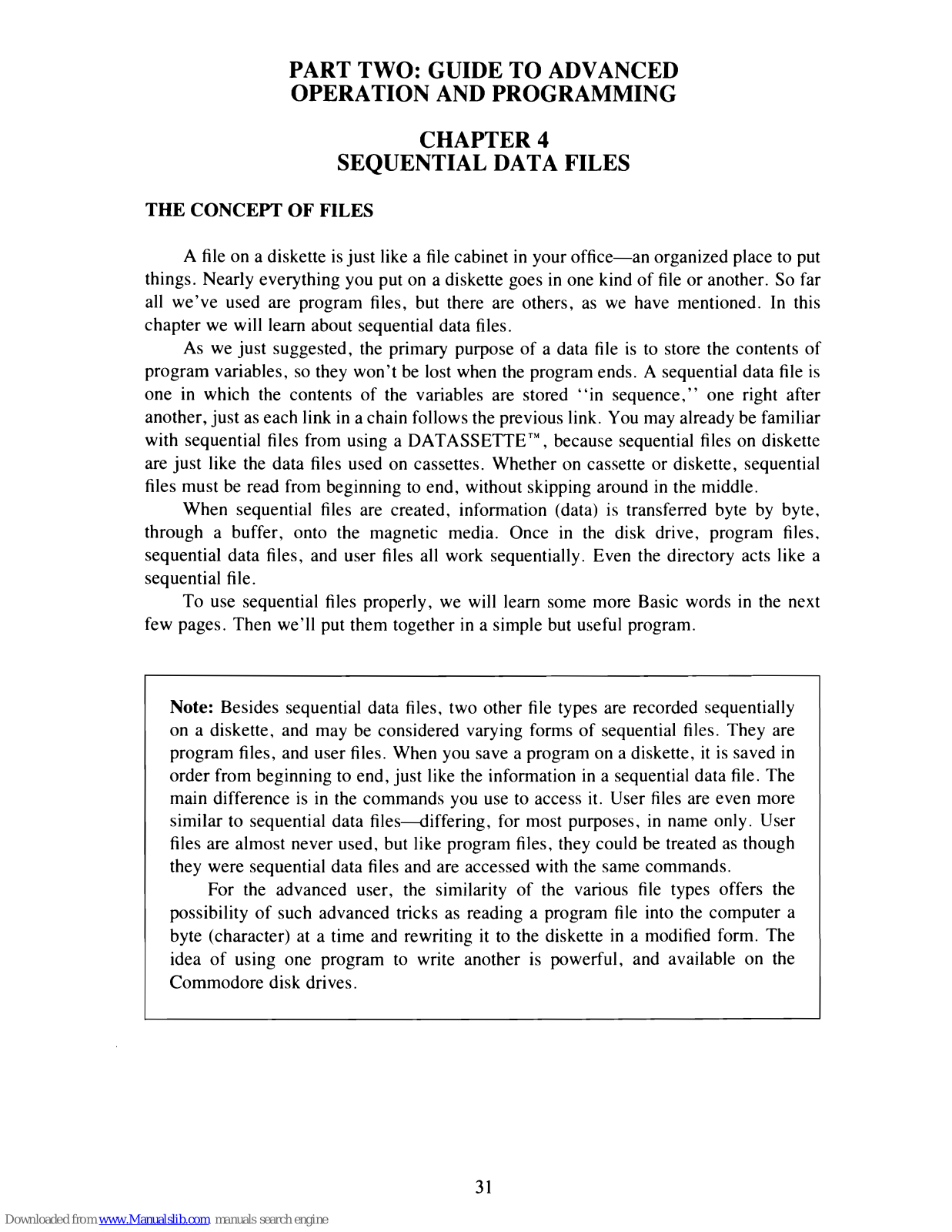

CHAPTER 4: SEQUENTIAL DATA FILES
...............................
31
The concept
of
files
............................................
31

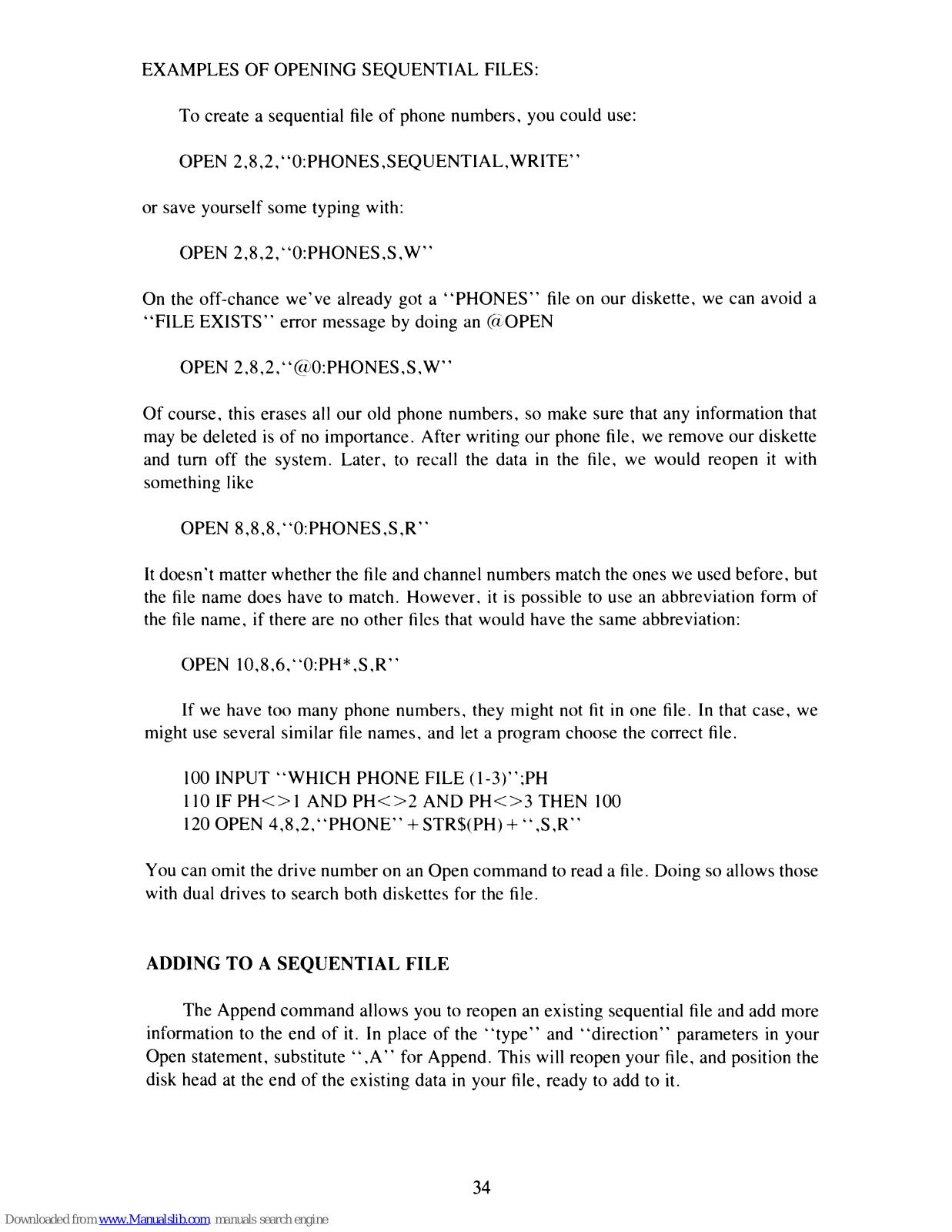

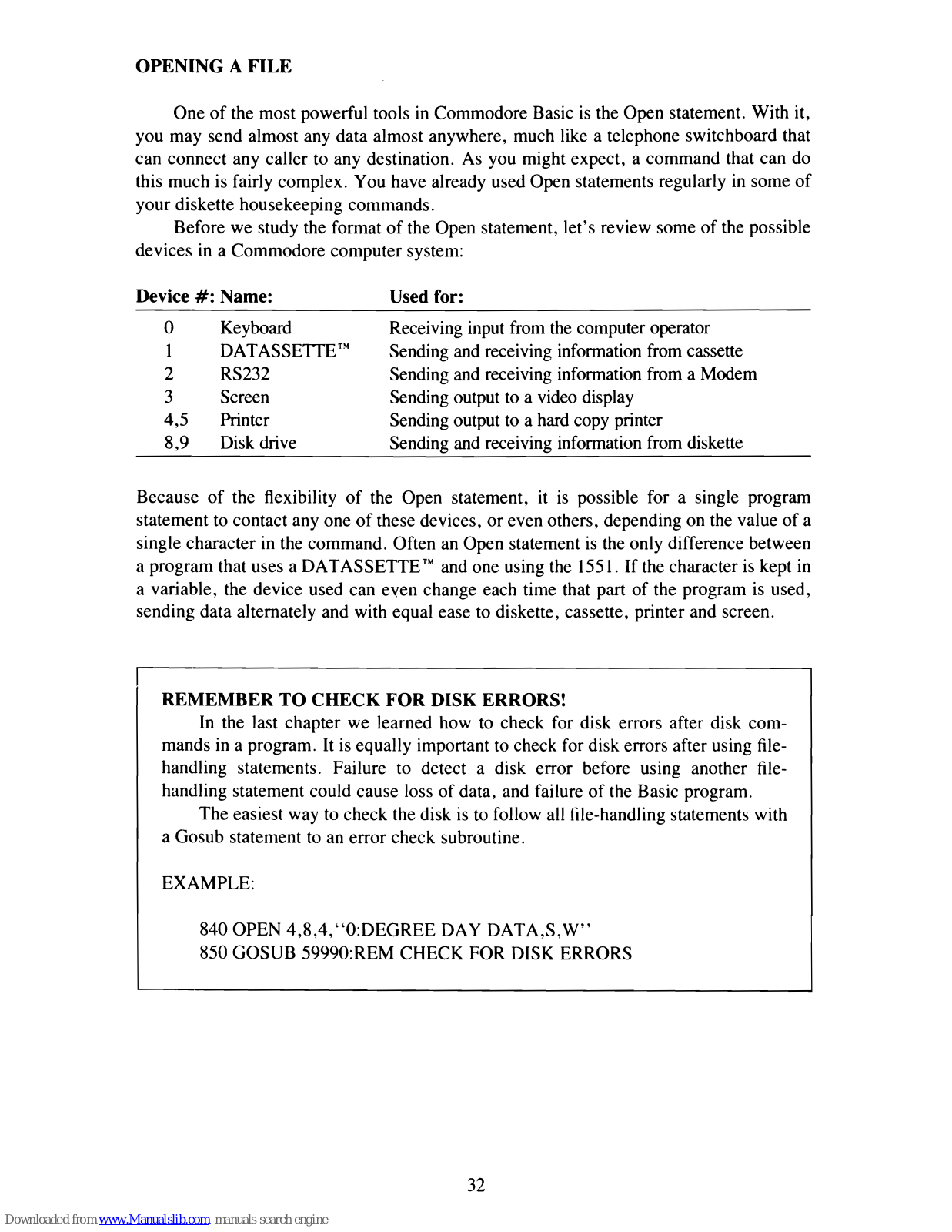

Opening a file. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
..
32
Adding to a sequential
file
..
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
..
34

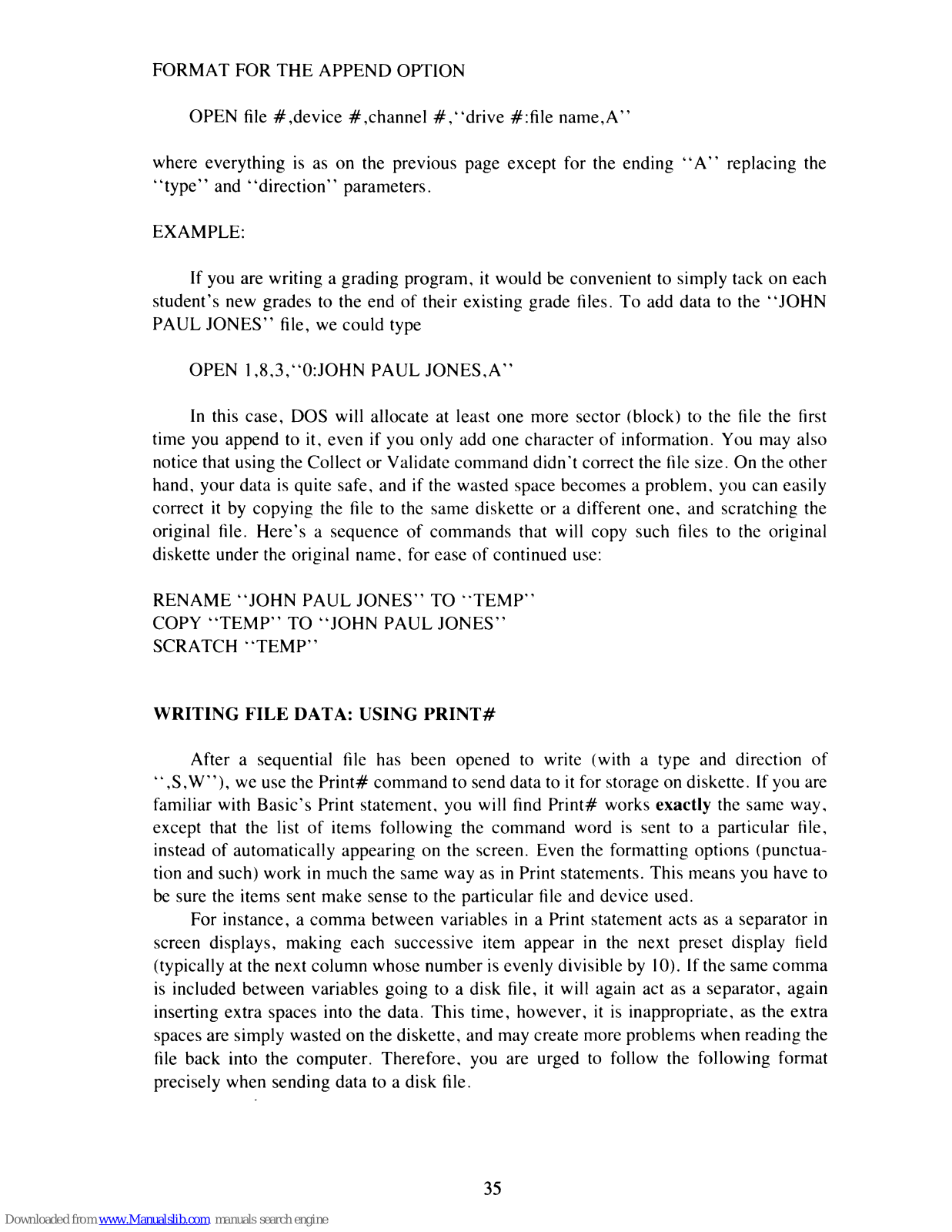

Writing
file
data:
Print
#
.......................................
35

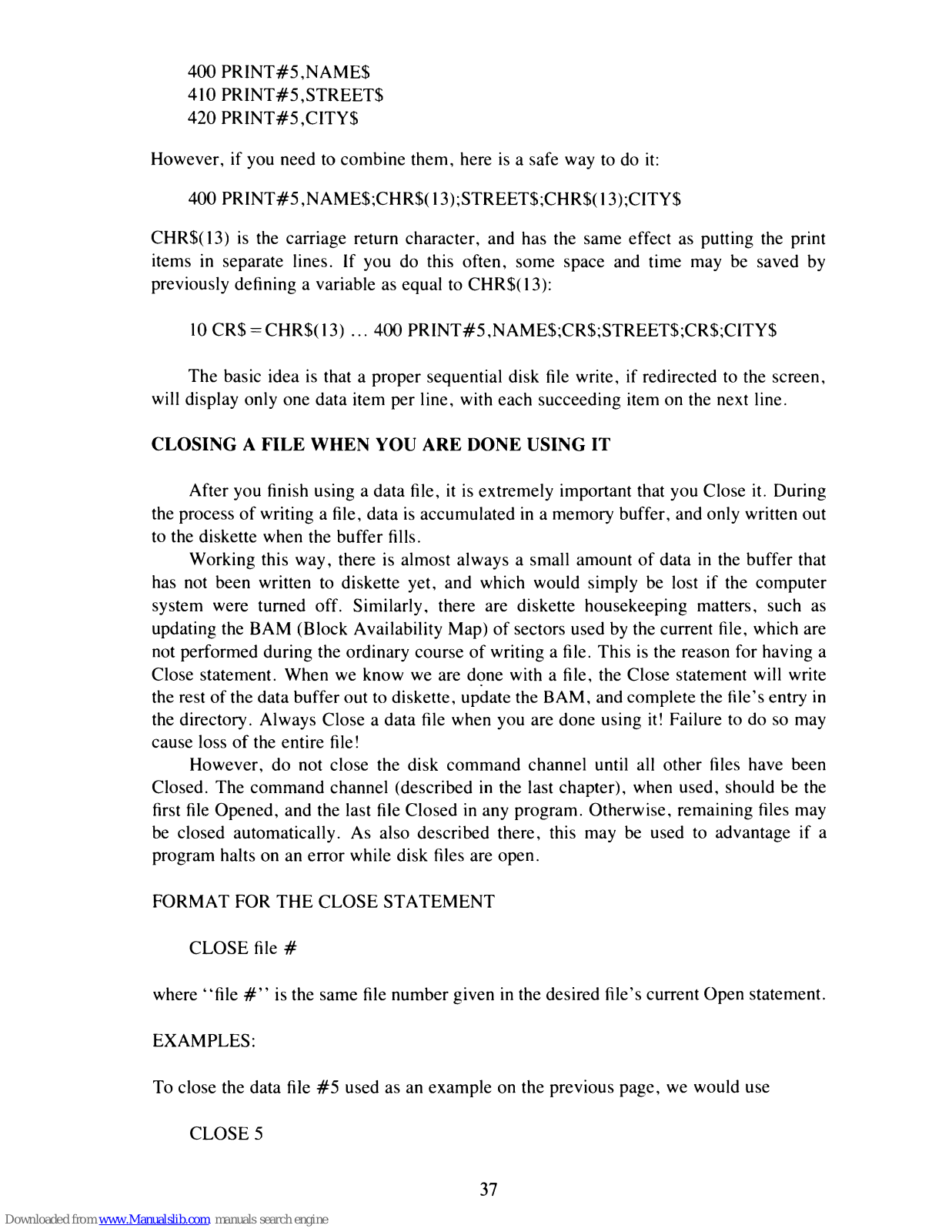

Closing a
file
when you
are
done using it . . . . . . . . . . . . . . . . . . . . . . . .
..
37

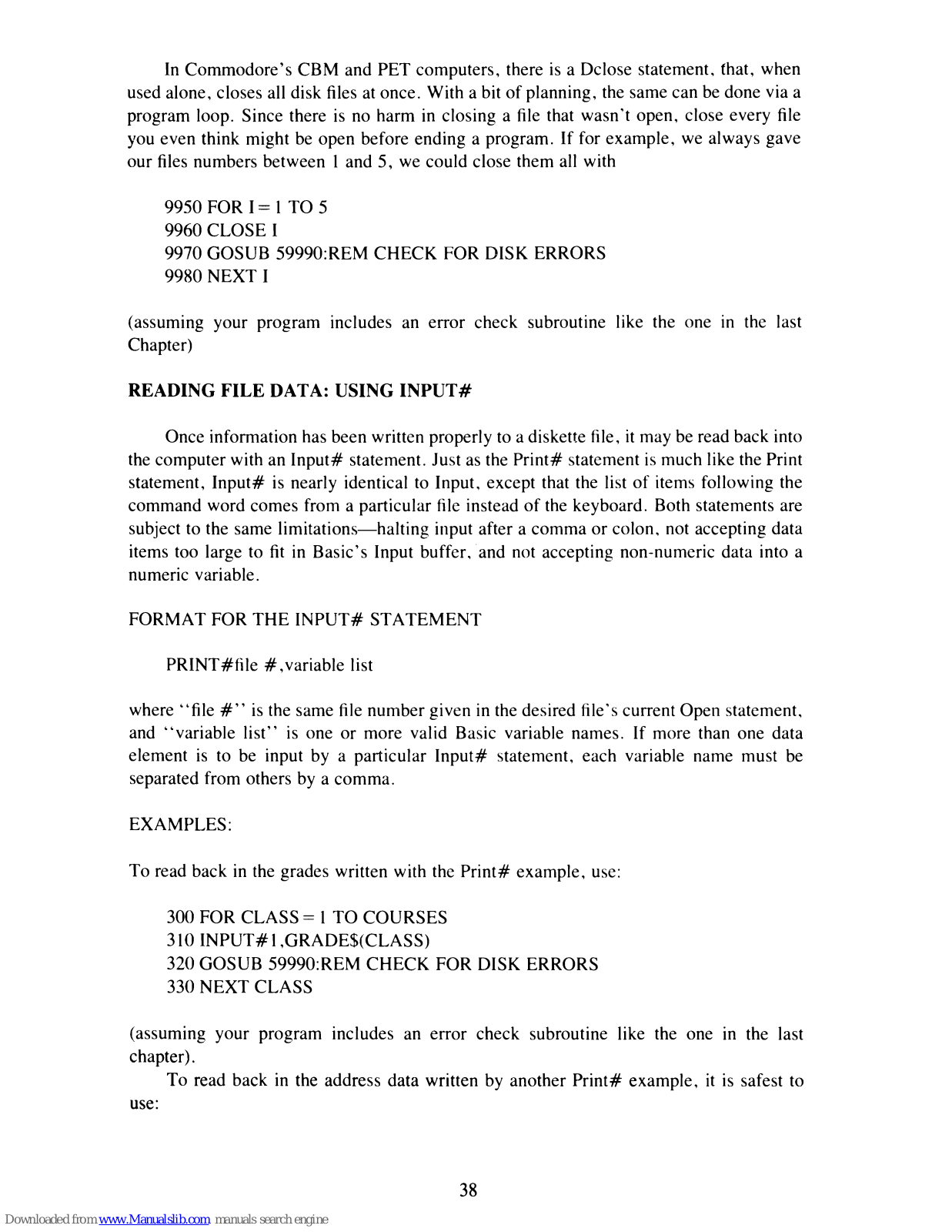

Reading
file
data:
Input
#
......................................
38

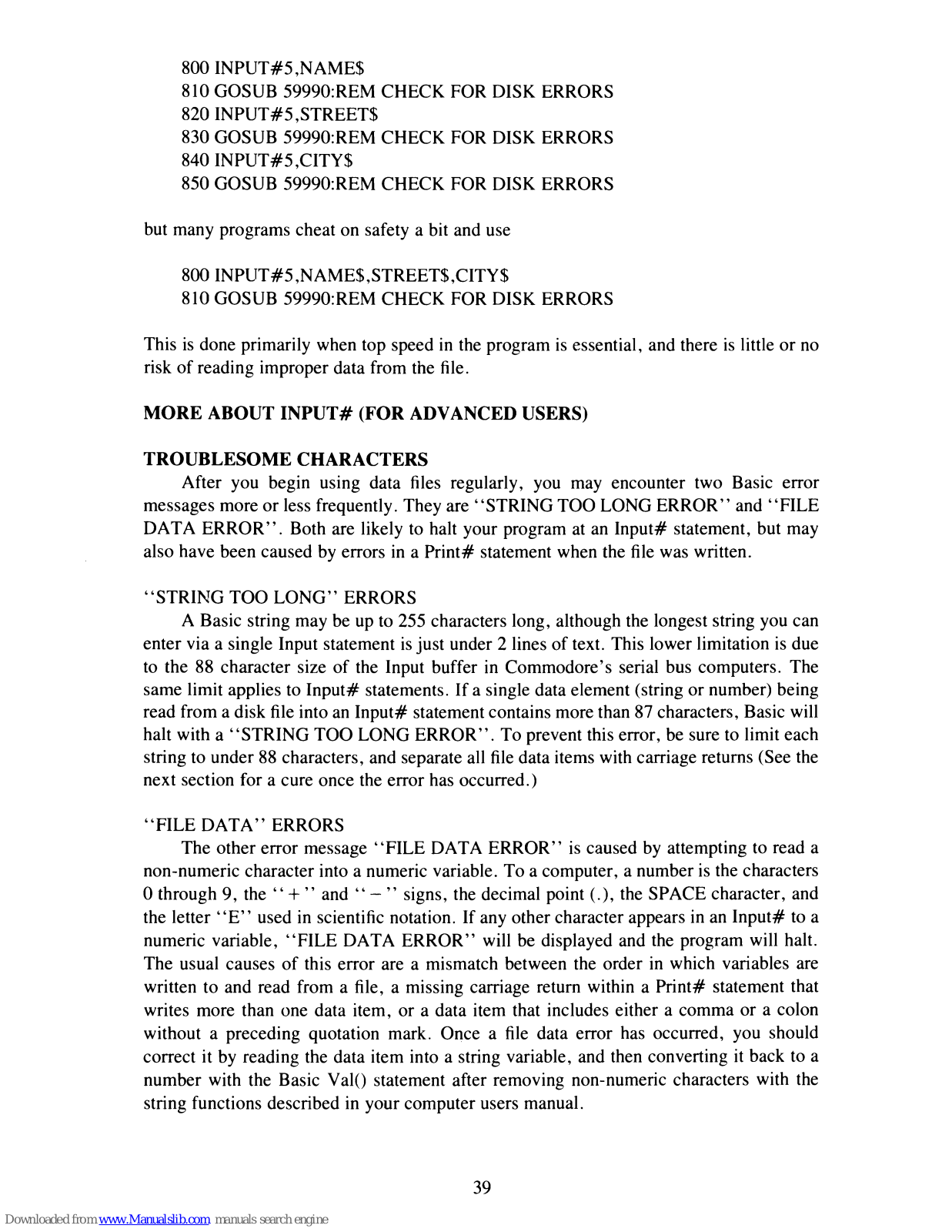

More about
Input
# (advanced users)
............................
39

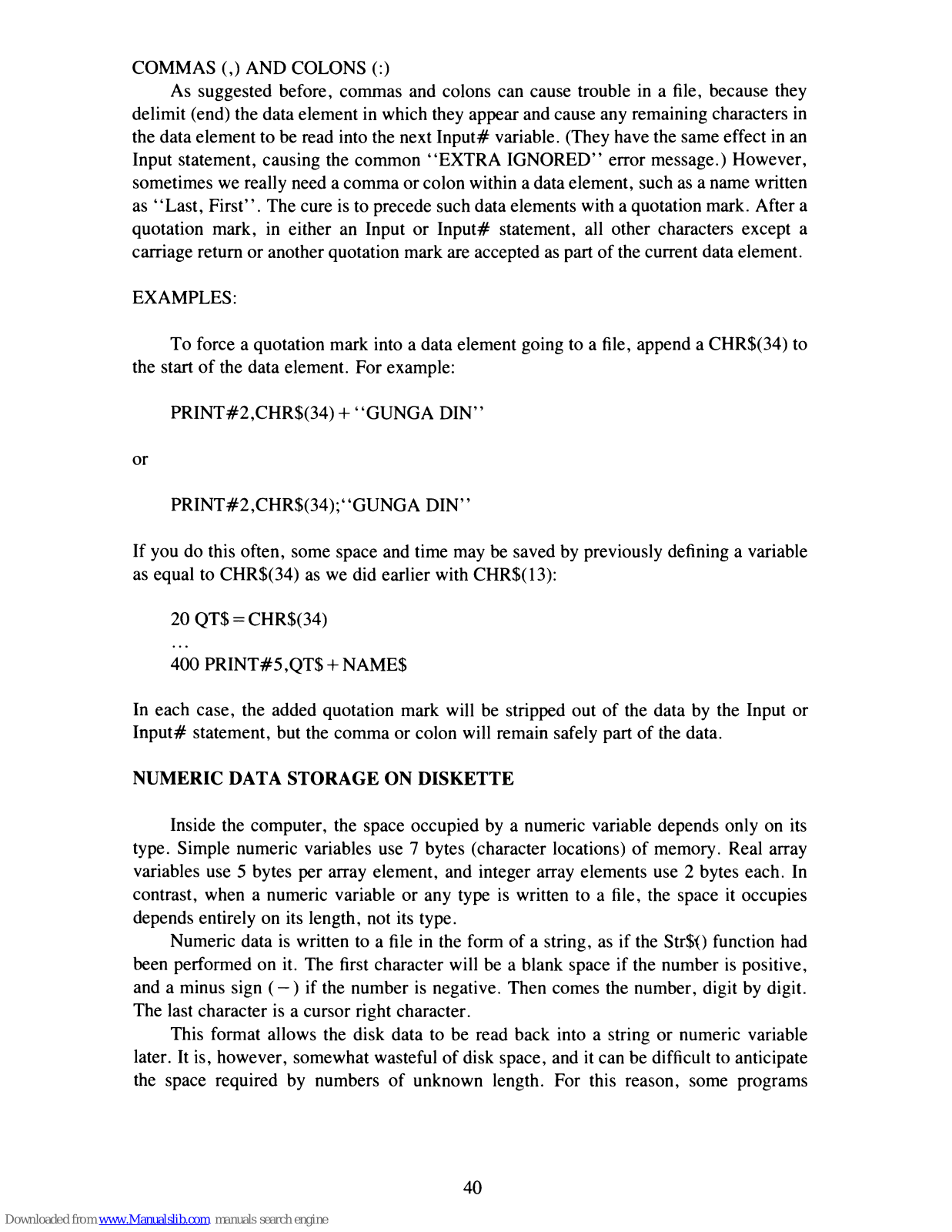

Numeric data storage on diskettes
................................
40

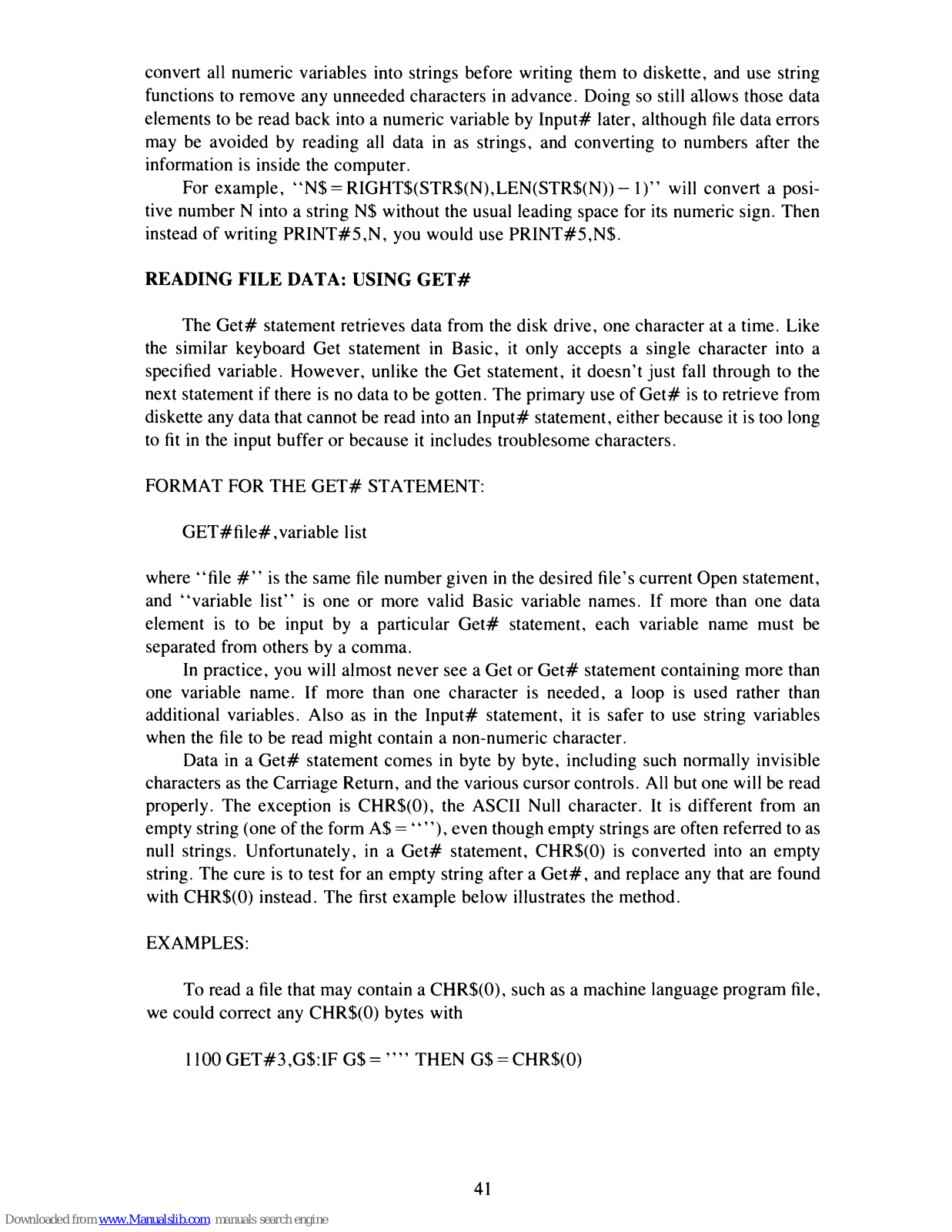

Reading
file
data: Get #
........................................
41

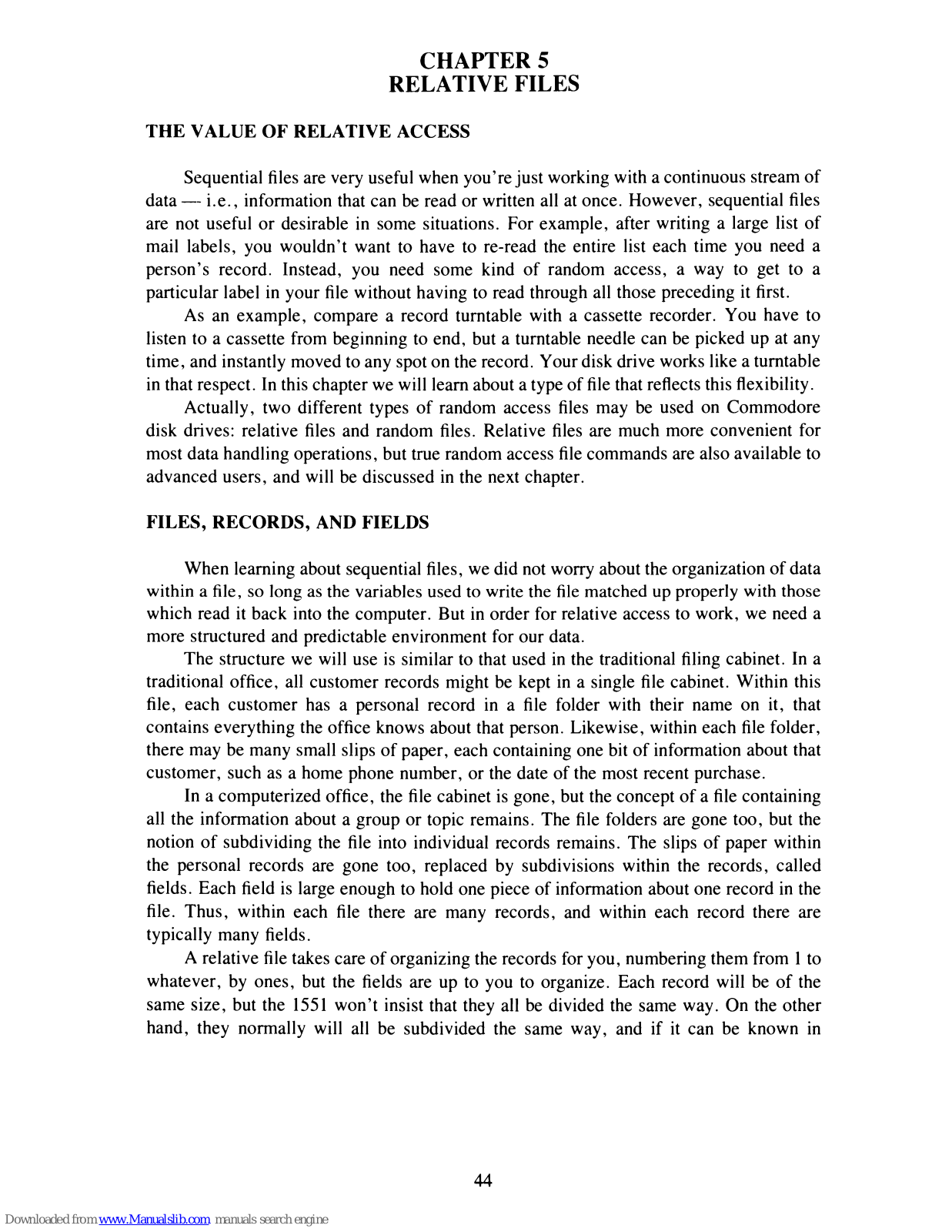

CHAPTER 5: RELATIVE FILES
................•......................
44
The value of relative access
.....................................
44
Files, records, and fields
........................................
44

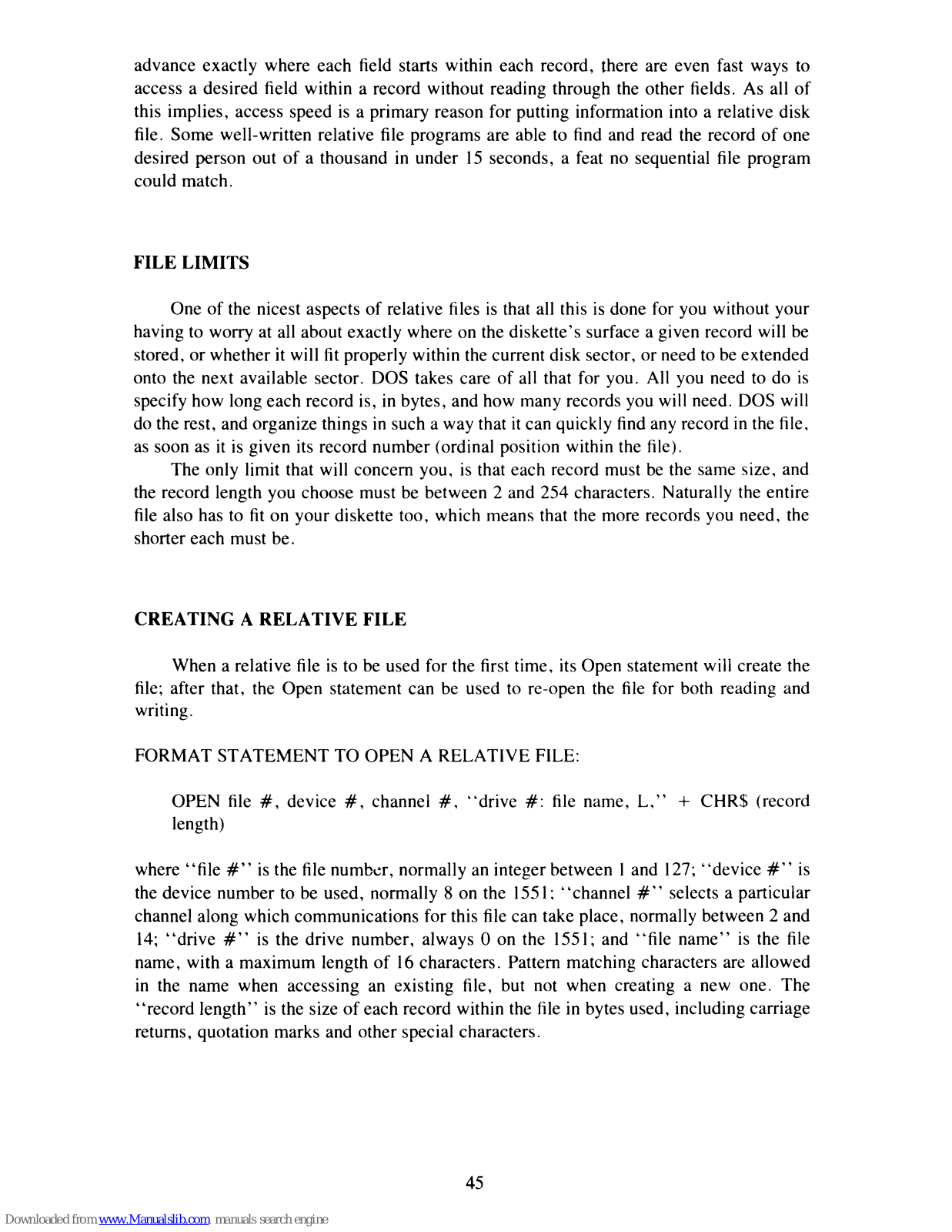

File limits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
..
45
Creating a relative file
..........................................
45

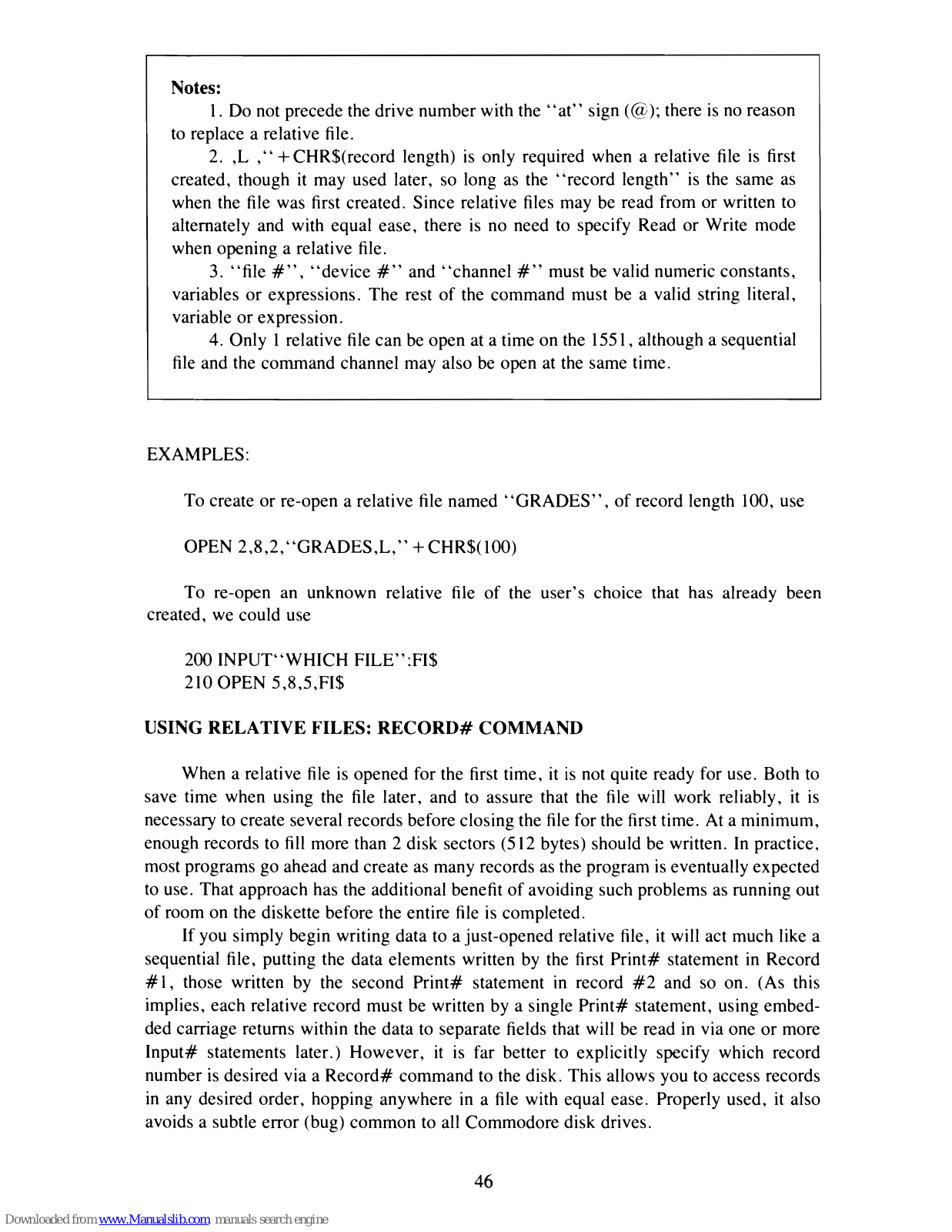

Using relative files: Record
# command
...........................
46

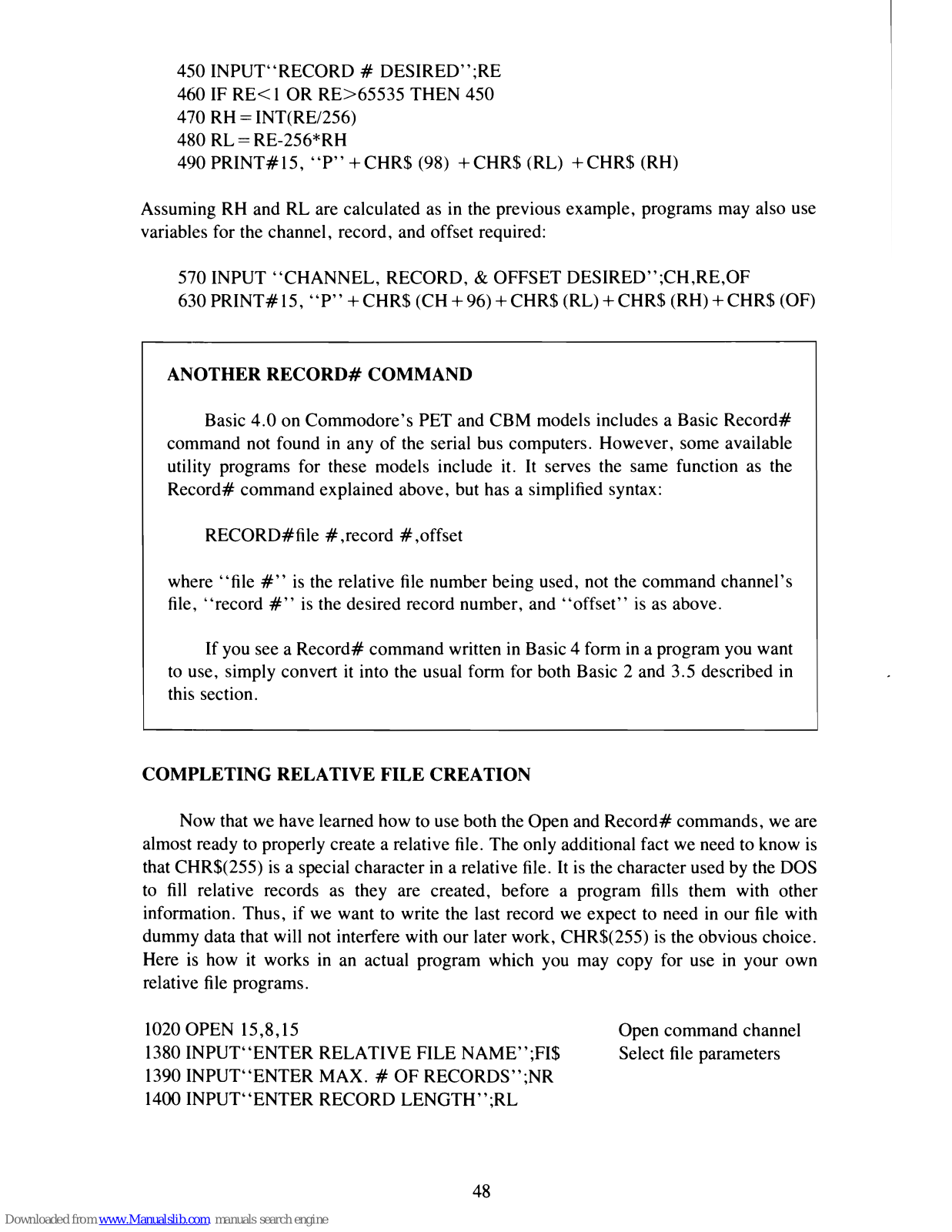

Completing relative file creation
.................................
48

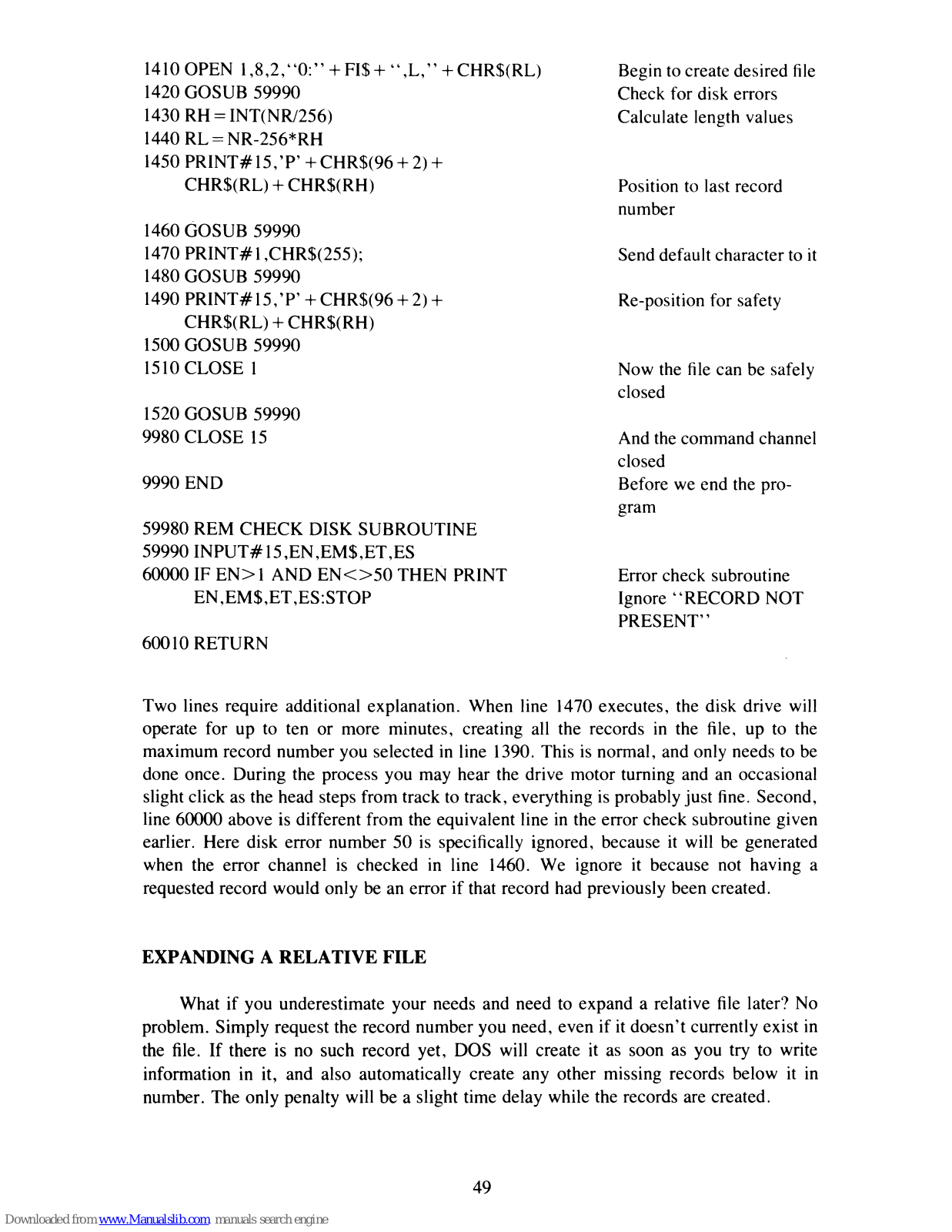

Expanding a relative file. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
..
49

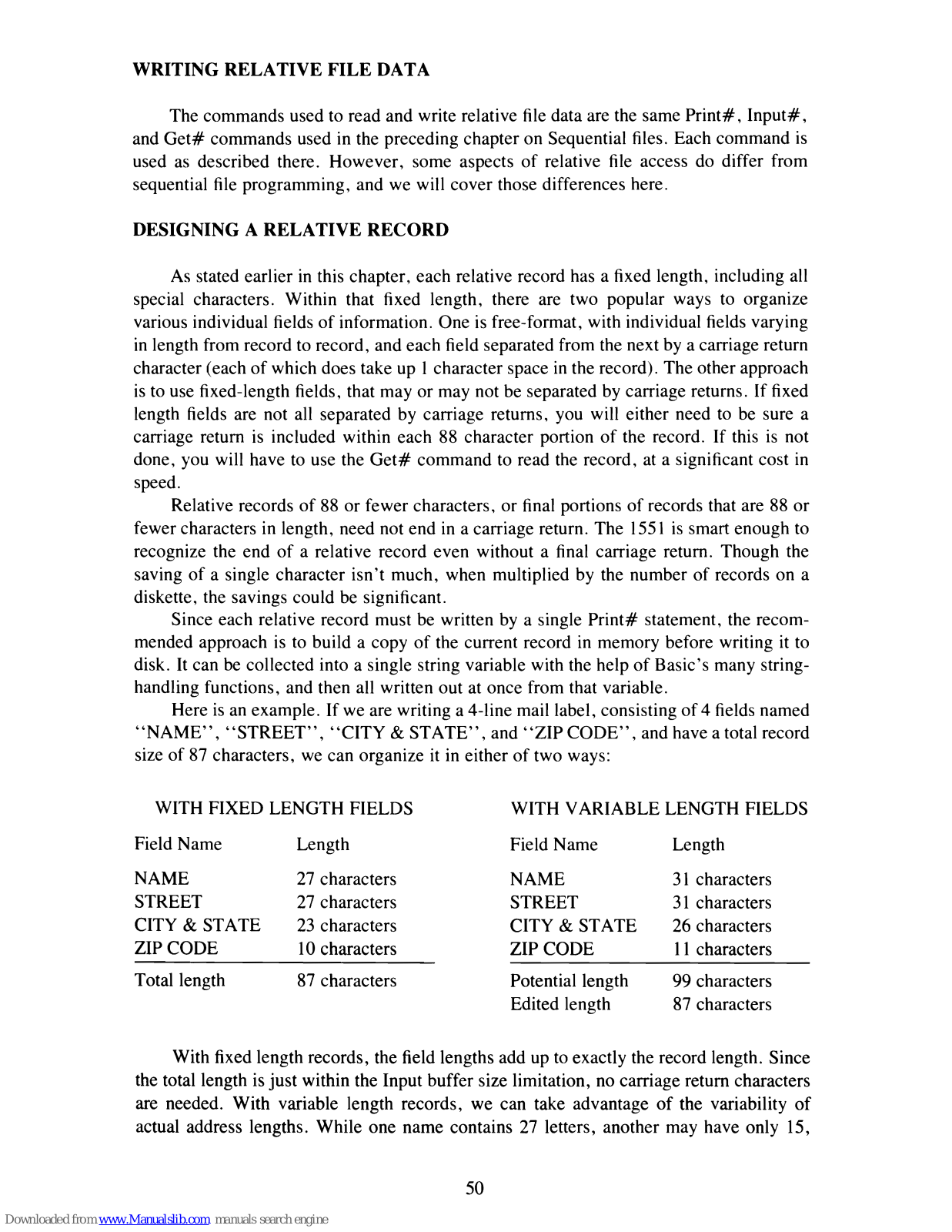

Writing relative
file
data
........................................
50
Designing a relative record. . . . . . . . . . . . . . . . • . . . . . . . . . . . . . . . . . . .
..
50
Writing the record
....................•........................
51

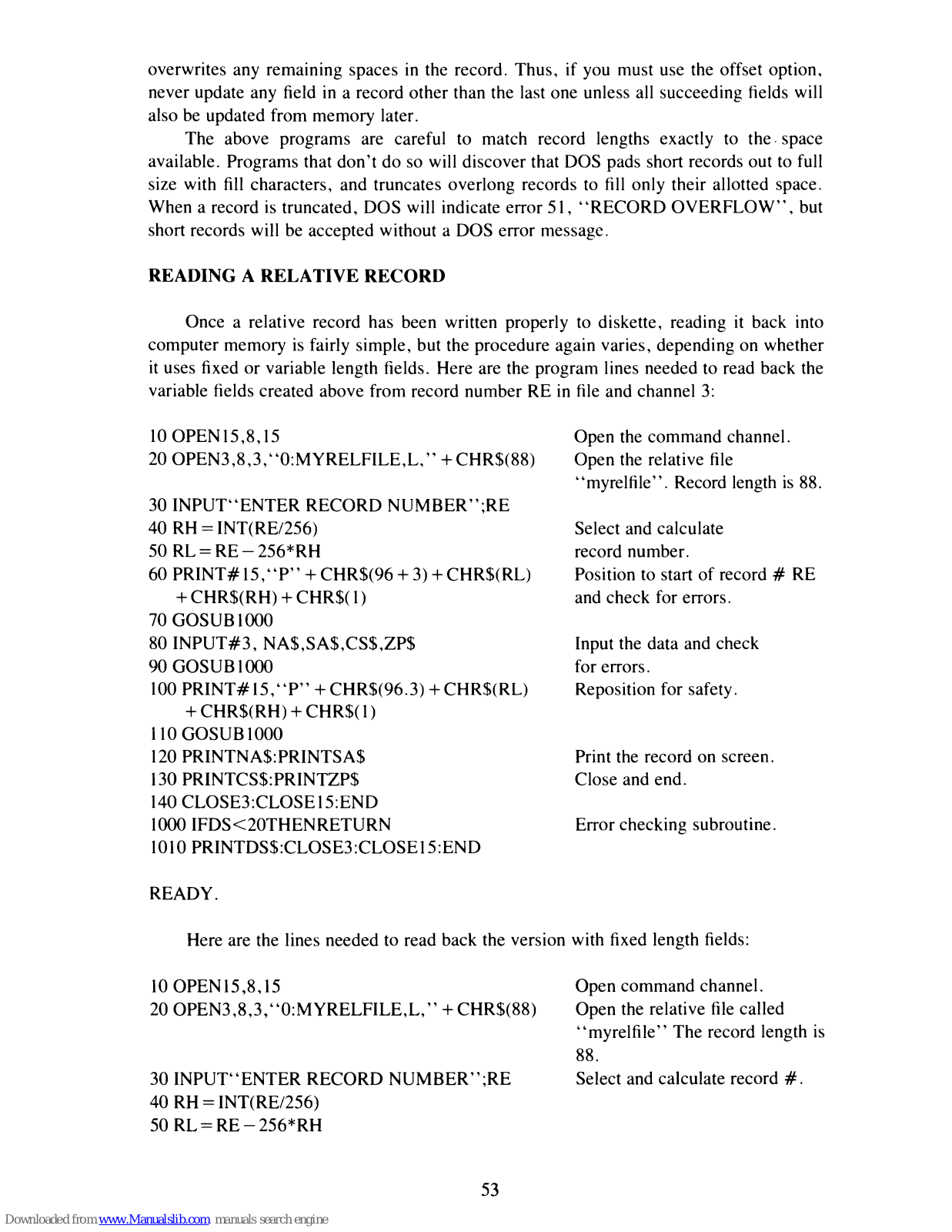

Reading a relative
record.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
..
53

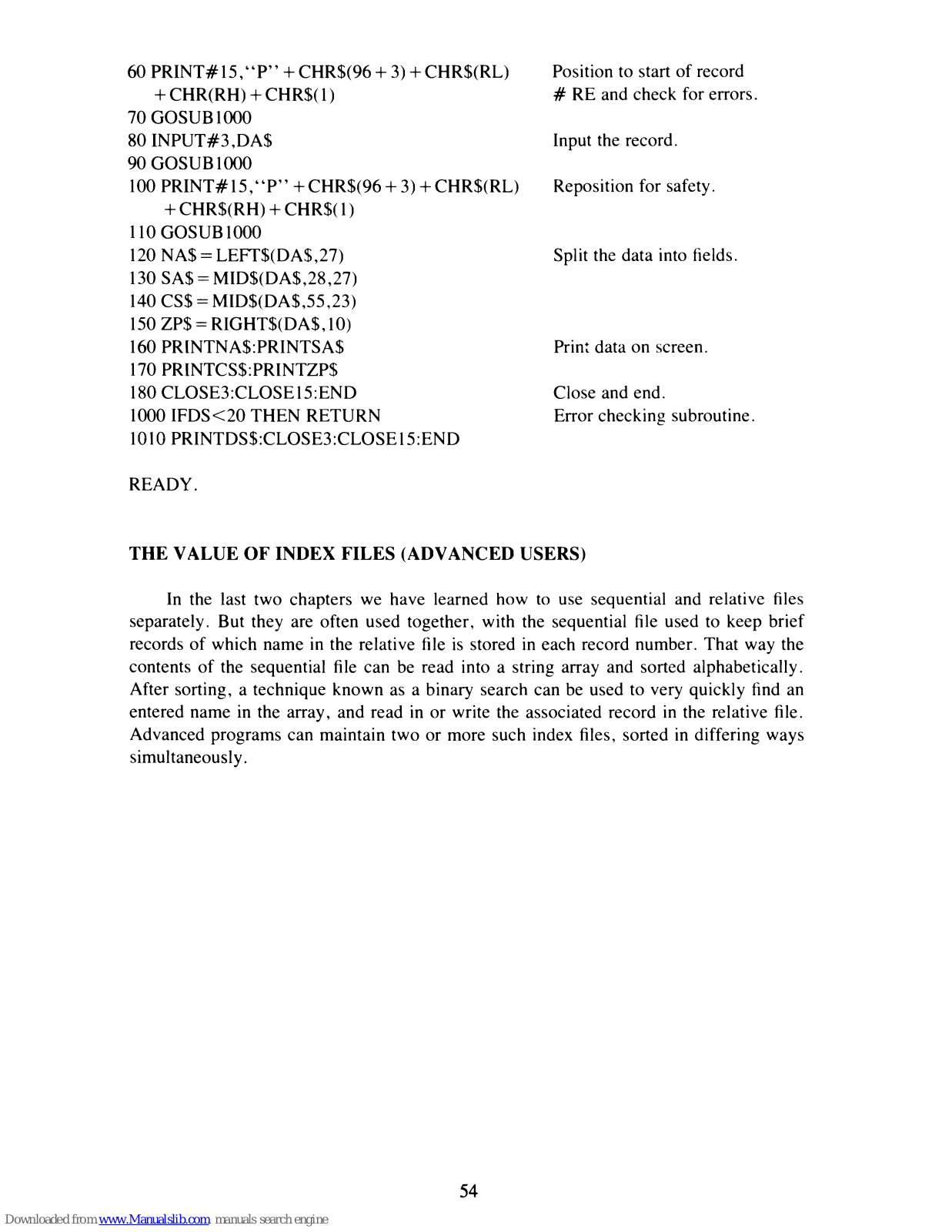

The value of index
files
(advanced users)
..........................
54

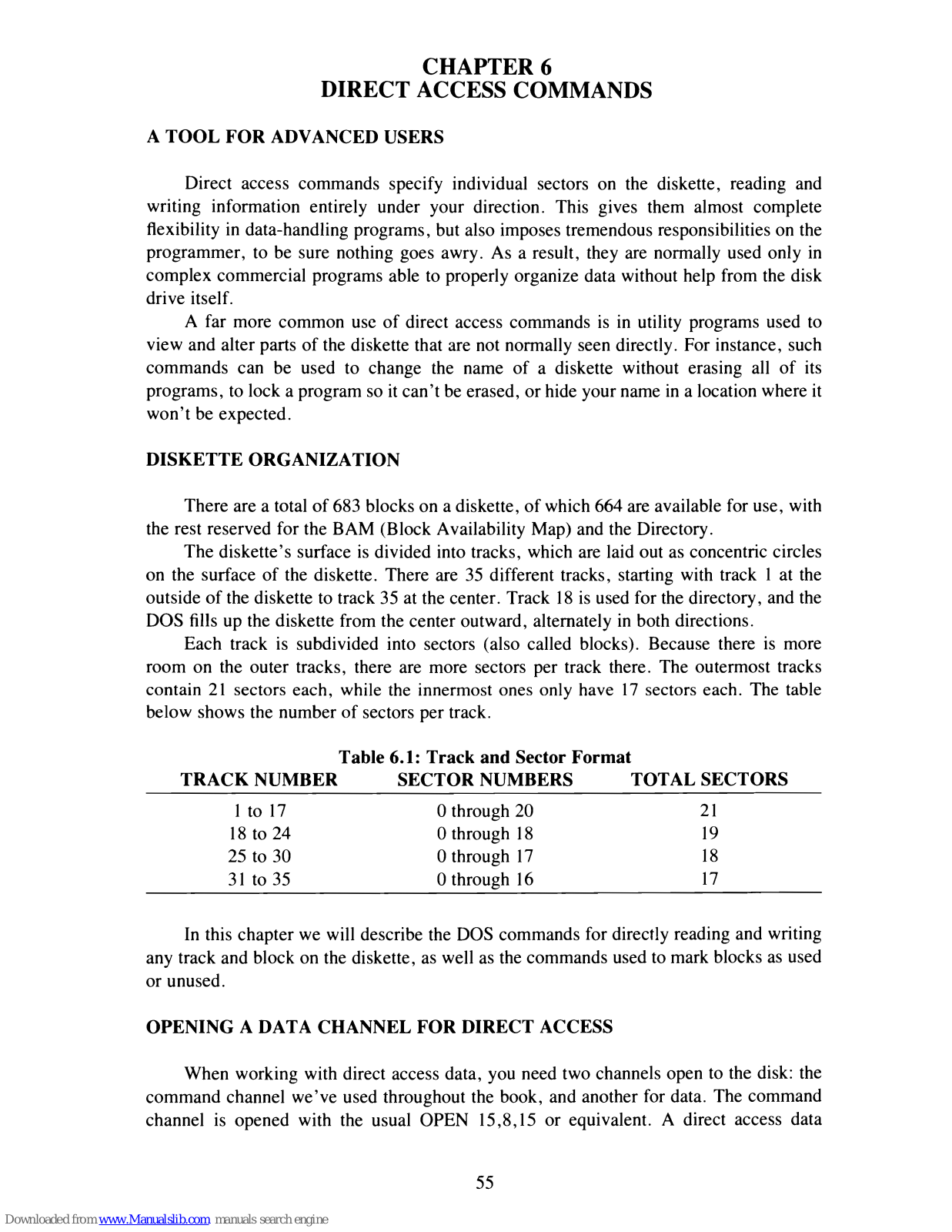

CHAPTER 6: DIRECT ACCESS COMMANDS
...........................
55
A tool for advanced
users.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
..
55
Diskette organization
..........................................
55
Opening a
data
channel for direct access . . . . • . . . . . . . . . . . . . . . . . . .
..
55
Block-read
...................................................
56
Block-write. . . . . . . . • . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
..
57

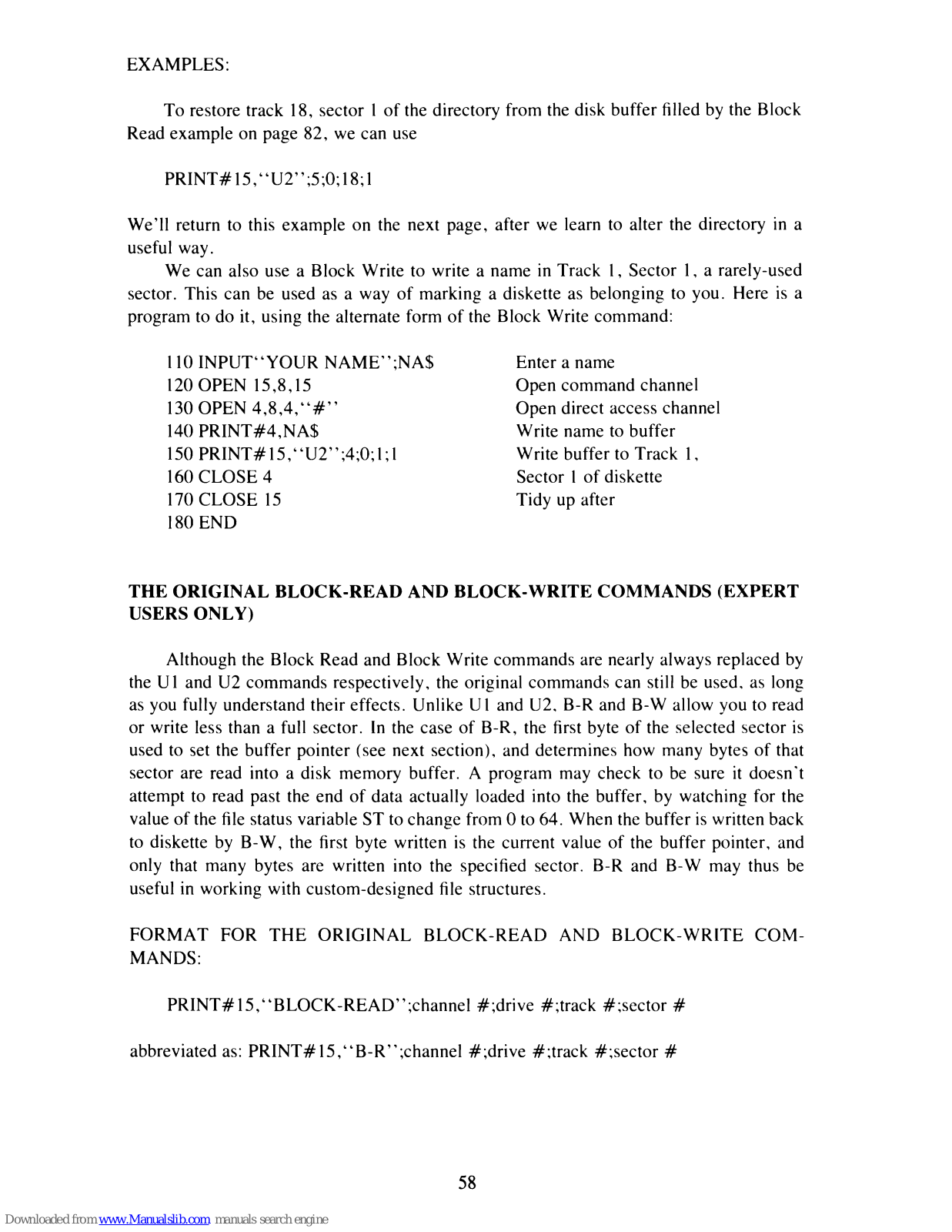

The original Block-read
and
Block-write commands . . . . . . . . . . . . . .
..
58

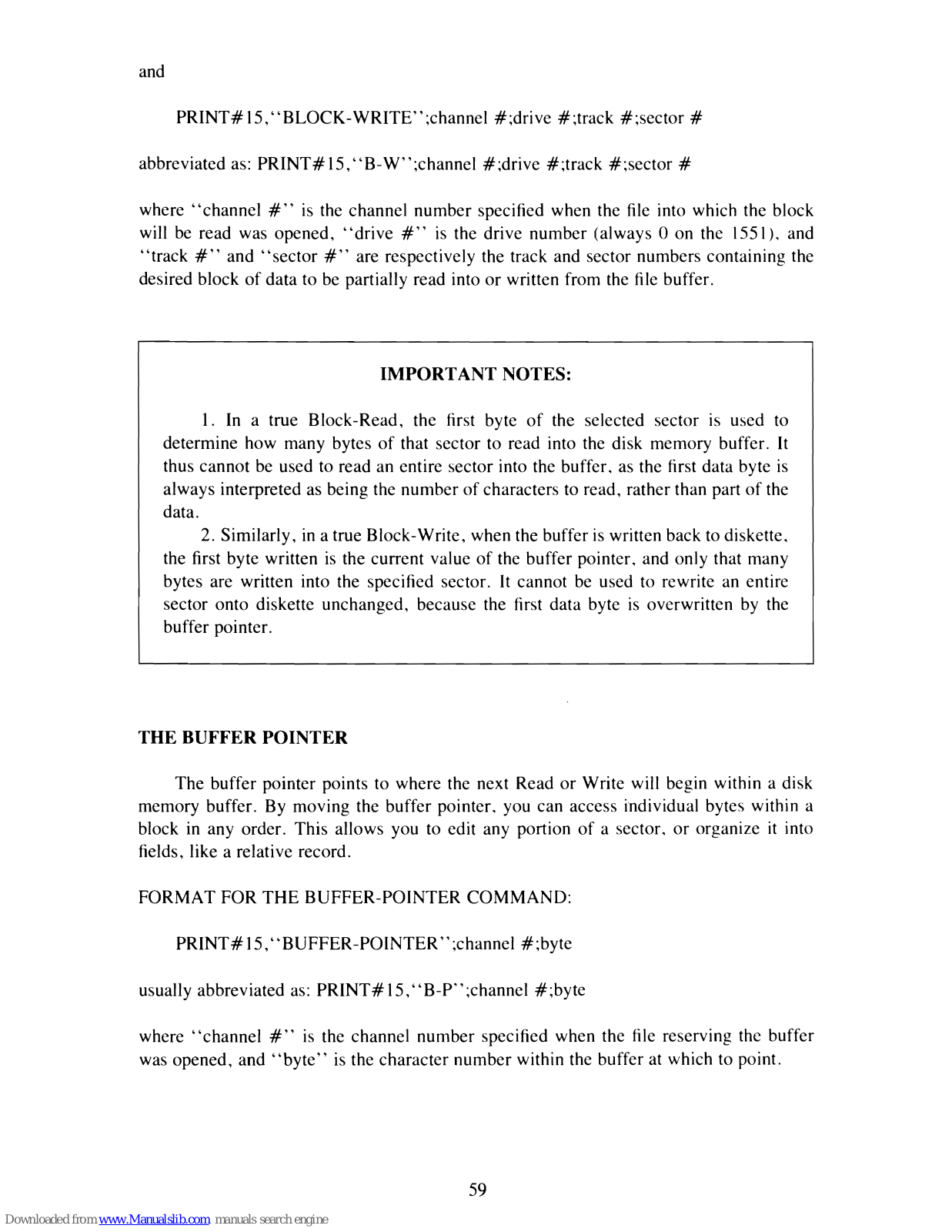

The buffer pointer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
..
59

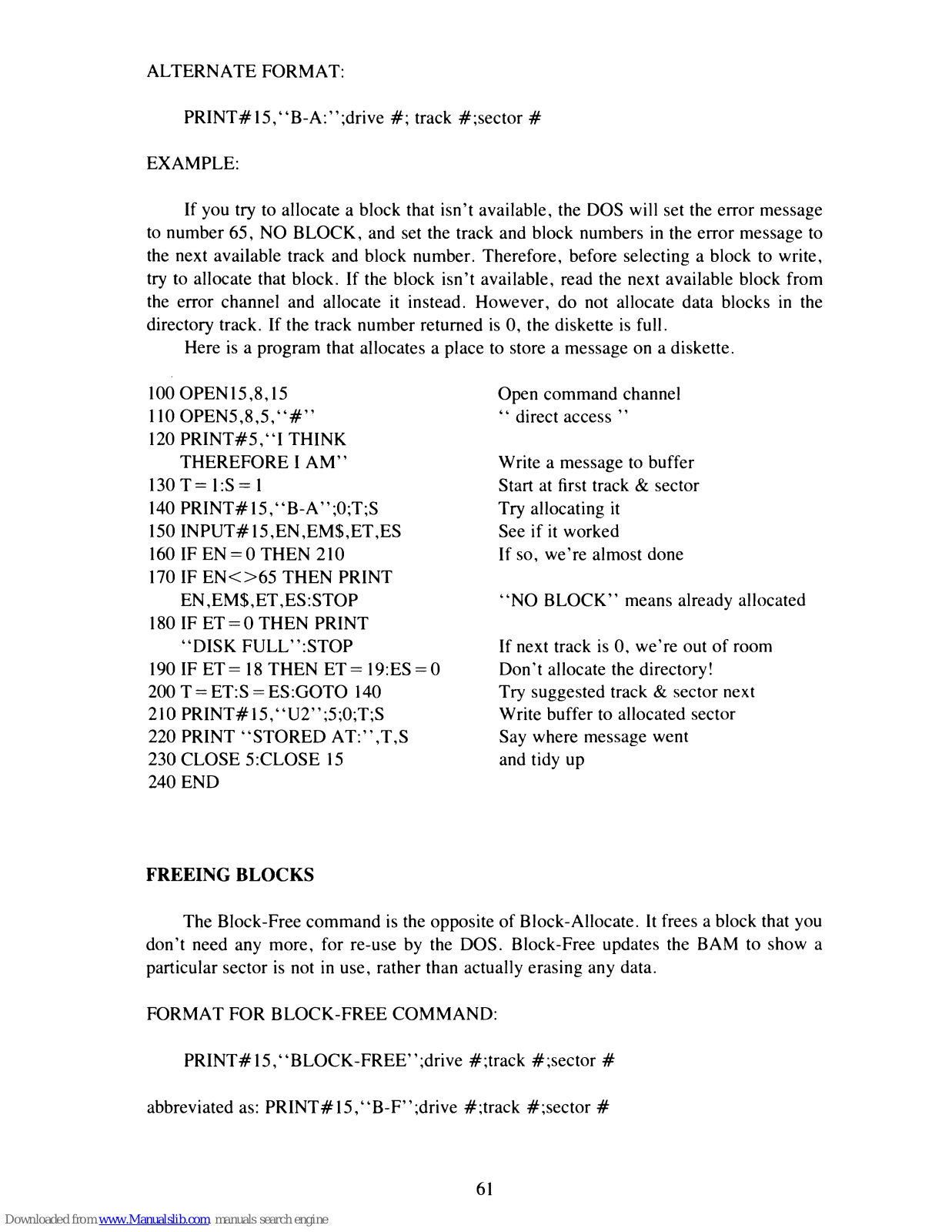

Allocating blocks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
..
60
Freeing blocks
....••..........................................
61

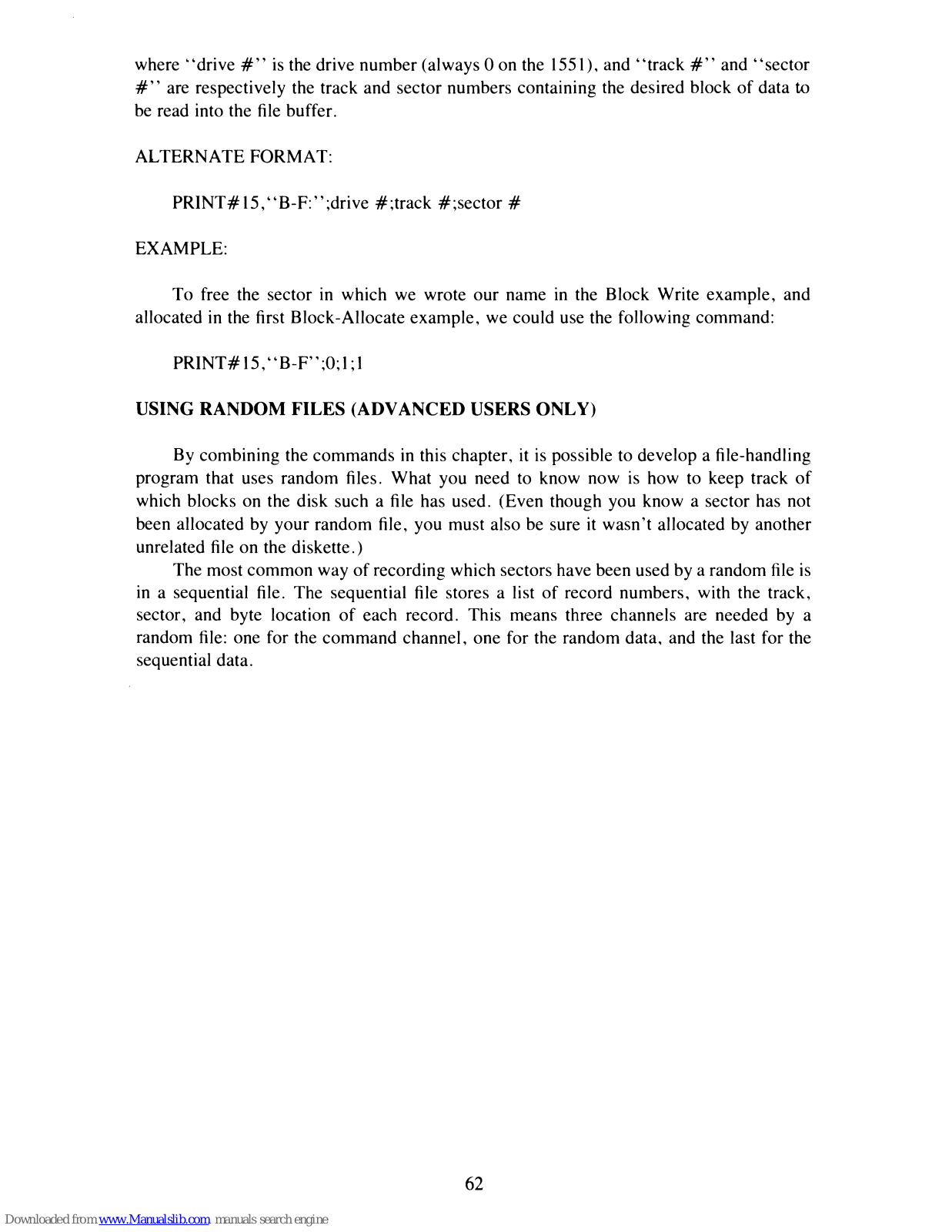

Using random files (advanced users)
..............................
62

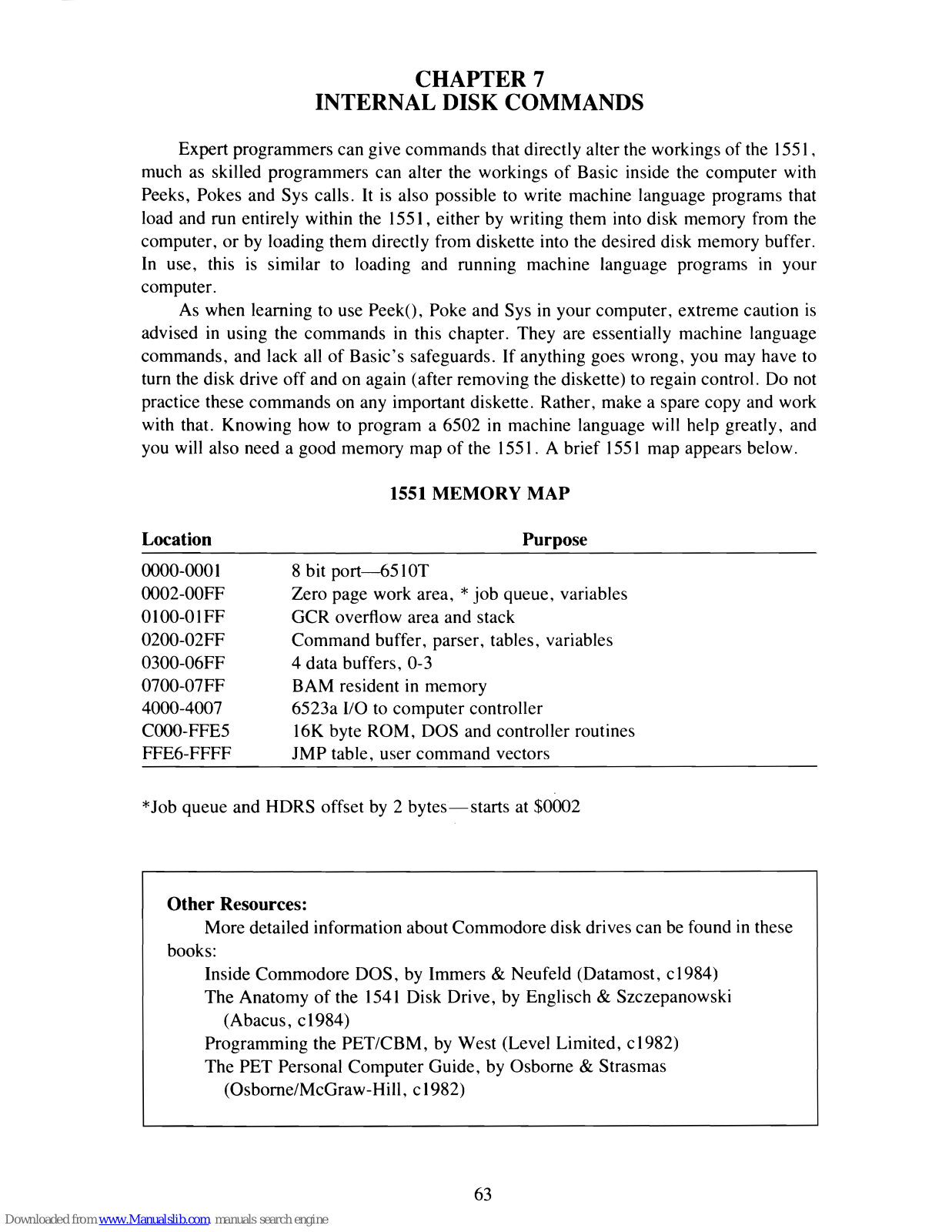

CHAPTER
7:
INTERNAL DISK COMMANDS
.......•.........•..........
63
1551 memory
map
.............•...............................
63

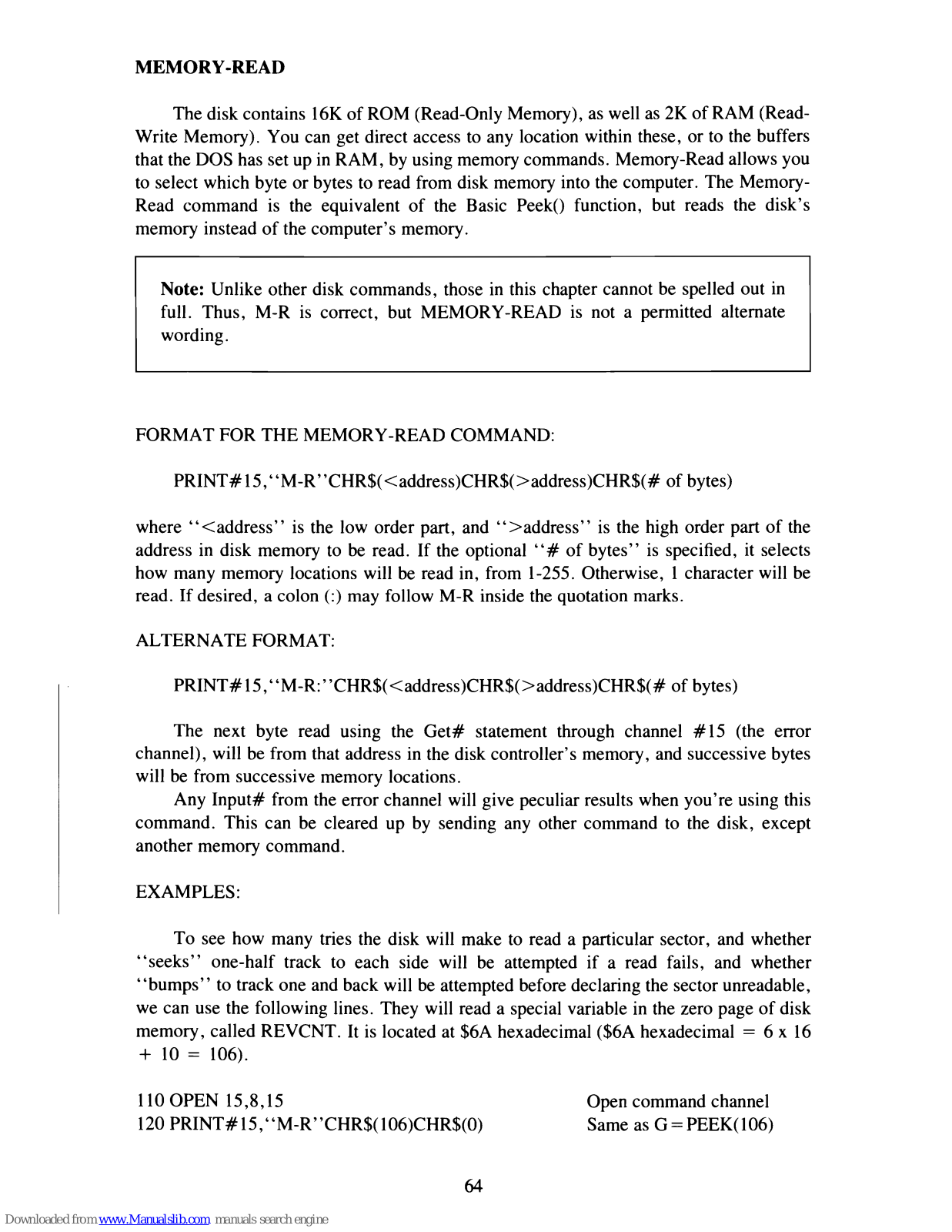

Memory-read
.................................................
64

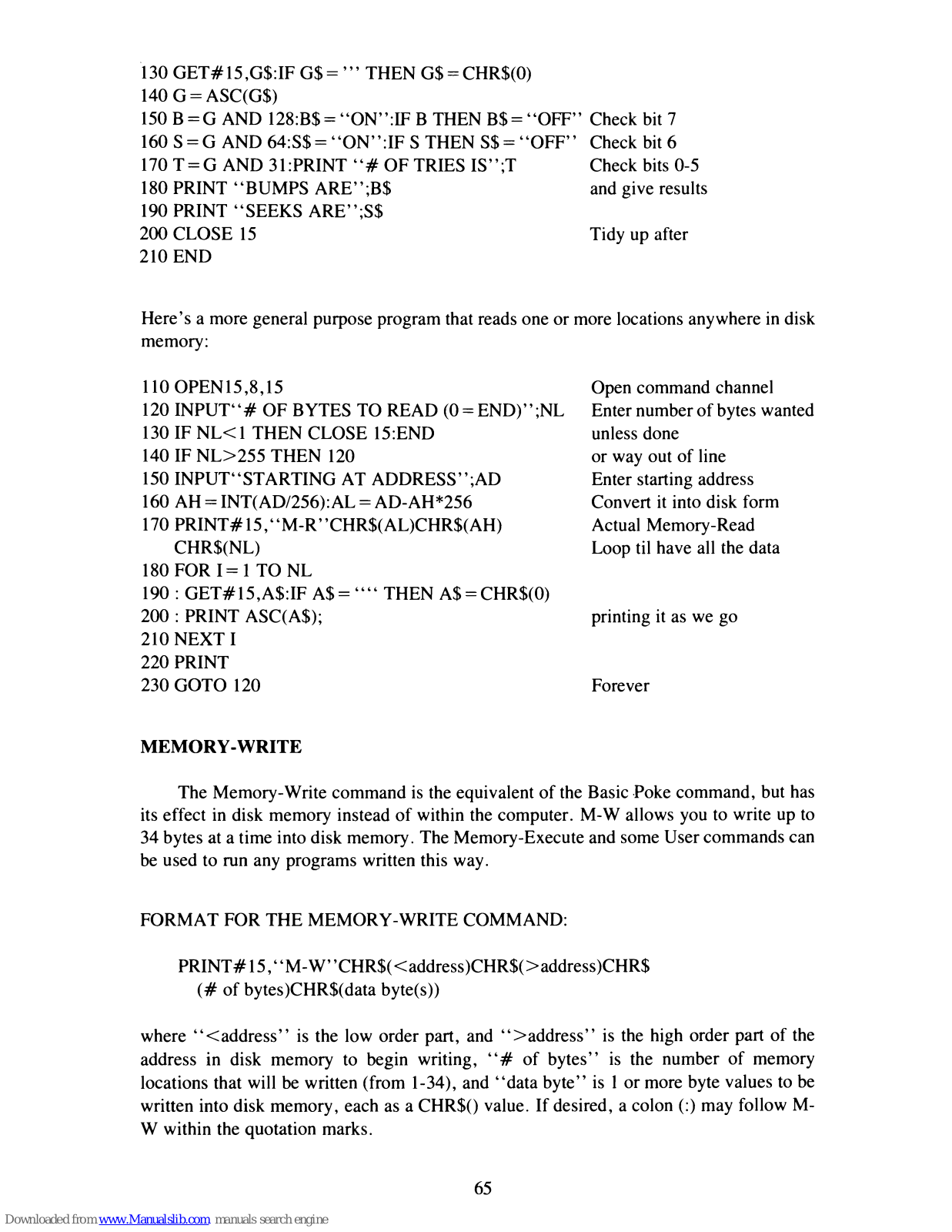

Memory-write
..
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
..
65

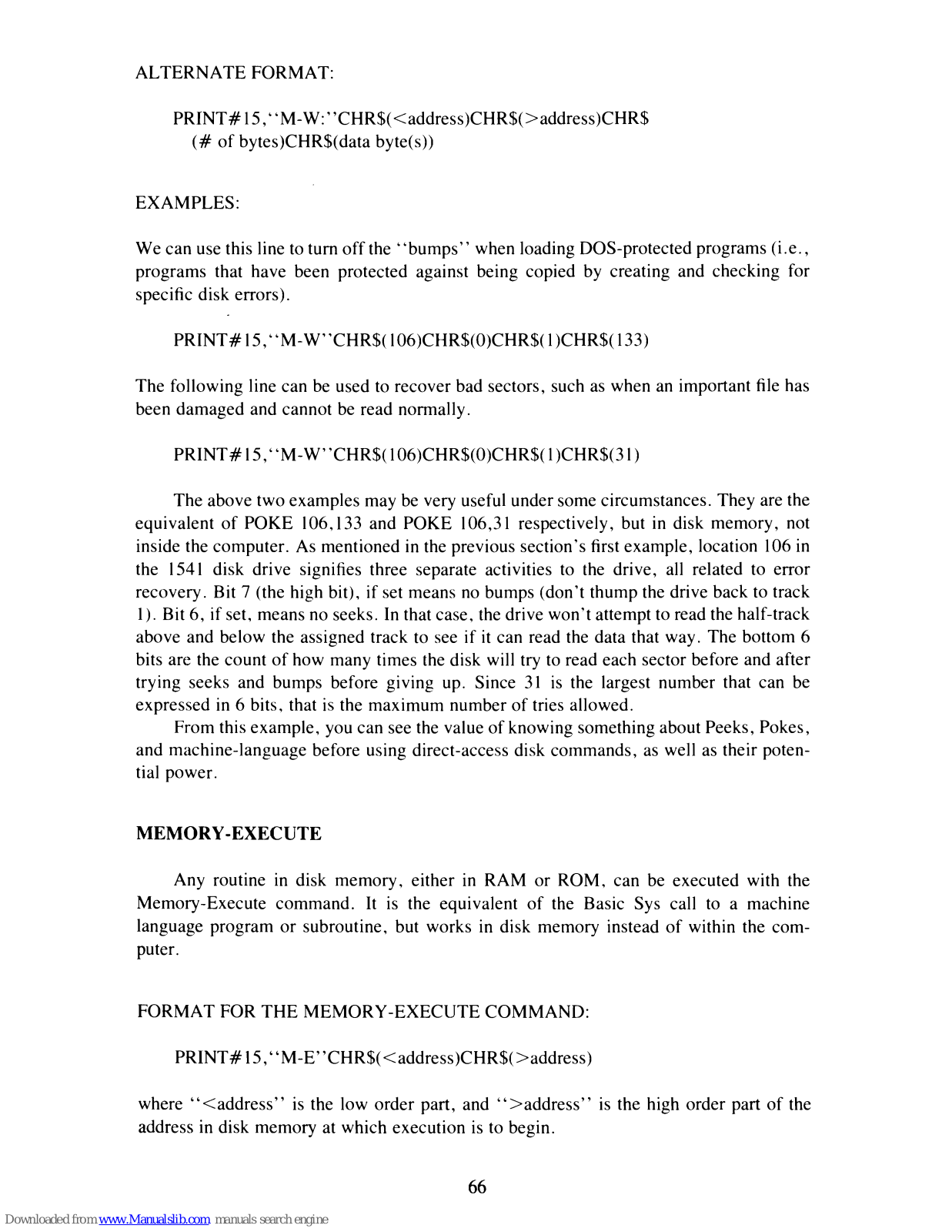

Memory-execute
.........................................•....
66
Block-execute
...•.........•................•..................
67

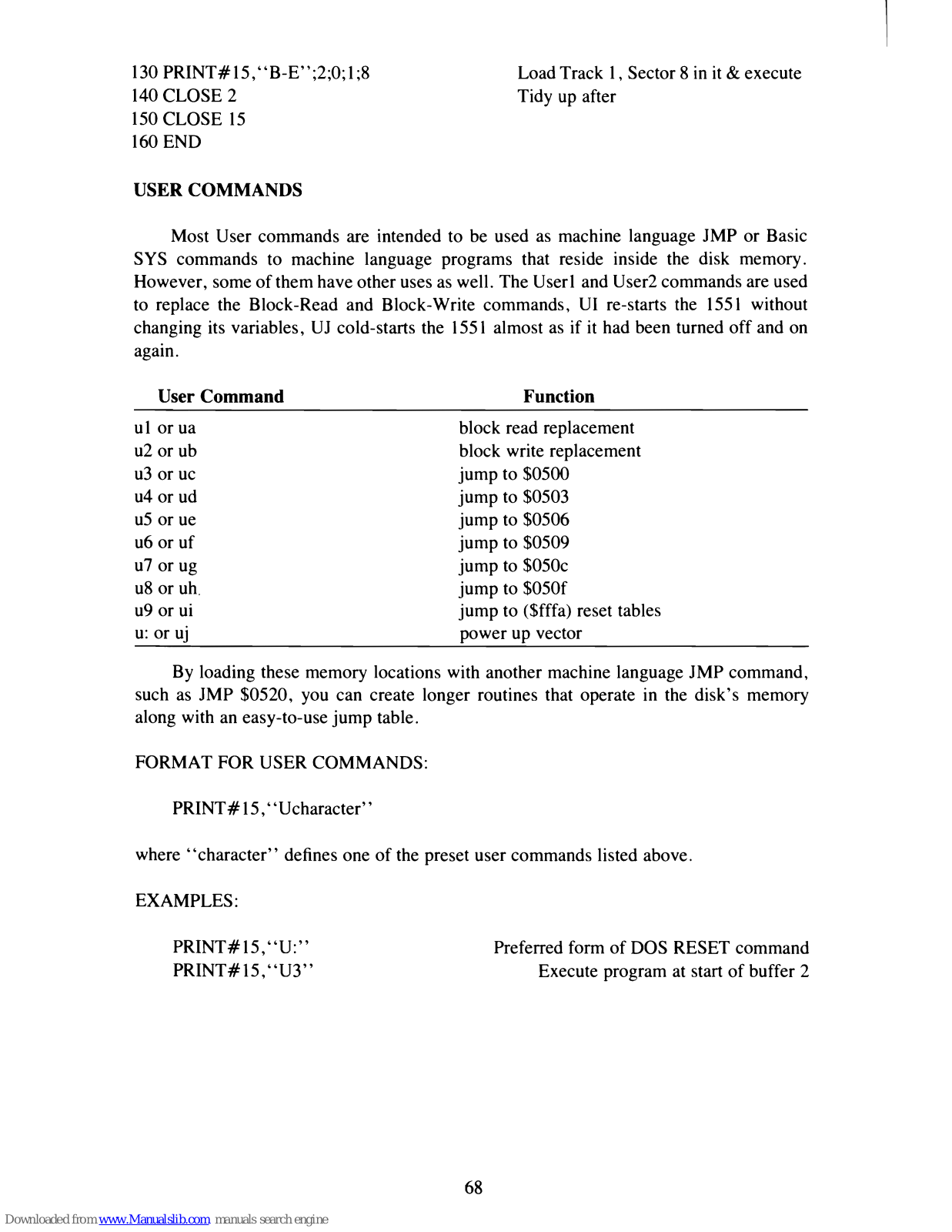

User commands
.••....................•.......................
68
Page 7

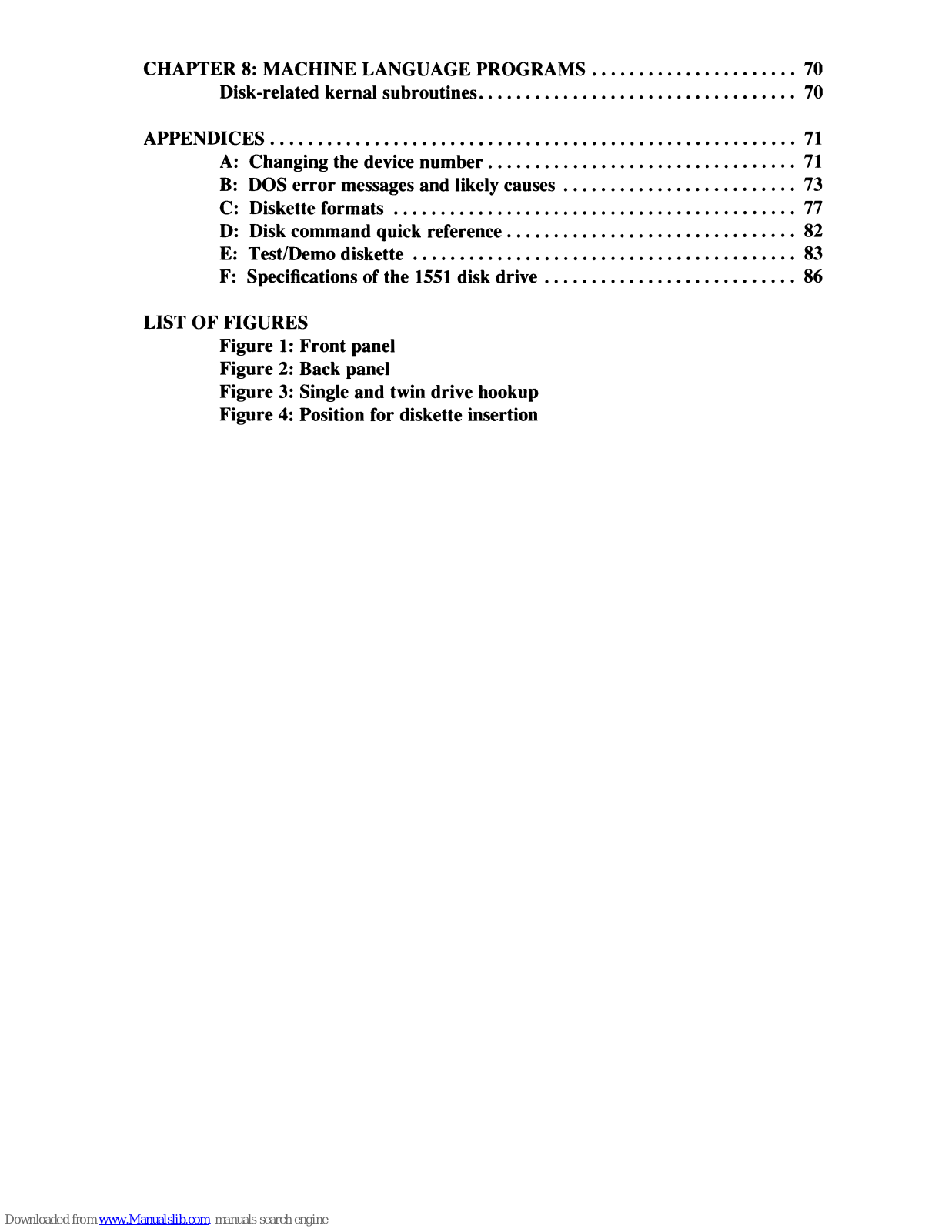

CHAPTER
8:
MACHINE LANGUAGE PROGRAMS
......................
70
Disk-related kernal subroutines
..................................
70
APPENDICES
........................................................
71

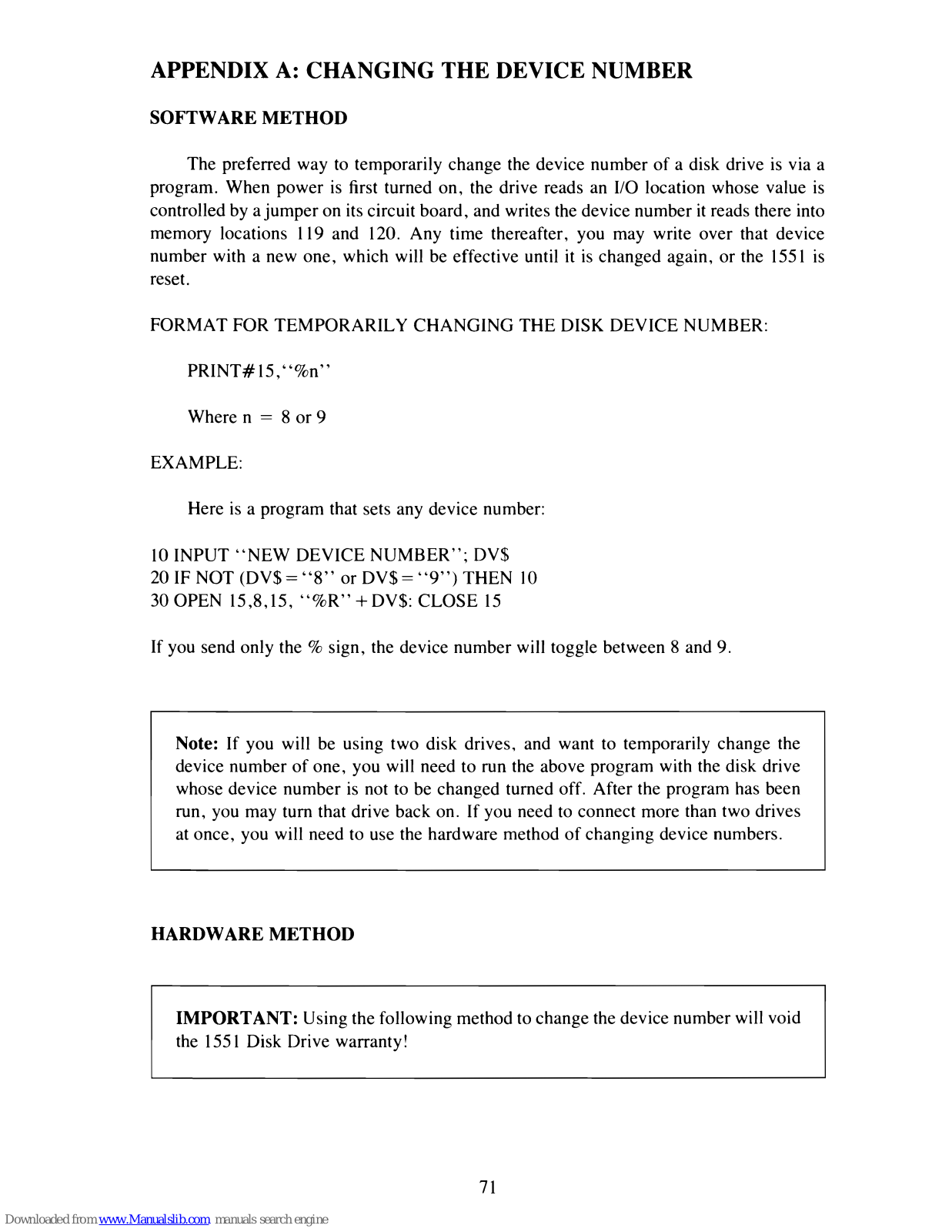

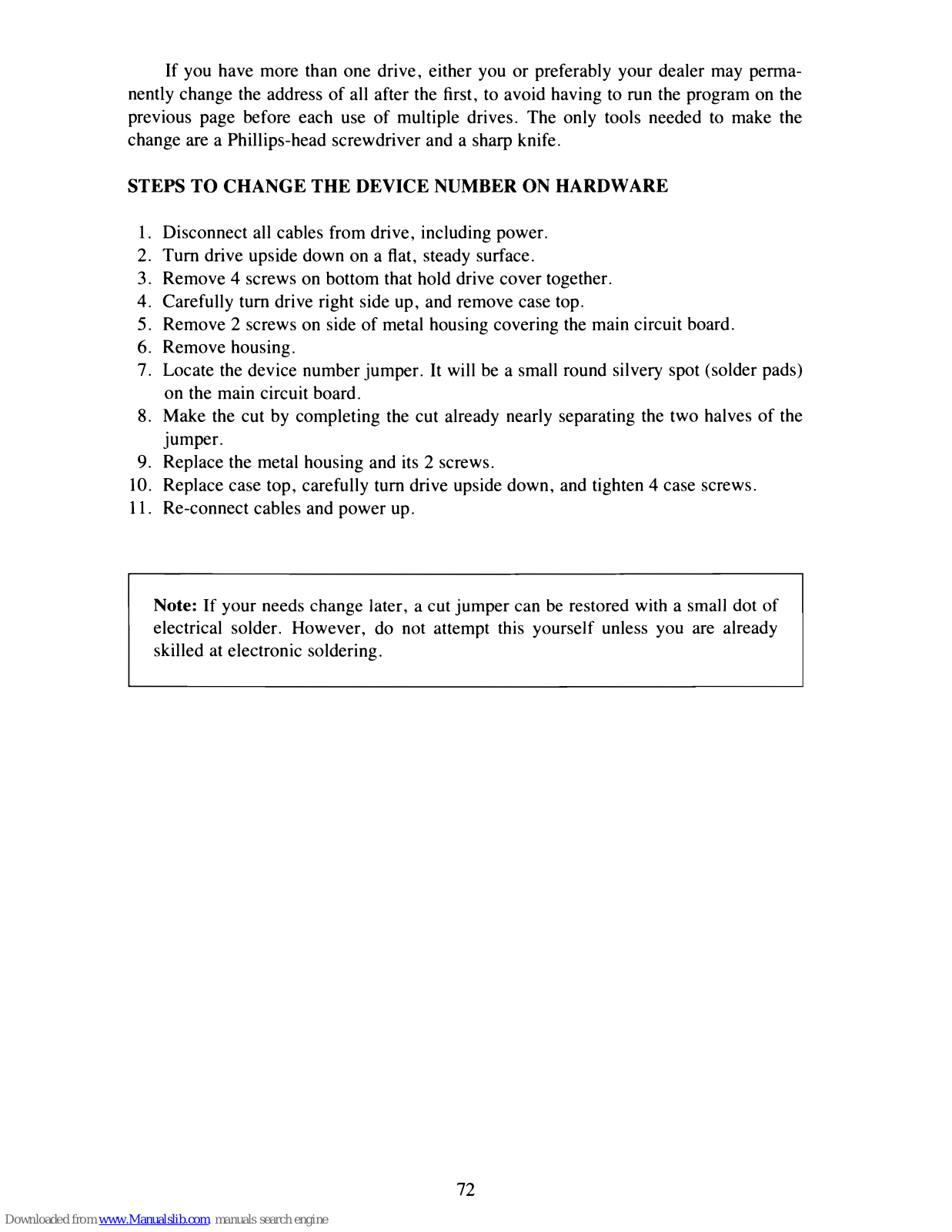

A:
Changing the device number
.................................
71

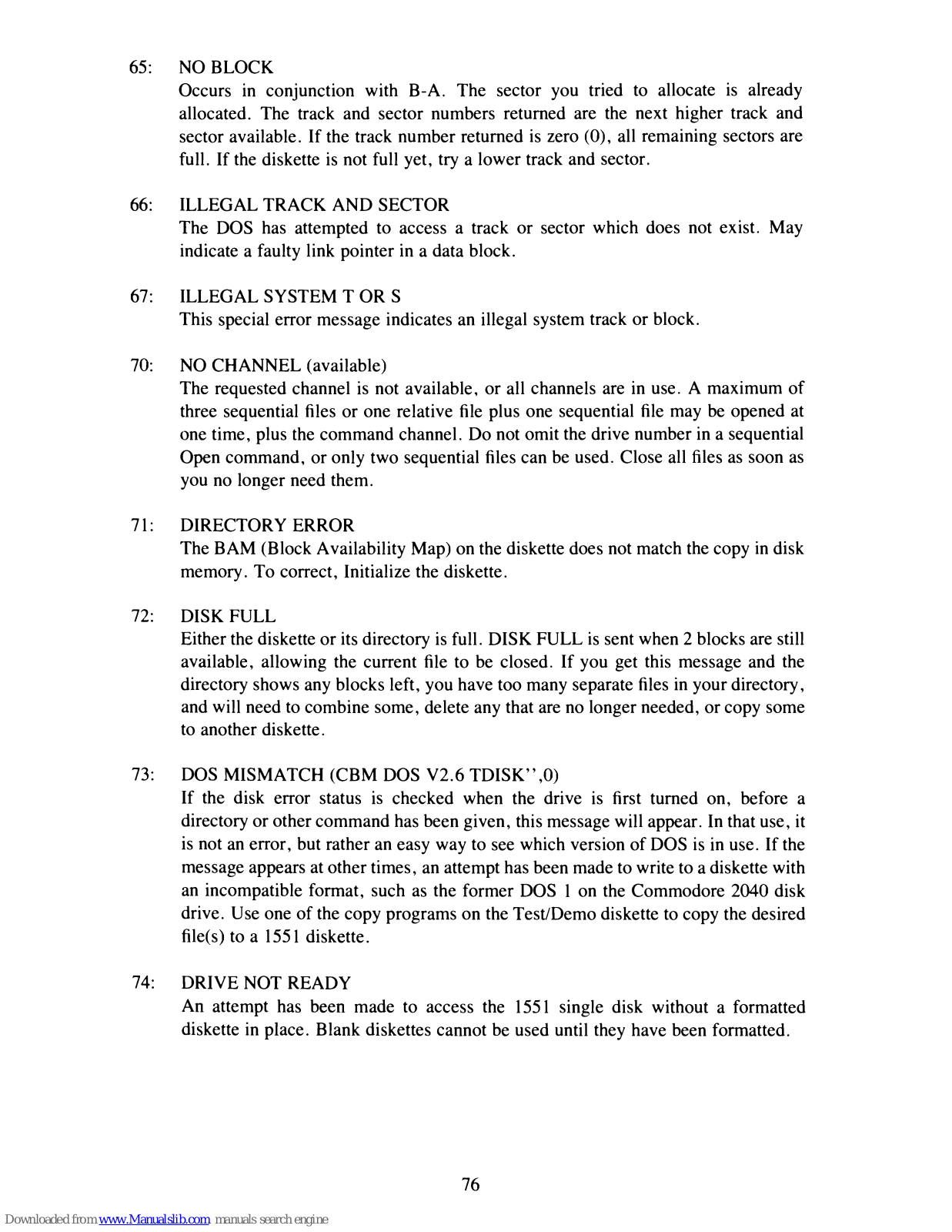

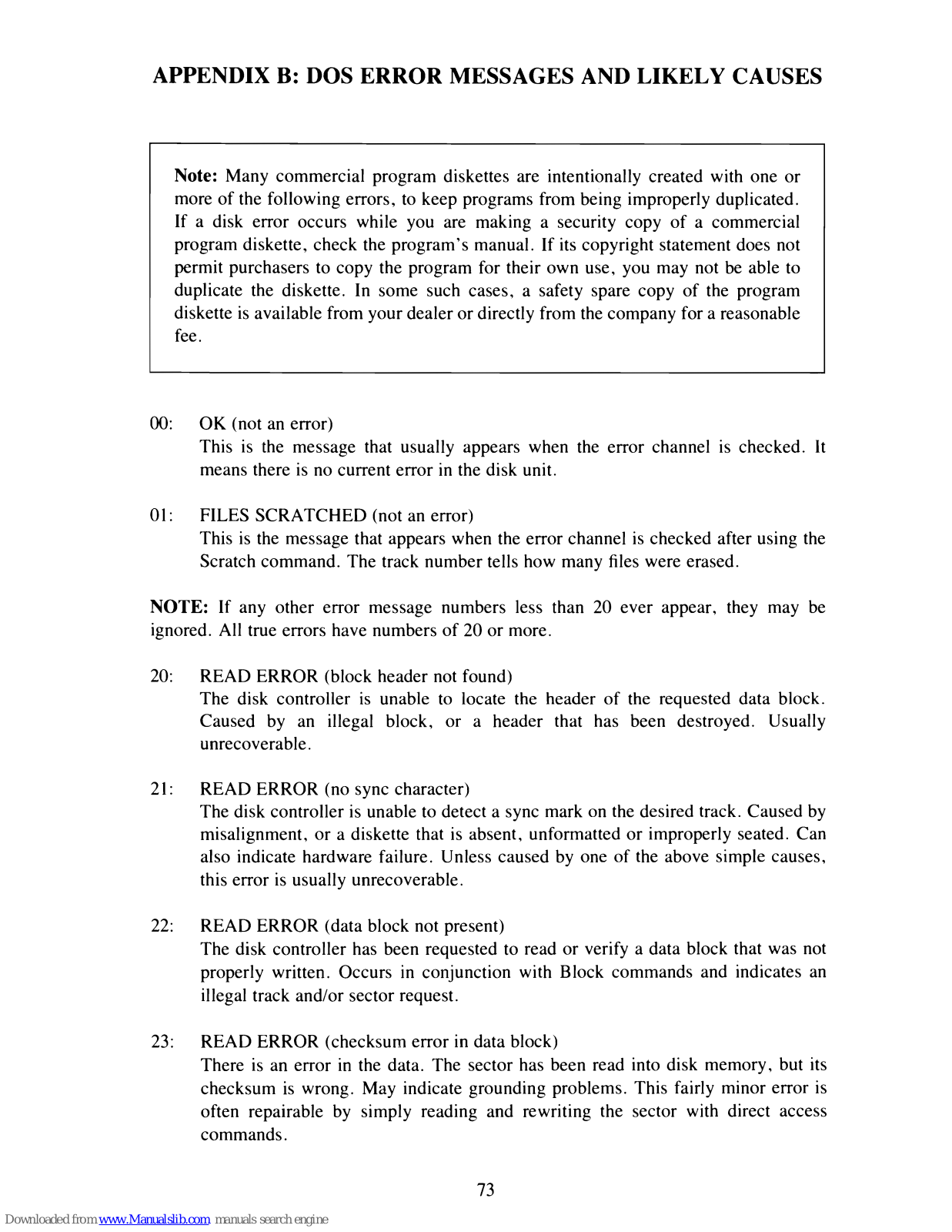

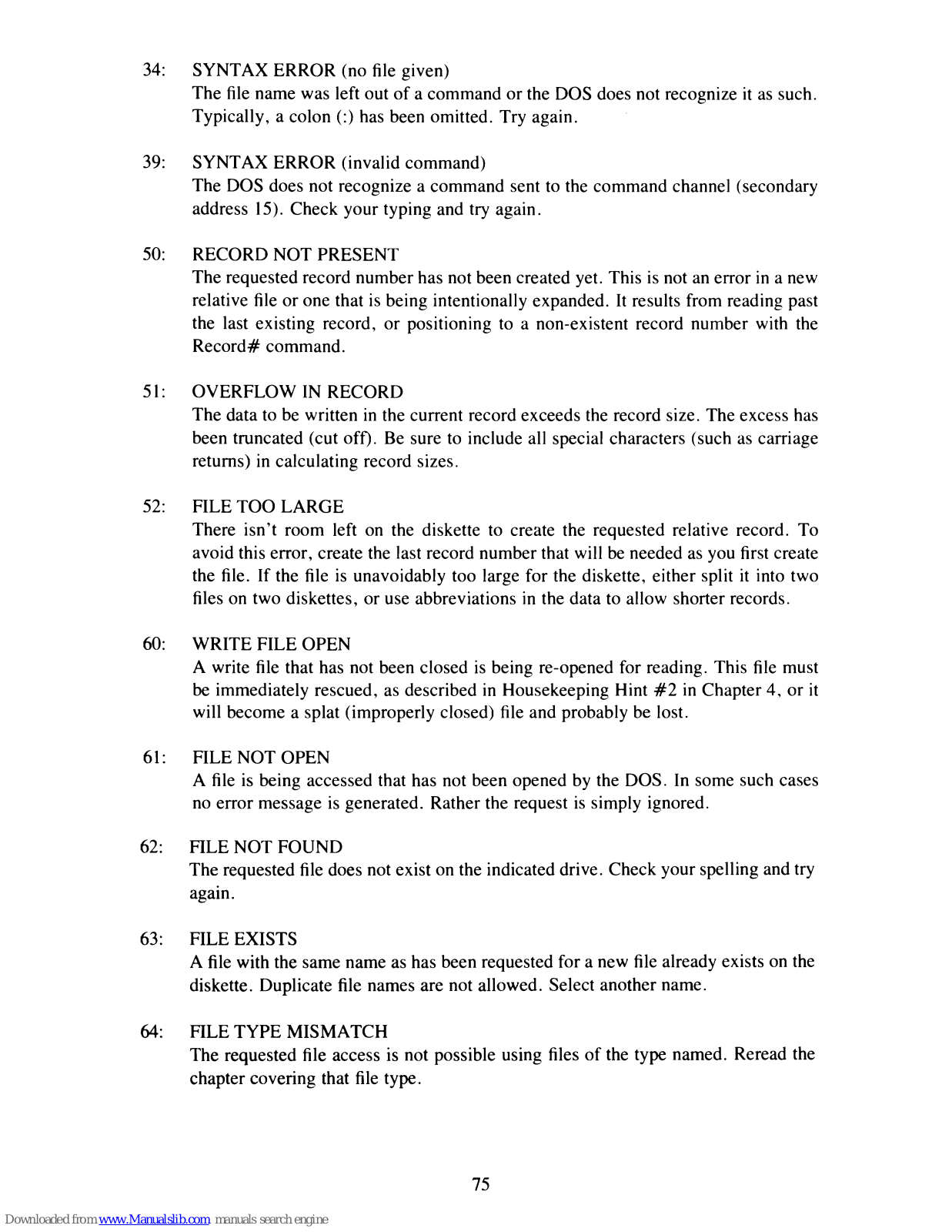

B:
DOS
error
messages and likely causes
...........•.............
73

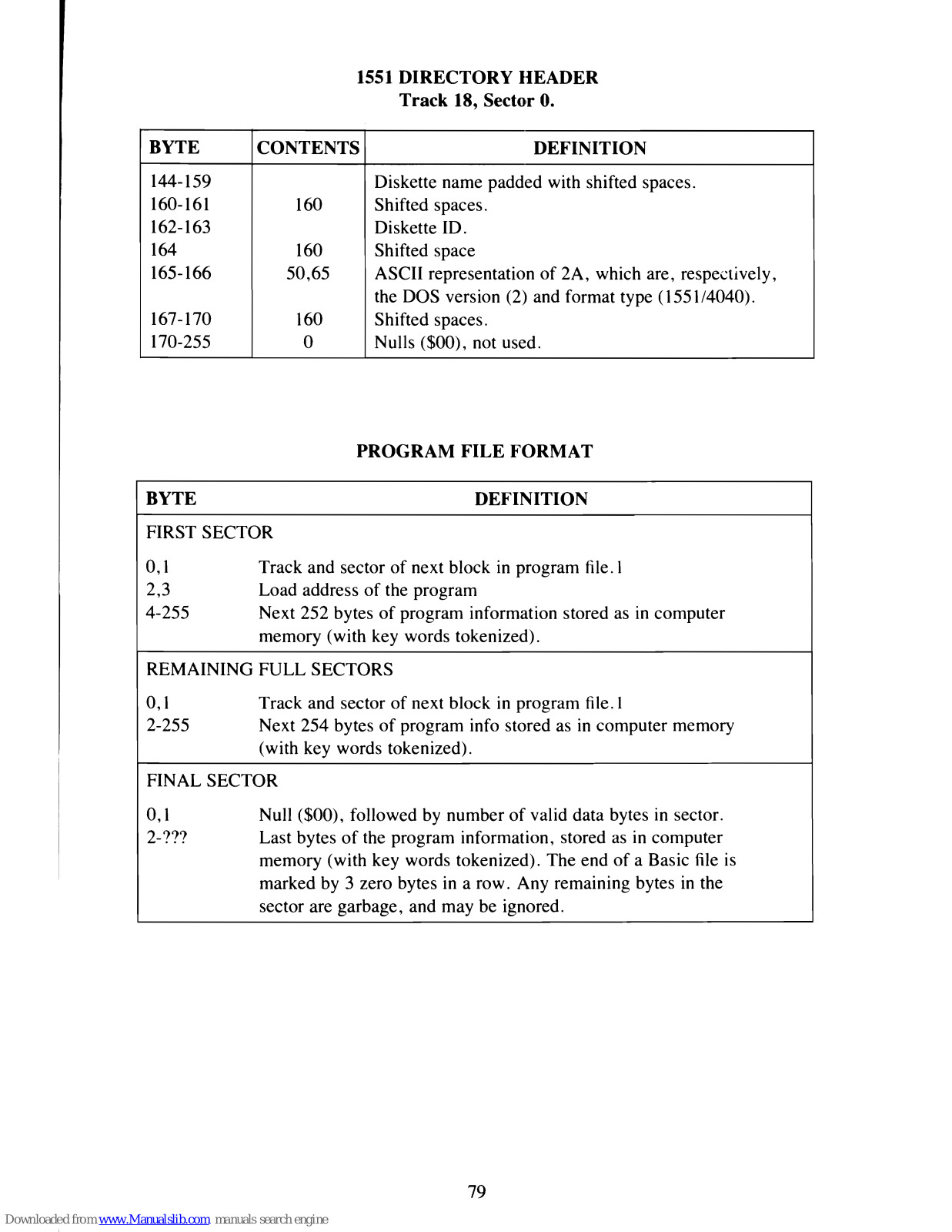

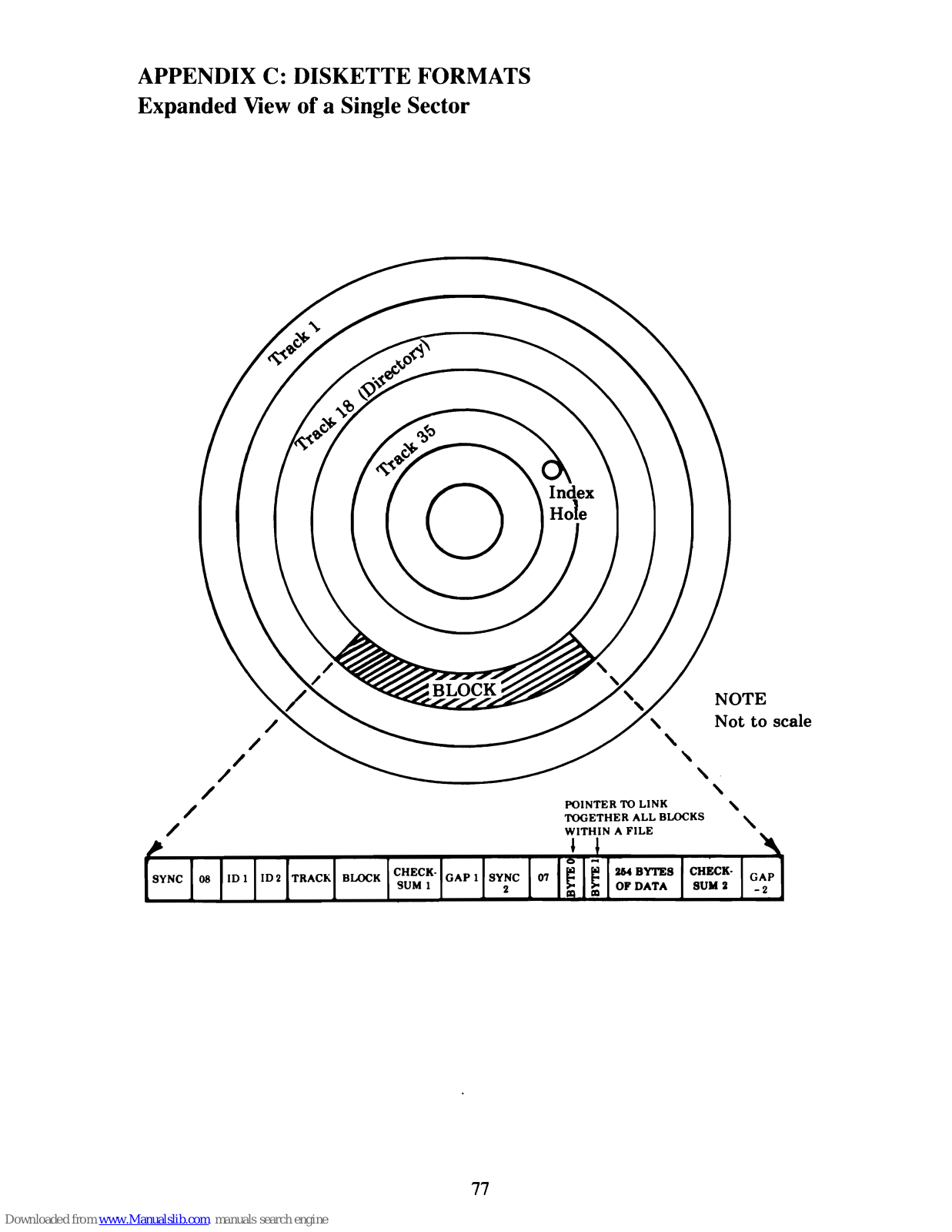

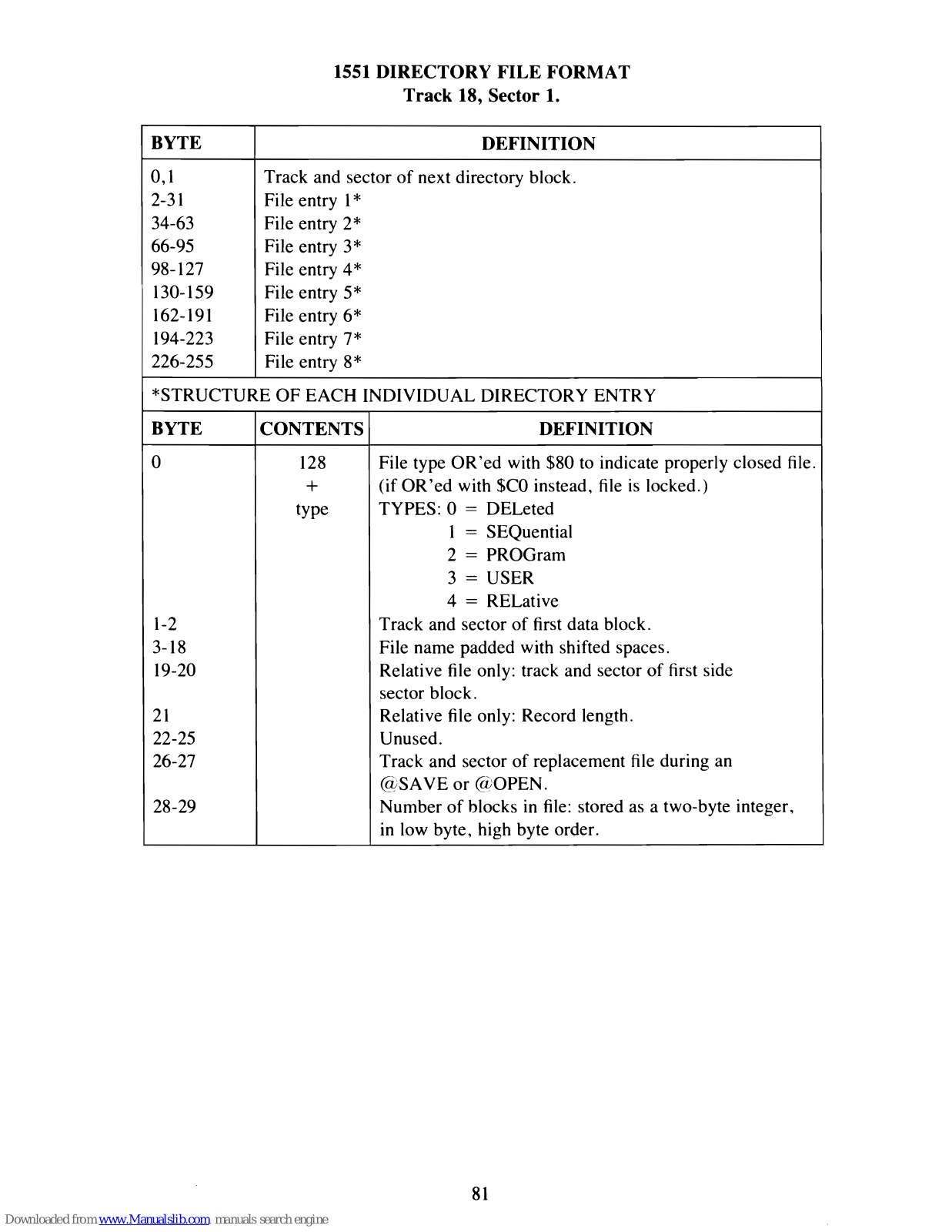

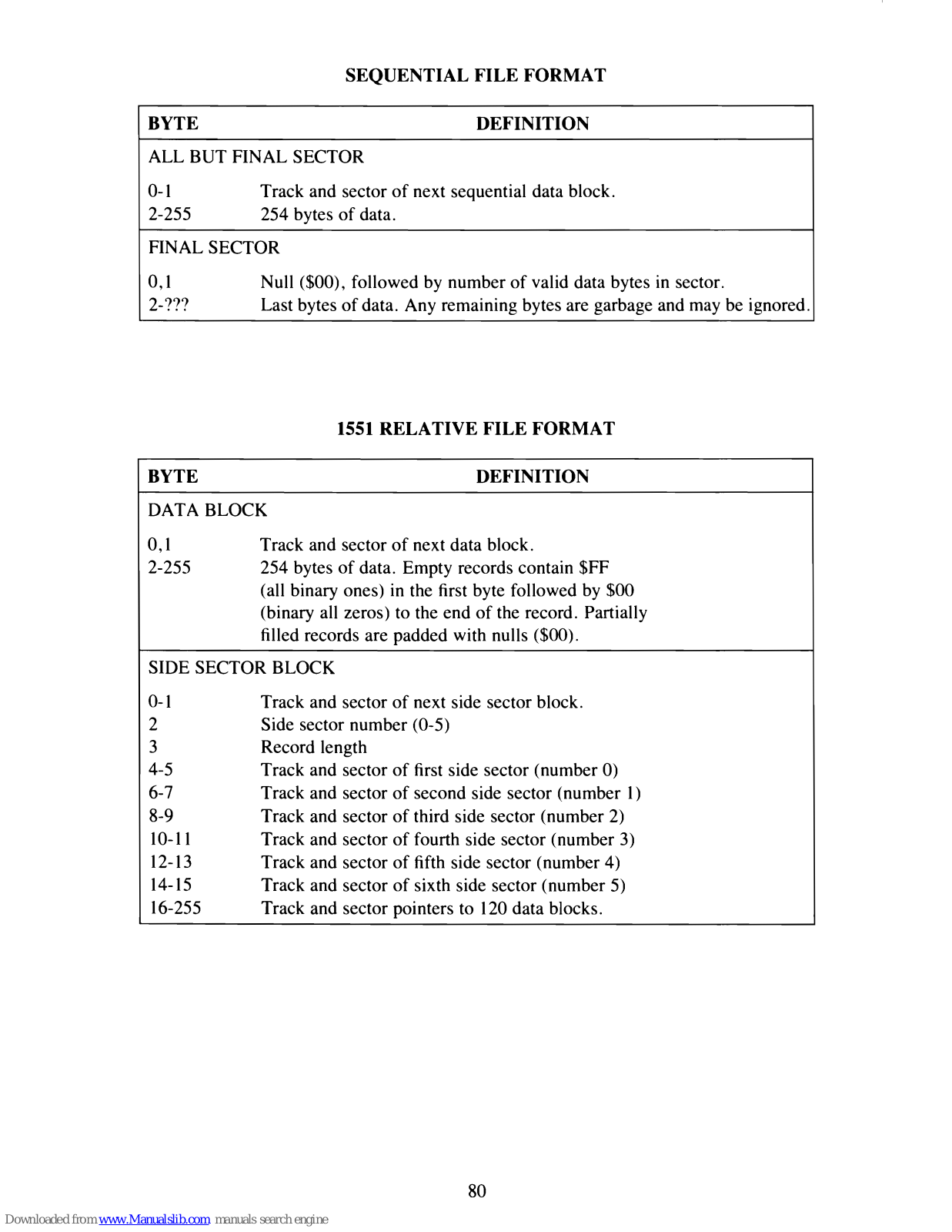

C: Diskette formats
...........................................
77
D:

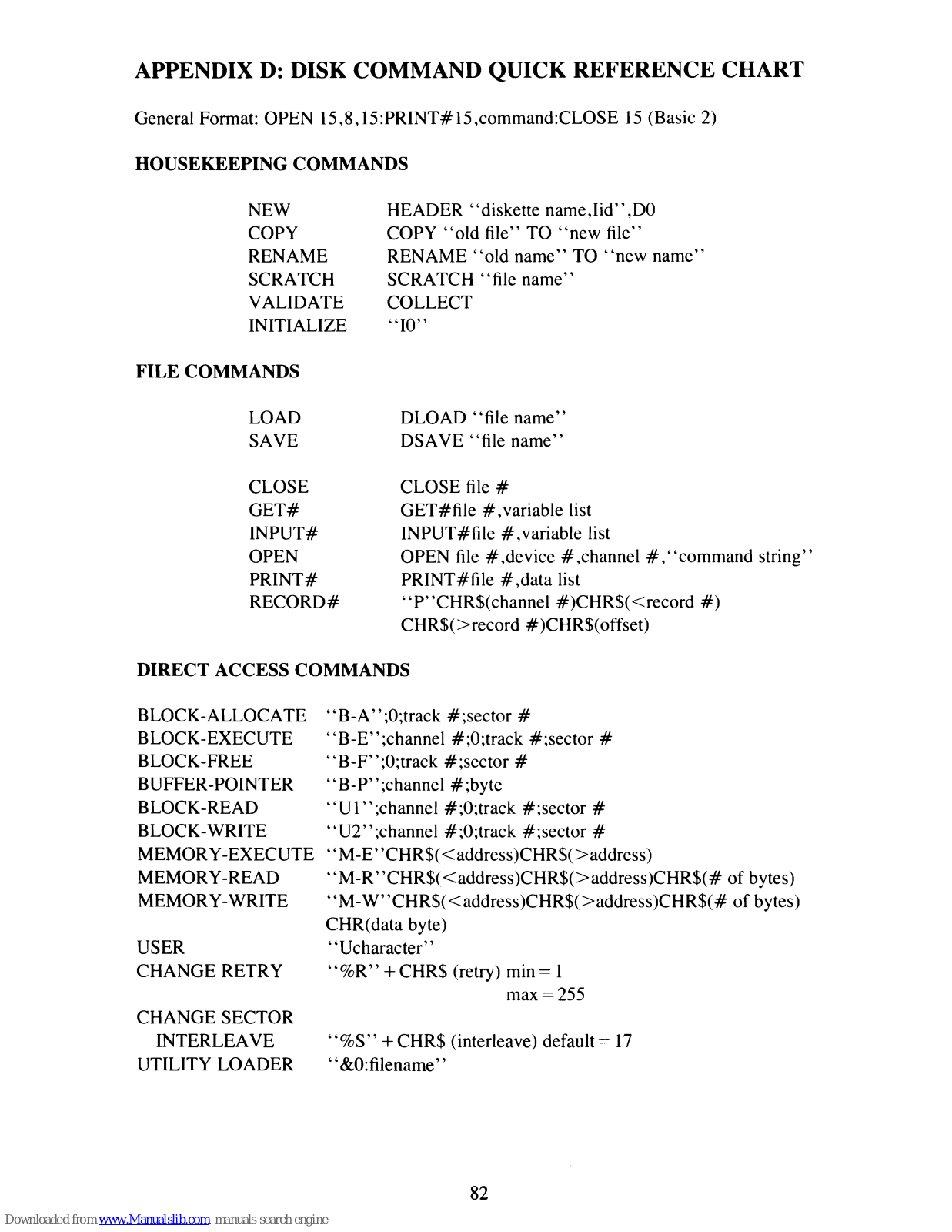

Disk command quick reference
...............................
82

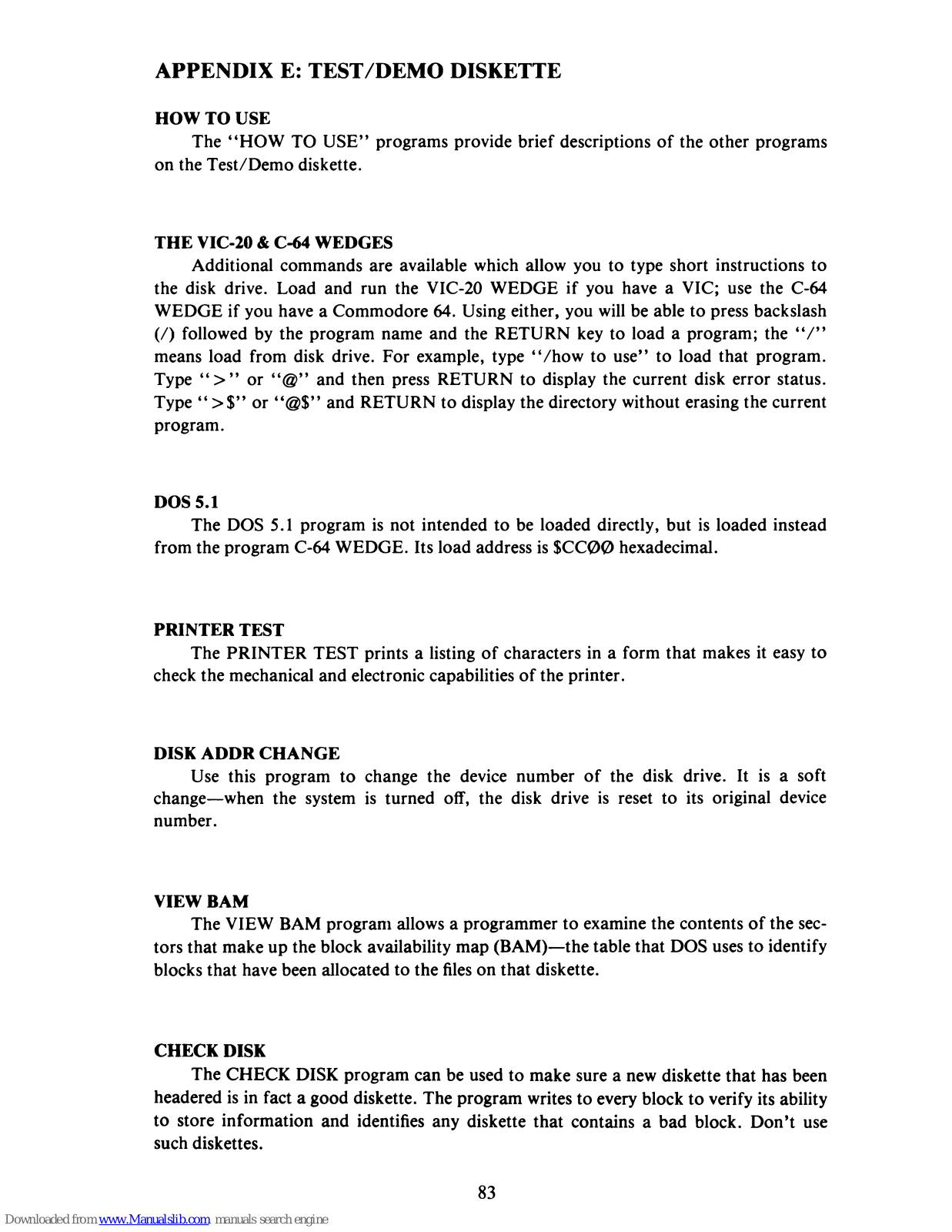

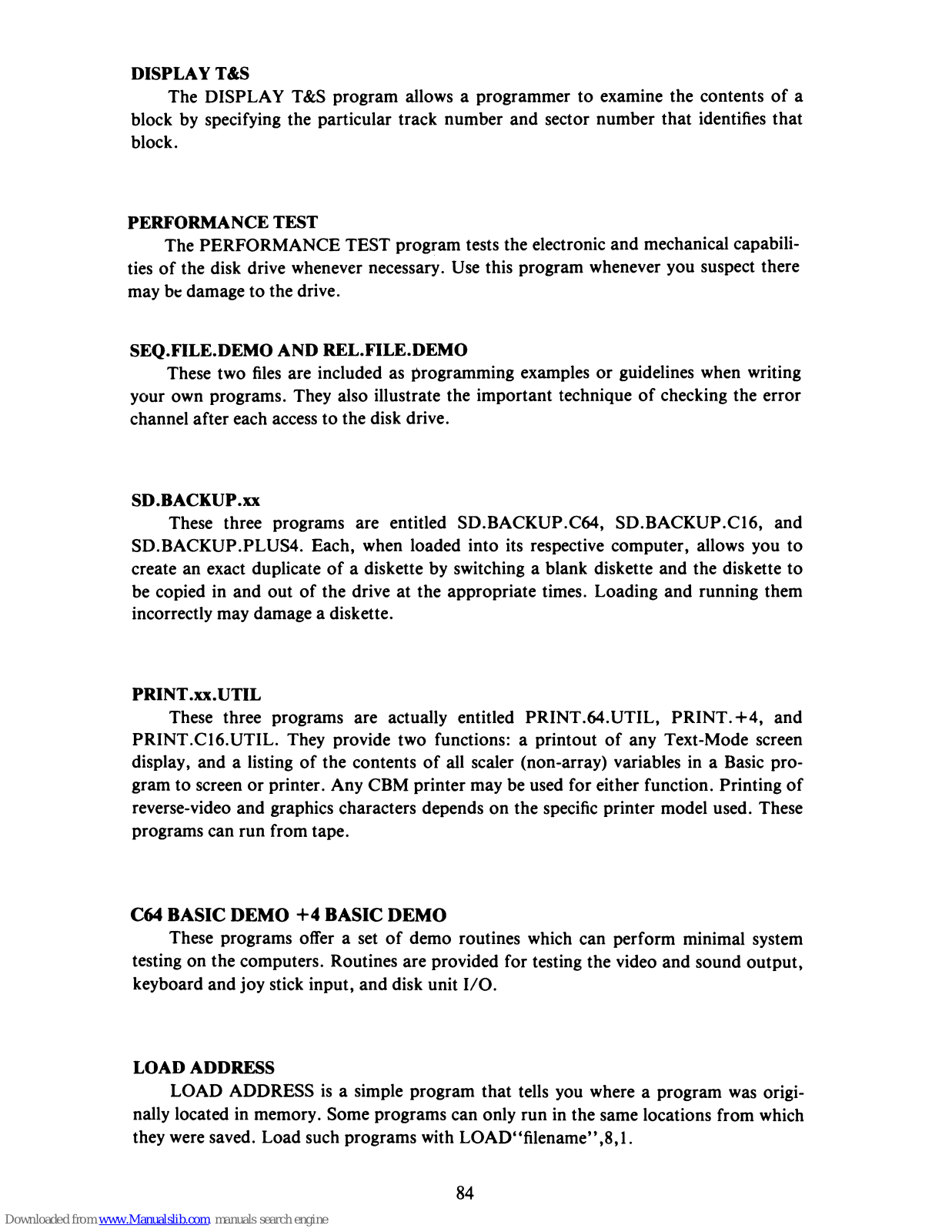

E: Test/Demo diskette
.........................................
83

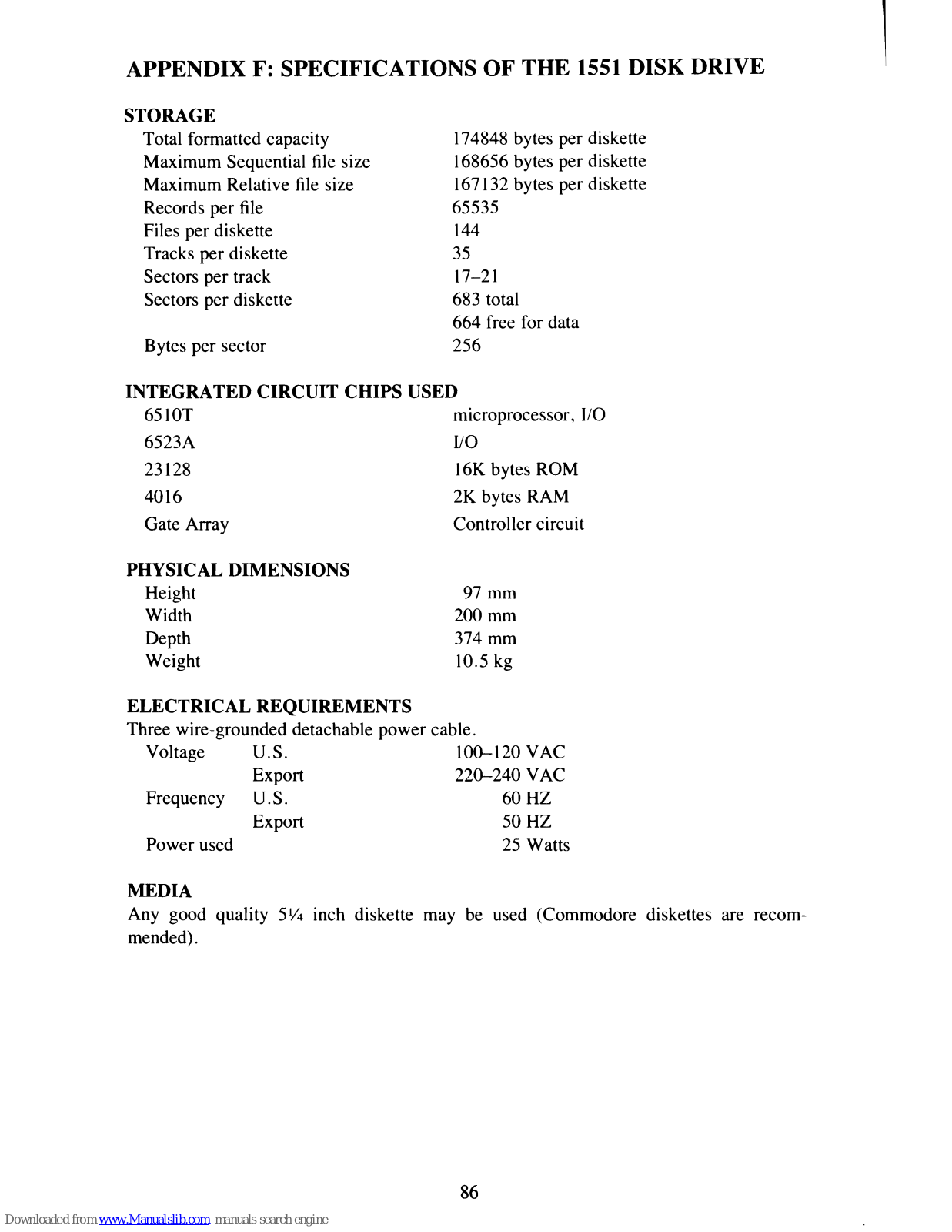

F: Specifications of the
1551
disk drive
...........................
86
LIST
OF
FIGURES
Figure 1:
Front
panel

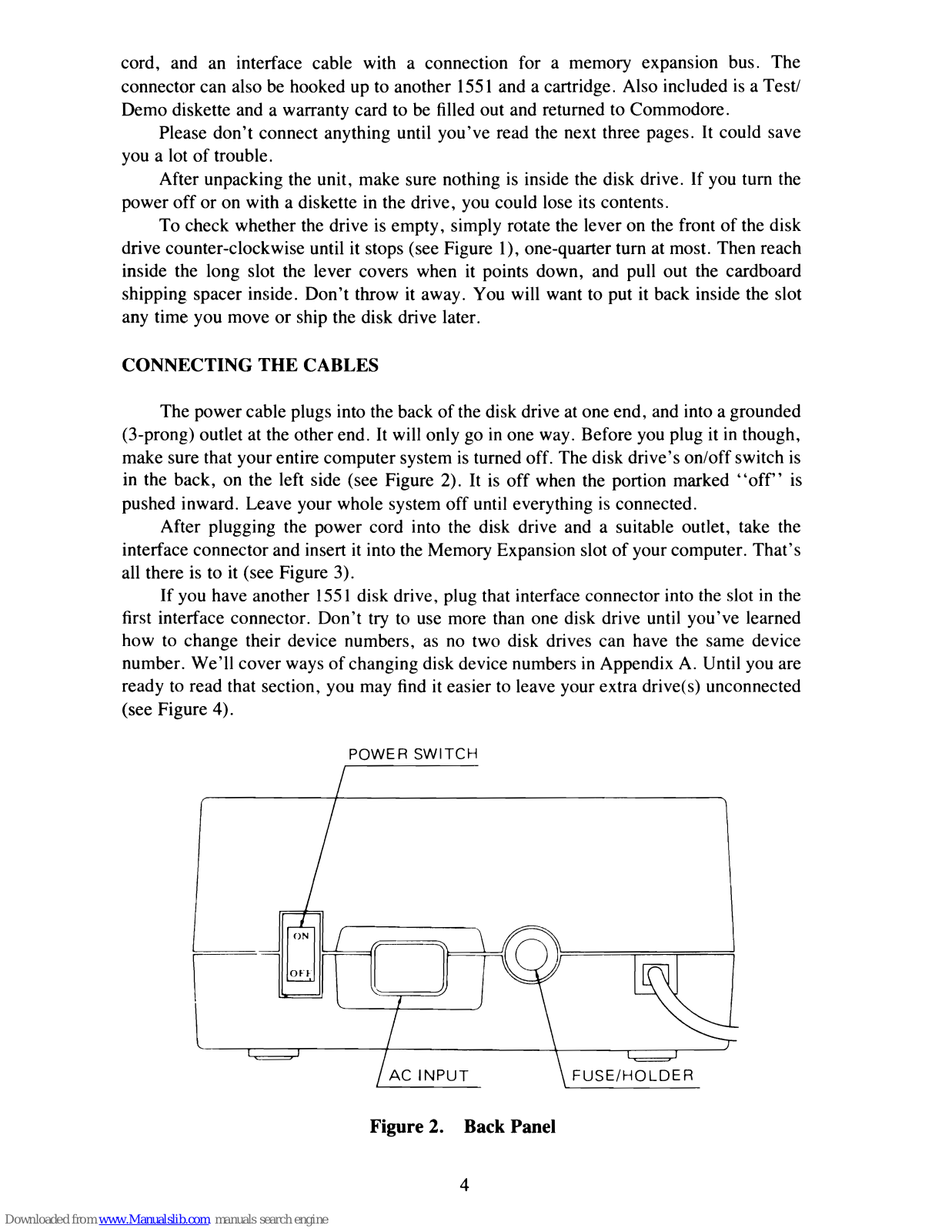

Figure 2: Back panel

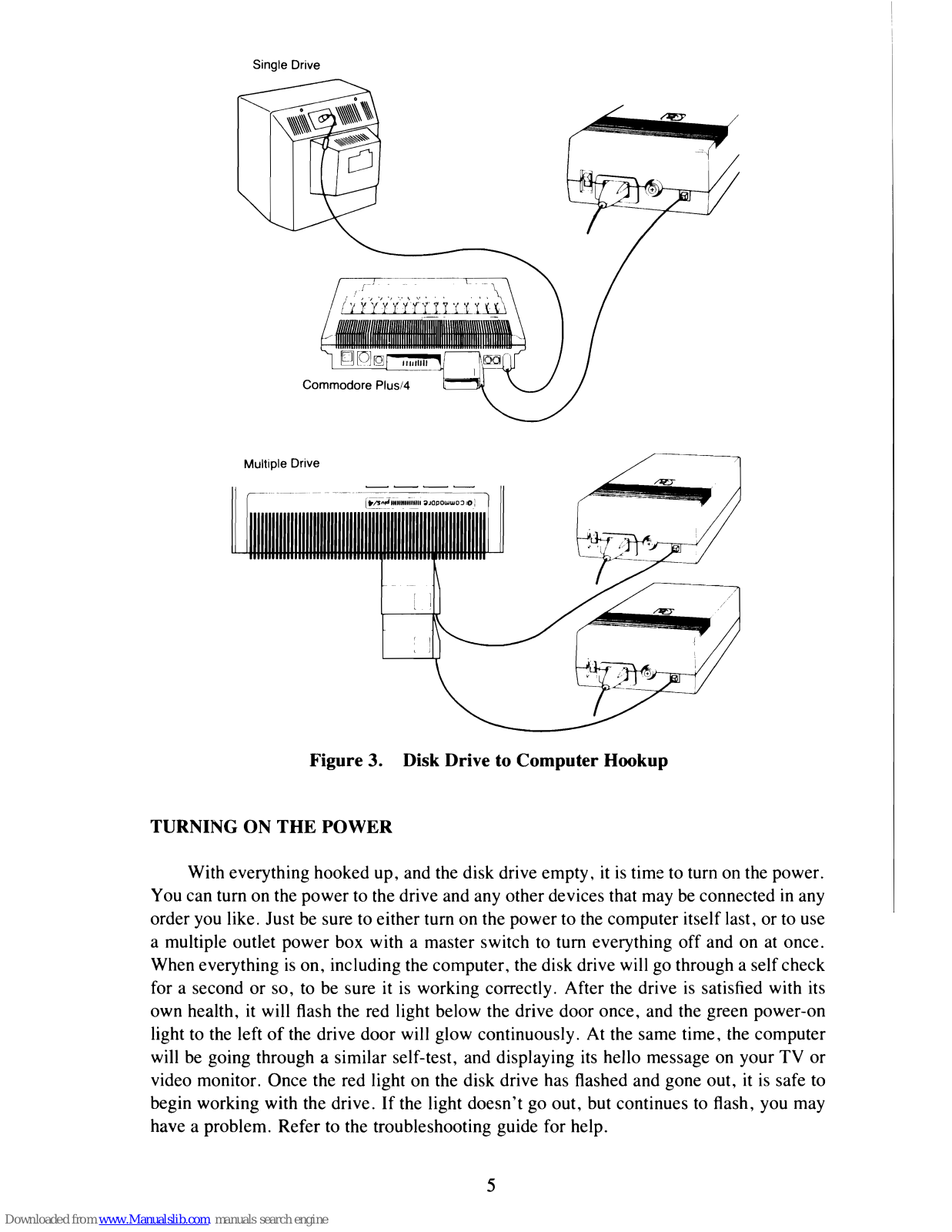

Figure 3: Single and twin drive hookup

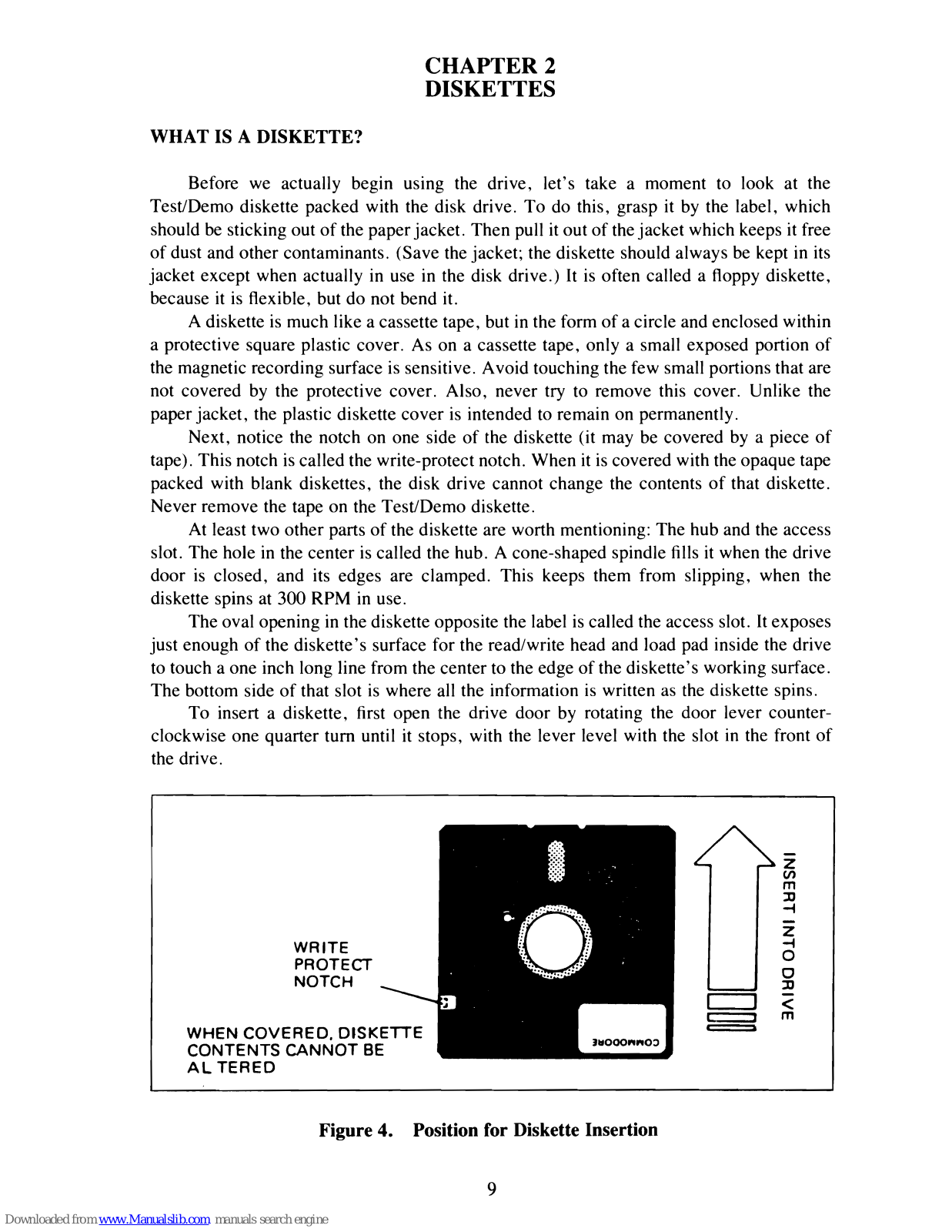

Figure 4: Position for diskette insertion
Page 8
Page 9

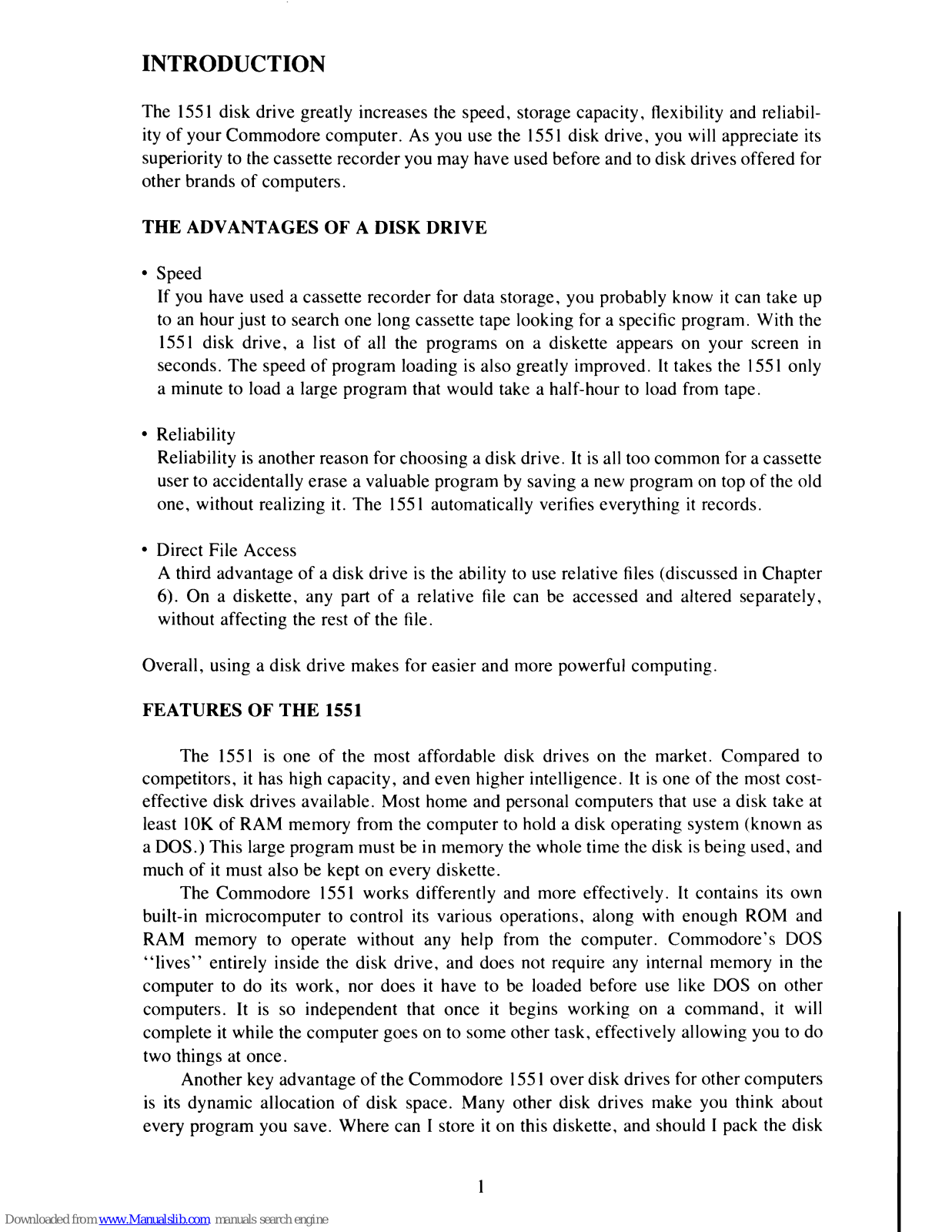

INTRODUCTION
The
1551
disk drive greatly increases the speed, storage capacity, flexibility and reliabil-
ity
of
your Commodore computer. As you use the
1551
disk drive, you will appreciate
its
superiority to the cassette recorder you may have used before and to disk drives offered for
other brands
of
computers.
THE ADV ANT AGES OF A DISK DRIVE
• Speed
If
you have used a cassette recorder for data storage, you probably know
it
can take
up
to
an hour just to search one long cassette tape looking for a specific program. With the
1551
disk drive, a list
of
all the programs on a diskette appears on your screen
in
seconds. The speed
of
program loading
is
also greatly improved.
It
takes the
1551
only
a minute to load a large program that would take a half-hour to load from tape.
• Reliability
Reliability
is
another reason for choosing a disk drive. It
is
all too common for a cassette
user to accidentally crase a valuable program
by
saving a new program on top
of
the old
one, without realizing it. The
1551
automatically verifies everything
it
records.
• Direct File Access
A third advantage
of
a disk drive
is
the ability to use relative files (discussed
in
Chapter
6). On a diskette, any part
of
a relative
file
can be accessed and altered separately,
without affecting the rest
of
the file.
Overall, using a disk drive makes for easier and more powerful computing.
FEATURES OF
THE
1551
The
1551
is
one
of
the most affordable disk drives on the market. Compared to
competitors, it has high capacity, and even higher intelligence.
It
is
one
of
the most co,t-
effective disk drives available. Most home and personal computers that use a disk take
at
least
10K
of
RAM memory from the computer to hold a disk operating system (known as
a DOS.) This large program must
be
in
memory the whole time the disk
is
being used, and
much
of
it
must also be kept on every diskette.
The Commodore
1551
works differently and more effectively. It contains its own
built-in microcomputer
to
control its various operations, along with enough ROM and
RAM memory to operate without any help from the computer. Commodore's DOS
"lives"
entirely inside the disk drive, and does not require any internal memory
in
the
computer
to
do its work, nor does it have to
be
loaded before
use
like DOS on other
computers.
It
is
so independent that once it begins working on a command,
it
will
complete it while the computer goes on to some other task, effectively allowing you to do
two things at once.
Another key advantage
of
the Commodore
1551
over disk drives for other computers
is
its dynamic allocation
of
disk space. Many other disk drives make you think about
every program you save. Where can I store
it
on this diskette, and should I paek the disk
Page 10

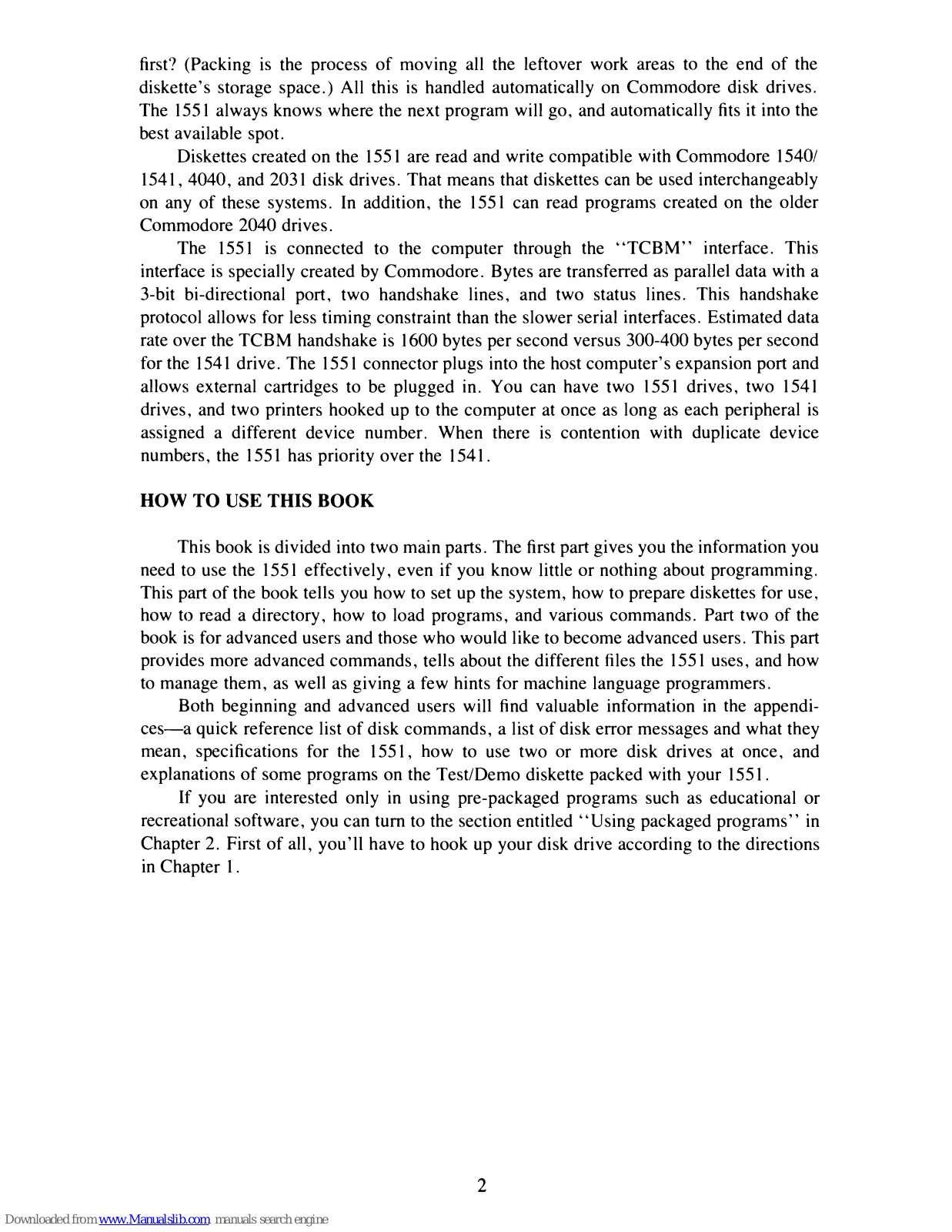

first? (Packing
is
the process
of
moving all the leftover work areas to the cnd
of
the
diskette's storage space.) All this
is
handled automatically on Commodore disk drives.
The
1551
always knows where the next program will go, and automatically fits
it
into the
best available spot.
Diskettes created on the
1551
are read and writc compatible with Commodore 1540/
1541,4040,
and 2031 disk drives. That means that diskcttes can
be
used interchangeably
on any
of
these systcms.
In
addition, the
1551
can read programs created on the older
Commodore 2040 drives.
The
1551
is
connected to the computer through the
"TCBM"
interface. This
interface
is
specially created
by
Commodore. Bytes are transferred
as
parallel data with a
3-bit bi-directional port, two handshake lines, and two status lines. This handshake
protocol allows for less timing constraint than the slower serial interfaces. Estimated data
rate over the TCBM handshake is 1600 bytes per second versus 300-400 bytes per second
for the
1541
drive. The
1551
connector plugs into the host computer's expansion port and
allows external cartridges to be plugged in. You can have two
1551
drives, two
1541
drives, and two printers hooked up to the computer at once as long as each peripheral
is
assigned a different device number. When there
is
contention with duplicate device
numbers, the
1551
has priority over the 1541.
HOW TO USE THIS BOOK
This book
is
divided into two main parts. The first part gives you the information you
need to use the
1551
effectively, even
if
you know little or nothing about programming.
This part
of
the book tells you how to set up the system, how to prepare diskettes for use,
how to read a directory, how
to
load programs, and various commands. Part two
of
the
book
is
for advanced users and those who would like to become advanced users. This part
provides more advanced commands, tells about the different files the
1551
uses, and how
to
manage them, as well as giving a few hints for machine language programmers.
Both beginning and advanced users will
find
valuable information
in
the appendi-
ces-a
quick reference list
of
disk commands, a list
of
disk error messages and what they
mean, specifications for the
ISS\,
how
to
use two or more disk drives at once, and
explanations
of
some programs on the Test/Demo diskette packed with your 1551.
If
you are interested only in using pre-packaged programs such as educational or
recreational software, you can turn
to
the section entitled
"Using
packaged programs"
in
Chapter 2. First
of
all, you'll have to hook up your disk drive according to the directions
in
Chapter
I.
2
Page 11
PART
1:
GUIDE TO OPERATION
UNPACKING
CHAPTER 1
DISK DRIVE
The first thing you will need to do with
your
disk drive is unpack it. Inside the carton
in
which you found this manual, there should also be: a
1551
disk drive, a gray
power
r
.-
--
---------
-
l5:
commodore
111I1I1I1I1II1II1I1II11I1I1I15~
-
~_Jl()
I
I
I
\
~~
l I
\
\
\'
"=-'
\
DOOR
LEVER
DRIVE
INDICATER
(RED
LED)
LIGHT
FLASH
POWER
INDICATER
(GREEN
LED)
LIGHT:
POWER
ON

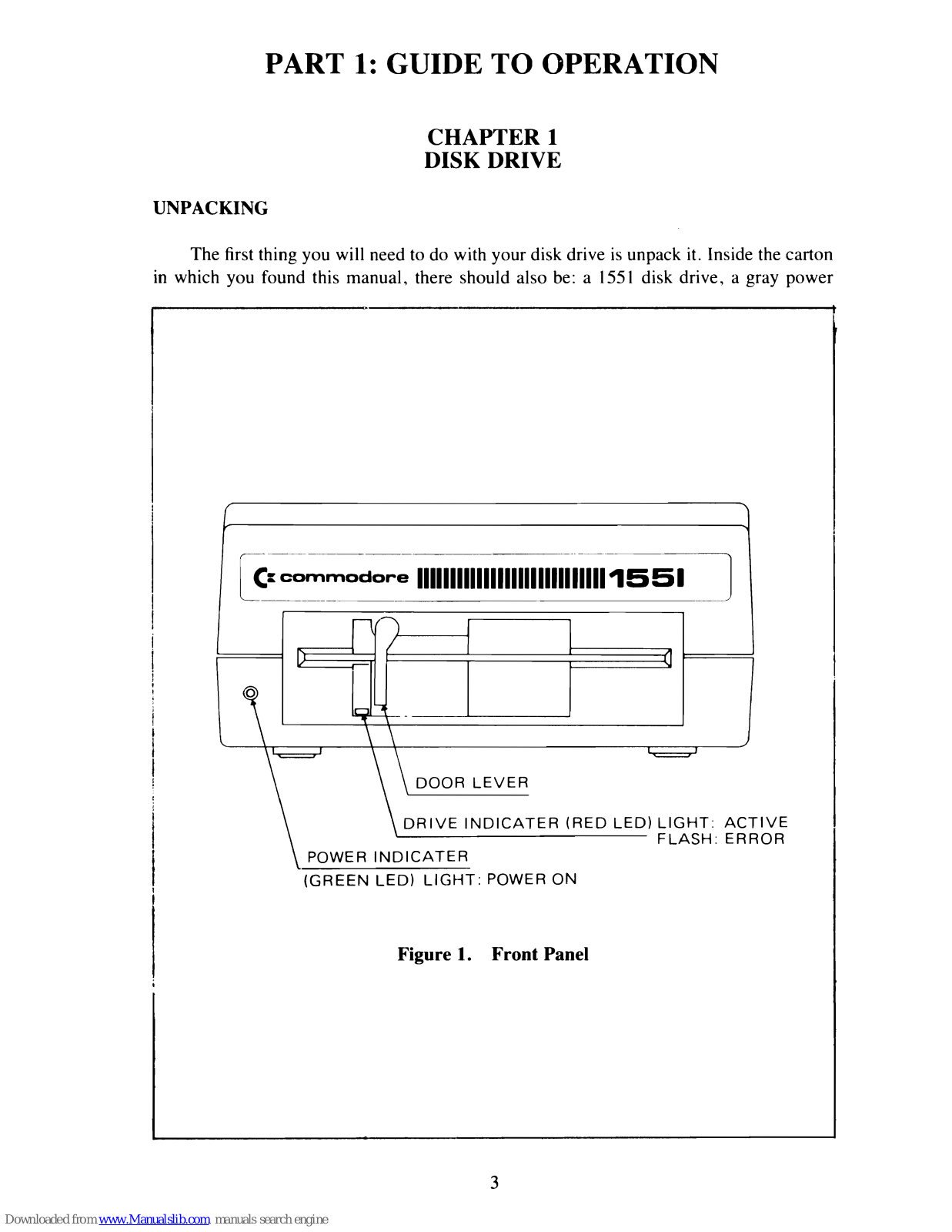

Figure 1. Front Panel
3
1
ACT
ERR
IVE
OR
Page 12
cord, and an interface cable with a connection for a memory expansion bus. The
connector can also
be
hooked
up
to another
1551
and a cartridge. Also included
is
a Test/
Demo diskette and a warranty card to
be
filled out and returned
to
Commodore.
Please don't connect anything until you've read the next three pages.
It
could save
you a lot
of
trouble.
After unpacking the unit, make sure nothing
is
inside the disk drive. If you turn
the
power
off
or on with a diskette in the drive, you could lose its contents.
To check whether the drive
is
empty, simply rotate the lever on the front of the disk
drive counter-clockwise until it stops (see Figure 1), one-quarter tum at most. Then reach
inside the long slot the lever covers when
it
points down, and pull out the cardboard
shipping spacer inside. Don't throw it away. You will want to put
it
back inside the slot
any time you move or ship the disk drive later.
CONNECTING THE CABLES
The power cable plugs into the back of the disk drive
at
one end, and into a grounded
(3-prong) outlet at the other end.
It
will only go
in
one way. Before you plug
it
in
though,
make sure that your entire computer system
is
turned off. The disk drive's on/off switch
is
in
the back,
on
the left side (see Figure 2). It
is
off
when the portion marked
"off'
is
pushed inward. Leave your whole system off until everything
is
connected.
After plugging the power cord into the disk drive and a suitable outlet, take the
interface connector and insert
it
into the Memory Expansion slot of your computer. That's
all there
is
to
it
(see Figure 3).
If you have another
1551
disk drive, plug that interface connector into the slot
in
the
first interface connector. Don't try to use more than one disk drive until you've learned
how to change their device numbers,
as
no
two disk drives can have the same device
number. We'll cover ways
of
changing disk device numbers
in
Appendix
A.
Until you are
ready
to
read that section, you may find it easier to leave your extra drive(s) unconnected
(see Figure 4).
POWER SWITCH
FUSE/HOLDER
Figure 2.
Back
Panel
4
Page 13
Single Drive
Multiple Drive
Figure 3. Disk Drive to
Computer
Hookup
TURNING ON
THE
POWER
With everything hooked up, and the disk drive empty,
it
is
time to turn on the power.
You can turn on the power to the drive and any other devices that may be connected
in
any
order you like. Just
be
sure
to
either turn on the power to the computer itself last, or to use
a multiple outlet power box with a master switch to turn everything off and on at once.
When everything
is
on, including the computer, the disk drive will go through a self check
for a second
or
so,
to
be sure it
is
working correctly. After the drive is satisfied with its
own health, it will flash the red light below the drive door once, and the green power-on
light to the left
of
the drive door will glow continuously. At the same time, the computcr
will be going through a similar self-test, and displaying
its
hello message on your TV or
video monitor. Once the red light on the disk drive has flashed and gone out, it
is
safe to
begin working with the drive.
If
the light doesn't go out, but continues to flash, you may
have a problem. Refer to the troubleshooting guide for help.
5
Page 14
TROUBLESHOOTING GUIDE
Symptom
Green indicator light
on the
1551
not on
Cause
Disk drive not
turned on
Power cable not
plugged
in
Power
off
to
wall outlet
Bad fuse
in
disk drive
Remedy
Make sure power switch
is
in
the
"on"
position
Check both ends
of
power
cable to be sure they
are fully inserted
Replace fuse or reset
circuit breaker
in
house
Replace fuse (located
on back panel,
as
shown
in
Figure
2)
with one
of
same size and rating
(If any fuse fails twice, added help
is
needed. If the house fuse failed, you may need an electrician. If
the drive fuse failed, call your dealer.)
Red error light The disk drive
is
on drive flashes failing its power-on
continously on self-test
power-up, before
any disk commands
have been given
Tum the system off for
a minute and try again.
If
it
repeats, try again
with the interface cable
disconnected. If
it
still repeats, call your
dealer. If unplugging
the interface cable made a
difference. check the
cable for proper
connection.
(The principle behind unplugging the interface cable
is
"divide and conquer." The drive can do its
power-on test even when not connected
to
a computer. If
it
succeeds that way, then the problem
is
probably
in
the cable or the rest
of
the system. not the 1551.)
Programs won't load, and
computer says
"DEVICE
NOT PRESENT
ERROR."
Programs won't load, but
computer and disk drive
give no error message.
Interface connector
not well connected, or
disk not turned on.
Another device in the
memory expansion slot
may be interfering.
Be
sure interface connector
is
correctly inserted
and disk drive
is
turned
on
Unplug all other devices
on
the computer. If
that cures it. plug them
in
one at a time. The
one just added when the
trouble repeats is most
likely the problem.
Also, trying to load a
machine language program
into BASIC space will
cause this problem.
(Such devices may not be turned on properly, or may have conflicting device numbers. Only one
device on the cable can have
anyone
device number.)
6
Page 15
TROUBLESHOOTING GUIDE
Symptom
Programs won't load,
and disk error light
flashes.
Cause
A disk error has
occurred.
Remedy
Check the disk error
channel
to
see why the
error occurred. Follow
the advice
in
Appendix B
to
correct
it.
(Be sure
to
spell program names exactly right,
as
the disk drive
is
very particular. even about spaces
and punctuation marks, and will not load a program unless you call
it
exactly the same thing
it
was
called when
it
was saved on the diskette.)
Your own programs Load
fine, but commercial
programs and those
from other
1551
owners
fail
to
load.
Your own programs that
used
to
Load won't
any more, but programs
saved on newly-formatted
diskettes still work.
Either the diskette you
are loading is faulty,
(some mass-produced
diskettes are) or your
disk drive is misaligned.
Older diskettes have
been damaged.
The disk drive has gone
out of alignment.
SIMPLE MAINTENANCE TIPS
Try another copy of
the
troublesome programs. If
several programs from
several sources
al
ways
fail
to
load, have your
dealer align your
disk drive.
See the section on safety
rules for diskette care.
Recopy from backups.
Have your dealer align
your disk drive.
Your
1551
should serve you well for years to come, but there are a
few
things you
can do to avoid costly maintenance.
1.
Keep the drive well-ventilated. Like a refrigerator, it needs a
few
inches
of
air
circulation on all sides to work properly. If heat can't be avoided any other way, you
may
cool the drive
by
placing a small filtered fan on the drive so its air blows into the cooling
slots. (An inexpensive air freshener
is
quite suitable for this.) However, the added air
flow
will result
in
more dirt getting in the drive.
2.
Use only good quality diskettes. Badly-made diskettes could cause increased wear on
the drive's read/write head. If a particular diskette
is
unusually noisy
in
use, it
is
probably
causing added wear, and should
be
replaced.
3. Avoid using programs that
"thump"
the drive
as
they load. Many commercial
programs, and diskettes that are failing, cause the disk drive to make a bumping or
chattering noise as it attempts to read a bad sector. If the diskette can be copied to a fresh
diskette, do so immediately. If it
is
protected
by
its maker against copying,
the
thumping
is
intentional and will have to be endured.
4. It would be a good idea to have your
1551
checked over about once a year in normal
use. Several items are likely to need attention: the felt load pad on the read/write head may
7
Page 16
be
dirty enough
to
need replacement, the head itself may need a bit
of
cleaning (with
91
%
isopropyl alcohol on a cotton swab), the rails along which the head moves may need
lubrication (with a special Molybdenum lubricant, NOT oil), and the write protect sensor
may need to
be
dusted to
be
sure its optical sensor has a clear view. Since most
of
these
chores require special materials or parts,
it
is
best to leave the work to
an
authorized
Commodore service center. If you wish to do the work yourself, ask your dealer to order
the
1551
maintenance guide for you (part number 990445), but be aware that home repair
of the
1551
will void your warranty.
8
Page 17
WHAT IS A DISKETTE?
CHAPTER 2
DISKETTES
Before
we
actually begin using the drive, let's take a moment to look at the
Test/Demo diskette packed with the disk drive. To do this, grasp it
by
the label, which
should
be
sticking out
of
the paper jacket. Then pull it out
of
the jacket which keeps it free
of
dust and other contaminants. (Save the jacket; the diskette should always
be
kept in its
jacket except when actually
in
use in the disk drive.) It
is
often called a floppy diskette,
because
it
is
flexible, but do not bend it.
A diskette is much like a cassette tape, but in the form
of
a circle and enclosed within
a protective square plastic cover.
As
on a cassette tape, only a small exposed portion
of
the magnetic recording surface is sensitive. Avoid touching the few small portions that are
not covered
by
the protective cover. Also, never try to remove this cover. Unlike the
paper jacket, the plastic diskette cover
is
intended to remain on permanently.
Next, notice the notch on one side
of
the diskette (it may
be
covered
by
a piece
of
tape). This notch
is
called the write-protect notch. When it is covered with the opaque tape
packed with blank diskettes, the disk drive cannot change the contents
of
that diskette.
Never remove the tape on the Test/Demo diskette.
At
least two other parts
of
the diskette are worth mentioning: The hub and the access
slot. The hole
in
the center
is
called the hub, A cone-shaped spindle fills it when the drive
door
is
closed, and its edges are clamped. This keeps them from slipping, when the
diskette spins
at
300 RPM
in
use.
The oval opening in the diskette opposite the label
is
called the access slot.
It
exposes
just enough
of
the diskette's surface for the read/write head and load pad inside the drive
to touch a one inch long line from the center to the edge
of
the diskette's working surface.
The bottom side
of
that slot
is
where all the information
is
written
as
the diskette spins.
To insert a diskette. first open the drive door
by
rotating the door lever counter-
clockwise one quarter
tum
until
it
stops, with the lever level with the slot
in
the front
of
the drive.
WRITE
PROTECT
NOTCH
WHEN COVEREO,
DISKETTE
CONTENTS
CANNOT
BE
AL
TERED
Figure 4. Position for Diskette Insertion
9
Z
en
m
:ll
-4
Z
-4
o
o
:ll
c::J
<
C==:J
m
=
Page 18
Grasp the diskette by the side opposite the large oval access slot, and hold it with the
label up and the write-protect notch to the left (See Figure 4). Now insert the diskette
by
pushing it straight into the slot, the access slot going in
first
and the label last. Be sure the
diskette goes
in
until
it
stops naturally, with
no
part showing outside the drive, but you
shouldn't have to force
or
bend it to get
it
there.
With the diskette
in
position, seat
it
properly for use
by
twisting the door lever
clockwise one-quarter turn. vertically over the slot until
it
stops.
If
it
does not move
easily, stop' You may have put the diskette
in
the wrong way,
or
incompletely. If that
happens, reposition the diskette until the door lever cluses easily.
SAFETY RULES FOR DISKETTE CARE
I
..
Keep the disk drive and its diskettes away from all moisture, dust, smoke, food, and
magnets (including the electromagnets in telephones and TV's). Also keep them away
from temperatures either too hot or too cold for you
to
work
in
for extended periods.
2.
When not in the drive, diskettes should be stored upright inside their paper jackets. Do
not allow them to become bent or folded. Since the working part
of
the diskette
is
on
the bottom, never set
it
down on a table top or other place where dust
or
moisture
might affect it, and
be
especially careful to keep your fingers away from the openings
in the diskette cover.
3. Although some people sell kits intended to "double your diskette's capacity" by
cutting
an
extra write-protect notch into a diskette,
it
is
best not to use the other side
of
the diskette on the
1551
drive, even if your diskette
is
labeled "double-sided." Doing
so will cause added wear
to
your diskettes and drive, and may cost you an important
program some day.
4. When buying diskettes, you may use any good quality
5'/4 inch diskette.
5. Although the hub assembly will correctly center most any diskette, it would
be
very
difficult to rescue data from a diskette recorded with its hub off-center. You can make
it
easier for the drive to center a diskette on the spindle
by
buying diskettes that come
with reinforced hubs. These hard plastic rings around the hub opening make the
diskette hub more rigid, and easier to center properly.
6. Always remove diskettes before turning a drive off or on.
If
a diskette is in place and
the door closed at power on
or
off, you could lose part or all
of
the data on that
diskette.
7. Similarly, do not remove a diskette from its drive when the red drive activity light
is
on. That light only glows when the drive is actually
in
use. Removing the diskette with
it on may result
in
your losing information currently being written to the diskette.
USING PACKAGED PROGRAMS
To use prepackaged BASIC programs available on diskette, here
is
the procedure:
After turning on your computer system, carefully insert the preprogrammed diskette
as
described previously. For purpose
of
demonstration, use the Test/Demo diskette
included with the disk drive. The following command will load a program from the
diskette into the computer:
10
Page 19

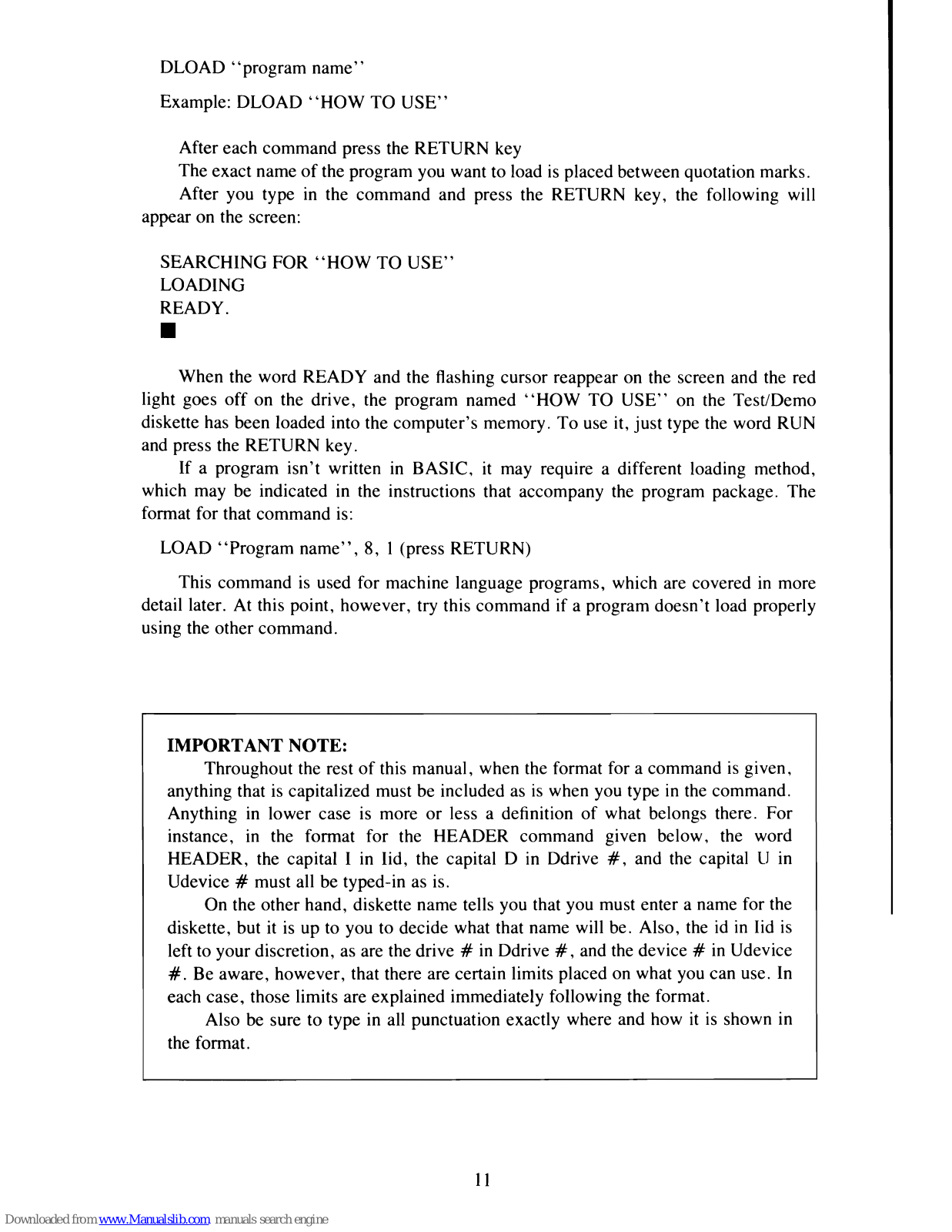

DLOAD "program name"
Example: DLOAD
"HOW
TO
USE"
After each command press the RETURN key
The exact name
of
the program you want to load
is
placed between quotation marks.
After you type
in
the command and press the RETURN key, the following will
appear on the screen:
SEARCHING FOR
"HOW
TO
USE"
LOADING
READY .
•
When the word READY and the flashing cursor reappear on the screen and the red
light goes off on the drive, the program named
"HOW
TO
USE"
on
the Test/Demo
diskette
has
been loaded into the computer's memory. To use it, just type the word RUN
and press the RETURN key.
If a program isn't written
in
BASIC,
it
may require a different loading method,
which may be indicated
in
the instructions that accompany the program package. The
format for that command
is:
LOAD "Program
name",
8, 1 (press RETURN)
This command
is
used for machine language programs, which are covered
in
more
detail later.
At
this point, however, try this command if a program doesn't load properly
using the other command.
IMPORTANT NOTE:
Throughout the rest
of
this manual, when the format for a command
is
given,
anything that
is
capitalized must be included
as
is
when you type
in
the command.
Anything
in
lower case
is
more or less a definition
of
what belongs there. For
instance,
in
the format for the HEADER command given below, the word
HEADER, the capital I
in
lid, the capital D
in
Ddrive
#,
and the capital U in
Udevice
# must all be typed-in as is.
On the other hand, diskette name tells you that you must enter a name for the
diskette, but it
is
up
to
you to decide what that name will be. Also, the
id in
lid
is
left to your discretion, as are the drive #
in
Ddrive
#,
and
the
device #
in
Udevice
#.
Be aware, however, that there are certain limits placed on what you can use.
In
each case, those limits are explained immediately following the format.
Also be sure to type in all punctuation exactly where and how
it
is
shown in
the
format.
11
Page 20
HOW TO PREPARE A NEW DISKETTE
A diskette needs a pattern
of
magnetic grooves in order for the drive's read/write
head to
find
things on it. This pattern
is
not on your diskettes when you buy them, but you
can use the HEADER command to add it to a diskette. Here
is
the procedure:
FORMAT FOR THE HEADER COMMAND
HEADER "diskette
name"
,Iid,Ddrive
#,Udevice
#
Where:
"diskette
name"
is
any desired name for the diskette, up to
16
characters long (including
spaces);
"id"
can
be
any two characters
as
long
as
they don't form a BASIC keyword
(such
as
IF or ON) either on their own or with the capital I before them;
"drive
#"
is
0
(the
1551
assumes 0 even
if
you
don't
type it in); "device #
is
8, unless you have changed
it
as
per instructions
in
Appendix A (the
1551
assumes 8 even even
if
you
don't
type
it
in).
Note to Advanced Users:
The
"id"
cannot be a variable. For example,
"A$"
can
be
used, but the id would
be the letter
"A"
and the dollar sign, not the contents
of
the variable. If you need a
variable id, use the following command:
OPENI5,8,15:PRINT#15,
"NO:MY
DISK,"
+ A$:CLOSEIS
where A$
is
a two character string variable.
The chattering or thumping noise you hear just after the HEADER command begins
is
entirely normal. The drive must be sure it
is
at track I, which it assures
by
stepping
outward
4S
times (on a
35
track diskette). The noise you hear
is
the head assembly hitting
the track 1 bumper after its inevitable arrival.
After you have once formatted a particular diskette, you can re-format
it
at
any time,
using the above procedures. However, you can also change its name and erase its
programs more quickly and easily
by
omitting the ID number
in
your format command.
By leaving off the lD number, the format command will finish
in
a few seconds instead
of
the usual 90 seconds.
ORGANIZING A DISKETTE LIBRARY
Though you may not believe it now, you will eventually have dozens, if not hundreds
of
diskettes. You can ease life then by planning now. Assign each diskette a unique
lD
number when you format it. There are diskette cataloging programs you can buy, that
store and alphabetize a list
of
all your
file
names, but are
of
limited value unless your
diskette ID numbers are unique.
At
least two valid approaches are used in assigning ID numbers. One starts at 00 with
the first diskette, and continues upward with each new diskette, through 99, and then
12
Page 21
onward from AA through ZZ. Another organizes diskettes within small categories, and
starts the ID number for each diskette
in
that category with the same first character, going
from 0 to 9 and A to Z with the second character
as
before. Thus, all
"Tax"
diskettes
could have
10
numbers that begin with
"T."
Either approach works well when followed
diligently.
While on this subject, may
we
suggest you choose names for diskettes on the same
basis, so they too will be unique, and descriptive
of
the files on them.
BACKUPS
When to do a Backup
Although the
1551
is
far more reliable than a cassettc drive under most circumstances, its diskettes arc still rclatively fragile, and have a useful life of only a few years in
steady use. Therefore,
it
is
important to make regular backups
of
important programs and
files. Make a backup whencver you wouldn't want to redo your current work. Just
as
you
should save your work every half hour or so when writing a new program, so you should
also back up the diskette you're using at least daily while you are changing
it
frequently.
In
a business, you would make an archival backup every time important information was
due
to
be
erased, such as when a new accounting period begins.
How to
do
a Backup
We have included a program on the Test/Demo diskette that can be used for similar
purposes. This program is described further
in
Appendix
E.
How
to Rotate Backups
Once you begin to accumulate backups, you'll want
to
recycle older ones. One good
method
is
to date each backup. Then retain all backups until the current project
is
finished.
When you are sure the last backup
is
correct, make another backup
of
it
to file, and move
all older backups
to
a box
of
diskettes that may
be
reused.
One other popular approach, suited to projects that never end,
is
to
rotate backups
in
a chain, wherein there are son backups, father backups, and grandfather backups. Then,
when another backup is needed, the grandfather diskette is reused, the father becomes the
grandfather, and the son becomes the father.
Whichever approach is used, it
is
recommended that the newly-made backup becomc
the diskette that is immediately used, and the diskette that
is
known to be good should bc
filed away as the backup. That way, if the backup fails, you'll know
it
immediately, rather
than after all the other backups have failed some dark day.
WHAT IS A DIRECTORY?
One
of
the primary advantages
of
a disk drive is that
it
can, with nearly equal ease
and speed, access any part of a diskette's surface, and jump quickly from one spot to
another. A OAT ASSETTE '", on the other hand, usually reads a cassette
file
from the
beginning to the end, without skipping around. To see what's on a cassette,
it
is
necessary
to
look at its entire length, which could take
as
long as an hour. On a disk drive, by way
of
contrast, it is a quick and simple matter
to
view a list
of
the programs and data files on a
diskette. This list is called the directory.
13
Page 22
VIEWING THE DIRECTORY
To view the directory, simply type the word DIRECTORY on a blank line, and press
the RETURN key. This does not erase anything already
in
BASIC memory,
so
you can
safely ask for a directory at almost any time, even from within another program.
You may slow a directory listing
by
holding down the COMMODORE key
(C
=),
or
halt it entirely by pressing the STOP key. You may also pause
it
with CONTROL-S (by
holding down the CONTROL key while pressing the
"S"
key), and resume
by
pressing
any other key.
WHAT A DIRECTORY SHOWS
Let's look at a typical directory on the Test/Demo diskette packed with your
1551
disk drive.
READY.
0
14
-HOW
TO
USE"
PRG
12
-HOW
PART
2-
PRG
12
-HOW
PART
3-
PRG
4
-VIC-20
WEDGE"
PRG
-C-S4
WEDGE-
PRG
4
-DOS
~.l-
PRG
9
-PRINTER TEST"
PRG
IMPORT
ANT
NOTE:
4
-DISK
ADDR
CHAt-«iE"
PRG
Your Test/Demo diskette
S
-V
lEW
BAM-
PRG
may
contain
additional
4
-CHECK
DISK-
PRG
programs.
Commodore
may
update
the
diskette
14
-DISPL.AY, T&S"
PRG
from
time to time.
9
-PERFORMANCE TEST"
PRG
~
-SEQ.FIL.E.DEMO-
PRG
7
-SO.BACKUP.C1S"
PRG
7
-SO.BACKUP.PL.US4"
PRG
10
-SO.BACKUP.CS4-
PRG
7
-PRINT.S4.UTIL-
PRG
7
-PRINT.C1S.UTIL"
PRG
7
-PRINT.+4.UTIL-
PRG
30
-CS4
BASIC
DEMO"
PRG
3~
-+4
BASIC
DEMO-
PRG
B
-LOAD ADDRESS-
PRG
7
-UNSCRATCH •
PRG
~
-HEADER CHAt-I3E-
PRG
10
"REL.FILE.DEMO·
PRG
426
BLOCKS
FREE.
14
Page 23

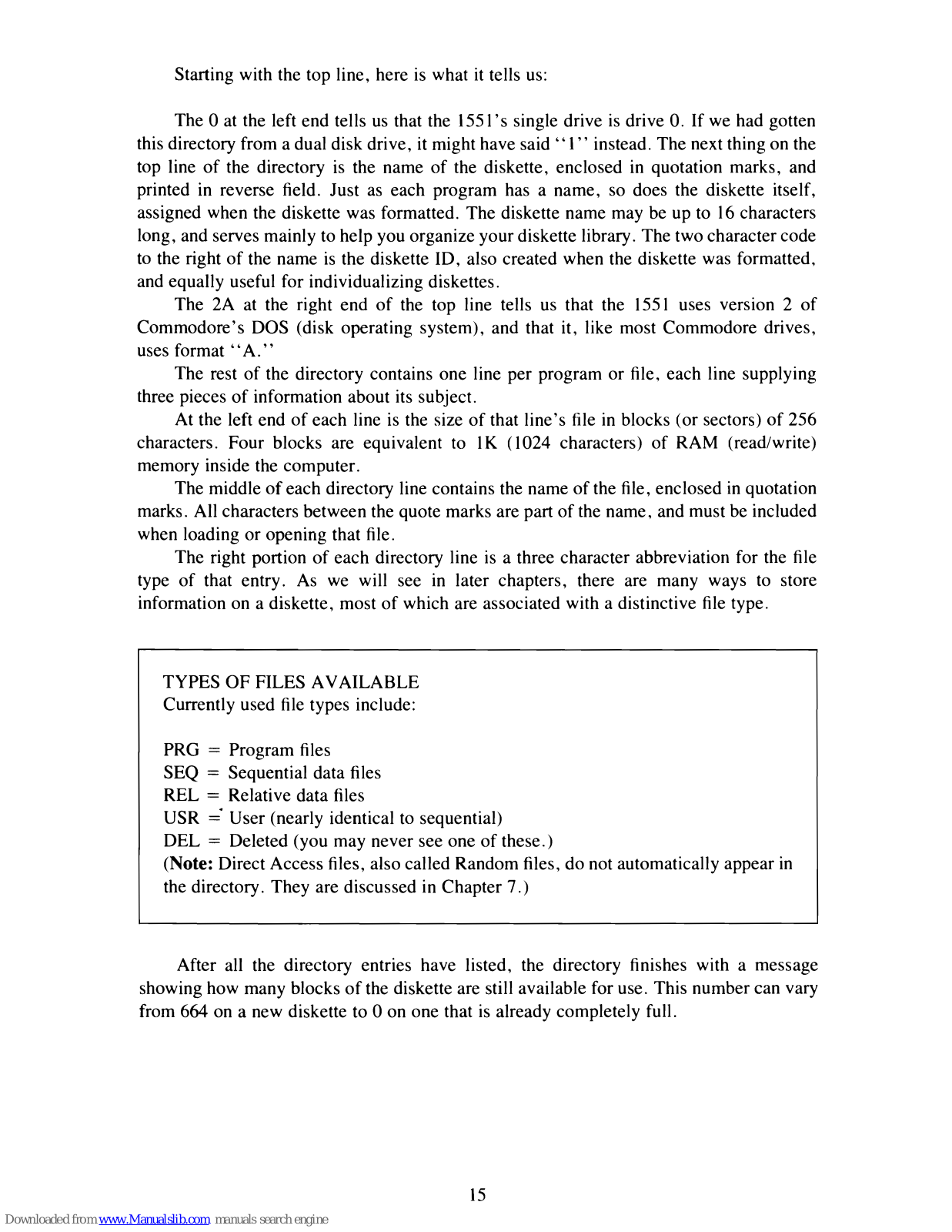

Starting with the top line, here
is
what it tells
us:
The 0 at the left end tells
us
that the 1551's single drive
is
drive
O.
If we had gotten
this directory from a dual disk drive, it might have
said"
I"
instead. The next thing on the
top line
of
the directory is the name of the diskette, enclosed
in
quotation marks, and
printed
in
reverse field. Just
as
each program has a name, so does the diskette itself,
assigned when the diskette was formatted. The diskette name may be up to
16
characters
long, and serves mainly to help you organize your diskette library. The two character code
to the right
of
the name
is
the diskette ID, also created when the diskette was formatted,
and equally useful for individualizing diskettes.
The 2A
at
the right end
of
the top line tells
us
that the
1551
uses version 2
of
Commodore's DOS (disk operating system), and that it, like most Commodore drives,
uses format
"A."
The rest
of
the directory contains one line per program or file, each line supplying
three pieces
of
information about its subject.
At the left end
of
each line is the size
of
that line's file
in
blocks (or sectors)
of
256
characters. Four blocks are equivalent to I K (1024 characters) of RAM (read/write)
memory inside the computer.
The middle
of
each directory line contains the name
of
the
fi
Ie, enclosed
in
quotation
marks. All characters between the quote marks are part
of
the
name, and must be included
when loading or opening that file.
The right portion
of
each directory line
is
a three character abbreviation for the file
type
of
that entry.
As
we
will see
in
later chapters, there are many ways to store
information on a diskette, most
of
which are associated with a distinctive
file
type.
TYPES OF FILES A V AILABLE
Currently used
file
types include:
PRG
= Program files
SEQ
= Sequential data files
REL
= Relative data files
USR
='
User (nearly identical
to
sequential)
DEL
= Deleted (you may never sec one
of
these.)
(Note: Direct Access files, also called Random files, do not automatically appear
in
the directory. They are discussed in Chapter
7.)
After all the directory entries have listed, the directory finishes with a message
showing how many blocks
of
the diskette are still available for use. This number can vary
from 664 on a new diskette to 0 on one that
is
already completely full.
15
Page 24
CHAPTER 3
OPERATION
THE COMMAND CHANNEL
You can send most commands to the
1551
in
two ways. One way
is
with direct, one-line
commands. The alternate way
is
by sending command data to the drive through something
called the command channel. We will list both methods for each command.
As you will see
in
the pages that follow, the first method
is
simpler and selfexplanatory, but the command channel needs some explanation because you must combine BASIC and disk commands. The first step
is
to
open the channel using the BASIC
open statement. The usual form
of
this statement
is:
OPENI5,8,15
The first
15
is a file number, and although it could be any number from I
to
255, for
our purposes now we'll use 15. That
is
because
it
is
used to match the secondary address
of
15, which
is
the address
of
the command channel. The middle number is the primary
address, better known as the device number, and
is
normally 8, unless you change
it
according to instructions in Appendix A.
Once the command channel has been opened, use the
PRINT#
command to send
information
to
thc disk drive, and
INPUT#
command
to
receive information back from
the disk drive. Once you have finished using the command channel, you must close
it
like
this:
CLOSEI5
The following examples illustrate the use
of
the command channel to NEW an
unformatted disk (this is the equivalent
of
the HEADER command described in the last
chapter):
OPENI5,8,15
PRINT#15,
"NEW:diskname,id"
CLOSE15
You can combine the first two statements and abbreviate the NEW command like this:
OPEN 15,8, 15,
"N:diskname,id"
CLOSEI5
If
the command channel
is
already open, you must use the following format (trying
to
open a channel that
is
already open, results
in a "FILE
OPEN"
error):
PRINT#
15,' 'N:diskname,id"
16
Page 25
ERROR CHECKING
If
the disk drive error light is flashing, you must check the drive
to
find out what the
problem is. To do that, simply type:
PRINT DS$
or
abbreviate it to
? DS$
The current disk error message
is
then displayed on the screen. A message
is
displayed whether there
is
an
error
or
not, but if there was an error, printing its message
clears it from the disk memory and turns off the error light on the disk drive.
Once the message
is
on the screen, you can look
it
up
in
Appendix B to see what
it
means, and what
to
do about it.
ERROR CHECK SUBROUTINE
Since those
of
you who are writing programs should be checking the error status after
each disk command, you may want to include a small subroutine in each program to take
care
of
the error channel:
59990 REM READ ERROR CHANNEL
60000 IF
OS>
19
THEN PRINT DS$:STOP
60010 RETURN
This subroutine reads thc error channel and puts the n:sults into the reserved variables
DS
and DS$. They are updated automatically by BASIC. Two error numbers are
harmless: 0 means everything is OK, and I tells how many files were erased by a
SCRATCH command (described later
in
this chapter).
If
the error status
is
anything else,
line 60000 prints the error message and halts the program. After you have repaired the
damage, you may then continue the program with BASIC's CONT command.
Because this is a subroutine, you access
it
with the BASIC's GOSUB command,
either
in
immediate mode
or
from a program. (For example,
"200
GOSUB
59990".)
The
RETURN statement in line 60010 will jump back to immediate mode or the next
statement in your program, whichever
is
appropriate.
BASIC HOUSEKEEPING HINTS
Hint
#1:
It
is
best
to
open
file
15
once at the very start
of
a program. and only close it
at
the end
of
the program. after all other files have already been closed.
00
this because
closing the command channel automatically closes all other disk files.
By
opening once
at
the start, the file
is
open whenever needed for disk commands elsewhere
in
the program.
Closing
it
at the end makes sure all disk files are properly closed without interrupting any
other file commands.
I7
Page 26
Hint
#2:
If
BASIC halts with an error when you have files open, BASIC aborts them
without closing them properly on the disk. To close them properly on the disk, you must
type:
CLOSEI5:0PENI5,8,15:CLOSEI5
This opens the command channel and immediately closes it, along with all other disk
files. Failure to close a disk file properly both in BASIC and on the disk may result
in
losing the entire file.
HINT
#3:
One disk error message is not always an error. Error 73,
"CBM
DOS v2.6
TDISK",O will appear
if
you read the disk error channel before sending any disk
commands when you tum on your computer. This is a handy way to check which version
of
DOS you are using. However,
if
this message appears later, after other disk commands,
it
means there
is
a mismatch between the DOS used to format your diskette and the DOS
in
your drive.
HINT
#4:
To reset drive, type:
OPEN15,S, 15,
"UJ"
Then wait until the drive activity LED
is
off
and motor goes off, then type:
CLOSE15.
This also applies
to
sending a UI + or a
UI
-
MORE
ABOUT DIRECTORIES
We discussed the basic elements
of
directories
in
the last chapter. Here
we
provide
more detailed information that you can use to manipulate a directory.
As noted in the last chapter, the direct command for displaying a directory is
DIRECTORY.
The alternate command for that is:
LOAD'
'$"
,device#
LIST
The direct command displays the directory without disturbing anything
in
the
computer's memory.
It
also displays
it
from within a program when you include the
command in the program. The alternate method, however, over-writes anything
in
memory. Another way to examine the directory from within a BASIC program
is
described in Chapter 5, the section dealing with the
GET#
statement.
18
Page 27
SELECTIVE DIRECTORIES
By altering our directory LOAD command, you can create a kind
of'
'sub-directory"
that lists a single selected type
of
file. For example, you could request a list
of
all
sequential data files (see Chapter 5), one
of
all the relative data files (see Chapter 6),
or
one
of
only program files. The general format for this command is:
LOAD"$O:fn
= filetype"
where
fn
is a pattern that specifies a particular group
of
files, and filetype
is
the one-letter
abbreviation for the types
of
files listed below:
P
= Program
S = Sequential
R
= Relative
U
= User
D
= Deleted
A
= Append
M
= Modify
For instance, LOAD"$O:R
* =
S"
displays a sub-directory consisting
of
all sequen-
tial files that start with the letter R (the asterisk
(*)
is explained
in
the section
"Pattern
matching and wild cards
").
The command
LOAD'
'$0:* =
R"
displays all relative files.
PRINTING A DIRECTORY
To
get a printout
of
a directory, type the following:
LOAD"$"
,8
OPEN4,4:CMD4:LlST
PRINT#4:CLOSE4
Type
it
in immediate mode to avoid disturbing the directory.
This command assumes a printer
device#
of
4.
All other options, such as differing device numbers, and selective directories can also
be
specified as usual.
PATTERN MATCHING AND WILD CARDS
You can use special pattern matching characters to load a program from a partial
name or to provide the selective directories described earlier.
The two characters used in pattern matching are the asterisk
(*)
and the question
mark
('1). They act something like a wild card
in
a game
of
cards, standing for anything.
The difference between the two
is
that the asterisk makes all characters
in
and beyond its
19
Page 28
position wild, while the question mark only makes its own character position wild. Here
are some examples, and their results:
DLOAD"A*"
loads the first
file
on
disk that begins with an
"A",
regardless
of
what follows.
"ARTIST",
"ARTERY",
and
"AZURE"
would all qualify, but
"BARRY"
wouldn't, even though it has
an
"A"
elsewhere
in
its name.
DLOAD"SM?TH"
loads the first program that starts with
"SM",
ends with
"TH",
with one other character between. That loads
"SMITH"
or
"SMYTH",
but not
"SMYTHE"
.
DIRECTORY"Q*"
will load a directory
of
files whose names begin with
"Q".
When an asterisk
is
used alone
as
a name,
it
matches the last
file
used. [f none have
been used yet on the current diskette since turning on the drive, using the asterisk alone
loads the first program on the diskette.
You can use the pattern matching characters
in
any disk command that includes a
pattern. This applies to LOAD, DLOAD, DIRECTORY, OPEN, SCRATCH, and to the
source file in
the
OPEN and RENAME commands (these commands are described later in
this chapter). More than one
"?"
can appear in the same pattern.
If
you use the asterisk
or
question mark
in
pattern matching, you
can't
use them
in
a
tile name when saving or writing a
file
(described later).
SPLA T
F'ILl£S
One indicator you
may
occasionally notice on a directory line, after you begin saving
programs and files,
is
an
asterisk appearing just before the
file
type
of a file
that is 0
blocks long. This indicates the
file
was not properly closed after
it
was created, and that
it
should not be relied upon. These
"splat"
files (as they are called
in
England) will
normally need to be erased from the diskette and rewritten. However, do not use the
SCRATCH command
to
get rid
of
them. They can only be safely erased by the Y ALI-
DATE and COLLECT commands (these commands are described later
in
this chapter).
One
of
these should normally
be
used whenever a splat
file
is
noticed
on
a diskette.
There are two exceptions
to
the above warning: one
is
that Y ALI DATE and
COLLECT cannot be used on some diskettes that include direct access (random) files
(described in Chapter 7), and the other
is
that if the information
in
the splat
file
was crucial
and
can't
be
replaced, there
is
a way to rescue whatever part
of
the
file
was properly
written (this
is
described later
in
this chapter).
SAVE
This command will save something you've written
so
you can reuse it. Before you
can save
it
to a diskette though, the diskette must be formatted, as described in the last
chapter.
FORMAT FOR THE SA YE COMMAND
DSA YE "file
name"
where "file
name"
is
any string expression
of
up to
16
characters.
20

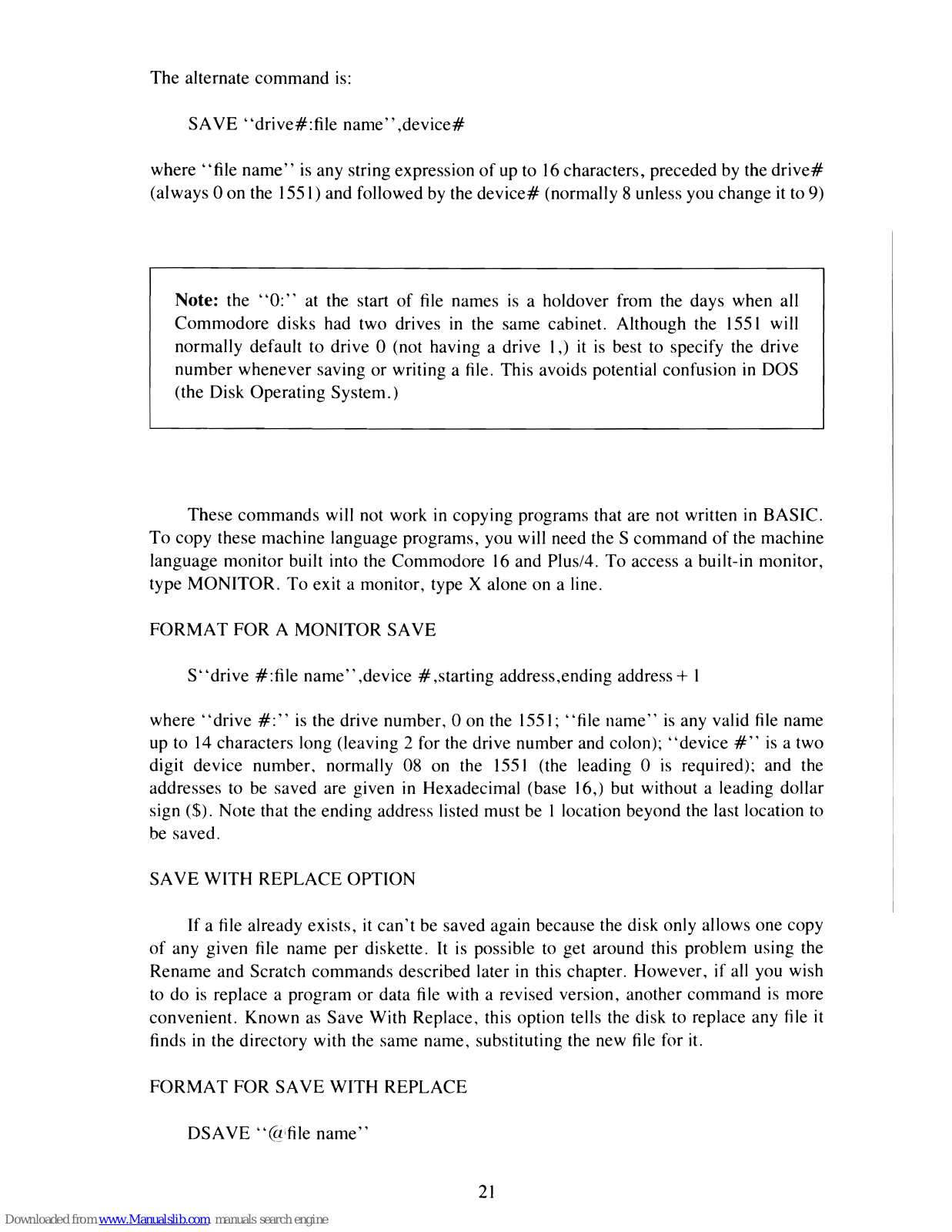

Page 29
The
alternate
command
is:
SA
VE
"drive#:file
name"
,device#
where
"file
name"
is
any string expression
of
up to
16
characters, preceded by the
drive#
(always 0
on
the 1551) and followed by the
device#
(normally 8 unless you change it to 9)
Note:
the
"0:"
at the start
of
tile names
is
a holdover from the days when all
Commodore
disks
had
two drives in the same cabinet. Although the 1551 will
normally default to drive 0 (not having a drive
I,)
it is best to specify the drive
number
whenever saving
or
writing a file. This avoids potential confusion in
DOS
(the Disk Operating
System.)
These
commands
will not work in copying programs that are not written
in
BAS[C.
To
copy these machine language programs, you will need the S
command
of
the machine
language
monitor
built into the
Commodore
16
and Plus/4.
To
access a built-in monitor,
type
MONITOR.
To
exit a monitor, type X alone
on
a line.
FORMAT
FOR A MON[TOR
SAVE
S
"drive
#:file
name"
,device # ,starting address,ending address + I
where
"drive
#:"
is the drive number, 0 on the [551;
"file
name"
is any valid file name
up to
14
characters long (leaving 2 for the drive
number
and colon);
"device
#"
is
a two
digit device number, normally 08
on
the 1551 (the leading 0 is required):
and
the
addresses to be saved are given
in
Hexadecimal (base 16,) but without a leading dollar
sign
($).
Note
that the ending address listed must be I location beyond the last location
to
be saved.
SA
VE
WITH
REPLACE
OPTION
If a file already exists,
it
can't
be saved again because the disk only a[lows
one
copy
of
any given tile name
per
diskette. It
is
possible to get around this problem using the
Rename
and
Scratch
commands
described later
in
this chapter. However,
if
all you wish
to
do
is
replace a program
or
data file with a revised version. another
command
is more
convenient. Known as
Save
With
Replace, this option tells the disk to replace any file it
finds in the directory with the same name. substituting the new file for it.
FORMAT
FOR
SAVE
WITH
REPLACE
DSA
VE "((l·file
name"
21
Page 30

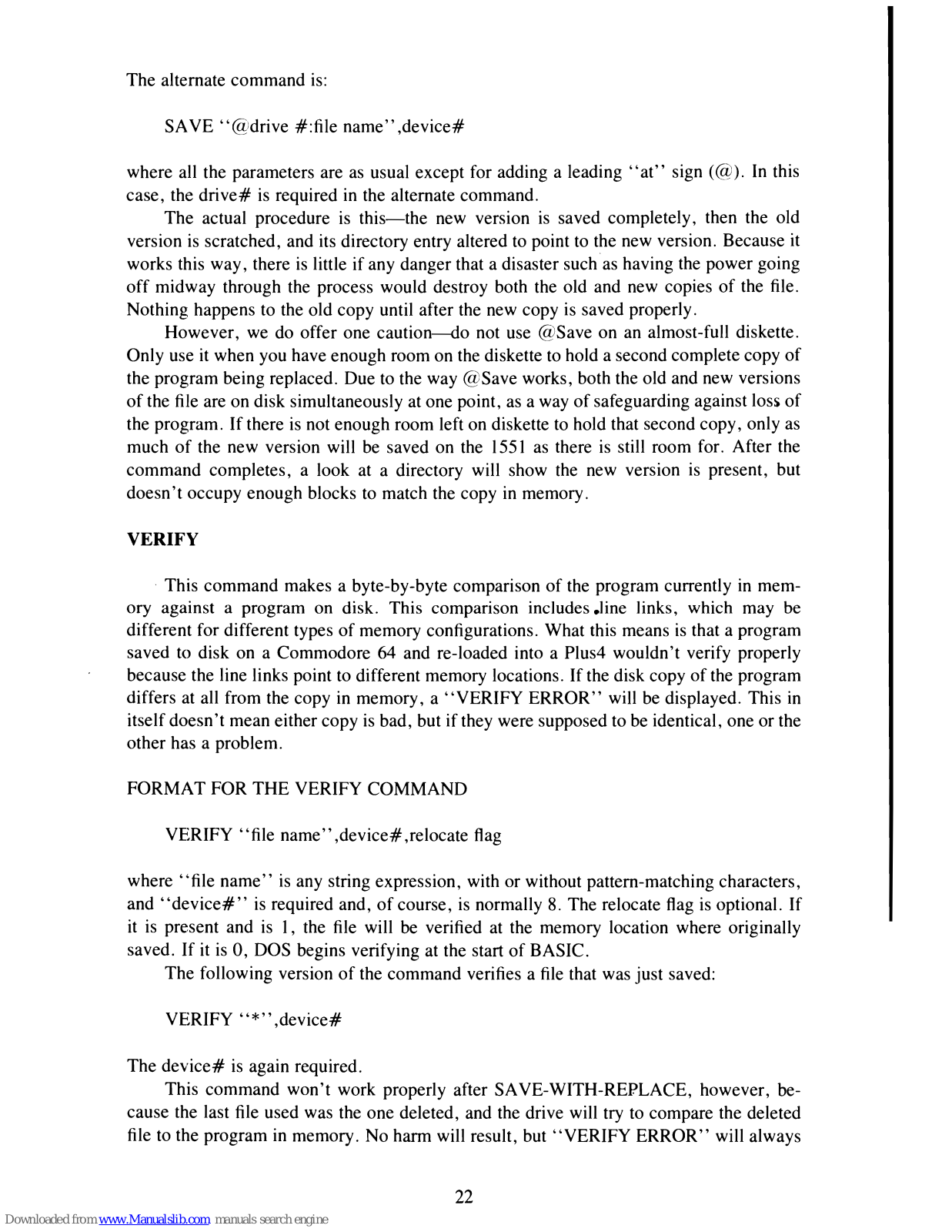

The alternate command
is:
SA VE
"@drive
#:Iile
name"
,device#
where all the parameters are
as
usual except for adding a leading
"at"
sign (((il).
In
this
case, the
drive#
is
required
in
the alternate command.
The actual procedure is
this-the
new version
is
saved completely, then the old
version
is
scratched, and its directory entry altered
to
point to the new version. Because it
works this way, there
is
little if any danger that a disaster such
as
having the power going
off midway through the process would destroy both the old and new copies
of
the file.
Nothing happens to the old copy until after the new copy
is
saved properly.
However,
we
do offer one
caution--do
not use @Save on an almost-full diskette.
Only use
it
when you have enough room on the diskette to hold a second complete copy
of
the program being replaced. Due to the way ((i:Save works, both the old and new versions
of
the file are on disk simultaneously at one point,
as
a way
of
safeguarding against loss
of
the program. If there is not enough room left on diskette to hold that second copy, only
as
much
of
the new version will be saved on the
1551
as
there
is
still room for. After the
command completes, a look at a directory will show the new version is present, but
doesn't occupy enough blocks
to
match the copy
in
memory.
VERIFY
. This command makes a byte-by-byte comparison
of
the program currently
in
mem-
ory against a program on disk. This comparison includes .Iine links, which may
be
different for different types
of
memory configurations. What this means
is
that a program
saved to disk on a Commodore 64 and re-Ioaded into a Plus4 wouldn't verify properly
because the line links point to different memory locations. If the disk copy
of
the program
differs
at
all from the copy
in
memory, a
"VERIFY
ERROR"
will
be
displayed. This
in
itself doesn't mean either copy
is
bad, but if they were supposed to be identical, one or the
other has a problem.
FORMAT FOR THE VERIFY COMMAND
VERIFY "file name"
,device#
,relocate
flag
where'
'file
name"
is
any string expression, with or without pattern-matching characters,
and
"device#"
is
required and,
of
course,
is
normally
8.
The relocate flag
is
optional. If
it
is
present and
is
1, the file will
be
verified at the memory location where originally
saved.
If
it
is 0, DOS begins verifying at the start
of
BASIC.
The following version
of
the command verifies a
ftle
that was just saved:
VERIFY
"*,,
,device#
The
device#
is
again required.
This command won't work properly after SAVE-WITH-REPLACE, however, be-
cause the last file used was the one deleted, and the drive will try to compare the deleted
file
to
the program
in
memory. No harm will result, but "VERIFY
ERROR"
will always
22
Page 31
be
announced. To use VERIFY after
(ZISA
VE, include
at
least part of the file name that
is
to
be verified
in
the pattern.
COpy
The
COpy
command allows you
to
make a spare copy of any program or
file
Gn
a
diskette. However, on a single drive like the 1551, the copy must be on the same diskette,
which means
it
must be given a different name from the
file
copied. The source
file
and
other files on the diskette are not changed. Files must be closed before they are copied.
FORMAT FOR THE
COpy
COMMAND
COPY
"old
file
name" TO
"new
file
name"
The alternate command is:
PRINT#15,"COPY:new
file
name=old
file
name"
or abbreviated to:
PRINT#
IS, "C:new
file
name = old file name"
To copy a file
on
a second disk drive with a device number
of
9,
we
would use:
COPY
"old
file
name" TO
"new
file name" ,U9
NOTE:
If you want to copy a
file
from one diskette
to
another, you cannot use the
COpy
command. Instead, use the copy program on the Test/Demo diskette (see
Appendix E).
USING
COpy
TO COMBINE FILES
The COPY command can be used to combine two, three, or four different files.
FORMAT FOR COPY (COMBINE) COMMAND
COPY"old
file
name!, old
file
name2, old file name3, old
f1le
name4" TO
"new
file
name"
The alternate command
is:
PRINT#
15,
"C:new
file
name = old
file
name
I,
old file name2, old
file
name3, old
file
name4"
23
Page 32

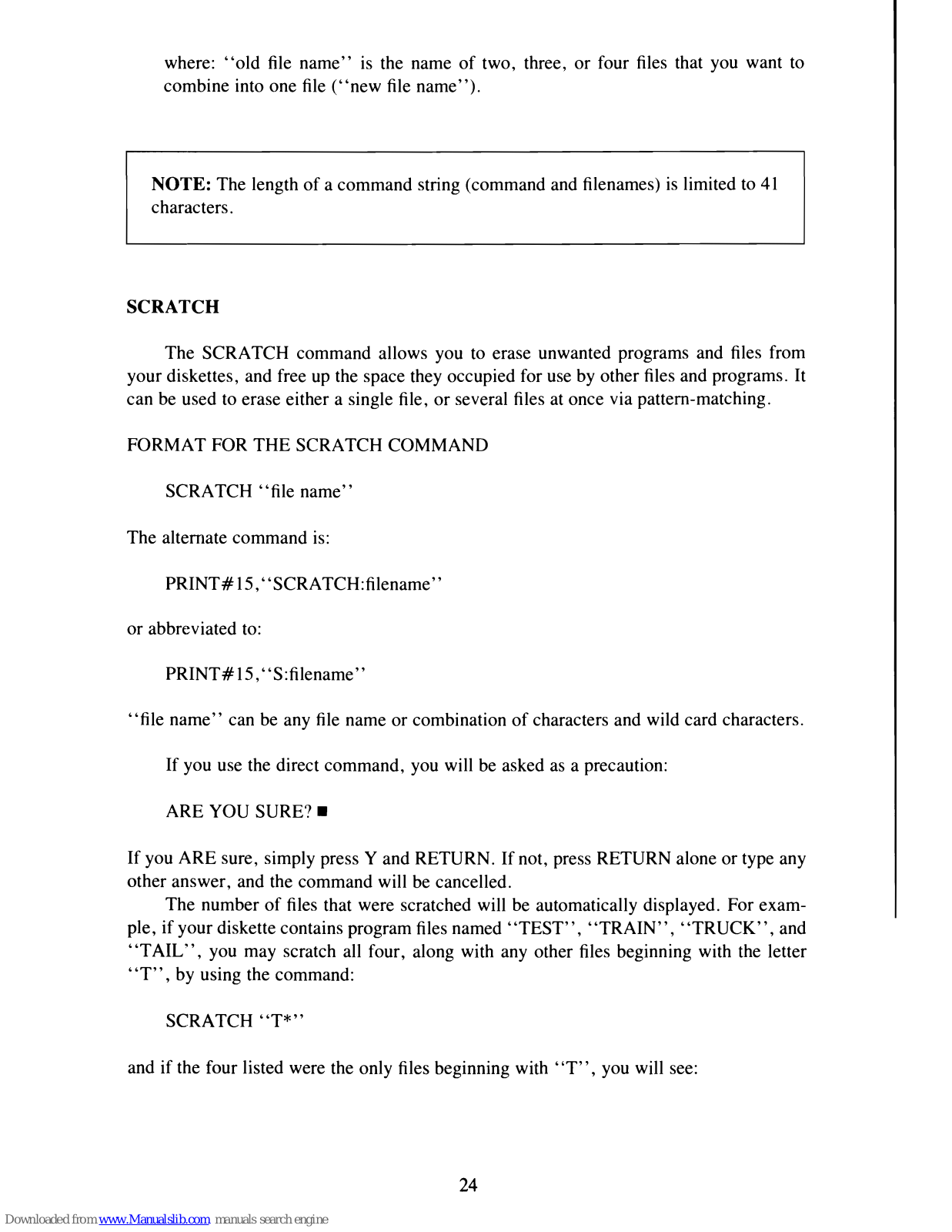

where:
"old
file
name"
is
the name
of
two, three, or four files that you want
to
combine into one
file
("new
file
name").
NOTE: The length
of
a command string (command and filenames)
is
limited
to
41
characters.
SCRATCH
The SCRATCH command allows you to erase unwanted programs and files from
your diskettes, and free
up
the space they occupied for use
by
other files and programs.
It
can be used to erase either a single file, or several files at once via pattern-matching.
FORMAT FOR THE SCRATCH COMMAND
SCRATCH "file name"
The alternate command
is:
PRINT#15, "SCRATCH:filename"
or abbreviated
to:
PRINT#
15,' 'S:filename"
"file name" can
be
any file name or combination
of
characters and wild card characters.
If
you
use the direct command, you will be asked
as
a precaution:
ARE YOU SURE? •
If you ARE sure, simply press Y and RETURN. If not, press RETURN alone or type any
other answer, and the command will be cancelled.
The number
of
files
that were scratched will
be
automatically displayed. For exam-
ple, if your diskette contains program files named
"TEST",
"TRAIN",
"TRUCK",
and
"TAIL",
you may scratch
all
four, along with
any
other files beginning with the letter
"T",
by
using the command:
SCRATCH
"T*"
and if the four listed were the only files beginning with
"T",
you will see:
24
Page 33
01
,FILES SCRATCHED,04,00
READY
•
The
"04"
tells you 4 files were scratched.
You can perform a SCRATCH within a program, but there will
be
no prompt
message displayed.
SCRATCH
FOR
ADVANCED USERS
SCRATCH
is
a powerful command, and should
be
used with caution,
to
be
sure you
only delete the files you really want erased. When using
it
with a pattern.
we
suggest you
first use the same pattern
in
a DIRECTORY command, to
be
sure exactly which files will
be
deleted. That way you'll have no unpleasant surprises when you use the same pattern in
the SCRATCH command.
Recovering from a Scratch
If you accidentally SCRATCH a
fiJe
you shouldn't have, there is still a chance
of
saving it. Like BASIC's NEW command, SCRATCH doesn't really wipe out a file itself;
it
merely clears the pointers to it in the diskette directory. If you immediately set the
diskette aside and protect
it
with a write-protect notch, to
be
sure no one adds any files
to
the diskette, a skilled user in a nearby Commodore user group may be able to recover your
file for you.
It
will help if you can remember what kind
of
file
it
was you scratched
(program, sequential. etc.), since that information cannot
be
directly recovered from what
is left
of
the file.
NOTE:
Check Appendix
E.
There may
be
an
"Unscratch"
program on your
Test/Demo diskette.
More
about
Splat Files
One other
warning-never
SCRATCH a splat file. These are files that show up in a
directory listing with
an
asterisk
(*)
just before the
file
type for
an
entry. The asterisk (or
splat) means that file was never properly closed, and thus there is
no
valid chain
of
sector
links for the SCRATCH command to follow
in
erasing the file. If you SCRATCH such a
file, odds are you will improperly free up sectors that are still needed by other programs.
and cause permanent damage
to
those other programs later when you add more
files
to
the
diskette.
If you find a splat file, or if you discover too late that you have scratched such a file,
immediately VALIDATE the diskette using the VALIDATE command described later
in
this chapter. If you have added any files to the diskette since scratching the splat file, it
is
best to immediately copy the entire diskette onto another fresh diskette, but do this with a
25
Page 34
copy program rather than with a backup program. Otherwise, the same problem will be
recreated on the new diskette. When the new copy
is
done, compare the number
of
blocks
free
in
its
directory to the number free on the original diskette.
If
the numbers match, no
damage has been done. If not, very likely at least one
file
on the diskette has been
corrupted, and all should be immediately checked.
Locked Files
Very occasionally, a diskette will contain a locked file; that
is
one which cannot be
erased with the SCRATCH command. Such files may be recognized by the
"<"
character which immediately follows the file type
in
their directory entry.
If
you wish to
erase a locked file, you will have to use a disk
~nitor
to
clear bit 6
of
the file-type byte in
the directory entry on the diskette. Conversely,
to
lock a file, you would set bit 6
of
the
same byte. For more information on how such tricks are done, see Chapter 9 and
Appendices D and
E.
RENAME
The RENAME command allows you to alter the name
of a file
in
the diskette
directory. Since only the directory
is
affected, RENAME works very ljuickly.
If
you try to
RENAME a file by using a file name already in the directory, the computer will respond
with a
"FILE
EXISTS"
error.
FORMAT FOR RENAME COMMAND:
RENAME
"old
name·' TO
"new
name"
The alternate command is:
PRINT#15,"RENAME:new
name=old
name"
or
abbreviated to:
PRINT#15,
"R:new
name = old
name"
One caution - be sure the file you are renaming has been properly closed before you
RENAME it.
RENAMING
AND
SCRATCHING TROUBLESOME
FILES (ADVANCED USERS)
Eventually, you may run across a file which has a crazy filename, such as a comma
by itself
(",
")
or one that includes a SHIFTed SPACE. Or perhaps you will find one that
includes nonprinting characters. Any
of
these can be troublesome. Comma files, for
instance, are an exception to the rule that no two files can have the same name. Since it
shouldn't be possible to make a file whose name
is
only a comma, the disk never expects
you to do
it
again.
26
Page 35

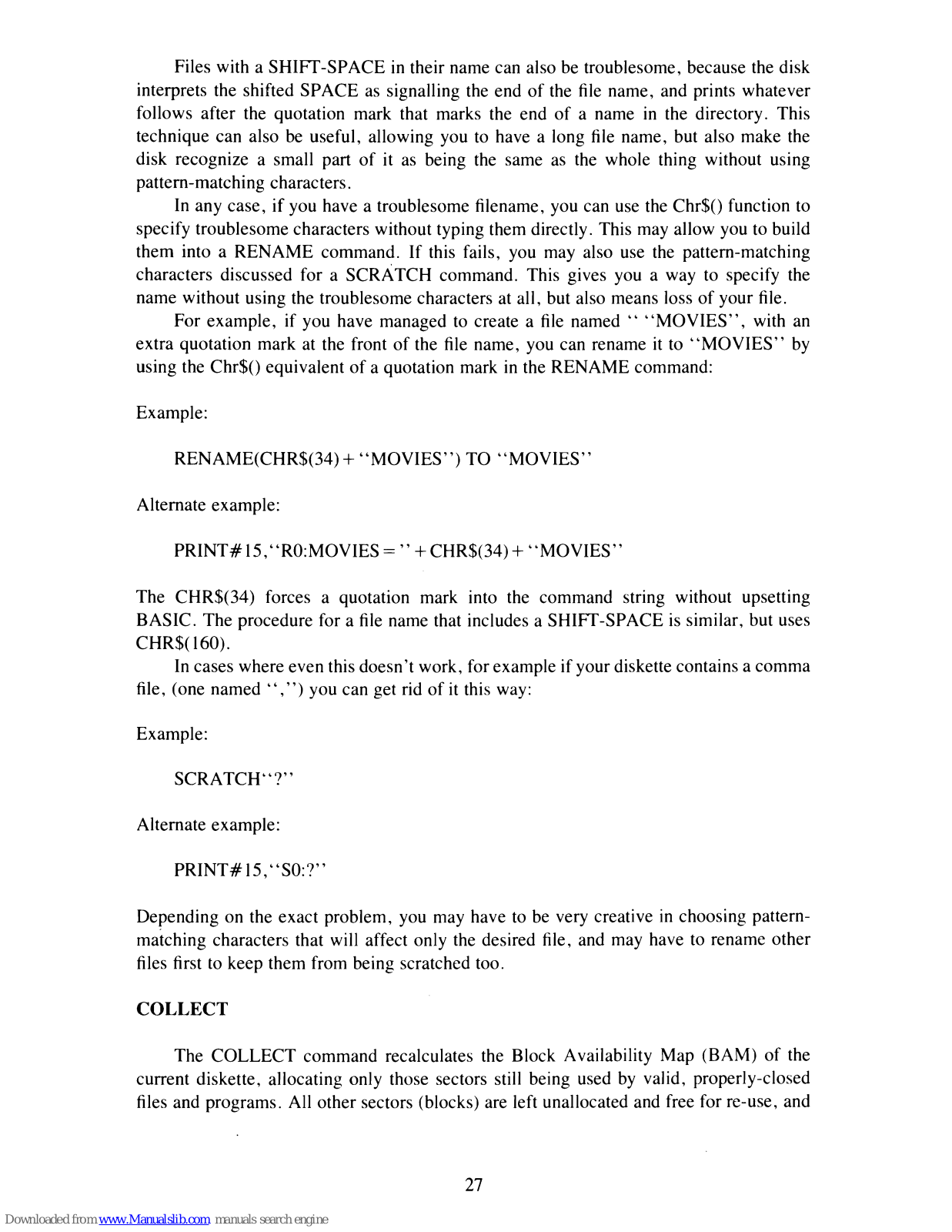

Files with a
SHIFf-SPACE
in their name can also be troublesome, because the disk
interprets the shifted SPACE as signalling the end
of
the file name, and prints whatever
follows after the quotation mark that marks the end
of
a name in the directory. This
technique can also be useful, allowing you
to
have a long file name, but also make the
disk recognize a small part
of
it as being the same as the whole thing without using
pattern-matching characters.
In
any case,
if
you have a troublesome filename, you can use the Chr$() function to
specify troublesome characters without typing them directly. This may allow you to build
them into a RENAME command.
If
this fails, you may also use the pattern-matching
characters discussed for a SCRATCH command. This gives you a way to specify the
name without using the troublesome characters at all, but also means loss
of
your file.
For example, if you have managed to create a file
named"
"MOVIES",
with an
extra quotation mark at the front
of
the file name, you can rename it
to
"MOVIES"
by
using the Chr$O equivalent
of
a quotation mark
in
the RENAME command:
Example:
RENAME(CHR$(34)+
"MOVIES")
TO
"MOVIES"
Alternate example:
PRINT#
15, "RO:MOVIES
="
+
CHR$(34)+
"MOVIES"
The CHR$(34) forces a quotation mark into the command string without upsetting
BASIC. The procedure for a
file
name that includes a
SHIFf-SPACE
is similar, but uses
CHR$(I60).
In
cases where even this doesn't work, for example if your diskette contains a comma
file, (one
named".")
you can get rid
of
it this way:
Example:
SCRATCH"?"
Alternate example:
PRINT#
15,
"SO:?"
Depending on the exact problem. you may have to be very creative
in
choosing pattern-
matching characters that will affect only the desired file. and Illay have
to
rename other
files first
to
keep them from being scratched too.
COLLECT
The COLLECT command recalculates the Block Availability Map (BAM)
of
the
current diskette, allocating only those sectors still being used by valid, properly-closed
files and programs. All other sectors (blocks) are left unallocated and free for re-use, and
27
Page 36

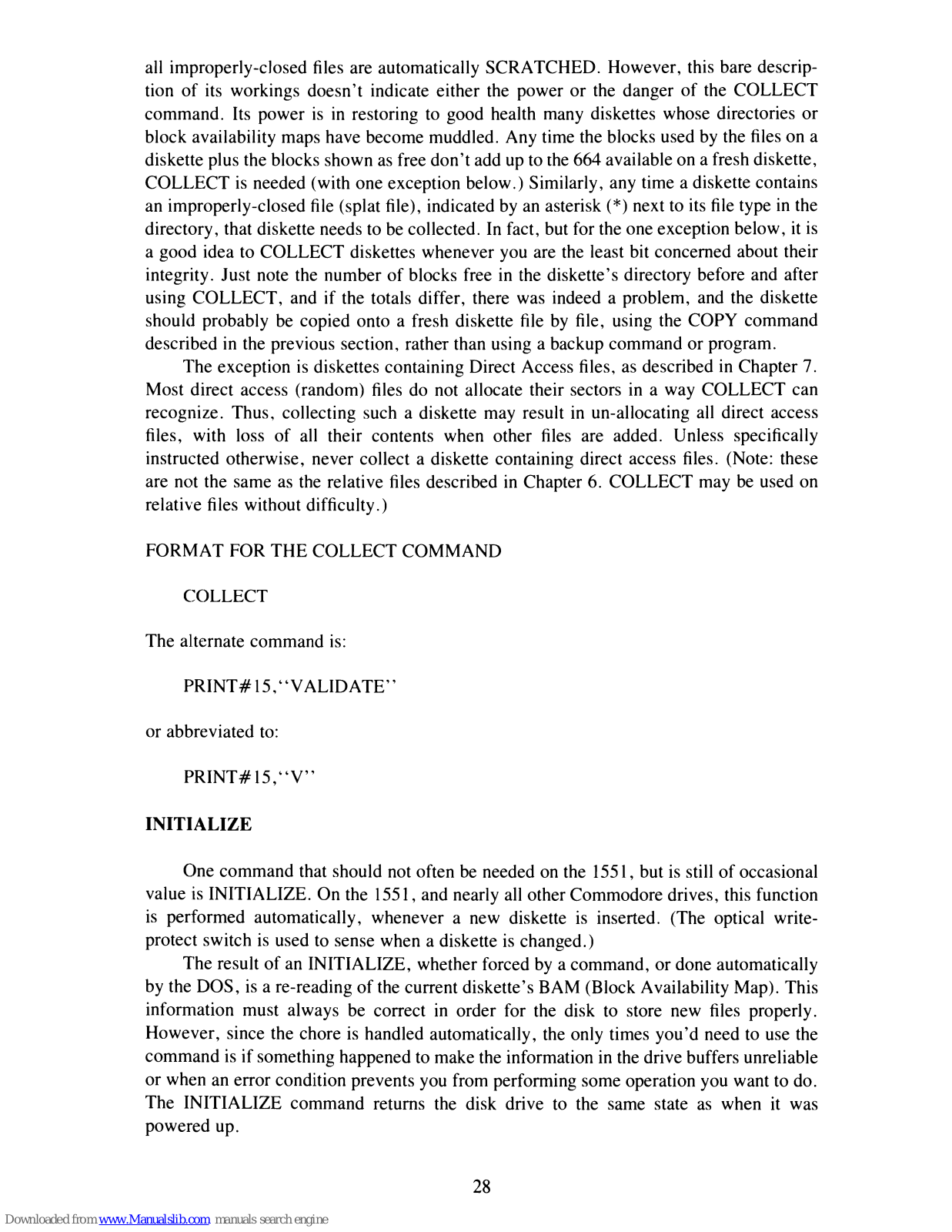

all
improperly-closed files are automatically SCRATCHED. However, this bare descrip-
tion
of
its workings doesn't indicate either the power
or
the danger
of
the COLLECT
command. Its power
is
in
restoring to good health many diskettes whose directories
or
block availability maps have become muddled. Any time the blocks used by the files on a
diskette plus the blocks shown as free
don't
add
up
to [he 664 available on a fresh diskette,
COLLECT
is
needed (with one exception below.) Similarly. any time a diskette contains
an improperly-closed tile (splat file), indicated by an asterisk
(*)
next to
its
file type in the
directory, that diskette needs
to
be collected.
In
fact, but for the one exception below, it
is
a good idea to COLLECT diskettes whenever you are the least bit concerned about their
integrity. Just note the number
of
blocks free in the diskette's directory before and after
using COLLECT, and if the totals differ, there was indeed a problem, and the diskette
should probably be copied onto a fresh diskette file by file, using the
COpy
command
described in the previous section, rather than using a backup command or program.
The exception is diskettes containing Direct Access files, as described in Chapter 7.
Most direct access (random) files do not allocate their sectors in a way COLLECT can
recognize. Thus, collecting such a diskette may result in un-allocating all direct access
files, with loss
of
all their contents when other files are added. Unless specifically
instructed otherwise, never collect a diskette containing direct access files. (Note: these
are not the same as the relative files described
in
Chapter 6. COLLECT may be used on
relative files without difficulty.)
FORMAT FOR THE COLLECT COMMAND
COLLECT
The alternate command
is:
PRINT#
15.
"VALIDATE"
or abbreviated to:
PRINT#
15,
"V"
INITIALIZE
One command that should not often
be
needed on the 1551, but is still
of
occasional
value
is
INITIALIZE. On the 1551, and nearly all other Commodore drives, this function
is
performed automatically, whenever a new diskette
is
inserted. (The optical write-
protect switch
is
used
to
sense when a diskette
is
changed.)
The result
of
an
INITIALIZE, whether forced by a command, or done automatically
by the DOS,
is
a re-reading
of
the current diskette's BAM (Block Availability Map). This
information must always
be
correct in order for the disk to store new files properly.
However, since the chore
is
handled automatically, the only times you'd need to use the
command is if something happened to make the information in the drive buffers unreliable
or when an error condition prevents you from performing some operation you want to do.
The INITIALIZE command returns the disk drive to the same state
as
when it was
powered up.
28
Page 37
Even so, you may use the command for reassurance, as often as you like, so long
as
you close all your files except for the command channel first.
FORMAT FOR
THE
INITIALIZE COMMAND
PRINT # 15,
"INITIALIZEdrive#"
PRINT # 15, ,. INITIALIZEO"
or it may be abbreviated to
PRINT#15,"Idrive
#"
PRINT#
15,
"10"
where the command channel is assumed to be opened by file 15, and
"drive
#"
is 0 on
the 1551.
One use for INITIALIZE is to keep a cleaning diskette spinning,
if
you choose to use
one (under normal conditions, a cleaning diskette
is
not necessary),
If
you are using such a
kit, the following short program will keep the diskette spinning long enough for your need
(about 20 seconds):
10
OPENI5,8,15
20 FOR
1= I TO
99
30
:
PRINT#15,"IO"
40
NEXT
50
CLOSEI5
29
Page 38
Page 39
PART TWO: GUIDE TO ADVANCED
OPERATION AND PROGRAMMING
CHAPTER 4
SEQUENTIAL DATA FILES
THE CONCEPT
OF
FILES
A file on a diskette is
just
like a
file
cabinet
in
your
office-an
organized place to put
things. Nearly everything you put on a diskette goes in one kind
of
file
or
another. So far
all
we've used are program files, but there are others,
as
we
have mentioned. In this
chapter we will learn about sequential data files.
As we just suggested, the primary purpose
of
a data file
is
to store the contents
of
program variables,
so
they
won't
be lost when the program ends. A sequential data file
is
one in which the contents
of
the variables are stored
"in
sequence," one right after
another, just as each link in a chain follows the previous link. You may already be familiar
with sequential files from using a DATASSETTE™, because sequential files on diskette
are just like the data files used on cassettes. Whether on cassette or diskette, sequential
files must be read from beginning
to
end, without skipping around
in
the middle.
When sequential files are created, information (data) is transferred byte by byte,
through a buffer, onto the magnetic media. Once in the disk drive, program files,
sequential data files, and user files all work sequentially. Even the directory acts like a
sequential file.
To use sequential files properly, we will learn some more Basic words
in
the next
few pages. Then we'll put them together
in
a simple but useful program.
Note: Besides sequential data files, two other file types are recorded sequentially
on a diskette, and may be considered varying forms
of
sequential files. They are
program files, and user files. When you save a program on a diskette, it is saved
in
order from beginning to end, just like the information
in
a sequential data file. The
main difference is
in
the commands you use
to
access it. User tiles are even more
similar to sequential data files--differing, for most purposes,
in
name only. User
files are almost never used, but like program tiles, they could be treated as though
they were sequential data files and are accessed with the same commands.
For the advanced user, the similarity
of
the various file types offers the
possibility
of
such advanced tricks as reading a program file into the computer a
byte (character) at a time and rewriting
it
to
the diskette
in
a modified form. The
idea
of
using one program
to
write another is powerful, and available on the
Commodore disk drives.
31
Page 40
OPENING A
FILE
One
of
the most powerful tools
in
Commodore Basic
is
the Open statement. With it,
you may send almost any data almost anywhere, much like a telephone switchboard that
can connect any caller to any destination.
As
you might expect, a command that can do
this much
is
fairly complex. You have already used Open statements regularly
in
some
of
your diskette housekeeping commands.
Before we study the format
of
the Open statement, let's review some
of
the possible
devices
in
a Commodore computer system:
Device
#:
Name:
0 Keyboard
I
DATASSETIE "
2 RS232
3
Screen
4,5
Printer
8,9 Disk drive
Used for:
Receiving input from the computer operator
Sending and receiving information from cassette
Sending and receiving information from a Modem
Sending output
to
a video display
Sending output
to
a hard copy printer
Sending and receiving information
from
diskette
Because
of
the flexibility
of
the Open statement, it
is
possible for a single program
statement to contact
anyone
of
these devices,
or
even others, depending on the value
of
a
single character
in
the command. Often an Open statement
is
the only difference between
a program that uses a DA T ASSETTE
™ and one using the 1551.
If
the character
is
kept
in
a variable, the device used can even change each time that part
of
the program
is
used,
sending data alternately and with equal ease to diskette, cassette, printer and screen.
r---
REMEMBER TO
CHECK
FOR DISK ERRORS!
In
the last chapter
we
learned how to check for disk errors after disk com-
mands
in
a program.
It
is
equally important to check for disk errors after using
file-
handling statements. Failure to detect a disk error before using another
file-
handling statement could cause loss of data, and failure
of
the Basic program.
The easiest way to check the disk
is
to follow all file-handling statements with
a Gosub statement
to
an
error check subroutine.
EXAMPLE:
840 OPEN
4,8,4,"0:DEGREE
DAY
DATA,S,W"
850 GOSUB 59990:REM CHECK FOR DISK ERRORS
32
Page 41

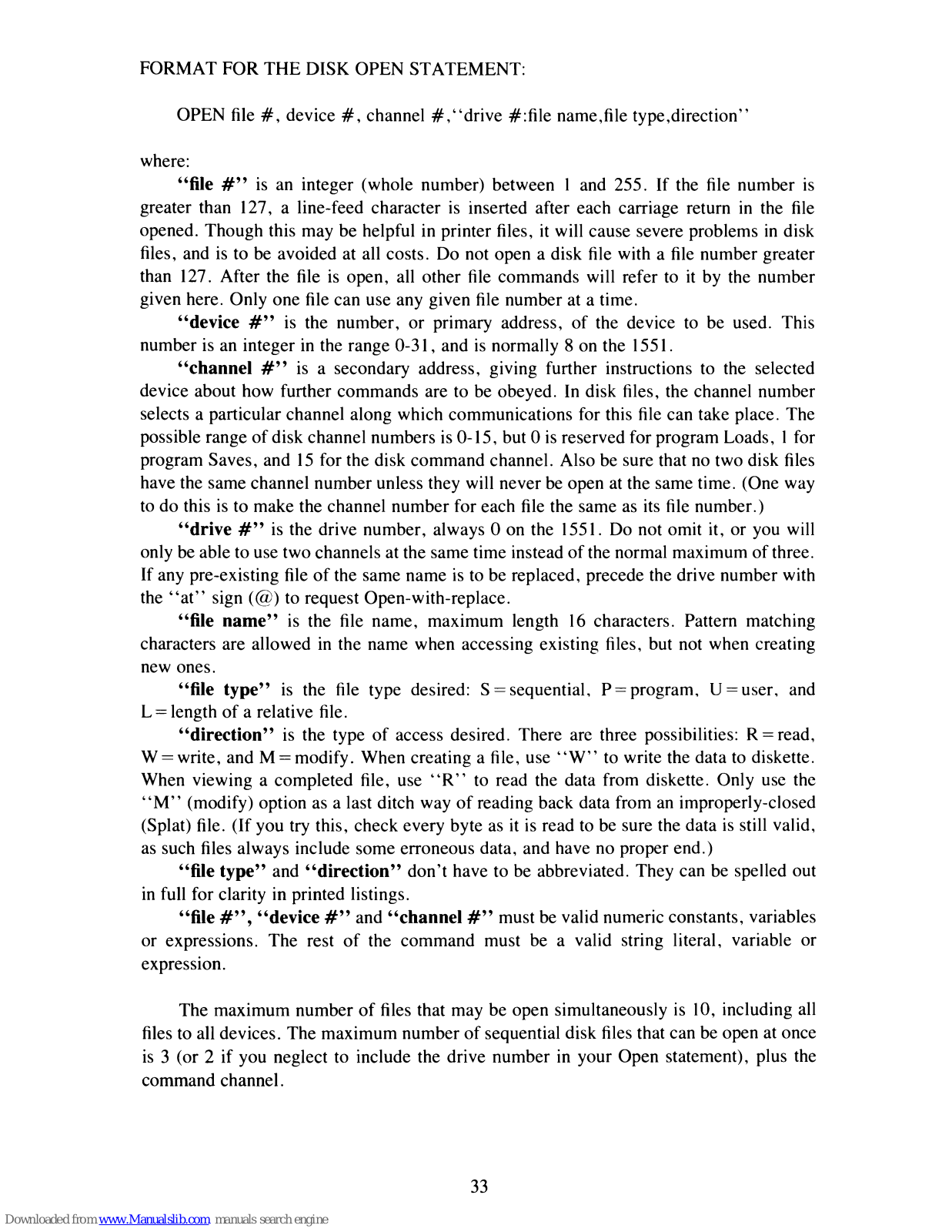

FORMAT FOR THE DISK OPEN STATEMENT:
OPEN file
#,
device
#,
channel
#,
"drive #:file name,file type,direction"
where:
"file
#"
is
an integer (whole number) between I and 255. If the file number
is
greater than 127, a line-feed character
is
inserted after each carriage return
in
the
file
opened. Though this may be helpful in printer files,
it
will cause severe problems
in
disk
files, and
is
to be avoided at all costs. Do not open a disk file with a
file
number greater
than 127. After the file
is
open, all other
file
commands will refer
to
it
by
the number
given here. Only one file can use any given file number at a time.
"device
#"
is
the number, or primary address,
of
the device
to
be used. This
number
is
an integer
in
the range
0-31
, and
is
normally 8 on the 1551.
"channel
#"
is
a secondary address, giving further instructions
to
the selected
device about how further commands are to be obeyed. In disk files, the channel number
selects a particular channel along which communications for this
file
can take place. The
possible range
of
disk channel numbers
is
0-15, but 0
is
reserved for program Loads, I for
program Saves, and
15
for the disk command channel. Also be sure that
no
two disk files
have the same channel number unless they will never be open at the same time. (One way
to
do this
is
to make the channel number for each
file
the same as
its
file
number.)
"drive
#"
is
the drive number, always 0 on the 1551. Do not omit it, or you will
only be able to use two channels at the same time instead
of
the normal maximum
of
three.
If any pre-existing file
of
the same name
is
to
be replaced, precede the drive number with
the
"at"
sign
(@)
to request Open-with-replace.
"file
name"
is
the
file
name, maximum length
16
characters. Pattern matching
characters are allowed
in
the name when accessing existing files, but not when creating
new
ones.
"file
type"
is
the
file
type desired: S = sequential. P = program, U = user, and
L = length
of
a relative file.
"direction"
is
the type
of
access desired. There arc three possibilities: R = read,
W=write,
and
M=modify.
When creating a file, use
"WOO
to
write the data
to
diskette.
When viewing a completed file, use
"R"
to read the data from diskette. Only
usc
the
"M"
(modify) option as a last ditch way ofreading back data from
an
improperly-closed
(Splat) file. (If you try this, check every byte
as
it
is
read
to
be sure the data
is
still valid,
as
such files always include some erroneous data, and have no proper end.)
"file
type"
and
"direction"
don't have to be abbreviated. They can be spelled out
in
full for clarity in printed listings.
"file
#",
"device
#"
and
"channel
#"
must be valid numeric constants, variables
or expressions. The rest
of
the command must be a valid string literal, variable or
expression.
The maximum number
of
files that may be open simultaneously
is
10, including all
files to all devices. The maximum number
of
sequential disk files that can be open at once
is
3 (or 2 if you neglect
to
include the drive number
in
your Open statement), plus the
command channel.
33
Page 42
EXAMPLES
OF
OPENING SEQUENTIAL FILES:
To create a sequential file
of
phone numbers, you could usc:
OPEN
2,8,2,
"O:PHONES .SEQUENTIAL, WRITE"
or save yourself some typing with:
OPEN
2,8,2,"0:PHONES,S,W"
On the off-chance
we've
already got a
"PHONES"
file on our diskette. we can avoid a
"FILE
EXISTS"
error mcssage by doing an (II OPEN
OPEN
2,8,2,"@O:PHONES,S,W"
Of
course, this erases all our old phone numbers, so make sure that any information that
may be deleted
is
of
no importance. After writing our phone file, we remove our diskette
and tum
off
the system. Later,
to
recall the data
in
the file, we would reopen
it
with
something like
OPEN
8,8,8,
"O:PHONES
,S,R"
It
doesn't matter whether the file and channel numbers match the ones
we
used before, but
the file name does have to match. However, it
is
possible
to
usc an abbreviation form
of
the file name, if there are no other files that would have the same abbreviation:
OPEN 10,8,6, "O:PH*
,S.R"
If
we
have too many phone numbers, they might not
fit
in
one file.
In
that case, we
might use several similar file names, and let a program choose the correct file.
100 INPUT
"WHICH
PHONE FILE
(l-3)";PH
110 IF
PH<>I
AND
PH<>2
AND
PH<>3
THEN 100
120 OPEN
4,8,2:'PHONE"
+ STR$(PH) +
..
,S,R"
You can omit the drive number on an Open command to read a file. Doing so allows those
with dual drives to search both diskettes for the file.
ADDING
TO A
SEQUENTIAL
FILE
The Append command allows you
to
reopen an existing sequential file and add more
information to the end
of
it.
In
place
of
the
"type"
and
"direction"
parameters
in
your
Open statement,
substitute"
,A"
for Append. This will reopen your file, and position the
disk head at the end
of
the existing data
in
your file, ready
to
add to it.
34
Page 43
FORMA T FOR THE APPEND OPTION
OPEN file # ,device
#,channeI
#,
"drive
#:file
name,A"
where everything
is
as on the previous page except for the
ending"
A"
replacing the
"type"
and
"direction"
parameters.
EXAMPLE:
If
you are writing a grading program, it would be convenient
to
simply tack on each
student's new grades
to
the end
of
their existing grade liles. To add data to the
"JOHN
PAUL
JONES"
file,
we
could type
OPEN J,8,3,"O:JOHN PAUL
JONES,A"
In
this case, DOS will allocate at least one more sector (block) to the file the
first
time you append to it, even if you only add one character
of
information. You may also
notice that using the Collect or Validate command didn't correct the file size. On the other
hand, your data
is
quite safe, and if the wasted space becomes a problem, you can easily
correct
it
by copying the
file
to the same diskette or a different one, and scratching the
original file. Here's a sequence
of
commands that will copy such files
to
the original
diskette under the original name, for ease
of
continued use:
RENAME
"JOHN
PAUL
JONES"
TO
"TEMP"
COPY "TEMP" TO
"JOHN
PAUL
JONES"
SCRATCH
"TEMP"
WRITING
FILE DATA: USING
PRINT#
After a sequential
file
has been opened
to
write (with a type and direction
of
",S,
W"),
we use the
Print#
command to send data
to
it for storage on diskette. If you are
familiar with Basic's Print statement, you will lind
Print#
works exactly the same way,
except that the list
of
items following the command word
is
sent to a particular tile,
instead
of
automatically appearing on the screen. Even the formatting options (punctua-
tion and such) work in much the same way as
in
Print statements, This means you have
to
be sure the items sent make sense
to
the particular
file
and device used.
For instance, a comma between variables
in
a Print statement acts
as
a separator
in
screen displays, making each successive item appear
in
the next preset display field
(typically
at
the next column whose number
is
evenly divisible
by
10). If the same comma
is included between variables going
to
a disk file,
it
will again act
as
a separator, again
inserting extra spaces into the data. This time, however,
it
is
inappropriate, as the extra
spaces are simply wasted on the diskette, and may create more problems when reading
the
file back into the computer. Therefore, you are urged
to
follow the following format
precisely when sending data
to
a disk file.
35
Page 44

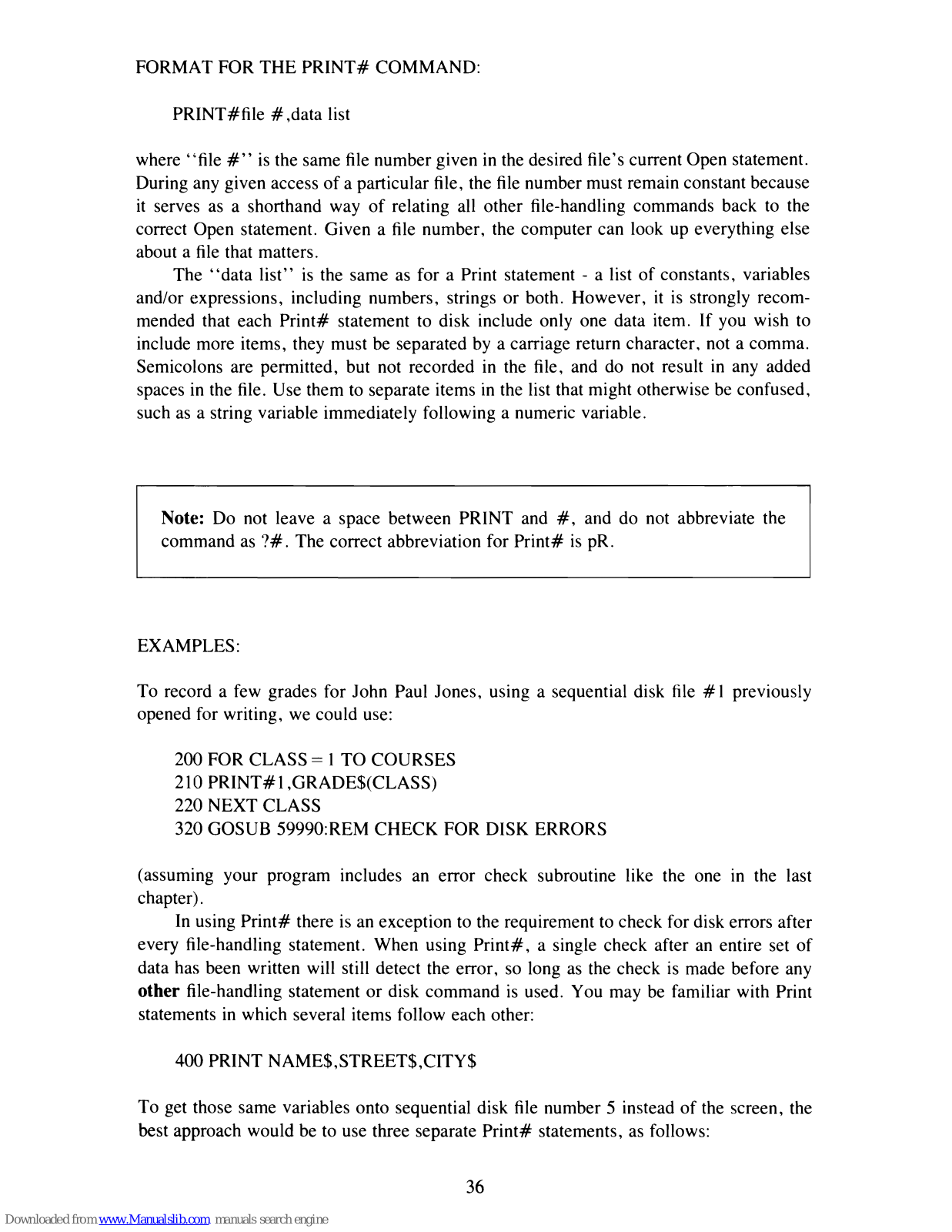

FORMAT FOR THE
PRINT#
COMMAND:
PRINT#file # ,data list
where "file
#"
is
the same
file
number given
in
the desired file's current Open statement.
During any given access
of
a particular file, the
file
number must remain constant because
it
serves as a shorthand way
of
relating all other file-handling commands back
to
the
correct Open statement. Given a file number, the computer can look
up
everything else
about a
file
that matters.
The
"data
list"
is
the same
as
for a Print statement - a list
of
constants, variables
and/or expressions, including numbers, strings or both. However,
it
is
strongly recom-
mended that each
Print#
statement to disk include only one data item. If you wish to
include more items, they must be separated by a carriage return character, not a comma.
Semicolons are permitted, but not recorded
in
the file, and do not result
in
any added
spaces
in
the file. Use them to separate items
in
the list that might otherwise be confused,
such
as
a string variable immediately following a numeric variable.
Note: Do not leave a space between PRINT and
#,
and do not abbreviate the
command
as
'1#. The correct abbreviation for
Print#
is
pRo
EXAMPLES:
To record a few grades for John Paul Jones, using a sequential disk
file
# I previously
opened for writing, we could use:
200 FOR CLASS
= 1 TO COURSES
210
PRINT#l,GRADE$(CLASS)
220 NEXT CLASS
320 GOSUB 59990:REM CHECK FOR DISK ERRORS
(assuming your program includes an error check subroutine like the one
in
the last
chapter).
In
using
Print#
there
is
an
exception to the requirement to check for disk errors after
every file-handling statement. When using Print
#,
a single check after
an
entire set
of
data has been written will still detect the error,
so
long
as
the
check
is
made before any
other file-handling statement or disk command
is
used. You may
be
familiar with Print
statements in which several items follow each other:
400 PRINT NAME$,STREET$,CITY$
To get those same variables onto sequential disk
file
number 5 instead
of
the screen, the
best approach would be to use three separate
Print#
statements, as follows:
36
Page 45
400
PRINT#5,NAME$
410
PRINT#5,STREET$
420
PRINT#5,ClTY$
However, if you need to combine them, here
is
a safe way to do
it:
400 PRINT#5,NAME$;CHR$(13);STREET$;CHR$(13);CITY$
CHR$(I3)
is
the carriage return character, and has the same effect as putting the print
items in separate lines. If you do this often, some space and time may be saved by
previously defining a variable as equal to CHR$(I3):
10
CR$=CHR$(13)
... 400 PRINT#5,NAME$;CR$;STREET$;CR$;CITY$
The basic idea is that a proper sequential disk file write, if redirected to the screen,
will display only one data item per line, with each succeeding item on the next line.
CLOSING A FILE WHEN YOU ARE DONE USING IT
After you finish using a data file,
it
is
extremely important that you Close it. During
the process
of
writing a tile, data
is
accumulated
in
a memory buffer. and only written out
to the diskette when the buffer Illls.
Working this way, there is almost
al
ways a small amount
of
data
in
the buffer that
has not been written to diskette yet, and which would simply be lost
if
the computer
system were turned off. Similarly, there are diskette housekeeping matters, such as
updating the BAM (Block Availability Map)
of
sectors used by the current file, which are
not performed during the ordinary course
of
writing a Ille. This is the reason for having a
Close statement. When we know we are done with a Ille, the Close statement will write
the rest
of
the data buffer out to diskette, update the BAM, and complete the tile's entry
in
the directory. Always Close a data file when you are done using
it!
Failure
to
do so may
cause loss
of
the entire
11
Ie
!
However, do not close the disk command channel until all other files have been
Closed. The command channcl (described
in
the last chapter), when used, should be the
first tile Opened, and the last file Closed in any program. Otherwise, remaining files may
be
closed automatically. As also described there, this may be used to advantage
if
a
program halts on an error while disk files are open.
FORMAT FOR
THE
CLOSE STATEMENT
CLOSE file #
where
"file
#"
is the same tile number given
in
the desired file's current Open statement.
EXAMPLES:
To close the data file
#5
used as an example on the previous page,
we
would use
CLOSE 5
37
Page 46
In
Commodore's CBM and PET computers, there
is
a Dclose statement, that, when
used alone, closes all disk files at once. With a bit of planning, the same can be done via a
program loop. Since there
is
no harm
in
closing a
file
that wasn't open, close every
file
you even think might
be
open before ending a program. If for example, we always gave
our files numbers between \ and 5,
we
could close them
all
with
9950 FOR
1=
\ TO 5
9960 CLOSE I
9970 GOSUB 59990:REM CHECK FOR DISK ERRORS
9980 NEXT I
(assuming your program includes an error check subroutine like the one
In
the last
Chapter)
READING FILE DATA: USING
INPUT#
Once information has been written properly to a diskette file,
it
may be read back into
the computer with an Input# statement. Just
as
the Print# statement
is
much like the Print
statement,
Input#
is
nearly identical to Input, except that the list
of
items following the
command word comes from a particular
file
instead
of
the keyboard. Both statements are
subject to the same limitations-halting input after a comma or colon, not accepting data
items too large to
fit
in
Basic's Input buffer, and not accepting non-numeric data into a
numeric variable.
FORMAT FOR THE
INPUT#
STATEMENT
PRINT#file
#,
variable list
where "file
#"
is
the same
file
number given
in
the desired file's current Open statement,
and "variable list"
is
one or more valid Basic variable names. If more than one data
element
is
to be input by a particular Input# statement, each variable name must be
separated from others by a comma.
EXAMPLES:
To read back
in
the grades written with the Print# example, use:
300 FOR CLASS
= \ TO COURSES
3\0
INPUT#\
,GRADE$(CLASS)
320 GOSUB 59990:REM CHECK FOR DISK ERRORS
330 NEXT CLASS
(assuming your program includes an error check subroutine like the one
in
the last
chapter).
To read back
in
the address data written by another
Print#
example,
it
is
safest to
use:
38
Page 47
800INPUT#5,NAME$
810 GOSUB 59990:REM CHECK FOR DISK ERRORS
820INPUT#5,STREET$
830 GOSUB 59990:REM CHECK FOR DISK ERRORS
840INPUT#5,CITY$
850 GOSUB 59990:REM CHECK FOR DISK ERRORS
but many programs cheat on safety a bit and use
800INPUT#5,NAME$,STREET$,CITY$
810 GOSUB 59990:REM CHECK FOR DISK ERRORS
This
is
done primarily when top speed
in
the program
is
essential, and there
is
little or
no
risk
of
reading improper data from the file.
MORE ABOUT
INPUT#
(FOR ADVANCED USERS)
TROUBLESOME CHARACTERS
After you begin using data files regularly, you may encounter two Basic error
messages more or less frequently. They are
"STRING
TOO LONG
ERROR"
and
"FILE
DAT A
ERROR".
Both are likely to halt your program at an
Input#
statement, but may
also have been caused by errors
in a Print#
statement when the
file
was written.
"STRING
TOO
LONG"
ERRORS
A Basic string may be up to 255 characters long, although the longest string you can
enter via a single Input statement
is
just under 2 lines
of
text. This lower limitation
is
due
to
the 88 character size
of
the Input buffer
in
Commodore's serial bus computers. The
same limit applies
to
Input#
statements. If a single data element (string
or
number) being
read from a disk file into an
Input#
statement contains more than 87 characters, Basic will
halt with a
"STRING
TOO LONG
ERROR".
To prevent this error, be sure
to
limit each
string
to
under 88 characters, and separate all
file
data items with carriage returns (See the
next section for a cure once the error has occurred.)
"FILE
DATA"
ERRORS
The other error message
"FILE
DATA
ERROR"
is
caused by attempting
to
read a
non-numeric character into a numeric variable. To a computer, a number
is
the characters
o through 9,
the"'
+"
and"
- " signs, the decimal point (.), the SPACE character, and
the letter
"E"
used in scientific notation. If any other character appears in an
Input#
to a
numeric variable,
"FILE
DATA
ERROR"
will be displayed and the program will halt.
The usual causes
of
this error are a mismatch between the order
in
which variables are
written to and read from a file, a missing carriage return within a
Print#
statement that
writes more than one data item, or a data item that includes either a comma or a colon
without a preceding quotation mark. Once a
file
data error has occurred, you should
correct it by reading the data item into a string variable, and then converting it back to a
number with the Basic ValO statement after removing non-numeric characters with the
string functions described in your computer users manual.
39
Page 48
COMMAS (,) AND COLONS (:)
As
suggested before, commas and colons can cause trouble
in
a file, because they
delimit (end) the data element in which they appear and cause any remaining characters
in
the data element to be read into the next Input# variable. (They have the same effect
in
an
Input statement, causing the common "EXTRA IGNORED" error message.) However,
sometimes
we
really need a comma or colon within a data element, such
as
a name written
as
"Last,
First". The cure
is
to
precede such data elements with a quotation mark. After a
quotation mark,
in
either an Input or Input# statement, all other characters except a
carriage return or another quotation mark are accepted
as
part
of
the current data element.
EXAMPLES:
To force a quotation mark into a data element going
to
a file, append a CHR$(34)
to
the start
of
the data element. For example:
PRINT#2,CHR$(34)
+ "GUNGA
DIN"
or
PRINT#2,CHR$(34);"GUNGA
DIN"
If
you do this often, some space and time may be saved
by
previously defining a variable
as
equal
to
CHR$(34)
as
we
did earlier with CHR$(13):
20 QT$=CHR$(34)
400 PRINT#5,QT$
+ NAME$
In
each case, the added quotation mark will be stripped out of the data
by
the Input or
Input#
statement, but the comma or colon will remain safely part
of
the
data.
NUMERIC DATA STORAGE ON DISKETTE
Inside the computer, the space occupied
by
a numeric variable depends only on its
type. Simple numeric variables
use
7 bytes (character locations)
of
memory. Real array
variables use 5 bytes per array element, and integer array elements use 2 bytes each.
In
contrast, when a numeric variable or any type
is
written to a file, the space
it
occupies
depends entirely on its length, not its type.
Numeric data
is
written
to a file
in
the
form
of
a string,
as
if the Str$\) function had
been performed on it. The first character will be a blank space if the number
is
positive,
and a minus sign
(-)
if the number
is
negative. Then comes the number, digit
by
digit.
The last character
is
a cursor right character.
This format allows the disk data
to
be read back into a string or numeric variable
later.
It
is, however, somewhat wasteful
of
disk space, and it can be difficult
to
anticipate
the space required by numbers
of
unknown length. For this reason, some programs
40
Page 49
convert all numeric variables into strings before writing them to diskette, and use string
functions
to
remove any unneeded characters in advance. Doing
so
still allows those data
elements
to
be read back into a numeric variable
by
Input# later, although
file
data errors
may be avoided by reading all data
in
as strings, and converting to numbers after the
information is inside the computer.
For example,
"N$=RIGHT$(STR$(N),LEN(STR$(N»-I)"
will convert a posi-
tive number N into a string
N$
without the usual leading space for
its
numeric sign. Then
instead
of
writing PRINT#5,N, you would use PRINT#5,N$.
READING
FILE
DATA: USING
GET#
The
Get#
statement retrieves data from the disk drive, one character at a time. Like
the similar keyboard Get statement
in
Basic, it only accepts a single character into a
specified variable. However, unlike the Get statement,
it
doesn't just fall through to the
next statement
if
there
is
no data to be gotten. The primary use
of
Get#
is
to
retrieve from
diskette any data that cannot be read into an Input# statement, either because it
is
too long
to
fit
in
the input buffer or because it includes troublesome characters.
FORMAT FOR THE
GET#
STATEMENT:
GET#file#,
variable list
where "file
#"
is
the same
file
number given
in
the desired file's current Open statement,
and "variable list"
is
one or more valid Basic variable names. If more than one data
element
is
to be input by a particular
Get#
statement, each variable name must be
separated from others
by
a comma.
In
practice, you will almost never see a Get or
Get#
statement containing more than
one variable name. If more than one character is needed, a loop is used rather than
additional variables. Also
as
in
the Input# statement,
it
is
safer
to
use string variables
when the file
to
be read might contain a non-numeric character.
Data
in a Get#
statement comes
in
byte
by
byte, including such normally invisible
characters as the Carriage Return, and the various cursor controls. All but one will be read
properly. The exception
is
CHR$(O), the ASCII Null character.
It
is
different from
an
empty string (one
of
the form
A$ = ''''),
even though empty strings are often referred to
as
null strings. Unfortunately,
in a Get#
statement,
CHR$(O)
is
converted into an empty
string. The cure
is
to
test for
an
empty string after a
Get#,
and replace any that are found
with
CHR$(O)
instead. The first example below illustrates the method.
EXAMPLES:
To read a file that may contain a CHR$(O), such as a machine language program file,
we
could correct any
CHR$(O)
bytes with
1\00
GET#3,G$:IF
G$=""
THEN G$=CHR$(O)
41
Page 50

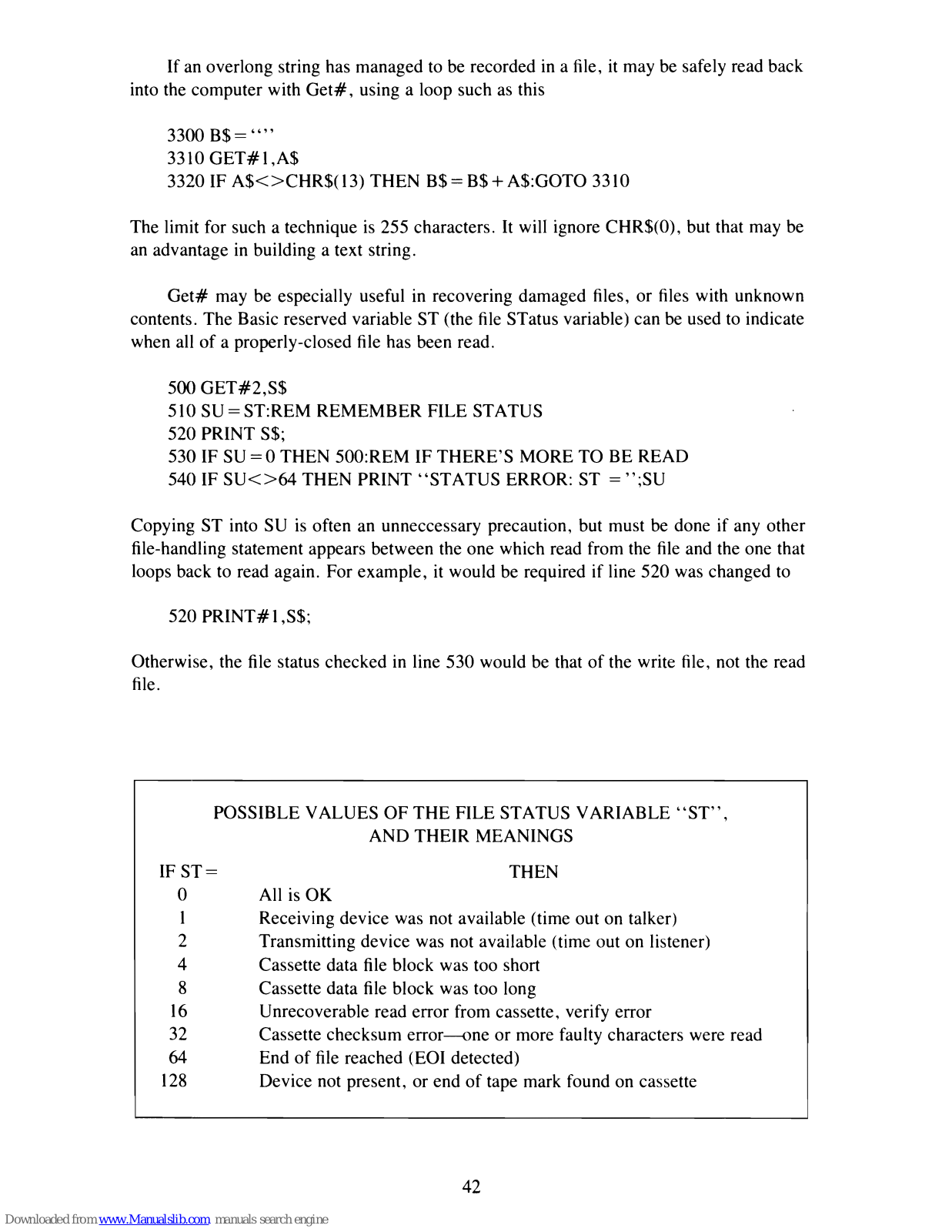

If
an
overlong string has managed to
be
recorded in a file, it may
be
safely read back
into the computer with
Get#,
using a loop such
as
this
3300
B$=
""
3310
GET#I,A$
3320 IF A$<>CHR$(13) THEN
B$ = B$
+ A$:GOTO 3310
The limit for such a technique is 255 characters. It will ignore CHR$(O), but that may
be
an
advantage in building a text string.
Get#
may be especially useful in recovering damaged files, or
files
with unknown
contents. The Basic reserved variable ST (the
file
STatus variable) can be used
to
indicate
when all
of
a properly-closed
file
has been read.
500
GET#2,S$
510
SU=ST:REM
REMEMBER FILE STATUS
520 PRINT
S$;
530 IF
SU
=0
THEN 500:REM IF THERE'S MORE TO
BE
READ
540 IF
SU<>64
THEN PRINT "STATUS ERROR: ST =
";SU
Copying ST into SU
is
often an unneccessary precaution, but must
be
done if any other
file-handling statement appears between the one which read from the
file
and the one that
loops back
to
read again. For example, it would
be
required if line 520 was changed to
520 PRINT# 1 ,S$;
Otherwise, the
file
status checked
in
line 530 would
be
that
of
the write file, not the read
file.
POSSIBLE VALUES OF THE FILE STATUS VARIABLE
"ST",
AND THEIR MEANINGS
IFST=
o All
is
OK
THEN
1 Receiving device was not available (time out on talker)
2 Transmitting device was not available (time out
on
listener)
4 Cassette data
file
block was too short
8 Cassette data
file
block was too long
16
Unrecoverable read error from cassette, verify error
32 Cassette checksum error--one
or
more faulty characters were read
64 End
of
file
reached (EQ[ detected)
128
Device not present, or end
of
tape mark found on cassette
42
Page 51

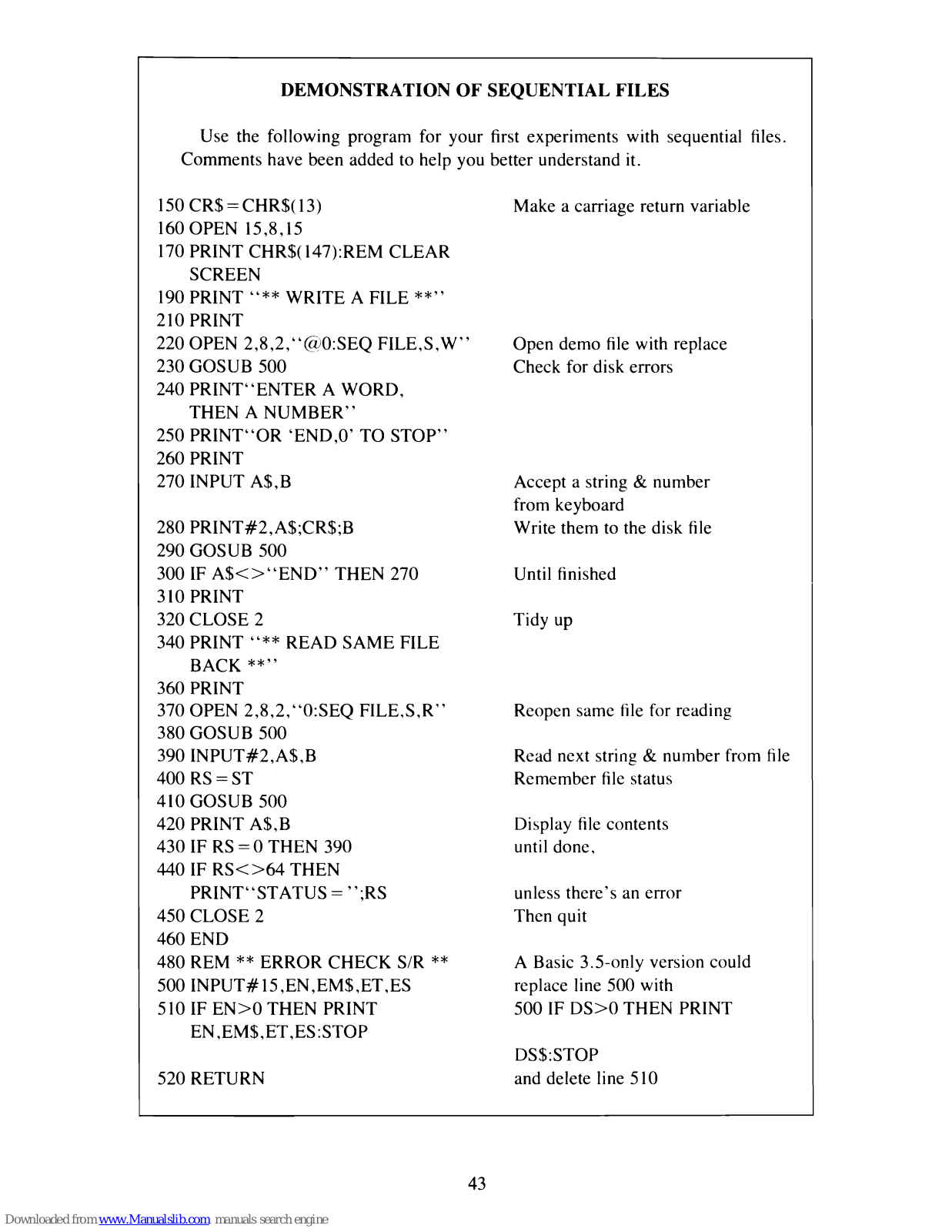

DEMONSTRATION OF SEQUENTIAL FILES
Use the following program for your first experiments with sequential files.
Comments have been added to help you better understand it.
150 CR$ = CHR$(13)
160 OPEN 15,8,15
170 PRINT CHR$(l47):REM CLEAR
SCREEN
190 PRINT
,,** WRITE A FILE
**"
210 PRINT
220 OPEN
2,8,2,'
'@O:SEQ FILE,S,
W"
230 GOSUB 500
240 PRINT"ENTER A WORD,
THEN A
NUMBER"
250
PRINT"OR
'END,O' TO
STOP"
260 PRINT
270 INPUT A$,B
280 PRINT#2,A$;CR$;B
290 GOSUB 500
300
IF
A$<>"END"
THEN 270
3IO PRINT
320 CLOSE 2
340 PRINT
"**
READ SAME FILE
BACK
**"
360 PRINT
370 OPEN 2,8,2, "O:SEQ
FILE,S,R"
380 GOSUB 500
390INPUT#2,A$,B
400
RS=ST
4IO GOSUB 500
420 PRINT A$,B
430 IF
RS
= 0 THEN 390
440
IF
RS<>64
THEN
PRINT"STATUS =
";RS
450 CLOSE 2
460 END
480 REM
** ERROR CHECK
SIR
**
500INPUT#15,EN,EM$,ET,ES
5
IO
IF
EN>O THEN PRINT
EN,EM$,ET,ES:STOP
520 RETURN
43
Make a carriage return variable
Open demo
file
with replace
Check for disk errors
Accept a string
& number
from keyboard
Write them
to
the disk
file
Until finished
Tidy up
Reopen same tile for reading
Read next string
& number from
file
Remember
file
status
Display
file
contents
until done,
unless there's
an
error
Then quit
A Basic 3.5-only version could
replace line 500 with
500
IF
DS>O THEN PRINT
DS$:STOP
and delete line 5
IO
Page 52
CHAPTERS
RELA TIVE FILES
THE VALUE
OF
RELATIVE ACCESS
Sequential files are very useful when
you're
just
working with a continuous stream
of
data --i.e.,
information that can be read
or
written all at once. However, sequential files
are not useful
or
desirable
in
some situations. For example, after writing a large list
of
mail labels, you wouldn't want to have to re-read the entire list each time you need a
person's
record. Instead, you need some kind
of
random access, a way to get to a
particular label
in
your file without having to read through all those preceding it first.
As an example, compare a record turntable with a cassette recorder. You have to
listen to a cassette from beginning to end, but a turntable needle can be picked up at any
time, and instantly moved to any spot on the record. Your disk drive works like a turntable
in
that respect. In this chapter we will learn about a type
of
file that reflects this flexibility.
Actually, two different types
of
random access files may be used on Commodore
disk drives: relative files and random files. Relative files are much more convenient for
most data handling operations, but true random access file commands are also available to
advanced users, and will be discussed
in
the next chapter.
}<'ILES,
RECORDS,
AND
FIELDS
When learning about sequential files, we did not worry about the organization
of
data
within a file, so long
as
the variables used to write the file matched up properly with those
which read it back into the computer. But in order for relative access to work, we need a
more structured and predictable environment for our data.
The
structure we will use
is
similar to that used in the traditional filing cabinet.
In
a
traditional office, all customer records might be kept in a single file cabinet. Within this
file, each customer has a personal record in a file folder with their name on it, that
contains everything the office knows about that person. Likewise, within each file folder,
there may be many small slips
of
paper, each containing one bit
of
information about that
customer, such as a home phone number,
or
the date
of
the most recent purchase.
In a computerized office, the file cabinet
is
gone, but the concept
of
a file containing
all the information about a group
or
topic remains. The file folders are gone too, but the
notion
of
subdividing the file into individual records remains. The slips
of
paper within
the personal records are gone too, replaced by subdivisions within the records, called
fields. Each field
is
large enough to hold one piece
of
information about one record
in
the
file. Thus, within each file there are many records, and within each record there are
typically many fields.
A relative file takes care
of
organizing the records for you, numbering them from I to
whatever, by ones, but the fields are up to you to organize. Each record will be
of
the
same size, but the
1551
won't
insist that they all be divided the same way.
On
the other
hand, they normally will all be subdivided the same way, and if
it
can be known in
44
Page 53
advance exactly where each field starts within each record, there are even fast ways to
access a desired field within a record without reading through the other fields. As all
of
this implies, access speed
is
a primary reason for putting information into a relative disk
file. Some well-written relative file programs are able to find and read the record
of
one
desired person out
of
a thousand in under
15
seconds, a feat no sequential file program
could match.
FILE LIMITS
One
of
the nicest aspects
of
relative files
is
that all this
is
done for you without your
having to worry at all about exactly where on the diskette's surface a given record will be
stored,
or
whether it will
fit
properly within the current disk sector, or need to be extended
onto the next available sector. DOS takes care
of
all that for you. All you need to do
is
specify how long each record is,
in
bytes, and how many records you will need. DOS will
do the rest, and organize things
in
such a way that
it
can quickly find any record
in
the file,
as soon
as
it
is
given its record number (ordinal position within the file).
The only limit that will concern you,
is
that each record must
be
the same size, and
the record length you choose must be between 2 and 254 characters. Naturally the entire
file also has to
fit
on your diskette too, which means that the more records you need, the
shorter each must be.
CREATING A RELATIVE FILE
When a relative file
is
to be used for the first time, its Open statement will create the
file; after that, the Open statement can
be
used to re-open the file for both reading and
writing.
FORMAT STATEMENT TO
OPEN
A RELATIVE FILE:
OPEN file
#,
device
#,
channel
#,
"drive
#:
file name,
L,"
+ CHR$ (record
length)
where
"file
#"
is
the file numb.:r, normally an integer between I and 127;
"device
#"
is
the device number to be used, normally 8 on the 1551;
"channel
#"
selects a particular
channel along which communications for this file can take place, normally between 2 and
14;
"drive
#"
is
the drive number, always 0 on the 1551; and
"file
name"
is
the file
name, with a maximum length
of
16
characters. Pattern matching characters are allowed
in
the name when accessing an existing file, but not when creating a new one. The
"record
length"
is
the size
of
each record within the file in bytes used, including carriage
returns, quotation marks and other special characters.
45
Page 54
Notes:
I. Do not precede the drive number with the
"at"
sign
(@);
there
is
no
reason
to
replace a relative file.
2.
,L
,"
+ CHR$(record length)
is
only required when a relative file
is
first
created, though
it
may used later, so long
as
the
"record
length"
is
the same as
when the file was first created. Since relative files may be read from or written to
alternately and with equal ease, there
is
no need to specify Read or Write mode
when opening a relative
file.
3.
"tile
#",
"device
#"
and "channel
#"
must be valid numeric constants,
variables or expressions. The rest
of
the command must be a valid string literal,
variable or expression.
4. Only I relative
file
can be open at a time on the 1551, although a sequential
file
and the command channel may also be open at the same time.
EXAMPLES:
To create or re-open a relative ftle named
"GRADES",
of
record length I 00, use
OPEN
2,8,2."GRADES,L,"
+CHR$(lOO)
To re-open an unknown relative file
of
the user's choice that has already been
created, we could use
200
INPUT"WHICH
FILE":FI$
210 OPEN
5,8,5,FI$

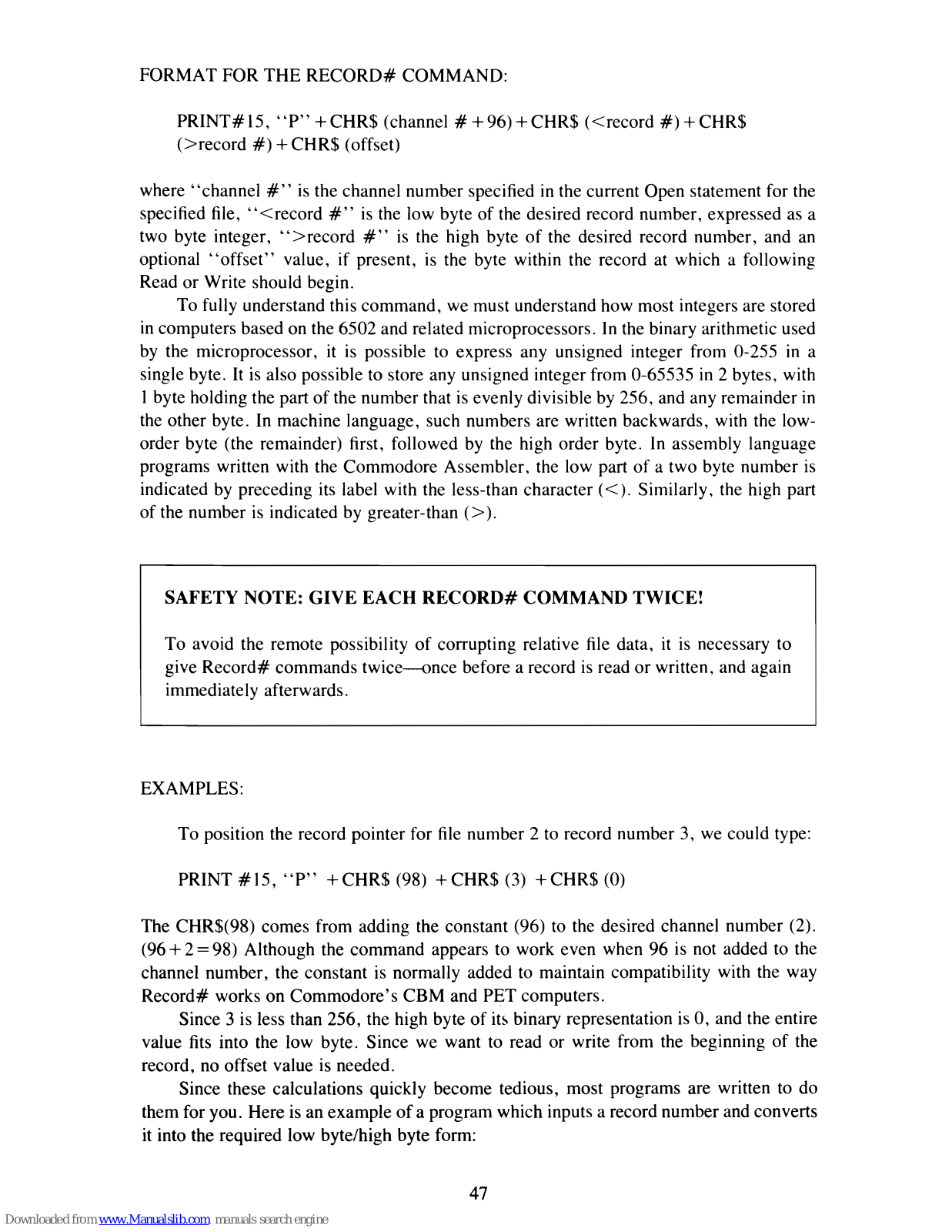

USING RELATIVE FILES:
RECORD#
COMMAND
When a relative file is opened for the first time,
it
is
not quite ready for use. Both
to
save time when using the file later, and to assure that the file will work reliably,
it
is
necessary to create several records before closing the file for the first time. At a minimum,
enough records to
fill
more than 2 disk sectors (512 bytes) should be written.
In
practice,
most programs go ahead and create as many records as the program
is
eventually expected
to use. That approach has the additional benefit
of
avoiding such problems as running out
of
room on the diskette before the entire file is completed.
If
you simply begin writing data to a just-opened relative file,
it
will act much like a
sequential tile, putting the data clements written by the first
Print#
statement
in
Record
#
I,
those written
by
the second
Print#
statement in record
#2
and
so
on. (As this
implies, each relative record must be written by a single
Print#
statement, using embed-
ded carriage returns within the data to separate fields that will be read
in
via one
or
more
Input#
statements later.) However,
it
is
far better to explicitly specify which record
number
is
desired via a
Record#
command to the disk. This allows you to access records
in
any desired order, hopping anywhere
in a file
with equal ease. Properly used,
it
also
avoids a subtle error (bug) common to all Commodore disk drives.
46
Page 55
FORMAT FOR THE RECORD# COMMAND:
PRINT#15,
"P"
+CHR$
(channel #
+96)
+CHR$
«record
#)
+ CHR$
(>record
#)+CHR$
(offset)
where "channel
#"
is
the channel number specified
in
the current Open statement for the
specified file,
"<record
#"
is
the low byte
of
the desired record number, expressed
as
a
two byte integer,
">record
#"
is
the high byte
of
the desired record number, and
an
optional
"offset"
value, if present, is the byte within the record at which a following
Read or Write should begin.
To fully understand this command, we must understand how most integers are stored
in
computers based on the 6502 and related microprocessors.
In
the binary arithmetic used
by
the microprocessor, it is possible to express any unsigned integer from 0-255
in
a
single byte. It
is
also possible
to
store any unsigned integer from 0-65535 in 2 bytes, with
I byte holding the part
of
the number that
is
evenly divisible
by
256, and any remainder
in
the other byte.
In
machine language, such numbers are written backwards, with the low-
order byte (the remainder) first, followed
by
the high order byte.
In
assembly language
programs written with the Commodore Assembler, the low part
of
a two byte number
is
indicated
by
preceding its label with the less-than character
«).
Similarly, the high part
of the number
is
indicated by greater-than
(».
SAFETY NOTE: GIVE EACH
RECORD#
COMMAND TWICE!
To avoid the remote possibility
of
corrupting relative
file
data, it is necessary to
give Record# commands twice--once before a record is read or written, and again
immediately afterwards.
EXAMPLES:
To position the record pointer for
file
number 2
to
record number 3,
we
could type:
PRINT
#15,
"P"
+CHR$
(98)
+CHR$
(3)
+CHR$
(0)
The CHR$(98) comes from adding the constant (96)
to
the desired channel number (2).
(96 + 2
= 98) Although the command appears to work even when 96 is not added
to
the
channel number, the constant
is
normally added
to
maintain compatibility with the way
Record# works on Commodore's CBM and PET computers.
Since 3 is less than 256, the high byte
of
it~
binary representation is 0, and the entire
value
fits
into the low byte. Since we want to read or write from the beginning
of
the
record, no offset value
is
needed.
Since these calculations quickly become tedious, most programs are written to do
them for you. Here is an example
of
a program which inputs a record number and converts
it into the required low bytelhigh byte form:
47
Page 56
450 INPUT"RECORD # DESIRED";RE
460 IF
RE<
lOR
RE>65535 THEN 450
470
RH
= INT(RE/256)
480
RL=
RE-256*RH
490 PRINT#15,
"P"
+CHR$
(98)
+CHR$
(RL)
+CHR$
(RH)
Assuming
RH
and
RL
are calculated
as
in
the previous example, programs may also use
variables for the channel, record, and offset required:
570 INPUT "CHANNEL, RECORD,
& OFFSET DESIRED";CH,RE,OF
630 PRINT# 15,
"P"
+ CHR$ (CH + 96) + CHR$ (RL) + CHR$ (RH) + CHR$ (OF)
ANOTHER
RECORD#
COMMAND
Basic 4.0 on Commodore's PET and CBM models includes a Basic Record#
command not found
in
any
of
the serial bus computers. However, some available
utility programs for these models include
it.
It
serves the same function
as
the
Record# command explained above, but has a simplified syntax:
RECORD#file # ,record # ,offset
where "file
#"
is
the relative
file
number being used, not the command channel's
file, "record
#"
is
the desired record number, and
"offset"
is
as
above.
If you see a Record# command written
in
Basic 4 form
in
a program you want
to
use, simply convert
it
into the usual form for both Basic 2 and 3.5 described
in
this section.
COMPLETING RELATIVE FILE CREATION
Now
that
we
have learned how
to
use both the Open and Record# commands,
we
are
almost ready
to
properly create a relative file. The only additional fact
we
need to know
is
that CHR$(255)
is
a special character
in
a relative file. It
is
the character used
by
the
DOS
to
fill
relative records as they are created, before a program fills them with other
information. Thus, if
we
want
to
write the last record
we
expect to need
in
our
file
with
dummy data that will
not
interfere with our later work, CHR$(255)
is
the obvious choice.
Here
is
how
it
works
in
an
actual program which
you
may copy for
use
in
your own
relative
file
programs.
1020 OPEN 15,8,15
1380 INPUT"ENTER RELATIVE FILE NAME";FI$
1390 INPUT"ENTER MAX. # OF RECORDS";NR
1400 INPUT"ENTER RECORD LENGTH";RL
48
Open command channel
Select
file
parameters
Page 57
1410 OPEN 1,8,2,
"0:" + FI$+"
,L,"
+CHR$(RL)
1420 GOSUB 59990
1430
RH
= INT(NRl256)
1440
RL=NR-256*RH
1450
PRINT#
15,
'P'
+ CHR$(96 + 2) +
CHR$(RL) + CHR$(RH)
1460 GOSUB 59990
1470 PRINT#1 ,CHR$(255);
1480 GOSUB 59990
1490
PRINT#15,'P'
+ CHR$(96 +
2)+
CHR$(RL) + CHR$(RH)
1500 GOSUB 59990
1510 CLOSE 1
1520 GOSUB 59990
9980 CLOSE
15
9990 END
59980 REM CHECK DISK SUBROUTINE
59990INPUT#15,EN,EM$,ET,ES
60000 IF
EN>1
AND
EN<>50
THEN PRINT
EN ,EM$,ET ,ES:STOP
600
10
RETURN
Begin to create desired
file
Check for disk errors
Calculate length values
Position to last record
number
Send default character to
it
Re-position for safety
Now the file can be safely
closed
And the command channel
closed
Before we end the program
Error check subroutine
Ignore
"RECORD
NOT
PRESENT"
Two lines require additional explanation. When line 1470 executes, the disk drive will
operate for up to ten
or
more minutes, creating all the records
in
the file, up to the
maximum record number you selected
in
line 1390. This
is
normal, and only needs to be
done once. During the process you may hear the drive motor turning and an occasional
slight click as the head steps from track to track, everything
is
probably just fine. Second,
line 60000 above is different from the equivalent line
in
the error check subroutine given
earlier. Here disk error number 50 is specifically ignored, because
it
will be generated
when the error channel
is
checked
in
line 1460. We ignore
it
because not having a
requested record would only be an error
if
that record had previously been created.
EXPANDING A RELATIVE FILE
What if you underestimate your needs and need to expand a relative file later? No
problem. Simply request the record number you need, even
if
it
doesn't currently exist
in
the file. If there is no such record yet, DOS will create it as soon as you try to write
information in it, and also automatically create any other missing records below
it
in
number. The only penalty will be a slight time delay while the records are created.
49
Page 58
WRITING RELATIVE FILE DATA
The commands used to read and write relative file data are the same
Print#,
Input#,
and
Get#
commands used in the preceding chapter on Sequential files. Each command is
used
as
described there. However, some aspects
of
relative
file
access do differ from
sequential
fIle
programming. and we will cover those differences here.
DESIGNING A RELATIVE RECORD
As stated earlier
in
this chapter, each relative record has a fixed length, including all
special characters. Within that fixed length, there are two popular ways to organize
various individual fields
of
information. One is free-format, with individual fields varying
in
length from record to record. and each field separated from the next by a carriage return
character (each
of
which does take up I character space
in
the record). The other approach
is
to use fixed-length fields, that
mayor
may not be separated by carriage returns. If fixed
length fields are not all separated by carriage returns, you will either need to be sure a
carriage return
is
included within each 88 character portion
of
the record. If this
is
not
done. you will have
to
use the
Get#
command to read the record, at a significant cost in
speed.
Relative records
of
88 or fewer characters, or
final
portions
of
records that are
88
or
fewer characters in length, need not end in a carriage return. The
1551
is
smart enough to
recognize the end
of
a relative record even without a final carriage return. Though the
saving
of
a single character isn't much, when multiplied by the number
of
records on a
diskette, the savings could be significant.
Since each relative record must be written
by
a single
Print#
statement, the recom-
mended approach
is
to
build a copy
of
the current record
in
memory before writing
it
to
disk.
It can
be
collected into a single string variable with the help
of
Basic's many string-
handling functions, and then
all
written out at once from that variable.
Here
is
an example.
If
we are writing a 4-line mail label, consisting
of
4 fields named
"NAME",
"STREET",
"CITY & STATE",
and
"ZIP
CODE",
and have a total record
size
of
87
characters,
we
can organize
it
in either
of
two ways:
WITH FIXED LENGTH FIELDS
WITH VARIABLE LENGTH FIELDS
Ficld Name
Length
Field Name Length
NAME
27
characters NAME
31
characters
STREET
27
characters
STREET 3 1 characters
CITY
& STATE
23
characters
CITY
& STATE 26 characters
ZIP CODE
10
characters
ZIP CODE
11
characters
Total length
87
characters Potential length
99 characters
Edited length
87
characters
With fixed length records, the field lengths add up to exactly the record length. Since
the total length is just within the Input buffer size limitation, no carriage return characters
are needed. With variable length records, we can take advantage
of
the variability
of
actual address lengths. While one name contains
27
letters, another may have only 15,
50
Page 59
and the same variability exists
in
Street and City lengths. Although variable length records
lose I character per field for carriage returns, they can take advantage
of
the difference
between maximum field length and average field length. A program that uses variable
record lengths must calculate the total length
of
each record
as
it
is
entered. to be sure the
total
of
all fields
doesn't
exceed the space available.

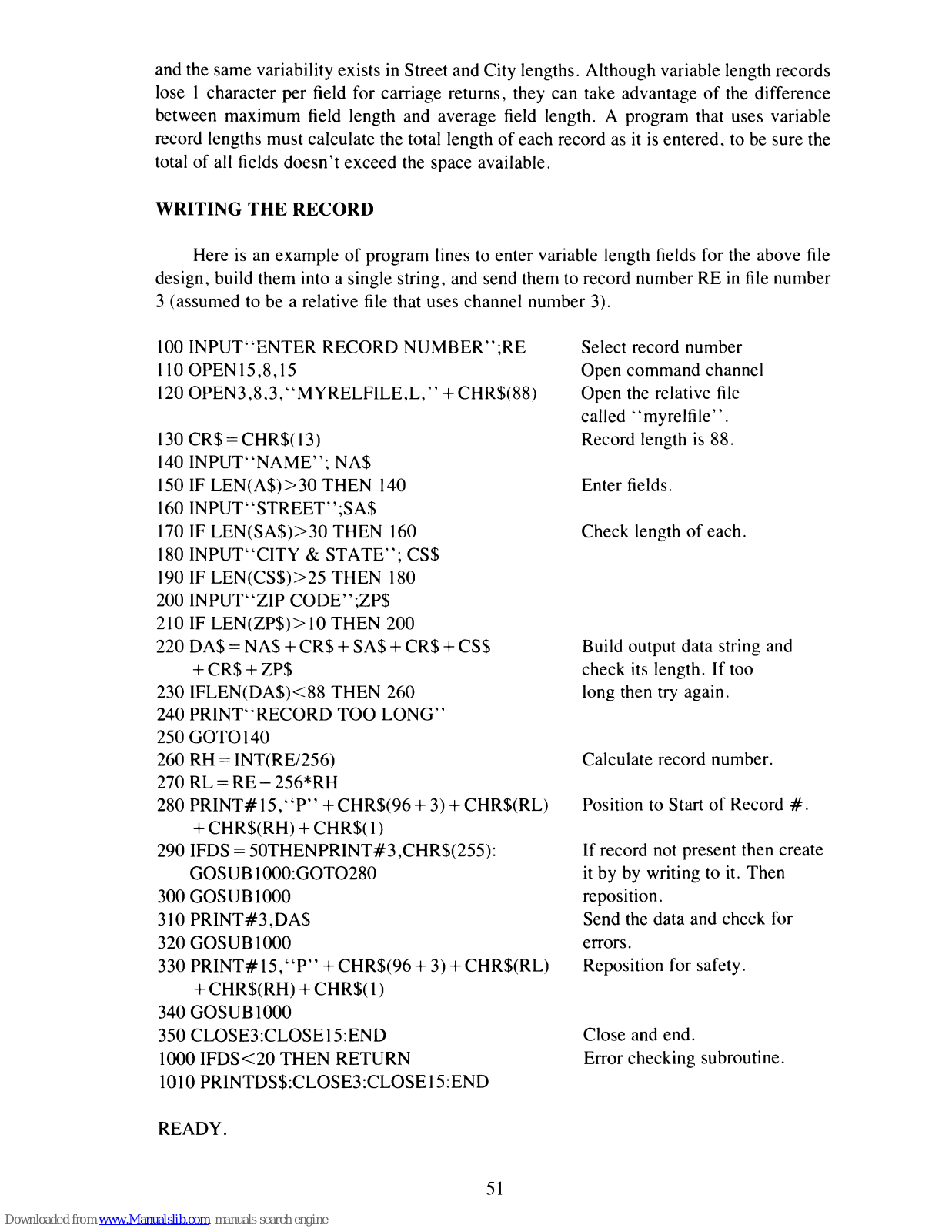

WRITING THE RECORD
Here
is
an example
of
program lines to enter variable length fields for the above tile
design, build them into a single string. and send them to record number RE
in
lile number
3 (assumed to be a relative file that uses channel number 3).
100
INPUT"ENTER
RECORD
NUMBER";RE
IIOOPENI5.8.15
120
OPEN3.8.3."MYRELFILE,L."
+CHR$(8S)
130 CR$
= CHR$(
13)
140
INPUT"'NAME";
NA$
150
IF
LEN(A$»30
THEN 140
160INPUrSTREET";SA$
170
IF
LEN(SA$»30
THEN 160
180
INPUT"CITY & STATE";
CS$
190
IF
LEN(CS$»25
THEN
ISO
200
INPUT"ZIP
CODE";ZP$
210 IF LEN(ZP$»
10
THEN 200
220 DA$
= NA$ + CR$ + SA$ + CR$ + CS$
+CR$+ZP$
230 IFLEN(DA$)<88 THEN 260
240 PRINT"'RECORD TOO
LONG"
250
GOTOl40
260
RH
= INT(RE/256)
270 RL = RE - 256*RH
280
PRINT#15,"P"
+CHR$(96+
3)
+CHR$(RL)
+ CHR$(RH) + CHR$( I)
290 IFDS
= 50THENPRINT#3,CHR$(255):
GOS
UB
1000:GOT0280
300
GOSUBIOOO
310
PRINT#3,DA$
320 GOSUBIOOO
330
PRINT#15.
"p"
+ CHR$(96 + 3)
+CHR$(RL)
+ CHR$(RH) + CHR$( I)
340 GOS
UB
1000
350 CLOSE3:CLOSEI5:END
1000
IFDS<20
THEN RETURN
1010 PRINTDS$:CLOSE3:CLOSEI5:END
READY.
51
Select record number
Open command channel
Open the relative tile
called
"myrellile".
Record length
is
88.
Enter fields.
Check length
of
each.
Build output data string and
check its length.
If
too
long then try again.
Calculate record number.
Position to Start
of
Record
#.
If
record not present then create
it by by writing to it. Then
reposition.
Send the data and check for
errors.
Reposition for safety.
Close and end.
Error checking subroutine.
Page 60

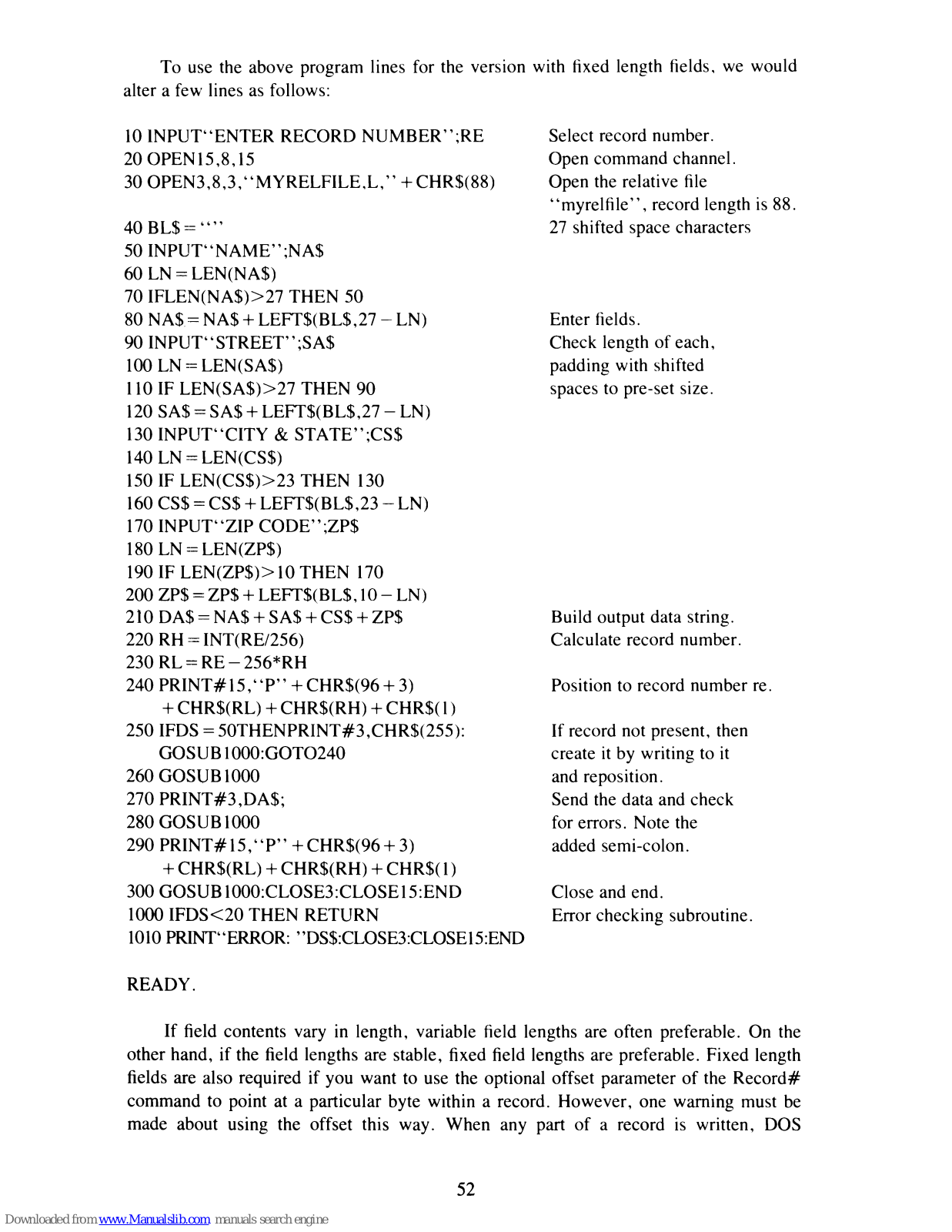

To use the above program lines for the version with fixed length tields, we would
alter a few lines as follows:
10
INPUT"ENTER
RECORD
NUMBER";RE
200PENIS,8,IS
30 OPEN3,8,3,
"MYRELFILE,L,"
+ CHR$(88)
40 BL$
=
""
SO
INPUT"NAME";NA$
60
LN
= LEN(NA$)
70
IFLEN(NA$»27
THEN
SO
80 NA$ = NA$ + LEFT$(BL$,27 - LN)
90INPUT"STREET';SA$
100
LN
= LEN(SA$)
110 IF
LEN(SA$»27
THEN 90
120 SA$
= SA$ + LEFT$(BL$,27 - LN)
130
INPUT"CITY & STATE";CS$
140 LN = LEN(CS$)
ISO
IF
LEN(CS$»23
THEN 130
160
CS$ = CS$ + LEFT$(BL$,23 - LN)
170
INPUT"ZIP
CODE"
;ZP$
180 LN
= LEN(ZP$)
190 IF LEN(ZP$»
10 THEN 170
200 ZP$
= ZP$ + LEFT$(BL$,
10-
LN)
210 DA$
= NA$ + SA$ + CS$ + ZP$
220
RH
= INT(RE/2S6)
230 RL
= RE - 2S6*RH
240
PRINT#
IS,
"P"
+ CHR$(96 + 3)
+ CHR$(RL) + CHR$(RH) + CHR$( I)
2S0 IFDS = SOTHENPRINT#3,CHR$(2SS):
GOSUB
J
000:GOT0240
260 GOSUB 1000
270
PRINT#3,DA$;
280 GOSUB 1000
290
PRINT#
IS,
"P"
+ CHR$(96 + 3)
+ CHR$(RL) + CHR$(RH) + CHR$( I)
300 GOSUBlOOO:CLOSE3:CLOSEIS:END
1000
IFDS<20
THEN RETURN
1010
PRINT"ERROR: "DS$:CLOSE3:CLOSEIS:END
READY,
Select record number.
Open command channel.
Open the relative file
"myrelfile"
, record length
is
88.
27
shifted space characters
Enter fields.
Check length
of
each,
padding with shifted
spaces to pre-set size.
Build output data string.
Calculate record number.
Position
to
record number
reo
If record not present, then
create
it
by writing to it
and reposition.
Send the data and check
for errors. Note the
added semi-colon.
Close and end.
Error checking subroutine.
If
field contents vary
in
length, variable field lengths are often preferable. On the
other hand,
if
the field lengths are stable, fixed field lengths arc preferable. Fixed length
fields are also required if you want to use the optional offset parameter
of
the
Record#
command to point at a particular byte within a record. However, one warning must be
made about using the offset this way. When any part
of
a record
is
written, DOS
S2
Page 61
overwrites any remaining spaces
in
the record. Thus, if you must use the offset option,
never update any field
in
a record other than the last one unless all succeeding fields will
also be updated from memory later.
The above programs are careful to match record lengths exactly to the. space
available. Programs that
don't
do so will discover that DOS pads short records out
to
full
size with
fill
characters, and truncates overlong records to
fill
only their allotted space.
When a record
is
truncated, DOS will indicate error 51,
"RECORD
OVERFLOW",
but
short records will be accepted without a DOS error messagc.
READING A RELATIVE RECORD
Once a relative record has been written properly to diskette, reading
it
back into
computer memory
is
fairly simple, but the procedure again varies, depending on whether
it
uses fixed or variable length fields. Here are the program lines needed to read back the
variable fields created above from record number RE
in
file
and channel
3:
10
OPENI5,8,15
20 OPEN3,8,3,
"O:MYRELFILE,L,"
+ CHR$(88)
30
INPUT"ENTER
RECORD
NUMBER";RE
40
RH
= INT(RE/256)
50 RL = RE - 256*RH
60
PRINT#
15,
"P"
+ CHR$(96 + 3)
+CHR$(RL)
+ CHR$(RH) + CHR$(
1)
70 GOSUBlOOO
80
INPUT#3,
NA$,SA$,CS$,ZP$
90 GOSUB1000
100
PRINT#15,"P"
+CHR$(96.3)
+CHR$(RL)
+ CHR$(RH) + CHR$( I)
110 GOSUB 1000
120
PRINTNA$:PRINTSA$
130 PRINTCS$:PRINTZP$
140 CLOSE3:CLOSEI5:END
lOOOIFDS<20THENRETURN
1010 PRINTDS$:CLOSE3:CLOSEI5:END
READY.
Open the command channel.
Open the relative file
"myrelfile". Record length
is
88.
Select and calculate
record number.
Position to start
of
record # RE
and check for errors.
Input the data and check
for errors.
Reposition for safety.
Print the record on screen.
Close and end.
Error checking subroutine.
Here are the lines needed to read back the version with fixed length fields:
10
OPENI5,8,15
20 OPEN3,8,3,
"O:MYRELFlLE,L,"
+ CHR$(88)
30
INPUT"ENTER
RECORD
NUMBER";RE
40 RH = INT(RE/256)
50
RL=RE-256*RH
53
Open command channel.
Open the relative file called
"myrelfile"
The record length
is
88.
Select and calculate record
#.
Page 62
60
PRINT#
15,
"P"
+ CHR$(96 + 3) + CHR$(RL)
+ CHR(RH) +
CHR$(l)
70 GOSUB 1000
80INPUT#3,DA$
90 GOSUBlOOO
100
PRINT#15,
"P"
+CHR$(96 + 3)+
CHR$(RL)
+ CHR$(RH) + CHR$( I)
110 GOSUB 1000
120
NA$=
LEFf$(DA$,27)
130
SA$=MlD$(DA$,28,27)
140 CS$ = MlD$(DA$,55,23)
150 ZP$
= RIGHT$(DA$,
10)
160 PRINTNA$:PRINTSA$
170 PRINTCS$:PRINTZP$
180 CLOSE3:CLOSEI5:END
1000
IFDS<20
THEN RETURN
1010 PRINTDS$:CLOSE3:CLOSEI5:END
READY.
Position to start
of
record
# RE and check for errors.
Input the record.
Reposition for safety.
Split the data into fields.
Print data on screen.
Close and end.
Error checking subroutine.
THE
VALUE
OF
INDEX
FILES
(ADVANCED
USERS)
In
the last two chapters we have learned how to use sequential and relative files
separately. But they are often used together, with thc sequential
file
used
to
keep brief
records
of
which name
in
thc rclative file
is
stored
in
each record number. That way the
contents
of
the sequential
fi
Ic
can be read into a string array and sorted alphabetically.
After sorting, a techniquc known as a binary search can be used to very quickly find an
entered name
in
the array, and read
in
or write the associated record
in
the relative file.
Advanced programs can maintain two or more such index files, sorted in differing ways
simultaneously.
54
Page 63
CHAPTER 6
DIRECT ACCESS COMMANDS
A TOOL FOR ADVANCED USERS
Direct access commands specify individual sectors on the diskette, reading and
writing information entirely under your direction. This gives them almost complete
flexibility in data-handling programs, but also imposes tremendous responsibilities on the
programmer,
to be sure nothing goes awry.
As
a result, they are normally used only in
complex
commercial programs able to properly organize data without help from the disk
drive itself.
A far more
common
usc
of
direct access commands is in utility programs used to
view and alter parts
of
the diskette that are not normally seen directly. For instance, such
commands
can be used to change the name
of
a diskette without erasing all
of
its
programs,
to lock a program so it
can't
be erased,
or
hide your name in a location where it
won't
be
expected.
DISKETTE ORGANIZATION
There are a total
of
683 blocks on a diskette,
of
which 664 are available for use, with
the rest reserved for the
BAM
(Block Availability Map) and the Directory.
The
diskette's
surface is divided into tracks, which are laid out as concentric circles
on
the surface
of
the diskette.
There
are 35 different tracks, starting with track I at the
outside
of
the diskette to track 35 at the center. Track
18
is
used for the directory, and the
DOS
fills up the diskette from the center outward, alternately in both directions.
Each track is subdivided into sectors (also called blocks). Because there is more
room on the outer tracks, there are more sectors per track there. The outermost tracks
contain
21
sectors
each,
while the innermost ones only have
17
sectors each.
The
table
below
shows
the
number
of
sectors per track.

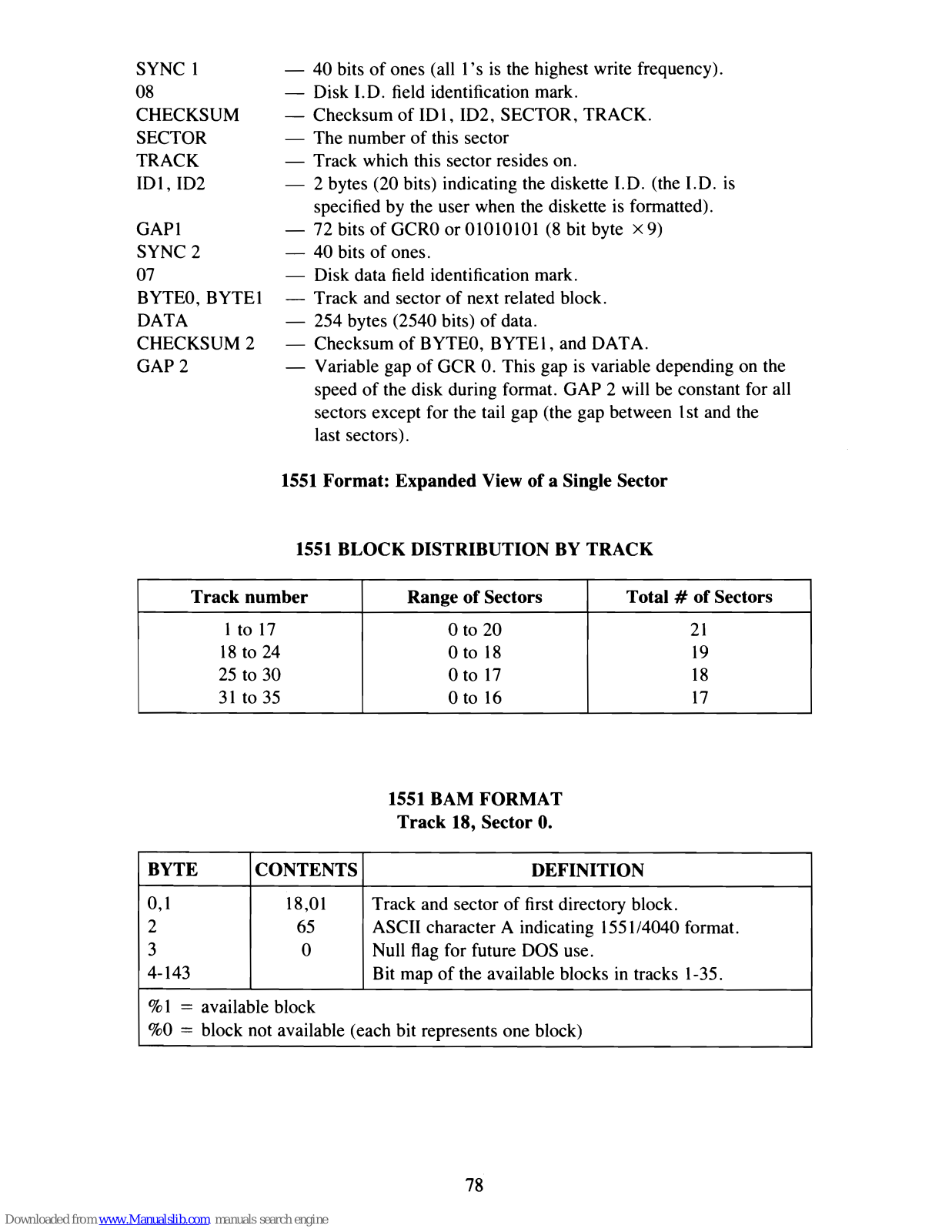

Table 6.1: Track and Sector Format
TRACK NUMBER SECTOR NUMBERS TOT
AL
SECTORS
I to
17
18
to 24
25
to
30
31
to 35
o through 20
o through
18
o through 17
o through 16
21
19
18
17
In this chapter we will describe the
DOS
commands for directly reading and writing
any track and block
on
the diskette, as well as the commands used to mark blocks as used
or unused.
OPENING A DATA CHANNEL FOR DIRECT ACCESS
When
working with direct access data, you need two channels open to the disk: the
command
channel
we've
used throughout the book, and another for data. The command
channel is opened with the usual
OPEN
15,8,15
or
equivalent. A direct access data
55
Page 64

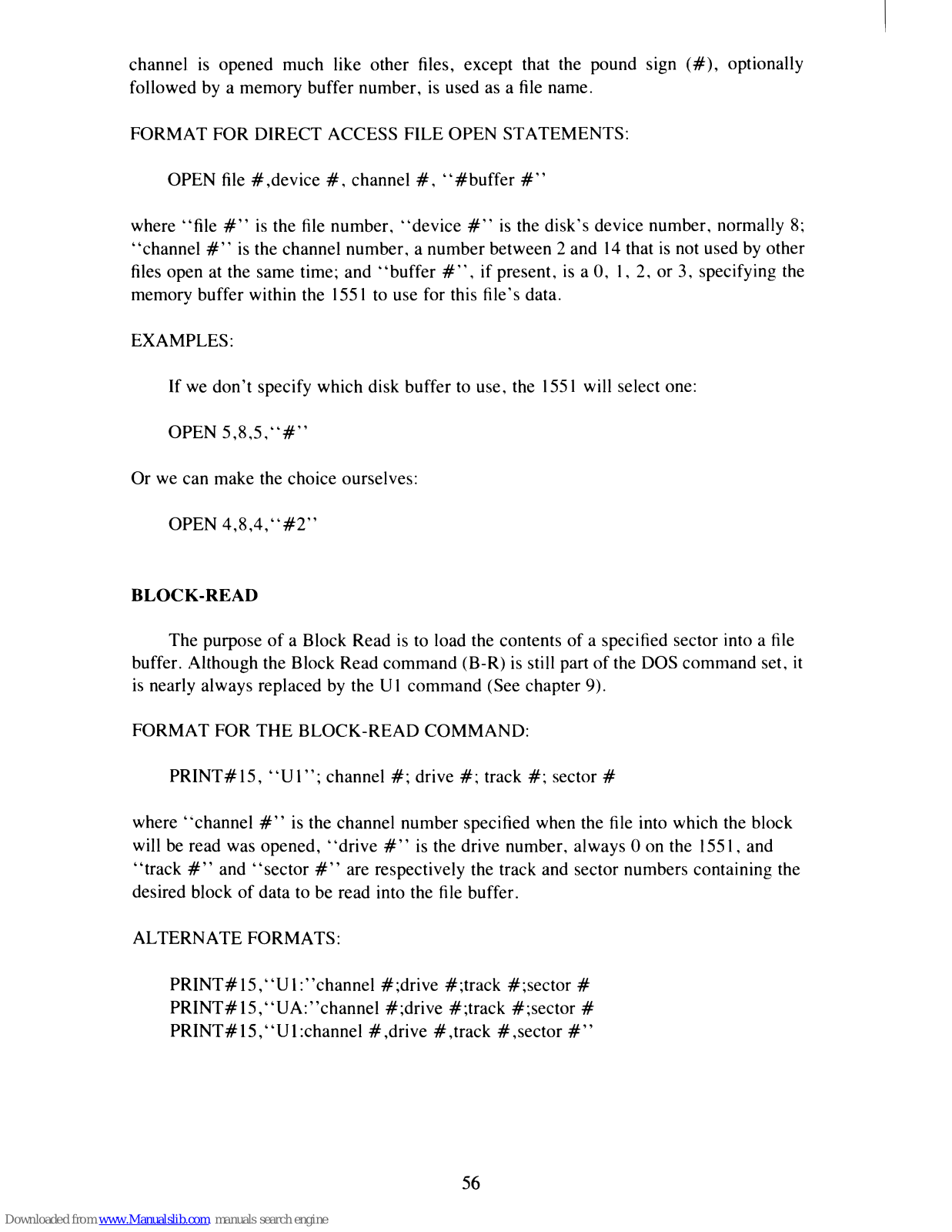

channel
is
opened much like other files, except that the pound sign
(#),
optionally
followed
by
a memory buffer number,
is
used as a
file
name.
FORMAT FOR DIRECT ACCESS FILE OPEN STATEMENTS:
OPEN file # ,device
#.
channel
#,
"#buffer
#"
where "file
#"
is
the file number, "device
#"
is
the disk's device number, normally
8;
"channel
#"
is
the channel number, a number between 2 and
14
that
is
not used
by
other
files
open at the same time; and
"buffer
#",
if present,
is
a 0, I, 2, or 3, specifying the
memory buffer within the
1551
to use for this file's data.
EXAMPLES:
If
we
don't specify which disk buffer to use, the
1551
will select one:
OPEN
5,8,5,"#"
Or
we
can make the ehoice ourselves:
OPEN
4,8,4,"
#2"
BLOCK-READ
The purpose
of
a Block Read
is
to
load the contents of a specified sector into a
file
buffer. Although the Block Read command (B-R)
is
still part
of
the DOS command set,
it
is
nearly always replaced
by
thc U I command (See chapter 9).
FORMAT FOR THE BLOCK-READ COMMAND:
PRINT#15,
"Ul";
channel
#;
drive
#:
track
#;
sector #
whcre "channel
#"
is
the channel number specified when the
file
into which the block
will
be
read was opened, "drive
#"
is
the drive number. always °
on
the
ISS
I. and
"track
#"
and "sector
#"
are respectively the track and sector numbers containing the
desired block
of
data to be read into the
file
buffer.
ALTERNATE FORMATS:
PRlNT#15,"Ul:"channel
#;drive #;track #;sector #
PRINT#15,"UA:"ehannel
#;drive #;track #;sector #
PRINT#15,"Ul:channel
#,drive
#,track
# ,sector
#"
56
Page 65

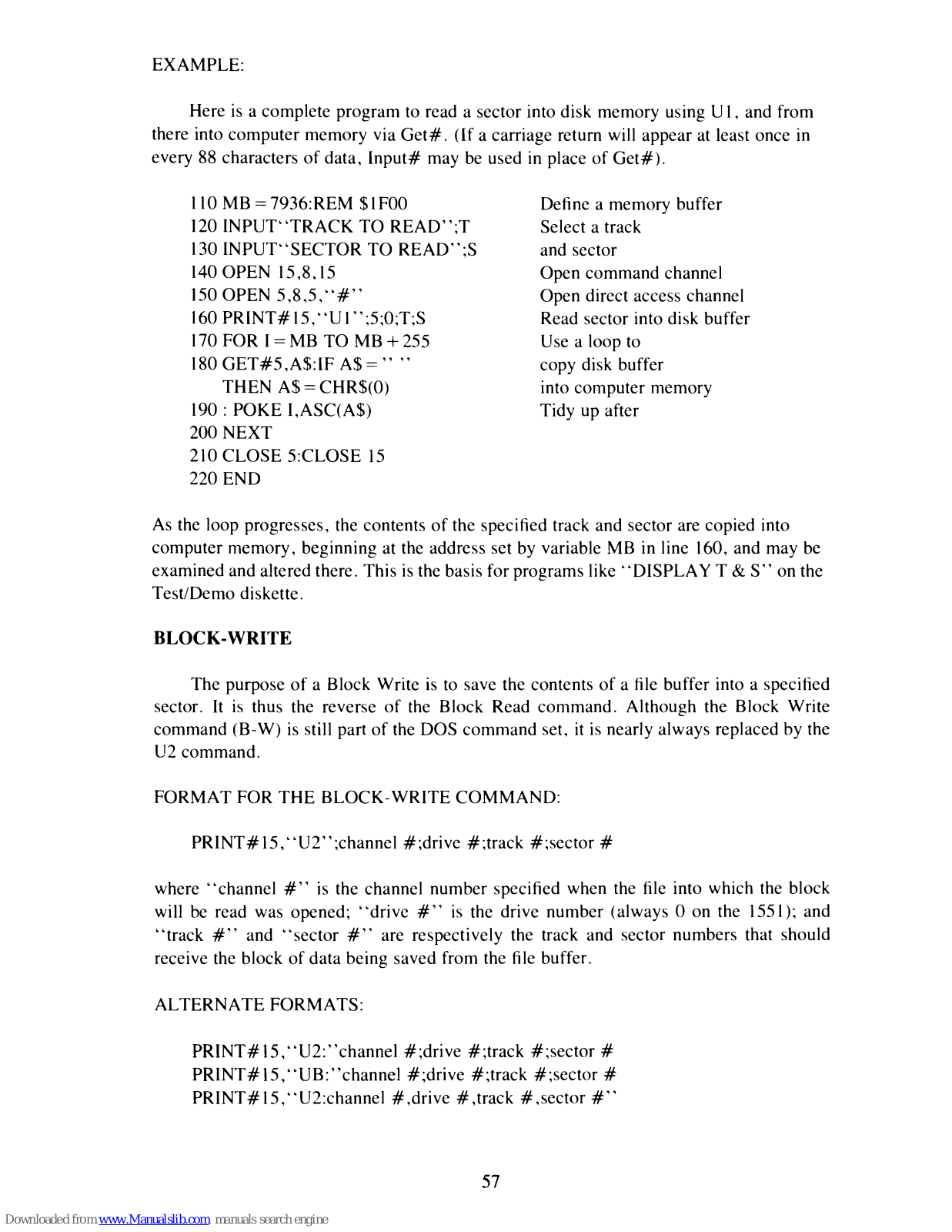

EXAMPLE:
Here
is
a complete program
to
read a sector into disk memory using U I, and from
there into computer memory via
Get#.
(If a carriage return will appear at least once
in
every
88
characters
of
data, Input# may be used
in
place
of
Get#).
110
MB
= 7936:REM
$1
FOO
120 INPUT"TRACK TO READ";T
130 INPUT"SECTOR TO READ";S
140
OPEN 15,8,15
150 OPEN 5,8,5,
"#"
160
PRINT#15,"UI";5;0;T;S
170
FOR I =
MB
TO
MB
+ 255
180
GET#5,A$:IF
A$
="
"
THEN A$ =
CHR$(O)
190: POKE I,ASC(A$)
200 NEXT
210 CLOSE 5:CLOSE
15
220 END
Define a memory buffer
Select a track
and sector
Open command channel
Open direct access channel
Read sector into disk buffer
Use
a loop
to
copy disk buffer
into computer memory
Tidy
up
after
As
the loop progresses, the contents
of
the specified track and sector are copied into
computer memory, beginning at the address set
by
variable
MB
in
line 160, and may
be
examined and altered there. This
is
the basis for programs like
"DlSPLA
Y T &
S"
on the
Test/Demo diskette.
BLOCK-
WRITE
The purpose
of
a Block Write
is
to
save the contents
of a file
buffer into a specified
sector.
It
is
thus the reverse
of
the Block Read command. Although the Block Write
command (B-W)
is
still part
of
the DOS command set,
it
is
nearly always replaced by the
U2
command.
FORMAT FOR THE BLOCK-WRITE COMMAND:
PRINT#15,"U2";channel
#;drive #;track #;sector #
where "channel
#"
is
the channel number specified when the
file
into which the block
will
be
read was opened; "drive
#"
is
the drive number (always 0 on the 1551); and
"track
#"
and "sector
#"
are respectively the track and sector numbers that should
receive the block
of
data being saved from the
file
buffer.
ALTERNATE FORMATS:
PRINT#15,"U2:"channel
#;drive #;track #;sector #
PRINT#15,"UB:"channel
#;drive #;track #;sector #
PRINT#15,"U2:channel
#,drive
#,track
#,sector
#"
57
Page 66
EXAMPLES:
To restore track
18.
sector I
of
the directory from the disk buffer filled
by
the Block
Read example on page 82.
we
can use
PRINT#
15,
"U2";5;0;
18; I
We'll return
to
this example on the next page, after we learn to alter the directory
in
a
useful way.
We can also use a Block Write
to
write a name
in
Track
I,
Sector
I.
a rarely-used
sector. This can be used as a way
of
marking a diskette as belonging to you. Here
is
a
program to do it. using the alternate form
of
the Block Write command:
110
INPUT"YOUR
NAME";NA$
120
OPEN 15.8,15
130
OPEN
4,8,4,"#"
140
PRINT#4,NA$
150
PRINT#15,"U2";4;O;I;1
160 CLOSE 4
170 CLOSE
15
180
END
Enter a name
Open command channel
Open direct access channel
Write name
to
buffer
Write buffer
to
Track
I,
Sector I
of
diskette
Tidy up after
THE ORIGINAL BLOCK-READ AND BLOCK-WRITE COMMANDS (EXPERT
USERS ONLY)
Although the Block Read and Block Write commands are nearly always replaced
by
the U I and U2 commands respectively, the original command, can still be used, as long
as you fully understand their effects. Unlike UI and U2, B-R and B-W allow you to read
or write less than a full sector.
In
the case
of
B-R, the first byte of the selected sector
is
used to set the buffer pointer (see next section), and determines how many bytes
of
that
sector are read into a disk memory buffer. A program may check
to
be
sure
it
doesn't
attempt
to
read past the end
of
data actually loaded into the buffer, by watching for the
value
of
the file status variable ST to change from 0
to
64. When the buffer
is
written back
to
diskette by B-W, the first byte written
is
the
current value
of
the buffer pointer, and
only that many bytes are written into the specified sector. B-R and
B-
W may thus
be
useful
in
working with custom-designed file structures.
FORMAT
FOR
THE
ORIGINAL
BLOCK-READ AND BLOCK-WRITE COM-
MANDS:
PRINT#15,"BLOCK-READ";channel
#;drive
#;track
#:sector
#
abbreviated as:
PRINT#15,"B-R";channel
#;drive
#;track
#;sector
#
58
Page 67
and
PRINT#
15.
"BLOCK-WRITE";channel
#;drive
#;track
#;sector
#
abbreviated as:
PRINT#
IS,
"B-
W";channel
#;drive
#;track
#:seetor
#
where
"channel
#"
is
the channel number specified when the
fiJc
into which the block
will
be
read was opened,
"drive
#"
is
the drive number (always
()
on the 1551). and
"track
#"
and
"sector
#"
are respectively the track and sector numbers containing the
desired block
of
data to be partially read into or written from the file buffer.
IMPORT ANT NOTES:
1.
In
a true Block-Read, thc lirst byte
of
the selected sector
is
used to
determine how many bytes
of
that sector to read into the disk memory buffer.
It
thus cannot be used to read an entire sector into the buffer. as the first data byte
is
always interpreted as being the number
of
characters to read, rather than part
of
the
data.
2. Similarly,
in
a true Block-Write. when the buffer
is
written hack to diskette.
the first byte written
is
the current value of the buffer pointer. and only that many
bytes are written into the specified sector.
It
cannot be used to rewrite an entire
sector onto diskette unchanged. because the first data byte
is
overwritten by the
buffer pointer.
THE BUFFER POINTER
The buffer pointer points to where the next Read
or
Write will begin within a disk
memory buffer. By moving the buffer pointer. you can access individual bytes within a
block
in
any order. This allows you to edit any portion
of
a sector.
or
organize
it
into
fields. like a relative record.
FORMAT FOR
THE
BUFFER-POINTER COMMAND:
PRINT#
15.
"BUFFER-POINTER"
;channel
#:byte
usually abbreviated as:
PRINT#
15,
"B-P";channel
#;byte
where
"channel
#"
is
the channel number specified when the
liJc
reserving the buffer
was opened, and "byte"
is
the character number within the buffer
at
which to point.
59
Page 68

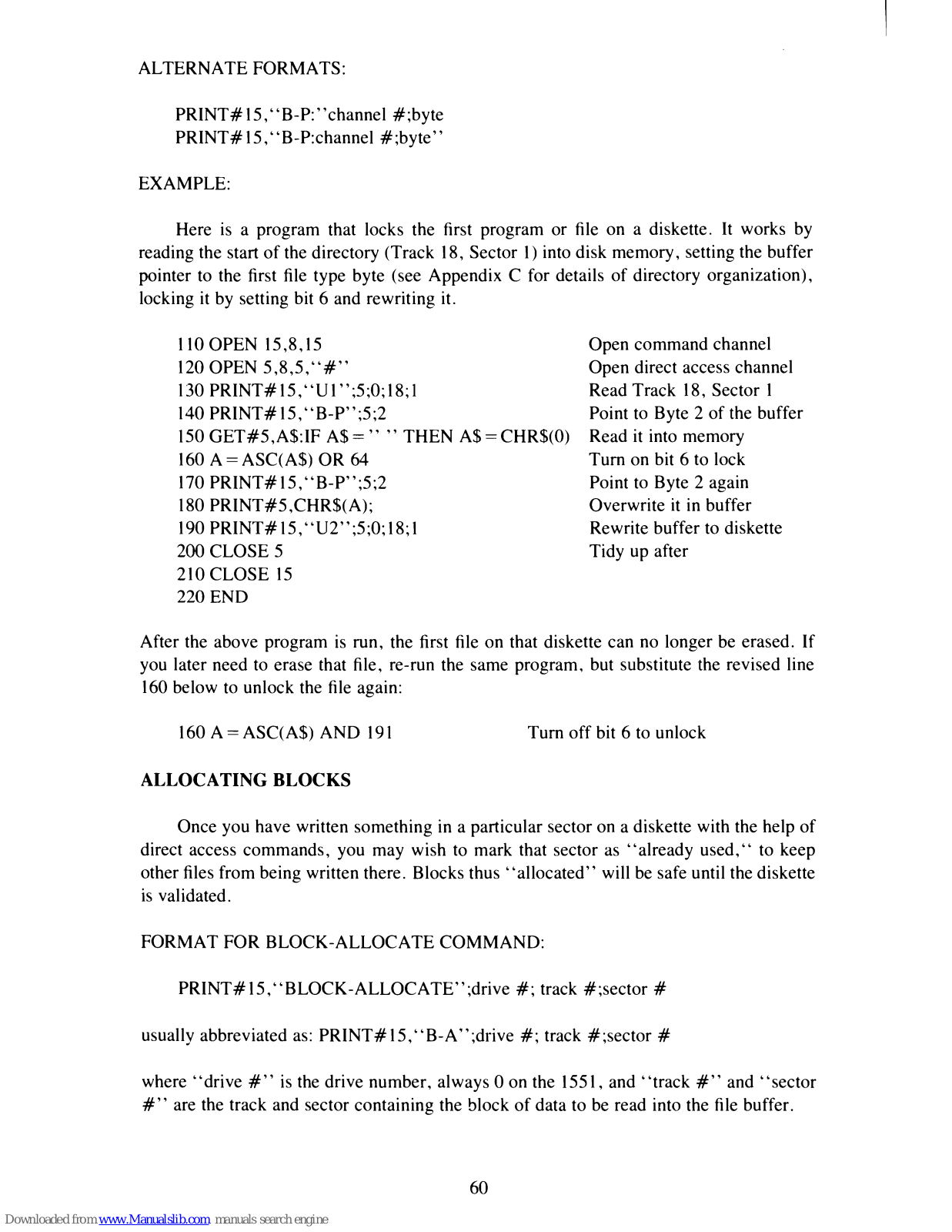

ALTERNATE FORMATS:
PRINT#15, "B-P:"channel #;byte
PRINT#15, "B-P:channel
#;byte"
EXAMPLE:
Here
is
a program that locks the first program or
file
on a diskette.
It
works
by
reading the start
of
the directory (Track 18, Sector
I)
into disk memory, setting the buffer
pointer
to
the first
file
type byte (see Appendix C for details
of
directory organization),
locking
it
by
setting bit 6 and rewriting it.
110 OPEN 15,8,15
120 OPEN
5,8,5,"#"
130 PRINT# 15,
"UI
";5;0;18; I
140 PRINT# 15,
"B-P";5;2
150 GET#5,A$:IF
A$
="
" THEN
A$ = CHR$(O)
160
A=ASC(A$)
OR
64
170
PRINT#15,"B-P";5;2
180
PRINT#5,CHR$(A);
190 PRINT#15, "U2";5;0;18;1
200 CLOSE 5
210 CLOSE
15
220 END
Open command channel
Open direct access channel
Read Track 18, Sector I
Point
to
Byte 2 of the buffer
Read
it
into memory
Turn on bit 6
to
lock
Point
to
Byte 2 again
Overwrite
it
in
buffer
Rewrite buffer
to
diskette
Tidy
up
after
After the above program
is
run, the first
file
on that diskette can no longer be erased. If
you
later need
to
erase that file, re-run the same program, but substitute the revised line
160
below
to
unlock the
file
again:
160
A=ASC(A$)
AND
191
Turn off bit 6
to
unlock
ALLOCATING BLOCKS
Once you have written something in a particular sector on a diskette with the help of
direct access commands, you may wish
to
mark that sector
as
"already used,"
to
keep
other files from being written there. Blocks
thus"
allocated" will
be
safe until the diskette
is
validated.
FORMAT FOR BLOCK-ALLOCATE COMMAND:
PRINT#15, "BLOCK-ALLOCATE";drive
#;
track #;sector #
usually abbreviated
as:
PRINT#15,"B-A";drive
#;
track #;sector #
where "drive
#"
is
the drive number, always 0 on the 1551, and
"track
#"
and "sector
#"
are the track and sector containing the block
of
data
to
be
read into the
file
buffer.
60
Page 69
ALTERNATE FORMAT:
PRINT#15,"B-A:";drive
#;
track #;sector #
EXAMPLE:
If you try to allocate a block that isn't available, the DOS will set the error message
to
number 65, NO BLOCK, and set the track and block numbers
in
the error message
to
the next available track and block number. Therefore, before selecting a block
to
write,
try
to
allocate that block. If the block isn't available, read the next available block from
the error channel and allocate
it
instead. However, do not allocate data blocks
in
the
directory track. If the track number returned
is
0, the diskette
is
full.
Here
is
a program that allocates a place to store a message
on
a diskette.
100
OPENI5,8,
15
110
OPEN5,8,5,
"#"
120
PRINT#5,"1
THINK
THEREFORE I
AM"
130T=I:S=1
140
PRINT#15,"B-A";0;T;S
150INPUT#15,EN,EM$,ET,ES
160
IF
EN
=0
THEN 210
170
IF
EN<>65
THEN PRINT
EN
,EM$,ET ,ES:STOP
180
IF ET = 0 THEN PRINT
"DISK
FULL":STOP
190
IF
ET=
18
THEN
ET=
19:ES=0
200T=ET:S=ES:GOTO
140
210
PRINT#15,"U2";5;0;T;S
220 PRINT
"STORED
AT:",T,S
230 CLOSE 5:CLOSE
15
240 END
FREEING
BLOCKS
Open command channel
" direct access "
Write a message to buffer
Start
at
first track & sector
Try allocating
it
See if
it
worked
If
so, we're almost done
"NO
BLOCK" means already allocated
If next track
is
0, we're out
of
room
Don't allocate
the
directory!
Try suggested track
& sector next
Write buffer to allocated sector
Say where message went
and tidy up
The Block-Free command
is
the opposite of Block-Allocate.
It
frees a block that
you
don't need any more, for re-use by the OOS. Block-Free updates the
BAM
to show a
particular sector
is
not
in
use, rather than actually erasing any data.
FORMAT FOR BLOCK-FREE COMMAND:
PRINT#15,"BLOCK-FREE";drive #;track
#;sector
#
abbreviated
as:
PRINT#15,"B-F";drive
#;track #;sector #
61
Page 70
where
"drive
#"
is
the drive number (always 0 on the 1551), and
"track
#"
and
"sector
#"
are respectively the track and sector numbers containing the desired hlock
of
data
to
be
read into the file buffer.
ALTERNATE FORMAT:
PRINT#15,"B-F:";drive
#;track
#;sector
#
EXAMPLE:
To free the sector in which we wrote our name
in
the Block Write example, and
allocated
in
the first Block-Allocate example, we could use the following command:
PRINT#
15,
"B-F"
:0;
1:1
USING
RANDOM
FILES
(ADVANCED
USERS
ONLY)
By combining the commands
in
this chapter,
it
is
possible to develop a file-handling
program that uses random files. What you need
to
know now
is
how to kecp track
of
which blocks on the disk such a file has used. (Even though you know a sector has not
been allocated by your random file, you must also be sure it wasn't allocated by another
unrelated file on the diskette.)
The most common way
of
recording which sectors have been used by a random file
is
in
a sequential file. The sequential file stores a list
of
record numbers, with the track,
sector, and byte location
of
each record. This means three channels are needed by a
random
file:
one for the command channel, one for the random data, and the last for the
sequential data.
62
Page 71
CHAPTER 7
INTERNAL DISK COMMANDS
Expert programmers can give commands that directly alter the workings
of
the
1551
,
much as skilled programmers can alter the workings
of
Basic inside the computer with
Peeks, Pokes and Sys calls, It is also possible
to
write machine language programs that
load and run entirely within the 1551, either by writing them into disk memory from the
computer,
or
by loading them directly from diskette into the desired disk memory buffer.
In
use, this
is
similar
to
loading and running machine language programs
in
your
computer.
As
when learning to use PeekO, Poke and Sys
in
your computer, extreme caution
is
advised
in
using the commands
in
this chapter. They are essentially machine language
commands, and lack all
of
Basic's safeguards.
If
anything goes wrong, you may have
to
tum the disk drive off and on again (after removing the diskette) to regain control. Do not
practice these commands on any important diskette, Rather, make a spare copy and work
with that. Knowing how to program a 6502
in
machine language will help greatly, and
you will also need a good memory map
of
the 1551. A brief
1551
map appears below.
Location
0000-0001
0002-00FF
OIOO-OIFF
0200-02FF
0300-06FF
0700-07FF
4000-4007
Cooo-FFE5
FFE6-FFFF
1551 MEMORY
MAP
Purpose
8 bit
port-651
OT
Zero page work area, *
job
queue, variables
GCR overflow area and stack
Command buffer, parser, tables, variables
4 data buffers, 0-3
BAM resident
in
memory
6523a
va to computer controller
16K byte ROM, DOS and controller routines
JMP
table, user command vcctors
* Job queue and HDRS offsct
by 2 bytes-starts
at $0002
Other
Resources:
More detailed information about Commodorc disk drives can be found
in
these
books:
Inside Commodorc DOS, by Immers
& Ncufeld (Datamost, c1984)
The Anatomy
of
the
1541
Disk Drive, by Englisch & Szezepanowski
(Abacus, e1984)
Programming the PET/CBM,
by
West (Level Limitcd,
cI982)
Thc PET Personal Computer Guide. by Osborne & Strasmas
(Osborne/McGraw-Hill.
cI982)
63
Page 72
MEMORY -READ
The disk contains 16K
of
ROM (Read-Only Memory),
as
well
as
2K
of
RAM (Read-
Write Memory). You can get direct access
to
any location within these, or to the buffers
that the DOS has set up in RAM,
by
using memory commands. Memory-Read allows you
to
select which byte or bytes to read from disk memory into the computer. The Memory-
Read command
is
the equivalent
of
the Basic PeekO function, but reads the disk's
memory instead
of
the computer's memory.
Note: Unlike other disk commands, those
in
this chapter cannot
be
spelled out
in
full. Thus, M-R
is
correct, but MEMORY-READ
is
not a permitted alternate
wording.
FORMAT FOR THE MEMORY-READ COMMAND:
PRINT # 15,
"M
-R "CHR$( <address )CHR$(> address )CHR$( #
of
bytes)
where
"<address"
is the low order part, and
">address"
is the high order part
of
the
address in disk memory to
be
read.
If
the optional
"#
of
bytes"
is
specified,
it
selects
how many memory locations will
be
read in, from 1-255. Otherwise, I character will be
read.
If
desired, a colon (:) may follow M-R inside the quotation marks.
ALTERNATE FORMAT:
PRINT#15, "M-R:"CHR$( <address)CHR$(>address)CHR$(#
of
bytes)
The next byte read using the
Get#
statement through channel
#15
(the error
channel), will
be
from that address
in
the disk controller's memory, and successive bytes
will
be
from successive memory locations.
Any Input# from the error channel will give peculiar results when you're using this
command. This can
be
cleared up
by
sending any other command to the disk, except
another memory command.
EXAMPLES:
To see how many tries the disk will make
to
read a particular sector, and whether
"seeks"
one-half track to each side will be attempted
if
a read fails, and whether
"bumps"
to track one and back will
be
attempted before declaring the sector unreadable,
we can use the following lines. They will read a special variable in the zero page
of
disk
memory, called REVCNT.
It
is
located at $6A hexadecimal ($6A hexadecimal = 6 x
16
+
10
= 106).
110
OPEN 15,8,15
120 PRINT#15, "M-R"CHR$(106)CHR$(0)
64
Open command channel
Same
as
G=PEEK(106)
Page 73
130
GET#
15
,G$:IF G$ =
",
THEN G$ =
CHR$(O)
140 G = ASC(G$)
150
B = G AND 128:B$ =
"ON":lF
B THEN
B$ = "OFF"
Check bit 7
160
S=G
AND
64:S$=
"ON":IF
S THEN
S$=
"OFF'
Check bit 6
170
T=G
AND 31:PRINT
"#
OF
TRIES
IS";T
Check bits 0-5
180 PRINT "BUMPS ARE";B$ and give results
190 PRINT "SEEKS ARE";S$
200 CLOSE
15
Tidy
up
after
2\0
END
Here's a more general purpose program that reads one or more locations anywhere
in
disk
memory:
110 OPENI5,8,15
120
INPUT"#
OF BYTES
TO
READ
(0
= END)";NL
130
IF
NL<
1 THEN CLOSE 15:END
140 IF
NL>255
THEN 120
150 INPUT"STARTING
AT
ADDRESS";AD
160 AH=INT(AD/256):AL=AD-AH*256
170 PRINT#15, "M-R"CHR$(AL)CHR$(AH)
CHR$(NL)
180 FOR
1=
1 TO NL
190:
GET#15,A$:IF
A$=
""
THEN A$=CHR$(O)
200:
PRINT ASC(A$);
210 NEXT I
220 PRINT
230 GOTO 120
MEMORY-WRITE
Open command channel
Enter number
of
bytes wanted
unless done
or way out
of
line
Enter starting address
Convert
it
into disk form
Actual Memory-Read
Loop til have all the data
printing
it
as
we
go
Forever
The Memory-Write command
is
the equivalent
of
the Basic Poke command, but has
its effect
in
disk memory instead
of
within the computer. M-W allows
you
to
write
up
to
34 bytes
at
a time into disk memory. The Memory-Execute and some User commands can
be used to run any programs written this way.
FORMAT FOR THE MEMORY-WRITE COMMAND:
PRINT#
15,' 'M- w' 'CHR$( <address)CHR$(>address)CHR$
(#
of bytes)CHR$(data byte(s»
where
"<address"
is
the low order part, and
">address"
is
the high order part
of
the
address in disk memory
to
begin writing,
"#
of
bytes"
is
the number of memory
locations that will
be
written (from 1-34), and
"data
byte"
is
1 or more byte values
to
be
written into disk memory, each
as
a CHR$O value. If desired, a colon (:) may follow
M-
W within the quotation marks.
65
Page 74
ALTERNATE FORMAT:
PRINT#
15,'
'M-W:"CHR$(
<address)CHR$(>address)CHR$
(#
of
bytes)CHR$(data byte(s))
EXAMPLES:
We can use this line to tum
off
the
"bumps"
when loading DOS-protected programs
(i.e.,
programs that have been protected against being copied by creating and checking for
specific disk errors).
PRINT#
15,' 'M-
W'
'CHR$( 106)CHR$(0)CHR$( I)CHR$( 133)
The following line can
be
used to recover bad sectors, such as when an important file has
been damaged and cannot be read normally.
PRINT#
15,
"M-W"CHR$(l06)CHR$(0)CHR$(
I )CHR$(3I)
The above two examples may be very useful under some circumstances. They are the
equivalent
of
POKE 106,133 and POKE 106,31 respectively, but
in
disk memory, not
inside the computer. As mentioned in the previous section's first example, location 106
in
the
1541
disk drive signifies three separate activities to the drive, all related to error
recovery. Bit 7 (the high bit), if set means no bumps (don't thump the drive back to track
I).
Bit 6. if set, means no seeks.
In
that case,
the
dri
ve
won' t attempt to read the hal f-track
above and below the assigned track to see if
it
can read the data that way. The bottom 6
bits are the count
of
how many times the disk will try to read each sector before and after
trying seeks and bumps before giving up. Since
31
is
the largest number that can be
expressed in 6 bits, that
is
the maximum number
of
tries allowed.
From this example, you can see the value
of
knowing something about Peeks, Pokes,
and machine-language before using direct-access disk commands, as well as their potential power.
MEMORY
-EXECUTE
Any routine
in
disk memory, either
in
RAM or ROM, can be executed with the
Memory-Execute command. It is the equivalent
of
the Basic Sys call to a machine
language program
or
subroutine. but works
in
disk memory instead
of
within the com-
puter.
FORMAT FOR THE MEMORY-EXECUTE COMMAND:
PRINT#
15,'
'M-E"CHR$(
<address)CHR$(>address)
where"
<address"
is
the low order part,
and"
>address"
is
the high order part
of
the
address
in
disk memory at which execution
is
to begin.
66
Page 75

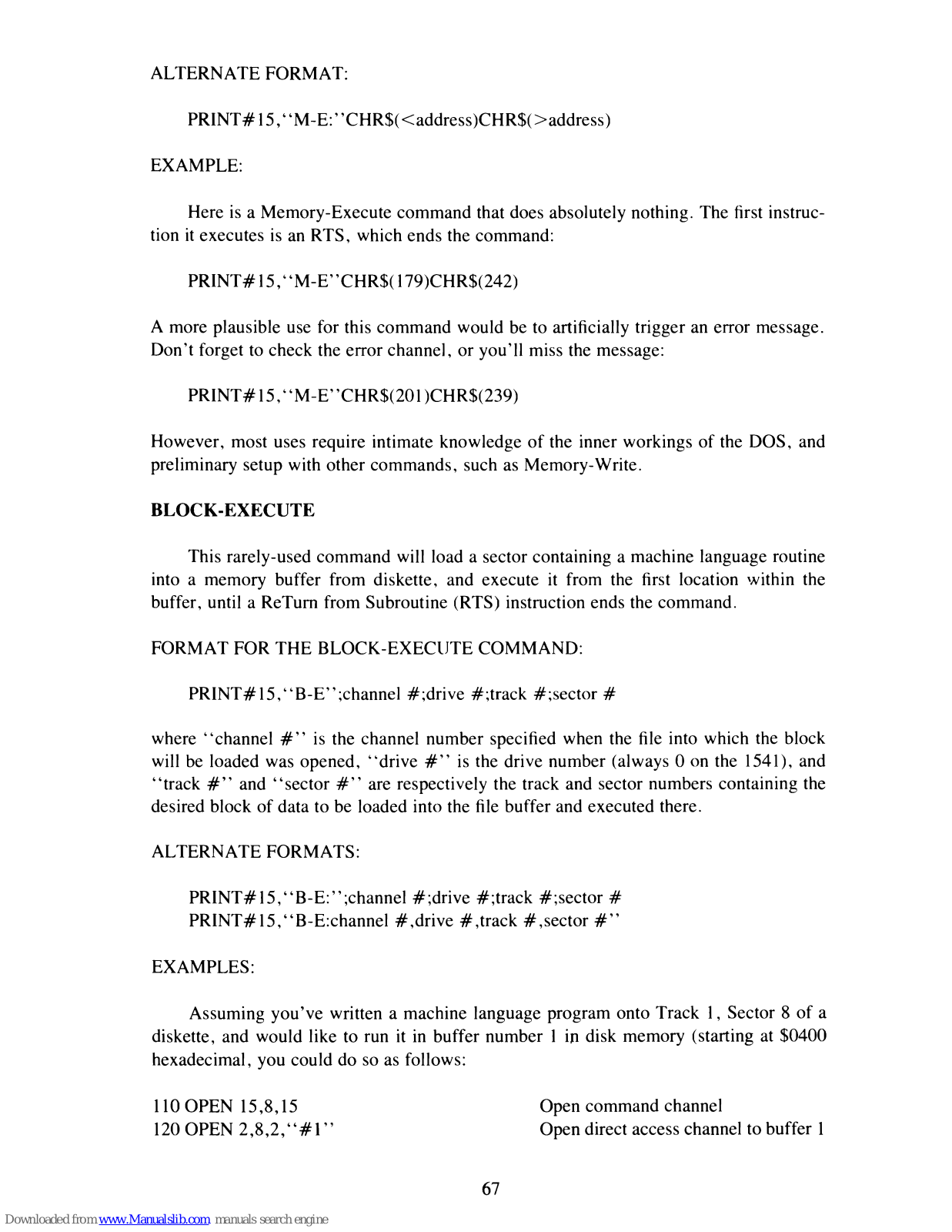

ALTERNATE FORMAT:
PRINT#15,'
'M-E:' 'CHR$( <address)CHR$(>address)
EXAMPLE:
Here is a Memory-Execute command that does absolutely nothing. The first instruc-
tion
it
executes
is
an
RTS, which ends the command:
PRINT#
15,
"M-E''CHR$(
I 79)CHR$(242)
A more plausible use for this command would be to artificially trigger an error message.
Don't forget
to
check the error channel, or you'll miss the message:
PRINT#
15,
"M-E'
'CHR$(201 )CHR$(239)
However, most uses require intimate knowledge
of
the inner workings
of
the DOS, and
preliminary setup with other commands, such
as
Memory-Write.
BLOCK-EXECUTE
This rarely-used command will load a sector containing a machinc language routine
into a memory buffer from diskette, and execute
it
from the first location within the
buffer, until a ReTurn from Subroutine (RTS) instruction ends the command.
FORMAT FOR THE BLOCK-EXECUTE COMMAND:
PRINT#15,"B-E";channel
#;drive
#:track
#;sector #
where "channel
#"
is
the channel number specified when the
file
into which the block
will
be
loaded was opened,
"drive
#"
is the drive number (always 0 on the 1541), and
"track
#"
and
"sector
#"
arc respectively the track and sector numbers containing the
desired block
of
data to be loaded into the
file
buffer and executed there.
ALTERNATE FORMATS:
PRINT#
15
,"B-E:";channel
#;drive
#;track
#;sector
#
PRlNT#
15, "B-E:channel # ,drive # ,track # ,sector
#"
EXAMPLES:
Assuming you've written a machine language program onto Track
I,
Sector 8
of
a
diskette, and would like to run it
in
buffer number I ip disk memory (starting at $0400
hexadecimal, you could do so as follows:
llOOPEN
15,8,15 Open command channel
120 OPEN
2,8,2,"#1"
Open direct access channel to buffer 1
67
Page 76
130
PRINT#15,"B-E";2;0;1;8
140 CLOSE 2
150
CLOSE
15
160
END
USER COMMANDS
Load Track I, Sector 8
in
it
& execute
Tidy
up
after
Most User commands are intended to be used
as
machine language JMP or Basic
SYS commands to machine language programs that reside inside the disk memory.
However, some
ofthem
have other uses
as
well. The User! and User2 commands are used
to
replace the Block-Read and Block-Write commands,
UI
re-starts the
1551
without
changing its variables,
UJ
cold-starts the
1551
almost
as
if
it
had been turned off and on
again.
User
Command
ul or
ua
u2
or
ub
u3
or
uc
u4
or
ud
uS
or
ue
u6
or uf
u7
or
ug
u8
or
uh.
u9
or
ui
u:
or
uj
Function
block read replacement
block write replacement
jump to $0500
jump
to
$0503
jump
to
$0506
jump
to
$0509
jump
to
$050c
jump to $050f
jump to ($fffa) reset tables
power up vector
By
loading these memory locations with another machine language JMP command,
such
as
JMP $0520,
you
can create longer routines that operate
in
the
disk's memory
along with an easy-to-use jump table.
FORMAT FOR USER COMMANDS:
PRINT#15, "Ucharacter"
where "character" defines one
of
the preset user commands listed above.
EXAMPLES:
PRINT# 15,
"U:"
PRINT# 15,
"U3"
68
Preferred form
of
DOS
RESET command
Execute program at start
of
buffer 2
Page 77

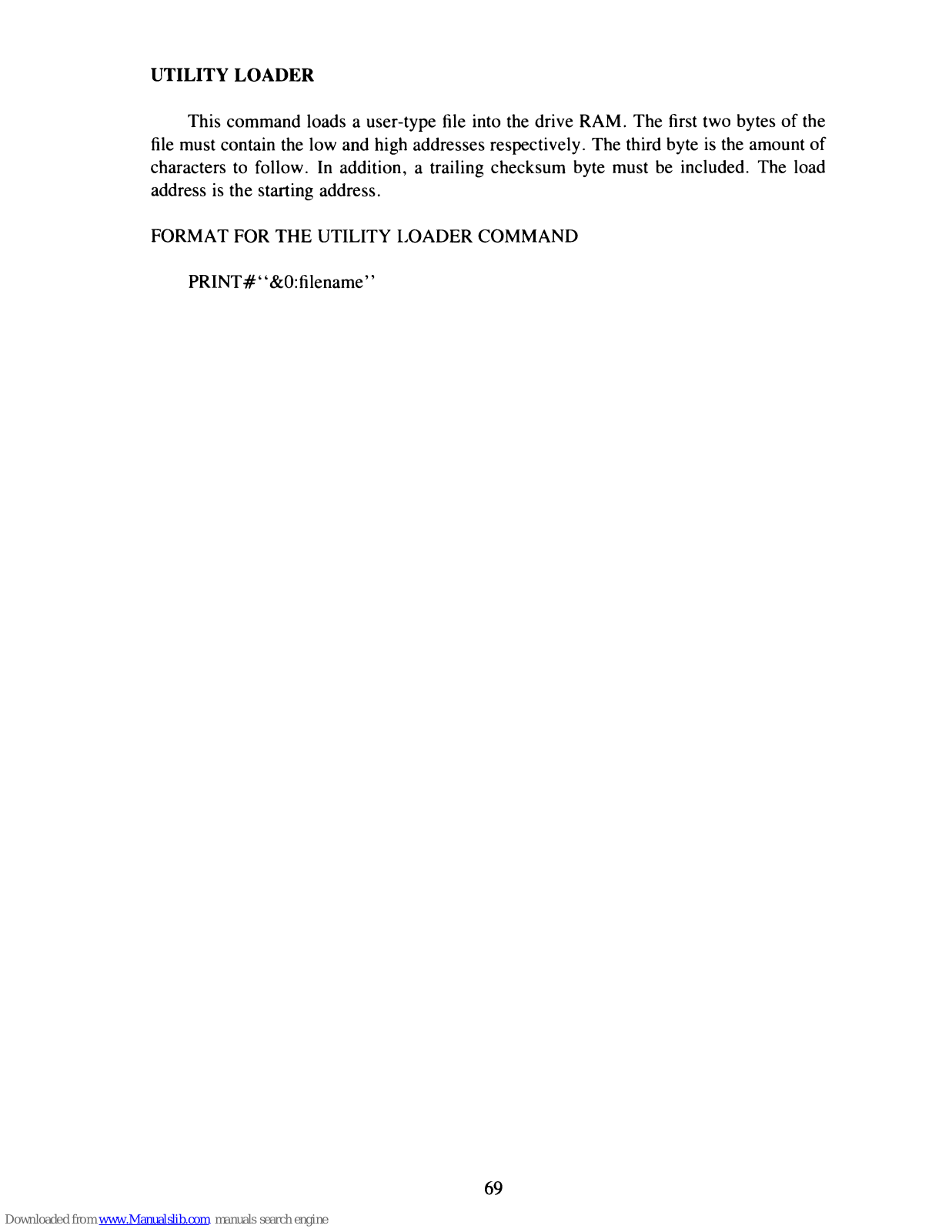

UTILITY
LOADER
This command loads a user-type
file
into the drive RAM. The first two bytes
of
the
file
must contain the low and high addresses respectively. The third byte is the amount
of
characters to follow.
In
addition, a trailing checksum byte must be included. The load
address
is
the starting address.
FORMAT FOR THE UTILITY LOADER COMMAND
PRINT
#'
, &0: filename' ,
69
Page 78

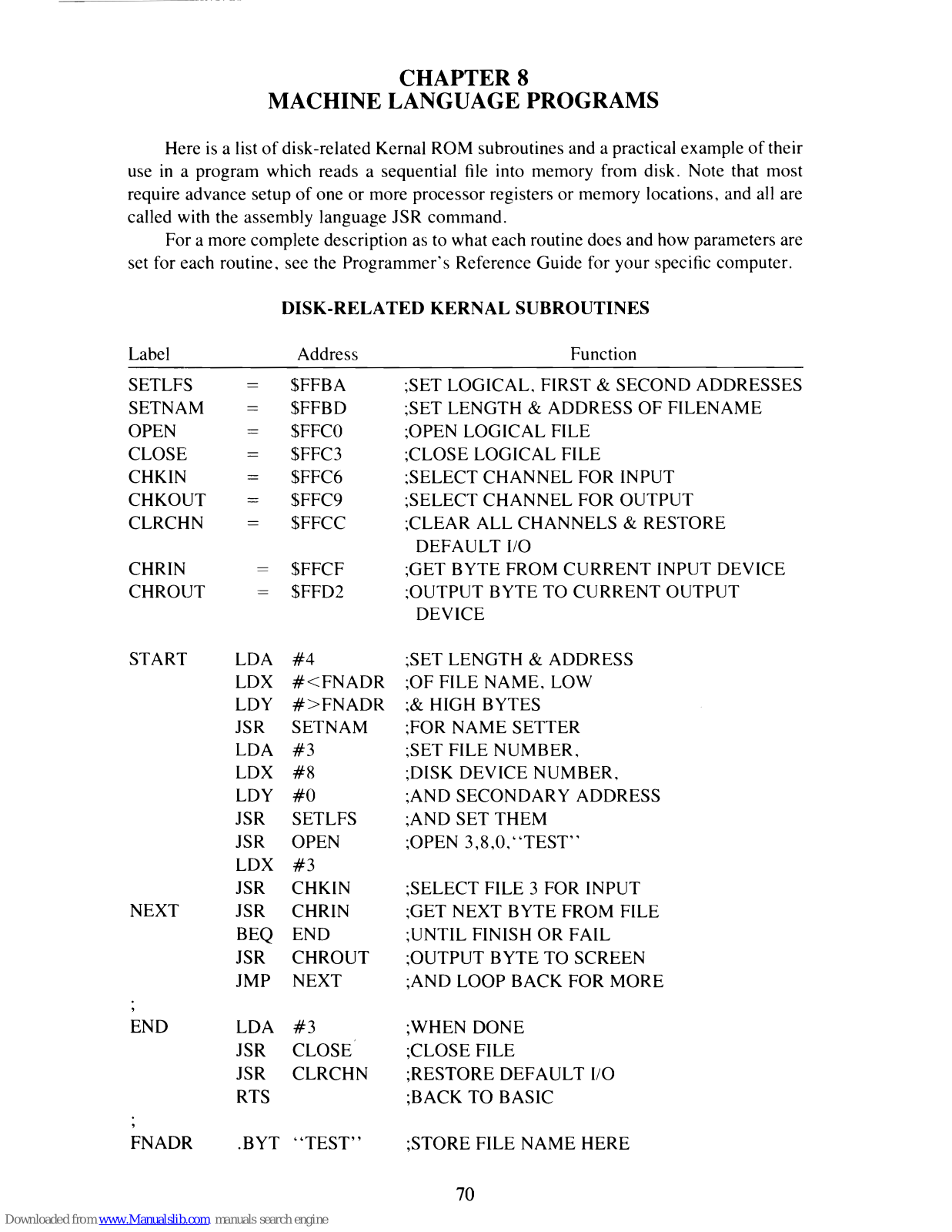

CHAPTER 8
MACHINE LANGUAGE PROGRAMS
Here is a list
of
disk-related Kernal ROM subroutines and a practical example
of
their
use
in
a program which reads a sequential tile into memory from disk. Note that most
require advance setup
of
one or more processor registers or memory locations, and
all
arc
called with the assembly language JSR command.
For a more complete description as to what each routine docs and how parameters are
set for each routine, see the Programmer's Reference Guide for your specific computer.
Label
SETLFS
SETNAM
OPEN
CLOSE
CHKIN
CHKOUT
CLRCHN
CHRIN
CHROUT
START
NEXT
END
FNADR
LOA
LOX
LOY
JSR
LOA
LOX
LOY
JSR
JSR
LOX
JSR
JSR
BEQ
JSR
1MP
LDA
JSR
JSR
RTS
.BYT
DISK-RELATED KERNAL SUBROUTINES
Address
Function
$FFBA ;SET LOGICAL, FIRST
& SECOND ADDRESSES
$FFBD
;SET LENGTH
& ADDRESS OF FILENAME
$FFCO :OPEN LOGICAL FILE
$FFC3 ;CLOSE LOGICAL FILE
$FFC6
;SELECT CHANNEL FOR INPUT
$FFC9 ;SELECT CHANNEL FOR OUTPUT
$FFCC ;CLEAR ALL CHANNELS
& RESTORE
DEFAULT
110
$FFCF ;GET BYTE FROM
CURRENT
INPUT DEVICE
$FFD2 ;OUTPlJT BYTE TO
CURRENT
OUTPUT
DEVICE
#4
;SET LENGTH & ADDRESS
#<FNADR
;OF FILE NAME, LOW
#>FNADR
:&
HIGH BYTES
SETNAM
;FOR NAME SETTER
#3
;SET FILE NUMBER,
#8
;DISK DEVICE NUMBER,
#0
;AND SECONDARY ADDRESS
SETLFS
;AND SET THEM
OPEN
;OPEN
3,8,0,
"TEST"
#3
CHKIN ;SELECT FILE 3 FOR INPUT
CHRIN ;GET NEXT BYTE FROM FILE
END ;UNTIL FINISH OR FAIL
CHROUT ;OUTPUT BYTE TO SCREEN
NEXT
;AND LOOP BACK FOR MORE
#3
;WHEN DONE
CLOSE ;CLOSE FILE
CLRCHN ;RESTORE DEFAULT
110
;BACK
TO
BASIC
"TEST"
;STORE FILE NAME HERE
70
Page 79
APPENDIX
A:
CHANGING THE DEVICE NUMBER
SOFTWARE METHOD
The preferred way to temporarily change the device number
of
a disk drive
is
via a
program. When power
is
first turned on. the drive reads an
110
location whose value
is
controlled by
ajumper
on
its circuit board, and writes the device number
it
reads there into
memory locations 119 and 120. Any time thereaftcr, you may write over that device
number with a new one, which will be effective until it is changed again, or the
1551
is
reset.
FORMAT FOR TEMPORARILY CHANGING
THE
DISK DEVICE NUMBER:
PRINT#
IS.
"%n"
Wherc n 8
or
9
EXAMPLE:
Here is a program that sets any device number:
10
INPUT
"NEW
DEVICE
NUMBER";
DV$
20 IF NOT (DV$
=
"8"
or
DV$ =
"9")
THEN
10
30 OPEN 15,8,15,
"%R"
+ DV$:
CLOSE
15
If you send only the % sign, the device number will toggle bctwccn 8 and 9.
Note: If you will bc using two disk drives, and want to temporarily change the
device number
of
onc, you will need to run the abovc program with the disk drive
whose device number is not to be changed turned off. After the program has been
run, you may turn that drive back on. If you need to connect more than two drives
at once, you will need to use the hardware method
of
changing device numbers.
HARDWARE METHOD
IMPORTANT:
Using the following method to change the device number will void
the
1551
Disk Dri
ve
warranty!
71
Page 80
If you have more than one drive, either you or preferably your dealer may perma-
nently change the address
of
all after the first, to avoid having to run the program on the
previous page before each use
of
multiple drives. The only tools needed
to
make the
change are a Phillips-head screwdriver and a sharp knife.
STEPS
TO
CHANGE
THE
DEVICE NUMBER ON HARDWARE
1.
Disconnect all cables from drive, including power.
2. Turn drive upside down on a flat, steady surface.
3. Remove 4 screws on bottom that hold drive cover together.
4. Carefully turn drive right side up, and remove case top.
5. Remove 2 screws on side
of
metal housing covering the main circuit board.
6. Remove housing.
7. Locate the device number jumper.
It
will be a small round silvery spot (solder pads)
on the main circuit board.
8. Make the cut
by
completing the cut already nearly separating the two halves
of
the
jumper.
9. Replace the metal housing and its 2 screws.
10. Replace case top, carefully turn drive upside down, and tighten 4 case screws.
11. Re-connect cables and power up.
Note:
If
your needs change later, a cut jumper can be restored with a small dot
of
electrical solder. However, do not attempt this yourself unless you are already
skilled at electronic soldering.
72
Page 81
APPENDIX
B:
DOS ERROR MESSAGES AND LIKELY CAUSES
Note: Many commercial program diskettes are intentionally created with one
or
more
of
the following errors,
to
keep programs from being improperly duplicated.
If a disk error occurs while you are making a security copy
of
a commercial
program diskette, check the program's manual. If its copyright statement does not
permit purchasers to copy the program for their own use, you may not be able
to
duplicate the diskette. In some such cases, a safety spare copy
of
the program
diskette
is
available from your dealer
or
directly from the company for a reasonable
fee.
00: OK (not
an
error)
This
is
the
message that usually appears when the error channel is checked.
It
means there is no current error
in
the disk unit.
OJ:
FILES SCRATCHED (not an error)
This is the message that appears when the error channel
is
checked after using the
Scratch command. The track number tells how many files were erased.
NOTE:
If any other error message numbers less than 20 ever appear, they may
be
ignored. All true errors have numbers
of
20 or more.
20:
READ ERROR (block header not found)
The disk controller
is
unable
to
locate the header
of
the requested data block.
Caused by
an
illegal block, or a header that has been destroyed. Usually
unrecoverable.
21:
READ ERROR (no sync character)
The disk controller is unable to detect a sync mark on the desired track. Caused
by
misalignment,
or
a diskette that
is
absent. unformatted
or
improperly seated. Can
also indicate hardware failure. Unless caused by one
of
the above simple causes,
this error is usually unrecoverable.
22:
READ ERROR (data block not present)
The disk controller has been requested to read or verify a data block that was not
properly written. Occurs
in
conjunction with Block commands and indicates
an
illegal track and/or sector request.
23:
READ ERROR (checksum error in data block)
There
is
an error
in
the data. The sector has been read into disk memory, but its
checksum
is
wrong. May indicate grounding problems. This fairly minor error
is
often repairable by simply reading and rewriting the sector with direct access
commands.
73
Page 82

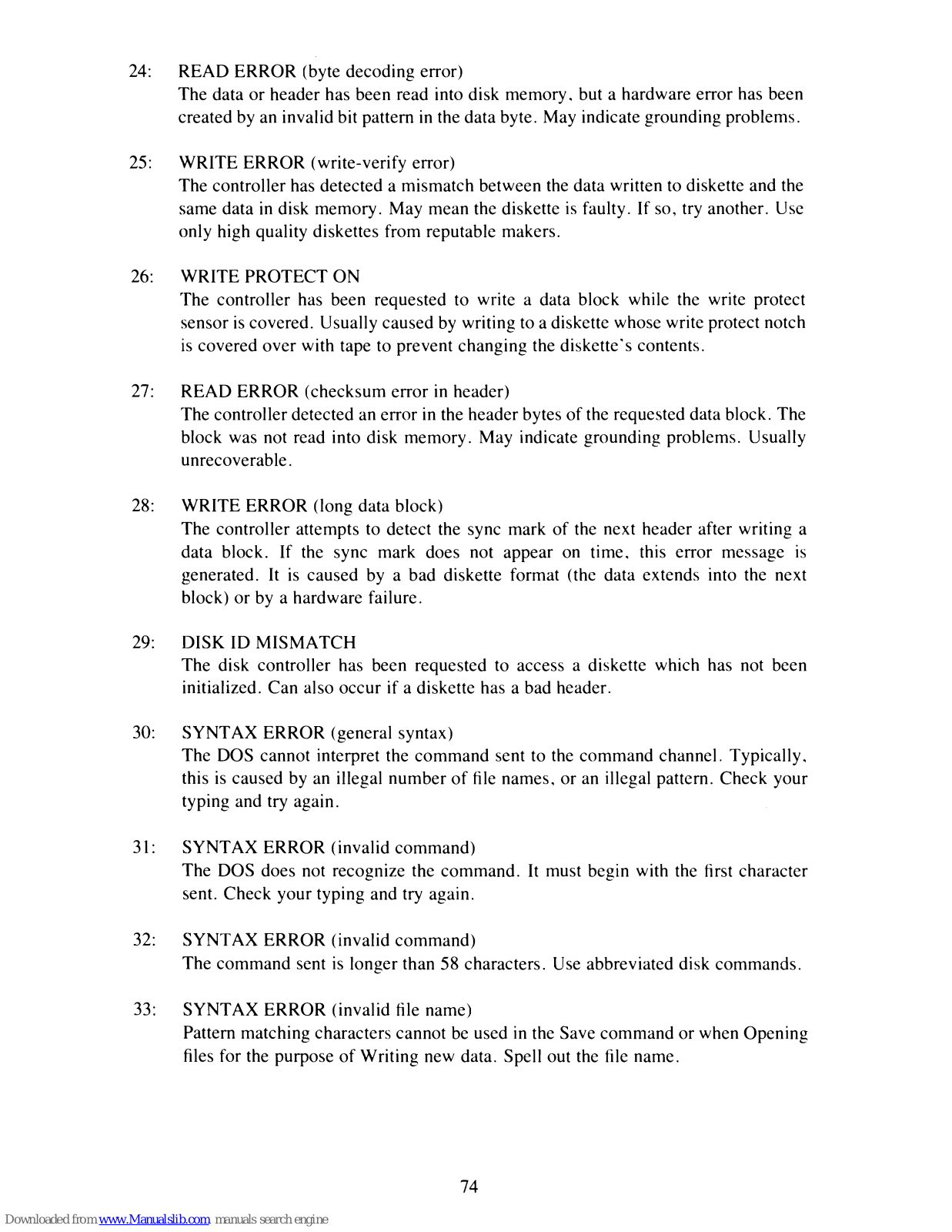

24: READ ERROR (byte decoding error)
The data or header has been read into disk memory. but a hardware error has been
created by an invalid bit pattern
in
the data byte. May indicate grounding problems.
25: WRITE ERROR (write-verify error)
The controller has detected a mismatch between the data written to diskette and the
same data
in
disk memory. May mean the diskette
is
faulty. If so, try another. Usc
only high quality diskettes from reputable makers.
26: WRITE PROTECT
ON
The controller has been requested to write a data block while the write protect
sensor
is
covered. Usually caused by writing to a diskette whose write protect notch
is
covered over with tape to prevent changing the diskette's contents.
27: READ ERROR (checksum error
in
header)
The controller detected an error
in
the header
byte,
of
the requested data block. The
block was not read into disk memory. May indicate grounding problems. Usually
unrecoverable .
28: WRITE ERROR (long data block)
The controller attempts to detect thc sync mark
of
the next header after writing a
data block. If the sync mark does not appear on time. this error message
is
generated.
It
is
caused by a bad diskette format (the data extends into the next
block) or by a hardware failure.
29: DISK
ID
MISMATCH
The disk controller has been requested to access a di,kette which has not been
initialized. Can also occur if a diskette has a bad header.
30: SYNTAX ERROR (general syntax)
The DOS cannot interpret the command sent to the command channel. Typically.
this
is
caused by an illegal number
of
file names,
or
an illegal pattern. Check your
typing and try again.
31: SYNTAX ERROR (invalid command)
The DOS does not recognize the command.
It
must begin with the first character
sent. Check your typing and try again.
32: SYNTAX ERROR (invalid command)
The command sent
is
longer than 58 characters. Use abbreviated
di,k
commands.
33: SYNTAX ERROR (invalid file name)
Pattern matching characters cannot be used
in
the Save command or when Opening
files for the purpose
of
Writing new data. Spell out the tile name.
74
Page 83
34:
SYNTAX ERROR (no file given)
The
file
name was left out
of
a command or the DOS does not recognize
it
as
such.
Typically. a colon (:) has been omitted. Try again.
39: SYNTAX ERROR (invalid command)
The DOS does not recognize a command sent to the command channel (secondary
address 15). Check your typing and try again.
50: RECORD NOT PRESENT
The requested record number has not been created yet. This is not
an
error
in
a new
relative
file
or
one that is being intentionally expanded.
It
results from reading past
the last existing rccord.
or
positioning
to
a non-existent record number with the
Record# command.
51: OVERFLOW
IN
RECORD
The data
to
be
written
in
the current record exceeds
the
record size. The excess has
been truncated (cut off).
Be
sure to include all special characters (such
as
carriage
returns)
in
calculating record sizes.
52: FILE TOO LARGE
There isn't room left on the diskette
to
create the requested relative record. To
avoid this error, create the last record number that will
be
needed as you first create
the file. If the file
is
unavoidably too large for the diskette, either split
it
into two
files on two diskettes,
or
use abbreviations
in
the data to allow shorter records.
60:
WRITE FILE OPEN
A write
file
that has not been closed
is
being re-opened for reading. This
file
must
be
immediately rescued.
as
described
in
Housekeeping Hint
#2
in
Chapter 4.
or
it
will become a splat (improperly closed) tile and probably be lost.
61: FILE NOT OPEN
A file is being accessed that has not been opened by the DOS. In some such cases
no
error message is generated. Rather the request
is
simply ignored.
62:
FILE NOT FOUND
The requested file does not exist on the indicated drive. Check your spelling and try
again.
63: FILE EXISTS
A file with the same name as has been requested for a new
file
already exists on the
diskette. Duplicate
file
names are not allowed. Select another name.
64: FILE TYPE MISMATCH
The requested file access is not possible using files
of
the type named. Reread the
chapter covering that
file
type.
75
Page 84
65:
NOBLOCK
Occurs
in
conjunction with B-A. The sector you tried to allocate
is
already
allocated. The track and sector numbers returned are the next higher track and
sector available. If the track number returned
is
zero (0), all remaining sectors are
full.
If
the diskette
is
not full yet, try a lower track and sector.
66:
ILLEGAL TRACK AND SECTOR
The DOS has attempted to access a track or sector which does not exist. May
indicate a faulty link pointer
in
a data block.
67:
ILLEGAL SYSTEM
TOR
S
This special error message indicates an illegal system track or block.
70:
NO CHANNEL (available)
The requested channel
is
not available, or all channels
are
in use. A maximum
of
three sequential files or one relative file plus one sequential
file
may
be
opened at
one time, plus the command channel. Do not omit the drive number
in
a sequential
Open command, or only two sequential
files
can be used. Close
all
files
as
soon
as
you
no
longer need them.
71: DIRECTORY ERROR
The BAM (Block Availability Map) on the diskette does not match the copy
in
disk
memory. To correct. Initialize the diskette.
72:
DISK FULL
Either the diskette or its directory
is
full. DISK FULL
is
sent when 2 blocks are still
available, allowing the current
file
to
be
closed. If you get this message and the
directory shows any blocks left, you have too many separate
files
in
your directory,
and will need to combine some, delete any that are no longer needed, or copy some
to another diskette.
73:
DOS
MISMATCH (CBM DOS V2.6 TDISK" .0)
If the disk error status
is
checked when the drive
is
first turned on, before a
directory or other command has been given, this message will appear. In that use, it
is not
an
error, but rather an easy way to see which version
of
DOS
is
in
use. If the
message appears at other times,
an
attempt has been made to write to a diskette with
an
incompatible format, such
as
the former DOS I on the Commodore 2040 disk
drive. Use one
of
the copy programs on the Test/Demo diskette
to
copy the desired
file(s) to a
1551
diskette.
74:
DRIVE NOT READY
An attempt has been made to access the
1551
single disk without a formatted
diskette
in
place. Blank diskettes cannot be used until they have been formatted.
76
Page 85
APPENDIX C: DISKETTE FORMATS
Expanded
View
of
a Single Sector
/
/
/
/
/
/
/
77
NOTE
Not
to
scale
Page 86
SYNC 1
08
CHECKSUM
SECTOR
TRACK
lOl,
lO2
GAPI
SYNC 2
07
BYTEO,
BYTEI
DATA
CHECKSUM 2
GAP 2
- 40 bits
of
ones (all
l's
is
the highest write frequency).
- Disk I.D. field identification mark.
- Checksum
of
lO
1,
lO2, SECTOR, TRACK.
- The number
of
this sector
- Track which this sector resides on.
- 2 bytes (20 bits) indicating the diskette I.D. (the I.D.
is
specified by the user when the diskette
is
formatted).
- 72 bits
of
GCRO
or 010
10
10 1 (8
bit byte x
9)
- 40 bits of ones.
- Disk data field identification mark.
- Track and sector of next related block.
- 254 bytes (2540 bits)
of
data.
- Checksum
of
BYTEO,
BYTEI,andDATA.
- Variable gap
of
GCR
O.
This gap is variable depending on the
speed
of
the disk during format. GAP 2 will
be
constant for all
sectors except for the tail gap (the gap between
I
st
and
the
last sectors).
1551
Format:
Expanded
View
of
a Single Sector
1551
BLOCK
DISTRIBUTION BY
TRACK
Track
number
Range
of
Sectors
Total
#
of
Sectors
I to
17
18
to 24
25
to 30
31
to
35
BYTE
CONTENTS
0,1
18,01
2
65
3
0
4-143
%
1 = available block
o to 20
o to
18
o to
17
o to
16
1551 BAM
FORMAT
Track
18,
Sector
O.
DEFINITION
Track and sector of first directory block.
21
19
18
17
ASCII character A indicating 1551/4040 format.
Null
flag
for future DOS use.
Bit map
of
the available blocks
in
tracks 1-35.
%0
= block not available (each bit represents one block)
78
Page 87
BYTE
144-159
160-161
162-163
164
165-166
167-170
170-255
BYTE
1551
DIRECTORY
HEADER
Track 18, Sector
O.
CONTENTS
DEFINITION
Diskette name padded with shifted spaces.
160 Shifted spaces.
Diskette ID.
160 Shifted space
50,65
ASCII representation
of
2A, which are, respectively,
the DOS version (2) and format type
(1551/4040).
160
Shifted spaces.
0
Nulls
($00),
not used.
PROGRAM
FILE
FORMAT
DEFINITION
FIRST SECTOR
0,1
Track and sector
of
next block
in
program file. I
2,3
Load address
of
the program
4-255 Next 252 bytes
of
program information stored as
in
computer
memory (with key words tokenized).
REMAINING FULL SECTORS
0,1
Track and sector
of
next block
in
program file. I
2-255 Next 254 bytes
of
program info stored as
in
computer memory
(with key words tokenized).
FINAL SECTOR
0,1
Null
($00),
followed by number
of
valid data bytes
in
sector.
2-??? Last bytes
of
the program information, stored as
in
computer
memory (with key words tokenized). The end
of
a Basic
file
is
marked
by
3 zero bytes
in
a row. Any remaining bytes
in
the
sector are garbage, and may be ignored.
79
Page 88
SEQUENTIAL
FILE
FORMAT
BYTE
DEFINITION
ALL BUT FINAL SECTOR
0-1
Track and sector
of
next sequential data block.
2-255
254 bytes
of
data.
FINAL SECTOR
0,1
Null ($00), followed by number
of
valid data bytes
in
sector.
2-??? Last bytes
of
data. Any remaining bytes are garbage and may be ignored.
1551
RELATIVE
FILE
FORMAT
BYTE
DEFINITION
DATA BLOCK
0,1
Track and sector
of
next data block.
2-255
254 bytes
of
data. Empty records contain $FF
(all binary ones) in the first byte followed by $00
(binary all zeros) to the end
of
the record. Partially
filled records are padded with nulls ($00).
SIDE SECTOR BLOCK
0-1
Track and sector
of
next side sector block.
2 Side sector number (0-5)
3 Record length
4-5
Track and sector
of
first side sector (number 0)
6-7
Track and sector
of
second side sector (number
1)
8-9
Track and sector
of
third side sector (number 2)
10-11
Track and sector
of
fourth side sector (number 3)
12-13
Track and sector
of
fifth side sector (number 4)
14-15
Traek and sector
of
sixth side sector (number 5)
16-255
Track and seetor pointers to 120 data blocks.
80
Page 89
BYTE
0, I
2-31
34-63
66-95
98-127
130-159
162-19\
194-223
226-255
1551
DIRECTORY
FILE
FORMAT
Track
18, Sector 1.
DEFINITION
Track and sector
of
next directory block.
File entry
1*
File entry
2*
File entry 3 *
File entry 4*
File entry 5 *
Fi
Ie
entry 6 *
File entry
7*
File entry 8*
*STRUCTURE
OF
EACH INDIVIDUAL DIRECTORY ENTRY
BYTE
CONTENTS
DEFINITION
0
128
File type OR 'ed with $80 to indicate properly closed file.
+
(if
OR'
ed with
$CO
instead,
file
is
locked.)
type TYPES: 0 DELeted
I
= SEQuential
2
= PROGram
3
= USER
4
= RELative
1-2
Track and sector
of
first data block.
3-18
File name padded with shifted spaces.
19-20 Relative
file
only: track and sector of first side
sector block.
21
Relative
file
only: Record length.
22-25
Unused.
26-27 Track and sector
of
replacement
file
during an
@SAVE or @OPEN.
28-29 Number
of
blocks
in
file:
stored
as
a two-byte integer,
in low byte, high byte order.
81
Page 90
APPENDIX
D:
DISK COMMAND QUICK REFERENCE CHART
General Format: OPEN 15,8, 15:PRINT# 15,command:CLOSE
15
(Basic
2)
HOUSEKEEPING COMMANDS
NEW
COpy
RENAME
SCRATCH
VALIDATE
INITIALIZE
HEADER "diskette name,Iid"
,DO
COPY
"old
tile" TO
"new
tile"
RENAME
"old
name" TO
"new
name"
SCRATCH
"tile
name"
COLLECT
"10"
FILE COMMANDS
LOAD
SAVE
DLOAD
"tile
name"
DSA
VE
"tile
name"
CLOSE
GET#
INPUT#
OPEN
PRINT#
RECORD#
CLOSE
file
#
GET#tile
#,
variable list
INPUT#llle #,variable list
OPEN
file
# ,device # ,channel
#,
"command
string"
PRINT#file
#,data
list
"P"CHR$(channel
#)CHR$«record
#)
CHR$(
>record
# )CHR$( offset)
DIRECT ACCESS COMMANDS
BLOCK-ALLOCATE
BLOCK-EXECUTE
BLOCK-FREE
BUFFER-POINTER
BLOCK-READ
BLOCK-WRITE
MEMORY-EXECUTE
MEMORY-READ
MEMORY-WRITE
USER
CHANGE RETRY
CHANGE SECTOR
INTERLEAVE
UTILITY LOADER
"B-A";O;track #;seetor #
"B-E";channel
#;O;track #;sector #
"B-F"
;O;track
#;sector
#
"B-P"
;channel
#;byte
"UI
";channel #;O;track #;seetor #
"U2";channel
#;O;track #;sector #
"M-E'
'CHR$( <address)CHR$( >address)
"M-R"CHR$(
<address)CHR$(>address)CHR$( #
of
bytes)
"M-
W"CHR$(
<address)CHR$(>address)CHR$( #
of
bytes)
CHR(data byte)
"Ucharacter"
"'70R" + CHR$ (retry) min = 1
max
=
255
"'70S" + CHR$ (interleave) default =
17
"&O:filename' ,
82
Page 91
APPENDIX
E: TEST
IDEMO
DISKETTE
HOW TO USE
The
"HOW
TO USE" programs provide brief descriptions
of
the other programs
on the
TestlDemo diskette.
THE
VIC·20 & C-64 WEDGES
Additional commands are available which allow you
to
type short instructions to
the disk drive. Load and run the VIC-20 WEDGE
if
you have a VIC; use the C-64
WEDGE
if
you have a Commodore 64. Using either, you
will
be able to press backslash
(I)
followed
by
the program name and the RETURN
key
to load a program; the
"I"
means load from disk drive. For example,
type"
Ihow
to use" to load that program.
Type"
>"
or
"@"
and then press RETURN to display the current disk error status.
Type" > $"
or
"@$"
and RETURN
to
display the directory without erasing the current
program.
DOSS.1
The DOS
5.1
program
is
not intended
to
be loaded directly, but
is
loaded instead
from the program C-64 WEDGE. Its load address
is
$CC00
hexadecimal.
PRINTER TEST
The PRINTER TEST prints a listing
of
characters
in
a form that makes it easy to
check the mechanical and electronic capabilities
of
the printer.
DISK ADDR CHANGE
Use this program
to
change the device number
of
the disk drive.
It
is
a soft
change-when
the system
is
turned off, the disk drive
is
reset to its original device
number.
VIEW BAM
The VIEW BAM program allows a programmer
to
examine the contents
of
the sec-
tors that make up the block availability map
(BAM)-the
table that DOS uses to identify
blocks that have been allocated
to
the
files
on that diskette.
CHECK DISK
The CHECK DISK program can be used to make sure a new diskette that has been
headered
is
in fact a good diskette. The program writes
to
every block
to
verify its ability
to
store information and identifies any diskette that contains a bad block.
Don't
use
such diskettes.
83
Page 92
DlSPLAYT&S
The DISPLAY
T&S
program allows a programmer to examine the contents
of
a
block by specifying the particular track number and sector number that identifies that
block.
PERFORMANCE TEST
The PERFORMANCE TEST program tests the electronic and mechanical capabili-
ties
of
the disk drive whenever necessary.
Use
this program whenever you suspect there
may
bl;:
damage to the drive.
SEQ.FILE.DEMO AND REL.FILE.DEMO
These two
files
are included as programming examples or guidelines when writing
your own programs. They also illustrate the important technique
of
checking the error
channel after each access to the disk drive.
SD.BACKUP.xx
These three programs are entitled SD.BACKUP.C64, SD.BACKUP.CI6, and
SD.BACKUP.PLUS4. Each, when loaded into its respective computer, allows you to
create an exact duplicate
of
a diskette by switching a blank diskette and the diskette to
be copied in and out
of
the drive at the appropriate times. Loading and running them
incorrectly may damage a diskette.
PRINT .xx.UTIL
These three programs are actually entitled PRINT.64.UTlL,
PRINT.+4,
and
PRINT.CI6.UTlL. They provide two functions: a printout
of
any Text-Mode screen
display, and a listing
of
the contents
of
all
scaler (non-array) variables
in
a Basic pro-
gram to screen
or
printer. Any CBM printer may be used for either function. Printing
of
reverse-video and graphics characters depends on the specific printer model used. These
programs can run from tape.
CM
BASIC
DEMO
+4
BASIC
DEMO
These programs offer a set
of
demo routines which can perform minimal system
testing on the computers. Routines are provided for testing the video and sound output,
keyboard and joy stick input, and disk unit
I/O.
LOAD ADDRESS
LOAD ADDRESS
is
a simple program that tells you where a program
was
originally located in memory. Some programs can only run in the same locations from which
they were saved. Load such programs with LOAD"filename" ,8,
I.
84
Page 93

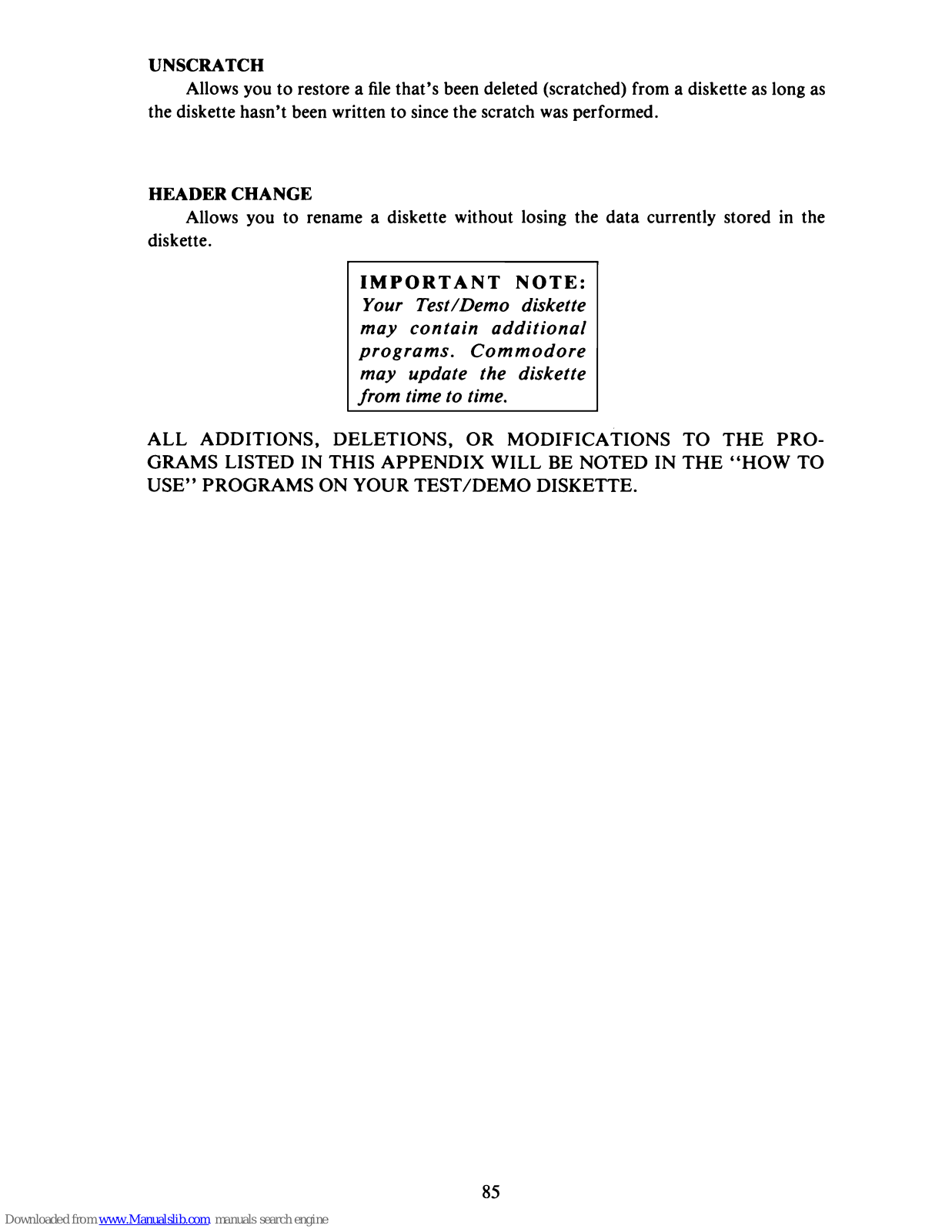

UN SCRATCH
Allows you
to
restore a
file
that's
been deleted (scratched) from a diskette as long
as
the diskette hasn't been written
to
since the scratch
was
performed.
HEADER
CHANGE
Allows you to rename a diskette without losing the data currently stored
in
the
diskette.
IMPORTANT
NOTE:
Your Test/Demo diskette
may
contain
additional
programs.
Commodore
may update the diskette
from time to time.
ALL
ADDITIONS,
DELETIONS,
OR
MODIFICATIONS
TO
THE
PRO-
GRAMS LISTED IN THIS
APPENDIX
WILL BE NOTED IN
THE
"HOW
TO
USE"
PROGRAMS ON YOUR TEST
IDEMO
DISKETTE.
85
Page 94
APPENDIX
F:
SPECIFICATIONS OF THE 1551 DISK DRIVE
STORAGE
Total formatted capacity
Maximum Sequential file size
Maximum Relative
fiJe
size
Records per file
Files per diskette
Tracks per diskette
Sectors per track
Sectors per diskette
Bytes per sector
174848 bytes per diskette
168656 bytes per diskette
167132 bytes per diskette
65535
144
35
17-21
683 total
664 free for data
256
INTEGRA TED CIRCUIT CHIPS USED
6510T
6523A
23128
4016
Gate Array
PHYSICAL DIMENSIONS
Height
Width
Depth
Weight
ELECTRICAL REQUIREMENTS
microprocessor.
110
1/0
16K bytes ROM
2K
bytes RAM
Controller circuit
97
mm
200mm
374mm
10.5 kg
Three wire-grounded detachable power cable.
Voltage U.S. 100-120 VAC
Export
Frequency U.S.
Export
Power used
MEDIA
220-240 VAC
60
HZ
50HZ
25
Watts
Any good quality
SIf4
inch diskette may be used (Commodore diskettes are recom-
mended).
86
