PMCA
Micro ATX Industrial Motherboard
User’s Manual
Edition 1.31
2007/06/22
Page 2
PMCA User’s Manual
2
Copyright
Copyright 2006. All rights reserved. This document is copyrighted and all rights are reserved.
The information in this document is subject to change without prior notice to make
improvements to the products.
This document contains proprietary information and protect ed by copyright. No part of this
document may be reproduced, copied, or translated in an y form or any means without prior
written permission of the manufacturer.
All trademarks and/or registered trademarks contains in this document are propert y of their
respective owners.
Disclaimer
The company shall not be liable for an y incidental or cons equential damages resulting from
the performance or use of this product.
The company does not issue a warrant y of any kind, express or implied, including without
limitation implied warranties of merchantability or fitness for a particular purpose.
The company has the right to revise the manual or include changes in the specifications of
the product described within it at any time without notice and without obligation to notify any
person of such revision or changes.
Trademark
All trademarks are the property of their respective holders.
Any questions please visit our website at TUhttp://www.commell.com.twUT
Page 3
PMCA User’s Manual
3
Packing List
Please check the package before you starting setup the system
Hardware:
PMCA series motherboard x 1
Cable Kit:
COM port Cable x 2
I/O Shield x 1
CPU Cooler x 1
40-pin ATA100 IDE Cable x 1
Floppy Cable x 1
SATA Cable x 2
Composite Cable x 1
YPbPr Cable x 1
Printer port Cable x 1
Printed Matters:
User’s Manual x 1
Driver CD x 1
Page 4
PMCA User’s Manual
4
Index
Chapter 1 <Introduction>
…………………………………………………7
1.1 <Product Overview> ...............................................................................7
1.2 <Product Specification>.........................................................................8
1.3 <Mechanical Drawing> .........................................................................10
1.4 <Block Diagram>...................................................................................11
Chapter 2 <Hardware Setup> ………………………………….………12
2.1 <Connector Location>..........................................................................12
2.2 <Jumper Reference>………………………………………………………..13
2.3 <Connector Reference>........................................................................14
2.3.1 <Internal Connector>..................................................................14
2.3.2 <External Connector>.................................................................14
2.4 <CPU and Memory Setup>...................................................................15
2.4.1 <CPU Setup> .............................................................................15
2.4.2 <Memory Setup>........................................................................16
2.5 <CMOS Setup>……………………………………………………………..17
2.6 <Enhanced IDE & CF Interface> ..........................................................18
2.7 <Serial ATA Interface>..........................................................................19
2.8 <Floppy Port>........................................................................................19
2.9 <LAN Interface>.....................................................................................20
2.10 <Onboard Display Interface>…………………………….……………..20
2.10.1 <Analog VGA Interface> ..........................................................20
2.10.2 <Digital Display>.......................................................................21
2.10.3 <HDTV Interface>.....................................................................24
2.11 <Onboard Audio Interface>................................................................25
2.12 <USB2.0 Interface> .............................................................................26
2.13 <GPIO Interface>.................................................................................28
2.14 <Serial Port Jumper Setting >............................................................29
Page 5
PMCA User’s Manual
5
2.15 <Power and Fan Connector>……………………………………………31
2.15.1 <Power Connector>..................................................................31
2.15.2 <Fan Connector>…………………………………………………..31
2.16 <Indicator and Switch>……………………………………………………33
2.17 <Expansion Interface>........................................................................34
Chapter 3 <System Configuration>……………………..36
3.1 <Video Memory Setup> ........................................................................36
Chapter 4 <BIOS Setup>…………………………………..38
Appendix A <I/O Port Pin Assignment>………………..40
A.1 <IDE Port> .............................................................................................40
A.2 <Serial ATA Port>.................................................................................40
A.3 <Floppy Port>........................................................................................41
A.4 <IrDA Port>............................................................................................41
A.5 <Serial Port>..........................................................................................42
A.6 <CRT Port>............................................................................................42
A.7 <LAN Port>............................................................................................43
A.8 < USB Port >..........................................................................................43
Appendix B <Flash BIOS>………………………………...44
B.1 BIOS Auto Flash Tool...........................................................................44
B.2 Flash Method ........................................................................................44
Appendix C <System Resources>…………………………………45
C1.<I/O Port Address Map>……………………………………………………..45
C2.<Memory Address Map>……………………………………………………..47
C3.<System IRQ Resources>…………………………………………………...48
Appendix D <Watch Dog timer Setting >……………………...49
Contact Information…………………………………………………………51
Page 6
PMCA User’s Manual
6
(The Page is Left For Blank)
Page 7
PMCA User’s Manual Introduction
Product Overview
7
Chapter 1 <Introduction>
1.1 <Product Overview>
PMCA is the micro ATX industrial motherboard, with supporting Intel Core 2 Duo/Core
Duo/Core Solo processors for 533/667MHz front side bus, Intel 945GM(E) and ICH7-M
chipset, integrated GMA950 graphics, DDR2 memory, Realt ek High Definiti on Audio, Serial
ATA, PCI Express x1,x16 interface and two Intel 82573L Gigabit LAN .
Intel Yonah dual core Processor
The board supports Intel Core 2 Duo/Core Duo/ Core Solo processors with 533/667MHz
front side bus, 2MB L2 cache, to provide more powerful performance than before.
New features for Intel 945GM(E) chipset
The board integrates Intel 945GM(E) and ICH7-M chipset, to provide new generation of the
mobile solution, supports Intel GMA950 graphics, DDR2 533/667 memory, built-in high
speed mass storage interface of serial ATA, High Definition Audio with 7.1 channels
surrounding sound.
All in One multimedia solution
Based on Intel 945GM(E) and ICH7-M chipset, the board provides high performance
onboard graphics, 18-bit Dual channel LVDS interface, HDTV and 7.1 channels High
Definition Audio, to meet the very requirement of the multimedia application.
Flexible Extension Interface
The board provides one PCI-Express x16 slots for graphics card, it also can support
PCI-Express x1 for LAN card or other devices. The board also provides CompactFlash Type
II slot and one mini-PCI socket.
Page 8
PMCA User’s Manual Introduction
Product Specification
8
1.2 <Product Specification>
General Specification
Form Factor micro ATA industrial motherboard
CPU Intel® Core 2 Duo/Core Duo/ Core Solo processor
Package type: Micro- FCPGA478
Front side bus: 533/667MHz
Memory 2 x 240-pin DDR2 533/667MHz SDRAM up to 3GB
Up to 10.67GB/s of bandwidth with dual-channel interleaved mode
Dual-Channel technology supported
Unbufferred, none-ECC memory supported only
Chipset Intel® 945GM(E) and ICH7-M
BIOS Phoenix-Award v6.00PG 4Mb PnP flash BIOS
Green Function Power saving mode includes doze, standby and suspend
modes. ACPI version 1.0 and APM version 1.2 compliant
Watchdog Timer System reset programmable watchdog timer with 1 ~ 255
sec./min. of timeout value
Real Time Clock Intel® ICH7-M built-in RTC with lithium battery
Enhanced IDE UltraATA100 IDE interface supports up to 2 ATAPI devices
One 40-pin IDE port onboard
One CompactFlash Type II socket on solder side
Serial ATA Intel® ICH7-M integrates 2 Serial ATA interfaces(No RAID
Function)
Up to 150MB/s of transfer rate
Multi-I/O Port
Chipset Intel® ICH7-M with Winbond® W83627THG controller
Serial Port Two external & four internal RS-232 serial ports
USB Port Four external & four internal Hi-Speed USB 2.0 ports with
480Mbps of transfer rate
Parallel Port One 26-pin internal parallel port
Floppy Port One 34-pin internal Floppy port
IrDA Port One IrDA compliant Infrared interface supports SIR
K/B & Mouse External PS/2 keyboard and mouse ports on rear I/O panel
GPIO One 12-pin Digital I/O connector with 8-bit programmable I/O
interface
Smart Fan One CPU fan connectors for fan speed controllable
VGA Display Interface
Chipset Intel® 945GM(E) GMCH (Graphic Memory Controller Hub)
Frame Buffer Up to 224MB shared with system memory
Display Type CRT, LCD monitor with analog display
Connector External DB15 female connector on rear I/O panel
Onboard 40-in LVDS connector
Page 9
PMCA User’s Manual Introduction
Product Specification
9
Onboard Mini Din 7-pin TV-out connector
Ethernet Interface
Controller 2 x Intel 82573L Gigabit Ethernet controller
Type Triple speed 10/100/1000Base-T
auto-switching Fast Ethernet
Full duplex, IEEE802.3U compliant
Connector Two External RJ45 connector with LED on rear I/O panel
Audio Interface
Chipset Intel® ICH7M with Realtek® ALC880 High Definition Audio
compliance
Interface 7.1 channels sound output
Connector
External Audio phone jack for Line-out, Line-in, MIC-in,
Surround, Center and Backsurround
Onboard audio connector with pin header
Onboard CD-IN and SPDIF connector
Expansive Interface
PCI-Express One x16 PCI-Express slot (compatible with x1 slot)
One x1 PCI-Express slot
Up to 8GB/s of transfer bandwidth
Power supply: +3.3V, +12V
PCI One Mini-PCI socket for TYPE III A (32-bit, 33MHz)
Two PCI slot
Power supply: +3.3V, +5V
ISA One ISA slot
Power and Environment
Power Requirement Standard 24-pin ATX power supply (20-pin is compatible)
Dimension 244 (L) x 244 (H) mm
Temperature Operating within 0 ~ 60℃ (32 ~ 140℉)
Storage within -20 ~ 85℃ (-4 ~ 185℉)
Ordering Code
PMCA Intel Core 2 Duo/Core Duo processor with onboard VGA, AUDIO,
HDTV,ISA, SATA, Giga LAN, USB2.0, LPT, CF, GPIO, LVDS,
Mini PCI
The specifications may be different as the actual production.
For further product information please visit the website at
TUhttp://www.commell.com.twUT
Page 10
PMCA User’s Manual Introduction
Mechanical Drawing
10
1.3 <Mechanical Drawing>
Page 11
PMCA User’s Manual Introduction
Block Diagram
11
1.4 <Block Diagram>
Intel Y onah Processo
r
Intel GMA950 Graphics
945GM(E)
ICH7-M
2 x PCI
BIOS
HD ALC880
1 x Floppy port
PCI-Express x16
HDTV＆LVDS
W83627THG
2 x SAT
A
CompactFlash＆IDE
1 x LPT port
2 x Serial ports
2 x 240-pin DDR2
533/677MHz
up to 3GB
8 x USB2.0 ports
8-bit GPIO
Fintek
F81216D
4 x Serial port
1 x ISA
W83628G
Intel 82573L
2 x GLAN
PCI Express x1
Page 12
PMCA User’s Manual Hardware Setup
Connector Location
12
Chapter 2 <Hardware Setup>

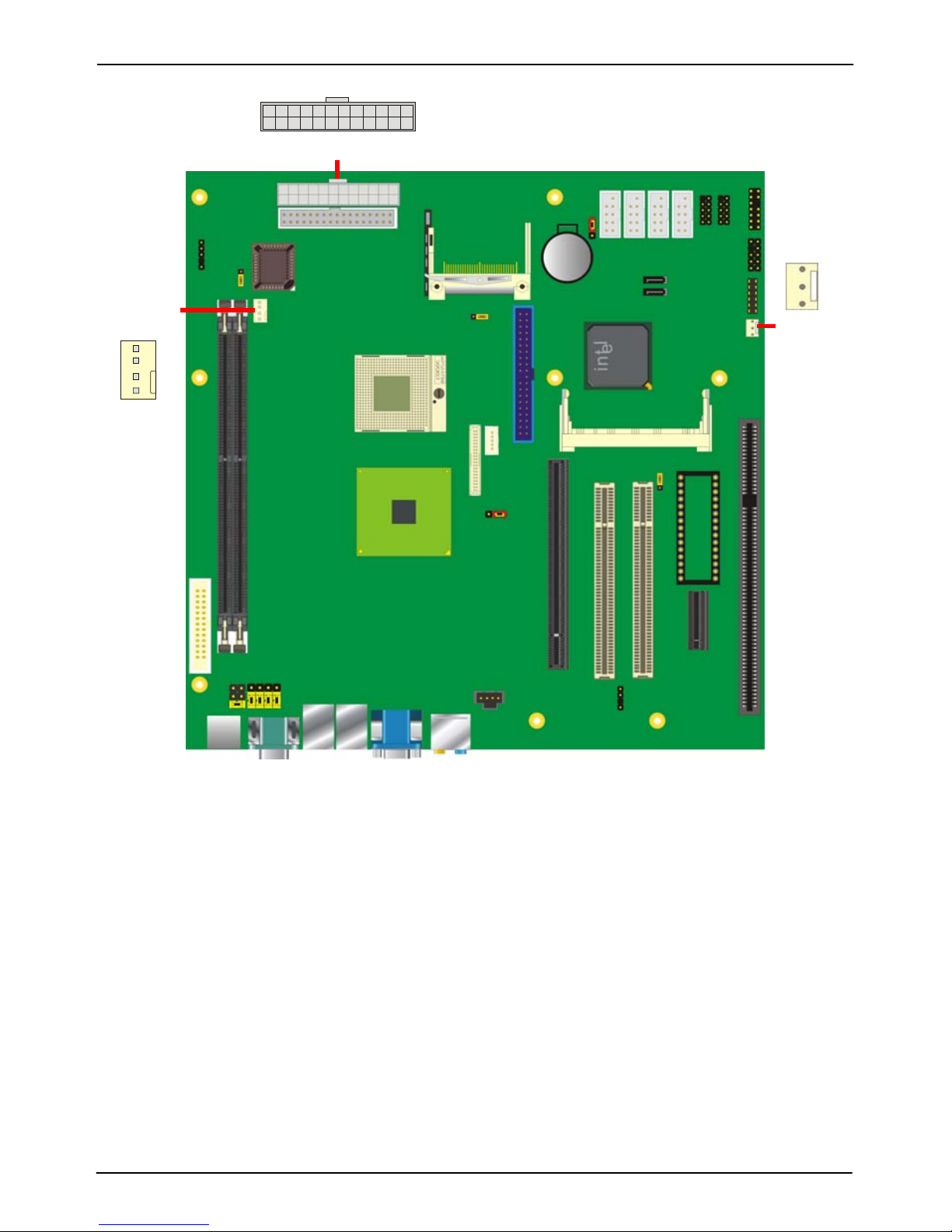

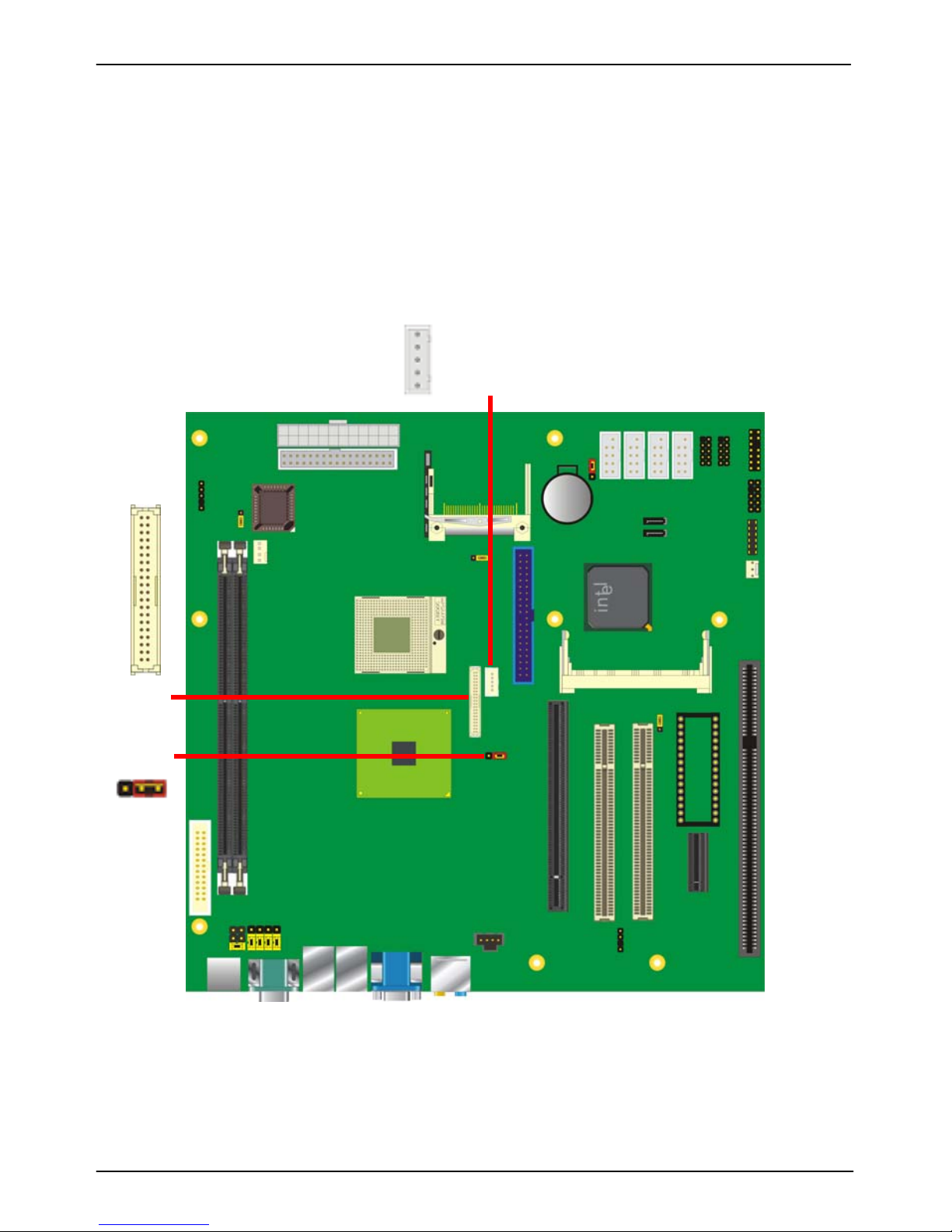

2.1 <Connector Location>
MINIPCI
IDE
CN_IR
LPT
CPUFAN
CN_LVDS
CN
_
DIO
CN_USB1/2
CN_AUDIO
CDIN
ATX
FDD
CN_COM3/4/5/6
DDRII_A/B
PCIE_16X
PCI1/2
CN_SPDIFOUT
PCIE_1X
ISA
CN_INV
CF
JFRNT
SYSFAN
SATA1/2
DOC
HDTV
COM1/2
USB_RJ45_1/2
CRT
AUDIO
SATA1/2
Page 13
PMCA User’s Manual Hardware Setup
Jumper Reference
13
2.2 <Jumper Reference>
Jumper Function
JRTC CMOS Operating/Clear Setting
JCFSEL Compact Flash address mode setting
JVLCD LCD Panel Voltage Setting
JDOC Setting address
JCSEL1/2 COM2 RS-232/422/485 Mode Selection
JCFSEL
JVLCD
JRTC
JDOC
JCSEL1
JCSEL2
JAT
Page 14
PMCA User’s Manual Hardware Setup
Connector Reference
14
2.3 <Connector Reference>
2.3.1 <Internal Connector>
Connector Function Remark
DDRIIA/B 240 -pin DDR2 SDRAM DIMM slot Standard
IDE 40-pin primary IDE connector Standard
FDD 34-pin Floppy connector Standard
SATA1/2 7-pin Serial ATA connector Standard
ATX 24-pin power supply connector Standard
CN_AUDIO 5 x 2-pin audio connector Standard
CDIN 4-pin CD-ROM audio input connector Standard
CN_DIO 6 x 2-pin digital I/O connector Standard
CN_USB1/2 5 x 2-pin USB connector Standard
CPUFAN 4-pin CPU cooler fan connector Standard
SYSFAN 3-pin system cooler fan connector Standard
CN_COM3/4/5/6 5 x 2-pin com connector Standard
CN_IR 5-pin IrDA connector Standard
CN_SPDIFOUT Digital audio optical interface Standard
CF Compact Flash Type II socket Standard
CN_LVDS 20 x 2-pin LVDS connector Standard
CN_INV 5-pin LCD inverter connector Standard
PCI1/2 32-bit PCI slot Standard
MINIPCI Mini-PCI socket Standard
LPT 13 x 2-pin printer connector Standard
JFRNT 14-pin switch/indicator connector Standard
DOC 32-pin DiskOnChip socket Standard

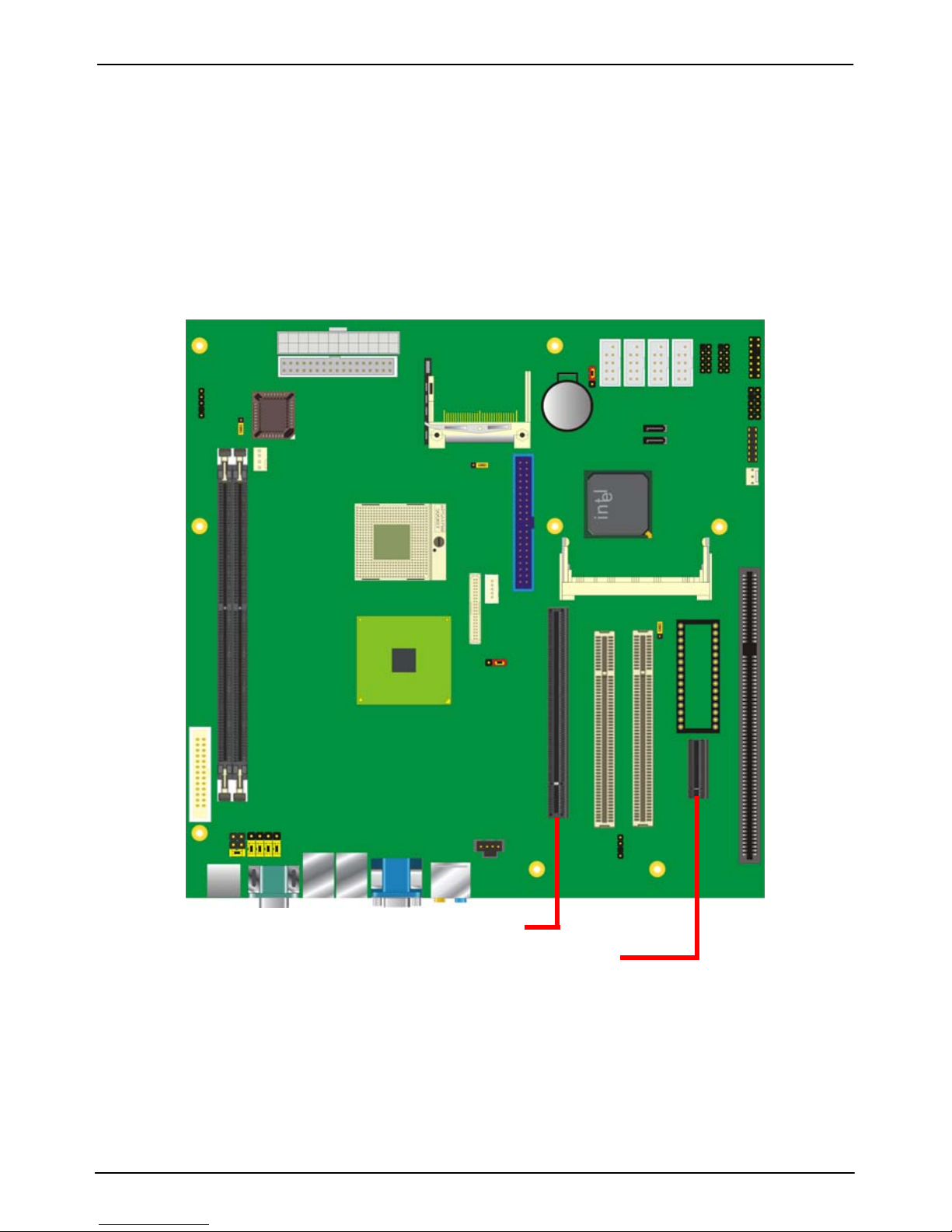

PCIE_16X PCI Express 16x slot Standard
PCIE_1X PCI Express 1x slot Standard
ISA 16-bit/8-bit ISA slot Standard
2.3.2 <External Connector>
Connector Function Remark
HDTV Mini Din 7-pin TV out Standard
COM1/2 Serial port connector Standard
USB_RJ45_1/2 Dual USB and RJ45 LAN connector Standard
CRT DB15 analog VGA + PS/2 keyboard mouse connector Standard
AUDIO Audio connectors Standard
Page 15
PMCA User’s Manual Hardware Setup
CPU and Memory Setup
15
2.4 <CPU and Memory Setup>
2.4.1 <CPU Setup>
The board comes with the socket479 for Intel Core 2 Duo/Core Duo/ Core Solo
processor , it supports new generation of Intel Core Duo processor with 533/66 7MHz of
front side bus and 2MB L2 cache. Please follow the instruction to install the CPU
properly.
1. Use the flat-type
screw drive to unlock
the CPU socket
Unlock wa
y
Check point
2. Follow the pin direction to install
the processor on the socket
3. Lock the socket
Page 16
PMCA User’s Manual Hardware Setup
Memory Setup
16
2.4.2 <Memory Setup>
The board provides two 240-pin DDR2 DIMMs to support DDR2 533/667 memory
modules up to 3GB of capacity. Non-ECC, unbuffered memor y is supported only. While
applying two same modules, dual channel technology is enabled automatically for
higher performance.
112-pin128-pin
Please check the pin number to match the slot side well
before installing memory module.
DDRII_A/B
Page 17
PMCA User’s Manual Hardware Setup
CMOS Setup
17

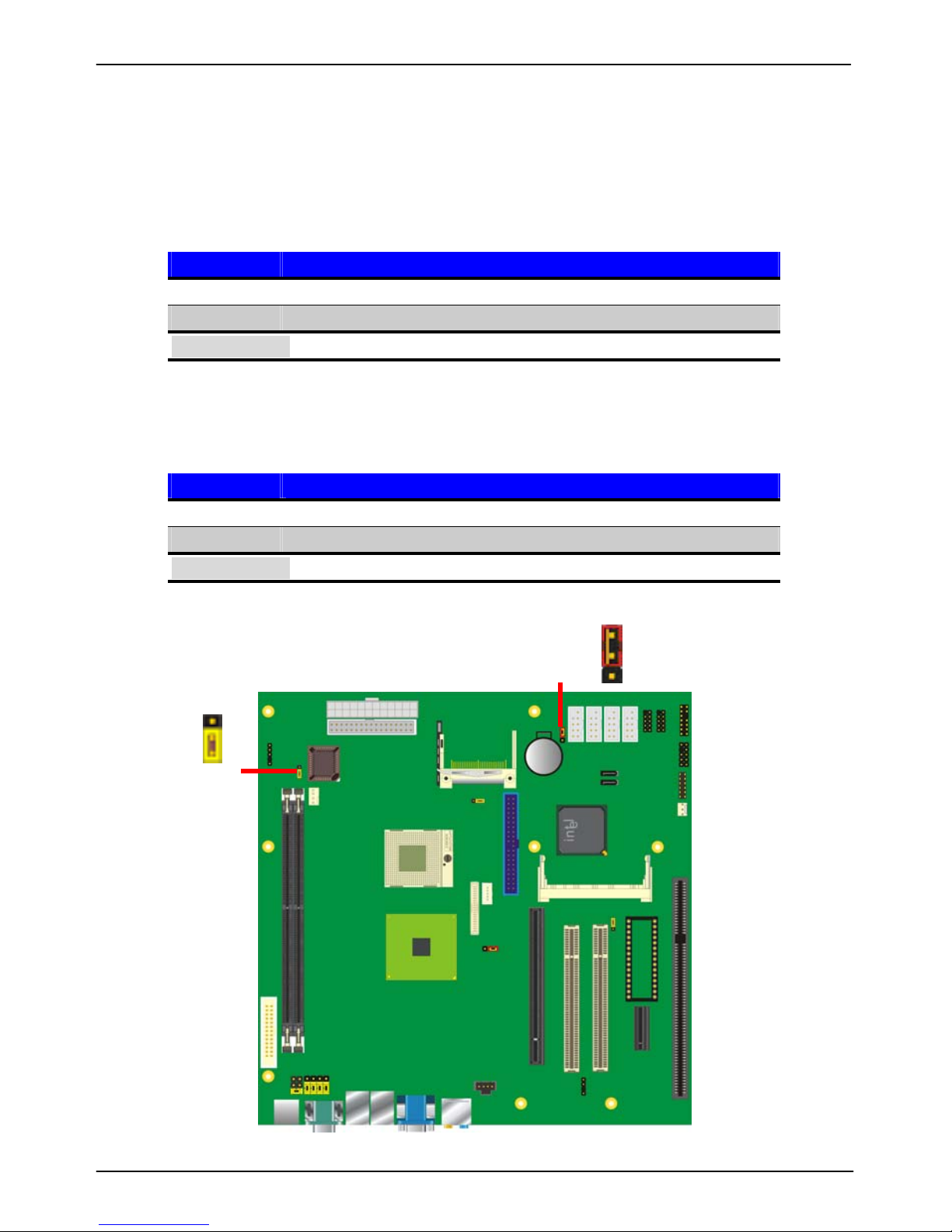

2.5 <CMOS Setup>
The board’s data of CMOS can be setting in BIOS. If the board refuses to boot due to
inappropriate CMOS settings, here is how to proceed to clear (reset) the CMOS to its
default values.
Jumper: JRTC
Type: Onboard 3-pin jumper
JRTC Mode
1-2 Clear CMOS
2-3 Normal Operation
Default setting
Jumper: JAT
Type: Onboard 3-pin jumper
JAT Mode
1-2 ATX mode -default
2-3 AT mode
Default setting
JRTC
1
3
JAT
3
1
Page 18
PMCA User’s Manual Hardware Setup
Enhanced IDE&CF Interface
18
2.6 <Enhanced IDE & CF Interface>
The board has one UltraATA100 IDE interface to support up to 2 ATAPI devices, and one
CompactFlash Type II socket on the solder side, with jumper JCFSEL for IDE master/slave
mode selection.
Jumper: JCFSEL
Type: onboard 3-pin header
JCFSEL Mode
1-2 Master
2-3 Slave
Default setting

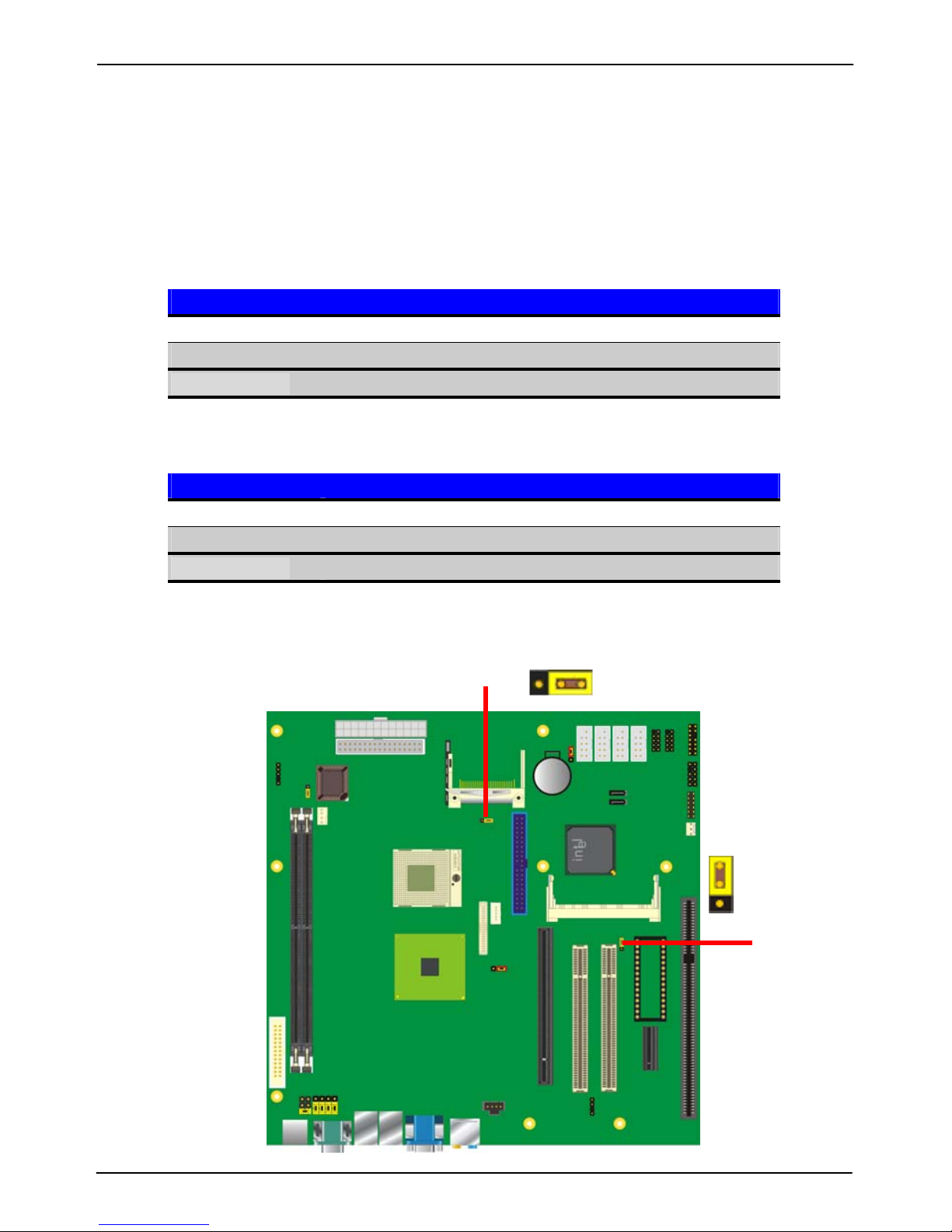

Jumper: JDOC
Type: onboard 3-pin header
JDOC DiskOnChip Address
1-2 D800h
2-3 D000h
Default setting
JCFSEL
1
3
JDOC
1
3
Page 19
PMCA User’s Manual Hardware Setup
Serial ATA Interface
19

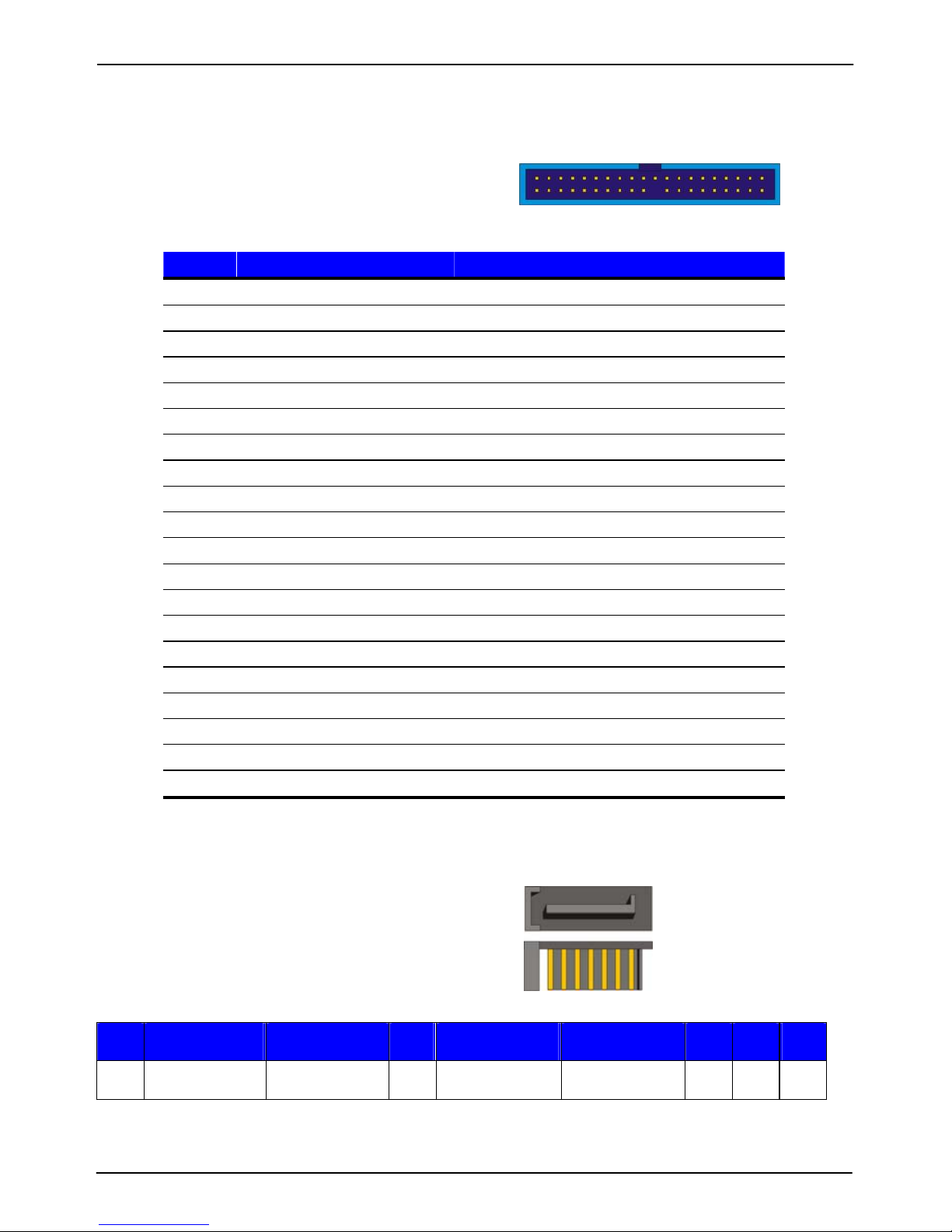

2.7 <Serial ATA Interface>
Based on Intel ICH7-M, the board provides two Serial ATA interfaces with up to 150MB/s of
transfer rate
.
2.8 <Floppy Port>
PMCA has one 34-pin floppy interface, it supports use floppy and powering from onboard,
please follow up the steps below to install the device.
.
FDD
SATA1/2
Page 20
PMCA User’s Manual Hardware Setup
LAN Interface
20
2.9 <LAN Interface>
The board integrates with two Intel 82573L PCI Express Gigabit Ethernet controllers, as the
PCI Express 1x can speed up to 250MB/s of transfer rate instead of late PCI bus with
133MB/s of transfer rate. The Intel 82573L supports triple speed of 10/100/1000Base-T,
with IEEE802.3 compliance and Wake-On-LAN supported.
2.10 <Onboard Display Interface>
Based on Intel 945GM(E) chipset with built-in GMA (Graphic Media Accelerator) 950
graphics, the board provides one DB15 connector on real external I/O port, and one 40-pin
LVDS interface with 5-pin LCD backlight inverter connector. The board provides dual
display function with clone mode and extended desktop mode for CRT and LCD. The board
also provides DVO port on PCI Express slot to support DVI interface with add on card.
Notice: When you install any PCI Express Graphic card, the onboard graphics would be
disabled automatically.
2.10.1 <Analog VGA Interface>

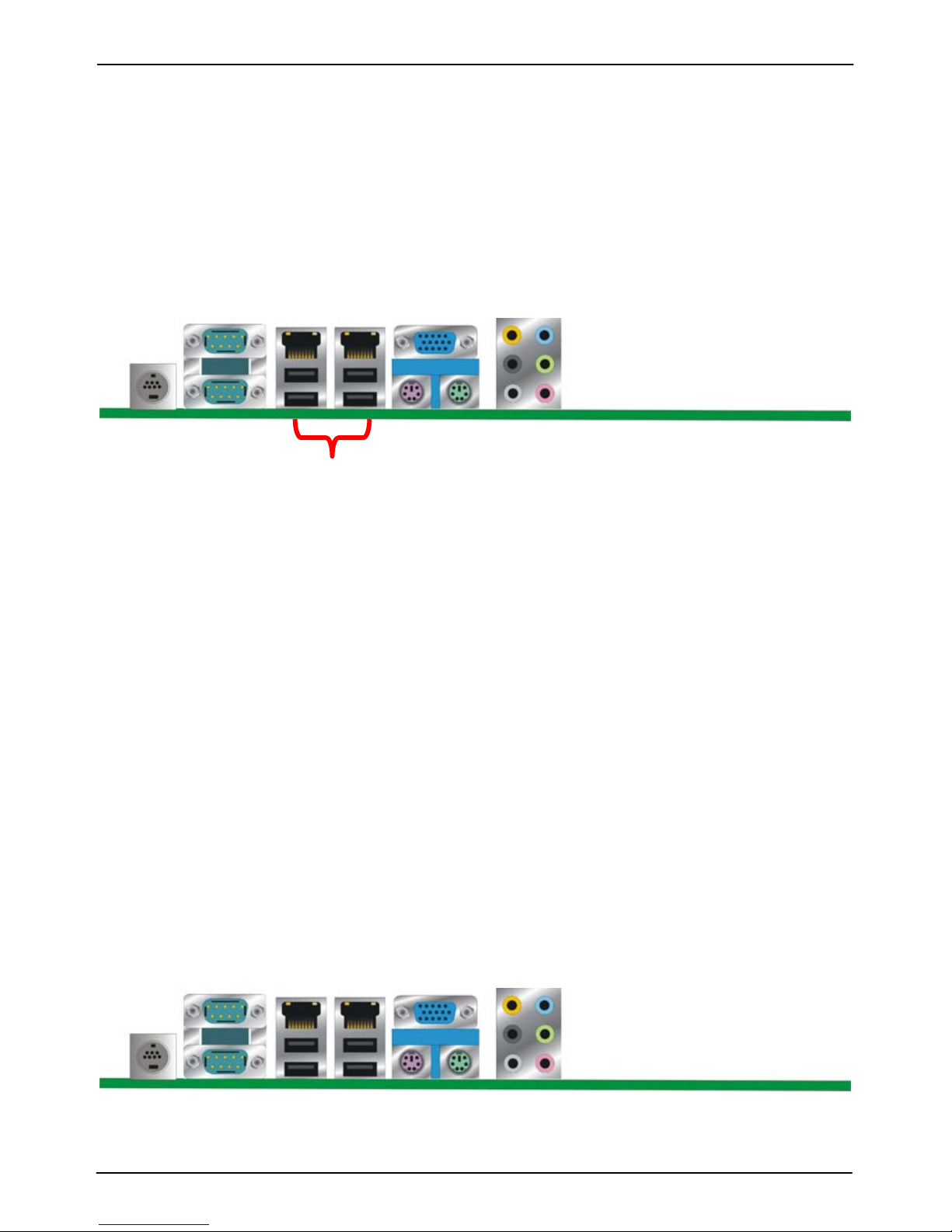

Please connect your CRT or LCD monitor with DB15 male connector to the onboard DB15
female connector on rear I/O port.
CRT
USB_RJ45_1/2
Page 21
PMCA User’s Manual Hardware Setup
Digital Display
21
2.10.2 <Digital Display>
The board provides one 40-pin LVDS connector for 18-bit dual channel panel, supports up
to 1600 x 1200 (UXGA) of resolution, with one LCD backlight inverter connector and one
jumper for panel voltage setting
3
1
CN_LVDS
2
39
40
1
5
CN_INV
1
JVLCD
Page 22
PMCA User’s Manual Hardware Setup
Digital Display
22
Connector: CN_INV Connector: JVLCD
Type: 5-pin LVDS Power Header Type: 3-pin Power select Header
Connector model: JST B5B-XH-A
Pin Description Pin Description
1 +12V 1 VCC(5V)
2 GND 2 LCDVCC
3 GND 3 VCC3(3.3)
4 GND
5 ENABKL
Connector: CN_LVDS
Type: onboard 40-pin connector for LVDS connector
Connector model: HIROSE DF13-40DP-1.25V
Pin Signal Pin Signal
2 LCDVCC 1 LCDVCC
4 GND 3 GND
6 ATX0- 5 BTX0-
8 ATX0+ 7 BTX0+
10 GND 9 GND
12 ATX1- 11 BTX114 ATX1+ 13 BTX1+
16 GND 15 GND
18 ATX2- 17 BTX220 ATX2+ 19 BTX2+
22 GND 21 GND
24 ACLK- 23 BTX326 ACLK+ 25 BTX3+
28 GND 27 GND
30 ATX3- 29 BCLK32 ATX3+ 31 BCLK+
34 GND 33 GND
36 N/C 35 N/C
38 N/C 37 N/C
40 N/C 39 N/C
Page 23
PMCA User’s Manual Hardware Setup
Digital Display
23
To setup the LCD, you need the component below:
1. A panel with LVDS interfaces.
2. An inverter for panel’s backlight power.
3. A LCD cable and an inverter cable.
For the cables, please follow the pin assignment of the connector to make a cable, because
every panel has its own pin assignment, so we do not provide a standard cable; please find a
local cable manufacture to make cables.

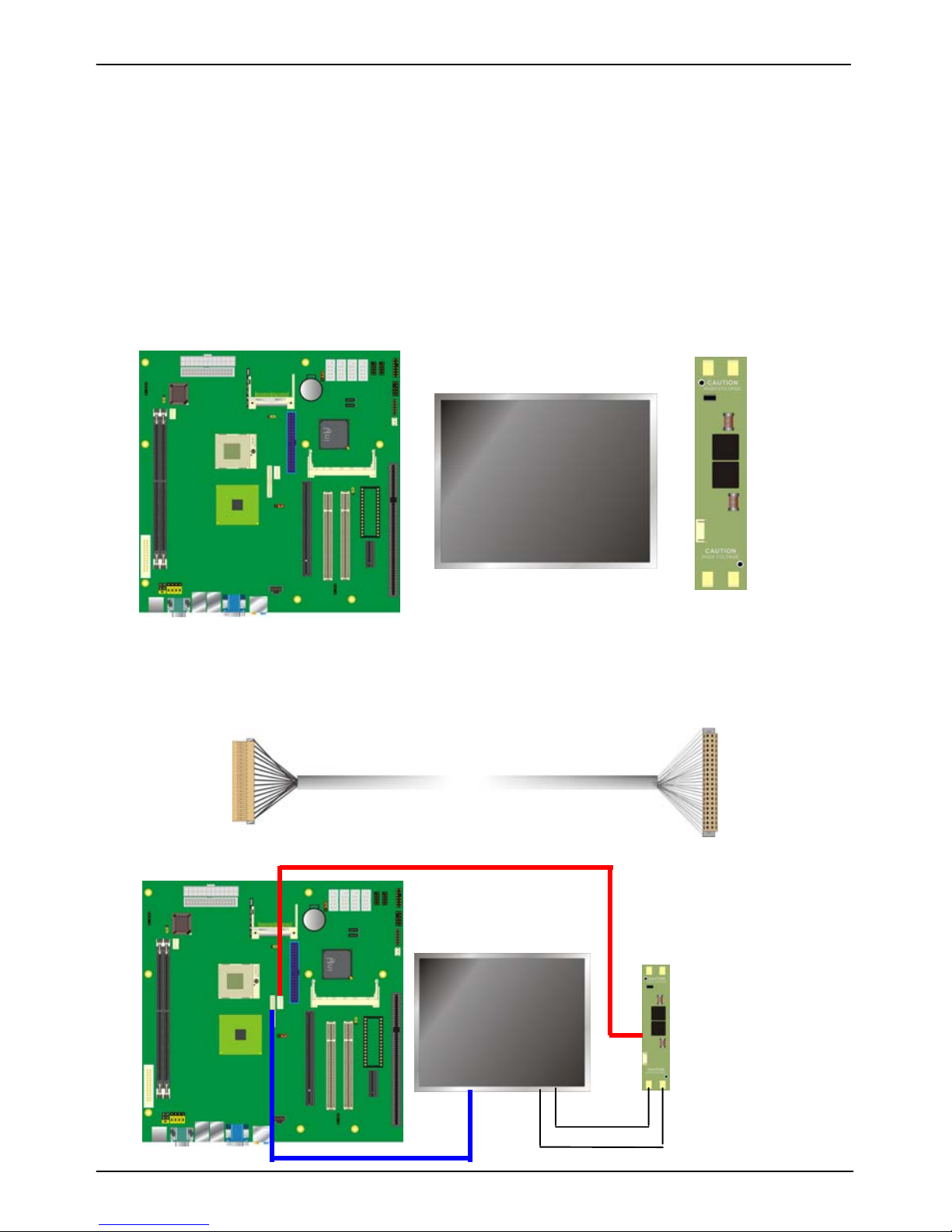

LCD Installation Guide:
1. Preparing the PMCA, LCD panel and the backlight inverter.
2. Please check the datasheet of the panel to see the voltage of the panel, and set the
jumper JVLCD to +5V or +3.3V.
3. You would need a LVDS type cable.
4. To connect all of the devices well.
For sample illustrator only
Panel side
Board side
Page 24
PMCA User’s Manual Hardware Setup
Digital Display
24

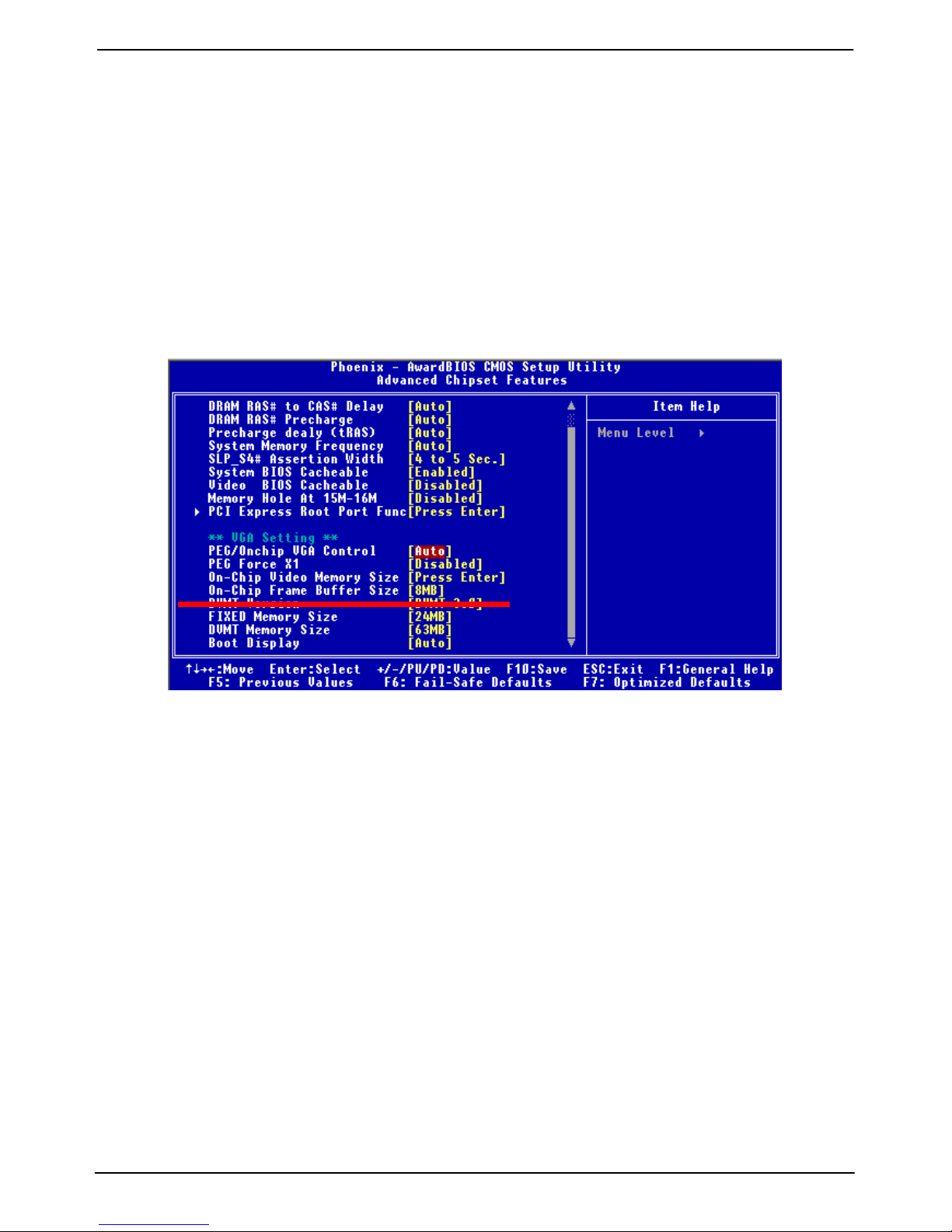

After setup the devices well, you need to select the LCD panel type in the BIOS.
The panel type mapping is list below:
BIOS panel type selection form
18 bits Single channel 24 b its Dual channel
NO. Output format NO. Output format
1 640 x 480 9 1024 x 768
2 800 x 600 10 1280 x 768
3 1024 x 768 11 1280 x 1024
24 bits Single channel 12 1366 x 768
4 1280 x 768 13 1400 x 1050 @ 108Mhz
5 1280 x 1024 15 1600 x 1200
6 1366 x 768
7 1280 x 800
8 1600 x 1200
14 1024 x 768
2.10.3 <HDTV Interface>
The board provides one Mini-Din 7pin support Composite, S-Video and Component .
HDTV
Page 25
PMCA User’s Manual Hardware Setup
Onboard Audio Interface
25
2.11 <Onboard Audio Interface>
The board provides the onboard AC97 7.1-channel audio interface with Realtek ALC880.
Connector: CN_AUDIO
Type: 10-pin (2 x 5) 1.27mm x 2.54mm-pitch header
Pin Description Pin Description
1 MIC_L 2 Ground
3 MIC_R 4 ACE Detect
5 Speaker_R 6 MIC Detect
7 SENSE 8 N/C
9 Speaker_L 10 Speaker Detect
Connector: CDIN
Type: 4-pin header (pitch = 2.54mm)
Pin Description
1 CD – Left
2 Ground
3 Ground
4 CD – Right
Connector: CN_SPDIFOUT
Type: 4-pin header (pitch = 2.54mm)
Pin Description
1 +5V
2 N/C
3 SPDIFO
4 Ground
1
4 1
10
CN_AUDIO
CDIN
1
4
CN_SPDIFOUT
Page 26
PMCA User’s Manual Hardware Setup
USB2.0 Interface
26

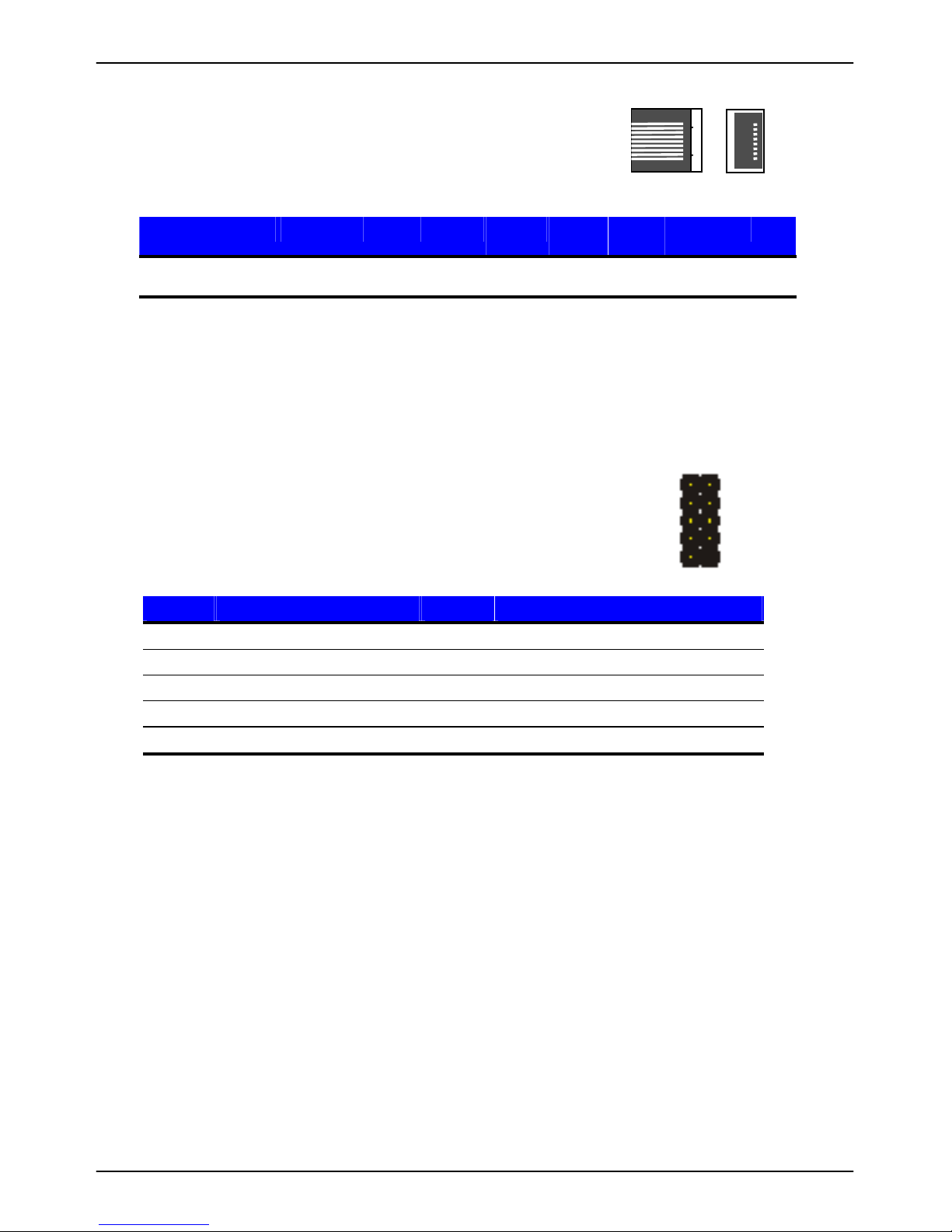

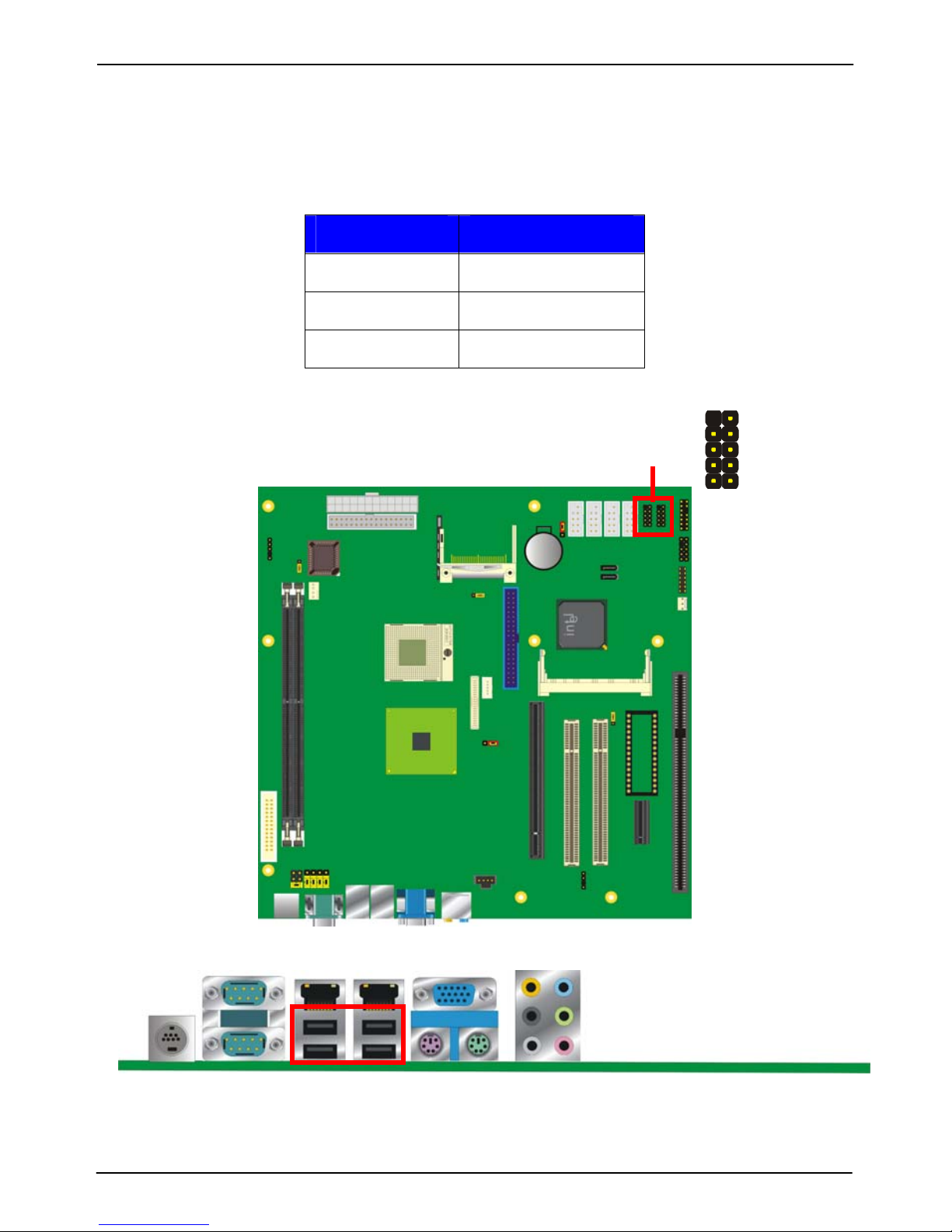

2.12 <USB2.0 Interface>
Based on Intel ICH7-M , the b oard provides 4USB2.0 ports. The USB2.0 interface provides
up to 480Mbps of transferring rate.
Interface USB2.0
Controller ICH7-M
Transfer Rate Up to 480Mb/s
Output Voltage 500mA
USB
1
CN_USB1/2
10
Page 27
PMCA User’s Manual Hardware Setup
USB2.0 Interface
27
Connector: CN_USB
Type: 10-pin (5 x 2) header for USB1/2 Ports
Pin Description Pin Description
1 VCC 2 VCC
3 Data0- 4 Data15 Data0+ 6 Data1+
7 Ground 8 Ground
9 Ground 10 N/C
PS: The USB2.0 will be only active when you connecting wit h the USB2.0 devices, if you
insert an USB1.1 device, the port will be changed to USB1.1 protoc ol automatically. The
transferring rate of USB2.0 as 480Mbps is depending on device capacity, exact transferring
rate may not be up to 480Mbps.
Page 28
PMCA User’s Manual Hardware Setup
GPIO Interface
28
2.13 <GPIO Interface>
The board provides a programmable 8-bit digital I/O interface; you can use this general
purpose I/O port for system control like POS or KIOSK.
Connector: CN_DIO
Type: onboard 2 x 6-pin header, pitch=2.0mm
Pin Description Pin Description
1 Ground 2 Ground
3 GP0 4 GP4
5 GP1 6 GP5
7 GP2 8 GP6
9 GP3 10 GP7
11 VCC 12 +12V
1
CN_DIO
12
11
2
Page 29
PMCA User’s Manual Hardware Setup
Power and Fan Connector
29

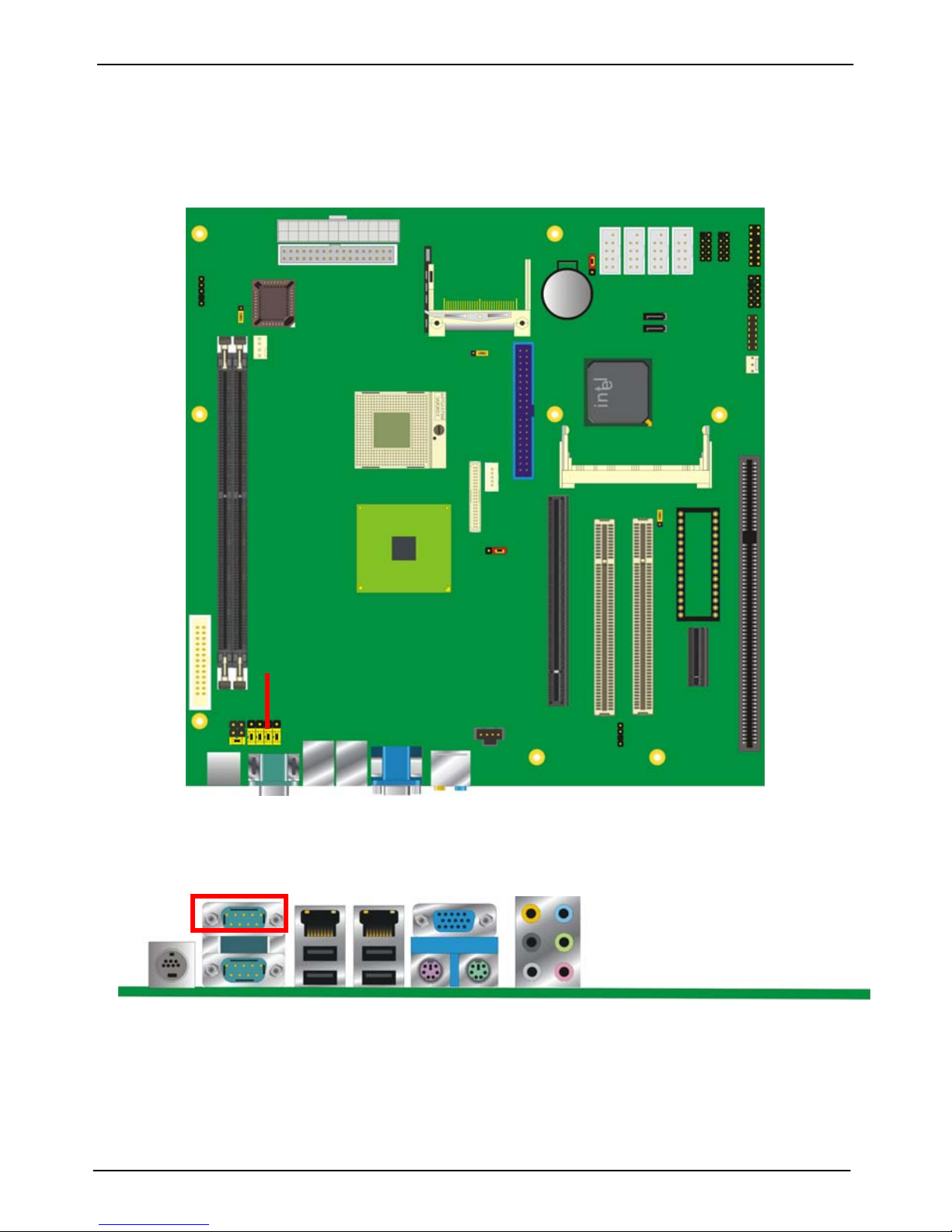

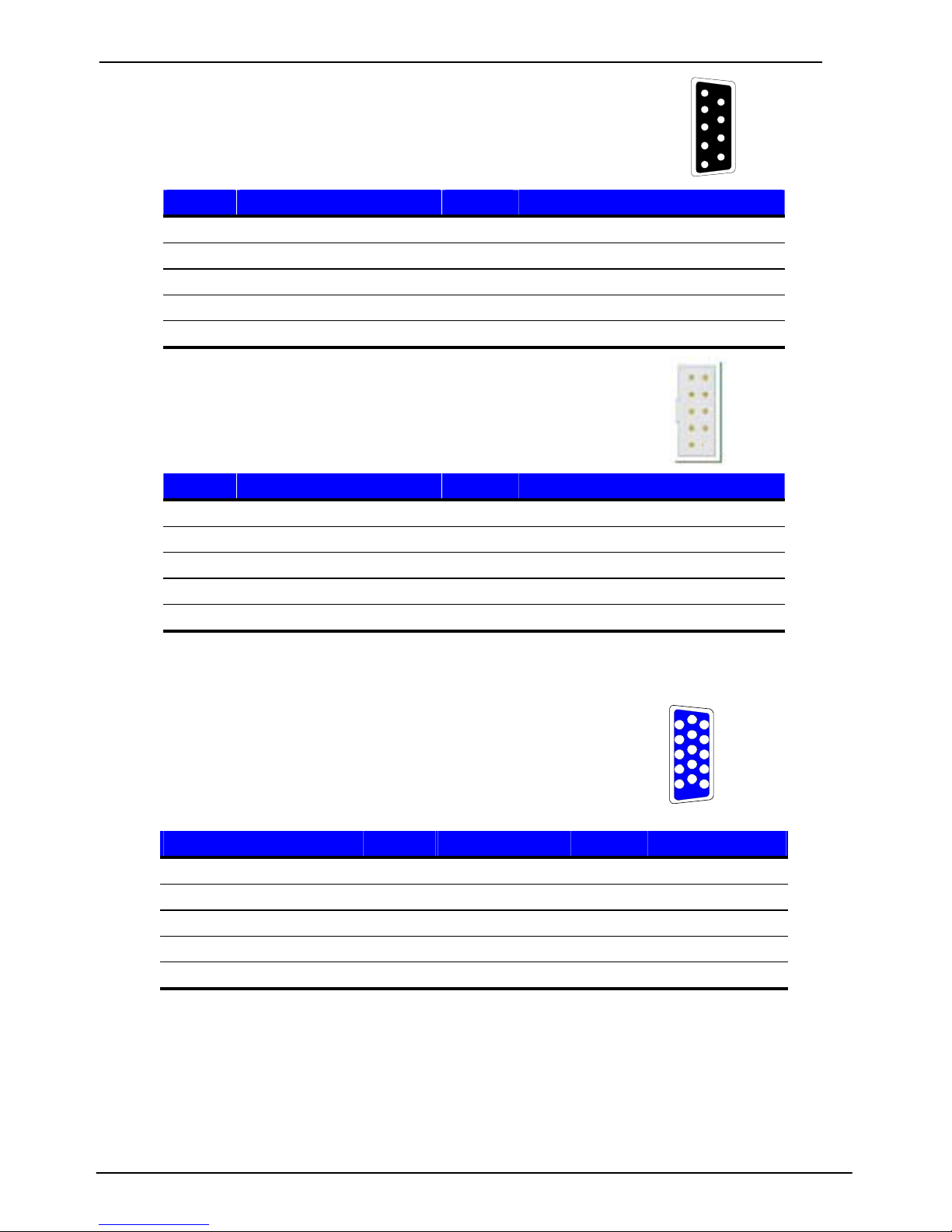

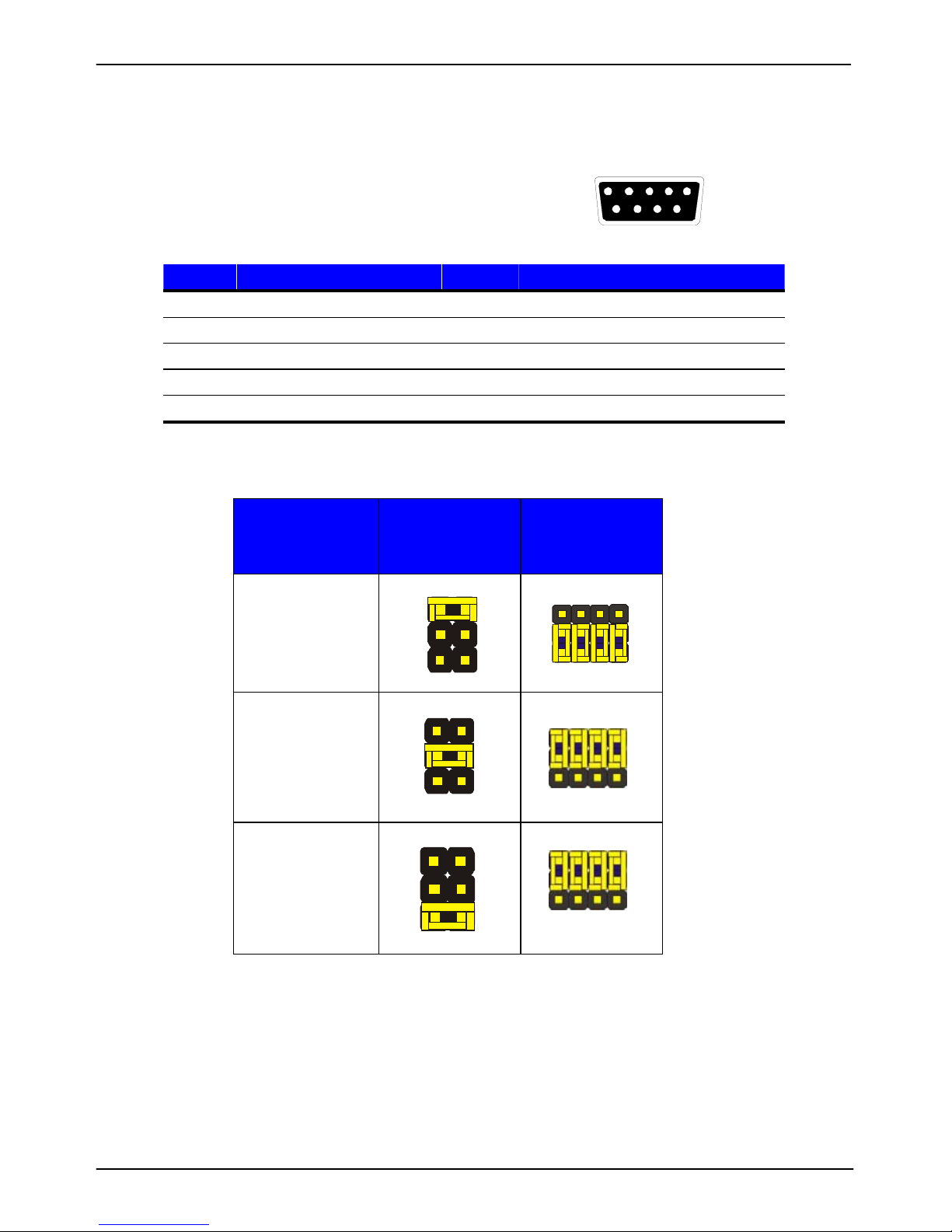

2.14 <Serial Port Jumper Setting >
The board provides six RS232 serial ports, with jumper selectable RS422/485 for COM2.
Connector: COM2
Type: 9-pin D-sub male connector on I/O Panel
Pin Description Pin Description
1 DCD/422TX-/485- 2 RXD/422TX+/485+
3 TXD/422RX+ 4 DTR/422RX5 GND 6 DSR
7 RTS 8 CTS
9 RI
JCSEL1 JCSEL2
RS-232
RS-485
RS-422
1
2
5
6
1
3
10
12
12345
6789
Page 30
PMCA User’s Manual Hardware Setup
Serial Port Jumper Setting
30
CN_COM2/3/4
10
1
COM2
JCSEL1
JCSEL2
Page 31
PMCA User’s Manual Hardware Setup
Power and Fan Connector
31

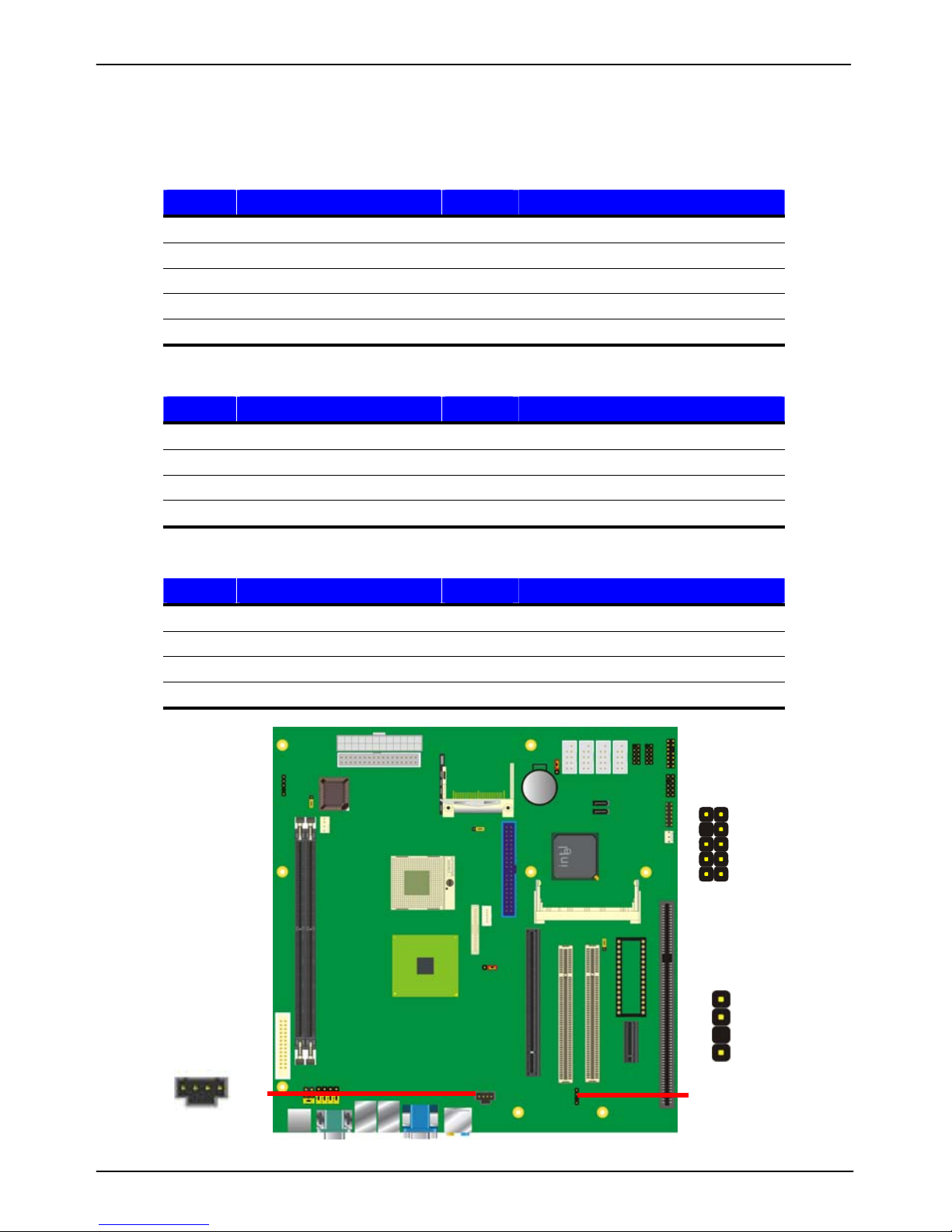

2.15 <Power and Fan Connector>
The PMCA provides a standard ATX power supply with 24-pin ATX connector , and the
board provides one 4- pin fan conn ector supporting smart fan for CPU co oler and one 3- pin
cooler fan connector for system .
2.15.1 <Power Connector>
Connector: ATX
Type: 24-pin ATX power connector
PIN assignment
1 3.3V 13 3.3V
2 3.3V 14 -12V
3 GND 15 GND
4 5V 16 PS_ON
5 GND 17 GND
6 5V 18 GND
7 GND 19 GND
8 PW_OK 20 -5V
9 5V_SB 21 5V
10 12V 22 5V
11 12V 23 5V
12 3.3V 24 GND

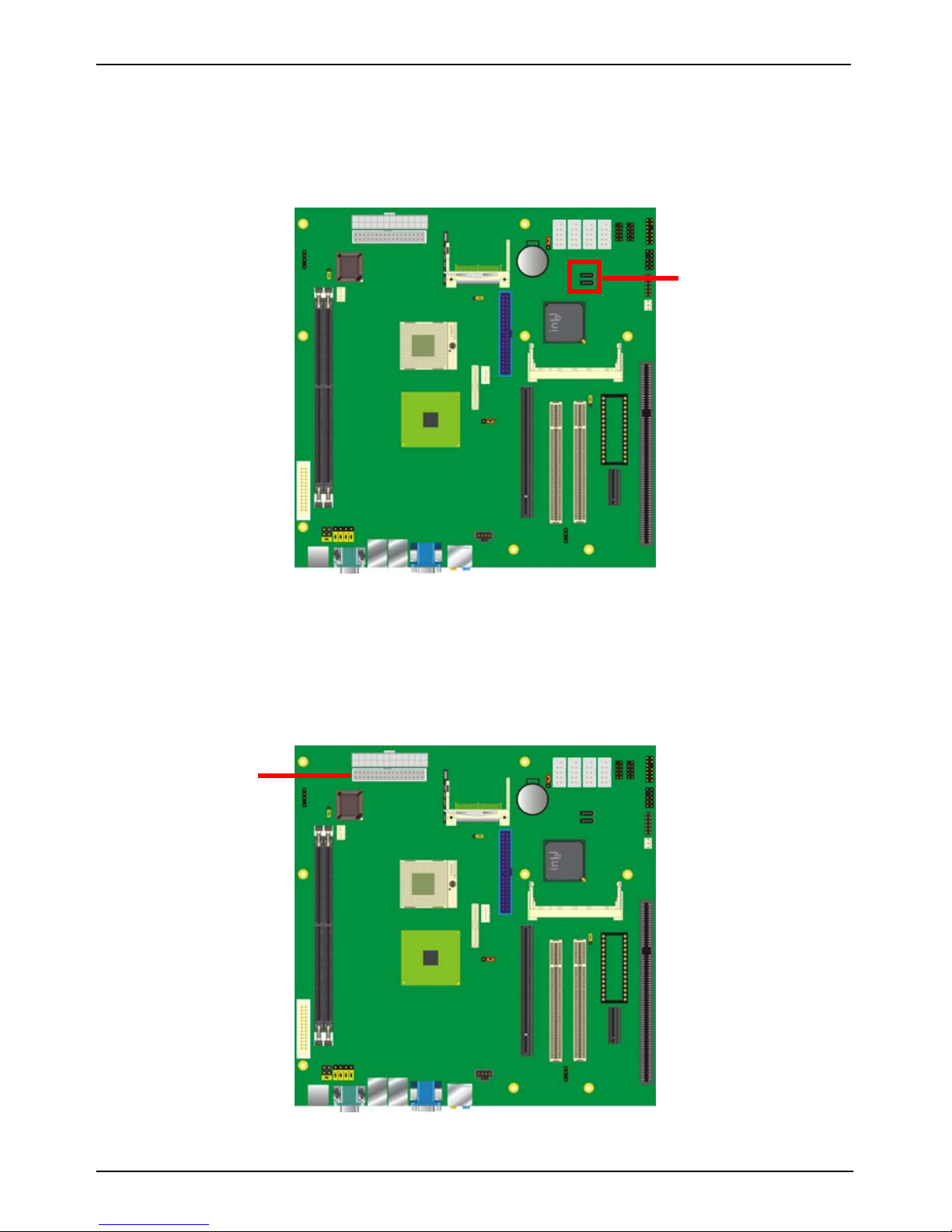

2.15.2 <Fan Connector>
Connector: SYSFAN
Type: 3-pin fan wafer connector
Connector: CPUFAN
Type: 4-pin fan wafer connector
Pin Description Pin Description
1 Ground 2 +12V
3 Fan Speed Detection 4 Sense
Pin Description Pin Description Pin Description
1 Ground 2 +12V 3 Fan Control
Page 32
PMCA User’s Manual Hardware Setup
Power and Fan Connector
32
CPUFAN
SYSFAN
ATX
1
3
12 1
24 13
1
4
Page 33
PMCA User’s Manual Hardware Setup
Indicator and Switch
33
2.16 <Indicator and Switch>
The JFRNT provides front control panel of the board, such as power button, reset and
beeper, etc. Please check well before you connecting the cables on the chassis.

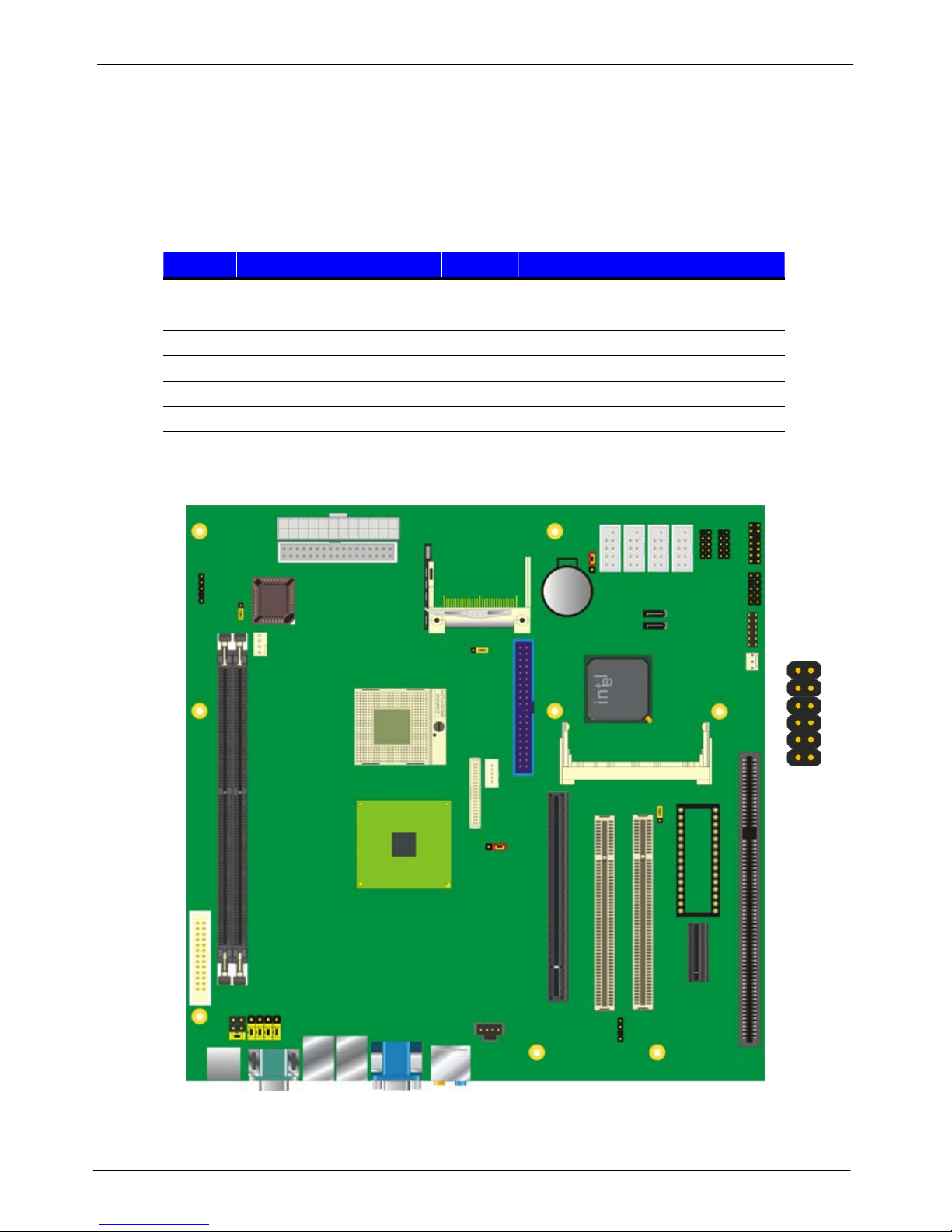

Connector: JFRNT
Type: onboard 14-pin (2 x 7) 2.54-pitch header
Function Signal PIN Signal Function
HDLED+ 1 2 PWRLED+
IDE LED
HDLED- 3 4 N/C
Reset+ 5 6 PWRLED-
Power
LED
Reset
Reset- 7 8 SPK+
N/C 9 10 N/C
PWRBT- 11 12 N/C
Power
Button
PWRBT+ 13 14 SPK-
Speaker

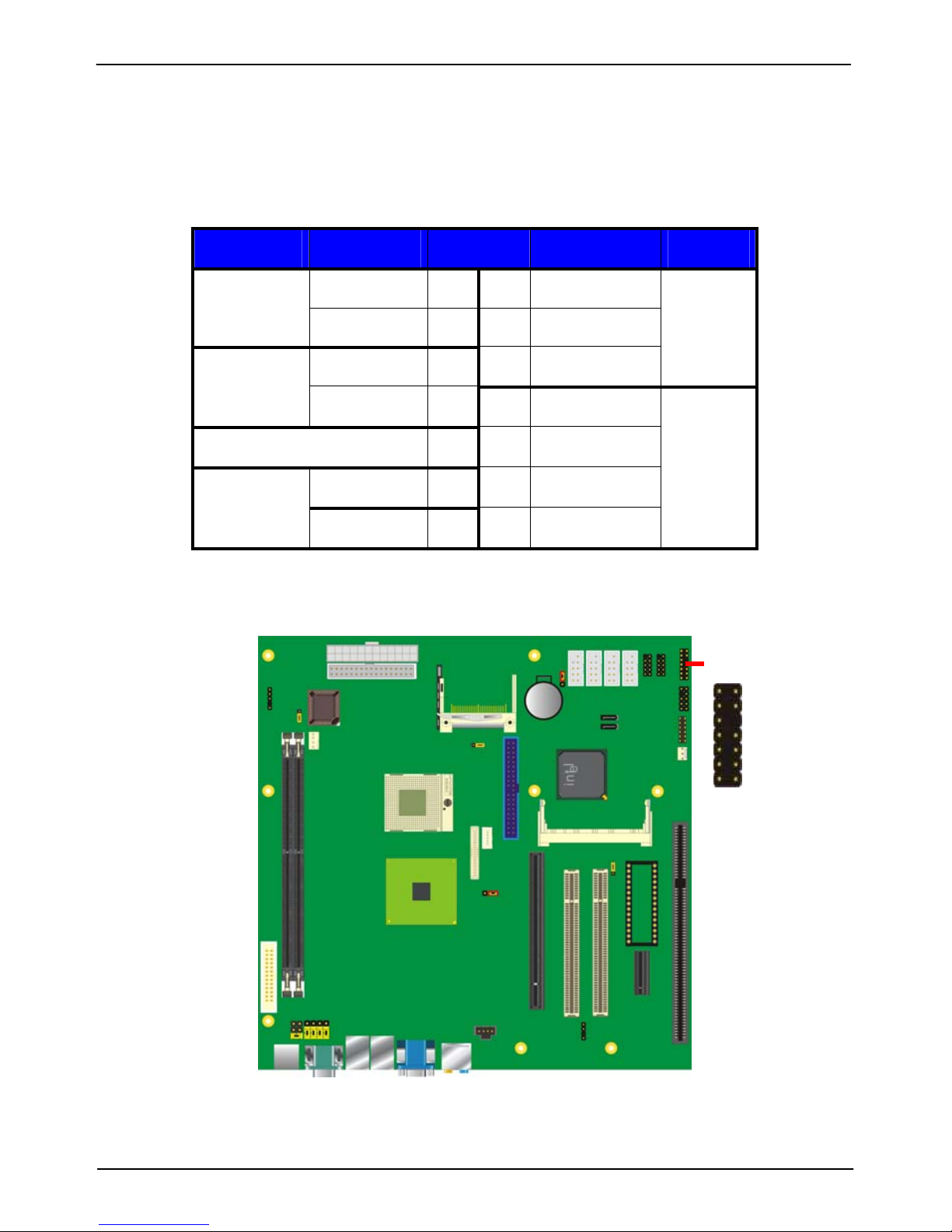

JFRNT
1
14
Page 34
PMCA User’s Manual Hardware Setup
Expansion Interface 34
2.17 <Expansion Interface>
PMCA has one 16x and 1x PCI-Express slots .PCI-Express is the last e xpansion interface
technology, for its serial data transfer scheme, each lane will be up to 500MB/s (duplex),
and the 16x (16 lanes) can be up to 8GB/s more than 2GB/s as AGP 8x bus transfer rate.
The 16x slot can be also for 1x compatible use.
PCIE (PCI-Expres.s 16x
PCIE (PCI-Express 1x slot)
Page 35
PMCA User’s Manual
35
(This Page is Left For Blank
Page 36
PMCA User’s Manual System Configuration
Video Memory Setup
36
Chapter 3 <System Configuration>
3.1 <Video Memory Setup>
Based on Intel® 945GM(E) chipset with GMA (Graphic Media Accelerator ) 950, the board
supports Intel® DVMT (Dynamic Video Memory Technology) 3.0, which would allow the
video memory to be allocated up to 224MB.
To support DVMT, you need to install the Intel GMA 950 Driver with supported OS.
BIOS Setup:
On-Chip Video Memory Size: This option combines three items below for setup.
On-Chip Frame Buffer Size:
This item can let you select video memory which been allocated for legacy VGA and SVGA
graphics support and compatibility. The available option is 1MB and 8MB.
Fixed Memory Size:
This item can let you select a static amount of page-locked graphics memory which will be
allocated during driver initialization. Once you select the memory amount, it will be no
longer available for system memory.
DVMT Memory Size:
This item can let you select a maximum size of dynamic amount usage of video memory,
the system would configure the video memory depends on your application, this item is
strongly recommend to be selected as MAX DVMT.
Page 37
PMCA User’s Manual System Configuration
Video Memory Setup
37
Fixed + DVMT Memory Size:
You can select the fixed amo unt and the DVMT amount at the same time for a g uaranteed
video memory and additional dynamic video memory, please check the table below for
available setting.
System
Memory
On-Chip
Frame
Buffer Size
Fixed
Memory
Size
DVMT
Memory
Size
Total
Graphic
Memory
1MB 32MB 0MB 32MB
1MB 0MB 32MB 32MB
8MB 32MB 0MB 32MB
128MB~255MB
8MB 0 32MB 32MB
1MB 64MB 0MB 64MB
1MB 0 64MB 64MB
1MB 128MB 0MB 128MB
1MB 0 128MB 128MB
1MB 64MB 64MB 128MB
8MB 64MB 0MB 64MB
8MB 0 64MB 64MB
8MB 128MB 0MB 128MB
8MB 0 128MB 128MB
256MB~511MB
8MB 64MB 64MB 128MB
1MB 64MB 0 64MB
1MB 0 64MB 64MB
1MB 128MB 0 128MB
1MB 0 128MB 128MB
1MB 64MB 64MB 128MB
8MB 64MB 0 64MB
8MB 0 64MB 64MB
8MB 128MB 0 128MB
8MB 0 128MB 128MB
512MB upper
8MB 64MB 64MB 128MB
Notice:
1. The On-Chip Frame Buffer Size would be included in the Fixed Memory.
Please select the memory size according to this table.
Page 38
PMCA User’s Manual BIOS Setup
BIOS Setup
38
Chapter 4 <BIOS Setup>
The motherboard uses the Award BIOS for the system configuration. The A ward BIOS in
the single board computer is a customized ve rsion of the industrial standard BIOS for IBM
PC AT-compatible computers. It supports Intel x86 and compatible CPU architecture based
processors and computers. The BIOS provides critical low-level support for the system
central processing, memory and I/O sub-systems.
The BIOS setup program of the single board computer let the customers modify the basic
configuration setting. The settings are stored in a dedicated battery-backed memory,
NVRAM, retains the information when the power is turned off. If the battery runs out of the
power, then the settings of BIOS will come back to the default setting.
The BIOS section of the manual is subject to change without notice and is provided here for
reference purpose only. The settings and configur ati ons of t he BIOS are c urrent at the time
of print, and therefore they may not be exactly the same as that displayed on your screen.
To activate CMOS Setup program, press ＜DEL＞ key immediately after you turn on the
system. The following message “Press DEL to enter SETUP” should appear in the lower left
hand corner of your screen. When you enter the CMOS Setup Utility, the Main Menu will be
displayed as Figure 4-1. You can use arrow keys to select your function, press ＜Enter＞
key to accept the selection and enter the sub-menu.

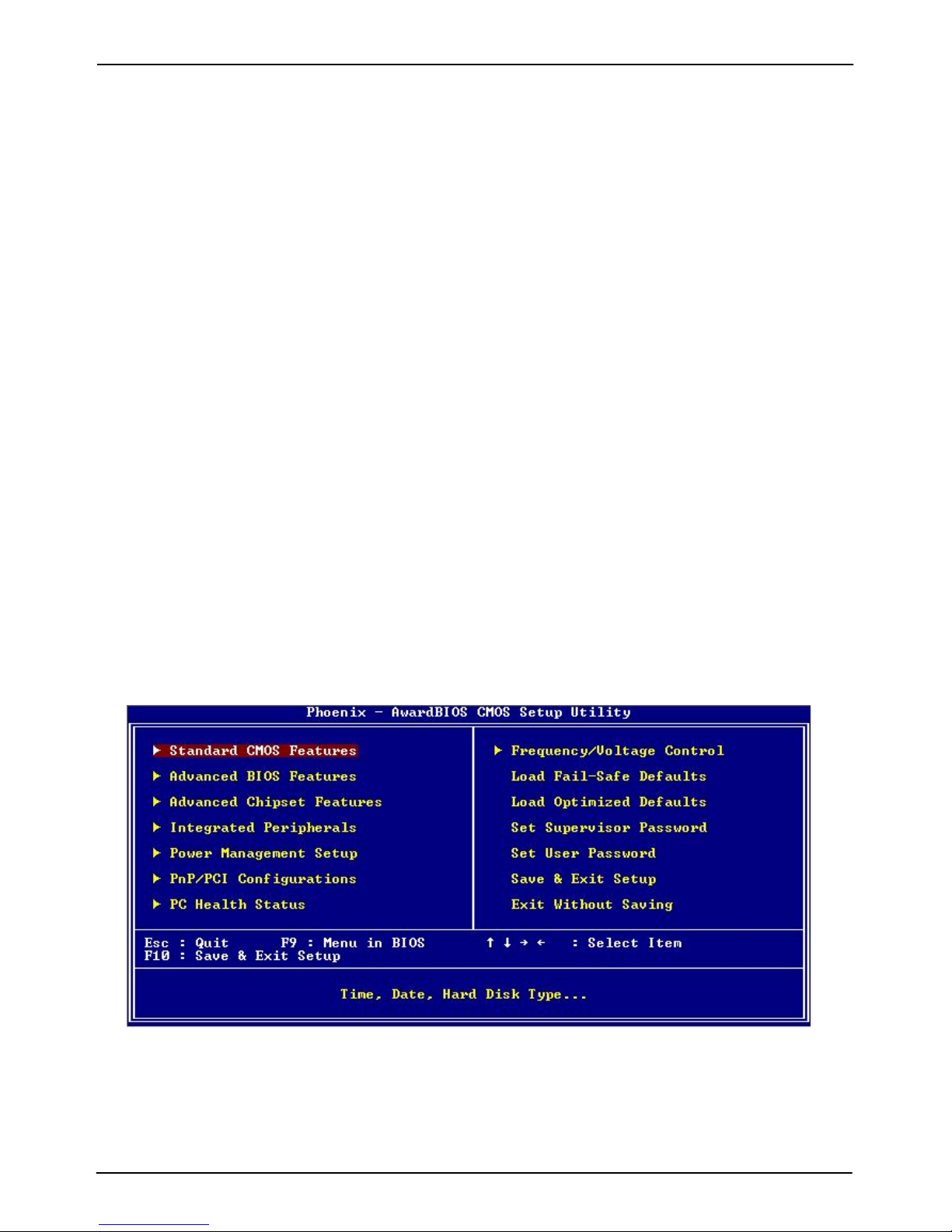

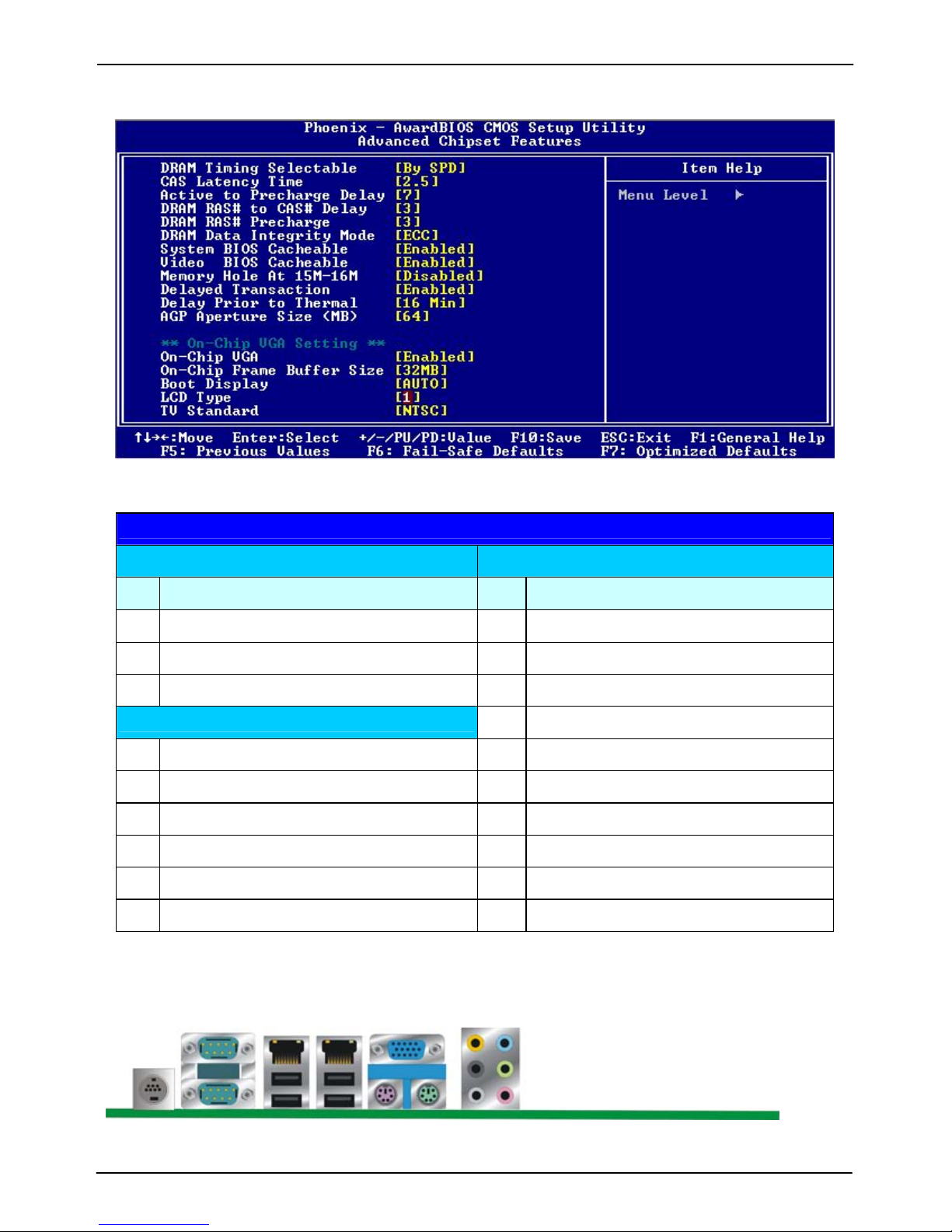

Figure 4-1 CMOS Setup Utility Main Screen
Page 39
PMCA User’s Manual
39
(This Page is Left for Blank)
Page 40
PMCA User’s Manual I/O Port Pin Assignment
IDE Port
40
Appendix A <I/O Port Pin Assignment>
A.1 <IDE Port>

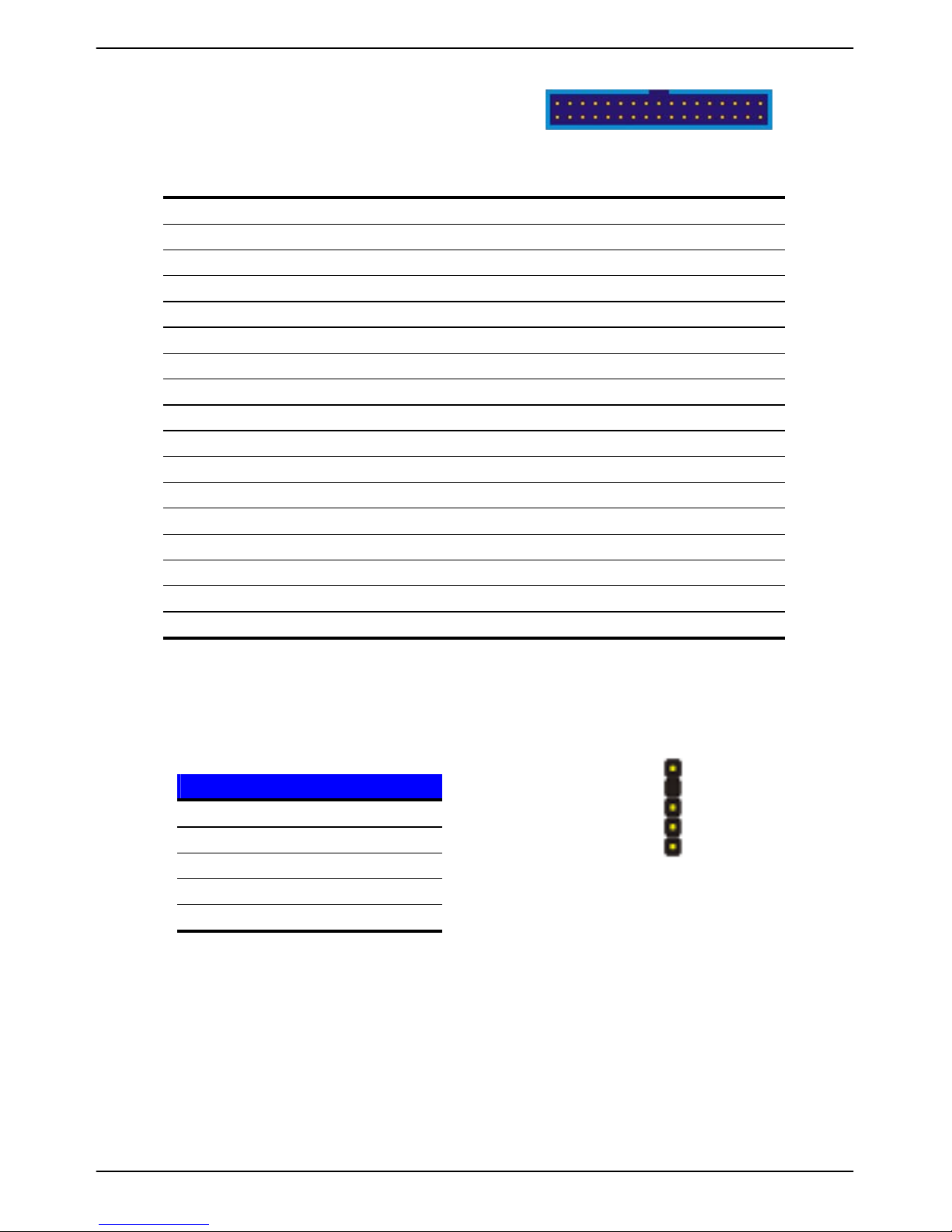

Connector: IDE
Type: 40-pin (20 x 2) box header
Pin Description Pin Description
1 Reset 2 Ground
3 D7 4 D8
5 D6 6 D9
7 D5 8 D10
9 D4 10 D11
11 D3 12 D12
13 D2 14 D13
15 D1 16 D14
17 D0 18 D15
19 Ground 20 VCC
21 REQ 22 Ground
23 IOW-/STOP 24 Ground
25 IOR-/HDMARDY 26 Ground
27 IORDY/DDMARDY 28 Ground
29 DACK- 30 Ground
31 IRQ 32 N/C
33 A1 34 CBLID
35 A0 36 A2
37 CS0 (MASTER CS) 38 CS1 (SLAVE CS)
39 LED ACT- 40 Ground
A.2 <Serial ATA Port>
Connector: SATA1/2
Type: 7-pin wafer connector
1 2 3 4 5 6 7 8 9
GND RSATA_TXP1 RSATA_TXN1 GND RSATA_RXN1 RSATA_RXP1 GND GND GND
40
1
2
39
1 7
Page 41
PMCA User’s Manual I/O Port Pin Assignment
Floppy Port
41
A.3 <Floppy Port>
Connector: FDD
Type: 34-pin (2 x 17) 2.54-pitch header
Pin Description Pin Description
1 Ground 2 DRIVE DENSITY SELECT 0
3 Ground 4 N/C
5 Ground 6 N/C
7 Ground 8 INDEX9 Ground 10 MOTOR ENABLE A11 Ground 12 N/C
13 Ground 14 DRIVER SELECT A15 Ground 16 N/C
17 Ground 18 DIRECTION19 Ground 20 STEP21 Ground 22 WRITE DATA23 Ground 24 WRITE GATE25 Ground 26 TRACK 027 Ground 28 WRITE PROTECT29 Ground 30 READ DATA31 Ground 32 HEAD SELECT33 Ground 34 DISK CHANGE-
A.4 <IrDA Port>
Connector: CN_IR
Type: 5-pin header for SIR Ports
Pin Description
1 VCC
2 N/C
3 IRRX
4 Ground
5 IRTX
2
34
1
17
5
1
Page 42
PMCA User’s Manual I/O Port Pin Assignment
Serial Port
42
A.5 <Serial Port>
Connector: COM1/2
Type: 9-pin D-sub male connector on I/O Panel
Pin Description Pin Description
1 DCD 6 DSR
2 SIN 7 RTS
3 SO 8 CTS
4 DTR 9 RI
5 Ground
Connector: COM3/4/5/6
Type: 9-pin D-sub male connector on bracket
Pin Description Pin Description
1 DCD- 6 DSR2 SIN- 7 RTS3 SO- 8 CTS4 DTR- 9 RI
5 Ground 10 N/C
A.6 <CRT Port>
Connector: CRT
Type: 15-pin D-sub female connector on I/O Panel
Pin Description Pin Description Pin Description
1 RED 6 Ground 11 N/C
2 GREEN 7 Ground 12 5VCDA
3 BLUE 8 Ground 13 HSYNC
4 N/C 9 N/C 14 VSYNC
5 Ground 10 Ground 15 5VCLK
6
1
2
3
4
5
11
12
13
14
10
2 1
9
10
5
4
3
2
1
9
8
7
6
Page 43
PMCA User’s Manual I/O Port Pin Assignment
LAN Port
43
A.7 <LAN Port>
Connector: RJ451/2
Type: RJ45 connector with LED on I/O Panel
A.8 < USB Port >
Connector: CN_USB
Type: 10-pin (5 x 2) header for dual USB Ports
Pin Description Pin Description
1 VCC 2 VCC
3 Data0- 4 Data15 Data0+ 6 Data1+
7 Ground 8 Ground
9 Ground 10 N/C
Pin 1 2 3 4 5 6 7 8
Description MI0+ MI0- MI1+ MI2+ MI2- MI1- MI3+ MI3-
10
1
Page 44
LE-565 User’s Manual Flash BIOS
BIOS Auto Flash Tool
44
Appendix B <Flash BIOS>
B.1 BIOS Auto Flash Tool
The board is based on Award BIOS and can be updated easily by the BIOS auto flash
tool. You can download the tool online at the address below:
TUhttp://www.award.comUT
TUhttp://www.commell.com.tw/support/support.htmUT
File name of the tool is “awdflash.exe”, it’s the utility that can write the data into the
BIOS flash ship and update the BIOS.
B.2 Flash Method
1. Please make a bootable floppy disk.
2. Get the last .bin files you want to update and copy it into the disk.
3. Copy awardflash.exe to the disk.
4. Power on the system and flash the BIOS. (Example: C:/ awardflash XXX.bin)
5. Re-star the system.
Any question about the BIOS re-flash please contact your distributors or visit the
web-site at below:
http://www.commell.com.tw/support/support.htm
Page 45
PMCA User’s Manual System Resources
I/O Port Address Map
45
Appendix C <System Resources>

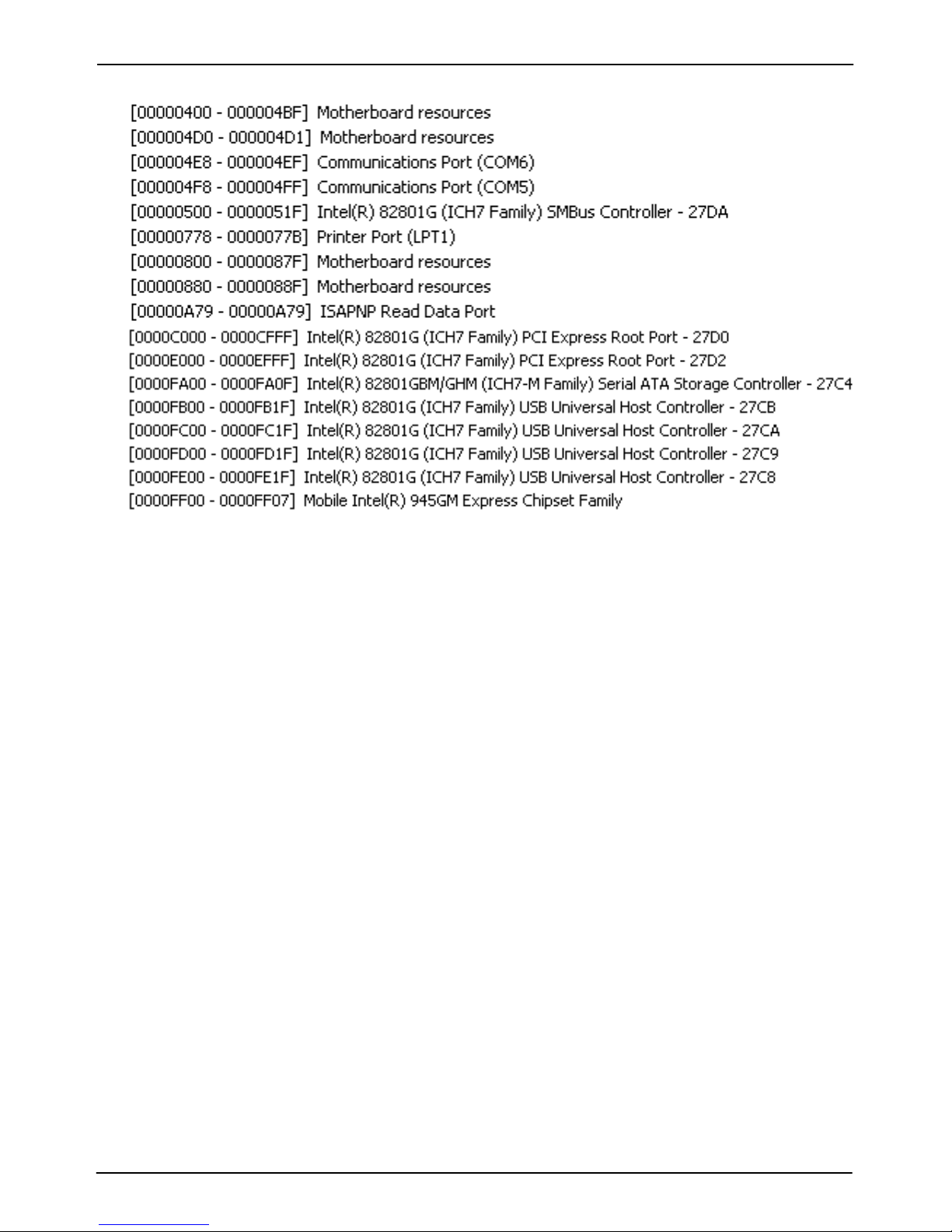

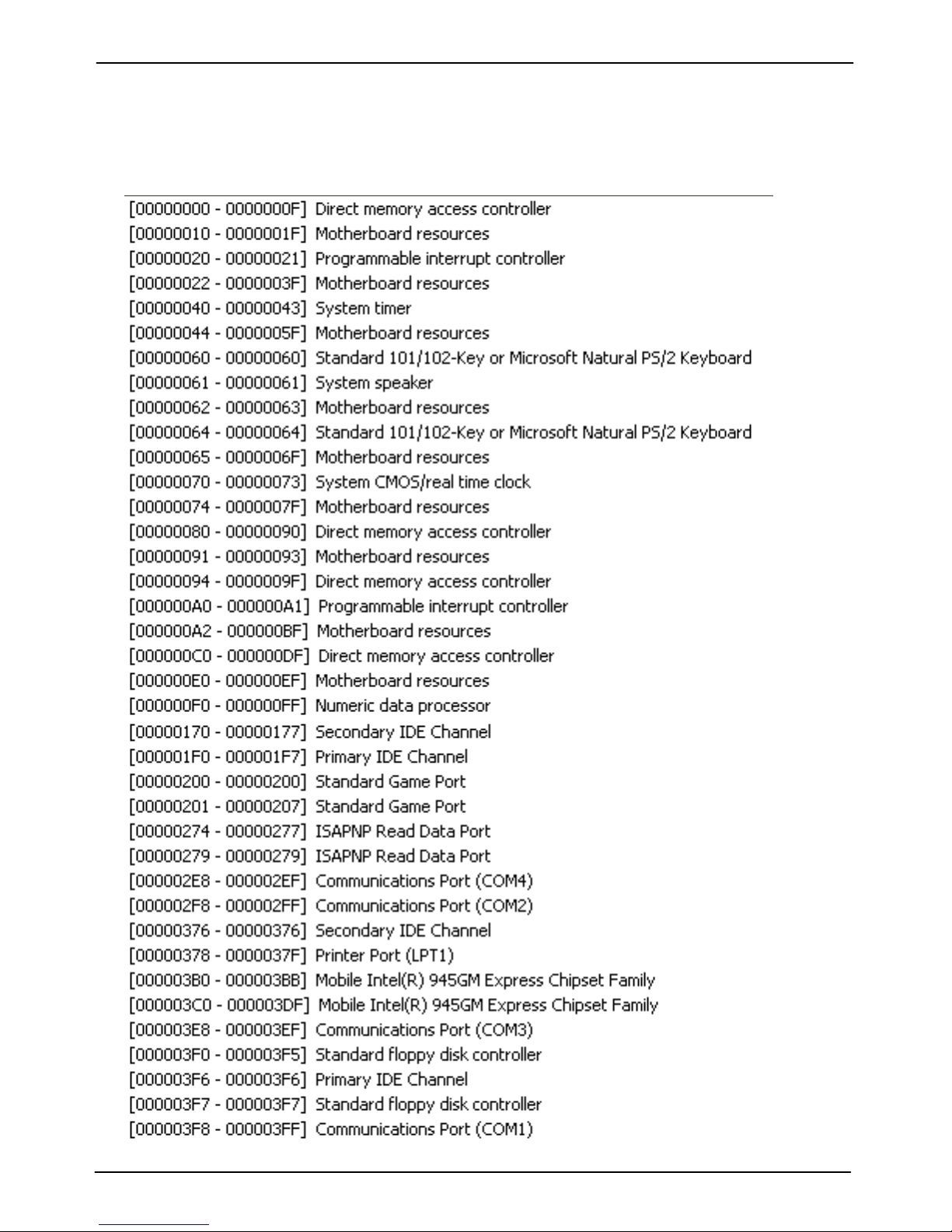

C1.<I/O Port Address Map>
Page 46
LE-565 User’s Manual System Resources
I/O Port Address Map
46
Page 47
PMCA User’s Manual System Resources
Memory Address Map
47

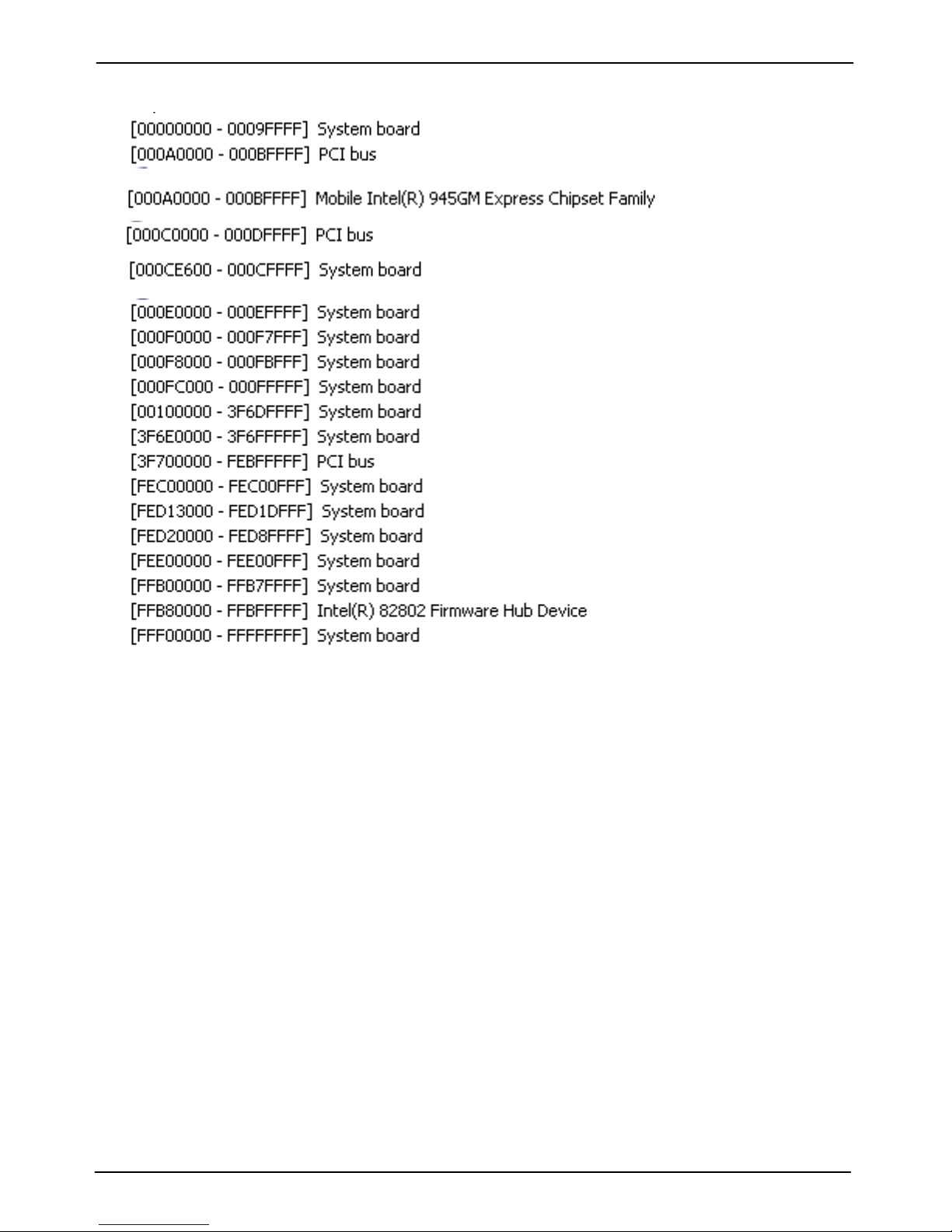

C2.<Memory Address Map>
Page 48
LE-565 User’s Manual System Resources

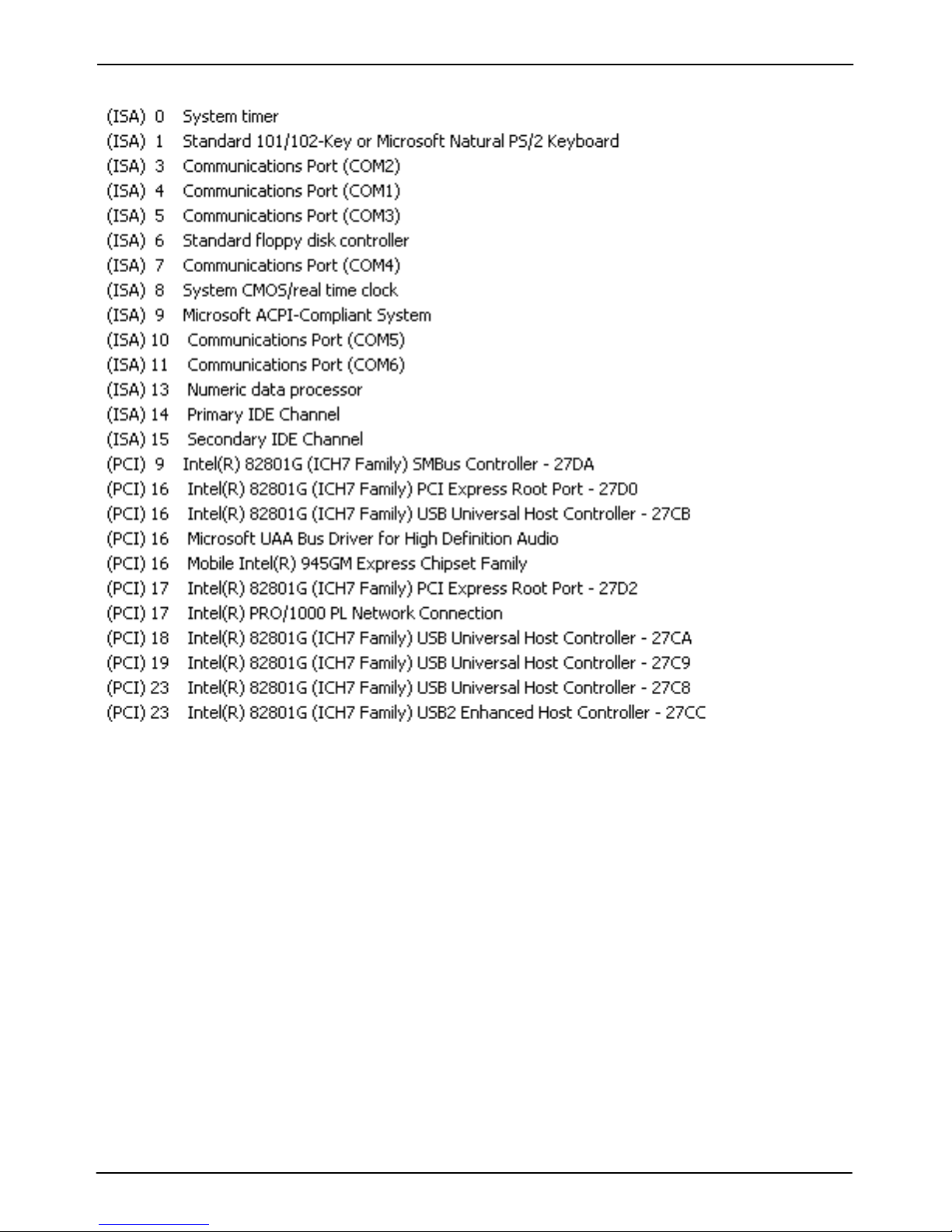

System IRQ Resources
48
C3.<System IRQ Resources>
Page 49
PMCA User’s Manual Contact Information
Whatch Dog timer Setting
49
Appendix D <Watch Dog timer Setting >
The watchdog timer makes the system auto-reset while it stops to work for a period. The
integrated watchdog timer can be setup as system reset mode by program.
Timeout Value Range
- 1 to 255
- Second or Minute
Program Sample
Watchdog timer setup as system reset with 5 second of timeout
2E, 87
2E, 87
2E, 07
2F, 08 Logical Device 8
2E, 30 Activate
2F, 01
2E, F5 Set as Second*
2F, 00
2E, F6 Set as 5
2F, 05
* Minute: bit 3 = 0; Second: bit 3 = 1

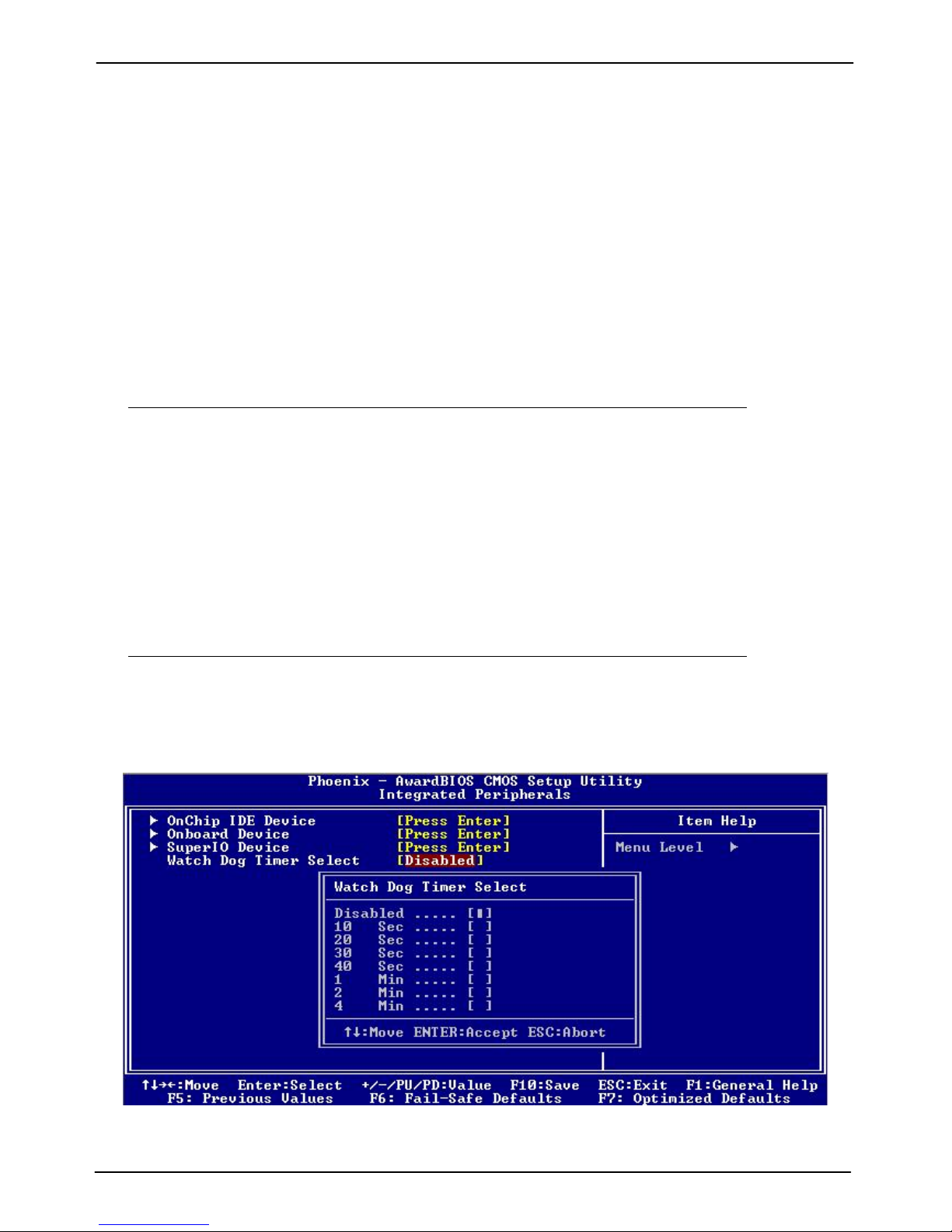

You can select Timer setting in the BIOS, after setting the time options, the system will
reset according to the period of your selection.
Page 50
LE-565 User’s Manual
50
(This Page is Left for Blank)
Page 51
PMCA User’s Manual Contact Information
Contact Information
51
Contact Information
Any advice or comment about our products and service, or
anything we can help you please don’t hesitate to contact with us.
We will do our best to support you for your products, projects and
business.
Taiwan Commate Computer Inc.
Address
8F, No. 94, Sec. 1, Shin Tai Wu Rd., Shi Chih
Taipei Hsien, Taiwan
TEL +886-2-26963909
FAX +886-2-26963911
Website
TUhttp://www.commell.com.twUT
E-Mail
Commell is a brand name of Taiwan Commate Computer INC
Loading...
