Commell P2LXB User Manual

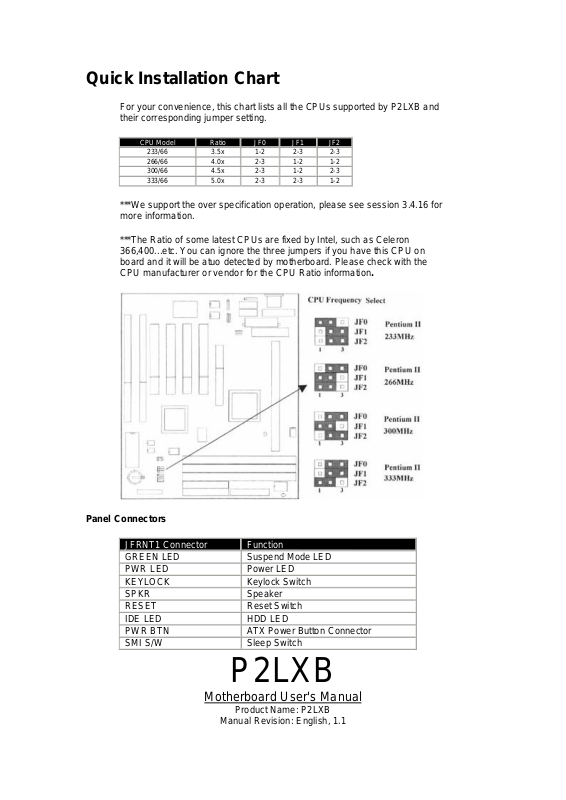

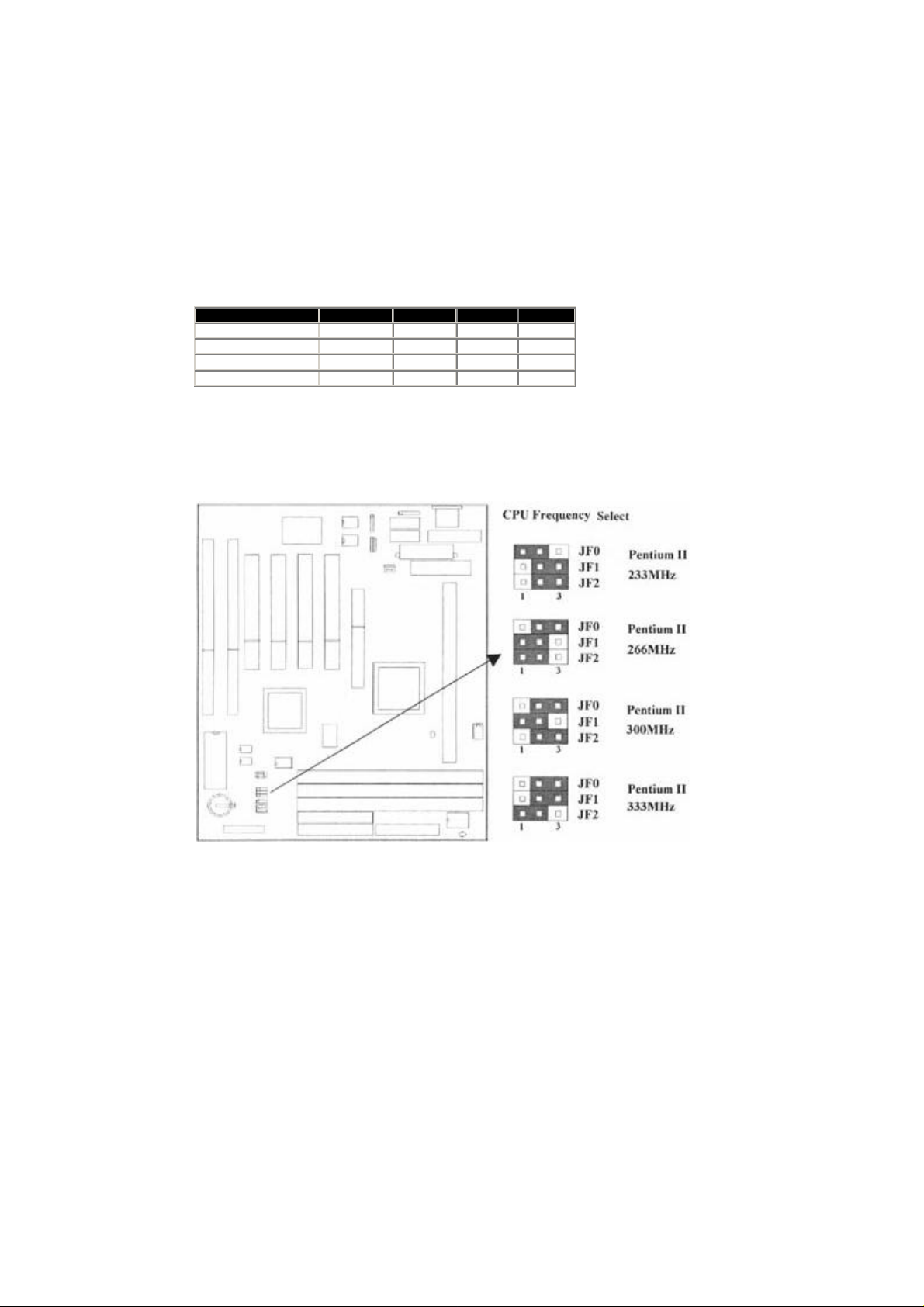

Quick Installation Chart

For your convenience, this chart lists all the CPUs supported by P2LXB and
their corresponding jumper setting.

CPU Model Ratio JF0 JF1 JF2

233/66 3.5x 1-2 2-3 2-3
266/66 4.0x 2-3 1-2 1-2
300/66 4.5x 2-3 1-2 2-3
333/66 5.0x 2-3 2-3 1-2

***We support the over specification operation, please see session 3.4.16 for
more information.

***The Ratio of some latest CPUs are fixed by Intel, such as Celeron
366,400...etc. You can ignore the three jumpers if you have this CPU on
board and it will be atuo detected by motherboard. Please check with the
CPU manufacturer or vendor for the CPU Ratio information.

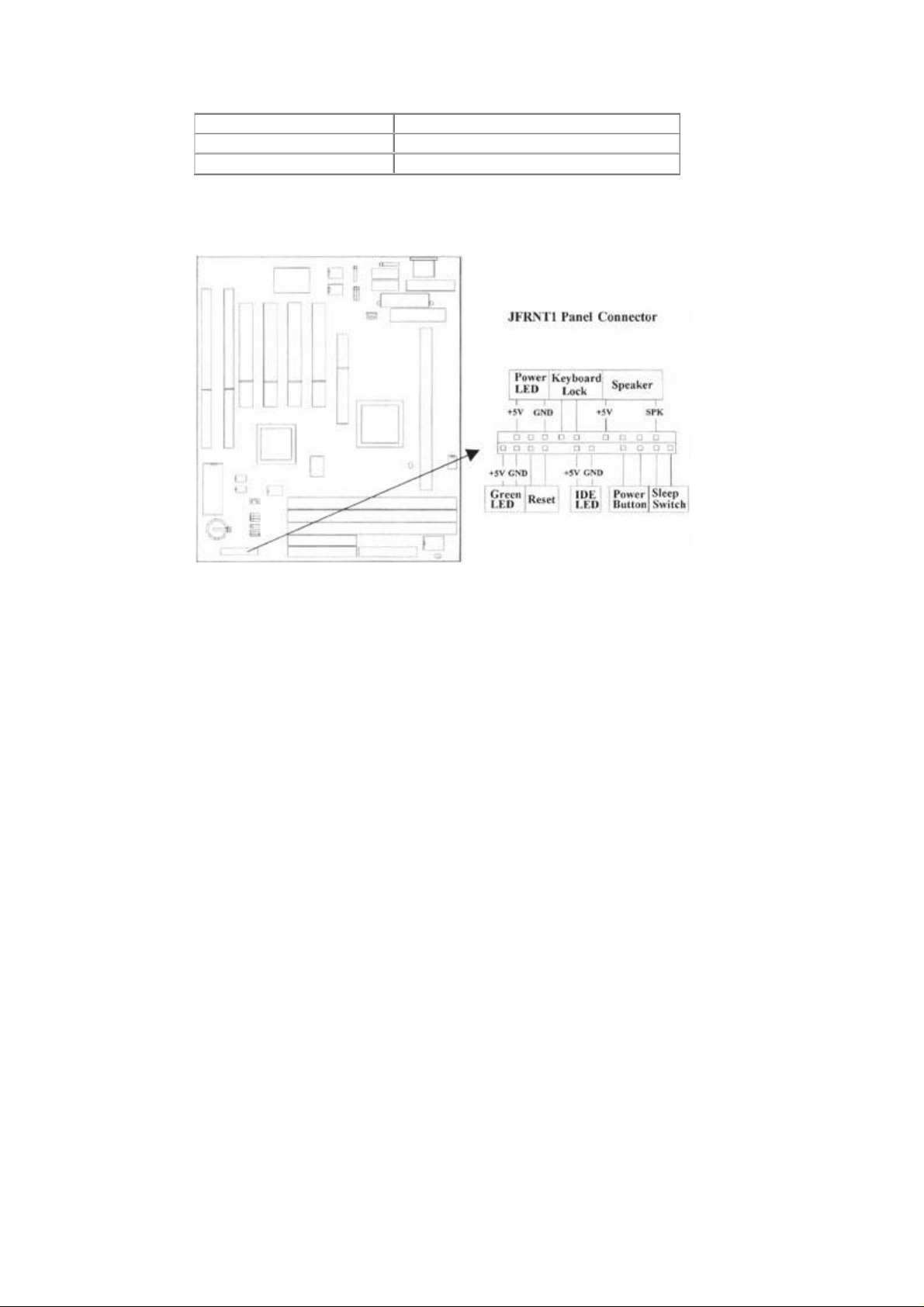

Panel Connectors

JFRNT1 Connector Function

GREEN LED Suspend Mode LED
PWR LED Power LED
KEYLOCK Keylock Switch
SPKR Speaker
RESET Reset Switch
IDE LED HDD LED
PWR BTN ATX Power Button Connector
SMI S/W Sleep Switch

P2LXB

Motherboard User's Manual

Product Name: P2LXB

Manual Revision: English, 1.1

Trademarks

Intel and Pentium II are trademarks of Intel Corporation
Award is a trademark of Award Software International Inc.

MS-DOS, Windows 95, Windows 98 and Windows NT are registered trademarks of Microsoft
Corporation

Novell is a trademark of Novell Corporation

All other brand and product names are trademarks or registered trademarks of their
respective companies.

Table of Contents

Chapter 1. Introduction

1.1 Product Overview

1.2 Specifications

1.3 Content

1.4 System Board Layout

Chapter 2. Hardware Setup

2.1 Installation Procedure

2.1.1 Jumper Settings

2.1.2 Clearing the CMOS

2.1.3 CPU Voltage Setting

2.1.4 CPU Frequency Selection

2.2 Installation of CPU

2.3 Installation of Memory

2.3.1 Installation of 168-pin DIMM

2.3.2 Removal of 168-pin DIMM

2.3.3 Memory Configuration

2.4 I/O Connections/Panel Connections

2.4.1 ATX Power Connector,AT Power Connector

2.4.2 Chassis & CPU Fan Connectors

2.4.3 Infrared Connector

2.4.4 Wake-up on LAN Connector

2.4.5 Creative's SB_LINK Sound Connector

2.4.6 Floppy Disk Drive Connector

2.4.7 Primary/Secondary IDE Connector

2.4.8 PS/2 Mouse Port

2.4.9 Serial Port

2.4.10 Printer Port

2.4.11 USB Connectors

2.4.12 Panel Connection

Chapter 3. BIOS Setup

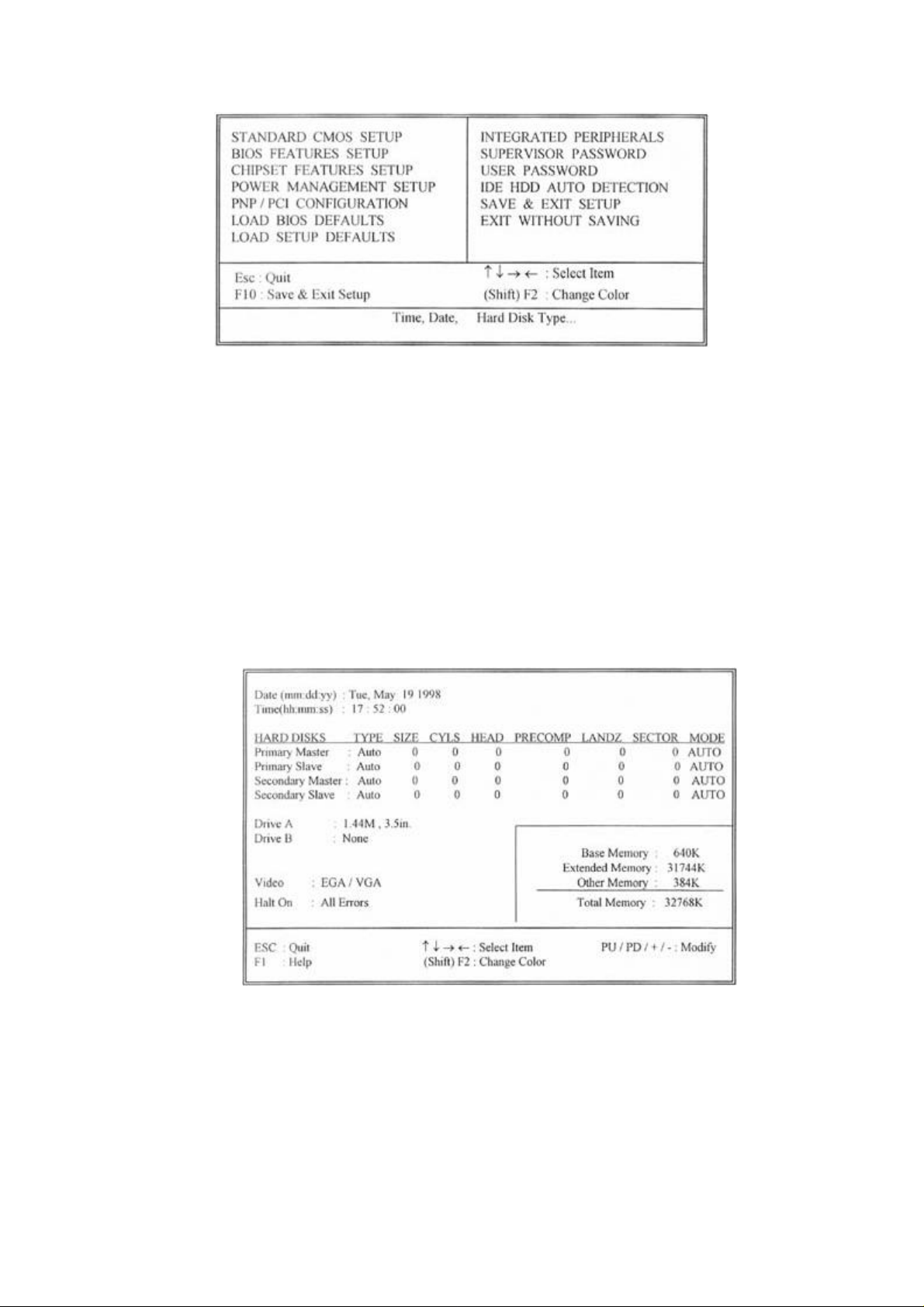

3.1 CMOS Setup Utility

3.2 Standard CMOS Setup..

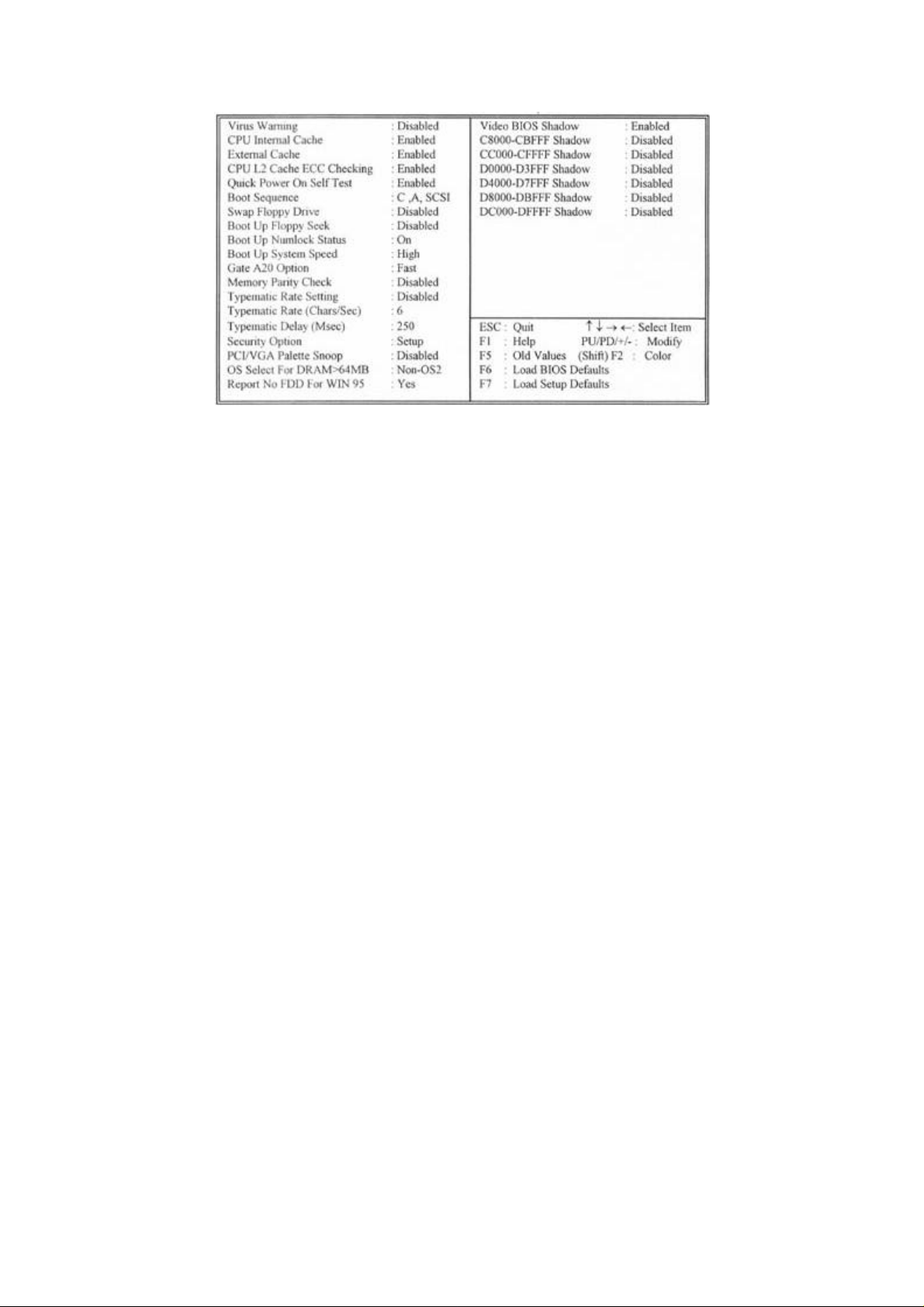

3.3 BIOS Features Setup

3.4 Chipset Features Setup

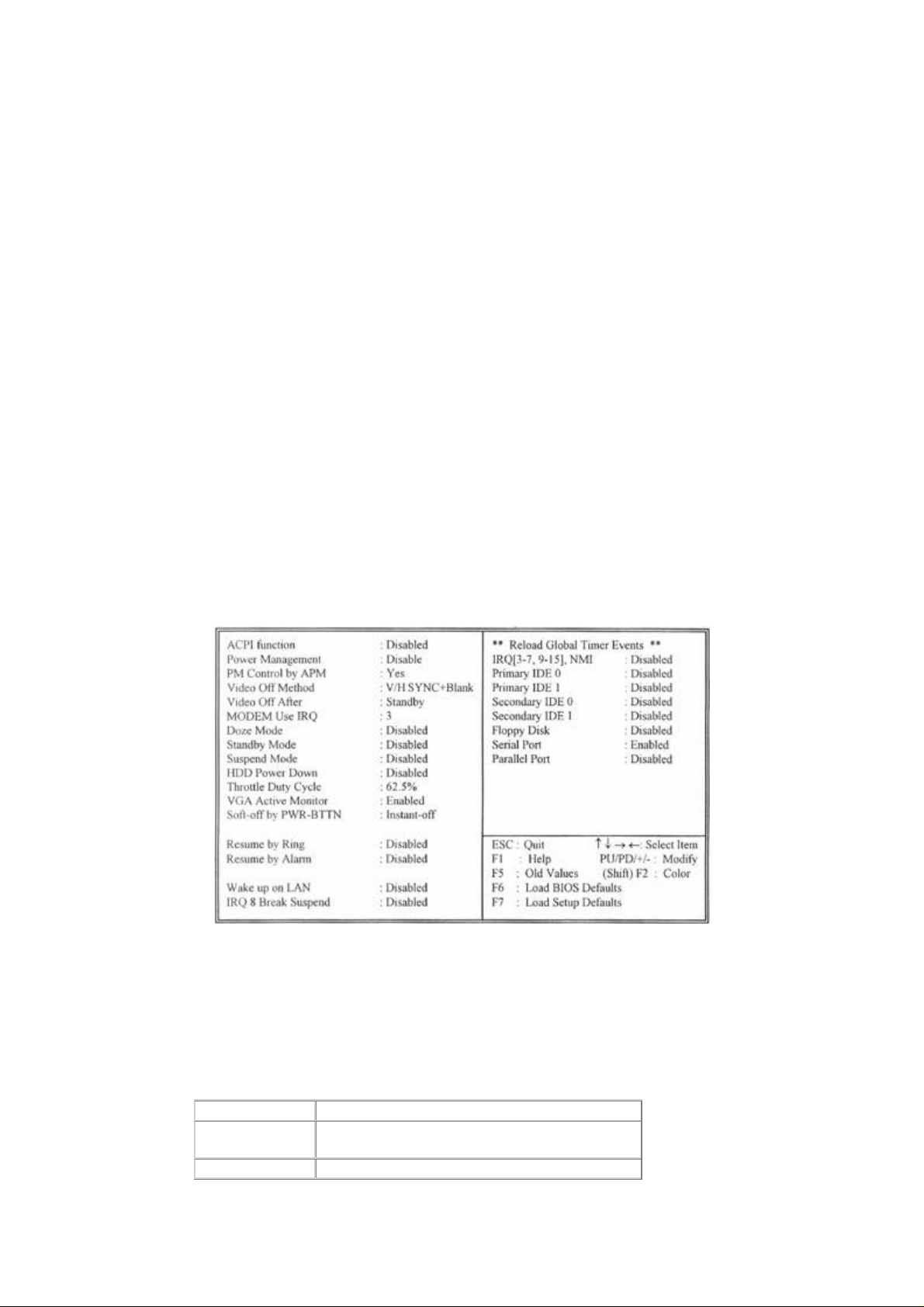

3.5 Power Management Setup

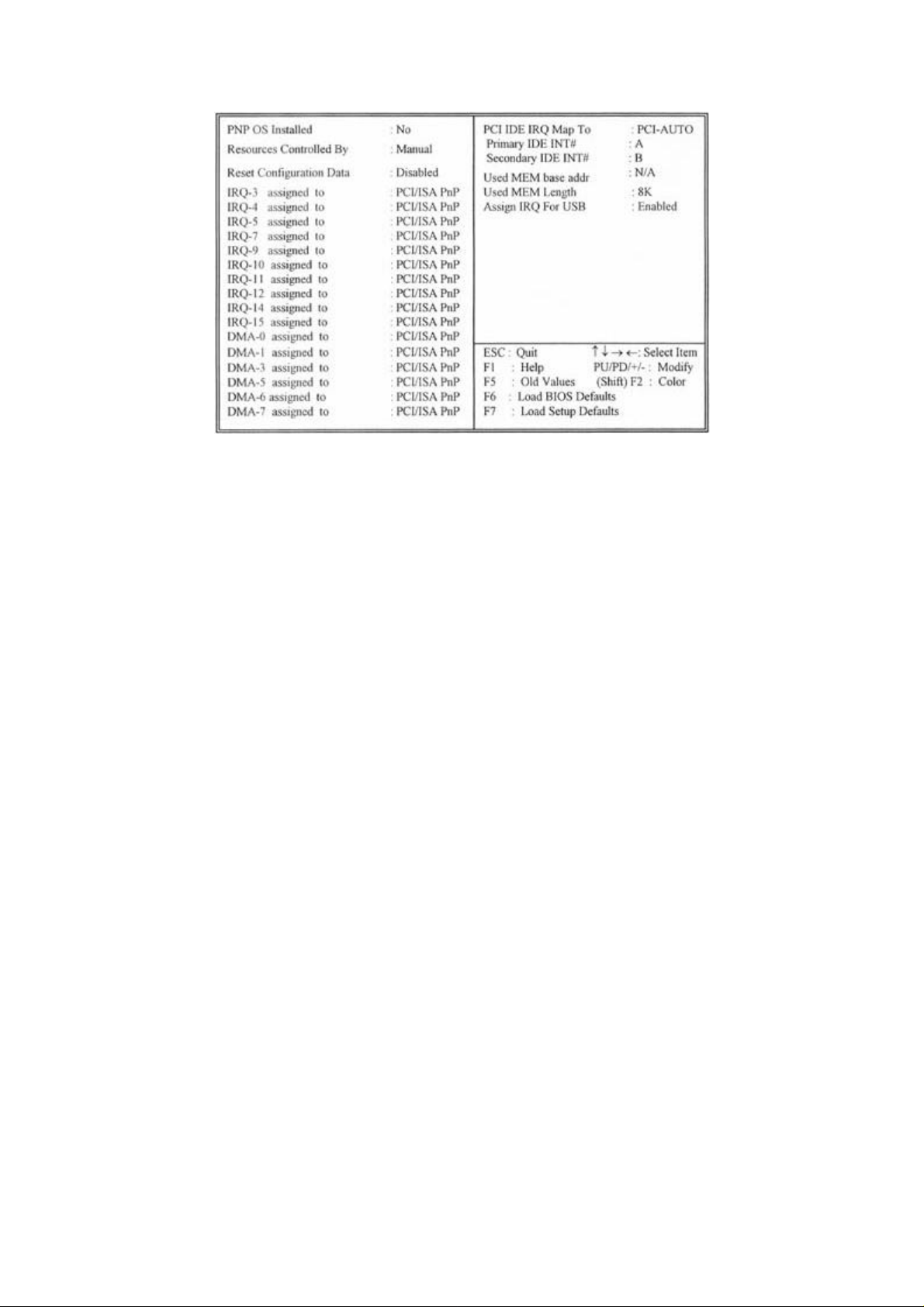

3.6 PNP/PCI Configuration Setup

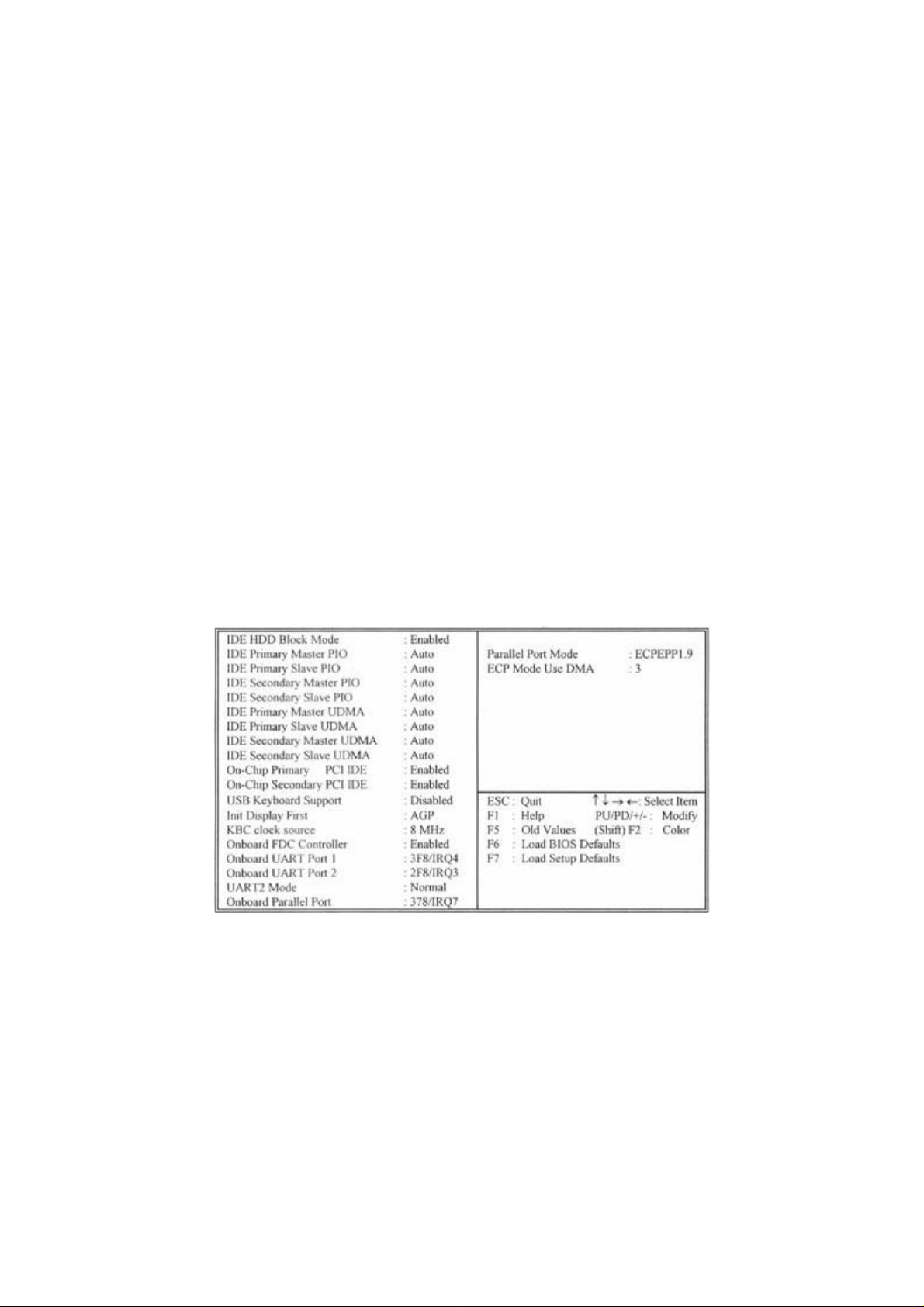

3.7 Integrated Peripherals

3.8 Load BIOS Defaults

3.9 Load Setup Defaults

3.10 Supervisor/User Password

3.11 IDE HDD Auto Detection

3.12 Exit CMOS Setup Utility

Chapter 1. Introduction

1.1 Product Overview

Thank you for purchasing the P2LXB motherboard. This motherboard utilizes
Intel's latest technology, namely 440LX AGPset chipset. We have conducted

a motherboard compatibility test with a variety of hardware and software,

such as CPUs, memory, display cards, CD ROMs, Novell, MS Office....etc

pin banks,each

and compliance with Year 2000.

We have set high standards on our quality control, with absolute confidence,
we believe this product is the wisest choice.

This manual is composed of three sections. The first section is the
introduction of this motherboard, and the second section explains the proper
procedure to setup the motherboard, the third section provides information on
how to setup the CMOS.

Features:

- Support Desktop Management Interface (DMI) through
BIOS.

- Support Accelerated Graphics Port (AGP) cards for high
performance.

- Modem Remote Ring On.

- Wake up on LAN.

- RTC Wake Up Alarm: Program the date/time to wake up
your system.

- CPU Thermal Protection: Warning when the CPU
temperature is too high (optional).

- CPU & System Voltage Monitoring (optional).

- CPU & Chassis fan speed monitoring (optional).

- Support Advanced Configuration Power Interface (ACPI).

- BIOS Green feature function, and Plug & Play Flash ROM.

1.2 Specifications
CPU:
Chipset:

DIMM:

IDE:

- Supports Intel Celeron, Pentium II with 66 FSB

Processors.

- Intel 440LX AGPset chipset

- Supports 3.3V EDO or SDRAM in 3 168­bank consists of 1x168-pin 64-bit DIMM socket, which
can support memory sizes of 8/16/32/64/128 MB
modules.

- Supports up to a maximum of 384 MB with SDRAM &
768 MB with EDO system memory.

- Dual channel PIO and PCI Bus Master IDE ports
support up to 4 EIDE devices for HDD or CD-ROM

- Supports PIO Mode 4 with data transfer rate up to 14
MB/Sec

- Supports Ultra DMA 33 (UDMA) with data transfer rate
up to 33 MB/Sec

BIOS:

Virus, DMI support,

Two Universal Serial Bus (USB) ports support up to 127

I/O Devices:

IR Port:
USB Ports:
Power Connector:

Others:

Expansion Slots:

Operating System:
Dimension:

- Award BIOS V4.51 with built-in Anti­and green function (Plug-and-Play BIOS)

- Supports CD-ROM, SCSI, and LS120/ZIP boot up

- One FDD control port supports two of the 5.25" or 3.5"
floppy drives up to 2.88 MB.

- Two high-speed 16550 UART compatible serial ports

- One parallel ports with ECP/ EPP compatibility.

- One PS/2 mouse port

- One IrDA/ASKIR compatible Infrared interface port.
(Cable optional)

­peripheral devices.

- Supports AT & ATX Power supply.

- Supports Modem remote Ring-On function when using
ATX power supply.

- Supports software power off function

- Supports RTC Wake-Up.

- Supports Wake up on LAN.

- Supports System Monitor function (optional)

- Supports Creative’s Sound Blaster 16 compatibility for
real-mode DOS games.

- Four 32-bit PCI expansion slots

- Two 16-bit ISA expansion slots

- One 32-bit AGP expansion slot

- Supports Windows 95/98, Windows NT, MS-DOS V.

6.22, OS/2, Novell, Unix, SCO UNIX.....

- 220 mm x 250 mm Baby AT Form factor

1.3 Content

The P2LXB motherboard box contains the following items:

- One P2LXB Motherboard

- One IDE Ribbon Cable

- One Floppy Ribbon Cable

- A Set of Serial Ribbon Cable

- A Parallel Port and A PS/2 Mouse Port

- One Retention mechanism

- One Driver CD

- User's Manual & Quick Installation Chart

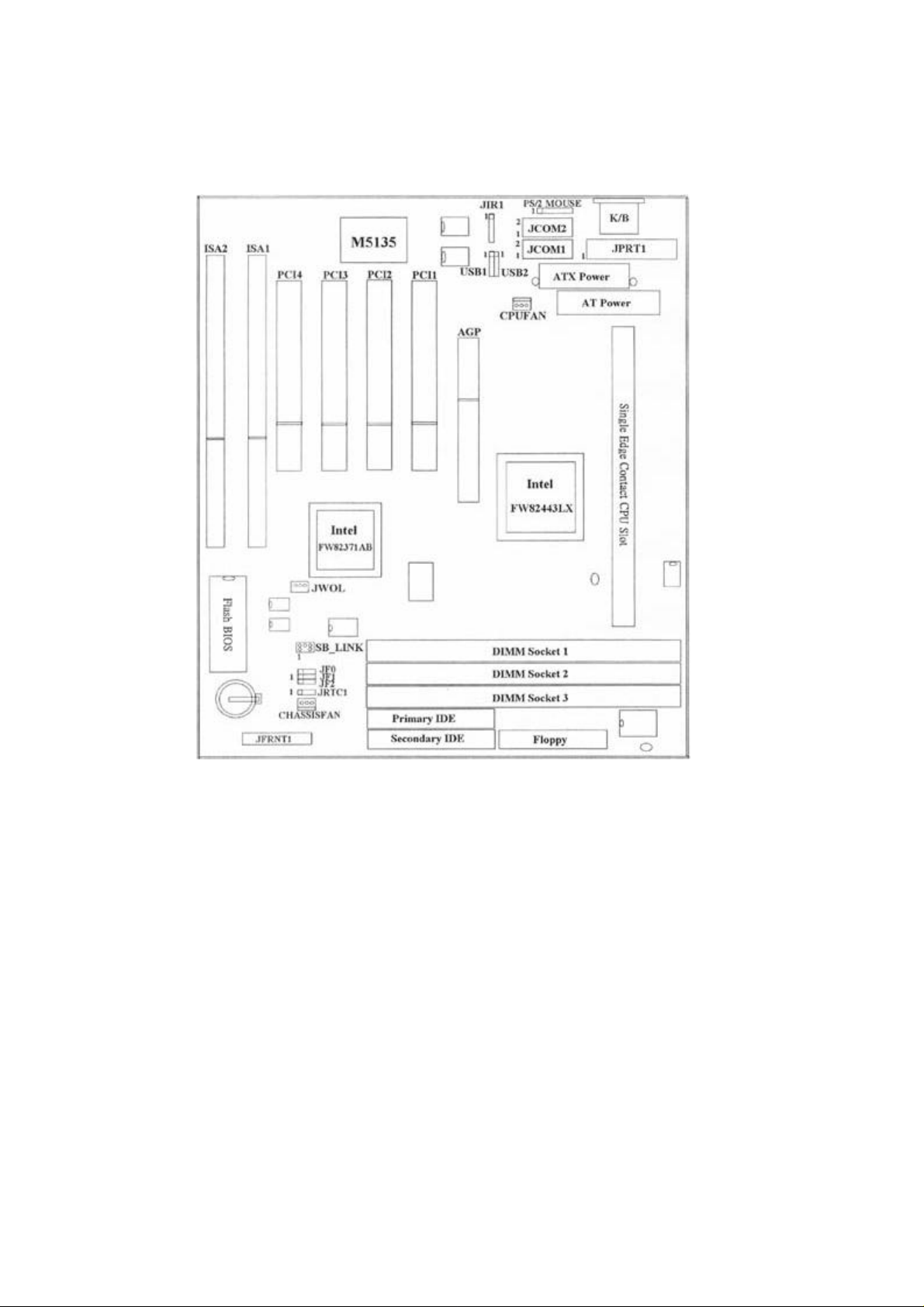

1.4 MotherBoard Layout

Chapter 2. Hardware Setup

2.1 Installation Procedure

1. Jumper settings (BIOS and CPU)

2. Installation of CPU

3. Installation of Memory

4. I/O Connections & Panel Connections

2.1.1 Jumper Settings

In this manual , (1-2) represents the first and second pins of the jumper.
(2-3) represents the second and third pins of the jumper. On the

motherboard, you will see two sets of jumpers with different color jumper
caps:

Yellow Jumper Caps: Sets the Function of Flash CMOS

Green Jumper Caps: Sets the type and speed of CPU

JRTC1

WARNING: Electronic parts are Static sensitive. To prevent damage to the

computer and its parts please take the following measures.

-Work on a surface such as concrete, linoleum or hard wood floor.

-Ground your self with either a properly installed grounding strap or by
touching a major electrical appliance long enough to discharge the static.

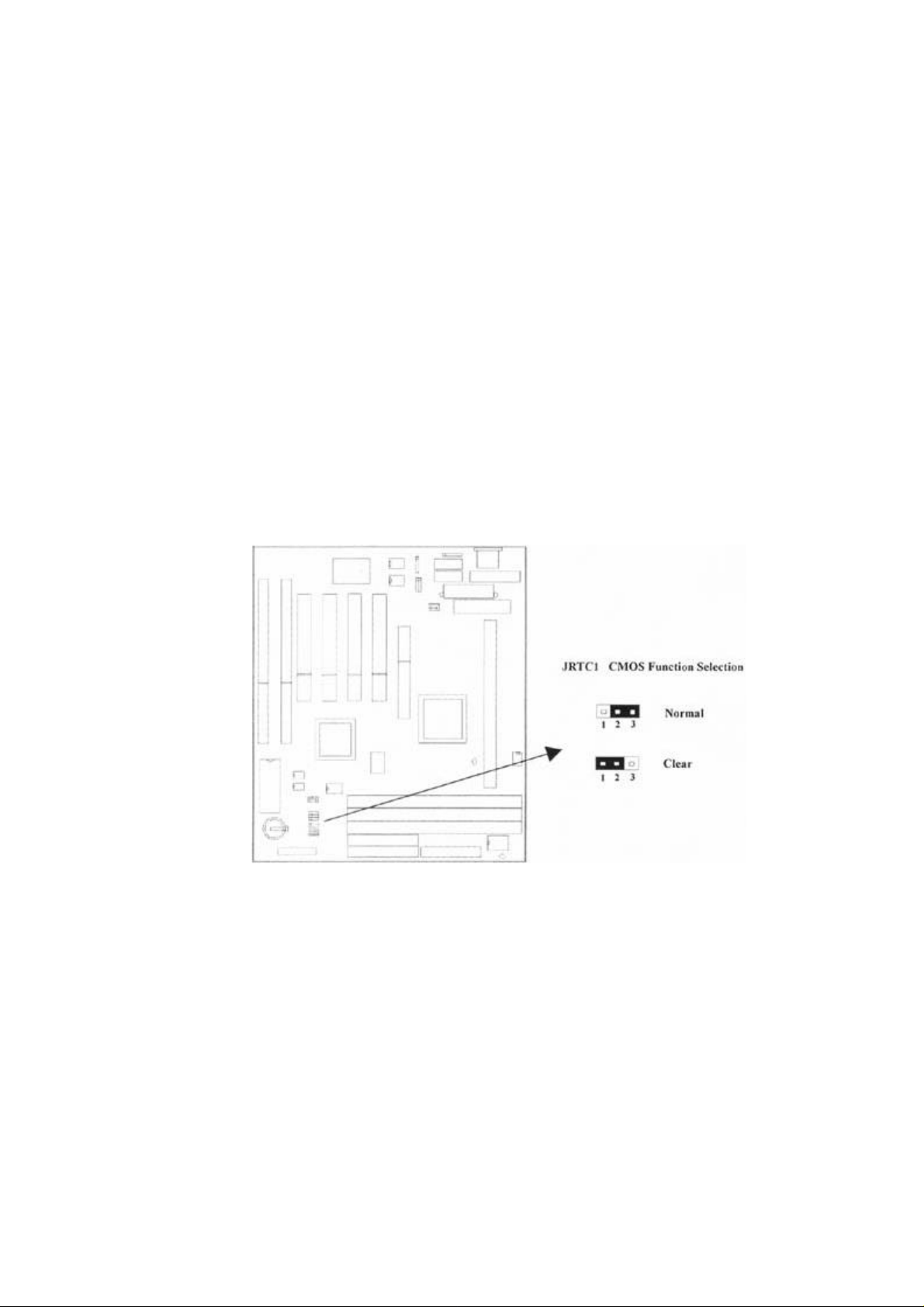

2.1.2 Clearing the CMOS（Yellow Jumper Caps）

JRTC1: CMOS Function Selection

1-2:Clear data
2-3:Normal Operation(Default Setting)

JF0, JF1, JF2

How to Clear the CMOS Setting

1. Turn off the power.

2. Remove power cable from power connector .

3. Remove Yellow Jumper Cap from JRTC1(2-3)and put on
JRTC1(1-2)to remove the CMOS setting.

4. Remove Yellow Jumper Cap from JRTC1(1-2)and put on
JRTC1(2-3).

5. Connect power cable back to power connector .

6. Turn on the power.

7. While the system reboots, press <DEL> key to set the
BIOS setup.

2.1.3 CPU Voltage Setting

The motherboard supports Pentium II VID function, the CPU core voltage is
automatically detected, the range is from 1.3V to 3.5V.

2.1.4 CPU Frequency Selection

CPU Model Ratio JF0 JF1 JF2

233/66 3.5x 1-2 2-3 2-3
266/66 4.0x 2-3 1-2 1-2
300/66 4.5x 2-3 1-2 2-3
333/66 5.0x 2-3 2-3 1-2

The Ratio of some latest CPUs are fixed by Intel, such as Celeron 366,400...etc. You can
ignore the three jumpers if you have this CPU on board and it will be auto detected by
motherboard. Please check with the CPU manufacturer or vendor for the CPU Ratio
information.

2.2 Installation of CPU

The motherboard provides a Single Edge Contact(SEC)slot for a Pentium II
processor packaged in an SEC cartridge. Follow these steps to install
Pentium II CPU:

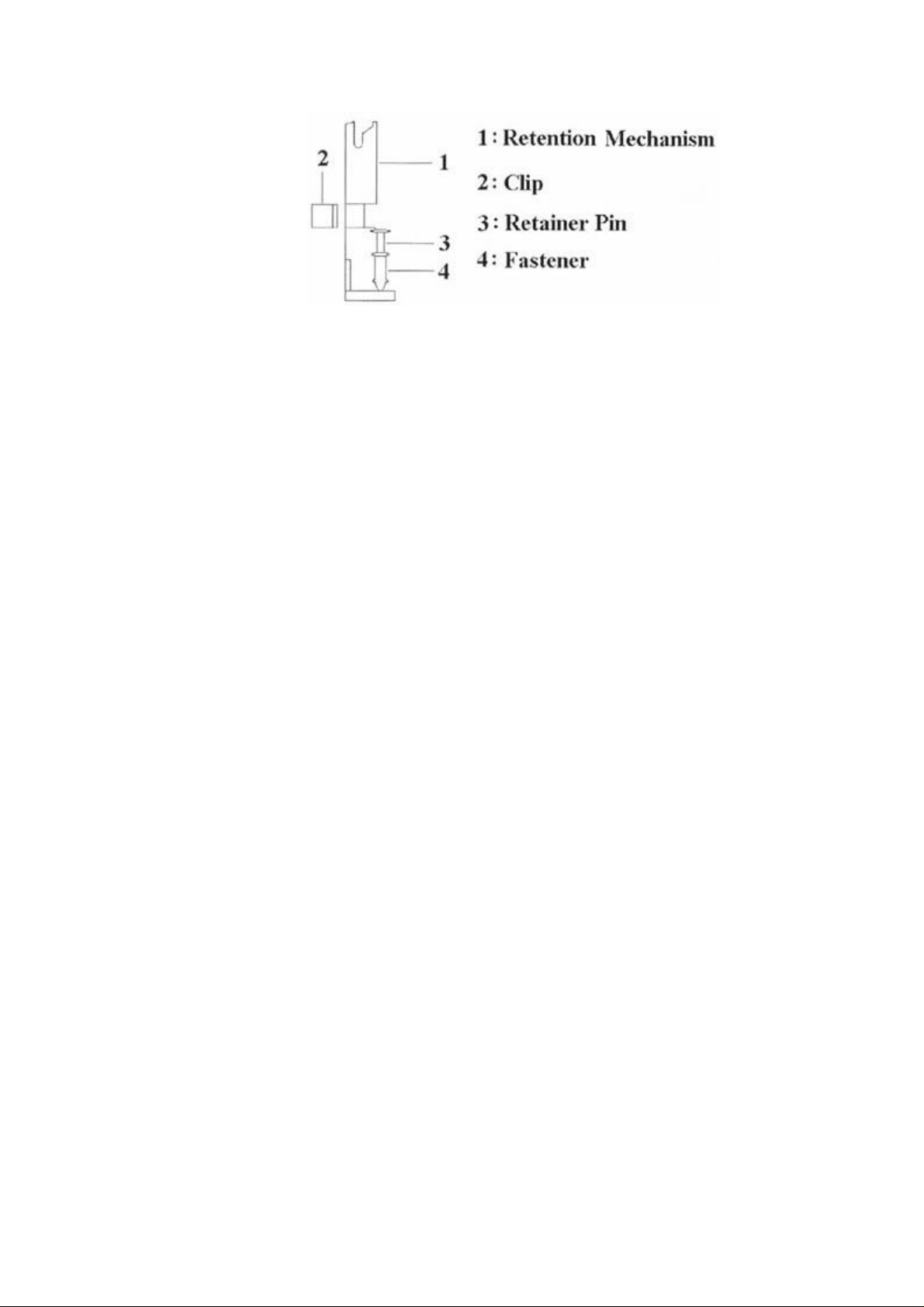

Mount the Universal Retention Mechanism (URM) & Insert the Pentium II
CPU: ( The illustration is just for reference )

This URM was designed to accommodate 3 types of CPU Form Factor.
( SECC, SECCII & SEPP ). For Example : Pentium II & Celeron family.

Note : Please put a soft pad under M/B before the installation of URM.

Installation for SECC CPU :

1. Leave space below each mounting hole for the fastener to
protrude through the hole.

2. Position URM on the M/B next to the slot1 connector.

3. Push down retainer pin into respective fastener to secure
URM onto the M/B.

4. Push CPU into URM to contact with slot1.

5. Make sure latching portion of CPU engaged with windows
ledge of URM.

Installation for SECC II or SEPP CPU :

1. Same as step (1) of SECC.

2. Same as step (2) of SECC.

3. Same as step (3) of SECC.

4. Same as step (4) of SECC.

5. Snap in 2 clips into side windows of URM to secure SEPP
CPU.

If there is a fan on the CPU, Please plug in the fan cable to the three pin fan
connector on the motherboard (CPUFAN).

2.3 Installation of Memory

P2LXB motherboard has 3x168-pin 64-bit Dual Inline Memory
Module(DIMM)sockets divided into 3 banks. You can install 3.3V Extended
Data Output(EDO)or Unbuffered Synchronous DRAM(SDRAM)memory. This
will increase the system reliability.

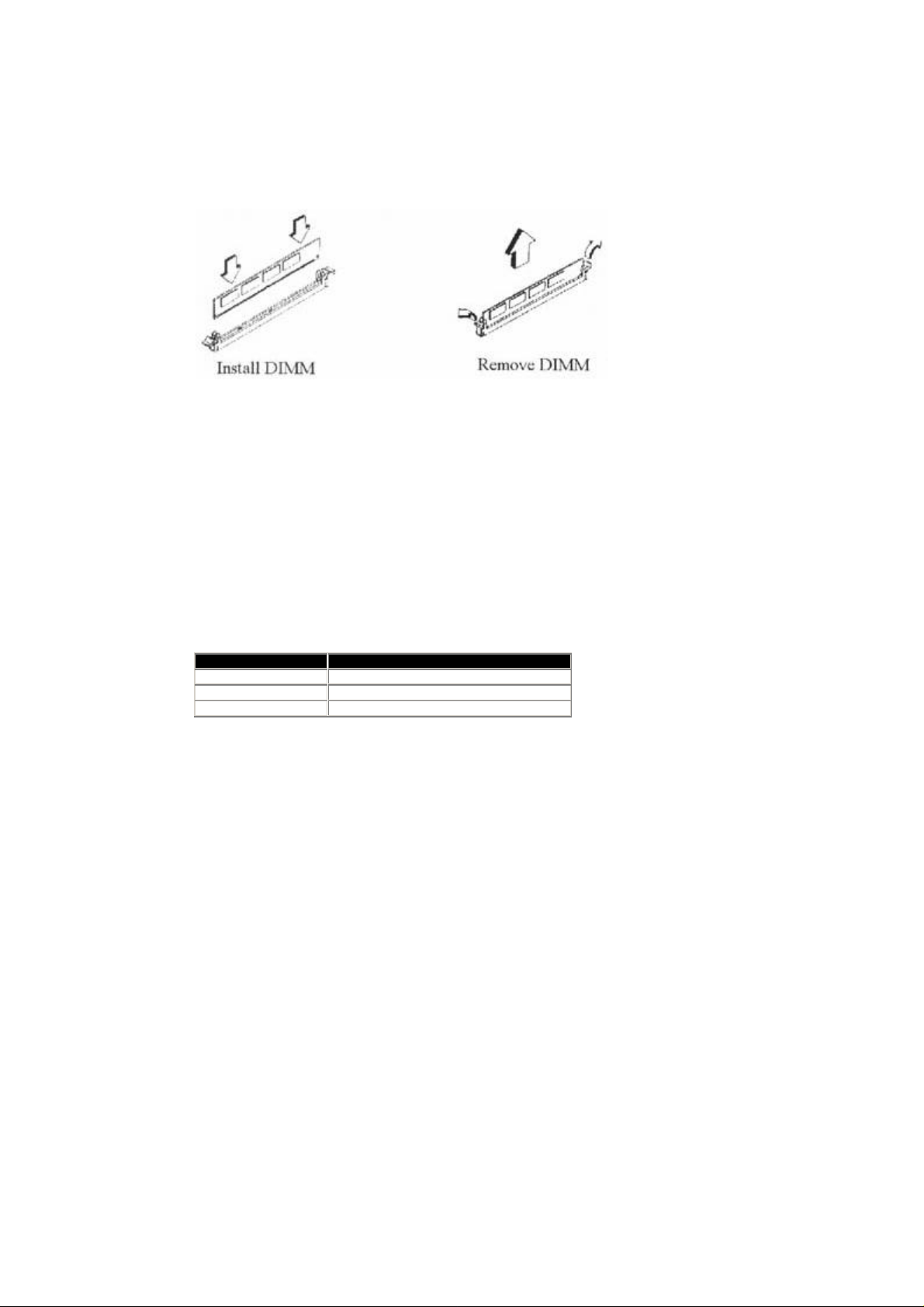

2.3.1 Installation of 168-pin DIMM (Dual Inline Memory Module)

1. Before inserting the DIMM, make sure the pin1 of the DIMM matches with

For link with Creative's Sound7 Blaster 16

the pin1 on the DIMM socket.

2. Insert DIMM into the DIMM sockets at a 90-degree angle and press down.

2.3.2 Removal of 168-pin DIMM

1. Press the holding clips on both sides of the socket outward to release the
DIMM.

2. Gently pull the DIMM out of the socket.

2.3.3 Memory Configuration

There is no jumper setting required for the memory size or type. It is
automatically detected by the system BIOS, and the total memory size is to
add them together.

DIMM Socket DIMM Modules

DIMM1 EDO/SDRAM 8, 16, 32, 64, 128MB
DIMM2 EDO/SDRAM 8, 16, 32, 64, 128MB
DIMM3 EDO/SDRAM 8, 16, 32, 64, 128MB

2.4 I/O Connections/Panel Connections

I/O Connections

ATXPWR ATX Power Connector
ATPWR AT Power Connector
CHASSISFAN Chassis Fan Connector
CPUFAN CPU Fan Connector
JIR1 Infrared Connector (Cable optional))
JWOL Wake up on LAN connector
SB_LINK

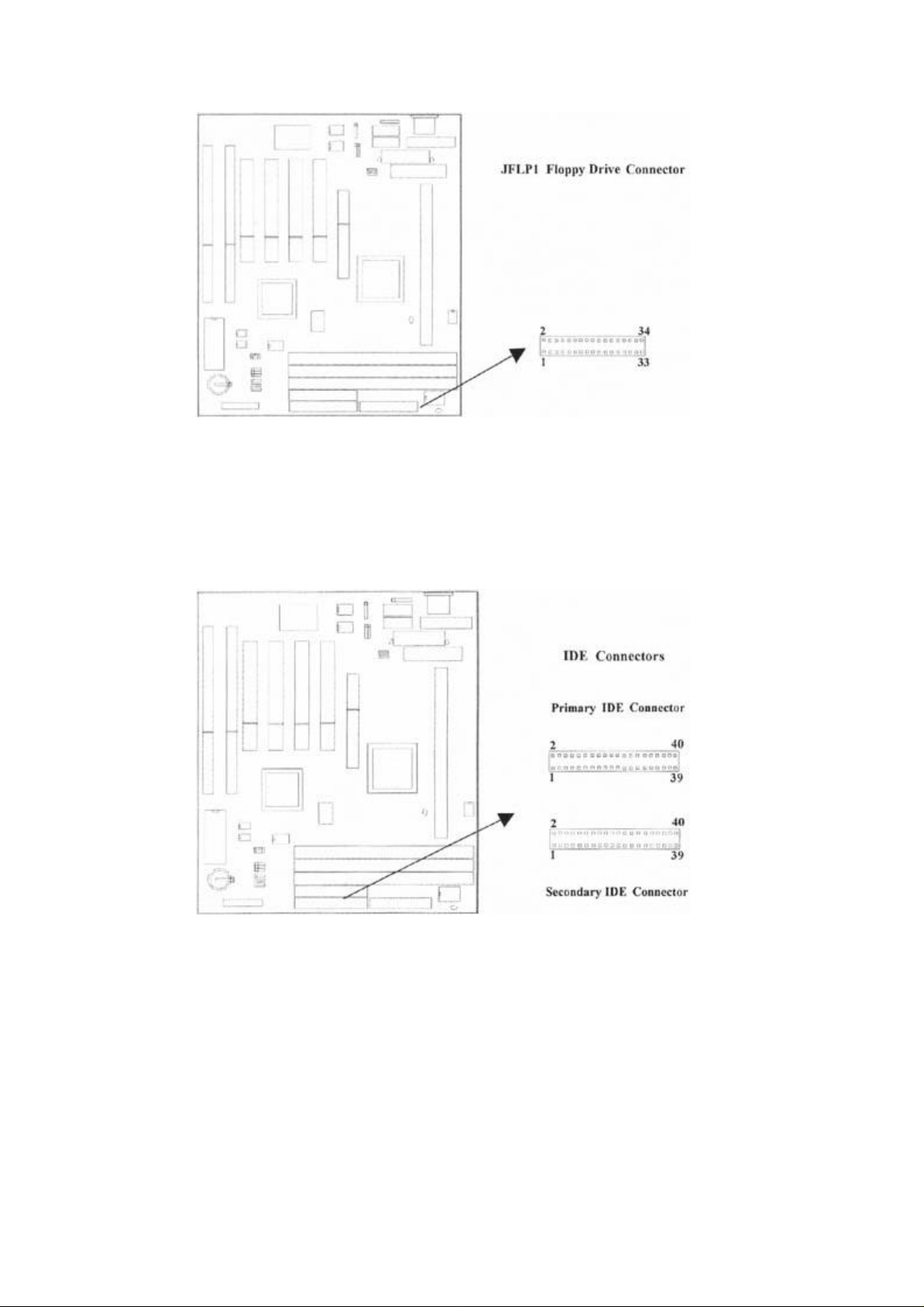

JFLP1 Floppy Disk Drive Connector
IDE1, 2 Primary/ Secondary IDE Connectors

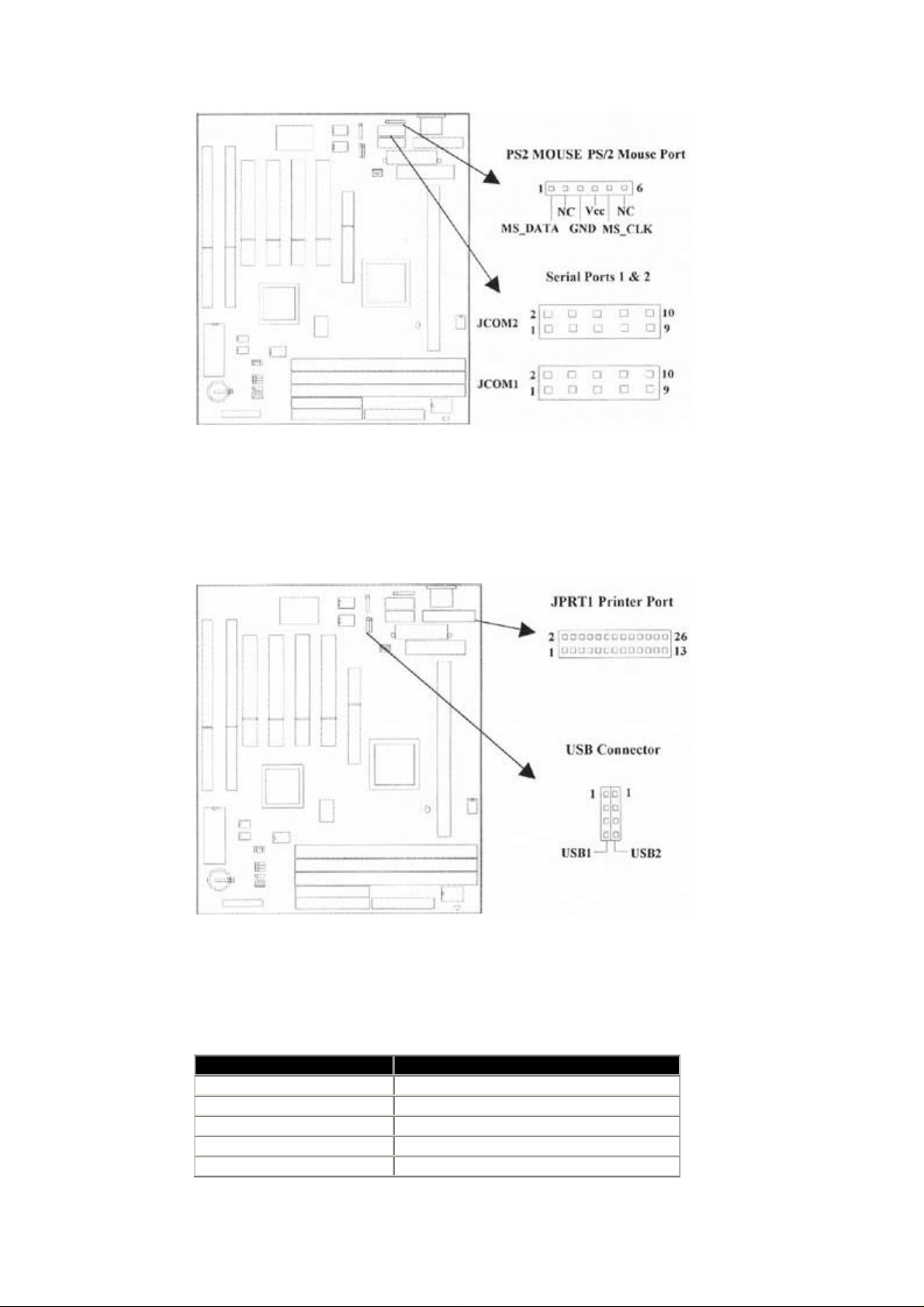

PS2 MOUSE PS/2 Mouse Port
JKB1 AT Keyboard Connector
JCOM1, 2 Serial Ports 1 & 2
JPRT1 Printer Port
USB1, 2 USB Connector

2.4.1 ATX Power Connector (20-pin ATXPWR), AT Power Connector (12-pin ATPWR)

Make sure that the power supply is off before connecting or disconnecting the
power cable.

2.4.2 Chassis & CPU Fan Connectors (3-pin FAN)

Connect the fan's plug to the board taking into consideration the polarity of
the connector.

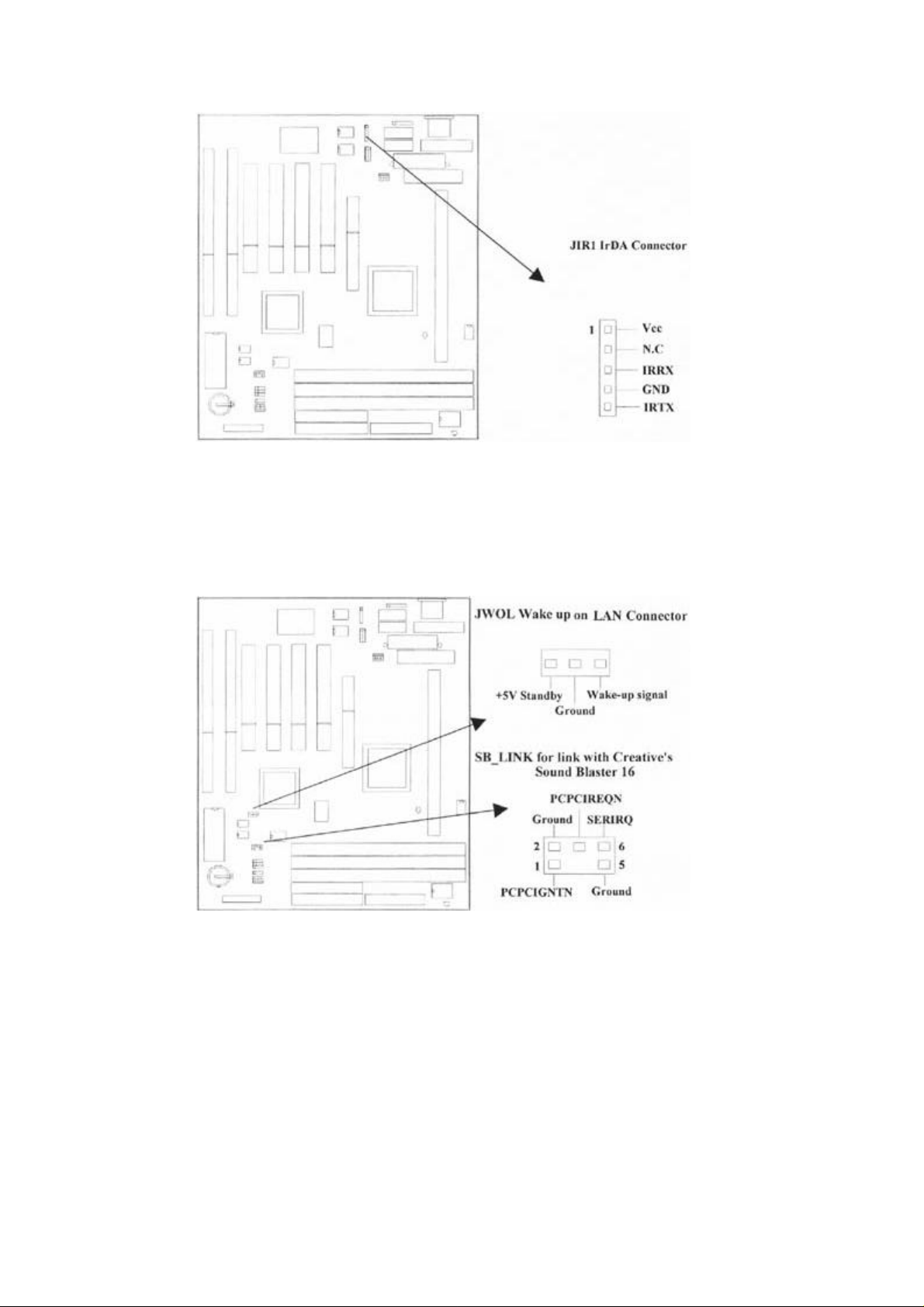

2.4.3 Infrared Connector (5-pin JIR1)

This connector supports the optional wireless transmitting and receiving
infrared module, with this module and application software such as Laplink or
Win95 Direct Cable Connection, user can transfer files to or from their
laptops, notebooks, PDA, PCs and printers. The connector supports IrDA
(115.2Kbps, 2 meters) and ASK-IR (56Kbps). Install infrared module onto
Infrared connector and configure the setting through 'UART Mode Select' in
Integrated Peripherals to select whether UART is directed for use with
COM2 or Infrared.

2.4.4 Wake-up on LAN Connector (3-pin JWOL)

The connector powers up the system when a wakeup packet or signal is
received from the network . This feature requires the Wake up on LAN
function in BIOS is set to Enabled and that your system has an ATX power
supply with at least 720mA +5V standby power.

2.4.5 Creative’s SB_LINK Sound Connector (6-pin SB_LINK)

The SB_LINK serves as a bridge between the mainboard and Creative's PCI
sound card. This connector delivers Sound Blaster 16 compatibility for real­mode DOS games.

2.4.6 Floppy Disk Drive Connector (34-pin JFLP1)

This connector supports the provided floppy disk drive ribbon cable. Orient
the red stripe to pin 1

2.4.7 Primary/Secondary IDE Connector (Two 40-pin IDE)

These connectors support the provided IDE hard disk ribbon cable. Connect
your first IDE hard disk to master mode of the primary channel. If you have
second IDE device to install in your system, connect it as slave mode on the
same channel, and the third and fourth device can be connected on
secondary channel as master and slave mode respectively.

2.4.8 PS/2 Mouse Port (6-pin PS2 MOUSE1)

The system will direct IRQ12 to the PS/2 mouse.

2.4.9 Serial Port (Two 10-pin COM)

2.4.10 Printer Port (25-pin JPRT1)

You can enable the parallel port and choose the IRQ through the “Onboard
Parallel Port” setting in Integrated Peripherals of the COMS SETUP UTILITY.

2.4.11 USB Connectors (Two 4-pin USB)

You can attach USB devices to the USB connector.

2.4.12 Panel Connection (24-pin JFRNT1)

JFRNT1 Connector Function

GREEN LED Suspend Mode LED
PWR LED Power LED
KEYLOCK Keylock Switch
SPKR Speaker
RESET Reset Switch

IDE LED HDD LED
PWR BTN ATX Power Button Connector
SMI S/W Sleep Switch

WARNING: To avoid the system from failing, turn off the power before

connecting any devices to the system.

Chapter 3. BIOS Setup

3.1 CMOS Setup Utility

To activate CMOS Setup, press <DEL> key immediately after you turn on the
system. The following message "Press DEL to enter SETUP" should appear
in the lower left hand corner of your screen.

When you enter the CMOS Setup Utility, the Main Menu will be displayed
(Figure 3-1). You can use arrow keys to select your function, press <Enter>
key to accept the selection and enter the sub-menu.

Figure 3-1. CMOS Setup Utility Main Screen

ROM PCI/ISA BIOS (XXXXXXXX)

CMOS SETUP UTILITY

AWARD SOFTWARE, INC.

3.2 Standard CMOS Setup

With the sub-menu (Figure 3-2), you can setup the; system date, system
time, hard and floppy drive type, and display adapter type. Please refer to
your equipment specification when changing the setup. Use arrow keys to
highlight items, and use <PageUp>, <PageDown>, <+>, or <-> keys to scroll
through the available options.

Figure 3-2. Standard CMOS Setup Screen

ROM PCI/ISA BIOS (XXXXXXXX)

STANDARD CMOS SETUP
AWARD SOFTWARE, INC.

3.2.1 Date

To assign the system date, the format is "mm.dd.yy". The input range for the Month is
1-12. Range for Date is 1-31. Range for Year is 1994-2079. System BIOS will
calculate the day of the week automatically.

3.2.2 Time

To assign the system time, the format is "hh:mm:ss". The setting is in military time.
When entering 2:34pm enter "14:34:00".

3.2.3 Hard Disks Setting

The BIOS supports Dual-Channel PIO and PCI Bus Master IDE ports. Each port
supports one master and one slave hard drive. You can use <PageUp> or
<PageDown> key to change hard drive type. Incorrect setting may result in boot up
error or system hang.

If your hard disk drive is not listed, you can select Type "USER" to define your own
drive manually. We recommend that you select Type "AUTO" for all drives. The BIOS
will auto-detect the hard disk drive and CD-ROM drive at the POST stage.

If your hard disk drive is a SCSI device, please select "None" for your hard drive
setting.

3.2.4 Floppy Drives A&B Setting

Select your floppy disk drive type. Options are 360KB(5.25"), 720KB(3.5"),

1.2MB(5.25"), 1.44MB(3.5"), 2.88MB(3.5").

3.2.5 Video Display Adapter Setting

Select the display adapter type for your system. Options are EGA/VGA, MONO,
CGA40 and CGA80.

3.2.6 Halt On

This function allows the system to halt when an error is detected during Power-On
Self-Test.

3.3 BIOS Features Setup

The sub-menu (Figure 3-3) includes all AWARD enhanced functions. The
correct setting can enhance boot up efficiency. You can assign system speed,
setup sequence, typematic and system password setting. You can enter
<F1> key for help on highlighted topics. If you want to restore values before
the changes you just made, press <F5> key. If you want to restore default
value, press <F6> or <F7> key.

Figure 3-3. BIOS FEATURES SETUP SCREEN

ROM PCI / ISA BIOS (XXXXXXXX)

BIOS FEATURES SETUP

AWARD SOFTWARE, INC.

3.3.1 Virus Warning

When enabled, the BIOS will monitor the boot sector and the partition table on the
hard drive for any attempt to modify. If an attempt is detected, the BIOS will halt the
system and prompt the warning message. Select "Disabled" if you are installing a
new operating system.

3.3.2 CPU Internal/External Cache

These options are to enable or disable CPU Internal (L1) Cache, or External (L2)
Cache.

3.3.3 CPU L2 Cache ECC Checking
Select "Enabled" to enable CPU L2 Cache ECC Checking.
Select "Disabled" to disable CPU L2 Cache ECC Checking.

3.3.4 Quick Power On Self Test

Select "Enabled" to speed up time required to complete Power-On Self-Test.

3.3.5 Boot Sequence

This option allows user to assign boot sequence of the system. Available options are
A, C, D, E, F, CD-ROM, SCSI and LS120/ZIP.

3.3.6 Swap Floppy Drive

When enabled, physical drive A will be assigned to logical drive B, and physical drive
B will be assigned to logical drive A.

3.3.7 Boot Up Floppy Seek
The system will detect and verify operation of the floppy drive type .

3.3.8 Boot Up Numlock Status

The option allows the <NumLock> key to be activated after system boot up.

3.3.9 Boot Up System Speed

This option selects system boot up speed.

3.3.10 Typematic Rate Setting
Select "Enabled" to configure "Typematic Rate" and "Typematic Delay" functions.

3.3.11 Typematic Rate

Use this option to set the rate at which a character keeps repeating while you hold
down a key.

3.3.12 Typematic Delay

Select "Enabled" to set the length of delay before key strokes to repeat. Available
options are "250", "500", "750", and "1000".

3.3.13 Security Option

You can select whether the password is required every time the system boots or only
when you enter the Setup. You can assign "Supervisor Password" and "User
Password" in the main CMOS Setup Utility Screen.

3.3.14 PCI/VGA Palette Snoop

Enable this option to correct screen color shifts, when there is a combination of VGA
cards, accelerator cards, or MPEG cards present.

3.3.15 OS Select for DRAM > 64MB

If you are using OS/2 operating system and installed memory is larger than 64MB.
You need to have the setting in the enable mode.

3.3.16 Video BIOS Shadow

Video shadow copies BIOS code from slower ROM to faster RAM. BIOS can then
execute from RAM.

3.3.17 C8000-CBFFF /DC000-DFFFF Shadow
Optional firmware will be copied from ROM to RAM. When this option is enabled.

3.4 Chipset Features Setup

These settings are intended for the Chipset function on the motherboard.
Fine tuning these options, enhances the performance of the system.

Figure 3.4 CHIPSET FEATURES SETUP SCREEN

ROM PCI / ISA BIOS (XXXXXXXX)

CHIPSET FEATURES SETUP

AWARD SOFTWARE, INC.

3.4.1 Auto Configuration

The optimum value for the chipset and CPU will be automatically loaded when
enabled.

3.4.2 DRAM Speed Selection

This option must match the memory speed. If the installed memory is 60ns type, you
should set it to "60".

3.4.3 EDO RAS# To CAS# Delay

These are timing of EDO CAS Latency and RAS to CAS Delay, calculated by clocks.
They are important parameters affects EDO performance.

3.4.4 EDO RAS# Precharge Time

The RAS Recharge means the timing to inactive RAS and the timing for DRAM to do
Recharge before next RAS can be issued.

3.4.5 System BIOS Cacheable

Allows the system BIOS to be cached for faster system performance.

3.4.6 Video BIOS Cacheable

Allows the video BIOS to be cached for faster video performance.

3.4.7 Video RAM Cacheable
This item lets you cache Video RAM A000 and B000.

3.4.8 8 Bit I/O Recovery Time

This option specifies the length of a delay inserted between consecutive 8-bit I/O
operations.

3.4.9 16 Bit I/O Recovery Time

This option specifies the length of a delay inserted between consecutive 16-bit I/O
operations.

3.4.10 Memory Hole At 15M-16M

Enabling this feature reserves 15MB to 16MB memory address space to ISA
expansion cards that specifically require this setting. This makes the memory from
15MB and up unavailable to the system. Expansion cards can only access memory
up to 16MB.

3.4.11 Passive Release

This function is used to meet the latency of the ISA bus master. Try to enable or
disable it, if you have ISA card compatibility problem.

3.4.12 Delayed Transaction

This function is used to meet the latency of PCI cycles to from ISA bus. Try to enable
or disable it, if you have ISA card compatibility problem.

3.4.13 AGP Aperture Size (MB)

Choose 4, 8, 16, 32, 64, 128, 256MB. Memory-mapped, graphics data structures can
reside in the Graphics Aperture.

3.4.14 SDRAM RAS-to-CAS Delay

These are timing of SDRAM CAS Latency and RAS to CAS Delay,
Calculated by clocks. They are important parameters affects SDRAM
Performance.

3.4.15 SDRAM RAS Precharge Time

The RAS precharge means the timing to inactive RAS and the timing for DRAM to do
precharge before next RAS can be issued.

3.4.16 CPU Host Clock

Default is 66 MHz. Choose 66, 75, 83MHz for the external frequency of your
CPU.

The 75, 83MHz frequency are supported from PCB REV:1.01.
The frequency mapping table of the elements:

Ext. frequency AGP PCI ISA DIMM

66MHz 66MHz 33MHz 8.33MHz 66MHz
75MHz 75MHz 37.5MHz 8.33MHz 75MHz
83MHz 83MHz 41.6MHz 8.33MHz 83MHz

Notice: The 75, 83 frequency are over specification.

Warning: Over specification operations are not recommended.

3.4.17 Current System & CPU Temperature (xx°C/xx°F)

The onboard hardware monitor is able to detect the temperatures of motherboard and

System starts power saving function when the

System starts power saving function when the

CPU. These values refresh upon any key entry. The function is optional.

3.4.18 Current Chassis & CPU FAN Speed (xxxxRPM)

The onboard hardware monitor is able to detect the chassis fan speed and CPU fan
speed in Rotations Per Minute (RPM). These values refresh upon any key entry in the
BIOS setup screen. The function is optional.

3.4.19 Vcc, Vio, 12V, Vcore (xx.xxV)

The onboard hardware monitor is able to detect the voltage output by the voltage
regulators. These values refresh upon any key entry. The function is optional.

3.5 Power Management Setup

Power management decreases power usage under the pre-defined standby
time range.

Figure 3-5. POWER MANAGEMENT SETUP SCREEN

ROM PCI / ISA BIOS (XXXXXXXX)

POWER MANAGEMENT SETUP

3.5.1 ACPI Function

This item allows you to enable or disable the function of Advanced
Configuration and Power Interface which offers improved power
management .

AWARD SOFTWARE, INC.

3.5.2 Power Management

Disable Disable Power Management.
Mini Saving

Max Saving

inactivity period exceeds 1 hour.

User Defined Allows user to define the inactivity period

3.5.3 PM Control by APM
Select "Yes" if your system has Advanced Power Management (APM).

3.5.4 Video Off Method

This field defines the video off features. The following options are available: DPMS
OFF, DPMS Reduce ON, Blank Screen, V/H SYNC+Blank, DPMS Standby, and
DPMS Suspend. The DPMS (Display Power Management System) features allow the
BIOS to control the video display card if it supports the DPMS feature.

3.5.5 Video Off After

This option allows your monitor to blank after your system went into Doze, Standby or
Suspend mode. You can elect to not blank screen by select N/A. Default value is
"Standby".

3.5.6 Doze Mode

When system is inactive after the predefined time limit, system performance will drop
down. This is the first level of Power Management.

inactivity period exceeds 1 min.
before power saving function activates,

3.5.7 Standby Mode

System turns off the video signal and the fixed drives. This is the second level of
Power Management.

3.5.8 Suspend Mode

System further shuts down all devices except for CPU itself. This is the third level of
Power Management.

3.5.9 HDD Power Down

This instructs hard drives to shut off while in the Power Management modes.

3.5.10 VGA Active Monitor

To enable or disable the detection of VGA activity for power down state transition.

3.5.11 Soft-off by PWR-BTTN ( for ATX power supply )

When set to Delay 4 Sec., the ATX switch can be used as a normal system power-off
button when pressed for less than 4 seconds. Instant disables the ATX switch
function when the button is pressed under 4 seconds.

3.5.12 Resume by Ring ( for ATX power supply )

This option lets you specify enable or disable external Modem Wake Up function. The
function of power on through modem when system is off.

To select Enabled : To let the system to enter the environment of DOS or Windows
95/98 OS before system is power off. As long as there are any massage through the
Modem to enter the System during system is power off. The system will enable power
on function.

3.5.13 Resume by Alarm ( for ATX power supply )

Set this option to enable or disable the RTC Alarm to Wake Up the system which is
set at soft Off.

3.5.14 Wake up on LAN ( for ATX power supply )

This allows you to remotely power up your system through your network by
sending a wake-up frame or signal. With this feature, you can remotely
upload/download data to/from systems during off-peak hours. Set to Enabled
to set this feature.

3.5.15 Date (of Month) Alarm, Time (hh:mm:ss) Alarm

Set these options to specify the RTC Alarm time on Date / Hour / Minute / Second.

3.5.16 IRQ 8 Break Suspend

To enable or disable the detection of IRQ 8 (RTC) event for power down state
transition.

3.5.17 IRQ[3-7, 9-15], NMI

To enable or disable the detection of IRQ 3-7, IRQ 9-15 or NMI interrupt events for
power down state transition.

3.5.18 Primary/Secondary IDE 0/1, Floppy Disk, Serial & Parallel Port

These items enable or disable the detection of IDE, floppy, serial and parallel port
activities for power down state transition. Actually it detects the read/write to/from I/O
port.

3.6 PNP/PCI Configuration Setup

Figure 3.6 PNP/PCI CONFIGURATION SETUP

ROM PCI / ISA BIOS (XXXXXXXX)

PNP/PCI CONFIGURATION

AWARD SOFTWARE, INC.

3.6.1 PNP OS Installed

This field allows you to use a Plug-and-Play (PnP) operating system.

Please set it as No if the operating system has no PnP function or to avoid
reassigning the IRQs by the operating system.

3.6.2 Resources Controlled By

Default setting is "Auto". This setting allows the BIOS to self detect setting and Plug­and-Play devices during start up. The user can select and configure IRQs under
"Manual" mode.

3.6.3 Reset Configuration Data

In case a conflict occurs after you assign the IRQs or after you configure your system,
you can enable this function to allow your system to automatically reset your
configuration and reassign the IRQs, DMAs, and I/O address.

3.6.4 IRQ-xx assigned to

If your ISA card is not PnP compatible and requires a special IRQ to support its
function, set the selected IRQ-x assigned to :Legacy ISA. This setting informs the
PnP BIOS to reserve the selected IRQ for the installed legacy ISA card.

3.6.5 DMA-x assigned to

If your ISA card is not PnP compatible and requires a special DMA channel to support
its function, set the selected DMA channel to Legacy ISA. This setting informs the
PnP BIOS to reserve the selected DMA channel for the installed legacy ISA card.

3.6.6 PCI IDE IRQ Map To

Some old PCI IDE add-on cards are not fully PnP compatible. These cards require
you to specify the slot in use to allow the BIOS to properly configure the PnP
resources.

3.6.7 Primary/Secondary IDE INT#

These two items, in conjunction with item PCI IDE IRQ Map To, specify the IRQ
routing of the primary or secondary channel of the PCI IDE add-on card.

3.6.8 Used MEM base addr

This item, in conjunction with the Used MEM Length, lets you set a memory space for
non-PnP compatible ISA card.

3.6.9 Assign IRQ For USB

Default is Enabled. You can disable this item when you do not attach any
USB devices on board and need extra IRQ for other device. The yellow
exclamation mark will be shown in System/Device Manager under Windows
95/98 if you disable this item. This is a normal status.

3.7 Integrated Peripherals

You can control Input and Output functions from this screen.

Figure 3-7 Integrated Peripherals

ROM PCI / ISA BIOS (XXXXXXXX)

INTEGRATED PERIPHERALS

AWARD SOFTWARE, INC.

3.7.1 IDE HDD Block Mode

This feature enhances disk performance by allowing multi-sector data transfers and
eliminates the interrupt handling time for each sector.

3.7.2 IDE Primary & Secondary Master/Slave PIO

These four PIO fields let you set a PIO mode (0-4) for each of four IDE devices.
When under "Auto" mode, the system automatically set the best mode for each
device

3.7.3 IDE Primary & Secondary Master/Slave UDMA

When set to "Auto" mode, the system will detect if the hard drive supports Ultra DMA
mode.

3.7.4 On-Chip primary/Secondary PCI IDE

Select "Enabled" to activate each on-board IDE channel separately, Select "Disabled",
if you install an add-on IDE Control card

3.7.5 USB Keyboard Support

This item lets you enable or disable the USB keyboard driver within the onboard
BIOS.

3.7.6 Init Display First

This item lets the system to detect AGP or PCI-Slot first when boot-up.

3.7.7 Onboard FDC Controller

Select "Enabled" to activate the on-board FDC
Select "Disabled" to activate an add-on FDC

3.7.8 Onboard UART Port 1 & 2

Select an address and corresponding interrupt for the first/second serial port. The
default value for the first serial port is "3F8/IRQ4" and the second serial port is
"2F8/IRQ3".

3.7.9 UART2 Mode

Select to activate the Infrared transfer function.

3.7.10 Onboard Parallel Port

Select address and interrupt for the Parallel port.

3.7.11 Parallel Port Mode

Select an operating mode for the parallel port. Mode options are SPP, EPP1.7,
ECPEPP1.7, EPP1.9, ECP and ECPEPP1.9.

3.7.12 ECP Mode Use DMA

Select a DMA channel if parallel port is set as "ECP" , "ECPEPP1.7" or "
ECPEPP1.9".

3.8 Load BIOS Defaults

This loads the standard BIOS default values. To select, highlight it and press
the <Enter> key. Then press the <Y> and <Enter> keys to confirm. Otherwise,
press the <N> key to cancel.

3.9 Load Setup Defaults

This feature loads the setup default values from BIOS default table. To select,
highlight it and press the <nter> key. Then press the <Y> and <Enter> keys
to confirm. Otherwise, press the <N> key to cancel.

3.10 Supervisor/User Password

You can assign, modify, or cancel password settings. To modify, highlight
"Supervisor Password" or "User Password" and press the <Enter> key. The
screen will prompt you ("Enter Password:"). Enter your password. The
maximum size of the password is 8 characters. System will prompt you to
reenter the password to verify. Remember the passwords are case sensitive.

If you want to remove the passwords, either delete passwords or press
<Enter> when prompting for new password.

If you want it to require password upon initial system startup and upon
entering the CMOS Setup Utility, you will need to change the selection of the
(Security Option) under (BIOS FEATURES SETUP) to "System".

If the setting is "Setup", the system will only require the password you
activate CMOS Setup Utility.

3.11 IDE HDD Auto Detection

If your system has an IDE hard drive, you can use this function to detect its
parameters and enter them into the Standard CMOS Setup automatically.

This routine only detects one set of parameters. If your hard disk is formatted
using different parameters than those detected, you have to enter the
parameters manually. If the parameters listed do not match the ones used to
format the disk, the information on that disk will not be accessible. If the auto­detected parameters displayed do not match those that are used for your
drive, ignore them. Type N to reject the values and enter the correct ones
manually from the Standard CMOS Setup screen.

3.12 Exit CMOS Setup Utility

Press the <F10> key to save the setup and exit. Press <ESC> key to exit
without saving. Either saving or not saving modifications, screen will prompt
user to confirm, and system will reboot on exit.
