MS-C71
Micro ATX Motherboard
User’s Manual
Edition 1.0
2011/04/25
Page 2
Page 3
MS-C71 User’s Manual
Copyright
Copyright 2011, all rights reserved. This document is copyrighted and all rights are
reserved. The information in this document is subject to change without prior notice to
make improvements to the products.
This document contains proprietary information and pr otected by copyright. No part of
this document may be reproduced, copied, or translated in any form or any means
without prior written permission of the manufacturer.
All trademarks and/or registered trademarks contains in this document are propert y of
their respective owners.
Disclaimer
The company shall not be liable for any incidental or consequential damages resulting
from the performance or use of this product.
The company does not issue a warranty of any kind, express or implied, including
without limitation implied warranties of merchantability or fitness for a particular purpose.
The company has the right to revise the manual or include changes in the specifications
of the product described within it at any time without notice and without obligation to
notify any person of such revision or changes.
Trademark
All trademarks are the property of their respective holders.
Any questions please visit our website at TUhttp://www.commell.com.twUT
-1-
Page 4
MS-C71 User’s Manual
Packing List:
Please check the package content before you starting using the board.
Hardware:
MS-C71 Micro ATX Motherboard x 1
Cable Kit:
SATA Cable x 2
(OALSATA-L)
VGA cable x 1
(OAL-10PCRT)
(MS-C71T only)
DVI Module With DVI Cable x 1
(BADPDVI-A + OALDVI-P)
(MS-C71D only)
CPU Cooler x 1
(OHS-P-M-G)
Printed Matters:
Driver CD (Including User’s Manual) x 1
COM Port Cable x 1
(OAL1S)
I/O Shield x 1
(OALATE-67A)
-2-
Page 5
MS-C71 User’s Manual
Index
Chapter 1 <Introduction>..............................................................................6
1.1 <Product Overview>..........................................................................6
1.2 <Product Specification>....................................................................7
1.3 <Mechanical Drawing>......................................................................8
1.4 <Block Diagram>...............................................................................9
Chapter 2 <Hardware Setup>......................................................................10
2.1 <Connector Location>.....................................................................10
External I/O Port....................................................................................10
2.2 <Jumper Location & Reference>....................................................11
2.3 <Connector Reference>..................................................................13
2.3.1 <Internal Connectors>.........................................................13
2.3.2 <External Connectors>........................................................13
2.4 <CPU and Memory Setup>.............................................................14
2.4.1 <CPU Setup>......................................................................14
2.4.2 <Memory Setup>.................................................................15
2.5 <CMOS Setup>...............................................................................16
2.6 <Serial ATA Interface>.....................................................................17
2.6.1 IDE interface & CF interface................................................17
2.7 <Ethernet Interface> .......................................................................18
2.8 <Onboard Display Interface>..........................................................19
2.8.1 <Analog Display>................................................................19
2.8.2 <Digital Display>..................................................................21
2.8.3 <DVI Interface> ...................................................................25
2.9 <Integrated Audio Interface>...........................................................26
2.10 <GPIO and SMBUS Interface>.....................................................28
2.11 <Power Supply>............................................................................29
2.11.1 <Power Input> ...................................................................29
2.12 <Switch and Indicator> .................................................................30
Chapter 3 <System Setup>.........................................................................31
-3-
Page 6
MS-C71 User’s Manual
3.1 <Audio Configuration>.....................................................................31
3.2 <Display Properties Setting>...........................................................32
Chapter 4 <BIOS Setup> .............................................................................34
Appendix A <I/O Port Pin Assignment>.....................................................36
A.1 <Serial ATA Port>............................................................................36
A.2 <IrDA Port>.....................................................................................36
A.3 <Serial Port 1>................................................................................36
A.4 <Serial Port 2>................................................................................36
<Serial Port 3> .....................................................................................37
A.5 <VGA Port>.....................................................................................37
A.6 <LAN Port>.....................................................................................38
A.7 < USB Interface > ...........................................................................38
Appendix B <Flash BIOS>...........................................................................39
B.1 <Flash Tool> ...................................................................................39
B.2 <Flash BIOS Procedure>................................................................39
Appendix C <System Resources>..............................................................40
C.1 <I/O Port Address Map>.................................................................40
C.2 <Memory Address Map>.................................................................42
C.3 <System DMA & IRQ Resources>..................................................43
Appendix D <Programming GPIO’s> .........................................................44
Appendix E <Programming Watchdog Timer > ........................................45
Appendix F <How to setting RS-232/RS-422/RS-485>..............................46
Contact Information.....................................................................................47
-4-
Page 7
MS-C71 User’s Manual
(This page is left for blank)
-5-
Page 8
MS-C71 User’s Manual
Chapter 1 <Introduction>
1.1 <Product Overview>
MS-C71 the new generation of the Micro ATX motherboard, supports Intel Core i7 Core
i5 and Core i3 Processors and features Intel QM57 chipset, integrated HD Graphics,
DDR3 memory, REALTEK High Definition Audio, Serial ATA and two Intel Gigabit LAN .
Intel Arrandale and Clarkfield Processor
The board supports Intel Core i7 Core i5 and Core i3 Processors with, 8MB Intel® Smart
Cache, to provide more powerful performance than before.
New features for Intel QM57 chipset
The board integrates Intel QM57 chipset, to provide new generation of the mobile
Solution, supports integrated HD Graphics, DDR3 800/1066 MHz memory, built-in high
Speed mass storage interface of serial ATA, High Definition Audio with 2 channels
Sound.
All in One multimedia solution
Based on Intel QM57 chipset, the board provides high performance onbo ard graphics,
24-bit dual channel LVDS interface, DVI and 2 channels High Definition Audio, to meet
the very requirement of the multimedia application.
Flexible Extension Interface
The board provides, one mini-PCIE socket, one mini-PCI socket ,two PCI
one PCIE X16 slot and one PCIE X 4 slot.
-6-
Page 9
MS-C71 User’s Manual
1.2 <Product Specification>
General Specification
Form Factor Micro ATX motherboard
CPU Intel® Core™ i7 / i5 / i3 / Celeron® / Pentium® Mobile Processor
Package type: rPGA988A
Memory 2 x DDRIII SO-DIMM 800/1066 MHz up to 8GB
Chipset Intel QM57
Real Time Clock Chipset integrated RTC with onboard lithium battery
Watchdog Timer Generates a system reset with internal timer for 1min/s ~255min/s
Power Management Supports ACPI 2.0 compliant,
Serial ATA Interface 6 x serial ATAII interface with 300MB/s transfer rate
2 x serial ATAI interface with 150MB/s transfer rate
IDE
VGA Interface Intel integrated HD Graphic Technology
LVDS interface
Audio Interface Realtek ALC888 HD Audio
LAN Interface 2 x Intel 82574L Gigabit LAN
GPIO interface Onboard programmable 8-bit Digital I/O interface
Extended Interface 1 x PCIE x16 slot, 1 x PCIE x 4 slot, 1 x Mini PCIE socket, 2 x PCI Slot
Internal I/O Port
External I/O Port
Power Requirement Standard 24-Pin ATX power
Dimension 244mm x 244mm
Temperature Operating within 0~60 centigrade
Ordering Code
MS-C71 Intel Arrandale + QM57 Onboard VGA, LVDS, LAN, USB2.0, HD Audio,
MS-C71XD Same as MS-C71X with 1x DVI Interface
MS-C71XT Same as MS-C71X with secondary CRT
MPX-7202 PCI Express mini card supports
The specifications may be different as the actual production.
For further product information please visit the website at
UltraATA133 IDE interface supports up to 2 ATAPI devices
One 40-pin IDE port onboard with VT-6421
Onboard 24-bit dual channel LVDS connector
with +3.3V/+5V/+12V supply
1 x Mini PCI socket to support Mini PCI Type IIIA
3 x RS232, 1 x SMBUS, 1 x GPIO port, 8 x USB ports, 1 x IrDA,
8 x Serial ATA, 1x LVDS, 1x LCD inverter connector, 1 x CF
1 x Audio connector and 1 x CDIN connector
1 x PS/2 Keyboard/Mouse Port, 2 x RJ45 LAN ports, 1 x DB15 VGA p ort,
4 x US B 2 . 0 ports , 1 x RS232/422/485 port, 2 x RS232 port
2 Channel Audio, 1 x SPDIF connector
Storage within –20~85 centigrade
SATA, SMBUS, PCIE x16, PCIE x4, PCI , Mini PCI and PCIE mini card
2 x USB 3.0 provides up to 4.8Gbps of transferring rate.
TUhttp://www.commell.com.twUT
7-
-
Page 10
MS-C71 User’s Manual
1.3 <Mechanical Drawing>
Unit: mm
-
8-
Page 11
MS-C71 User’s Manual
1.4 <Block Diagram>
1 x PCIE
x16
1 x CRT
1 x LVDS
1 x DVI
(MS-C71XD)
1 x CRT2
(MS-C71XT)
6 x Serial ATA
ALC888 HD Audio
Intel® Core™ i7, Core™ i5,
Core™ i3, Celeron®, and
Pentium®
Mobile Processor
QM57
2 x 204-pin
DDR3 SO-DIMM
800/1066 MHz
Up to 8GB
1 x PCI Express x4
1 x PCIE mini card
1 x Mini-PCI
10 x USB 2.0
2 x Intel 82574L
W25X80 SPI
Mini-PCI slot
2 x Serial ports
8-bit GPIO
IrDA
LPT
COM3~6
BIOS
9-
-
2 x PCI Slot
PCI bus
Page 12
MS-C71 User’s Manual
Chapter 2 <Hardware Setup>
2.1 <Connector Location>
CN_AUDIO
CN_DIO
CN_IR
CD_IN
CN-LPT
CN_COM4/ 5/ 6
PCI2
PCI1
PCIE_4X
PCI_E16X
MINIPCI
SYSFAN
CN_USB3/4/5/6
SATA1/2/3/4/5/6
JFRNT

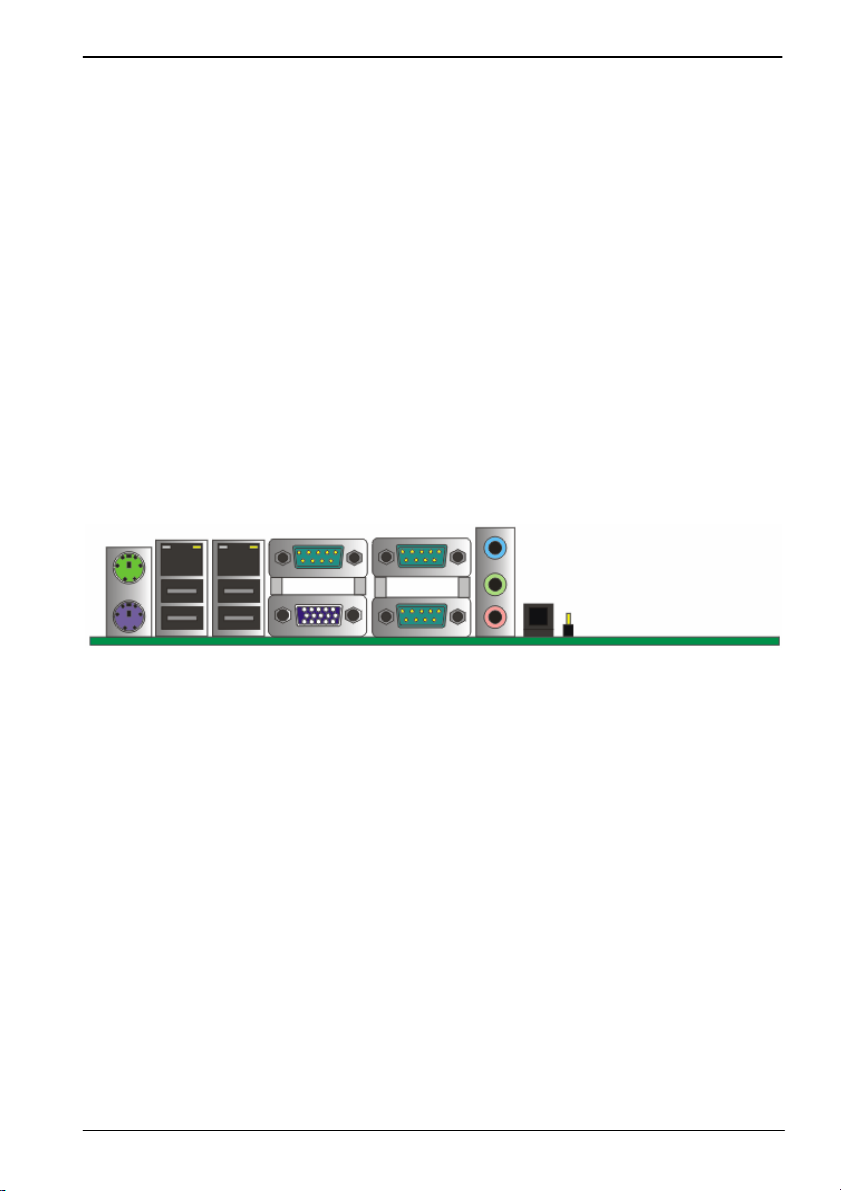

External I/O Port
CN_LVDS
MINI_CARD
CN_SMBUS
CPU
SO-DIMM1
SO-DIMM2
SATA7/8
CPUFAN
ATX
CF
IDE
LAN1 LAN2 COM1
PS/2 USB1/2/3/4
COM3
CRT COM2
-
10-
AUDIO SPDIF
Page 13
MS-C71 User’s Manual

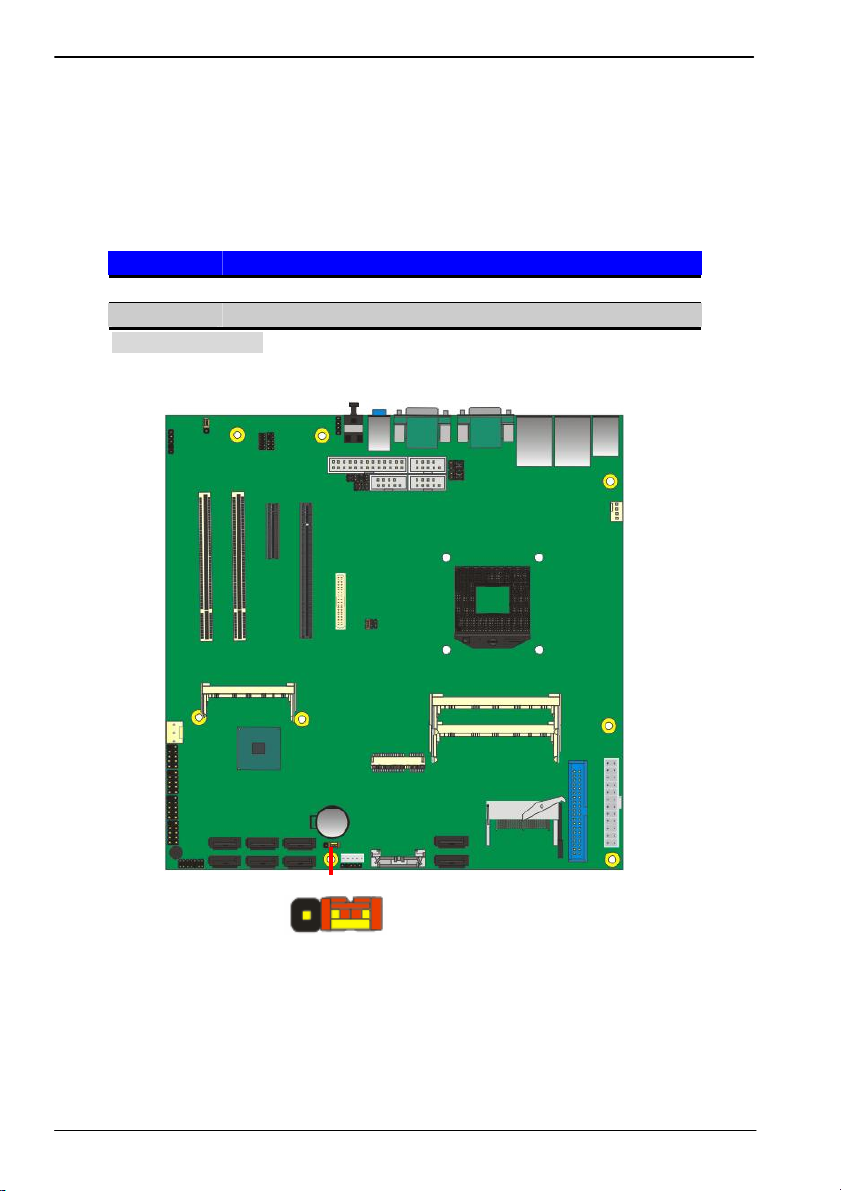

2.2 <Jumper Location & Reference>
Jumper Function
JRTC CMOS Operating/Clear Setting
JVLCD Panel Voltage Setting
JAT Po wer mode select
JP1 Com1 Voltage Setting
JP2 Com2 Voltage Setting
JCSEL1
JAT
JCSEL2
JRTC
JP1
JP2
JVLCD
11-
-
Page 14
MS-C71 User’s Manual

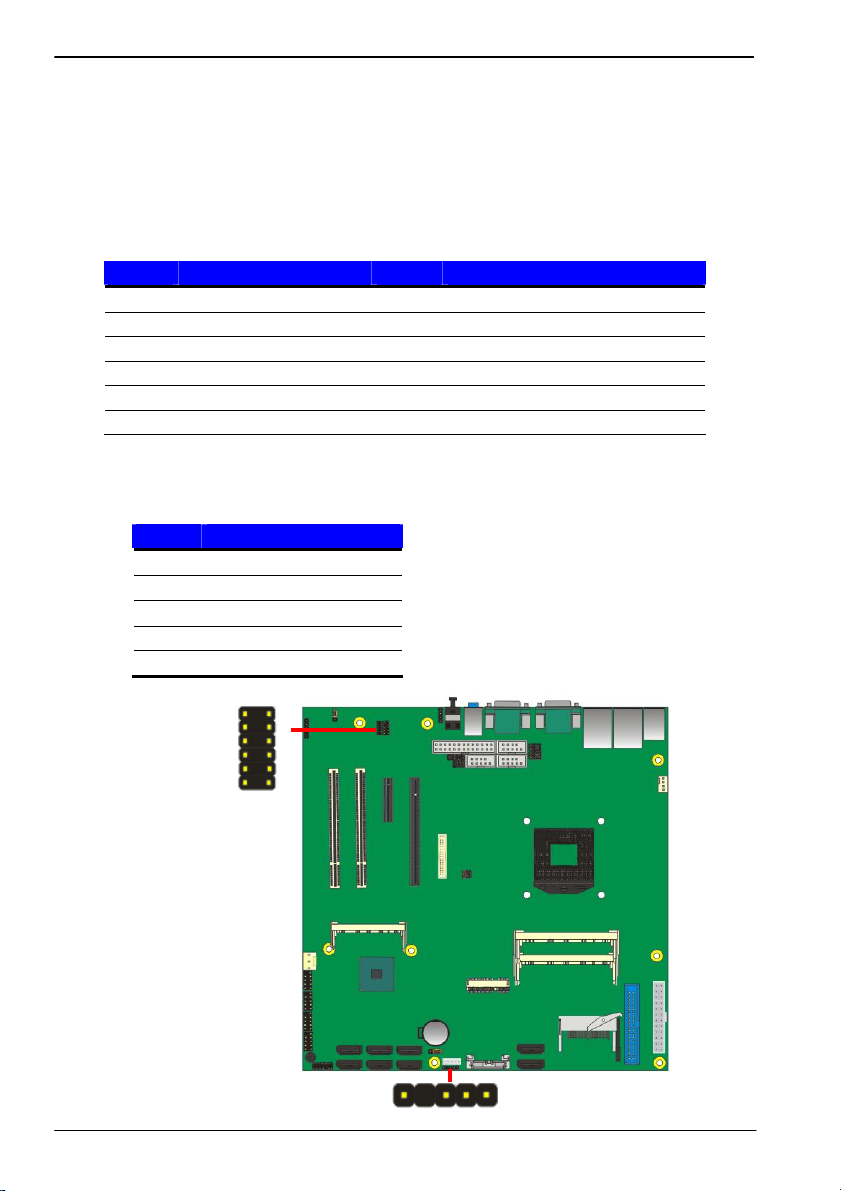

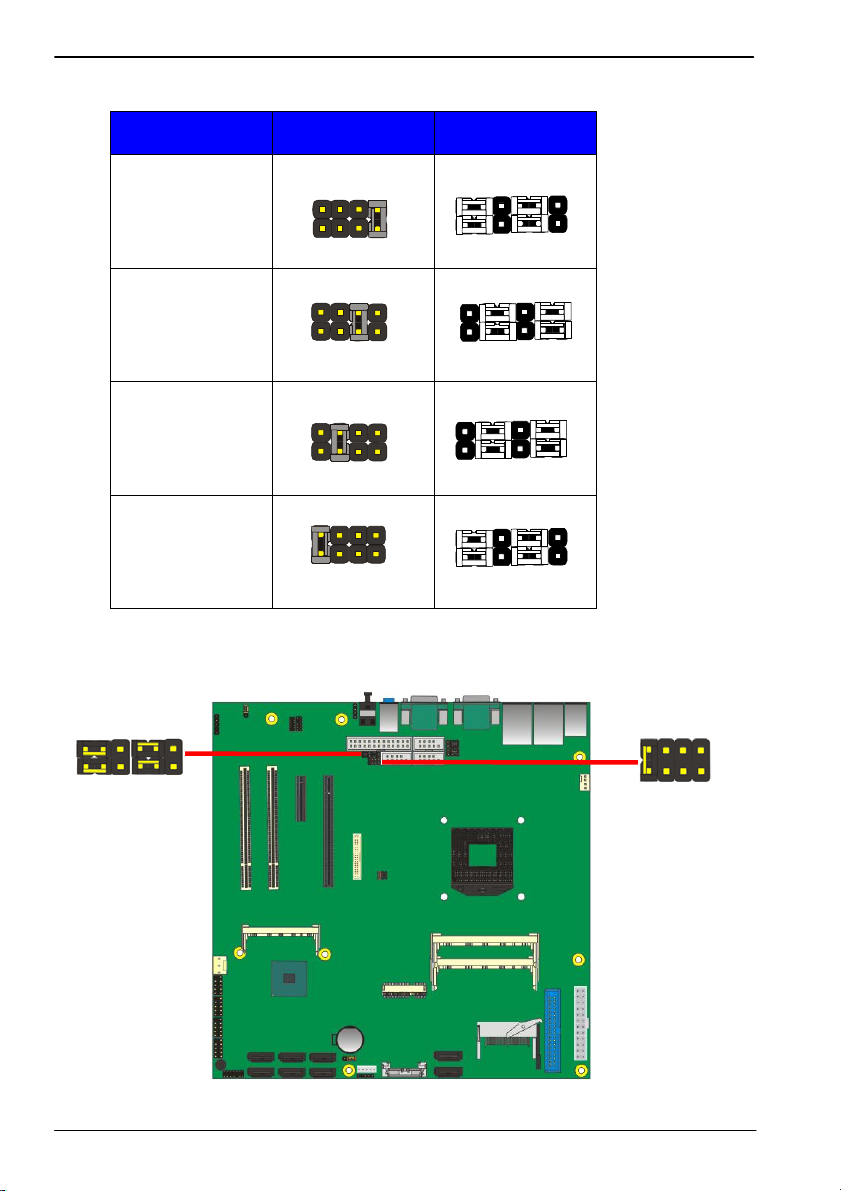

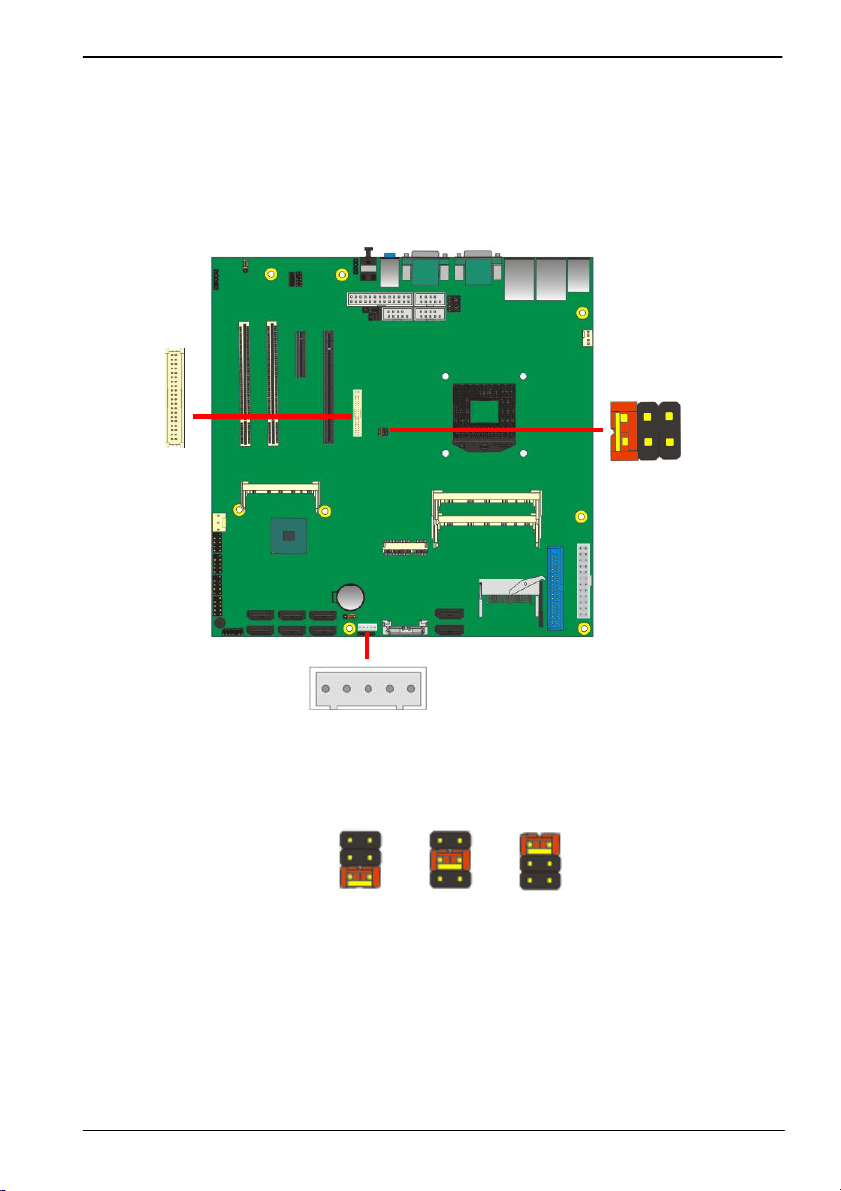

Jumper: JAT
Type: onboard 3-pin header
Power Mode JAT
AT Mode 1-2
Default setting: ATX Mode

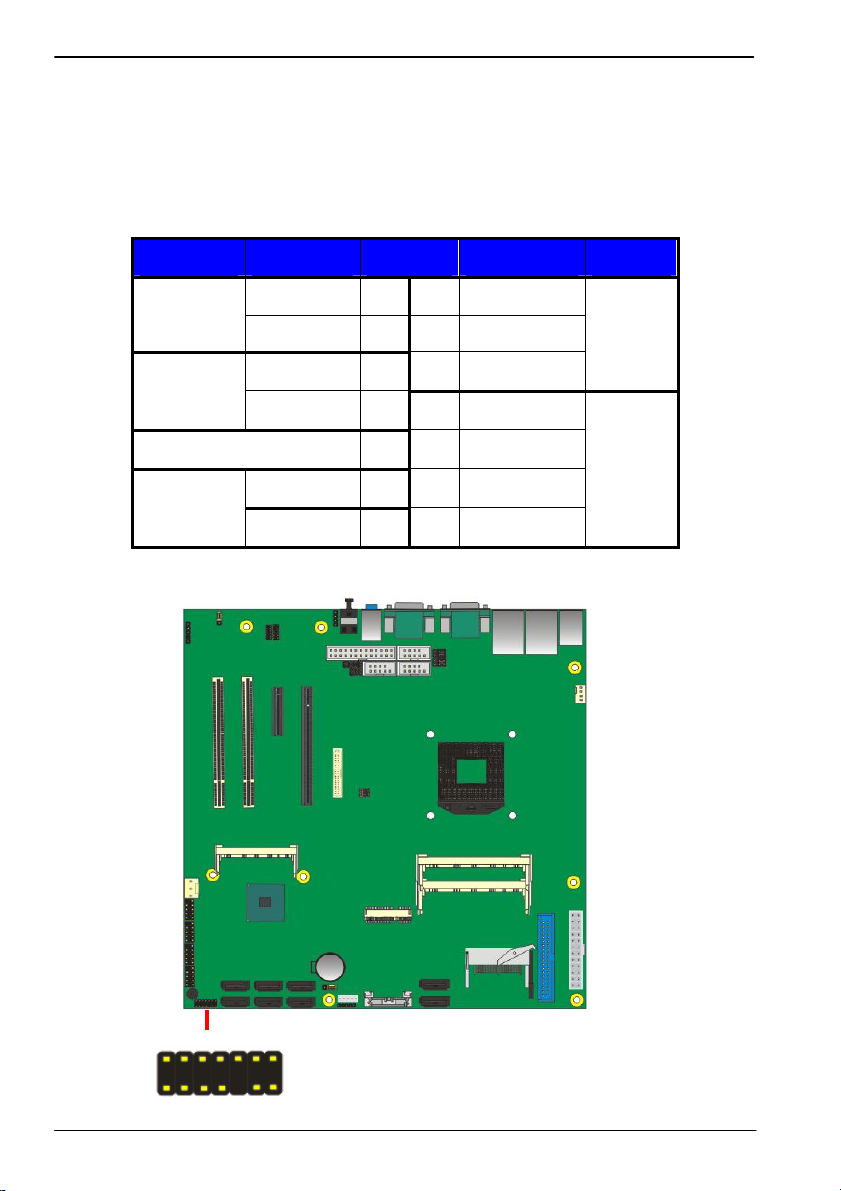

Jumper: JP1 (COM 1)
Type: onboard 6-pin header
Power Mode JP1
Pin1 with 5V signal 1-3,4-6
Pin9 with 12V signal
Default setting: 3-5, 4-6
Jumper: JP2 (COM 2)
Type: onboard 6-pin header
Power Mode JP2
ATX Mode
2-3
3
1
2-4,3-5
2
1
6
5
Pin1 with 5V signal 1-3,4-6
Pin9 with 12V signal
Default setting: 3-5, 4-6
12-
-
2
1
2-4,3-5
6
5
Page 15
MS-C71 User’s Manual
2.3 <Connector Reference>
2.3.1 <Internal Connectors>
Connector Function Remark
CPU Socket rPGA988A for PGA988 CPU
SO-DIMM1/2 204 -pin DDR3 SO-DIMM socket
SATA1/2/3/4/5/6/7/8 7-pin Serial ATA connector
IDE 40-pin primary IDE connector
ATX 24-pin power input connector
CN_AUDIO 5 x 2-pin audio connector
CD_IN 4-pin CD-ROM audio input connector
CN_DIO 6 x 2-pin digital I/O connector
CN_USB 3/4/5/6 5 x 2-pin USB connector
CPUFAN 4-pin CPU cooler fan connector
SYSFAN 3-pin system cooler fan connector
CN_LVDS 20 x 2-pin LVDS connector
CN_DVI 13 x 2-pin DVI connect
CN_INV 5-pin LCD inverter connector
CN_IR 5-pin IrDA connector
JFRNT 14-pin front panel switch/indicator connector
Mini-PCI 124-pin Mini-PCI socket Type IIIA
PCIE X16 164-pin x16 PCIE slot
PCIE X4 64-pin x4 PCIE slot
PCI1/2 120-pin slot
Mini-PCIE 52-pin Mini-PCIE socket

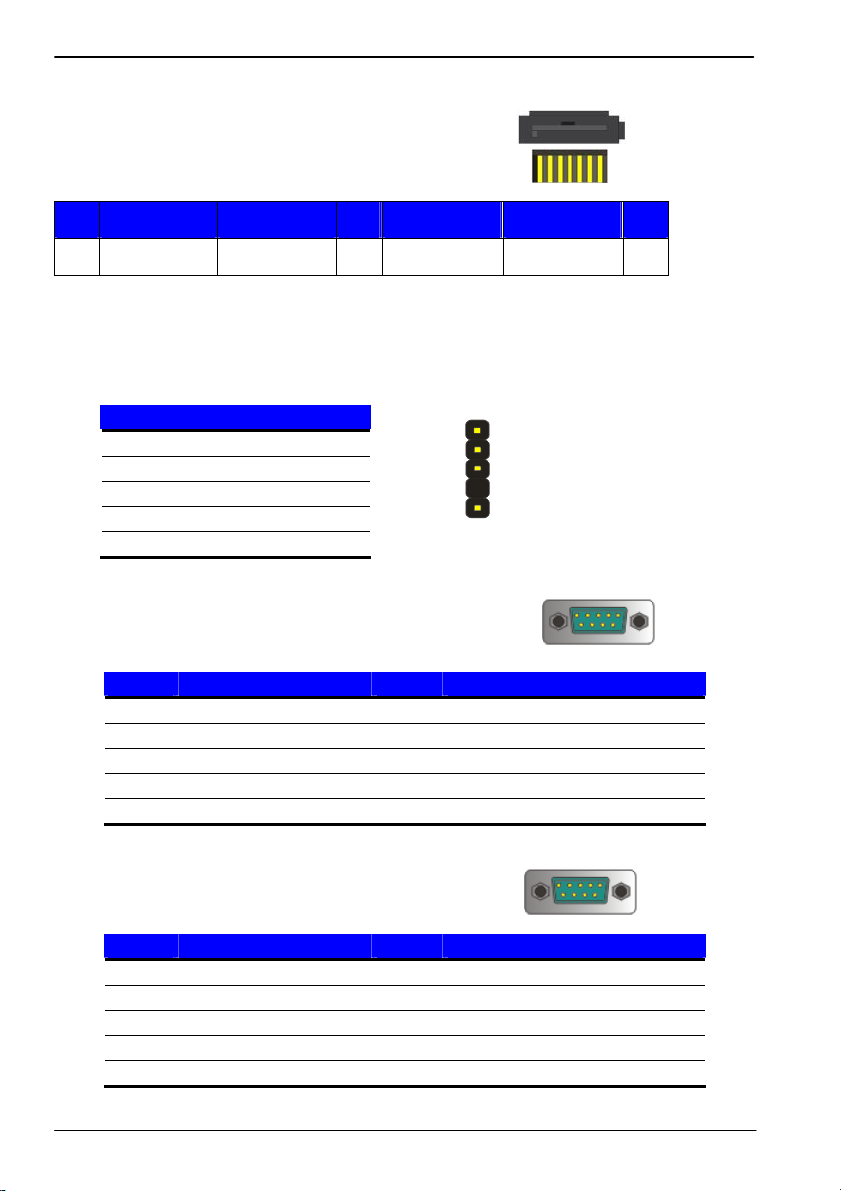

CN_COM4/5/6 9-pin RS232
JAT 3-pin Power mode select
JPT1/2 3-pin Com Voltage Setting
CN_LPT 13 x 2-pin printer connector
2.3.2 <External Connectors>
Connector Function Remark

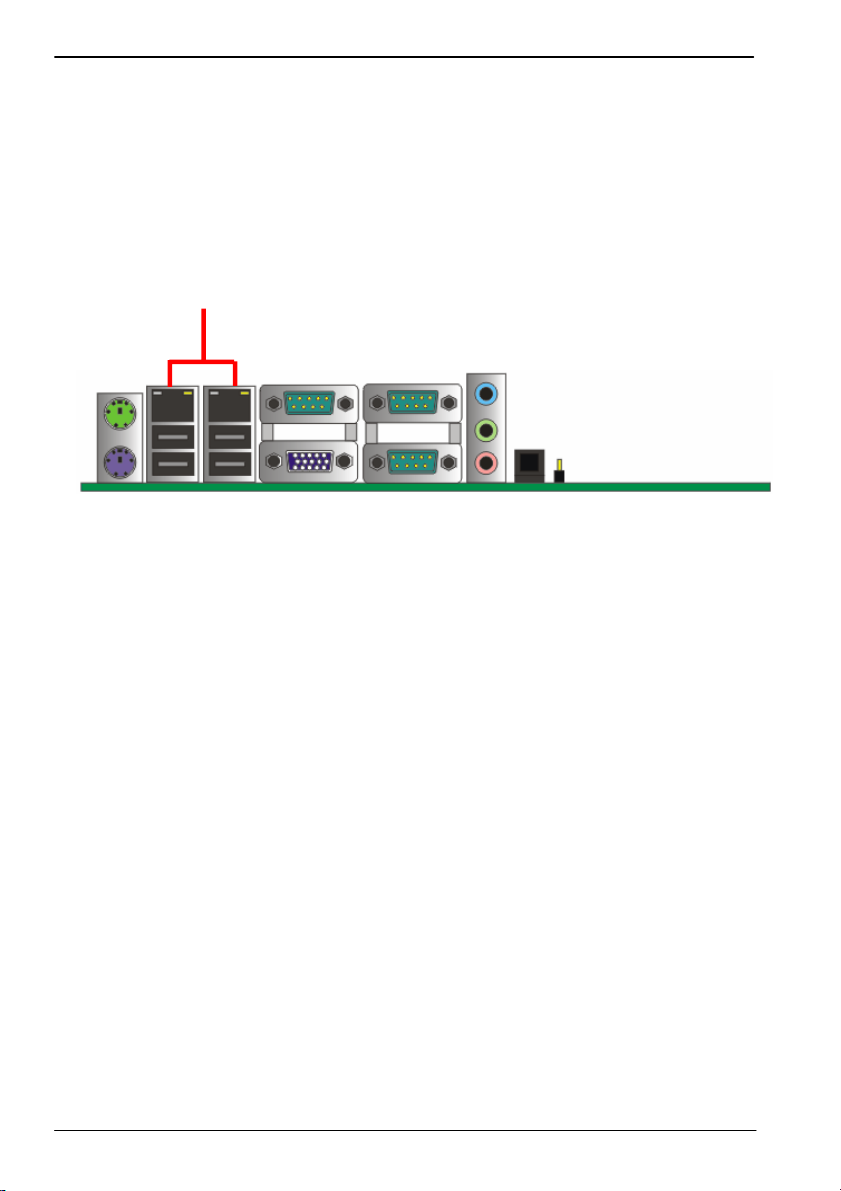

USB_RJ45 4 x USB and 2 x RJ45 LAN connector
COM1 + CRT COM1 Connect DB15 and analog VGA connector
PS/2 PS/2 keyboard and mouse connector
AUDIO Audio connector
COM2&COM3 COM2/3 Connect
SPDIF SPDIF digital audio output connector
13-
-
Page 16
MS-C71 User’s Manual
y
2.4 <CPU and Memory Setup>
2.4.1 <CPU Setup>
The board comes with the socket rPGA988A for Intel Arrandale and Clarkfield
Processor, Intel® Smart 8MB Cache. Please follow the instruction to install the CPU
properly.
Unlock wa

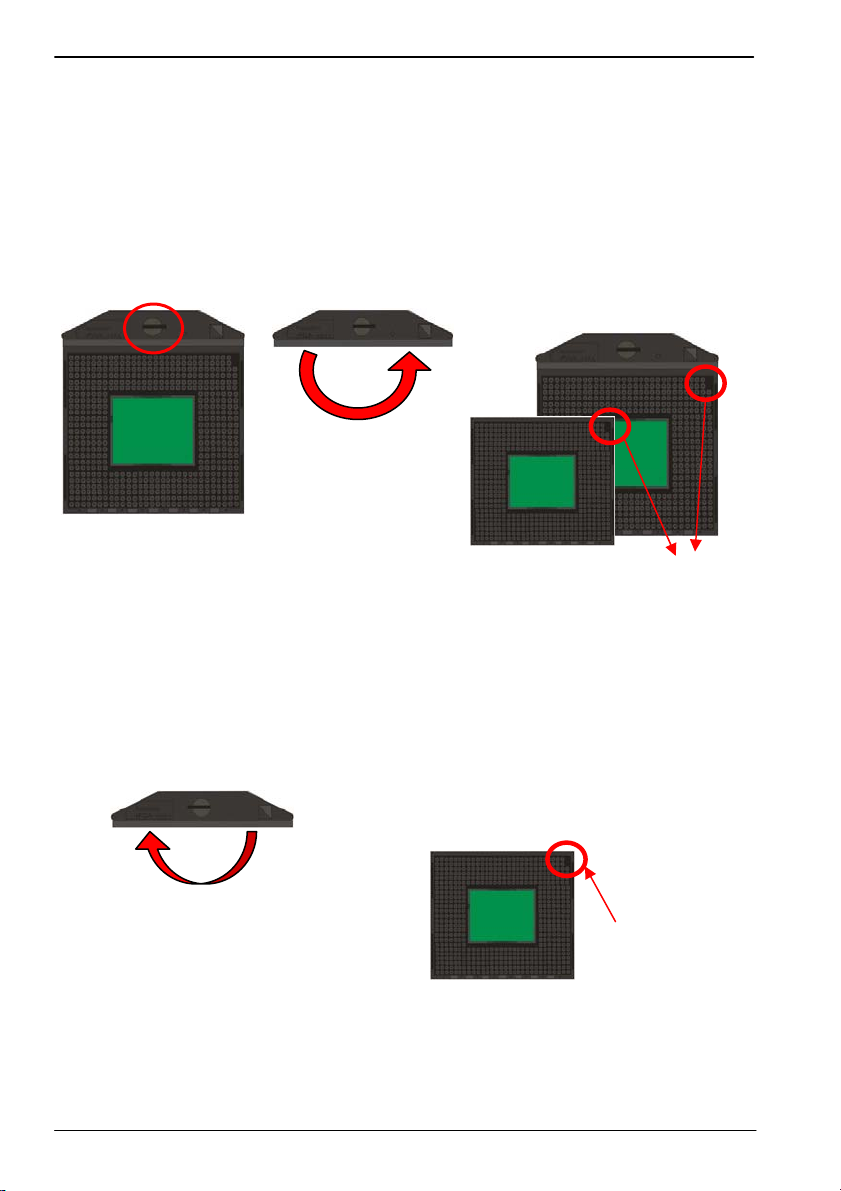

1. Use the flat-type screw
drive to unlock the CPU
socket
2. Follow the pin direction to install
the processor on the socket
Check point
3. Lock the socket
4. CPU socket has 988 pins
14-
-
PGA 988 CPU Check point
Page 17
MS-C71 User’s Manual
2.4.2 <Memory Setup>

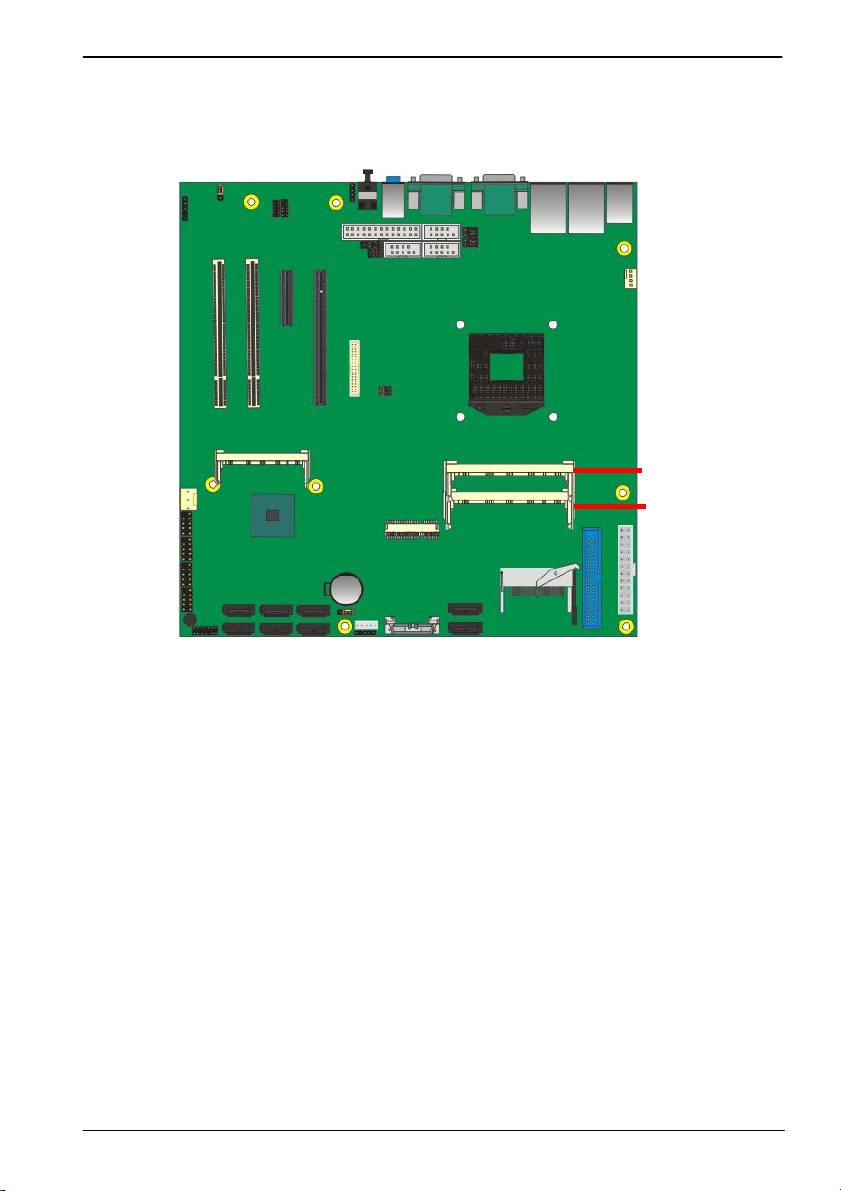

The board provides 2 x 204-pin DDR3 SO-DIMM to support 800/1066MHz DDR3
memory module up to 8GB.
SO-DIMM1
SO-DIMM2
15-
-
Page 18
MS-C71 User’s Manual
2.5 <CMOS Setup>
The board’s data of CMOS can be setting in BIOS. If the board refuses to boot due
to inappropriate CMOS settings, here is how to proceed to clear (reset) the CMOS
to its default values.
Jumper: JRTC
Type: Onboard 3-pin jumper
JRTC Mode
1-2 Clear CMOS
2-3 Normal Operation
Default setting: 2-3
JRTC
13
16-
-
Page 19
MS-C71 User’s Manual

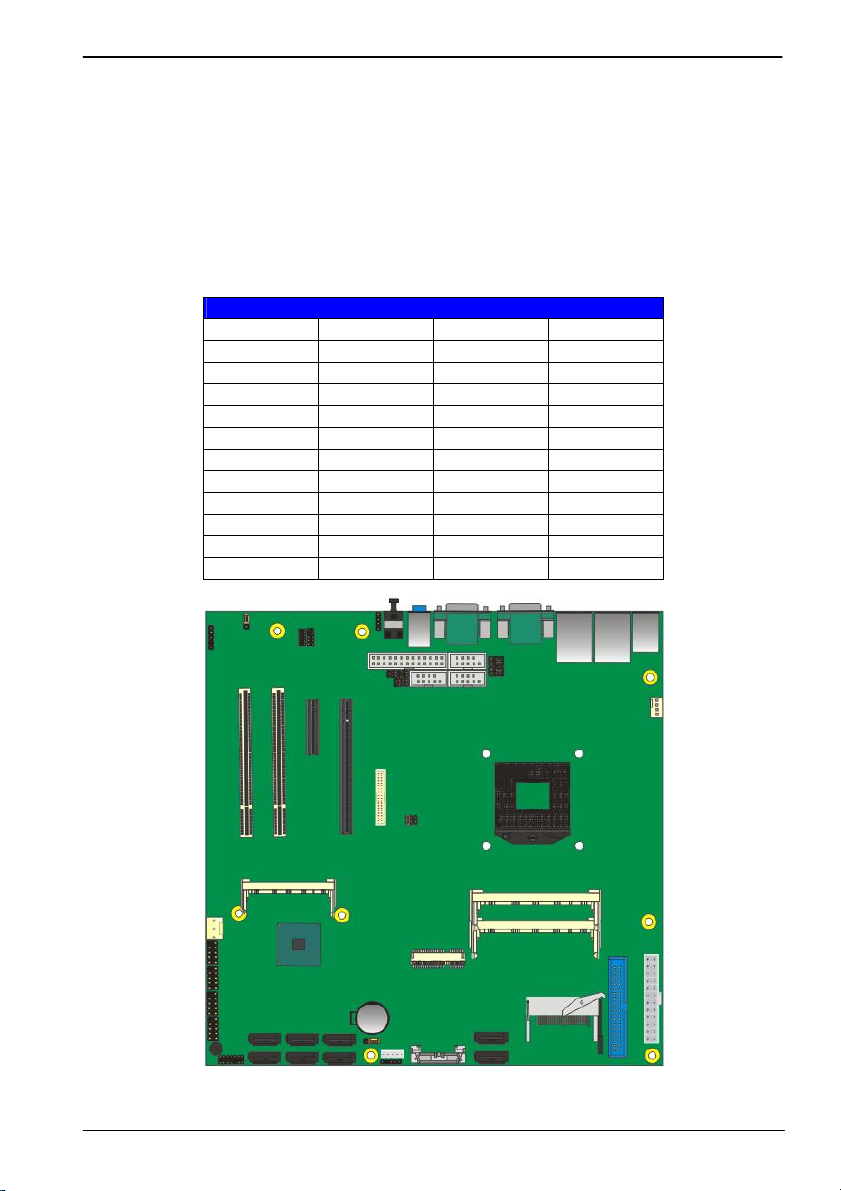

2.6 <Serial ATA Interface>
Based on Intel QM57, the board provides Six Serial ATAII interfaces SATA1 to SATA6
with up to 300MB/s transfer rate and VIA 6421 two Serial ATAI interfaces SATA7 and
SATA8 with 150MB/s of transfer rate.
SATA Port 1/2/3/4/5/6 SATA Port 7/8

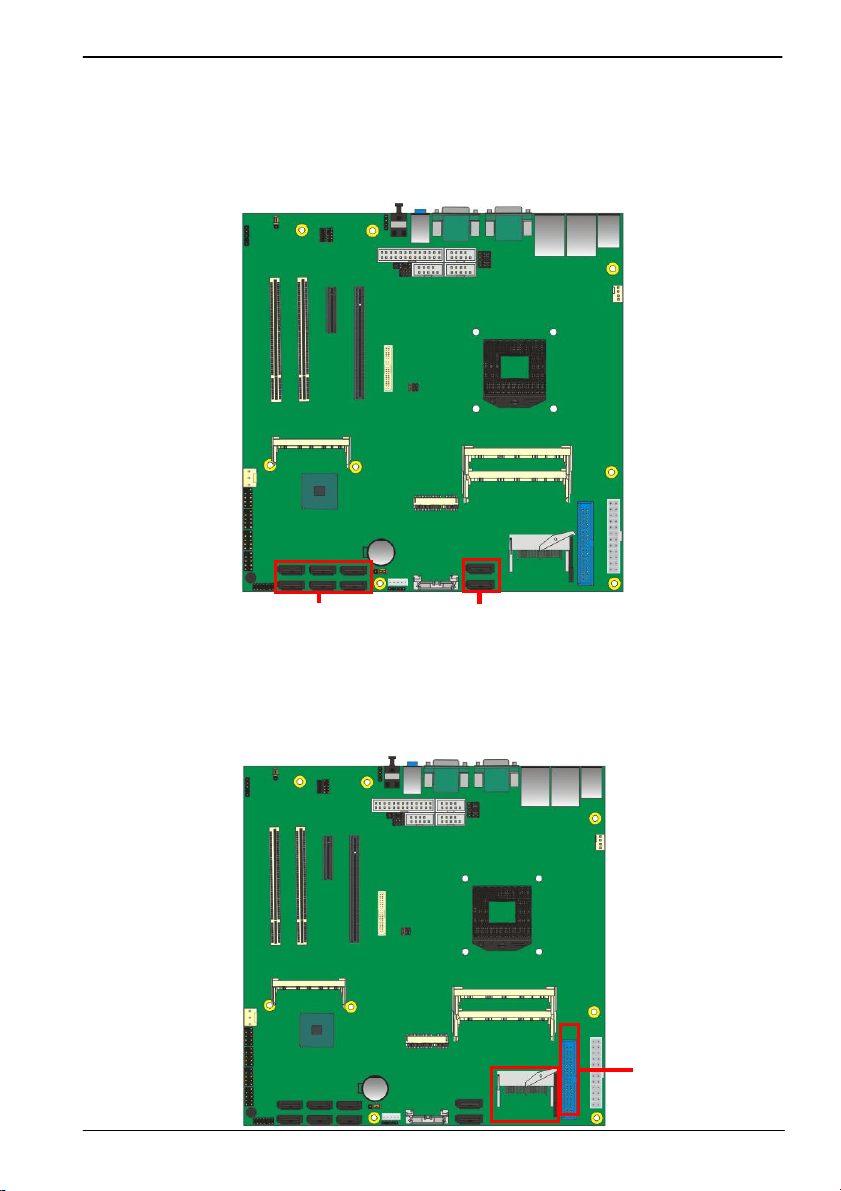

2.6.1 IDE interface & CF interface

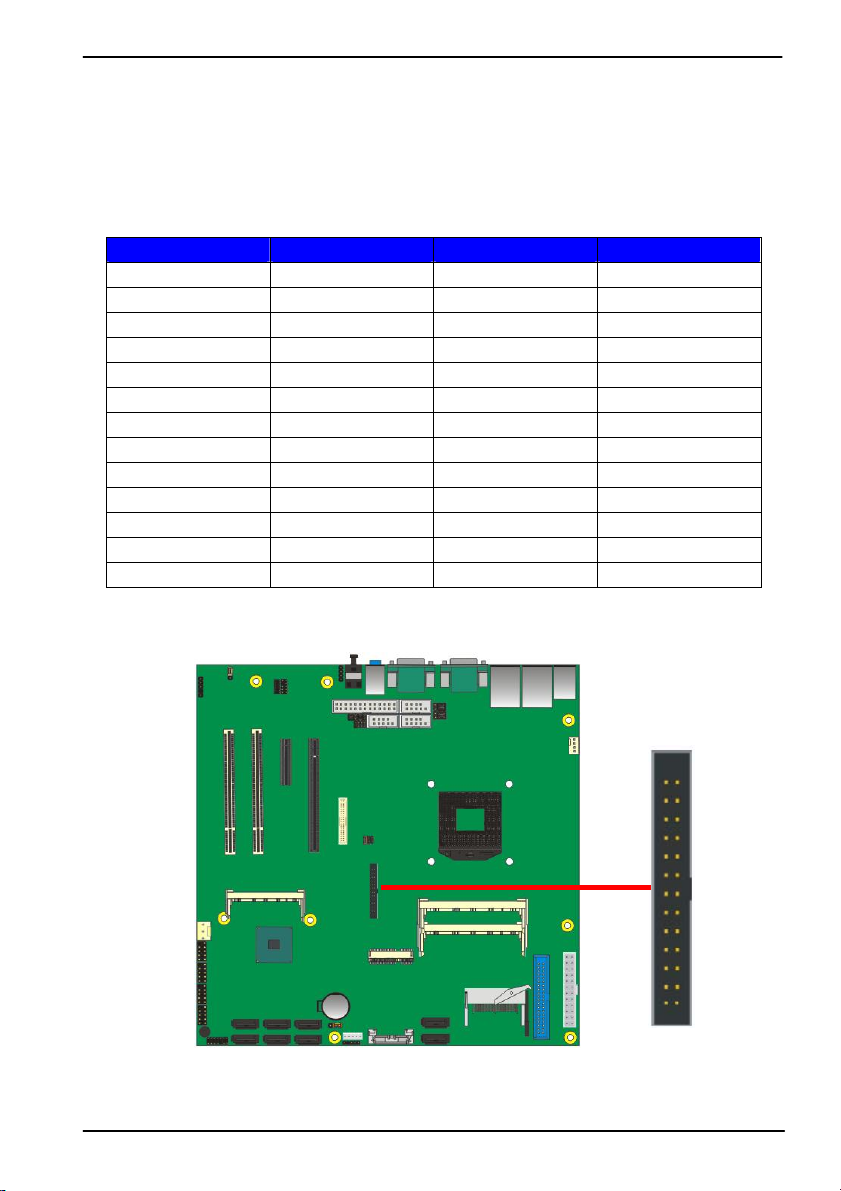

The MS-C71 has VIA 6421 chip supports one 40-pin IDE connector, dual channel for
two ATAPI devices with ATA100 and one CompactFlash Type II socket.
17-
-
CF
IDE
Page 20
MS-C71 User’s Manual
2.7 <Ethernet Interface>
The board integrates with one Intel PCI Express Gigabit Ethernet controllers, as the PCI
Express x1 can speed up to 250MB/s of transfer rate instead of late PCI bus with
133MB/s of transfer rate. The Intel Gigabit Ethernet supports triple speed of
10/100/1000Base-T, with IEEE802.3 compliance and Wake-On-LAN supported.
RJ45 LAN connector
18-
-
Page 21
MS-C71 User’s Manual
2.8 <Onboard Display Interface>
Based on Intel Arrandale CPU with built-in HD Graphic, the board provides one DB15
connector on real external I/O port, one 40-pin LVDS interface with 5-pin LCD backlight
inverter connector optional or Secondary CRT connector (MS-C71XT) and provides
optional 26-pin DVI interface (MS-C71XD).
The board provides dual display function with clone mode and extended desktop mode
for CRT, LCD and DVI.
2.8.1 <Analog Display>
Please connect your CRT or LCD monitor with DB15 male connector to the onboard
DB15 female connector on rear I/O port or optional Secondary CRT connector Dip 10
Pin (MS-C71XT)
CRT
19-
-
Page 22
MS-C71 User’s Manual
Connector: CN_CRT2
Type: onboard 10-pin connector for CRT2 (Pitch = 2.00mm)
Pin Signal Pin Signal
2 CRT2 DDC_DA 1 CRT2 DDC_DC
4 CRT2 R 3 GND
6 CRT2 G 5 CRT2 B
8 CRT2 HSYNC 7 CRT2 VSYNC
10 GND 9 GND
9
10
1
2
10
9
1
2
20-
-
Page 23
MS-C71 User’s Manual
2.8.2 <Digital Display>
The board provides one 40-pin LVDS connector for 24-bit single/dual channel panels,
supports up to 1920 x 1200 (UXGA) resolutions, with one LCD backlight inverter
connector and one jumper for panel voltage setting.
39
40
1
CN_LVDS
2
6
2
JVLCD
5
1
1
CN_INV
5
Effective patterns of connection: 1-2 / 3-4 / 5-6
2 1
4
Warning: others cause damages
21-
-
6
3
5
Page 24
MS-C71 User’s Manual
Connector: CN_INV Connector: JVLCD
Type: 5-pin LVDS Power Header Type: 6-pin Power select Header
Pin Description
1 +12V
2 Reserved (Note)
3 GND
4 GND
5 ENABKL
Note: Reserved for MB internal test
Please treat it as NC.
Connector: CN_LVDS
Type: onboard 40-pin connector for LVDS connector
Connector model: HIROSE DF13-40DP-1.25V
Pin Signal Pin Signal
2 LCDVCC 1 LCDVCC
4 GND 3 GND
6 ATX0- 5 BTX0-
8 ATX0+ 7 BTX0+
10 GND 9 GND
12 ATX1- 11 BTX114 ATX1+ 13 BTX1+
16 GND 15 GND
18 ATX2- 17 BTX220 ATX2+ 19 BTX2+
22 GND 21 GND
24 ACLK- 23 BTX326 ACLK+ 25 BTX3+
28 GND 27 GND
30 ATX3- 29 BCLK32 ATX3+ 31 BCLK+
34 GND 33 GND
36 DDCPCLK 35 N/C
38 DDCPDATA 37 N/C
40 N/C 39 N/C
Pin Description
1-2 LCDVCC (3.3V)
3-4 LCDVCC (5V)
5-6 LCDVCC (12V)
Default: 1-2
-
22-
Page 25
MS-C71 User’s Manual
To setup the LCD, you need the component below:
1. A panel with LVDS interfaces.
2. An inverter for panel’s backlight power.
3. A LCD cable and an inverter cable.
For the cables, please follow the pin assignment of the c onnec tor to make a c able, becaus e
every panel has its own pin assignment, so we do not provide a standard cable; please find
a local cable manufacture to make cables.

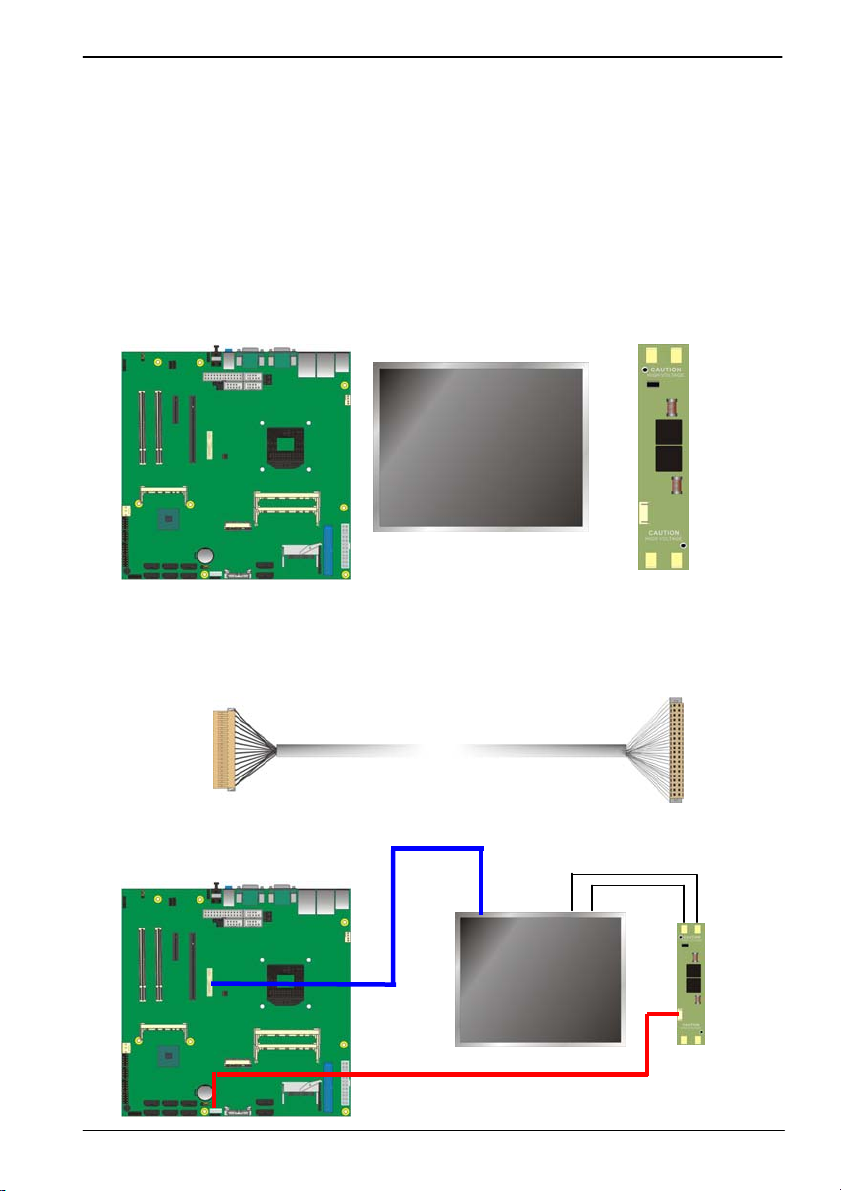

LCD Installation Guide:
1. Preparing the MS-C71, LCD panel and the backlight inverter.
2. Please check the datasheet of the panel to see the voltage of the panel, and set
the jumper JVLCD to +12V or +5V or +3.3V.
3. You would need a LVDS type cable.
Panel side
For sample illustrator only
4. To connect all of the devices well.
-
23-
Board side
Page 26
MS-C71 User’s Manual
After setup the devices well, you need to select the LCD panel type in the BIOS.
The panel type mapping is list below:
BIOS panel type selection form (BIOS Version:1.0)
18-bit Single channel 24-bit Dual channel
NO. Output format NO. Output format
1 640 x 480 11 1280 x 768
2 800 x 480 12 1280 x 1024
3 800 x 600 13 1600 x 1200
4 1024 x 768 14 1920 x 1080
5 1280 x 800 15 1920 x 1200
18-bit Dual channel
6 1280 x 768
24-bit Single channel
7 1024 x 768
8 1280 x 768
9 1280 x 800
10 1366 x 768
24-
-
Page 27
MS-C71 User’s Manual
2.8.3 <DVI Interface>
The board provides an option 26-pin DVI interface (MS-C71XD)
Connector: CN_DVI
Connector type: 26-pin header connector (pitch = 2.00mm)
Pin Number Assignment Pin Number Assignment
1 TX1+ 2 TX13 Ground 4 Ground
5 TXC+ 6 TXC7 Ground 8 PVDD
9 N/C 10 N/C
11 TX2+ 12 TX213 Ground 14 Ground
15 TX0+ 16 TX017 N/C 18 HPDET
19 DDCDATA 20 DDCCLK
21 GND 22 N/C
23 N/C 24 N/C
25 N/C 26 N/C
26
25
1
25-
-
2
Page 28
MS-C71 User’s Manual
2.9 <Integrated Audio Interface>
The board integrates onboard audio interface with REALTEK ALC888 codec, with Intel
next generation of audio standard as High Definition Aud io, it offers more sound and
other advantages than former AC97 audio compliance.
The main specifications of ALC888 are:
z High-performance DACs with 100dB S/N ratio
z 2 DAC channels support 16/20/24-bit PCM format for 2 audio solution
z 16/20/24-bit S/PDIF-OUT supports 44.1K/48K/96kHz sample rate
z Compatible with AC'97
z Meets Microsoft WHQL/WLP 2.0 audio requirements

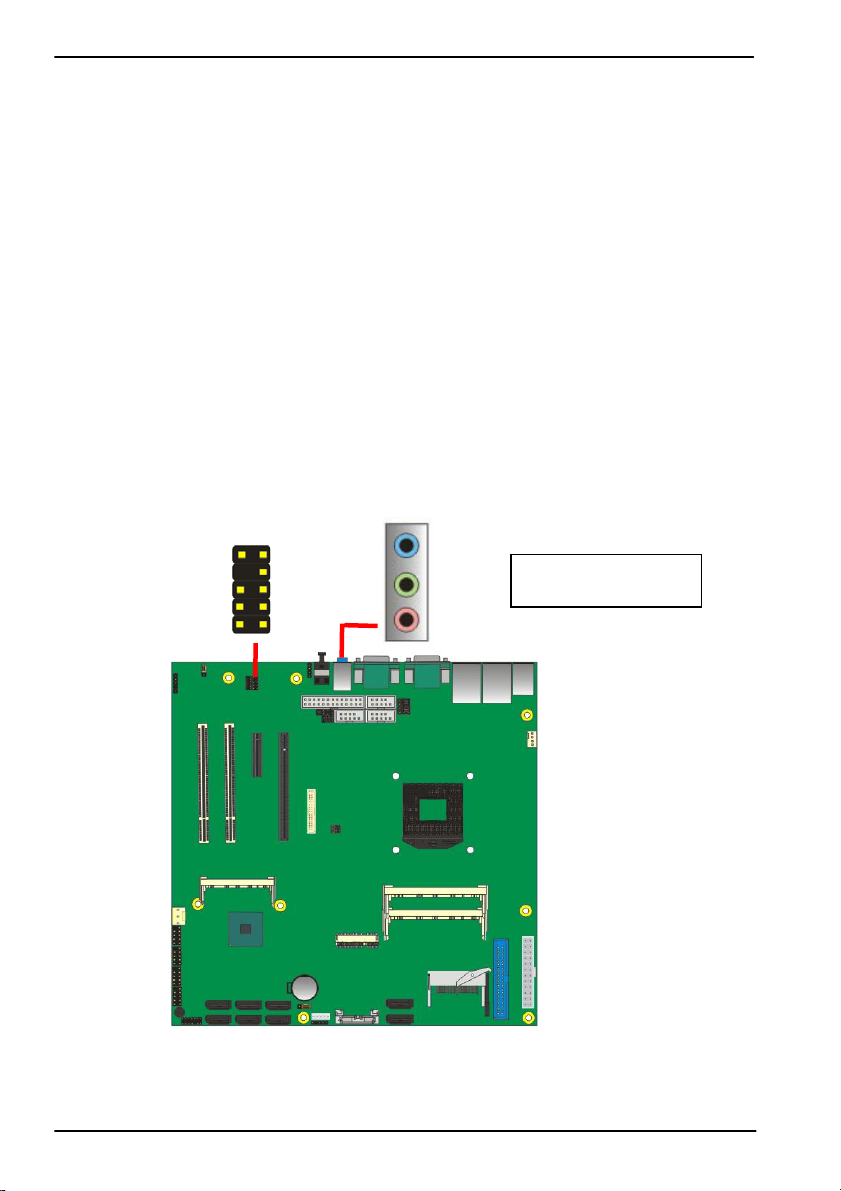

The board provides 2 channels audio phone jacks on rear I/O port, and Line-in/MIC-in
ports for front I/O panel through optional cable.
10 9
CN_AUDIO
1
2
LINE-IN
LINE-OUT
MIC-IN
Rear I/O phone jacks
26-
-
Page 29
MS-C71 User’s Manual
10
9
Connector: CN_AUDIO
Type: 10-pin (2 x 5) header (pitch = 2.54mm)
1
2
Pin Description Pin Description
1 MIC_L 2 Ground
3 MIC_R 4 Reserve
5 Speaker_R 6 MIC Detect
7 SENSE 8 N/C
9 Speaker_L 10 Speaker Detect
Connector: CD_IN
4
Type: 4-pin header (pitch = 2.54mm)
Pin Description
1
1 CD – Left
2 Ground
3 Ground
4 CD – Right
-
27-
Page 30
MS-C71 User’s Manual
2.10 <GPIO and SMBUS Interface>
The board provides a programmable 8-bit digital I/O interface; you can use this general
purpose I/O port for system control like POS or KIOSK.
Connector: CN_DIO
Type: 12-pin (6 x 2) header (pitch = 2.0mm)
Pin Description Pin Description
1 Ground 2 Ground
3 GP10 4 GP14
5 GP11 6 GP15
7 GP12 8 GP16
9 GP13 10 GP17
11 VCC 12 +12V
Connector: CN_SMBUS
Type: 5-pin header for SMBUS Ports
Pin Description
1 VCC
2 N/C
3 SMBDATA
4 SMBCLK
5 Ground
12
CN_DIO
11
1 2
1
CN_SMBUS
28-
-
5
Page 31
MS-C71 User’s Manual
2.11 <Power Supply>
2.11.1 <Power Input>
The onboard 24-pin ATX2.0, for the input current, please take a reference of the power
consumption report on appendix.
Connector: ATX
Type: 24-pin ATX power connector
PIN assignment
1 3.3V 13 3.3V
2 3.3V 14 -12V
3 GND 15 GND
4 5V 16 PS_ON
5 GND 17 GND
6 5V 18 GND
7 GND 19 GND
8 PW_OK 20 -5V
9 5V_SB 21 5V
10 12V 22 5V
11 12V 23 5V
12 3.3V 24 GND
29-
-
ATX
Page 32
MS-C71 User’s Manual
2.12 <Switch and Indicator>

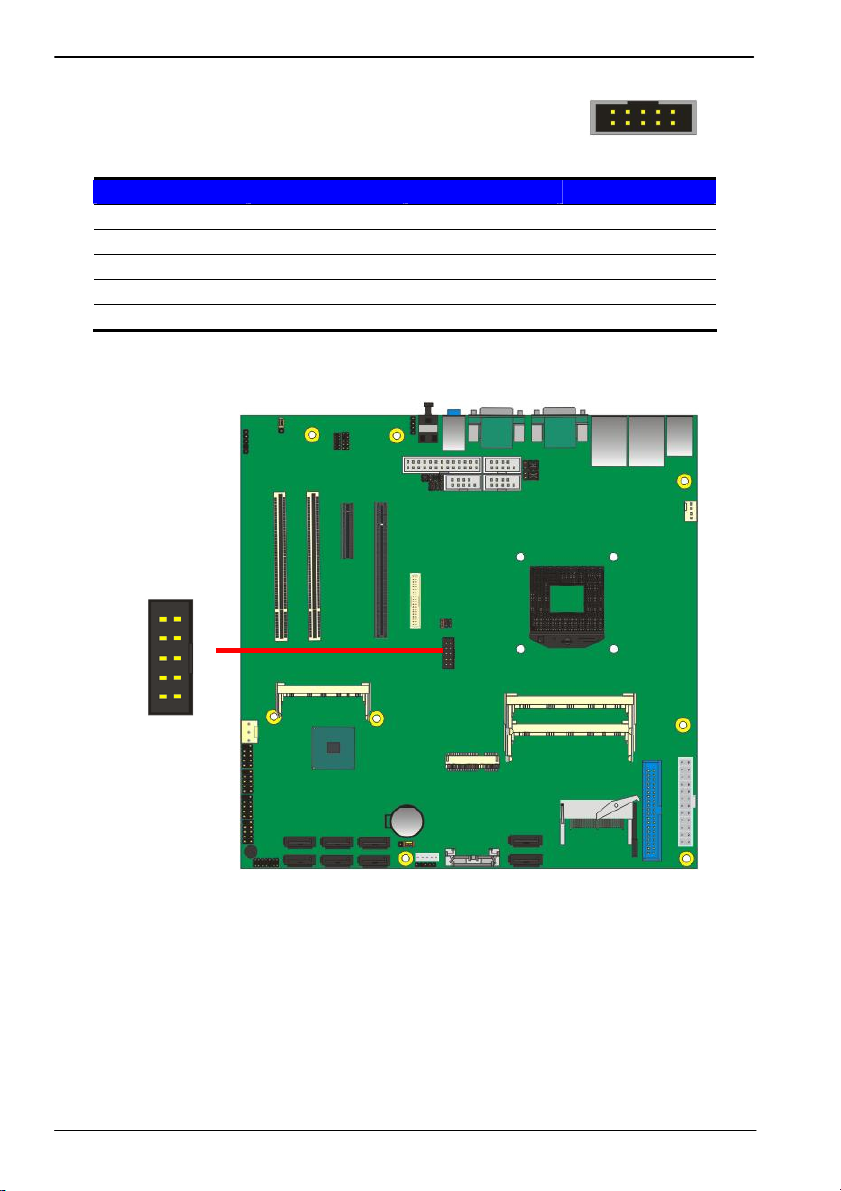

The JFRNT provides front control panel of the board, such as power button, reset and
beeper, etc. Please check well before you connecting the cables on the chassis.
Connector: JFRNT
Type: onboard 14-pin (2 x 7) 2.54-pitch header
Function Signal PIN Signal Function
IDE LED
Reset
Power
Button
HDLED+ 1 2 PWRLED+
PWRBT+ 11 12 N/C
PWRBT- 13 14 SPK-
HDLED- 3 4 N/C
Power
LED
Reset+ 5 6 PWRLED-
Reset- 7 8 SPK+
N/C 9 10 N/C
Speaker
2
1
14JFRNT
13
-
30-
Page 33
MS-C71 User’s Manual
Chapter 3 <System Setup>
3.1 <Audio Configuration>
The board integrates Intel® QM57 with REALTEK® ALC888 codec. It can support
2-channel sound under system configuration. Please follow the steps below to setup
your sound system.

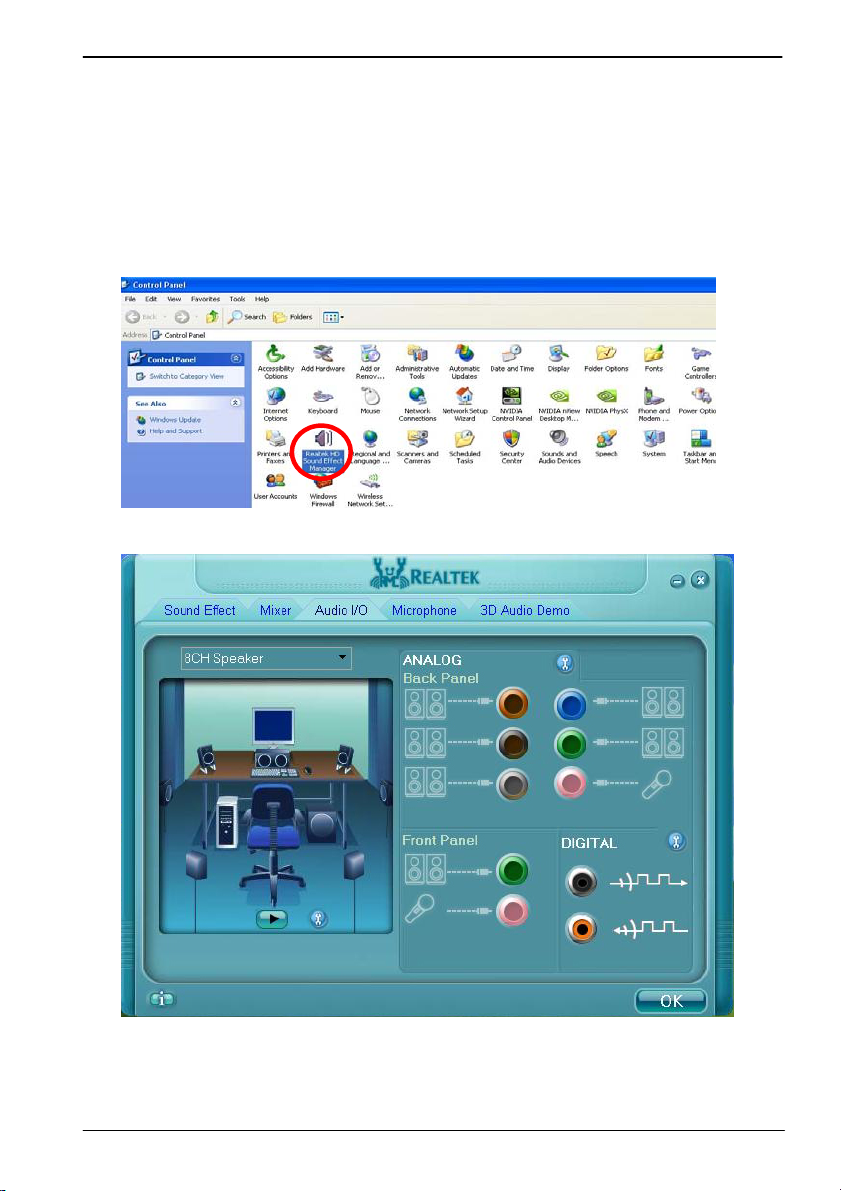

1. Install REALTEK HD Audio driver.
2. Lunch the control panel and Sound Effect Manager.
3. Select Speaker Configuration
31-
-
Page 34
MS-C71 User’s Manual

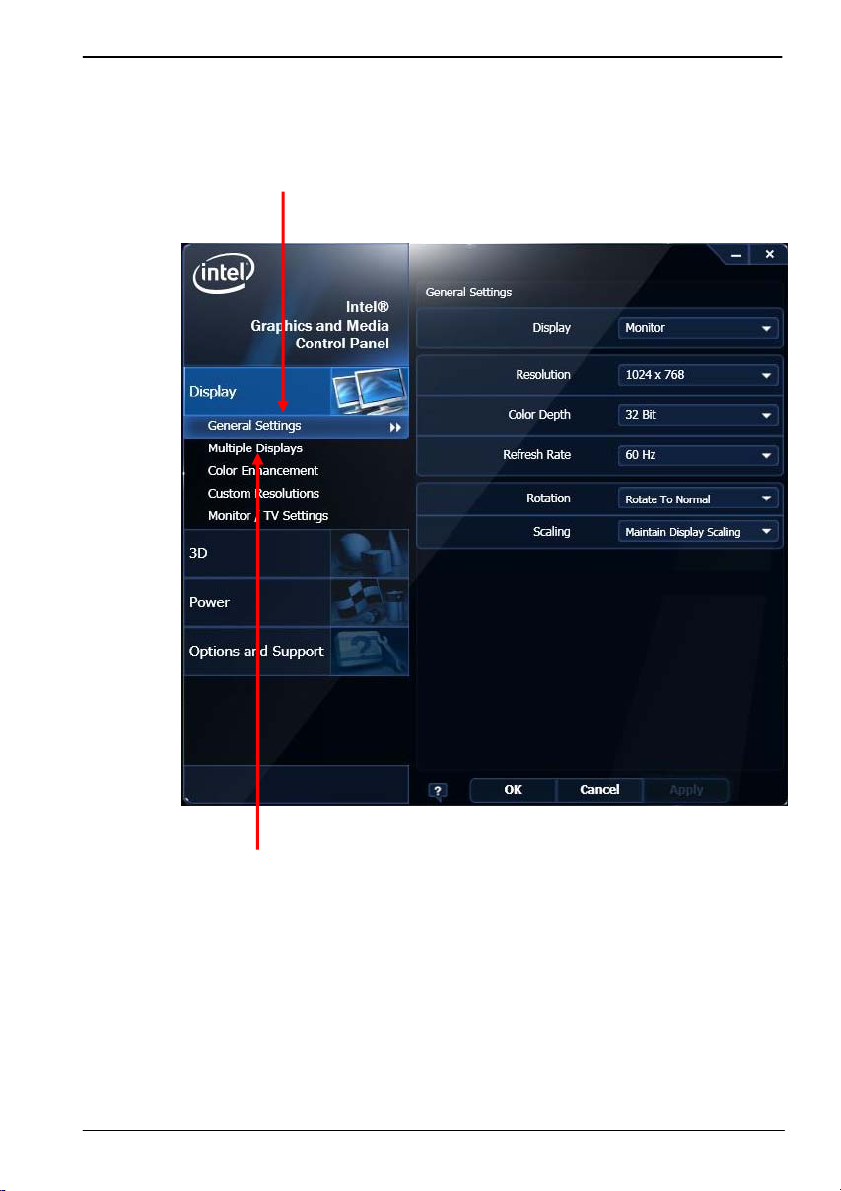

3.2 <Display Properties Setting>
Based on Intel HD Graphic , the board supports two DACs for display device as different
resolution and color bit.
Please install the Intel Graphic Driver before you starting setup display devices.
1. Click right button on the desktop to lunch display properties
2. Click Advanced button for more specificity setup.

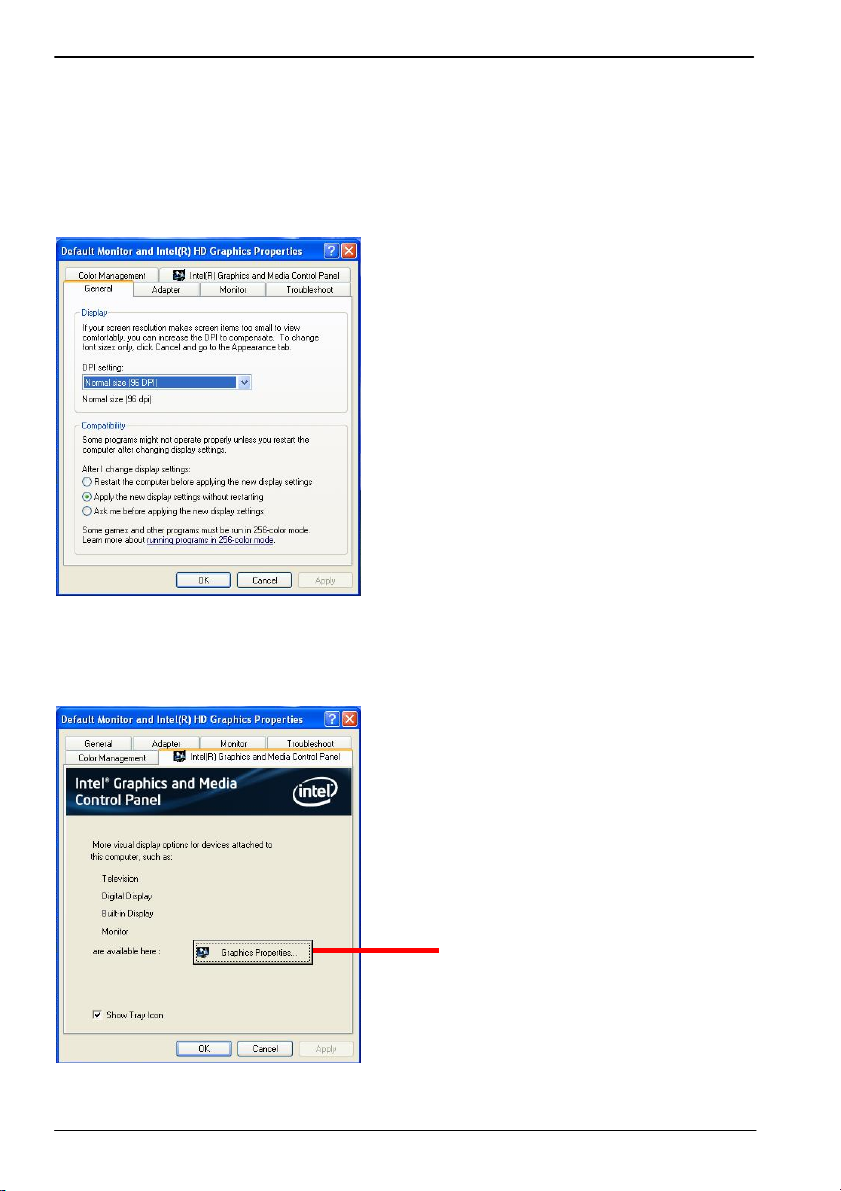

Click Graphics Properties... for
advanced setup
32-
-
Page 35
MS-C71 User’s Manual
3. This setup options can let you define each device settings.
Click Monitor to setup the CRT
monitor for Resolution and
Refresh Rate
Click Intel® Dual Display
Clone to setup the dual
display mode as same screen
33-
-
Page 36
MS-C71 User’s Manual
Chapter 4 <BIOS Setup>
The motherboard uses the Phoenix BIOS for the system configuration. The Phoenix
BIOS in the single board computer is a customized version of the industrial standard
BIOS for IBM PC AT-compatible computers. It supports Intel x86 and compatible CPU
architecture based processors and computers. The BIOS provides critical low-level
support for the system central processing, memory and I/O sub-systems.
The BIOS setup program of the single board computer let the customers modify the basic
configuration setting. The settings are stored in a dedicated battery-backed memory,
NVRAM, retains the information when the power is turned off. If the battery runs out of
the power, then the settings of BIOS will come back to the default setting.
The BIOS section of the manual is subject to change without notice and is provided h ere
for reference purpose only. The settings and configurations of the BIOS are current at
the time of print, and therefore they may not be exactly the same as that displayed on
your screen.
To activate CMOS Setup program, press ＜DEL＞ key immediately after you turn on the
system. The following message “Press DEL to enter SETUP” should appear in the lower
left hand corner of your screen. When you enter the CMOS Setup Utility, the Main Menu
will be displayed as Figure 4-1. You can use arrow keys to select your function, press
＜Enter＞ key to accept the selection a nd enter the sub-menu.

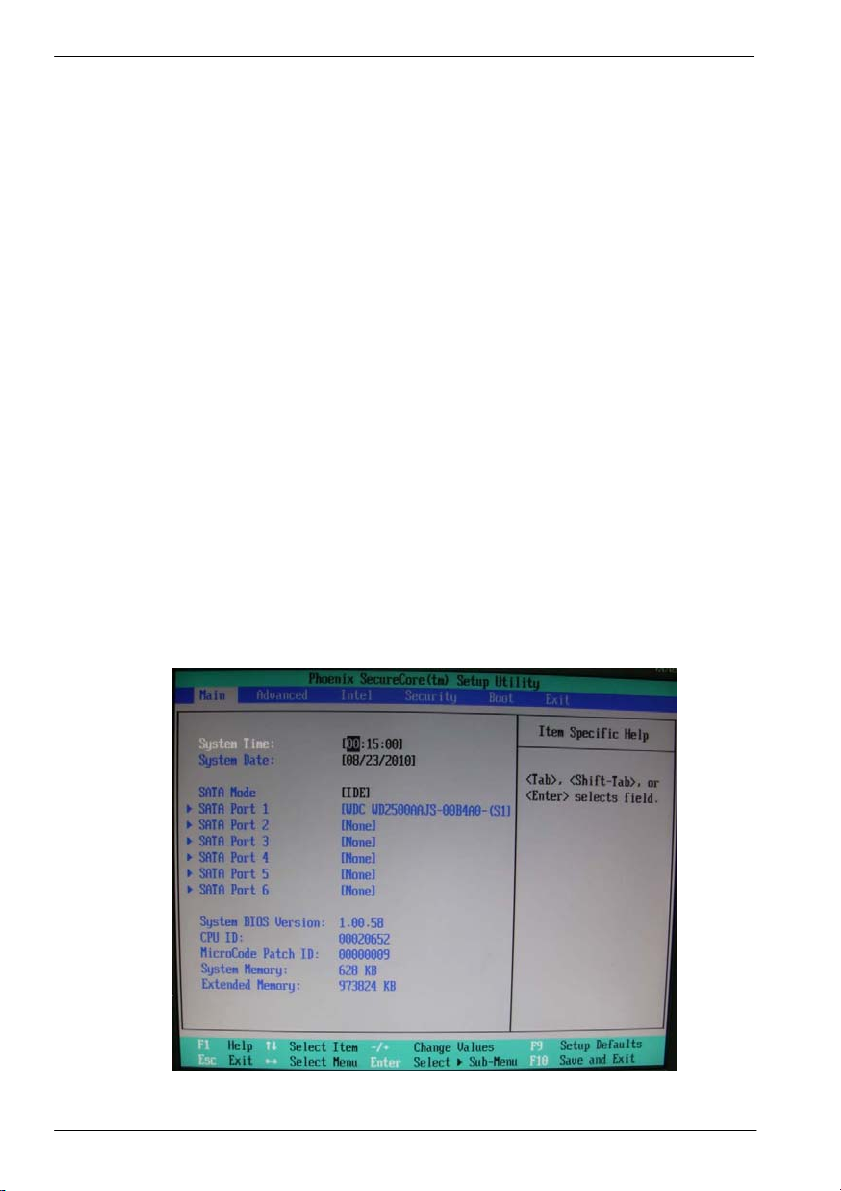

Figure 4-1 CMOS Setup Utility Main Screen
34-
-
Page 37
MS-C71 User’s Manual
(This page is left for blank)
-
35-
Page 38
MS-C71 User’s Manual
”

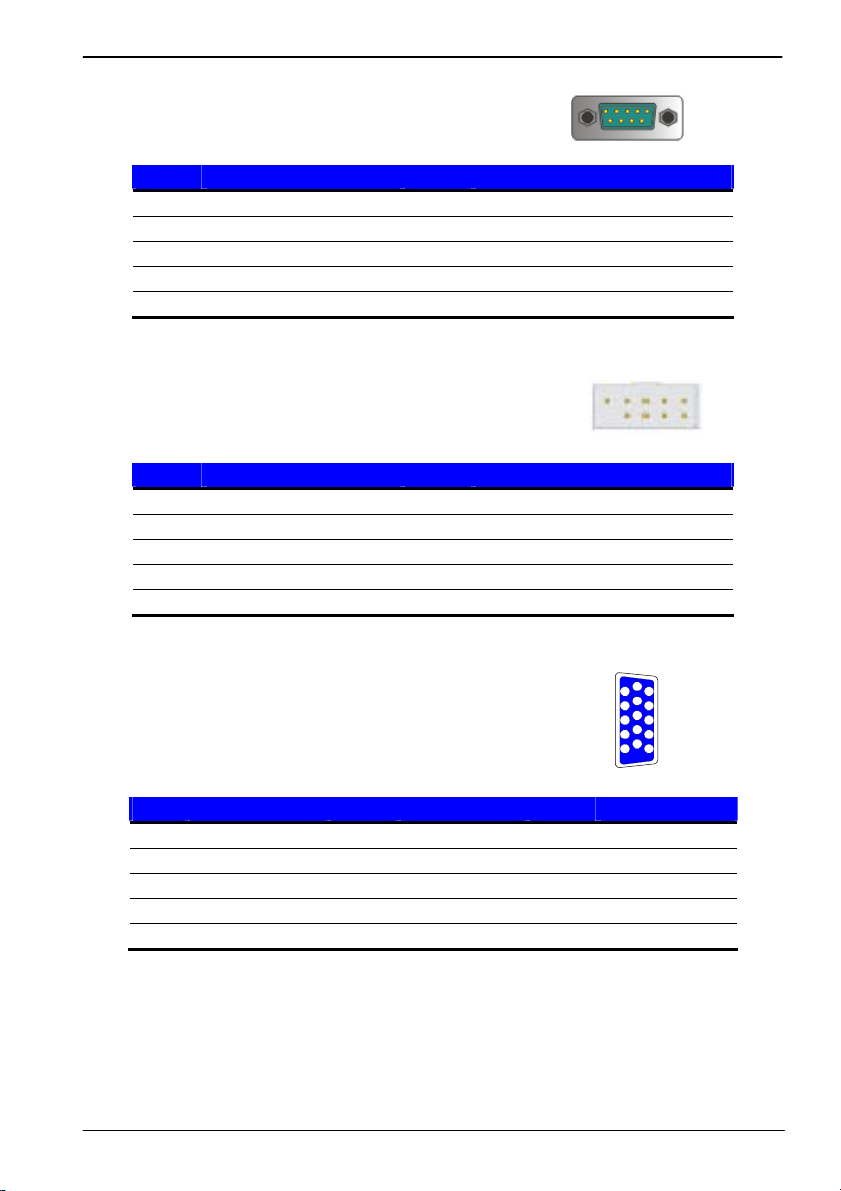

Appendix A <I/O Port Pin Assignment>
A.1 <Serial ATA Port>
Connector: SATA1/2/3/4/5/6/7/8
Type: 7-pin wafer connector
1 2 3 4 5 6 7
GND RSATA_TXP1 RSATA_TXN1 GND RSATA_RXN1 RSATA_RXP1 GND
7 1
A.2 <IrDA Port>
Connector: CN_IR
Type: 5-pin header for SIR Ports
Pin Description
1 VCC
2 N/C
3 IRRX
4 Ground
5 IRTX
JCSEL1 must jump to “SIR
5
1
51
A.3 <Serial Port 1>
Connector: COM1
Type: 9-pin D-sub male connector on bracket
Pin Description Pin Description
1 DCD- 6 DSR
2 SIN- 7 RTS
3 SO- 8 CTS
4 DTR- 9 RI
5 Ground
9 6
A.4 <Serial Port 2>
Connector: COM2
Type: 9-pin D-sub male connector on bracket
Pin Description Pin Description
1 DCD/422TX-/485 6 DSR
2 RXD/422TX+/485+ 7 RTS
3 SO- /422RX+ 8 CTS
4 DTR- /422RX- 9 RI
5 Ground
51
9 6
-
36-
Page 39
MS-C71 User’s Manual
<Serial Port 3>
Connector: COM3
Type: D-sub male connector on bracket
Pin Description Pin Description
1 DCD- 6 DSR
2 SIN- 7 RTS
3 SO- 8 CTS
4 DTR- 9 RI
5 Ground
Connector: COM4/5/6
Type: 9-pin header connector for COM4/5/6
Pin Description Pin Description
1 DCD 6 DSR
2 SIN 7 RTS
3 SO 8 CTS
4 DTR 9 RI
5 Ground
A.5 <VGA Port>
Connector: CRT
Type: 15-pin D-sub female connector on bracket
Pin Description Pin Description Pin Description
1 RED 6 Ground 11 N/C
2 GREEN 7 Ground 12 DDCDA
3 BLUE 8 Ground 13 HSYNC
4 N/C 9 N/C 14 VSYNC
5 Ground 10 Ground 15 DDCCLK
51
9 6
9 1
10 2
6
1
2
3
4
5
10
11
12
13
14
15
-
37-
Page 40
MS-C71 User’s Manual
A.6 <LAN Port>
Connector: RJ45
Type: RJ45 connector with LED on bracket
Pin 1 2 3 4 5 6 7 8
Description MI0+ MI0- MI1+ MI2+ MI2- MI1- MI3+ MI3-
A.7 < USB Interface >
Connector: CN_USB 3/4/5/6
Type: 10-pin (5 x 2) header for dual USB Ports
Pin Description Pin Description
1 VCC 2 VCC
3 Data0- 4 Data15 Data0+ 6 Data1+
7 Ground 8 Ground
9 Ground 10 N/C
10
8
1
9
1
2
-
38-
Page 41
MS-C71 User’s Manual
Appendix B <Flash BIOS>
B.1 <Flash Tool>
The board is based on Phoenix BIOS and can be updated easily by the BIOS auto
flash tool. You can download the tool online at the address below:
http://www.phoenix.com/en/home/
http://www.commell.com.tw/Support/Support_SBC.htm
File name of the tool is “Phlash16.exe”, it’s the utility that can write the data into the
BIOS flash ship and update the BIOS.
B.2 <Flash BIOS Procedure>
1. Please make a bootable floppy disk.
2. Get the last .bin files you want to update and copy it into the disk.
3. Copy Phlash16.exe to the disk.
4. Power on the system and flash the BIOS. (Example: C:/Phlash16 XXX.ROM)
5. Restart the system.
Any question about the BIOS re-flash please contact your distributors or visit the
web-site at below:
http://www.commell.com.tw/support/support.htm
UT
-
39-
Page 42
MS-C71 User’s Manual
Appendix C <System Resources>

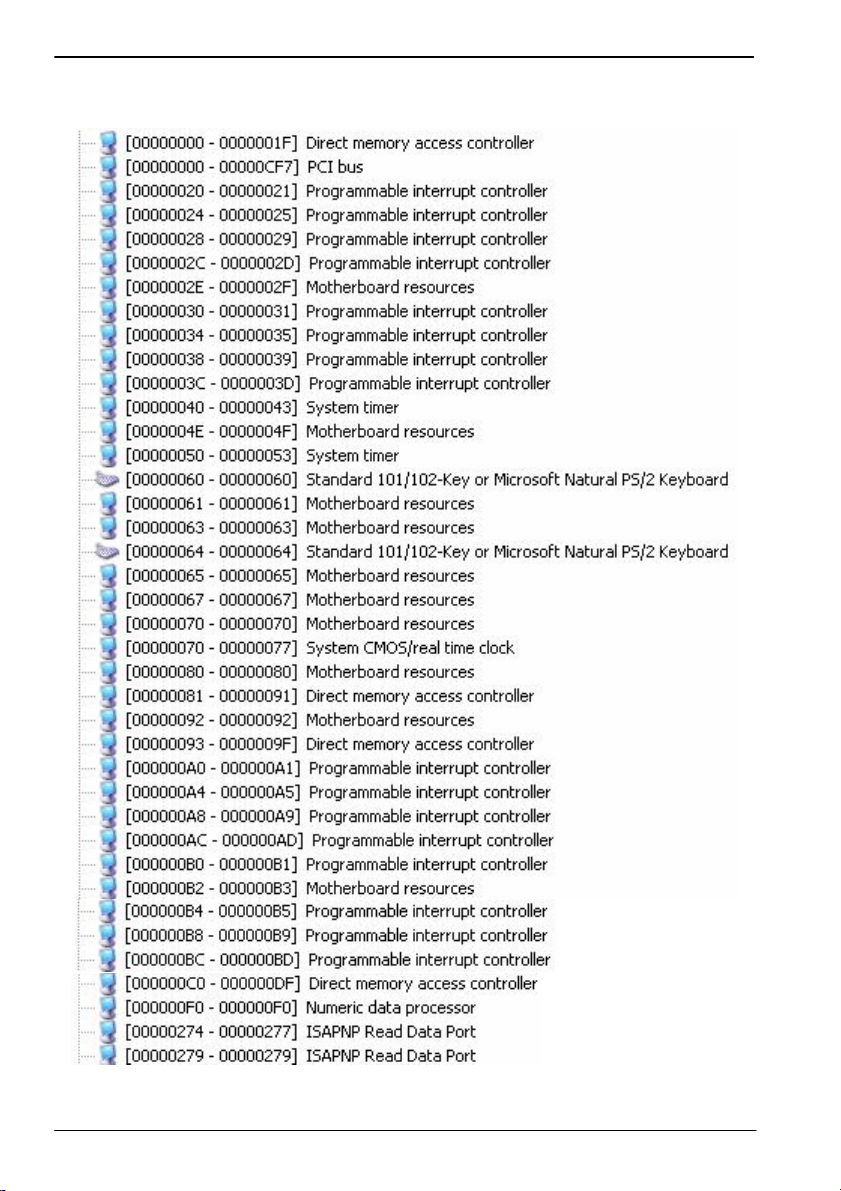

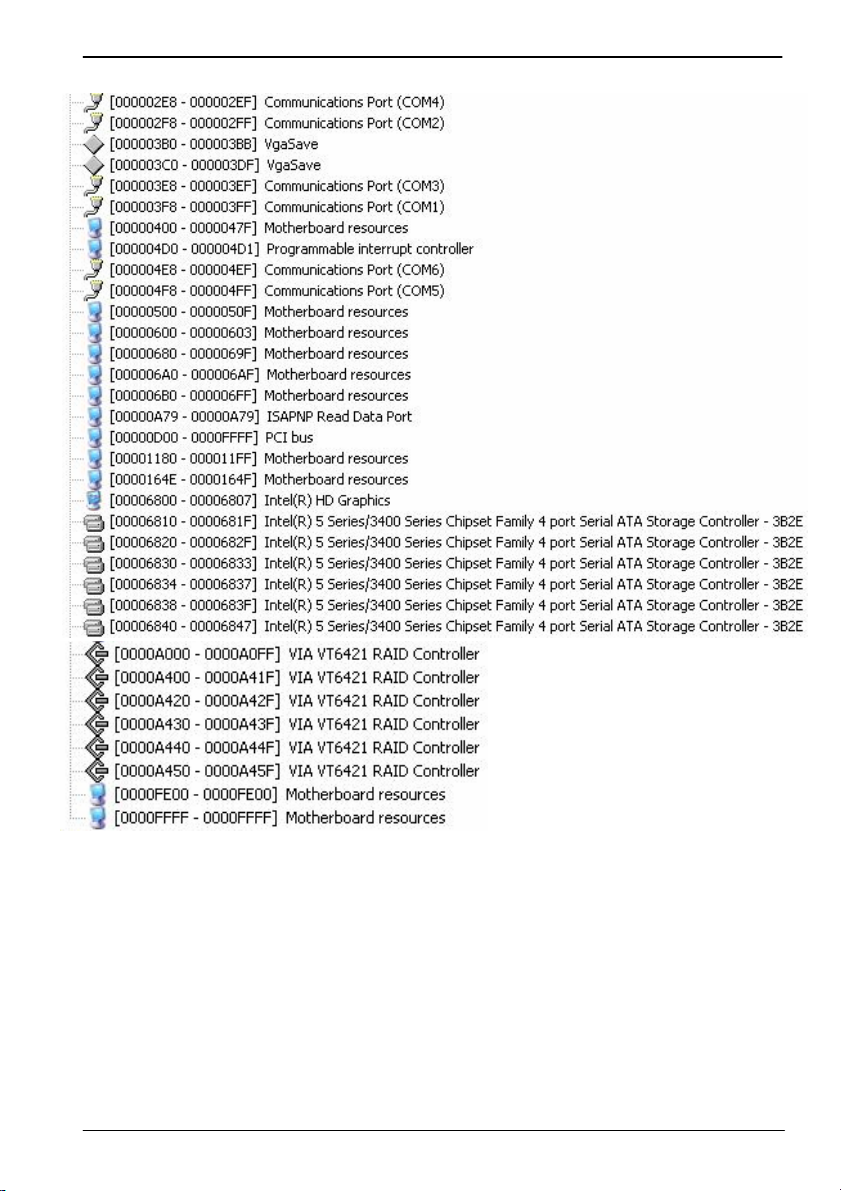

C.1 <I/O Port Address Map>
-
40-
Page 43
MS-C71 User’s Manual
-
41-
Page 44
MS-C71 User’s Manual

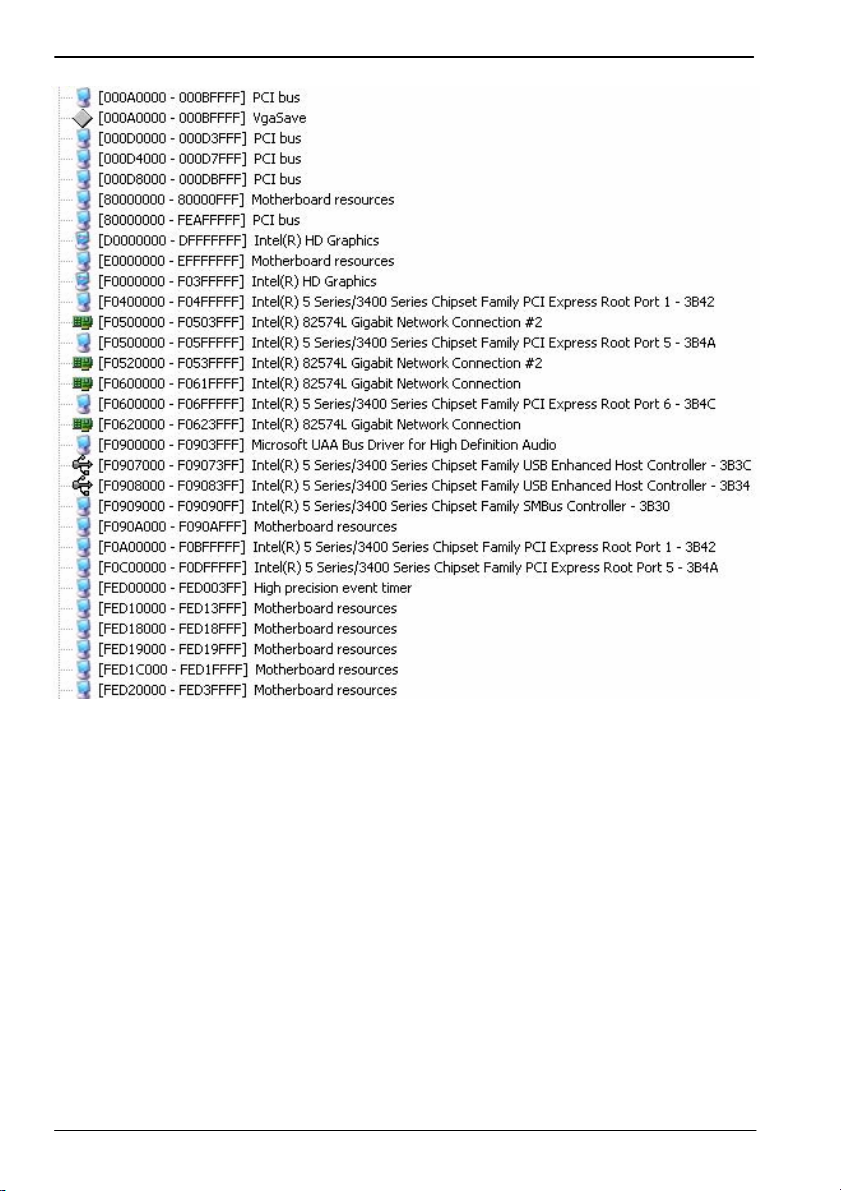

C.2 <Memory Address Map>
-
42-
Page 45
MS-C71 User’s Manual

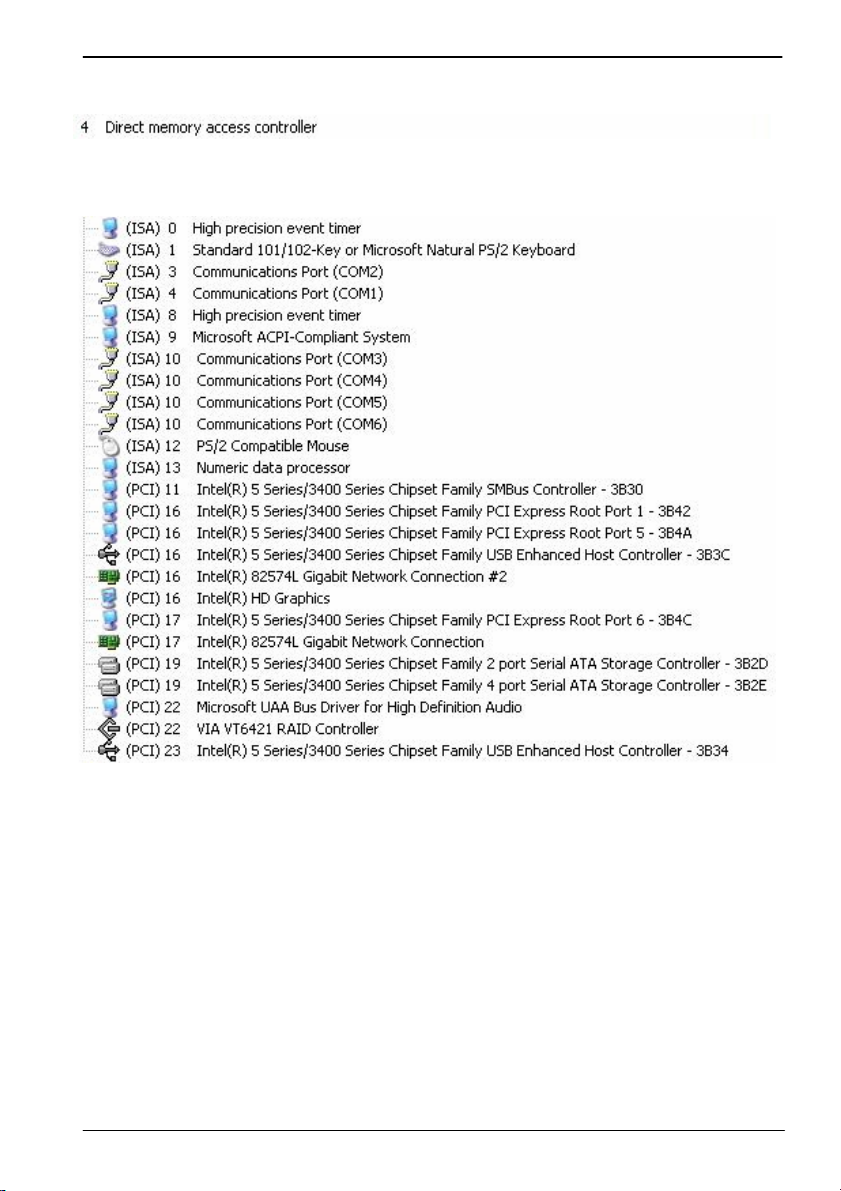

C.3 <System DMA & IRQ Resources>
DMA:
IRQ:
-
43-
Page 46
MS-C71 User’s Manual
Appendix D <Programming GPIO’s>
The GPIO’ can be programmed with the MSDOS debug program using
simple IN/OUT commands. The following lines show an example how to
Do this.
GPIO0…..GPIO7 bit0……bit7
-o 2 E 87 ;enter configuration
-o 2E 87
-o 2E 07
-o 2F 09 ; enable GPIO function
-o 2E 30
-o 2F 02 ; enable GPIO configuration
-o 2E F0
-o 2F xx ; set GPIO as input/output; set ‘1’ for input,’0’for
output
-o 2E F1
-o 2F xx ; if set GPIO’s as output, in this register its value can
be set
Optional :
-o 2E F2
-o 2F xx ; Data inversion register; ‘1’ inverts the current values
of the bits ,’0’ leaves them as they are
-o 2E 30
-o 2F 01 ; active GPIO’s
For further information, please refer to Winbond W83627DHG datasheet.
-
44-
Page 47
MS-C71 User’s Manual

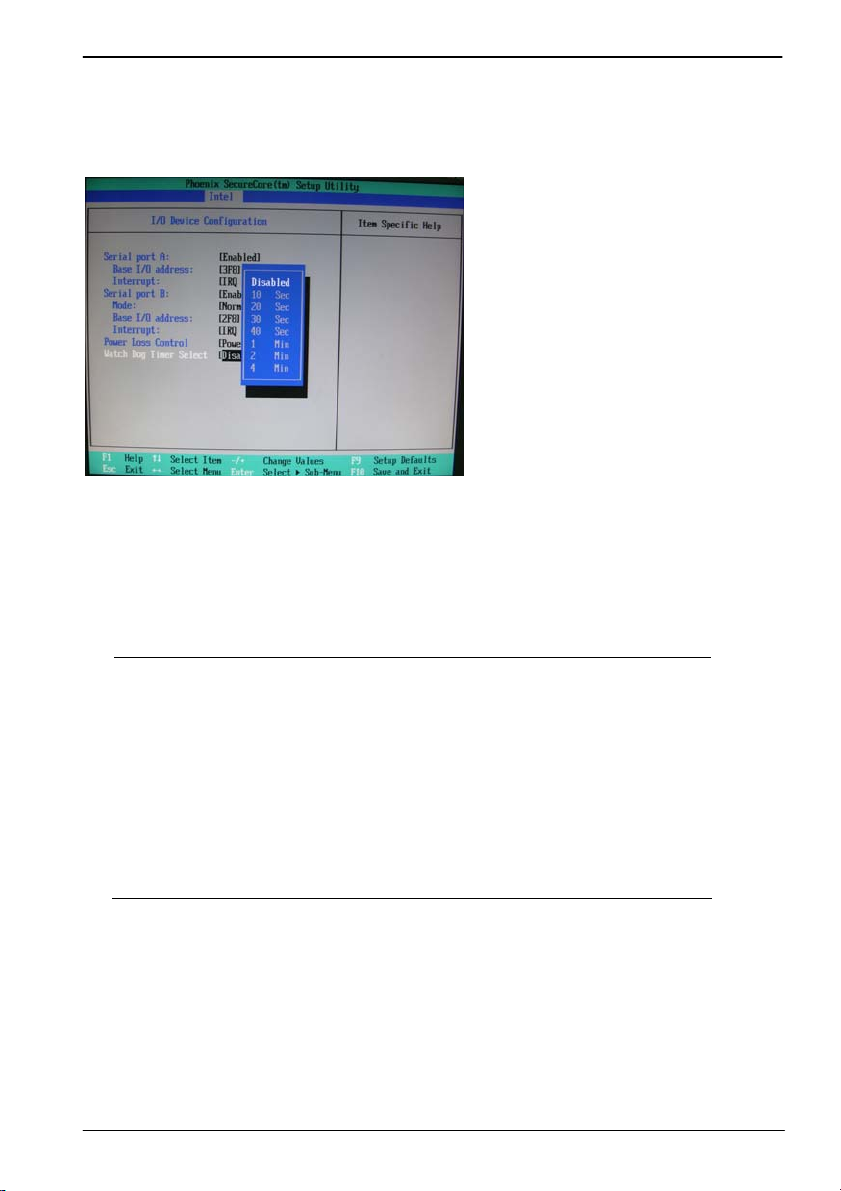

Appendix E <Programming Watchdog Timer >
The watchdog timer makes the system auto-reset while it stops to work for a period.
The integrated watchdog timer can be setup as system reset mode by program.
Timeout Value Range
- 1 to 255
- Second or Minute
Program Sample
Watchdog timer setup as system reset with 5 second of timeout
2E, 87
2E, 87
2E, 07
2F, 08 Logical Device 8
2E, 30 Activate
2F, 01
2E, F5 Set as Second*
2F, 00
2E, F6 Set as 5
2F, 05
* Minute: bit 3 = 0; Second: bit 3 = 1
You can select Timer setting in the BIOS, after setting the time options, the system
will reset according to the period of your selection.
-
45-
Page 48
MS-C71 User’s Manual
Appendix F <How to setting RS-232/RS-422/RS-485>
Function JCSEL1 JCSEL2
2
1
JCSEL2
SIR
RS-422
RS-485
RS-232
12
11
8
2
1
7
2
8
1
7
2
8
1
7
2
8
1
7
2
1
2 12
1
2
1
2
1
12
11
11
12
11
12
11
8
2
1 7
JCSEL1
-
46-
Page 49
MS-C71 User’s Manual
Contact Information
Any advice or comment about our products and service, or
anything we can help you please don’t hesitate to contact with us.
We will do our best to support you for your products, project a
business.
Taiwan Commate Computer Inc.
Address
TEL +886-2-26963909
FAX +886-2-26963911
Website
E-Mail
Facebook
Twitter https://twitter.com/Taiwan_Commate
19F, No. 94, Sec. 1, Shin Tai Wu Rd., Xizhi Dist.,
New Taipei City, Taiwan
https://www.facebook.com/pages/Taiwan-Commate-Computer-Inc/547993955271899
Commell is a brand name of Taiwan commate computer Inc.
-
47-
Loading...
