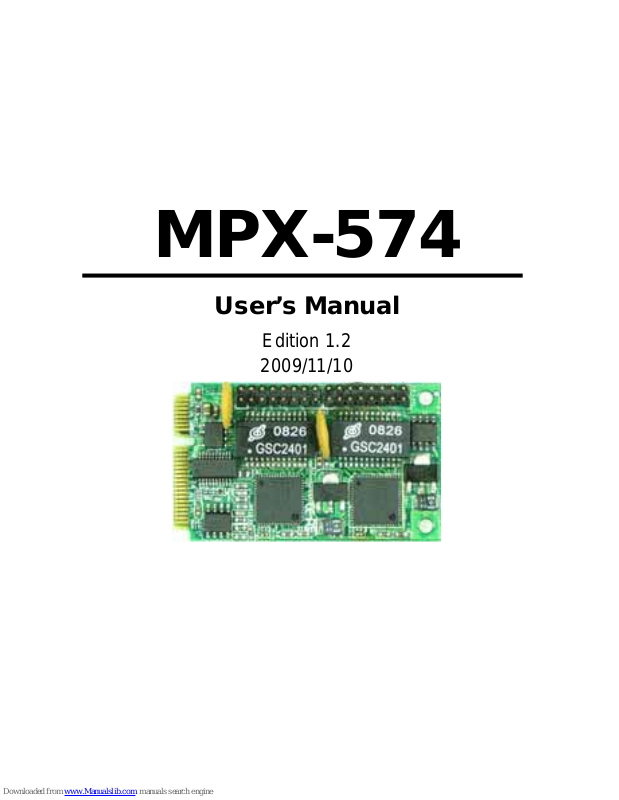

Page 1
MPX-574
User’s Manual
Edition 1.2
2009/11/10
Page 2
MPX-574 User’s Manual
2
Copyright
Copyright 2008 all rights reserved. This document is copyrighted and all rights are reserved.
The information in this document is subject to change without prior notice to make
improvements to the products.
This document contains proprietary informati on and protected by copyrig ht. No part of this
document may be reproduced, copied, or translated in any form or any means without prior
written permission of the manufacturer.
All trademarks and/or registered trademarks contains in this document are property of their
respective owners.
Disclaimer
The company shall not be liable for any incidental or consequential damages resulting from
the performance or use of this product.
The company does not issue a warranty of any kind, express or implied, includin g without
limitation implied warranties of merchantability or fitness for a particular purpose.
The company has the right to revise the manual or include changes in the specific ations of
the product described within it at any time without notice and without obligation to notify any
person of such revision or changes.
Trademark
All trademarks are the property of their respective holders.
Any questions please visit our website at TUhttp://www.commell.com.twUT.
Page 3
MPX-574 Use’s Manual
3
Packing List:
Hardware:
MPX-574 Mini-PCI Express LAN Card x1
CD Content:
Drivers & User’s Manual
Product Specification
General Specification
Form Factor Mini-PCI Express with 52-pin interface
Controller Intel 82574L Gigabit Ethernet
Compliance IEEE 802.3 Ethernet interface for 1000Base-T,
100Base-TX, and 10Base-T applications (802.3, 802.3u,
802.3ab).
Transfer Rate 1000 Mb/s, 100 Mb/s, or 10 Mb/s
Wake On LAN Supported (PME)
Dimensions (W x D) 30.00mm x 50.95mm
Cable kit:
MPX-574D: 1 PCS (OALGLAN)
MPX-574D2: 2 PCS (OALGLAN)
Page 4
MPX-574 User’s Manual
4

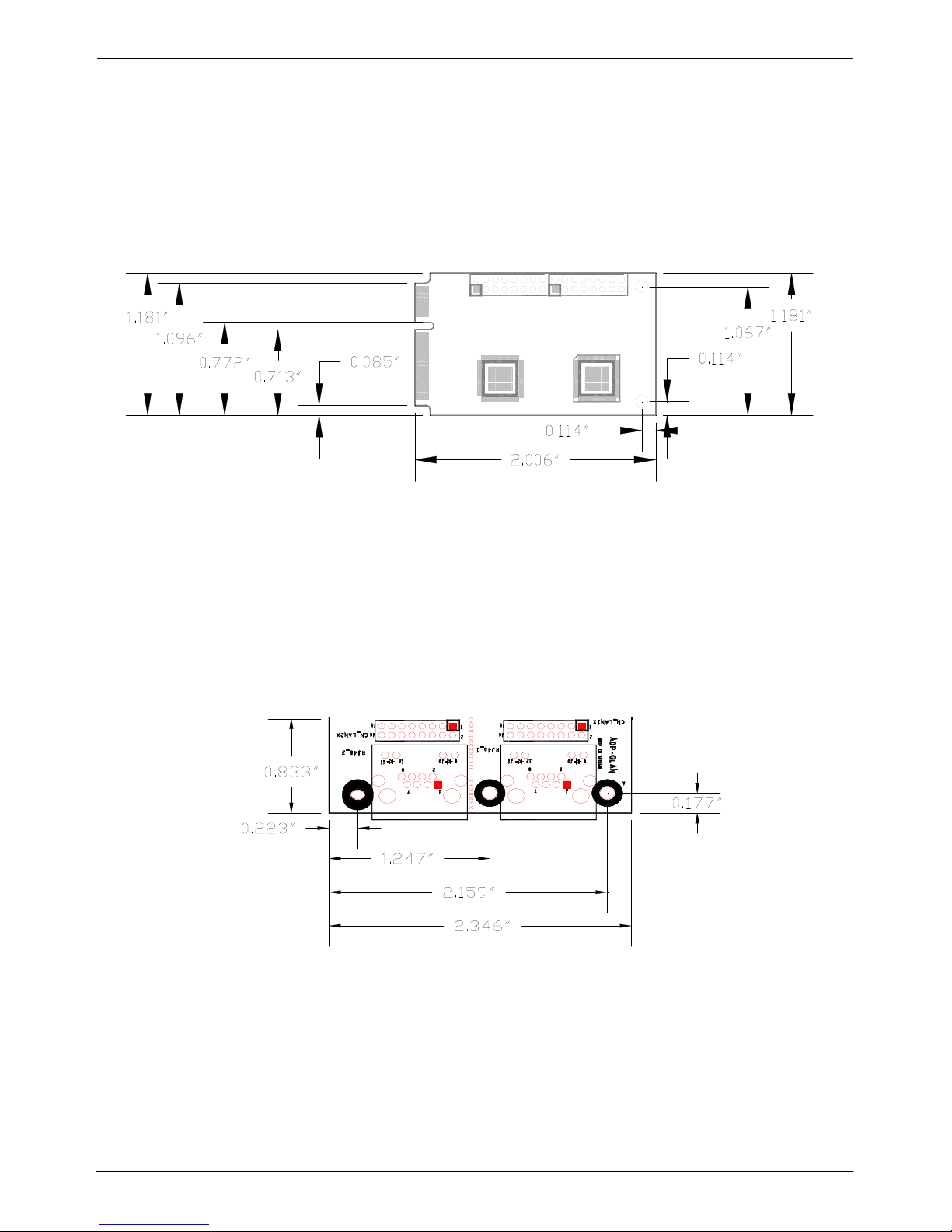

Mechanical Drawing
MPX-574:
LAN Adapter:
Page 5
MPX-574 Use’s Manual
5

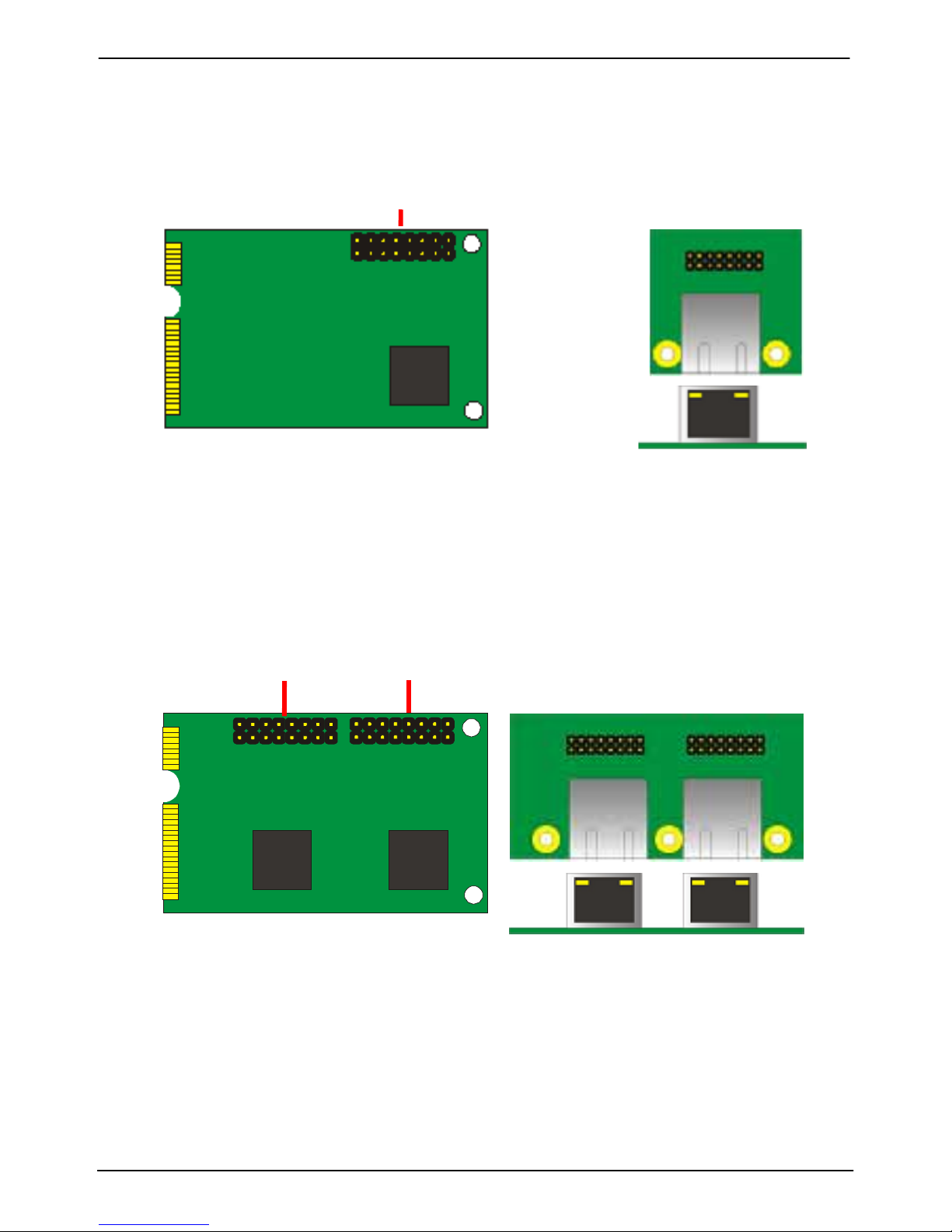

Component Placement
CN_LAN1
MPX-574D:
16
1
15
2
CN_LAN2 CN_LAN1
RJ45_2 RJ45_1
16
1
15
2
16
1
15
2
RJ45_1
MPX-574D2:
1
162
15
1
16
2
15
1
16
2
15
Page 6
MPX-574 User’s Manual
6

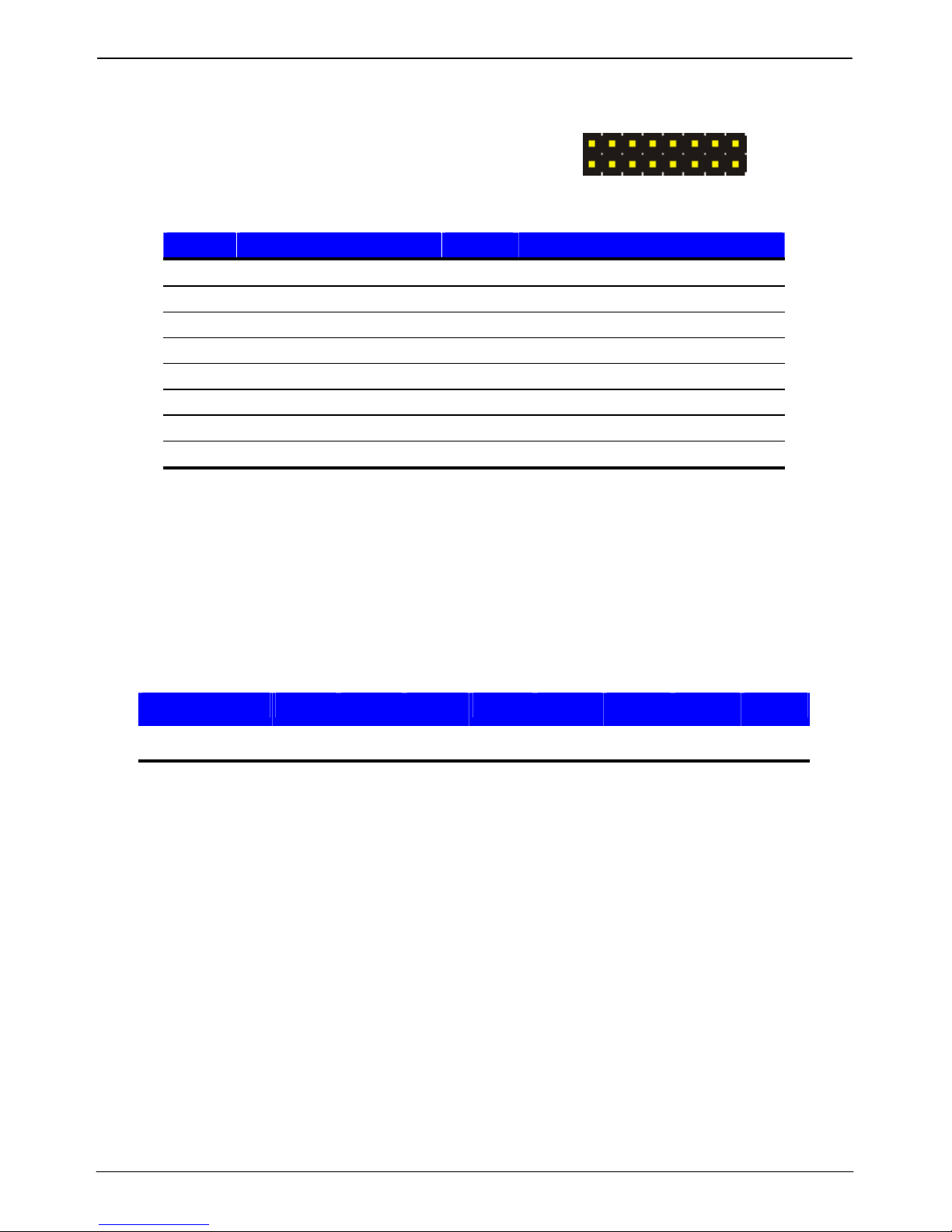

Connector Reference
Connector: CN_LAN1/2
Connector Type:
16-pin (8 x 2) 2.0 x 2.0 mm header
Pin Description Pin Description
1 RTD0+ 2 RTD1+
3 RTD0- 4 RTD15 GND 6 GND
7 RTD2+ 8 RTD3+
9 RTD2- 10 RTD311 GND 12 GND
13 Active 14 Link100
15 Link 16 Link1000
LAN Connector: RJ45_1/2
Connector Type:
16-pin (8 x 2) 2.0 x 2.0 mm header
RJ45 10/100/1000Mbps connector (MPX-574)
Pin 1 2 3 4 5 6 7 8
Description TRD0+ TRD0- TRD1+ TRD2+ TRD2- TRD1- TRD3+ TRD3-
2 16
1 15
Page 7
MPX-574 User’s Manual Contact Information
Contact Information 7
Contact Information
Any advice or comment about our products and service, or anything
we can help you please don’t hesitate to contact with us. We will do
our best to support you for your products, projects and business.
Taiwan Commate Computer Inc.
Address
19F, No. 94, Sec. 1, Shin Tai Wu Rd., Shi Chih
Taipei Hsien, Taiwan
TEL +886-2-26963909
FAX +886-2-26963911
Website
TUhttp://www.commell.com.twUT
E-Mail
Commell is the trademark of Taiwan Commate Computer INC.
