Page 1
MPX-350
Dual Gigabit Ethernet Mini Card
User’s Manual
Edition 1.0
2016/08/26
Page 2
MPX-350 User’s Manual
-1-
Packing List:
Please check the package content before you starting using the card.
(Include Bracket)
2 x Adapter LAN Cable
(OALGLAN-A-20 / 1040617)
1 x Dual LAN Adapter
(BADPGLAND2_A / 4120007021)
(L=200mm)
1 x CD Driver
(OCDPRI-3.1 / 1250055)
a.
b.
c.
Page 3
MPX-350 User’s Manual
-2-
Index
1 <Product Overview> .................................................................... 3
2 <Features> ................................................................................... 4
3 <Block Diagram> ......................................................................... 5
4 <Product Specifications> ............................................................ 6
4.1 < Recommended Operating Conditions > ............................ 7
4.2 < Power Consumption > ................................ ...................... 7
5 <Pin-out Definition> ..................................................................... 8
6 <Component Placement> ......................................................... 10
6.1 < Connector Reference > ................................................... 10
6.2 < Cable connection > ......................................................... 12
7 <Mechanical Drawing> ............................................................. 13
Contact information ...................................................................... 16
Page 4
MPX-350 User’s Manual
-3-
1 <Product Overview>
MPX-350 IEEE IEEE* 802.3* PCIE module is the dual-port gigabit Ethernet solution with
multiple interface options to let users. It enables a high performance, cost effective, low
power.
Compliant with the standard IEEE 802.3 Ethernet interface for 1000BASE-T, 100BASE-TX,
and 10BASE-T applications (802.3, 802.3u, and 802.3ab)
MPX-350 run up to two 1GbE ports with enhanced power-saving and market-leading
flexible I/O virtualization, including Virtual Machine Device Queues (VMDQ) and single root
I/O virtualization (SR-IOV). Intel’s software drivers and support are unmatched for virtual or
non-virtualized environments.
MPX-350 module adopts Intel® Ethernet Controller I350 Family solution. The module
design is based on the Intel® Ethernet Controller I350-AM2 .
Page 5
MPX-350 User’s Manual
-4-
2 <Features>
Low power consumption and high performance
One PCIe lane to Dual Gigabit LAN
Support Mini card PCI-E 1.1 & 1.2 standard specification
Support WOL and PXE
Page 6
MPX-350 User’s Manual
-5-
3 <Block Diagram>
Mini Card
Connector
3.3V Power Supply
PCIE
I350-AM2
Transformer
Transformer
Page 7
MPX-350 User’s Manual
-6-
4 <Product Specifications>
Product Description
Host Interface
PCI-E
Controller
Intel® I350-AM2 Dual Gigabit Ethernet Controller
Dimension
30.00mm x 50.95mm
Weight
3g
Operating Conditions
Voltage
3.3V +/-5%
Temperature
0~55°C
Storage
Temperature
-40~+85°C
General Specifications
From factor
Mini-PCI Express with 52-pin interface
Compliance
IEEE 802.3 Ethernet interface for 1000Base-T, 100Base-TX, and
10Base-T applications (802.3, 802.3u, 802.3ab).
Advanced
technologies
I/O Virtualization , WoL, VLAN filtering, PXE remote boot
Transfer Rate
1000 Mb/s, 100 Mb/s, or 10 Mb/s
Support OS
Win7 x32&x64, Win8 x32&x64, Win8.1 x32&x64,
Win10 x32&x64, Win server 2012 R2.
Linux (kernel versions 2.6.30 or newer)
Page 8
MPX-350 User’s Manual
-7-
4.1 < Recommended Operating Conditions >
4.2 < Power Consumption >
Symbol
Parameter
Rating
Unit
Vdd33
I/O voltage
3.135~3.465
V
Test Bed
COMMELL LV-67M
Test OS
Windows 7 Ultimate x64
Test AP
Iperf
Driver version
12.13.27.0
Test voltage
3.3V
Connect AP
MAX
1.2W
Page 9
MPX-350 User’s Manual
-8-
5 <Pin-out Definition>
Pin No.
Definition
Basic Description
Type
1
WAKE#
Power management event : open drain, active low
Use to reactivate the PCI Express slot’s main power
rails and reference clocks. Connected internally to
I350-AM2.
O/D
2
3.3V/3.3VAUX
3.3V/3.3AUX power supply
VCC
3
NC
Floating Pin, No connect to anything.
4
GND
Ground.
GND
5
NC
Floating Pin, No connect to anything.
6
NC
Floating Pin, No connect to anything.
7 NC
Reference clock request
8 NC
Floating Pin, No connect to anything.
9 GND
Ground.
GND
10
NC
Floating Pin, No connect to anything.
11
REFCLK-
Differential reference clock.
Input
12
NC
Floating Pin, No connect to anything.
13
REFCLK+
Differential reference clock.
Input
14
NC
Floating Pin, No connect to anything.
15
GND
Ground.
GND
16
NC
Floating Pin, No connect to anything.
17
NC
Floating Pin, No connect to anything.
18
GND
Ground.
GND
19
NC
Floating Pin, No connect to anything.
20
NC
Floating Pin, No connect to anything.
21
GND
Ground.
GND
22
PERST#
PCI express fundamental reset.
Input 23
HSIN0
Differential transmit.
Output
24
3.3VAUX
3.3AUX power supply.
VCC
25
HSIP0
Differential transmit.
Output
26
GND
Ground.
GND
27
GND
Ground.
GND
28
NC
Floating Pin, No connect to anything.
Page 10
MPX-350 User’s Manual
-9-
29
GND
Ground.
GND
30
SMBCLK
SMBus clock signal.
Input 31
HSON0
Differential receive.
Input
32
SMB_DATA
SMBus data signal.
Input 33
HSOP0
Differential receive.
Input 34
GND
Ground.
GND
35
GND
Ground.
GND
36
NC
Floating Pin, No connect to anything.
37
GND
Ground.
GND
38
NC
Floating Pin, No connect to anything.
39
3.3VAUX
3.3AUX power supply.
40
GND
Ground.
GND
41
3.3VAUX
3.3AUX power supply.
42
NC
Floating Pin, No connect to anything.
43
GND
Ground.
GND
44
NC
Floating Pin, No connect to anything.
45
NC
Floating Pin, No connect to anything.
46
NC
Floating Pin, No connect to anything.
47
NC
Floating Pin, No connect to anything.
48
NC
Floating Pin, No connect to anything.
49
NC
Floating Pin, No connect to anything.
50
GND
Ground.
GND
51
NC
Floating Pin, No connect to anything.
52
3.3V/3.3AUX
3.3V/3.3AUX power supply
VCC
Page 11
MPX-350 User’s Manual
-10-

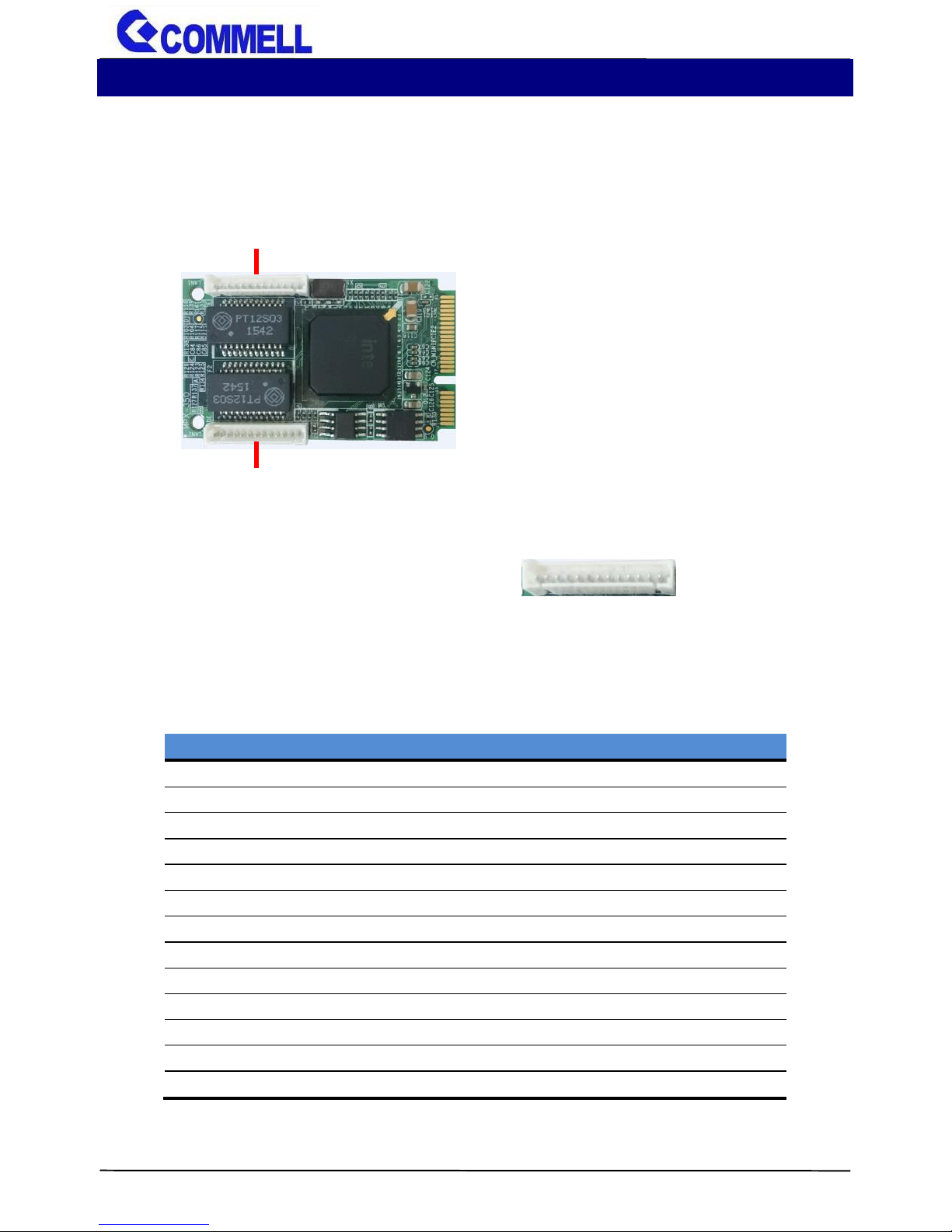

6 <Component Placement>
6.1 < Connector Reference >
Connector: CN_LAN1&2
Connector Type:
13-pin (13 x 1) , pitch : 1.25 mm ,DIP type
Straight P.C.B Connector
Pin
Description(LAN1)
Pin
Description(LAN2)
1
RTD00+
1
RTD10+
2
RTD00-
2
RTD10-
3
RTD01+
3
RTD11+
4
RTD01-
4
RTD11-
5
RTD02+
5
RTD12+
6
RTD02-
6
RTD12-
7
RTD03+
7
RTD13+
8
RTD03-
8
RTD13-
9
GND
9
GND
10
RLINK1G0-
10
RLINK1G1-
11
RLINK1H0-
11
RLINK1H1-
12
RACTLED0-
12
RACTLED1-
13
RLINK0-
13
RLINK1-
1 13
CN_LAN1
1
13 1 13
MPX-350:
CN_LAN2
Page 12
MPX-350 User’s Manual
-11-

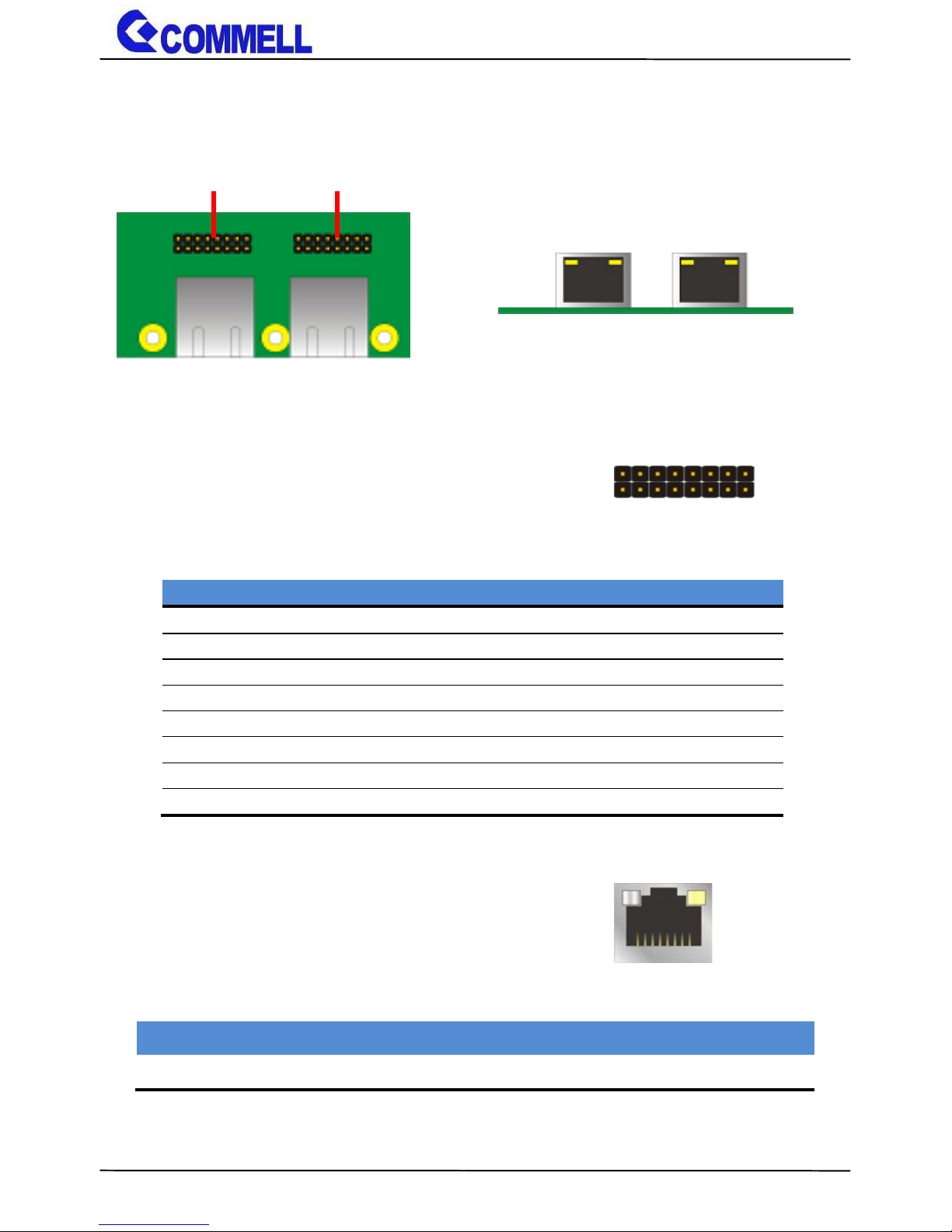

CN_LAN1X/CN_LAN2X
Connector Type:
16-pin (8 x 2) 2.0 x 2.0 mm Straight Type Header
Pin
Description
Pin
Description
1
RTD0+
2
RTD1+
3
RTD0-
4
RTD1-
5
NC
6
GND
7
RTD2+
8
RTD3+
9
RTD2-
10
RTD3-
11
GND
12
GND
13
LINK1
14
Link100
15
ACTLED1
16
Link1000
Adapter LAN Connector: RJ45_1/2
RJ45 10/100/1000Mbps connector
Pin
1 2 3 4 5 6 7 8 Description
MDI0+
MDI0-
MDI1+
MDI1-
MDI2+
MDI2-
MDI3+
MDI3-
8 1
LAN Adapter :
RJ45_2 RJ45_1
15 1
15 1
16 2
16 2
(Include Bracket)
15 1
16 2
CN_LAN2X
CN_LAN1X
Page 13
MPX-350 User’s Manual
-12-

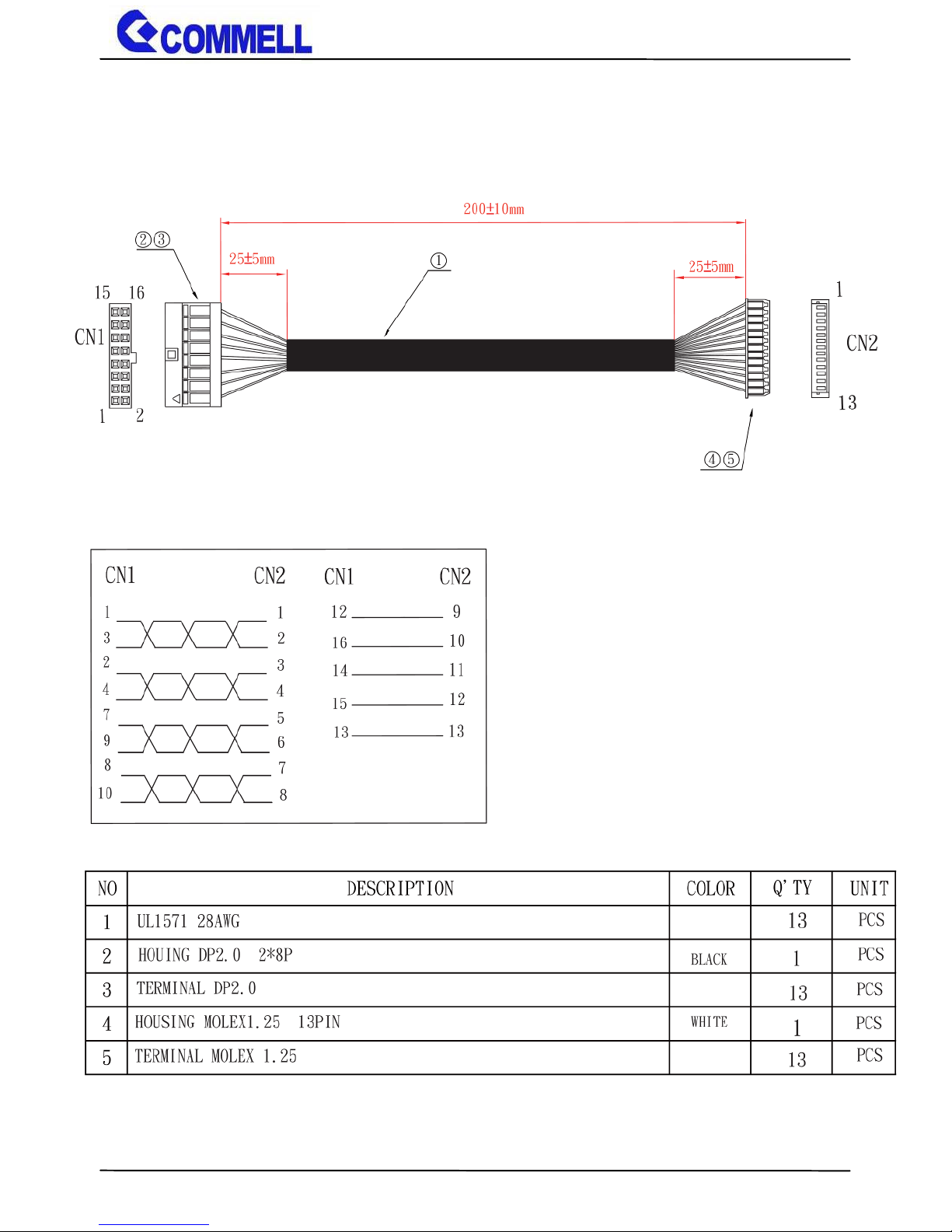

6.2 < Cable connection >
Page 14
MPX-350 User’s Manual
-13-

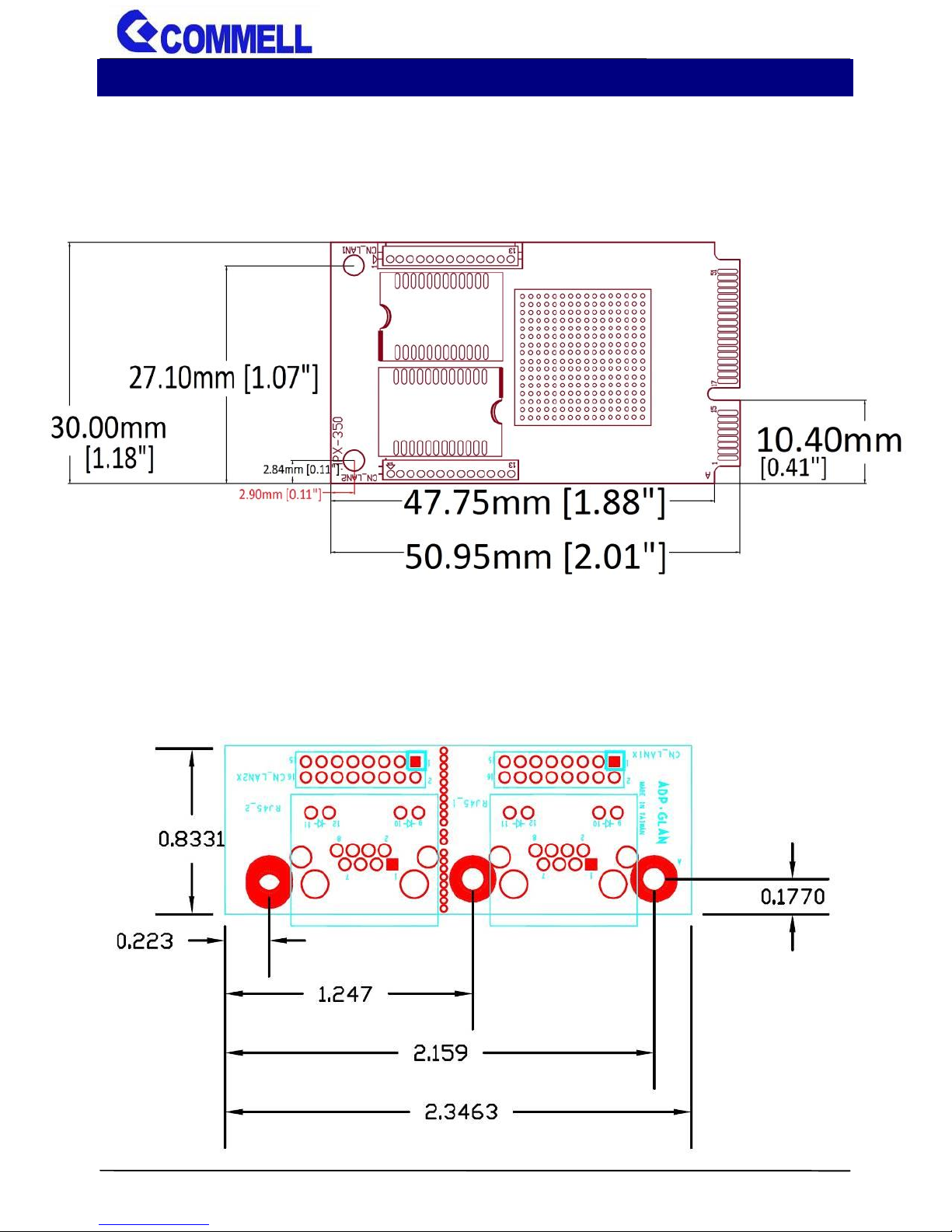

7 <Mechanical Drawing>
LAN Adapter: (Units:inch)
MPX-350: (Units:mm /inch)
Page 15
MPX-350 User’s Manual
-14-

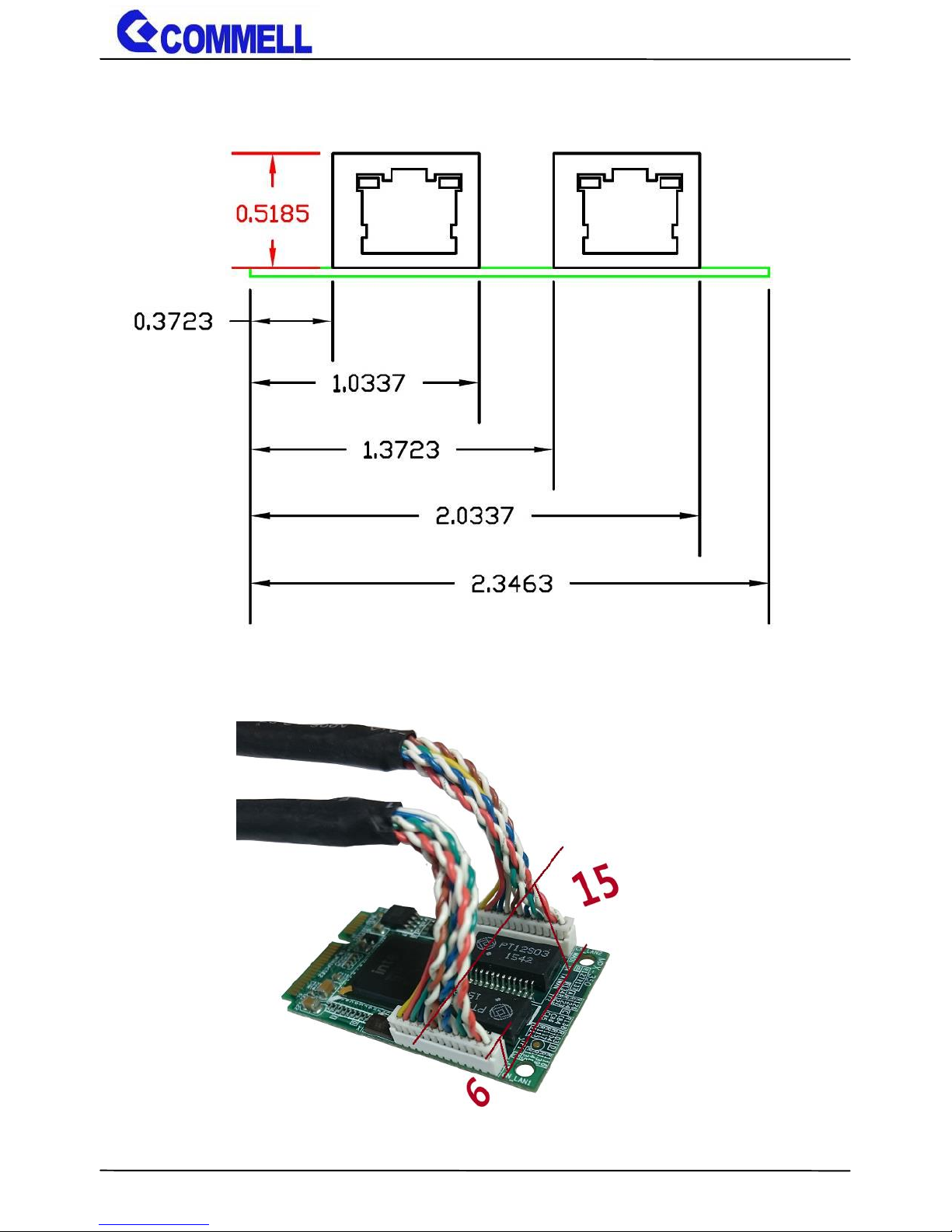

Mechanical height : (Units:mm)
Page 16
MPX-350 User’s Manual
-15-
Bracket: (Units:mm)
Page 17
MPX-350 User’s Manual
-16-
Contact information
Any advice or comment about our products and service, or anything we can help
you please don’t hesitate to contact with us. We will do our best to support you for
your products, projects and business.
Taiwan Commate computer Inc.
Address
19F., NO.94, Sec. 1, Xintai 5th Rd., Xizhi Dist., New Taipei
City 22102, Taiwan.
TEL
+886-2-26963909
FAX
+886-2-26963911
Website
www.commell.com.tw
E-mail
