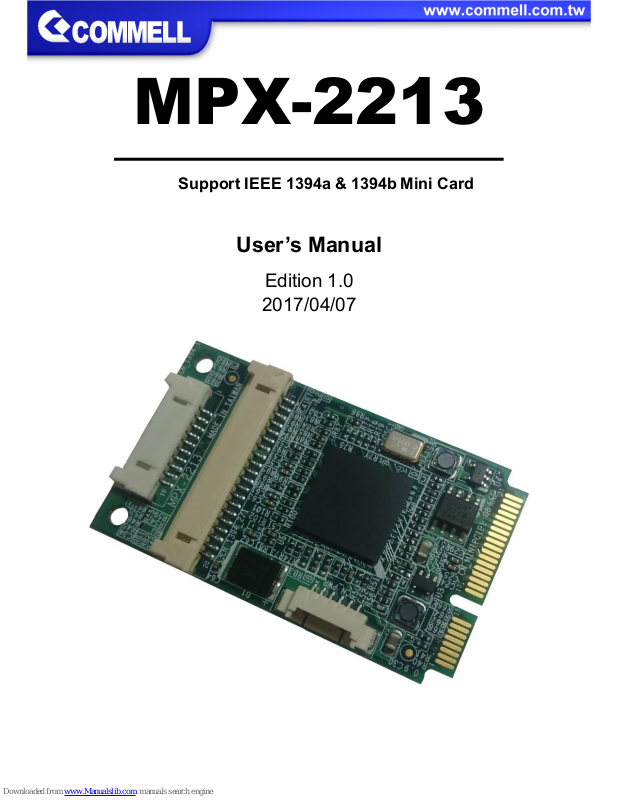

Page 1
MPX-2213
Support IEEE 1394a & 1394b Mini Card
User’s Manual
Edition 1.0
2017/04/07
Page 2
MPX-2213 User’s Manual
-1-
Packing List:
Please check the package content before you starting using the card.
1 x 1394b Cable
(OAL1394-DF1420 / 1040616)
1 x IO Module
(ADP-1394)
a.
b.
1 x 1394a Cable
(OAL1394-DF1410 / 1040615)
1 x 4PIN HSG to 6PIN for Power
(OAL4P-6 / 1040284)
Page 3
MPX-2213 User’s Manual
-2-
Index
1 <Product Overview>.................................................................................. 2
2 <Features> ................................................................................................. 3
3 <Block Diagram> ....................................................................................... 4
4 <Product Specifications> ......................................................................... 5
4.1 < Recommended Operating Conditions > ................................................... 6
4.2 < Power Consumption > ............................................................................. 6
5 <Pin-out Definition> .................................................................................. 7
6 <Component Placement> ......................................................................... 9
6.1 < Connector Reference > ............................................................................ 9
6.2 < Cable connection > ................................................................................ 11
6.3 < Device Manager shows > ....................................................................... 13
7 <Mechanical Drawing> ........................................................................... 14
Contact information ................................................................................... 15
Page 4
MPX-2213 User’s Manual
-3-
1 <Product Overview>
MPX-2213 The 1394b OHCI controller function is fully compatible with IEEE Std
1394b and the latest 1394 Open Host Controller Interface (OHCI) Specification.
MPX-2213 capable of transferring data between the PCIe bus and the 1394 bus at
100M bit/s, 200M bit/s, 400M bit/s, and 800M bit/s.
MPX-2213 provides full PCIe and 1394b functionality and performance.
Page 5
MPX-2213 User’s Manual
-4-
2 <Features>
Fully Compliant With PCI Express Base Specification, Revision 1.1
Supports Provisions of IEEE Std P1394b- 2002 and IEEE Std
1394-1995 for IEEE Std 1394a-2000
Fully Compliant With 1394 Open Host States Controller Interface
(OHCI) Specification,Revision 1.1 and Revision 1.2 Draft
Page 6
MPX-2213 User’s Manual
-5-
3 <Block Diagram>
Mini Card
Connector
3.3V Power Supply
PCIE
XIO2213B
2 x 1394b
1 x 1394a
Additional 12V Power Supply
Page 7
MPX-2213 User’s Manual
-6-

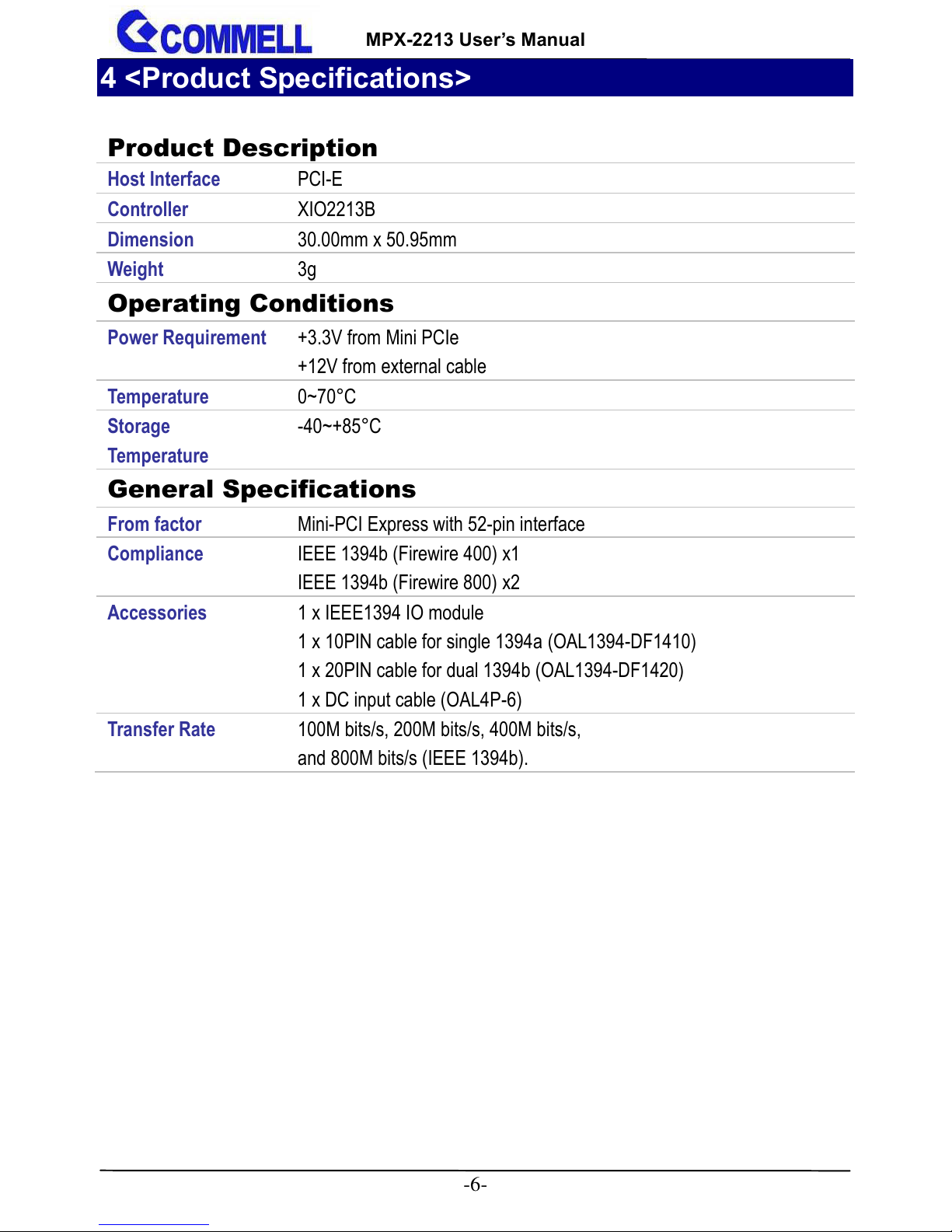

4 <Product Specifications>
Product Description
Host Interface
PCI-E
Controller
XIO2213B
Dimension
30.00mm x 50.95mm
Weight
3g
Operating Conditions
Power Requirement
+3.3V from Mini PCIe
+12V from external cable
Temperature
0~70°C
Storage
Temperature
-40~+85°C
General Specifications
From factor
Mini-PCI Express with 52-pin interface
Compliance
IEEE 1394b (Firewire 400) x1
IEEE 1394b (Firewire 800) x2
Accessories
1 x IEEE1394 IO module
1 x 10PIN cable for single 1394a (OAL1394-DF1410)
1 x 20PIN cable for dual 1394b (OAL1394-DF1420)
1 x DC input cable (OAL4P-6)
Transfer Rate
100M bits/s, 200M bits/s, 400M bits/s,
and 800M bits/s (IEEE 1394b).
Page 8
MPX-2213 User’s Manual
-7-

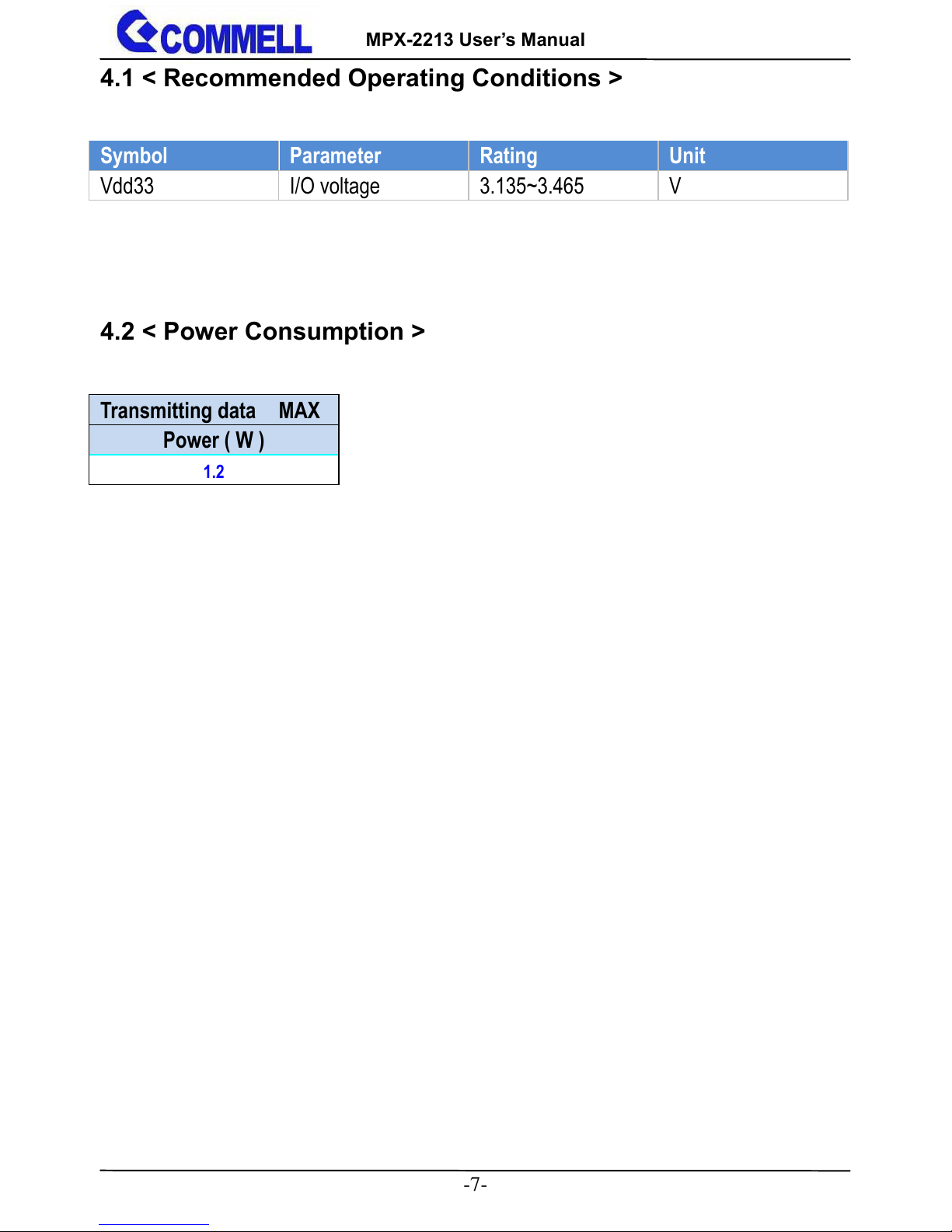

4.1 < Recommended Operating Conditions >
4.2 < Power Consumption >
Symbol
Parameter
Rating
Unit
Vdd33
I/O voltage
3.135~3.465
V
Transmitting data MAX
Power ( W )
1.2
Page 9
MPX-2213 User’s Manual
-8-

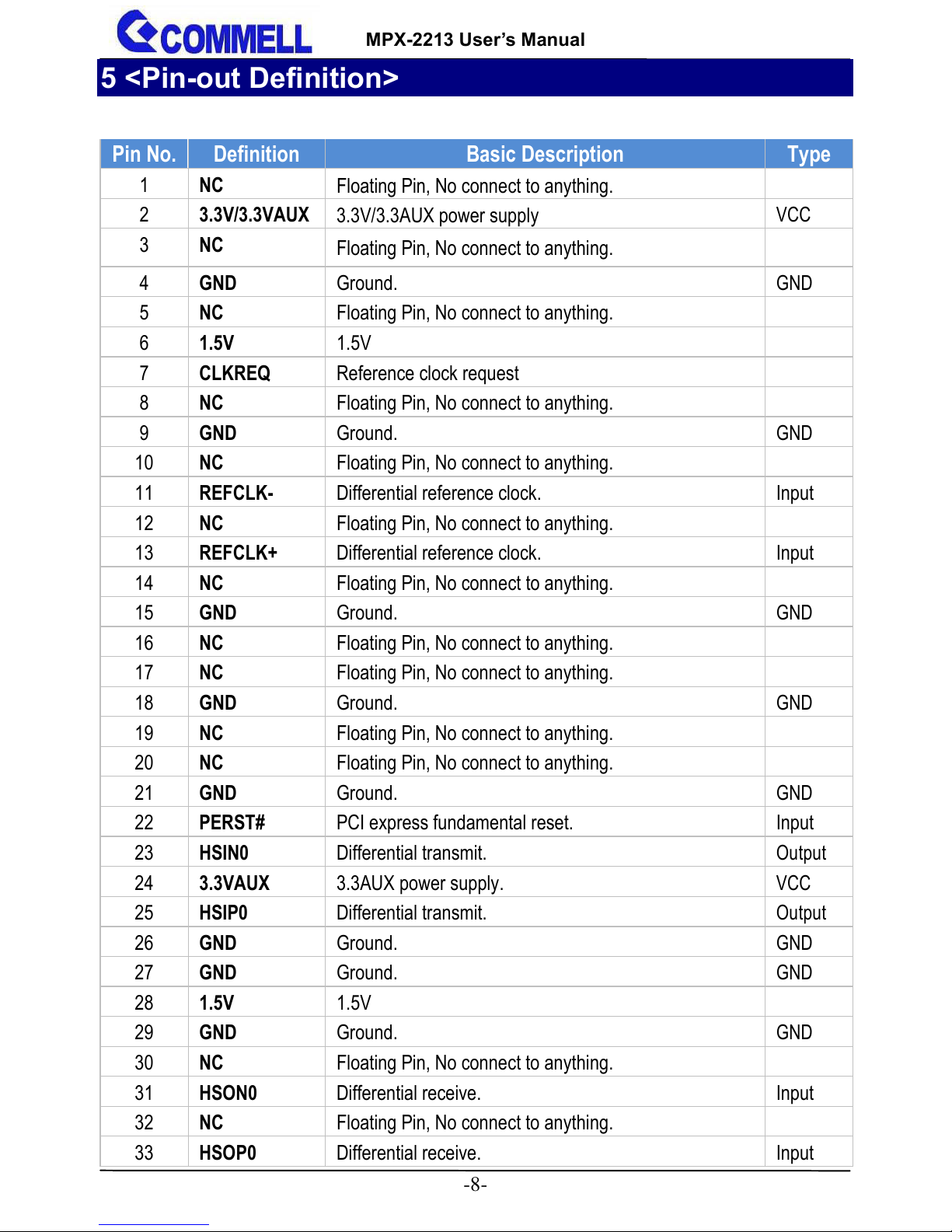

5 <Pin-out Definition>
Pin No.
Definition
Basic Description
Type
1
NC
Floating Pin, No connect to anything.
2
3.3V/3.3VAUX
3.3V/3.3AUX power supply
VCC
3
NC
Floating Pin, No connect to anything.
4
GND
Ground.
GND
5
NC
Floating Pin, No connect to anything.
6
1.5V
1.5V
7
CLKREQ
Reference clock request
8
NC
Floating Pin, No connect to anything.
9
GND
Ground.
GND
10
NC
Floating Pin, No connect to anything.
11
REFCLK-
Differential reference clock.
Input
12
NC
Floating Pin, No connect to anything.
13
REFCLK+
Differential reference clock.
Input
14
NC
Floating Pin, No connect to anything.
15
GND
Ground.
GND
16
NC
Floating Pin, No connect to anything.
17
NC
Floating Pin, No connect to anything.
18
GND
Ground.
GND
19
NC
Floating Pin, No connect to anything.
20
NC
Floating Pin, No connect to anything.
21
GND
Ground.
GND
22
PERST#
PCI express fundamental reset.
Input
23
HSIN0
Differential transmit.
Output
24
3.3VAUX
3.3AUX power supply.
VCC
25
HSIP0
Differential transmit.
Output
26
GND
Ground.
GND
27
GND
Ground.
GND
28
1.5V
1.5V
29
GND
Ground.
GND
30
NC
Floating Pin, No connect to anything.
31
HSON0
Differential receive.
Input
32
NC
Floating Pin, No connect to anything.
33
HSOP0
Differential receive.
Input
Page 10
MPX-2213 User’s Manual
-9-

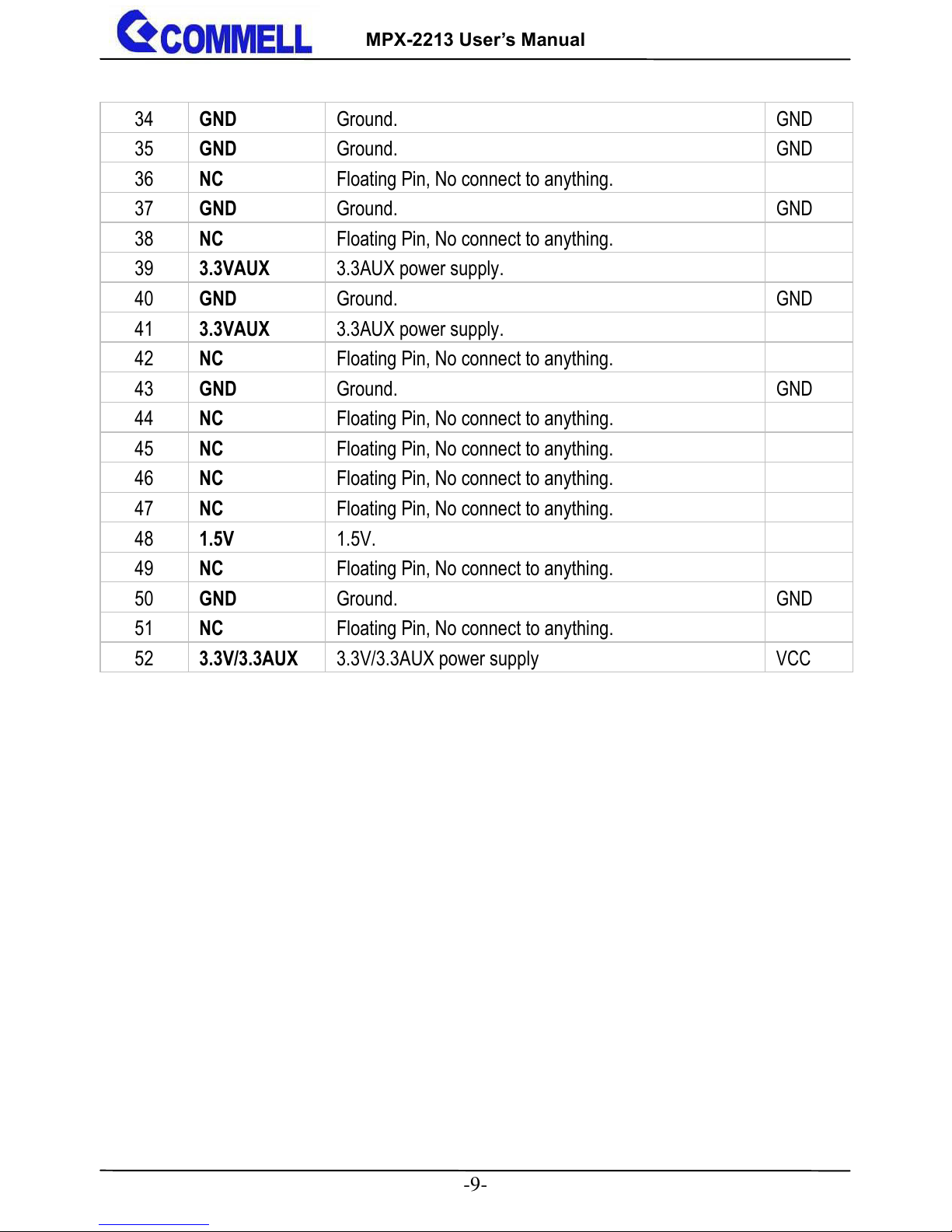

34
GND
Ground.
GND
35
GND
Ground.
GND
36
NC
Floating Pin, No connect to anything.
37
GND
Ground.
GND
38
NC
Floating Pin, No connect to anything.
39
3.3VAUX
3.3AUX power supply.
40
GND
Ground.
GND
41
3.3VAUX
3.3AUX power supply.
42
NC
Floating Pin, No connect to anything.
43
GND
Ground.
GND
44
NC
Floating Pin, No connect to anything.
45
NC
Floating Pin, No connect to anything.
46
NC
Floating Pin, No connect to anything.
47
NC
Floating Pin, No connect to anything.
48
1.5V
1.5V.
49
NC
Floating Pin, No connect to anything.
50
GND
Ground.
GND
51
NC
Floating Pin, No connect to anything.
52
3.3V/3.3AUX
3.3V/3.3AUX power supply
VCC
Page 11
MPX-2213 User’s Manual
-10-

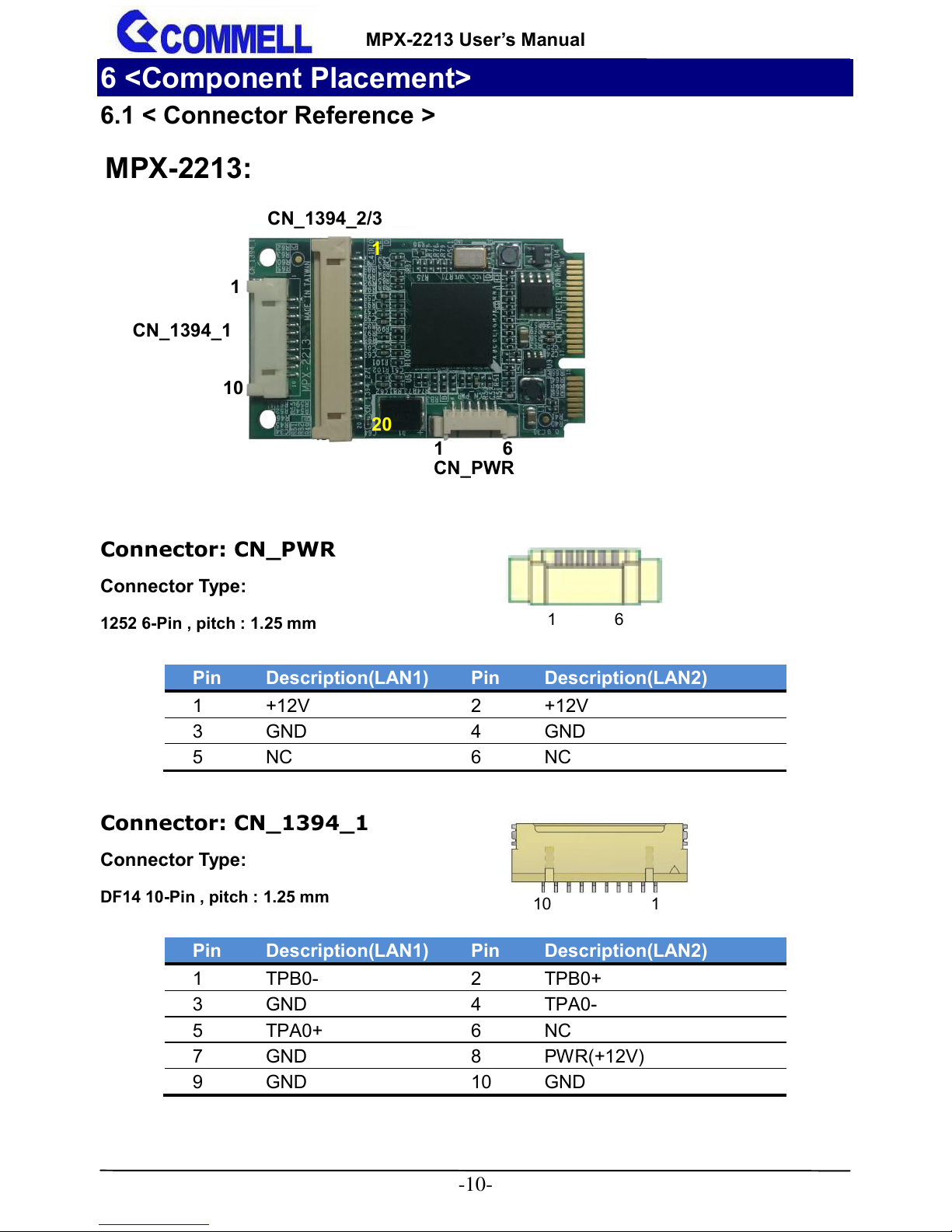

6 <Component Placement>
6.1 < Connector Reference >
Connector: CN_PWR
Connector Type:
1252 6-Pin , pitch : 1.25 mm
Connector: CN_1394_1
Connector Type:
DF14 10-Pin , pitch : 1.25 mm
Pin
Description(LAN1)
Pin
Description(LAN2)
1
+12V
2
+12V
3
GND
4
GND
5
NC
6
NC
Pin
Description(LAN1)
Pin
Description(LAN2)
1
TPB0-
2
TPB0+
3
GND
4
TPA0-
5
TPA0+
6
NC
7
GND
8
PWR(+12V)
9
GND
10
GND
10 1
CN_1394_1
1
20
1
10
MPX-2213:
CN_PWR
CN_1394_2/3
1
6
1 6
Page 12
MPX-2213 User’s Manual
-11-

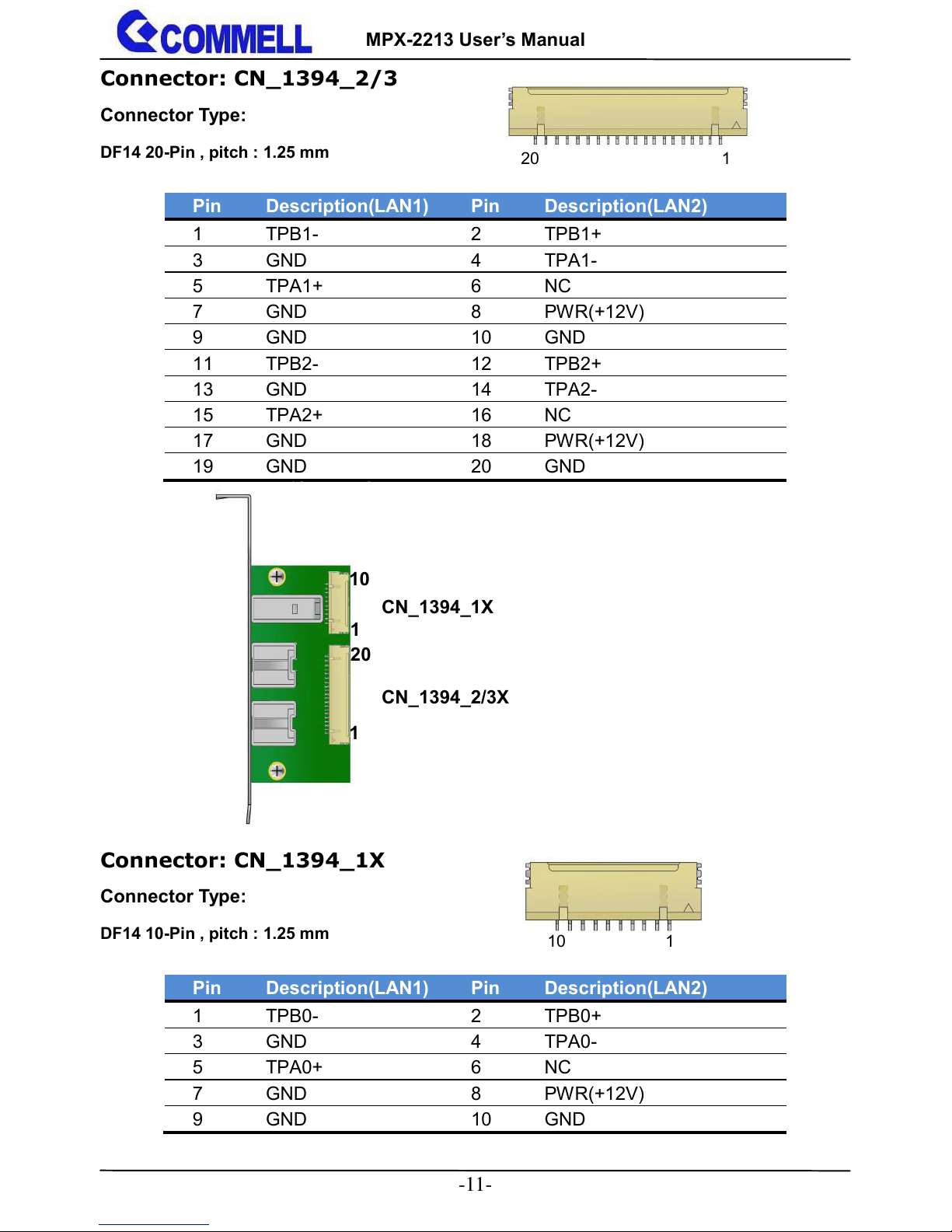

Connector: CN_1394_2/3
Connector Type:
DF14 20-Pin , pitch : 1.25 mm
Connector: CN_1394_1X
Connector Type:
DF14 10-Pin , pitch : 1.25 mm
Pin
Description(LAN1)
Pin
Description(LAN2)
1
TPB1-
2
TPB1+
3
GND
4
TPA1-
5
TPA1+
6
NC
7
GND
8
PWR(+12V)
9
GND
10
GND
11
TPB2-
12
TPB2+
13
GND
14
TPA2-
15
TPA2+
16
NC
17
GND
18
PWR(+12V)
19
GND
20
GND
Pin
Description(LAN1)
Pin
Description(LAN2)
1
TPB0-
2
TPB0+
3
GND
4
TPA0-
5
TPA0+
6
NC
7
GND
8
PWR(+12V)
9
GND
10
GND
16 2
20 1
10 1
CN_1394_1X
CN_1394_2/3X
10
1
1
20
Page 13
MPX-2213 User’s Manual
-12-

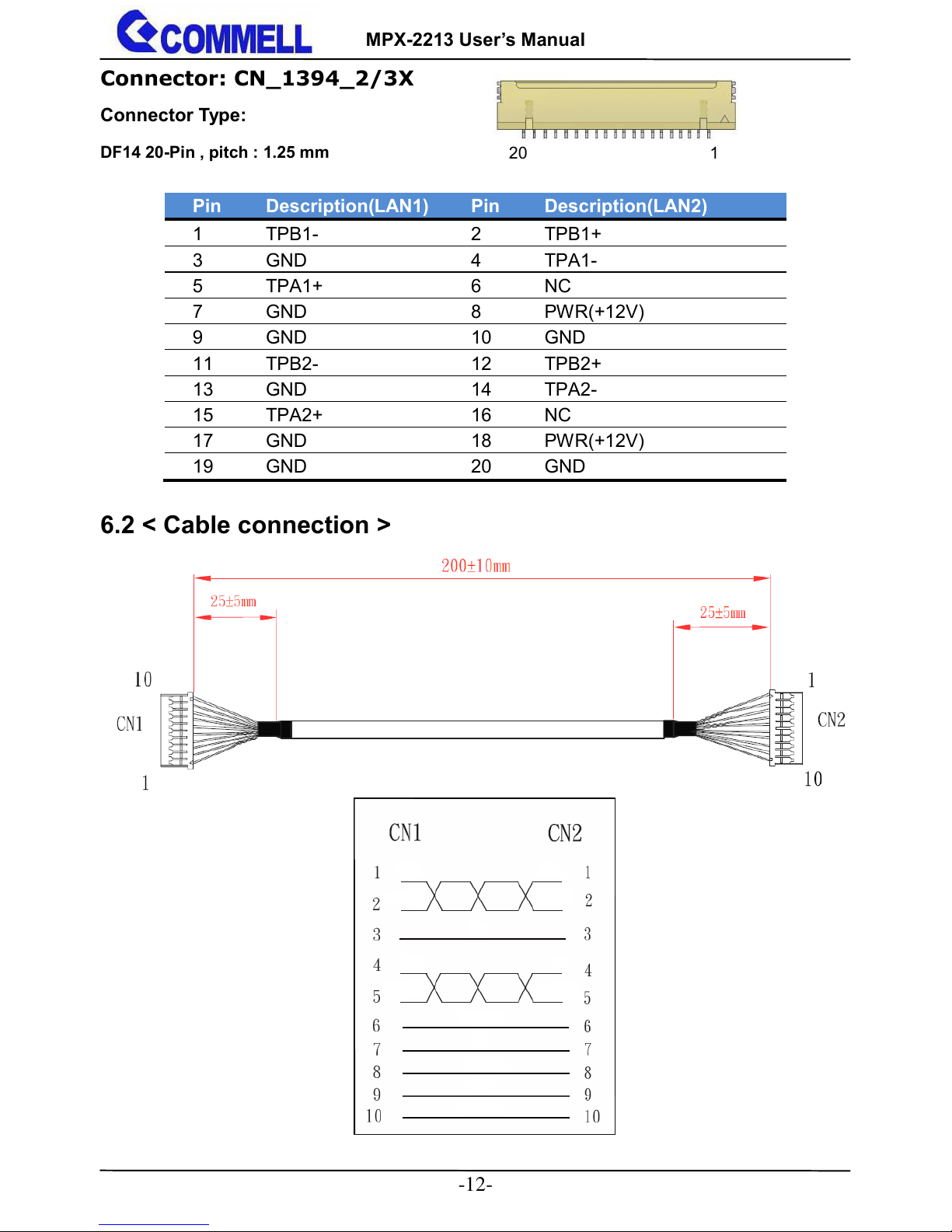

Connector: CN_1394_2/3X
Connector Type:
DF14 20-Pin , pitch : 1.25 mm
6.2 < Cable connection >
Pin
Description(LAN1)
Pin
Description(LAN2)
1
TPB1-
2
TPB1+
3
GND
4
TPA1-
5
TPA1+
6
NC
7
GND
8
PWR(+12V)
9
GND
10
GND
11
TPB2-
12
TPB2+
13
GND
14
TPA2-
15
TPA2+
16
NC
17
GND
18
PWR(+12V)
19
GND
20
GND
20 1

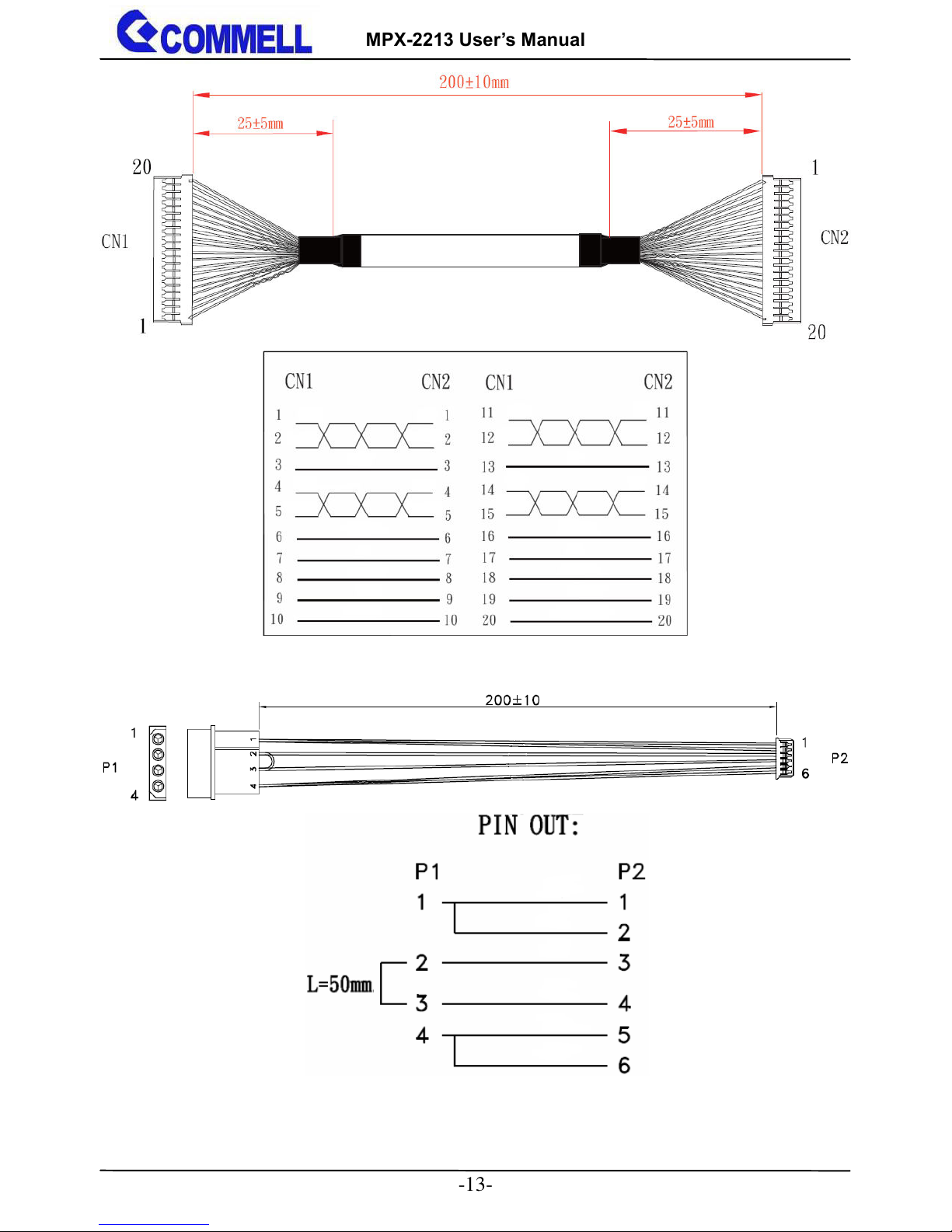

Page 14
MPX-2213 User’s Manual
-13-
Page 15
MPX-2213 User’s Manual
-14-

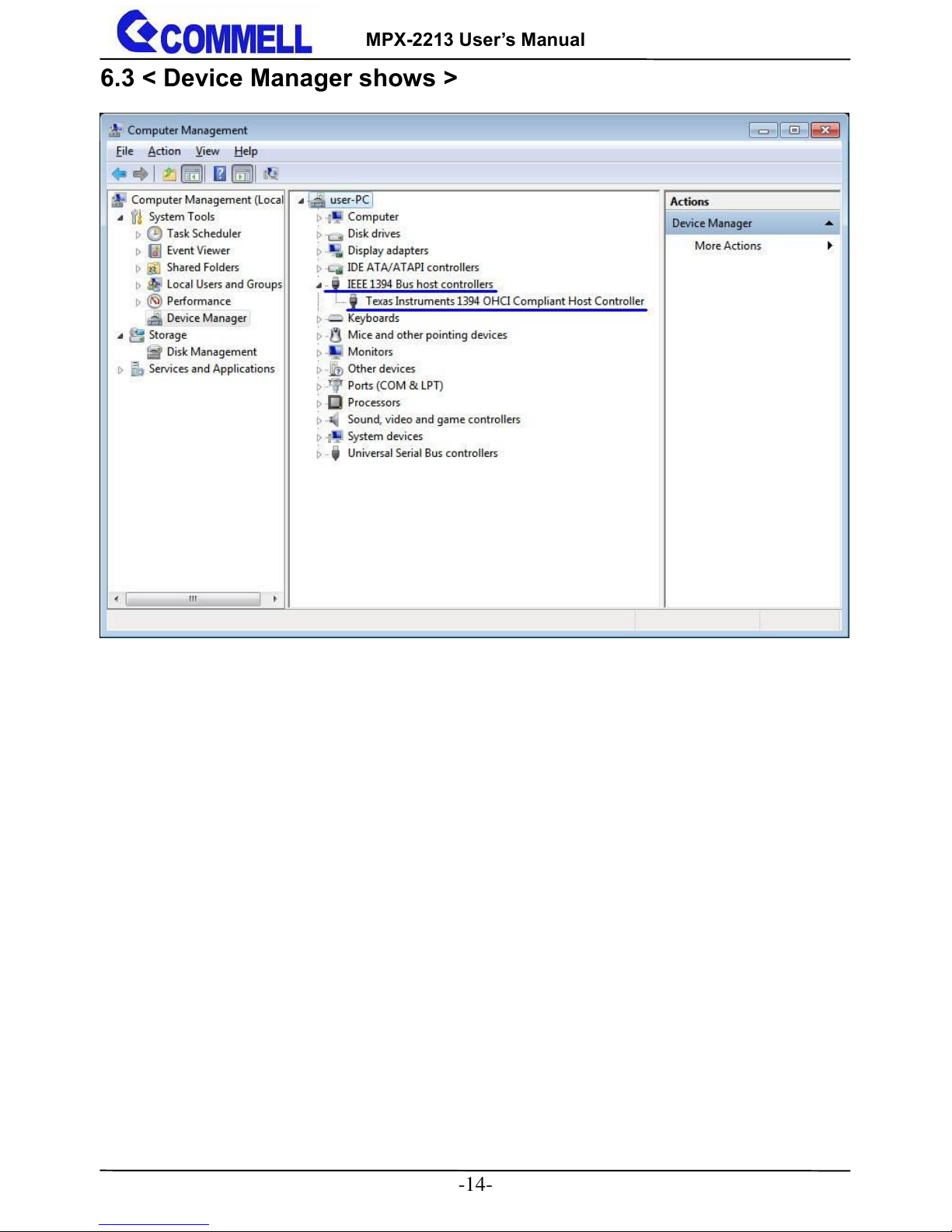

6.3 < Device Manager shows >
Page 16
MPX-2213 User’s Manual
-15-

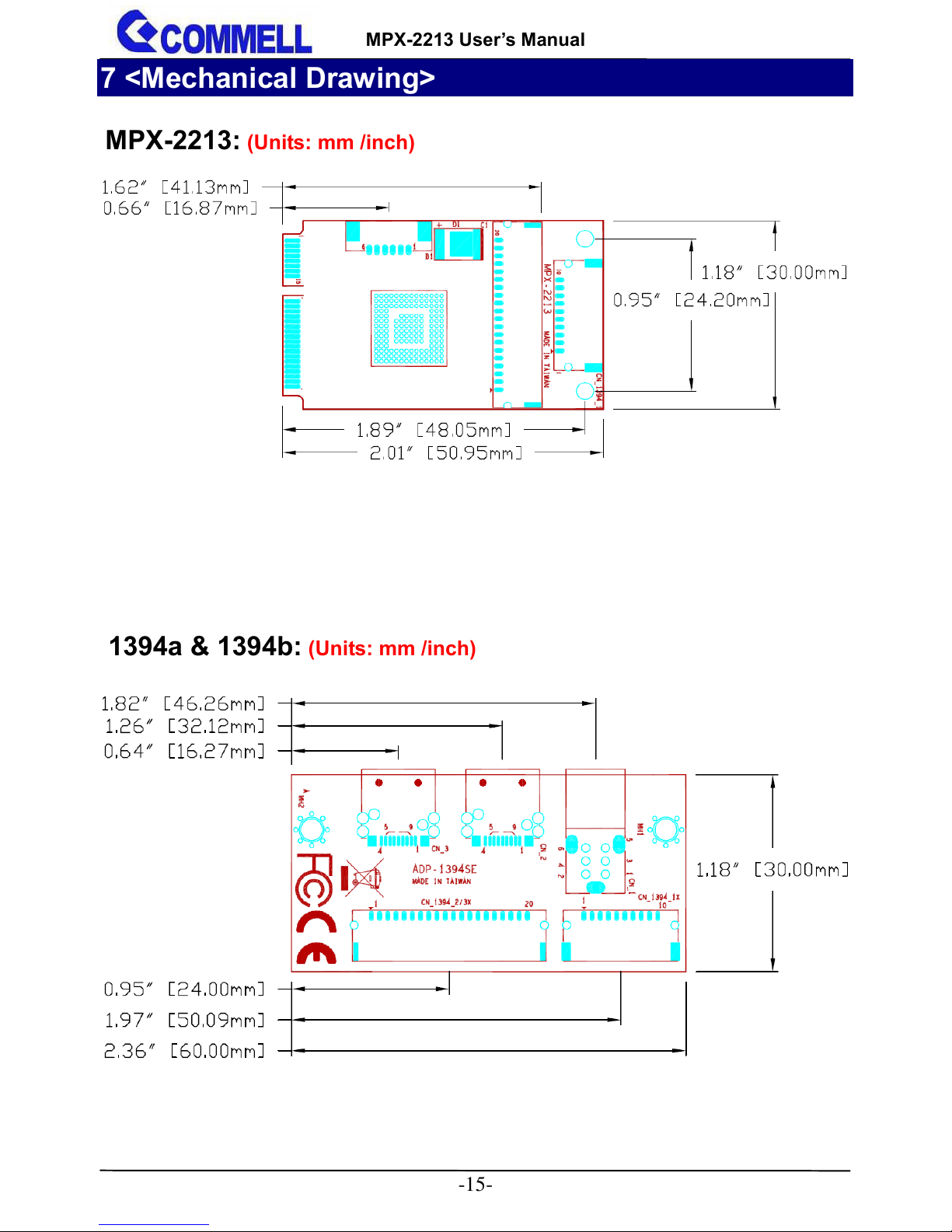

7 <Mechanical Drawing>
1394a & 1394b: (Units: mm /inch)
MPX-2213: (Units: mm /inch)
Page 17
MPX-2213 User’s Manual
-16-

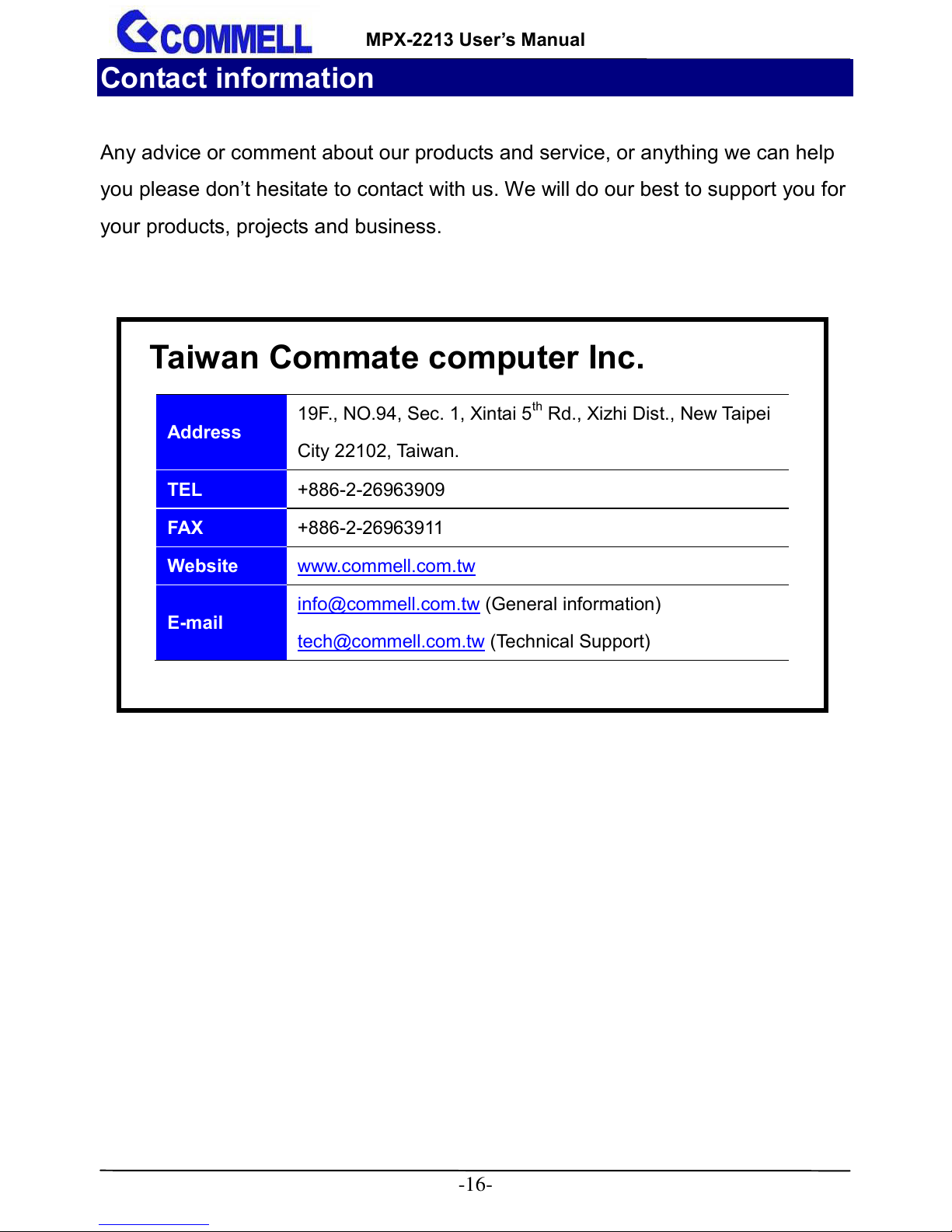

Contact information
Any advice or comment about our products and service, or anything we can help
you please don’t hesitate to contact with us. We will do our best to support you for
your products, projects and business.
Taiwan Commate computer Inc.
Address
19F., NO.94, Sec. 1, Xintai 5th Rd., Xizhi Dist., New Taipei
City 22102, Taiwan.
TEL
+886-2-26963909
FAX
+886-2-26963911
Website
www.commell.com.tw
E-mail
info@commell.com.tw (General information)
tech@commell.com.tw (Technical Support)
