Page 1
LV-683
Mini-ITX Miniboard
User’s Manual
Edition 1.1
2012/01/09
Page 2
LV-683 User’s Manual
Copyright
Copyright 2011. All rights reserved. This document is copyrighted and all rights are
reserved. The information in this document is subject to change without prior notice to
make improvements to the products.
This document contains proprietary information and pr otected by copyright. No part of
this document may be reproduced, copied, or translated in any form or any means
without prior written permission of the manufacturer.
All trademarks and/or registered trademarks contains in this document are propert y of
their respective owners.
Disclaimer
The company shall not be liable for any incidental or consequential damages resulting
from the performance or use of this product.
The company does not issue a warranty of any kind, express or implied, including
without limitation implied warranties of merchantability or fitness for a particular purpose.
The company has the right to revise the manual or include changes in the specifications
of the product described within it at any time without notice and without obligation to
notify any person of such revision or changes.
Trademark
All trademarks are the property of their respective holders.
Any questions please visit our website at TUhttp://www.commell.com.twUT
-1-
Page 3
LV-683 User’s Manual
(
)
Packing List:
Please check the package content before you starting using the board.
Hardware:
LV-683 Mini-ITX motherboard x 1
Cable Kit:
DC Power Cable x 1
(OALDC-2)
(OSCREW-8) * 2
ATX Power Output Cable x 1
(OALATX-P3S2)
SATA Cable x 2
(OALSATA-L)
COM port & Printer Port Cable x 1
OALES-BKU-3
I/O Shield x 1
(OPLATE-67E)
DVI Module With DVI Cable x 1
(BADPDVI-A + OALDVI-DF13)
Optional Cable Kit:
Printed Matters:
Driver CD x 1 (Including User’s Manual)
Dual COM PORT cable
(OALES-BKU2NB)
USB Cable x 1
(OALUSBA-1)
-2-
Page 4
LV-683 User’s Manual
Index
Chapter 1 <Introduction>................................................................6
1.1 <Product Overview>..............................................................................................6
1.2 <Product Specification>........................................................................................7
1.3 <Mechanical Drawing>.........................................................................................9
1.4 <Block Diagram>................................................................................................10
Chapter 2 <Hardware Setup>..................................................... 11
2.1 <Connector Location>.........................................................................................11
2.2 <Jumper Reference>............................................................................................12
2.3 <Connector Reference>.......................................................................................13
2.3.1 <Internal Connector>........................................................................13
2.3.2 <External Connector>.......................................................................13
2.4 <CPU and Memory Setup>..................................................................................14
2.5 <CMOS & ATX Setup>......................................................................................15

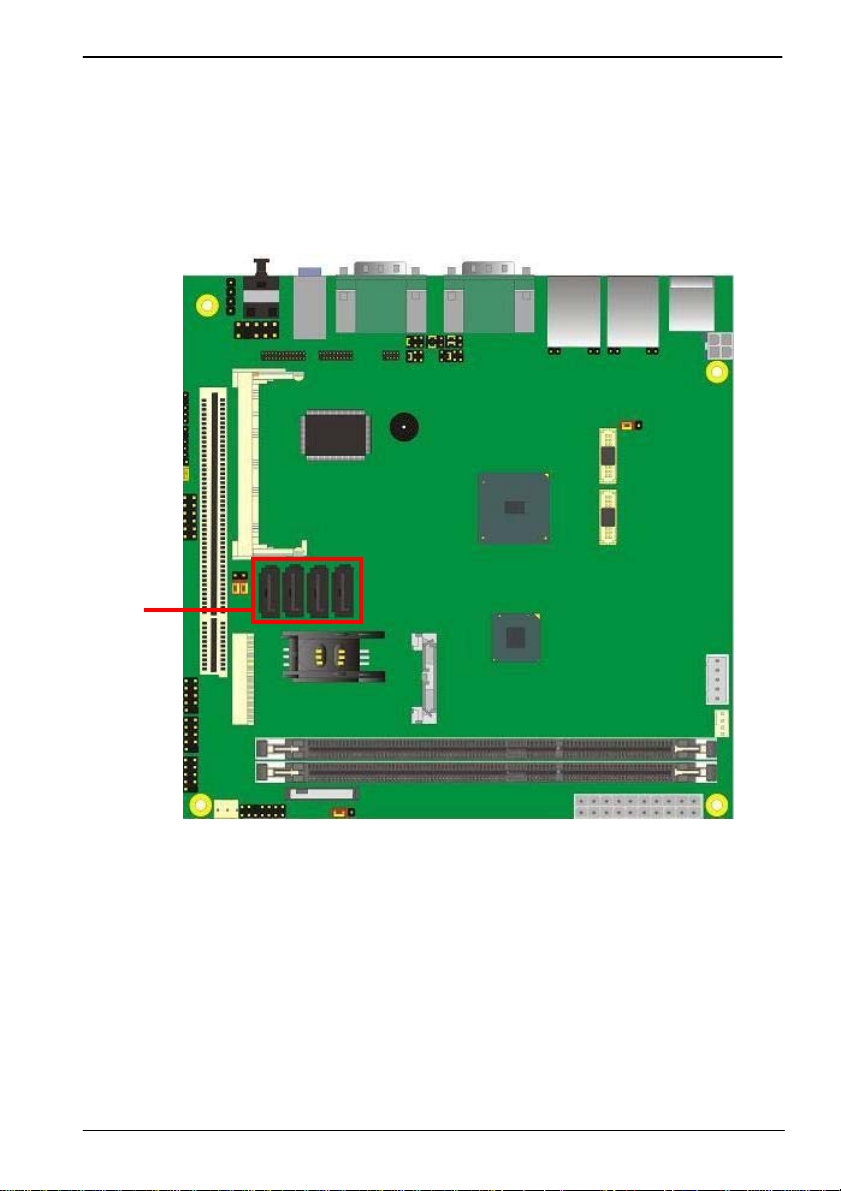

2.6 <SATA & CFast Interface>.................................................................................16
2.8 <LAN Interface> .................................................................................................17
2.9 <Onboard Display Interface>..............................................................................18
2.9.1 <Analog VGA Interface>..................................................................18
2.9.2 <Digital Display>..............................................................................19
2.9.3 <DVI Interface >...............................................................................23
2.10 <Onboard Audio Interface>...............................................................................24
2.11 <USB2.0 Interface>...........................................................................................25
2.12 <PCIE Mini Card and SIM Interface>............................................................... 26

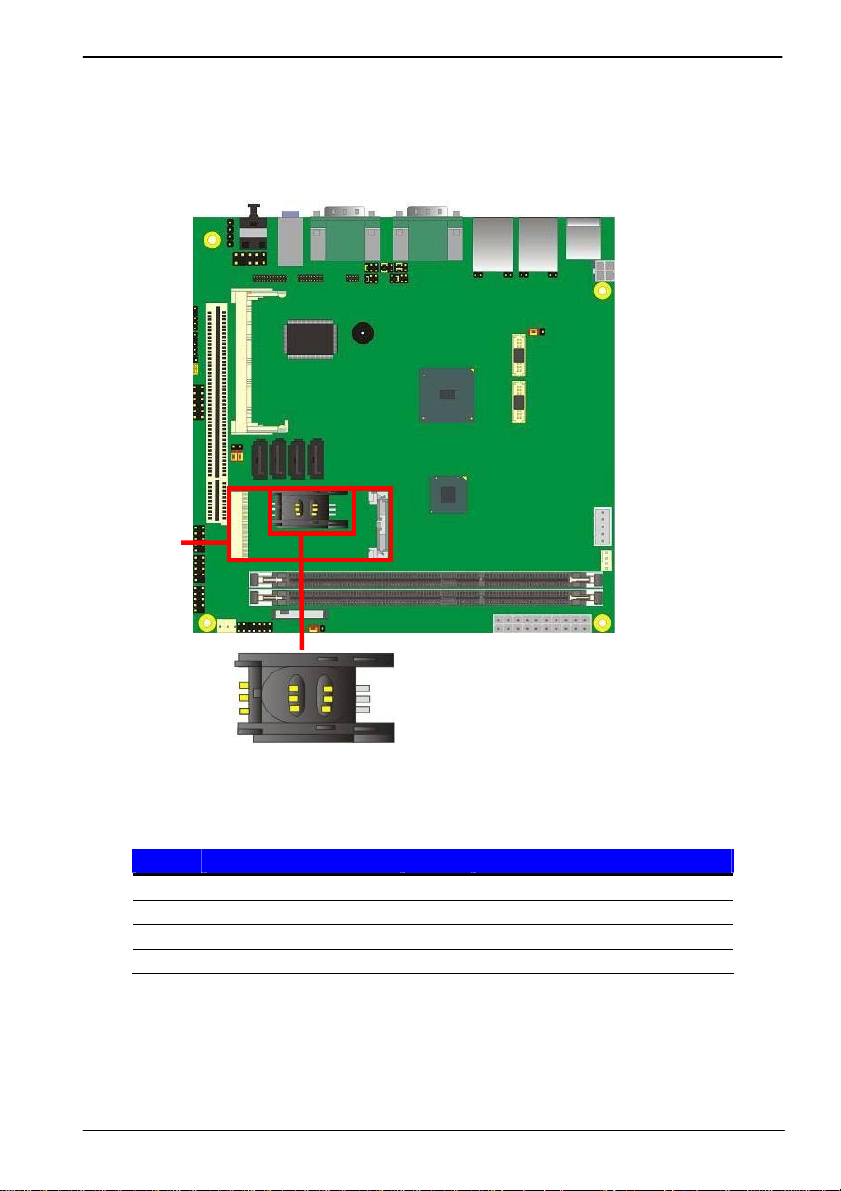

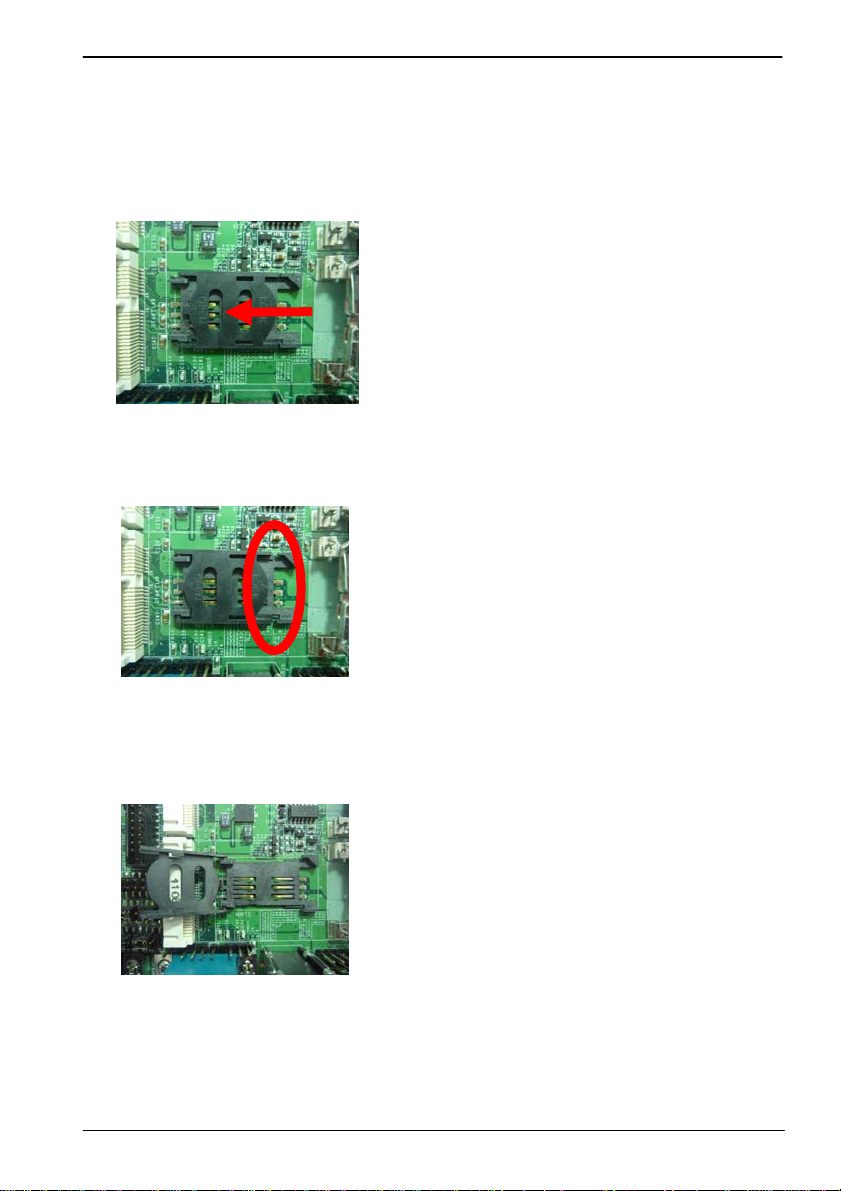

2.12.1 <SIM Setup>...................................................................................27

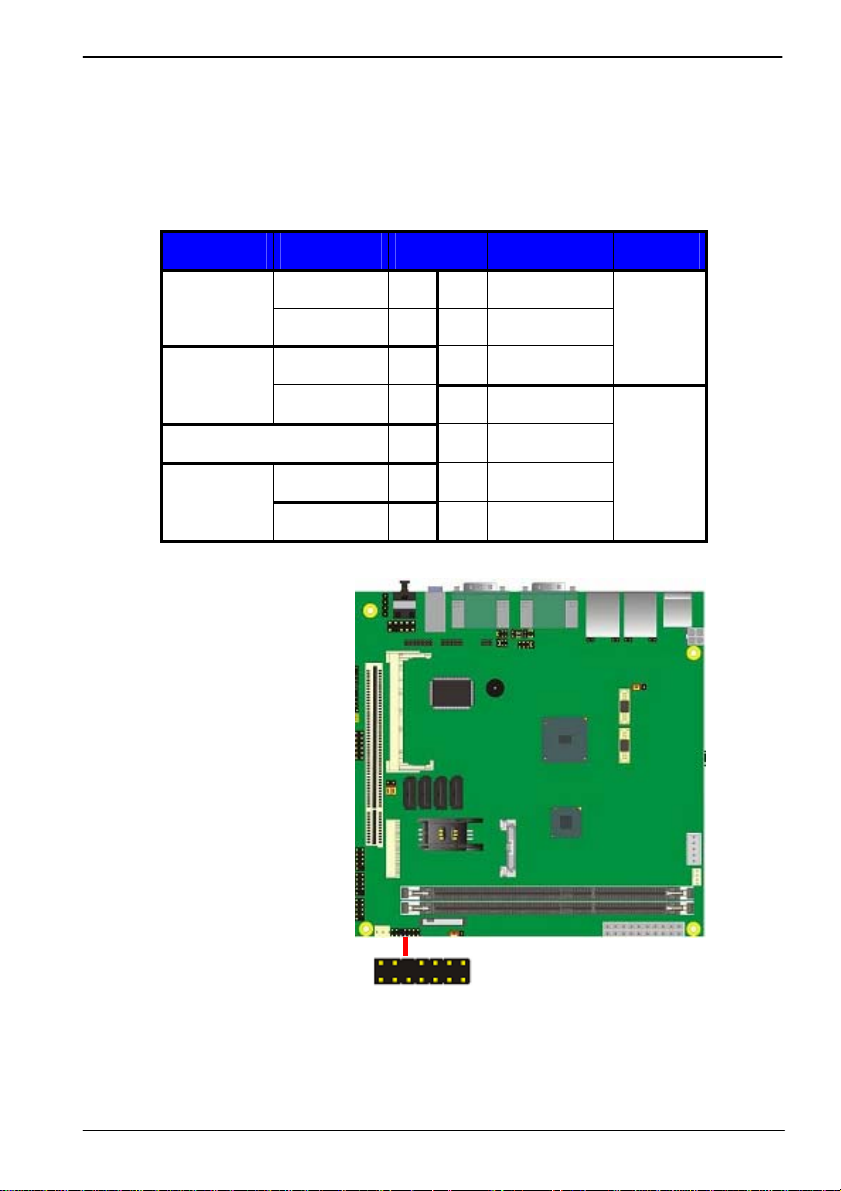

2.13 <GPIO Interface>..............................................................................................29
2.14 <Serial Port Jumper Setting >............................................................................30

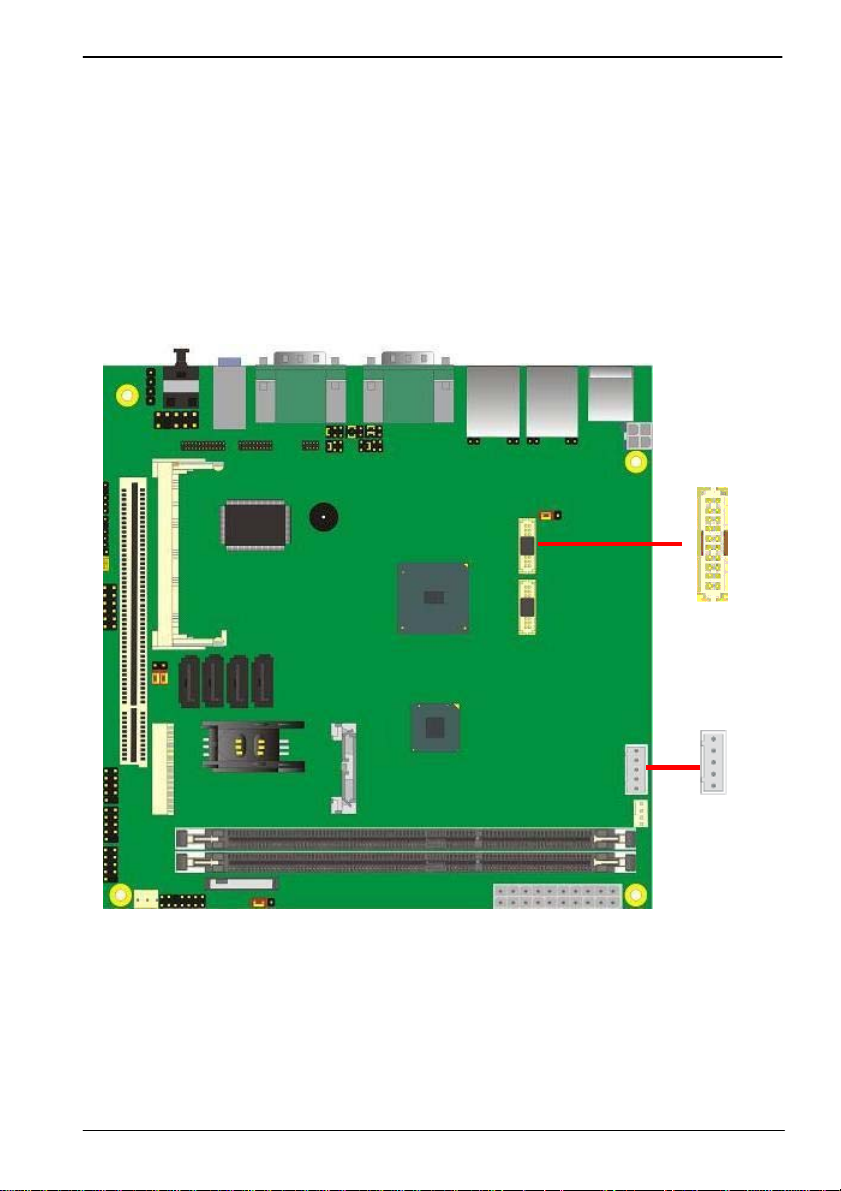

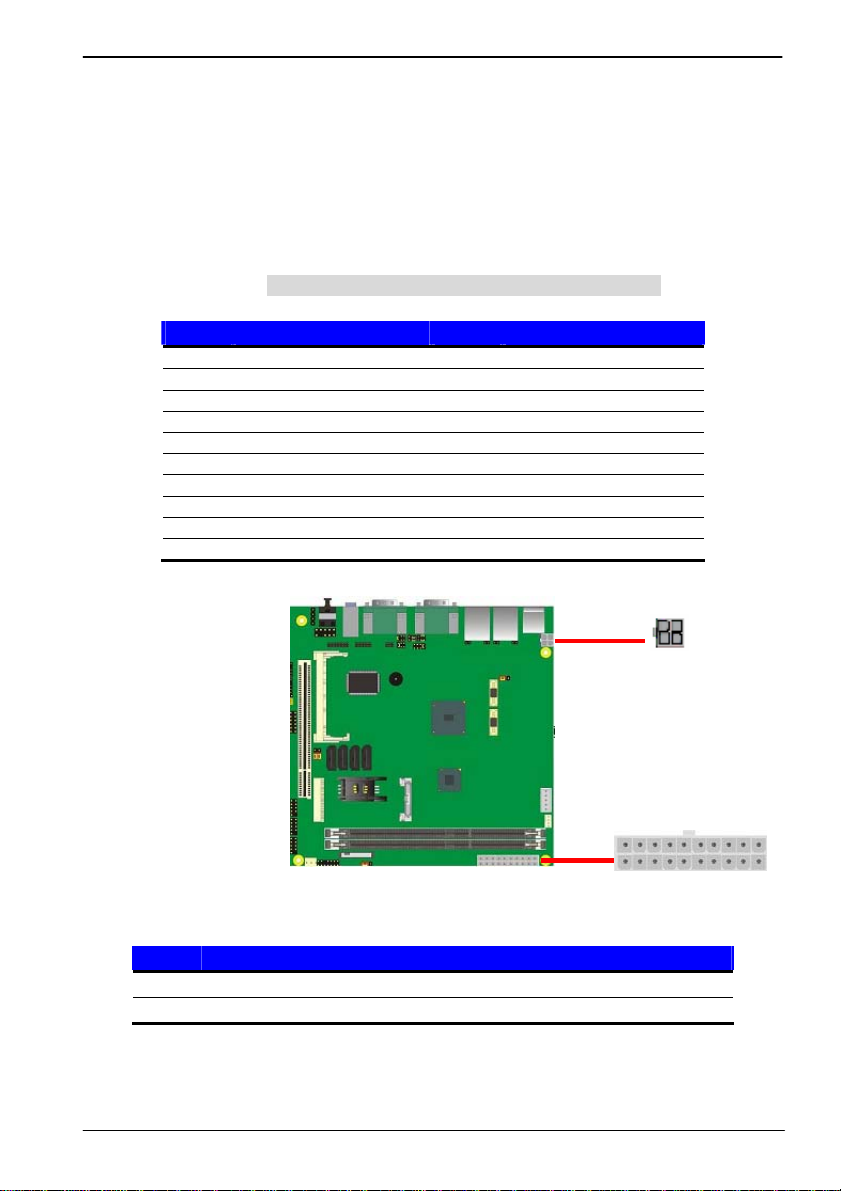

2.15 <Power & FAN Connector >.............................................................................32
2.15.1 <Power Input>.................................................................................32
2.15.2 <Power Output>..............................................................................33

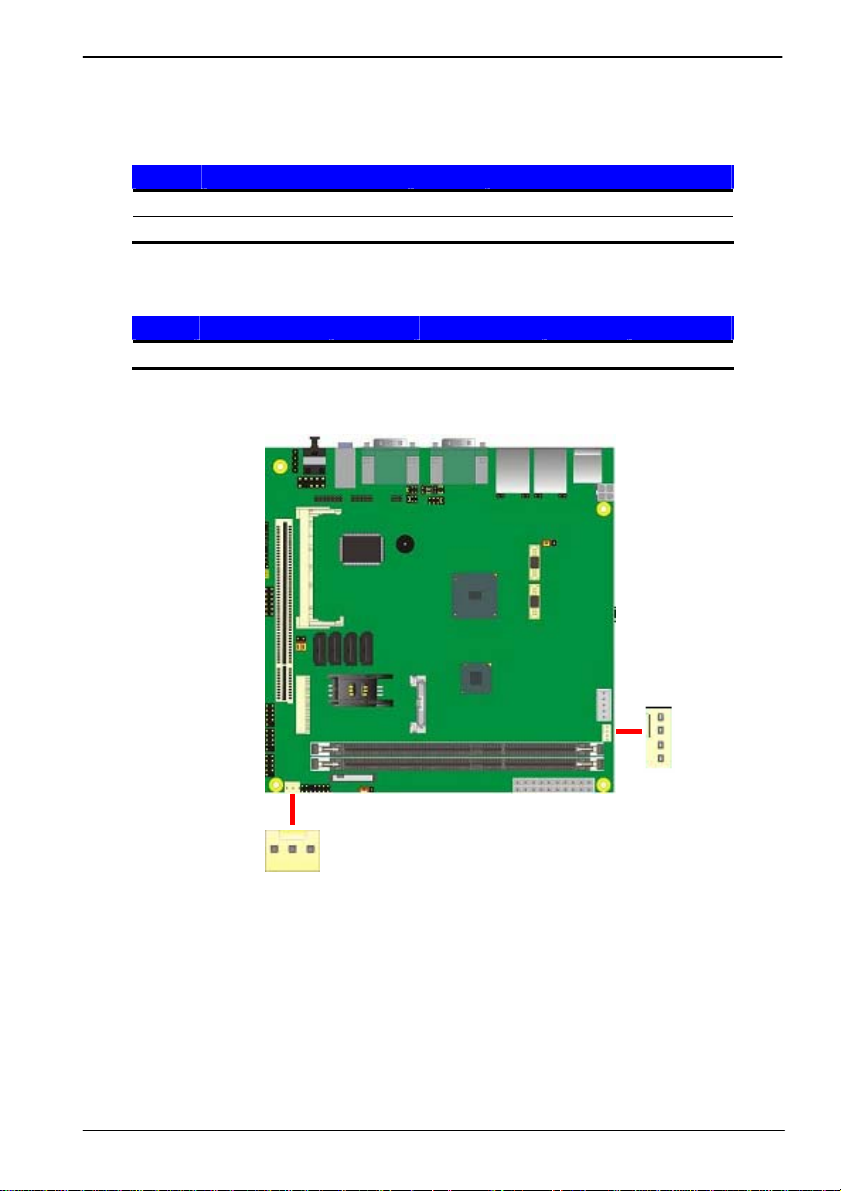

2.15.3 <Fan Connector>............................................................................. 34
-3-
Page 5
LV-683 User’s Manual
2.16 <Indicator and Switch>......................................................................................35

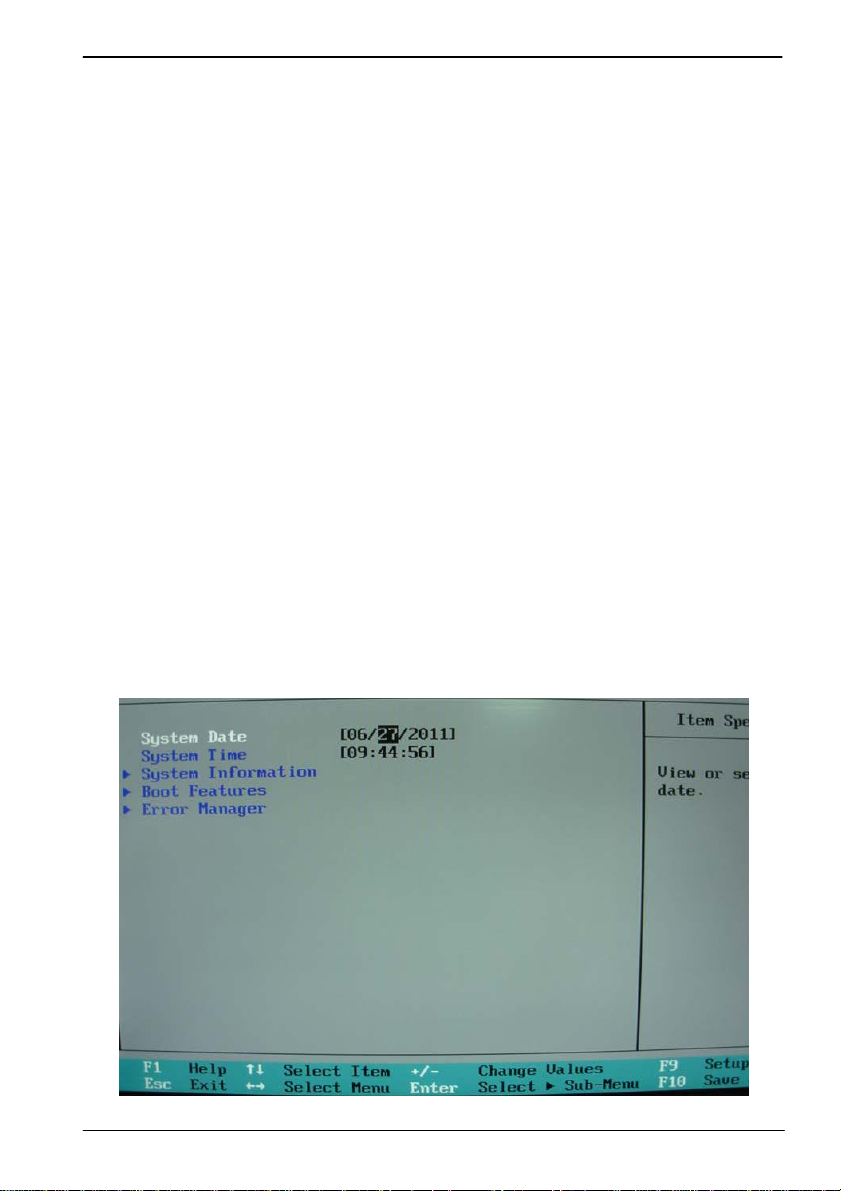

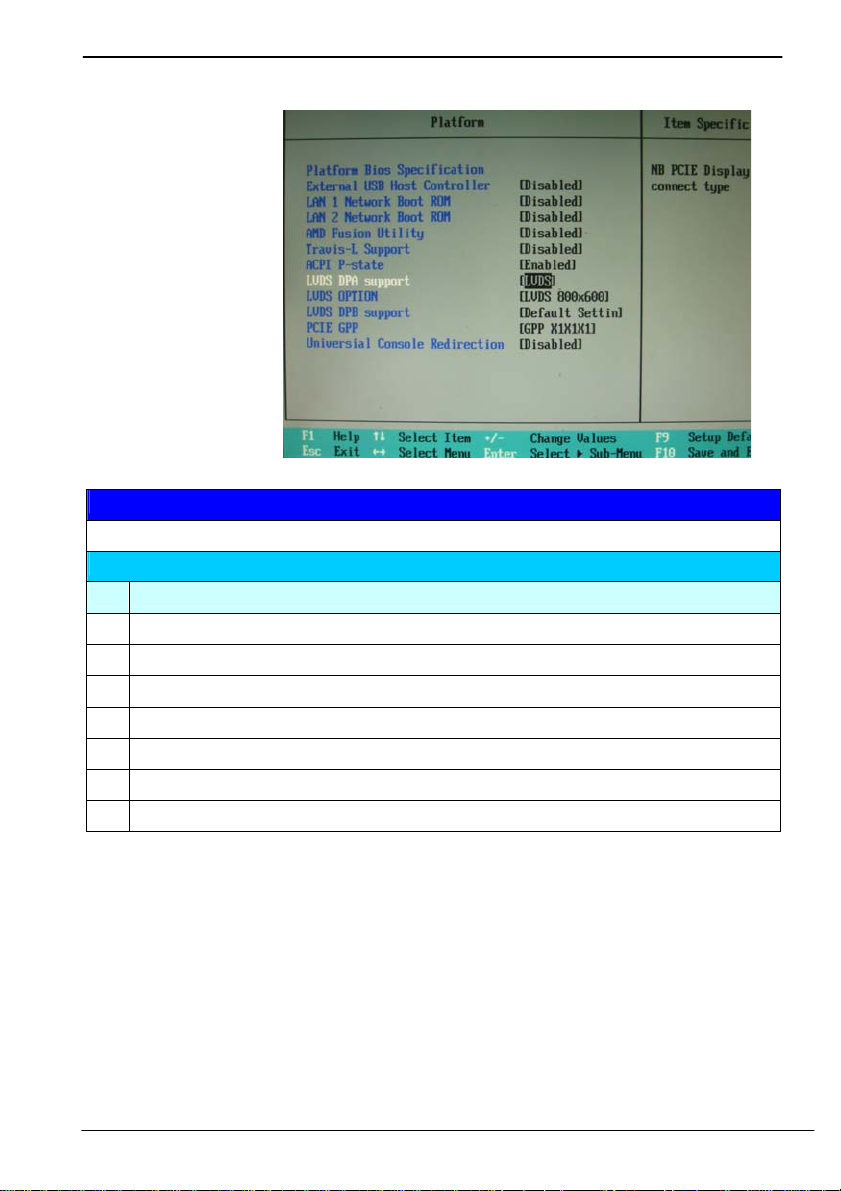

Chapter 3 <BIOS Setup>...............................................................37
Appendix A <I/O Port Pin Assignment>.............................39
A.1 <SATA Port>......................................................................................................39
A.2 <IrDA Port>........................................................................................................39
A.3 <SMBUS Port>...................................................................................................39
A.4<LPT Port>..........................................................................................................40

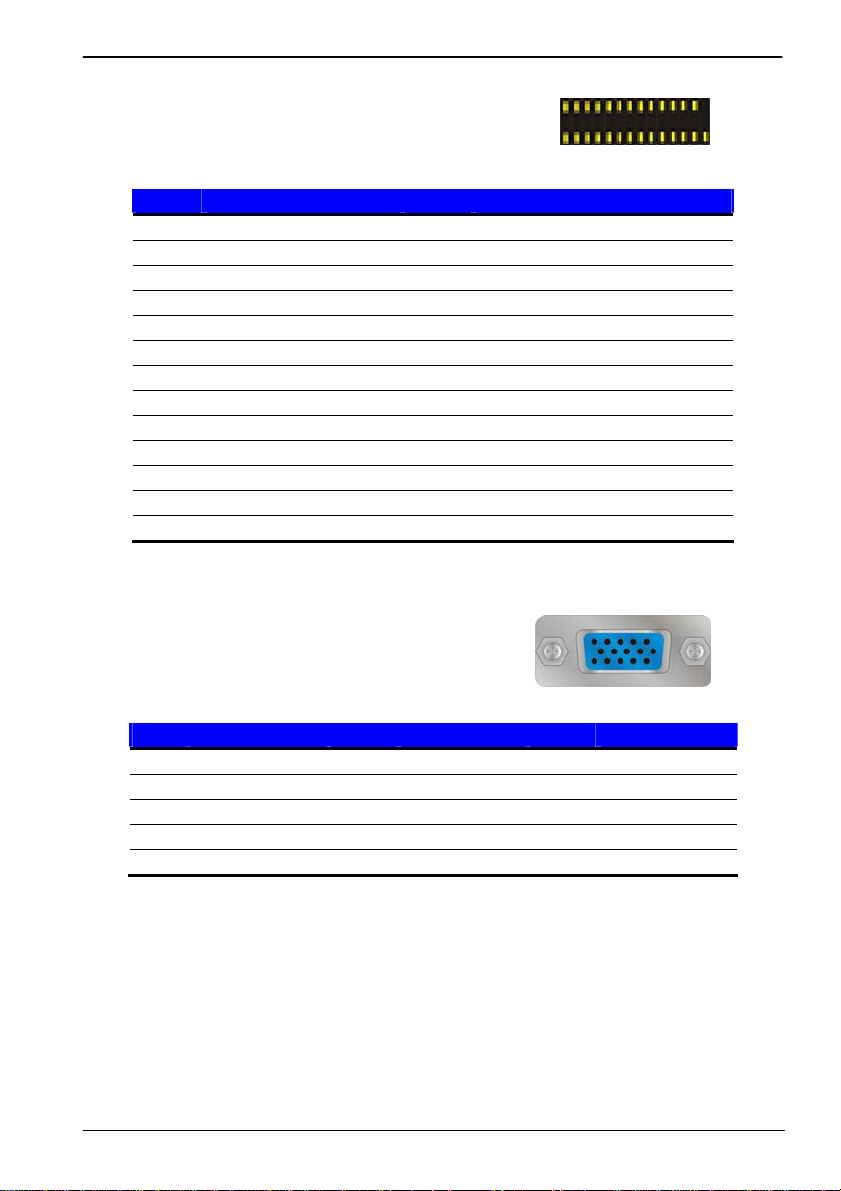

A.5 < CRT Port >.......................................................................................................40
A.6 <Serial Port>.......................................................................................................41
A.7 <LAN Port>........................................................................................................41
A.8 <LAN LED Port>...............................................................................................41
Appendix B <Flash BIOS>............................................................42
B.1 <Flash Tool>.......................................................................................................42
B.2 <Flash BIOS Procedure>....................................................................................42
Appendix C <System Resources>.........................................43

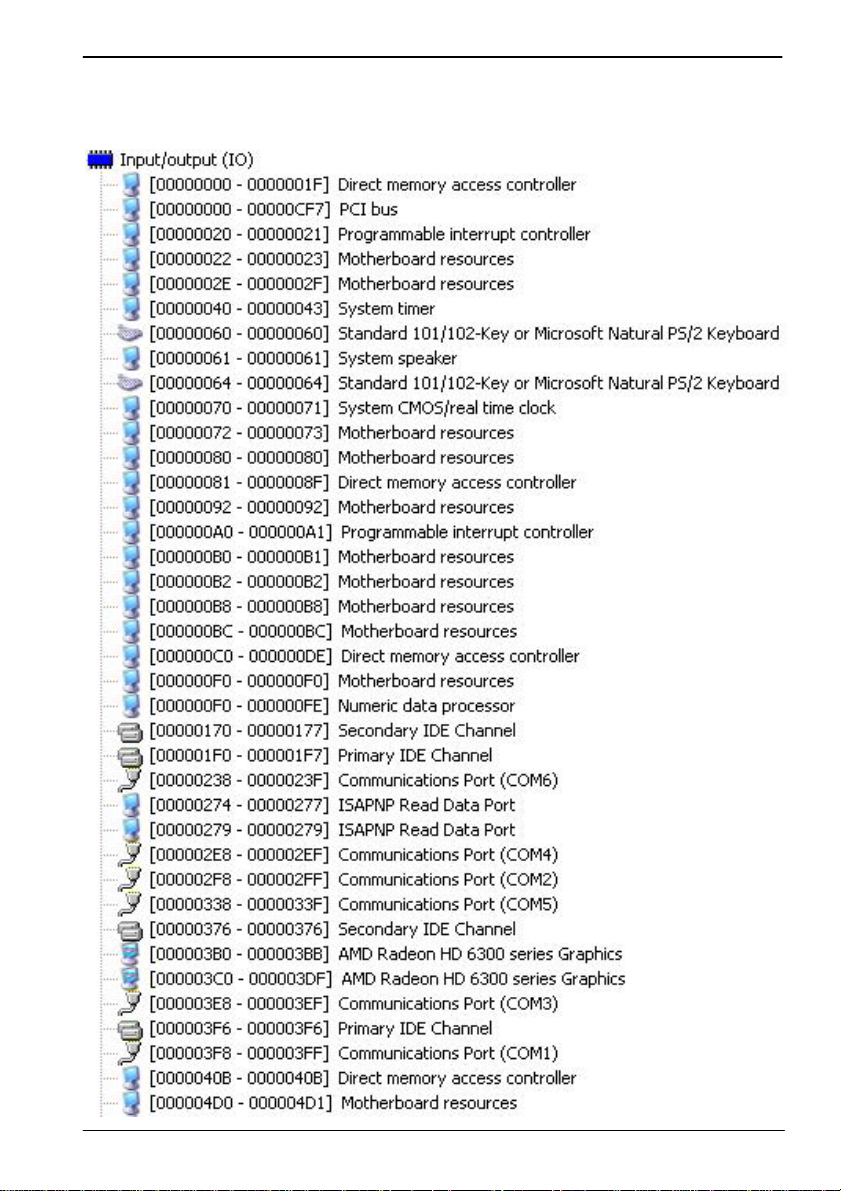

C.1 <I/O Port Address Map>.....................................................................................43
C.2 <Memory Address Map > ...................................................................................45
C.3 < System IRQ Resources >.................................................................................47
Appendix D <Programming GPIO’s>...................................48
Appendix E <Watch Dog timer Setting >...........................49
Appendix F <AMD Hing Definition Audio Device >...50
Contact Information.......................................................................... 51
-4-
Page 6
LV-683 User’s Manual
(This page is left for blank)
-5-
Page 7
LV-683 User’s Manual
Chapter 1 <Introduction>
1.1 <Product Overview>
LV-683 is the Mini-ITX motherboard with AMD G-T56N platform, with onboard VGA,
Realtek ALC888 HD Codec audio, Giga LAN interface. Based on the AMD G-T56N
Processor, the board provides many advanced features for reduced power
consumption.
A55E Chipset
The board integrates AMD A55E supports, to provide built-in UniChrome Pro 3D / 2D
Graphics with MPEGII/MPEG4 decoder, and supports DDRIII 1066/1333 memory up to
8G of capacity. The A55E has Ultra V-Link Host interface with 1 GB/sec total bandwidth
to enhance the system performance.
18-bit LVDS LCD interface
The board provides onboard 18-bit LVDS LCD interface, supports up to 1600 x 1200 of
UXGA high resolution.
Flexible Extension Interface
The board also provides one mini PCI socket and one PCI Express Mini card socket and
PCI Slot.
-6-
Page 8
LV-683 User’s Manual
1.2 <Product Specification>
General Specification
Form Factor Mini-ITX motherboard
CPU AMD G-T56N Processor 1.65GHz
Memory 2 x 240-pin DDR3 1066/1333MHz SDRAM up to 8GB
Unbufferred, none-ECC memory supported only
Chipset AMD A55E FCH
Watchdog Timer System reset programmable watchdog timer with 1 ~ 255
sec./min. of timeout value
Real Time Clock Chipset integrated RTC with onboard lithium battery
Serial ATA 4 x serial ATAII interface with 300MB/s transfer rate
Multi-I/O Port
Chipset Winbond W83627DHG-P
Serial Port Five RS-232 and One RS-232/422/485 serial port
USB Port Ten Hi-Speed USB 2.0 ports with 480Mbps of transfer rate
IrDA Port One IrDA compliant Infrared interface supports SIR
K/B & Mouse PS/2 keyboard and mouse port
GPIO One 12-pin Digital I/O connector with 8-bit programmable I/O
interface
VGA Display Interface
Chipset AMD A55E FCH (S ystem Controller Hub)
Frame Buffer Up to 512MB shared with system memory
Display Type CRT, LCD monitor with analog display, single channel DVI,
LVDS
Connector External DB15 female connector
Onboard 20-Pin LVDS and 5-Pin inverter connector
Onboard 20-Pin DVI and 5-Pin
Ethernet Interface
Controller 2 x Intel® 82583V Gigabit Ethernet controller
Type Triple speed 10/100/1000Base-T
auto-switching Fast Ethernet
Full duplex, IEEE802.3U compliant
Connector Two External RJ45 connector with LED
Audio Interface
Chipset REALTEK ALC888
Interface Stereo audio Line-out and MIC-in
Connector Onboard audio connector with pin header
Expansive Interface
PCIE 1 x PCIE Mini Card socket
PCI 1 x Mini PCI Card socket & PCI Card
-7-
Page 9
LV-683 User’s Manual
Power and Environment
Power Requirement Standard 20-pin ATX power supply or 5~24V full range DC
Input
Dimension 170 (L) x 170 (H) mm
Temperature Operating within 0 ~ 60℃
Storage within -20 ~ 85℃
The specifications may be different as the actual production.
For further product information please visit the website at
TUhttp://www.commell.com.twUT
-8-
Page 10
LV-683 User’s Manual
1.3 <Mechanical Drawing>
9-
-
Page 11
LV-683 User’s Manual
1.4 <Block Diagram>
CRT / DVI / LVDS
HD Audio
10 x USB port
2 x Serial ports
AMD
G-T56N Processor
FCH
W83627DHG-P
2 x 240-pin DDR3
1066/1333MHz up to 8GB
PCI Express mini card
Mini PCI & PCI
4 x SATA
2 x Giga LAN
IrDA
8-bit GPIO
COM3/4/5/6
10-
-
Page 12
LV-683 User’s Manual
Chapter 2 <Hardware Setup>
2.1 <Connector Location>
CN AUDIO
CN_LPT
CN_COM5/6
CN_COM4
Mini PCI
CN_SMBUS
CN_IR
CN_DIO
PCI
SATA1/2/3/4
MINI_CARD
LV-683
SYSFAN
DC_IN
CN_LVDS
CN_DVI
CN_INV
CPUFAN
DDR3_A&B
CN_USB1/2
CN_LPC
JFRNT
COM1 COM3
PS2 RJ45& USB CRT COM2 Audio SPDIF
11-
-
Page 13
LV-683 User’s Manual
2.2 <Jumper Reference>
Jumper Function
JRTC CMOS Operating/Clear Setting
JAT AT/ATX Mode Setting

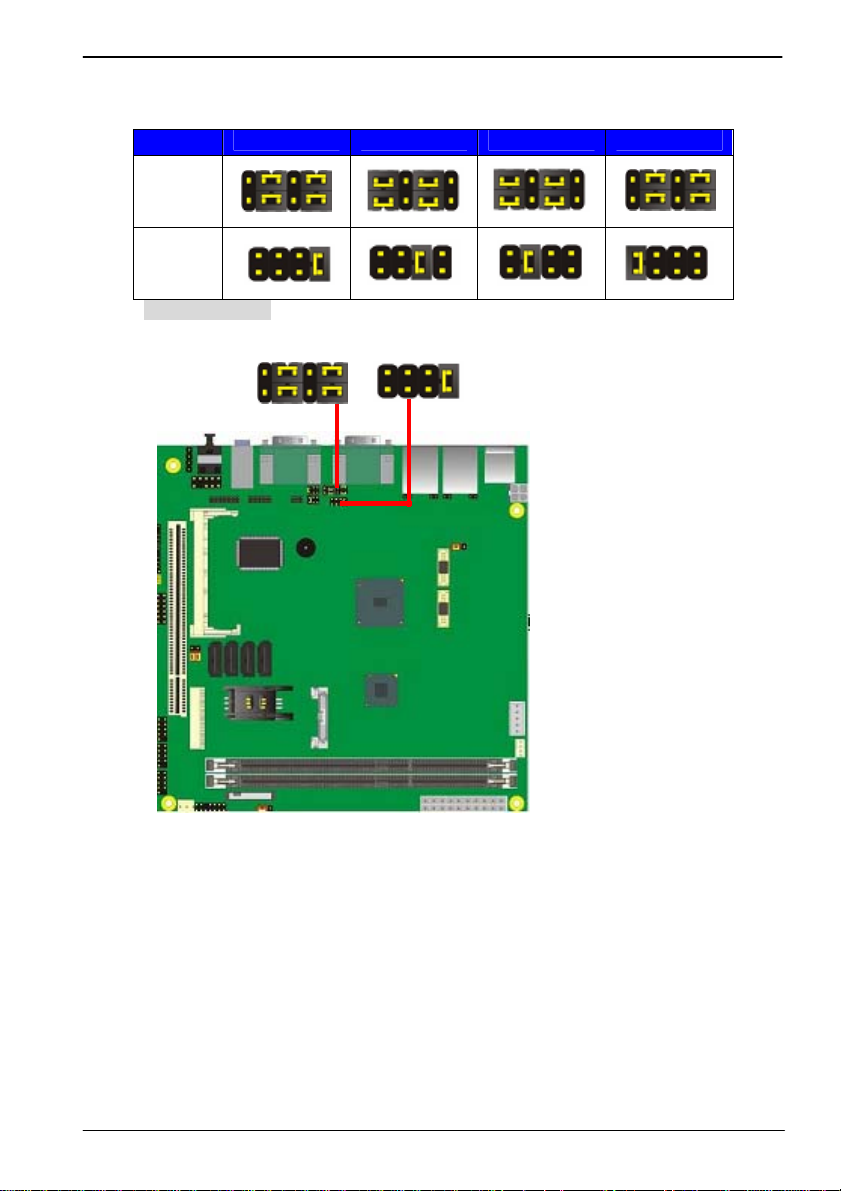

JCSEL1/2 COM2 RS232/422/485/IrDA Mode Setting
JP1 COM3 signal mode switch (For Pin-9)
JP2 COM4 signal mode switch (For Pin-9)
JVUSB USB Voltage Setting
JVLCD Panel Voltage Setting
JAT
JVUSB
JCSEL2
JP1
JP2 JCSEL1
JVLCD
JCSEL2
JRTC
12-
-
Page 14
LV-683 User’s Manual
2.3 <Connector Reference>
2.3.1 <Internal Connector>
Connector Function Remark
CPU LGA1155 CPU socket
DDRIIIA/B 240 –pin DDR3 SDRAM DIMM socket
S_ATAII1/2/3/4/ 7-pin Serial ATA II connector
ATX 24-pin power supply connector
DC_IN 4-pin +12V additional power supply connector
CN_AUDIO 5 x 2-pin audio connector
CDIN 4-pin CD-ROM audio input connector
CN_DIO 6 x 2-pin digital I/O connector
CN_USB1/2/3 10-pin USB connector
CPUFAN 4-pin CPU cooler fan connector
SYSFAN 3-pin system cooler fan connector
CN_IR 5-pin IrDA connector
CN_SMBUS 5-pin SMBUS connector
JFRNT 14-pin front panel switch/indicator connector
PCI 120-Pin PCI socket
Mini-PCI 124-pin Mini-PCI socket
CN_DVI 26 Pin connector
CN_COM4/5/6 5 x 2-pin com connector
MINI_CARD 1 x 52-pin PCI Express mini card
CN_INV 5-pin LCD inverter connector
CN_LVDS 20 x 2-pin LVDS connector
CN_LPT 26 -pin LVDS connector

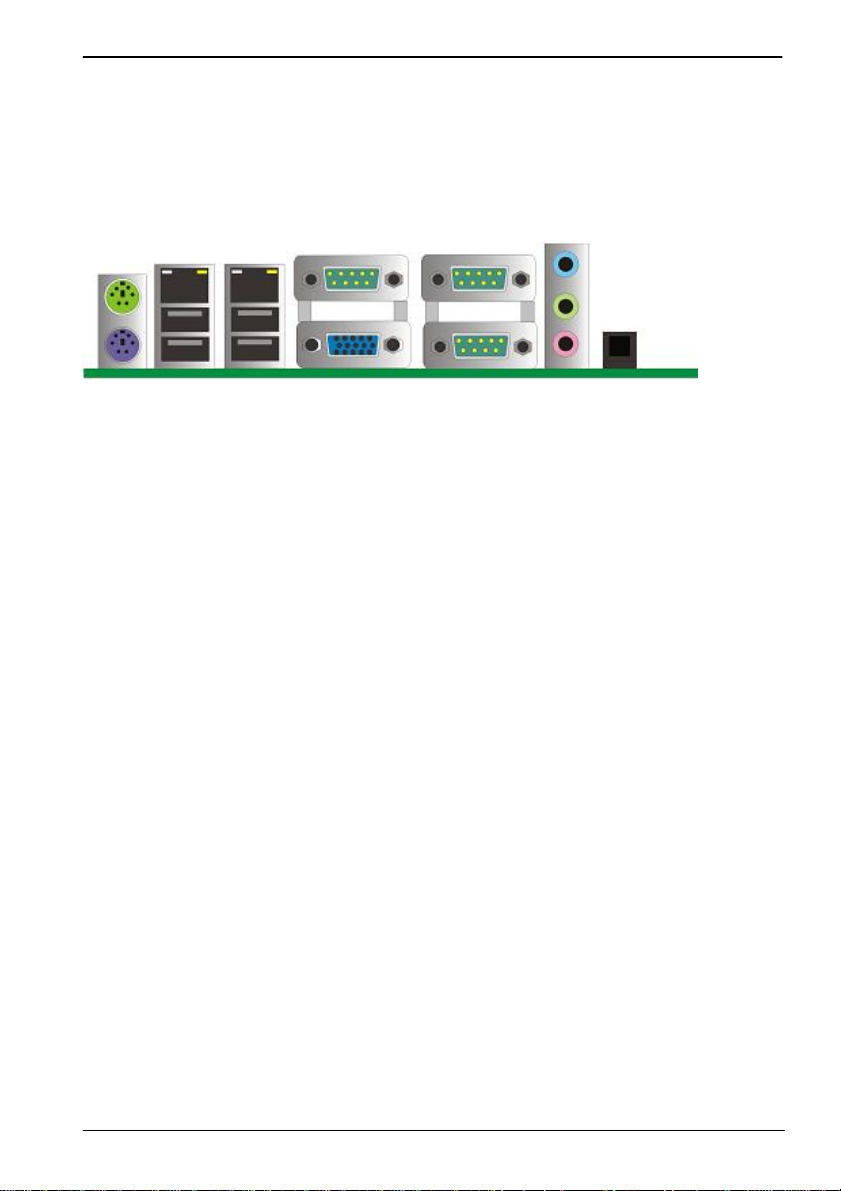

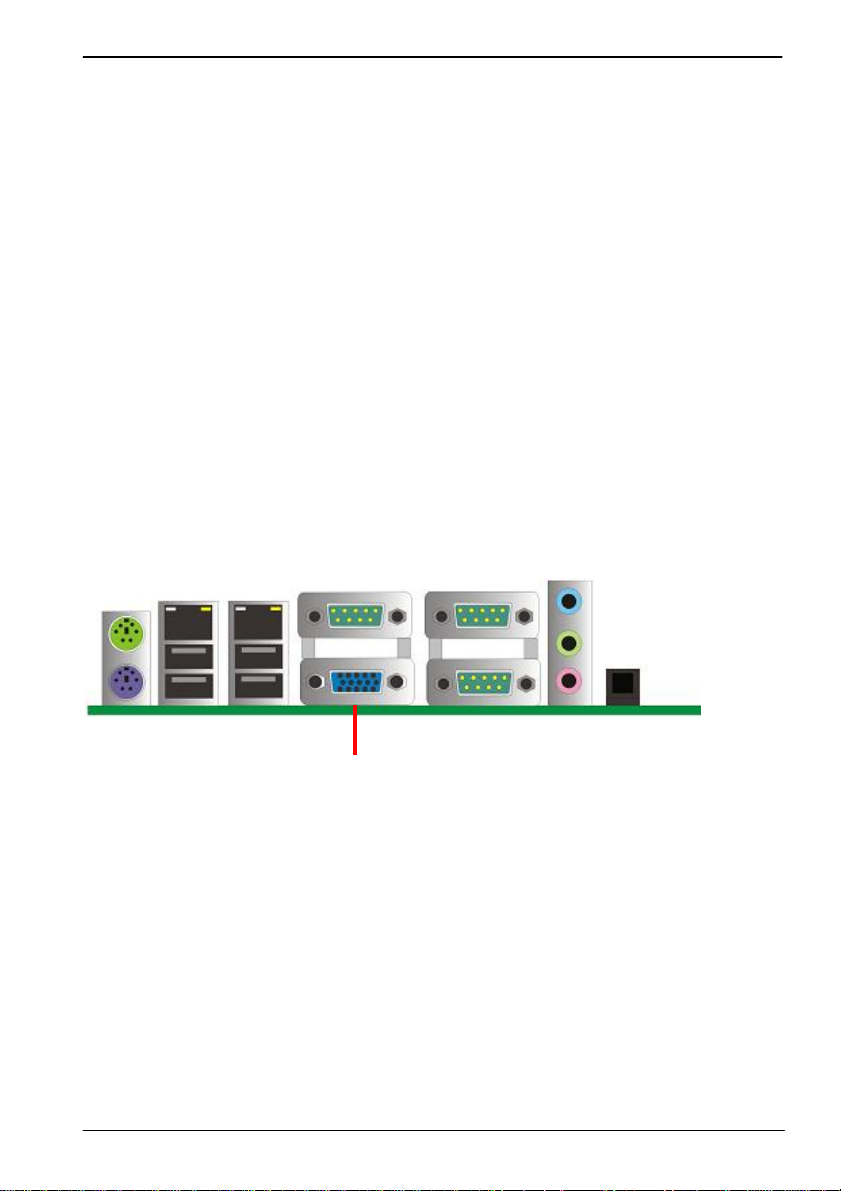

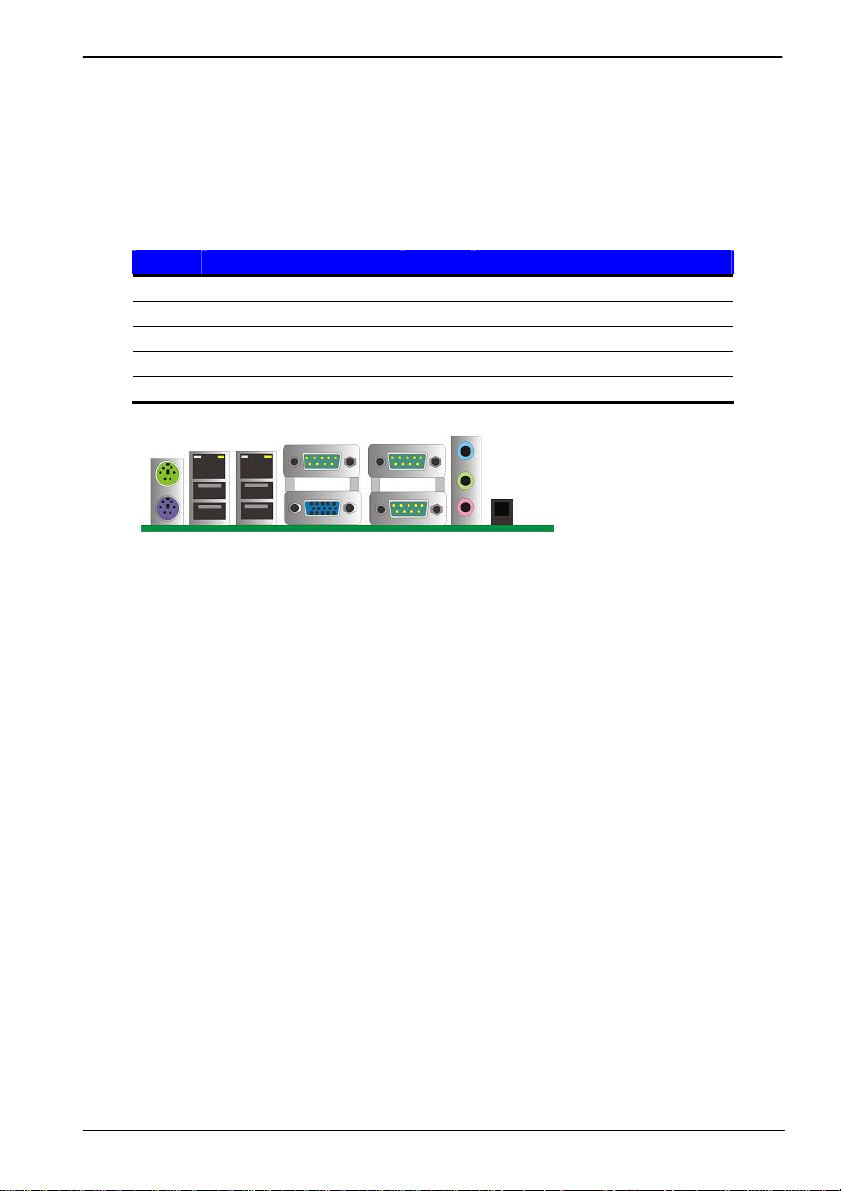

2.3.2 <External Connector>
Connector Function Remark
PS2 PS/2 Keyboard/Mouse connector
CRT+COM1 DB15 VGA + Serial port connector
USB_RJ45_1/2 Dual USB and one RJ45 LAN Port
COM 2/3 Serial port connector
AUDIO Audio connectors
SPDIF SPDIF digital audio output connector
13-
-
Page 15
LV-683 User’s Manual
2.4 <CPU and Memory Setup>
LV-683 has two 240-pin DDR3 DIMM support up to 8GB of memory capacity. The
memory frequency supports 1066/1333 MHz. Only Non-ECC memory is supported.
DDR3A&B
14-
-
Page 16
LV-683 User’s Manual
2.5 <CMOS & ATX Setup>
The board’s data of CMOS can be setting in BIOS. If the board refuses to boot due to
inappropriate CMOS settings, please remove battery to clear (reset) the CMOS to its
default values.
JAT
JAT
1
3
JRTC
1 3
Jumper: JRTC
Type: onboard 3-pin jumper
JAT Mode
1-2 Clear CMOS
2-3 Normal Operation
Default setting
Jumper: JAT
Type: onboard 3-pin jumper
JRTC Mode
1-2 AT Mode
2-3 ATX Mode
Default setting
15-
-
Page 17
LV-683 User’s Manual
2.6 <SATA & CFast Interface>
Based on Intel A55E, the board provides Four Serial A TAII interfaces with up to 300MB/s
of transfer rate.
SATA1/2/3/4
16-
-
Page 18
LV-683 User’s Manual
2.8 <LAN Interface>
The board integrates with two Intel 82583V Gigabit Ethernet controllers, as the PCI
Express bus. The Intel 82583V supports triple speed of 10/100/1000Base-T, with
IEEE802.3 compliance and Wake-On-LAN supported.
LAN1 LAN2
17-
-
Page 19
LV-683 User’s Manual
2.9 <Onboard Display Interface>
Based on AMD G-T56N chipset with built-in AMD Radeon HD 6300 series Graphics, the
board provides one DB15 connector on real external I/O port, and one 20-pin DVI and
one LVDS interface with 5-pin LCD backlight inverter connector. The board provides
dual display function with clone mode and extended desktop mode for CRT, DVI and
LVDS.
2.9.1 <Analog VGA Interface>
Please connect your CRT or LCD monitor with DB15 male connector to the onboard
DB15 female connector on rear I/O port.
The board supports up to 1920 x 1080 (WUXGA) of resolution.
CRT
18-
-
Page 20
LV-683 User’s Manual
2.9.2 <Digital Display>
The board provides one 20-pin LVDS for 18 bit single channel panels, supports up to
1600 x 900 of resolution, with one LCD backlight inverter connector and one jumper for
panel voltage setting
CN_LVDS
1
2
20
19
CN_INV
1
5
19-
-
Page 21
LV-683 User’s Manual
Connector: CN_INV Jumper: JVLCD
Type: 5-pin Inverter power connector Type: 3-pin Power select jumper
Connector model: JST B5B-XH-A
Pin Description
1 +12V
2 LVDS_VARY_BL
3 GND
4 GND
5 INV_ON
Connector: CN_LVDS
Type: onboard 20-pin connector for LVDS connector
Connector model: HIROSE DF13-20DP-1.25V
Pin Signal Pin Signal
1 LCDVCC 2 LCDVCC
3 GND 4 GND
5 TX0N 6 TX0P
7 GND 8 TX1N
9 TX1P 10 GND
11 TX2N 12 TX2P
13 GND 14 CLKN
15 CLKP 16 GND
17 AUXP 18 AUXN
19 GND 20 NC
Pin Description
1-2 +5V
2-3 +3.3V
Default: 2-3
20-
-
Page 22
LV-683 User’s Manual
To setup the LCD, you need the component below:
1. A panel with LVDS interfaces.
2. An inverter for panel’s backlight power.
3. A LCD cable and an inverter cable.
For the cables, please follow the pin assignment of the connector to make a c able, becaus e
every panel has its own pin assignment, so we do not provide a standard cable; ple ase fin d
a local cable manufacture to make cables.
LCD Installation Guide:
1. Preparing the LV-683, LCD panel and the backlight inverter
2. You would need a LVDS type cable.
Panel side
3.
To connect all of the devices well.
For sample illustrator only
21-
-
Board side
Page 23
LV-683 User’s Manual
After setup the devices well, you need to select the LCD panel
type in the BIOS.
The panel type mapping is list below:
LV-683 BIOS panel type selection form
On board Single channel LVDS
18bit
NO. Output format
1 800 x 600
2 1024 x 768
3 1280 x 720
4 1280 x 800
5 1280 x 1024
6 1366 x 768
7 1440 x 900
22-
-
Page 24
LV-683 User’s Manual
2.9.3 <DVI Interface >
The board also comes with a DVI interface. Supports up to 1600 x 1200 (UXGA) of
resolution.
Connector: CN_DVI
Connector type: HIROSE DF13-20DP-1.25V
Pin Number Assignment Pin Number Assignment
1 +5V 2 +3.3V
3 HPD 4 Ground
5 TMDSTX0N 6 TMDSTX0P
7 Ground 8 TMDSTX1N
9 TMDSTX1P 10 Ground
11 TMDSTX2N 12 TMDSTX2P
13 Ground 14 TMDSTXCN
15 TMDSTXCP 16 Ground
17 DVI_DA 18 DVI_SL
19 AUXN 20 AUXP
23-
-
CN_DVI
2
20
1
19
Page 25
LV-683 User’s Manual
2.10 <Onboard Audio Interface>

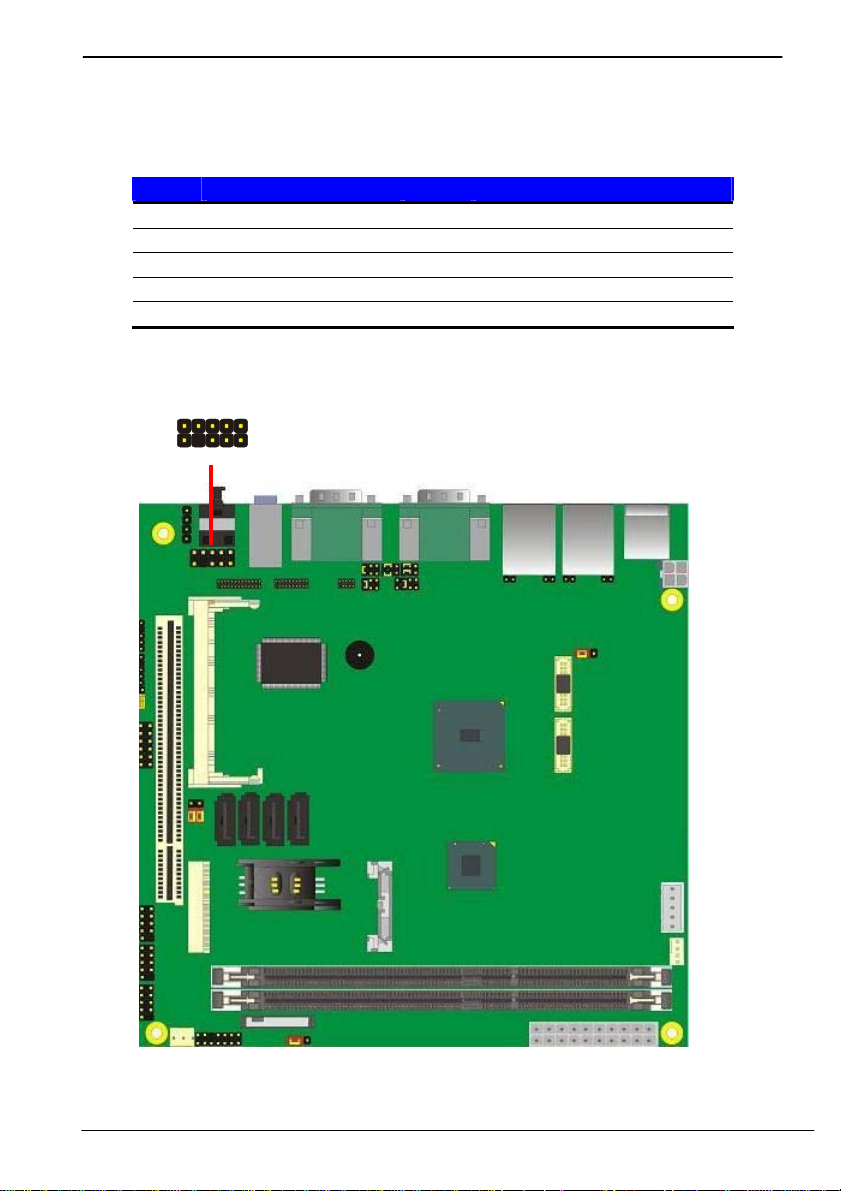

The board provides the onboard high definition audio with Realtek ALC888
Connector: CN_AUDIO
Type: 10-pin (2 x 5) 1.27mm x 2.54mm-pitch header
Pin Description Pin Description
1 MIC2_L 2 AGND
3 MIC2_R 4 AVCC
5 FRO_R 6 MIC2_JD
7 F_IO_SEN 8 N/C
9 FRO_L 10 LINE2_JD
9 1
CN_AUDIO
10 2
24-
-
Page 26
LV-683 User’s Manual
2.11 <USB2.0 Interface>
Based on AMD A55E FCH, the board provides Ten USB2.0 ports. The USB2.0 interface
provides up to 480Mbps of transferring rate.
Interface USB2.0
Controller A55E
Transfer Rate Up to 480Mb/s
Output Current 500mA
CN_USB1/2/3
1 2
USB
Connector: CN_USB1/2/3
Type: 10-pin (5 x 2) header for USB Port
Pin Description Pin Description
1 VCC 2 VCC
3 D0- 4 D15 D0+ 6 D1+
7 Ground 8 Ground
9 Ground 10 N/C
25-
-
Page 27
LV-683 User’s Manual
2.12 <PCIE Mini Card and SIM Interface>
The board provides one PCIE mini card sockets and a SIM socket.
MINI_CARD support 3G PCIE Mini card with SIM.
MINI_CARD
3
2
1
Connector: SIMM
Type: 6-pin SIM socket
Pin Description Pin Description
1 SIMVCC 2 SIMRST
3 SIMCLK 4 NC
5 GND 6 SIMVPP
7 SIMDATA
7
6
5
26-
-
Page 28
LV-683 User’s Manual
2.12.1 <SIM Setup>
Step1.
SIM card holder is marked by circle.
Slide the cap toward OPEN direction.
Step 2.
Make sure that the cap is now at the OPEN position.
Step 3.
Flip the cap up for inserting a SIM card into.
27-
-
Page 29
LV-683 User’s Manual
Step 4.
Insert a SIM card as shown in the photo.
Be sure that the corner cut is on top and the golden pads are up.
Step 5.
Now, flip down the cap as shown in the photo.
Step 6.
Press down and slide the cap to the CLOSE position.
Be sure that the cap is tightly held with the socket.
28-
-
Page 30
LV-683 User’s Manual
2.13 <GPIO Interface>

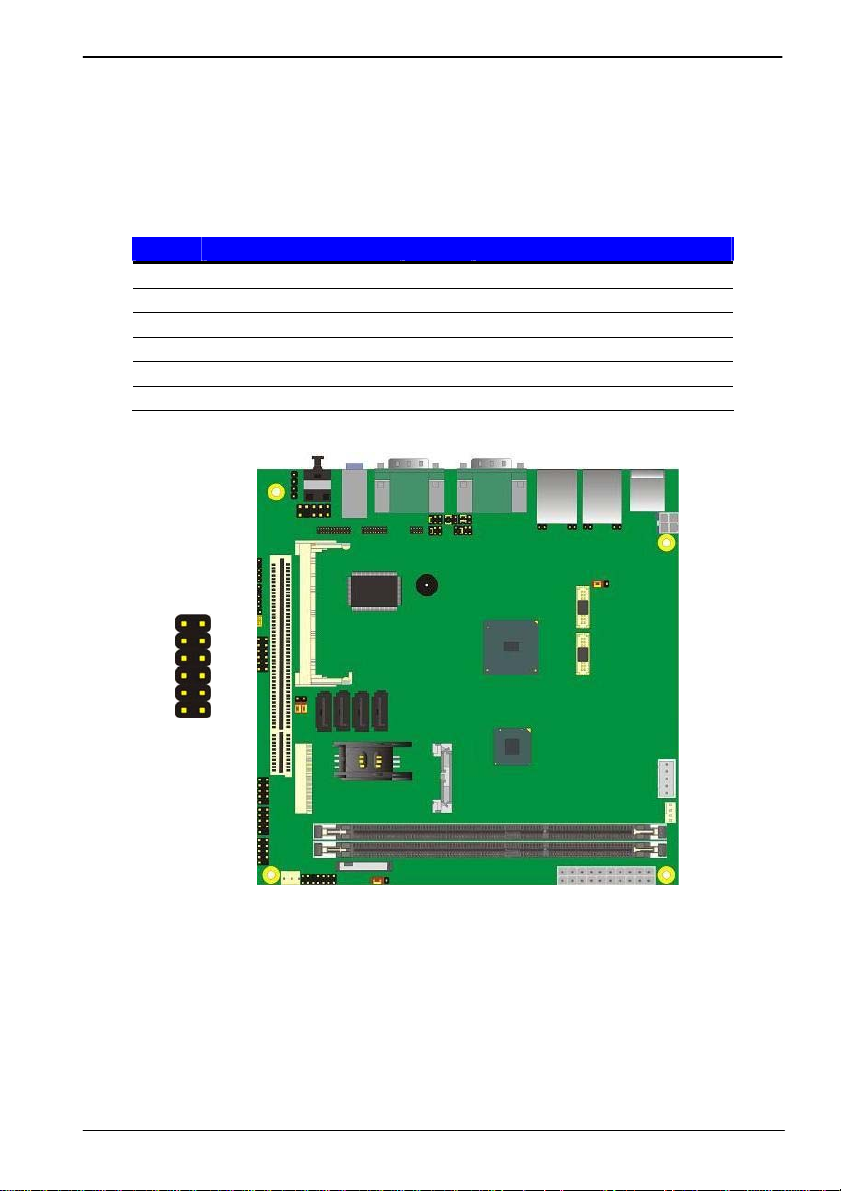

The board provides a programmable 8-bit digital I/O interface; you can use this general
purpose I/O port for system control like POS or KIOSK.
Connector: CN_DIO
Type: onboard 2 x 6-pin header, pitch=2.0mm

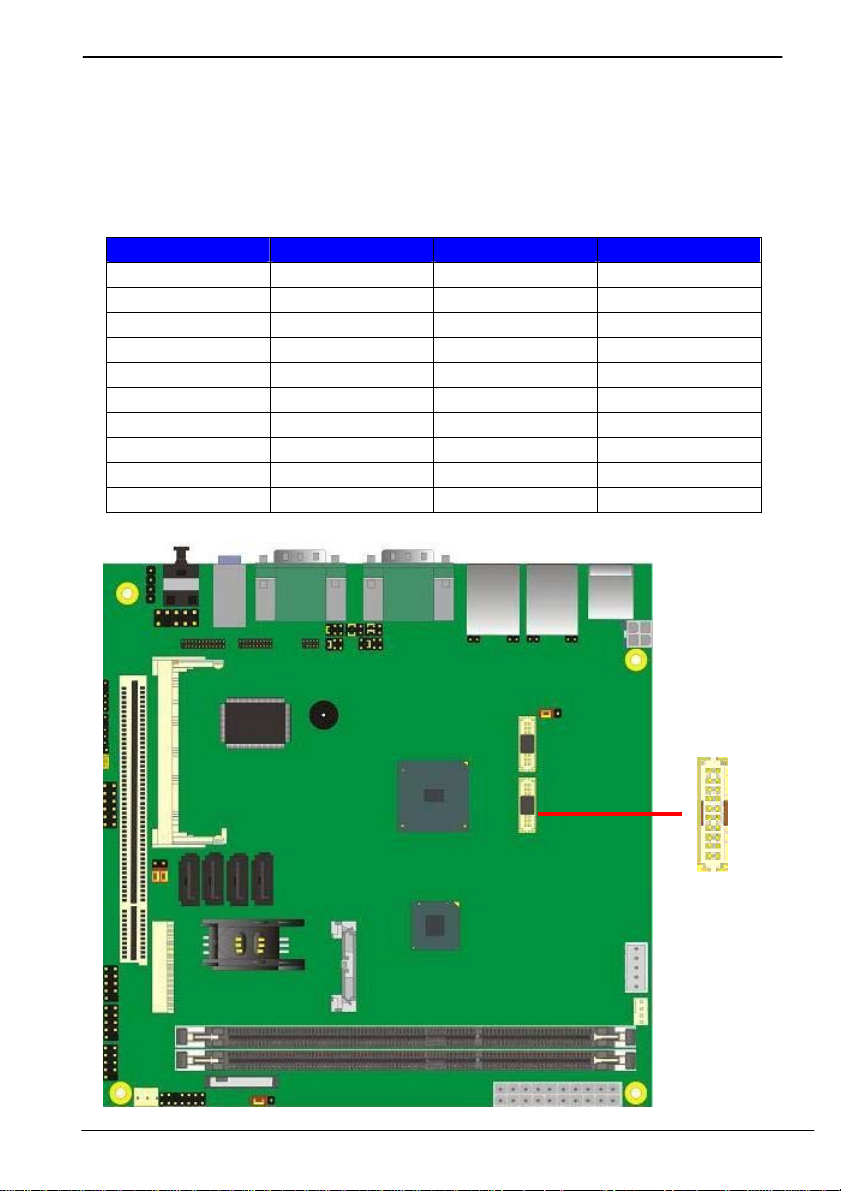

Pin Description Pin Description
1 Ground 2 Ground
3 GP10 4 GP14
5 GP11 6 GP15
7 GP12 8 GP16
9 GP13 10 GP17
11 +5V 12 +12V
CN_DIO
1 2
11 12
29-
-
Page 31
LV-683 User’s Manual
2.14 <Serial Port Jumper Setting >
The board provides Six RS232 serial ports, with jumper selectable RS422/485/IrDA for
COM2.
Connector: COM2
Type: 10-pin (5 x 2) 1.27mm x 2.54mm-pitch header for COM2
Pin Description Pin Description
1 DCD/422TX-/485- 2 RXD/422TX+/485+
3 TXD/422RX+ 4 DTR/422RX5 GND 6 DSR
7 RTS 8 CTS
9 RI 10 N/C
COM2
-
30-
Page 32
LV-683 User’s Manual
Jumper: JCSEL1/2
Type: 12-pin (6 x 2) & 8-pin (4 x 2) for set COM2 mode jumper
JCSEL1
JCSEL2
RS232 RS485 RS422 IrDA
11 1
11 1 11 1
12 2
7 1
8 2 8 2 8 2
12 2
7 1
12 2
7 1 7 1
Default: RS232
JCSEL2
11 1
12 2
7 1
JCSEL1
8 2
11 1
12 2
8 2
31-
-
Page 33
LV-683 User’s Manual
2.15 <Power & FAN Connector >
2.15.1 <Power Input>
The board requires onboard 4-pin DC-input connector voltage range is from 5V to 24V,
or onboard 20-pin ATX2.0, for the input current, please take a reference of the power
consumption report on appendix.
Connector: ATX (It also can become Output when DC-IN be used)
Type: 20-pin ATX power connector
Pin Assignment Pin Assignment
1 3.3V 11 3.3V
2 3.3V 12 -12V
3 GND 13 GND
4 5V 14 -PSON
5 GND 15 GND
6 5V 16 GND
7 GND 17 GND
8 PW_OK 18 N/C
9 5V_SB 19 5V
10 12V 20 5V
Connector: DC_IN
Type: 4-pin standard Pentium 4 additional +5~24V power connector
Pin Description Pin Description
1 Ground 2 Ground
3 +5~24V 4 +5~24V
20
10
3 1
4
ATX
DC_IN
2
11
1
32-
-
Page 34
LV-683 User’s Manual
2.15.2 <Power Output>
The board provides one 20-pin ATX connector for +5V/+12V output for powering your
HDD, CDROM or other devices.
Attention: When DC-IN had power supplied, the ATX become output !
Avoid DC-IN and ATX power supply input at the same time !
Connector: ATX (When DC-IN be used)
Type: 20-pin ATX connector for +3.3V/+5V/+12V Output
Pin Assignment Pin Assignment
1 3.3V 11 3.3V
2 3.3V 12 *
3 * 13 *
4 5V 14 *
5 GND 15 *
6 * 16 GND
7 GND 17 GND
8 * 18 *
9 * 19 5V
10 12V 20 5V
Note: Maximum output voltage: 12V/2A & 5V/3A &3.3V/2A
33-
-
Page 35
LV-683 User’s Manual
2.15.3 <Fan Connector>
Connector: CPUFAN
Type: 4-pin fan wafer connector
Pin Description Pin Description
1 Ground 2 +12V
3 Fan Speed Detection 4 Fan Control
Connector: SYSFAN
Type: 3-pin fan wafer connector
Pin Description Pin Description Pin Description
1 Ground 2 +12V 3 Sense
1 3
SYSFAN
34-
-
CPUFAN
1
4
Page 36
LV-683 User’s Manual
2.16 <Indicator and Switch>
The JFRNT provides front control panel of the board, such as power button, reset and
beeper, etc. Please check well before you connecting the cables on the chassis.
Connector: JFRNT
Type: onboard 14-pin (2 x 7) 2.54-pitch header
Function Signal PIN Signal Function
IDE LED
Reset
Power
Button
HDLED+ 1 2 PWDLED+
Power
HDLED- 3 4 N/C
LED
Reset+ 5 6 PWDLED-
Reset- 7 8 SPKIN+
N/C 9 10 N/C
Speaker
PWRBT+ 11 12 N/C
PWRBT- 13 14 SPKIN-
13 1
35-
-
JFRNT
Page 37
LV-683 User’s Manual
(This Page is Left For Blank)
36-
-
Page 38
LV-683 User’s Manual
Chapter 3 <BIOS Setup>
The motherboard uses the Award BIOS for the system configuration. The Award
BIOS in the single board computer is a customized version of the industrial standard
BIOS for IBM PC AT-compatible computers. It supports Intel® x86 and compatible
CPU architecture based processors and computers. The BIOS provides critical
low-level support for the system central processing, memory and I/O sub-systems.
The BIOS setup program of the single board computer let the customers modif y the
basic configuration setting. The settings are stored in a dedicated battery-backed
memory, NVRAM, retains the information when the power is turned off. If the battery
runs out of the power, then the settings of BIOS will come back to the default setting.
The BIOS section of the manual is subject to change without notice and is provi ded
here for reference purpose only. The settings and configurations of the BIOS are
current at the time of print, and therefore they may not be exactly the same as that
displayed on your screen.
To activate CMOS Setup program, press ＜DEL＞ key immediately after you turn
on the system. The following message “Press DEL to enter SETUP” should appear in
the lower left hand corner of your screen. When you e nter the CMOS Setup Utility,
the Main Menu will be displayed as Figure 4-1. You can use arrow keys to select
your function, press ＜Enter＞ key to accept the selection and enter the sub-menu.
Figure 4-1 CMOS Setup Utility Main Screen
37-
-
Page 39
LV-683 User’s Manual
(This Page is Left for Blank)
38-
-
Page 40
LV-683 User’s Manual
Appendix A <I/O Port Pin Assignment>
A.1 <SATA Port>
Connector: SATA1/2/3/4
Type: 7-pin wafer connector
1 2 3 4 5 6 7
GND RSATA_TXP1 RSATA_TXN1 GND RSATA_RXN1 RSATA_RXP1 GND
17
A.2 <IrDA Port>
Connector: CN_IR
Type: 5-pin header for SIR Port
Pin Description
1 VCC
2 N/C
3 IRRX
4 Ground
5 IRTX
A.3 <SMBUS Port>
Connector: CN_SMBUS
Type: 5-pin header for SMBUS Port
Pin Description
1 VCC
2 N/C
3 SMDATA
4 SMCLK
5 Ground
5 1
5 1
39-
-
Page 41
LV-683 User’s Manual
A.4<LPT Port>
Connector: CN_LPT
Type: 26-pin header for LPT Port
Pin Description
1 -PSTB 14 AFD2 PRD0 15 ERR3 PRD1 16 INIT4 PRD2 17 SLIN5 PRD3 18 GND
6 PRD4 19 GND
7 PRD5 20 GND
8 PRD6 21 GND
9 PRD7 22 GND
10 ACK- 23 GND
11 BUSY 24 GND
12 PE 25 GND
13 SLCT 26 N/C
A.5 < CRT Port >
Connector: CRT
Type: 15-pin D-sub female connector on rear panel
Pin Description Pin Description Pin Description
1 RED 6 Ground 11 N/C
2 GREEN 7 Ground 12 5VCDA
3 BLUE 8 Ground 13 HSYNC
4 N/C 9 LVGA5V 14 VSYNC
5 Ground 10 Ground 15 5VCLK
14 25
1 13
5 1
10 6
15 11
40-
-
Page 42
LV-683 User’s Manual
A.6 <Serial Port>
Connector: COM1
Type: 9-pin D-sub male connector on rear panel
Pin Description Pin Description
1 DCD 6 DSR
2 SIN 7 RTS
3 SO 8 CTS
4 DTR 9 RI
5 Ground
A.7 <LAN Port>
Connector: RJ45
Type: RJ45 connector with LED on rear panel
Pin 1 2 3 4 5 6 7 8
Description TRD0+ TRD0- TRD1+ TRD2+ TRD2- TRD1- TRD3+ TRD3-
A.8 <LAN LED Port>
Connector: JSPD1/2
Type: 5-pin header for LAN Speed LED connector
When Lan speed 10/100Mbps
Pin Description
1 LED2 LED+
When Lan speed 1Gbps
Pin Description
1 LED+
2 LED-
Connector: JATC1/2
Type: 5-pin header for LAN Activity LED connector
Pin Description
1 LED2 LED+
2
1 5
6 9
8 1
1
2
1
41-
-
Page 43
LV-683 User’s Manual
Appendix B <Flash BIOS>
B.1 <Flash Tool>
The board is based on Phoenix BIOS and can be updated easily by the BIOS auto
flash tool. You can download the tool online at the address below:
http://www.phoenix.com/en/home/
http://www.commell.com.tw/Support/Support_SBC.htm
File name of the tool is “Pflash.exe”, it’s the utility that can write the data into the
BIOS flash ship and update the BIOS.
B.2 <Flash BIOS Procedure>
1. Please make a bootable floppy disk.
2. Get the last .bin files you want to update and copy it into the disk.
3. Copy Pflash.exe to the disk.
4. Power on the system and flash the BIOS.
(Example: C:/Pflash /bbl /cvar /sa XXX.bin)
5. Restart the system.
Any question about the BIOS re-flash please contact your distributors or visit the
web-site at below:
http://www.commell.com.tw/support/support.htm
UT
42-
-
Page 44
LV-683 User’s Manual
Appendix C <System Resources>
C.1 <I/O Port Address Map>

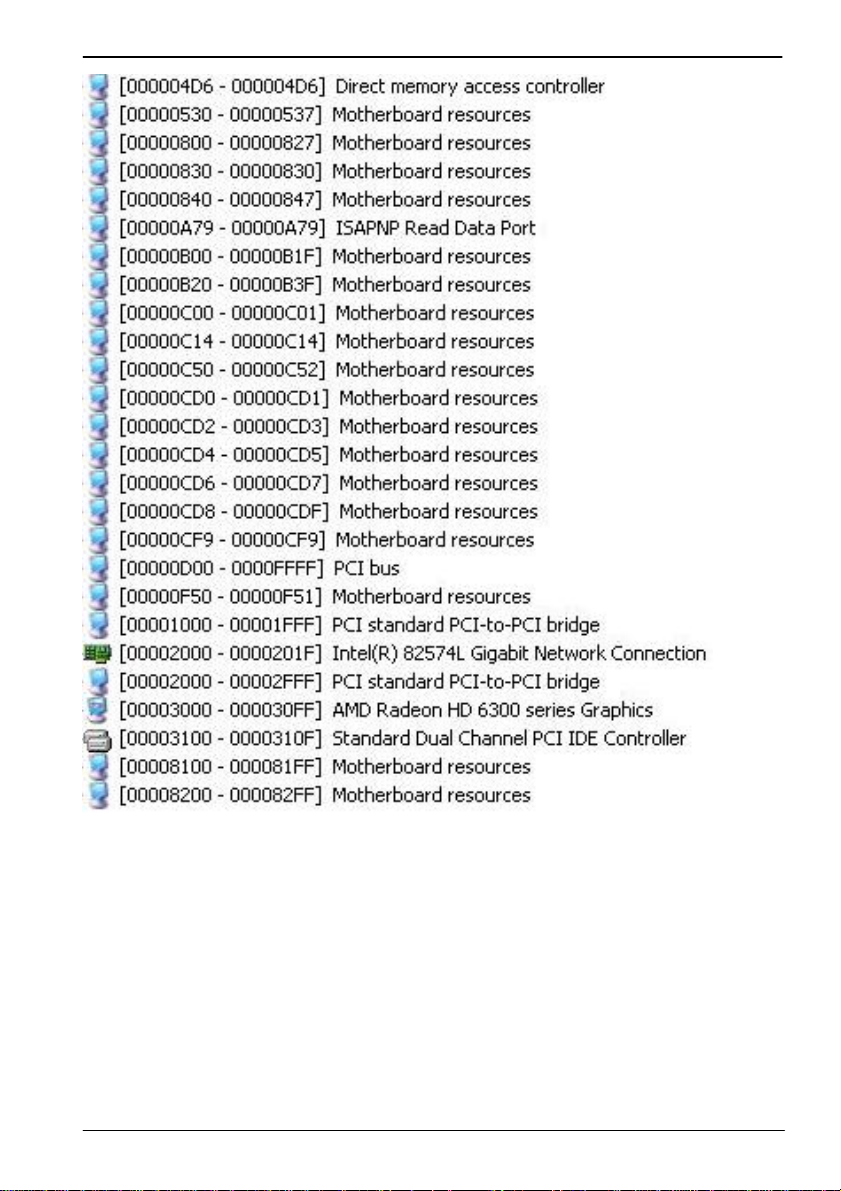

43-
-
Page 45
LV-683 User’s Manual
44-
-
Page 46
LV-683 User’s Manual

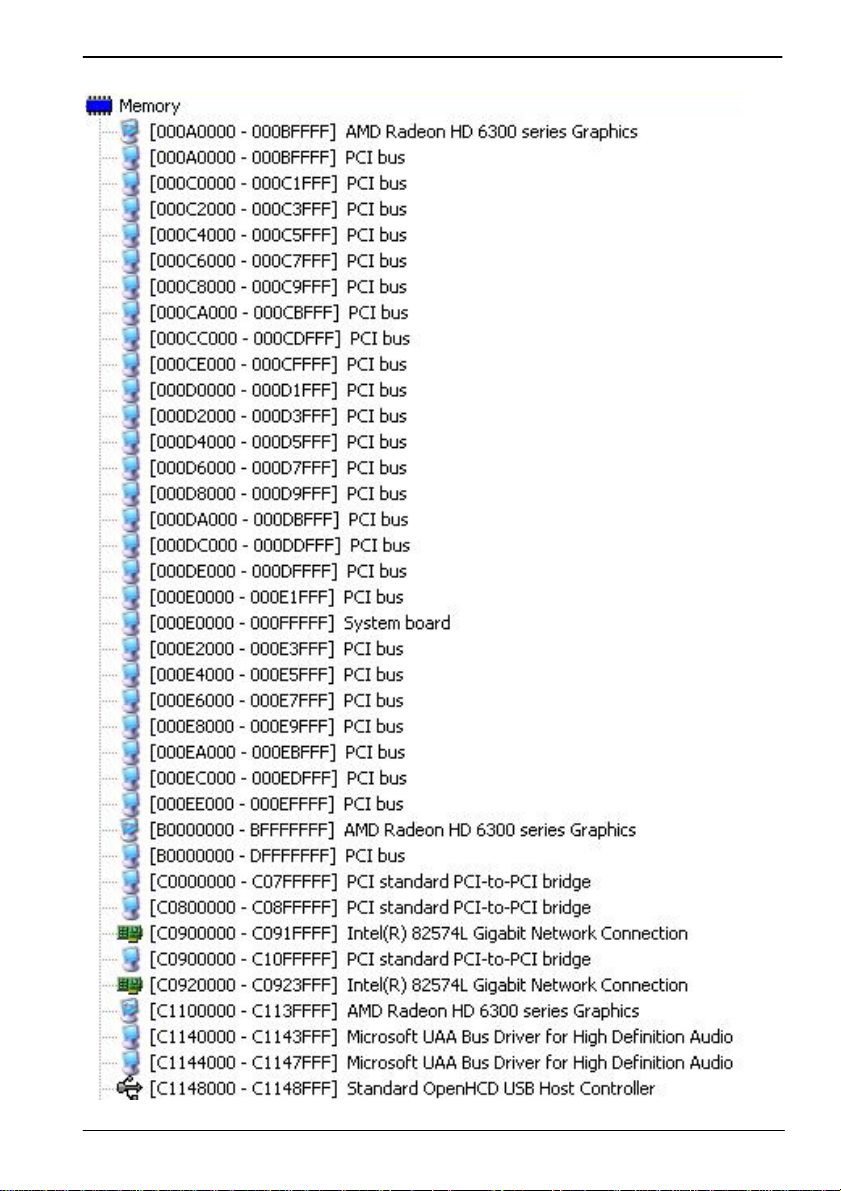

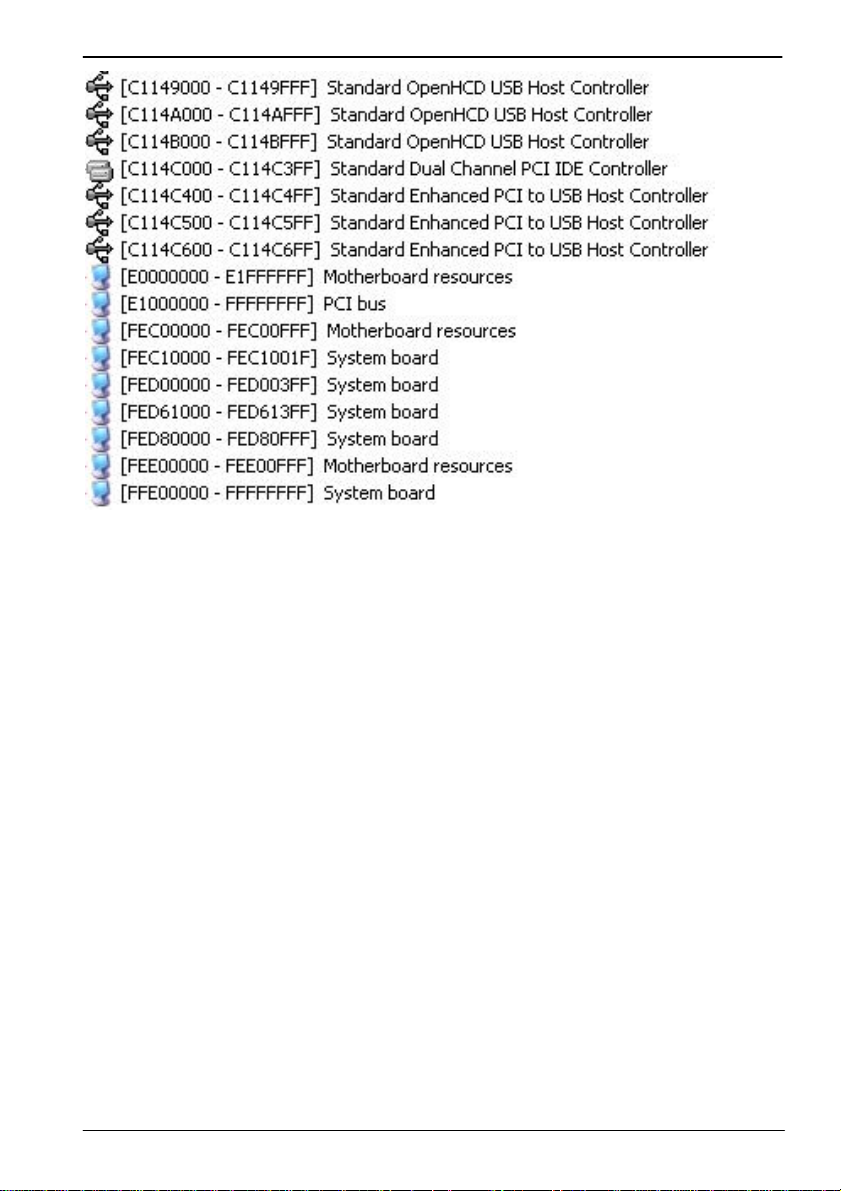

C.2 <Memory Address Map >
45-
-
Page 47
LV-683 User’s Manual
46-
-
Page 48
LV-683 User’s Manual
C.3 < System IRQ Resources >

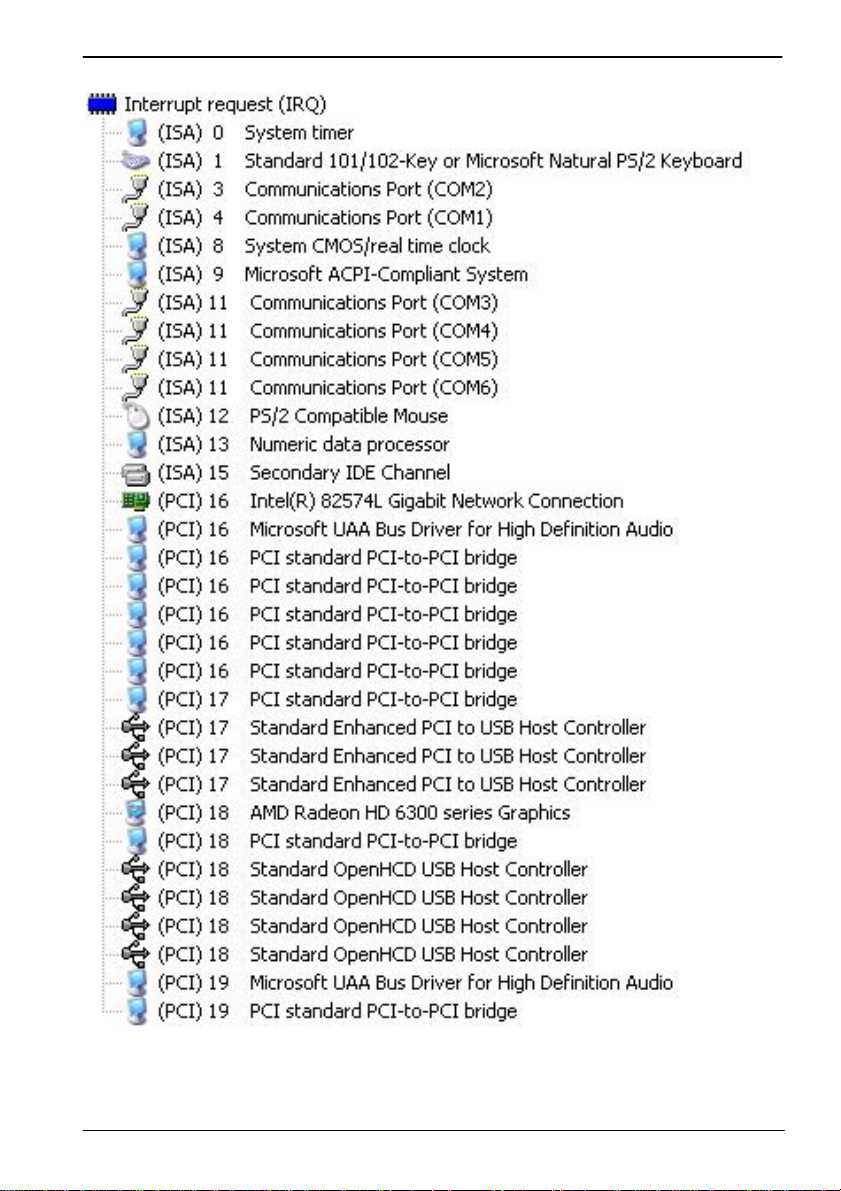

47-
-
Page 49
LV-683 User’s Manual
Appendix D <Programming GPIO’s>
The GPIO can be programmed with the MS-DOS debug program using simple
IN/OUT commands.The following lines show an example how to do this.
GPIO0…..GPIO7 bit0……bit7
-o 2E 87 ;enter configuration.
-o 2E 87
-o 2E 07
-o 2F 09 ;select logic device 9.
-o 2E 30
-o 2F 02 ;active GPIO3.
-o 2E F0
-o 2F xx ;set GPIO as input/output; set ‘1’ for input,’0’for
output.
-o 2E F1
-o 2F xx ;if set GPIO’s as output,in this register its value
can be set
Optional :
-o 2E F2
-o 2F xx ; Data inversion register ; ‘1’ inverts the current
valus of the bits ,’0’ leaves them as they are
For further information, please refer to Winbond W83627DHG-P datasheet.
48-
-
Page 50
LV-683 User’s Manual
Appendix E <Watch Dog timer Setting >
The watchdog timer makes the system auto-reset while it stops to work for a period. The
integrated watchdog timer can be setup as system reset mode by program.
Timeout Value Range
- 1 to 255
- Second or Minute
Program Sample
Watchdog timer setup as system reset with 5 second of timeout
2E, 87
2E, 87
2E, 07
2F, 08 Logical Device 8
2E, 30
2F, 01 Activate
2E, F5
2F, 02 Set as Second*
2E, F6
2F, 05 Set as 5
* Minute: bit 3 = 1; Second: bit 3 = 0
You can select Timer setting in the BIOS, after setting the time options, the system
will reset according to the period of your selection.
49-
-
Page 51
LV-683 User’s Manual
Appendix F <AMD Hing Definition Audio Device >

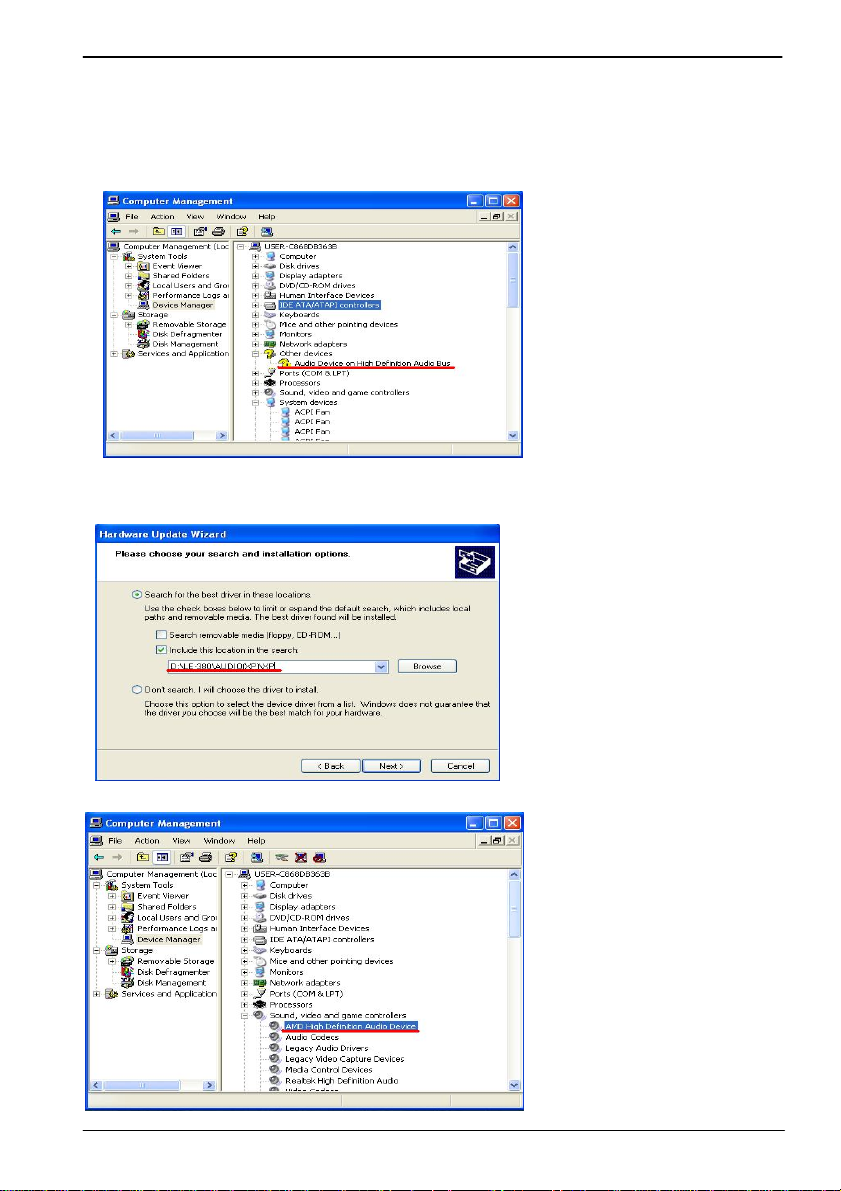

1. Please choose “Device Manager”
2. You can see other devices ”Audio Device on High Definition Audio Bus”
3. Please choose “Audio Device on High Definition Audio Bus” then press Update Driver
4. Please select the file location”D:\LV-683\Audio(XP)\XP”
5. Install finish
50-
-
Page 52
LV-683 User’s Manual
Contact Information
Any advice or comment about our products and service, or
anything we can help you please don’t hesitate to contact with us.
We will do our best to support you for your products, projects and
business.
Taiwan Commate Computer Inc.
Address
TEL +886-2-26963909
FAX +886-2-26963911
Website
E-Mail
Facebook
Twitter https://twitter.com/Taiwan_Commate
19F., No.94, Sec. 1, Xintai 5th Rd., Xizhi Dist., New Taipei
City 22102, Taiwan
https://www.facebook.com/pages/Taiwan-Commate-Computer-Inc/547993955271899
Commell is our trademark of industrial PC division
51-
-
Loading...
