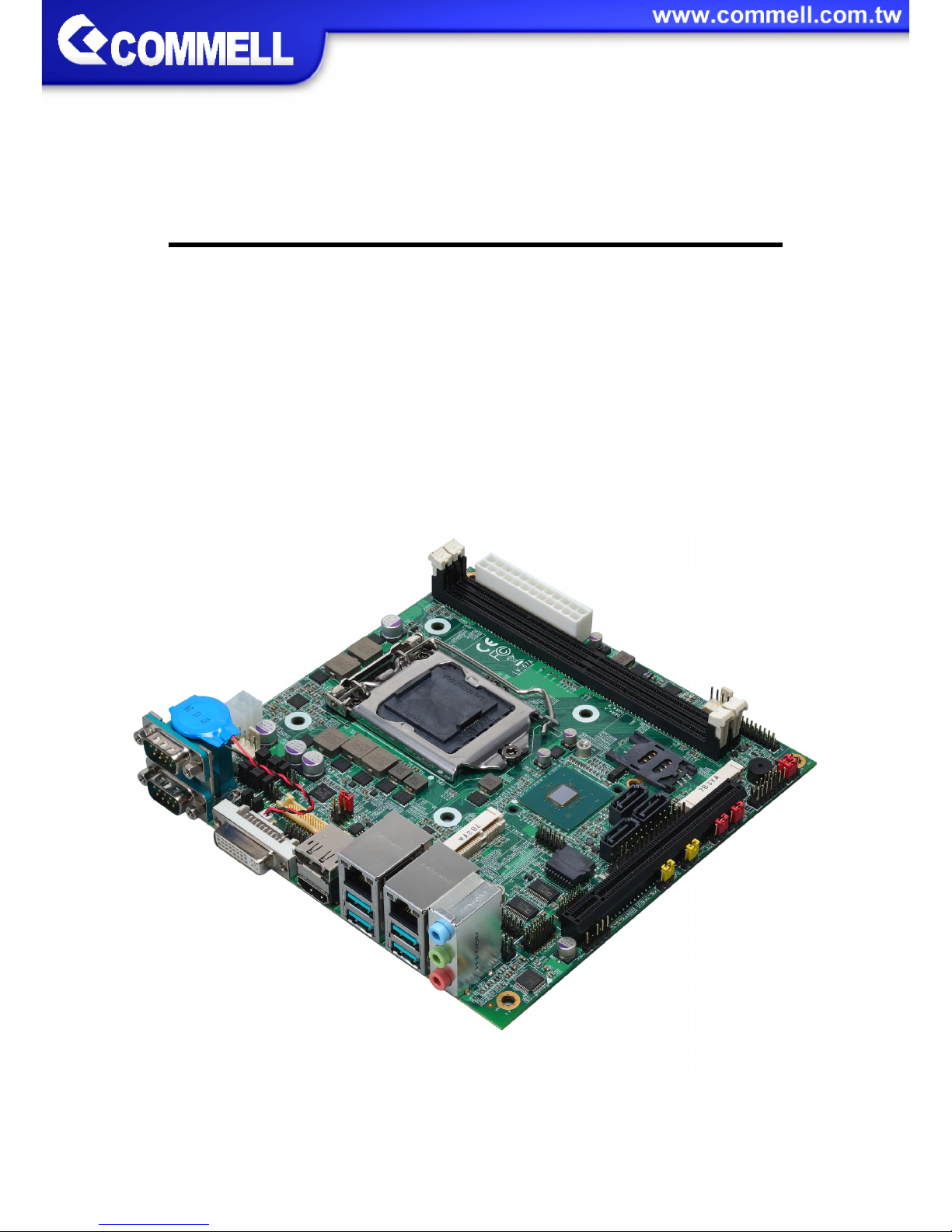

Page 1
LV-67X
Mini-ITX Desktop Motherboard
User’s Manual
Edition 1.2
2018/08/17
Page 2
LV-67X User’s Manual
-1-
Copyright
Copyright 2018, all rights reserved. This document is copyrighted and all rights are reserved.
The information in this document is subject to change without prior notice to make
improvements to the products.
This document contains proprietary information and protected by copyright. No part of this
document may be reproduced, copied, or translated in any form or any means without prior
written permission of the manufacturer.
All trademarks and/or registered trademarks contains in this document are property of their
respective owners.
Disclaimer
The company shall not be liable for any incidental or consequential damages resulting from
the performance or use of this product.
The company does not issue a warranty of any kind, express or implied, including without
limitation implied warranties of merchantability or fitness for a particular purpose.
The company has the right to revise the manual or include changes in the specifications of
the product described within it at any time without notice and without obligation to notify any
person of such revision or changes.
Trademark
All trademarks are the property of their respective holders.
Any questions please visit our website at TUhttp://www.commell.com.twUT
Page 3
LV-67X User’s Manual
-2-

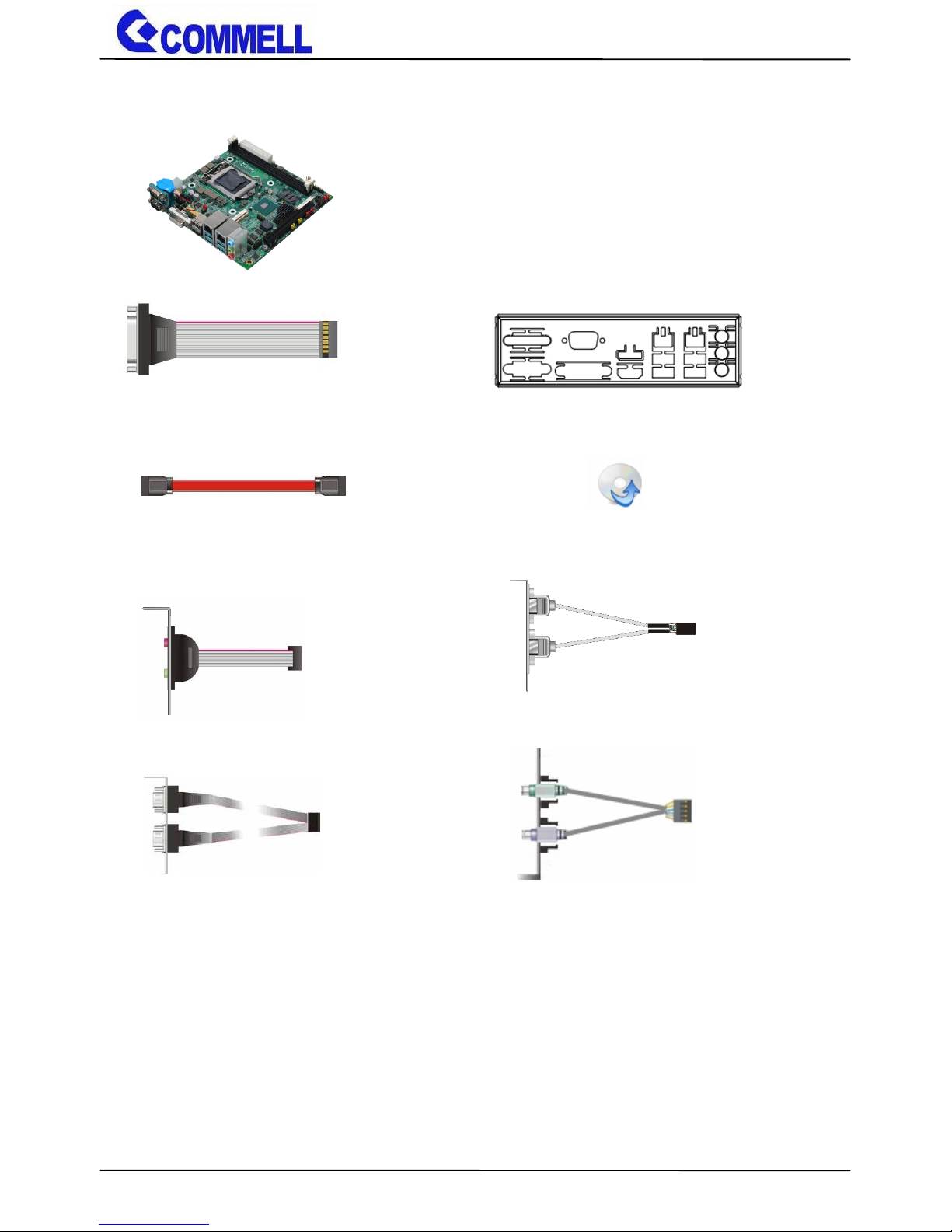

Packing List:
Please check the package content before you starting using the board.
1 x LV-67X Mini-ITX Motherboard
1 x PS/2 Keyboard & Mouse cable
(OALPS2/KMB) / (1040610)
1 x Audio cable
(OALPJ-HD) / (1040120)
1 x Dual COM PORT Cable
(OALES-BKU2) / (1040087)
2 x SATA Cable
(OALSATA3-L) / (1040529)
OPTIONAL:
1 x USB2.0 Cable
(OALUSBA-1) / (1040172)
1 x VGA Cable
(OALVGA-SNB-7) / (1040557)
1 x I/O Shield
(OPLATE-CDILAT) / (1270067)
1 x Driver CD
(Including User’s Manual)
Page 4
LV-67X User’s Manual
-3-
Index
Chapter 1 <Introduction>............................................................... 4
1.1 <Product Overview>............................................................ 4
1.2 <Product Specification> ...................................................... 5
1.3 <Block Diagram>.................................................................6
Chapter 2 <Hardware setup>......................................................... 7
2.1 <Connector Location and Reference> ................................ 7
2.1.1 <Internal connectors list> ..........................................8
2.1.2 <External connectors list>.........................................8
2.2 <CPU and Memory Setup> .................................................9
2.2.1 <CPU installation> ....................................................9
2.2.2 <Memory Setup> .................................................... 10
2.3 <Jumper Location and Reference> ................................... 11
2.3.1 <Jumper list> .......................................................... 11
2.3.2 <Clear CMOS and Power on type selection>..........12
2.4 <I/O interface> ..................................................................12
2.4.1 <Serial ATA interface>.............................................12
2.4.2 <Ethernet interface>................................................ 13
2.4.3 <Display interface> .................................................13
2.4.4 <Serial Port interface> ............................................ 16
2.4.5 <USB interface>...................................................... 19
2.4.6 <Audio interface>.................................................... 21
2.4.7 <Expansion slot>..................................................... 22
2.4.8 <Front panel switch and indicator> ......................... 23
2.4.9 <GPIO and Other interface> ...................................24
2.5 <Power supply> ................................................................ 27
2.5.1 <Power input>......................................................... 27
Appendix A <Flash BIOS> ........................................................... 28

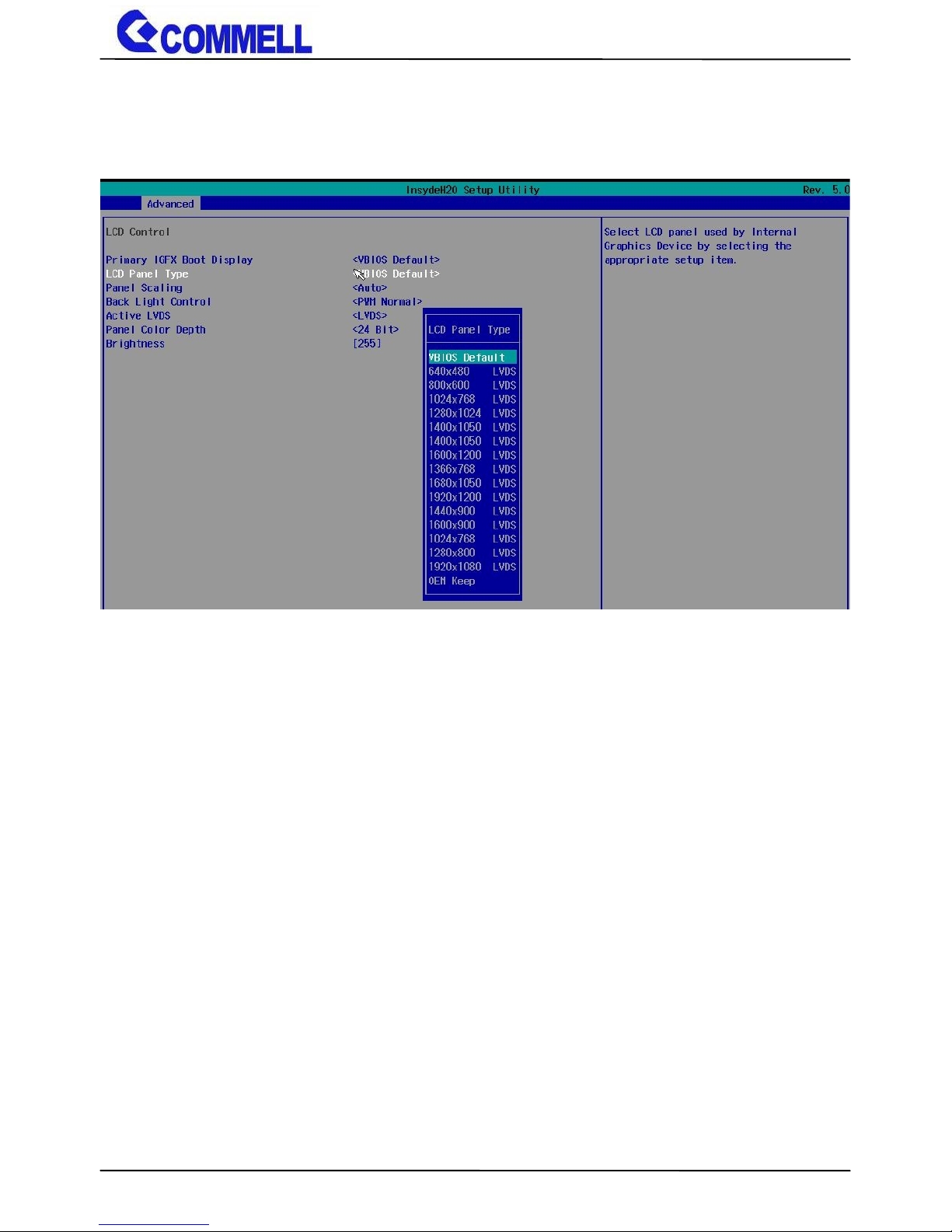

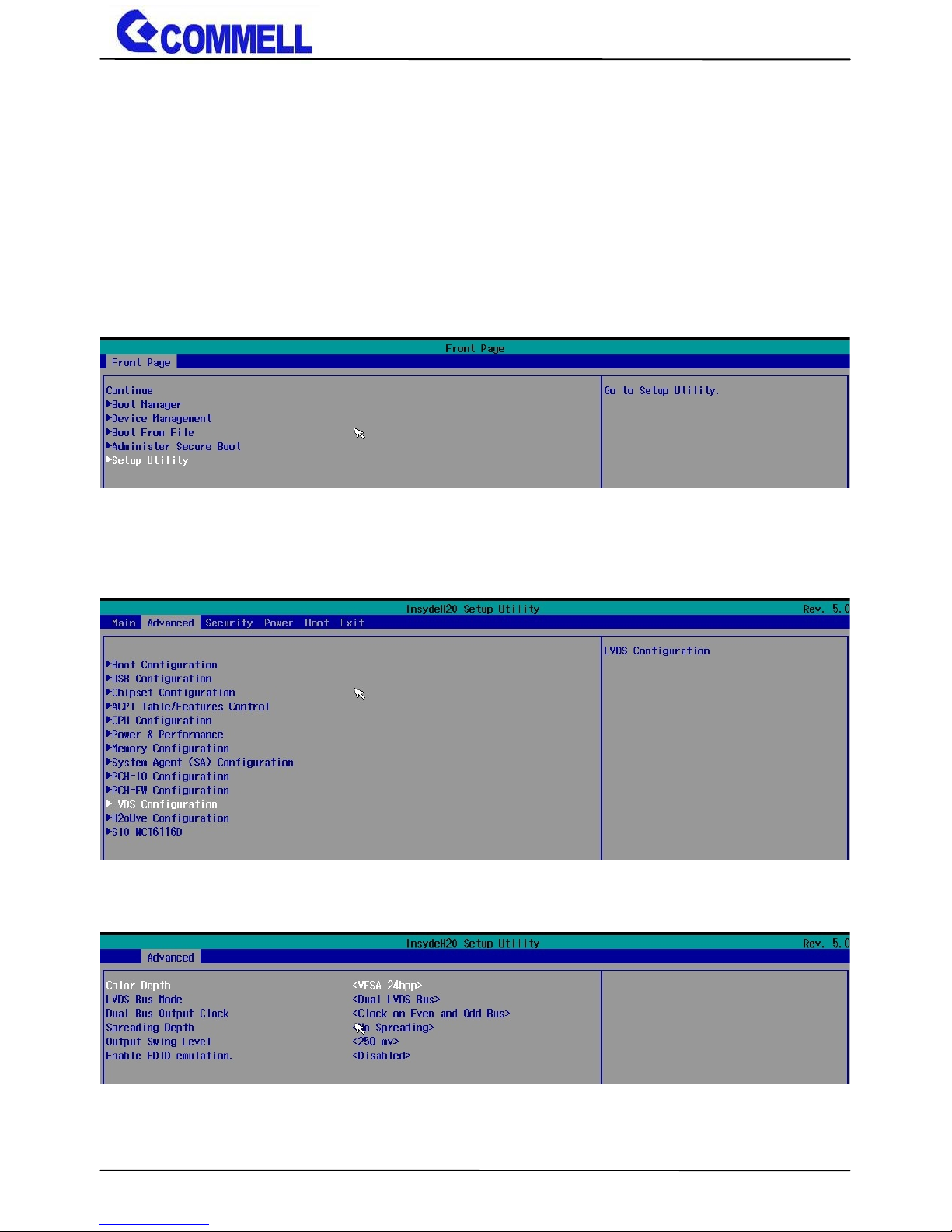

Appendix B <LCD Panel Type select>........................................ 29

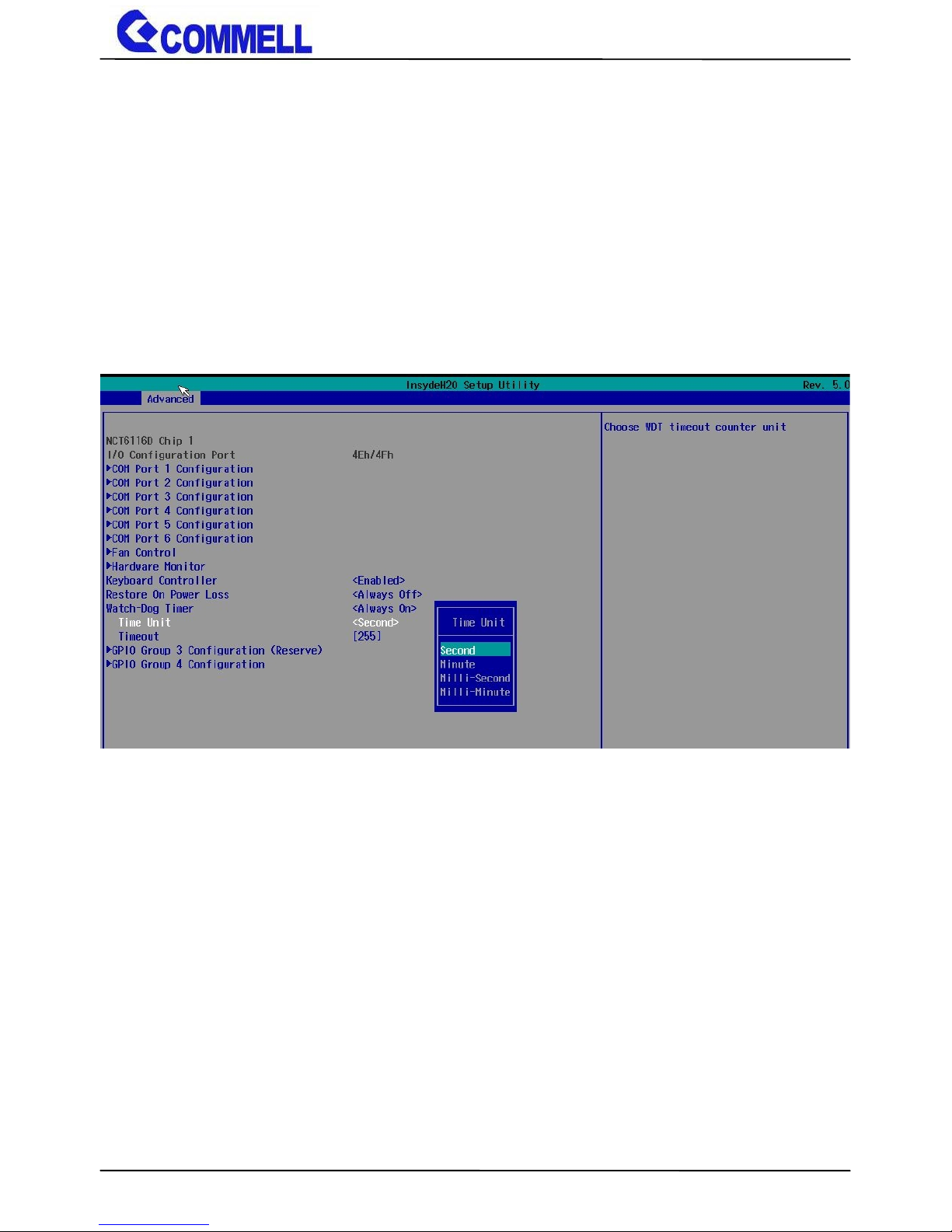

Appendix C <Programmable Watch Dog Timer>....................... 31

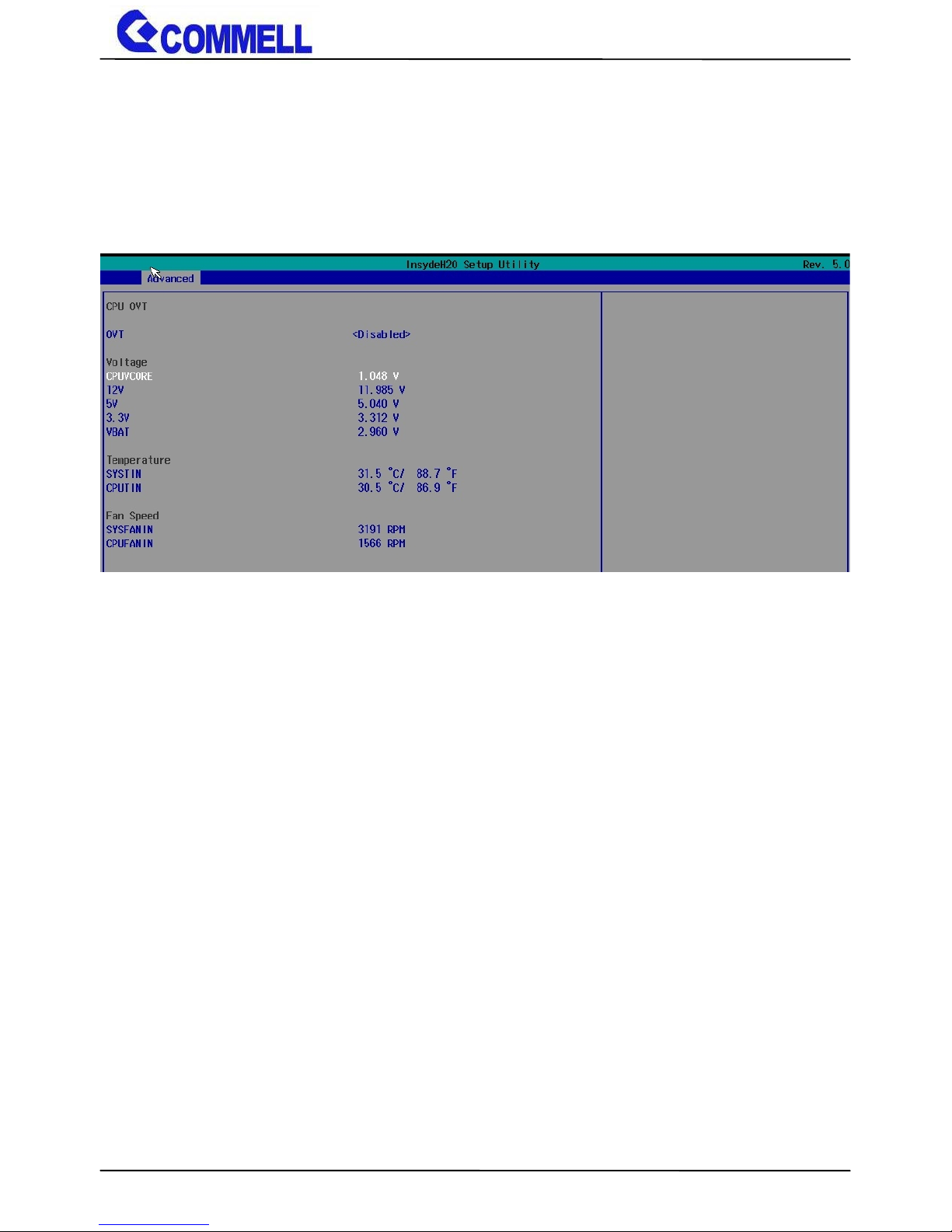

Appendix D <Hardware Monitor>................................................ 33
Appendix E <Programmable GPIO> ........................................... 34

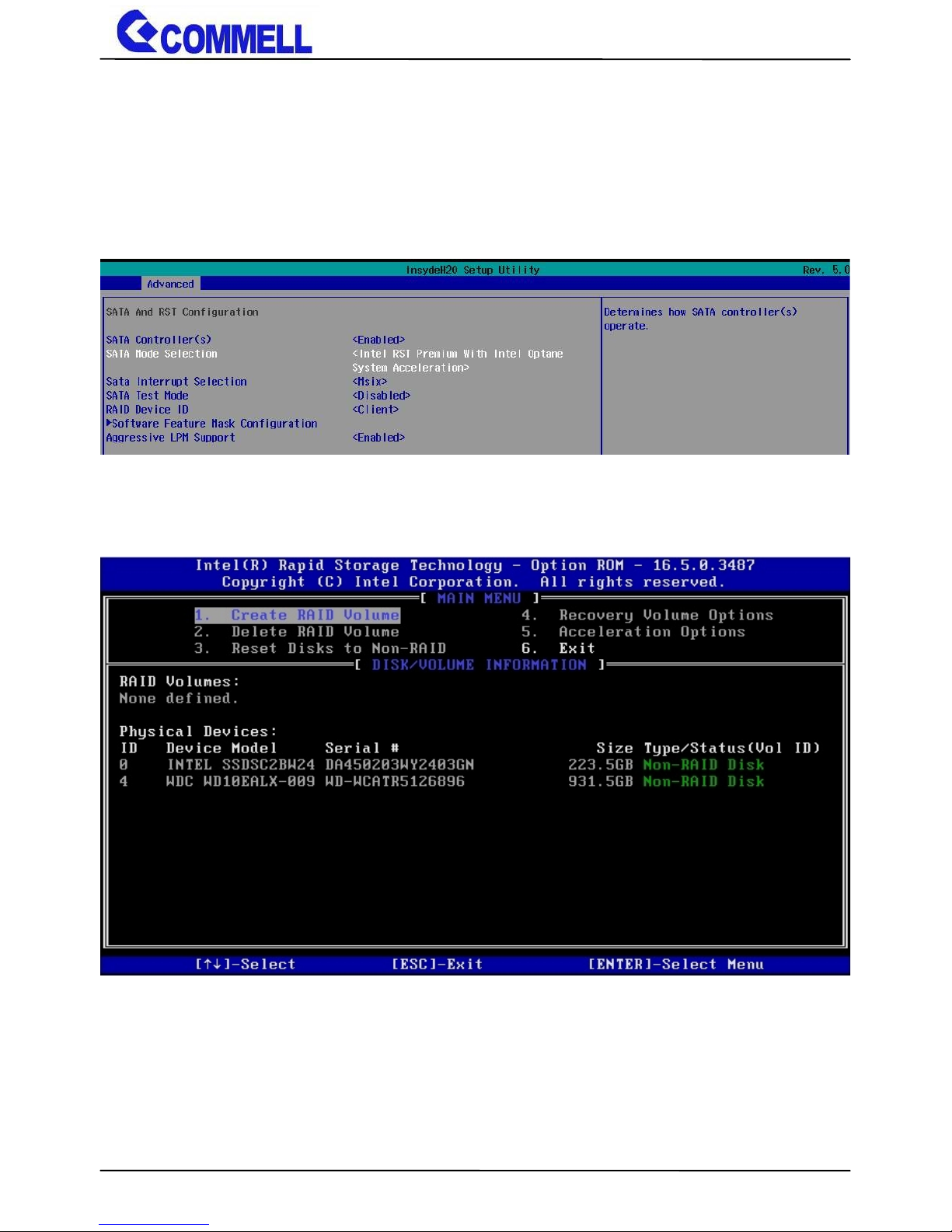

Appendix F <RAID Setting>......................................................... 35
Appendix G <Setup ADP-3355,ADP-3460>................................. 36
Contact information .....................................................................36
Page 5
LV-67X User’s Manual
-4-
Chapter 1 <Introduction>
1.1 <Product Overview>
LV-67X is Mini-ITX Motherboard which supports 8th generation Intel® Core™, Pentium®
and Celeron® processor families (Coffee Lake S) with Intel® Q370 Chipset, integrated HD
Graphics , DDR4 memory, Realtek High Definition Audio, Intel Gigabit LAN, Serial ATA3
Intel Coffee Lake-S Processor with Intel® Q370 Chipset
8th generation Intel® Core™, Pentium® and Celeron® processor families are new
generation and multi-core processor built on 14 nanometer process.
It provides new Graphics support 3 independent 4K UHD displays, Memory is support up to
32GB of DDR4, better performance, flexibility and more enhanced security that is suitable
for a variety of intelligent systems the ideal choice.
Flexible Expansion Interface
It includes 2 x Minicard slot, PCIe x16 slot, 2 x RS232/RS485/RS422, 6 x USB3.1 Gen2,
and 4 x USB2.0.
Coffee Lake only support Windows10 64bit, Linux
Intel only support Windows 10 64bit. It may lose some drivers if you use other Windows
version.
Page 6
LV-67X User’s Manual
-5-
1.2 <Product Specification>
System
Processor
8th generation Intel® Core™, Pentium® and Celeron® processor ,
FCLGA1151 package
Chipset
Intel® Q370
Memory
2 x DDR4 DIMM 2666 MHz up to 32GB,
Support Non-ECC, unbuffered memory only
(Core i3, Pentium, Celeron CPU support 2400 MHz only)
Watchdog Timer
Generates a system reset with internal timer for 1min/s ~ 255min/s
Real Time Clock
Chipset integrated RTC with onboard lithium battery
Expansion
1 x MiniPCIe (support mSATA)
1 x Half Size MiniPCie
1 x SIM slot
1 x PCIe X16 slot
Graphics
Chipset
Intel® UHD Graphics
Display Interface
1 x DVI, 1 x DisplayPort (optional),
1 x LVDS, 1 x HDMI, 1 x VGA
LAN
Chip
1 x Intel® I219-LM Gigabit PHY LAN (Support iAMT12.0)
1 x Intel® I210-AT Gigabit LAN
I/O
Serial ATA
3 x SATA3
Audio
Realtek ALC262 HD Audio
Internal I/O
3 x SATA3, 4 x RS232, 4 x USB2.0, 2 x USB3.1 Gen2,
1 x LVDS, 1 x LPC, 1 x LCD inverter, 1 x GPIO, 1 x Audio,
1 x PS/2, 1 x SMBUS, 1 x VGA
Rear I/O
1 x DisplayPort(optional), 1 x DVI, 1 x HDMI, 4 x USB3.1 Gen2,
2 x LAN, 2 x RS232/422/485, 1 x Audio.
Mechanical & Environmental
Power Requirement
Standard 24-pin ATX power supply and 4-pin 12V
Size & Thickness
170mm x 170mm (L x W)
Temperature
Operating within 0°C~60°C (32°F~140°F)
Storage within -20°C~80°C (-4°F~176°F)
Relative Humidity
10%~90%, non-condensing
Page 7
LV-67X User’s Manual
-6-

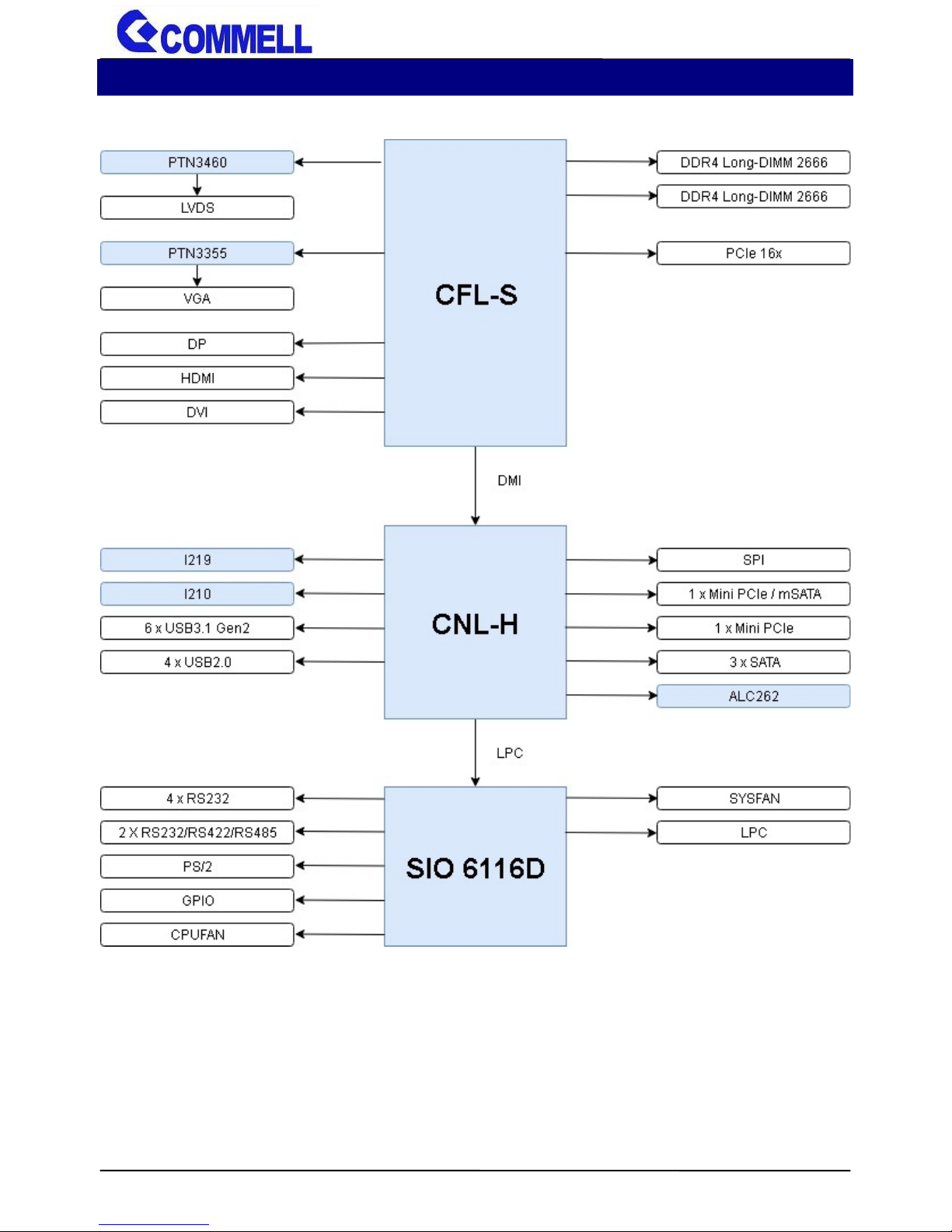

1.3 <Block Diagram>
Page 8
LV-67X User’s Manual
-7-
Chapter 2 <Hardware setup>

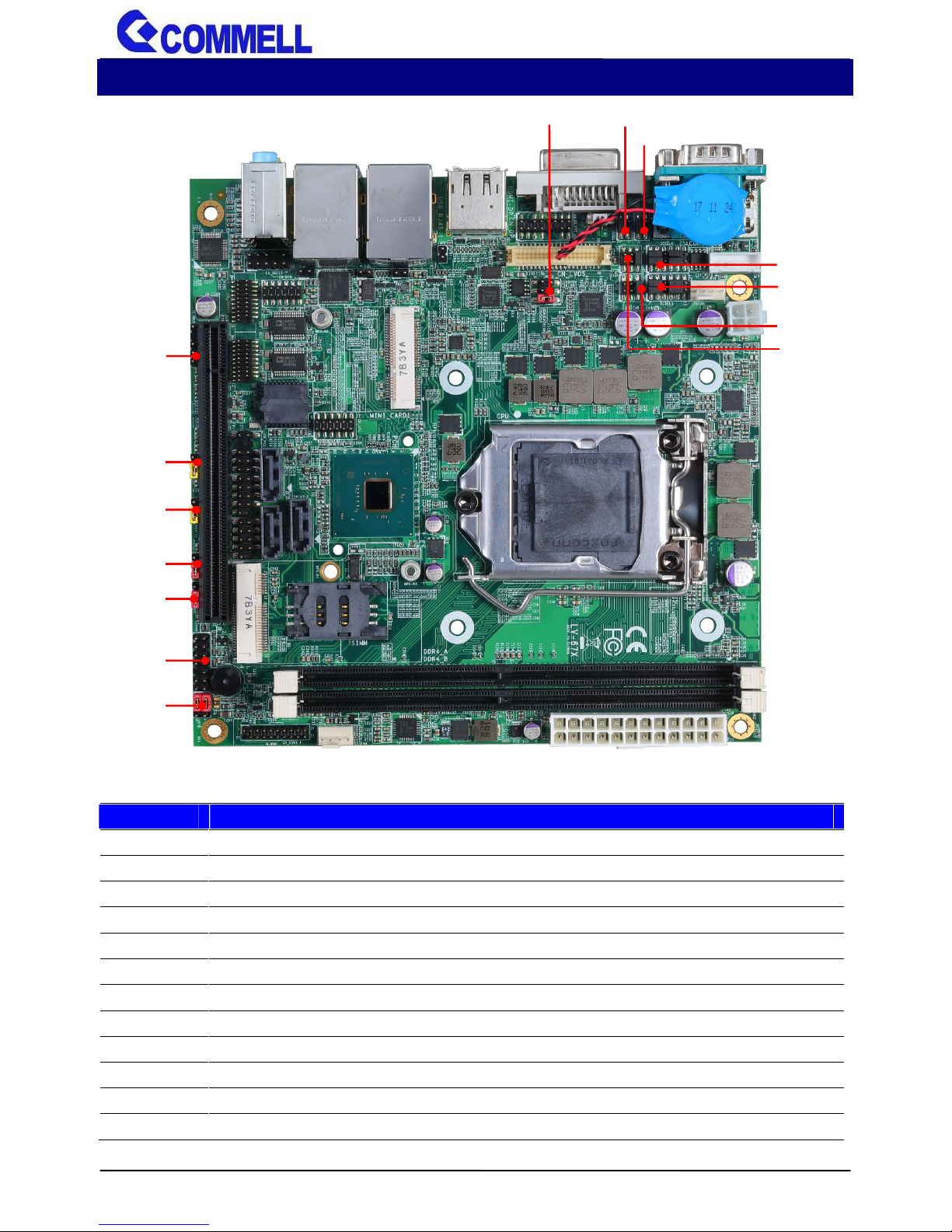

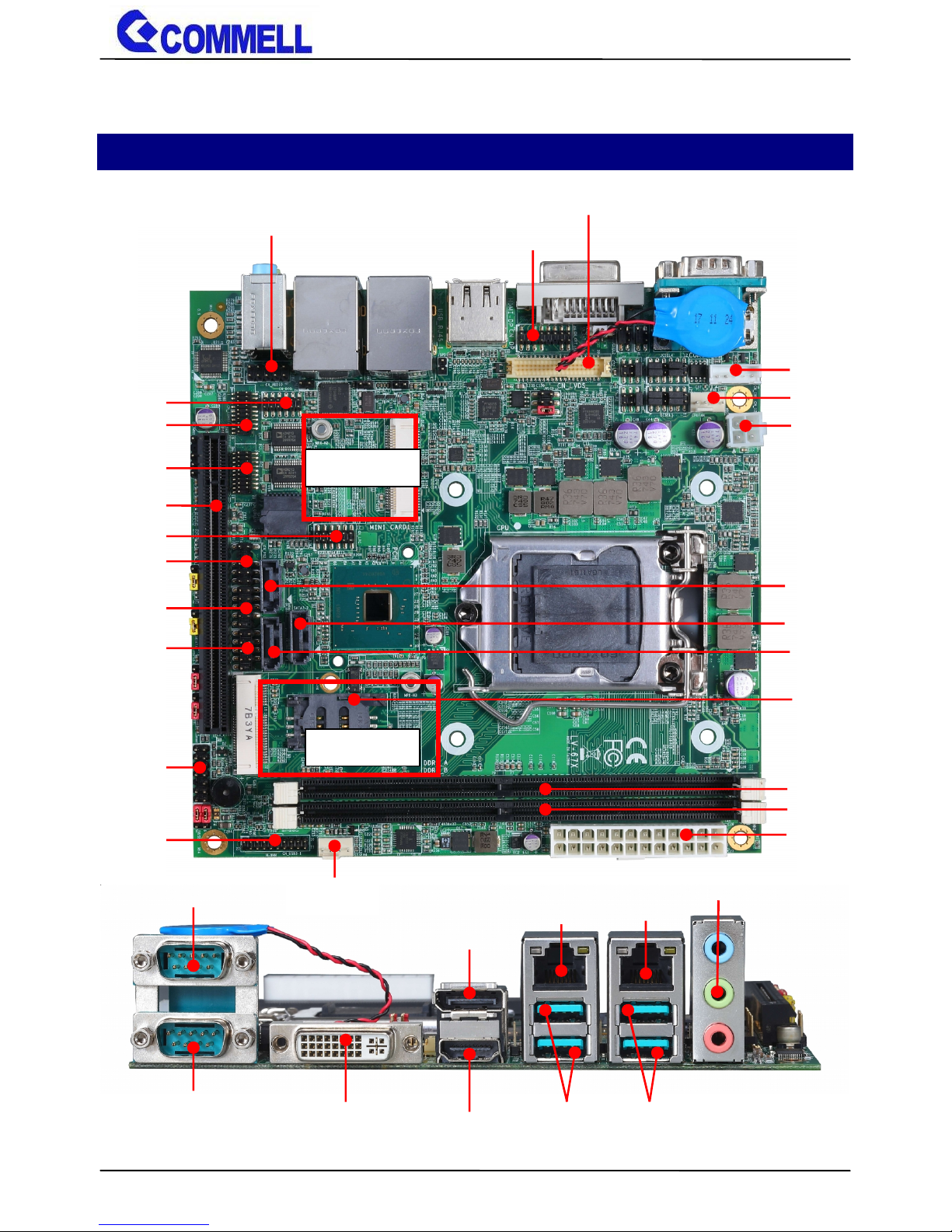

2.1 <Connector Location and Reference>
CN_LVDS
CN_AUDIO
I219-LM
COM2
CN_CRT
I210-AT
COM1
DVI
HDMI
Display Port
AUDIO
USB3.1
USB3.1
CN_DIO
CN_COM5/6
CN_COM3/4
PCI_E16X
CN_LPC
CN_PS2
CN_USB2-1
CN_USB2-2
JFRNT
CN_USB 3-1
CN _INV
CPUFAN
CN_12V
SATA3-3
SATA3-2
SATA3-1
SIMM
DDR4_A
DDR4_B
ATX
MINI_CARD1
MINI_CARD2
SYSFAN
Page 9
LV-67X User’s Manual
-8-
2.1.1 <Internal connectors list>
Connector
Function
DDR4_A/B
288-pin DDR4 DIMM slot
SATA3-1/2/3
7-pin Serial ATA3 connector
CN_AUDIO
5 x 2-pin audio pin header
CN_LPC
6 x 2-pin LPC pin header
CN_LVDS
20 x 2-pin LVDS connector
CN_INV
5-pin LCD inverter connector
CN_SMBUS
5-pin SMBus connector
CN_COM 3/4/5/6
20-pin RS232 connector
CN_USB 2-1/2-2
5 x 2-pin USB2.0 pin header
CN_USB 3-1
10 x 2-pin USB3.1 pin header
CN_PS2
5 x 2-pin PS/2 pin header
CN_DIO
6 x 2-pin digital I/O connector
CN_CRT
16-pin VGA connector
CPUFAN
4-pin CPU fan connector
SYSFAN
4-pin system fan connector
JFRNT
14-pin front panel switch/indicator connector
PCI_E16X
164-pin x16 PCIE slot
MINI_CARD1
52-pin Half-MiniPCIe card slot
MINI_CARD2
52-pin MiniPCIe card slot
ATX
24-pin power supply connector
CN_12V
4-pin power input Terminal Block
SIMM
6-pin socket
2.1.2 <External connectors list>
Connector
Function
DisplayPort
DisplayPort connector
DVI
DVI connector
HDMI
HDMI connector
USB3.1
USB3.1 Gen2 connector
LAN
RJ45 connector
AUDIO
Audio connector
COM1/2
DB9 Serial port connector
Page 10
LV-67X User’s Manual
-9-
2.2 <CPU and Memory Setup>

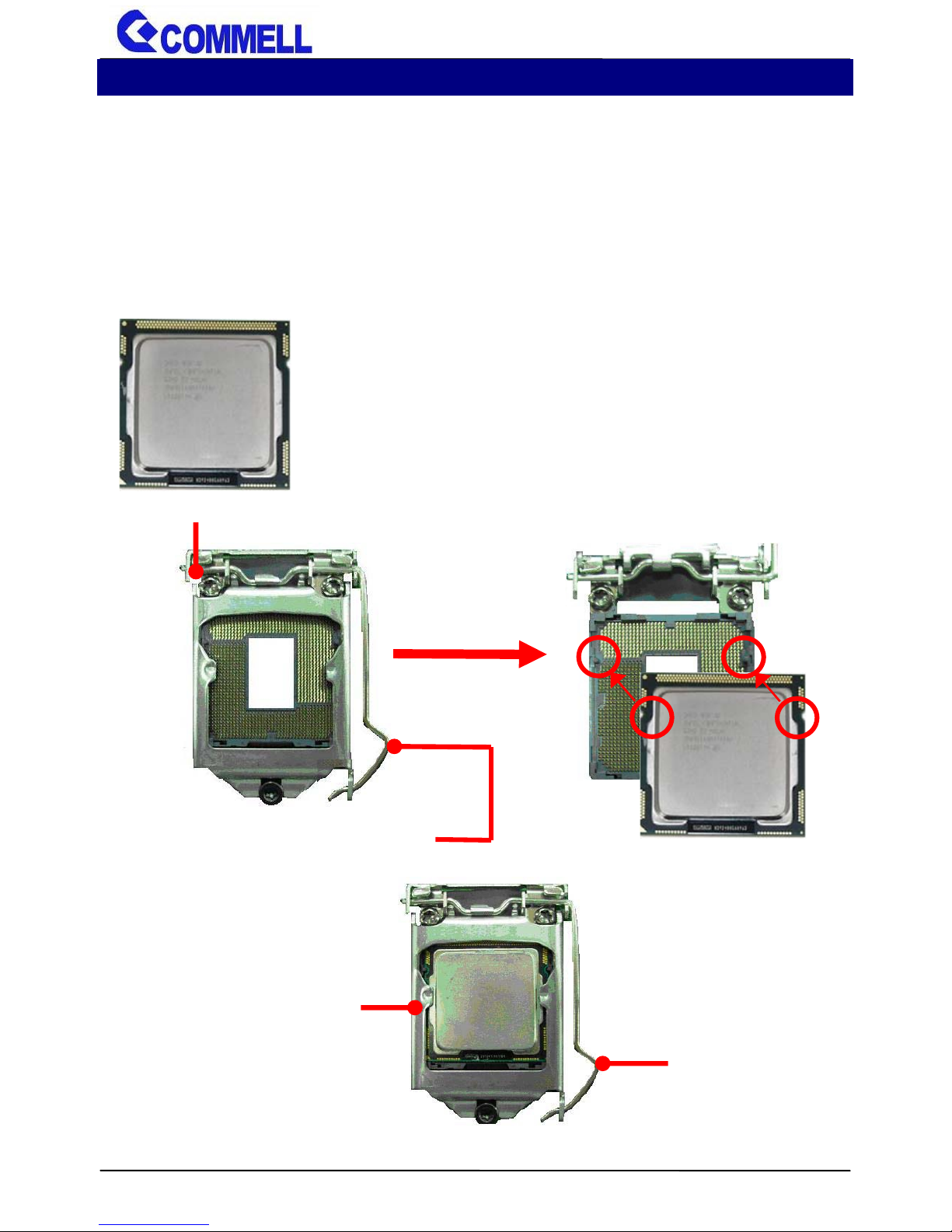

2.2.1 <CPU installation>
LV-67X has a LGA1151 CPU socket onboard; please check following steps to install the
processor properly.
Attention If LV-67X needs RMA please Keep CPU socket cover on the CPU Socket.
Warning If CPU Socket internal Pin damage We could not provide warranty.
1. Lift this bar
2. Uncover this plate
8th generation Intel® Core™, Pentium® and Celeron®
processor , FCLGA1151 package
Checked point
3. Place the CPU on the top of the pins
4. Cover this plate
5. Lock this bar
Page 11
LV-67X User’s Manual
-10-

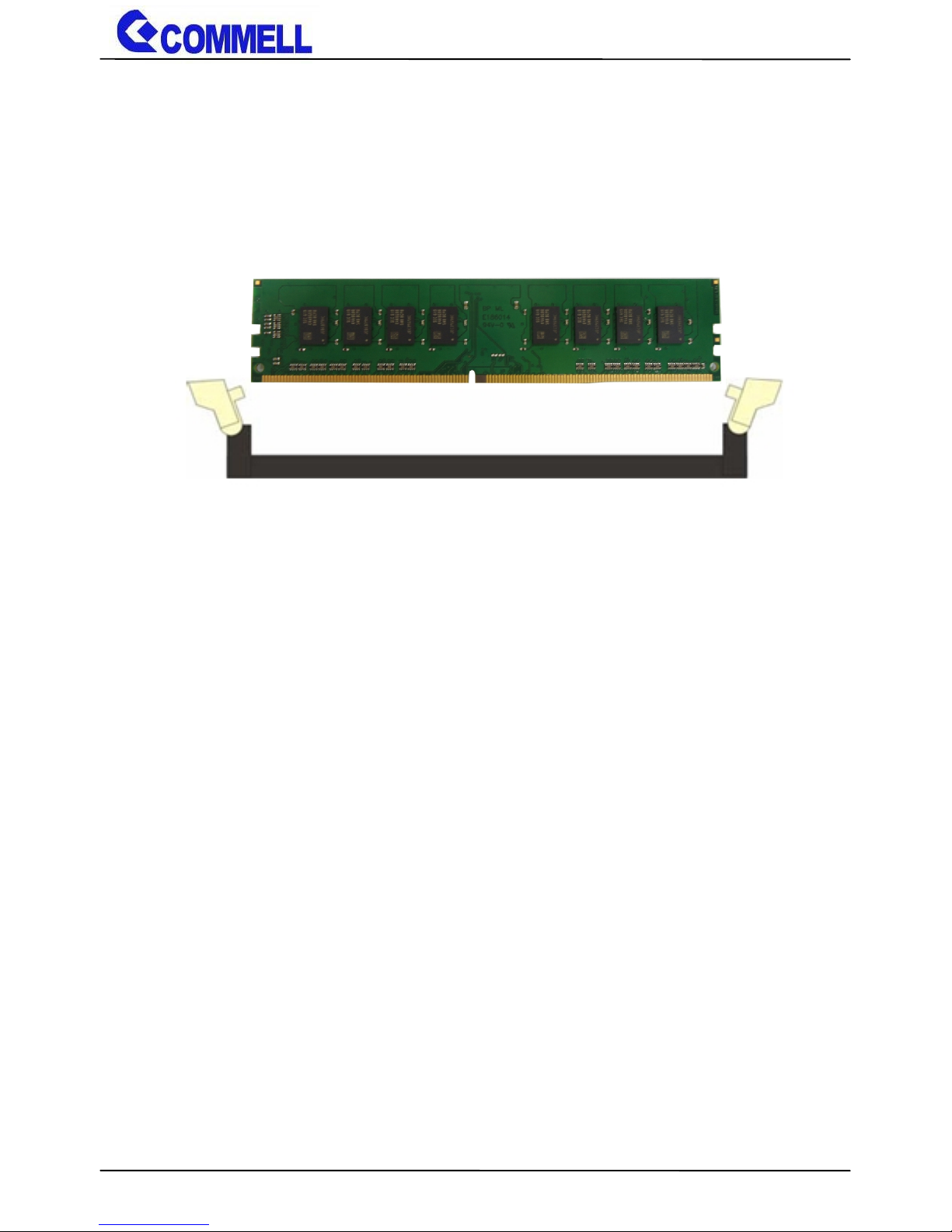

2.2.2 <Memory Setup>
LV-67X has two 288-pin DDR4 DIMM support up to 32GB of memory capacity and 1.2
Voltage. The memory frequency supports 2666 MHz. Only Non-ECC memory is supported.
(Core i3, Pentium, Celeron CPU support 2400 MHz only)
Please check the pin number to match the socket side well
before installing memory module.
Page 12
LV-67X User’s Manual
-11-

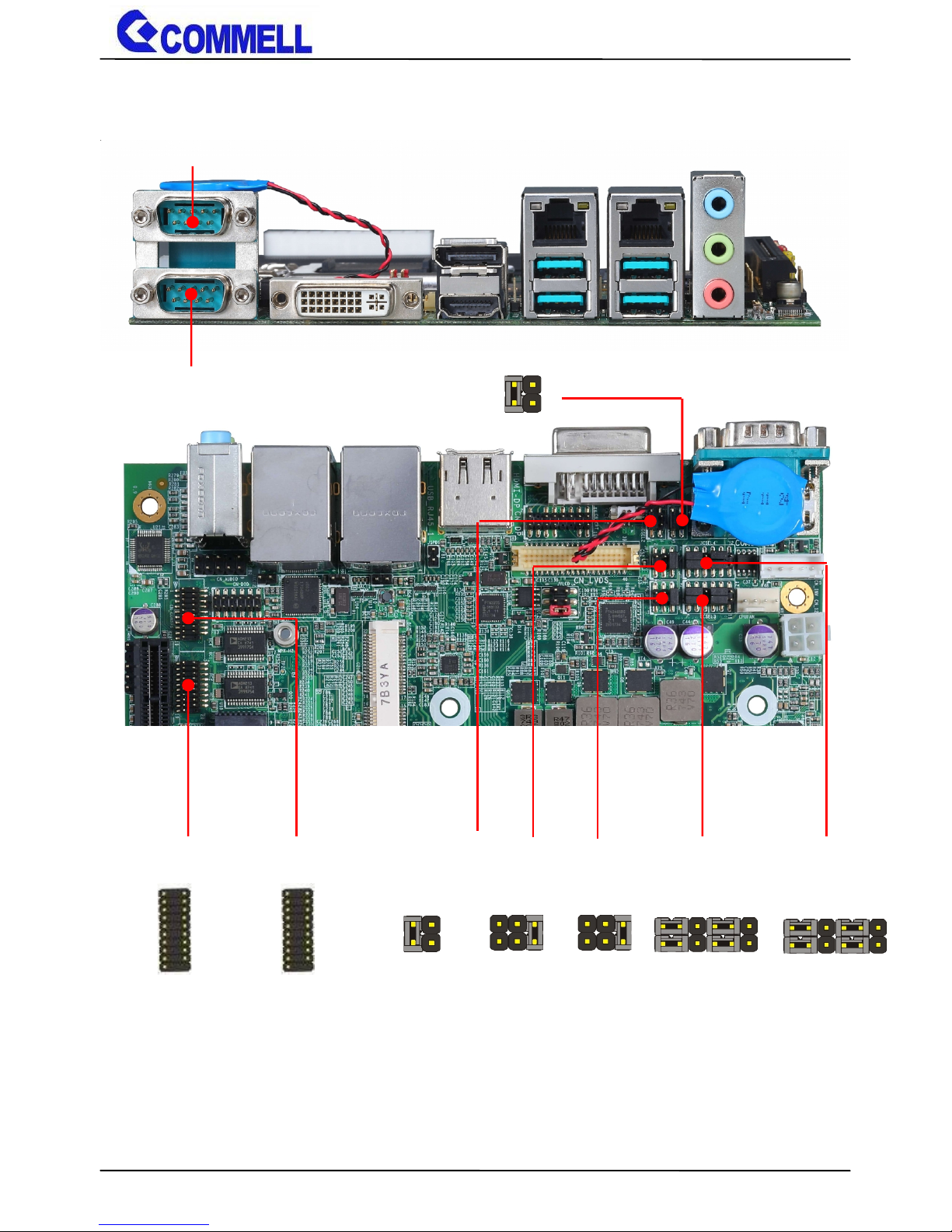

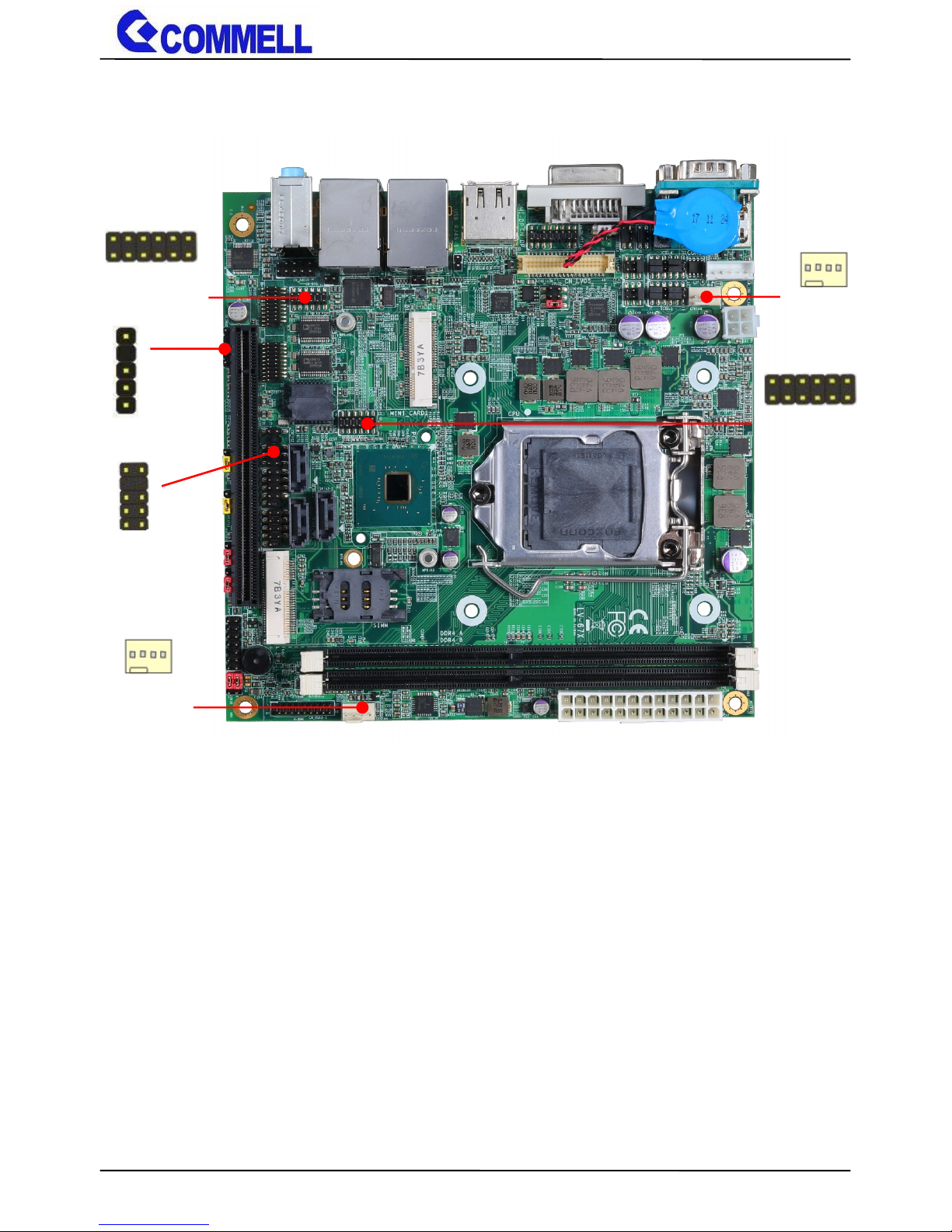

2.3 <Jumper Location and Reference>
2.3.1 <Jumper list>
Jumper
Function
JAT
Power mode select
JRTC
CMOS Normal/Clear Setting
JVLCD
Panel Voltage Setting
JMSATA
MiniCard 2 MSATA Setting
JP1
COM1 Voltage Setting (For Pin 9)
JP2
COM2 Voltage Setting (For Pin 9)
JCSEL1
COM2 RS-232 RS422 RS485 Setting
JCSEL2
COM1 RS-232 RS422 RS485 Setting
JCSEL3
COM2 RS-232 RS422 RS485 Setting
JCSEL4
COM1 RS-232 RS422 RS485 Setting
JVSATA3-1
Set 5V to SATA3-2 pin 7 (For SATADOM)
JVUSB
USB Voltage Setting
JVLCD JCSEL2
CN_SMBUS
JAT
JMSATA
JVSATA3-1
JRTC
JFRNT
JVUSB
JCSEL4
JCSEL3
JP2
JP1
JCSEL1
Page 13
LV-67X User’s Manual
-12-

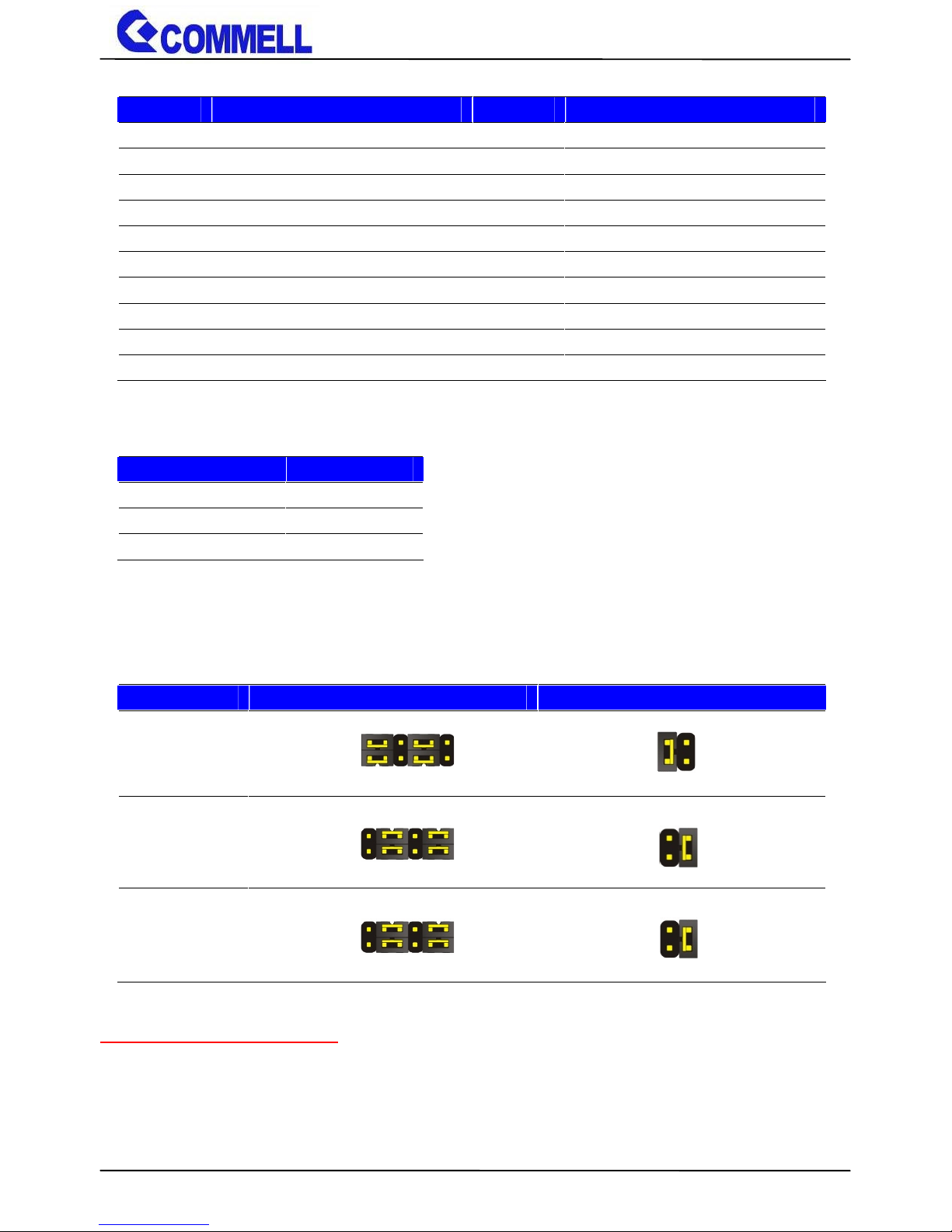

2.3.2 <Clear CMOS and Power on type selection>
The board’s data of CMOS can be setting in BIOS. If the board refuses to boot due to
inappropriate CMOS settings, here is how to proceed to clear (reset) the CMOS to its
default values.
JAT: AT/ATX mode select jumper
Jumper settings
Function
1-2
AT mode
2-3
ATX mode (Default)
JRTC: Clear CMOS data jumper
Jumper settings
Function
1-2
Clear CMOS
2-3
Normal (Default)
2.4 <I/O interface>

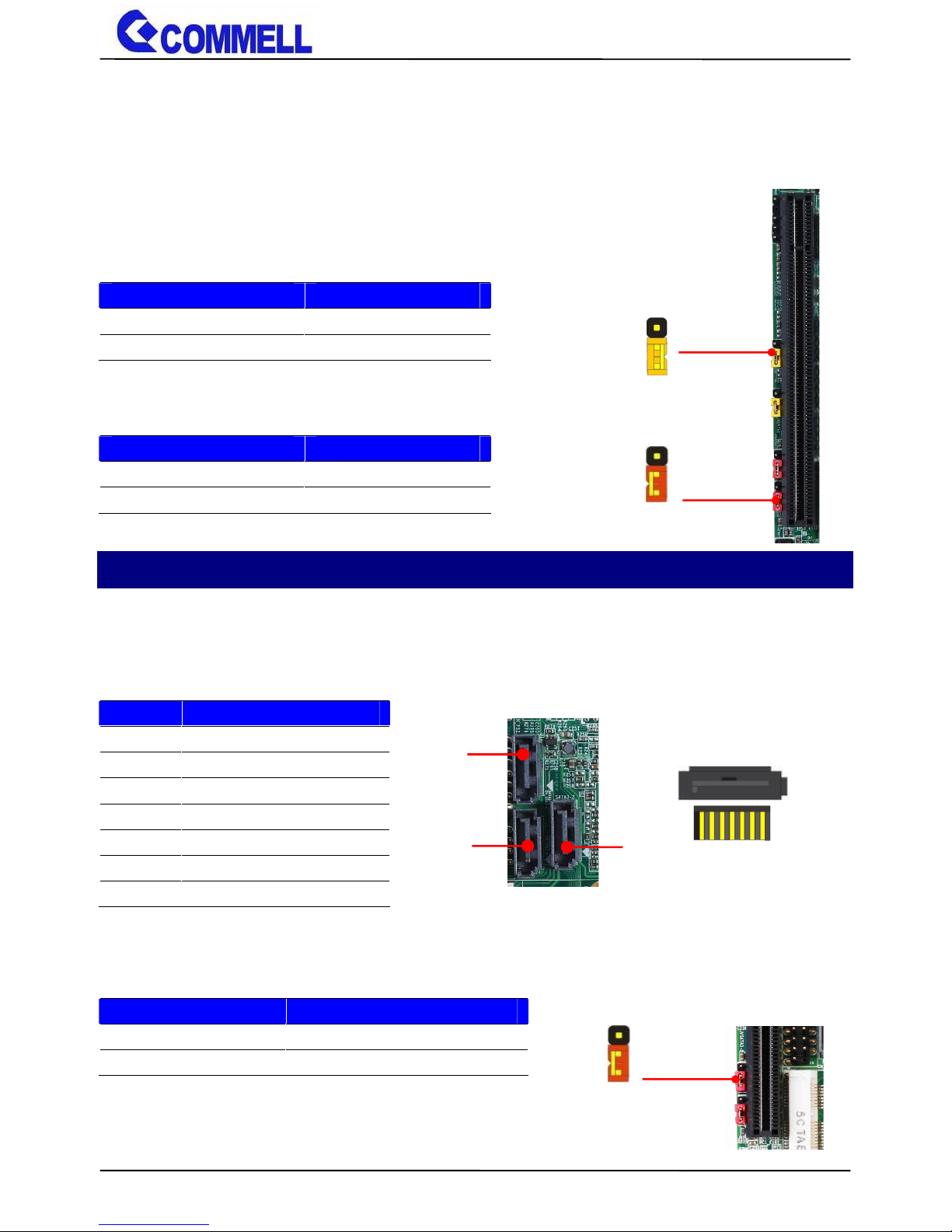

2.4.1 <Serial ATA interface>
SATA 1/2/3: SATA3 7-pin connector
JVSATA3-1: SATA3/SATADOM mode select jumper (change pin7 to 5V)
Jumper settings
Function
1-2
SATA3-2 SATADOM
2-3
SATA3-2 SATA3 (Default)
Pin
Signal
1
GND
2
TX+
3
TX-
4
GND
5
RX-
6
RX+
7
GND
7
1
SATA3-1
SATA3-2
SATA3-3
JVSATA3-1
JRTC
1
3
JAT
1
3
1
3
Page 14
LV-67X User’s Manual
-13-

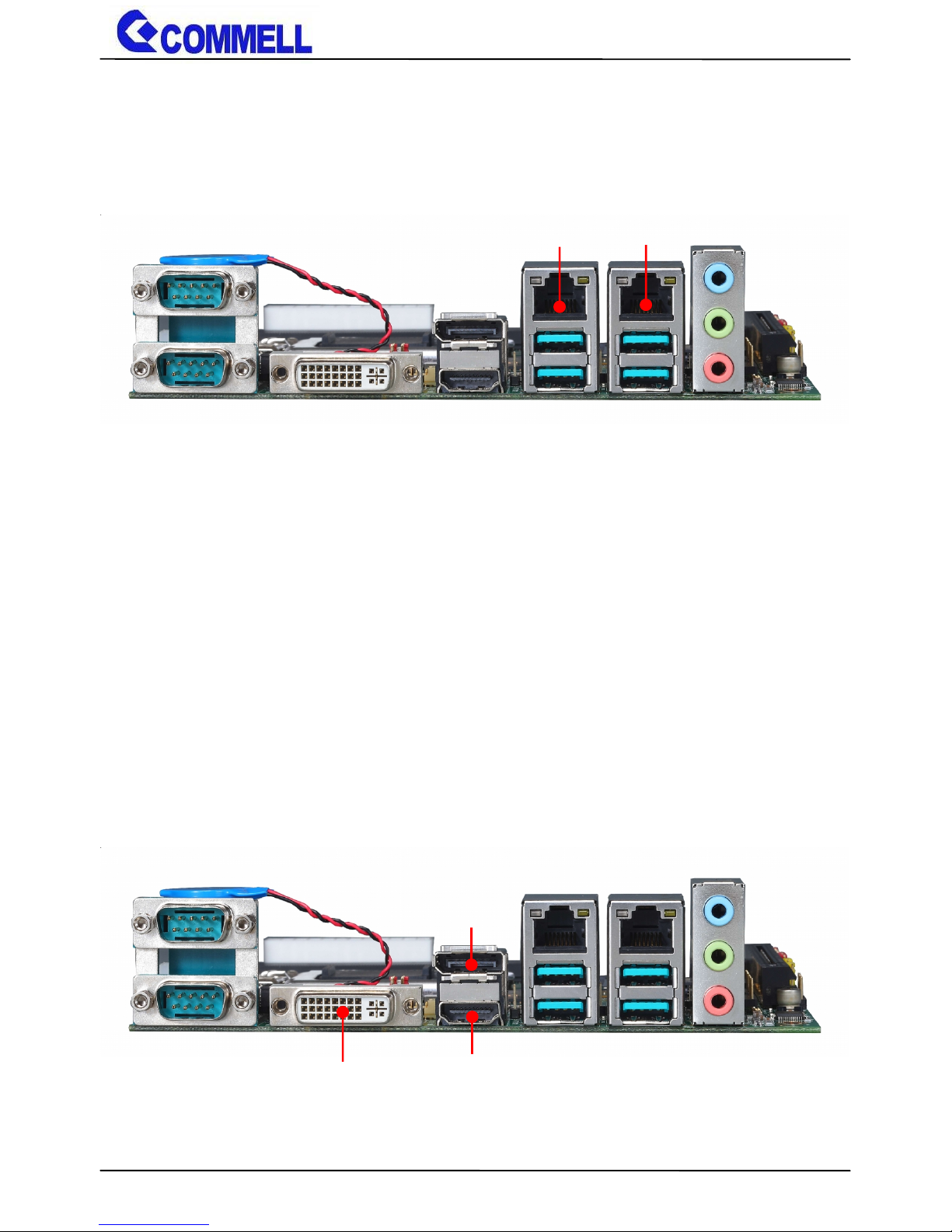

2.4.2 <Ethernet interface>
The board provide I219-LM PHY Gigabit Ethernet and I210-AT Gigabit Ethernet on
rear I/O.Intel I219-LM and I210 supports operation at 10/100/1000 Mb/s data rates,
with IEEE802.3 compliance and Wake-On-LAN supported.
2.4.3 <Display interface>
Based on the 8th Gen CPU with built-in UHD Graphics 630, VGA and DVI up to
1920x1080@60Hz, DisplayPort up to 4096x2304@60Hz , HDMI up to
4096x2304@24Hz on rear IO. About the internal Display, LVDS (PTN3460) up to
1920x1200@60Hz support 18/24-bit color depth and single/dual channel. About
select LCD Panel Type in BIOS, please refer Appendix B.
The built-in HD Graphics support triple display function with clone mode and
extended mode.
I219-LM
I210-AT
DP
HDMI
DVI
Page 15
LV-67X User’s Manual
-14-
CN_CRT: VGA 16-pin connector (Pitch 2.00 mm)
Pin
Signal
Pin
Signal
1BR2
BG
3BB4
NC
5
IOGND1
6
IOGND1
7
IOGND1
8
IOGND1
9NC10
IOGND1
11NC12
5VCDA
13
5HSYNC
14
5VSYNC
15
5VCLK
16
NC

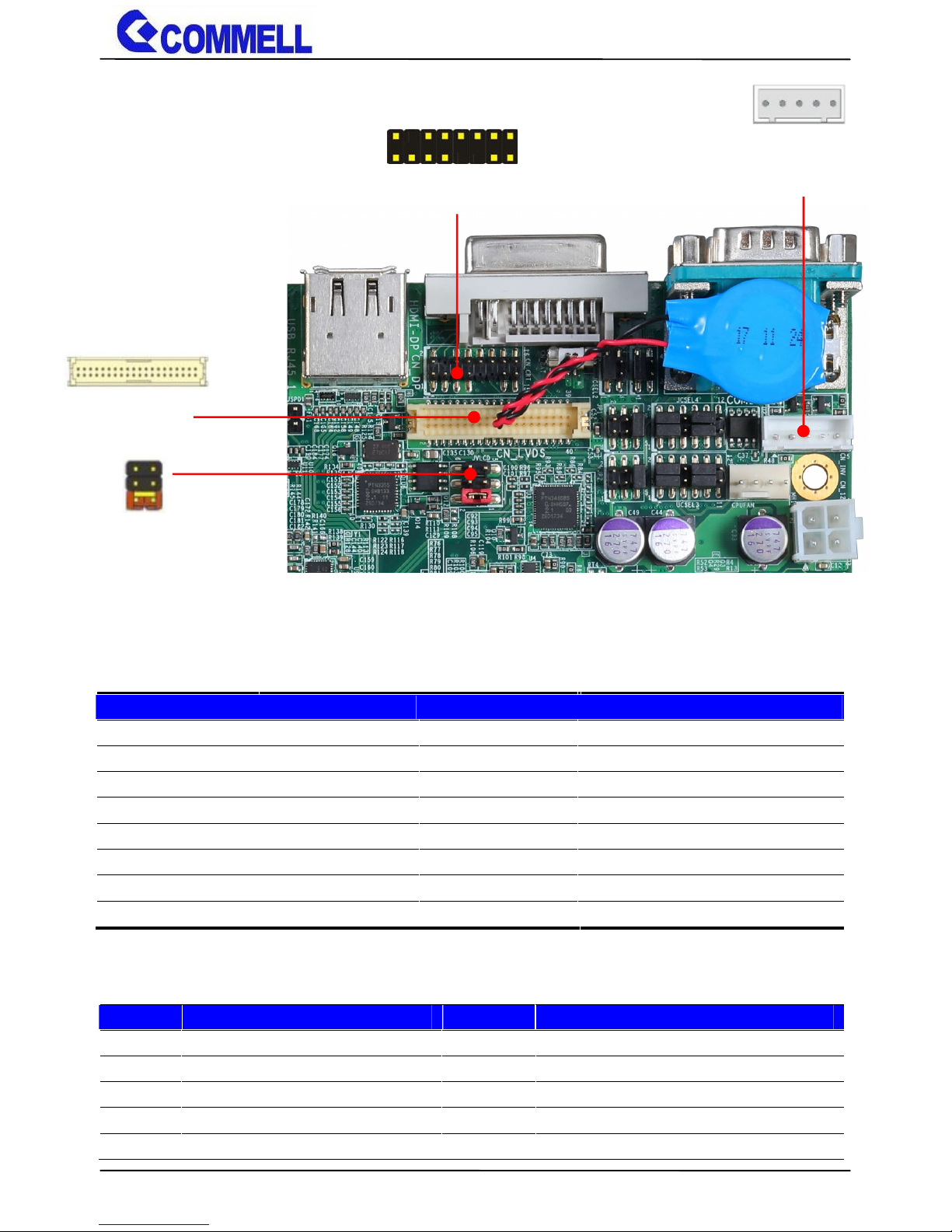

CN_LVDS: LVDS 40-pin connector (Model: HIROSE DF13-40DP-1.25V compatible)
Pin
Signal
Pin
Signal
2
Set by JVLCD
1
Set by JVLCD
4
Detect (Active low)
3
GND
6
A_LVDS_0-
5
B_LVDS_0-
8
A_LVDS_0+
7
B_LVDS_0+
10
GND9GND
CN_LVDS
JVLCD
1
39
2
40
6
5
2
1
5
1
CN_INV
CN_CRT
15162
1
Page 16
LV-67X User’s Manual
-15-
12
A_LVDS_1-
11
B_LVDS_1-
14
A_LVDS_1+
13
B_LVDS_1+
16
GND15GND
18
A_LVDS_2-
17
B_LVDS_2-
20
A_LVDS_2+
19
B_LVDS_2+
22
GND21GND
24
A_LVDS_CLK-
23
B_LVDS_3-
26
A_LVDS_CLK+
25
B_LVDS_3+
28
GND27GND
30
A_LVDS_3-
29
B_LVDS_CLK-
32
A_LVDS_3+
31
B_LVDS_CLK+
34
GND33GND
36
LVDS_DDCSCL
35
NC
38
LVDS_DDCSDA
37
NC
40NC39
NC
Pin4 only need to be connected to GND
CN_INV: LVDS 5-pin Backlight power connector
Pin
Signal
1
12V
2
Backlight Control
3
GND
4
GND
5
Enable Backlight
JVLCD: LVDS panel power select jumper
Jumper settings
Function
1-2
3.3V (Default)
3-4
5V
5-6
12V
Page 17
LV-67X User’s Manual
-16-
2.4.4 <Serial Port interface>
COM2
COM1
20
19
2
1
CN_COM5/6 CN_COM3/4 JCSEL2 JP1 JP2 JCSEL3 JCSEL4
20
19
2
1
1
12
2
11
1
6
2
5
2 4
1 3
1
12
2111
6
2
5
2 4
1 3
JCSEL1
Page 18
LV-67X User’s Manual
-17-
COM1: RS232/422/485 DB9 connector
Pin
Signal
Pin
Signal
1
DCD/ 422TX-/ 485-
2
RXD/ 422TX+/ 485+
3
TXD/ 422RX+
4
DTR/ 422RX-
5
GND
6
DSR
7
RTS
8
CTS
9
Set by JP1
Note: Use JCSEL2 and JCSEL4 select communication mode
COM2: RS232/422/485 DB9 connector
Pin
Signal
Pin
Signal
1
DCD/ 422TX-/ 485-
2
RXD/ 422TX+/ 485+
3
TXD/ 422RX+
4
DTR/ 422RX-
5
GND
6
DSR
7
RTS
8
CTS
9
Set by JP2
Note: Use JCSEL1 and JCSEL3 select communication mode
COM3/4: COM 20-pin header (Pitch 2.54 x 1.27mm)
Pin
Signal
Pin
Signal
1
DCD1
2
RXD1
3
TXD1
4
DTR1
5
GND
6
DSR1
7
RTS1
8
CTS1
9
RI110NC
11
DCD2
12
RXD2
13
TXD2
14
DTR2
15
GND
16
DSR2
17
RTS2
18
CTS2
19
RI220Key
Page 19
LV-67X User’s Manual
-18-
COM5/6: COM 20-pin header (Pitch 2.54 x 1.27mm)
Pin
Signal
Pin
Signal
1
DCD1
2
RXD1
3
TXD1
4
DTR1
5
GND
6
DSR1
7
RTS1
8
CTS1
9
RI110NC
11
DCD2
12
RXD2
13
TXD2
14
DTR2
15
GND
16
DSR2
17
RTS2
18
CTS2
19
RI220Key
JP1, JP2: COM1, COM2 pin-9 setting
Jumper settings
Function
1-2
5V
3-4
12V
5-6
RI (Default)
Effective patterns of connection: 1-2 / 3-4 / 5-6
Other may cause damage
JCSEL1 / 3, JCSEL 2/ 4: For configure COM2 &COM1 communication mode
Function
JCSEL3/ JCSEL4
JCSEL1/ JCSEL2
RS232
(Default)
RS485
RS422
RS-485 cable modification:
Com1 RTX- Data- : short Pin1& Pin4
Com1 RTX+ Data+ : short Pin2& Pin3
Com2 RTX- Data- : short Pin1& Pin4
Com2 RTX+ Data+ : short Pin2& Pin3
1
12
1
12
1
12
2
11
2
11
2
11
2
3
1
4
2
3
1
4
2
3
1
4
Page 20
LV-67X User’s Manual
-19-

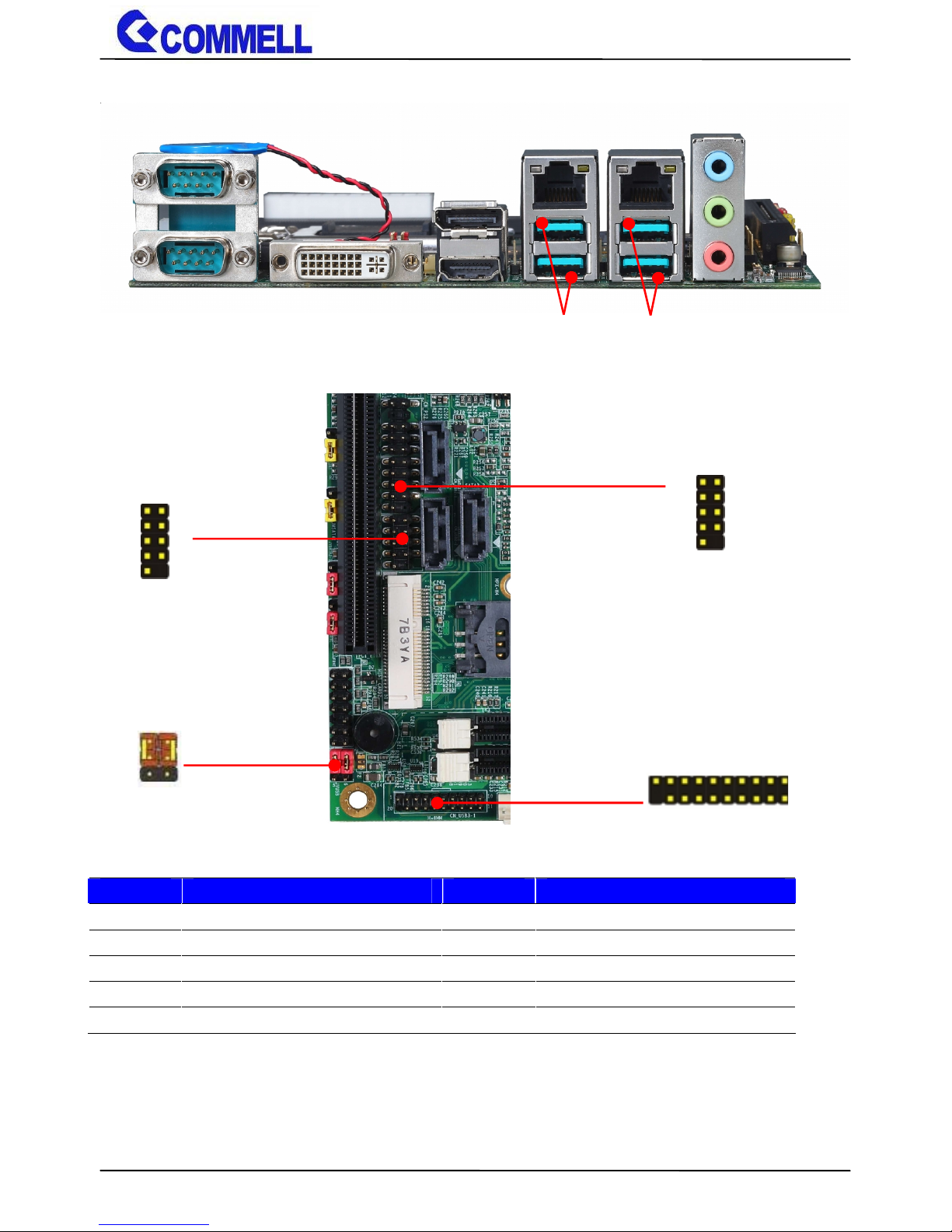

2.4.5 <USB interface>
CN_USB 2-1/2-2: USB2.0 10-pin header (Pitch 2.54 mm)
Pin
Signal
Pin
Signal
1
5VSB
2
5VSB
3
DATA0-
4
DATA1-
5
DATA0+
6
DATA1+
7
GND
8
GND
9
GND
10
Key
CN_USB3-1
USB3.1
(LEFT)
USB3.1
(RIGHT)
11
20
1
10
CN_USB2-1
5
6
1
2
JVUSB
9
2
1
10
CN_USB2-2
9
2
1
10
Page 21
LV-67X User’s Manual
-20-
CN_USB3-1: USB3.1 20-pin header (Pitch 2.00 mm)
Pin
Description
Pin
Description
1
VCC (5V_SB/ 5V)
20
NC
2
USB3.1_RX0-
19
VCC (5V_SB/ 5V)
3
USB3.1_RX0+
18
USB3.1_RX14
Ground
17
USB3.1_RX1+
5
USB3.1_TX0-
16
Ground
6
USB3.1_TX0+
15
USB3.1_TX17
Ground
14
USB3.1_TX1+
8
Data0-
13
Ground
9
Data0+
12
Data110NC11
Data1+
JVUSB: 6-pin Power select jumper
Pin
Description
1-3 & 2-4
5V_SB (Default)
3-5 & 4-6
5V
1.Effective patterns of connection: 1-3 & 2-4 or 3-5 & 4-6
2.JVUSB can control CN_USB3-1 and USB3.1(LEFT) power
3.USB3.1(RIGHT) have 5V_SB
Page 22
LV-67X User’s Manual
-21-

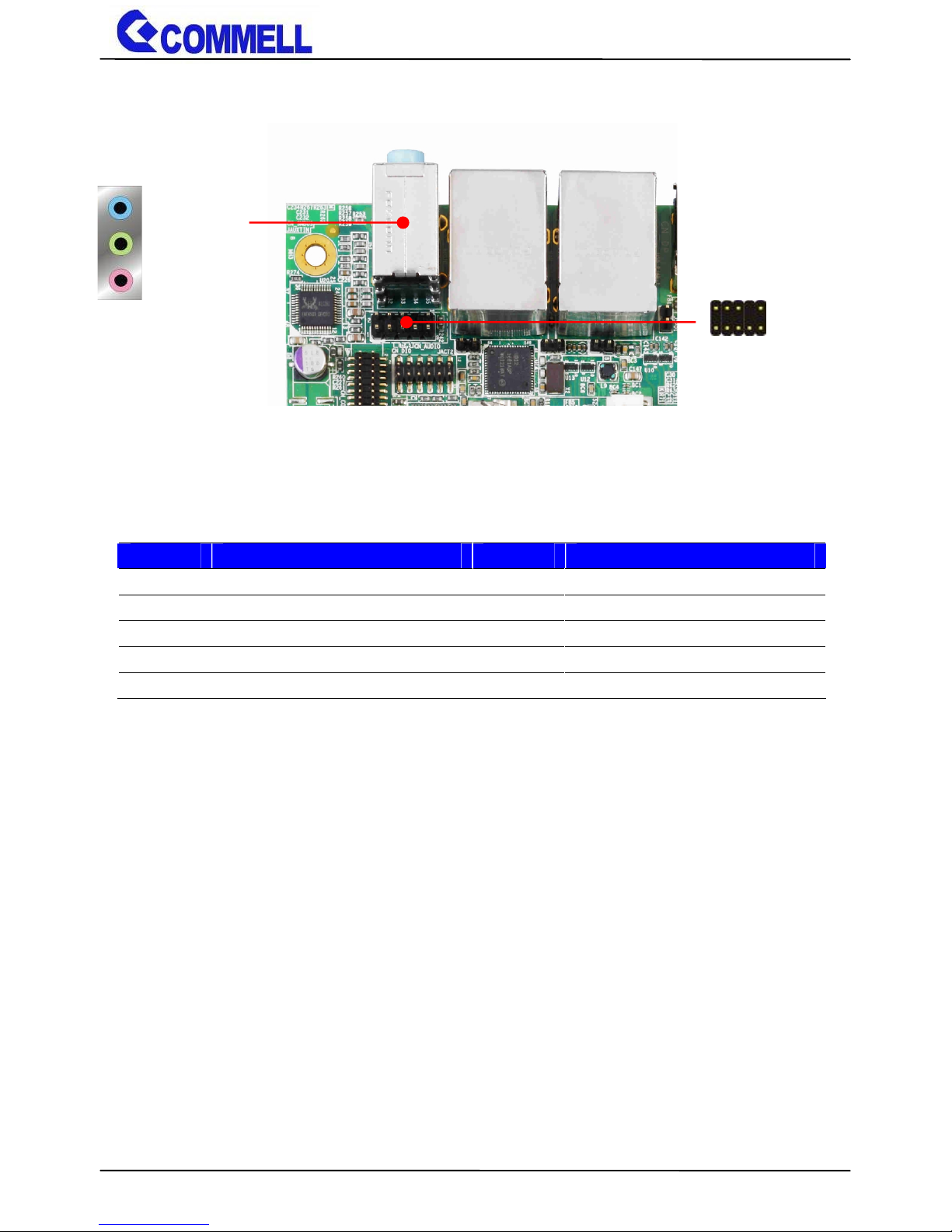

2.4.6 <Audio interface>
CN_AUDIO: Front panel audio 10-pin header (Pitch 2.54mm)
Pin
Signal
Pin
Signal
1
MIC_L
2
GND
3
MIC_R
4
NC
5
FP_OUT_R
6
MIC_DETECT
7
SENSE
8
Key
9
FP_OUT_L
10
FP_OUT_DETECT
CN_AUDIO
1
10
2
9
Line in
Line out
Mic in
Rear Audio Jack
Page 23
LV-67X User’s Manual
-22-

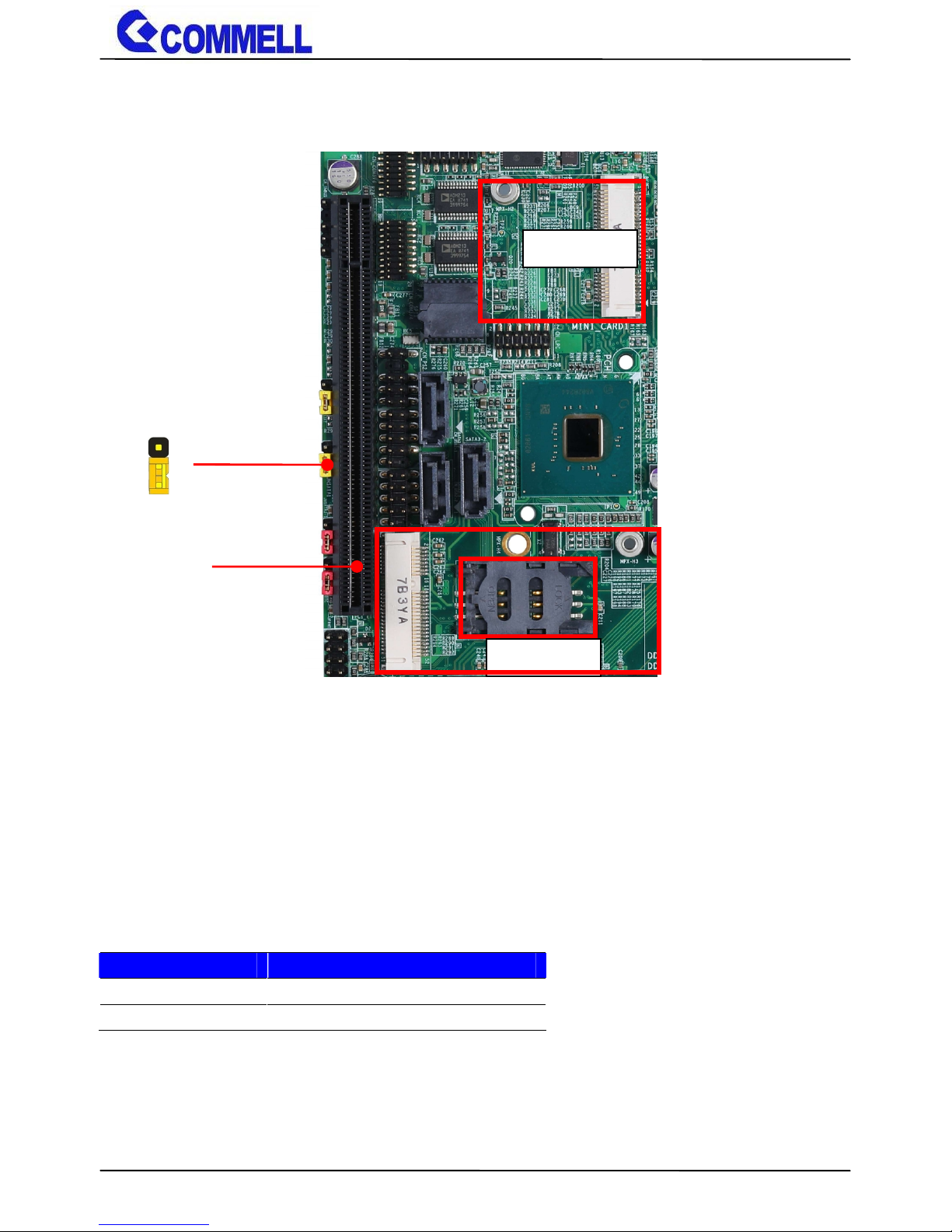

2.4.7 <Expansion slot>
MINI_CARD1 and MINI_CARD2 have some special design to compatible our
mini-PCIe card. (ex: MPX-574D2, MPX-210D2 etc)
MINI_CARD2 support mSATA by JMSATA, and connect SIM card with
3G module.
JMSATA: Setting MINI_CARD2 to support PCIe/mSATA
Jumper settings
Function
1-2
Support mSATA
2-3
Normal operation (Default)
1
3
JMSATA
PCI_E16X
MINI_CARD1
MINI_CARD2
SIMM
Page 24
LV-67X User’s Manual
-23-

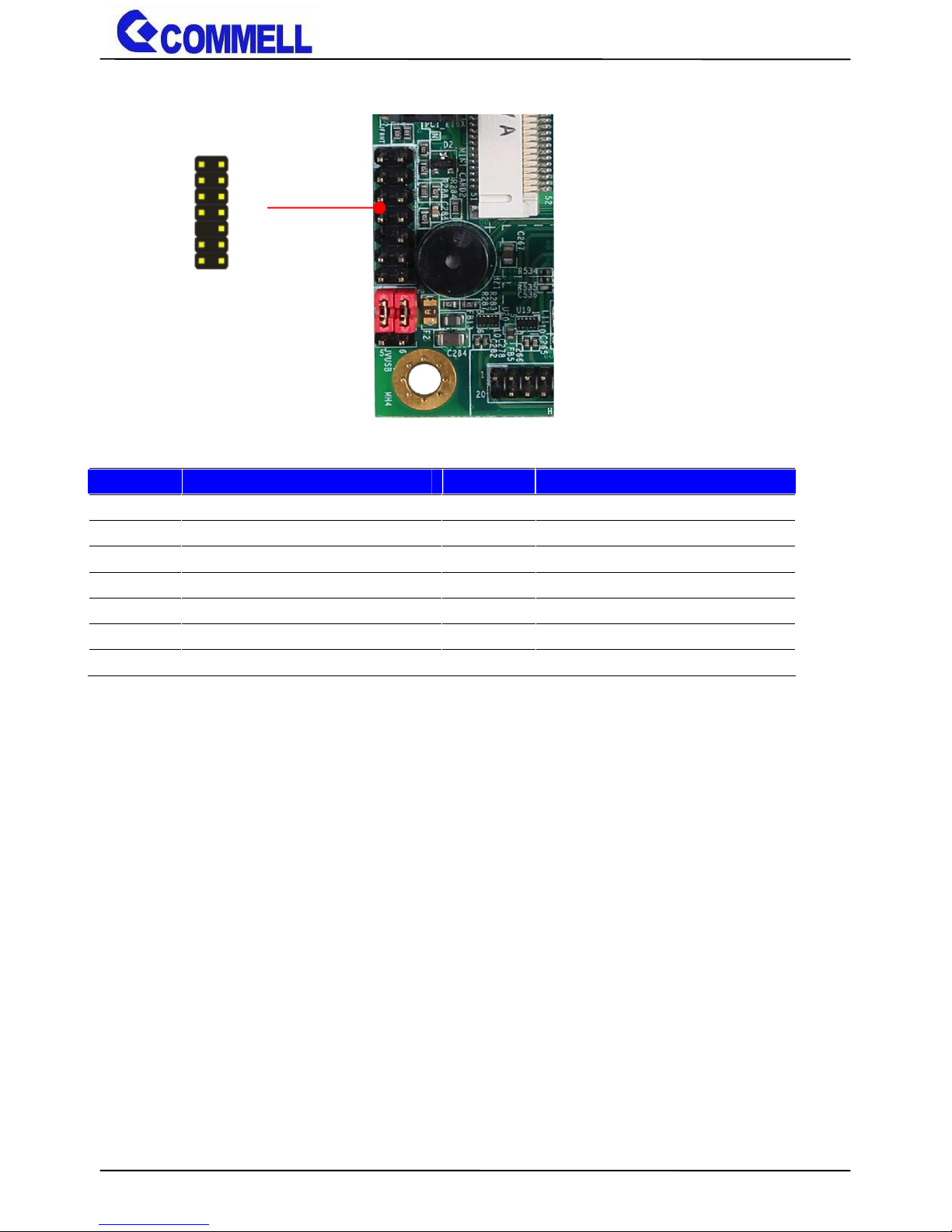

2.4.8 <Front panel switch and indicator>
JFRNT: Front panel switch and indicator 14-pin header (Pitch 2.54mm)
Pin
Signal
Pin
Signal
1
HDD_LED+
2
Power_LED+
3
HDD_LED-
4
NC
5
Reset+
6
Power_LED-
7
Reset-
8
Speaker+
9
Key10NC
11
Power_ON+
12
NC
13
Power_ON-
14
Speaker-
JFRNT
1142
13
Page 25
LV-67X User’s Manual
-24-
2.4.9 <GPIO and Other interface>
CPUFAN
4
1
SYSFAN
5
1
CN_LPC
12
1
11
2
CN_DIO
12
1
11
2
CN_SMBUS
4
1
CN_PS2
10
9
2
1
Page 26
LV-67X User’s Manual
-25-

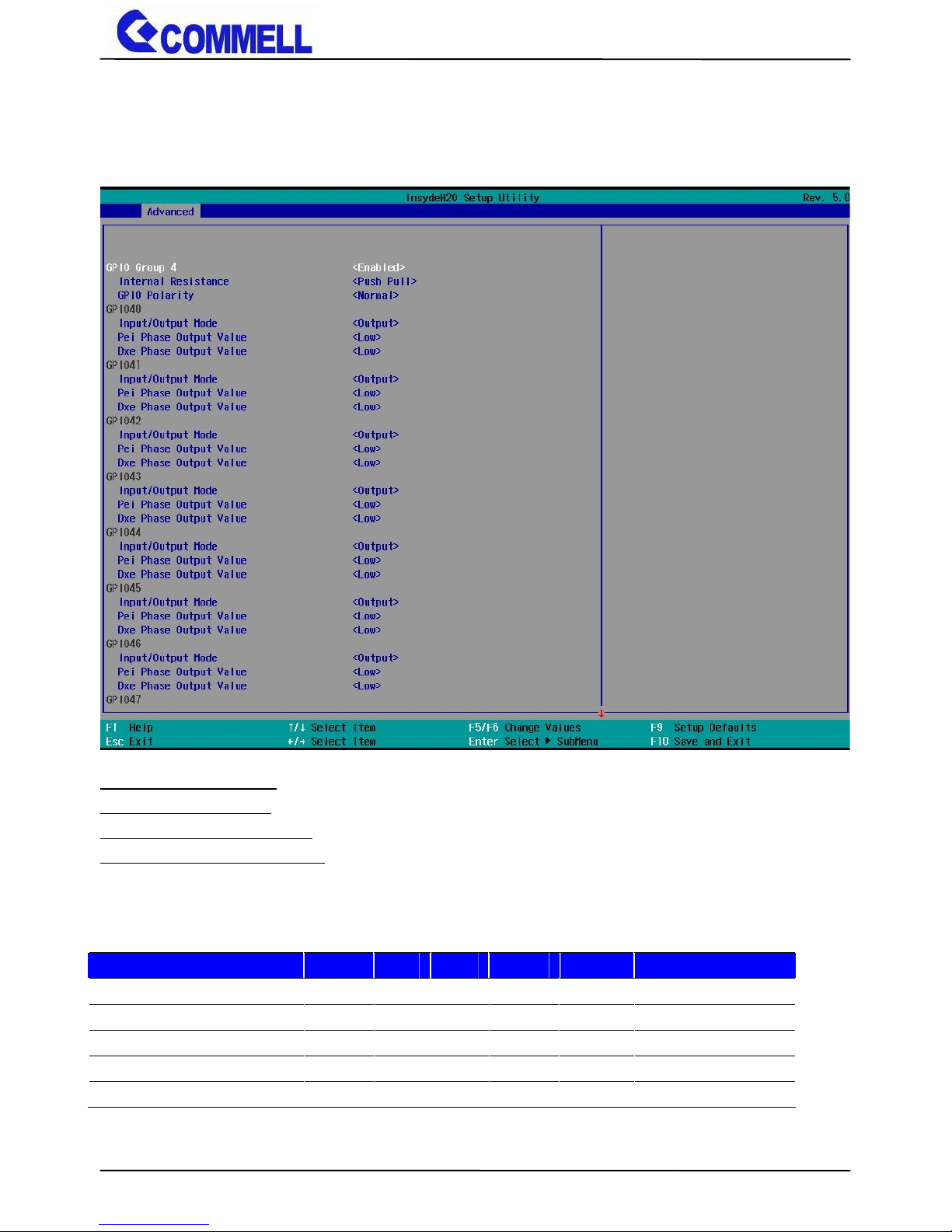

When using GPIO function
Press Delete to enter BIOS Setup menu
On Front Page screen, click Setup Utility
On Advenced screen, click SIO NCT6116D,then click GPIO 4 Configuration
Internal Resistance: Select output type, Push pull or Open drain
Input/Output mode: Select GPIO pin mode, Input or Output
Pei Phase output value: GPIO output value in BIOS pei phase
Dxe Phase output value: GPIO output value in BIOS dxe phase
As Input: TTL-level.
GPIO DC characteristics
Parameter
SYM
MIN
TYP
MAX
UNIT
Conditions
Input Low Voltage
VIL0.8
V
Input High Voltage
VIH2.0
V
Output Low Voltage
VOL0.4
V
IOL =12mA
Input High Leakage
I
LIH
+10
μA
VIN =3.3V
Input Low Leakage
I
LIL
-10
μA
VIN =0V
Please refer to Appendix E to program the configuration register
Page 27
LV-67X User’s Manual
-26-
CN_DIO: GPIO 12-pin header (Pitch 2.00mm)
Pin
Signal
Pin
Signal
1
GND
2
GND
3
GP40
4
GP44
5
GP41
6
GP45
7
GP42
8
GP46
9
GP43
10
GP47
115V12
12V
CN_LPC: LPC 12-pin header (Pitch 2.00mm)
Pin
Signal
Pin
Signal
1
CLK
2
RST
3
-LFRAME
4
LAD3
5
LAD2
6
LAD1
7
LAD0
8
3.3V
9
SERIRQ
10
GND
11
3.3VSB
12
NC
CN_PS2: PS/2 10-pin header (Pitch 2.54mm)
Pin
Signal
Pin
Signal
1
KB_DATA
2
M_DATA
3NC4
NC
5
GND
6
GND
7
VCC
8
VCC
9
KB_CLK
10
M_CLK
CN_SMBUS: SMBus 5-pin connector (Pitch 2.54mm)
Pin1234
5
Signal
5V
NC
SMBDAT
SMBCLK
GND
CPUFAN: CPU cooler fan 4-pin connector
Pin1234
Signal
GND
12V
Sensor
Control
SYSFAN: System cooler fan 4-pin connector
Pin1234
Signal
GND
12V
Sensor
Control
Page 28
LV-67X User’s Manual
-27-

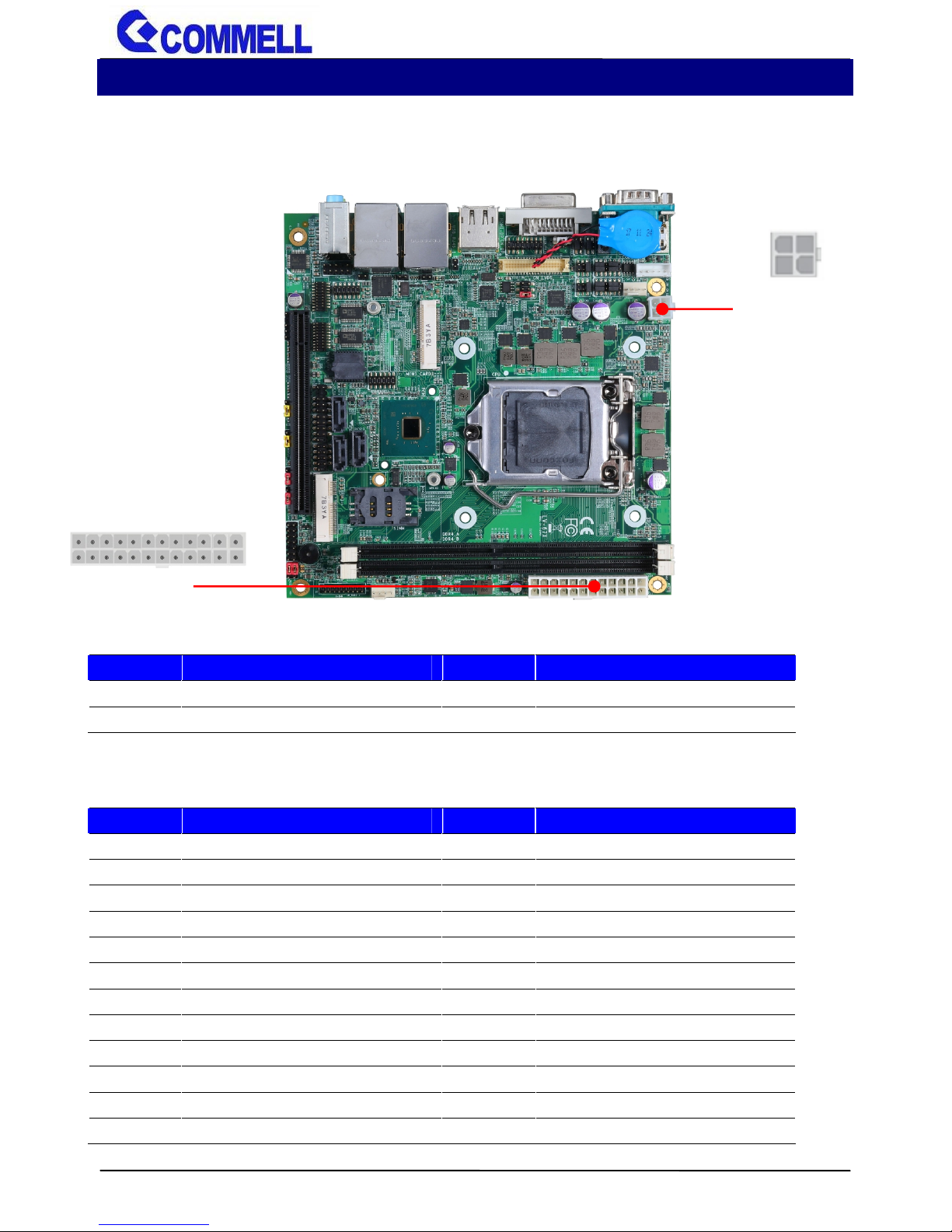

2.5 <Power supply>
2.5.1 <Power input>
CN_12V: ATX12V 4-pin connector
Pin
Signal
Pin
Signal
1
GND
2
GND
3
12V
4
12V
ATX: main power 24-pin connector (As input)
Pin
Signal
Pin
Signal
1
3.3V
13
3.3V
2
3.3V
14
NC
3
GND
15
GND
45V16
-PSON
5
GND
17
GND
65V18
GND
7
GND
19
GND
8
Power_OK
20
NC
9
5VSB
21
5V
10
12V225V
11
12V235V
12
3.3V
24
GND
24
13121
432
1
ATX
CN_12V
Page 29
LV-67X User’s Manual
-28-
Appendix A <Flash BIOS>
A.1 <Flash tool>
The board is based on Insyde BIOS and can be updated easily by the BIOS
auto flash tool. You can download the tool online at the address below:
H2OFFT
The tool’s file name is “H2OFFTCFL.exe”, it’s the utility that can write the
data into the BIOS flash chip and update the BIOS.
A.2 <Flash BIOS process>
1. Please make a bootable UFD which can boot into DOS enviroment.
2. Unzip the flash tool and copy it into bootable UFD.
3. Add a bin file to the same folder..
4. Power on the system and flash the BIOS under the DOS environment.
(Command: H2OFFTCFL xxx.bin -all)
5. System will auto restart..
Page 30
LV-67X User’s Manual
-29-
Appendix B <LCD Panel Type select>
According your panel, it need to select the correct resolution in the BIOS. If there is
no fit your panel type, please feedback for us to make OEM modol.
Find the setting from
Front Page-> Setup Utility
Advanced LVDS Configuration
Set 18bit /24bit, Single /Dual channel in LVDS configuration
Page 31
LV-67X User’s Manual
-30-
Advanced SA configurationGraphics confuguration
LCD controlLCD Panel Type
There are 16 resolutions in LCD Panel Type. (For Dual boot and Legacy boot)
Page 32
LV-67X User’s Manual
-31-
Appendix C <Programmable Watch Dog Timer>
The watchdog timer makes the system auto-reset while it stops to work for a
period.The integrated watchdog timer can be setup as system reset mode by
program.You can select Timer setting in the BIOS, after setting the time options,
the system will reset according to the period of your selection.
Find the setting from
AdvancedSIO NCT6116D
Page 33
LV-67X User’s Manual
-32-
Timeout value range
1 to 255 Minute and Second
Program sample
Watchdog timer setup as system reset with 5 second of timeout
-o 4E 87 ;enter configuration
-o 4E 87
-o 4E 07
-o 4F 08 ;select Logical Device
-o 4E 30
-o 4F 01 ; activate WDTO# function
-o 4E F0
-o 4F 00 ;set “00” is second mode, set “08” is minute mode
-o 4E F1
-o 4F 05 ;00h: Timeout Disable
;01h: Timeout occurs after 1 minute only
;02h: Timeout occurs after 2 second/minute
;03h: Timeout occurs after 3 second/minute
;FFh: Timeout occurs after 255 second/minute
(The deviation is approx 1 second.)
For further information, please refer to Nuvoton NCT6116D datasheet
…
Page 34
LV-67X User’s Manual
-33-
Appendix D <Hardware Monitor>
Find the setting from
AdvancedSIO NCT6116DHardware Monitor
Page 35
LV-67X User’s Manual
-34-
Appendix E <Programmable GPIO>
The GPIO’ can be programmed with the MS-DOS debug program using simple
IN/OUT commands.
GPIO
0123456
7
bit01234567
-o 4E 87 ;enter configuration
-o 4E 87
-o 4E 07
-o 4F 07 ;select Logical Device
-o 4E 30
-o 4F 10 ;activate GPIO function (The board use GPIO4)
-o 4E F0
-o 4F XX ;set “01” GPIO as input, set “00” GPIO as output
-o 4E F1
-o 4F XX ;if set GPIO as output, this register’s value can be set “00~ FF”
Optional
-o 4E F2
-o 4F XX ;set “01”, the respective bit are inverted (Both input and output)
;set “00”, the respective bit are normal
For further information, please refer to Nuvoton NCT6116D datasheet
Page 36
LV-67X User’s Manual
-35-
Appendix F <RAID Setting>
When use RAID function, it need to enter the BIOS set RAID mode first.
Advanced PCH-IO Configuration SATA and RST Configuration
SATA Mode Selection
At boot time, press <CTRL + I> to enter the RAID configuration menu.
Page 37
LV-67X User’s Manual
-36-
Appendix G <Setup ADP-3355,ADP-3460>
LV-67XT have a 2nd VGA or 2nd LVDS, it’s no need install extra driver.
For further information, please refer to the manual.
ADP-3355 manual Link
ADP-3460 manual Link
Contact information
Any advice or comment about our products and service, or anything we can help
you please don’t hesitate to contact with us. We will do our best to support you for
your products, projects and business.
Taiwan Commate computer Inc.
Address
19F., NO.94, Sec. 1, Xintai 5th Rd., Xizhi Dist., New Taipei
City 22102, Taiwan.
TEL
+886-2-26963909
Website
www.commell.com.tw
E-mail
[email protected] (General infomation)
[email protected] (Technical Support)
Commell is a brand name of Taiwan Commate computer Inc.
Loading...
