LV-67W
Mini-ITX Mobile Motherboard
User’s Manual
Edition 1.1
2018/08/27
Page 2
LV-67W User’s Manual
-1-
Copyright
Copyright 2018, all rights reserved. This document is copyrighted and all rights are reserved.
The information in this document is subject to change without prior notice to make
improvements to the products.
This document contains proprietary information and protected by copyright. No part of this
document may be reproduced, copied, or translated in any form or any means without prior
written permission of the manufacturer.
All trademarks and/or registered trademarks contains in this document are property of their
respective owners.
Disclaimer
The company shall not be liable for any incidental or consequential damages resulting from
the performance or use of this product.
The company does not issue a warranty of any kind, express or implied, including without
limitation implied warranties of merchantability or fitness for a particular purpose.
The company has the right to revise the manual or include changes in the specifications of
the product described within it at any time without notice and without obligation to notify any
person of such revision or changes.
Trademark
All trademarks are the property of their respective holders.
Any questions please visit our website at TUhttp://www.commell.com.twUT
Page 3
LV-67W User’s Manual
-2-

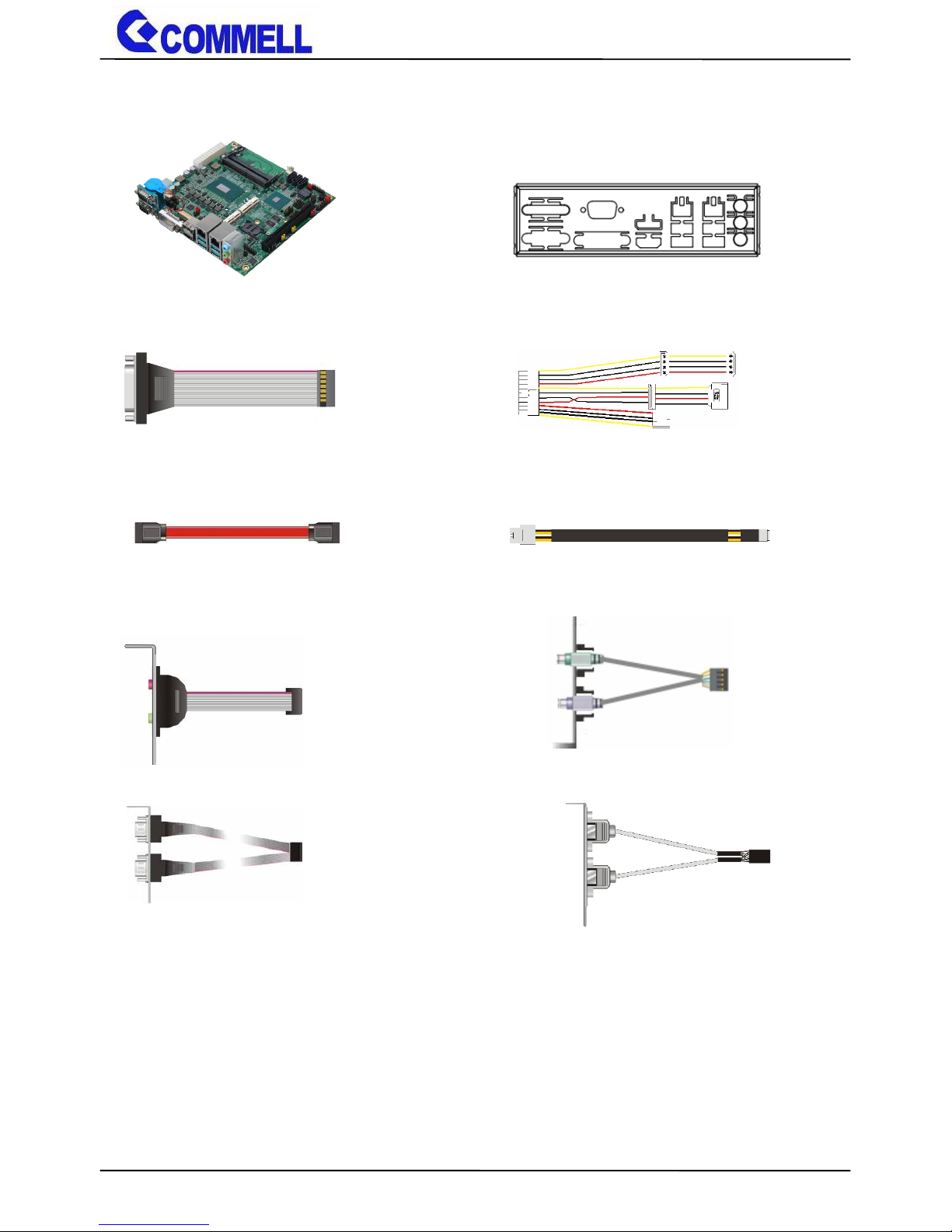

Packing List:
Please check the package content before you starting using the board.
Printed Matters:
Driver CD (Including User’s Manual) x 1
OPTIONAL:
1 x LV-67W Mini-ITX Motherboard
(include Cooler Fan)
1 x I/O Shield
(OPLATE-CDILAT) / (1270067)
1 x VGA Cable
(OALVGA-SNB-7) / (1040557)
1 x Power Cable
(OALATX-P3S2 / 1040058)
2 x SATA Cable
(OALSATA3-L) / (1040529)
1 x DC Power Cable
(OALDC-A) / (1040433)
1 x Audio cable
(OALPJ-HD) / (1040120)
1 x Dual COM PORT Cable
(OALES-BKU2) / (1040087)
1 x PS/2 Keyboard & Mouse cable
(OALPS2/KMB) / (1040610)
1 x USB2.0 Cable
(OALUSBA-1) / (1040172)
Page 4
LV-67W User’s Manual
-3-
Index
Chapter 1 <Introduction>............................................................... 4
1.1 <Product Overview>............................................................ 4
1.2 <Product Specification> ...................................................... 5
1.3 <Block Diagram>.................................................................6
Chapter 2 <Hardware setup>......................................................... 7
2.1 <Connector Location and Reference> ................................ 7
2.1.1 <Internal connectors list> ..........................................8
2.1.2 <External connectors list>.........................................8
2.2 <Memory Setup>.................................................................9
2.3 <Jumper Location and Reference> ................................... 10
2.3.1 <Jumper list> .......................................................... 10
2.3.2 <Clear CMOS and Power on type selection>.......... 11
2.4 <I/O interface> .................................................................. 11
2.4.1 <Serial ATA interface>............................................. 11
2.4.2 <Ethernet interface>................................................ 12
2.4.3 <Display interface> ................................................. 12
2.4.4 <Serial Port interface> ............................................ 15
2.4.5 <USB interface>...................................................... 18
2.4.6 <Audio interface>.................................................... 20
2.4.7 <Expansion slot>..................................................... 21
2.4.8 <Front panel switch and indicator> ......................... 22
2.4.9 <GPIO and Other interface> ...................................23
2.5 <Power supply> ................................................................ 27
2.5.1 <Power input>......................................................... 27
2.5.2 <Power Output>......................................................28
Appendix A <Flash BIOS> ........................................................... 29
Appendix B <LCD Panel Type select> ........................................ 30
Appendix C <Programmable Watch Dog Timer>....................... 32
Appendix D <Hardware Monitor>................................................ 34
Appendix E <Programmable GPIO> ........................................... 35
Appendix F <RAID Setting>......................................................... 36
Appendix G <Setup ADP-3355,ADP-3460>................................. 37
Contact information .....................................................................37
Page 5
LV-67W User’s Manual
-4-
Chapter 1 <Introduction>
1.1 <Product Overview>
LV-67W is Mini-ITX Motherboard which supports 8th generation Intel® Core™ H-series
Processor with Intel® QM370 Chipset, integrated HD Graphics , DDR4 memory, Realtek
High Definition Audio, Intel Gigabit LAN, Serial ATA3
Intel Coffee Lake-H Processor with Intel® QM370 Chipset
8th generation Intel® Core™ H-series Processor is new generation and multi-core
processor built on 14 nanometer process.
It provides new Graphics support 3 independent 4K UHD displays, Memory is support up to
32GB of DDR4, better performance, flexibility and more enhanced security that is suitable
for a variety of intelligent systems the ideal choice.
Flexible Expansion Interface
It includes 2 x Minicard slot, PCIe x16 slot, 1 x RS232/RS485/RS422, 6 x USB3.1 Gen2,
and 4 x USB2.0.
Coffee Lake only support Windows10 64bit, Linux
Intel support Windows 10 64bit only. It may lose some drivers if you use other Windows
version.
Page 6
LV-67W User’s Manual
-5-
1.2 <Product Specification>
System
Processor
Intel® 8th Gen Intel® Core™ H-series Processor
FCBGA1440 package
Chipset
Intel® QM370
Memory
2 x DDR4 DIMM 2666 MHz up to 32GB,
Support Non-ECC, unbuffered memory only
Watchdog Timer
Generates a system reset with internal timer for 1min/s ~ 255min/s
Real Time Clock
Chipset integrated RTC with onboard lithium battery
Expansion
1 x MiniPCIe (support mSATA)
1 x MiniPCie
1 x SIM slot
1 x PCIe X16 slot
Graphics
Chipset
Intel® UHD Graphics
Display Interface
1 x DVI, 1 x DisplayPort (optional),
1 x LVDS, 1 x HDMI, 1 x VGA
LAN
Chip
1 x Intel® I219-LM Gigabit PHY LAN (Support iAMT12.0)
1 x Intel® I210-AT Gigabit LAN
I/O
Serial ATA
3 x SATA3
Audio
Realtek ALC262 HD Audio
Internal I/O
3 x SATA3, 4 x RS232, 4 x USB2.0, 2 x USB3.1 Gen2,
1 x LVDS, 1 x LPC, 1 x LCD inverter, 2 x 8 Bit GPIO, 1 x Audio,
1 x PS/2, 1 x SMBUS, 1 x VGA
Rear I/O
1 x DisplayPort(optional), 1 x DVI, 1 x HDMI, 4 x USB3.1 Gen2,
2 x LAN, 1 x RS232/422/485, 1 x RS232, 1 x Audio.
Mechanical & Environmental
Power Requirement
Standard 24-pin ATX power supply or 4-pin 9~35V
(Note) do not use at the same time
Size & Thickness
170mm x 170mm (L x W)
Temperature
Operating within 0°C~60°C (32°F~140°F)
Storage within -20°C~80°C (-4°F~176°F)
Relative Humidity
10%~90%, non-condensing
Page 7
LV-67W User’s Manual
-6-

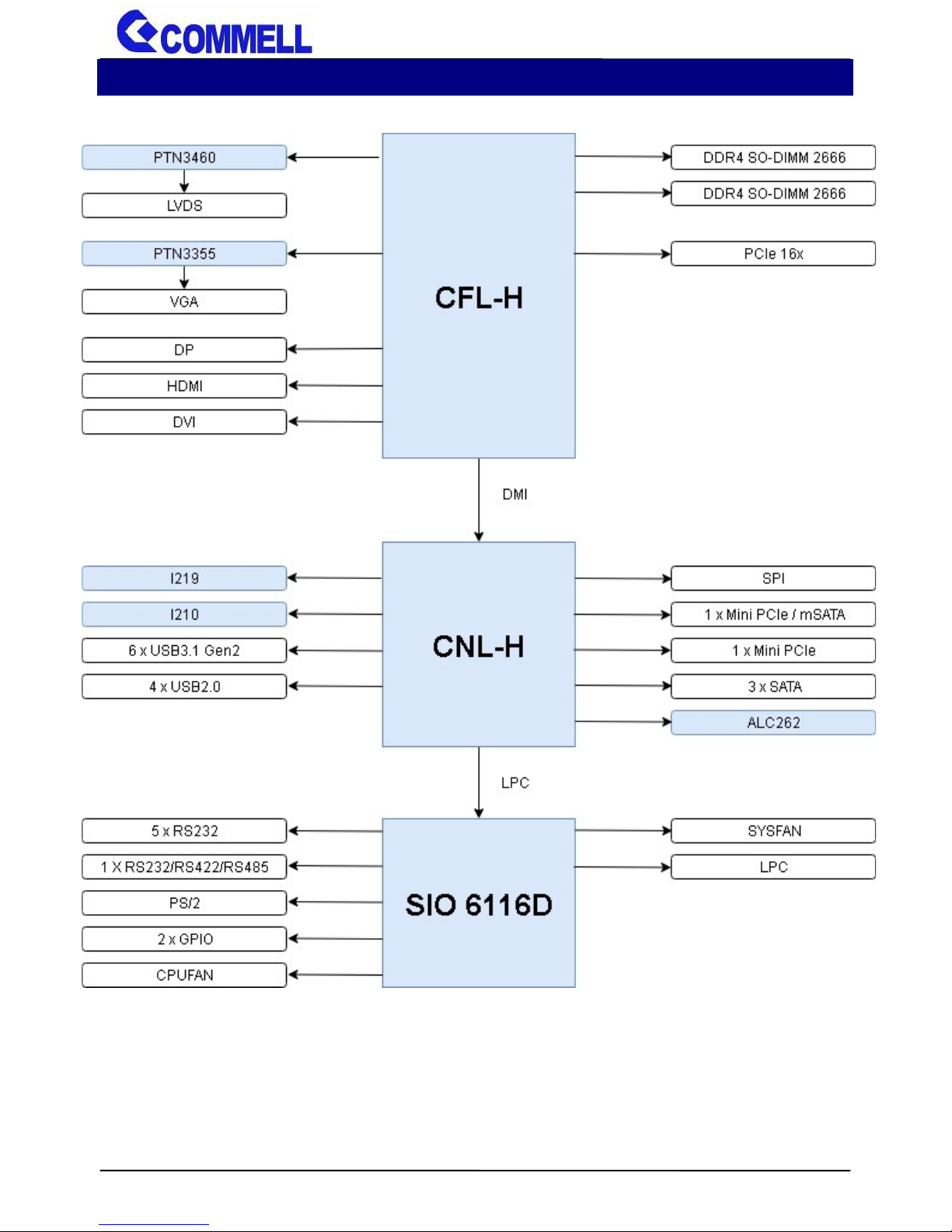

1.3 <Block Diagram>
Page 8
LV-67W User’s Manual
-7-
Chapter 2 <Hardware setup>

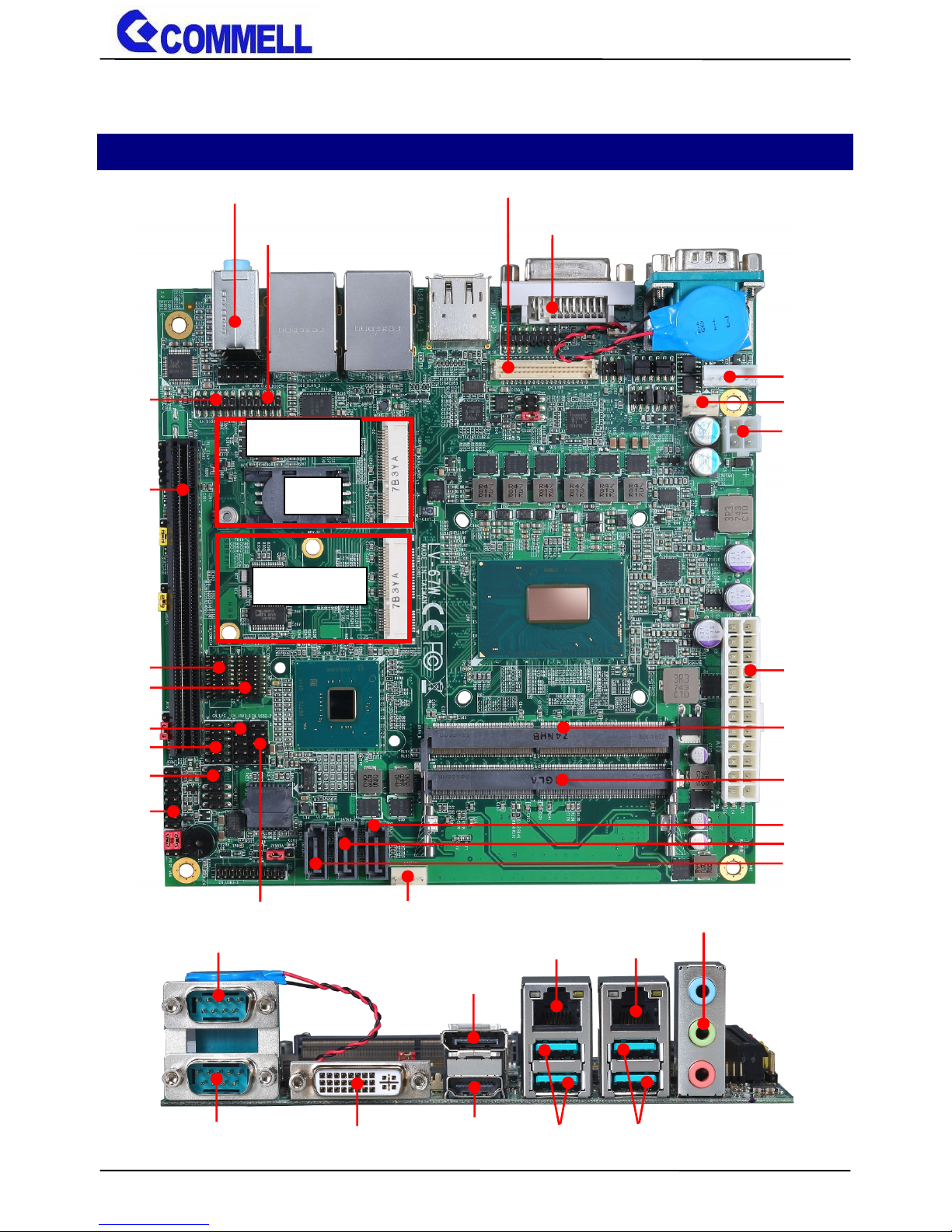

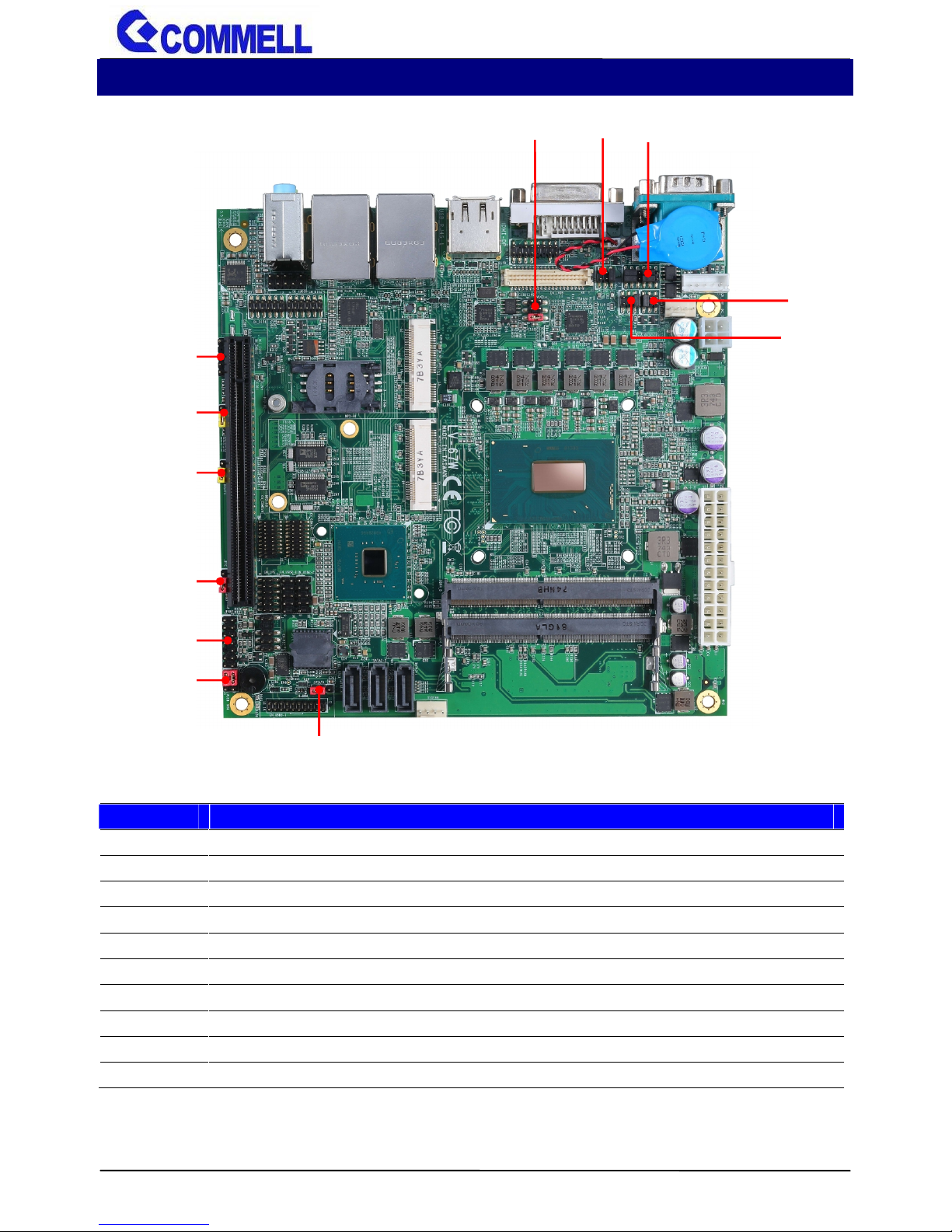

2.1 <Connector Location and Reference>
CN_LVDS
CN_AUDIO
I219-LM
COM2
CN_CRT
I210-AT
COM1
DVI
HDMI
Display Port
AUDIO
USB3.1
USB3.1
CN_DIO
PCI_E16X
CN_COM3/4
CN_COM5/6
CN_USB2-1
CN_LPC
CN_PS2
JFRNT
CN _INV
CPUFAN
DC_IN
ATX
DDR4_B
DDR4_A
SATA3-1
SATA3-2
SATA3-3
MINI_CARD1
MINI_CARD2
SYSFAN
CN_DIO2
CN_USB2-2
SIMM
Page 9
LV-67W User’s Manual
-8-
2.1.1 <Internal connectors list>
Connector
Function
DDR4_A/B
288-pin DDR4 DIMM slot
SATA3-1/2/3
7-pin Serial ATA3 connector
CN_AUDIO
5 x 2-pin audio pin header
CN_LPC
6 x 2-pin LPC pin header
CN_LVDS
20 x 2-pin LVDS connector
CN_INV
5-pin LCD inverter connector
CN_SMBUS
5-pin SMBus connector
CN_COM 3/4/5/6
20-pin RS232 connector
CN_USB 2-1/2-2
5 x 2-pin USB2.0 pin header
CN_USB 3-1
10 x 2-pin USB3.1 pin header
CN_PS2
5 x 2-pin PS/2 pin header
CN_DIO1/2
6 x 2-pin digital I/O connector
CN_CRT
16-pin VGA connector
CPUFAN
4-pin CPU fan connector
SYSFAN
4-pin system fan connector
JFRNT
14-pin front panel switch/indicator connector
PCI_E16X
164-pin x16 PCIE slot
MINI_CARD1/2
52-pin MiniPCIe card slot
ATX
24-pin power supply connector
DC_IN
4-pin power input Terminal Block
SIMM
6-pin socket
2.1.2 <External connectors list>
Connector
Function
DisplayPort
DisplayPort connector
DVI
DVI connector
HDMI
HDMI connector
USB3.1
USB3.1 Gen2 connector
LAN
RJ45 connector
AUDIO
Audio connector
COM1/2
DB9 Serial port connector
Page 10
LV-67W User’s Manual
-9-

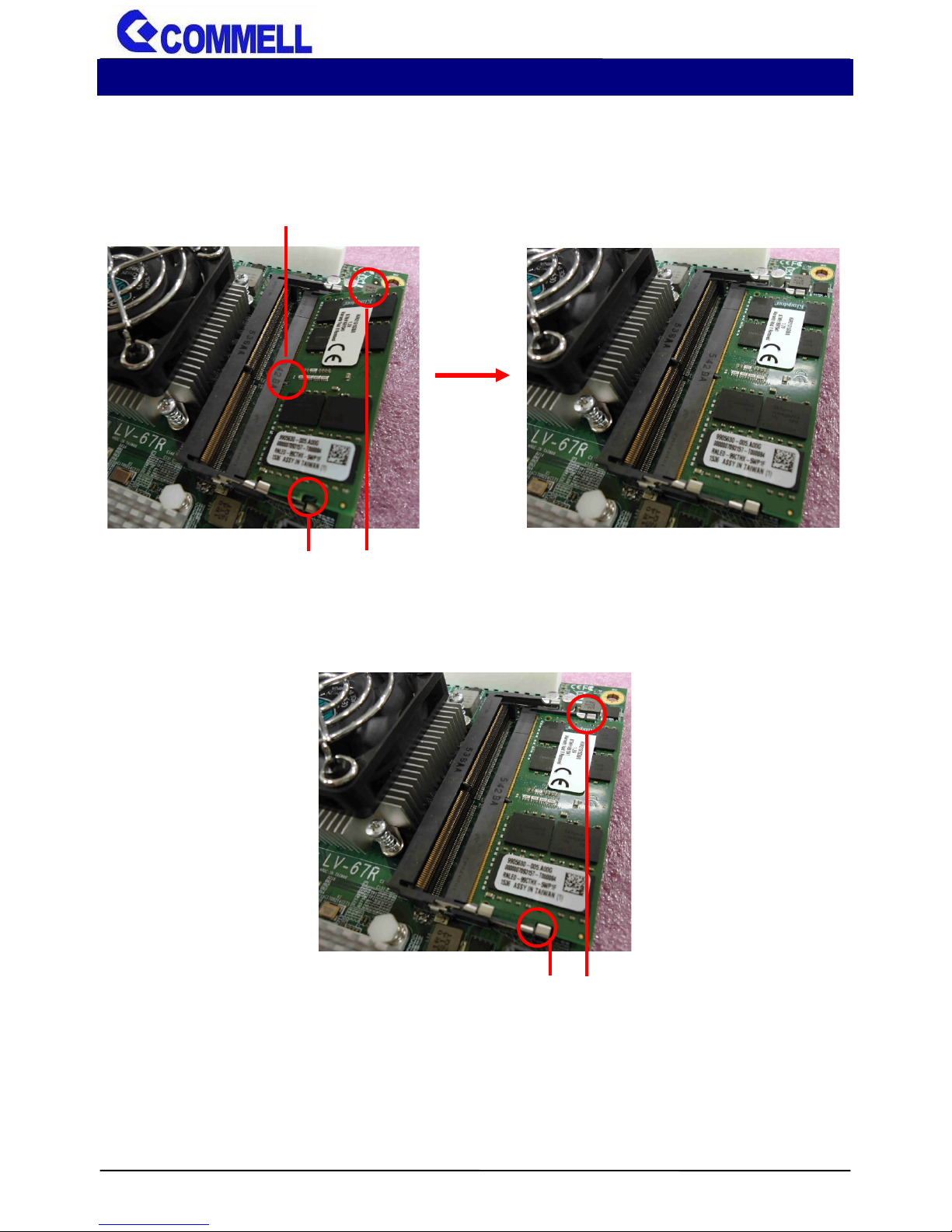

2.2 <Memory Setup>
In the process, the board must be powered off.
1. Put the memory tilt into the slot. Note the Memory notch key aligned slot key.
2. Then press down till lock into the mounting notch.
3. To remove the memory, push outward on both sides of the latch.
Key
Press down
Mounting notch
Latch
Page 11
LV-67W User’s Manual
-10-

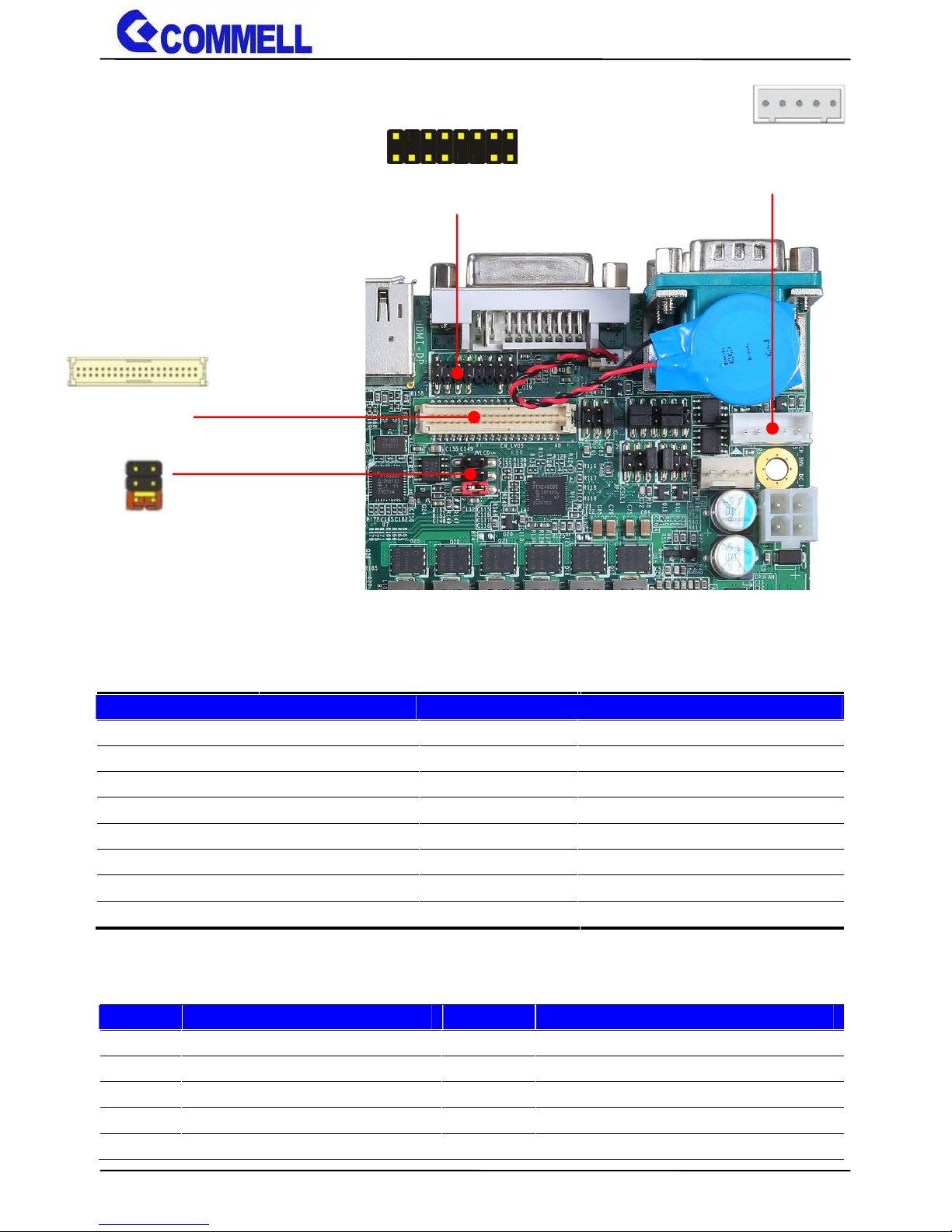

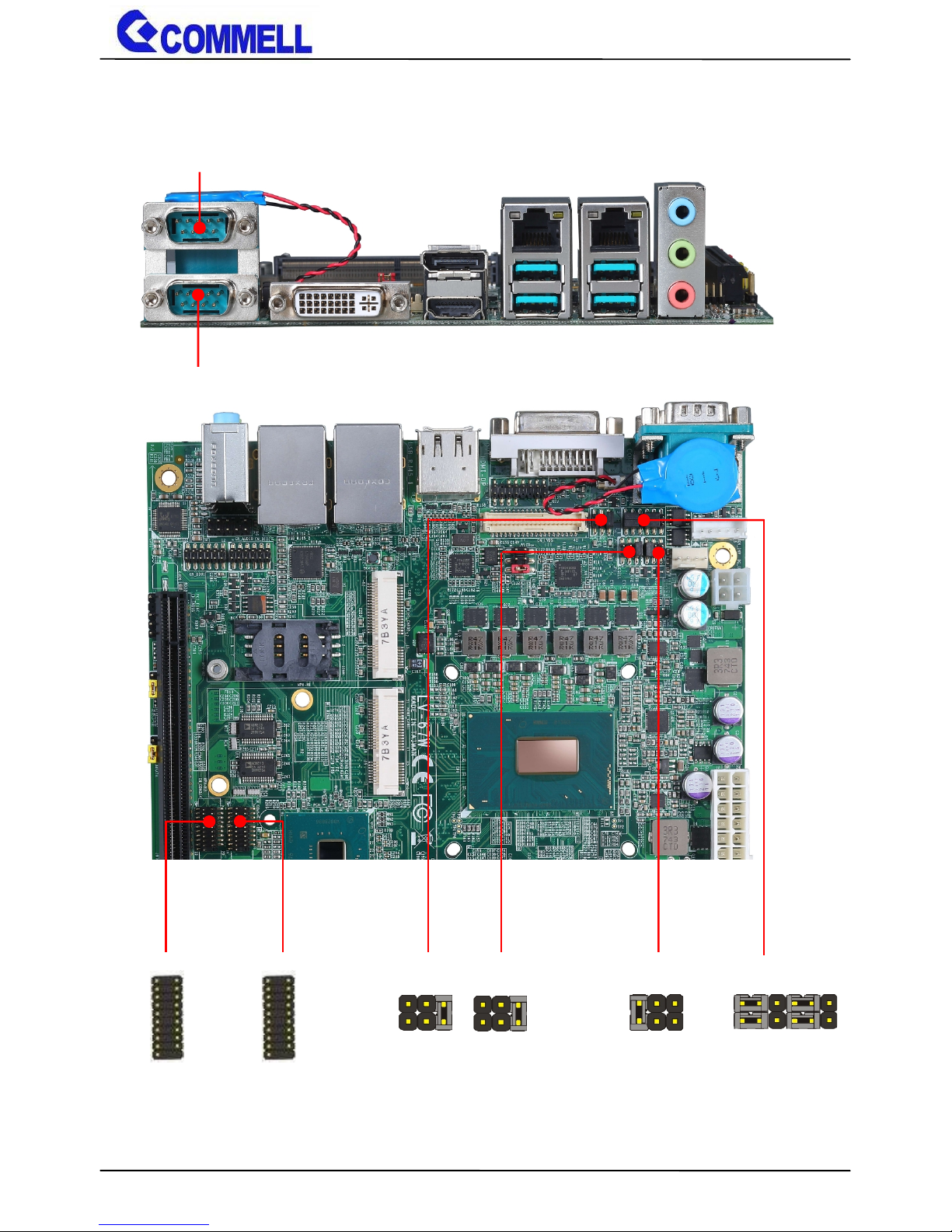

2.3 <Jumper Location and Reference>
2.3.1 <Jumper list>
Jumper
Function
JAT
Power mode select
JRTC
CMOS Normal/Clear Setting
JVLCD
Panel Voltage Setting
JMSATA
MiniCard 2 MSATA Setting
JP1
COM1 Voltage Setting (For Pin 9)
JP2
COM2 Voltage Setting (For Pin 9)
JCSEL1
COM2 RS-232 RS422 RS485 Setting
JCSEL2
COM2 RS-232 RS422 RS485 Setting
JVSATA
Set 5V to SATA3-3 pin 7 (For SATADOM)
JVUSB
USB Voltage Setting
JVLCD JP2
CN_SMBUS
JAT
JMSATA
JRTC
JFRNT
JVUSB
JCSEL1
JP1
JCSEL2
JVSATA
Page 12
LV-67W User’s Manual
-11-

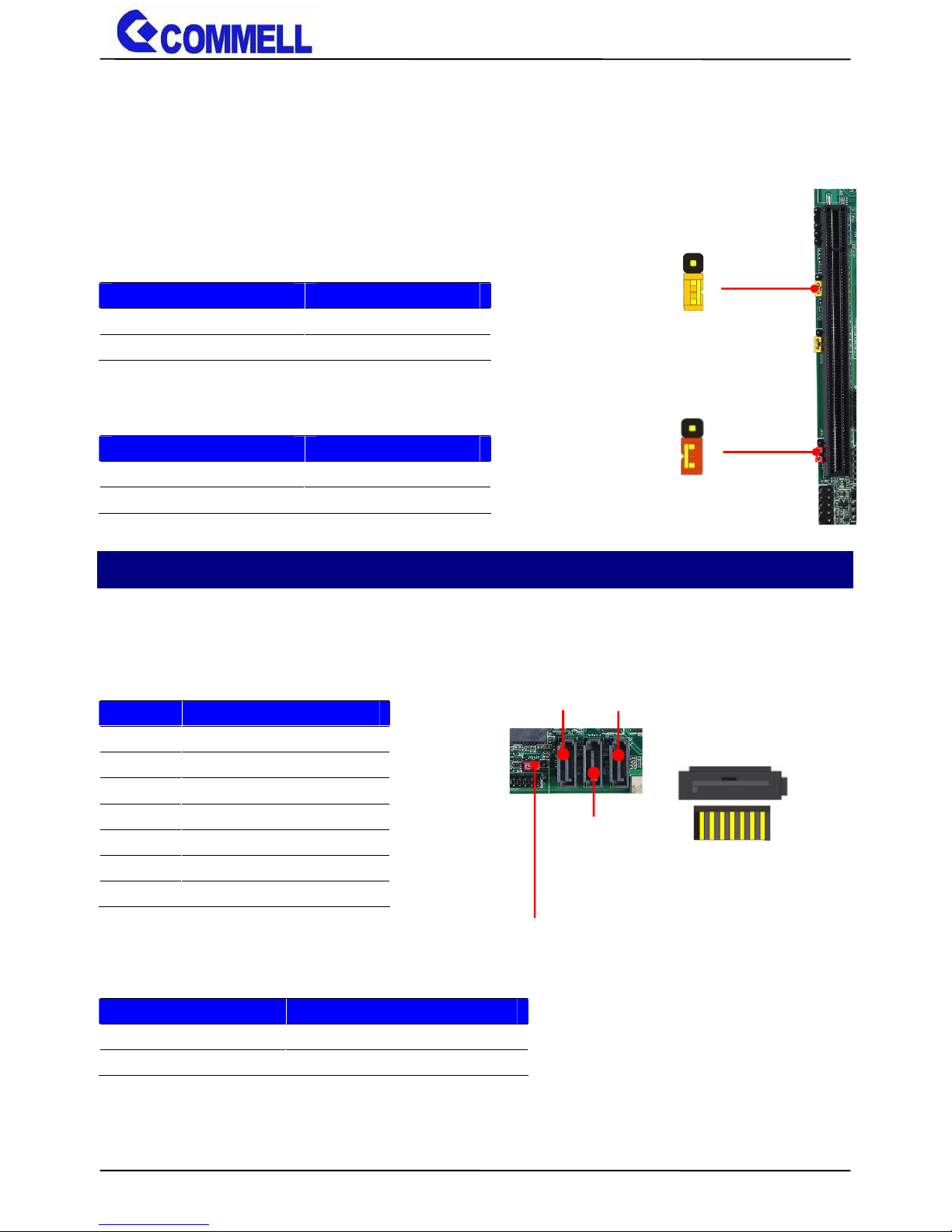

2.3.2 <Clear CMOS and Power on type selection>
The board’s data of CMOS can be setting in BIOS. If the board refuses to boot due to
inappropriate CMOS settings, here is how to proceed to clear (reset) the CMOS to its
default values.
JAT: AT/ATX mode select jumper
Jumper settings
Function
1-2
AT mode
2-3
ATX mode (Default)
JRTC: Clear CMOS data jumper
Jumper settings
Function
1-2
Clear CMOS
2-3
Normal (Default)
2.4 <I/O interface>
2.4.1 <Serial ATA interface>
SATA 1/2/3: SATA3 7-pin connector
JVSATA: SATA3/SATADOM mode select jumper (change pin7 to 5V)
Jumper settings
Function
1-2
SATA3-3 SATADOM
2-3
SATA3-3 SATA3 (Default)
Pin
Signal
1
GND
2
TX+
3
TX-
4
GND
5
RX-
6
RX+
7
GND
7
1
SATA3-1
SATA3-2
SATA3-3
JVSATA
JRTC
13JAT
1
3
Page 13
LV-67W User’s Manual
-12-
2.4.2 <Ethernet interface>
The board provide I219-LM PHY Gigabit Ethernet and I210-AT Gigabit Ethernet on
rear I/O.Intel I219-LM and I210 supports operation at 10/100/1000 Mb/s data rates,
with IEEE802.3 compliance and Wake-On-LAN supported.
2.4.3 <Display interface>
Based on the 8th Gen CPU with built-in UHD Graphics 630, VGA and DVI up to
1920x1080@60Hz, DisplayPort up to 4096x2304@60Hz , HDMI up to
4096x2304@24Hz on rear IO. About the internal Display, LVDS (PTN3460) up to
1920x1200@60Hz support 18/24-bit color depth and single/dual channel. About
select LCD Panel Type in BIOS, please refer Appendix B.
The built-in HD Graphics support triple display function with clone mode and
extended mode.

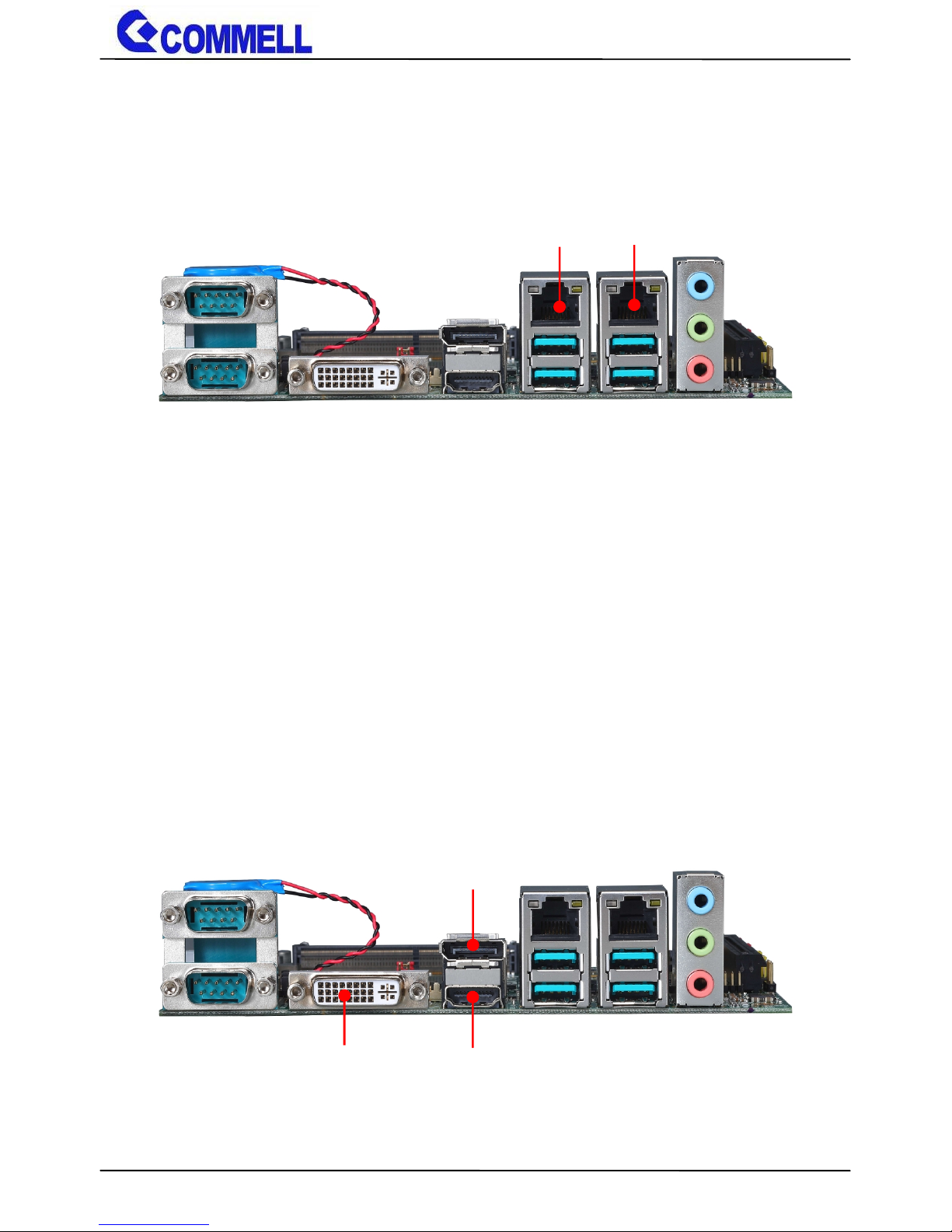

I219-LM I210-AT
DP
HDMI
DVI
Page 14
LV-67W User’s Manual
-13-

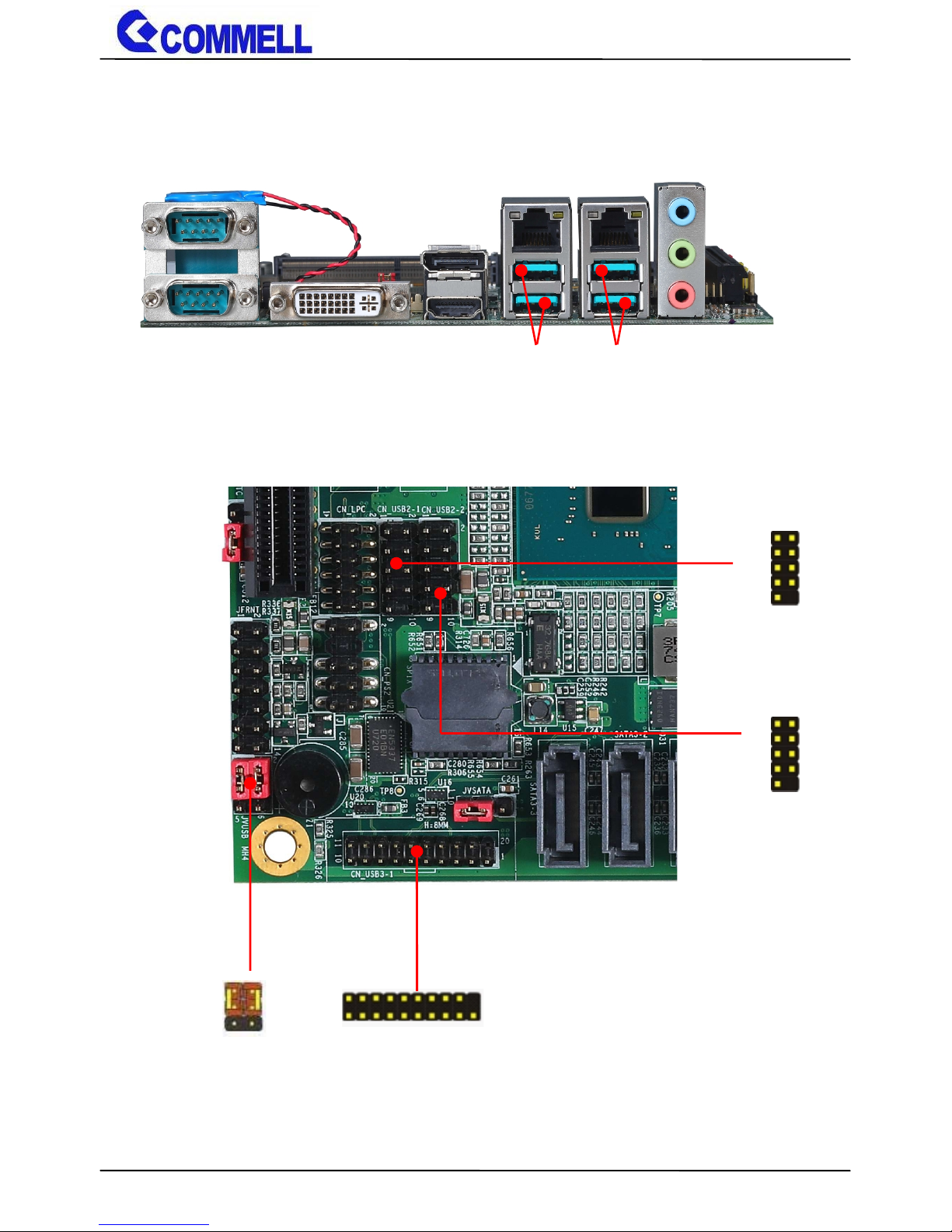

CN_CRT: VGA 16-pin connector (Pitch 2.00 mm)
Pin
Signal
Pin
Signal
1BR2
BG
3BB4
NC
5
IOGND1
6
IOGND1
7
IOGND1
8
IOGND1
9NC10
IOGND1
11NC12
5VCDA
13
5HSYNC
14
5VSYNC
15
5VCLK
16
NC
CN_LVDS: LVDS 40-pin connector (Model: HIROSE DF13-40DP-1.25V compatible)
Pin
Signal
Pin
Signal
2
Set by JVLCD
1
Set by JVLCD
4
Detect (Active low)
3
GND
6
A_LVDS_0-
5
B_LVDS_0-
8
A_LVDS_0+
7
B_LVDS_0+
10
GND9GND
CN_LVDS
JVLCD
1
39
2
40
6
5
2
1
5
1
CN_INV
CN_CRT
16152
1
Page 15
LV-67W User’s Manual
-14-
12
A_LVDS_1-
11
B_LVDS_1-
14
A_LVDS_1+
13
B_LVDS_1+
16
GND15GND
18
A_LVDS_2-
17
B_LVDS_2-
20
A_LVDS_2+
19
B_LVDS_2+
22
GND21GND
24
A_LVDS_CLK-
23
B_LVDS_3-
26
A_LVDS_CLK+
25
B_LVDS_3+
28
GND27GND
30
A_LVDS_3-
29
B_LVDS_CLK-
32
A_LVDS_3+
31
B_LVDS_CLK+
34
GND33GND
36
LVDS_DDCSCL
35
NC
38
LVDS_DDCSDA
37
NC
40NC39
NC
Pin4 only need to be connected to GND
CN_INV: LVDS 5-pin Backlight power connector
Pin
Signal
1
12V
2
Backlight Control
3
GND
4
GND
5
Enable Backlight
JVLCD: LVDS panel power select jumper
Jumper settings
Function
1-2
3.3V (Default)
3-4
5V
5-6
12V
Page 16
LV-67W User’s Manual
-15-
2.4.4 <Serial Port interface>
COM2
COM1
20
19
2
1
CN_COM3/4 CN_COM5/6 JP2 JP1 JCSEL1 JCSEL2
20
19
2
1
1
6
2
5
1
12
2
11
1
6
2
5
1
6
2
5
Page 17
LV-67W User’s Manual
-16-
COM1: DB9 connector
Pin
Signal
Pin
Signal
1
DCD
2
RXD
3
TXD
4
DTR
5
GND
6
DSR
7
RTS
8
CTS
9
Set by JP1
COM2: RS232/422/485 DB9 connector
Pin
Signal
Pin
Signal
1
DCD/ 422TX-/ 485-
2
RXD/ 422TX+/ 485+
3
TXD/ 422RX+
4
DTR/ 422RX-
5
GND
6
DSR
7
RTS
8
CTS
9
Set by JP2
Note: Use JCSEL1 and JCSEL2 select communication mode
COM3/4: COM 20-pin header (Pitch 2.54 x 1.27mm)
Pin
Signal
Pin
Signal
1
DCD1
2
RXD1
3
TXD1
4
DTR1
5
GND
6
DSR1
7
RTS1
8
CTS1
9
RI110NC
11
DCD2
12
RXD2
13
TXD2
14
DTR2
15
GND
16
DSR2
17
RTS2
18
CTS2
19
RI220Key
Page 18
LV-67W User’s Manual
-17-
COM5/6: COM 20-pin header (Pitch 2.54 x 1.27mm)
Pin
Signal
Pin
Signal
1
DCD1
2
RXD1
3
TXD1
4
DTR1
5
GND
6
DSR1
7
RTS1
8
CTS1
9
RI110NC
11
DCD2
12
RXD2
13
TXD2
14
DTR2
15
GND
16
DSR2
17
RTS2
18
CTS2
19
RI220Key

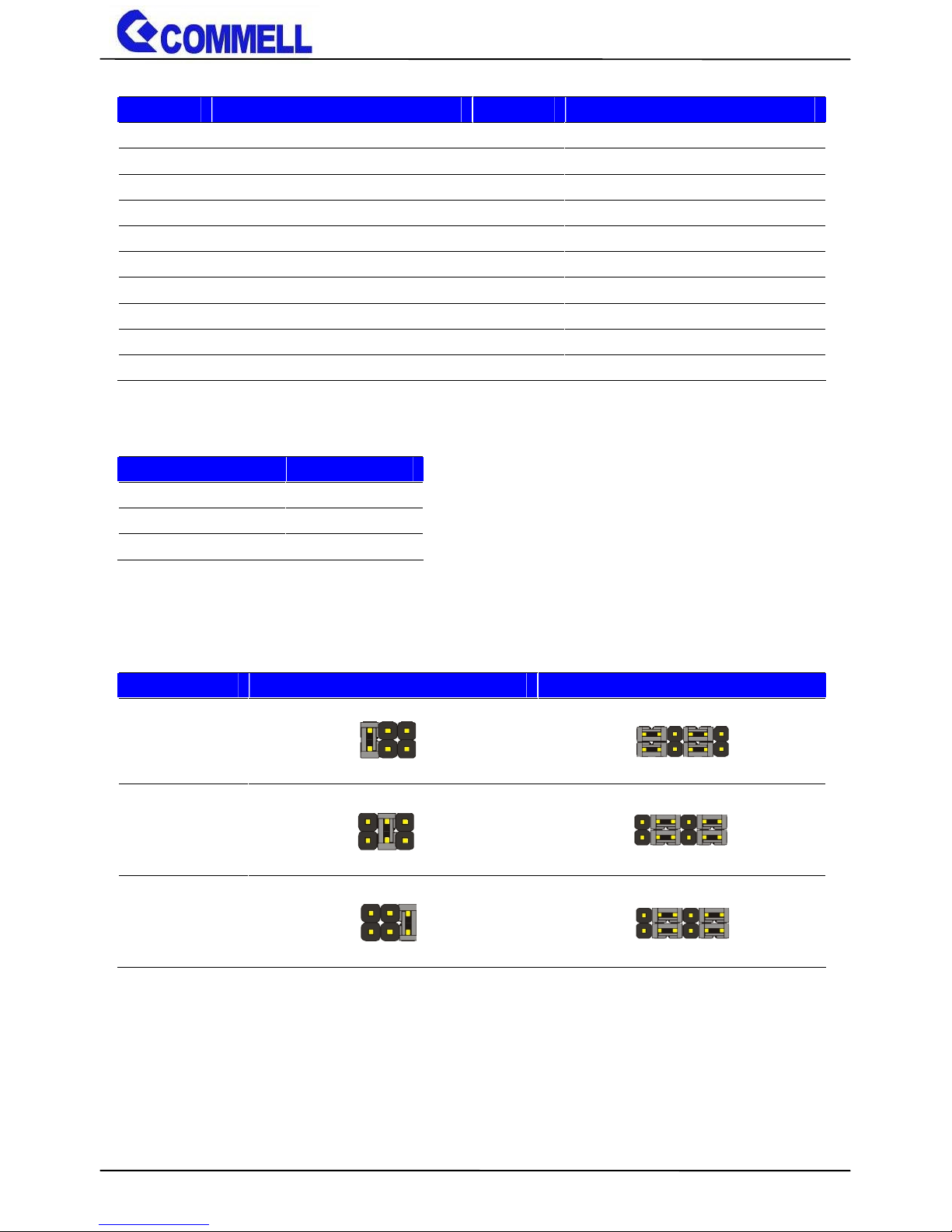

JP1, JP2: COM1, COM2 pin-9 setting
Jumper settings
Function
1-2
5V
3-4
12V
5-6
RI (Default)
Effective patterns of connection: 1-2 / 3-4 / 5-6
Other may cause damage
JCSEL1, JCSEL2: For configure COM2 communication mode
Function
JCSEL1
JCSEL2
RS232
(Default)
RS485
RS422
1
12
2112
6
1
526
1
5
1122
11
1122
11
2
1
5
6
Page 19
LV-67W User’s Manual
-18-
2.4.5 <USB interface>
CN_USB3-1
USB31
(LEFT)
USB3.1
(RIGHT)
1
10
11
20
CN_USB2-1
561
2
JVUSB
9
2
1
10
CN_USB2-2
9
2
1
10
Page 20
LV-67W User’s Manual
-19-
CN_USB 2-1/2-2: USB2.0 10-pin header (Pitch 2.54 mm)
Pin
Signal
Pin
Signal
1
5VSB
2
5VSB
3
DATA0-
4
DATA1-
5
DATA0+
6
DATA1+
7
GND
8
GND
9
GND
10
Key
CN_USB3-1: USB3.1 20-pin header (Pitch 2.00 mm)
Pin
Description
Pin
Description
1
VCC (5V_SB/ 5V)
20
NC
2
USB3.1_RX0-
19
VCC (5V_SB/ 5V)
3
USB3.1_RX0+
18
USB3.1_RX14
Ground
17
USB3.1_RX1+
5
USB3.1_TX0-
16
Ground
6
USB3.1_TX0+
15
USB3.1_TX17
Ground
14
USB3.1_TX1+
8
Data0-
13
Ground
9
Data0+
12
Data110NC11
Data1+
JVUSB: 6-pin Power select jumper
Pin
Description
1-3 & 2-4
5V_SB (Default)
3-5 & 4-6
5V
1.Effective patterns of connection: 1-3 & 2-4 or 3-5 & 4-6
2.JVUSB can control CN_USB3-1 and USB3.1(LEFT) power
3.USB3.1(RIGHT) have 5V_SB
Page 21
LV-67W User’s Manual
-20-
2.4.6 <Audio interface>

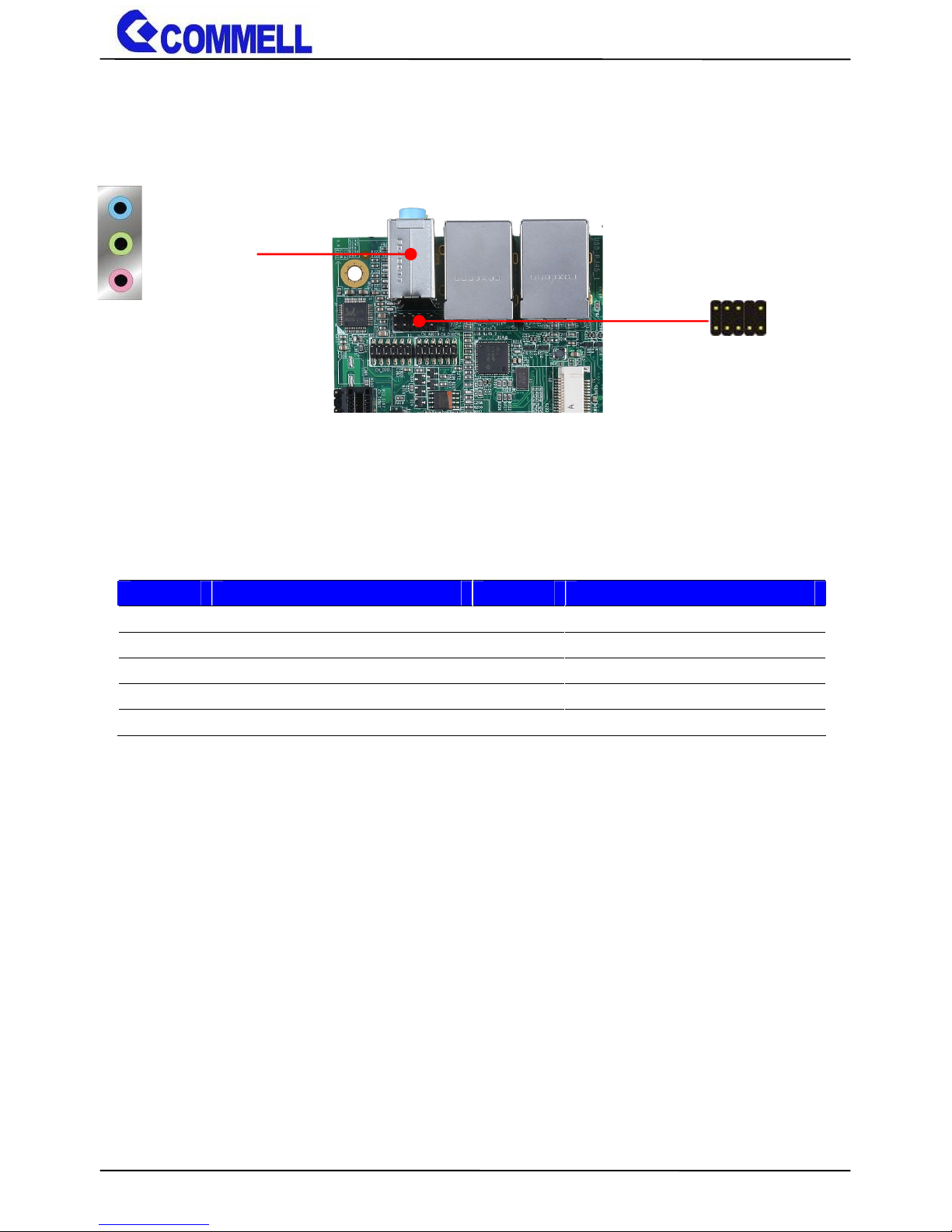

CN_AUDIO: Front panel audio 10-pin header (Pitch 2.54mm)
Pin
Signal
Pin
Signal
1
MIC_L
2
GND
3
MIC_R
4
NC
5
FP_OUT_R
6
MIC_DETECT
7
SENSE
8
Key
9
FP_OUT_L
10
FP_OUT_DETECT
CN_AUDIO
1
10
2
9
Line in
Line out
Mic in
Rear Audio Jack
Page 22
LV-67W User’s Manual
-21-
2.4.7 <Expansion slot>

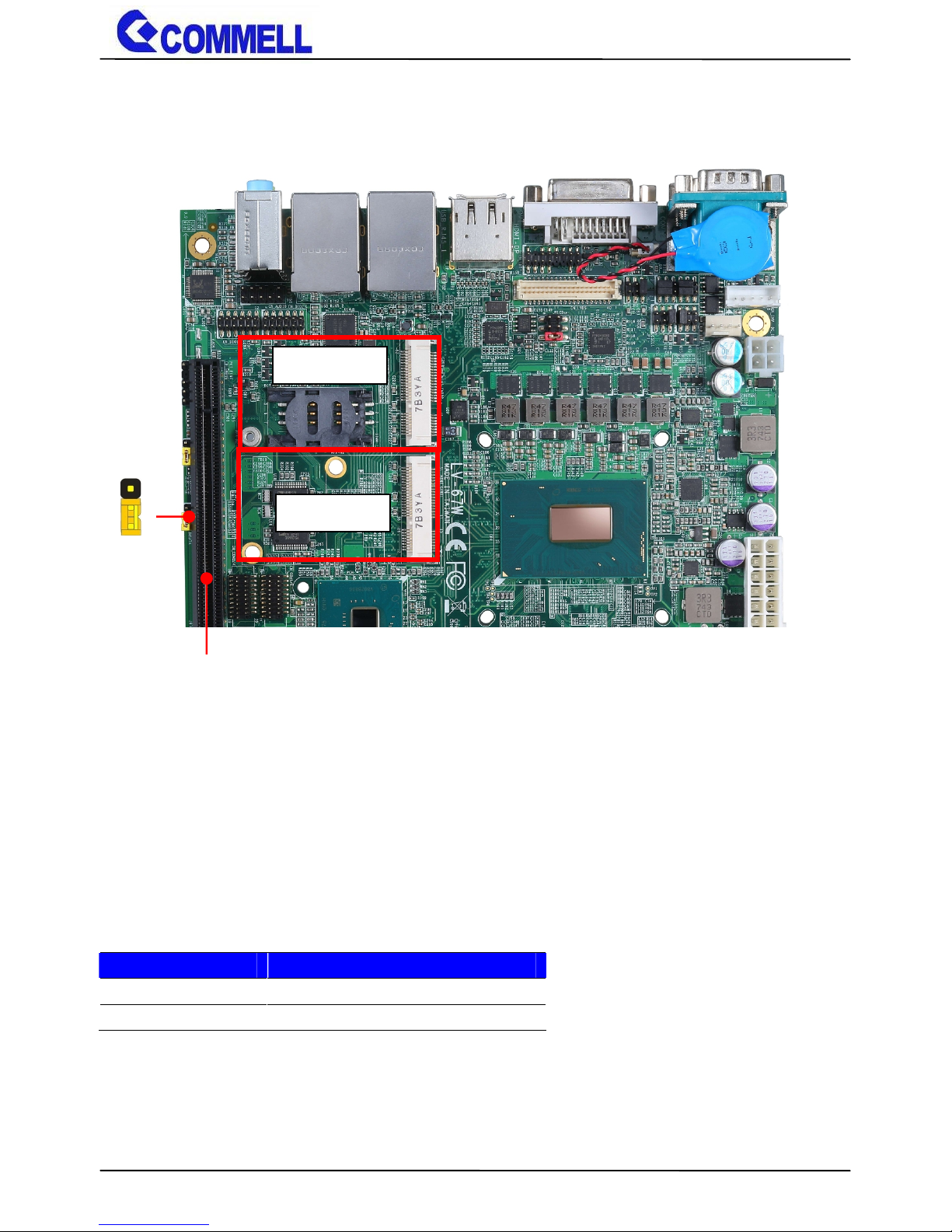

MINI_CARD1 and MINI_CARD2 have some special design to compatible our
mini-PCIe card. (ex: MPX-574D2, MPX-210D2 etc)
MINI_CARD2 support mSATA by JMSATA, and connect SIM card with
3G module.
JMSATA: Setting MINI_CARD2 to support PCIe/mSATA
Jumper settings
Function
1-2
Support mSATA
2-3
Normal operation (Default)
1
3
JMSATA
PCI_E16X
MINI_CARD1
MINI_CARD2
SIMM
Page 23
LV-67W User’s Manual
-22-

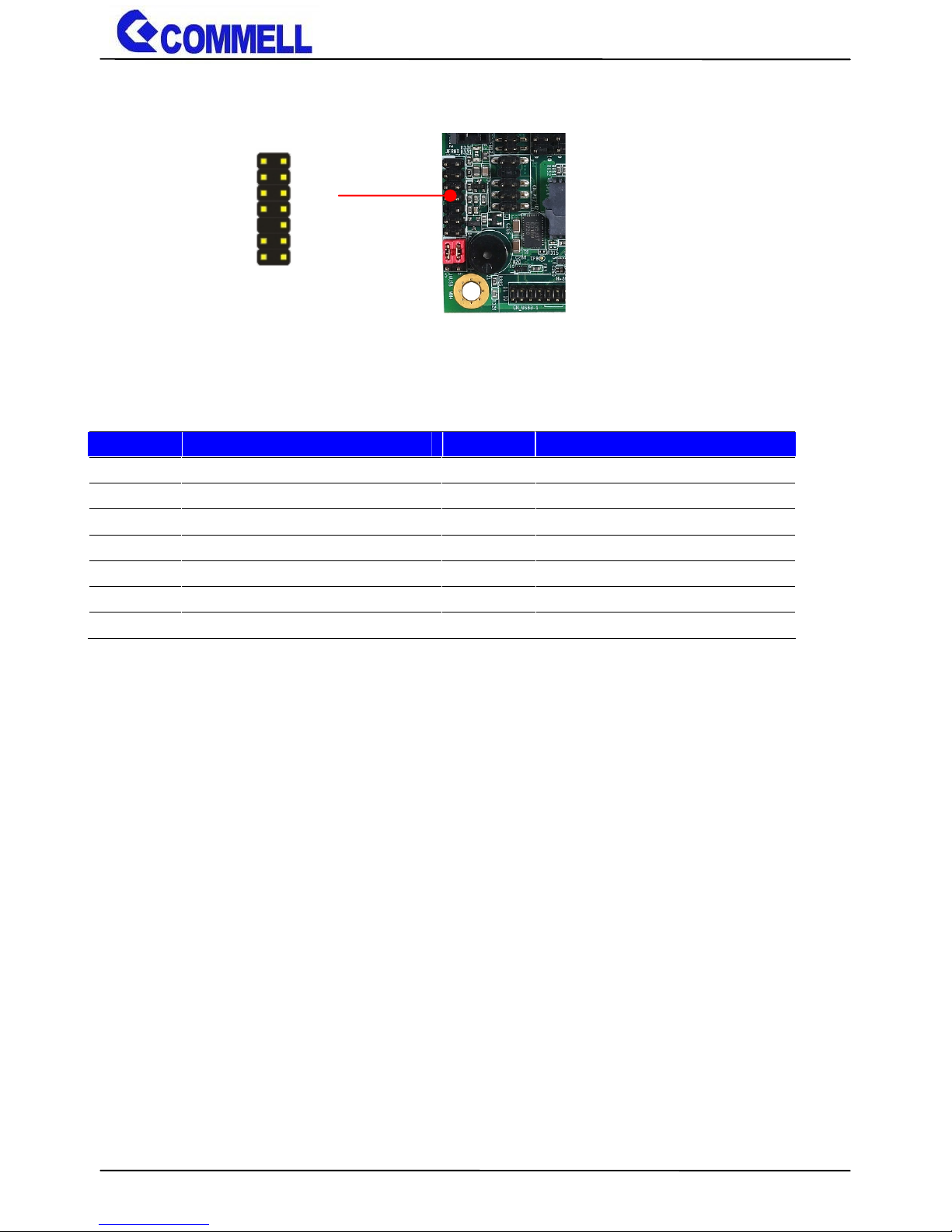

2.4.8 <Front panel switch and indicator>
JFRNT: Front panel switch and indicator 14-pin header (Pitch 2.54mm)
Pin
Signal
Pin
Signal
1
HDD_LED+
2
Power_LED+
3
HDD_LED-
4
NC
5
Reset+
6
Power_LED-
7
Reset-
8
Speaker+
9
Key10NC
11
Power_ON+
12
NC
13
Power_ON-
14
Speaker-
JFRNT
1142
13
Page 24
LV-67W User’s Manual
-23-
2.4.9 <GPIO and Other interface>
CPUFAN
4
1
SYSFAN
5
1
CN_LPC
2
11
12
1
CN_DIO1
12
1
11
2
CN_SMBUS
4
1
CN_PS2
10
9
2
1
12
1
11
2
CN_DIO2
Page 25
LV-67W User’s Manual
-24-

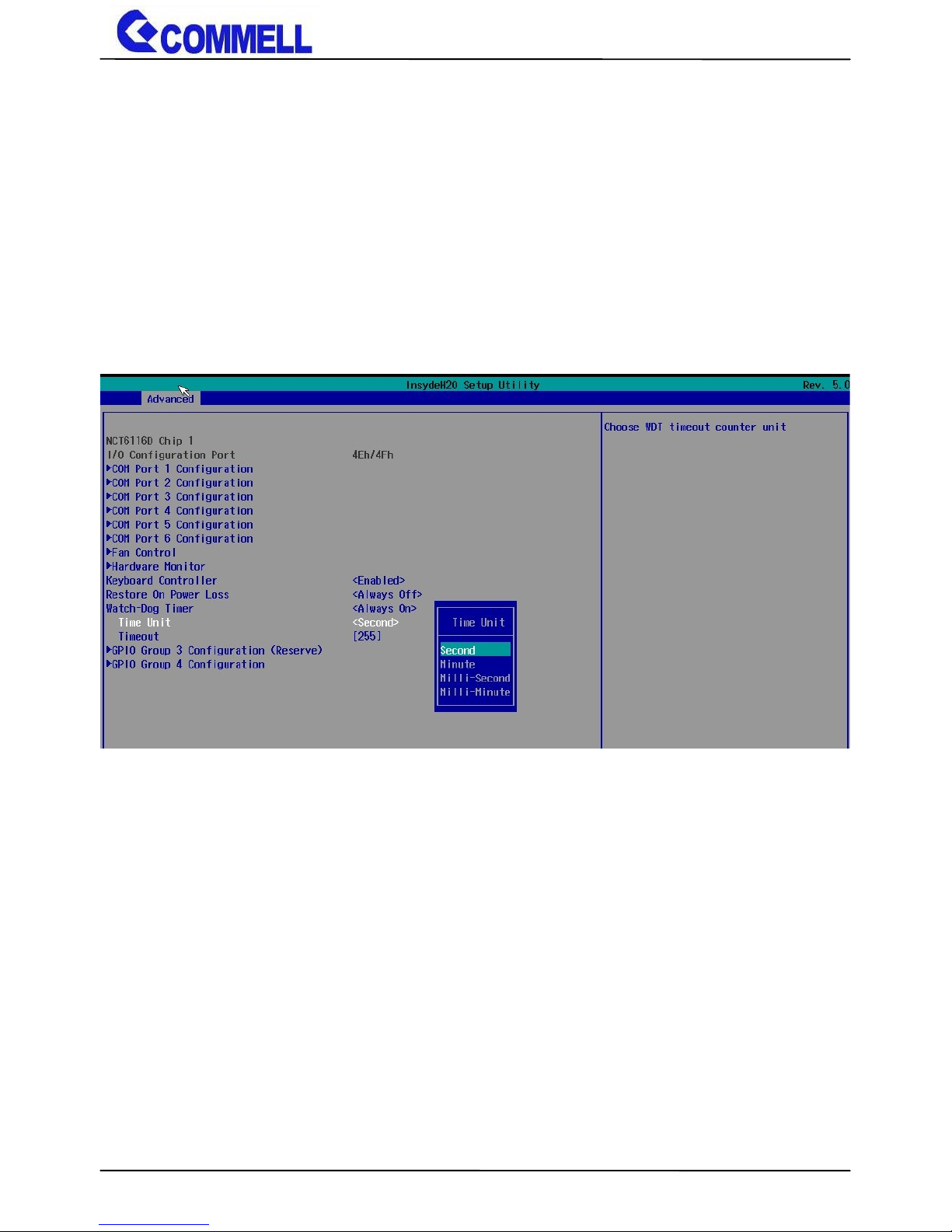

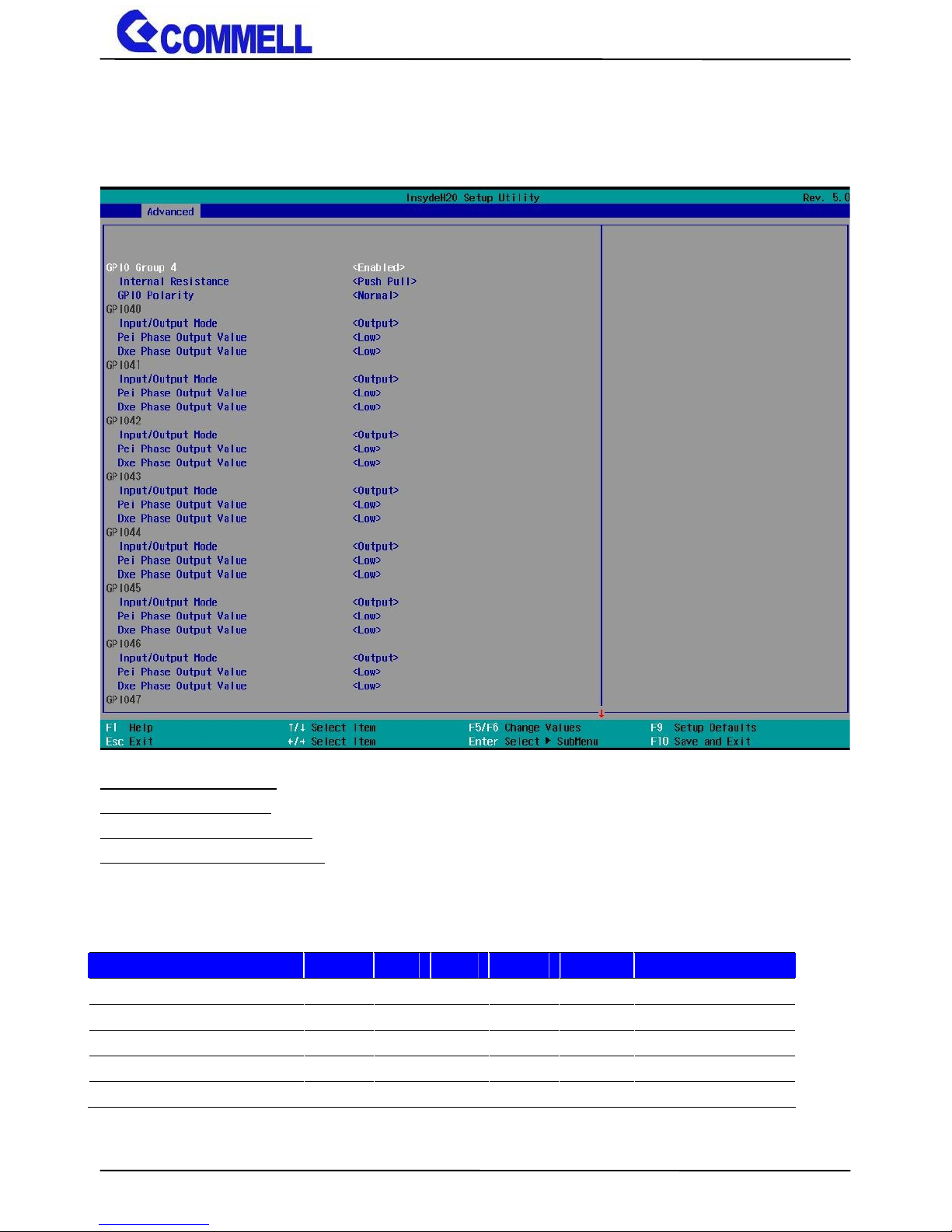

When using GPIO function
Press Delete to enter BIOS Setup menu
On Front Page screen, click Setup Utility
On Advenced screen, click SIO NCT6116D,then click GPIO 3/4 Configuration
Internal Resistance: Select output type, Push pull or Open drain
Input/Output mode: Select GPIO pin mode, Input or Output
Pei Phase output value: GPIO output value in BIOS pei phase
Dxe Phase output value: GPIO output value in BIOS dxe phase
As Input: TTL-level.
GPIO DC characteristics
Parameter
SYM
MIN
TYP
MAX
UNIT
Conditions
Input Low Voltage
VIL0.8
V
Input High Voltage
VIH2.0
V
Output Low Voltage
VOL0.4
V
IOL =12mA
Input High Leakage
I
LIH
+10
μA
VIN =3.3V
Input Low Leakage
I
LIL
-10
μA
VIN =0V
Please refer to Appendix E to program the configuration register
Page 26
LV-67W User’s Manual
-25-
CN_DIO1: GPIO 12-pin header (Pitch 2.00mm)
Pin
Signal
Pin
Signal
1
GND
2
GND
3
GP30
4
GP34
5
GP31
6
GP35
7
GP32
8
GP36
9
GP33
10
GP37
115V12
12V
CN_DIO2: GPIO 12-pin header (Pitch 2.00mm)
Pin
Signal
Pin
Signal
1
GND
2
GND
3
GP40
4
GP44
5
GP41
6
GP45
7
GP42
8
GP46
9
GP43
10
GP47
115V12
12V
CN_LPC: LPC 12-pin header (Pitch 2.00mm)
Pin
Signal
Pin
Signal
1
CLK
2
RST
3
-LFRAME
4
LAD3
5
LAD2
6
LAD1
7
LAD0
8
3.3V
9
SERIRQ
10
GND
11
3.3VSB
12
NC
CN_PS2: PS/2 10-pin header (Pitch 2.54mm)
Pin
Signal
Pin
Signal
1
KB_DATA
2
M_DATA
3NC4
NC
5
GND
6
GND
7
VCC
8
VCC
9
KB_CLK
10
M_CLK
Page 27
LV-67W User’s Manual
-26-
CN_SMBUS: SMBus 5-pin connector (Pitch 2.54mm)
Pin1234
5
Signal5VNC
SMBDAT
SMBCLK
GND
CPUFAN: CPU cooler fan 4-pin connector
Pin1234
Signal
GND
12V
Sensor
Control
SYSFAN: System cooler fan 4-pin connector
Pin1234
Signal
GND
12V
Sensor
Control
Page 28
LV-67W User’s Manual
-27-
2.5 <Power supply>
2.5.1 <Power input>

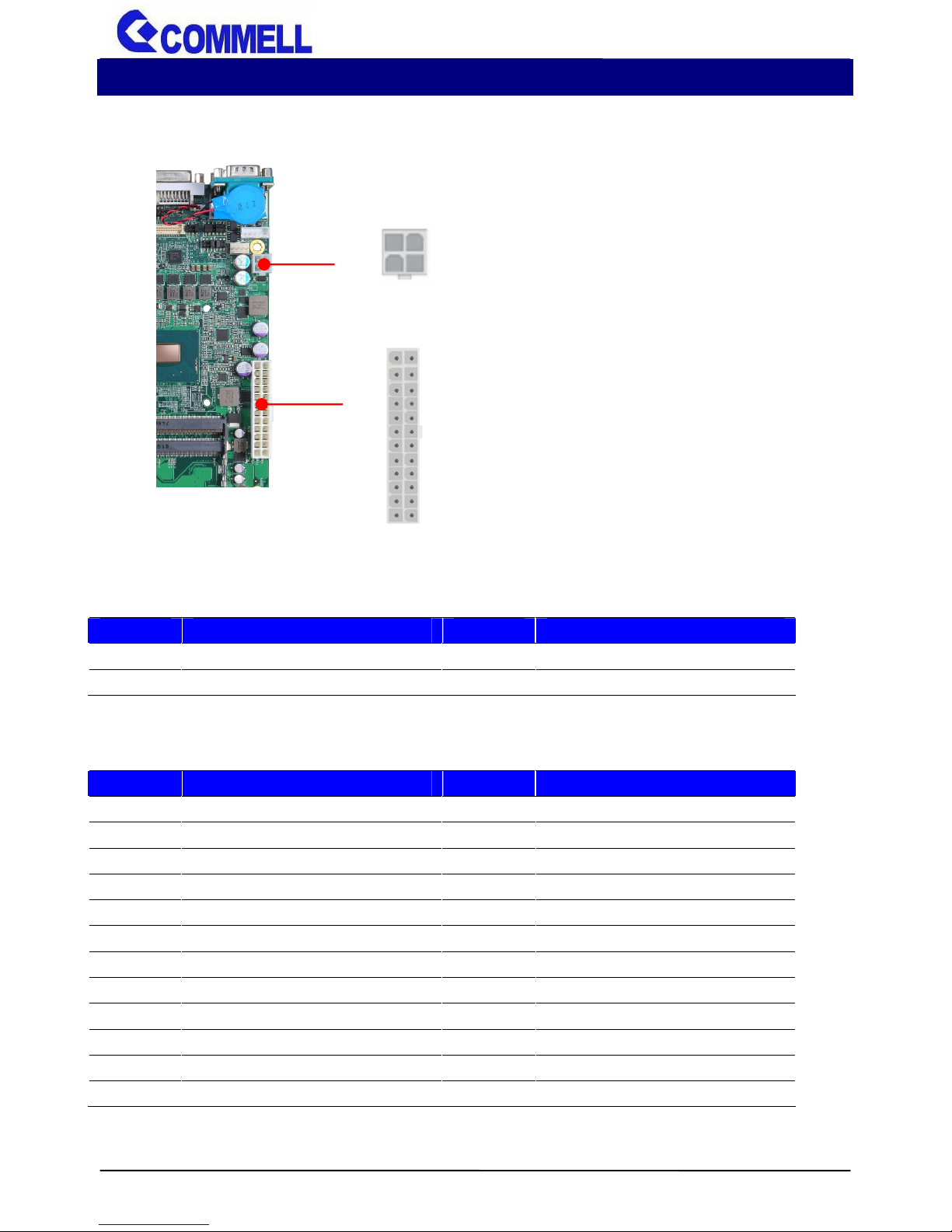

DC_IN: 4-pin 9~35V connector
Pin
Signal
Pin
Signal
1
GND
2
GND
3
9~35V
4
9~35V
ATX: main power 24-pin connector (DC_IN and ATX can’t use at the same time)
Pin
Signal
Pin
Signal
1
3.3V
13
3.3V
2
3.3V
14
NC
3
GND
15
GND
45V16
-PSON
5
GND
17
GND
65V18
GND
7
GND
19
GND
8
Power_OK
20
NC
9
5VSB
21
5V
10
12V225V
11
12V235V
12
3.3V
24
GND
241
3
CN_12V
24
13
12
1
ATX
13
1
Page 29
LV-67W User’s Manual
-28-
2.5.2 <Power Output>
It is supply to the HDD, CD-ROM or other device.
If using DC_IN as input, that ATX will be the output.
ATX: main power 24-pin connector (As output)
Pin
Signal
Pin
Signal
1
3.3V
13
3.3V
2
3.3V
14
3
GND
15
GND
45V16
5
GND
17
GND
65V18
GND
7
GND
19
GND
8
20
9
21
5V
10
12V225V
11
12V235V
12
3.3V
24
GND
Page 30
LV-67W User’s Manual
-29-
Appendix A <Flash BIOS>
A.1 <Flash tool>
The board is based on Insyde BIOS and can be updated easily by the BIOS
auto flash tool. You can download the tool online at the address below:
FPT Tool
The tool’s file name is “FPT.exe”, it’s the utility that can write the data into the
BIOS flash chip and update the BIOS.
A.2 <Flash BIOS process>
1. Press Del to Enter BIOS Menu
2. On Front Page screen, click Setup Utility

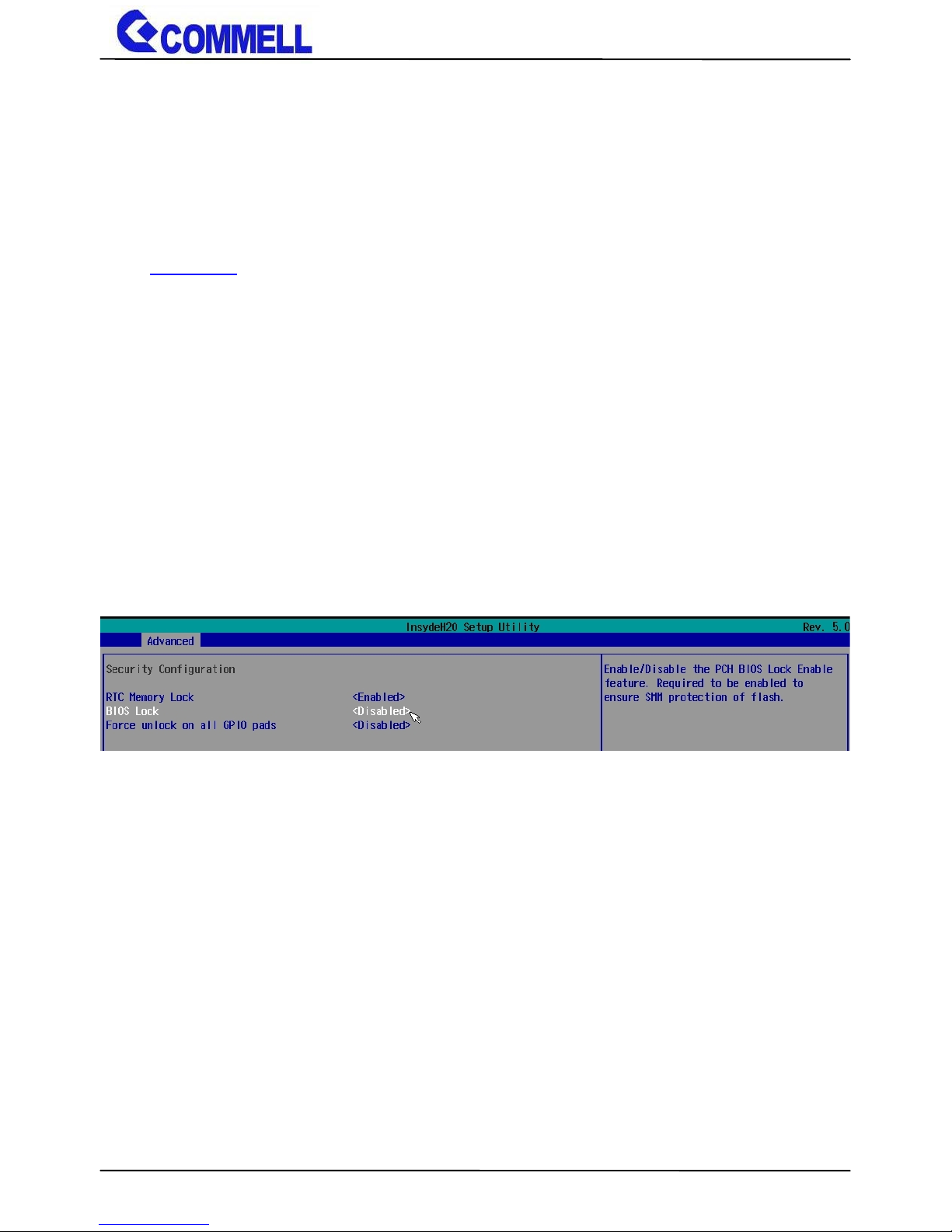

3. On Advenced screen, click PCH-IO Configuration,then click Security
Configuration
4. Set BIOS Lock to [Disabled], then save changes.
5. Please make a boot-able Disk which could booting into DOS environment.
6. Un-zip attached files and copy it into boot-able Disk.
7. Power on the system and flash the BIOS under the DOS environment.
The instruction will be "C:/fpt_-savemac_-f_XXXX.BIN"
Note: a. Underscore means Space
b. xxxx.bin means the BIOS file that you want to update
8. Please turn off the system and clean CMOS by Jumper.
9. Turn on the system and update BIOS successful.
Page 31
LV-67W User’s Manual
-30-
Appendix B <LCD Panel Type select>
According your panel, it need to select the correct resolution in the BIOS. If there is
no fit your panel type, please feedback for us to make OEM modol.

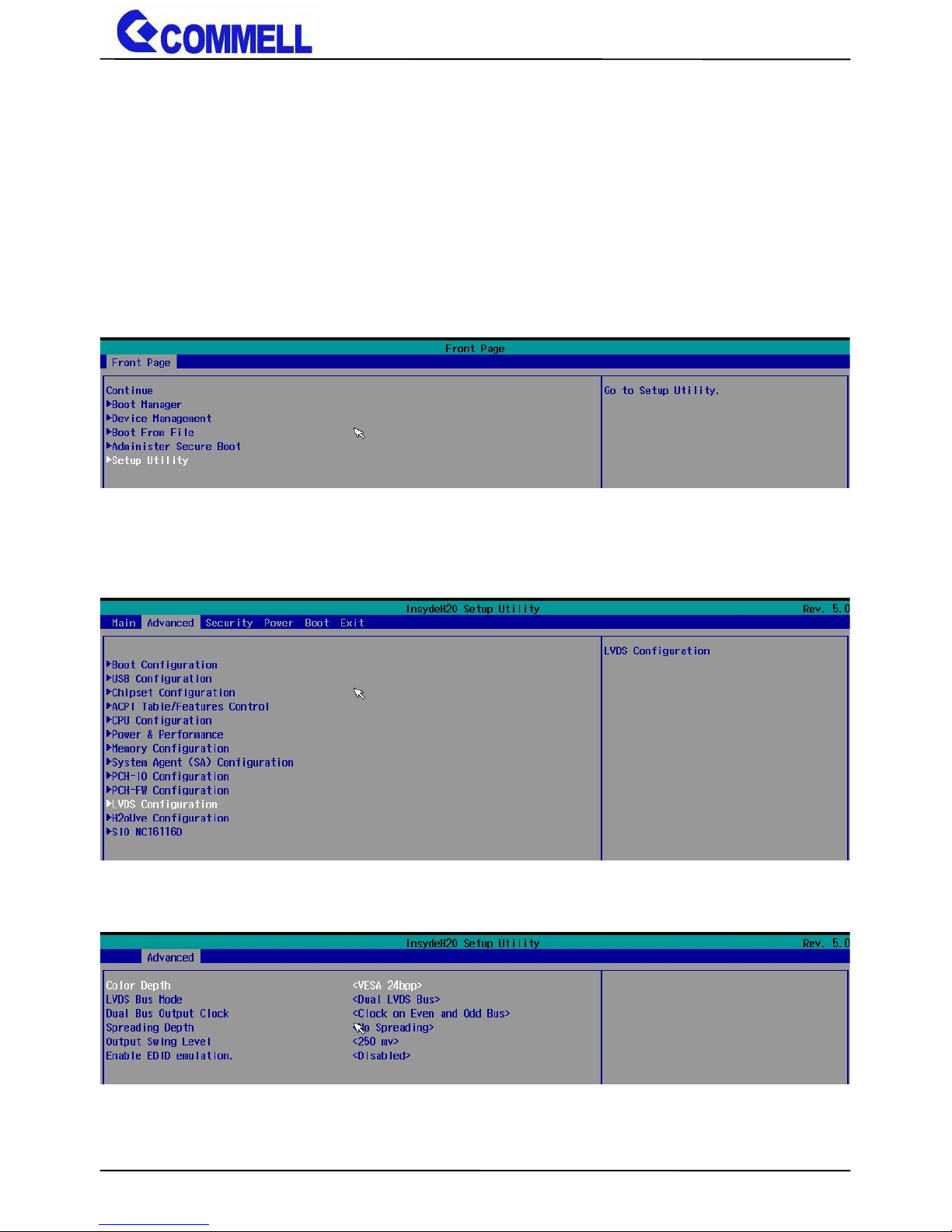

Find the setting from
Front Page-> Setup Utility
Advanced LVDS Configuration
Set 18bit /24bit, Single /Dual channel in LVDS configuration
Page 32
LV-67W User’s Manual
-31-
Advanced SA configurationGraphics confuguration

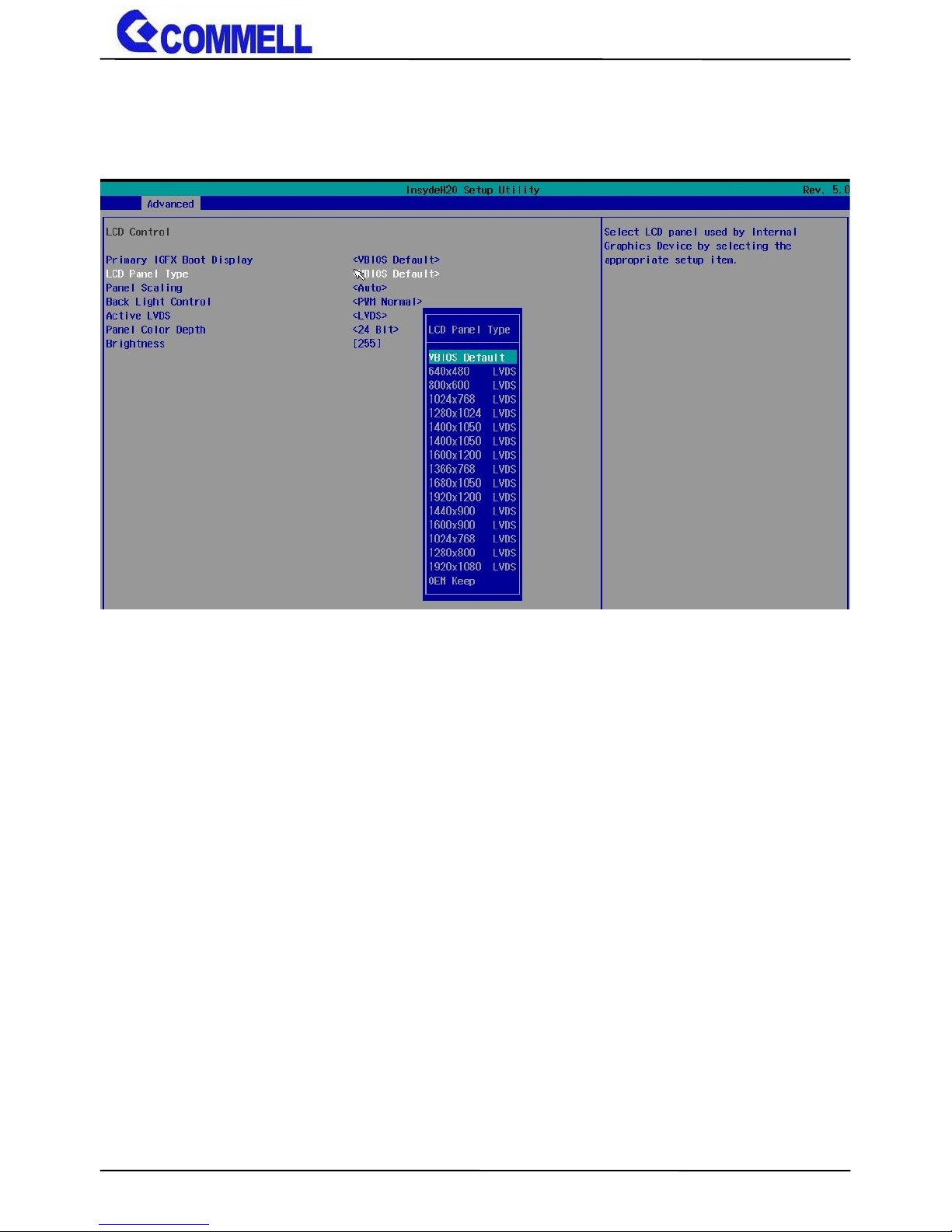

LCD controlLCD Panel Type
There are 16 resolutions in LCD Panel Type. (For Dual boot and Legacy boot)
Page 33
LV-67W User’s Manual
-32-
Appendix C <Programmable Watch Dog Timer>
The watchdog timer makes the system auto-reset while it stops to work for a
period.The integrated watchdog timer can be setup as system reset mode by
program.You can select Timer setting in the BIOS, after setting the time options,
the system will reset according to the period of your selection.
Find the setting from
AdvancedSIO NCT6116D
Page 34
LV-67W User’s Manual
-33-
Timeout value range
1 to 255 Minute and Second
Program sample
Watchdog timer setup as system reset with 5 second of timeout
-o 4E 87 ;enter configuration
-o 4E 87
-o 4E 07
-o 4F 08 ;select Logical Device
-o 4E 30
-o 4F 01 ; activate WDTO# function
-o 4E F0
-o 4F 00 ;set “00” is second mode, set “08” is minute mode
-o 4E F1
-o 4F 05 ;00h: Timeout Disable
;01h: Timeout occurs after 1 minute only
;02h: Timeout occurs after 2 second/minute
;03h: Timeout occurs after 3 second/minute
;FFh: Timeout occurs after 255 second/minute
(The deviation is approx 1 second.)
For further information, please refer to Nuvoton NCT6116D datasheet
…
Page 35
LV-67W User’s Manual
-34-

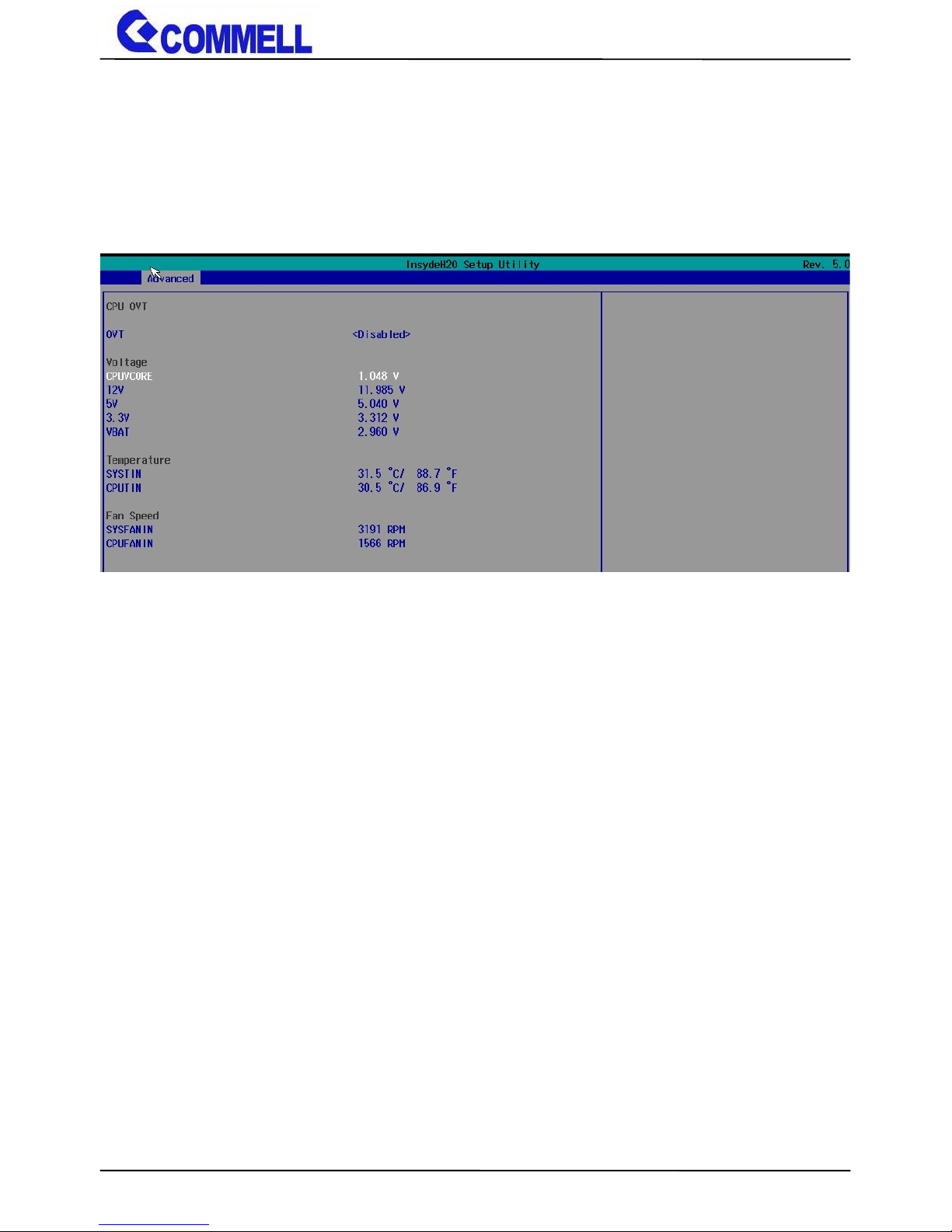

Appendix D <Hardware Monitor>
Find the setting from
AdvancedSIO NCT6116DHardware Monitor
Page 36
LV-67W User’s Manual
-35-
Appendix E <Programmable GPIO>
The GPIO’ can be programmed with the MS-DOS debug program using simple
IN/OUT commands.
GPIO
0123456
7
bit01234567
-o 4E 87 ;enter configuration
-o 4E 87
-o 4E 07
-o 4F 07 ;select Logical Device
-o 4E 30
-o 4F 18 ;activate GPIO function (The board use GPIO3,GPIO4)
-o 4E EC
-o 4F XX ;set “01” GPIO3 as input, set “00” GPIO3 as output
-o 4E F0
-o 4F XX ;set “01” GPIO4 as input, set “00” GPIO4 as output
-o 4E ED
-o 4F XX ;if set GPIO3 as output, this register’s value can be set “00~ FF”
-o 4E F1
-o 4F XX ;if set GPIO4 as output, this register’s value can be set “00~ FF”
Optional
-o 4E EE
-o 4F XX ;set “01”, the respective bit are inverted (GPIO3)
;set “00”, the respective bit are normal (GPIO3)
-o 4E F2
-o 4F XX ;set “01”, the respective bit are inverted (GPIO4)
;set “00”, the respective bit are normal (GPIO4)
For further information, please refer to Nuvoton NCT6116D datasheet
Page 37
LV-67W User’s Manual
-36-
Appendix F <RAID Setting>

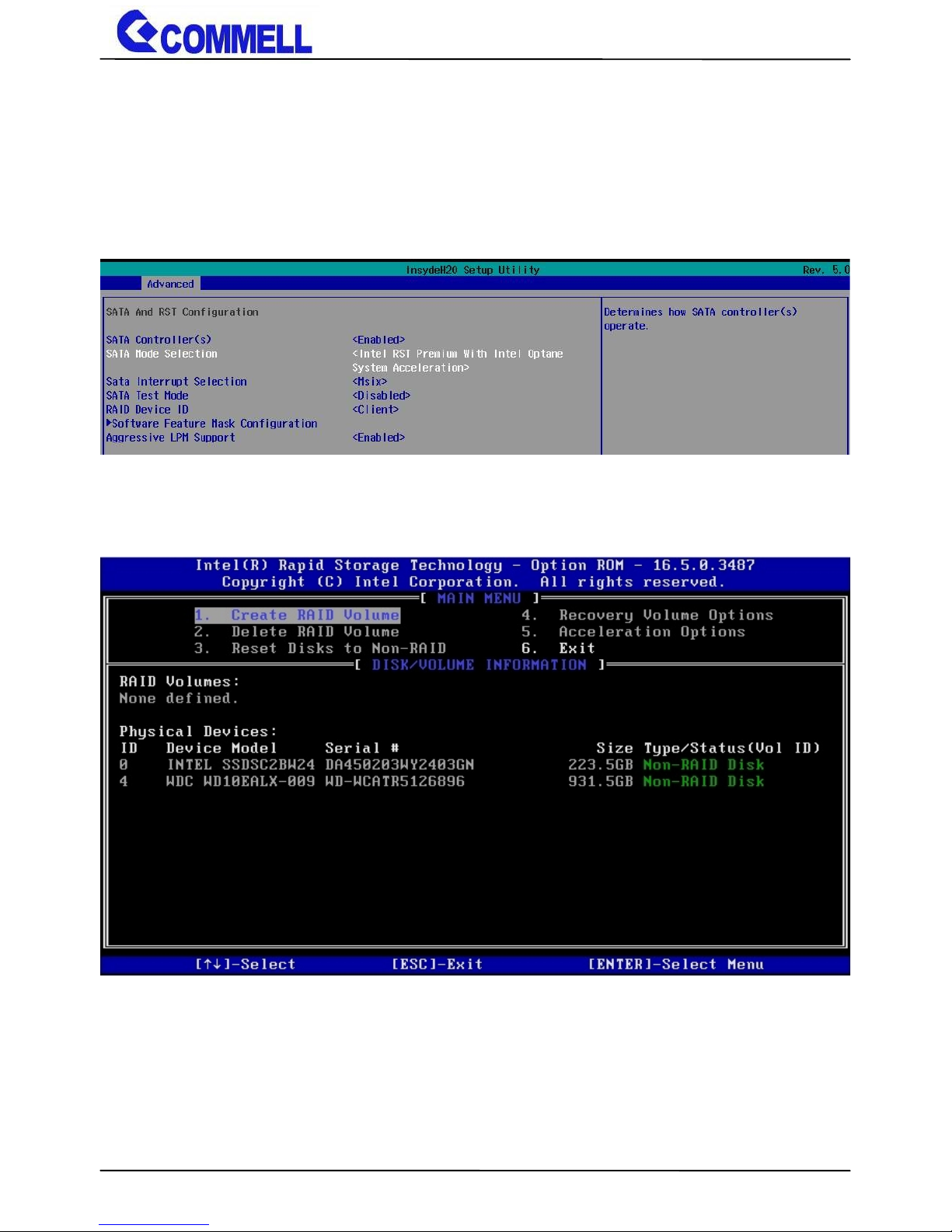

When use RAID function, it need to enter the BIOS set RAID mode first.
Advanced PCH-IO Configuration SATA and RST Configuration
SATA Mode Selection
At boot time, press <CTRL + I> to enter the RAID configuration menu.
Page 38
LV-67W User’s Manual
-37-
Appendix G <Setup ADP-3355,ADP-3460>
LV-67WT series have a header for 2nd VGA or 2nd LVDS,
it’s no need install extra driver.
For further information, please refer to the manual.
ADP-3355
ADP-3460
Contact information
Any advice or comment about our products and service, or anything we can help
you please don’t hesitate to contact with us. We will do our best to support you for
your products, projects and business.
Taiwan Commate computer Inc.
Address
19F., NO.94, Sec. 1, Xintai 5th Rd., Xizhi Dist., New Taipei
City 22102, Taiwan.
TEL
+886-2-26963909
FAX
+886-2-26963911
Website
www.commell.com.tw
E-mail
[email protected] (General infomation)
[email protected] (Technical Support)
Commell is a brand name of Taiwan Commate computer Inc.
Loading...
