LV-674
Mini-ITX motherboard
User’s Manual
Edition: 1.00
2005/09/30
Page 2
LV-674 User’s Manual
Copyright
Copyright 2003 - 2004. All rights reserved. This document is copyrighted and all rights are
reserved. The information in this document is subject to change without prior notice to make
improvements to the products.
This document contains proprietary information and protect ed by copyright. No part of this
document may be reproduced, copied, or translated in any form or any means without prior
written permission of the manufacturer.
All trademarks and/or registered trademarks contains in this document are propert y of their
respective owners.
Disclaimer
The company shall not be liable for any incidental or consequenti al damages res ultin g from
the performance or use of this product.
The company does not issue a warranty of any kind, e xpress or implied, including without
limitation implied warranties of merchantability or fitness for a particular purpose.
The company has the right to revise the manual or include changes in th e specifications of
the product described within it at any time without notice and without obligation to notify any
person of such revision or changes.
Trademark
All trademarks are the property of their respective holders.
Any questions please visit our website at http://www.commell.com.tw.
2
Page 3
LV-674 User’s Manual Packing List
Packing List
Please check package component before you use our products.
Hardware:
LV-674 Mini-ITX motherboard x 1
Cable Kit:
40-pin ATA100 IDE flat cable x 1
26-pin slim type floppy cable x 1
Serial ATA ribbon cable x 2
I/O Shield x 1
RAID drivers Disc for Windows 2000,
Windows XP and Windows Server 2003
Other Accessories:
Divers CD (including User’s Manual) x 1
User’s Manual x 1
3
Page 4
LV-674 User’s Manual Index
Index
Chapter1 <Introduction>......................................................................................7
1.1 <Product Overview>.................................................................................7
1.2 <Product Specification>...........................................................................8
1.3 <Component Placement> ......................................................................10
1.4 <Block Diagram>.................................................................................... 11
1.5<Mechanial Drawing>………………………………………….......12
Chapter 2 <Hardware Setup>.............................................................................13
2.1 <Connector Location>............................................................................13
2.2 <Jumper Reference> .............................................................................14
2.3 <Connector Reference>.........................................................................15
2.3.1 <Internal Connectors>................................................................15
2.3.2 <External Connectors>...............................................................15
2.4 <CPU and Memory Setup>....................................................................16
2.4.1 <CPU installation>......................................................................16
2.4.2 <Memory installation>................................................................17
2.5 <CMOS Setup>......................................................................................18
2.6 <Enhanced IDE interface>.....................................................................19
2.7 <Serial ATA installation>.........................................................................20
2.8 <Floppy Installation>..............................................................................21
2.9 <LAN installation>..................................................................................22
2.10 <Audio Installation>..............................................................................23
2.11 <Display Installation> ...........................................................................25
2.12 <IEEE1394 and USB Installation>.......................................................26
2.13 <Power and Fan Installation>..............................................................28
2.14 <GPIO interface>.................................................................................30
2.15 <Serial Port> ........................................................................................31
2.16 <Switch and Indicator>.........................................................................32
4
Page 5
LV-674 User’s Manual Index
2.17 <Expansion Interface>.........................................................................33
Chapter 3 <System Configuration>...................................................................35
3.1 <SATA configuration>............................................................................. 35
3.2 <SATA RAID Configuration> ..................................................................38
3.3 <Audio Configuration> ...........................................................................42
3.4 <Video Memory Setup> .........................................................................43
3.5 <Display Properties Setting>..................................................................45
3.6 <PCI-Express interface setting> ............................................................47
Chapter 4 <BIOS Setup> .................................................................................... 48
Appendix A <I/O Port Pin Assignment>............................................................50
A.1 IDE Port .................................................................................................50
A.2 <Serial ATA Port>...................................................................................50
A.3 <Floppy Port> ........................................................................................51
A.4 <IrDA Port>............................................................................................51
A.5 <Serial Port>..........................................................................................52
A.6 <VGA Port>............................................................................................52
A.7 <LAN Port>............................................................................................52
A.8<IEEE 1394 Port>……………………………………………….53
A.9<LAN LED>…………………………………………………….53
A.10<SMBus>………………………………………………………53
Appendix B <System Resources>……………………………………………………54
B.1 I/O Port Address Map......................................................................56
B.2 Memory Address Map.....................................................................57
B.3 System IRQ&DMA Resources…………………………………..…….57
Appendix C <Flash BIOS>.................................................................................58
Appendix D <Programming GPIO's>………………………………………………59
Contact Information…………………………………………………………………..60
5
Page 6
LV-674 User’s Manual
(This Page is Left for Blank)
6
Page 7
LV-674 User’s Manual Introduction
Chapter1 <Introduction>
1.1 <Product Overview>
LV-674 is the motherboard with last Intel desktop technology with Mini-ITX form factor.
Based on Intel® 945G and ICH7R, the board integrates a new Pentium 4 processor 775-pin
socket, DDR2 memory socket, Intel® Graphic Media Accelerator 950 technology, PCI
express interface and Serial ATA II with RAID function for a powerful desktop system.
Intel® LGA775 processor
The Intel® Pentium 4 processor now comes with a new form factor with 775-pin PLGA
package, for 533/800/1066MHz front-side-bus, 1MB L2 cache, and for 90nm manufacturing
technology, the PLGA processor without pin header on solder side can make user installing
the processor on the socket easier.
Intel® 945G and ICH7R chipset
The Intel 945G integrates DDR2 400/533/667MHz for memory, and Graphic Media
Accelerator (GMA) 950 technology for new graphic engine. It can provide up to 224MB of
frame buffer when you install over 256MB of system memory. The ICH7R integrates with up
to 4 USB2.0 interfaces (4 ports for LV-674), and serial ATA II interface with RAID function.
Four Marvell E8053
Four Gigabit LAN with Marvell E8053, LV-674 comes with a powerful network function for
the system that requires large transfer data of NAS system or Server platform.
PCI-Express interface
LV-674 integrates a x16 PCI-Express interface, it can provide up to 8GB/s of ban dwidth,
which AGP 8x can only provide up to 2GB/s.
Multimedia interfaces
LV-674 also integrates 7.1 channel AC97 audio, mini-PCI interface and IEEE1394 port, for
these flexible function, system integrator can built more powerful systems for many
applications.
Product Overview 7
Page 8
LV-674 User’s Manual Introduction
1.2 <Product Specification>
General Specification
Form Factor Mini-ITX motherboard
CPU Intel® Pentium 4 / Pentium D/ Celeron D processor with
LGA775 socket
Package type: 775 pin PLGA
Front side bus: 533/800/1066MT/s (133/200/266MHz x 4)
Intel® Hyper-Threading Technology and Dual code supported
Memory 2 x 240-pin DDR2 400/533/667MHz SDRAM up to 2GB
Up to 8GB/s of bandwidth with dual-channel interleaved mode
Dual-Channel technology supported
Unbufferred, none-ECC memory supported only
Chipset Intel® 945G (Northbridge) and ICH7R (Southbridge)
BIOS Phoenix-Award v6.00PG 4Mb PnP flash BIOS
Green Function Power saving mode includes doze, standby and suspend modes.
ACPI version 1.0 and APM version 1.2 compliant
Watchdog Timer System reset programmable watchdog timer with 1 ~ 255
sec./min. of timeout value
Real Time Clock Intel® ICH7R built-in RTC with lithium battery
Enhanced IDE Enhanced IDE interface supports dual channels and up to 2
ATAPI devices at Ultra DMA100
One 40-pin IDE port onboard
Serial ATAII Intel® ICH7R integrates 4 Serial ATA II interface
RAID 0, 1,5,10 Intel Matrix Storage Technology supported
Multi-I/O Port
Chipset Intel® 82801GR ICH7R with Winbond® W83627THF controller
Serial Port Two external RS-232 serial ports
USB Port Four Hi-Speed USB 2.0 ports with 480Mbps of transfer rate
Parallel Port None
Floppy Port One slim type Floppy port
IrDA Port One IrDA compliant Infrared interface supports SIR
K/B & Mouse External PS/2 keyboard and mouse ports on rear I/O panel
GPIO One 12-pin Digital I/O connector with 8-bit programmable I/O
interface
Smart Fan One CPU fan connectors for fan speed controllable
VGA Display Interface
Chipset Intel® 945G GMCH (Graphic Memory Controller Hub)
Core Frequency 400MHz
Memory Intel® DVMT 3.0 with up to 224MB shared with system memory
Display Type CRT, LCD monitor with analog display
Connector External DB15 female connector on rear I/O panel
Product Specification 8
Page 9
LV-674 User’s Manual Introduction
Ethernet Interface
Chipset 100/1000MT LAN interface with Marvell E8053
Type 10Base-T / 100Base-TX/1000Base-T,
auto-switching Fast Ethernet
Full duplex, IEEE802.3U compliant
Connector Four External RJ45 connectors with LED on rear I/O panel
Audio Interface
Chipset Intel® ICH7R with Realtek® ALC880 codec
Intel High Definition Audio compliance
Interface 7.1 channels sound output
Connector External Audio phone jack for Line-out, Line-in, MIC-in, Surround,
Center and Backsurround
Onboard audio connector with pin header (built-in amplifier for
speaker out)
Onboard CD-IN connector
Expansive Interface
PCI-Express One x16 PCI-Express slot (compatible with x1 slot)
Up to 8GB/s of transfer bandwidth
Power supply: +3.3V, +12V
PCI One Mini-PCI socket TYPE III (32-bit, 33MHz)
Power supply: +3.3V, +5V
IEEE1394 AGERE FW323-06 controller integrated
IEEE1394A supported
Up to 400Mb/s of transferring rate
Power and Environment
Power
Requirement
Standard ATX 24-pin (20-pin is compatible) power supply
Additional +12V 8-pin power connector
Dimension 170 (L) x 170 (H) mm
Temperature Operating within 0 ~ 60oC (32 ~ 140oF)
Storage within -20 ~ 85
o
C (-4 ~ 185oF)
Ordering Code
LV-674 Intel® Pentium 4 platform with Mini-ITX form factor
LGA775 socket, DDR2, onboard GMA950 VGA, 7.1CH Audio,
SATAII, USB2.0, PCI-Express x16 slot, Mini-PCI, IEEE1394
four Gigabit LAN.
PCIE-SDVOD PCI-Express add-on card for single DVI interface
PCIE-SDVOX PCI-Express add-on card for 18-bit/24-bits Dual channel LVDS
module.
The specifications may be different as the actual production.
For further product information please visit the website at
http://www.commell.com.tw
Product Specification 9
Page 10
LV-674 User’s Manual Introduction
1.3 <Component Placement>
BIOS
240-pin DDR2 Memory DIMM
Intel 945G
LGA 775
COM2
Marvell E8053 Mini PCI
VGA
LAN
Serial SATA
PCI Express
ICH7R
Audio
COM1
KB/Mouse USB&1394
Component Placement 10
Page 11
LV-674 User’s Manual Introduction
r
1.4 <Block Diagram>
Intel Pentium 4 with 775 pin PLGA processo
6.4GB/s
Intel GMA950 Graphics
PCI-Express x16
SMBus 2.0
4 x USB2.0 ports
IDE
ALC 880 AC97 7.1CH Codec
8GB/s
Intel 945G
GMCH
DMI 2GB/s
ICH7R
2 x 240-pin DDR2
400/533/667MHz
up to 2GB
300MB/s
4 x Serial ATA II ports
4 x Marvell E8053
Gigabit LAN
Mini-PCI slot
2 X IEEE1394
2 x Serial ports
1 x Floppy port
8-bit GPIO
PCI bus
BIOS
Block Diagram 11
Page 12
LV-674 User’s Manual Introduction
1.5 <Mechanical Drawing >
12
Mechanial Drawing
Page 13
LV-674 User’s Manual Hardware Setup
Chapter 2 <Hardware Setup>
2.1 <Connector Location>
CN_SMBUS
CN_IR
IDE1
CN_DIO
ATX
LAN_LED
Floppy
CN_12V
CN_TXD/RXD
CPUFAN
SYSFAN
JFRNT
CN_USB
JRTC
NBFAN
CN_IN
SPDIF
CN_1394
CN_AUDIO
COM2
COM1
Connector Location
LAN
VGA
KB/Mouse USB&1394
Audio
13
Page 14
LV-674 User’s Manual Introduction

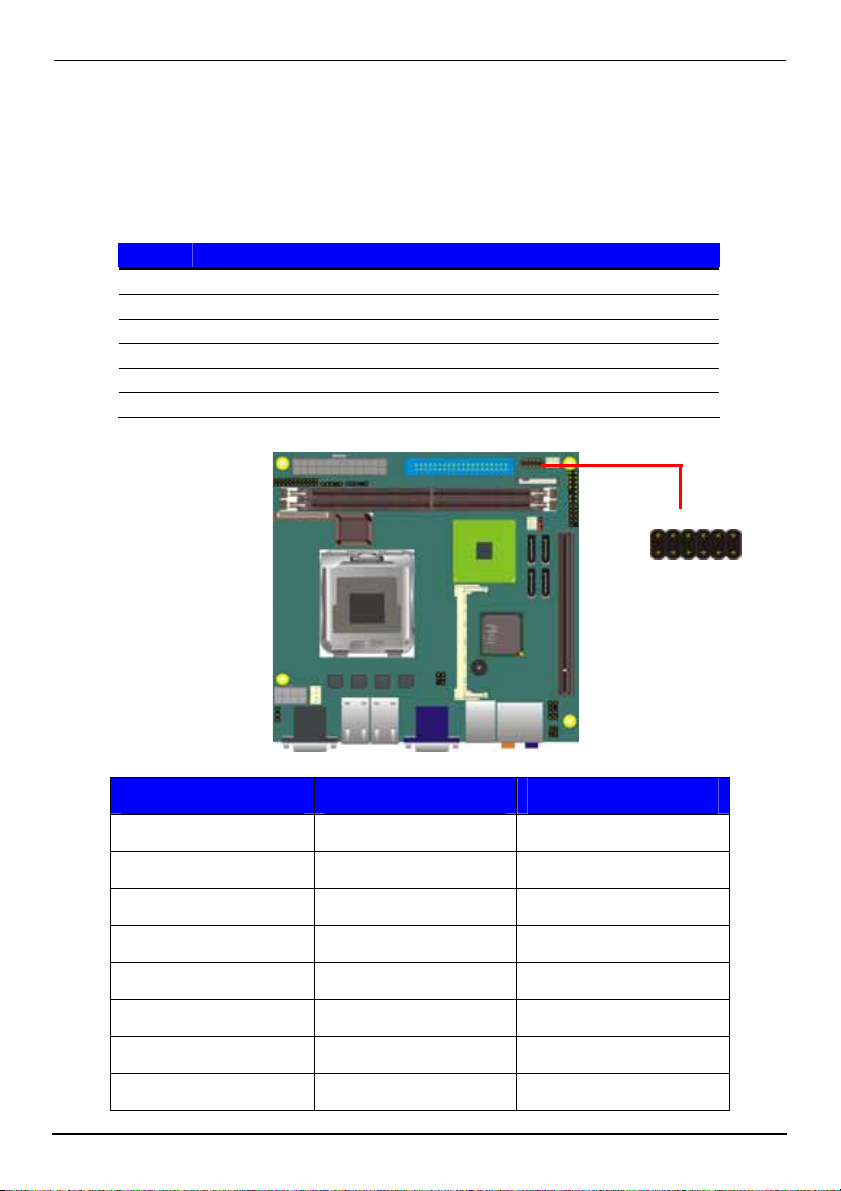

2.2 <Jumper Reference>
Jumper Function
JRTC CMOS Operating/Clear Setting
JRTC
Jumper Reference 14
Page 15
LV-674 User’s Manual Hardware Setup
2.3 <Connector Reference>
2.3.1 <Internal Connectors>
Connector Function Remark
CPU LGA775 CPU socket Standard
DDRII1/2 240 -pin DDR2 SDRAM DIMM socket Standard
IDE1 40-pin primary IDE connector Standard
FDD 26-pin slim type flopp y connector Slim
S_ATAII1/2/3/4 7-pin Serial ATA II connector Standard
ATX 24-pin power supply connector Standard
CN_12V 8-pin +12V additional power supply connecto r Standard
CN_AUDIO 5 x 2-pin audio connector Standard
CDIN 4-pin CD-ROM audio input connector Standard
CN_DIO 6 x 2-pin digital I/O connector Standard
CN_USB 10-pin USB connector Standard
CPUFAN 4-pin CPU cooler fan connector Standard
SYSFAN 3-pin system cooler fan connector Standard
NBFAN 3-pin Northbridge cooler fan connector Standard
CN_IR 5-pin IrDA connector Standard
CN_SMBUS 4-pin I2C connector Standard
CN_TXD/RXD 3-pin TXD/RXD COM port signal connector Standard
JFRNT 14-pin front panel switch/indicator connector Standard
SPDIF Digital audio optical interface Standard
1394 8-pin IEEE 1394 connector Standard
2.3.2 <External Connectors>
Connector Function Remark
VGA DB15 VGA connector Standard
USB Dual USB Port Standard
COM1/2 Serial port connector Standard
PS2 PS/2 Keyboard/Mouse connector Standard
AUDIO Audio connectors Standard
1394 IEEE1394 port Standard
LAN Port Four RJ45 LAN Port Standard
Connector Reference 15
Page 16
LV-674 User’s Manual Introduction
p
2.4 <CPU and Memory Setup>
2.4.1 <CPU installation>
LV-674 has a LGA755 CPU socket onboard; please check following steps to install the
processor properly.
Attention If LV-674 need RMA, please Keep CPU socket cover on the CPU Socket.
Warring If CPU Socket internal Pin damage, We could not provide warranty.
Intel® Pentium 4 processor
Package type: 775 pin PLGA
L2 Cache: 1MB
FSB: 533/800/1066MHz (266MHz x 4)
Manufacturing: 90nm
Intel Hyper Threading Technology
1. Lift this bar
and Dual code supported
Check point
3. Place the CPU on the top of
ins
2. Uncover this plate
4. Lock this bar
Notice: Please place the CPU on the pins tenderlyto avoid bendingthe pins
the
3. Cover this plate
CPU Installation 16
Page 17
LV-674 User’s Manual Hardware Setup
(
2.4.2 <Memory installation>
LV-674 has two 240-pin DDR2 DIMM support up to 2GB of memory capacity. The memory
frequency supports 400/533/667MHz .Only Non-ECC memory is supported. Dual-Channel
technology is supported while applying two same modules.
DDRII2 (DIMM2)
DDRII1
DIMM1)
128-pin 112-pin
Please check the pin number to match the socket side well
before installing memory module.
Memory Installation 17
Page 18
LV-674 User’s Manual Introduction
2.5 <CMOS Setup>
The board’s data of CMOS can be setting in BIOS. If the board refuses to boot due to
inappropriate CMOS settings, here is how to proceed to clear (reset) the CMOS to its
default values.
Jumper: JRTC
Type: Onboard 3-pin jumper
JRTC Mode
1-2 Clear CMOS
2-3 Normal Operation
Default setting
1
JRTC
3
CMOS Setup 18
Page 19
LV-674 User’s Manual Hardware Setup

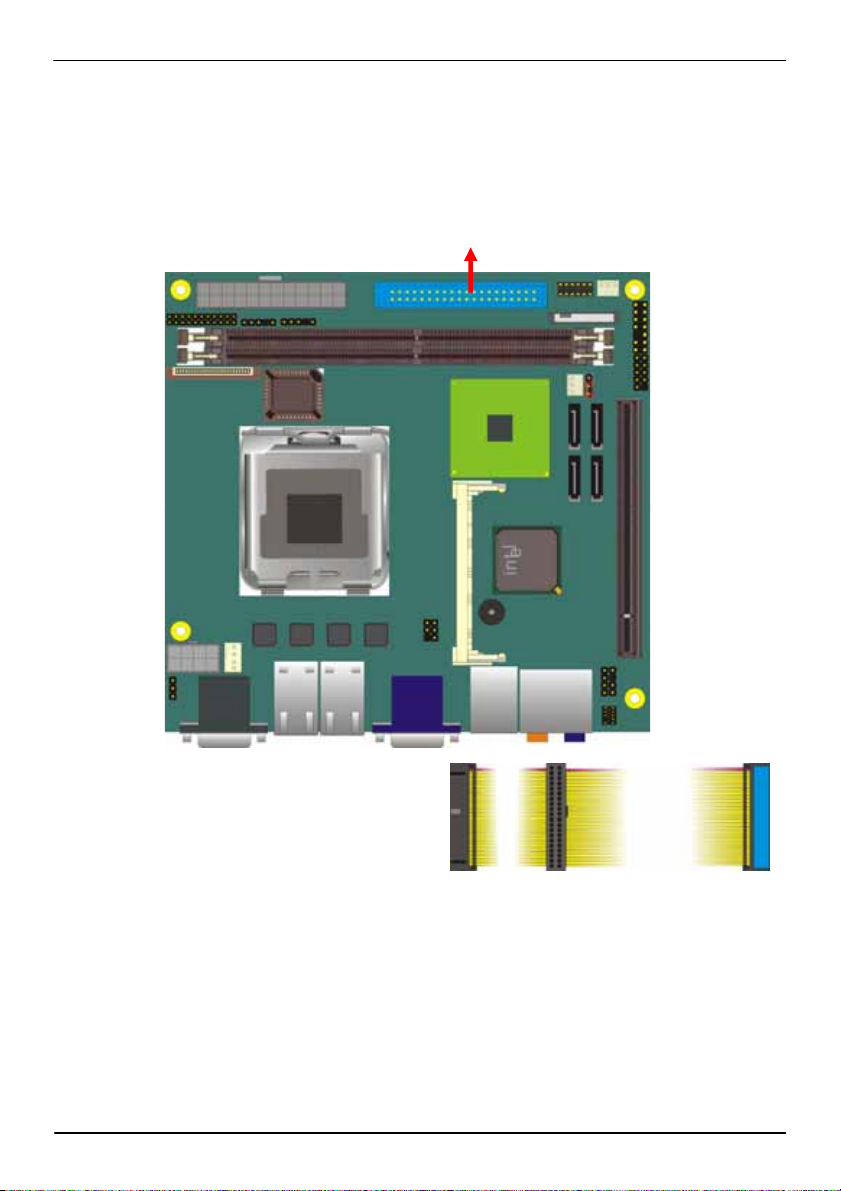

2.6 <Enhanced IDE interface>
The Intel® ICH7R (south bridge chip) supports one enhanced IDE i nterface, dual channel
for two ATAPI devices with ATA100. Based on this function, LV-674 has one 40-pin IDE
connector with jumper selectable for pin-20 +5V supported.
IDE1
(Associate Accessory)
Enhanced IDE Interface 19
Page 20
LV-674 User’s Manual Introduction
(
y
)

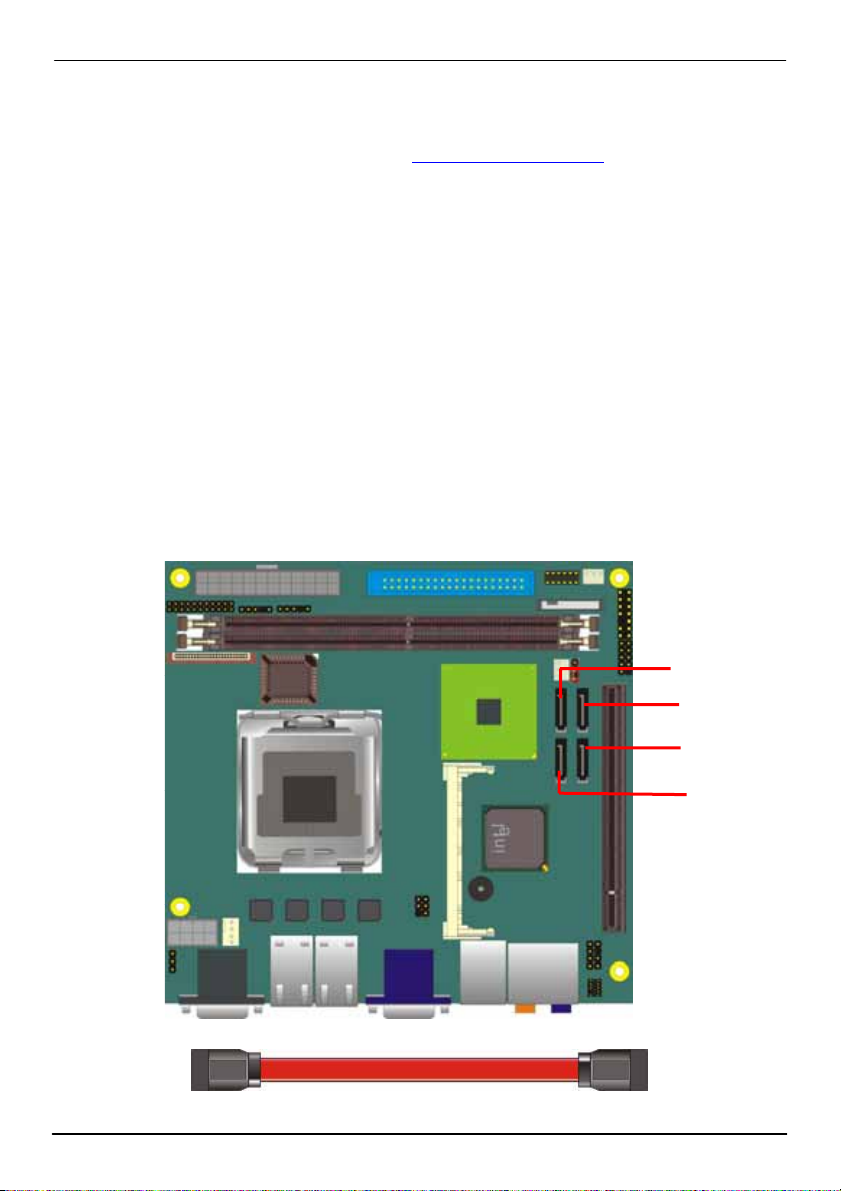

2.7 <Serial ATA installation>

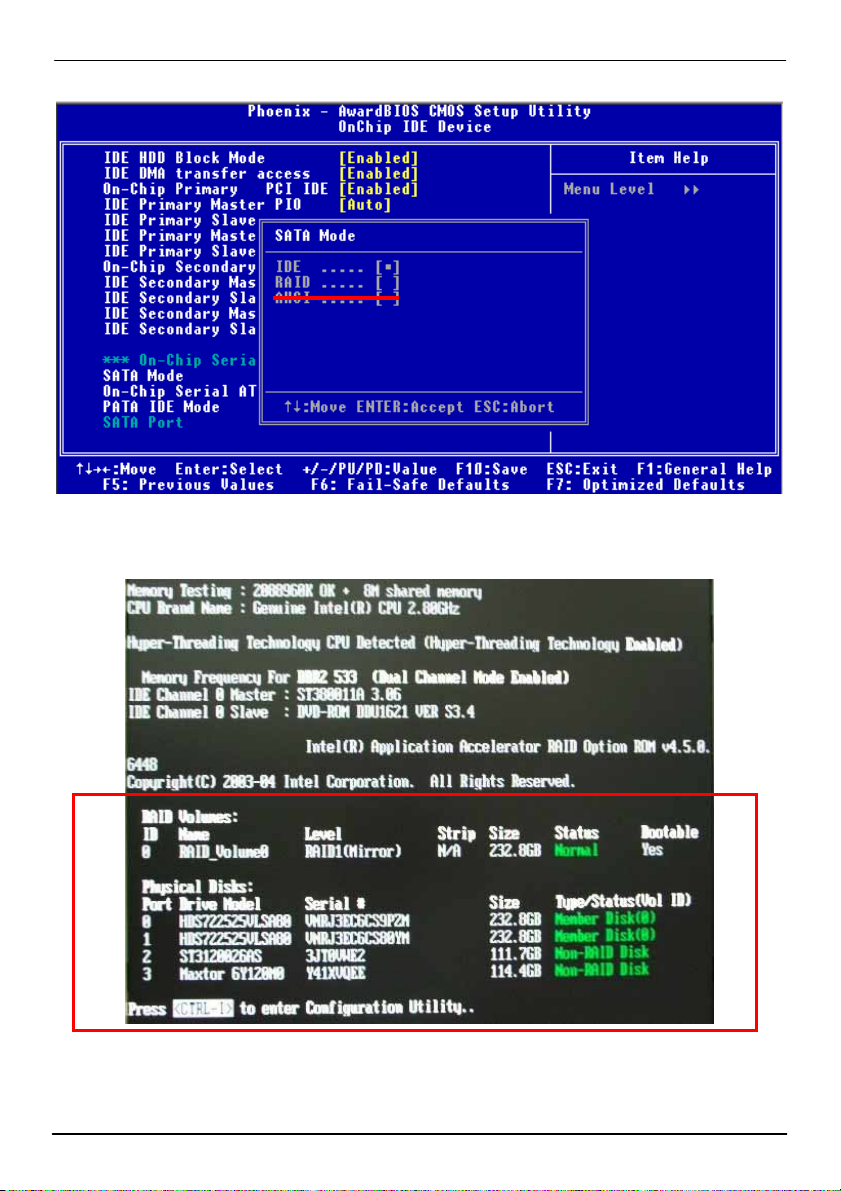

LV-674 has four Serial ATA II interfaces with RAID function, the transfer rate of the Serial
ATA II can be up to 300MB/s. Please go to
http://www.serialata.org/ for more about Serial
ATA technology information. Based on Intel® ICH7R, it supports Intel® Matrix Storage
Technology with combination of RAID 0,1,5 and 10. The main features of RAID on ICH7 R
are listed below:
1. Supports for up to RAID volumes on a single, two-hard drive RAID array.
2. Supports for two, two-hard drive RAID arrays on any of four Serial ATA ports.
3. Supports for Serial ATA ATAPI devices.
4. Supports for RAID spares and automatic rebuild.
5. Supports on RAID arrays, including NCQ and native hot plug.
For more information please visit Intel’s official website.

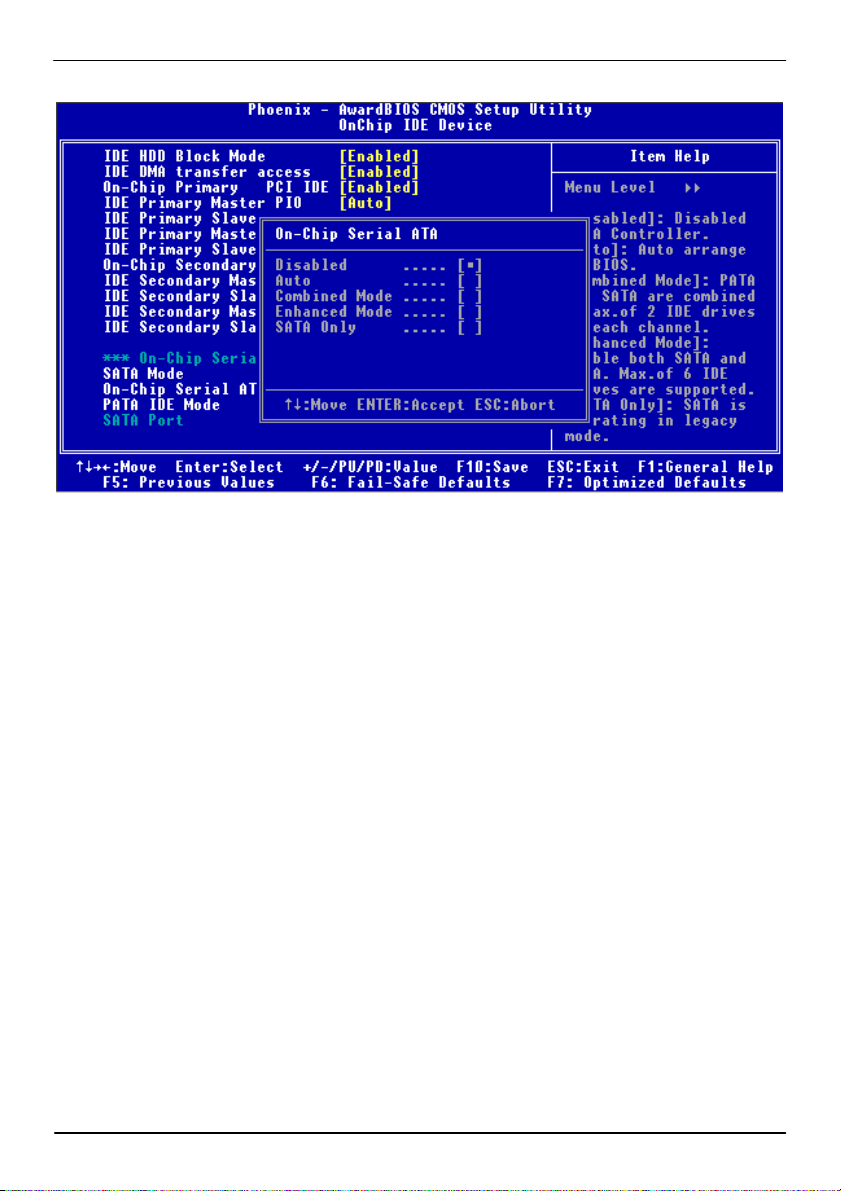

For more about the system setup for Serial ATA, please check the chapter of SATA
configuration.
S_ATA4
S_ATA3
S_ATA1
S_ATA2
Associate accessor
Serial ATA Installation 20
Page 21
LV-674 User’s Manual Hardware Setup
2.8 <Floppy Installation>
LV-674 has one slim type 26-pin floppy interface, it supports notebook use floppy and
powering from onboard, please follow up the steps below to install the device.
FDD
Floppy rear side

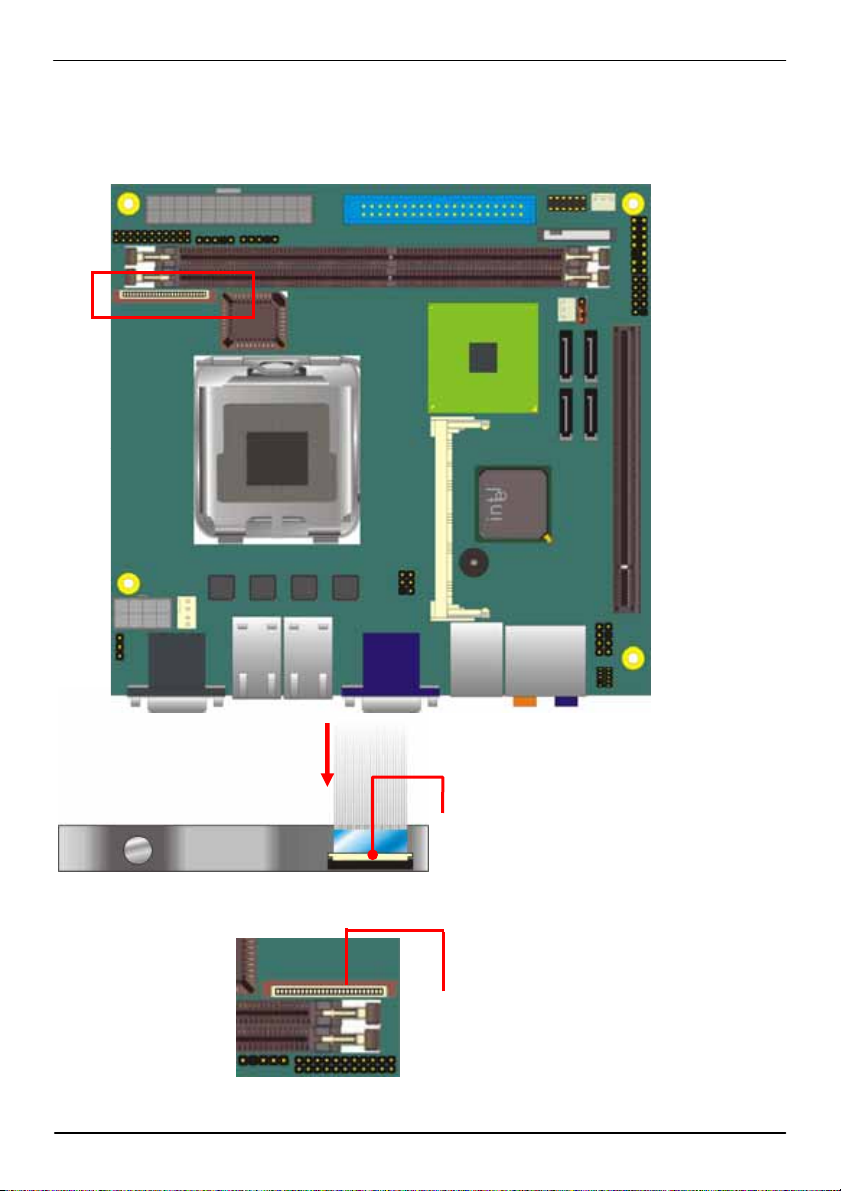

1. Lift up this plastic bar
2. Slot the cable in (Blue paste for outside)
3. Press back the plastic bar
4. Lift up the brown plastic bar
5. Slot the cable in (Blue paste for
brown bar side)
6. Press back the plastic bar
Floppy Installation 21
Page 22
LV-674 User’s Manual Introduction
2.9 <LAN installation>
LV-674 integrates four Gigabit LAN interfaces with Marvell E8053; they pr ovide a standard
IEEE 802.3 Ethernet interface for 1000BASE-T, 100BASE-TX and 10BASE-T applications.

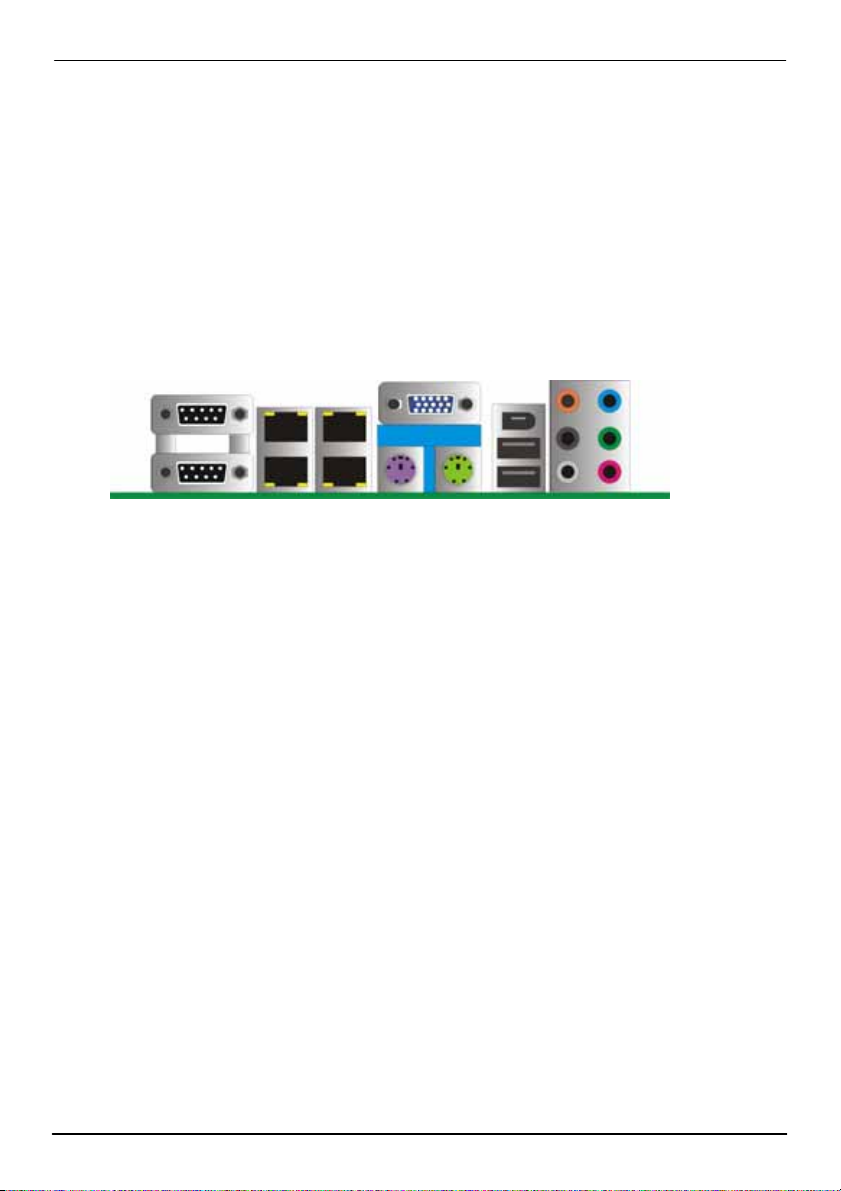

LV-674 provides four RJ45 connectors on the rear I/O panel.
LAN1 LAN3
LAN2 LAN4
LAN Installation 22
Page 23
LV-674 User’s Manual Hardware Setup
2.10 <Audio Installation>
The board integrates onboard audio interface with REALTEK ALC880 codec, with Intel next
generation of audio standard as High Definition Audio, it offers more vivid sound and oth er
advantages than former AC97 audio compliance.
The main specifications of ALC880 are:
z High-performance DACs with 100dB S/N ratio
z 8 DAC channels support 16/20/24-bit PCM format for 7.1 audio solution
z 16/20/24-bit S/PDIF-OUT supports 44.1K/48K/96kHz sample rate
z Compatible with AC'97
z Meets Microsoft WHQL/WLP 2.0 audio requirements

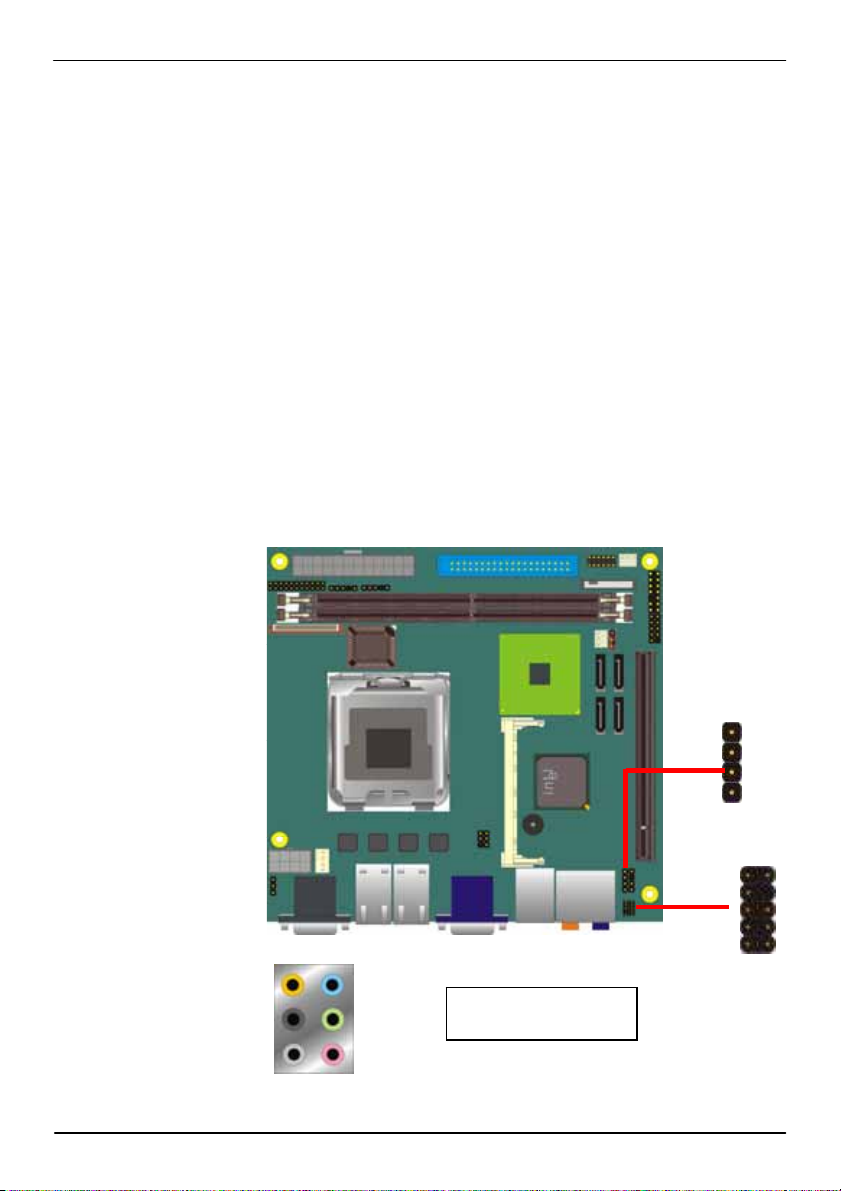

The board provides 7.1 channels audio phone jacks on rear I/O port, and amplified speaker
out and Line-in/MIC-in ports for front I/O panel through optional cable.
CDIN
1
4
9
1
Center
Rear Speaker
Side Speaker
LINE-IN
LINE-OUT
MIC-IN
Rear I/O phone jacks
CN_AUDIO
Audio Installation 23
10
2
Page 24
LV-674 User’s Manual Introduction
Connector: CN_AUDIO
Type: 10-pin (2 x 5) header (pitch = 2.00mm)
Pin Description Pin Description
1 Line – Left 2 Ground
3 Line – Right 4 MIC1
5 MIC2 6 Ground
7 N/C 8 Line Out – Left
9 Line Out – Right 10 Ground
Connector: CDIN
Type: 4-pin header (pitch = 2.54mm)
Pin Description
1 CD – Left
2 Ground
3 Ground
4 CD – Right
Connector: SPDIF
Type: 4-pin header (pitch = 2.54mm)
Pin Description
1 +5V
2 N/C
3 SPDIFO
4 Ground
1
SPDIF
4
Audio Installation 24
Page 25
LV-674 User’s Manual Hardware Setup
V
)
2.11 <Display Installation>

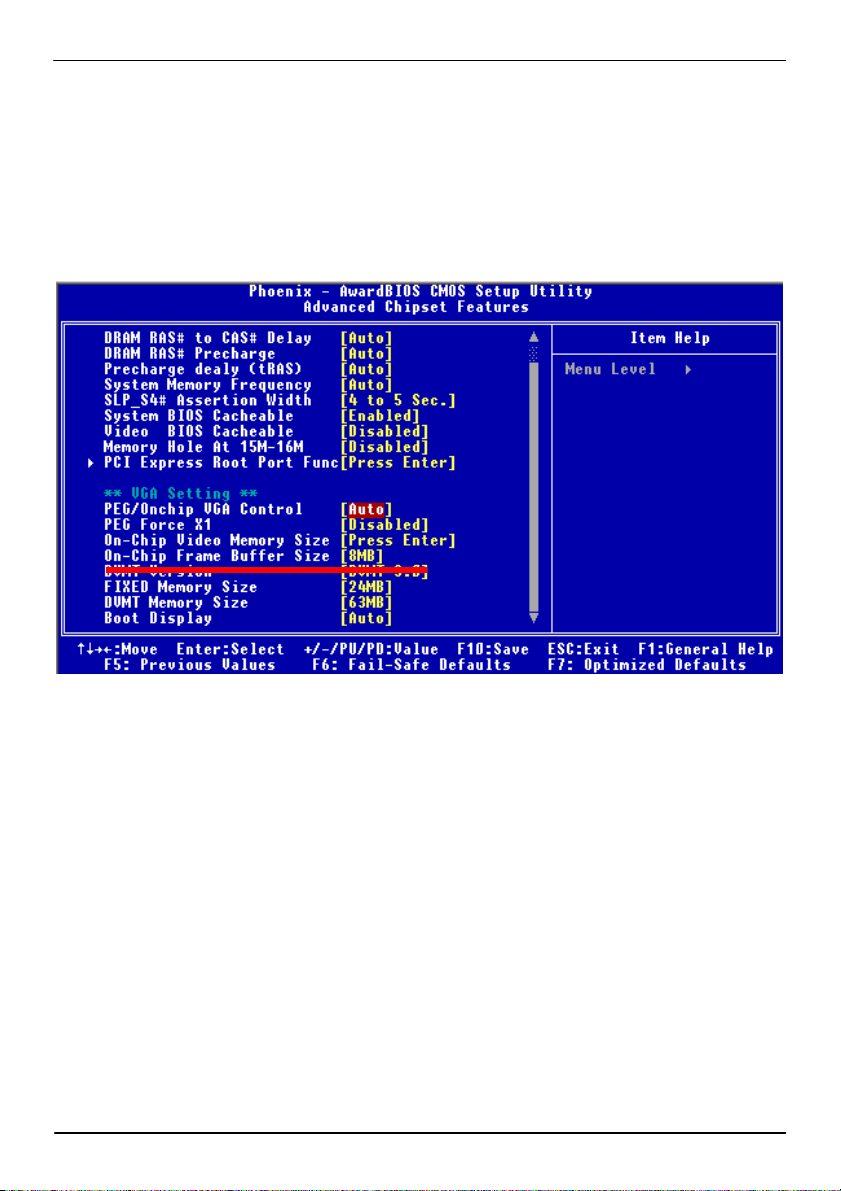

LV-674 integrates with Intel® 945G GMCH for Intel Graphic Media Accelerator (GMA) 950
technology. It supports Intel® DVMT (Dynamic Video Memory Technology) 3.0 for up to
224MB frame buffer size shared with system memory. With a 400MHz core and DirectX 9
and OpenGL acceleration, LV-674 provides the powerful onboard graphics interface without
additional graphic card.
(More information please visit Intel’s website)

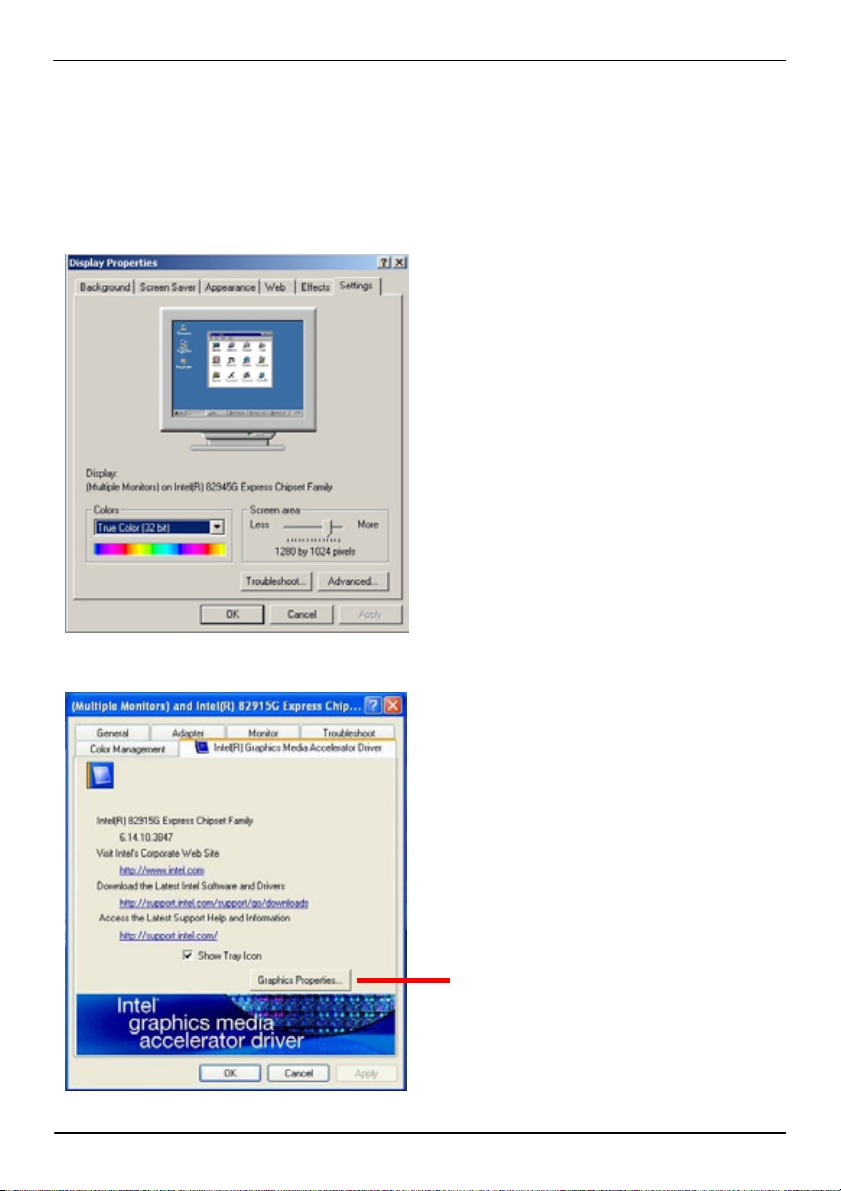

For more information of configuring the frame buffer size, please check the chapter of video
memory configuration.

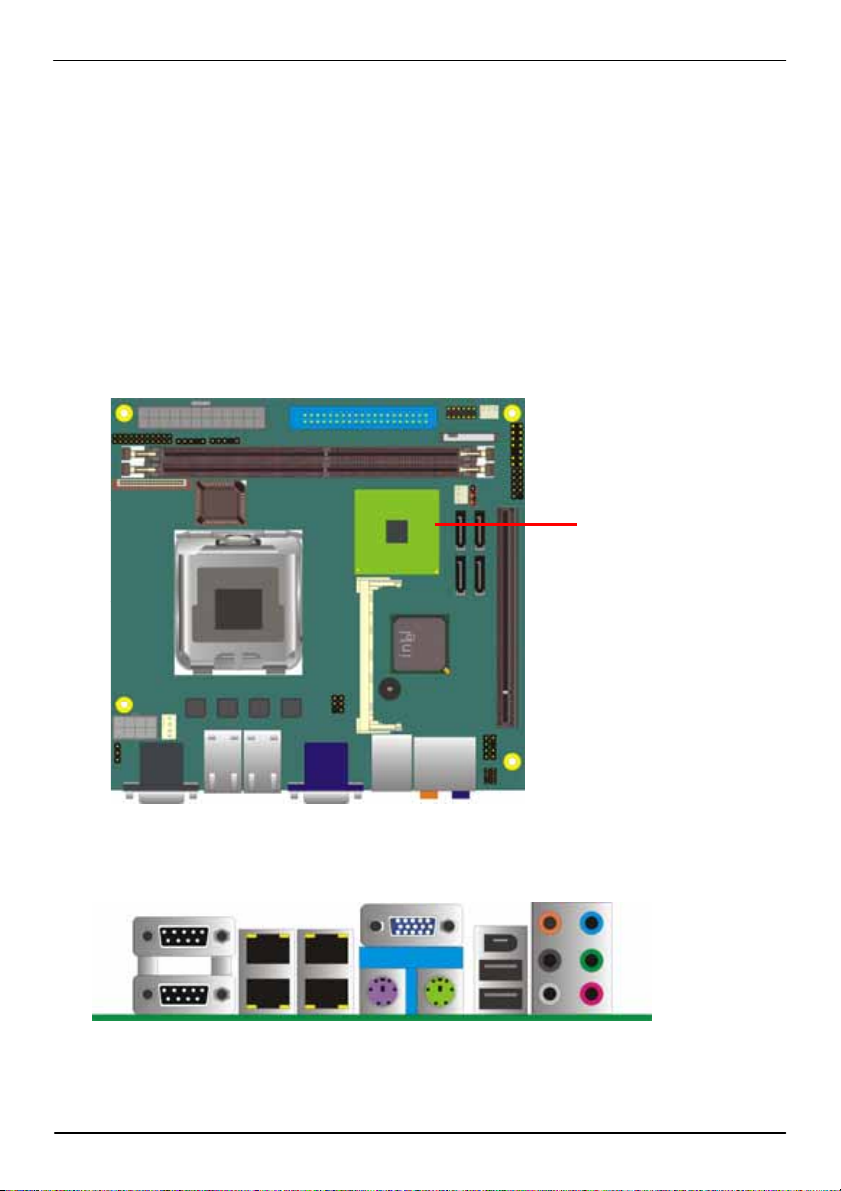

Intel 945G GMCH
GA (DB15
Display Installation 25
Page 26
LV-674 User’s Manual Introduction
2.12 <IEEE1394 and USB Installation>
LV-674 integrates two IEEE1394 (FireWire) ports and four USB2.0 ports. The specifications
of IEEE1394 and USB2.0 are listed below:
Interface IEEE1394 USB2.0
Controller AGERE F W 323-06 Intel ICH7R
Transfer Rate 100/200/400Mb/s Up to 480Mb/s
Output Voltage 12V 500mA
The Intel® ICH7R contains and Enhanced Host Controller Interface (EHCI) and four
Universal Host Controller Interfaces (UHCI), it can determine whether your connected
device is for USB1.1 or USB2.0, and change the transfer rate automatically.

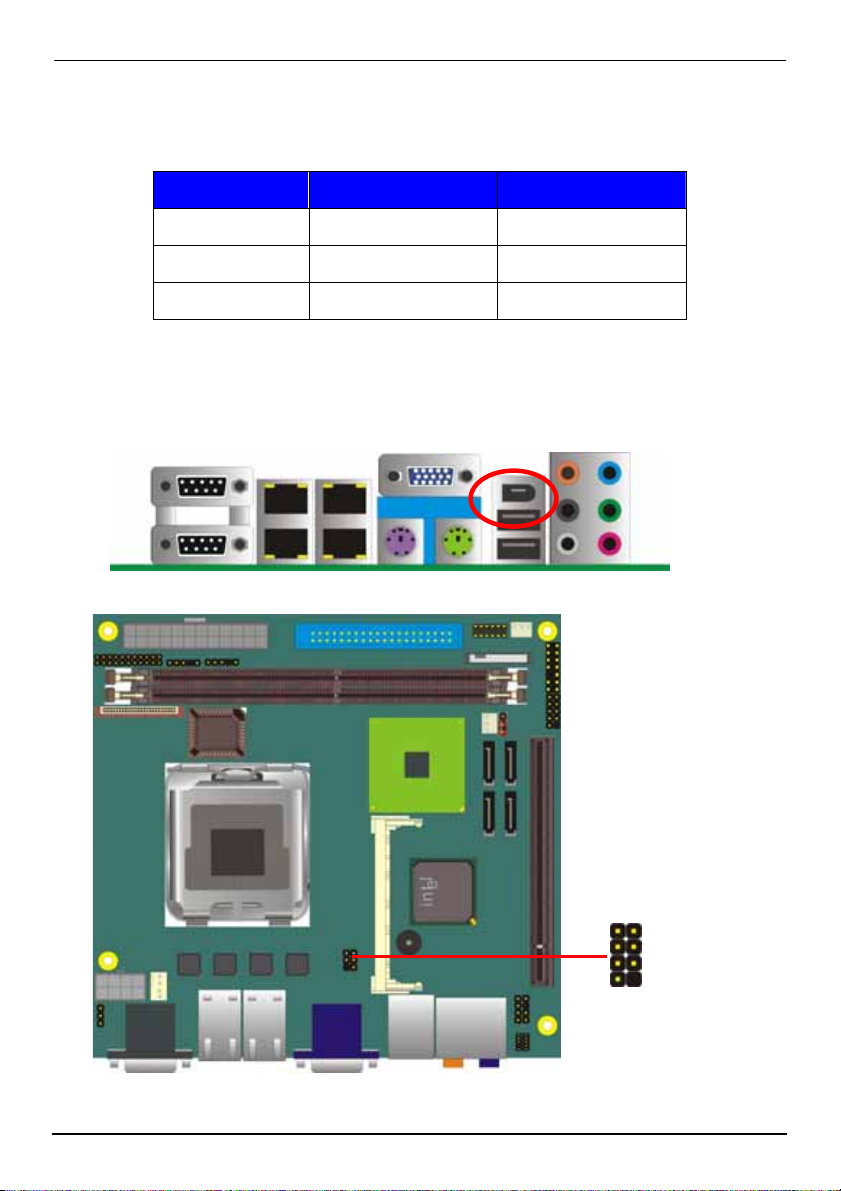

1394
12
CN_1394
78
IEEE1394 and USB Installation 26
Page 27
LV-674 User’s Manual Hardware Setup

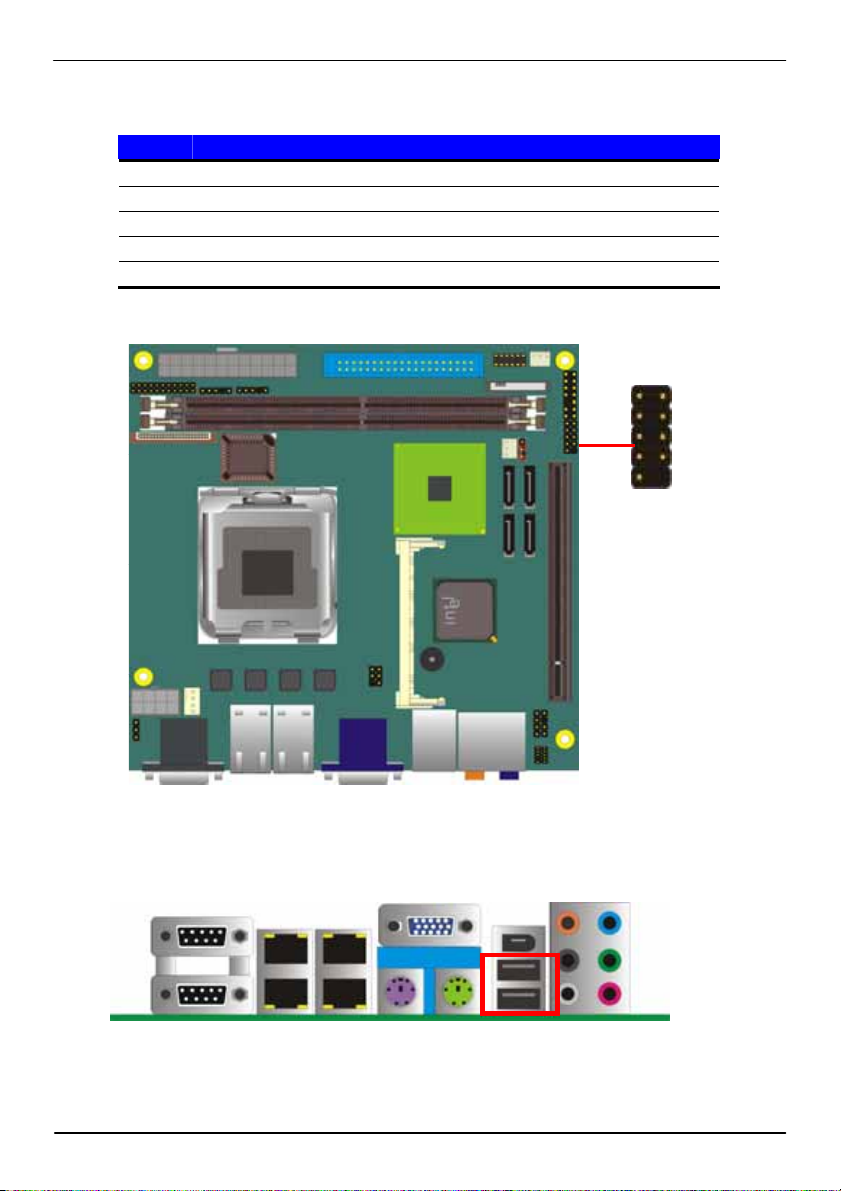

Connector: CN_USB
Type: 10-pin (5 x 2) header for USB5/6 Ports
Pin Description Pin Description
1 VCC 2 VCC
3 Data0- 4 Data15 Data0+ 6 Data1+
7 Ground 8 Ground
9 Ground 10 N/C
1
9
CN_USB
2
10
USB1/2
IEEE1394 and USB Installation 27
Page 28
LV-674 User’s Manual Introduction
2.13 <Power and Fan Installation>
The L V-674 provides a standard ATX power supply with 24-pin ATX connector and
additional 12V connector, and the board provides one 8-pin fan connectors supporting
smart fan for CPU cooler and two 3-pin cooler fan connectors for system and Northbr idge
chip. The 8-pin additional power connector is necessary for CPU p owering; ple ase connec t
this well before you finishing the system setup.
1
3
SYSFAN
NBFAN
1
3
8
7
CN_12V
2
1
1
4
CPUFAN
24
12
ATX
13
1
Power and Fan Installation 28
Page 29
LV-674 User’s Manual Hardware Setup

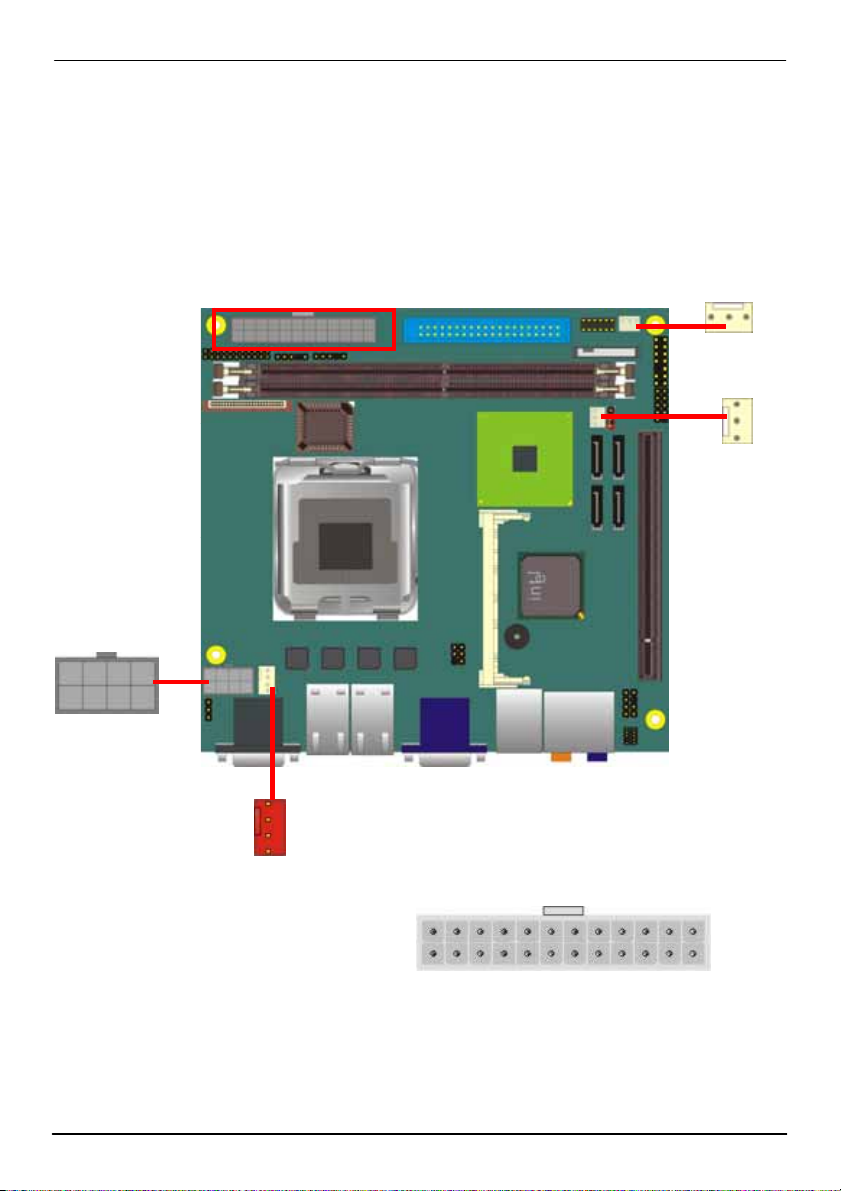

Connector: ATX
Type: 24-pin ATX power connector
PIN assignment
1 3.3V 13 3.3V
2 3.3V 14 -12V
3 GND 15 GND
4 5V 16 PS_ON
5 GND 17 GND
6 5V 18 GND
7 GND 19 GND
8 PW_OK 20 -5V
9 5V_SB 21 5V
10 12V 22 5V
11 12V 23 5V
12 3.3V 24 GND

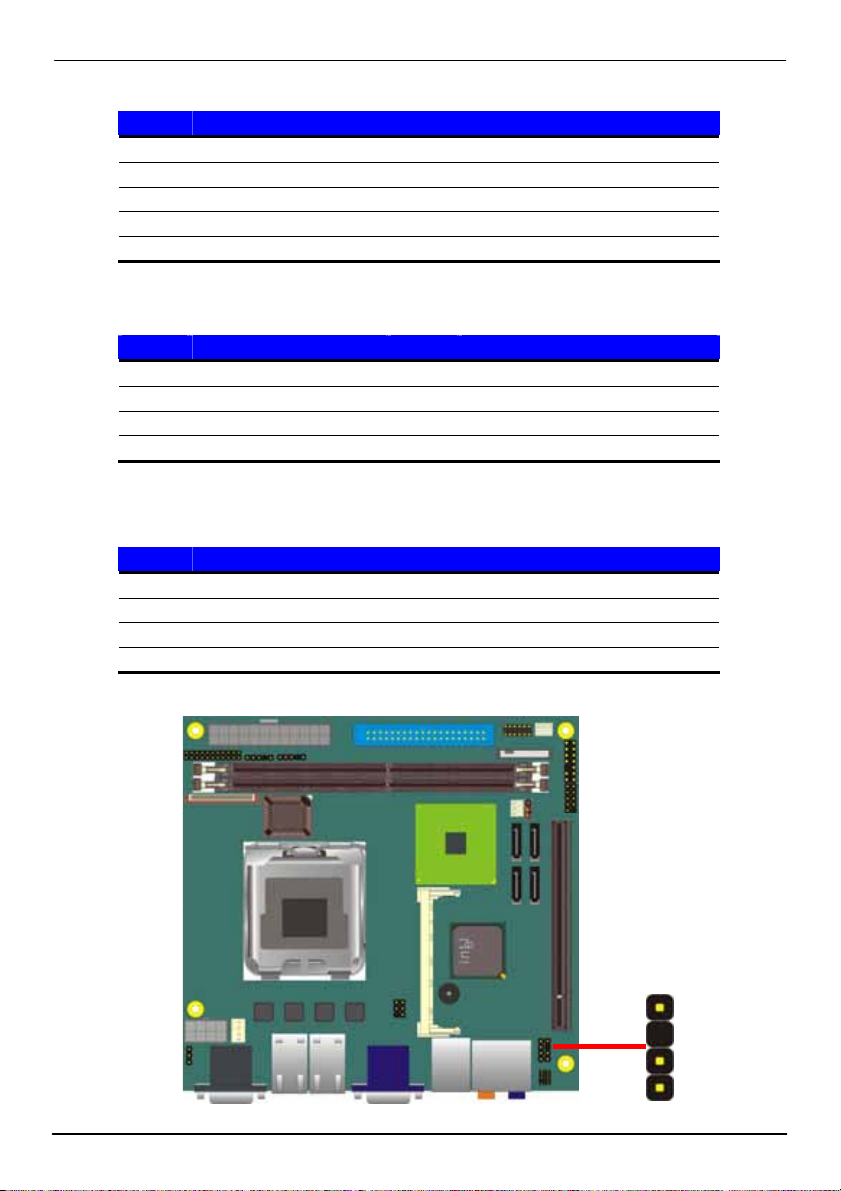

Connector: CN_12V
Type: 4-pin standard Pentium 4 additional +12V power connector
Pin Description Pin Description
1 Ground 2 +12V
3 Ground 4 +12V
5 Ground 6 +12V
7 Ground 8 +12V
Connector: CPUFAN
Type: 4-pin fan wafer connector
Pin Description Pin Description
1 Ground 2 +12V
3 Fan Speed Detection 4 Sense
Connector: NBFAN, SYSFAN
Type: 3-pin fan wafer connector
Pin Description Pin Description Pin Description
1 Ground 2 +12V 3 Sense
Power and Fan Installation 29
Page 30
LV-674 User’s Manual Introduction

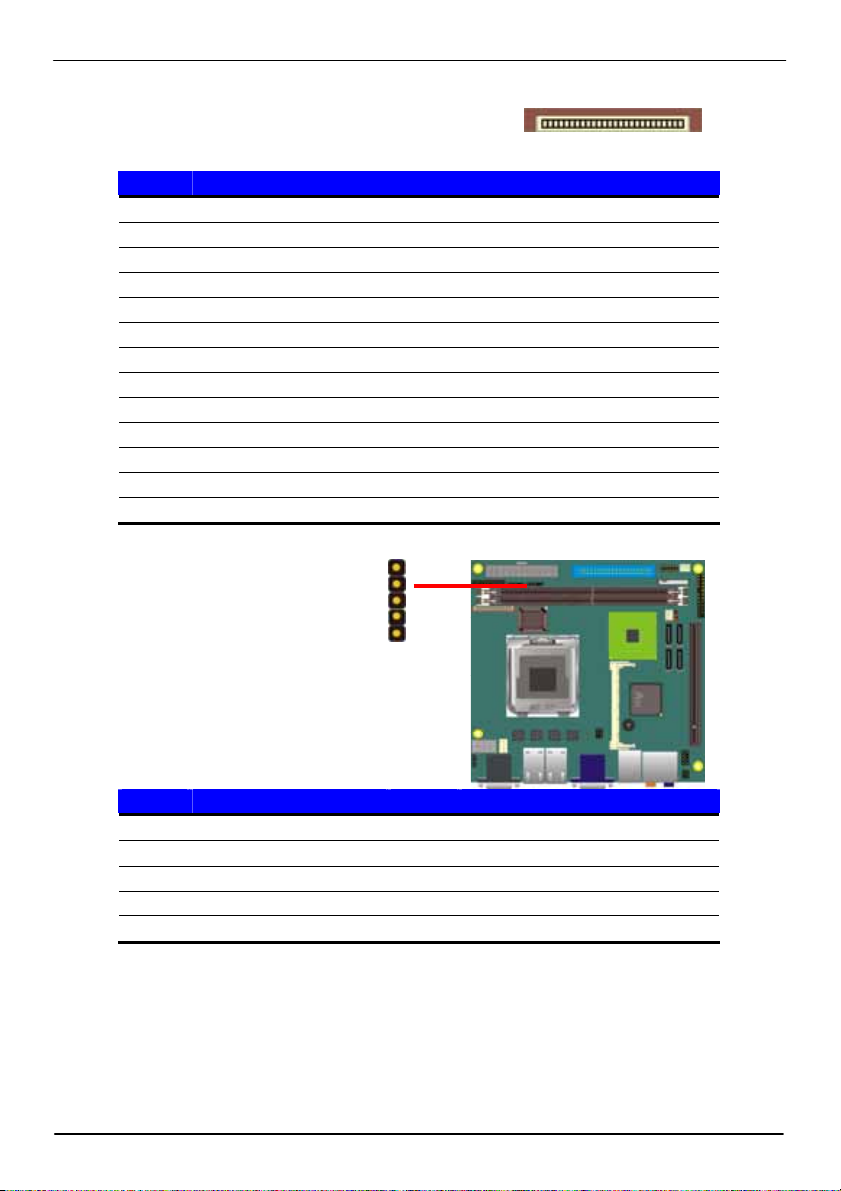

2.14 <GPIO interface>
The board provides a programmable 8-bit digital I/O interface, and a SMBus (System
management bus) interface for control panel application.

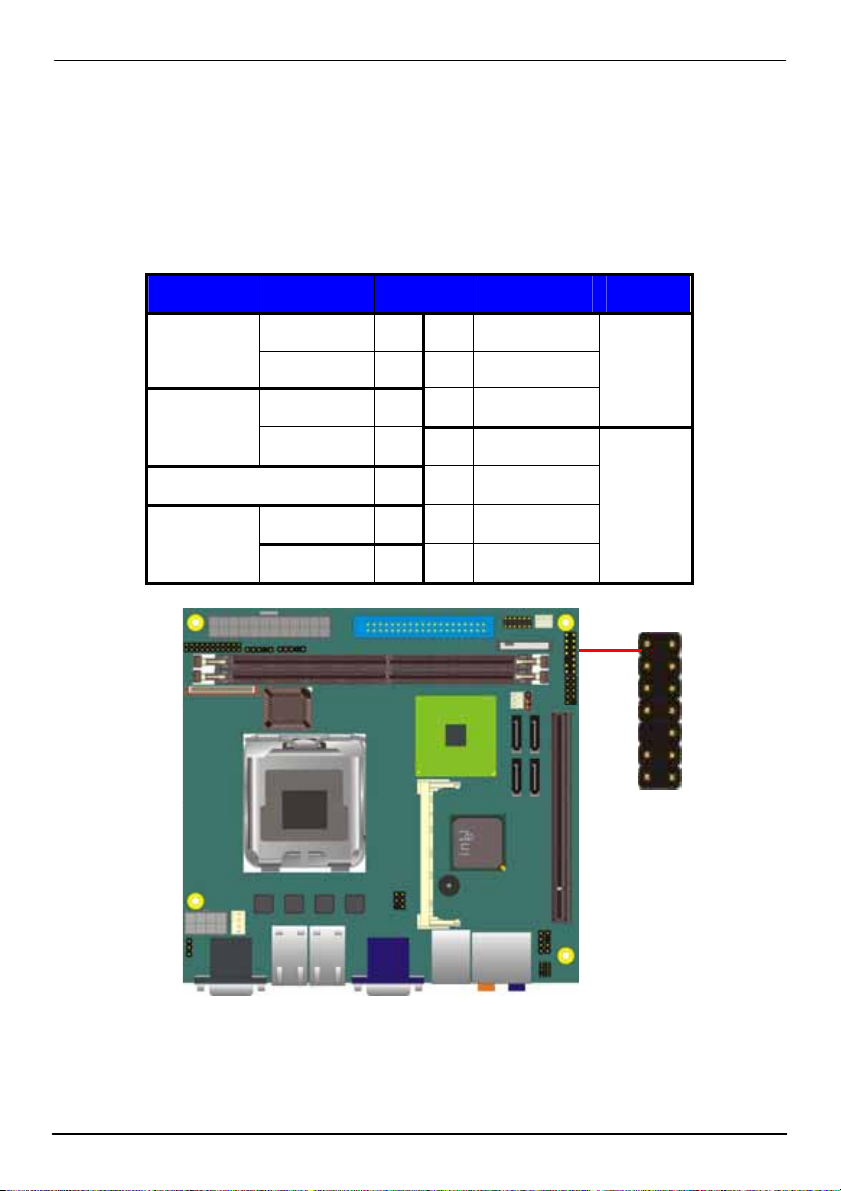

Connector: CN_DIO
Type: onboard 2 x 6-pin header, pitch=2.0mm
Pin Description Pin Description
1 Ground 2 Ground
3 GP10 4 GP14
5 GP11 6 GP15
7 GP12 8 GP16
9 GP13 10 GP17
11 VCC 12 +12V
11 1
W83627THF Assignment CN_DIO
PIN 121 GPSA2/GP17 PIN 10
PIN 122 GPSB2/GP16 PIN 8
PIN 123 GPY1/GP15 PIN 6
PIN 124 GPY2/P16/GP14 PIN 4
PIN 125 GPX2/P15/GP13 PIN 9
PIN 126 GPX1/P14/GP12 PIN 7
PIN 127 GPSB1/P13/GP11 PIN 5
PIN 128 GPSA1/P12/GP10 PIN 3
12
CN_DIO
GPIO Interface 30
2
Page 31
LV-674 User’s Manual Hardware Setup

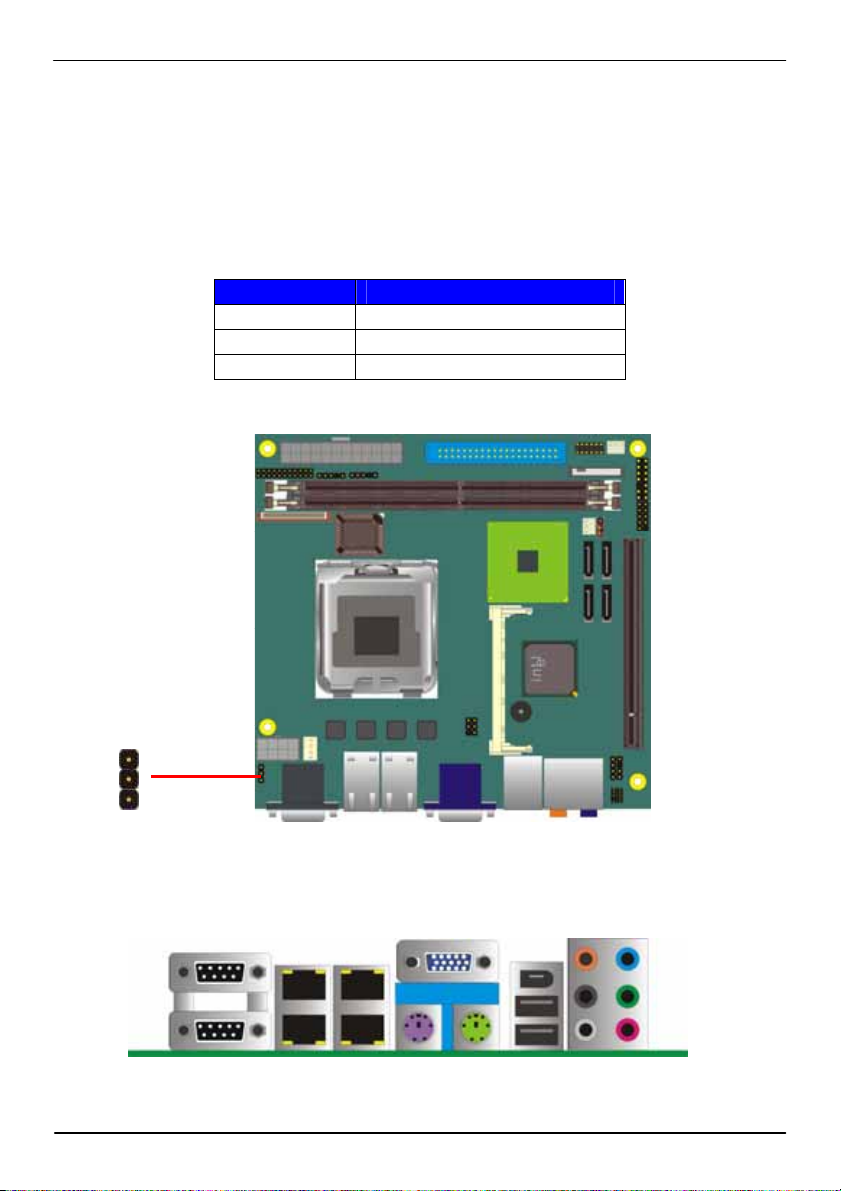

2.15 <Serial Port>
The board has two RS232 serial ports on real I/O panel, and onboard one 3-pin additional
TXD/RXD connector for POS application.
Connector: CN_TXD/RXD
Connector type: onboard 3-pin header (pitch = 2.00mm)
Pin Number Pin A ssignment
1 TXD
2 RXD
3 Ground
CN_TXD/RXD
1
3
COM2
COM1
Serial Port 31
Page 32
LV-674 User’s Manual Introduction
2.16 <Switch and Indicator>
The JFRNT provides front control panel of the board, such as power button, reset and
beeper, etc. Please check well before you connecting the cables on the chassis.
Connector: JFRNT
Type: onboard 14-pin (2 x 7) 2.54-pitch header
Function Signal PIN Signal Function
IDE LED
Reset
Power
Button
HDLED+ 1 2 PWDLED+
HDLED- 3 4 N/C
Reset+ 5 6 PWDLED-
Reset- 7 8 SPKIN+
N/C 9 10 N/C
PWRBT+ 11 12 N/C
PWRBT- 13 14 SPKIN-
Power
LED
Speaker
1
13 14
2
JFRNT
Switch and Indicator 32
Page 33
LV-674 User’s Manual Hardware Setup
2.17 <Expansion Interface>

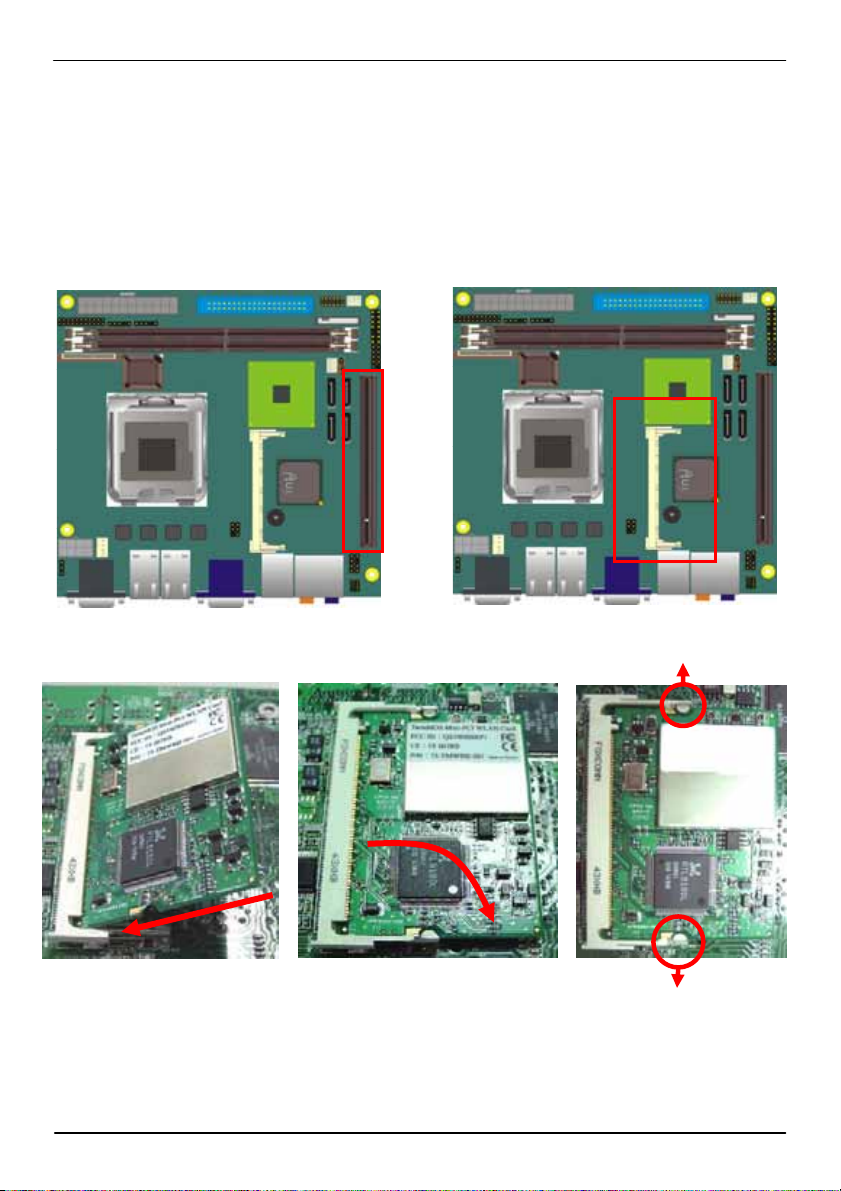

LV-674 has one PCI-Express 16x slot and one Mini-PCI socket onboard. PCI-Express is the
last expansion interface technology, for its serial data transfer scheme, each lane will be up
to 500MB/s (duplex), and the 16x (16 lanes) can be up to 8GB/s more tha n 2GB/s as AGP
8x bus transfer rate. The 16x slot can be also for x1 compatible use.
PCIE (PCI-Express x16 slot)
Mini-PCI Card installation:
1. Slot in the card at 45 degree
2. Press the card onto the socket
to hear a click sound
MINIPCI
3. to remove the card,
please pull out the
locker on the socket.
Expansion Interface 33
Page 34
LV-674 User’s Manual
(This Page is Left for Blank)
34
Page 35
LV-674 User’s Manual System Configuration
Chapter 3 <System Configuration>
3.1 <SATA configuration>
Based on Intel® ICH7R Southbridge chip, the board supports 4 Serial ATA II ports; please
follow the touring guide to setup your Serial ATA devices.
For Windows 98/SE/ME, Windows NT4.0 and DOS system, they only support up to 4 IDE
devices including SATA devices, and Windows 2000/XP/Server2003 have no such
limitation.
Parallel ATA Seri a l ATA Operating
System
(Support Mode)
Windows
2000/XP
(Enhance Mode)
Windows
98/ME/NT4.0
Primary
(2 Devices)
SATA1 SATA2 SATA3 SATA4
{ { { { {
Type 1
(Combine Mode)
Type 2
(Combine Mode)
Type 3
(SATA only)
The following BIOS setup screen shows how to setup your ATAPI devices with each mode.
SATA Configuration 35
{
(Primary)
{
(Secondary)
X
X
{
(Primary)
{
(Primary)
(Master)
(Table 3.1.1)
{
(Secondary)
X
{
(Secondary)
(Master)
X
{
(Primary)
{
(Primary)
(Slave)
{
(Secondary)
X
{
(Secondary)
(Slave)
Page 36
LV-674 User’s Manual System Configuration
SA TA Mode:
This option can let you select whether the Serial ATA hard drives would work under normal
IDE mode or RAID mode. The RAID mode need more than one HDD is applied.
Once you enable the RAID mode, the boot-up screen would pop up the RAID configuration
option for setup.
SATA Configuration 36
Page 37
LV-674 User’s Manual System Configuration
On-Chip Serial ATA mode:
This option can let you select operation modes of Serial ATA drives.
Disabled: To disable the onboard Serial ATA controller.
Auto: To allow the system select the optimized mode automatically.
Combined mode: PATA and SATA work as two channels for supporting two drives on each
channel.
Enhanced mode: Max supported of the PATA and SATA for up to 6 drives.
SATA Only: To disable the PATA and only apply the SATA drives.
Notice: The Combined mode and Enhanced mode are supported depends on your
operating system, please check page35 for relative information.
SATA Configuration 37
Page 38
LV-674 User’s Manual System Configuration
3.2 <SATA RAID Configuration>
The board integrates Intel® ICH7R with RAID function for Serial ATA II drives, and supports
the configurations below:
RAID 0 (Stripping): Two hard drives operating as one drive for optimized data R/W
performance. It needs two unused drives to build this operation.
RAID 1 (Mirroring): Copies the data from first drive to second drive for data security, and if
one drive fails, the system would access the applications to the workable drive. It needs two
unused drives or one used and one unused driv e to build this operation. The second drive
must be the same or lager size than first one.
RAID 5 (striping with parity)
A RAID 5 array contains three or more hard drives where the data is divided into
manageable blocks called strips. Parity is a mathematical method for recreating data that
was lost from a single drive, which increases fault-tolerance. The data and parity are striped
across all the hard drives in the array. The parity is striped in a rotating sequence to reduce
bottlenecks associated with the parity calculations.
RAID 10 (RAID 0+1)
A RAID 10 array uses four hard drives to create a combination of RAID levels 0 and 1. The
data is striped across a two-drive array forming the RAID 0 component. Each of the drives
in the RAID 0 array is then mirrored by a RAID 1 component.
Intel Matrix Storage Technology: This technology would allow you to use RAID 0+1 mode
on only two drives (4 drives needed on traditional RAID 0+1). It will create two partitions on
each hard drive to simulate RAID 0 and RAID 1. It also can let you modify the partition size
without re-formatted.
For more information of Intel Matrix Storage Technology, please visit Intel’s website.
If you need to install an operation system on the RAID set, please use the driver disk
attached in the package when it informs you to obtain the RAID drivers.
SATA RAID Configuration 38
Page 39
LV-674 User’s Manual System Configuration

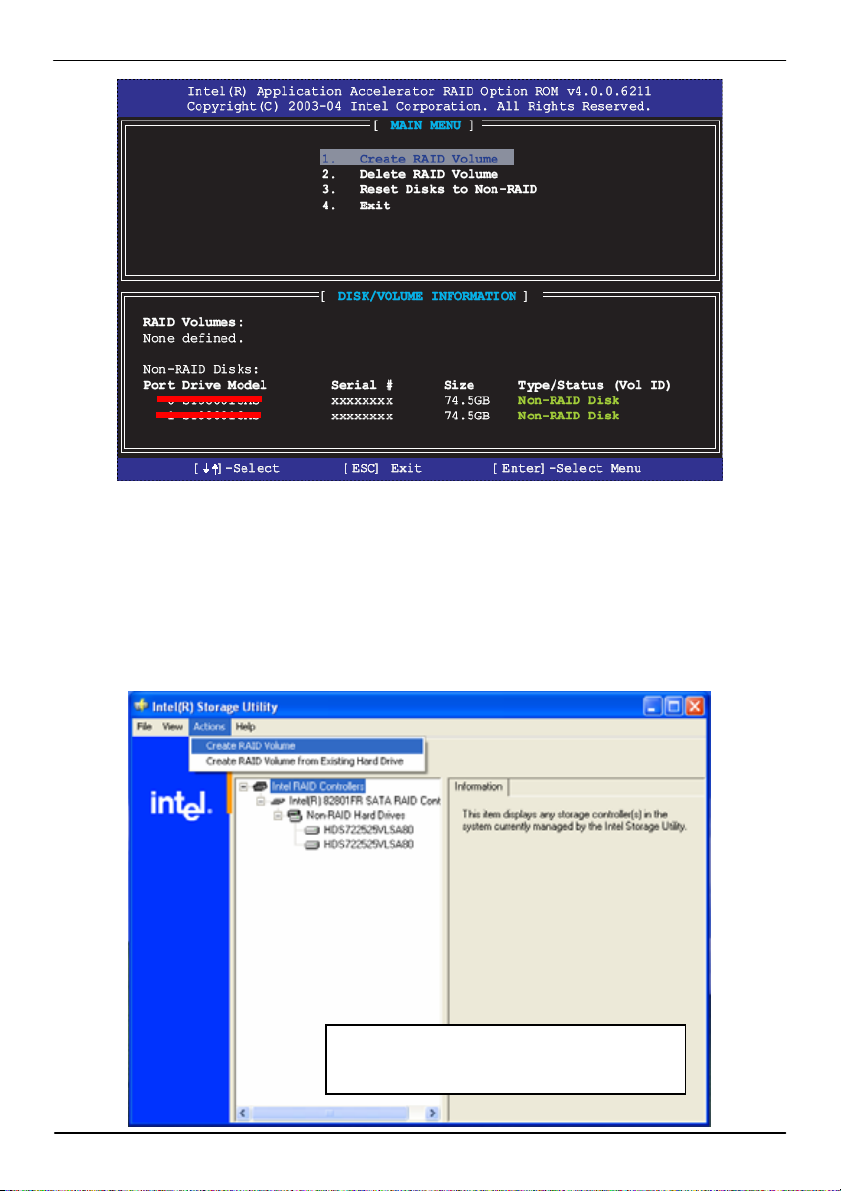

Please press <CTRL+I> to enter the RAID configuration menu.
You can setup the RAID under operation system for Microsoft® Windows XP SP1 or
Windows 2000 SP4 version, please install the Intel® Application Accelerator Ver.4.5 later to
support RAID configuration with Intel® Matrix Storage Technology.
1. After installing Intel Application Accelerator, please execute Intel® Storage Utility.
Demo configuration for 2 SATA Drives and
set as Intel Matrix Storage Technology set
SATA Configuration 39
Page 40
LV-674 User’s Manual System Configuration

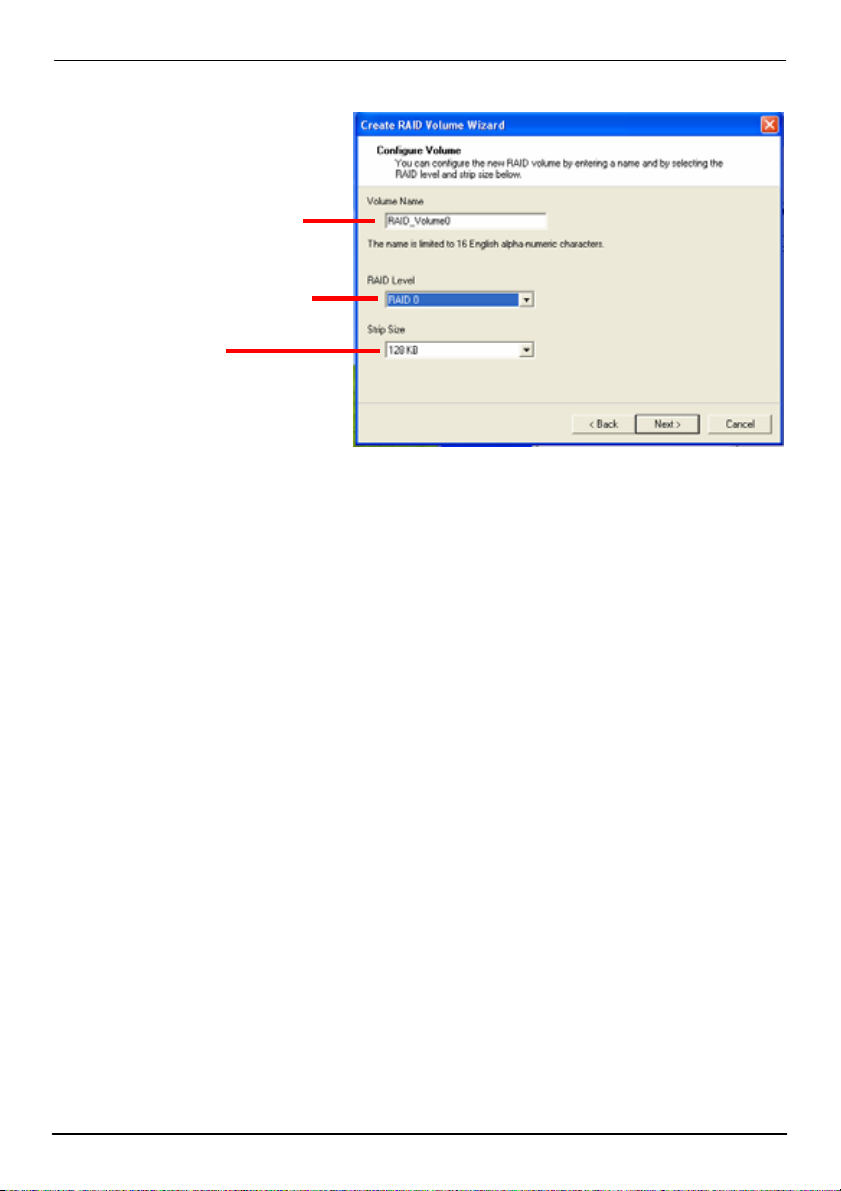

2. Select Actions to Create RAID Volume
Rename the Volume name
Select RAID Level as 0
Left as default
SATA RAID Configuration 40
Page 41
LV-674 User’s Manual System Configuration

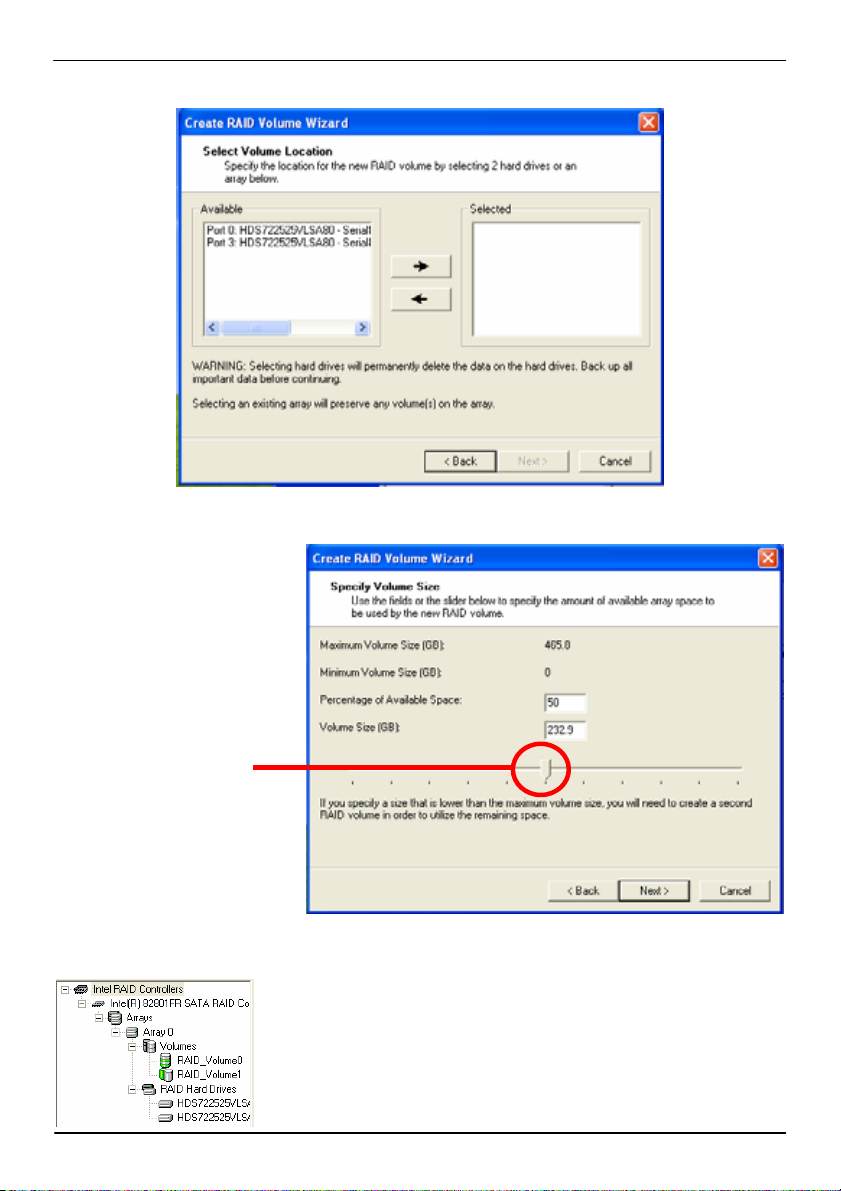

3. Please select two hard drives to prepare to set the RAID volume
4. Specify the Volume size
Tune this bar to specify
the volume size, if you
specify the volume size
lower than maximum,
you can create a second
volume for another
RAID set.
(Make RAID 0+1 on only
two hard drives)
5. Repeat the step 1 to create second volume as RAID Level 1.
For other configuration set please click Help on tool bar.
SATA Configuration 41
Page 42
LV-674 User’s Manual System Configuration
3.3 <Audio Configuration>

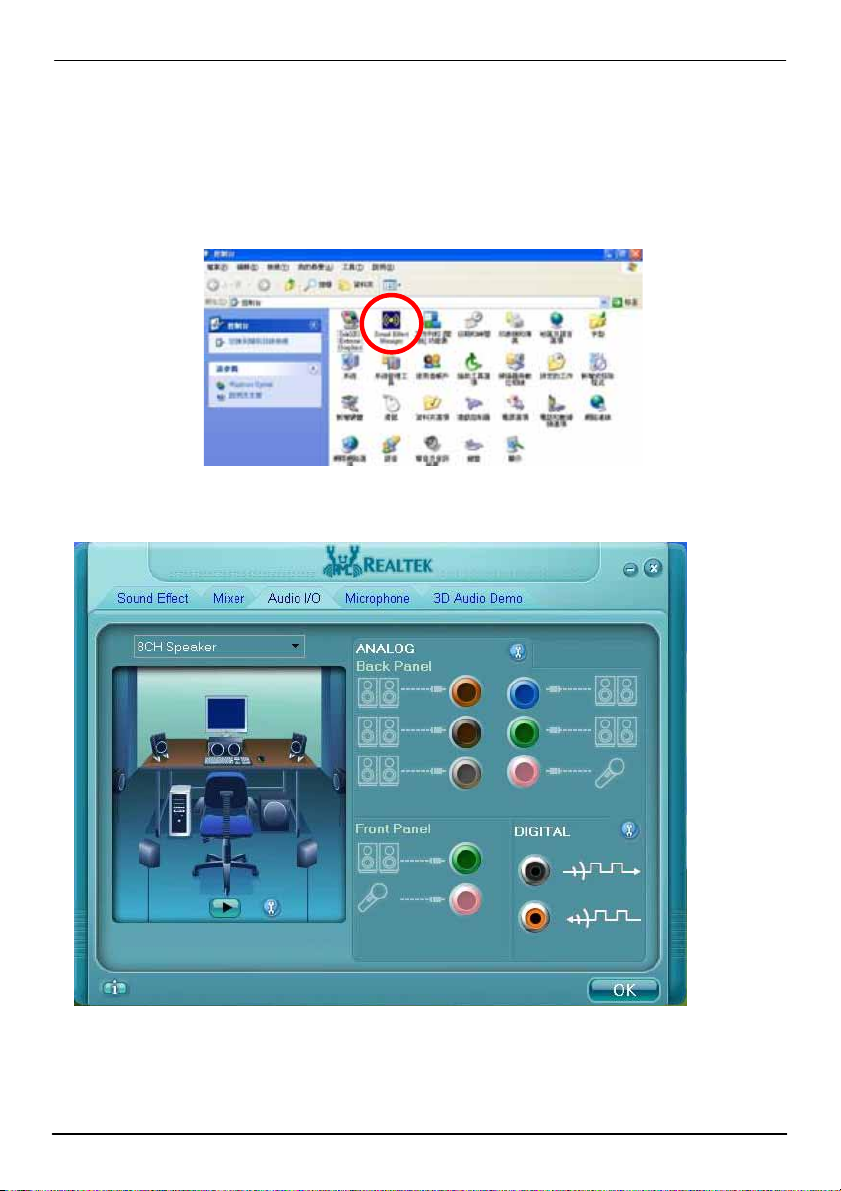

The board integrates Intel® ICH7R with REALTEK® ALC880 codec. It can support
2-channel or 7.1 channel sound under system configuration. Please follow the steps below
to setup your sound system.
1. Install REALTEK AC97 Audio driver.
2. Lunch the control panel and Sound Effect Manager.
3. Select Speaker Configuration
4. Select the sound mode to meet your speaker system.
SATA RAID Configuration 42
Page 43
LV-674 User’s Manual System Configuration
3.4 <Video Memory Setup>
Based on Intel® 945G chipset with GMA (Graphic Media Accelerator) 950, the board
supports Intel® DVMT (Dynamic Video Memory Technology) 3.0, which would allow the
video memory be triggered up to 224MB.
To support DVMT, you need to install the Intel GMA 950 Driver with supported OS.

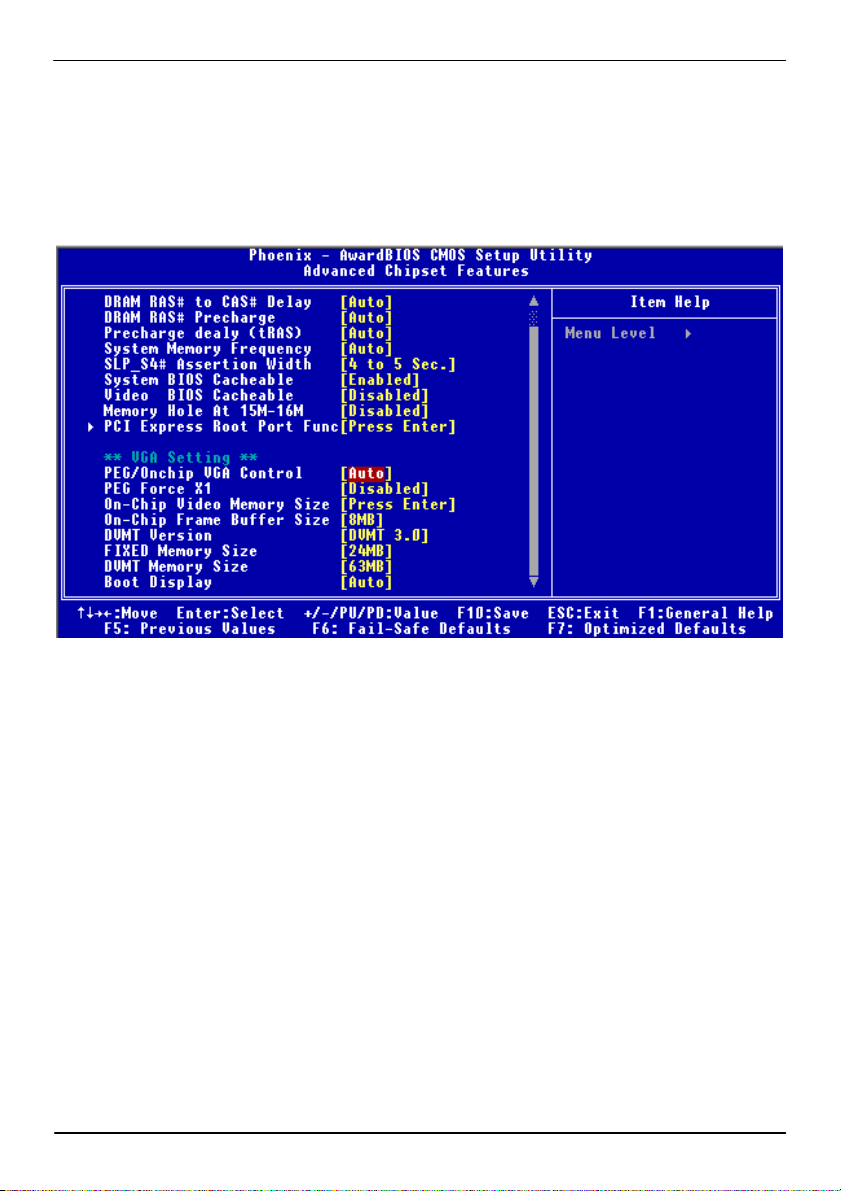

BIOS Setup:
On-Chip Video Memory Size: This option combines three items below for setup.
On-Chip Frame Buffer Size:
This item can let you select video memory which been allocated for legacy VGA and SVGA
graphics support and compatibility. The available opti on is 1MB and 8MB.
Fixed Memory Size:
This item can let you select a static amount of page-locked graphics memory which will be
allocated during driver initialization. Once you select the memory amount, it will be no
longer available for system memory.
DVMT Memory Size:
This item can let you select a maximum size of dynamic amount usage of video memory,
the system would configure the video memory depends on your appl ication, this item is
strongly recommend to be selected as MAX DVMT.
Video Memory Setup 43
Page 44
LV-674 User’s Manual
Fixed + DVMT Memory Size:
You can select the fixed amount an d the DVMT amount at the same time for a guar anteed
video memory and additional dynamic video memory, please check the table below for
available setting.
Notice:
System
Memory
128MB~255MB
256MB~511MB
512MB upper
On-Chip
Frame
Buffer Size
1MB 32MB 0MB 32MB
1MB 0MB 32MB 32MB
8MB 32MB 0MB 32MB
8MB 0 32MB 32MB
1MB 64MB 0MB 64MB
1MB 0 64MB 64MB
1MB 128MB 0MB 128MB
1MB 0 128MB 128MB
1MB 64MB 64MB 128MB
8MB 64MB 0MB 64MB
8MB 0 64MB 64MB
8MB 128MB 0MB 128MB
8MB 0 128MB 128MB
8MB 64MB 64MB 128MB
1MB 64MB 0 64MB
1MB 0 64MB 64MB
1MB 128MB 0 128MB
1MB 0 128MB 128MB
1MB 64MB 64MB 128MB
1MB 0 224MB 224MB
8MB 64MB 0 64MB
8MB 0 64MB 64MB
8MB 128MB 0 128MB
8MB 0 128MB 128MB
8MB 64MB 64MB 128MB
8MB 0 224MB 224MB
Fixed
Memory
Size
DVMT
Memory
Size
Total
Graphic
Memory
1. The On-Chip Frame Buffer Size would be included in the Fixed Memory.
2. Please select the memory size according to this table.
44
Page 45
LV-674 User’s Manual System Configuration
3.5 <Display Properties Setting>
Based on Intel 945G GMCH with GMA 950 (Graphic Media Accelerator), the board supports
two DACs for display device as different resolution and color bit.
Please install the Intel Graphic Driver before you starting setup display devices.
1. Click right button on the desktop to lunch display properties
2. Click Advanced button for more specificity setup.
Click Graphics Properties... for
advanced setup
Display Properties Setting 45
Page 46
LV-672 User’s Manual System Configuration

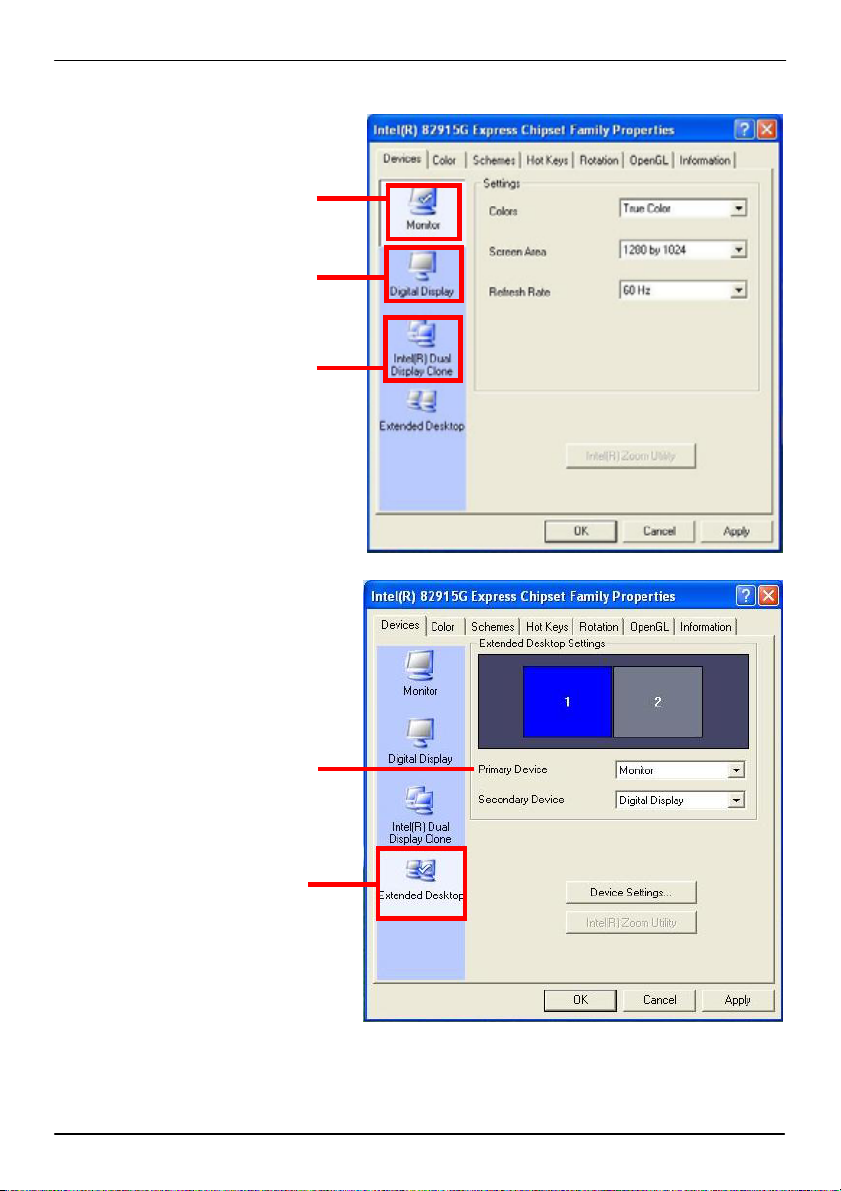

3. This setup options can let you define each device settings.
Click Monitor to setup the CRT
monitor for Colors, Resolution
and Refresh Rate
Click Digital Display to setup
the DVI monitor for Colors,
and Resolution
Click Intel® Dual Display
Clone to setup the dual
display mode as same screen
Set the main display device here
Click Extended Desktop to
setup the dual display mode
as different screen display
Notice: The dual display needs PCIE-SDVO module to supp ort more tha n one dis pl ay
devices.
Display Properties Setting 46
Page 47
LV-674 User’s Manual System Configuration
3.6 <PCI-Express interface setting>
The board provides one 16 lanes PCI-Express slot, it can be used for x16 graphic cards, or
1 x LAN cards. (4x SCSI cards can be also compatible with x1 transfer way). Please check
BIOS setting before you using PCI-Express card.
PEG Force X1:
If you use a x16 graphic card, please disable this function; if you use other x1 or x4 devices,
please enable this function to force the interface working under x1 transfer mode.
Display Properties Setting 47
Page 48
LV-674 User’s Manual System Configuration

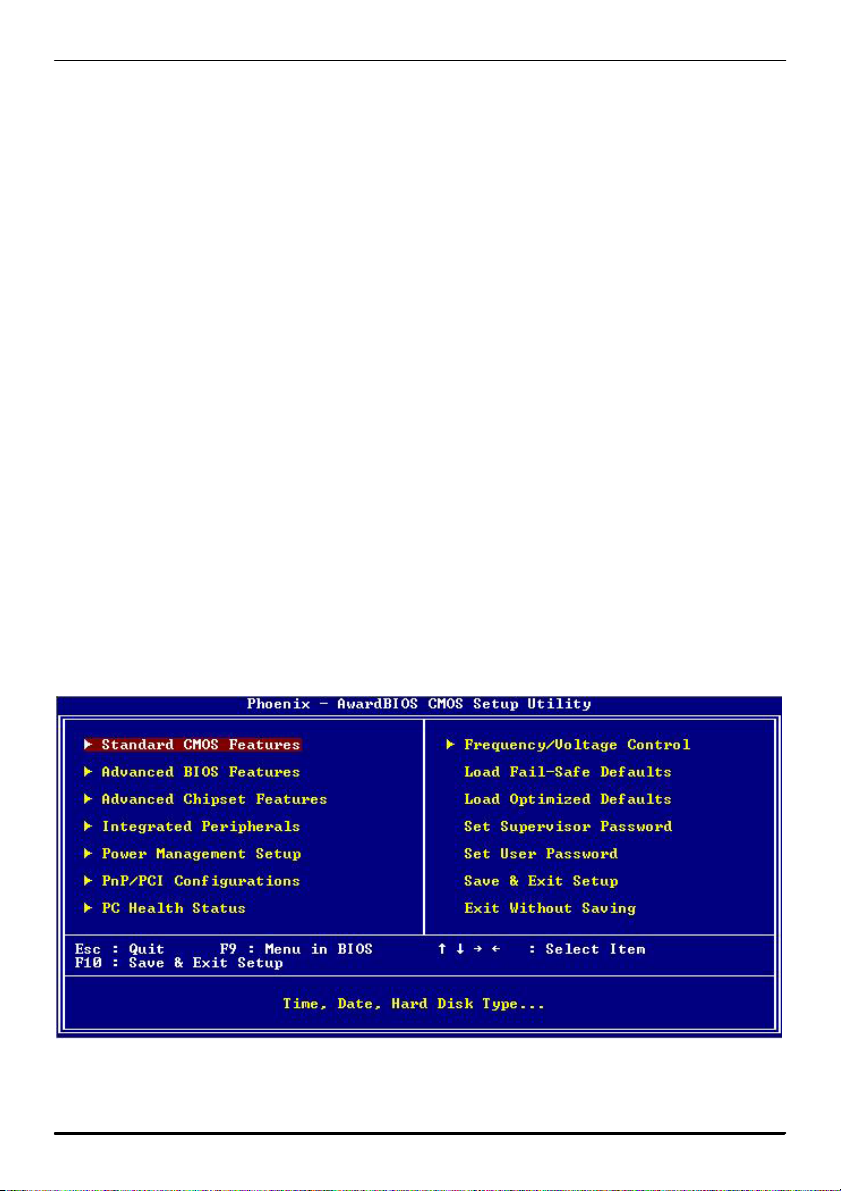

Chapter 4 <BIOS Setup>
The motherboard uses the Award BIOS for the system configuration. The Award
BIOS in the single board computer is a customized version of the industrial standard
BIOS for IBM PC AT-compatible computers. It supports Intel x86 and compatible CPU
architecture based processors and computers. The BIOS provides critical low-level
support for the system central processing, memory and I/O sub-systems.
The BIOS setup program of the single board computer let the customers modify the
basic configuration setting. The settings are stored in a dedicated battery-backed
memory, NVRAM, retains the information when the power is turned off. If the battery
runs out of the power, then the settings of BIOS will come back to the default setting.
The BIOS section of the manual is subject to change without notice and is provided here
for reference purpose only. The settings and configurations of the BIOS are current at
the time of print, and therefore they may not be exactly the same as that displayed on
your screen.
To activate CMOS Setup program, press ＜DEL＞ key i mmediately after you turn on
the system. The following message “Press DEL to enter SETUP” should appear in the
lower left hand corner of your screen. When you enter the CMOS Setup Utility, the Main
Menu will be displayed as Figure 4-1. You can use arrow keys to select your function,
press ＜Enter＞ key to accept the selection and enter the sub-menu.
Figure 4-1 CMOS Setup Utility Main Screen
PCI-Express Interface setting 48
Page 49
LV-674 User’s Manual BIOS Setup
(This Page is Left for Blank)
BIOS Setup 49
Page 50
LV-674 User’s Manual System Configuration

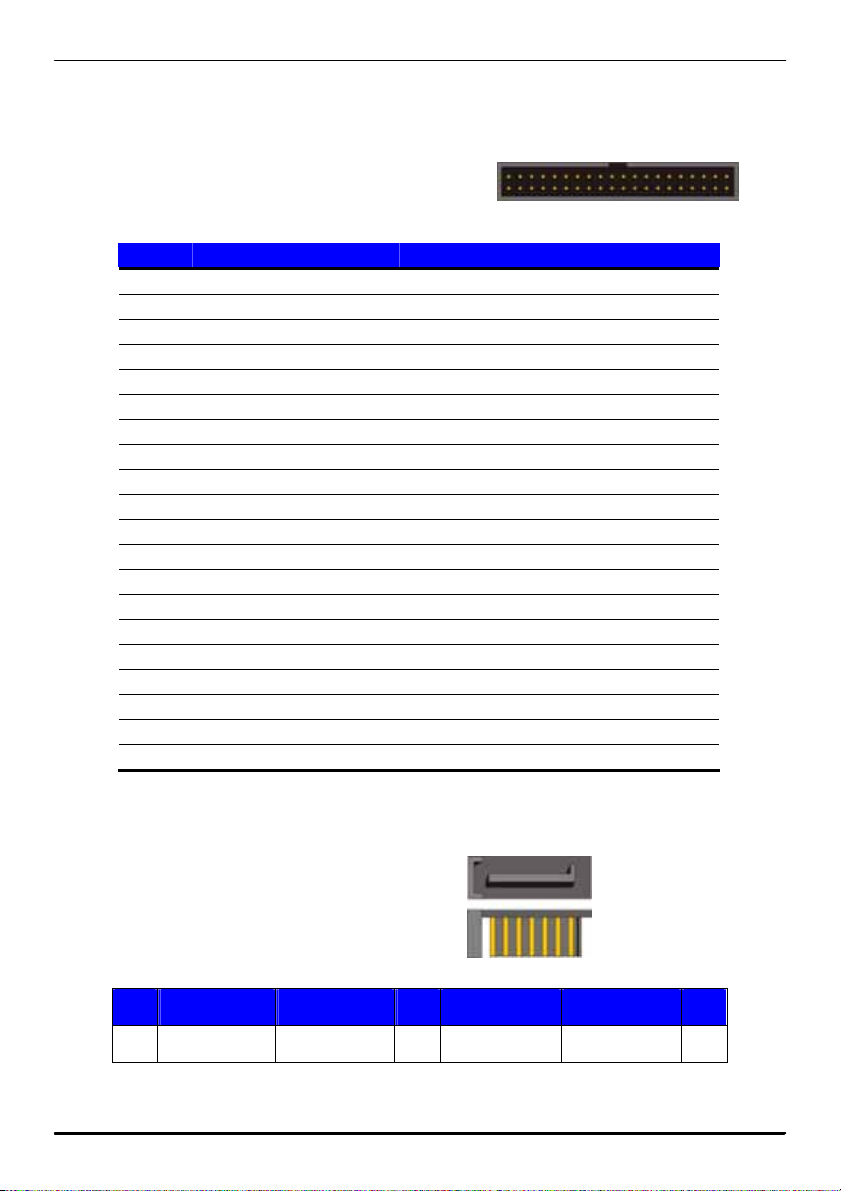

Appendix A <I/O Port Pin Assignment>
A.1 IDE Port
Connector: IDE1
Type: 40-pin (20 x 2) box header
Pin Description Pin Description
1 Reset 2 Ground
3 D7 4 D8
5 D6 6 D9
7 D5 8 D10
9 D4 10 D11
11 D3 12 D12
13 D2 14 D13
15 D1 16 D14
17 D0 18 D15
19 Ground 20 VCC
21 REQ 22 Ground
23 IOW-/STOP 24 Ground
25 IOR-/HDMARDY 26 Ground
27 IORDY/DDMARDY 28 IDE66#/IDE33
29 DACK- 30 Ground
31 IRQ 32 N/C
33 A1 34 CBLID
35 A0 36 A2
37 CS0 (MASTER CS) 38 CS1 (SLAVE CS)
39 LED ACT- 40 Ground
2
1
40
39
A.2 <Serial ATA Port>
Connector: S_ATA1/2/3/4
Type: 7-pin wafer connector
1 2 3 4 5 6 7
GND RSATA_TXP1 RSATA_TXN1 GND RSATA_RXN1 RSATA_RXP1 GND
1 7
PCI-Express Interface setting 50
Page 51
LV-674 User’s Manual I/O Port Pin Assignment
A.3 <Floppy Port>
Connector: FDD
Type: 26-pin connector
Pin Description Pin Description
1 VCC 2 INDEX
3 VCC 4 DRV0
5 VCC 6 DSKCHG
7 DRV1 8 N/C
9 MTR1 10 MTR0
11 RPM 12 DIR
13 N/C 14 STEP
15 Ground 16 WRITE DATA
17 Ground 18 WRITE GATE
19 N/C 20 TRACK 0
21 N/C 22 WRPTR
23 Ground 24 RDATA25 Ground 26 SEL
A.4 <IrDA Port>
Connector: CN_IR
Type: 5-pin header for SIR Ports
5
1
Pin Description
1 VCC
2 N/C
3 IRRX
4 Ground
5 IRTX
I 51
Page 52
LV-674 User’s Manual System Resources

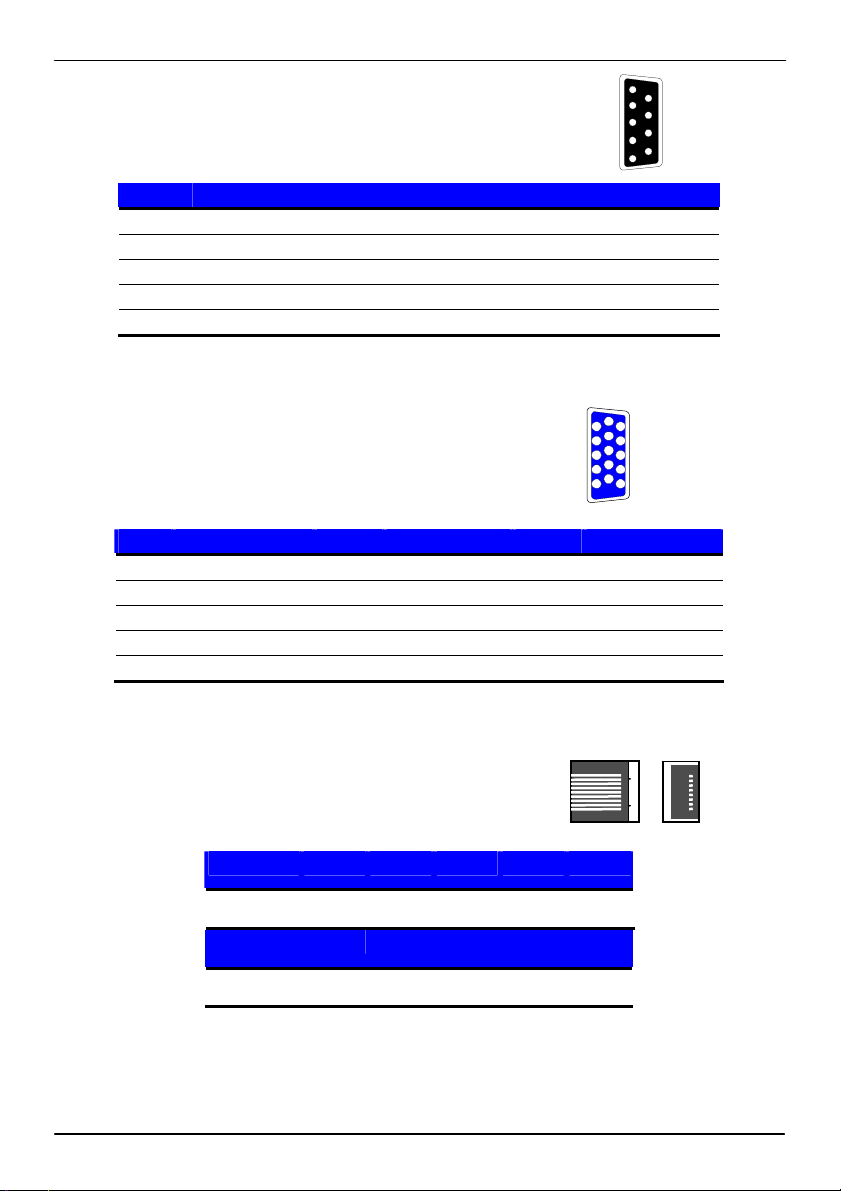

A.5 <Serial Port>
Connector: COM1/COM2
1
2
3
4
5
6
7
8
9
Type: 9-pin D-sub male connector on bracket
Pin Description Pin Description
1 DCD 6 DSR
2 SIN 7 RTS
3 SO 8 CTS
4 DTR 9 RI
5 Ground
A.6 <VGA Port>
Connector: VGA
Type: 15-pin D-sub female connector on bracket
Pin Description Pin Description Pin Description
1 RED 6 Ground 11 N/C
2 GREEN 7 Ground 12 5VCDA
3 BLUE 8 Ground 13 HSYNC
4 N/C 9 LVGA5V 14 VSYNC
5 Ground 10 Ground 15 5VCLK
A.7 <LAN Port>
Connector: RJ451/2/3/4
Type: RJ45 connector with LED on bracket
Pin 1 2 3 4 5
Description TRD0+ TRD0- TRD1+ TRD1- NC
Pin 6 7 8 9 10
6
1
2
3
4
5
10
11
12
13
14
15
Description NC TRD2+ TRD2- TRD3+ TRD3-
I/O Port Address Map 52
Page 53
LV-674 User’s Manual I/O Port Pin Assignment

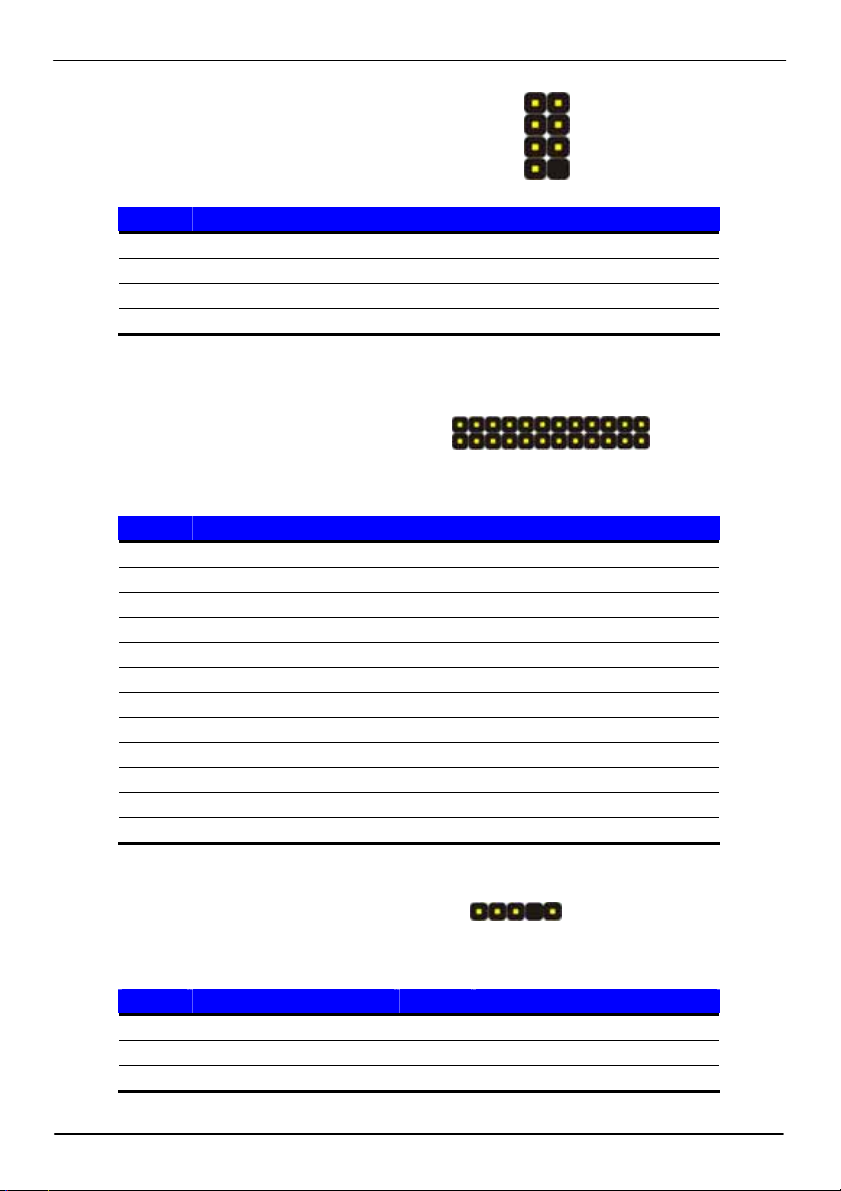

A.8 <IEEE 1394 Port>
12
Connector : CN_1394
Type : 8-pin header for IEEE 1394 port
Pin Description Pin Description
1 BPWR 2 BPWR
3 TPB1- 4 TPB+
5 TPA1- 6 TPB+
7 Ground 8 N/C
A.9 <LAN LED>
Connector : LAN_LED
Type : 24-pin header for LAN LED
Pin Description Pin Description
1 Active1- 2 Active1+
3 Link100M1- 4 Link100M1+
5 Link1000M1- 6 Link1000M1+
7 Active2- 8 Active2+
9 Link100M2- 10 Link100M2+
11 Link1000M2- 12 Link1000M2+
13 Active3- 14 Active3+
15 Link100M3- 16 Link100M3+
17 Link1000M3- 18 Link1000M3+
19 Active4- 20 Active4+
21 Link100M4- 22 Link100M4+
23 Link1000M4- 24 Link1000M4+
A.10 <SMBus>
Connector: CN_SMBUS
Type: 4-pin SMBus connector
Pin Description Pin Description
1 VCC 2 N/C
3 SMBDATA 4 SMBCLK
5 Ground
7
23
24
5 1
8
1
2
I 53
Page 54
LV-674 User’s Manual System Resources
Appedix B <System Resources>

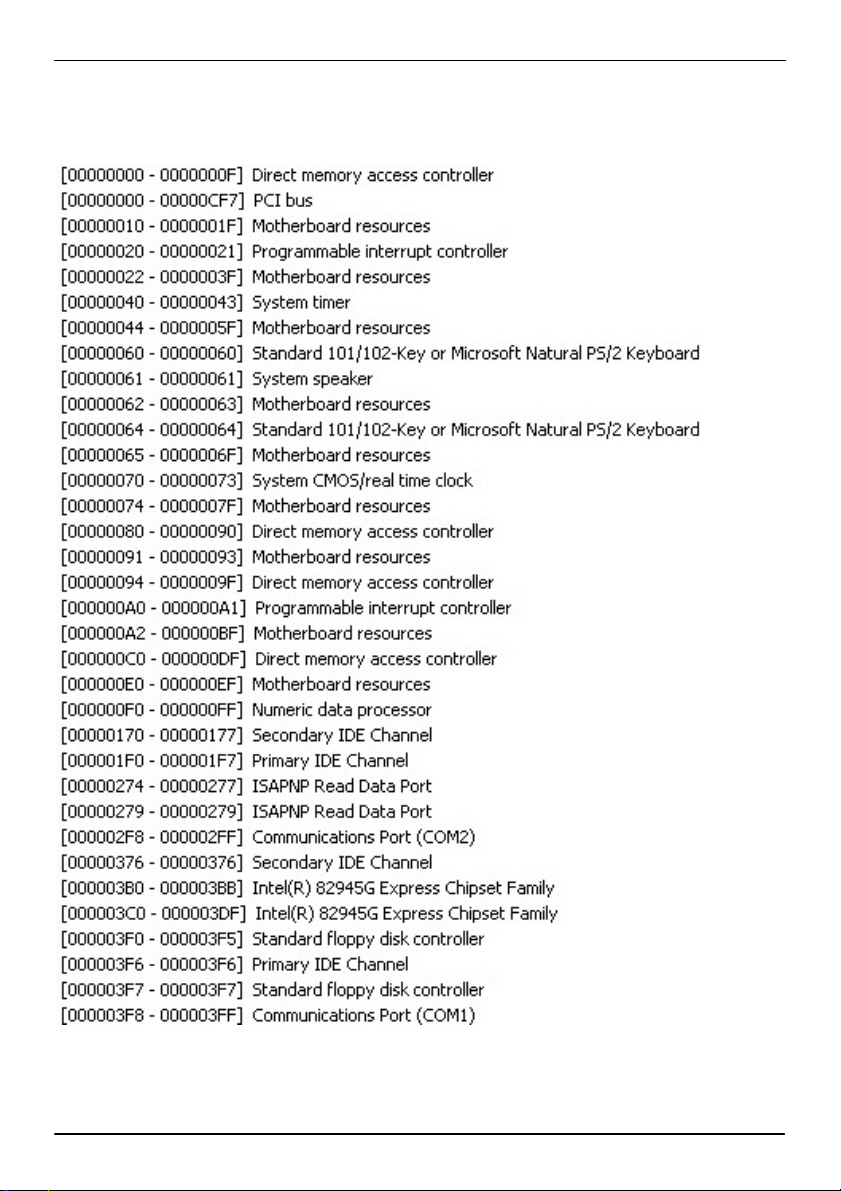

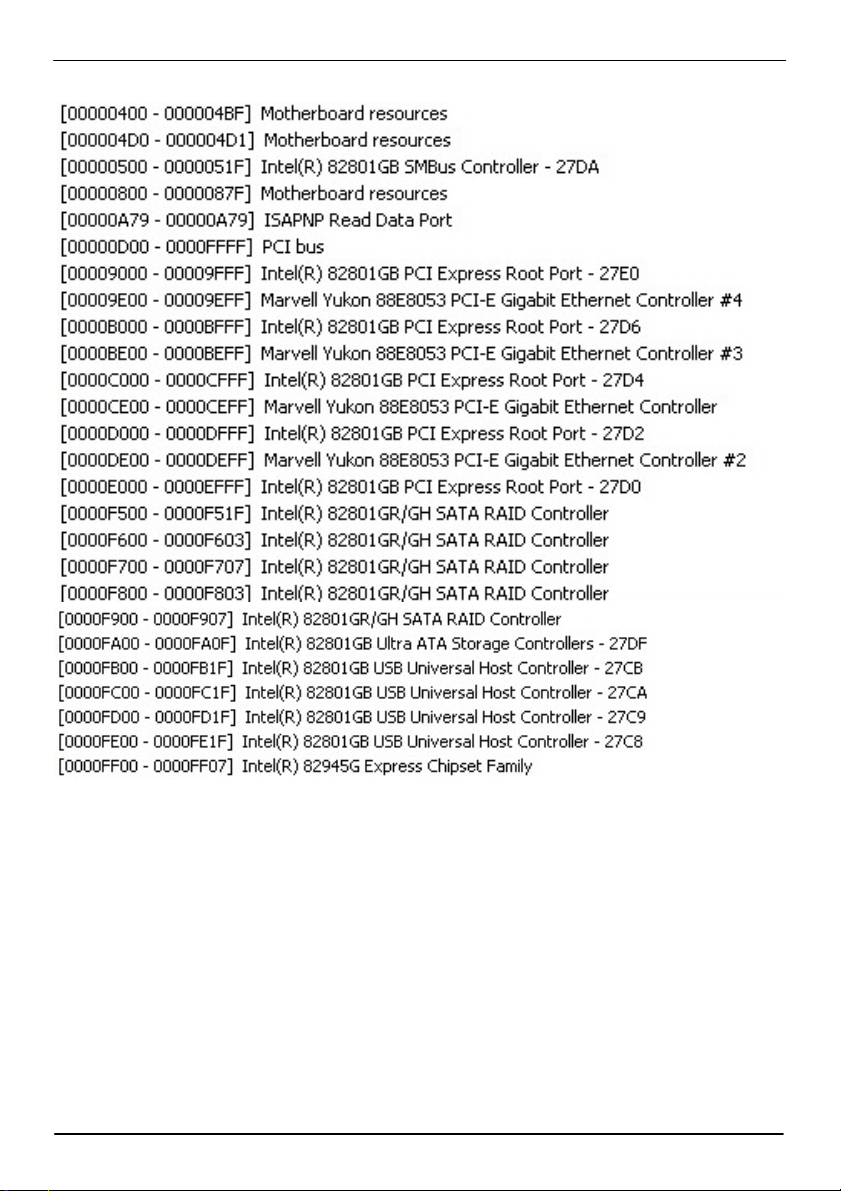

B1.<I/O Port Address Map>
I/O Port Address Map 54
Page 55
LV-674 User’s Manual I/O Port Pin Assignment
I 55
Page 56
LV-674 User’s Manual System Resources

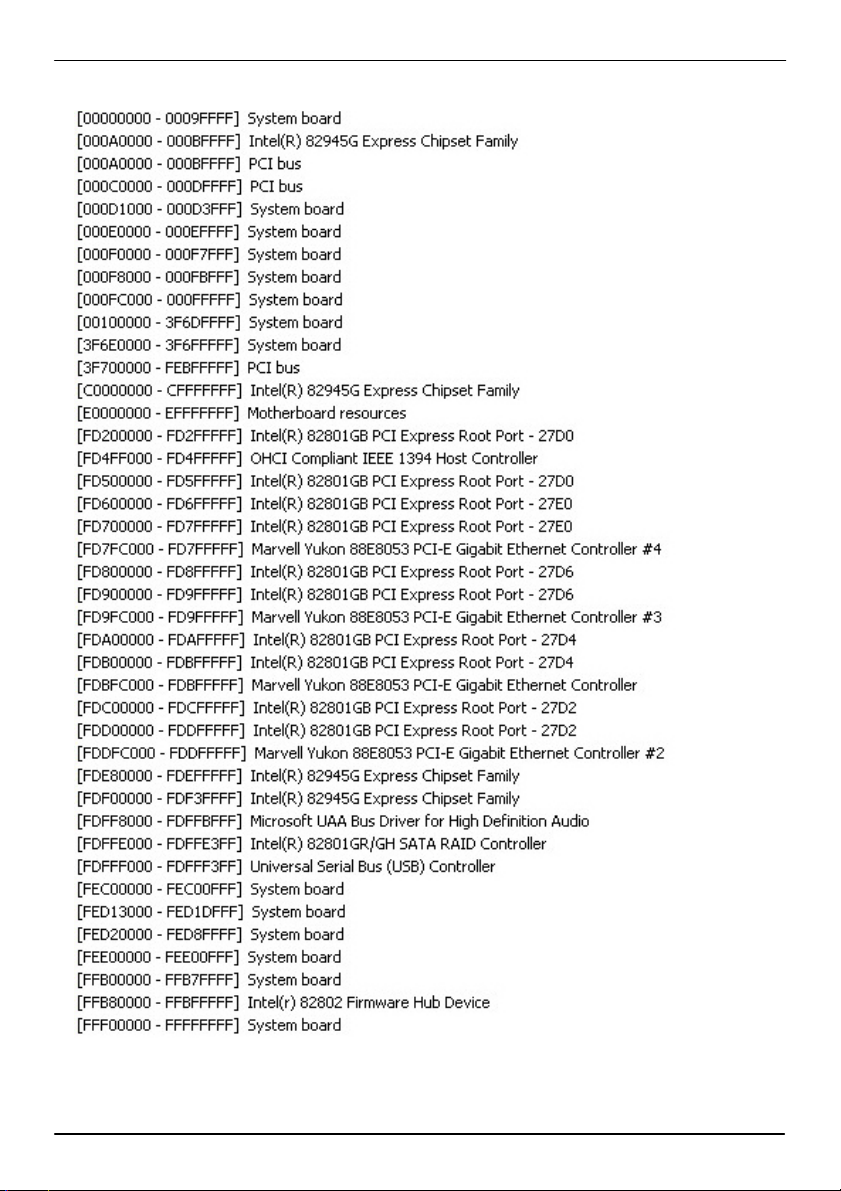

B2.<Memory Address Map>
I/O Port Address Map 56
Page 57
LV-674 User’s Manual I/O Port Pin Assignment

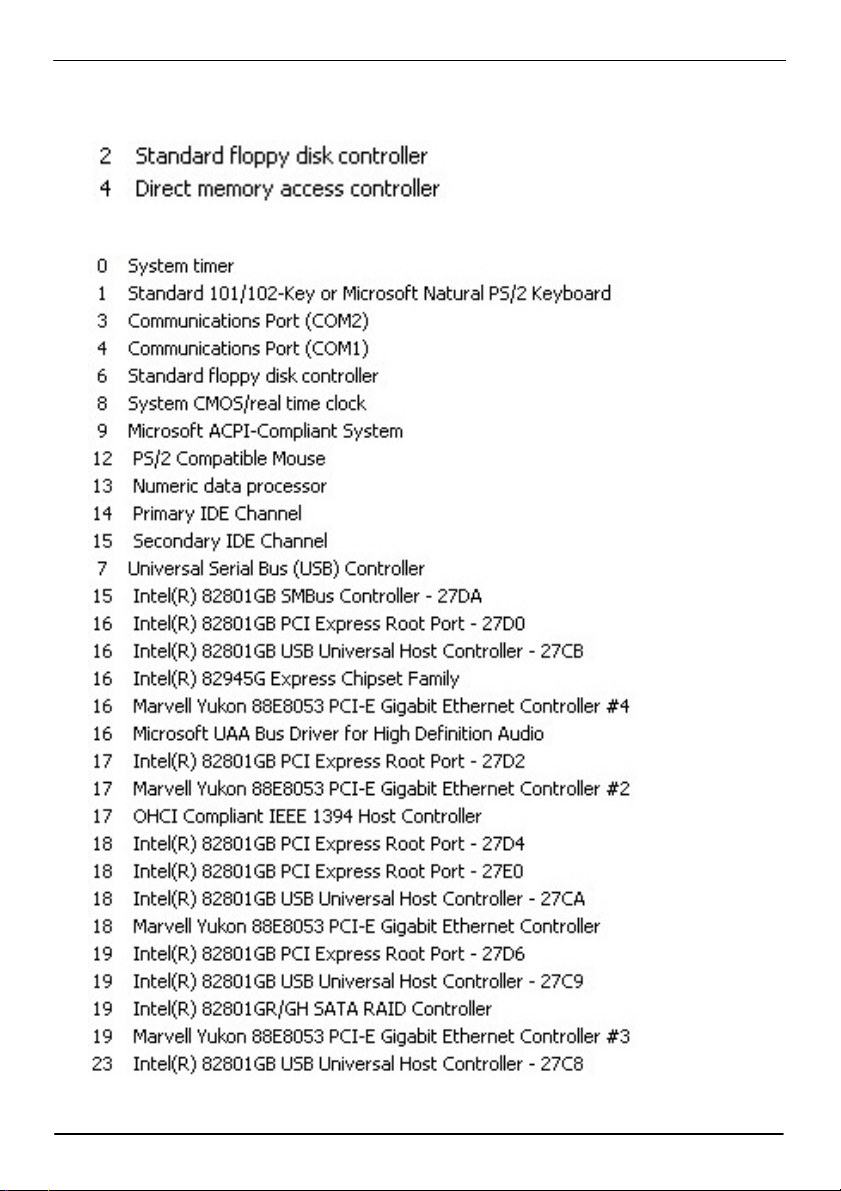

B3.<System IRQ & DMA Resources>
DMA :
IRQ :
I 57
Page 58
LV-674 User’s Manual System Resources
Appedix C <Flash BIOS>
C.1 BIOS Auto Flash Tool
The board is based on Award BIOS and can be updated easily by the BIOS auto flash
tool. You can download the tool online at the address below:
http://www.award.com
http://www.commell.com.tw/support/support.htm
File name of the tool is “awdflash.exe”, it’s the utility that can write the data into the BIOS
flash ship and update the BIOS.
C.2 Flash Method
1. Please make a bootable floppy disk.
2. Get the last .bin files you want to update and copy it into the disk.
3. Copy awardflash.exe to the disk.
4. Power on the system and flash the BIOS. (Example: C:/ awardflash XXX.bin)
5. Re-star the system.
Any question about the BIOS re-flash please contact your distributors or visit the
web-site at below:
http://www.commell.com.tw/support/support.htm
I/O Port Address Map 58
Page 59
LV-674 User’s Manual Hardware Test
Appendix D <Programming GPIO’s>
The GPIO’can be programmed with the MSDOS debug program using simple
IN/OUT commands.The following lines show an example how to do this.
GPIO0…..GPIO7 bit0……bit7
-o 2E 87 ;enter configuration
-o 2E 87
-o 2E 29
-o 2E 40 ;enale GPIO function
-o 2E 07
-o 2E 07 ;enable GPIO configuration
-o 2E F0
-o 2F xx ;set GPIO as input/output; set ‘1’ for input,’0’for
output
-o 2E F1
-o 2F xx ;if set GPIO’s as output,in this register its value can
be set
Optional :
-o 2E F2
-o 2F xx ; Data inversion register ; ‘1’ inverts the current valus
of the bits ,’0’ leaves them as they are
-o 2E 30
-o 2F 01 ; active GPIO’s
For further information ,please refer to Winbond W83627THF datasheet.
Programming GPIO’s 59
Page 60
LV-674 User’s Manual Contact Information
Comme
adema
dustria
Contact Information
Any advice or comment about our products and service, or anything
we can help you please don’t hesitate to contact with us. We will do
our best to support you for your products, projects and business.
Taiwan Commate Computer Inc.
Address
TEL +886-2-26963909
FAX +886-2-26963911
Website
E-Mail
ll is our tr
8F, No. 94, Sec. 1, Shin Tai Wu Rd., Shi Chih
Taipei Hsien, Taiwan
[email protected] (Technical Support)
rk of in
l PC division
Contact Information 60
Loading...
