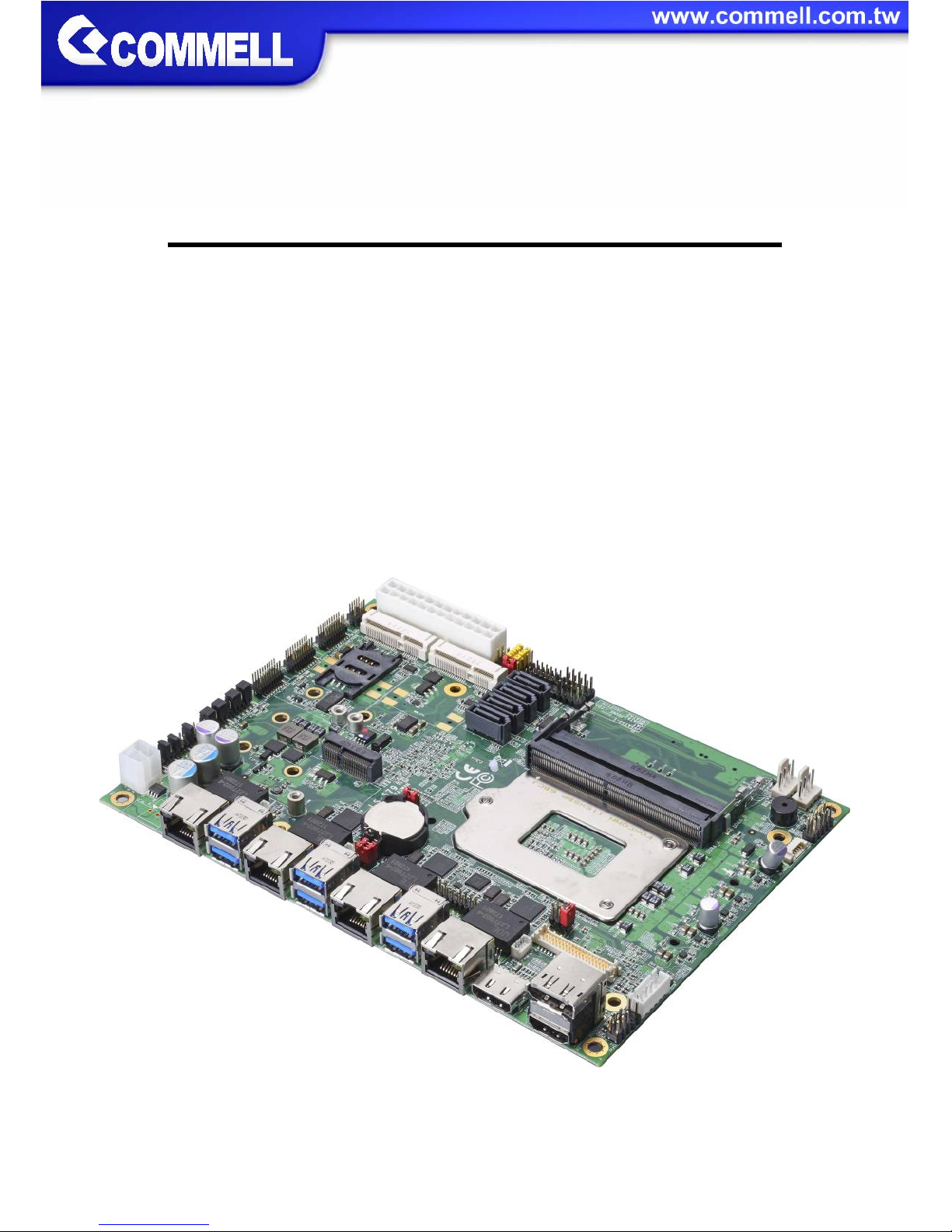

Commell LS-579 User Manual

LS-579

5.25’’ Desktop Miniboard

User’s Manual

Edition 1.1

2017/11/28

LS-579 User’s Manual

-1-

Copyright

Copyright 2017, all rights reserved. This document is copyrighted and all rights are reserved.
The information in this document is subject to change without prior notice to make
improvements to the products.
This document contains proprietary informati on and protected by copyright. No part of this
document may be reproduced, copied, or translated in any f orm or a ny means without prior
written permission of the manufacturer.
All trademarks and/or registered trademarks contains in this docume nt are property of their
respective owners.

Disclaimer

The company shall not be liable for any incidenta l or cons equenti al dam ages resultin g from
the performance or use of this product.
The company does not issue a warrant y of any kind, express or implied, including without
limitation implied warranties of merchantability or fitness for a particular purpose.
The company has the right to revise the manual or inc lude changes in the specific ations of
the product described within it at any time without notice and without obligation to notify any
person of such revision or changes.

Trademark

All trademarks are the property of their respective holders.

Any questions please visit our website at TUhttp://www.commell.com.twUT

LS-579 User’s Manual

-2-

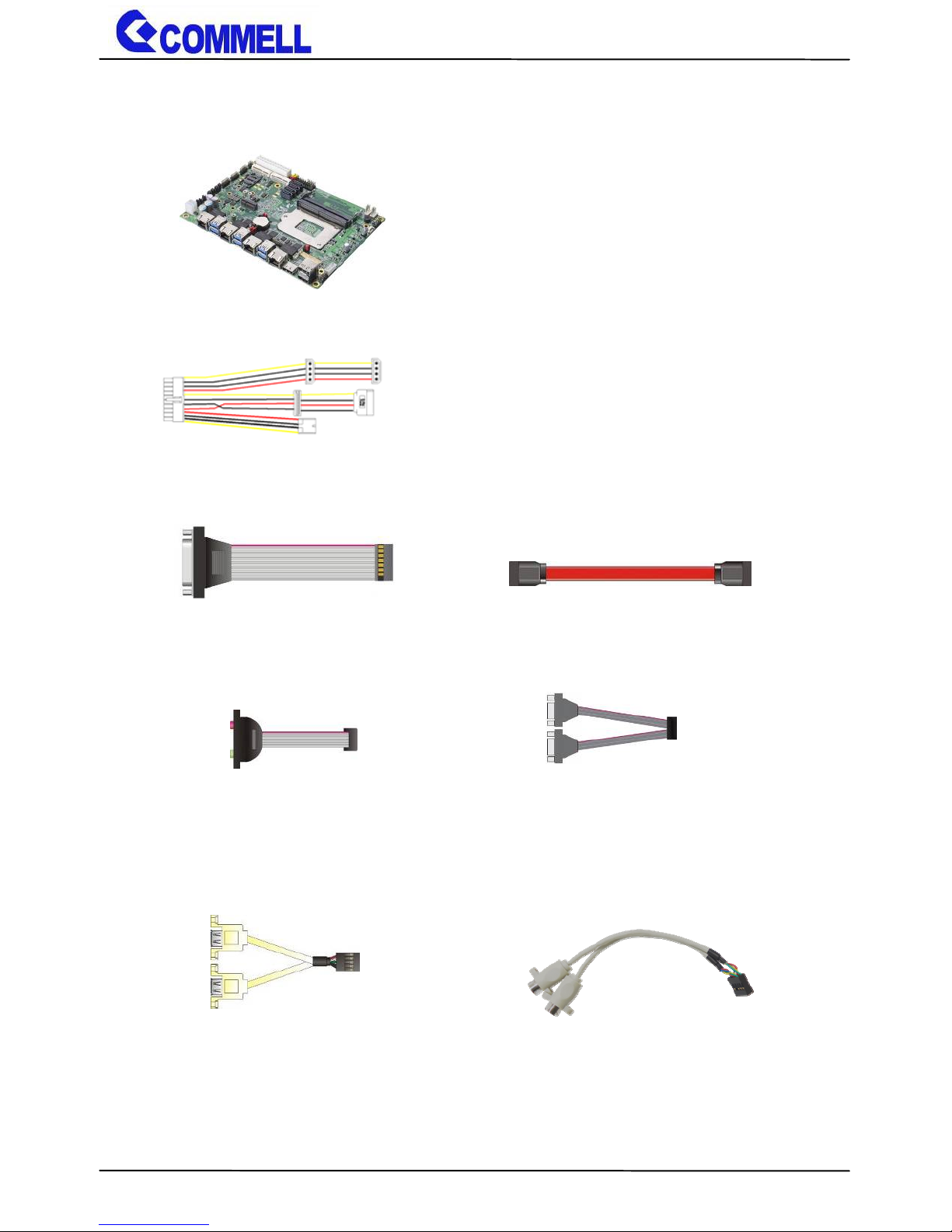

Packing List:

Please check the package content before you starting using the board.

Optional:

Printed Matters:

Driver CD (Including User’s Manual) x 1

2 x SATA Cable

(OALSATA3-L / 1040529)

1 x Power Cable

(OALATX-P3S2 / 1040058)

1 x USB2.0 cable

(OALUSBA-3) / (1040173)

1 x Dual COM cable

(OALES-BKU2NB / 1040090)

1 x Audio cable

(OALPJ-HDUNB / 1040123)

1 x PS/2 Keyboard & Mouse cable

(OALPS2/KM / 1040131)

1 x VGA Cable

(OALVGA-SNB-7) / (1040557)

1 x LS-579 5.25’’ Desktop Miniboard

(include Heat sink)

LS-579 User’s Manual

-3-

Index

Chapter 1 <Introduction> .................................................................4

1.1 <Product Overview>............................................................4

1.2 <Product Specification> ......................................................5

1.3 <Block Diagram>.................................................................6

Chapter 2 <Hardware setup>...........................................................7

2.1 <Connector Location and Reference> ................................7

2.1.1 <Internal connectors list>..........................................8

2.1.2 <External connectors list>.........................................8

2.2 <CPU and Memory Setup>.................................................9

2.2.1 <CPU installation>....................................................9

2.2.2 <Memory Setup> ....................................................10

2.3 <Jumper Location and Reference>...................................11

2.3.1 <Jumper list> ..........................................................11

2.3.2 <Clear CMOS and Power on type selection>..........12

2.4 <I/O interface> ..................................................................12

2.4.1 <Serial ATA interface>.............................................12

2.4.2 <Ethernet interface> ...............................................13

2.4.3 < Power Sourcing Equipment > ..............................13

2.4.4 <Display interface> .................................................14

2.4.5 <Serial Port interface> ............................................16

2.4.6 <USB interface>......................................................19

2.4.7 <Audio interface>....................................................20

2.4.8 <Expansion slot> ....................................................21

2.4.8.1 < M.2 interface >..................................................22

2.4.8.2 < MINI_CARD Setting >.......................................22

2.4.8.3 < SIMM Setup>....................................................22

2.4.9 <Front panel switch and indicator>.........................23

2.4.10 <GPIO and Other interface>.................................23

2.5 <Power supply> ................................................................26

2.5.1 <Power input>.........................................................26

Appendix A <Flash BIOS>..............................................................28

Appendix B <LCD Panel Type select> ...........................................28

Appendix C <Programmable Watch Dog Timer> ...........................30

Appendix D <Hardware monitor >..................................................31

Appendix E <Programmable GPIO >.............................................32

Appendix F <RAID Setting>...........................................................33

Appendix G < Setup ADP-3355,ADP-3460 >.................................34

Contact information........................................................................34

LS-579 User’s Manual

-4-

Chapter 1 <Introduction>

1.1 <Product Overview>

LS-579 is 5.25’’ Desktop Miniboard which supports 6th &

7th Generation Intel® Core™ i7/
i5/ i3, S-series and Xeon® Processor with Intel® C236 Chipset, integrated HD Graphics ,
DDR4 memory, Realtek High Definition Audio, Intel Gigabit LAN, Serial ATA3

Intel Skylake-S & Kabylake-S Processor with Intel® C236 Chipset

The 6th & 7th Intel® Core™ S-series and Xeon® processor family is new generation an d
multi-core processor built on 14 nanometer process.

It provide new HD Graphics support triple displays at the same time, maximum supported is
up to 32GB of DDR4, better performance, flexibility and more enhanced security that is

suitable for a variety of intelligent systems the ideal choice.

Flexible Expansion Interface

It includes 2 x MiniPCIe slot, SIM, 2 x M.2 (Key M), M.2 (KeyE)

Skylake & Kabylake remove EHCI, all USB ports are xHCI

When you install Windows7 with USB device(CDROM, Keyboard, Mouse...), Windows7 can
not identify your usb device. You can use SATA CD-ROM and PS/2 to install Windows7.

*PS/2 cable is optioal.

Kaby Lake(7th gen CPU) only support Windows10 64bit

Intel only support Windows 10 64bit. It may lose some drivers if you use other Windo ws
version.

LS-579 User’s Manual

-5-

1.2 <Product Specification>

System

Processor

Intel® 6th & 7th Core™ i7/ i5/ i3 and Xeon® E3-1200 v5/ v6 Processor,
FCLGA1151 package

Chipset Intel® C236 PCH

Memory

2 x DDR4 DIMM 1866/2133 MHz up to 32GB, Support Non-ECC,
unbuffered memory only

(Xeon® E3-1200 v5 / v6 Product support ECC memory)

Watchdog Timer Generates a system reset with internal timer for 1min/s ~ 255min/s
Real Time Clock Chipset integrated RTC with onboard lithium battery

Expansion

2 x M.2 (Key M) for NVMe 2242/2260/2280mm
1 x M.2 (Key E) for Wi-Fi and Bluetooth 2230mm
2 x MiniPCIe (support mSATA)
1 x Sim slot

Graphics

Processor

Intel® 9th Gen integrated HD Graphics

(Some Xeon® E3-1200 v5/ v6 Product CPU not support)

Display Interface 1 x DisplayPort, 2 x HDMI, 1 x VGA, 1 x LVDS

LAN

Chip

1 x Intel® I219-LM Gigabit PHY LAN
3 x Intel® I210-AT Gigabit LAN

I/O

Serial A TA 4 x SATA3 interface with 600MB/s transfer rate
Audio Realtek ALC262 HD Audio
Internal I/O 4 x SATA3, 2 x RS232/422/485, 4 x RS232, 4 x USB2.0,

1 x LPC, 1 x GPIO, 1 x PS/2, 1 x SMBUS, 1 x Audio,
1 x LVDS, 1 x LCD inverter, 1 x VGA

Rear I/O 6 x USB3.0, 4 x LAN

2 x HDMI, 1 x Display Port,

Mechanical & Environmental

Power Requirement Standard 24-pin ATX power supply or 4-pin DC 9~35V
Size & Thickness 203mm x 146mm (L x W)
Temperature Operating within 0°C~60°C (32°F~140°F)

Storage within -20°C~80°C (-4°F~176°F)

Relative Humidity 10%~90%, non-condensing

LS-579 User’s Manual

-6-

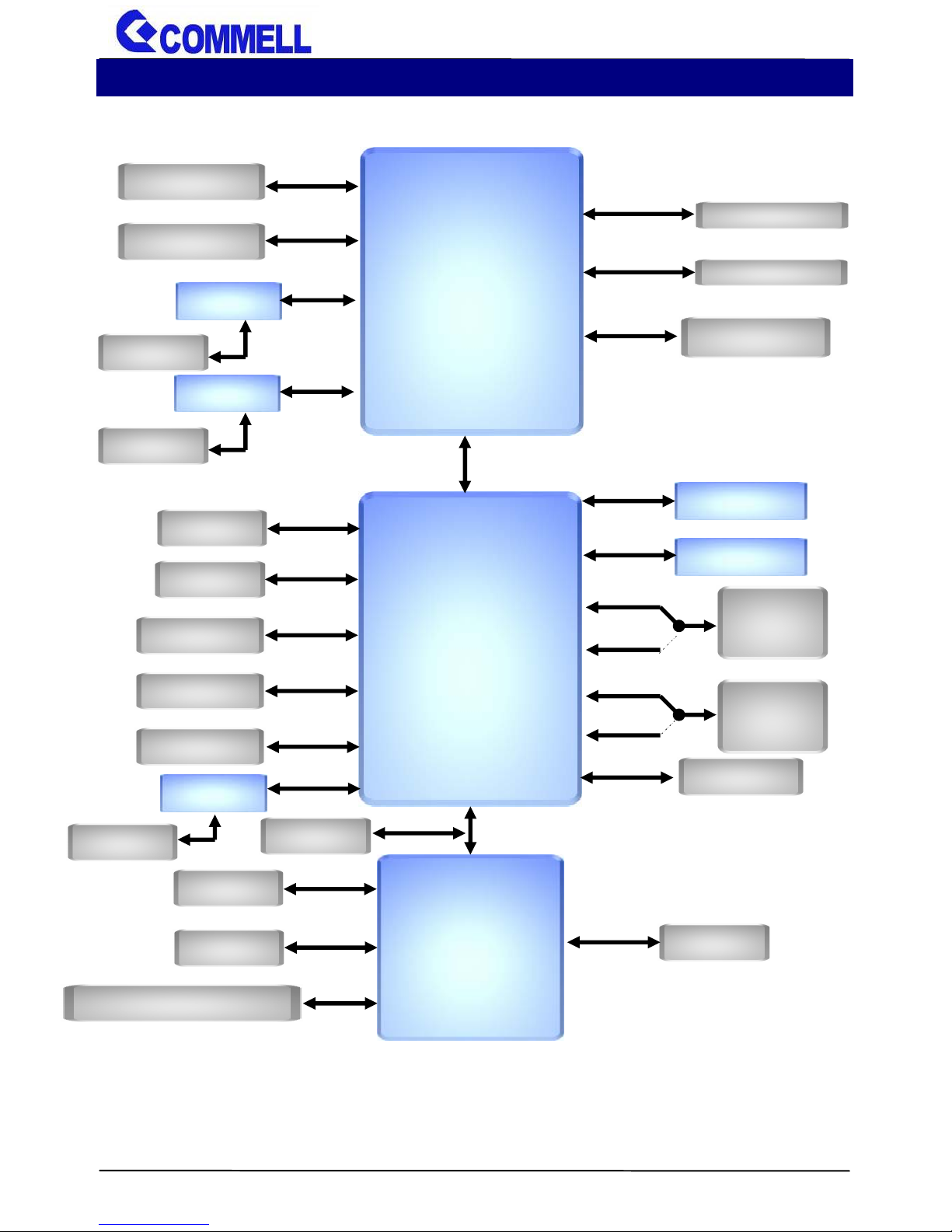

1.3 <Block Diagram>

CPU

6th & 7th

Gen Processor

C236

PCH

1 x DisplayPort

PTN3460

1 x LVDS

SIO

NCT6106D

Channel A

eDP

eDP

4 x SATA3

SATA3

6 x USB3.0

4 x USB2.0

USB3.0

USB2.0

SPI Flash

SPI

PCIe x3

1 x I219-LM

PCIe x2

PCIe x1

SATA3

LPC

1 x LPC

4 x RS232

1 x SMBUS

MiniPCIe

/ mSATA

2 x RS232/RS422/RS485

SMBus

1 x VGA

2 x HDMI

DDI

DDI

DDR4 DIMM 1.2V

Channel B

1 x GPIO

MiniPCIe

/ mSATA

1 x PS/2

SATA3

PCIe x1

PTN3355

DMI GEN3

DDR4 DIMM 1.2V

PCIe x1

3 x I210-AT

PEG

2 x M.2 (Key M)

HDA

ALC262

HD Audio

M.2 (Key E)

LS-579 User’s Manual

-7-

Chapter 2 <Hardware setup>

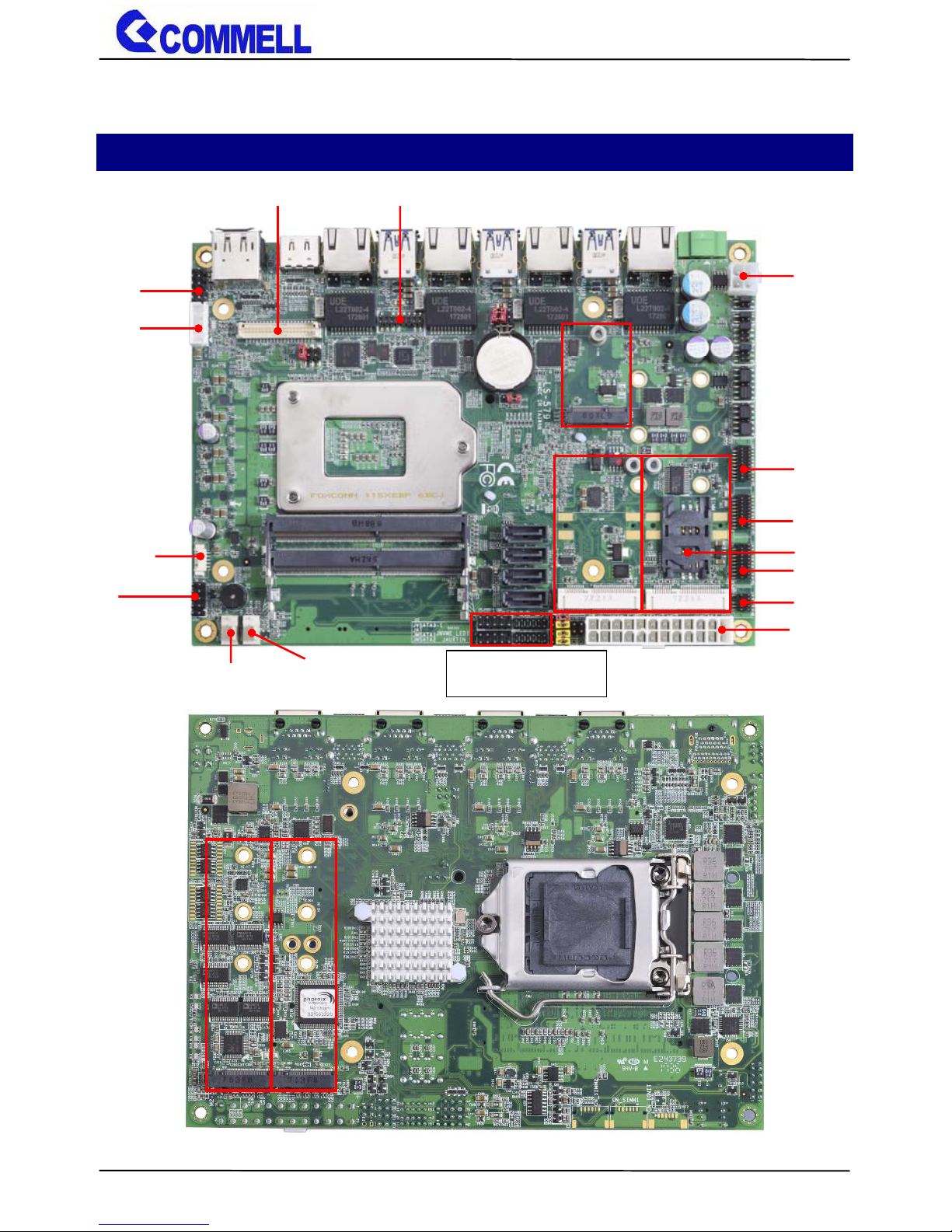

2.1 <Connector Location and Reference>

MINI_CARD1

CN_PS2

CN _INV

CN_SMBUS

JFRNT

DC_4P

CN_COM1/2

CN_COM3/4
SIMM

CN_COM5/6
CN_AUDIO

ATX

MINI_CARD2

M2-1

DDR4_A

DDR4_B

SYSFAN

CN_LVDS

SATA3-4
SATA3-3
SATA3-2
SATA3-1

CN_CRT

CPUFAN

M2-2

M2-3

CN_USB2-1 CN_LPC
CN_USB2-1 CN_DIO

LS-579 User’s Manual

-8-

2.1.1 <Internal connectors list>

Connector Function

DDR4_A/B 260-pin DDR4 SO-DIMM slot
SATA3-1/2/3/4 7-pin Serial ATA3 connector
CN_AUDIO 5 x 2-pin audio pin header
CN_LPC 6 x 2-pin LPC pin header
CN_LVDS 20 x 2-pin LVDS connector
CN_INV 5-pin LCD inverter connector
CN_SMBUS 5-pin SMBus connector
CN_COM1/2, 3/4/, 5/6 20-pin RS232 connector
CN_USB 2-1/2-2 5 x 2-pin USB2.0 pin header
CN_PS2 5 x 2-pin PS/2 pin header
CN_DIO 6 x 2-pin digital I/O connector
CN_CRT 16-pin VGA connector
CPUFAN 4-pin CPU fan connector
SYSFAN 4-pin system fan connector
JFRNT 14-pin front panel switch/indicator connector
MINI_CARD1 52-pin Half-MiniPCIe card slot
MINI_CARD2 52-pin MiniPCIe card slot
M2-1 75-pin M.2 Key E slot
M2-2/3 75-pin M.2 Key M slot
ATX 24-pin power supply connector
DC_4P 4-pin power input Terminal Block
SIMM 6-pin socket

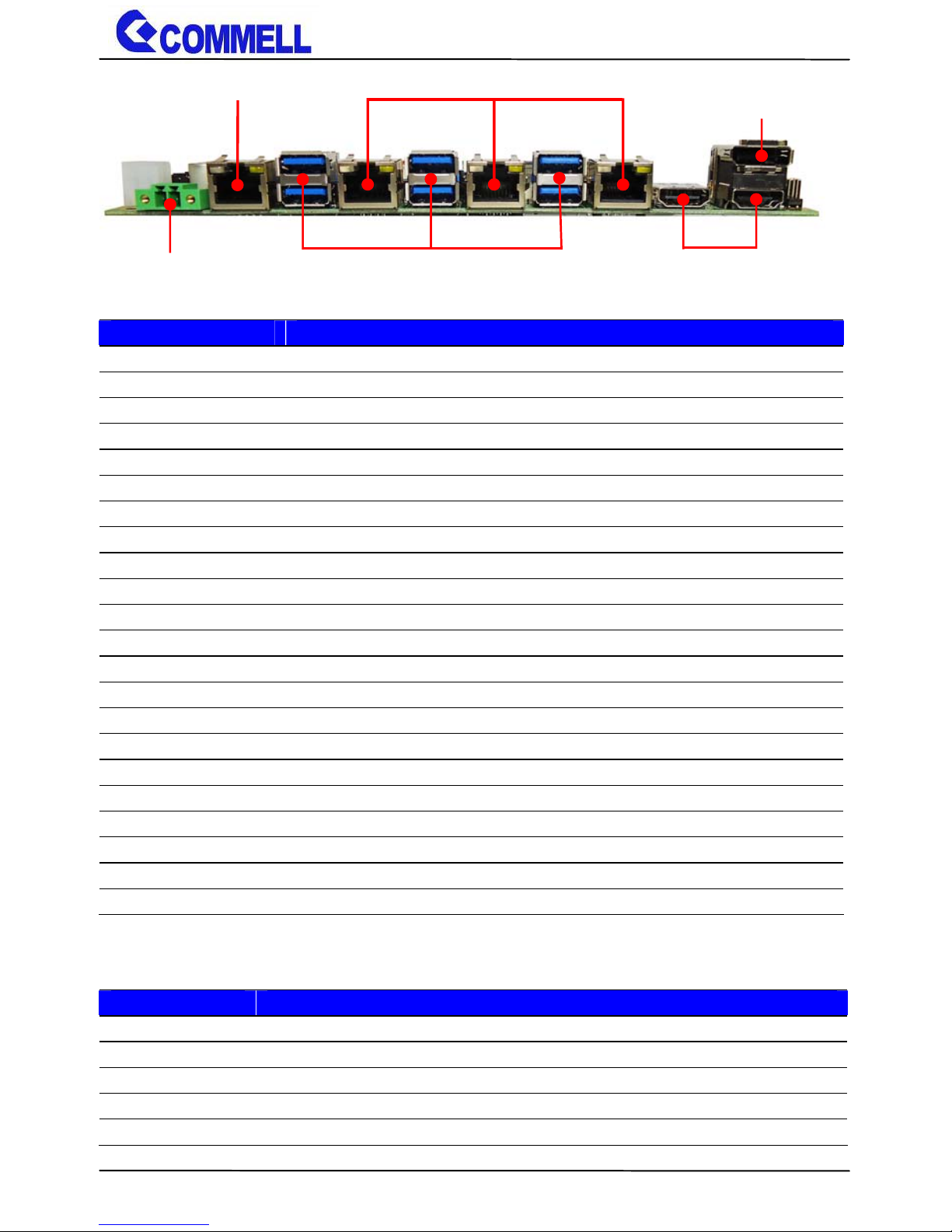

2.1.2 <External connectors list>

Connector Function

DisplayPort DisplayPort connector
HDMI HDMI connector
USB3.0 USB3.0 connector
LAN RJ45 connector
DC_2P 2-pin power input Terminal Block

DC_2P

HDMI

DisplayPort

LAN1

LAN2

LAN3

LAN4

I210-AT

I219-LM

USB3.0

LS-579 User’s Manual

-9-

2.2 <CPU and Memory Setup>

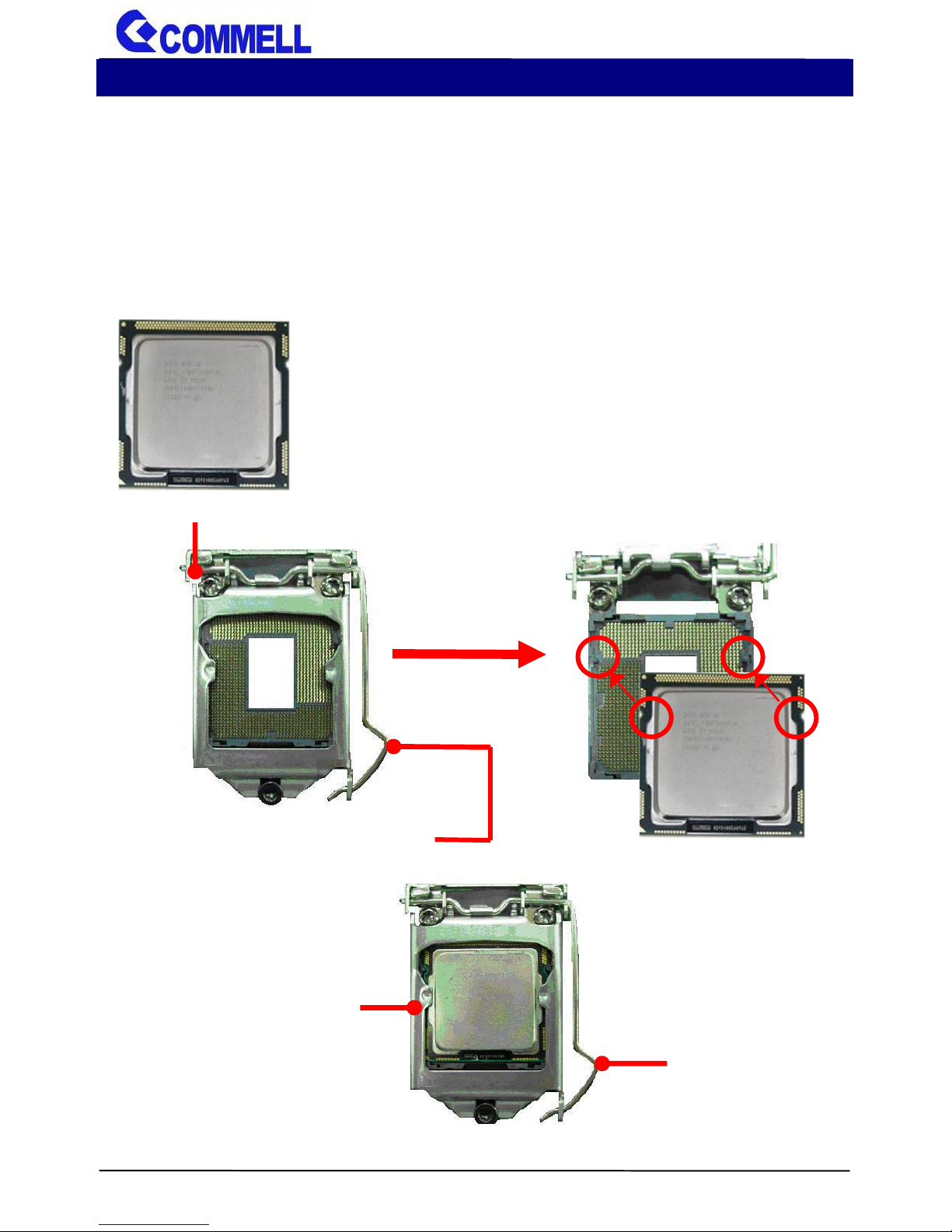

2.2.1 <CPU installation>

LS-579 has a LGA1151 CPU socket onboard; please check following steps to install the

processor properly.

Attention If LS-579 need RMA please Keep CPU socket cover on the CPU Socket.
Warning If CPU Socket internal Pin damage We could not provide warranty.

1. Lift this bar

2. Uncover this plate

Intel® 6th & 7th Core™ i7/ i5/ i3 and Xeon® E3-1200
v5/ v6 Processor, FCLGA1151 package

Checked point

3. Place the CPU on the top of the pins

4. Cover this plate

5. Lock this bar

LS-579 User’s Manual

-10-

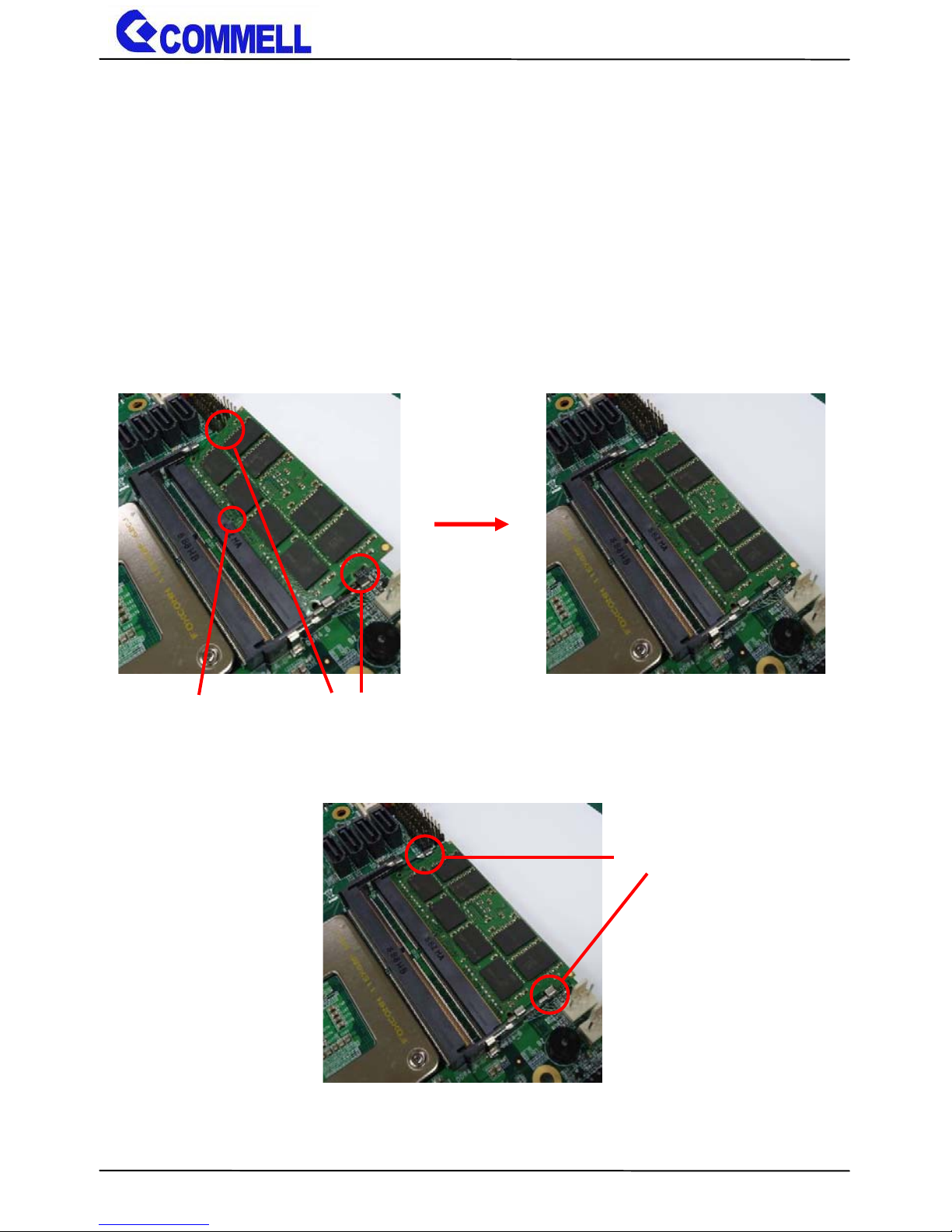

2.2.2 <Memory Setup>

LS-579 has two 260-pin DDR4 SO-DIMM support up to 32GB of memory capacity and 1.2

Voltage. The memory frequency supports 1866/2133 MHz. Only Non-ECC memory is
supported. (Xeon® E3-1200 v5 / v6 Product support ECC memory)

In the process, the board must be powered off.

1. Put the memory tilt into the slot. Note the Memory notch key aligned slot key.

2. Then press down till lock into the mounting notch.

3. To remove the memory, push outward on both sides of the latch.

Key

Mounting notch

Press down

Latch

LS-579 User’s Manual

-11-

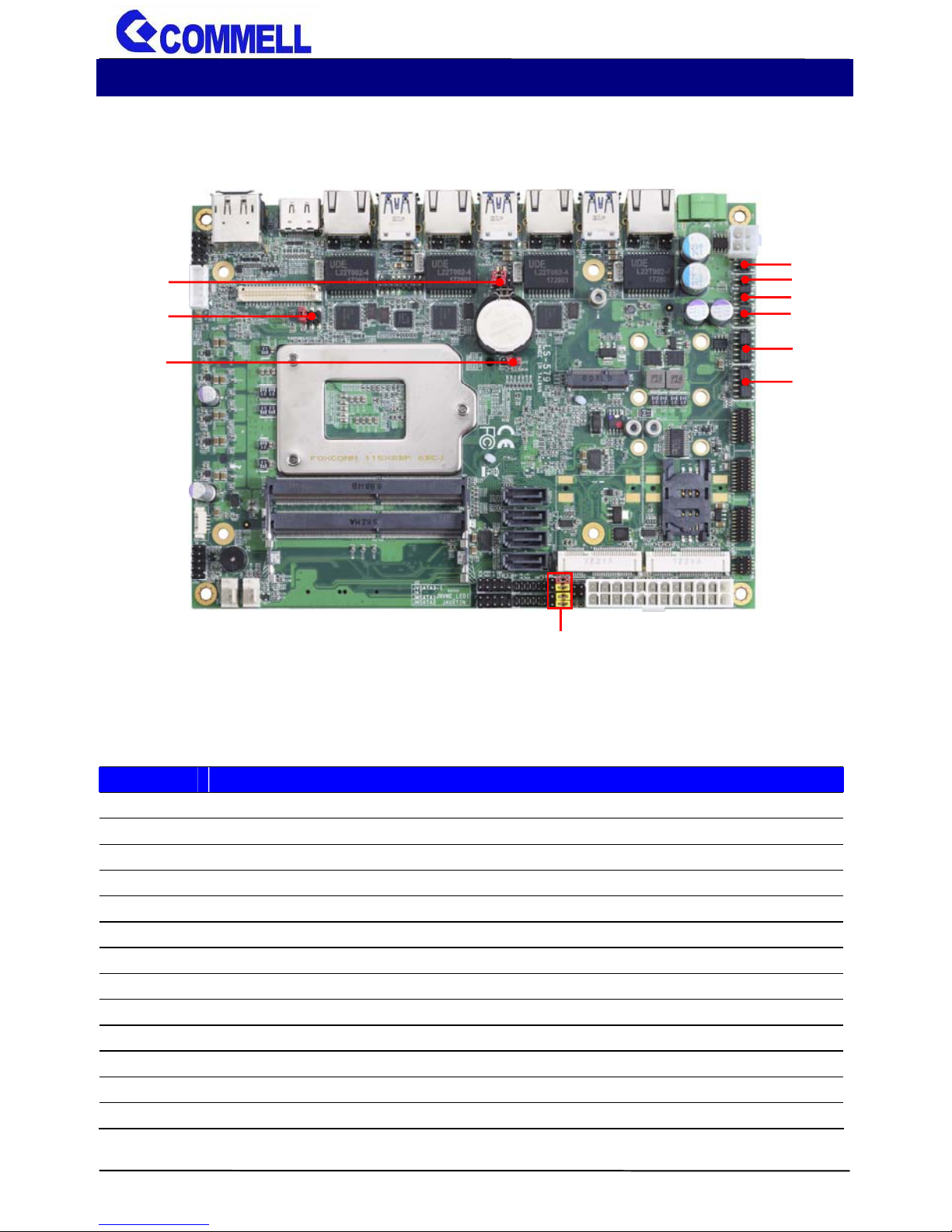

2.3 <Jumper Location and Reference>

2.3.1 <Jumper list>

Jumper Function

JAT Power mode select
JRTC CMOS Normal/Clear Setting
JVLCD Panel Voltage Setting
JMSATA1 MiniCard 1 MSATA Setting
JMSATA2 MiniCard 2 MSATA Setting
JP1 COM1 Voltage Setting (For Pin 9)
JP2 COM2 Voltage Setting (For Pin 9)
JCSEL11 COM1 RS-232 RS422 RS485 Setting
JCSEL21 COM2 RS-232 RS422 RS485 Setting
JCSEL12 COM1 RS-232 RS422 RS485 Setting
JCSEL22 COM2 RS-232 RS422 RS485 Setting
JVSATA3-1 Set 5V to SATA3-1 pin 7 (For SATADOM)
JVUSB USB Voltage Setting

JCSEL11
JCSEL21
JP1
JP2

JCSEL12
JCSEL22

JVUSB
JVLCD

JRTC

JVSATA3-1
JAT
JMSATA1
JMSATA2

LS-579 User’s Manual

-12-

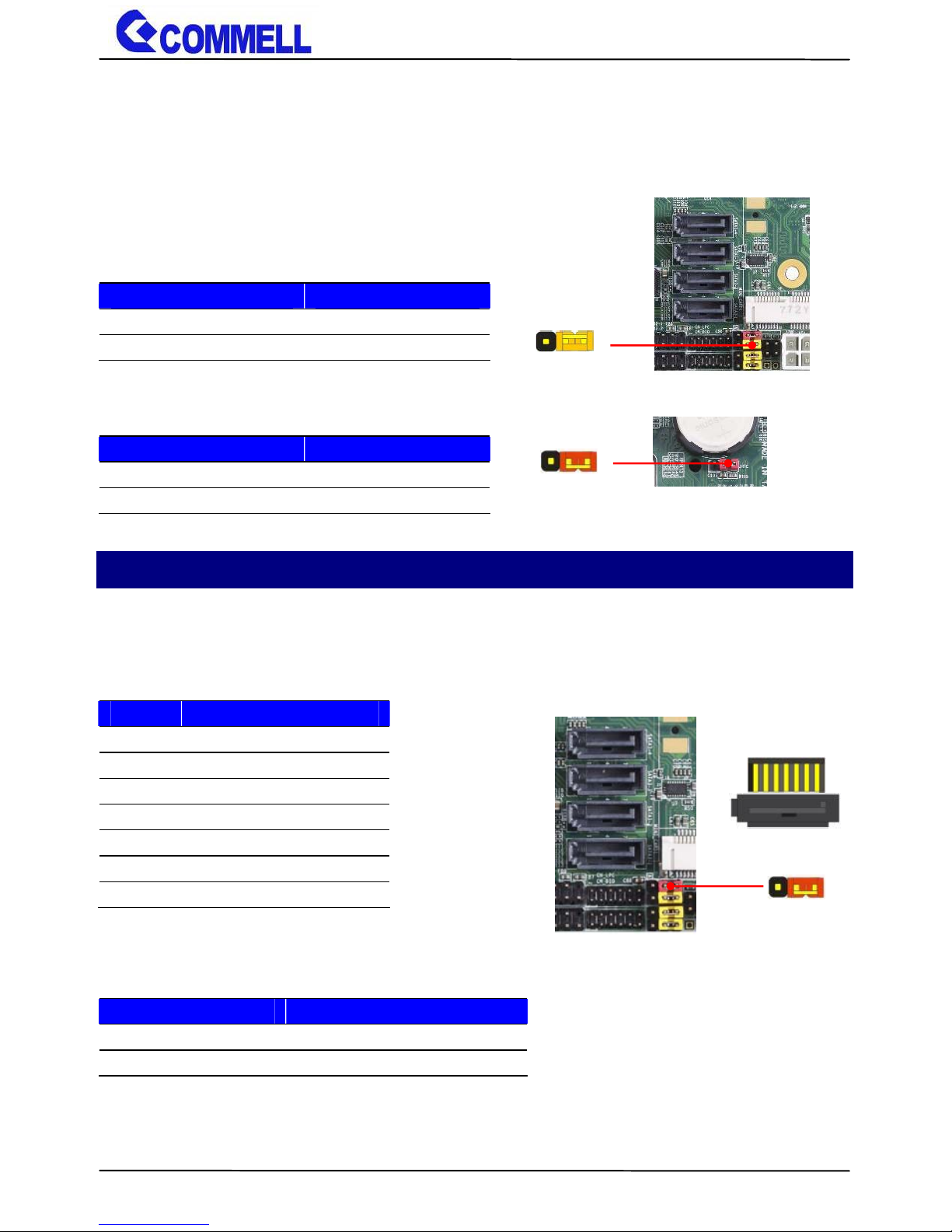

2.3.2 <Clear CMOS and Power on type selection>

The board’s data of CMOS can be setting in BIOS. If the board refuses to boot due to
inappropriate CMOS settings, here is how to proceed to clear (reset) the CMOS to its
default values.

JAT: AT/ATX mode select jumper

Jumper settings Function

1-2 AT mode
2-3 AT X mode (Default)

JRTC: Clear CMOS data jumper

2.4 <I/O interface>

2.4.1 <Serial ATA interface>

SATA3-1/2/3/4: SATA3 7-pin connector

JVSATA3-1: SAT A3/SATADOM mode select jumper (change pin7 to 5V)

Jumper settings Function

1-2 SATA3-2 SATADOM
2-3 SATA3-2 SATA3 (Default)

Jumper settings Function

1-2 Clear CMOS
2-3 Normal (Default)

Pin Signal

1 GND
2 TX+
3 TX-
4 GND
5 RX-
6 RX+
7 GND

SATA3-4
SATA3-3
SATA3-2
SATA3-1

JRTC

13

JVSATA3-1

1

3

1 3

JAT

1 7

LS-579 User’s Manual

-13-

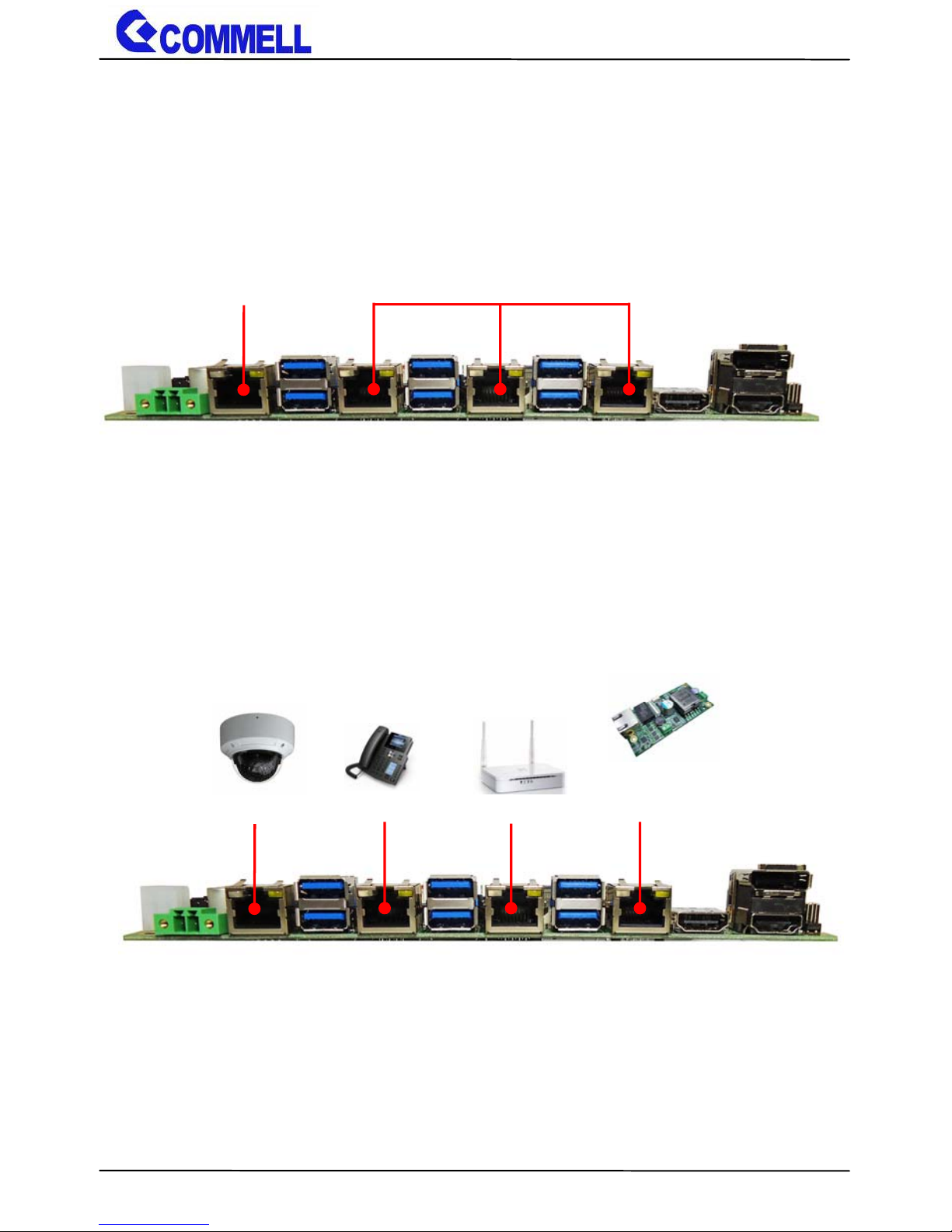

2.4.2 <Ethernet interface>

The board provide I219-LM PHY Gigabit Ethernet and I210-AT Gigabit Ethernet on
rear I/O.Intel I219-LM and I210 supports operation at 10/100/1000

Mb/s data rates,

with IEEE802.3 compliance and Wa ke-On-LAN supported.

2.4.3 < Power Sourcing Equipment >

With ADP-PSE4 support four independe nt PSE function capable of delivering up to
90W.

LAN1

LAN2

LAN3

LAN4

I210-AT

I219-LM

IP Camera

IP Phone

PoE Access Point

DC-PD Module

(COMMELL)

LS-579 User’s Manual

-14-

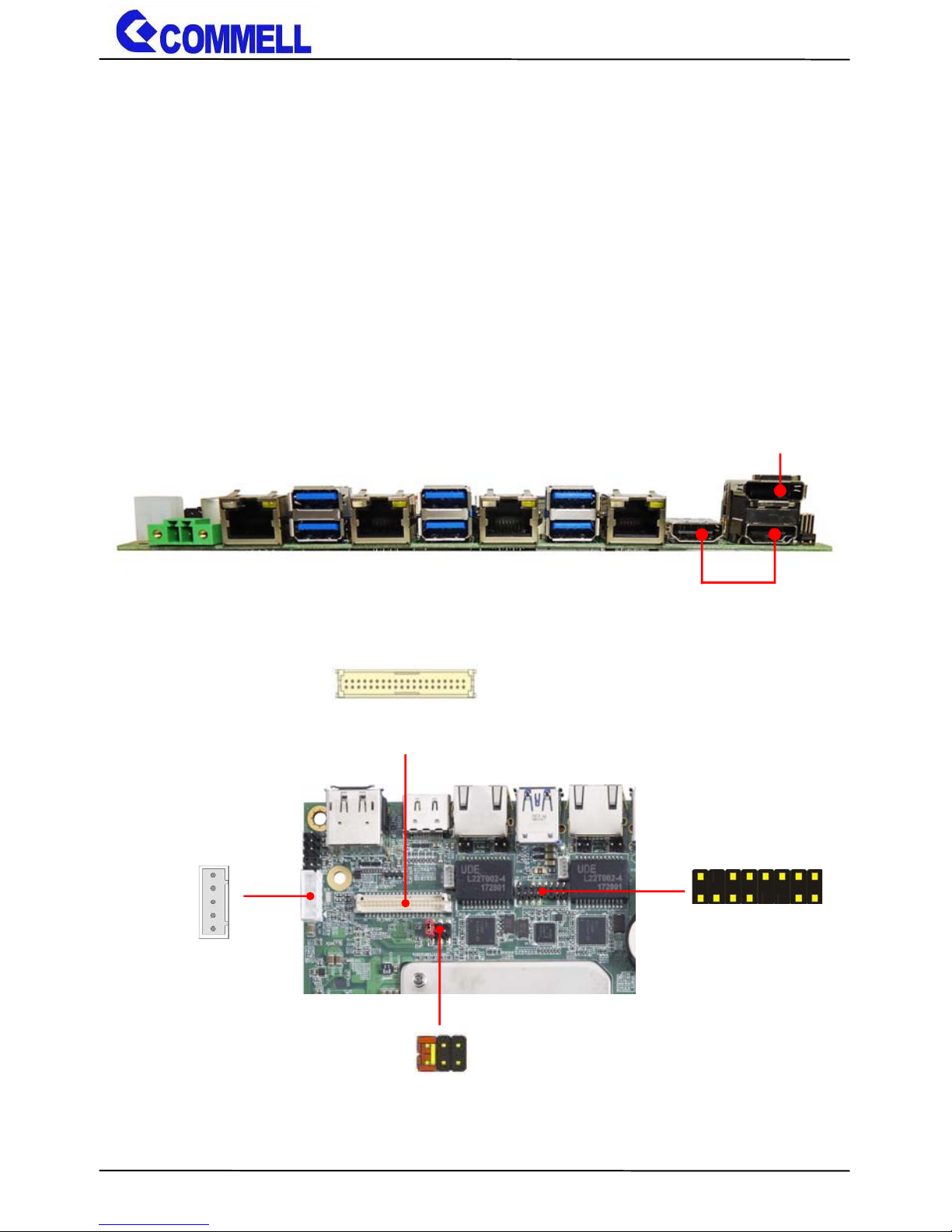

2.4.4 <Display interface>

Based on the 6th & 7th Gen CPU with built-in HD Graphics 530, VGA up to

1920x1080@60Hz, DisplayPort up to 4096x2304@60Hz , HDMI up to
4096x2304@24Hz on rear IO. About the internal Display, LVDS (PTN3460) up to
1920x1200@60Hz support 18/24-bit color depth and single/dual channel. About

select LCD Panel Type in BIOS, please refer Appendix B.

The built-in HD Graphics support triple display function with clone mode and
extended mode.

HDMI

DisplayPort

JVLCD

CN_LVDS

40

2

39

1

26

15

CN_CRT

15

16

2

1

CN_INV

1

5

LS-579 User’s Manual

-15-

CN_CRT: VGA 16-pin connector (Pitch 2.00 mm)

Pin Signal Pin Signal

1 BR 2 BG
3 BB 4 NC
5 IOGND1 6 IOGND1
7 IOGND1 8 IOGND1

9 NC 10 IOGND1
11 NC 12 5VCDA
13 5HSYNC 14 5VSYNC
15 5VCLK 16 NC

CN_LVDS: LVDS 40-pin connector (

Model: HIROSE DF13-40DP-1.25V compatible)

Pin Signal Pin Signal

2 Set by JVLCD 1 Set by JVLCD
4 Detect (Active low) 3 GND
6 A_LVDS_0- 5 B_LVDS_0-

8 A_LVDS_0+ 7 B_LVDS_0+
10 GND 9 GND
12 A_LVDS_1- 11 B_LVDS_1-
14 A_LVDS_1+ 13 B_LVDS_1+
16 GND 15 GND
18 A_LVDS_2- 17 B_LVDS_2-
20 A_LVDS_2+ 19 B_LVDS_2+
22 GND 21 GND
24 A_LVDS_CLK- 23 B_LVDS_3-
26 A_LVDS_CLK+ 25 B_LVDS_3+
28 GND 27 GND
30 A_LVDS_3- 29 B_LVDS_CLK-
32 A_LVDS_3+ 31 B_LVDS_CLK+
34 GND 33 GND
36 LVDS_DDCSCL 35 NC
38 LVDS_DDCSDA 37 NC
40 NC 39 NC

Pin4 only need to be connected to GND

LS-579 User’s Manual

-16-

CN_INV: LVDS 5-pin Backlight power connector

Pin Signal

1 12V

2 Backlight Control

3 GND

4 GND

5 Enable Backlight

JVLCD: LVDS panel power select jumper

Jumper settings Function

1-2 3.3V (Default)
3-4 5V
5-6 12V

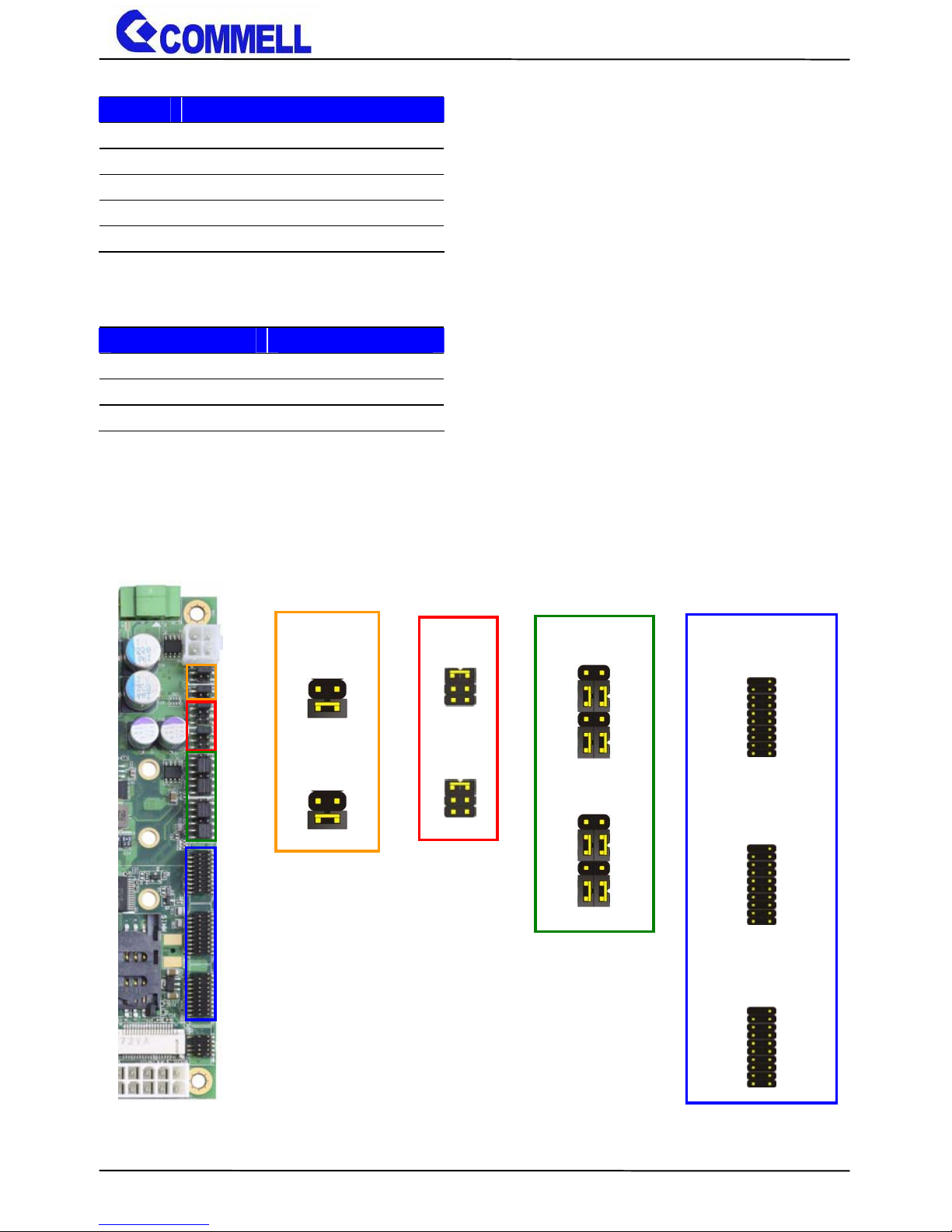

2.4.5 <Serial Port interface>

JCSEL11

2 1

4 3

JCSEL21

2 1

4 3

2 1

JP2

6 5

2 1

JP1

6 5

JCSEL22

2 1

12 11

JCSEL12

2 1

12 11

CN_COM3/4

12

1920

CN_COM5/6

12

20 19

CN_COM1/2

12

1920

LS-579 User’s Manual

-17-

COM1/2: RS232/422/485 20-pin header (Pitch 1.27mm x 2.54mm)

Pin Signal Pin Signal

1 DCD/ 422TX-/ 485- 2 RXD/ 422TX+/ 485+
3 TXD/ 422RX+ 4 DTR/ 422RX-
5 GND 6 DSR
7 RTS 8 CTS
9 Set by JP2 10 N/C

11 DCD/ 422TX-/ 485- 12 RXD/ 422TX+/ 485+
13 TXD/ 422RX+ 14 DTR/ 422RX-
15 GND 16 DSR
17 RTS 18 CTS
19 Set by JP1 20 N/C

Note: COM1 Use JCSEL12 select communication mode.

COM2 Use JCSEL22 select communication mode.

COM3/4: COM 20-pin header (Pitch 2.54 x 1.27mm)

Pin Signal Pin Signal

1 DCD1 2 RXD1
3 TXD1 4 DTR1
5 GND 6 DSR1
7 RTS1 8 CTS1

9 RI1 10 NC
11 DCD2 12 RXD2
13 TXD2 14 DTR2
15 GND 16 DSR2
17 RTS2 18 CTS2
19 RI2 20 Key

COM5/6: COM 20-pin header (Pitch 2.54 x 1.27mm)

Pin Signal Pin Signal

1 DCD1 2 RXD1

3 TXD1 4 DTR1

5 GND 6 DSR1

7 RTS1 8 CTS1

9 RI1 10 NC
11 DCD2 12 RXD2
13 TXD2 14 DTR2
15 GND 16 DSR2
17 RTS2 18 CTS2
19 RI2 20 Key

LS-579 User’s Manual

-18-

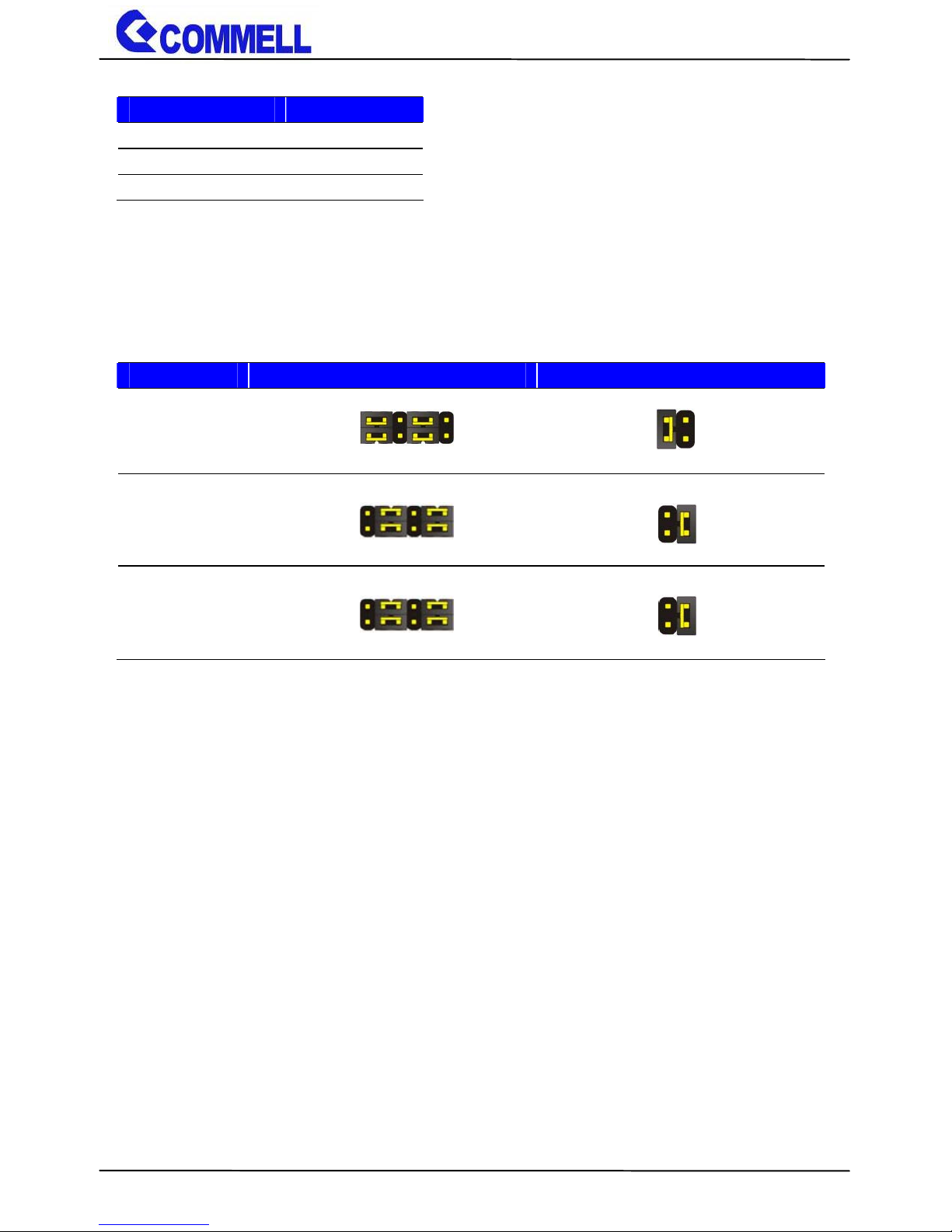

JP1, JP2: COM1, COM2 pin-9 setting

Jumper settings Function

1-2 5V
3-4 12V
5-6 RI (Default)

Effective patterns of connection: 1-2 / 3-4 / 5-6
Other may cause damage

JCSEL12/22, JCSEL11/21: For configure COM1 &COM2 communication mode

Function JCSEL12/ JCSEL22 JCSEL11/ JCSEL21

RS232

(Default)

RS485

RS422

RS-485
Com1 RTX-Data- : short Pin1& Pin4
Com1 RTX+ Data+ : short Pin2& Pin3
Com2 RTX- Data- : short Pin1& Pin4
Com2 RTX+ Data+ : short Pin2& Pin3

Note:
The RS-422/485 can optionally isolate transceiver, default wasn’t supported isolate.

1

12

1

12

1

12

2

11

2

11

2

11

2

3

1

4

2

3

1

4

2

3

1

4

LS-579 User’s Manual

-19-

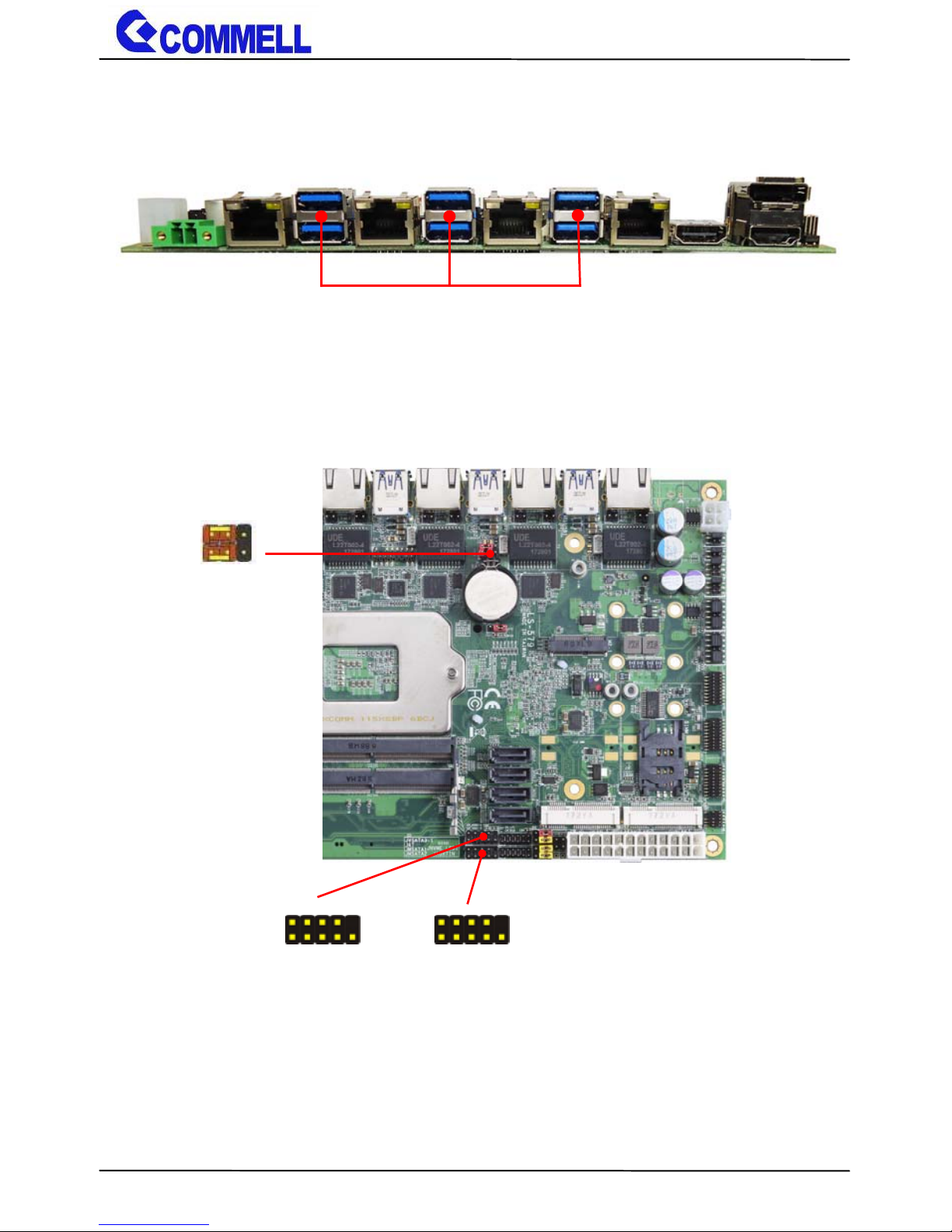

2.4.6 <USB interface>

CN_USB2-1

1

2

9

10

1 5

2 6

JVUSB

CN_USB2-2

1

2

9

10

USB3.0

USB1

USB2

USB3

LS-579 User’s Manual

-20-

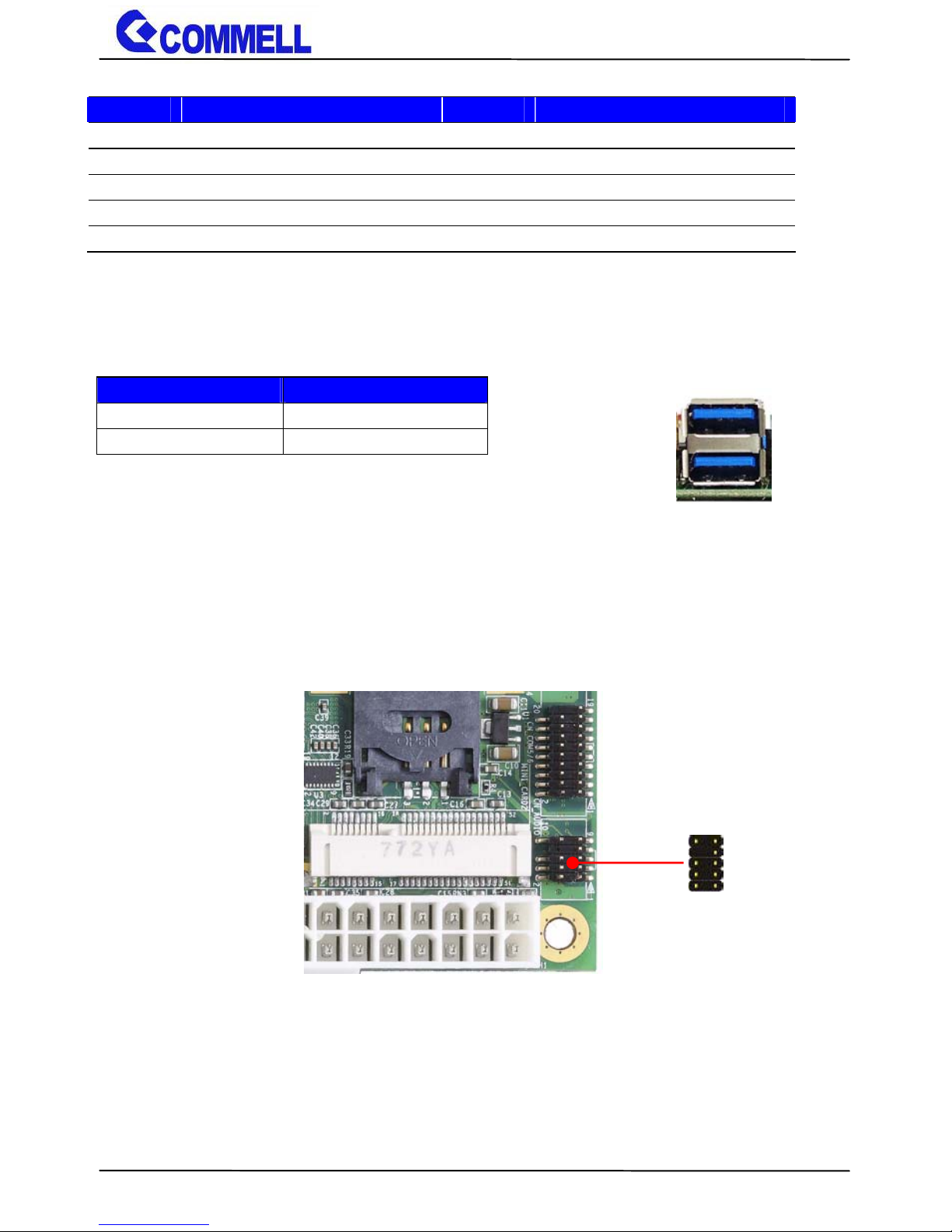

CN_USB 2-1/2-2: USB2.0 10-pin header (Pitch 2.54 mm)

Pin Signal Pin Signal

1 5VSB 2 5VSB
3 DATA0- 4 DATA1-
5 DATA0+ 6 DAT A1+
7 GND 8 GND
9 GND 10 Key

Install USB3.0 Driver If you want to use CN_USB 2-1/2-2 in Windows7.

JVUSB: 6-pin Power select jumper

Effective patterns of connection: 1-3 & 2-4 or 3-5 & 4-6

JVUSB can control USB2(UP) and USB2(Down) power

USB1 & USB3 have 5V_SB

2.4.7 <Audio interface>

Pin Description

1-3 & 2-4 5V_SB (Default)
3-5 & 4-6 5V

CN_AUDIO

2

9

10

1

USB2

Up

Down

LS-579 User’s Manual

-21-

CN_AUDIO: Front panel audio 10-pin header (Pitch 2.54mm)

Pin Signal Pin Signal

1 MIC_L 2 GND

3 MIC_R 4 NC

5 FP_OUT_R 6 MIC_DETECT

7 SENSE 8 Key

9 FP_OUT_L 10 FP_OUT_DETECT

2.4.8 <Expansion slot>

MINI_CARD1

SIMM

MINI_CARD2

M2-1

M2-2

M2-3

JMSATA1

31

JMSATA2

31

LS-579 User’s Manual

-22-

2.4.8.1 < M.2 interface >

M2-1 (Key E) with 2x PCI Express x1 support WI-FI and Bluetooth Module
M2-2 and M2-3 (Key M) with 4x PCI Express x1 3.0 / 2.0 bandwidth, up to 32Gbit / s data
transfer speed, support NVMe SSD.

2.4.8.2 < MINI_CARD Setting >

MINI_CARD1 and MINI_CARD2 have some special desig n to compatible our Mini-PCIe
card. (ex: MPX-574D2, MPX-210D2 etc)
MINI_CARD1 support mSATA by JMSATA1
MINI_CARD2 support mSATA by JMSATA2, and connect SIM card with 3G module.

JMSATA1/2: Setting MINI_CARD to support PCIe/mSATA

Jumper settings Function

1-2 Support mSATA
2-3 Normal operation (Default)

2.4.8.3 < SIMM Setup>

This is for 3G miniPCIe card which doesn’t have SIM slot.

Slide the direction of the arrow open the cover.

Insert the SIM card and make
sure the direction is correct

Then press down and slide the
direction of the arrow close the cover.

LS-579 User’s Manual

-23-

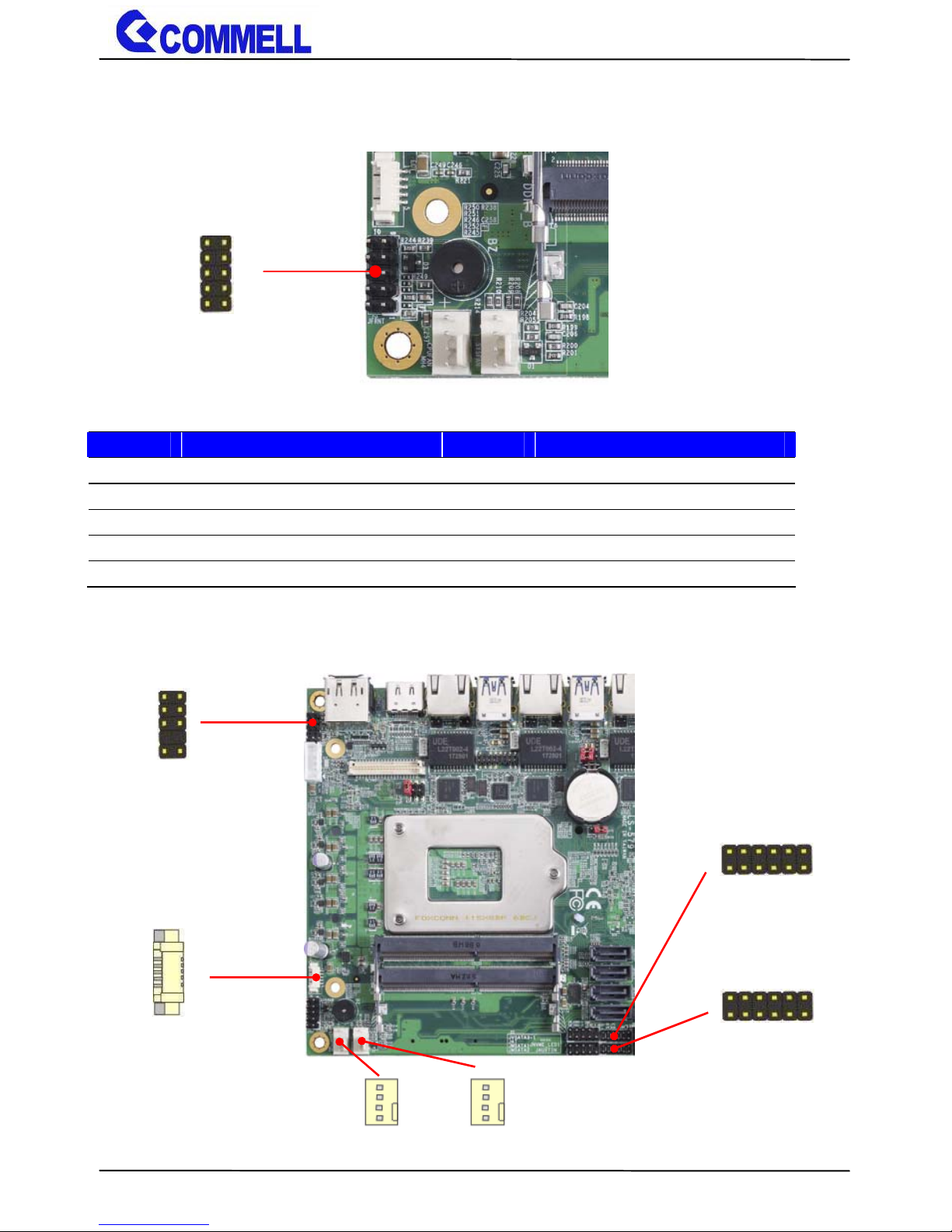

2.4.9 <Front panel switch and indicator>

JFRNT: Front panel switch and indicator 14-pin header (Pitch 2.54mm)

Pin Signal Pin Signal

1 Power_ON- 2 Po wer_ON+
3 Speaker- 4 Speaker+
5 HDD_LED- 6 HDD_LED+
7 Power_LED- 8 Power_LED+
9 Reset+ 10 Reset-

2.4.10 <GPIO and Other interface>

JFRNT

2 1

10 9

CN_LPC

12

1

11

2

CN_DIO

12

1

11

2

SYSFAN

4

1

CN_PS2

1 2

9 10

CPUFAN

4

1

CN_SMBUS

1

5

LS-579 User’s Manual

-24-

When using GPIO function, please note:

As Output: Open-drain, most applications need use an external pull up

resistor. (If not may cause damage)

As Input: TTL-level.

GPIO DC characteristics

Parameter SYM MIN TYP MAX UNIT Conditions

Input Low Voltage VIL 0.8 V

Input High Voltage VIH 2.0 V

Output Low Voltage VOL 0.4 V IOL =12mA

Input High Leakage I

LIH

+10 μA VIN =3.3V

Input Low Leakage I

LIL

-10 μA VIN =0V

CN_DIO: GPIO 12-pin header (Pitch 2.00mm)

Pin Signal Pin Signal

1 GND 2 GND
3 GPIO0 4 GPIO4
5 GPIO1 6 GPIO5
7 GPIO2 8 GPIO6
9 GPIO3 10 GPIO7

11 5V 12 12V

CN_LPC: LPC 12-pin header (Pitch 2.00mm)

Pin Signal Pin Signal

1 CLK 2 RST
3 -LFRAME 4 LAD3
5 LAD2 6 LAD1
7 LAD0 8 3.3V
9 SERIRQ 10 GND

11 3.3VSB 12 NC

CN_PS/2: PS/2 10-pin header (Pitch 2.54mm)

Pin Signal Pin Signal

1 KB_DATA 2 M_DATA
3 NC 4 NC
5 GND 6 GND
7 VCC 8 VCC
9 KB_CLK 10 M_CLK

LS-579 User’s Manual

-25-

CN_SMBUS: SMBus 5-pin connector (Pitch 2.54mm )

Pin Signal

1 5V
2 NC
3 SMBDAT
4 SMBCLK
5 GND

CPUFAN: CPU co oler fan 4-pin connector

Pin 1 2 3 4

Signal GND 12V Sensor Control

SYSFAN: System cooler fan 4-pin connector

Pin 1 2 3 4

Signal GND 12V Sensor Control

LS-579 User’s Manual

-26-

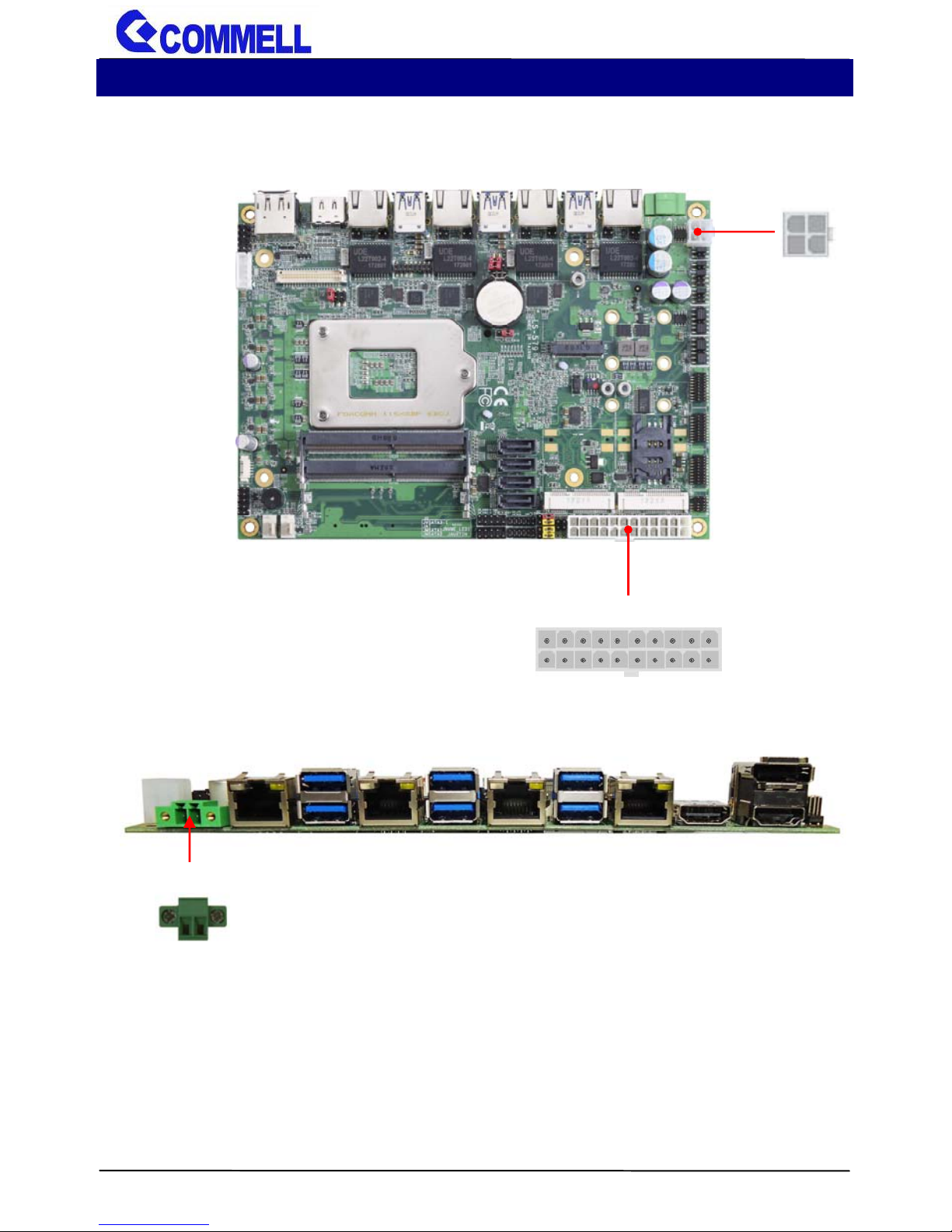

2.5 <Power supply>

2.5.1 <Power input>

ATX

1 12

13 24

DC_4P

1 3

2 4

1 3

DC_2P

Plug

LS-579 User’s Manual

-27-

The DC_4P and DC_2P a re CO-LAY design, support 9 ~ 35V wide voltage input.

Note that the DC_4P and ATX do not use at the same time, it will certainly
cause damage.

DC_4P: ATX12V 4-pin connector

Pin Signal Pin Signal

1 GND 2 GND

3 9~35V 4 9~35V

Note that the DC_2P and ATX do not use at the same time, it will certainly
cause damage.

DC_2P: 2-pin Terminal Block connector

Pin Signal Pin Signal

1 9~35V 3 GND

If the CPU TDP than 45W, please use ATX power

ATX: main power 24-pin connector (As input)

Pin Signal Pin Signal

1 3.3V 13 3.3V

2 3.3V 14 NC

3 GND 15 GND

4 5V 16 -PSON

5 GND 17 GND

6 5V 18 GND

7 GND 19 GND

8 Power_OK 20 NC

9 5VSB 21 5V
10 12V 22 5V
11 12V 23 5V
12 3.3V 24 GND

LS-579 User’s Manual

-28-

Appendix A <Flash BIOS>

A.1 <Flash tool>

The board is based on Phoenix BIOS and can be updated easily by the BIOS
auto flash tool. You can download the tool online at the address below:

FPT TOOL

The tool’s file name is “fpt.exe”, it’ s the utility that can write the data into the
BIOS flash chip and update the BIOS.

A.2 <Flash BIOS process>

1. Please make a bootable UFD which can boot into DOS environment.

2. Unzip the flash tool and copy it into bootable UFD.

3. Add a bin file to the same folder..

4. Power on the system and flash the BIOS under the DOS environment.
(Command: fpt –savemac –f xxx.bin)

5. Power off the system and then power on.

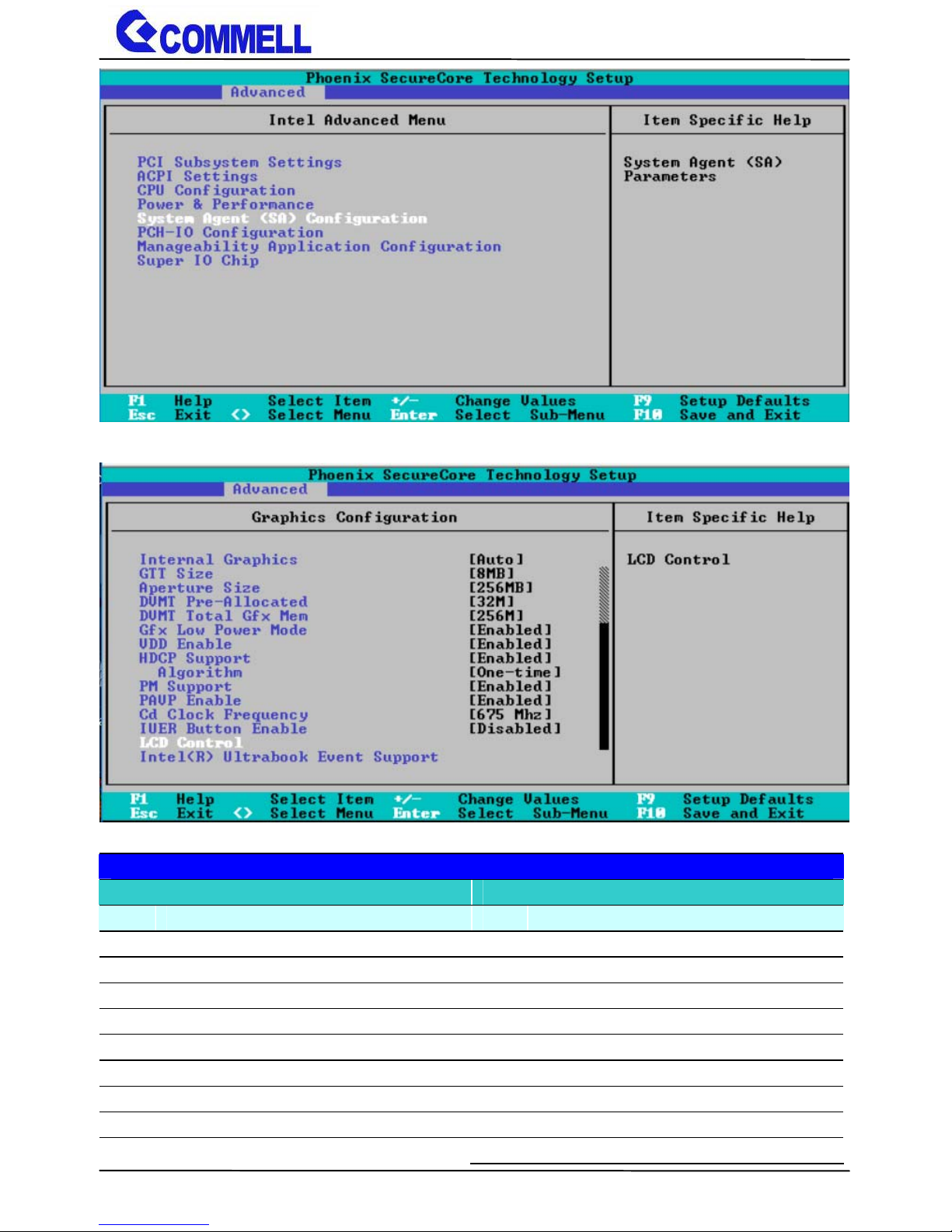

Appendix B <LCD Panel Type select>

According your panel, it need to select the correct resolution in the BIOS. If there is
no fit your panel type, please feedback for us to make OEM model.

You can find the setting from
AdvancedIntel Advanced Menu
SA configurationGraphics configurationLCD controlLCD Panel Type

LS-579 User’s Manual

-29-

BIOS panel type selection form (BIOS Version:1.0)

Single / Dual channel Single / Dual channel

NO. Type NO. Type

1 VBIOS DEFAULT 9 1366 x 768
2 640 x 480 10 1680 x 1050
3 800 x 600 11 1920 x 1200
4 1024 x 768 12 1400 x 900
5 1280 x 1024 13 1600 x 900
6 1400 x 1050 Reduced Blanking 14 1024 x 768
7 1400 x 1050 non-Reduced Blanking 15 1280 x 800
8 1600 x 1200 16 1920 x 1 080

17 OEM

LS-579 User’s Manual

-30-

Appendix C <Programmable Watch Dog Timer>

The watchdog timer makes the system auto-reset while it stops to work for a
period.The integrated watchdog timer can be setup as system reset mode by
program.You can select T imer setting in the BIOS, after setting the time options,
the system will reset according to the period of your selection.

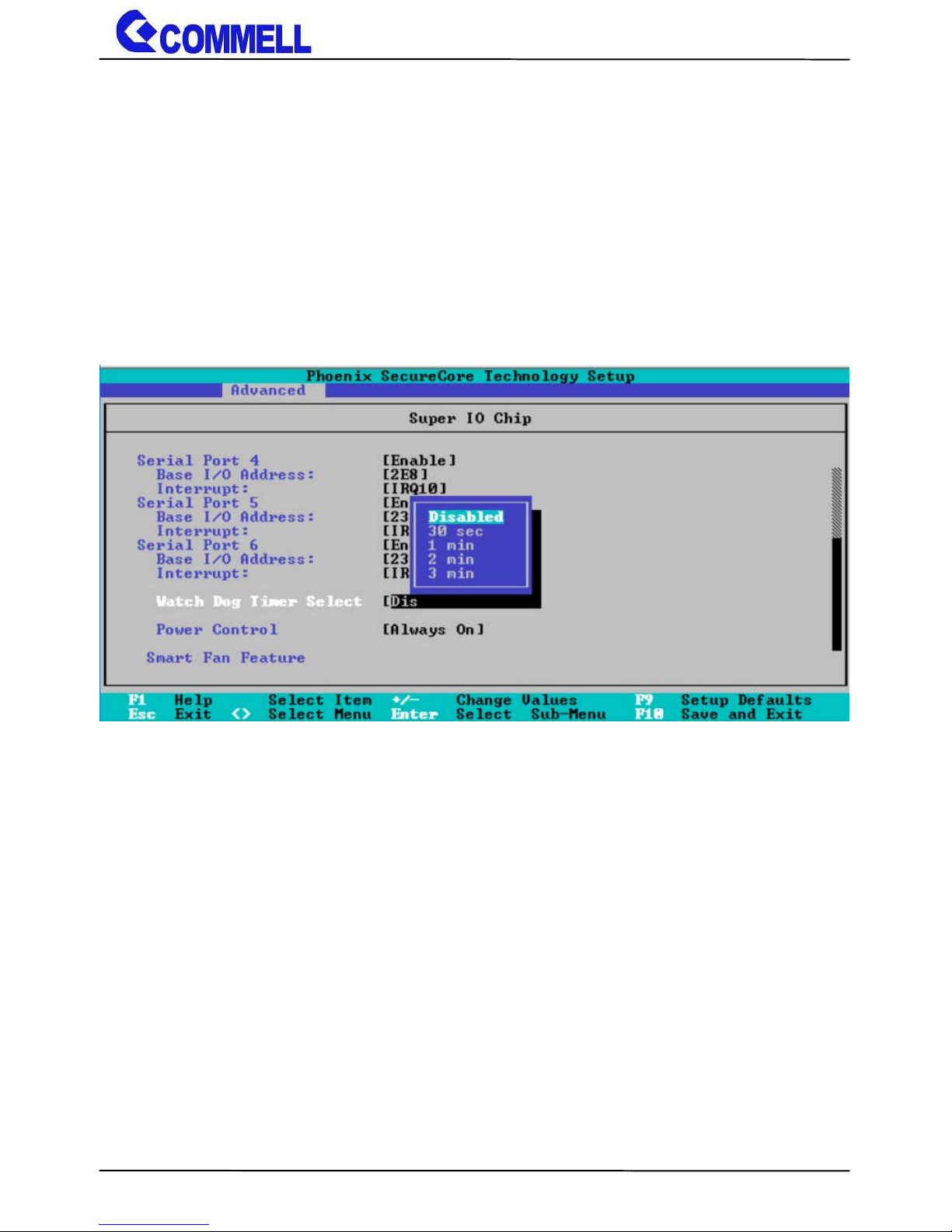

Find the setting from
AdvancedIntel Advanced MenuSuper IO Chip

Timeout value range

1 to 255 Minute and Second

Program sample

Watchdog timer setu p as system reset with 5 second of timeout

-o 4E 87 ;enter configuration

-o 4E 87

-o 4E 07

-o 4F 08 ;select Logical Device

-o 4E 30

LS-579 User’s Manual

-31-

-o 4F 01 ; activate WDTO# function

-o 4E F0

-o 4F 00 ;set “00” is second mode, set “08” is minute mode

-o 4E F1

-o 4F 05 ;00h: Timeout Disable
;01h: Timeout occurs after 1 minute only

;02h: Timeout occurs after 2 second/minute
;03h: Timeout occurs after 3 second/minute

;FFh: Timeout occurs after 255 second/minute
(The deviation is approx 1 second.)

For further information, please refer to Nuvoton NCT6106D datasheet

Appendix D <Hardware monitor >

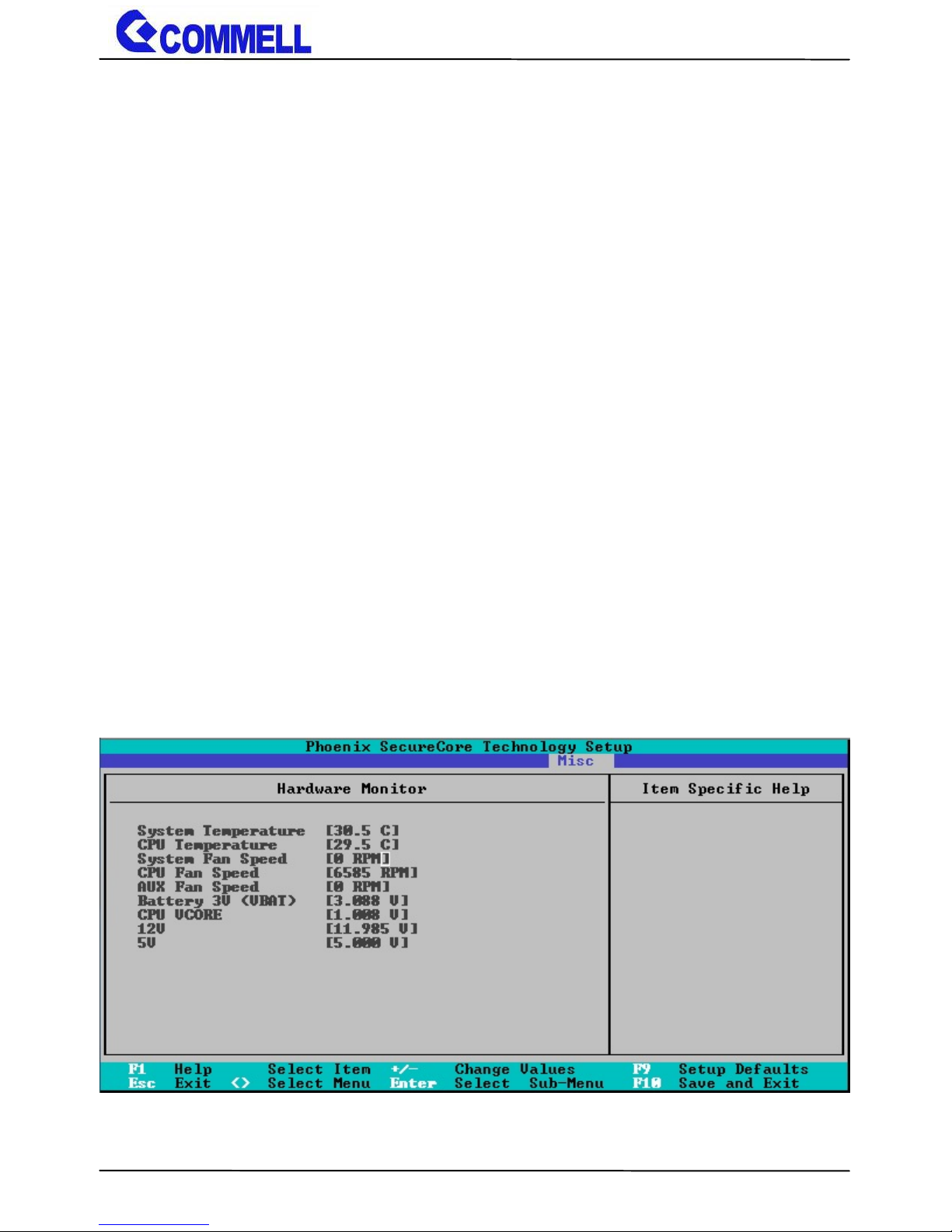

Find the setting from Misc-SIO NCT6106D Hardware Monitor

…

LS-579 User’s Manual

-32-

Appendix E <Programmable GPIO >

The GPIO’ can be programmed with the MS-DOS debug program using simple
IN/OUT commands.

The DC characteristics please refer to GPIO paragraph (Page20).

GPIO 0 1 2 3 4 5 6 7

bit 0 1 2 3 4 5 6 7

-o 4E 87 ;enter configuration

-o 4E 87

-o 4E 07

-o 4F 07 ;select Logical Device

-o 4E 30

-o 4F 10 ;activate GPIO function (The board use GPIO4)

-o 4E F0

-o 4F XX ;set “01” GPIO as input, set “00” GPIO as output

-o 4E F1

-o 4F XX ;if set GPIO as output, this register’s value can be set “00~ FF”

Optional

-o 4E F2

-o 4F XX ;set “01”, the respective bit are inverted (Both input and output)
;set “00”, the respective bit are normal

For further information, please refer to Nuvoton NCT6106D datasheet

LS-579 User’s Manual

-33-

Appendix F <RAID Setting>

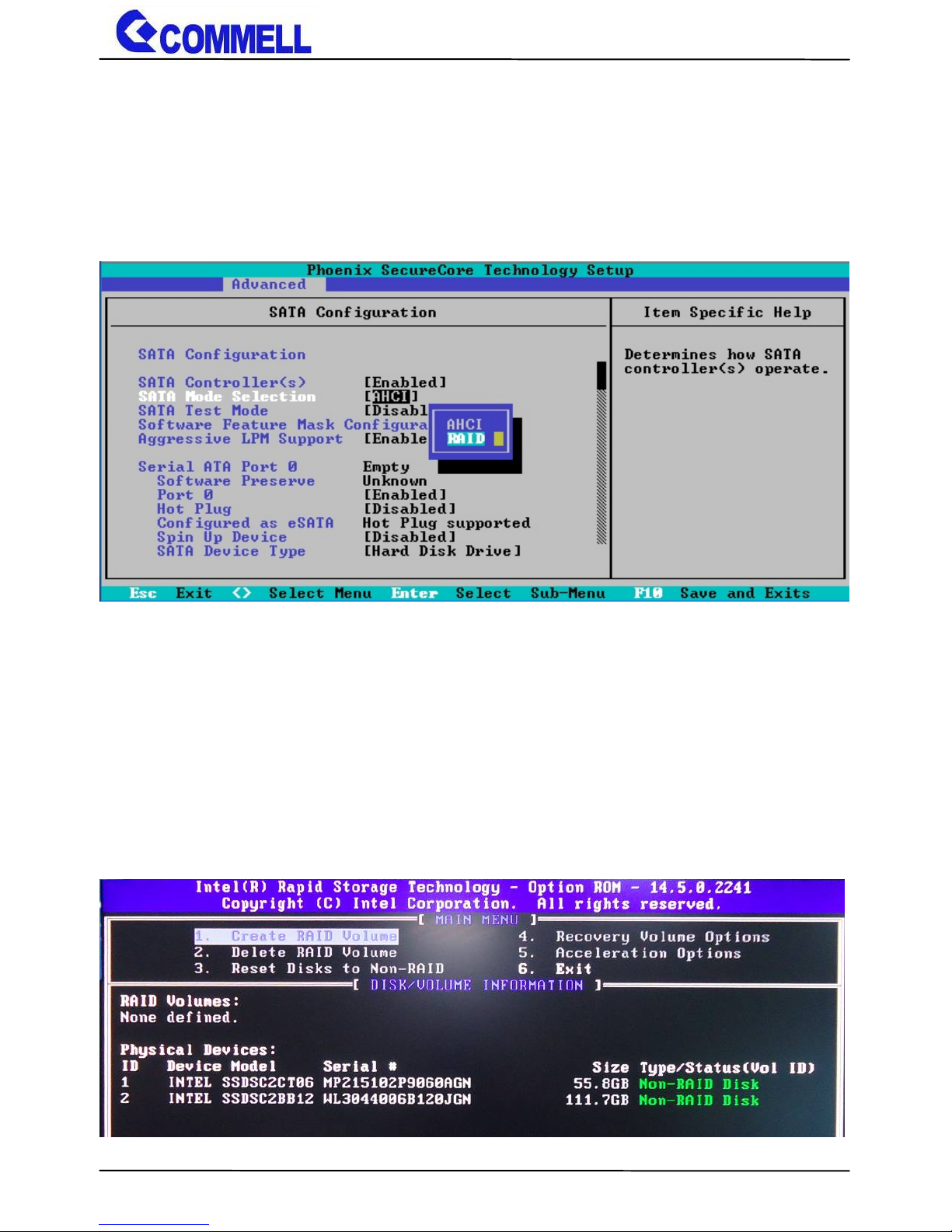

When use RAID function, it need to enter the BIOS set RAID mode first.
[Advanced]  [Intel Advanced Menu]  [PCH-IO Configuration]
 [SATA Configuration]  [SATA Mode Selection]

If this screen stop time is too short, it can be set in the BIOS.
[Advanced]  [Intel Advanced Menu]  [PCH-IO Configuration]

 [SATA Configuration]  [Software Fe ature Mask Configuration]
 [OROM UI Normal Delay

]  [ 8 sec] (Need to set RAID mode first)

At boot time, press <CTRL + I> to enter the RAID configuration menu.

LS-579 User’s Manual

-34-

Appendix G < Setup ADP-3355,ADP-3460 >

LS-579T series have a 2nd CRT or 2nd LVDS, it’s no need install extra driver.
For further information, please refer to the manual.
ADP-3355 manual Link
ADP-3460 manual Link

Contact information

Any advice or comment about our products and service, or anything we can help
you please don’t hesitate to contact with us. We will do our best to support you for
your products, projects and busin ess.

Taiwan Commate computer Inc.

Address

19F., NO.94, Sec. 1, Xintai 5

th

Rd., Xizhi Dist., New Taipei

City 22102, Taiwan.

TEL

[phone]

FAX

[phone]

Website

www.commell.com.tw

E-mail

[email protected]

(General infomation)

[email protected] (Technical Support)

Commell is a brand name of Tai wan Commate computer Inc.
