Page 1
LS-576
5.25” Embedded Miniboard
User’s Manual
Edition 1.0
2012/11/13
Page 2
Page 3
LS-576 User’s Manual
-1-
Copyright
Copyright 2012, all rights reserved. This document is copyrighted and all rights are
reserved. The information in this document is subject to change without prior notice to
make improvements to the products.
This document contains proprietary information and protected by copyright. No part of
this document may be reproduced, copied, or translated in any form or any means
without prior written permission of the manufacturer.
All trademarks and/or registered trademarks contains in this document are property of
their respective owners.
Disclaimer
The company shall not be liable for any incidental or consequential damages resulting
from the performance or use of this product.
The company does not issue a warranty of any kind, express or implied, including
without limitation implied warranties of merchantability or fitness for a particular purpose.
The company has the right to revise the manual or include changes in the specifications
of the product described within it at any time without notice and without obligation to
notify any person of such revision or changes.
Trademark
All trademarks are the property of their respective holders.
Any questions please visit our website at TUhttp://www.commell.com.twUT
Page 4
LS-576 User’s Manual
-2-
Packing List:
Please check the package content before you starting using the board.
Hardware:
LS-576 Embedded Miniboard x 1

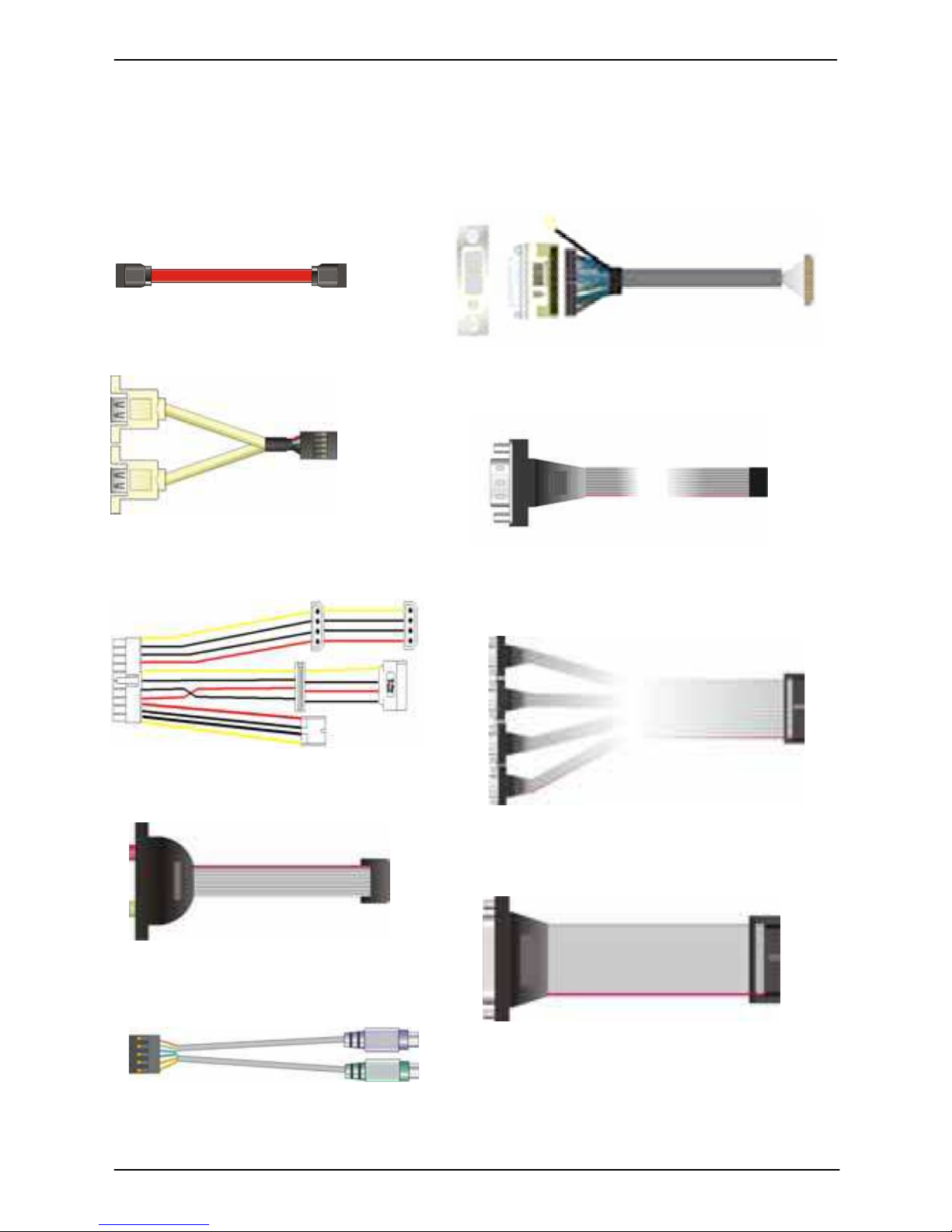

Cable Kit:
SATA Cable x 2
(OALSATA3-L)
USB Cable x 1
(OALUSBA-3)
DVI module with bracket
x 1
(ADPDVIP & OALDVI-DF13)
Printer Port Cable x 1
(OAL1P-B x 1)
Power Output Cable x 1
(OALATX-P3S2)
COM port Cable x 1
(OAL1SNB)
Quad COM ports DB9 male Cable x 1
(OAL4S-B)
Audio Cable x 1
(OALPJ-HD-NB)
PS2 Cable x 1
(OALPS2/KM)
Page 5
LS-576 User’s Manual
-3-

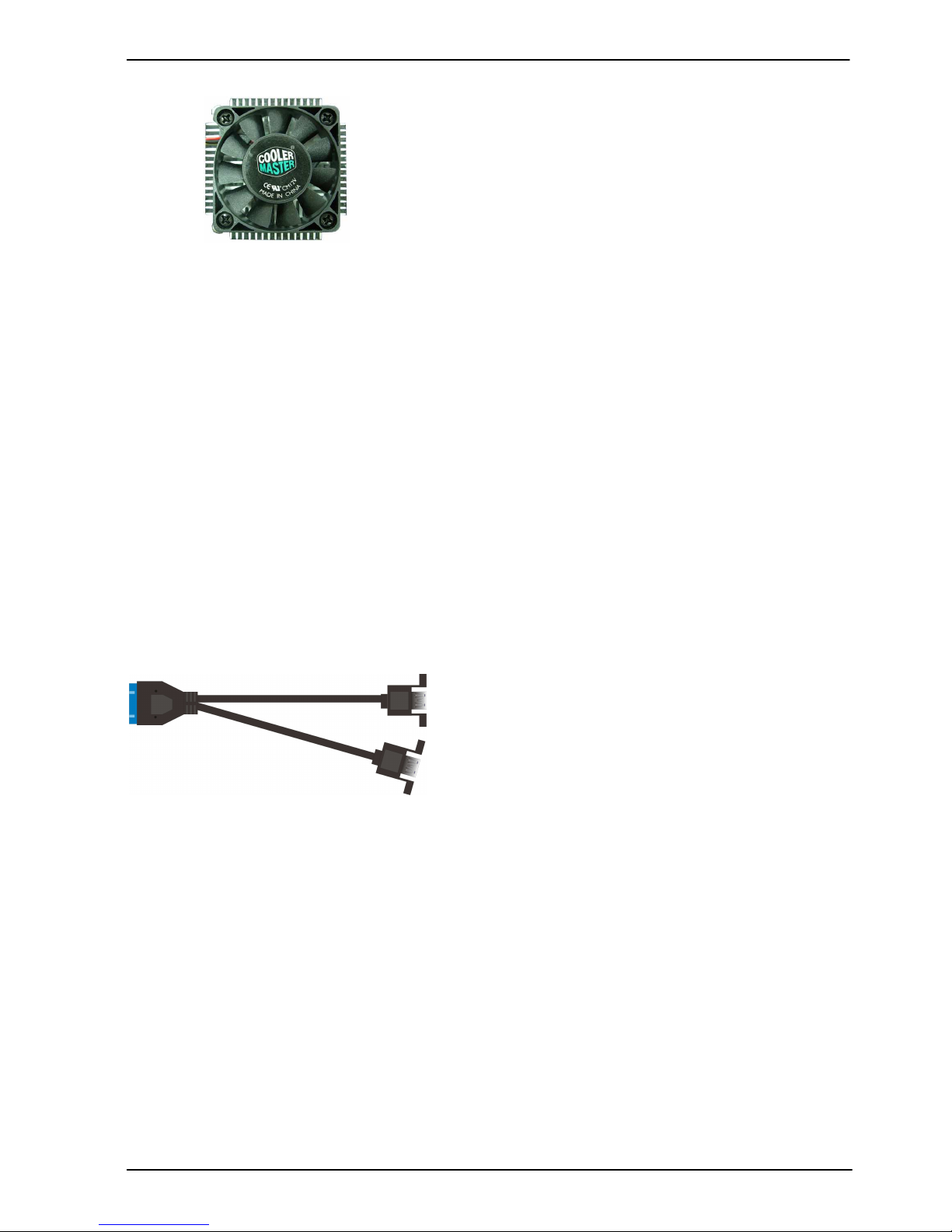

Optional Cable:
Printed Matters:
Driver CD (Including User’s Manual) x 1
USB3.0 Cable
(OALUSB3NB)
CPU Cooler x 1
(OHS-P-M-H)
Page 6
LS-576 User’s Manual
-4-
Index
Chapter 1 <Introduction> ..............................................................................7
1.1 <Product Overview>.....................................................................................7
1.2 <Product Specification>................................................................................8
1.3 <Mechanical Drawing>.................................................................................9
1.4 <Block Diagram>........................................................................................10
Chapter 2 <Hardware Setup>......................................................................11
2.1 <Connector Location> ................................................................................11
2.2 <Jumper Location & Reference>................................................................12
2.3 <Connector Reference> .............................................................................13
2.3.1 <Internal Connectors>....................................................................13
2.3.2 <External Connectors>...................................................................13
2.4 <CPU and Memory Setup>.........................................................................14
2.4.1 <CPU Setup>.................................................................................14
2.4.2 <Memory Setup>............................................................................15
2.5 <CMOS & ATX Setup>................................................................................16

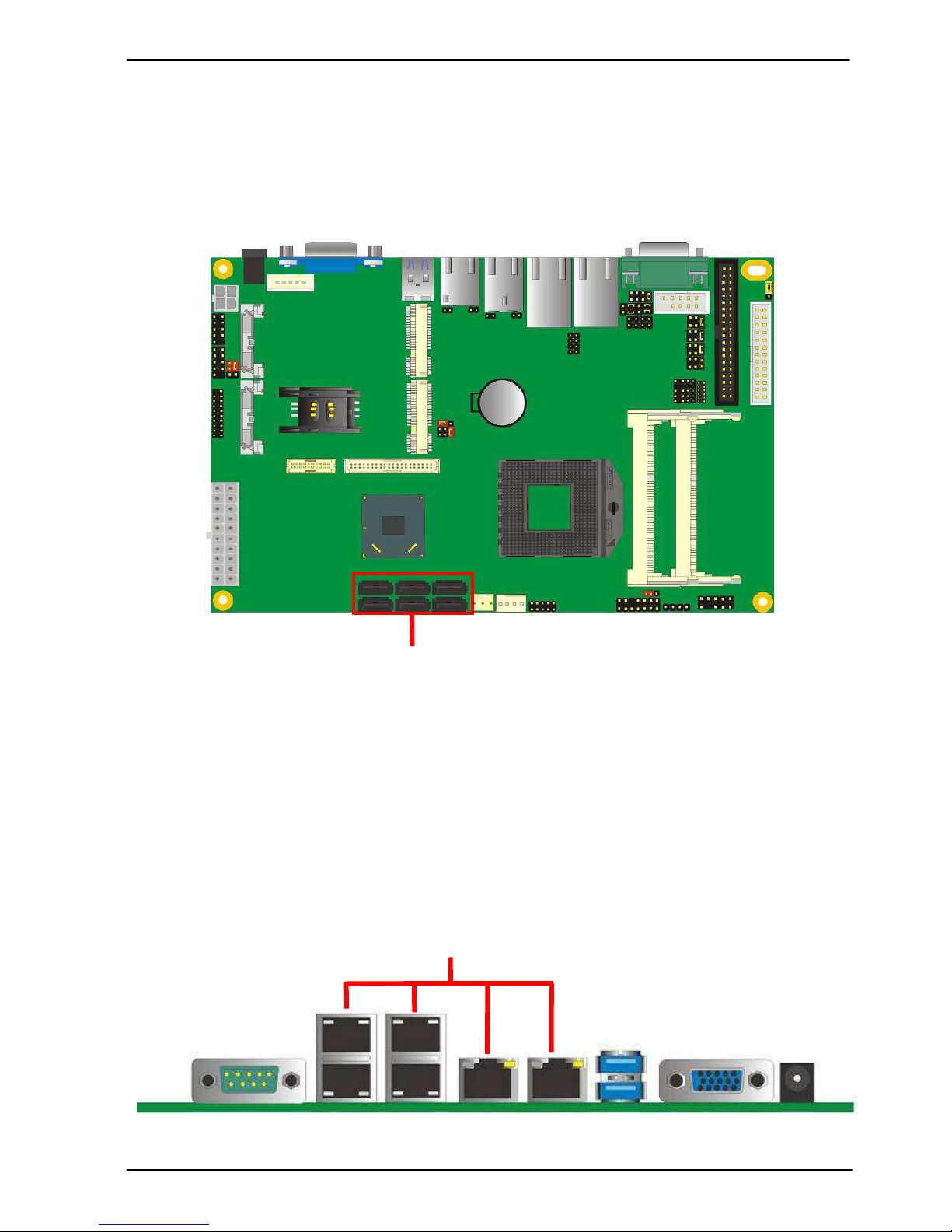

2.6 <Serial ATA Interface> ................................................................................17
2.7 <Ethernet Interface>...................................................................................17
2.8 <Onboard Display Interface>......................................................................18
2.8.1 <Analog Display>...........................................................................18
2.8.2 <Digital Display> ............................................................................19
2.8.3 <DVI Interface>..............................................................................23
2.9 <Integrated Audio Interface>.......................................................................24
2.10 <USB Interface>.......................................................................................25
2.11 <Serial Port>.............................................................................................28

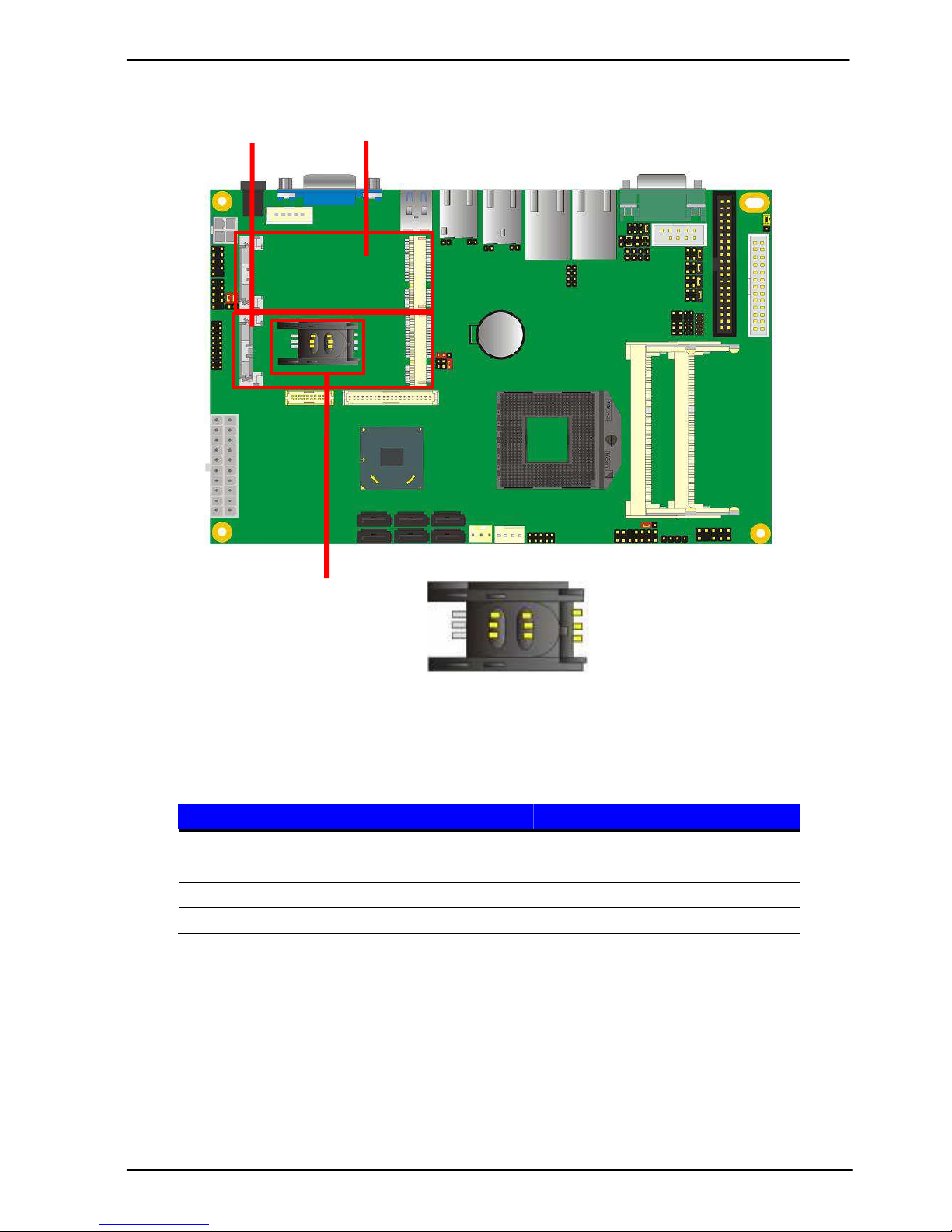

2.12 <PCIE Mini Card and SIM Interface>........................................................32

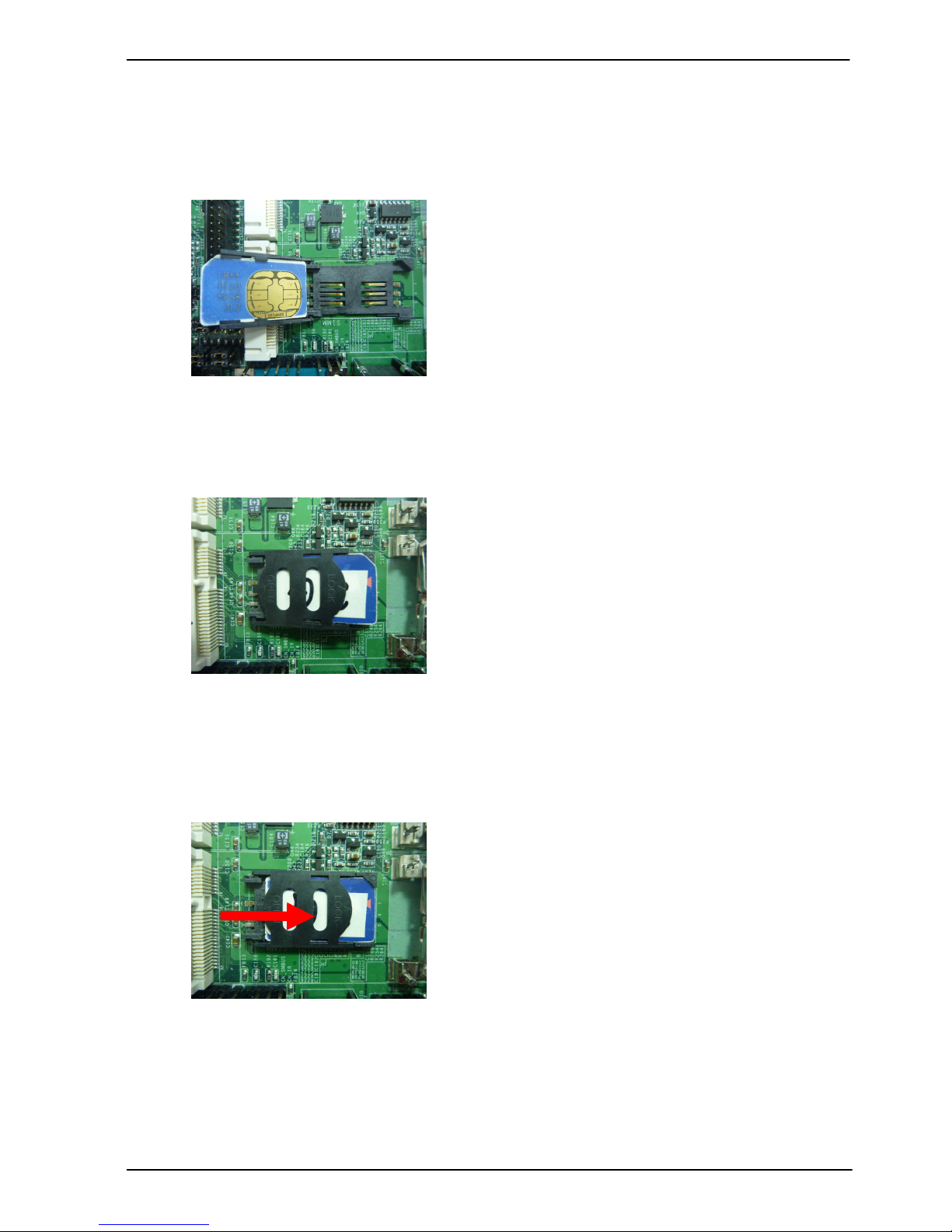

2.12.1 <SIM Setup>..........................................................................................34
2.13 <GPIO and SMBUS Interface>.................................................................36
2.14 <Power Supply and Fan Interface > .........................................................37
2.14.1 <Power Input>..............................................................................37
Page 7
LS-576 User’s Manual
-5-
2.14.2 <Power Output>...........................................................................38
2.14.3 <Fan connector>..........................................................................39
2.15 <Switch and Indicator>.............................................................................40
Chapter 3 <System Setup> .........................................................................41

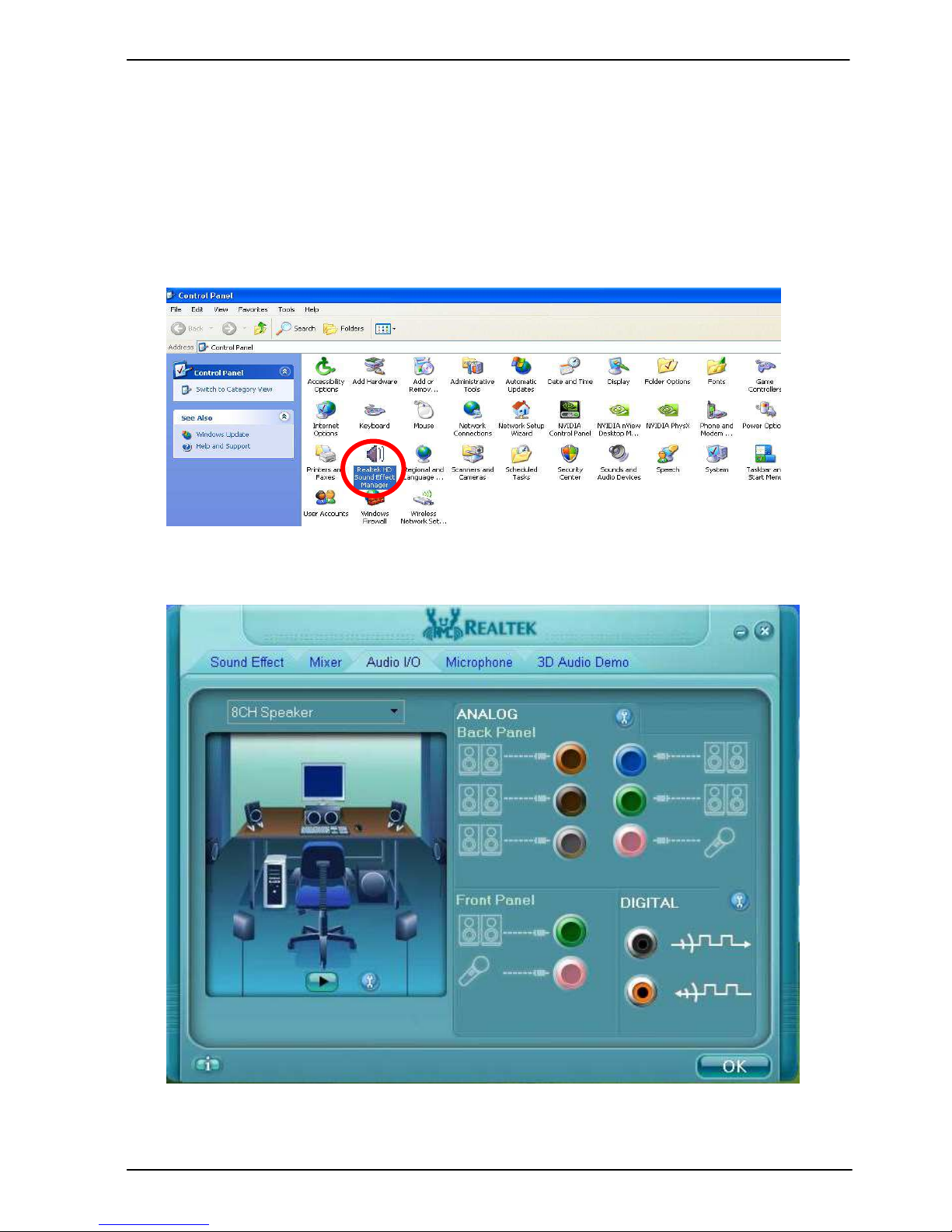

3.1 <Audio Configuration>................................................................................41

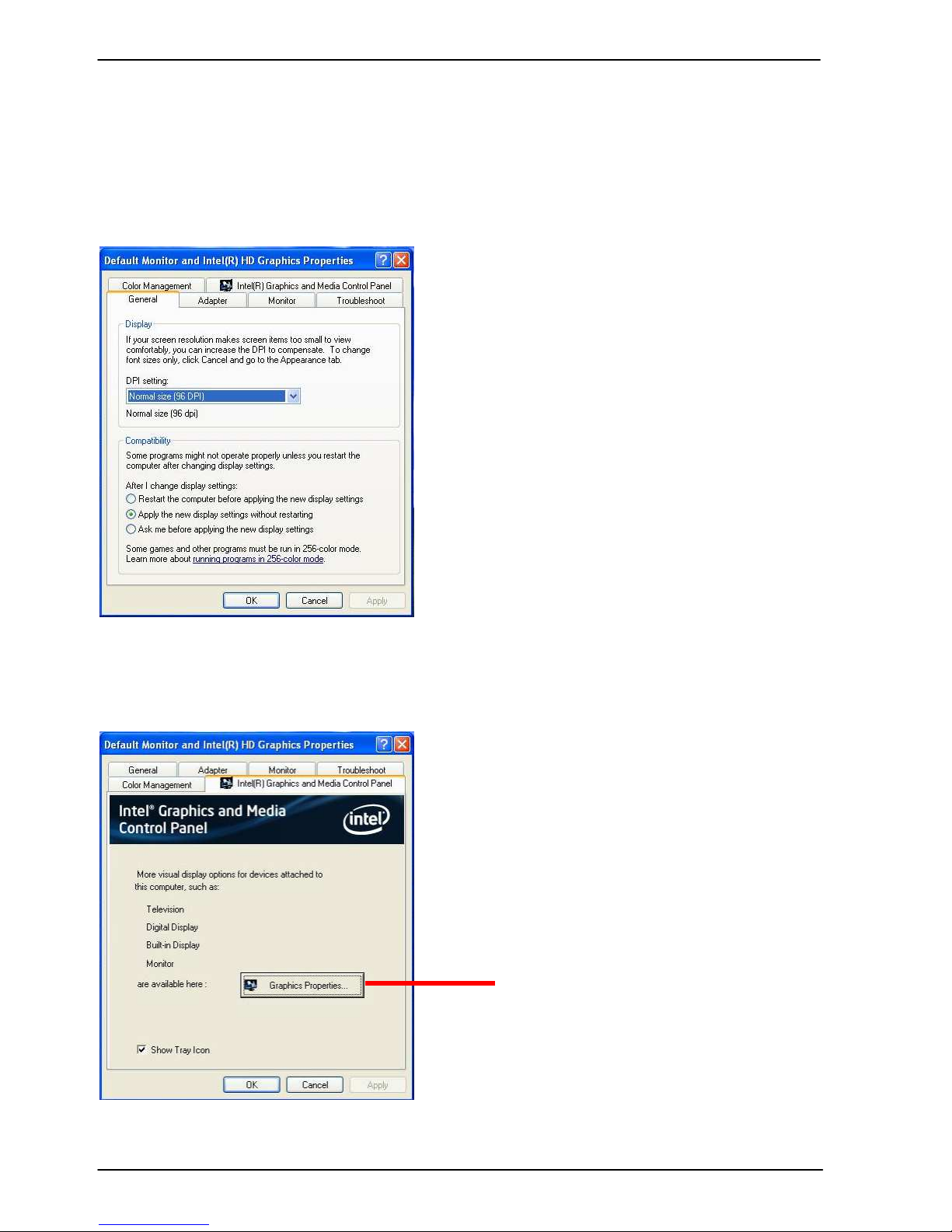

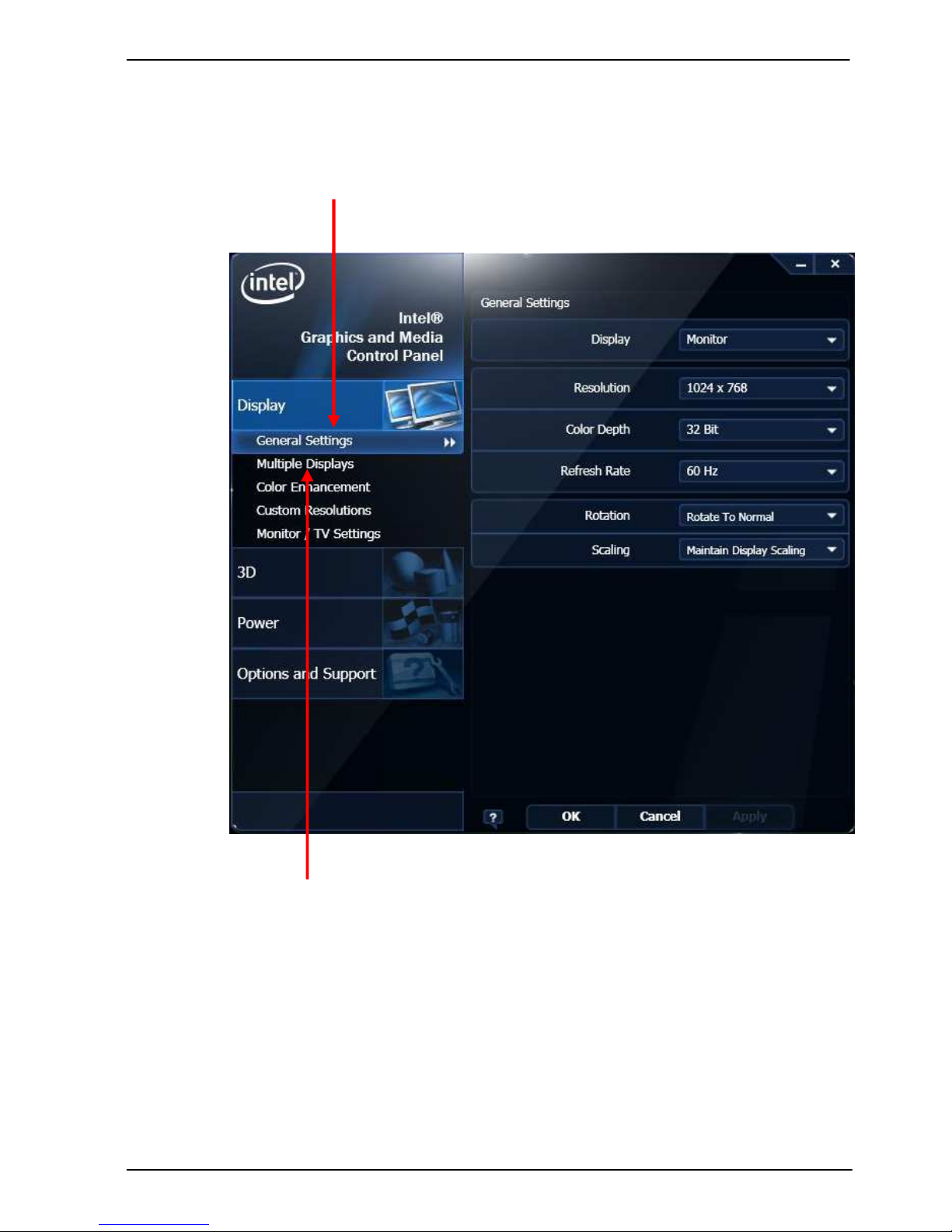

3.2 <Display Properties Setting>......................................................................42
Chapter 4 <BIOS Setup> .............................................................................44
Appendix A <I/O Port Pin Assignment>.....................................................46
A.1 <Serial ATA Port>....................................................................................... 46
A.2 <IrDA Port>................................................................................................46
A.3 <VGA Port>................................................................................................46
A.4 <LAN Port>................................................................................................ 46
A.5 <LAN LED Port>........................................................................................ 47
A.6 <Parallel Port>........................................................................................... 47
Appendix B <Flash BIOS> ..........................................................................48
B.1 <Flash Tool> ..............................................................................................48
B.2 <Flash BIOS Procedure>...........................................................................48
Appendix C <Programming GPIO’s>.........................................................49

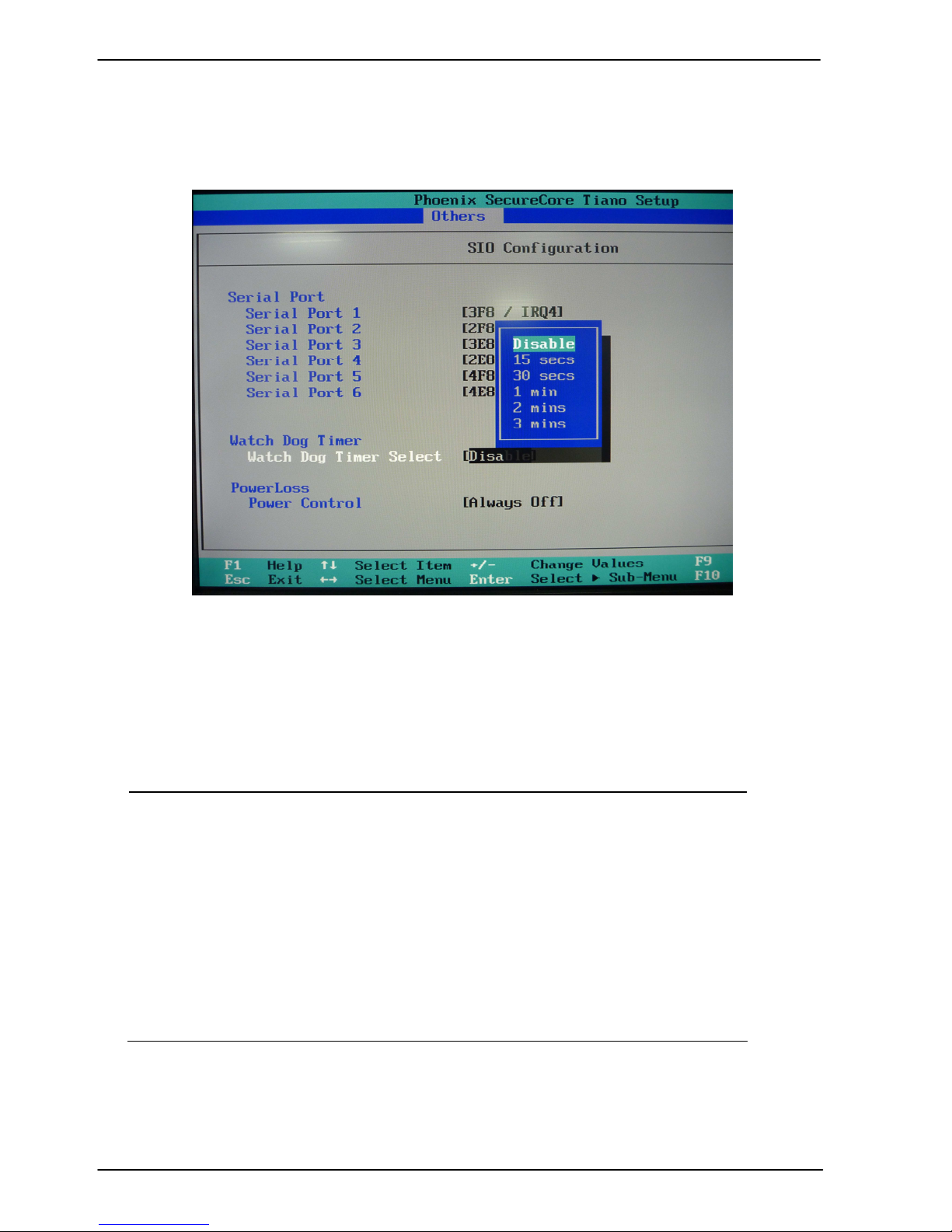

Appendix D <Programming Watchdog Timer >........................................50
Contact Information.....................................................................................51
Page 8
LS-576 User’s Manual
-6-
(This page is left for blank)
Page 9
LS-576 User’s Manual
-7-
Chapter 1 <Introduction>
1.1 <Product Overview>
LS-576 the 3rd Generation Intel of the 5.25” Miniboard, supports 3rd Generation Intel®
Core™ i7, Core™ i5, Core™ i3 Mobile Processor and features Intel QM77 chipset,
integrated HD Graphics, DDR3 memory, REALTEK High Definition Audio, Serial ATA
and Intel Gigabit LAN.
Intel Ivy Bridge Processor
The 3rd Generation Intel® Core™ processor family mobile is the next generation of
64-bit, multi-core mobile processor built on 22- nanometer process technology.
Based on a new micro-architecture.
New features for Intel QM77 chipset
The board integrates Intel QM77 chipset, supports integrated HD Graphics, built-in high
speed mass storage interface of serial ATA, High Definition Audio with 2 channels
surrounding sound.
All in One multimedia solution
Based on Intel QM77 chipset, the board provides high performance onboard graphics,
24-bit dual channel LVDS interface, DVI and 2 channels High Definition Audio, to meet
the very requirement of the multimedia application.
Flexible Extension Interface
The board provides, two mini-PCIE socket.
Page 10
LS-576 User’s Manual
-
8-
1.2 <Product Specification>
General Specification
Form Factor 5.25-inch Embedded Miniboard
CPU 3rd Generation Intel® Core™ i7, Core™ i5, Core™ i3 Mobile Processor
Package type: rPGA988B
Memory 2 x DDRIII SO-DIMM 1066/1333/1600 MHz up to 16GB
Chipset Intel QM77 Express chipset
Real Time Clock Chipset integrated RTC with onboard lithium battery
Watchdog Timer Generates a system reset with internal timer for 1min/s ~255min/s
Power Management Supports ACPI 3.0 compliant,
Serial ATA Interface 4 x serial ATAII interface with 300MB/s transfer rate
2 x serial ATAIII interface with 600MB/s transfer rate
VGA Interface Onboard DSUB15 connector for VGA interface
LVDS Interface Onboard 24-bit dual channel LVDS connector with +3.3V/+5V/+12V
supply
DVI Interface Onboard DVI with 20-pin connector
Audio Interface Realtek ALC888 HD Audio
LAN Interface 1 x Intel 82579LM Gigabit LAN
5 x Intel 82574L Gigabit LAN
GPIO interface Onboard programmable 8-bit Digital I/O interface
Extended Interface 2 x PCIE mini card socket,1 x SIM socket
(Optional support mSATA(SATAII) for Mini_Card1,but SATA6 will be
disable)
Internal I/O Port 1 x PS/2, 4 x RS232, 1 x RS232/422/485, 1 x Parallel, 1 x SMBUS,
1 x GPIO, 4 x USB2.0 ports, 2 x USB3.0 ports, 1 x IrDA, 1 x DVI ,
1 x LVDS, 1 x PS2, 4 x Serial ATAII, 2 x Serial ATAIII,
1 x Front panel Audio and 1 x CDIN
External I/O Port 6 x LAN ports, 1 x VGA port, 2 x USB3.0 ports, 1 x RS232,
1 x DC connector
Power Requirement Standard 20-Pin ATX power supply or 9~24V full range DC Input
Dimension 203mm x 146mm
Temperature
Operating within 0~60 centigrade
Storage within –20~85 centigrade
Ordering Code
LS-576TXD Intel PGA988B+ QM77 Onboard VGA, LVDS, DVI, LAN, USB2.0,
USB3.0, HD Audio, SATAII ,SATAIII, SMBUS, LPC, SIM, GPIO
and PCI Express mini card.
LS-576TXDS Intel PGA988B+ QM77 Onboard VGA, LVDS, DVI, LAN, USB2.0,
USB3.0, HD Audio, SATAII ,SATAIII, SMBUS, LPC, SIM, GPIO,
PCI Express mini card, mSATA.
The specifications may be different as the actual production.
For further product information please visit the website at
TU
http://www.commell.com.tw
UT
Page 11
LS-576 User’s Manual
-
9-

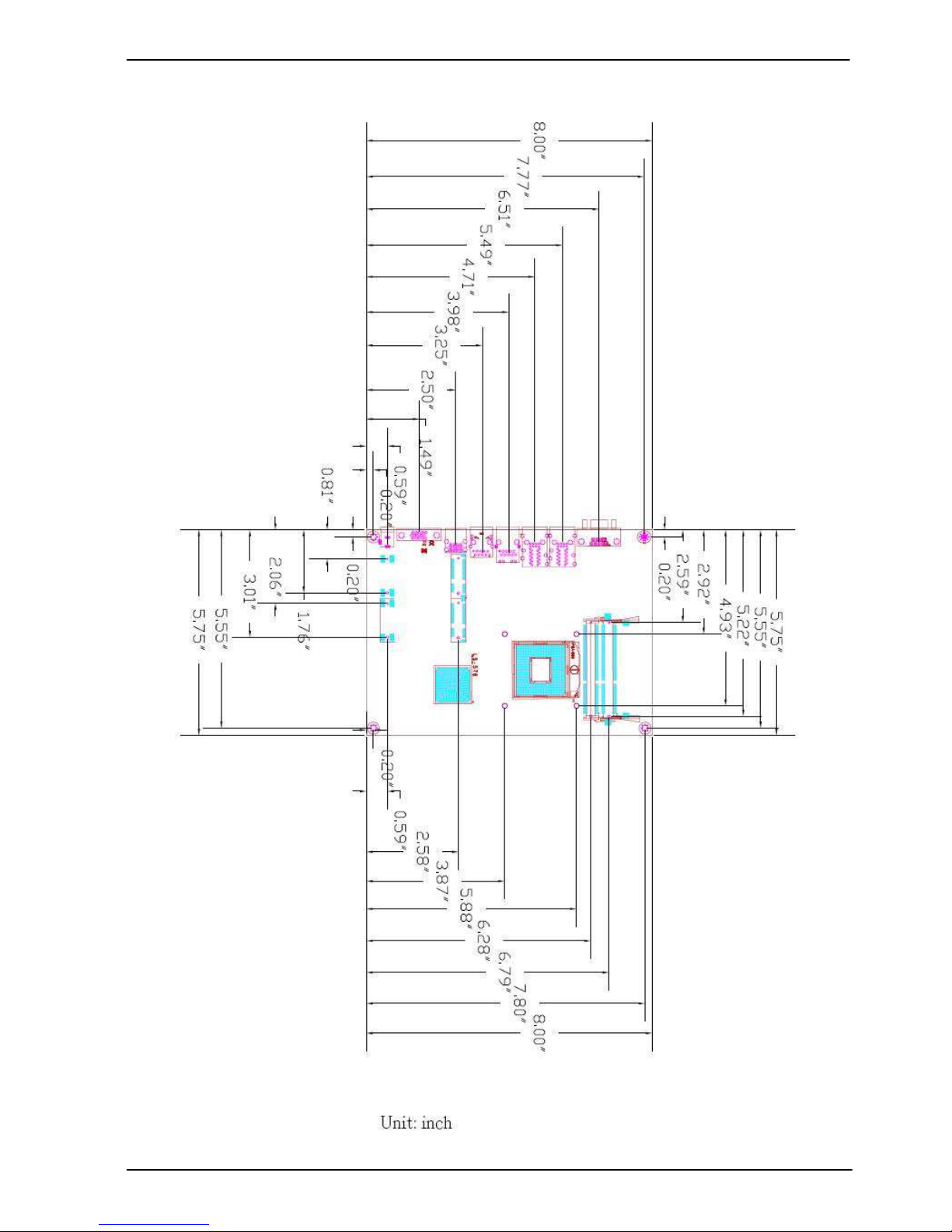

1.3 <Mechanical Drawing>
Page 12
LS-576 User’s Manual
-
10-

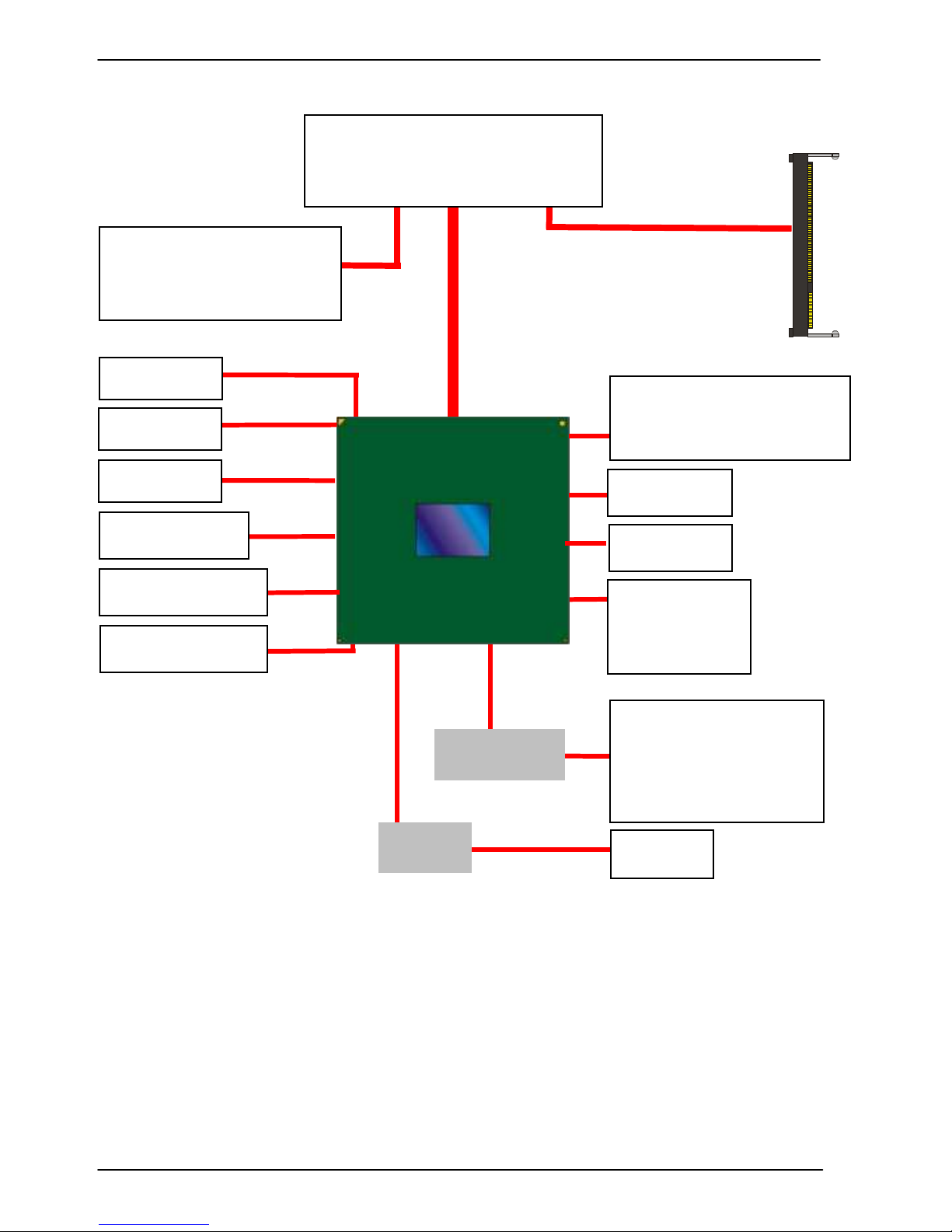

1.4 <Block Diagram>
QM77
1 x RS232/422/485
1 x COM & GPIO & IrDA
1 x LPT
3
r
d
Generation Intel® Core™
i7, Core™ i5, Core™ i3
Mobile Processor
2 x 204-pin DDR3
SO-DIMM
1066/1333/1600 MHz
up to 16GB
1 x LVDS
4 x Serial ATAII
1 x PCI Express mini card
(MINI_CARD2)
1 x DVI
1 x CRT
2 x Serial ATAIII
4 x COM
ALC888 HD Audio
F81216
1 x PCI Express mini card
(MINI_CARD1)
83627DHG-P
4 x USB2.0
4 x USB3.0
1 x 82579LM
5 x 82574L
Page 13
LS-576 User’s Manual
-
11-
Chapter 2 <Hardware Setup>

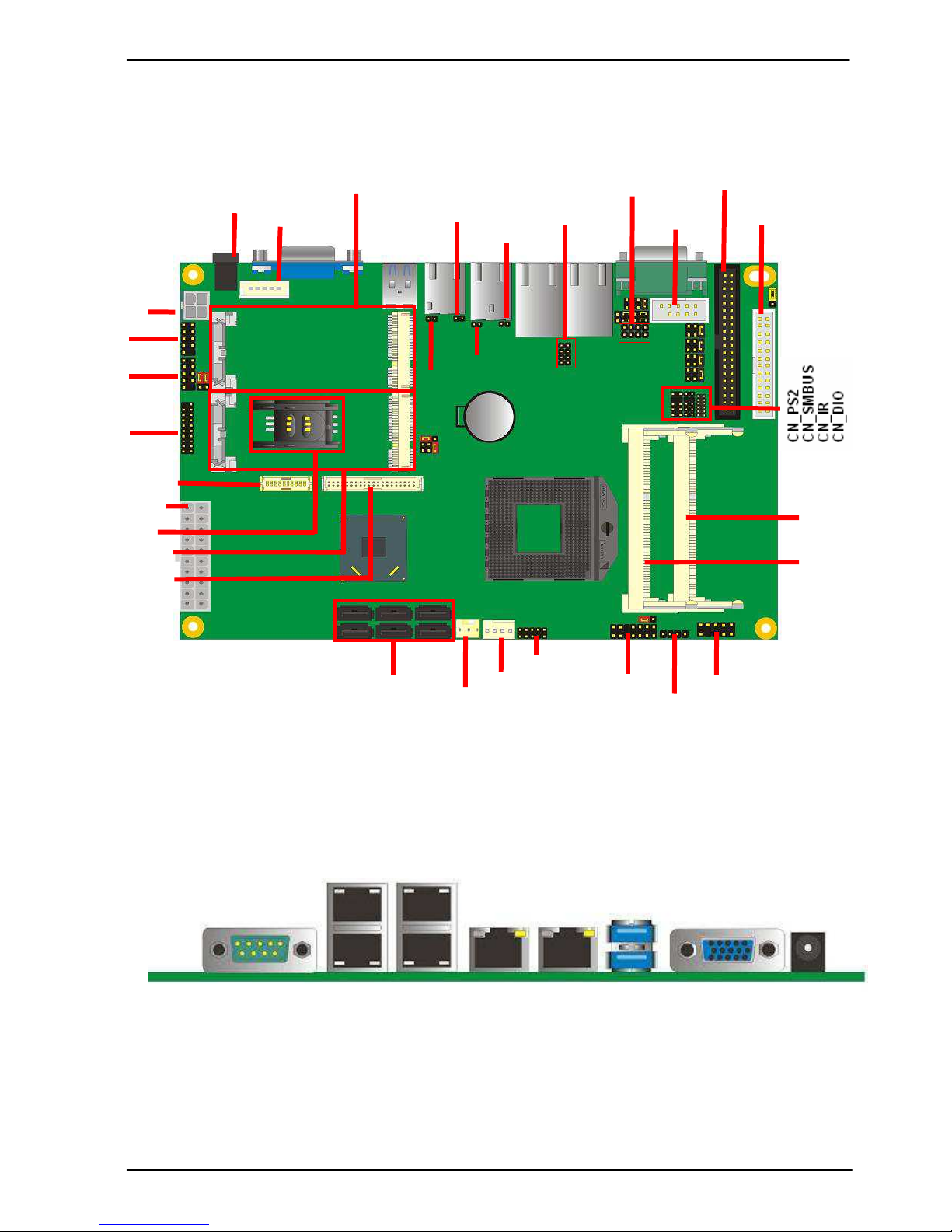

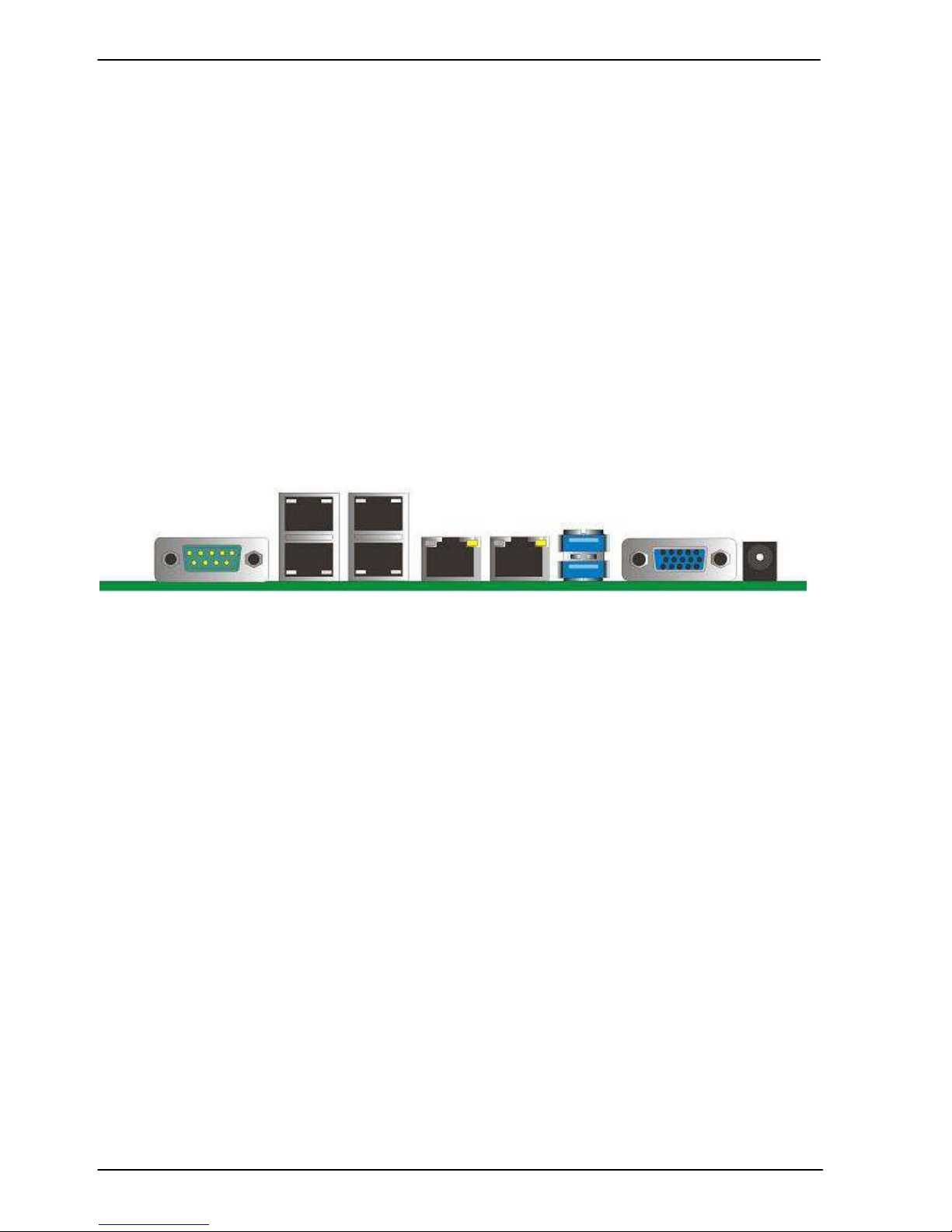

2.1 <Connector Location>
COM1 RJ45-1_2 RJ45-5 RJ45-6 USB1 CRT DC_2P
JFRNT
ATX
CN_INV
SO-DIMM1
DC_IN
CD_IN
CPUFAN
CN_AUDIO
MINI_CARD2
SO-DIMM2
CN_DVI
SATA 6 / 4 / 2
SATA 5 / 3 / 1
MINI_CARD1
SIMM
COM2
COM3/4/5/6
CN_LPC
JSPD 2/1
JSPD3 JACT 2/1
JACT3
SYSFAN
CN_USB3-0
CN_USB2
CN_USB3
CN_LVDS
DC_2P
CN_LPT
JSPD4
JACT4
JSPD5
JACT5
JSPD6
JACT6
RJ45-3_4
Page 14
LS-576 User’s Manual
-
12-

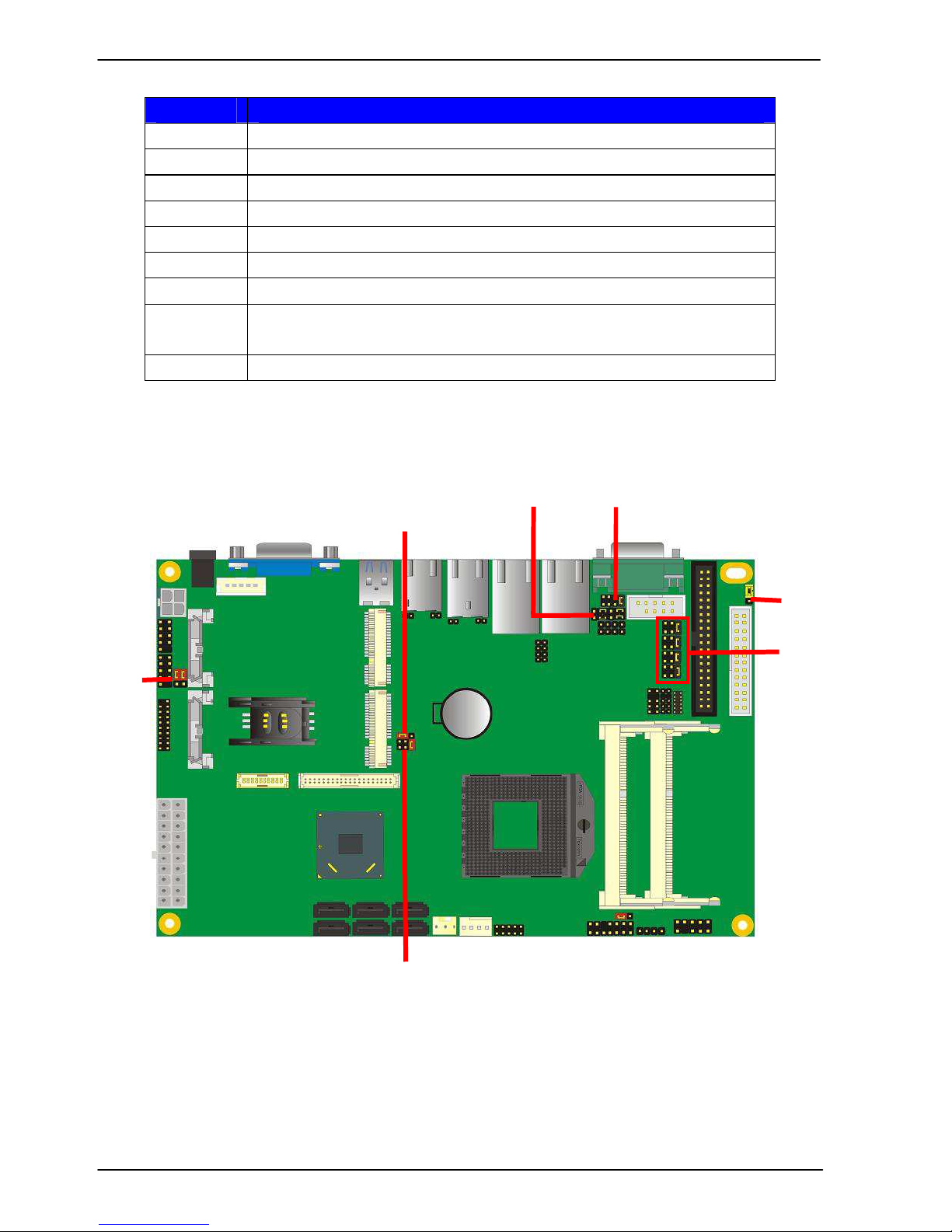

2.2 <Jumper Location & Reference>
Jumper Function
JRTC CMOS Operating/Clear Setting
JVLCD Panel Voltage Setting
JAT Power mode select
JP1 Com1 Voltage Setting (For Pin 9)
JP2 Com2 Voltage Setting (For Pin 9)
JP3 Com3 Voltage Setting (For Pin 9)
JP4 Com4 Voltage Setting (For Pin 9)
JCSEL1
JCSEL2
CN_COM2 RS-232 RS422 RS485 Setting
CN_IR IrDA Setting
JVUSB USB Voltage Setting
JVLCD
JRTC
JAT
JP1
JP2
JVUSB
JP4
JP3
JCSEL1
JCSEL2
Page 15
LS-576 User’s Manual
-
13-
2.3 <Connector Reference>
2.3.1 <Internal Connectors>
Connector Function Remark
CPU Socket rPGA988B for PGA988 CPU
SO-DIMM 1/2 204 -pin DDR3 SO-DIMM socket
SATA 1/2 7-pin Serial ATAIII connector
SATA 3/4/5/6 7-pin Serial ATAII connector
DC_IN DC 9~24V input connector
20-pin power input connector
ATX Mode
ATX
20-pin power output connector
DC Input Mode
CN_AUDIO 5 x 2-pin audio connector
CD_IN 4-pin CD-ROM audio input connector
CN_DIO 6 x 2-pin digital I/O connector
CN_USB 2/3 5 x 2-pin USB2.0 connector
CN_USB3-0
10 x 2-pin USB3.0 connector
CPUFAN 4-pin CPU cooler fan connector
SYSFAN 3-pin system cooler fan connector
CN_LVDS 20 x 2-pin LVDS connector
CN_INV 5-pin LCD inverter connector
CN_IR 5-pin IrDA connector
CN_COM 2 9-pin RS232/RS422/RS485
CN_COM
3/4/5/6
20 x 2-pin 4 x RS232
CN_LPC 5 x 2-pin LPC connector
CN_LPT 13 x 2-pin printer connector
JFRNT
14-pin front panel switch/indicator
connector
Mini-PCIE1/2 2 x 52-pin Mini-PCIE socket
JAT Power mode select
JSPD
1/2/3/4/5/6
LAN Speed LED connector
JACT
1/2/3/4/5/6
LAN Activity LED connector
2.3.2 <External Connectors>
Connector Function Remark
COM1 DB9 Serial port connector
RJ45-1~6 6 x RJ45 LAN connector
USB 2 x USB 3.0 connector
CRT DB15 VGA connector
DC_2P DC 9~24V input jack
Page 16
LS-576 User’s Manual
-
14-
2.4 <CPU and Memory Setup>
2.4.1 <CPU Setup>
The board comes with the socket rPGA988 for Intel IvyBridge Processor, Please
follow the instruction to install the CPU properly.
1. Use the flat-type screw drive
to unlock the CPU socket
U
nlock way
Check point
2. Follow the pin direction to install
the processor on the socket
3. Lock the socket
Socket CPU
Check point
Page 17
LS-576 User’s Manual
-
15-

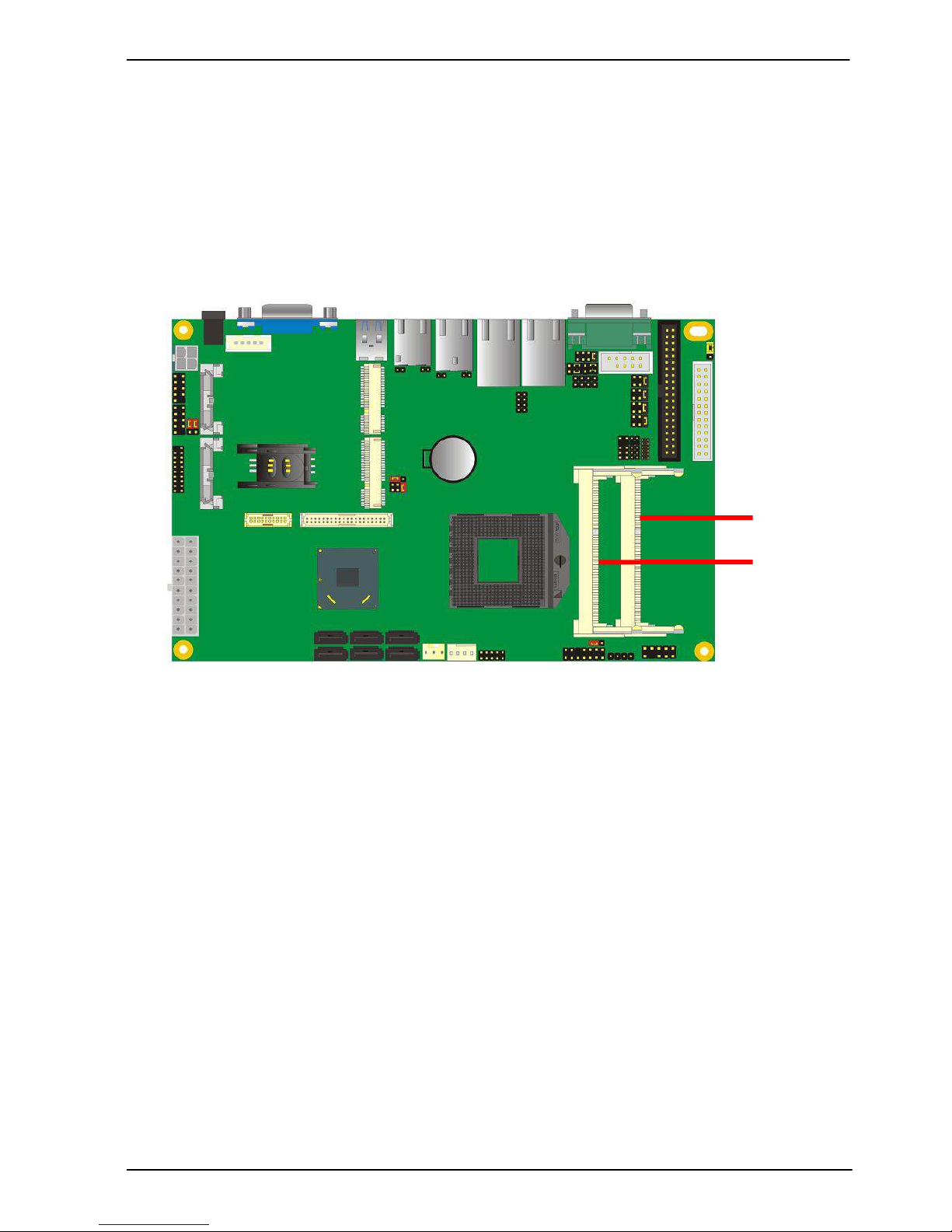

2.4.2 <Memory Setup>
The board provides 2 x 204-pin DDR3 SO-DIMM to support 1066/1333/1600MHz DDR3
memory module up to 16GB.
SO-DIMM1
SO-DIMM2
Page 18
LS-576 User’s Manual
-
16-

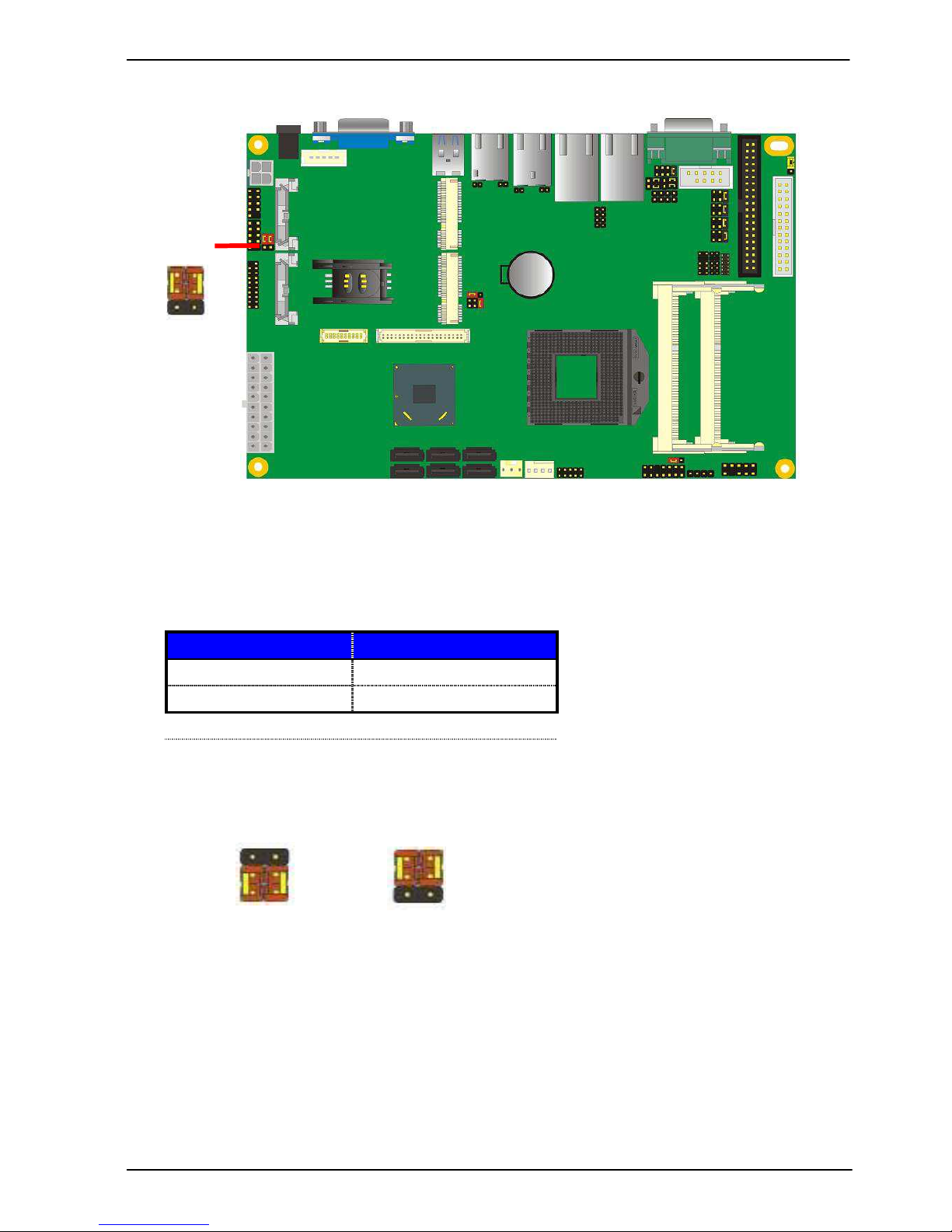

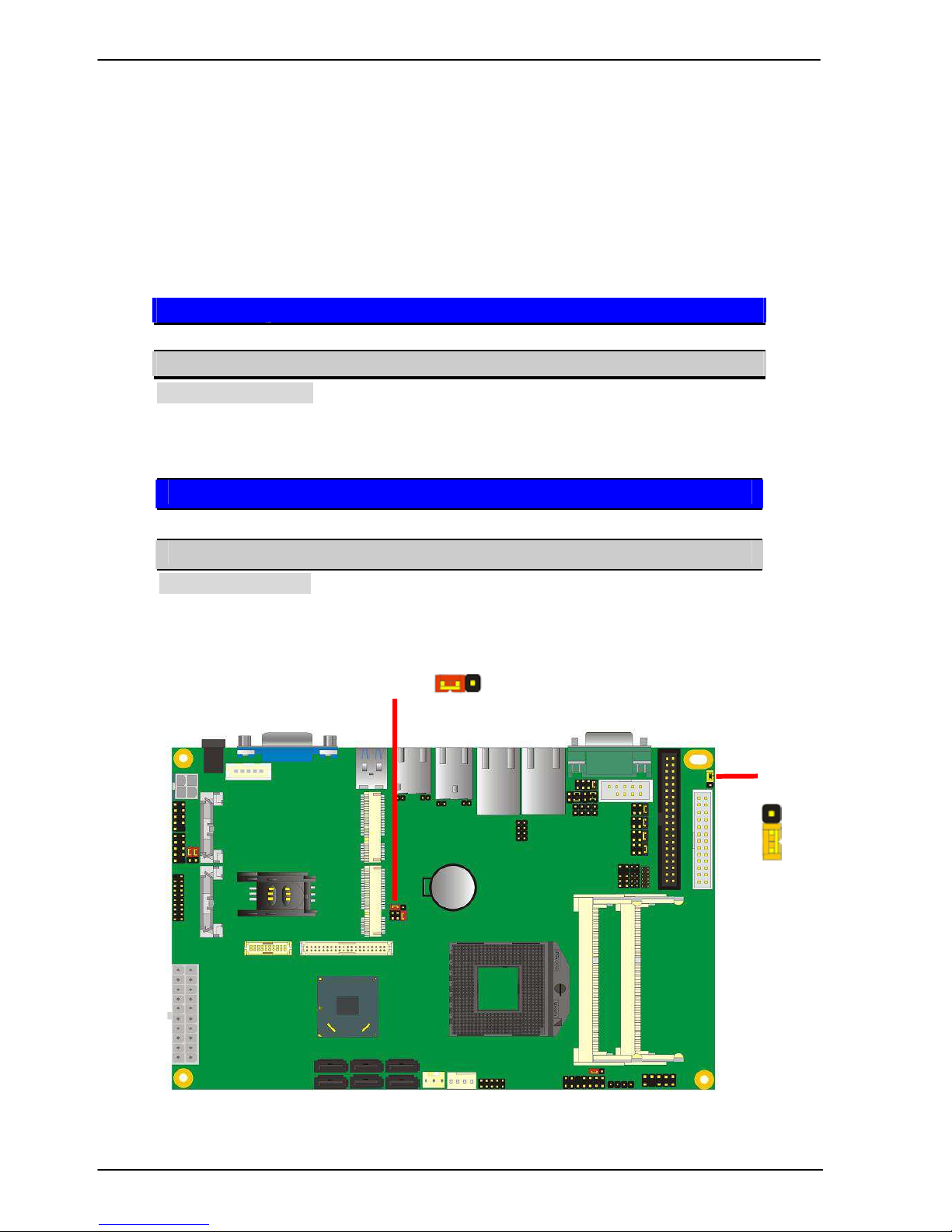

2.5 <CMOS & ATX Setup>
The board’s data of CMOS can be setting in BIOS. If the board refuses to boot due
to inappropriate CMOS settings, here is how to proceed to clear (reset) the CMOS
to its default values.
Jumper: JRTC
Type: Onboard 3-pin jumper
JRTC Mode
1-2 Clear CMOS
2-3 Normal Operation
Default setting: 2-3
Jumper: JAT
Type: onboard 3-pin jumper
JAT Mode
1-2 AT Mode
2-3 ATX Mode
Default setting:2-3
3 1
1
3
JRTC
JAT
Page 19
LS-576 User’s Manual
-
17-
2.6 <Serial ATA Interface>
Based on Intel PCH, the board provides two Serial ATAIII(SATA Port1/2) interfaces with
up to 600MB/s of transfer rate and four Serial ATAII(SATA Port3/4/5/6) interfaces with
up to 300MB/s of transfer rate.
2.7 <Ethernet Interface>
The board integrates with Six Intel PCI Express Gigabit Ethernet controllers, as the PCI
Express x1 can speed up to 250MB/s of transfer rate instead of late PCI bus with
133MB/s of transfer rate. The Intel Gigabit Ethernet supports triple speed of
10/100/1000Base-T, with IEEE802.3 compliance and Wake-On-LAN supported.
RJ45 LAN connector
SATA 6 / 4 / 2
SATA 5 / 3 / 1
Page 20
LS-576 User’s Manual
-
18-
2.8 <Onboard Display Interface>
Based on Intel
Ivy Bridge
CPU with built-in HD Graphic, the board provides one DB15
connector on real external I/O port, one 40-pin LVDS interface with 5-pin LCD backlight
inverter connector and provides 20-pin DVI interface.
The board provides dual display function with clone mode and extended desktop mode
for CRT, LCD and DVI.
2.8.1 <Analog Display>
Please connect your CRT or LCD monitor with DB15 male connector to the onboard
DB15 female connector on rear I/O port .
CRT
Page 21
LS-576 User’s Manual
-
19-

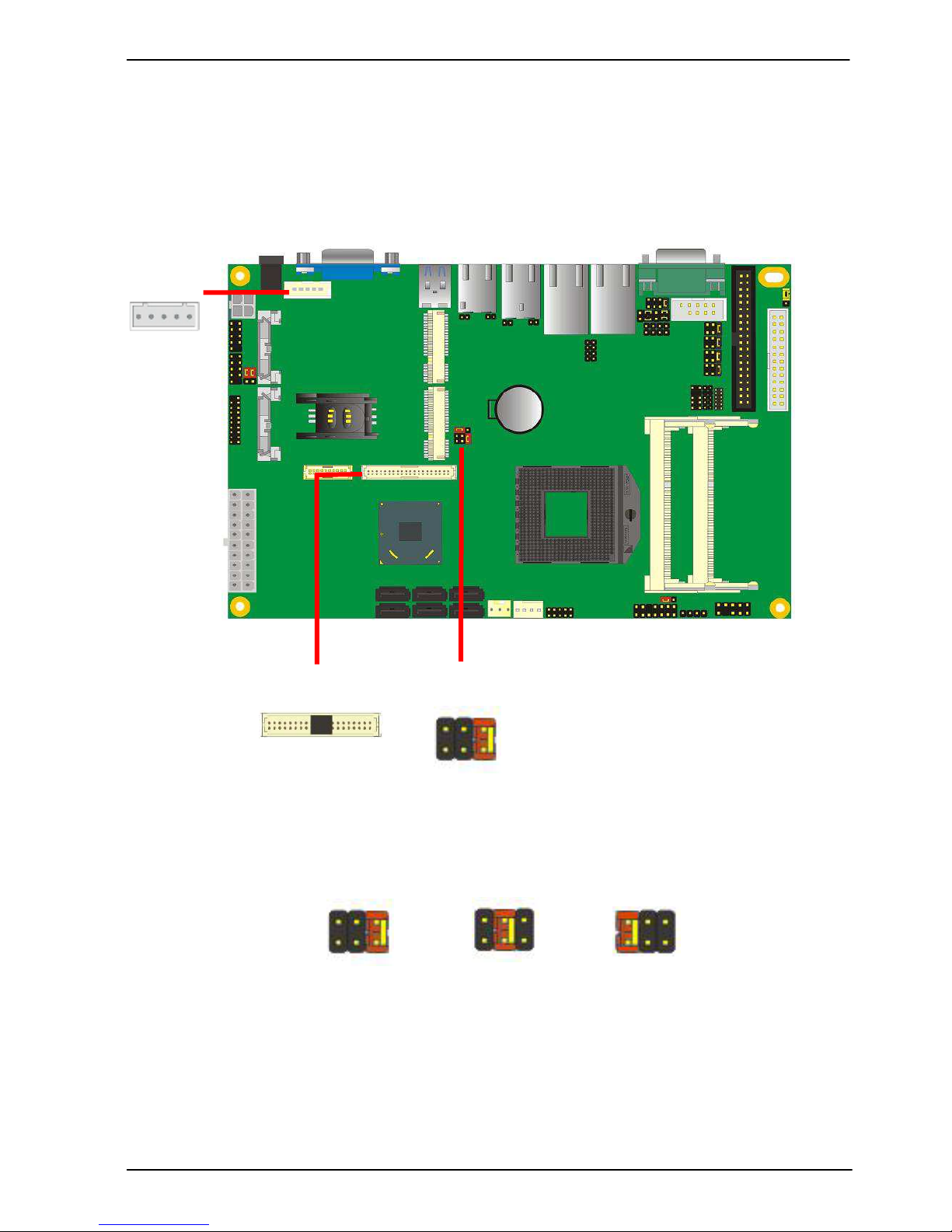

CN_INV
5 1
2.8.2 <Digital Display>
The board provides one 40-pin LVDS connector for 24-bit single/dual channel panels,
supports up to 2048 x 1536 (UXGA) resolution, with one LCD backlight inverter
connector and one jumper for panel voltage setting.
Effective patterns of connection: 1-2 / 3-4 / 5-6
Warning: others cause damages
JVLCD
CN_LVDS
1
2
3
4
5
6
1
2
5
6
2
1
40
39
Page 22
LS-576 User’s Manual
-
20-
Connector: CN_INV Connector: JVLCD
Type: 5-pin LVDS Power Header Type: 6-pin Power select Header
Pin
Description
1 +12V
2 Reserved (Note)
3 GND
4 GND
5 ENABKL
Note: Reserved for MB internal test
Please treat it as NC.
Connector: CN_LVDS
Type: onboard 40-pin connector for LVDS connector
Connector model: HIROSE DF13-40DP-1.25V
Pin Signal Pin Signal
2 LCDVCC 1 LCDVCC
4 GND 3 GND
6 ATX0- 5 BTX0-
8 ATX0+ 7 BTX0+
10 GND 9 GND
12 ATX1- 11 BTX114 ATX1+ 13 BTX1+
16 GND 15 GND
18 ATX2- 17 BTX220 ATX2+ 19 BTX2+
22 GND 21 GND
24 ACLK- 23 BTX326 ACLK+ 25 BTX3+
28 GND 27 GND
30 ATX3- 29 BCLK32 ATX3+ 31 BCLK+
34 GND 33 GND
36 DDCPCLK 35 SMBCKL
38 DDCPDATA 37 SMBDATA
40 N/C 39 SPDIFO
Pin Description
1-2 LCDVCC (3.3V)
3-4 LCDVCC (5V)
5-6 LCDVCC (12V)
Default: 1-2
Page 23
LS-576 User’s Manual
-
21-
To setup the LCD, you need the component below:
1. A panel with LVDS interfaces.
2. An inverter for panel’s backlight power.
3. A LCD cable and an inverter cable.
For the cables, please follow the pin assignment of the connector to make a cable, because
every panel has its own pin assignment, so we do not provide a standard cable; please find
a local cable manufacture to make cables.
LCD Installation Guide:
1. Preparing the LS-576, LCD panel and the backlight inverter.
2. Please check the datasheet of the panel to see the voltage of the panel, and set
the jumper JVLCD to +12V or +5V or +3.3V.
3. You would need a LVDS type cable.
4. To connect all of the devices well.
For sample illustrator only
Panel side
Board side
Page 24
LS-576 User’s Manual
-
22-

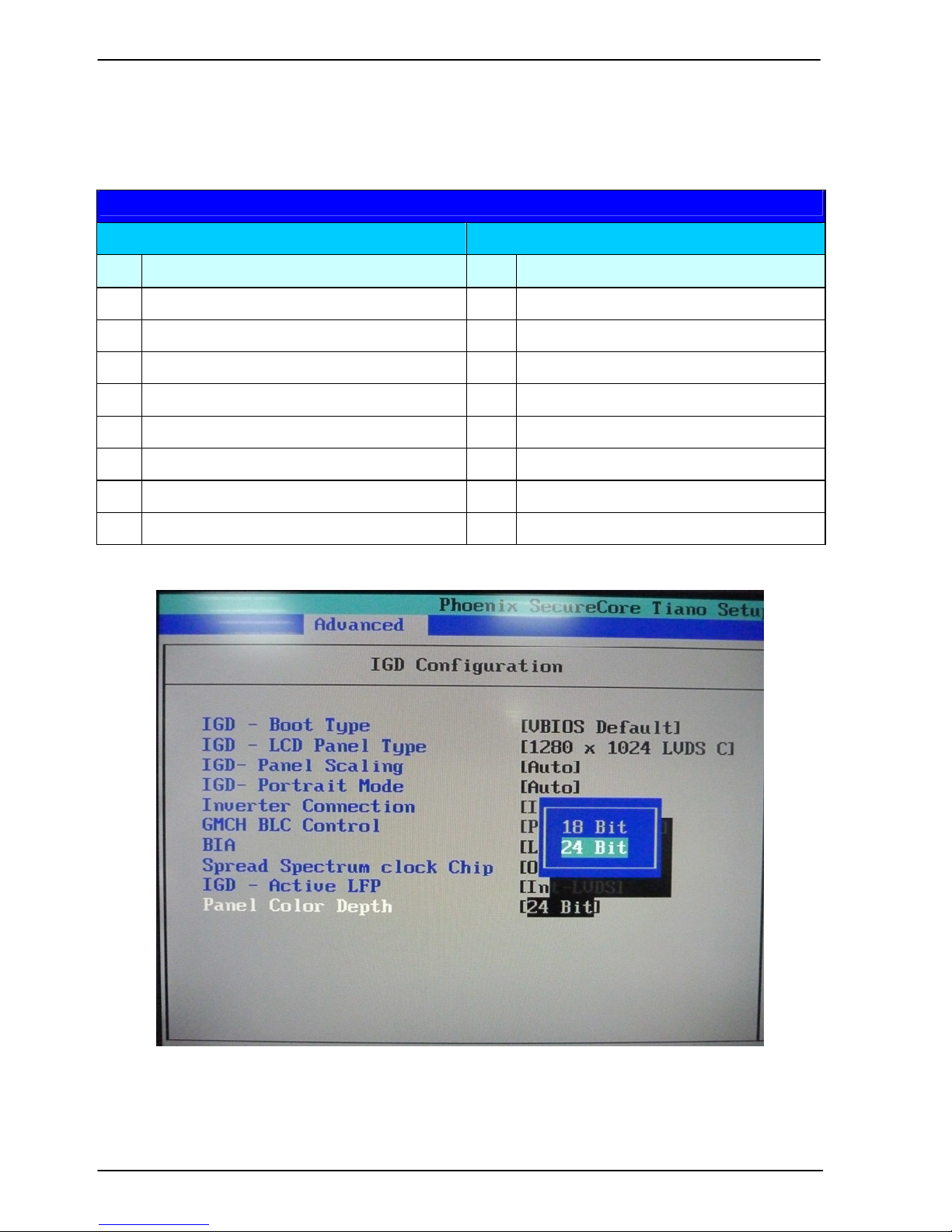

After setup the devices well, you need to select the LCD panel type in the BIOS.
The panel type mapping is list below:
BIOS panel type selection form (BIOS Version:1.0)
Single / Dual channel Single / Dual channel
NO.
Output format NO.
Output format
1
640 x 480 9 1680 x 1050
2
800 x 600 10
1920 x 1200
3
1024 x 768 11
1440 x 900
4
1280 x 1024 12
1600 x 900
5
1400 x 1050 Reduced Blanking 13
OEM Keep
6 1400 x 1050 non-Reduced Blanking 14
1280 x 800
7
1680 x 1200 15
1920 x 1080
8
1366 x 768 16
OEM Keep
Page 25
LS-576 User’s Manual
-
23-

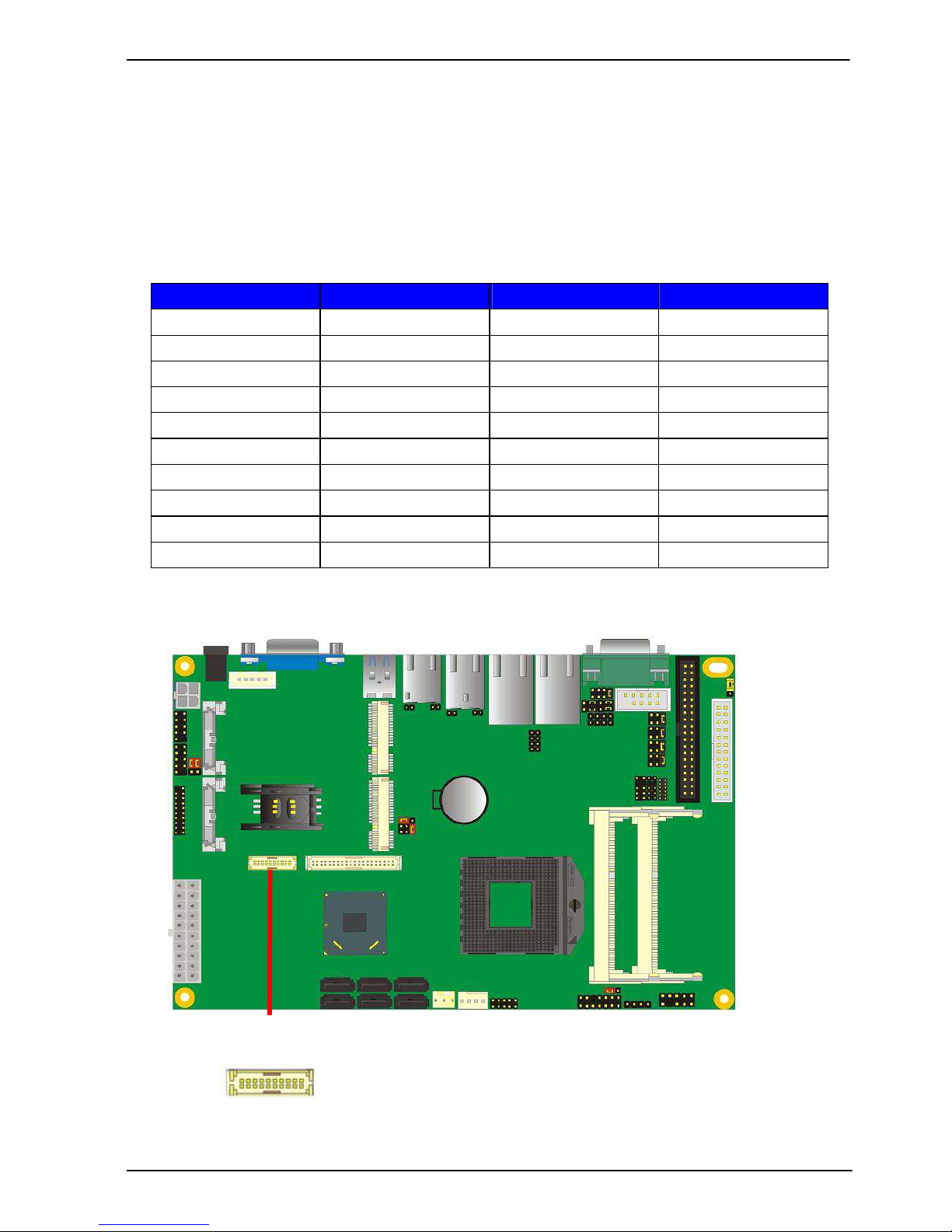

2.8.3 <DVI Interface>
The board provides one 20-pin DVI connector,
supports up to 1920 x 1080 resolution.
Connector: CN_DVI
Connector type: 20-pin header connector (pitch = 2.00mm)
Pin Number Assignment Pin Number Assignment
1 +5V 2 +3.3V
3 HPD 4 Ground
5 TMDSTX0N 6 TMDSTX0P
7 Ground 8 TMDSTX1N
9 TMDSTX1P 10 Ground
11 TMDSTX2N 12 TMDSTX2P
13 Ground 14 TMDSTXCN
15 TMDSTXCP 16 Ground
17 DVI_DA 18 DVI_SL
19 AUXN 20 AUXP
19
20
1
2
CN_DVI
Page 26
LS-576 User’s Manual
-
24-
CDIN

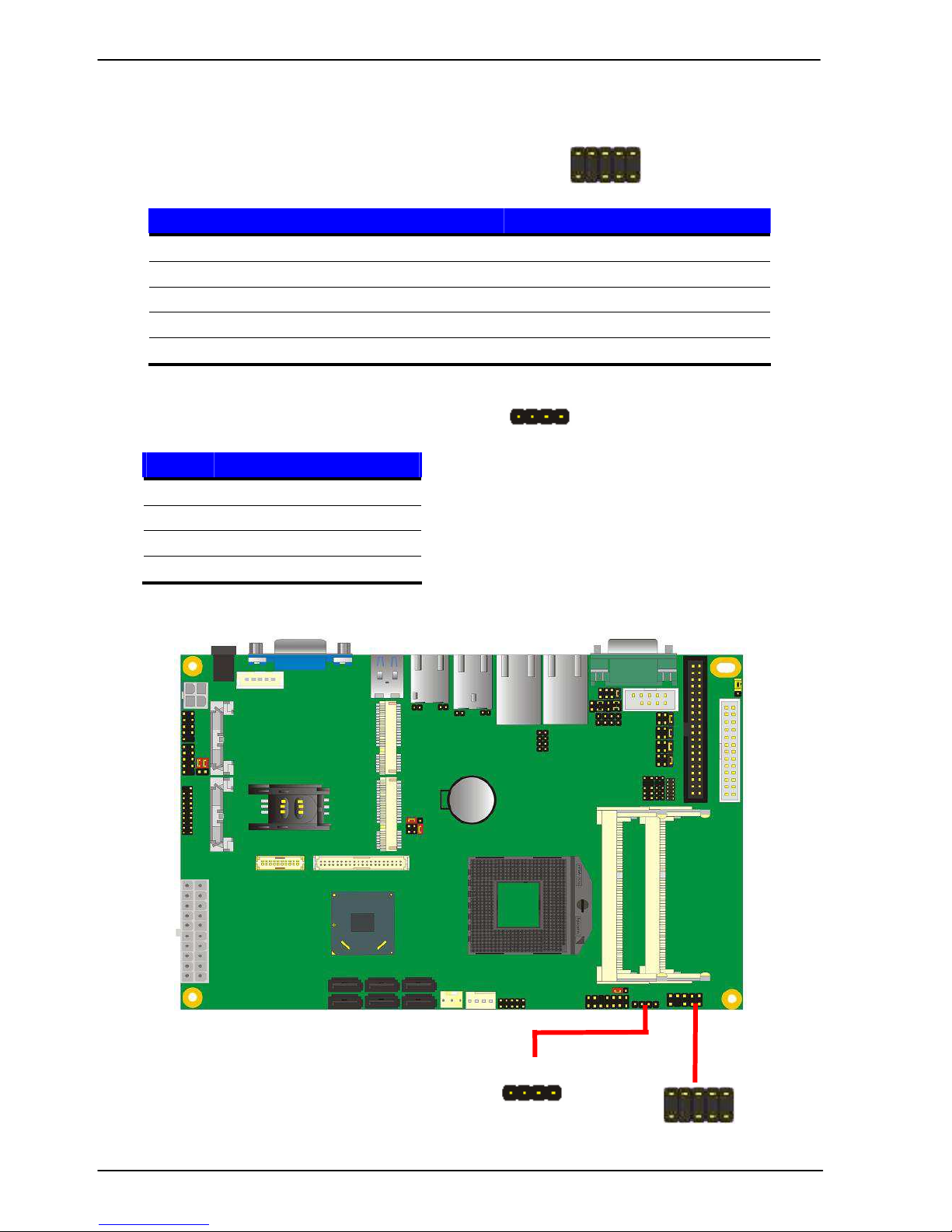

2.9 <Integrated Audio Interface>
The board provides the onboard high definition audio with Realtek ALC888
Connector: CN_AUDIO
Type: 10-pin (2 x 5) header (pitch = 2.54mm)
Pin
Description Pin
Description
1 MIC_L 2 Ground
3 MIC_R 4 N/C
5 Speaker_R 6 MIC Detect
7 SENSE 8 N/C
9 Speaker_L 10 Speaker Detect
Connector: CDIN
Type: 4-pin header (pitch = 2.54mm)
Pin
Description
1 CD – Left
2 Ground
3 Ground
4 CD – Right
10
1
2
9
CN_AUDIO
4 1
10
1
2
9
4 1
Page 27
LS-576 User’s Manual
-
25-

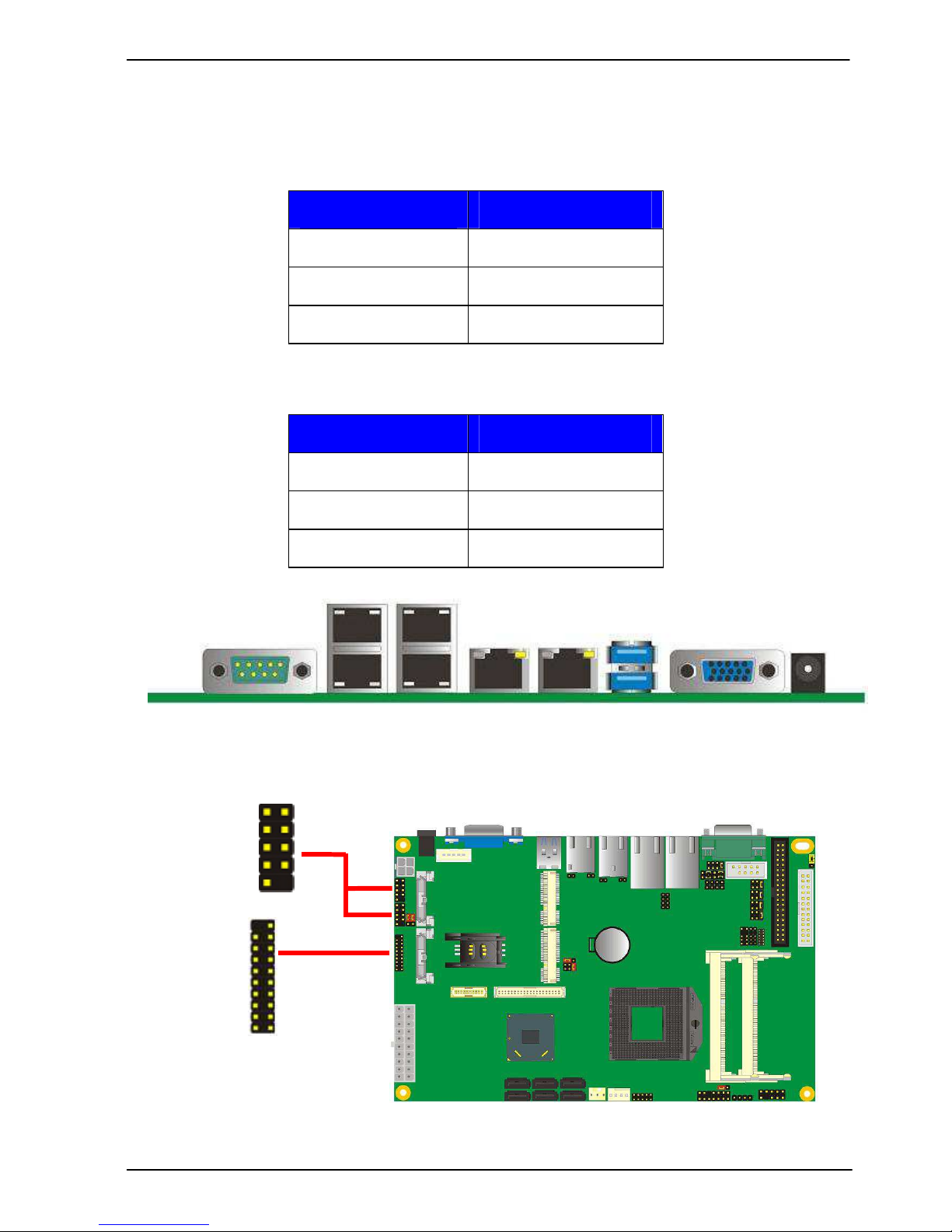

2.10 <USB Interface>
LS-576 integrates four USB3.0 ports and four USB2.0 ports.
The specifications of USB3.0 are listed below:
The specifications of USB2.0 are list
Interface USB3.0
Controller
Intel®QM77
Transfer Rate Up to 5Gb/s
Voltage 5V
Interface USB2.0
Controller
Intel®QM77
Transfer Rate Up to 480Mb/s
Voltage 5V
USB
Type: USB3.0
9 10
1 2 CN_USB3
CN_USB2
Type: USB2.0
20 1
11 10
CN_USB3-0
Type: USB3.0
Page 28
LS-576 User’s Manual
-
26-
Connector: CN_USB3-0
Type: 20-pin (2 x 10) header (pitch = 2.0mm)
Pin
Description Pin
Description
1 VCC 20 NC
2 USB3.0_RX0- 19 VCC
3 USB3.0_RX0+ 18 USB3.0_RX14 Ground 17 USB3.0_RX1+
5 USB3.0_TX0- 16 Ground
6 USB3.0_TX0+ 15 USB3.0_TX17 Ground 14 USB3.0_TX1+
8 Data0- 13 Ground
9 Data0+ 12 Data110 NC 11 Data1+
Connector: CN_USB2/3
Type: 10-pin (2 x 5) header (pitch = 2.54mm)
Pin
Description Pin
Description
1 VCC 2 VCC
3 Data0- 4 Data15 Data0+ 6 Data1+
7 Ground 8 Ground
9 Ground 10 N/C
Page 29
LS-576 User’s Manual
-
27-
Connector: JVUSB
Type: 6-pin Power select jumper
Pin Description
1-3 & 2-4 5V_SB
3-5 & 4-6 5V
Default: 1-3 & 2-4
Effective patterns of connection: 1-3 & 2-4 or 3-5 & 4-6
Warning: others cause damages
JVUSB
2
6
1
5
2
6
2
6
1
5
1
5
Page 30
LS-576 User’s Manual
-
28-

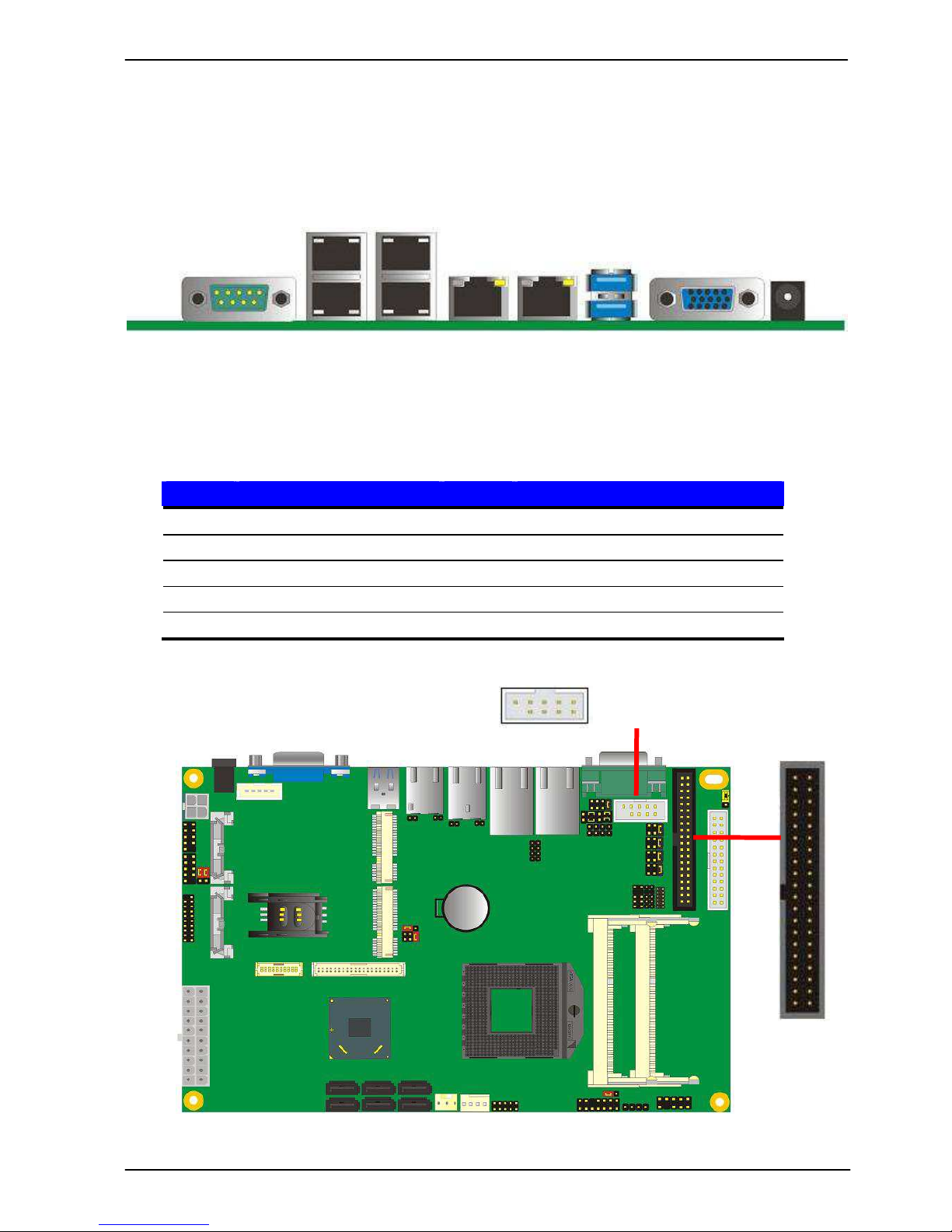

2.11 <Serial Port>
The board supports five RS232 serial port and one jumper selectable
RS232/422/485 serial ports. The jumper JCSEL1 & JCSEL2 can let you configure
the communicating modes for COM2.
Connector: COM1
Type: 9-pin D-sub male connector on bracket for COM1
Pin
Description Pin
Description
1 DCD 2 RXD
3 TXD 4 DTR
5 GND 6 DSR
7 RTS 8 CTS
9 RI 10 N/C
COM1
COM2
COM3/4/5/6
1 2
39 40
9 1
10 2
Page 31
LS-576 User’s Manual
-
29-
Connector: COM2
Type: 9-pin BOX header
Pin
Description Pin
Description
1 DCD/422TX-/485- 2 RXD/422TX+/485+
3 TXD/422RX+ 4 DTR/422RX5 GND 6 DSR
7 RTS 8 CTS
9 RI 10 N/C
Setting RS-232 & RS-422 & RS-485 for COM2
Connector: COM3/4/5/6
Type: 40-pin BOX header
Pin
Description Pin
Description
1 DCD1 2 RXD1
3 TXD1 4 DTR1
5 GND1 6 DSR1
7 RTS1 8 CTS1
9 RI1 10 N/C
11 DCD2 12 RXD2
13 TXD2 14 DTR2
15 GND2 16 DSR2
17 RTS2 18 CTS2
19 RI2 20 N/C
21 DCD3 22 RXD3
23 TXD3 24 DTR3
25 GND3 26 DSR3
27 RTS3 28 CTS3
29 RI3 30 N/C
31 DCD4 32 RXD4
33 TXD4 34 DTR4
35 GND4 36 DSR4
37 RTS4 38 CTS4
39 RI4 40 N/C
Page 32
LS-576 User’s Manual
-
30-

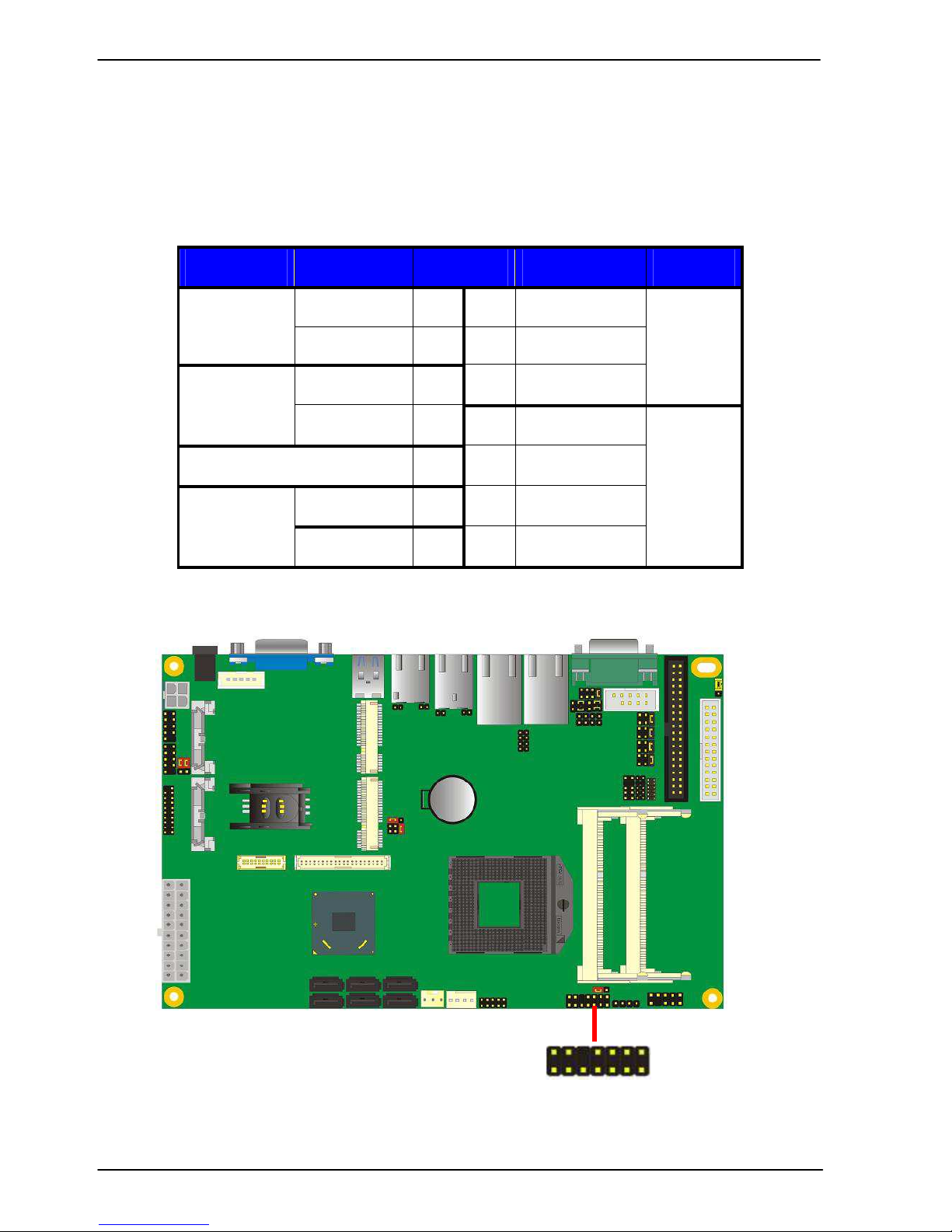

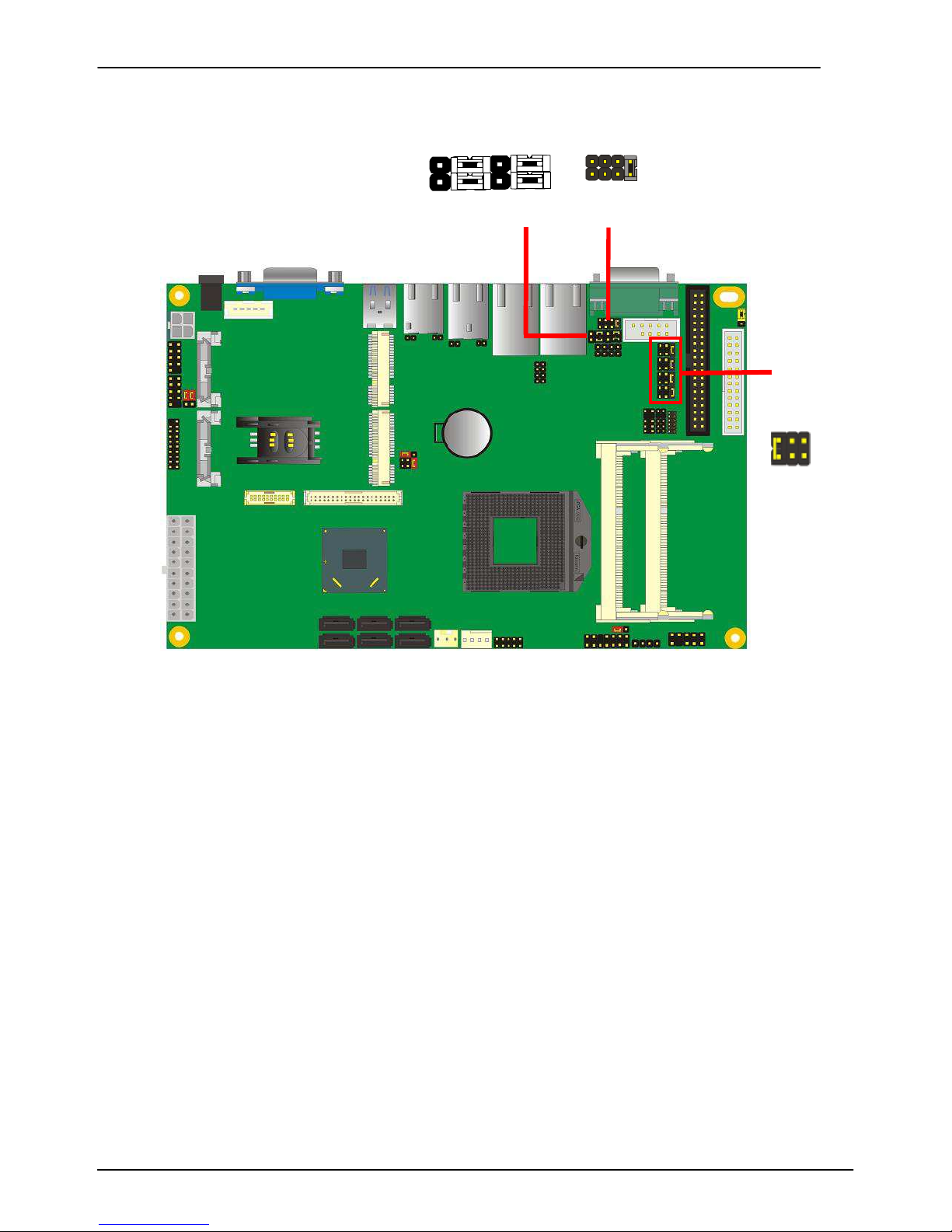

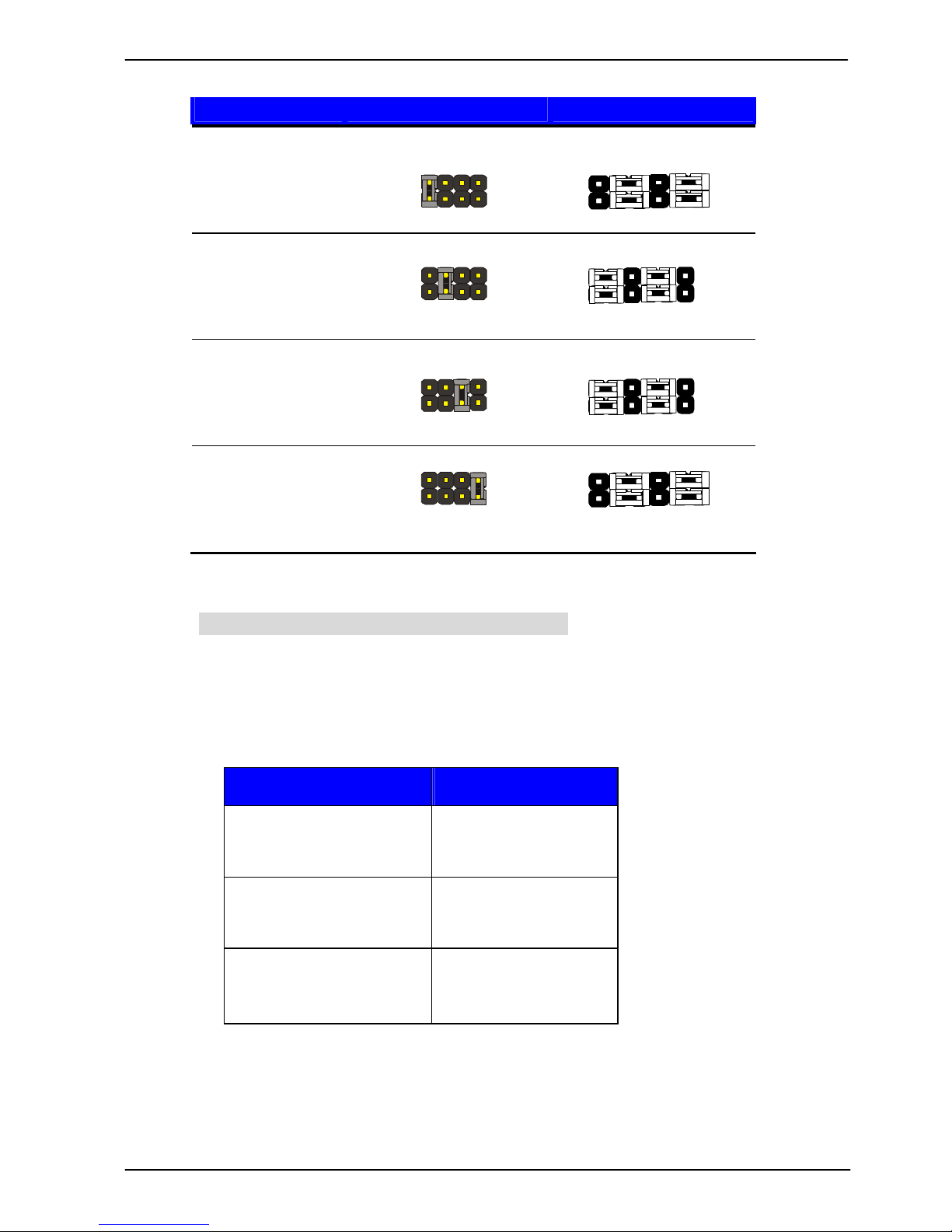

Jumper: JP1/JP2/JP3/JP4 (COM1/2/3/4)
Type: onboard 6-pin header
Function JCSEL2 JCSEL1
IrDA
RS-422
RS-485
RS-232
Power Mode JP1/2/3/4
Pin 9 with 5V Power 1-2
Pin 9 with 12V Power 3-4
Standard COM port 5-6
Default setting
1
2 8
7
1
2 8
7
1
2 8
7
1
2
8
7
1
2
11
12
1
2
11
12
1
2
11
12
1
2
11
12
Default setting:
JCSEL1: (1-3, 2-4, 7-9, 8-10) JCSEL2: (1-2)
Page 33
LS-576 User’s Manual
-31-
5 1
6 2
JP3
JP4
JP2
JP1
JCSEL1 JCSEL2
1
2
12
1
11
2 8
7
Page 34
LS-576 User’s Manual
-
32-
2.12 <PCIE Mini Card and SIM Interface>
The board provides two PCIE mini card sockets and a SIM socket.
MINI_CARD1 is the second Mini-PCIe slot for long size Mini-PCIe cards.
However, if you are trying to use 3G Mini-PCIe card with a SIM card then place your 3G
Mini-PCIe card in this slot and put your SIM card into the SIM card socket beneath this
MINI_CARD1 support 3G PCIE Mini card with SIM.
MINI_CARD1 slot and option support mSATA.
MINI_CARD2 is the first Mini-PCIe slot for long size Mini-PCIe cards.
Please be noted that the MPX-SDVOD card must be placed in this slot. The
MPX-SDVOD card will not work if it is placed in other slot.
Please also be noted that this slot is the only slot for MPX-SDVOX card but a
customized BIOS is needed for the MPX-SDVOX card. Please contact Commell for
customized BIOS for your MPX-SDVOX card.
Page 35
LS-576 User’s Manual
-
33-
Connector: SIMM
Type: 6-pin SIM socket
Pin
Description Pin
Description
1 SIMVCC 2 SIMRST
3 SIMCLK 4 NC
5 GND 6 SIMVPP
7 SIMDATA
6
7
5 1
3
2
MINI_CARD2
MINI_CARD1
SIMM
Page 36
LS-576 User’s Manual
-
34-

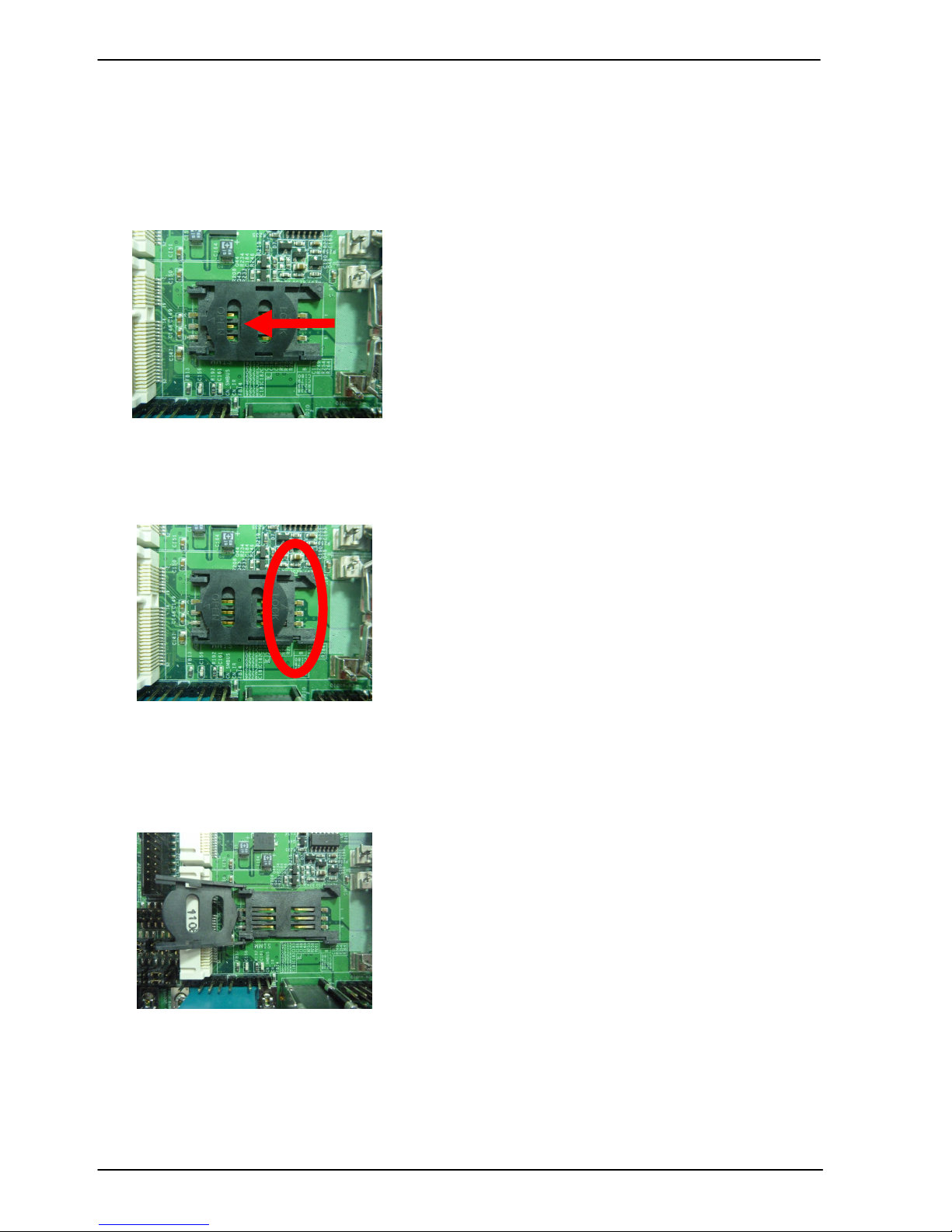

2.12.1 <SIM Setup>
Step1.
SIM card holder is marked by circle.
Slide the cap toward OPEN direction.
Step 2.
Make sure that the cap is now at the OPEN position.
Step 3.
Flip the cap up for inserting a SIM card into.
Page 37
LS-576 User’s Manual
-
35-
Step 4.
Insert a SIM card as shown in the photo.
Be sure that the corner cut is on top and the golden pads are up.
Step 5.
Now, flip down the cap as shown in the photo.
Step 6.
Press down and slide the cap to the CLOSE position.
Be sure that the cap is tightly held with the socket.
Page 38
LS-576 User’s Manual
-
36-

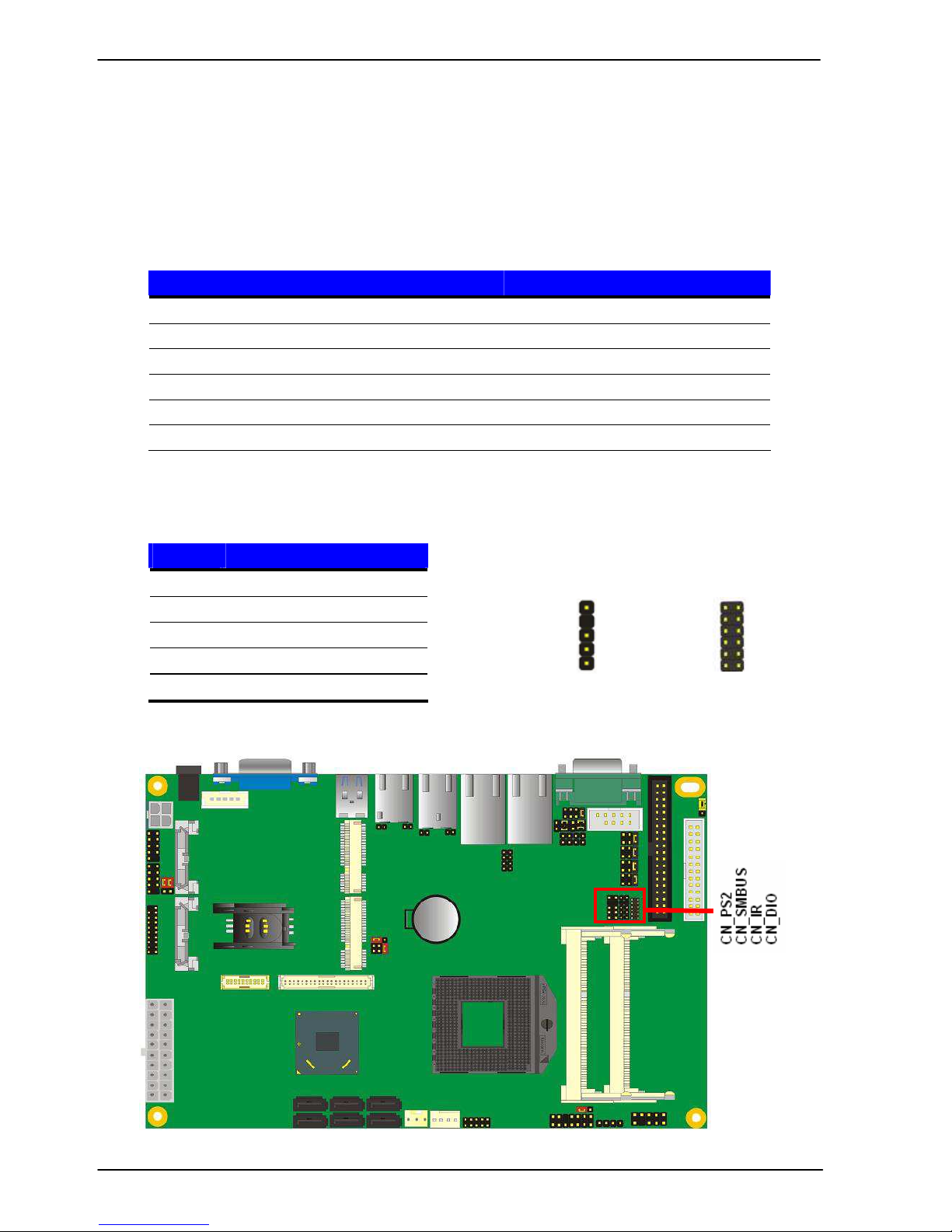

2.13 <GPIO and SMBUS Interface>
The board provides a programmable 8-bit digital I/O interface; you can use this general
purpose I/O port for system control like POS or KIOSK.
Connector: CN_DIO
Type: 12-pin (6 x 2) header (pitch = 2.0mm)
Pin
Description Pin
Description
1 Ground 2 Ground
3 GP10 4 GP14
5 GP11 6 GP15
7 GP12 8 GP16
9 GP13 10 GP17
11 5V 12 12V
Connector: CN_SMBUS
Type: 5-pin header for SMBUS Ports
Pin
Description
1 VCC
2 N/C
3 SMBDATA
4 SMBCLK
5 Ground
CN_SMBUS CN_DIO
1
5
11 12
1 2
Page 39
LS-576 User’s Manual
-
37-

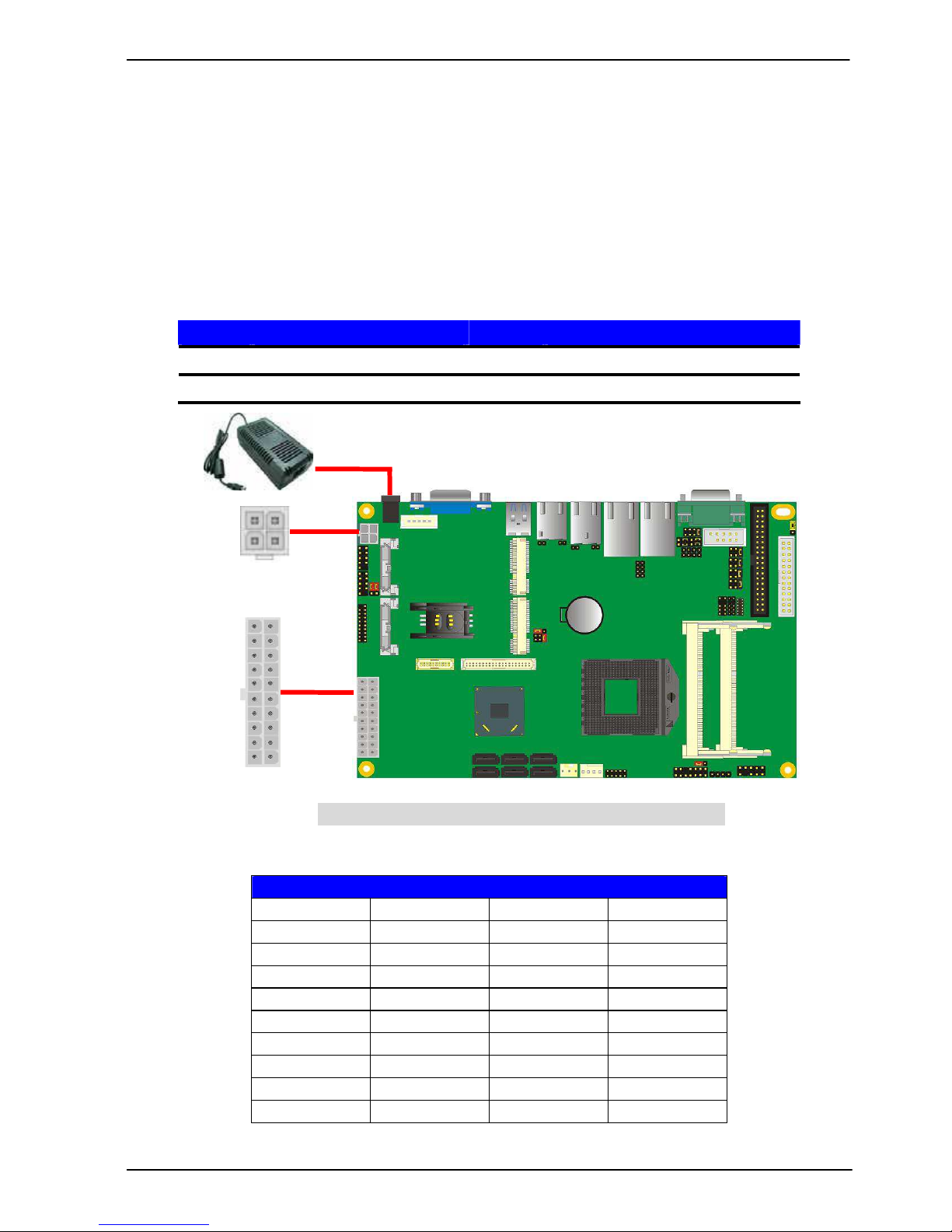

2.14 <Power Supply and Fan Interface >
2.14.1 <Power Input>
The board requires onboard 4-pin DC-input connector voltage range is from 9V to 24V,
or onboard 20-pin ATX2.0, for the input current, please take a reference of the power
consumption report on appendix.
Connector: DC_IN
Type: 4-pin DC power connector
Pin
Description Pin Description
1 Ground 2 Ground
3 +9~+24V 4 +9~+24V
Connector: ATX (It also can become Output when DC-IN be used)
Type: 20-pin ATX power connector
PIN assignment
1 3.3V 11 3.3V
2 3.3V 12 -12V
3 GND 13 GND
4 5V 14 -PSON
5 GND 15 GND
6 5V 16 GND
7 GND 17 GND
8 PW_OK 18 N/C
9 5V_SB 19 5V
10 12V 20 5V
DC_IN
DC adapter input
ATX
Page 40
LS-576 User’s Manual
-
38-
2.14.2 <Power Output>
The board provides one 20-pin ATX connector for +5V/+12V output for powering your
HDD, CDROM or other devices.
Attention: When DC-IN had power supplied, the ATX become output !
Avoid DC-IN and ATX power supply input at the same time !
Connector: ATX (When DC-IN be used)
Type: 20-pin ATX connector for +5V/+12V Output
PIN assignment
1 * 11 *
2 * 12 *
3 * 13 *
4 5V 14 *
5 GND 15 *
6 * 16 GND
7 GND 17 GND
8 * 18 *
9 * 19 *
10 12V 20 5V
Note: Maximum output voltage: 12V/2A & 5V/3A
Page 41
LS-576 User’s Manual
-
39-

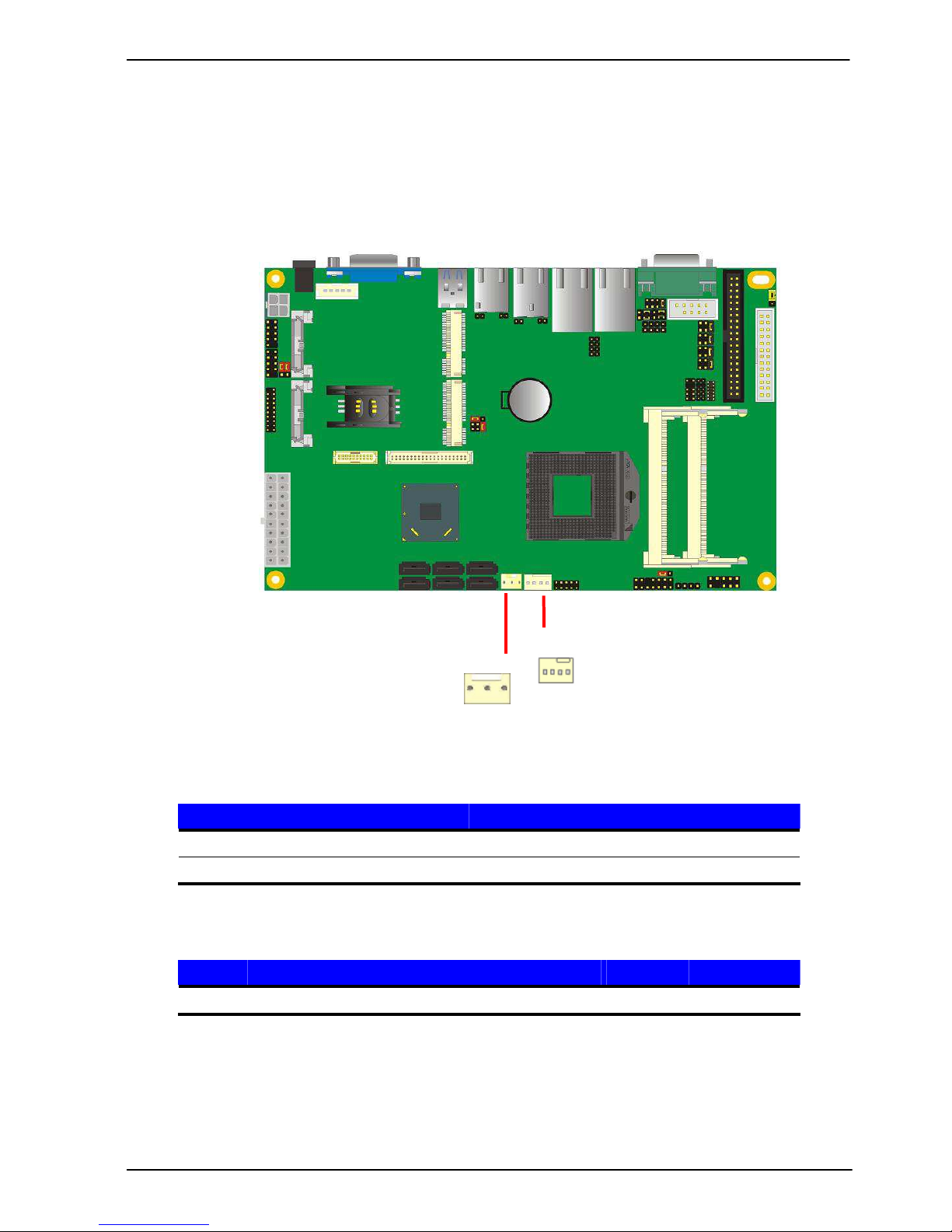

2.14.3 <Fan connector>
The board provides one 4-pin fan connectors supporting smart fan for CPU cooler and
one 3-pin cooler fan connectors for system.
Connector: CPUFAN
Type: 4-pin fan wafer connector
Pin
Description Pin Description
1 Ground 2 +12V
3 Fan Speed Detection
4 Fan Control
Connector: SYSFAN
Type: 3-pin fan wafer connector
Pin Description Pin Description Pin Description
1 Ground 2 +12V 3 Sense
SYSFAN
3 1
CPUFAN
4 1
Page 42
LS-576 User’s Manual
-
40-
2.15 <Switch and Indicator>
The JFRNT provides front control panel of the board, such as power button, reset and
beeper, etc. Please check well before you connecting the cables on the chassis.
Connector: JFRNT
Type: onboard 14-pin (2 x 7) 2.54-pitch header
Function Signal PIN Signal Function
HDLED+ 1 2 PWRLED+
IDE LED
HDLED- 3 4 N/C
Reset+ 5 6 PWRLED-
Power
LED
Reset
Reset- 7 8 SPK+
N/C 9 10
N/C
PWRBT+ 11
12
N/C Power
Button
PWRBT- 13
14
SPK-
Speaker
13 1
14 2
JFRNT
Page 43
LS-576 User’s Manual
-
41-
Chapter 3 <System Setup>
3.1 <Audio Configuration>
The board integrates Intel® QM77 with REALTEK® ALC888 code. It can support
2-channel sound under system configuration. Please follow the steps below to setup
your sound system.
1. Install REALTEK HD Audio driver.
2. Lunch the control panel and Sound Effect Manager.
3. Select Speaker Configuration
Page 44
LS-576 User’s Manual
-
42-
3.2 <Display Properties Setting>
Based on Intel QM77 with HD Graphic, the board supports two DACs for display device
as different resolution and color bit.
Please install the Intel Graphic Driver before you starting setup display devices.
1. Click right button on the desktop to lunch display properties
2. Click Advanced button for more specificity setup.
Click Graphics Properties... for
advanced setup
Page 45
LS-576 User’s Manual
-
43-
3. This setup options can let you define each device settings.
Click Monitor to setup the CRT
monitor for Resolution and
Refresh Rate
Click Intel® Dual Display
Clone to setup the dual
display mode as same screen
Page 46
LS-576 User’s Manual
-
44-
Chapter 4 <BIOS Setup>
The motherboard uses the Phoenix BIOS for the system configuration. The Phoenix
BIOS in the single board computer is a customized version of the industrial standard
BIOS for IBM PC AT-compatible computers. It supports Intel x86 and compatible CPU
architecture based processors and computers. The BIOS provides critical low-level
support for the system central processing, memory and I/O sub-systems.
The BIOS setup program of the single board computer let the customers modify the basic
configuration setting. The settings are stored in a dedicated battery-backed memory,
NVRAM, retains the information when the power is turned off. If the battery runs out of
the power, then the settings of BIOS will come back to the default setting.
The BIOS section of the manual is subject to change without notice and is provided here
for reference purpose only. The settings and configurations of the BIOS are current at
the time of print, and therefore they may not be exactly the same as that displayed on
your screen.
To activate CMOS Setup program, press ＜DEL＞ key immediately after you turn on the
system. The following message “Press DEL to enter SETUP” should appear in the lower
left hand corner of your screen. When you enter the CMOS Setup Utility, the Main Menu
will be displayed as Figure 4-1. You can use arrow keys to select your function, press
＜Enter＞ key to accept the selection and enter the sub-menu.

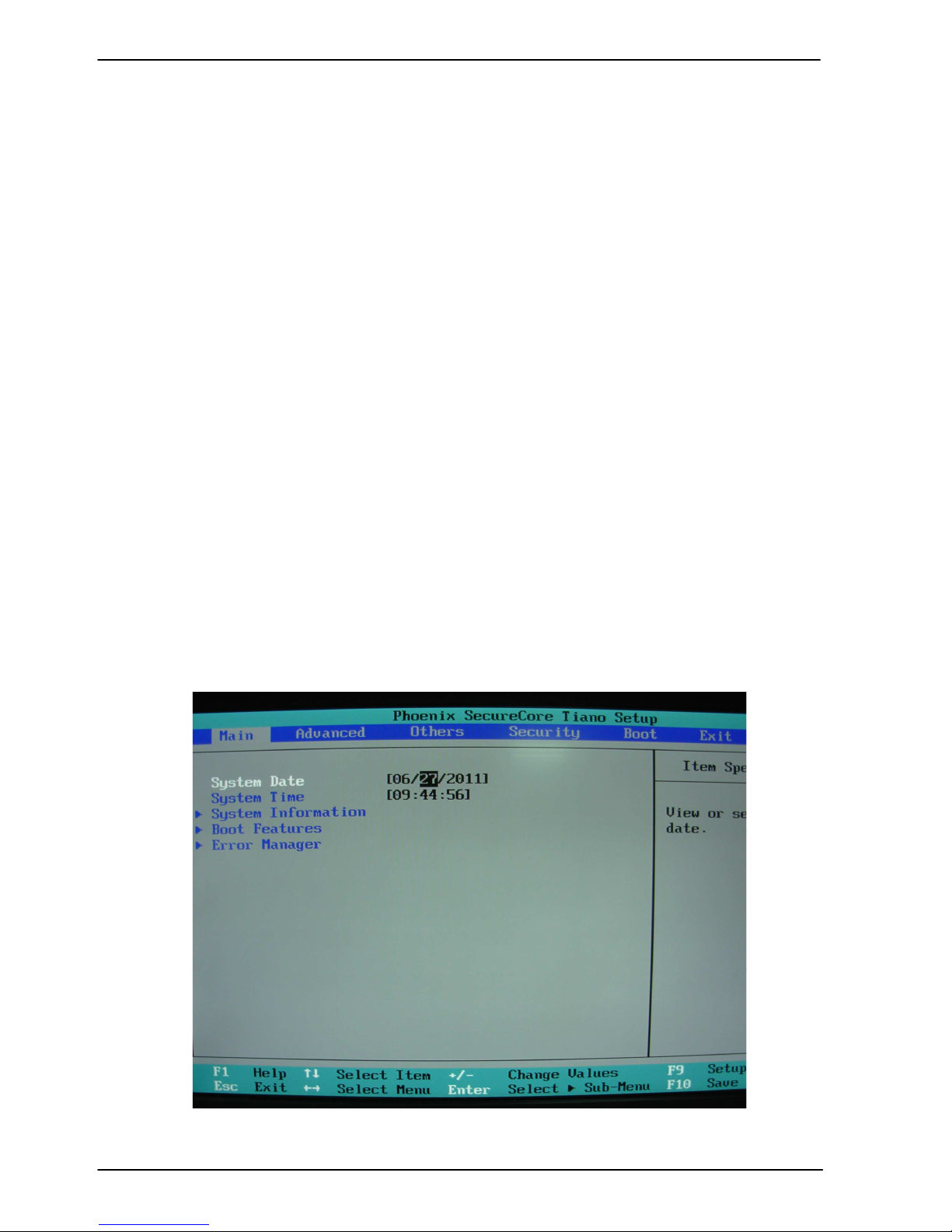

Figure 4-1 CMOS Setup Utility Main Screen
Page 47
LS-576 User’s Manual
-
45-
(This page is left for blank)
Page 48
LS-576 User’s Manual
-
46-

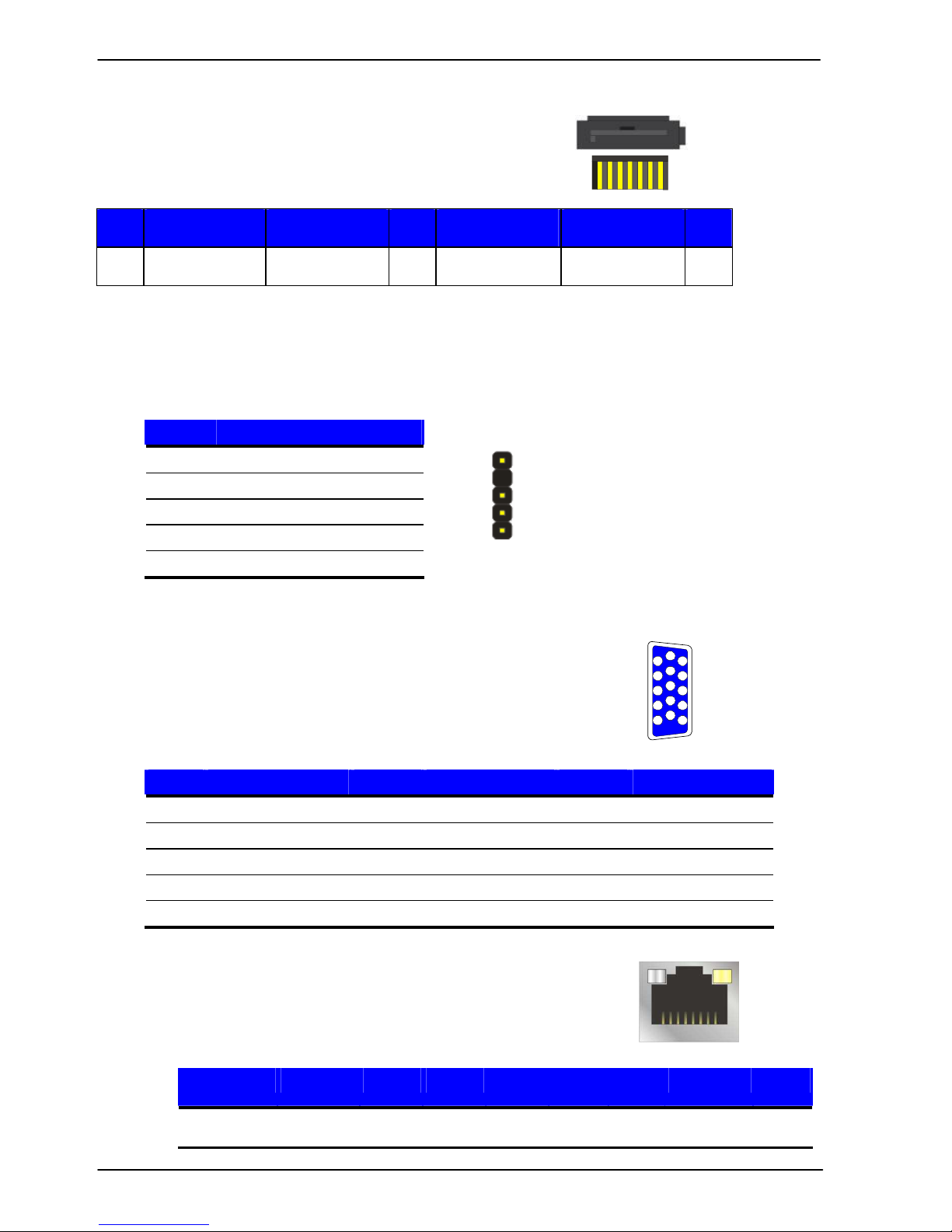

Appendix A <I/O Port Pin Assignment>
A.1 <Serial ATA Port>
Connector: SATA1/2/3/4/5/6
Type: 7-pin wafer connector
1
2 3 4
5 6 7
GND RSATA_TXP1 RSATA_TXN1 GND RSATA_RXN1 RSATA_RXP1 GND
A.2 <IrDA Port>
Connector: CN_IR
Type: 5-pin header for SIR Ports
A.3 <VGA Port>
Connector: CRT
Type: 15-pin D-sub female connector on bracket
Pin Description
Pin
Description Pin
Description
1 RED 6 Ground 11 N/C
2 GREEN 7 Ground 12 DDCDA
3 BLUE 8 Ground 13 HSYNC
4 N/C 9 N/C 14 VSYNC
5 Ground 10 Ground 15 DDCCLK
A.4 <LAN Port>
Connector: RJ45
Type: RJ45 connector with LED on bracket
Pin
Description
1 VCC
2 N/C
3 IRRX
4 Ground
5 IRTX
Pin 1 2 3 4 5 6 7 8
Description MI0+ MI0- MI1+ MI2+ MI2- MI1-
MI3+ MI3-
1
6
10
1
2
3
4
5
11
12
13
14
15
5
JCSEL1 must jump to
“
SIR
”
7 1
8 1
Page 49
LS-576 User’s Manual
-
47-

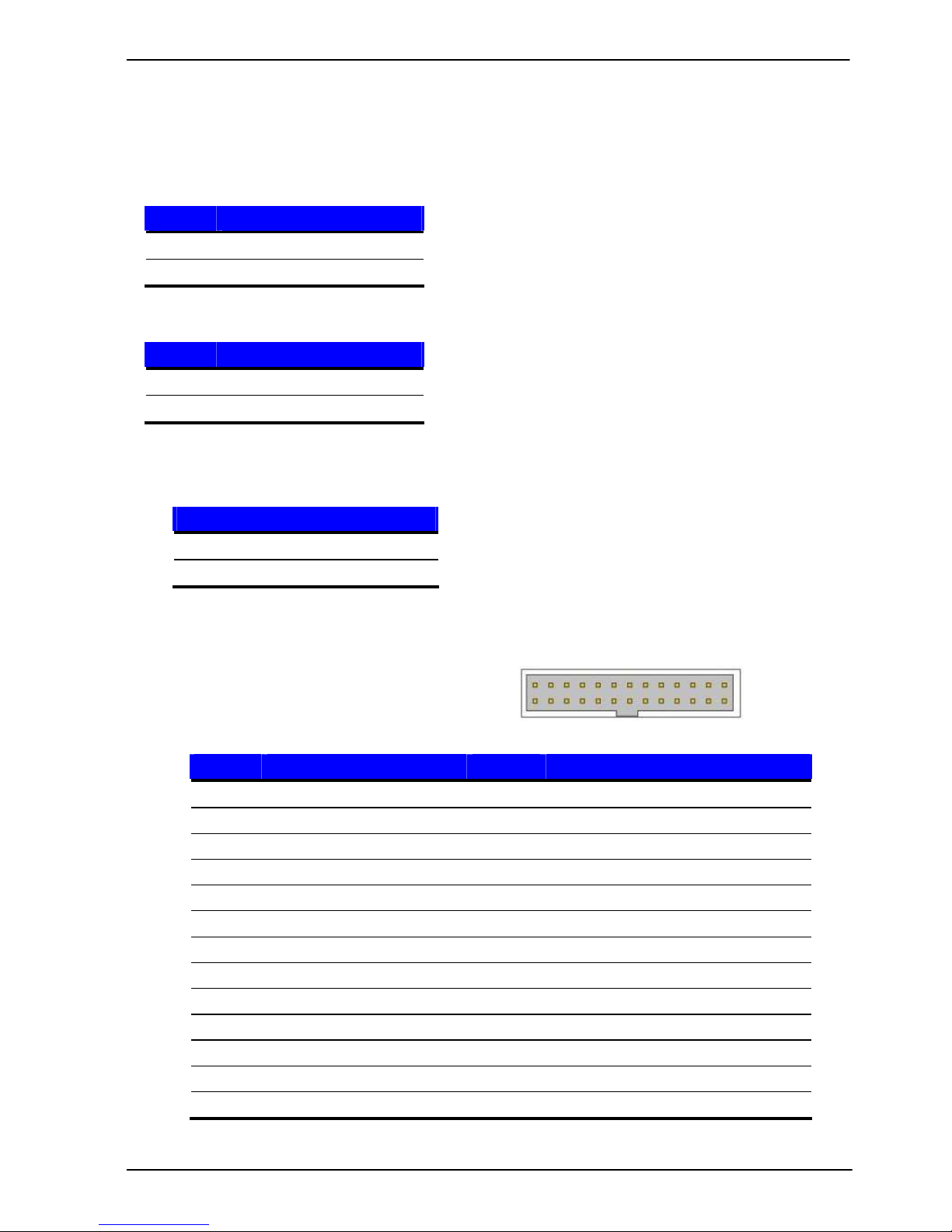

A.5 <LAN LED Port>
Connector: JSPD1/2
Type: 5-pin header for LAN Speed LED connector
When Lan speed 10/100Mbps
When Lan speed 1Gbps
Connector: JATC1/2
Type: 5-pin header for LAN Activity LED connector
A.6 <Parallel Port>
Connector: LPT
Type: 26-Pin box header
Pin
Description Pin
Description
1 -PSTB 14 AFD2 PRO0 15 ERR3 PRO1 16 INT4 PRO2 17 SLIN5 PRO3 18 Ground
6 PRO4 19 Ground
7 PRO5 20 Ground
8 PRO6 21 Ground
9 PRO7 22 Ground
10 ACK- 23 Ground
11 BUSY 24 Ground
12 PE 25 Ground
13 SLCT 26 N/C
Pin
Description
1 LED2 LED+
Pin
Description
1 LED+
2 LED-
Pin Description
1 LED2 LED+
1 13
14 26
Page 50
LS-576 User’s Manual
-
48-
Appendix B <Flash BIOS>
B.1 <Flash Tool>
The board is based on Phoenix BIOS and can be updated easily by the BIOS auto
flash tool. You can download the tool online at the address below:
http://www.phoenix.com/en/home/
http://www.commell.com.tw/Support/Support_SBC.htm
File name of the tool is “Phlash16.exe”, it’s the utility that can write the data into the
BIOS flash ship and update the BIOS.
B.2 <Flash BIOS Procedure>
1. Please make a bootable floppy disk.
2. Get the last .bin files you want to update and copy it into the disk.
3. Copy Phlash16.exe to the disk.
4. Power on the system and flash the BIOS.
(Example: C:/Pflash XXX.bin /bbl /cvar /sa)
5. Restart the system.
Any question about the BIOS re-flash please contact your distributors or visit the
web-site at below:
http://www.commell.com.tw/support/support.htmUT
Page 51
LS-576 User’s Manual
-
49-
Appendix C <Programming GPIO’s>
The GPIO’can be programmed with the MSDOS debug program using
simple IN/OUT commands.The following lines show an example how to
do this.
GPIO0…..GPIO7 bit0……bit7
-o 2 E 87 ;enter configuration
-o 2E 87
-o 2E 07
-o 2F 09 ;enale GPIO function
-o 2E 30
-o 2F 02 ;enable GPIO configuration
-o 2E F0
-o 2F xx ;set GPIO as input/output; set ‘1’ for input,’0’for
output
-o 2E F1
-o 2F xx ;if set GPIO’s as output,in this register its value can
be set
Optional :
-o 2E F2
-o 2F xx ; Data inversion register ; ‘1’ inverts the current valus
of the bits ,’0’ leaves them as they are
-o 2E 30
-o 2F 01 ; active GPIO’s
For further information, please refer to Winbond W83627DHG-P datasheet.
Page 52
LS-576 User’s Manual
-
50-
Appendix D <Programming Watchdog Timer >
The watchdog timer makes the system auto-reset while it stops to work for a period.
The integrated watchdog timer can be setup as system reset mode by program.
Timeout Value Range
- 1 to 255
- Second or Minute
Program Sample
Watchdog timer setup as system reset with 5 second of timeout
2E, 87
2E, 87
2E, 07
2F, 08 Logical Device 8
2E, 30 Activate
2F, 01
2E, F5 Set as Second*
2F, 00
2E, F6 Set as 5
2F, 05
* Minute: bit 3 = 1; Second: bit 3 = 0
You can select Timer setting in the BIOS, after setting the time options, the system
will reset according to the period of your selection.
Page 53
LS-576 User’s Manual
-
51-
Contact Information
Any advice or comment about our products and service, or
anything we can help you please don’t hesitate to contact with us.
We will do our best to support you for your products, projects and
business.
Taiwan Commate Computer Inc.
Address
19F., No.94, Sec. 1, Xintai 5th Rd., Xizhi Dist., New
Taipei City 22102, Taiwan
TEL +886-2-26963909
FAX +886-2-26963911
Website
TU
http://www.commell.com.twUT
E-Mail
TU
[email protected] (General Information)
TU
[email protected] (Technical Support)
Commell is a brand name of Taiwan commate computer Inc.
Loading...
