LS-371
3.5 inch Miniboard
User’s Manual
Edition 1.4
2010/11/1
Page 2
LS-371 User’s Manual
Copyright
Copyright 2006. All rights reserved. This document is copyrighted and all rights are
reserved. The information in this document is subject to change without prior notice to make
improvements to the products.
This document contains proprietary information and protect ed by copyright. No part of this
document may be reproduced, copied, or translated in any form or any means without prior
written permission of the manufacturer.
All trademarks and/or registered trademarks contains in this document are propert y of their
respective owners.
Disclaimer
The company shall not be liable for any incidental or consequenti al dam ages res ultin g from
the performance or use of this product.
The company does not issue a warranty of any kind, e xpress or implied, including without
limitation implied warranties of merchantability or fitness for a particular purpose.
The company has the right to revise the manual or include changes in th e specifications of
the product described within it at any time without notice and without obligation to notify any
person of such revision or changes.
Trademark
All trademarks are the property of their respective holders.
Any questions please visit our website at TUhttp://www.commell.com.twUT
2
Page 3
LS-371 User’s Manual

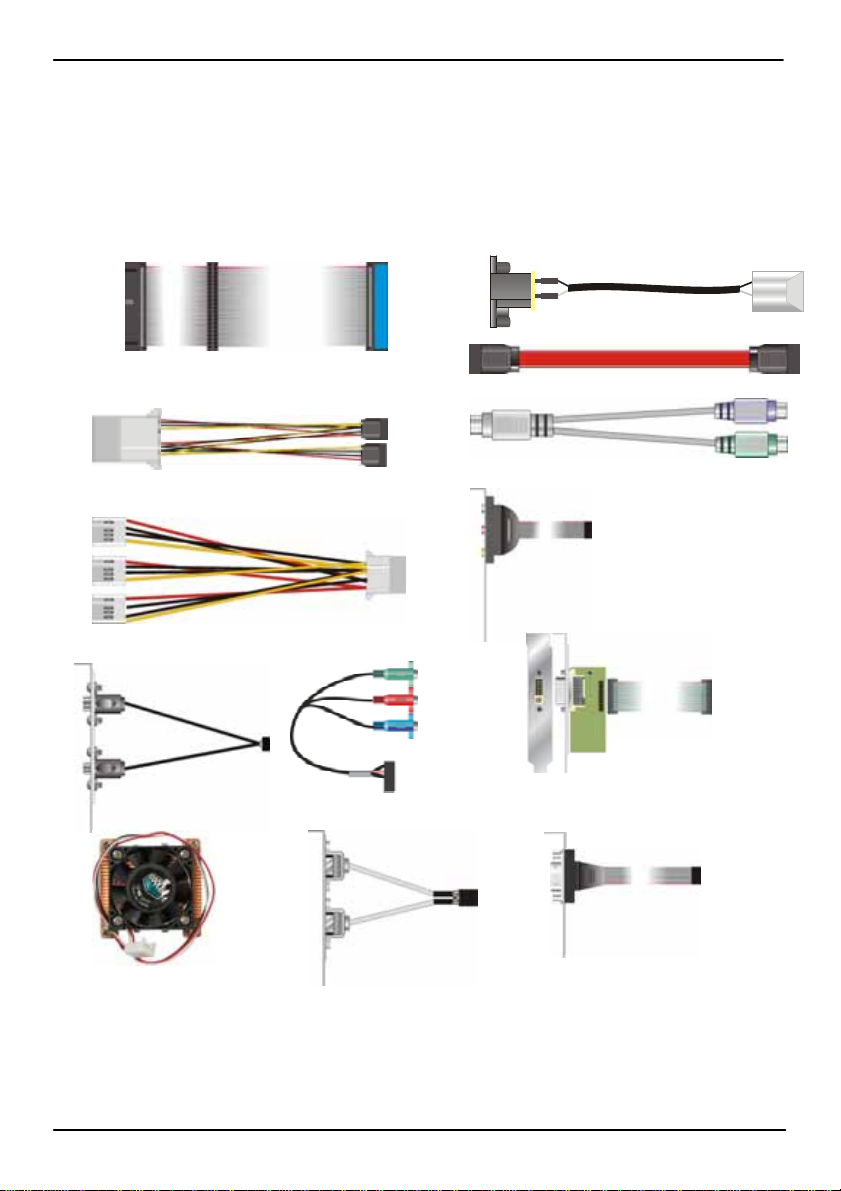

Packing List
Please check the package before you starting setup the system
Hardware:
LS-371 Miniboard x 1
Cable Kit:
44-pin
44-pin
SDTV Cable x 1
ATA33 IDE Cable x1
SATA Power Cable x 1
1 to 3 power output cable
YPbPr Cable x 1
40-pin
DC Power Cable x 1
SATA Cable x 2
PS/2 keyboard & mouse cable x 1
Audio Port Cable x 1
DVI module with bracket x 1
Printed Matters:
Driver CD x 1 (Including User’s Manual)
USB Cable x 1 CPU Cooler x 1
COM Port Cable x 1
3
Page 4
LS-371 User’s Manual
Index
Chapter 1 <Introduction>.....................................................................................7
1.1 <Product Overview>.................................................................................7
1.2 <Product Specification>...........................................................................8
1.3 <Mechanical Drawing>...........................................................................10
1.4 <Block Diagram>....................................................................................11
Chapter 2 <Hardware Setup>.............................................................................12
2.1 <Connector Location>............................................................................12
2.2 <Jumper Reference> .............................................................................14
2.3 <Connector Reference>.........................................................................15
2.3.1 <Internal Connector>..................................................................15
2.3.2 <External Connector>.................................................................15
2.4 <CPU and Memory Setup>.................................................................... 16
2.4.1< CPU>........................................................................................16
2.4.2 <Memory> ..................................................................................17
2.5 <CMOS＆ATX Setup>...........................................................................18
2.6 <Enhanced IDE & CF Interface>............................................................19
2.7 <Serial ATA Interface>...........................................................................20
2.8 <LAN Interface>.....................................................................................20
2.9 <Onboard Display Interface>.................................................................21
2.9.1 <Analog VGA Interface> ............................................................21
2.9.2 <Digital Display>.........................................................................22
2.9.3 <DVI Interface > ......................................................................... 25
2.9.4<TV-out Interface>.......................................................................26
2.10 <Onboard Audio Interface>..................................................................29
2.11 <USB2.0 Interface>..............................................................................30
2.12 <GPIO Interface>.................................................................................32
2.13 <Serial Port Jumper Setting >..............................................................33
2.14 <Power and Fan Connector>...............................................................35
4
Page 5
LS-371 User’s Manual
2.14.1 <Power Input>..........................................................................35
2.14.2 <Power Output> .......................................................................36
2.14.3 <Fan Connector>......................................................................36
2.15 <Indicator and Switch>.........................................................................37
Chapter 3 <System Configuration>...................................................................38
3.1 <Video Memory Setup> ......................................................................... 38
3.2 <Audio Configuration> ...........................................................................40
Chapter 4 <BIOS Setup> ....................................................................................42
Appendix A <I/O Port Pin Assignment> ........................................................... 43
A.1 <IDE Port>.............................................................................................43
A.2 <IrDA Port>............................................................................................ 44
A.3 < CRT Port >..........................................................................................44
A.4 <Serial ATA Port>..................................................................................44
A.5 <Serial Port>..........................................................................................45
A.6 <LAN Port>............................................................................................45
Appendix B <Flash BIOS>..................................................................................46
B.1 BIOS Auto Flash Tool............................................................................46
B.2 Flash Method.........................................................................................46
Appendix C <System Resources> .................................................................... 47
C1.<I/O Port Address Map>.........................................................................47
C2. <Memory Address Map>.......................................................................48
C3.<System IRQ Resources>......................................................................49
Appendix D <Programming GPIO’s>................................................................50
Appendix E <Watch Dog timer Setting >.......................................................... 51
Contact Information............................................................................................53
5
Page 6
LS-371 User’s Manual
(The Page is Left For Blank)
6
Page 7
LS-371 User’s Manual
Chapter 1 <Introduction>
1.1 <Product Overview>
LS-371 is the 3.5 inch miniboard, with supporting Intel Core 2 Dual/Core Dual/ Core Solo
processors for 533/667MHz front side bus, Intel 945GM(E) and ICH7-M chipset, integrated
GMA950 graphics, DDR2 SO-DIMM memory, Realtek AC97 Audio, Serial ATA and one Intel
82573L Gigabit LAN.
Intel Yonah dual core Processor
The board supports Intel Core 2 Dual/Core Dual/Core Solo processor with 533/667MHz
front side bus, 2MB L2 cache, to provide more powerful performance than before.
New features for Intel 945GME chipset
The board integrates Intel 945GME and ICH7-M chipset, to provide new generation of the
mobile solution, supports Intel GMA950 graphics, DDR2 533/667 memory, built-in high
speed mass storage interface of serial ATA, AC97 Audio with 5.1 channels surrounding
sound.
All in One multimedia solution
Based on Intel 945GME and ICH7-M chipset, the board provides high performance onboard
graphics, 18-bit Dual channel LVDS interface, DVI and HDTV and 5.1 channels AC97 Audio,
to meet the every requirement of the multimedia application.
Flexible Extension Interface
The board also provides Compact Flash Type II socket and one mini-PCI socket.
7
Page 8
LS-371 User’s Manual
1.2 <Product Specification>
General Specification
Form Factor 3.5 inch miniboard
CPU Intel® Core 2 Dual/Core Dual/Core Solo processor
Package type: Micro- FCPGA478
Front side bus: 533/667MHz
Memory 1 x 200-pin DDR2 533/667MHz SO-DIMM SDRAM up to 2GB
Unbufferred, none-ECC memory supported only
Chipset Intel® 945GME and ICH7-M
BIOS Phoenix-Award v6.00PG 4Mb PnP flash BIOS
Green Function Power saving mode includes doze, standby and suspend modes.
ACPI version 1.0 and APM version 1.2 compliant
Watchdog Timer System reset programmable watchdog timer with 1 ~ 255
sec./min. of timeout value
Real Time Clock Intel® ICH7-M built-in RTC with lithium battery
Enhanced IDE UltraDMA33 IDE interface supports up to 2 ATAPI devices
One 44-pin IDE port onboard
One CompactFlash Type II socket on solder side
Serial ATA Intel® ICH7-M integrates 2 Serial ATA interfaces
(No RAID Function)
Up to 150MB/s of transfer rate
Multi-I/O Port
Chipset Intel® ICH7-M with Winbond® W83627THG controller
Serial Port One RS-232/422/485 serial port and one RS-232
USB Port Two external & two internal Hi-Speed USB 2.0 ports with
480Mbps of transfer rate
IrDA Port One IrDA compliant Infrared interface supports SIR
K/B & Mouse PS/2 keyboard and mouse port
GPIO One 12-pin Digital I/O connector with 8-bit programmable I/O
interface
Smart Fan One CPU fan connectors for fan speed controllable
VGA Display Interface
Chipset Intel® 945GME GMCH (Graphic Memory Controller Hub)
Frame Buffer Up to 224MB shared with system memory
Display Type CRT, LCD monitor with analog display, DVI, HDTV
Connector External DB15 female connector on rear I/O panel
Onboard 40-Pin LVDS connector
Onboard 26-Pin DVI connector
Onboard 10-Pin TV-out connector
8
Page 9
LS-371 User’s Manual
Ethernet Interface
Controller 1 x Intel 82573L Gigabit Ethernet controller
Type Triple speed 10/100/1000Base-T
auto-switching Fast Ethernet
Full duplex, IEEE802.3U compliant
Connector One External RJ45 connector with LED on rear I/O panel
Audio Interface
Chipset REALTEK ALC655
Interface 5.1 channel surround audio with Line-in, Line-out and MIC-in
Connector Onboard audio connector with pin header
Onboard CD-IN connector
Expansive Interface
Mini PCI 1 x Mini PCI socket
Power and Environment
Power Requirement DC 8~24V input with onboard 3-pin connector
Dimension 146.5 (L) x 101(H) mm
Temperature Operating within 0 ~ 60℃
Storage within -20 ~ 85℃
Ordering Code
LS-371 Support Intel Core 2 Dual/Core Dual/ Core solo processor with
onboard VGA, HDTV, DVI, LVDS, Audio, SATA, Giga LAN,
USB2.0, CF, GPIO, Mini PCI, FDD
The specifications may be different as the actual production.
For further product information please visit the website at
TUhttp://www.commell.com.twUT
9
Page 10
LS-371 User’s Manual
1.3 <Mechanical Drawing>
10
Page 11
LS-371 User’s Manual
r
A

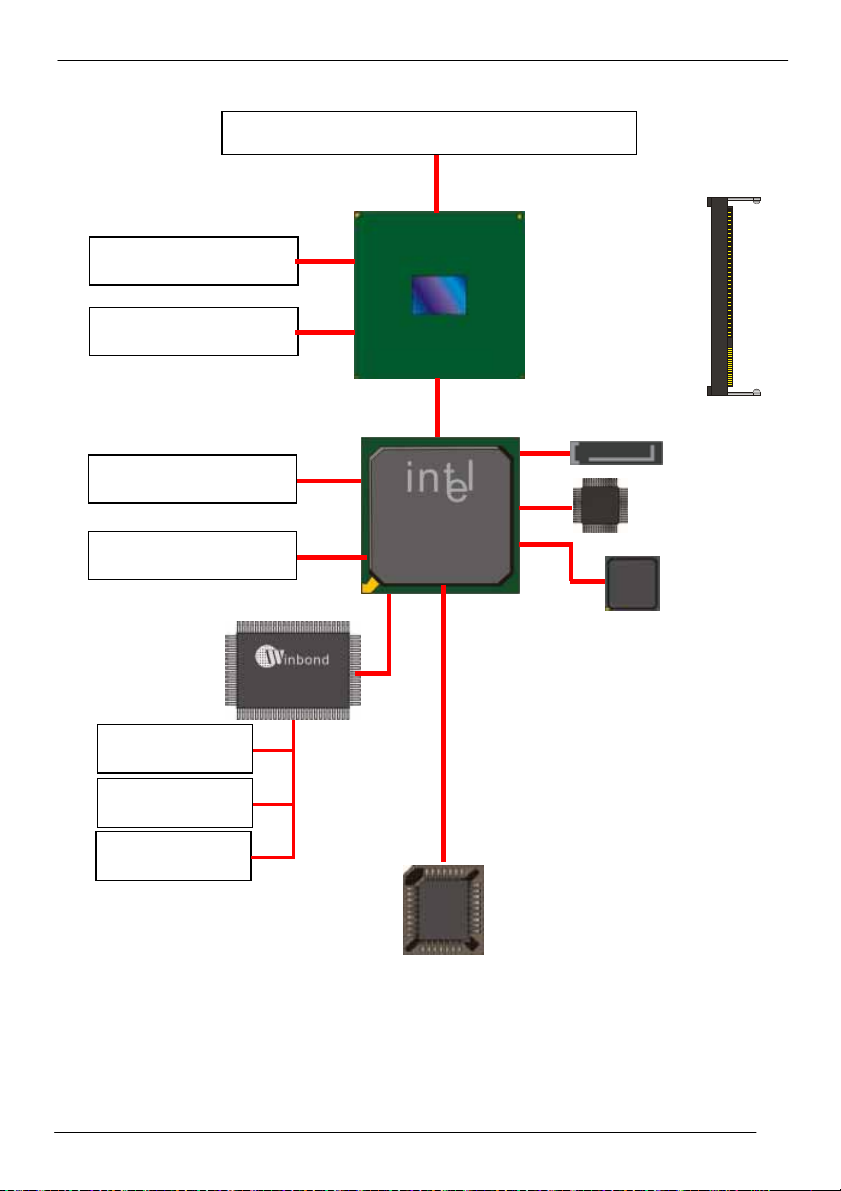

1.4 <Block Diagram>
Intel Yonah Processo
1 x 200-pin SO-DIMM
Intel GMA950 Graphics
HDTV＆LVDS＆DVI
CompactFlash＆IDE
DDR2 533/677MHz
up to 2GB
2 x SAT
AC97 ALC655
4 x USB2.0 ports
2 x Serial ports
8-bit GPIO
1 x IrDA
Intel 82537L
1 x GLAN
W83627THG
BIOS
11
Page 12
LS-371 User’s Manual
Chapter 2 <Hardware Setup>

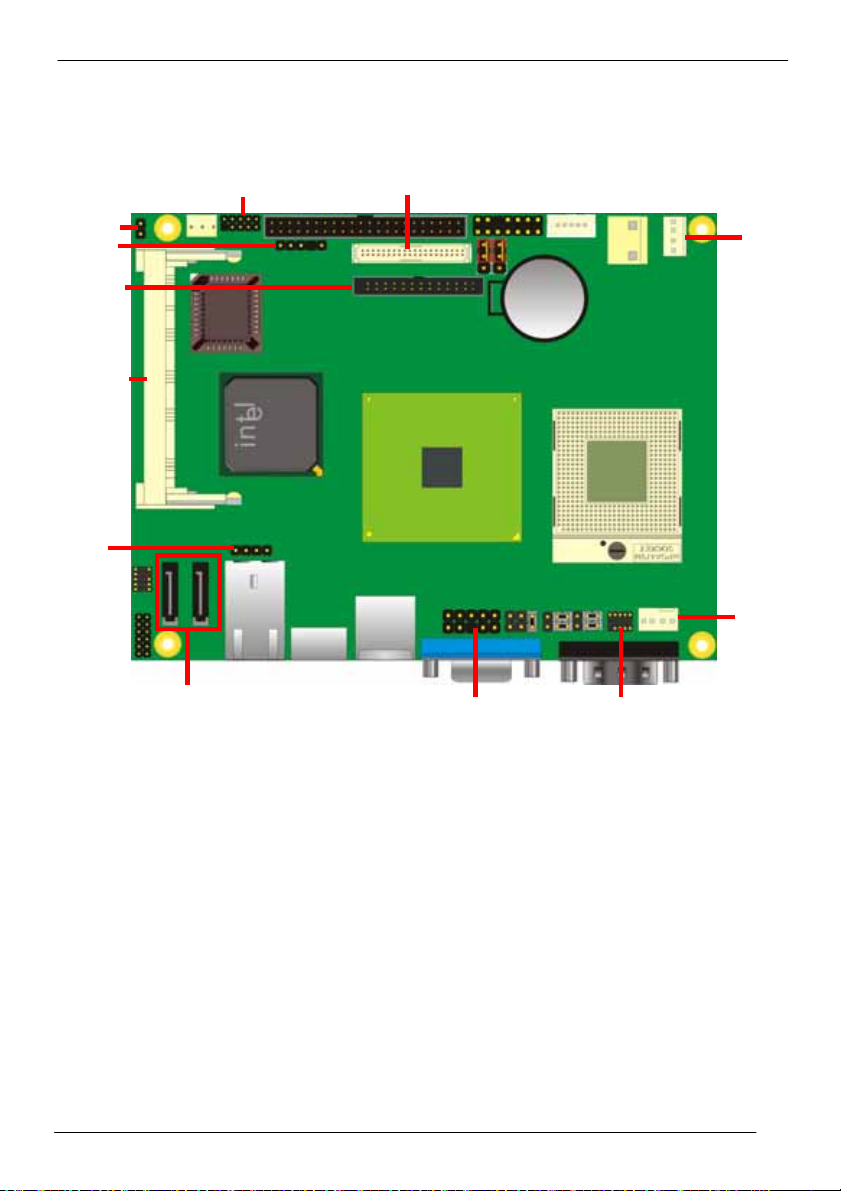

2.1 <Connector Location>
JAT
CN_IR
CN_DVI
MINIPCI
CDIN
CN AUDIO
CN_DIO
SYSFAN
SATA1/2
CN_USB1
IDE
CN_LVDS
JFRNT CN_INV DC_IN
CN_HDTV
DC_OUT
CPUFAN
CN_COM2
12
Page 13
LS-371 User’s Manual

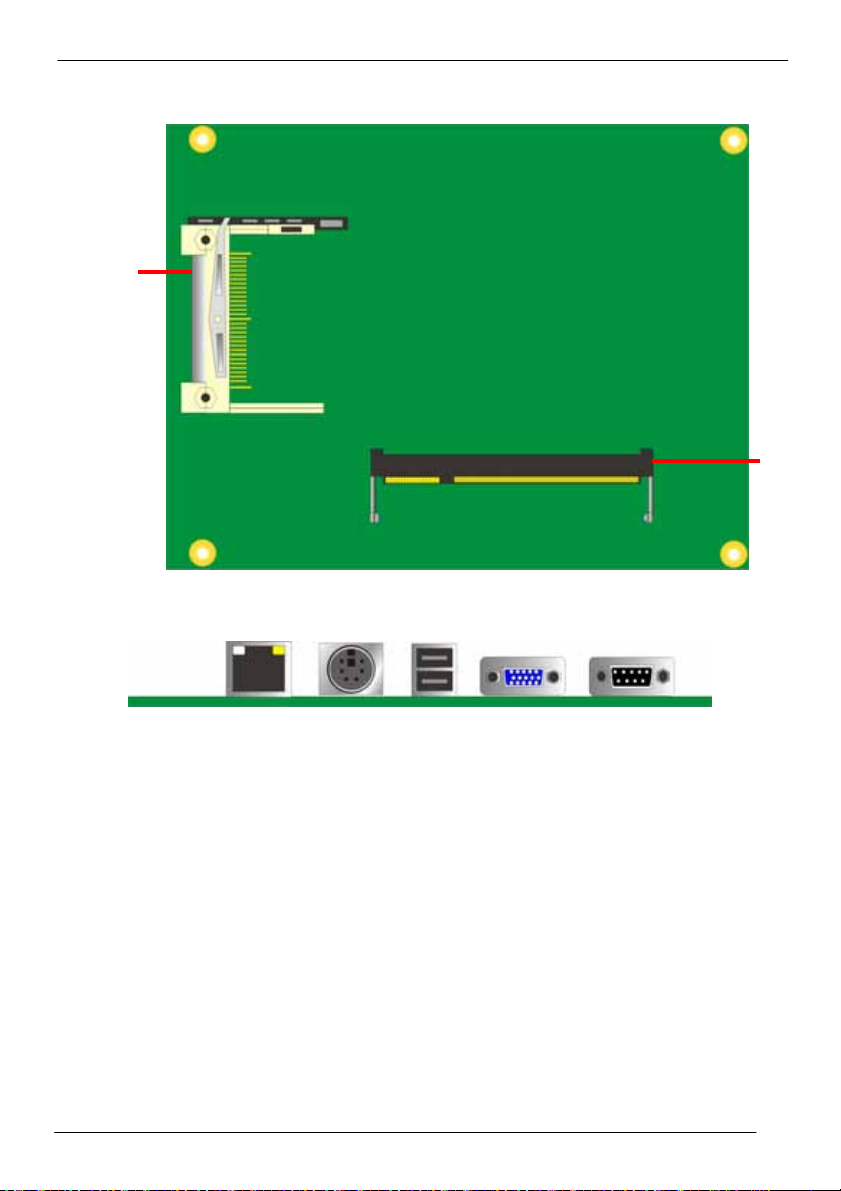

CF
DDRII
RJ45 PS2 USB CRT COM1
LAN PS2 USB CRT VGA
13
Page 14
LS-371 User’s Manual

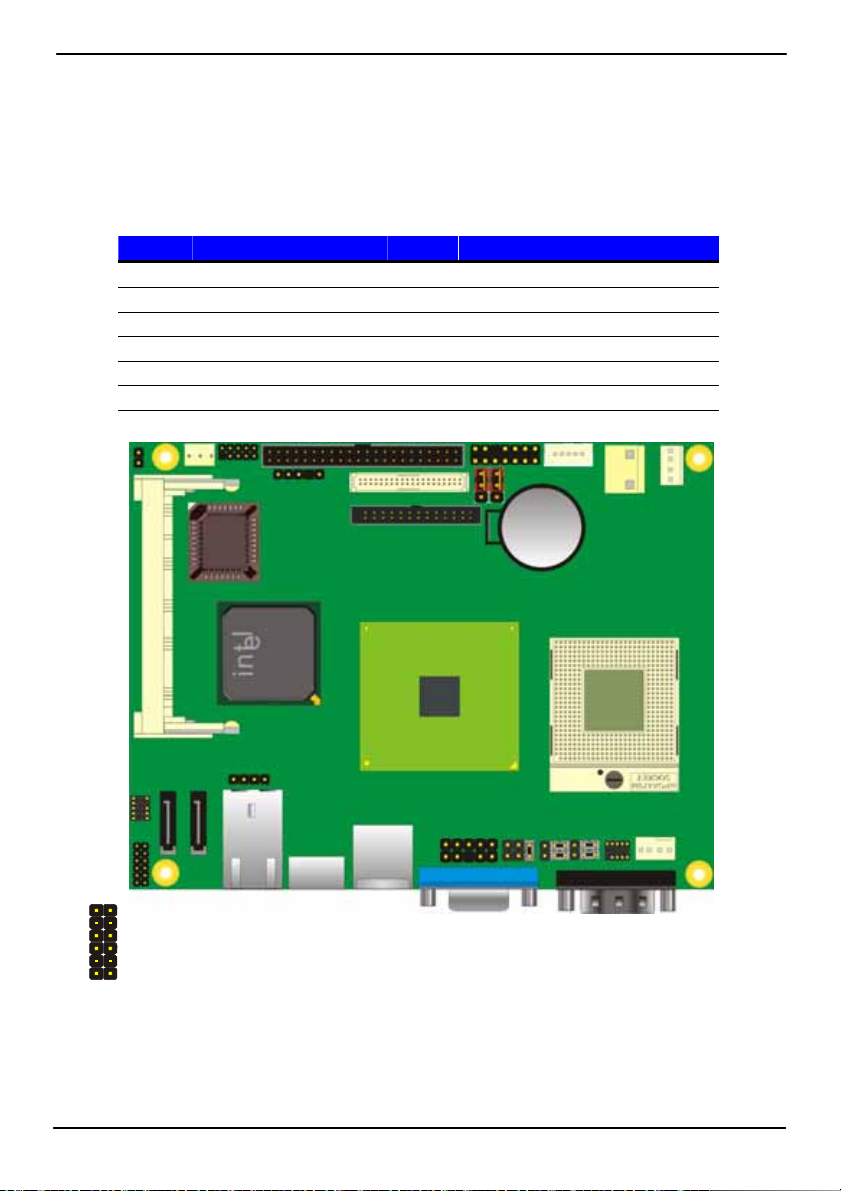

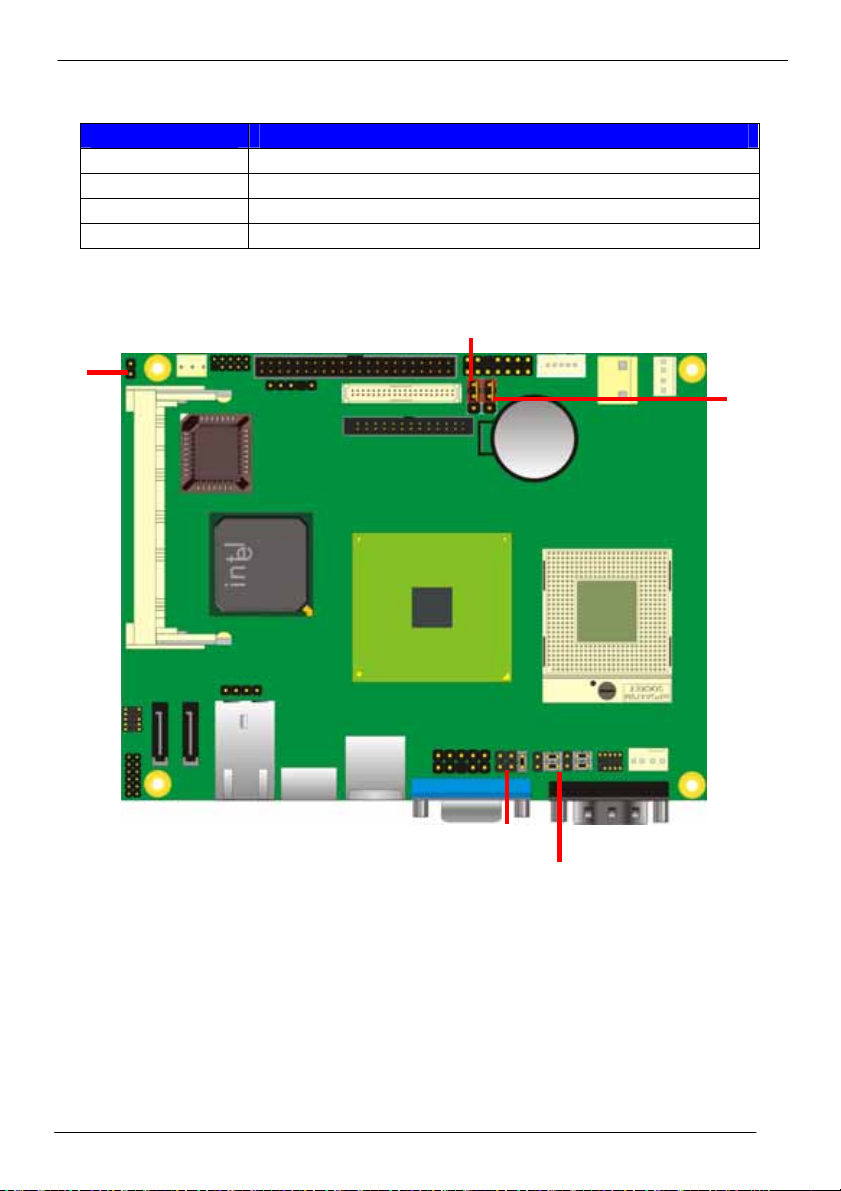

2.2 <Jumper Reference>
Jumper Function
JRTC CMOS Operating/Clear Setting
JVLCD LCD Panel Voltage Setting
JAT AT Mode
JCSEL1/2 COM2 RS232/422/485 mode setting

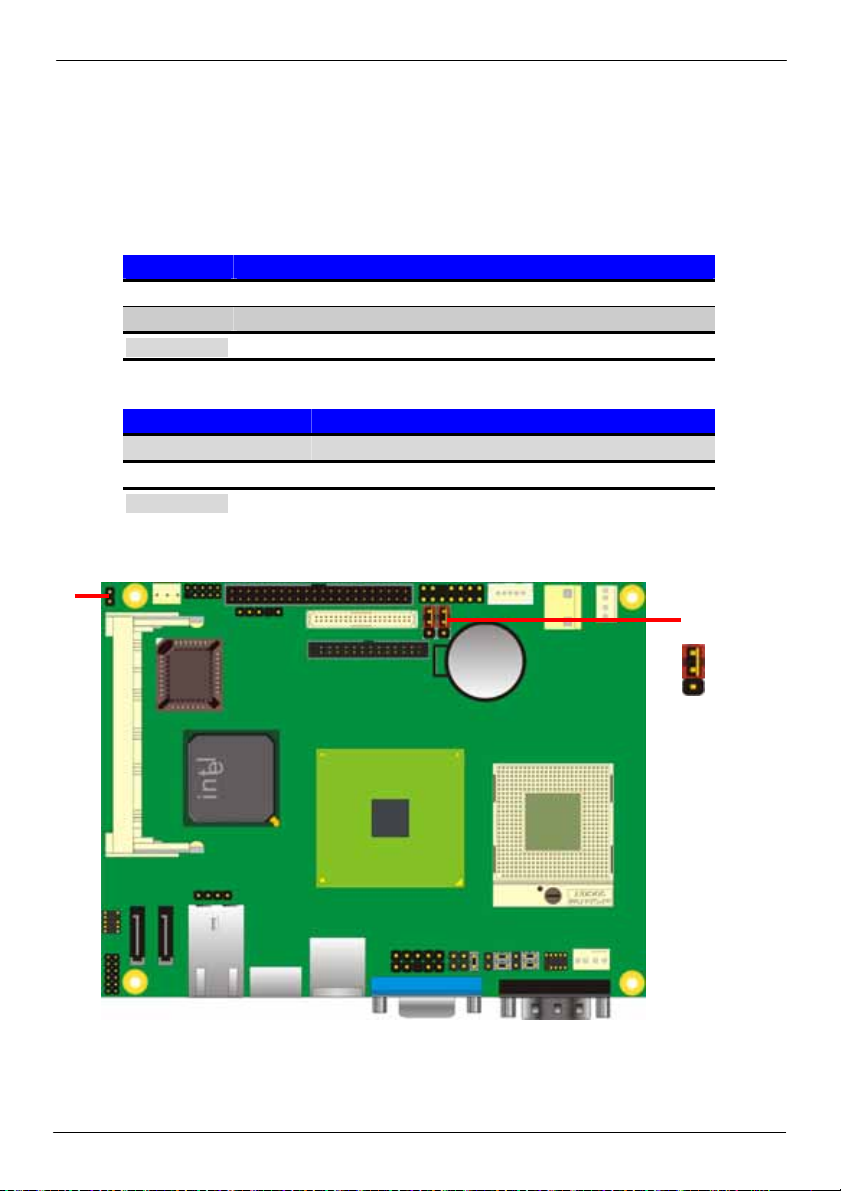

JVLCD
JAT
JRTC
14
JCSEL1
JCSEL2
Page 15
LS-371 User’s Manual

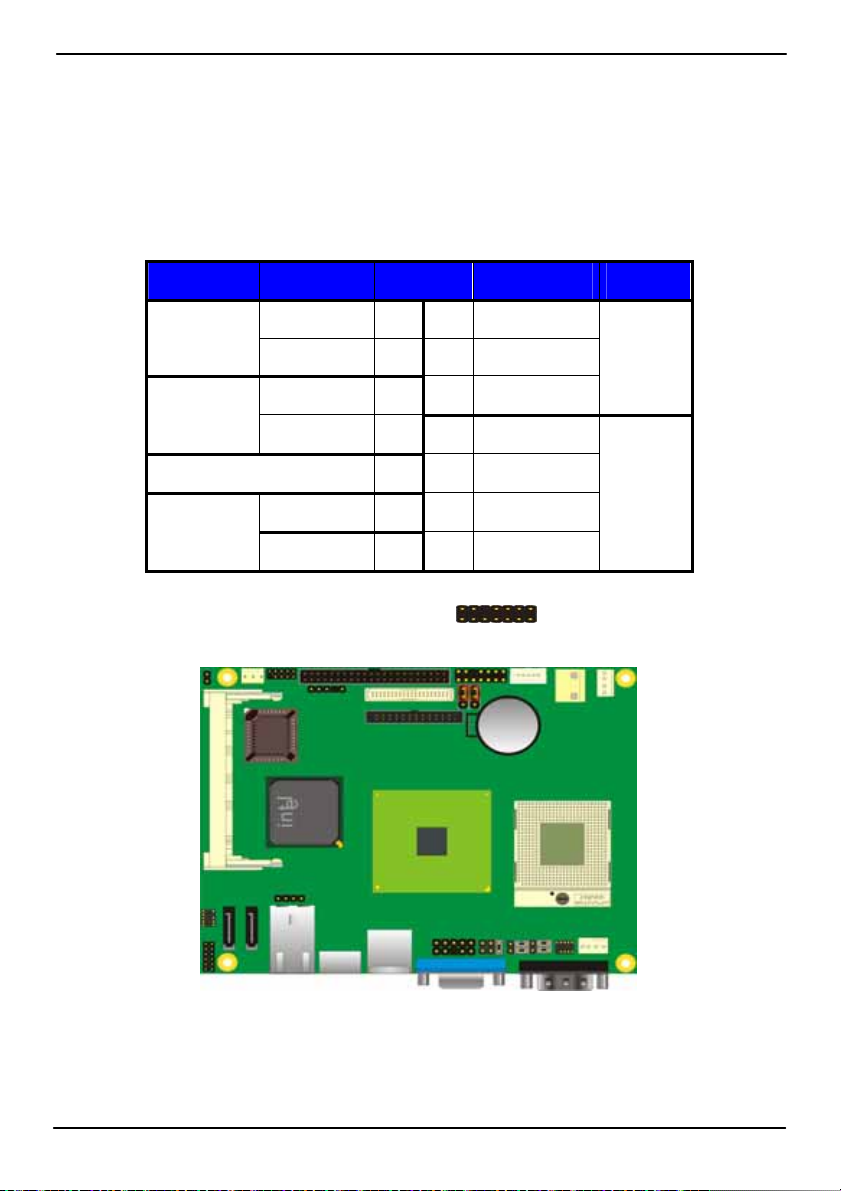

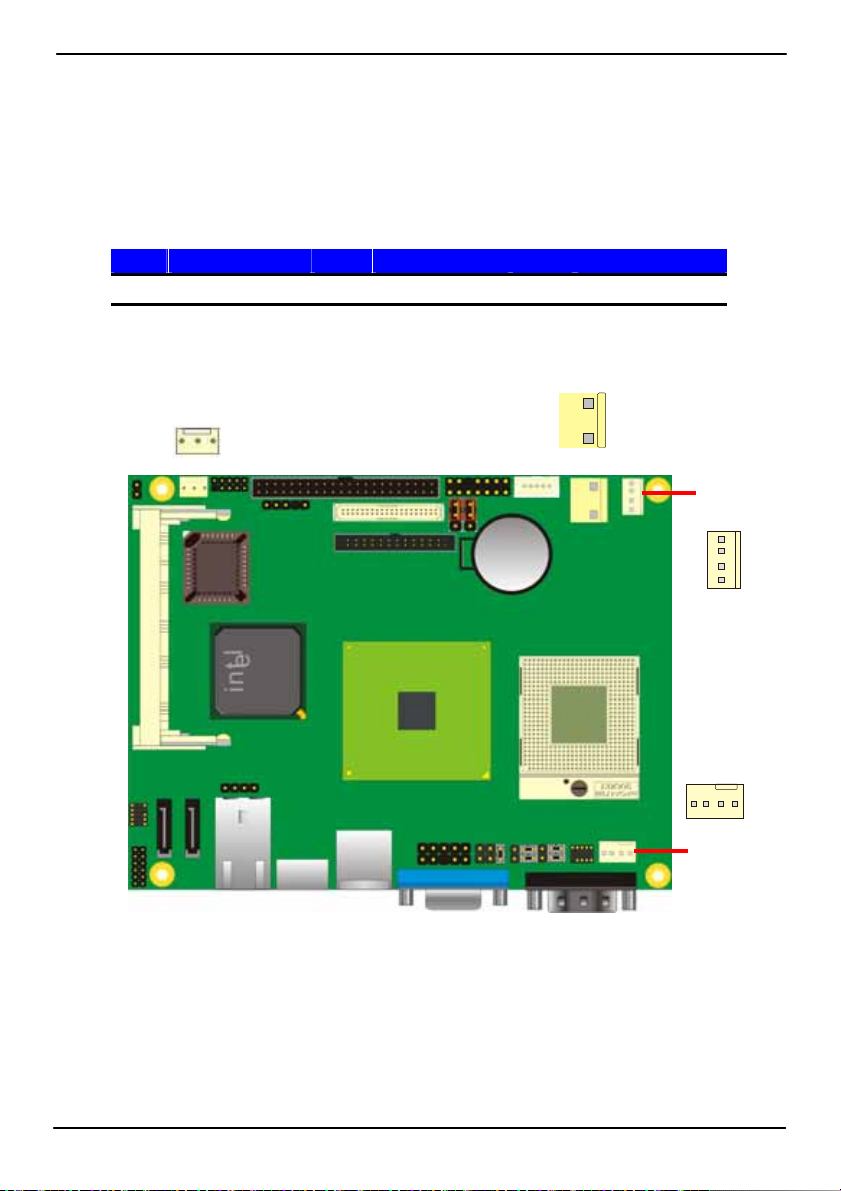

2.3 <Connector Reference>
2.3.1 <Internal Connector>
Connector Function Remark
DDRII 200 -pin DDR2 SO-DIMM SDRAM slot Standard
IDE 44-pin primary IDE connector Slim
SATA1/2 7-pin Serial ATA connector Standard
CN_AUDIO 5 x 2-pin audio connector Slim
CDIN 4-pin CD-ROM audio input connector Standard
CN_DIO 6 x 2-pin digital I/O connector Standard
CN_USB1 5 x 2-pin USB connector Standard
CPUFAN 4-pin CPU cooler fan connector Standard
SYSFAN 3-pin system cooler fan connector Standard
CN_COM2 5 x 2-pin com connector Slim
CN_IR 5-pin IrDA connector Standard
CF Compact Flash Type II socket Standard
CN_LVDS 20 x 2-pin LVDS connector Standard
CN_INV 5-pin LCD inverter connector Standard
DC_OUT 4-pin power output connector Standard
DC_IN 3-pin power input connector Standard
MINIPCI Mini-PCI socket Standard
CN_DVI 13 x 2-pin DVI interface Standard
CN_HDTV 5 x 2-pin HDTV interface Standard
JFRNT 14-pin switch/indicator connector Standard
2.3.2 <External Connector>

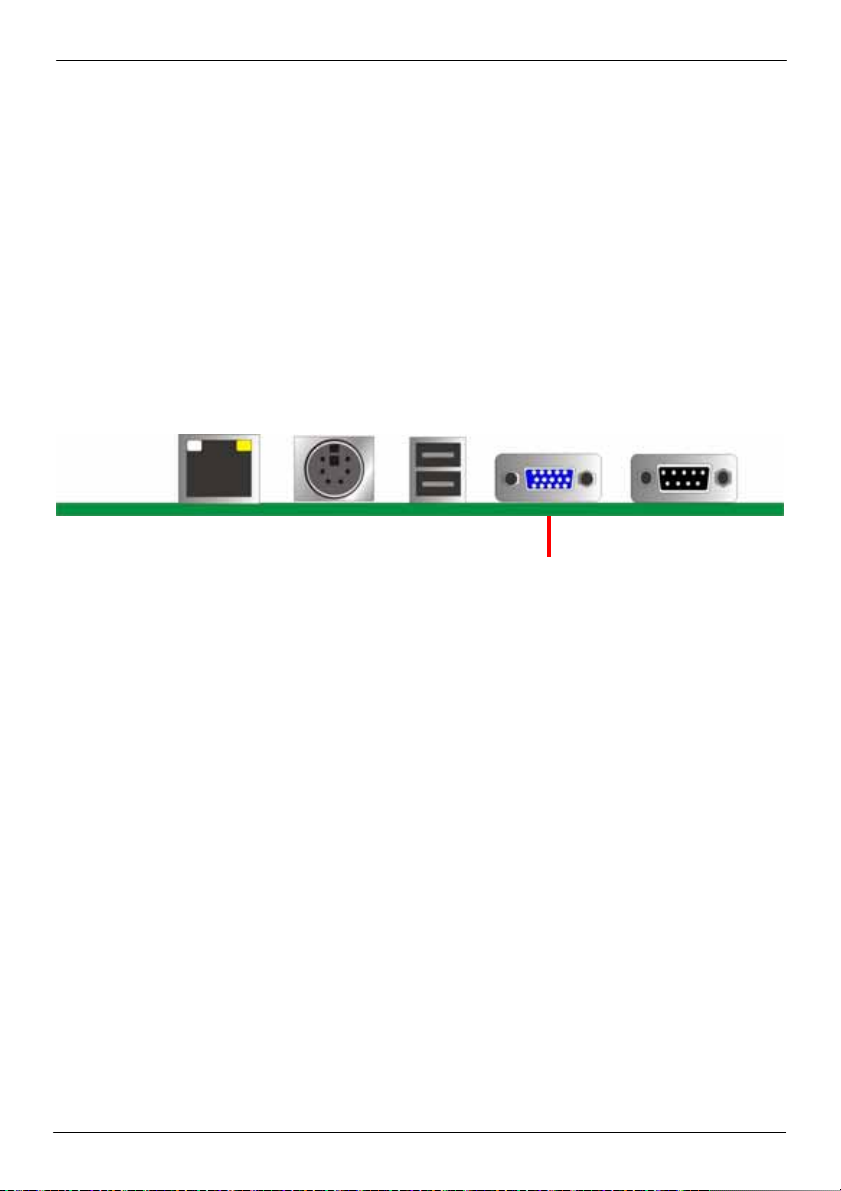

Connector Function Remark
CRT DB15 VGA connector Standard
USB Dual USB 2.0 connector Standard
COM1 DB9 Serial port connector Standard
RJ45 One RJ45 LAN connector Standard
PS2 PS/2 keyboard and mouse connector Standard
15
Page 16
LS-371 User’s Manual
y
2.4 <CPU and Memory Setup>
2.4.1< CPU>
The board comes with the socket479 for Intel Core 2 Dual/Core Dual /Core solo
processor, it supports new generation of Intel Core 2 Dual/Core Dual /Core solo
processor with 533/667MHz of front side bus and 2MB L2 cache. Please follow the
instruction to install the CPU properly.

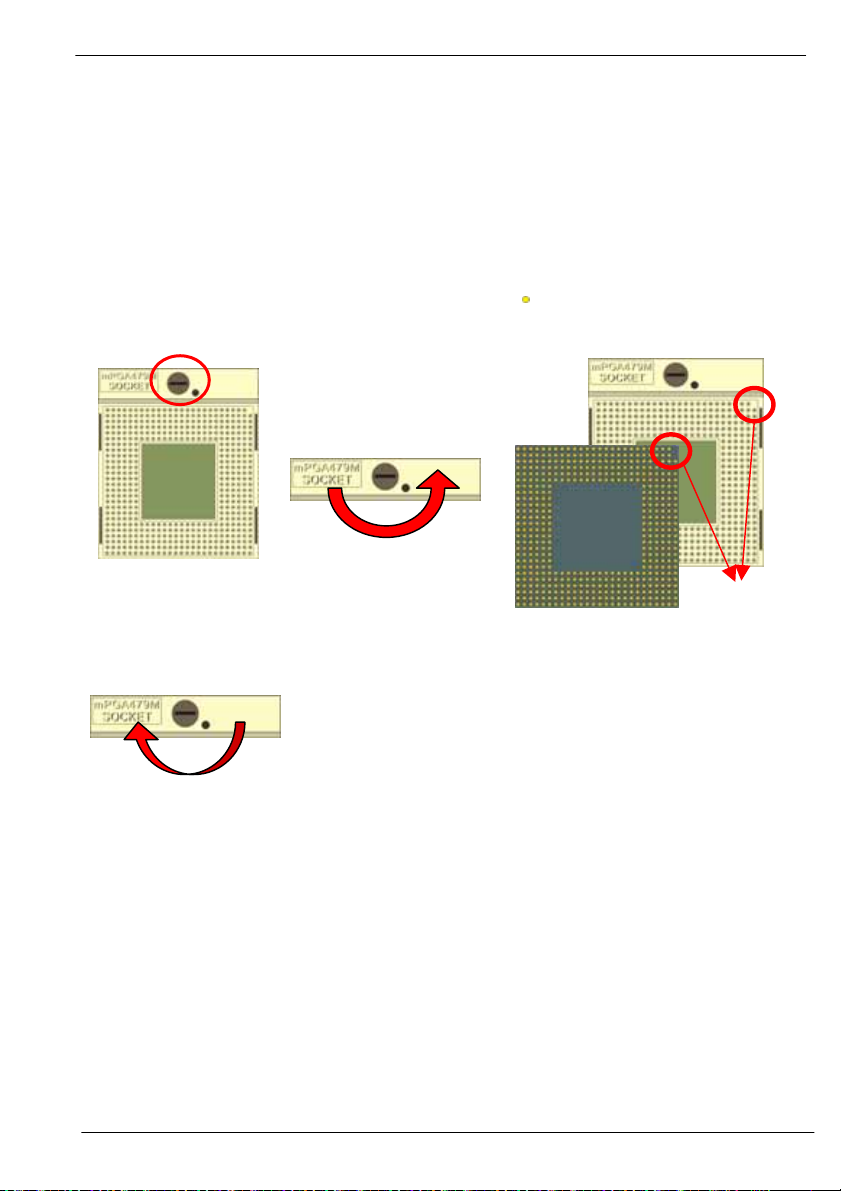

Unlock wa
1. Use the flat-type
screw drive to unlock
the CPU socket
2. Follow the pin direction to install
the processor on the socket
Check point
3. Lock the socket
16
Page 17
LS-371 User’s Manual

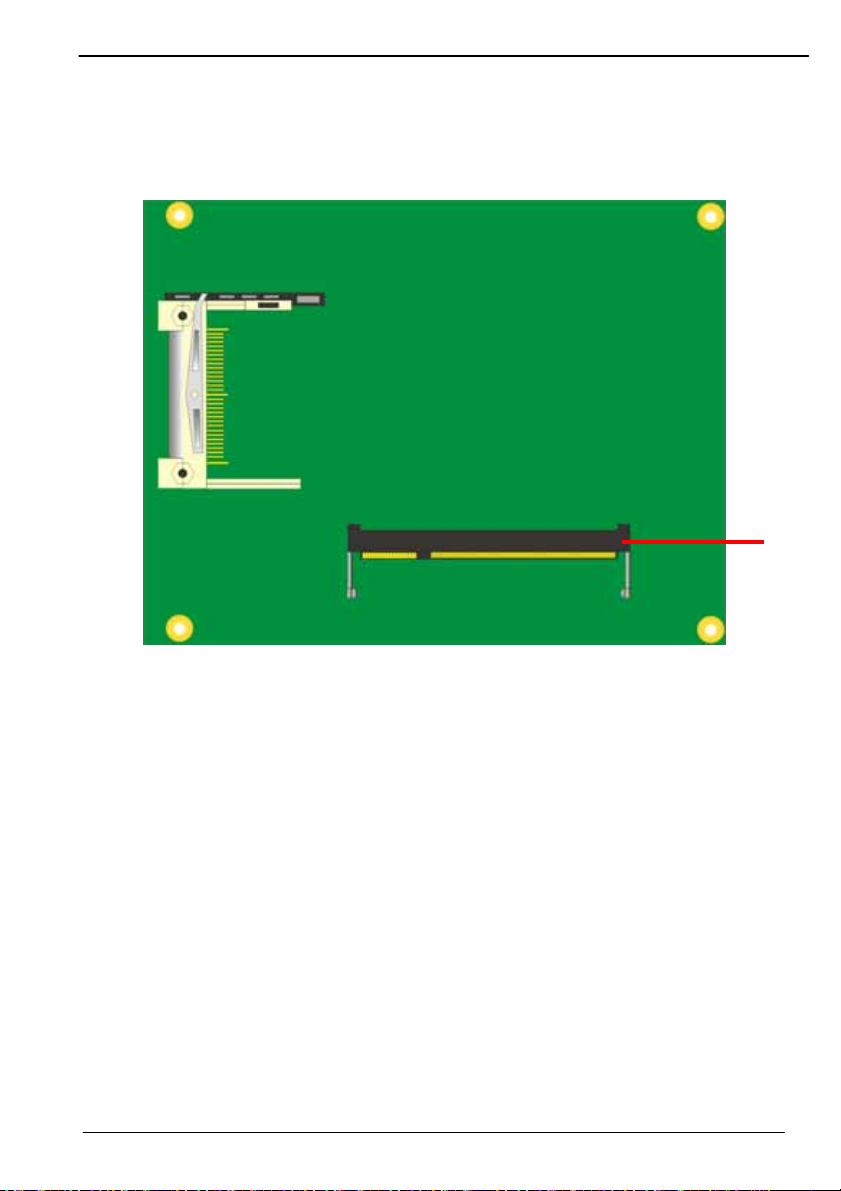

2.4.2 <Memory>
T The board provides one 200-pin DDR2 SO-DIMM to support DDR2 533/667 memory
modules up to 2GB of capacity. Non-ECC, unbuffered memory is supported only.
DDRII
17
Page 18
LS-371 User’s Manual
3
2.5 <CMOS＆ATX Setup>
The board’s data of CMOS can be setting in BIOS. If the board refuses to boot due to inappropriate
CMOS settings, here is how to proceed to clear (reset) the CMOS to its default values.

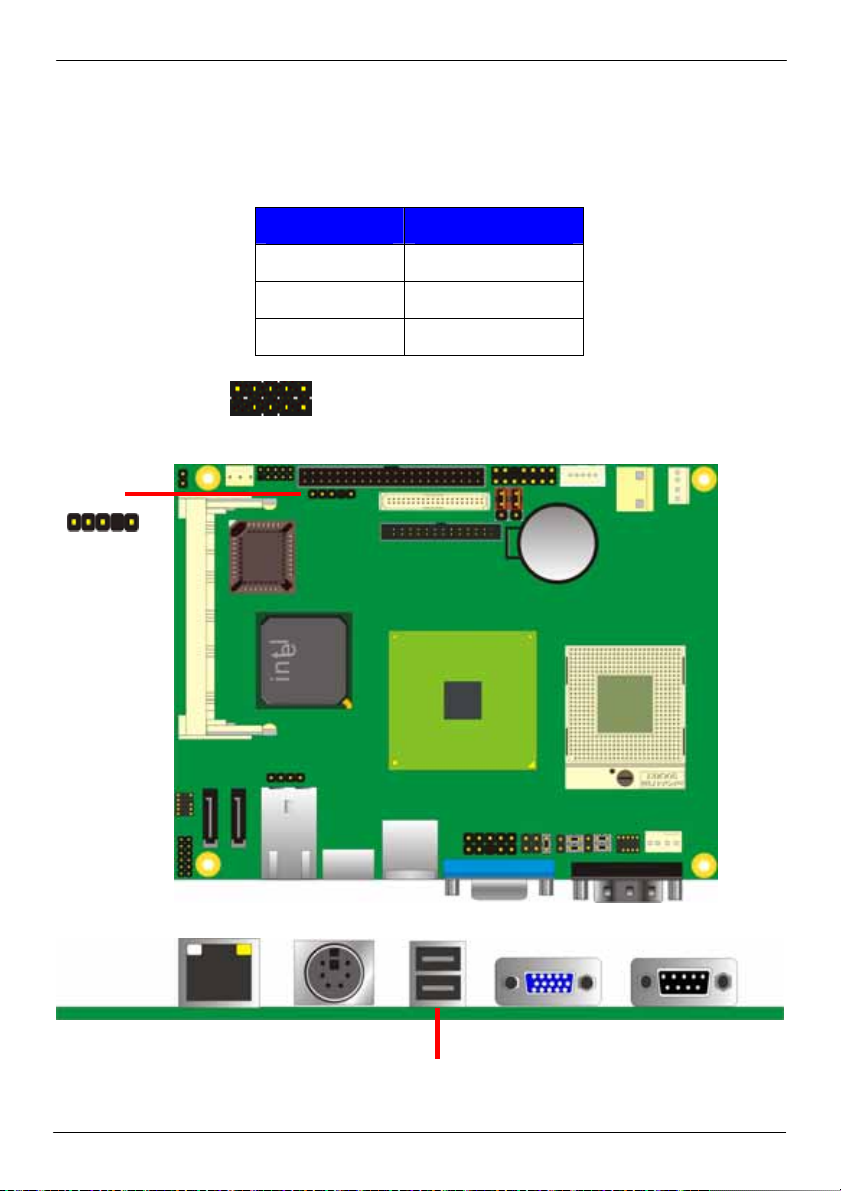

Jumper: JRTC
Type: Onboard 3-pin jumper
JRTC Mode
1-2 Clear CMOS
2-3 Normal Operation
Default setting
Jumper: JAT
Type: onboard 2-pin header
JAT Mode
Open ATX Mode
Short AT Mode
Default setting
JAT
18
JRTC
1
Page 19
LS-371 User’s Manual

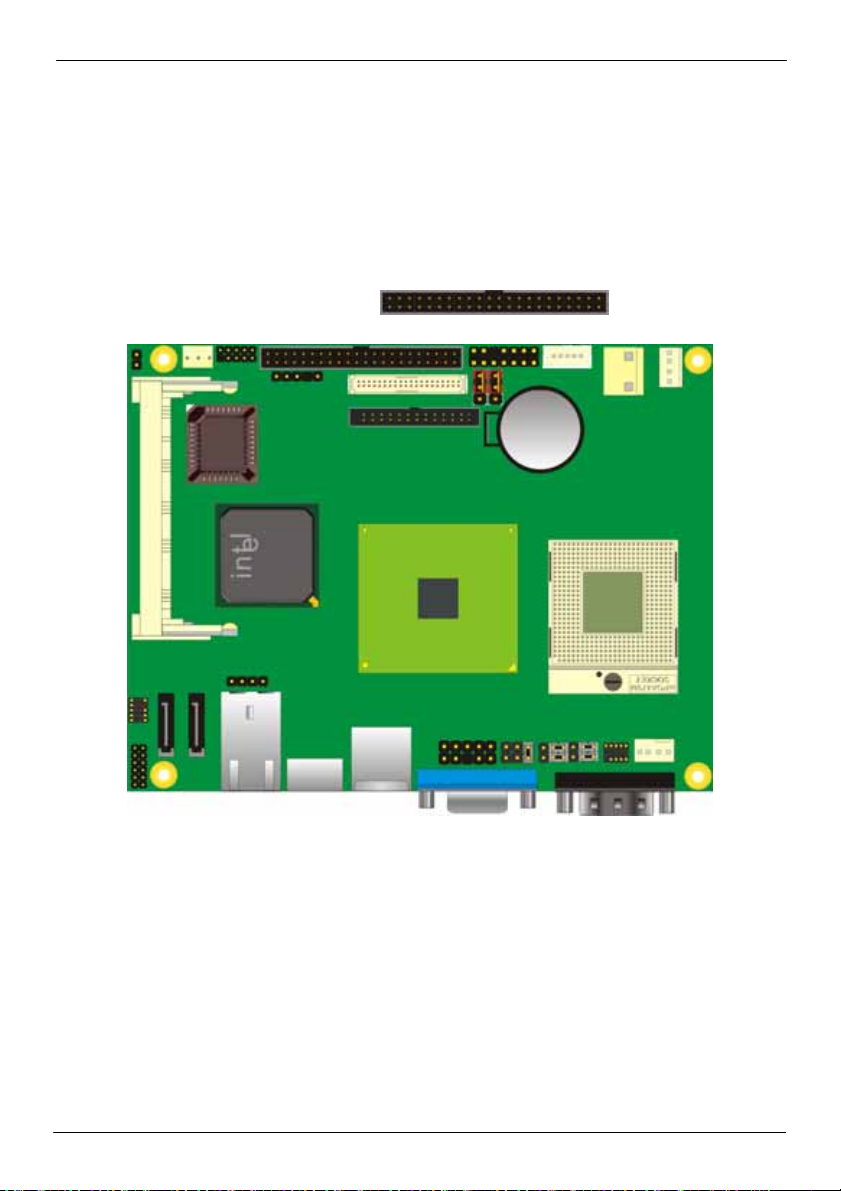

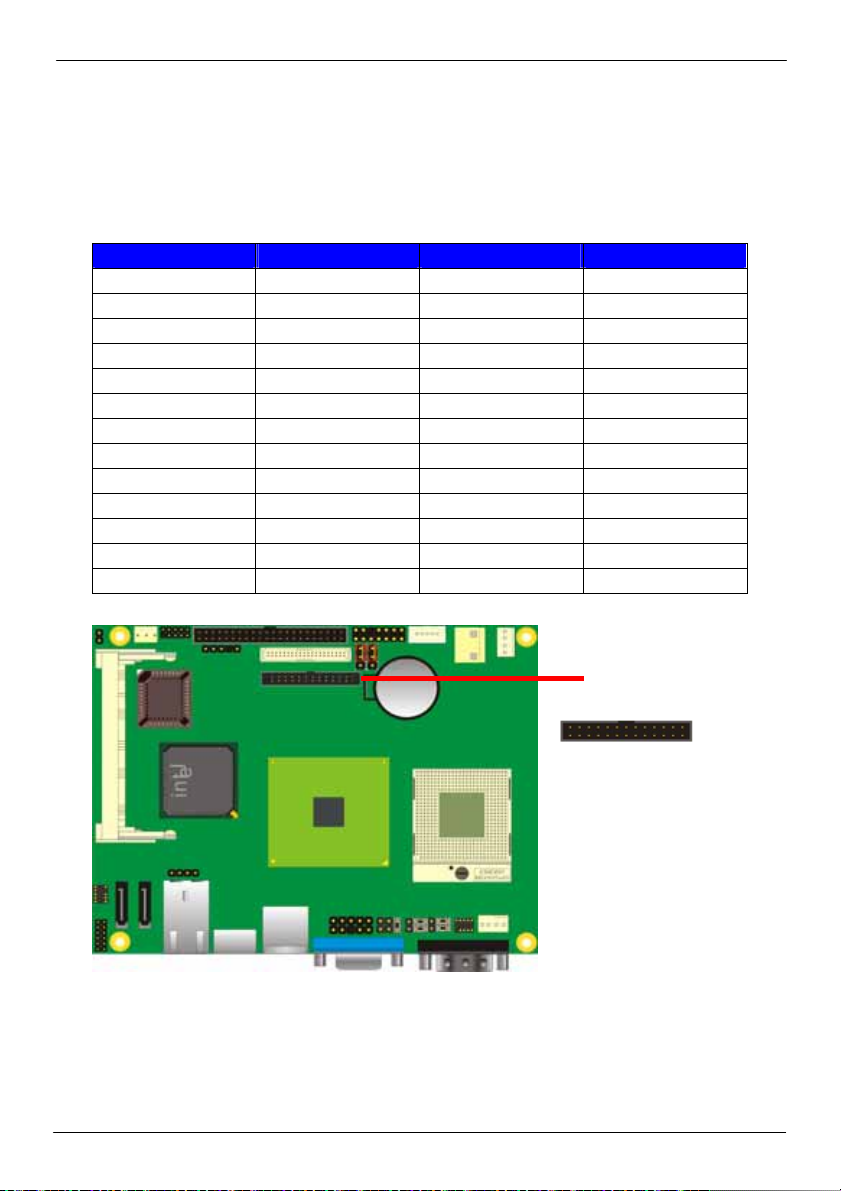

2.6 <Enhanced IDE & CF Interface>
The board has one Ultra DMA33 IDE interface to support up to 2 ATAPI devices,
and one Compact Flash Type II socket on the solder side.
IDE
43
44
1
2
19
Page 20
LS-371 User’s Manual
2.7 <Serial ATA Interface>
Based on Intel ICH7-M, the board provides two Serial ATA interfaces with up to 150MB/s of
transfer rate
.

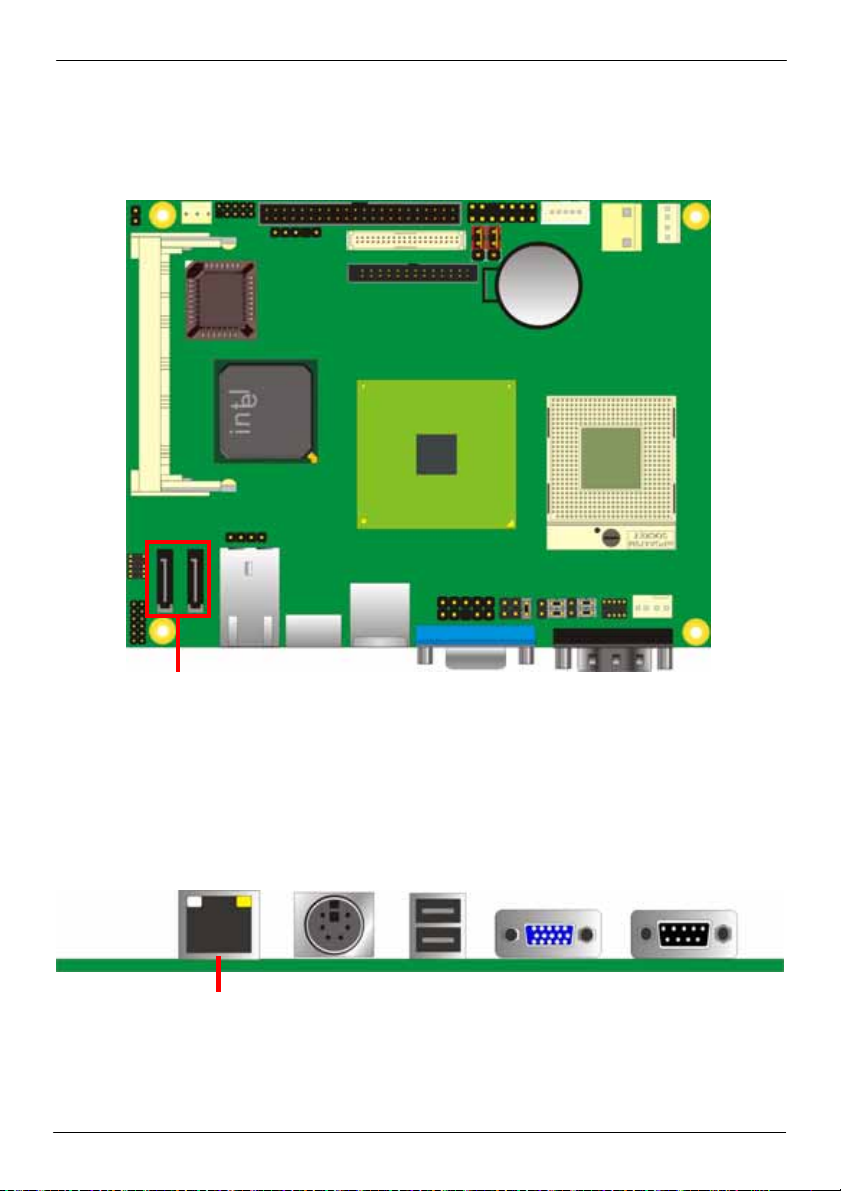

SATA1/2
2.8 <LAN Interface>
The Intel 82573L supports triple speed of 10/100/1000Base-T, with IEEE802.3 compliance
and Wake-On-LAN supported.
LAN
20
Page 21
LS-371 User’s Manual
2.9 <Onboard Display Interface>
Based on Intel 945GM(E) chipset with built-in GMA (Graphic Media Accelerator) 950
graphics, the board provides one DB15 connector on real external I/O port, and one 40-pin
LVDS interface with 5-pin LCD backlight inverter connector. The board provides dual
display function with clone mode and extended desktop mode for CRT and LCD and DVI
and TV-out.
2.9.1 <Analog VGA Interface>
Please connect your CRT or LCD monitor with DB15 male connector to the onboard DB15
female connector on rear I/O port.
CRT
21
Page 22
LS-371 User’s Manual
2
5

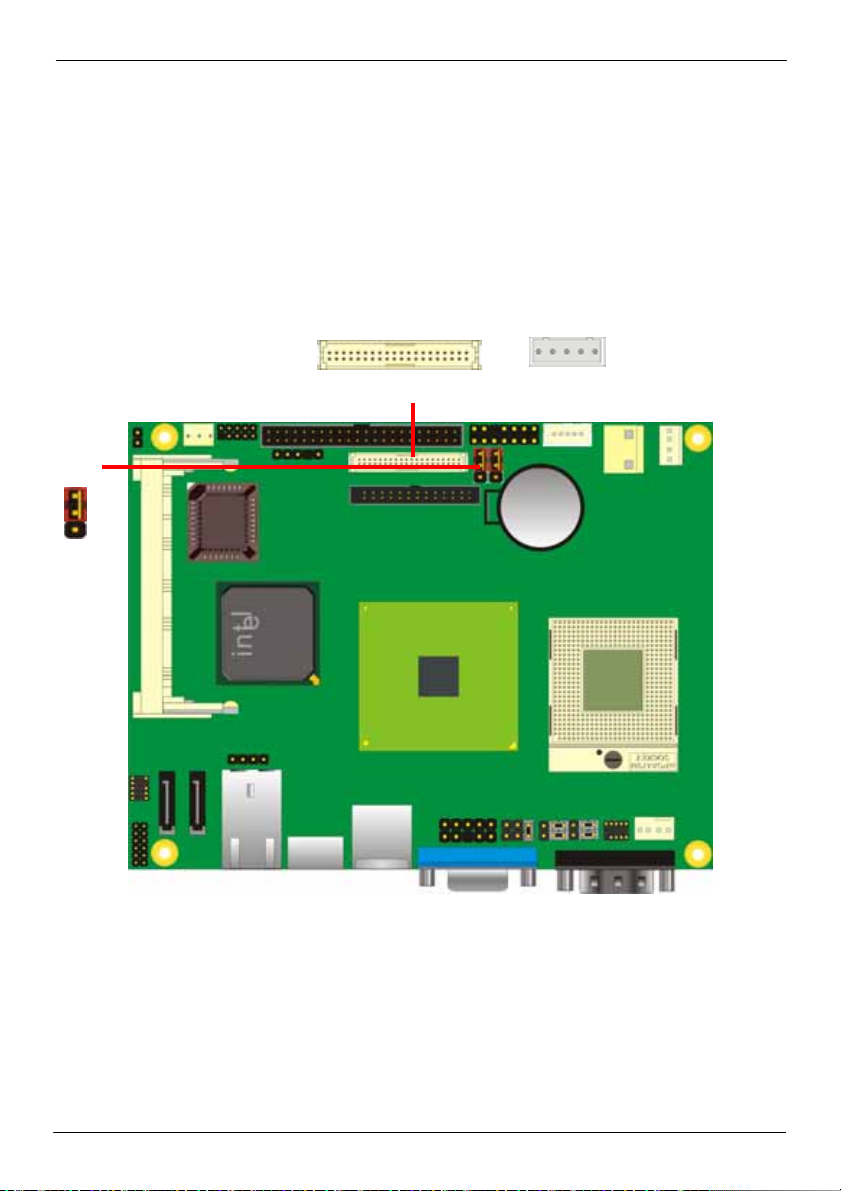

2.9.2 <Digital Display>
The board provides one 40-pin LVDS connector for 18-bit dual channel panels, supports up
to 1600 x 1200 (UXGA) of resolution, with one LCD backlight inverter connector and one
jumper for panel voltage setting
40
JVLCD
1
22
39
CN_LVDS
1
CN_INV
Page 23
LS-371 User’s Manual
Connector: CN_INV Connector: JVLCD
Type: 5-pin LVDS Power Header Type: 3-pin Power select Header
Connector model: JST B5B-XH-A
Pin Description Pin Description
1 +12V 1 VCC(5V)
2 GND 2 LCDVCC
3 GND 3 VCC3(3.3)
4 GND
5 ENABKL
Connector: CN_LVDS
Type: onboard 40-pin connector for LVDS connector
Connector model: HIROSE DF13-40DP-1.25V
Pin Signal Pin Signal
2 LCDVCC 1 LCDVCC
4 GND 3 GND
6 ATX0- 5 BTX0-
8 ATX0+ 7 BTX0+
10 GND 9 GND
12 ATX1- 11 BTX114 ATX1+ 13 BTX1+
16 GND 15 GND
18 ATX2- 17 BTX220 ATX2+ 19 BTX2+
22 GND 21 GND
24 ACLK- 23 BTX326 ACLK+ 25 BTX3+
28 GND 27 GND
30 ATX3- 29 BCLK32 ATX3+ 31 BCLK+
34 GND 33 GND
36 N/C 35 N/C
38 N/C 37 N/C
40 N/C 39 N/C
23
Page 24
LS-371 User’s Manual
To setup the LCD, you need the component below:
1. A panel with LVDS interfaces.
2. An inverter for panel’s backlight power.
3. A LCD cable and an inverter cable.
For the cables, please follow the pin assignm ent of the connector to make a cable, because
every panel has its own pin assignment, so we do not provide a standard cable; please find a
local cable manufacture to make cables.

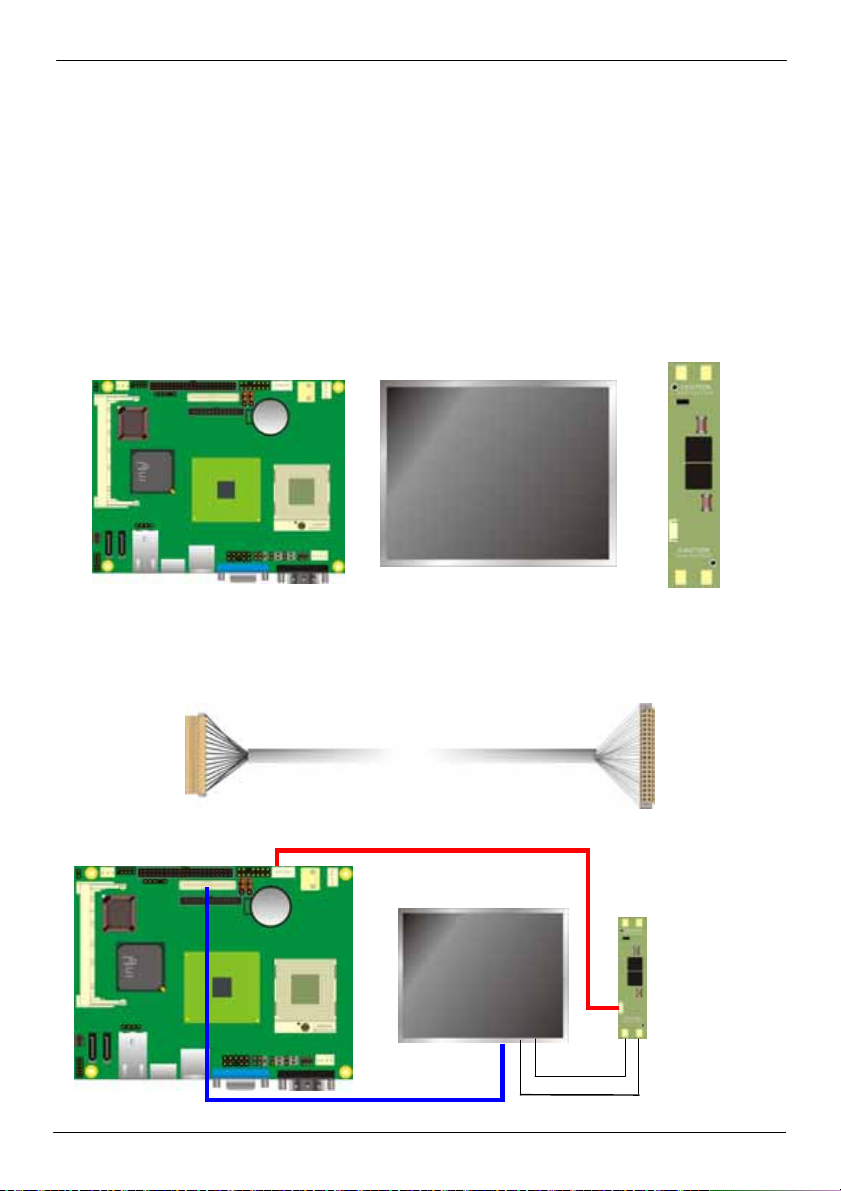

LCD Installation Guide:
1. Preparing the LS-371, LCD panel and the backlight inverter.
2. Please check the datasheet of the panel to see the voltage of the panel, and set the
jumper JVLCD to +5V or +3.3V.
3. You would need a LVDS type cable.
Panel side
For sample illustrator only
4. To connect all of the devices well.
24
Board side
Page 25
LS-371 User’s Manual
2.9.3 <DVI Interface >
The board also comes with a DVI interface with Chrontel CH7307C for digital video
interface.
Connector: CN_DVI
Connector type: 26-pin header connector (pitch = 2.00mm)
Pin Number Assignment Pin Number Assignment
1 TX1+ 2 TX13 Ground 4 Ground
5 TXC+ 6 TXC7 Ground 8 PVDD
9 N/C 10 N/C
11 TX2+ 12 TX213 Ground 14 Ground
15 TX0+ 16 TX017 N/C 18 HPDET
19 DDCDATA 20 DDCCLK
21 GND 22 N/C
23 N/C 24 N/C
25 N/C 26 N/C
CN_DVI
25 1
26 2
25
Page 26
LS-371 User’s Manual

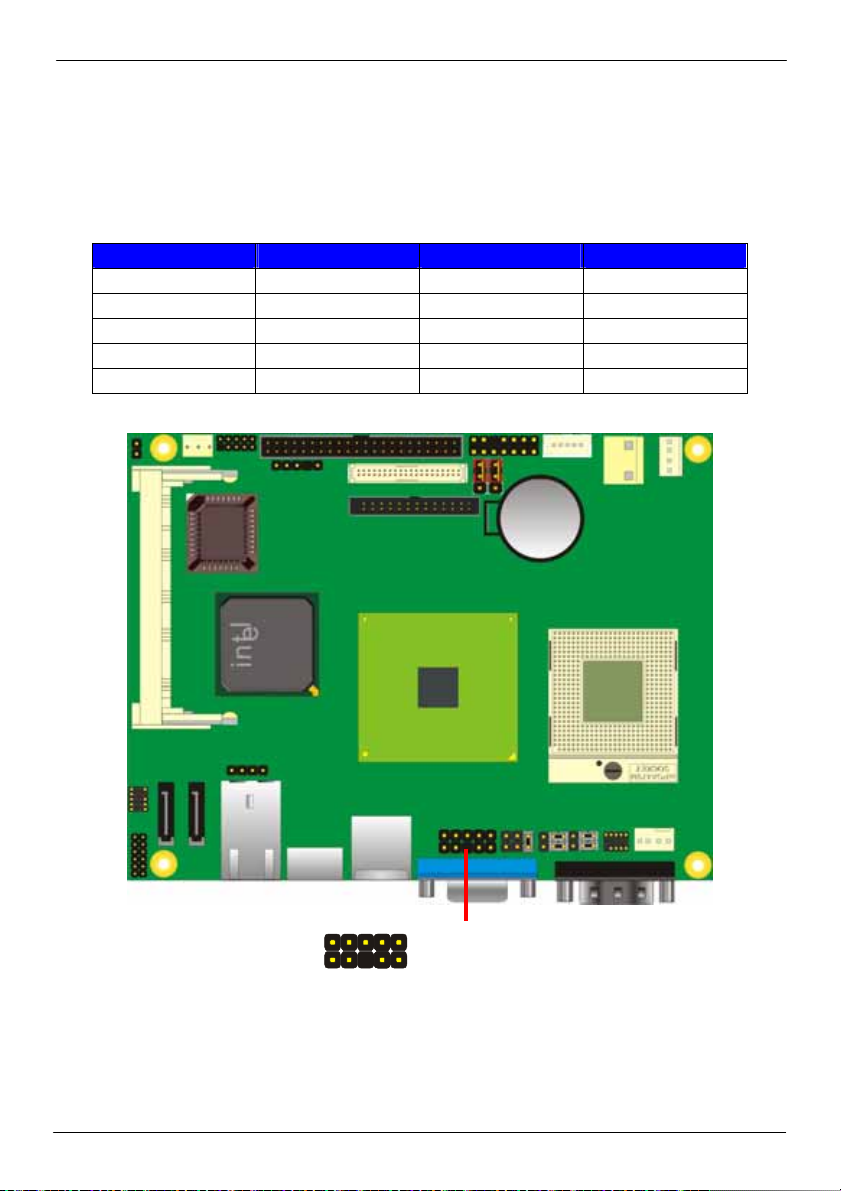

2.9.4<TV-out Interface>
The board provides an HDTV interface with Intel 945GM(E), supports PAL and NTSC of TV
system, and display (clone or extended desktop) function with CRT, LVDS and DVI.
Connector: CN_HDTV
Connector type: 10-pin header HDTV connector (pitch = 2.54mm)
Pin Number Assignment Pin Number Assignment
1 GND 2 DACB
3 DACC 4 N/C
5 GND 6 GND
7 DACA 8 N/C
9 N/C 10 N/C
26
9 1
10 2
CN_HDTV
Page 27
LS-371 User’s Manual
(

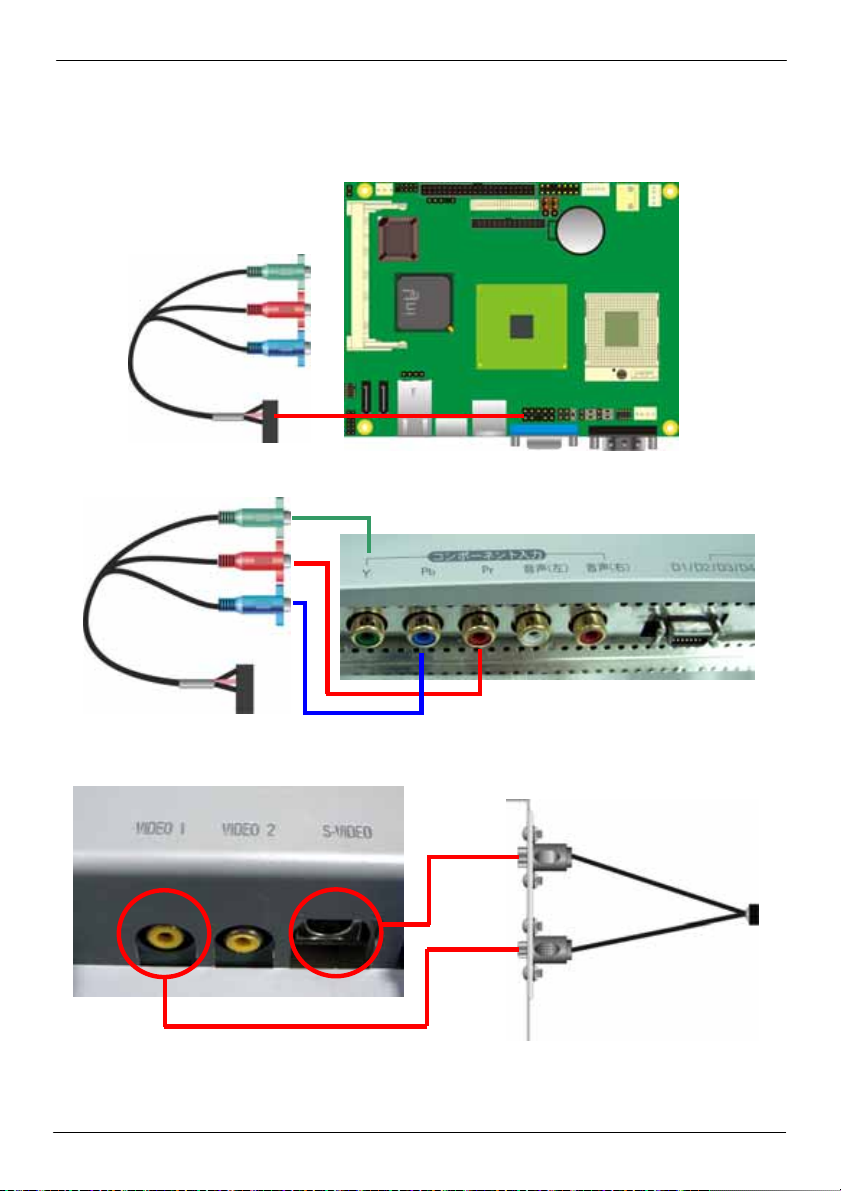

To connect the TV set, please follow the diagram below to setup your system:
YPrPb Component Cable
For HDTV)
27
Page 28
LS-371 User’s Manual

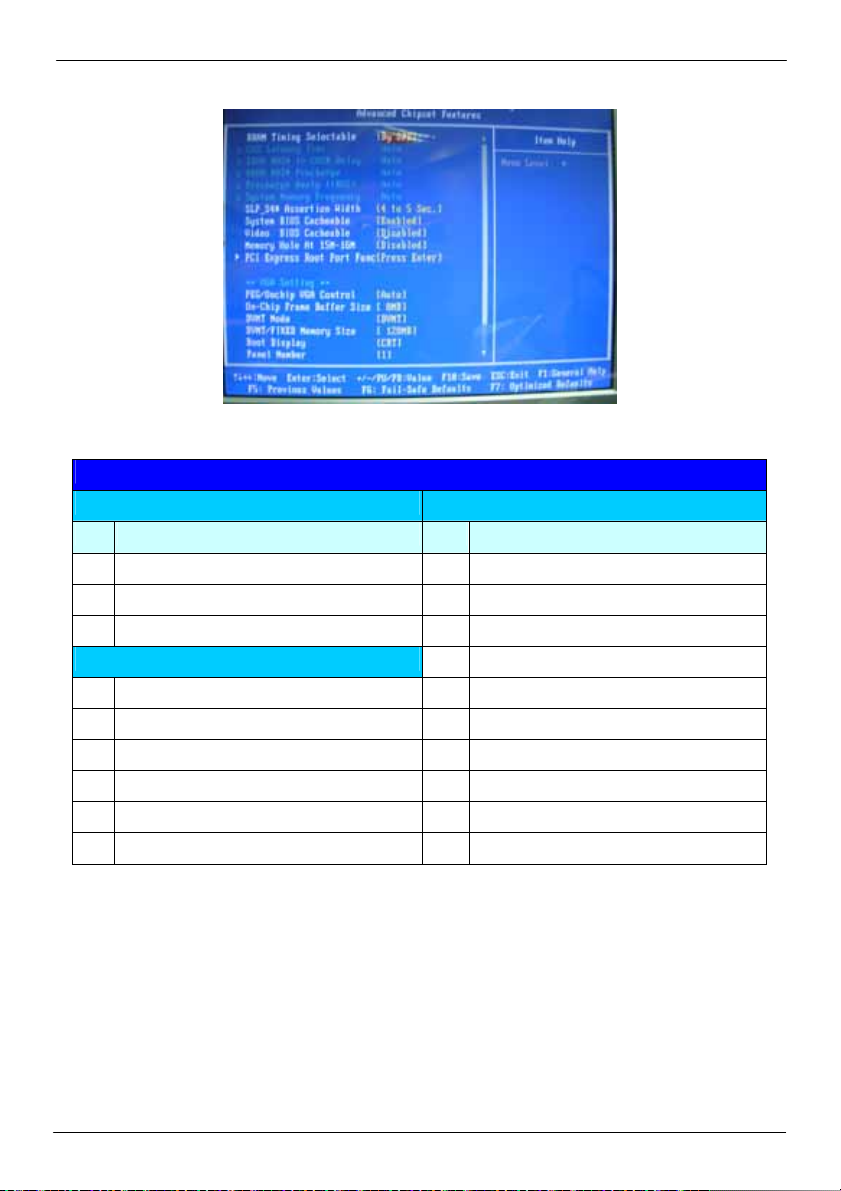

After setup the devices well, you need to select the LCD panel type in the BIOS.
The panel type mapping is list below:
BIOS panel type selection form
18 bits Single channel 24 bits Dual channel
NO. Output format NO. Output format
1 640 x 480 9 1024 x 768
2 800 x 600 10 1280 x 768
3 1024 x 768 11 1280 x 1024
24 bits Single channel 12 1366 x 768
4 1280 x 768 13 1400 x 1050 @ 108Mhz
5 1280 x 1024 15 1600 x 1200
6 1366 x 768 16 1920 x 1080
7 1280 x 800
8 1600 x 1200
14 1024 x 768
28
Page 29
LS-371 User’s Manual

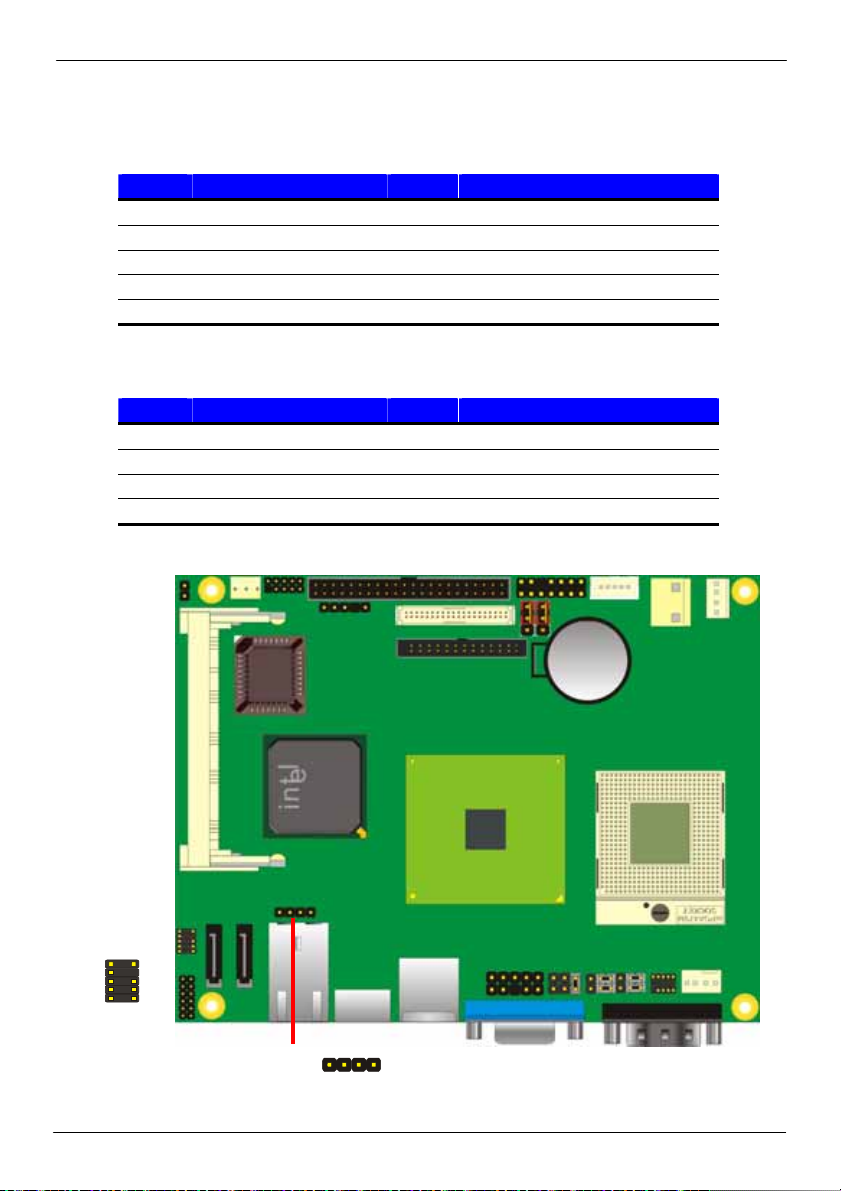

2.10 <Onboard Audio Interface>
The board provides the onboard AC97 5.1-channel audio interface with Realtek ALC655
Connector: CN_AUDIO
Type: 10-pin (2 x 5) 1.27mm x 2.54mm-pitch header
Pin Description Pin Description
1 LIN_L 2 Ground
3 LIN_R 4 MIC 2
5 MIC 2 6 Ground
7 N/C 8 FRONTL
9 FRONTR 10 Ground
Connector: CDIN
Type: 4-pin header (pitch = 2.54mm)
Pin Description
1 CD – Left
2 Ground
3 Ground
4 CD – Right
CN_AUDIO
10 9
2 1
CDIN
1
4
29
Page 30
LS-371 User’s Manual
2.11 <USB2.0 Interface>
Based on Intel ICH7-M , the board provides 4 USB2.0 ports. The USB2.0 interface provides
up to 480Mbps of transferring rate.
Interface USB2.0
Controller ICH7-M
Transfer Rate Up to 480Mb/s
Output Voltage 500mA
9 1
CN_IR
10 2
CN_USB
1 5
30
USB
Page 31
LS-371 User’s Manual
Connector: CN_IR
Type: 5-pin header for SIR Port
Pin Description
1 Vcc
2 N/C
3 IRRX
4 Ground
5 IRTX
Connector: CN_USB
Type: 10-pin (5 x 2) header for USB Port
Pin Description Pin Description
1 VCC 2 VCC
3 Data0- 4 Data15 Data0+ 6 Data1+
7 Ground 8 Ground
9 Ground 10 N/C
PS: The USB2.0 will be only active when you connecting with the USB2.0 devices, if you
insert an USB1.1 device, the port will be changed to USB1.1 protocol automatically. The
transferring rate of USB2.0 as 480Mbps is depending on device capacity, exact transferring
rate may not be up to 480Mbps.
31
Page 32
LS-371 User’s Manual
2.12 <GPIO Interface>
The board provides a programmable 8-bit digital I/O interface; you can use this general
purpose I/O port for system control like POS or KIOSK.
Connector: CN_DIO
Type: onboard 2 x 6-pin header, pitch=2.0mm
Pin Description Pin Description
1 Ground 2 Ground
3 GP0 4 GP4
5 GP1 6 GP5
7 GP2 8 GP6
9 GP3 10 GP7
11 VCC 12 +12V
CN_DIO
12 11
2 1
32
Page 33
LS-371 User’s Manual

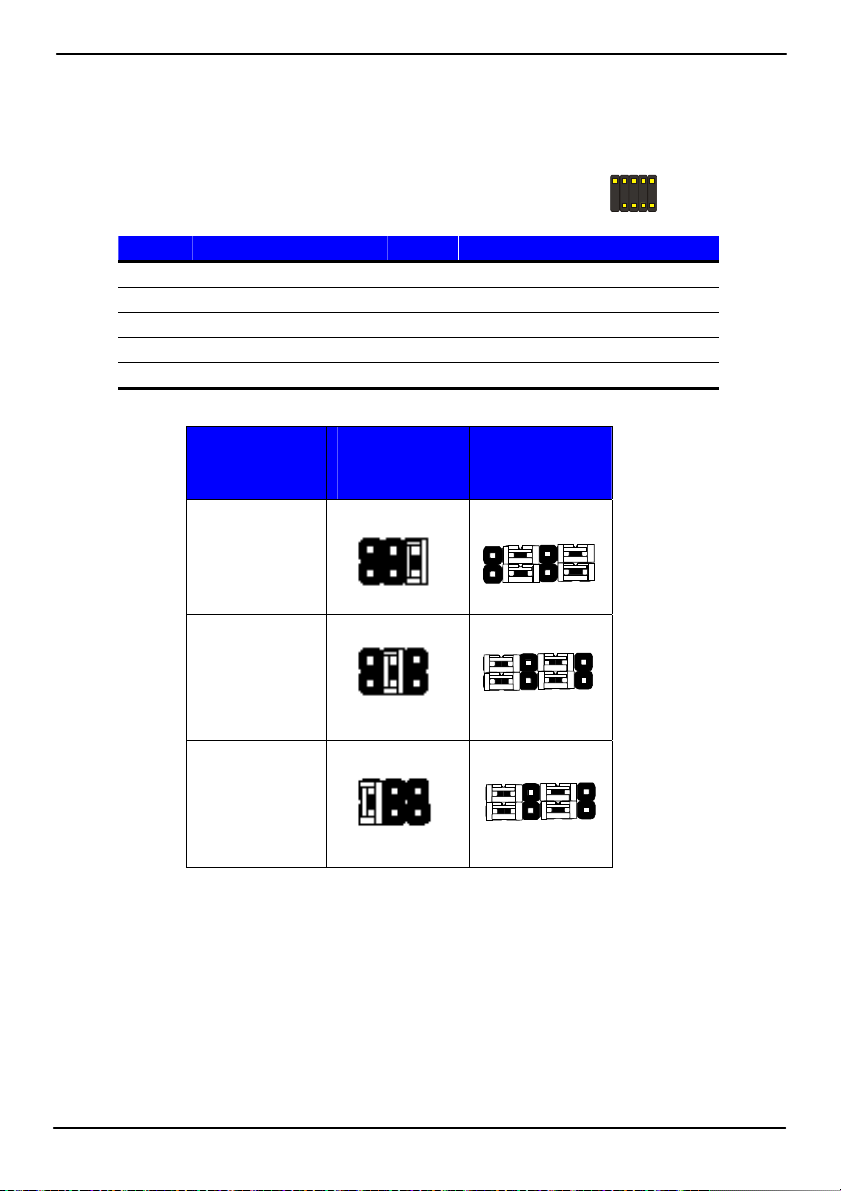

2.13 <Serial Port Jumper Setting >
The board provides three RS232 serial ports, with jumper selectable RS422/485 for COM2.
Connector: CN_COM2
Type: 10-pin (5 x 2) 1.27mm x 2.54mm-pitch header for COM2
Pin Description Pin Description
1 DCD/422TX-/485- 2 RXD/422TX+/485+
3 TXD/422RX+ 4 DTR/422RX5 GND 6 DSR
7 RTS 8 CTS
9 RI 10 N/C
JCSEL1 JCSEL2
1
RS-232
RS-485
5
6
2
1
5
6
2
11
12
11
12
9 1
10 2
1
2
1
2
1
RS-422
5
6
2
11
12
1
2
33
Page 34
LS-371 User’s Manual
CN_COM2
1
34
JCSEL1
10
JCSEL2

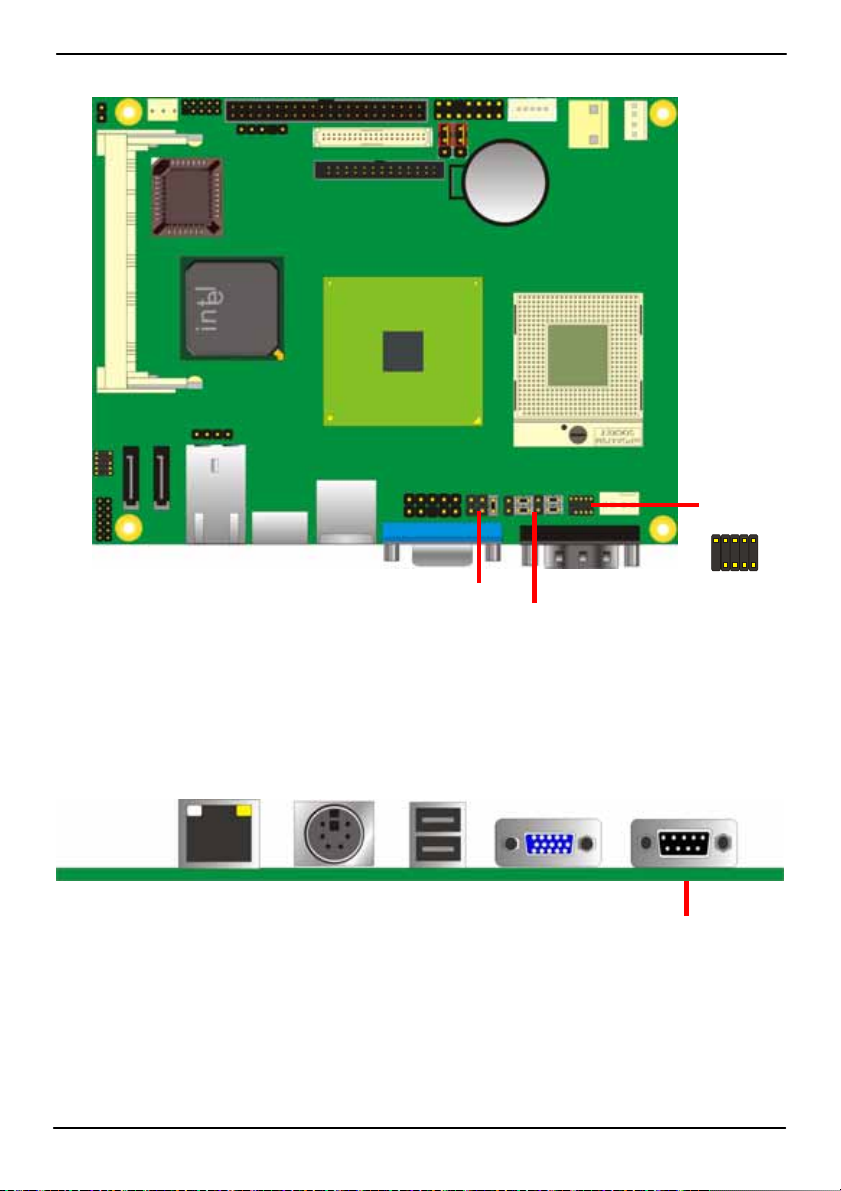

COM1
Page 35
LS-371 User’s Manual
3
3
2.14 <Power and Fan Connector>
The board requires DC input with 3-pin hear, the input voltage range is from 8V to 24V, for
the input current, please take a reference of the power consumption report on appendix.
2.14.1 <Power Input>
Connector: DC_IN
Pin Description Pin Description Pin Description
1 DC_IN 2 NC 3 Ground
Remark: DC input voltage range 8~24V
1
SYSFAN
1
DC_IN
DC_OUT
1
CPUFAN
35
Page 36
LS-371 User’s Manual
2.14.2 <Power Output>
Connector: DC_OUT
Type: 4-pin connector for +5V/+12V output
Pin Description Pin Description Pin Description Pin Description
1 +12V 2 Ground 3 Ground 4 +5V
Note: Maximum output current 12V/3A, 5V/3A
2.14.3 <Fan Connector>
Connector: SYSFAN
Type: 3-pin fan wafer connector
Pin Description Pin Description Pin Description
1 Ground 2 +12V 3 Fan Speed detect
Connector: CPUFAN
Type: 4-pin P-type connector
Pin Description Pin Description Pin Description Pin Description
1 Ground 2 +12V 3 Fan Speed detect 4 Fan Control
36
Page 37
LS-371 User’s Manual
2.15 <Indicator and Switch>
The JFRNT provides front control panel of the board, such as power button, reset and
beeper, etc. Please check well before you connecting the cables on the chassis.
Connector: JFRNT
Type: onboard 14-pin (2 x 7) 2.54-pitch header
Function Signal PIN Signal Function
IDE LED
Reset
Power
Button
HDLED+ 1 2 PWRLED+
Power
HDLED- 3 4 N/C
LED
Reset+ 5 6 PWRLED-
Reset- 7 8 SPK+
N/C 9 10 N/C
Speaker
PWRBT+ 11 12 N/C
PWRBT- 13 14 SPK-
13 1
14 2
JFRNT
37
Page 38
LS-371 User’s Manual
Chapter 3 <System Configuration>
3.1 <Video Memory Setup>
Based on Intel® 945GM(E) chipset with GMA (Graphic Media Accelerator) 950, the board
supports Intel® DVMT (Dynamic Video Memory Technology) 3.0, which would allow the
video memory to be allocated up to 224MB.
To support DVMT, you need to install the Intel GMA 950 Driver with supported OS.

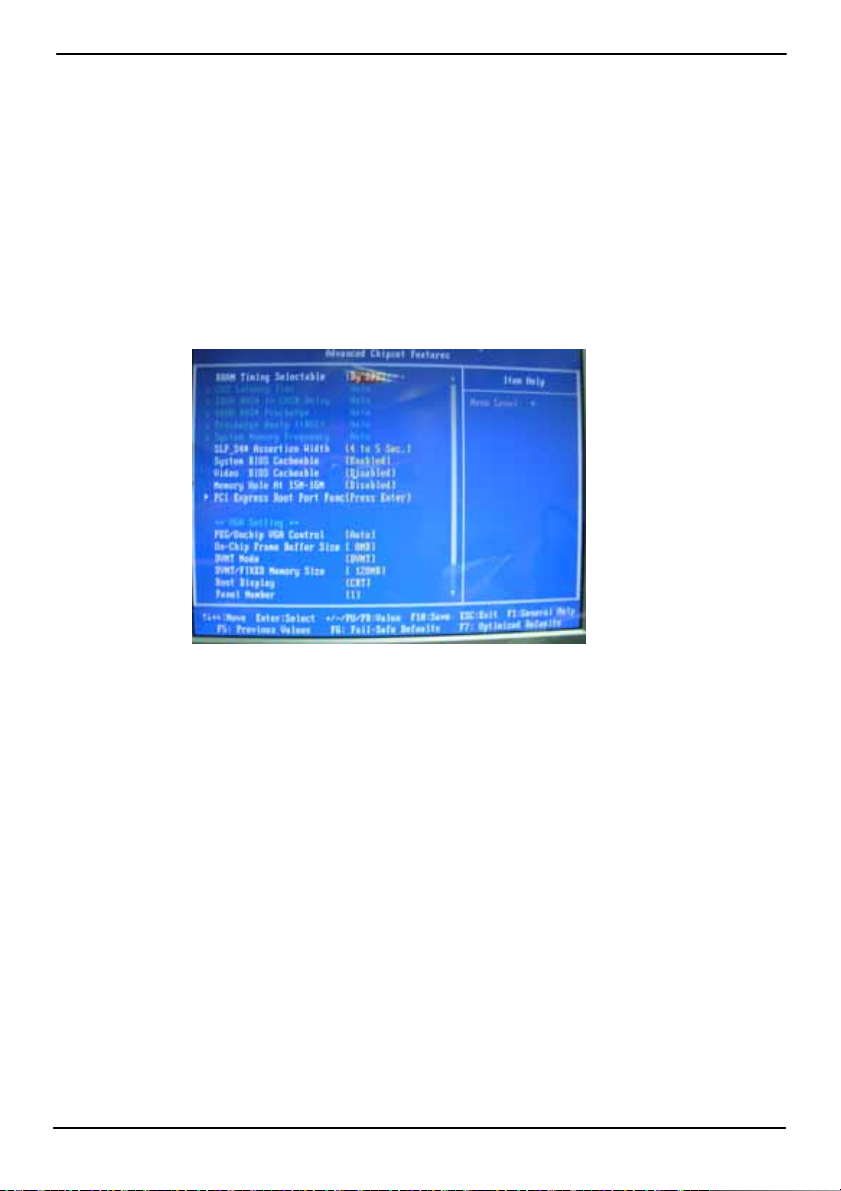

BIOS Setup:
On-Chip Frame Buffer Size:
This item can let you select video memory which been allocated for legacy VGA and
SVGA graphics support and compatibility. The available option is 1MB and 8MB.
Fixed + DVMT Memory Size:
Y ou can select the fixed amount and the DVMT amount at the same time for a guaranteed
video memory and additional dynamic video memory, please check the table below for
available setting.
38
Page 39
LS-371 User’s Manual
Notice:
1. The On-Chip Frame Buffer Size would be included in the Fixed Memory.
Please select the memory size according to this table.
System
Memory
128MB~255MB
256MB~511MB
512MB upper
On-Chip
Frame
Buffer Size
1MB 32MB 0MB 32MB
1MB 0MB 32MB 32MB
8MB 32MB 0MB 32MB
8MB 0 32MB 32MB
1MB 64MB 0MB 64MB
1MB 0 64MB 64MB
1MB 128MB 0MB 128MB
1MB 0 128MB 128MB
1MB 64MB 64MB 128MB
8MB 64MB 0MB 64MB
8MB 0 64MB 64MB
8MB 128MB 0MB 128MB
8MB 0 128MB 128MB
8MB 64MB 64MB 128MB
1MB 64MB 0 64MB
1MB 0 64MB 64MB
1MB 128MB 0 128MB
1MB 0 128MB 128MB
1MB 64MB 64MB 128MB
8MB 64MB 0 64MB
8MB 0 64MB 64MB
8MB 128MB 0 128MB
8MB 0 128MB 128MB
8MB 64MB 64MB 128MB
Fixed
Memory
Size
DVMT
Memory
Size
Graphic
Memory
Total
39
Page 40
LS-371 User’s Manual
3.2 <Audio Configuration>
The board provides 5.1 channel audio interface with driver installed, please install
the Realtek ALC655 audio driver in the CD before getting start to enjoy the 5.1
channel sound system.

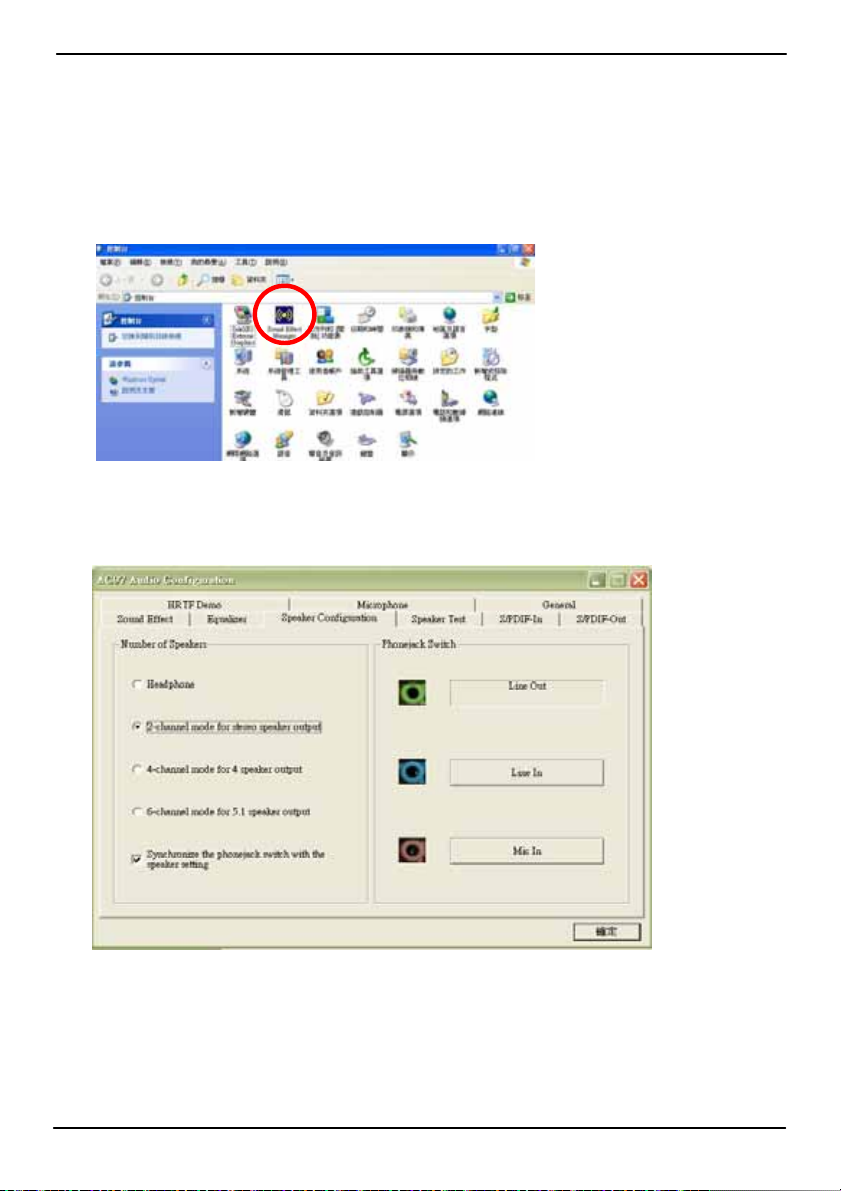

1. Install REALTEK AC97 Audio driver.
2. Lunch the control panel and Sound Effect Manager.
3. Select Speaker Configuration.
4. Select the sound mode to meet your speaker system.
40
Page 41
LS-371 User’s Manual
(This Page is Left for Blank)
41
Page 42
LS-371 User’s Manual
Chapter 4 <BIOS Setup>
The motherboard uses the Award BIOS for the system configuration. The Award
BIOS in the single board computer is a customized version of the industrial standard
BIOS for IBM PC AT-compatible computers. It supports Intel x86 and compatible CPU
architecture based processors and computers. The BIOS provides critical low-level
support for the system central processing, memory and I/O sub-systems.
The BIOS setup program of the single board computer let the customers modify the
basic configuration setting. The settings are stored in a dedicated battery-backed
memory, NVRAM, retains the information when the power is turned off. If the battery
runs out of the power, then the settings of BIOS will come back to the default setting.
The BIOS section of the manual is subject to change without notice and is provided here
for reference purpose only. The settings and configurations of the BIOS are current at
the time of print, and therefore they may not be exactly the same as that displayed on
your screen.
To activate CMOS Setup program, press ＜DEL＞ key i mmediately after you turn on
the system. The following message “Press DEL to enter SETUP” should appear in the
lower left hand corner of your screen. When you enter the CMOS Setup Utility, the Main
Menu will be displayed as Figure 4-1. You can use arrow keys to select your function,
press ＜Enter＞ key to accept the selection and enter the sub-menu.

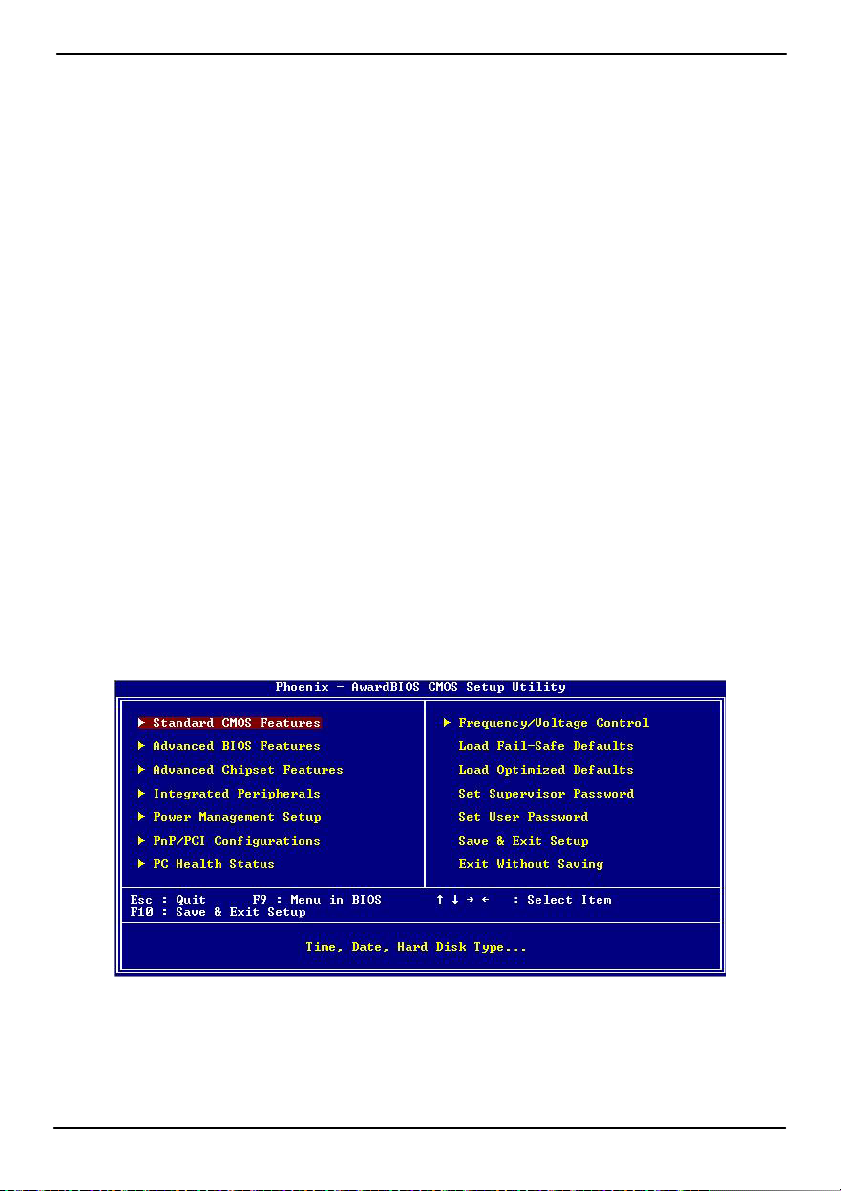

Figure 4-1 CMOS Setup Utility Main Screen
42
Page 43
LS-371 User’s Manual
Appendix A <I/O Port Pin Assignment>

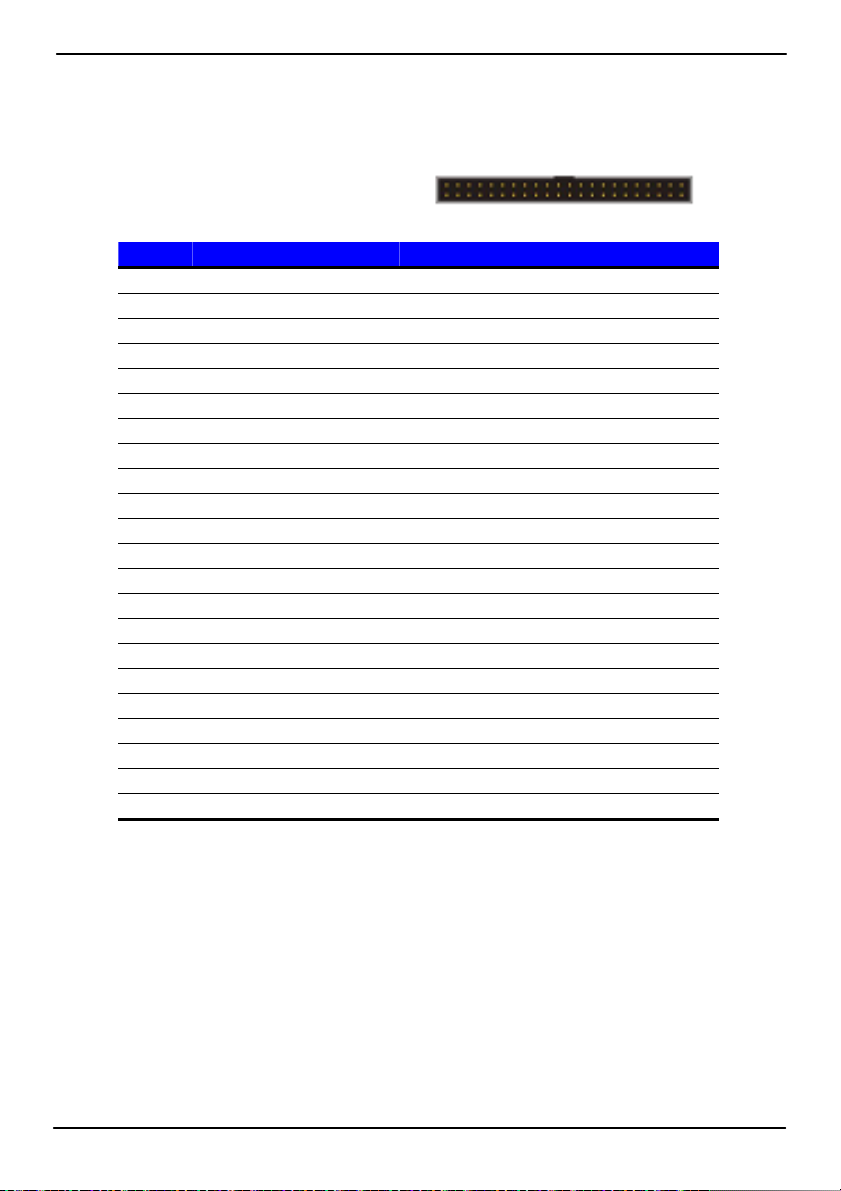

A.1 <IDE Port>
Connector: IDE
Type: 44-pin (22 x 2) box header
Pin Description Pin Description
1 Reset 2 Ground
3 D7 4 D8
5 D6 6 D9
7 D5 8 D10
9 D4 10 D11
11 D3 12 D12
13 D2 14 D13
15 D1 16 D14
17 D0 18 D15
19 Ground 20 N/C
21 REQ 22 Ground
23 IOW-/STOP 24 Ground
25 IOR-/HDMARDY 26 Ground
27 IORDY/DDMARDY 28 Ground
29 DACK- 30 Ground
31 IRQ 32 N/C
33 A1 34 SD
35 A0 36 A2
37 CS1 38 CS3
39 ASP1 40 Ground
41 Vcc 42 Vcc
43 Ground 44 Ground
43
44
1
2
43
Page 44
LS-371 User’s Manual

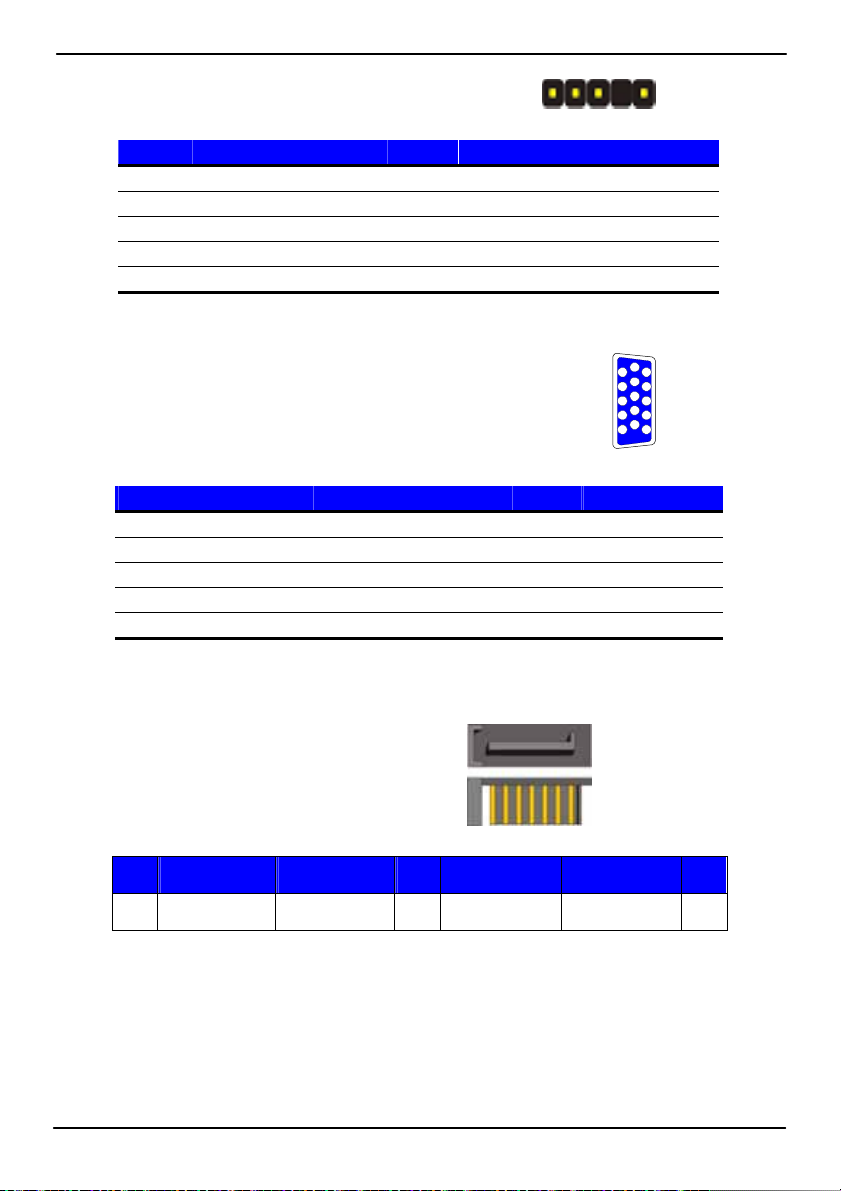

A.2 <IrDA Port>
Connector: CN_IR
Type: 5-pin header for SIR Port
Pin Description
1 Vcc
2 N/C
3 IRRX
4 Ground
5 IRTX
A.3 < CRT Port >
Connector: CRT
Type: 15-pin D-sub female connector on panel
Pin Description Pin Description Pin Description
1 RED 6 Ground 11 N/C
2 GREEN 7 Ground 12 5VCDA
3 BLUE 8 Ground 13 HSYNC
4 N/C 9 LVGA5V 14 VSYNC
5 Ground 10 Ground 15 5VCLK
1
2
3
4
5
10
1 5
6
11
12
13
14
15
A.4 <Serial ATA Port>
Connector: SATA1/2
Type: 7-pin wafer connector
1 2 3 4 5 6 7
GND RSATA_TXP1 RSATA_TXN1 GND RSATA_RXN1 RSATA_RXP1 GND
1 7
44
Page 45
LS-371 User’s Manual

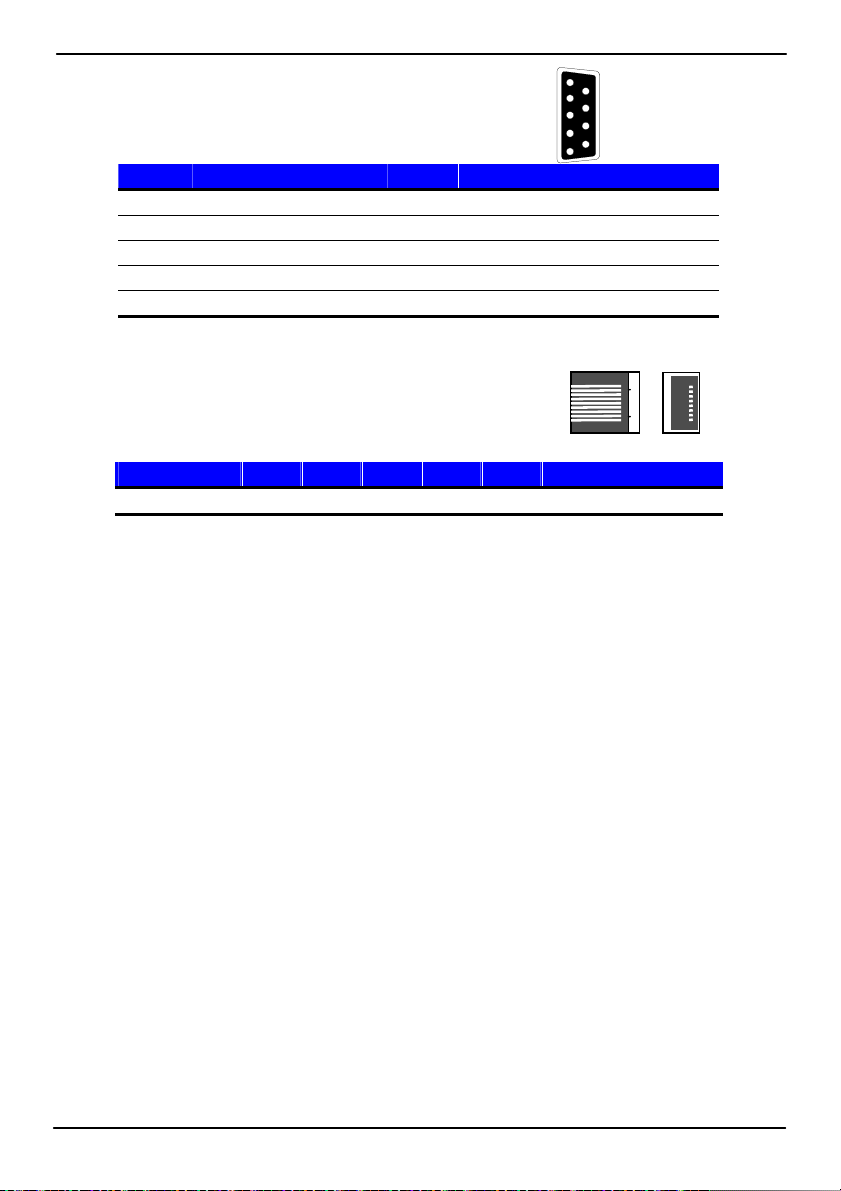

A.5 <Serial Port>
Connector: COM1
Type: 9-pin D-sub male connector on rear panel
Pin Description Pin Description
1 DCD 6 DSR
2 SIN 7 RTS
3 SO 8 CTS
4 DTR 9 RI
5 Ground
5
4
3
2
1
9
8
7
6
A.6 <LAN Port>
Connector: RJ45
Type: RJ45 connector with LED on rear panel
Pin 1 2 3 4 5 6 7 8
Description TX+ TX- RX+ N/C N/C RX- N/C N/C
1
8
45
Page 46
LS-371 User’s Manual
Appendix B <Flash BIOS>
B.1 BIOS Auto Flash Tool
The board is based on Award BIOS and can be updated easily by the BIOS auto flash
tool. You can download the tool online at the address below:
TUhttp://www.award.comUT
TUhttp://www.commell.com.tw/support/support.htmUT
File name of the tool is “awdflash.exe”, it’s the utility that can write the data into the BIOS
flash ship and update the BIOS.
B.2 Flash Method
1. Please make a bootable floppy disk.
2. Get the last .bin files you want to update and copy it into the disk.
3. Copy awardflash.exe to the disk.
4. Power on the system and flash the BIOS. (Example: C:/ awardflash XXX.bin)
5. Re-star the system.
Any question about the BIOS re-flash please contact your distributors or visit the
web-site at below:
http://www.commell.com.tw/support/support.htm
46
Page 47
LS-371 User’s Manual
Appendix C <System Resources>

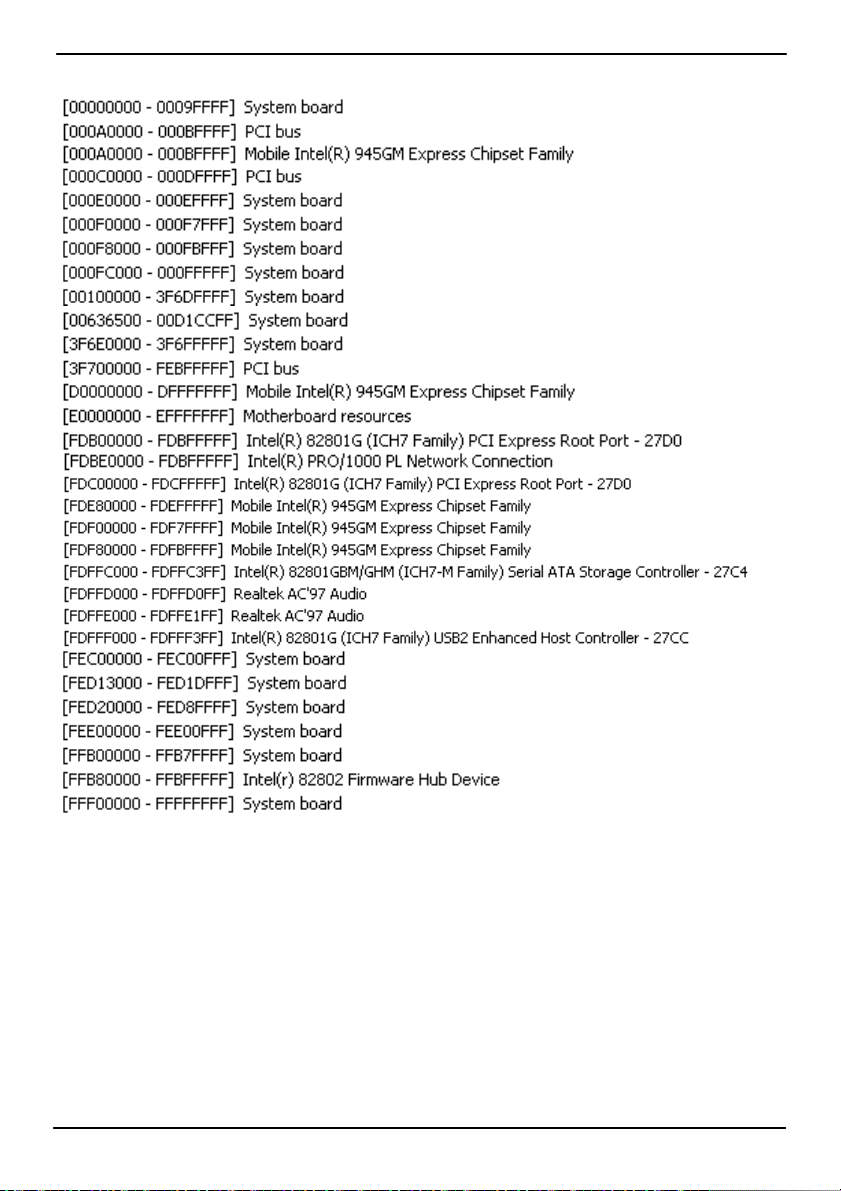

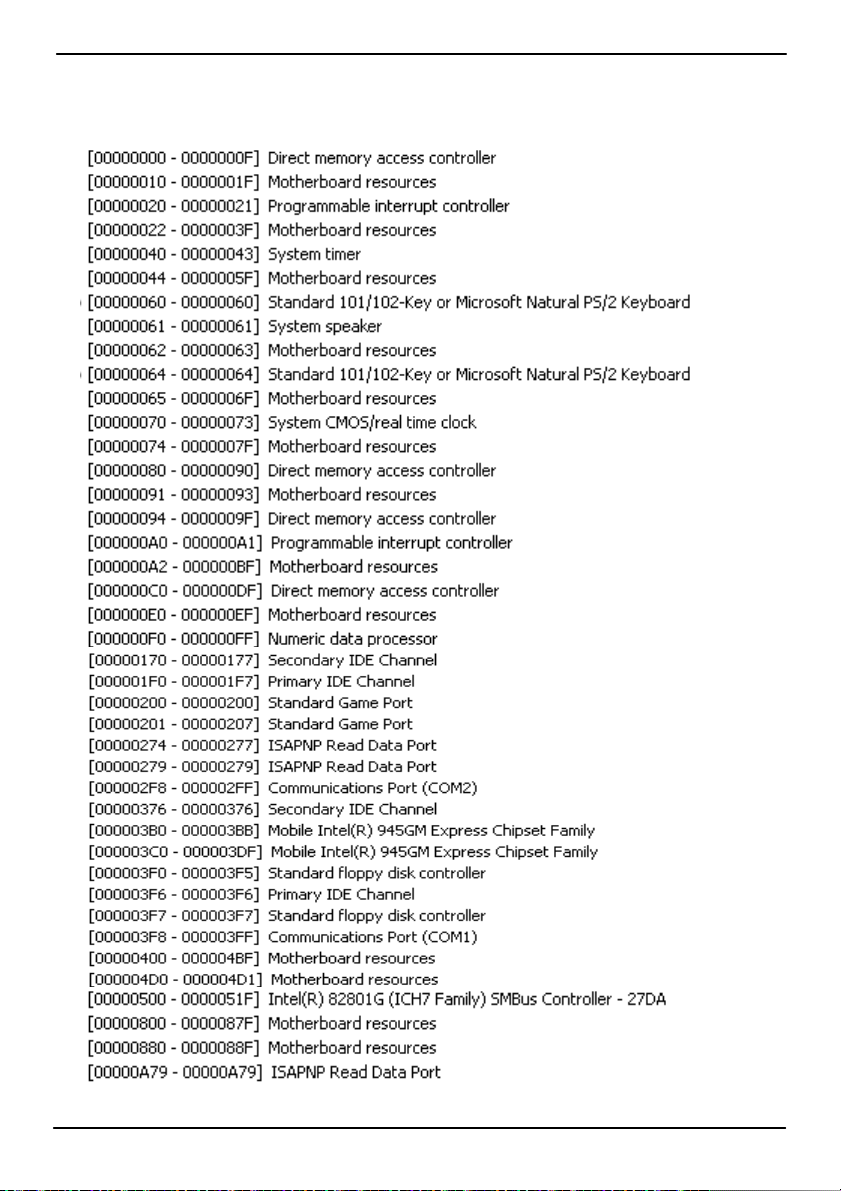

C1.<I/O Port Address Map>
47
Page 48
LS-371 User’s Manual
C2. <Memory Address Map>
48
Page 49
LS-371 User’s Manual

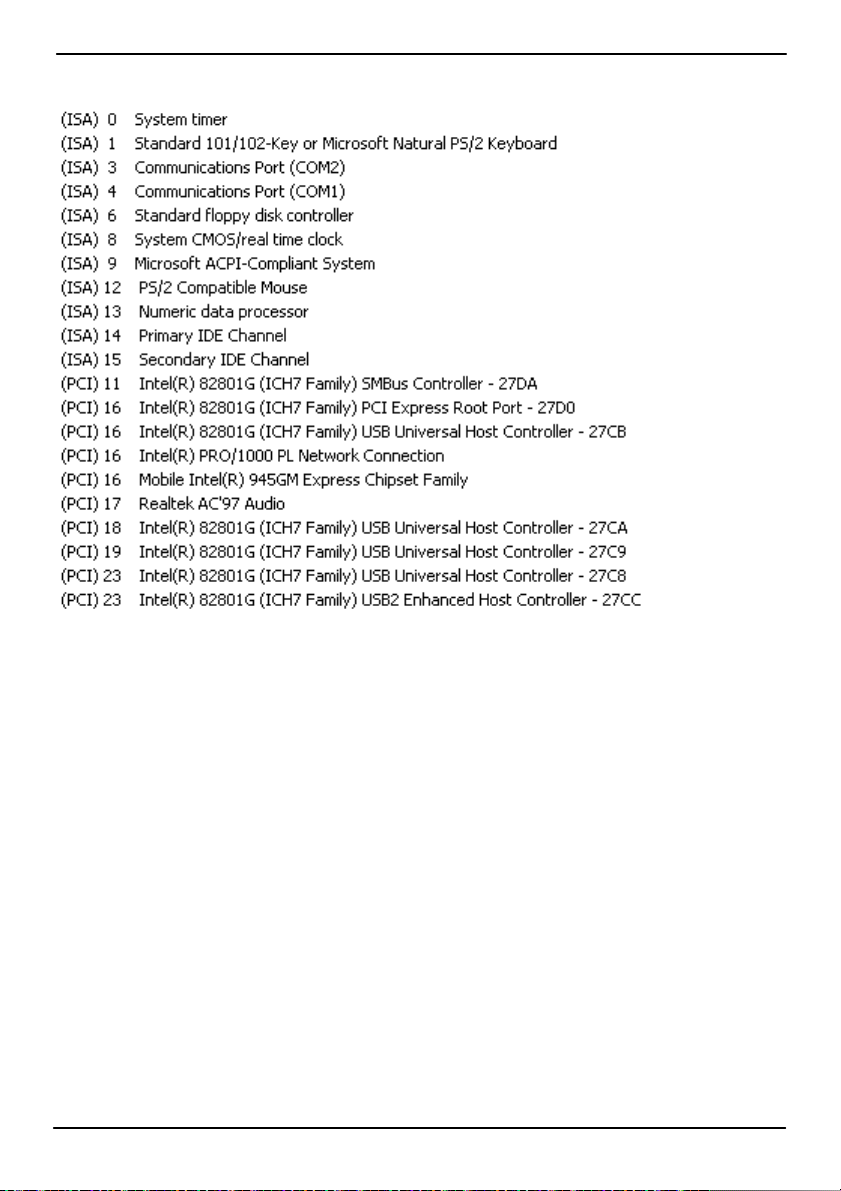

C3.<System IRQ Resources>
49
Page 50
LS-371 User’s Manual
Appendix D <Programming GPIO’s>
The GPIO can be programmed with the MSDOS debug program using simple
IN/OUT commands.The following lines show an example how to do this.
GPIO0…..GPIO7 bit0……bit7
-o 2E 87 ;enter configuration
-o 2E 87
-o 2E 29
-o 2F 40 ;enable GPIO function
-o 2E 07
-o 2F 07 Select Logic Device 7
-o 2E F0
-o 2F xx ;set GPIO as input/output; set ‘1’ for input,’0’for
output
-o 2E F1
-o 2F xx ;if set GPIO’s as output,in this register its value can
be set
Optional :
-o 2E F2
-o 2F xx ; Data inversion register ; ‘1’ inverts the current valus
of the bits ,’0’ leaves them as they are
-o 2E 30
-o 2F 01 ; active GPIO’s
For further information ,please refer to Winbond W83627THF datasheet.
50
Page 51
LS-371 User’s Manual
Appendix E <Watch Dog timer Setting >
The watchdog timer makes the system auto-reset while it stops to work for a period. The
integrated watchdog timer can be setup as system reset mode by program.
Timeout Value Range
- 1 to 255
- Second or Minute
Program Sample
Watchdog timer setup as system reset with 5 second of timeout
2E, 87
2E, 87
2E, 07
2F, 08 Logical Device 8
2E, 30 Activate
2F, 01
2E, F5 Set as Second*
2F, 00
2E, F6 Set as 5
2F, 05
* Minute: bit 3 = 0; Second: bit 3 = 1

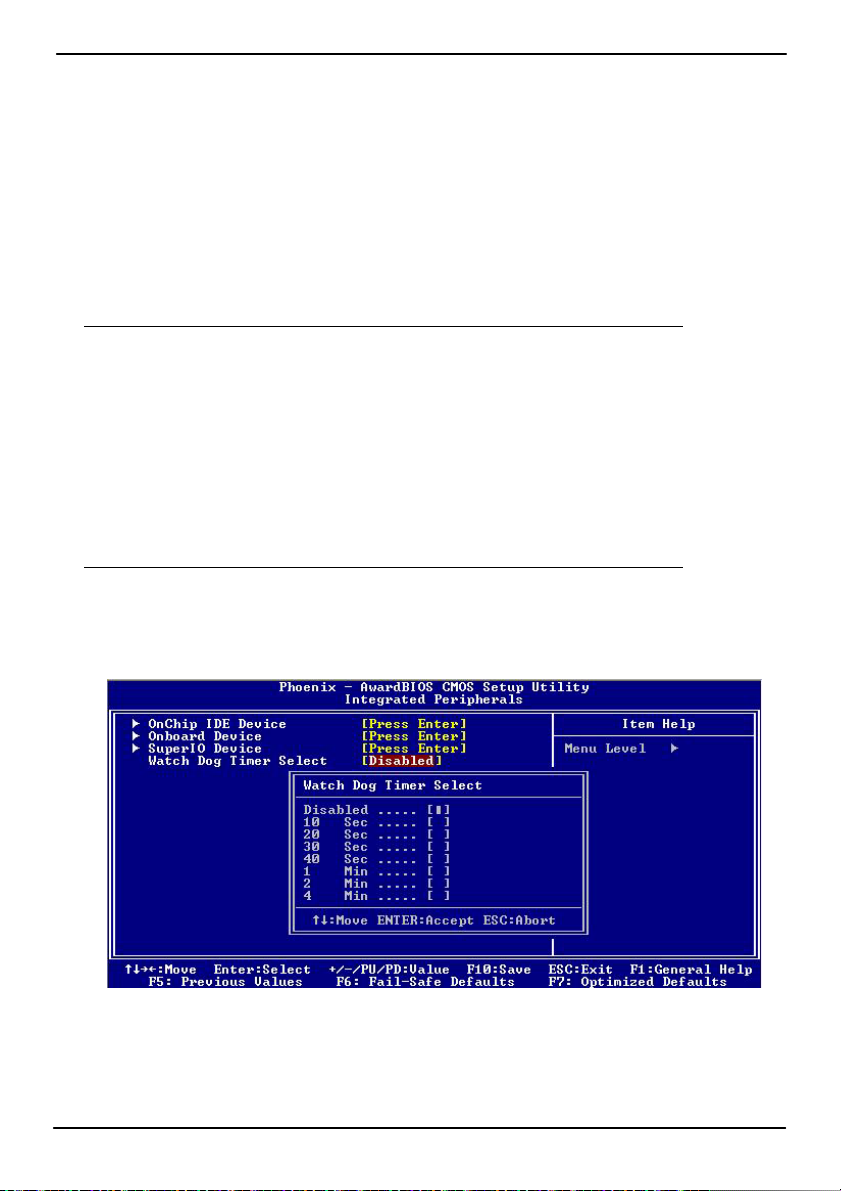

You can select Timer setting in the BIOS, after setting the time options, the system will
reset according to the period of your selection.
51
Page 52
LS-371 User’s Manual
(This Page is Left for Blank)
52
Page 53
LS-371 User’s Manual
Contact Information
Any advice or comment about our products and service, or anything
we can help you please don’t hesitate to contact with us. We will do
our best to support you for your products, projects and business.
Taiwan Commate Computer Inc.
Address
TEL +886-2-26963909
FAX +886-2-26963911
Website
E-Mail
19F, No. 94, Sec. 1, Shin Tai Wu Rd., Shi Chih
Taipei Hsien, Taiwan
Commell is our trademark of industrial PC division
53
Loading...
