Page 1
LP-180
Pico-ITX
User’s Manual
2012/02/23
Version:1.0
Page 2
Page 3
LE-380 User’s Manual
-1-
Copyright
Copyright 2012. All rights reserved. This document is copyrighted and all rights are
reserved. The information in this document is subject to change without prior notice to
make improvements to the products.
This document contains proprietary information and pr otected by copyright. No part of
this document may be reproduced, copied, or translated in any form or any means
without prior written permission of the manufacturer.
All trademarks and/or registered trademarks contains in this document are propert y of
their respective owners.
Disclaimer
The company shall not be liable for any incidental or consequential damages resulting
from the performance or use of this product.
The company does not issue a warranty of any kind, express or implied, including
without limitation implied warranties of merchantability or fitness for a particular purpose.
The company has the right to revise the manual or include changes in the specifications
of the product described within it at any time without notice and without obligation to
notify any person of such revision or changes.
Trademark
All trademarks are the property of their respective holders.
Any questions please visit our website at TUhttp://www.commell.com.twUT
Page 4
LE-380 User’s Manual
-2-
Packing List:
Please check the package content before you starting using the board.
Hardware:
LE-380 3.5“ Miniboard x 1

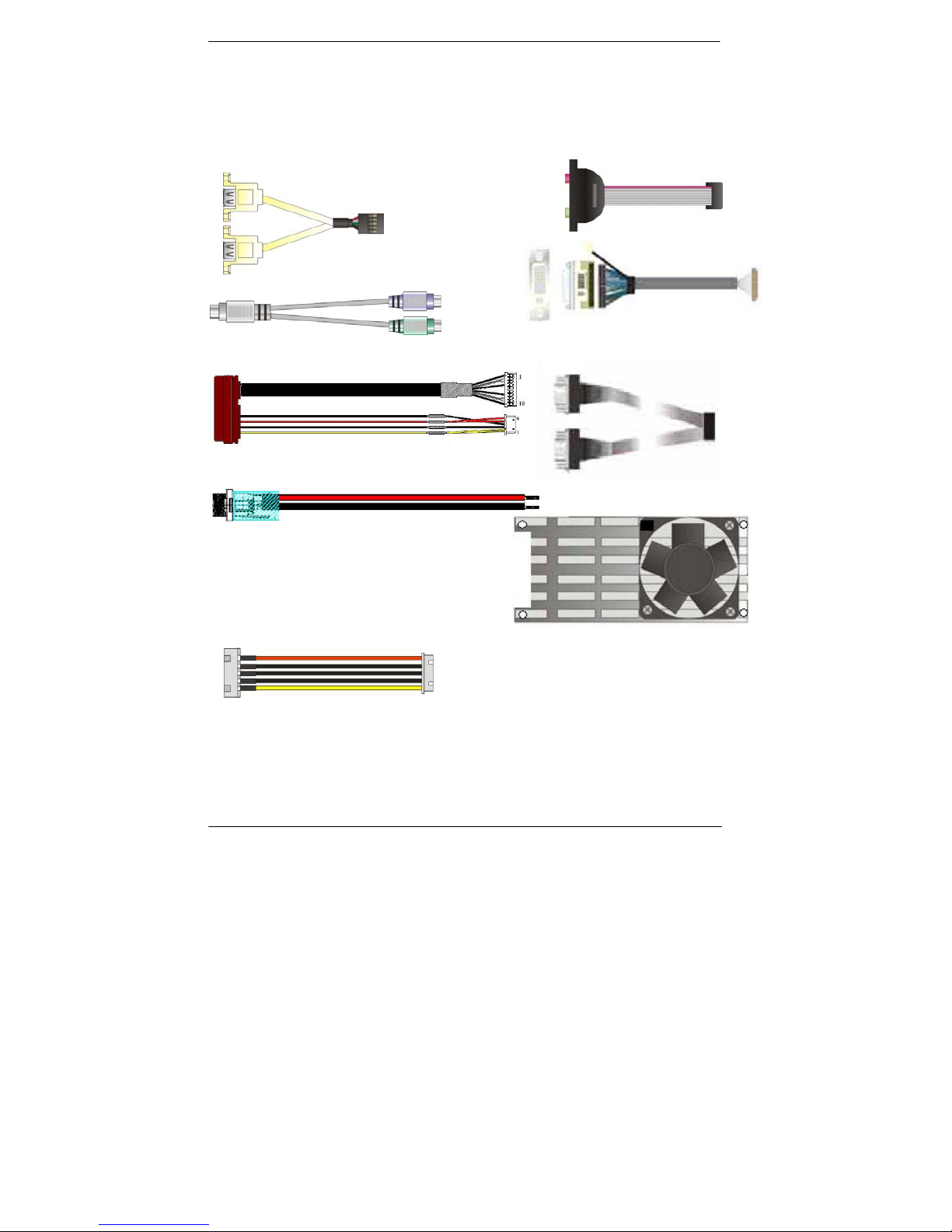

Cable Kit:
Optional Cable Kit:
Printed Matters:
Driver CD x 1 (Including User’s Manual)
Audio Cable x 1
(OALPJ-HDUNB)
PS/2 keyboard & mouse cable x 1
(OALPS2/MK)
USB Cable x 1
(OALUSBA-3)
Dual COM PORT cable
(OALES-BKU2NB)
DVI Module With DVI Cable x 1
(BADPDVI-A + OALDVI-DF13)
Panel Inverter Cable x 1
(OALINV-5P-L15)
SATA Cable x 1
(OALSATA22B-PM15SH15)
DC_IN Power Cable x 1
(OALDC-B)
LP-170D/X Heatsink with Fan x 1
(OHS-180)
Page 5
LE-380 User’s Manual
-3-
Index
Chapter 1 <Introduction>................................................................................. 6
1.1 <Product Overview>..............................................................................................6
1.2 <Product Specification>........................................................................................7
1.3 <Mechanical Drawing>.........................................................................................9
1.4 <Block Diagram>................................................................................................10
Chapter 2 <Hardware Setup>......................................................................... 11
2.1 <Connector Location>.........................................................................................11
2.2 <Jumper Reference>............................................................................................13
2.3 <Connector Reference>.......................................................................................14
2.3.1 <Internal Connector>........................................................................14
2.3.2 <External Connector>.......................................................................14
2.4 <CPU and Memory Setup>..................................................................................15
2.5 <CMOS & ATX Setup>......................................................................................16
2.6 <SATA & CFast Interface>.................................................................................17
2.8 <LAN Interface> .................................................................................................18
2.9 <Onboard Display Interface>..............................................................................19
2.9.1 <Analog VGA Interface>..................................................................19
2.9.2 <Digital Display> (LP-180X) ...........................................................20
2.9.3 <DVI Interface > (LP-180D).............................................................24
2.10 <Onboard Audio Interface>...............................................................................25
2.11 <USB2.0 Interface>...........................................................................................26
2.12 <GPIO Interface>..............................................................................................27
2.13 <Serial Port Jumper Setting >............................................................................28
2.14 <Power & FAN Connector >.............................................................................29
2.14.1 <Power Input>.................................................................................29
2.14.2 <Power Output>..............................................................................30
2.14.3 <Fan Connector>.............................................................................30
2.15 <Indicator and Switch>......................................................................................31
Chapter 3 <BIOS Setup>................................................................................33
Page 6
LE-380 User’s Manual
-4-
Appendix A <I/O Port Pin Assignment> .......................................................35
A.1 <SATA Port> .....................................................................................................35
A.2 < CRT Port > ......................................................................................................35
A.3 <LAN Port>........................................................................................................35
A.4 <LAN LED Port>............................................................................................... 36
A.5 <LPC Port> ........................................................................................................36
Appendix B <Flash BIOS>..............................................................................37
B.1 BIOS Auto Flash Tool.........................................................................................37
B.2 Flash Method...................................................................................................... 37
Appendix C <System Resources> ................................................................38
C.1 <I/O Port Address Map>.....................................................................................38
C.2 <Memory Address Map >...................................................................................40
C.3 < System IRQ Resources >................................................................................. 42
Appendix D <Watch Dog timer Setting >......................................................44
Appendix E <AMD Hing Definition Audio Device > .....................................45
Contact Information........................................................................................47
Page 7
LE-380 User’s Manual
-5-
(This page is left for blank)
Page 8
LE-380 User’s Manual
-6-
Chapter 1 <Introduction>
1.1 <Product Overview>

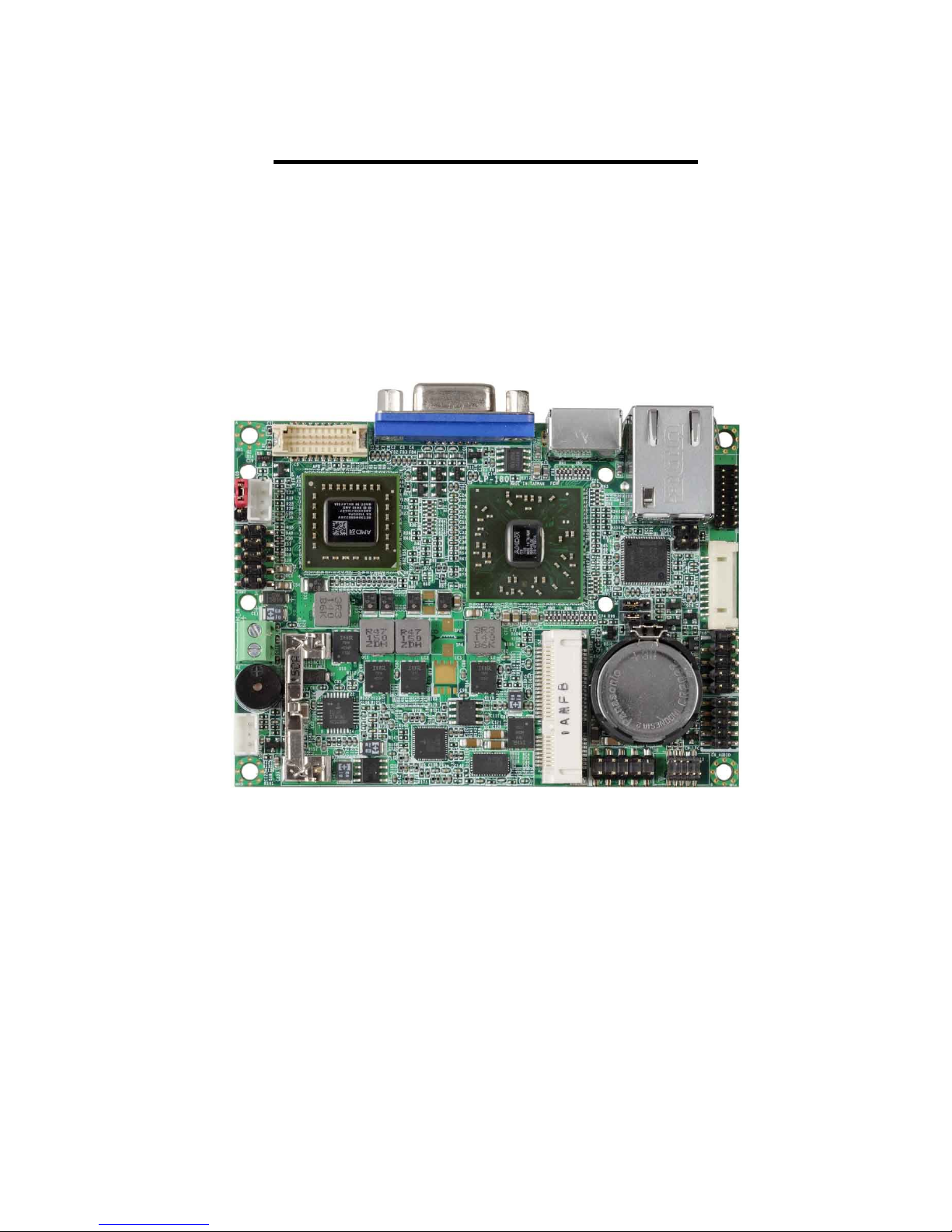

LP-180 is the PICO-ITX miniboard with AMD G-T56N platform, with onboard VGA,
Realtek ALC888 HD Codec audio, Giga LAN interface. Based on the AMD G-T56N
Processor , the board provides many advanced features for reduced power
consumption.
A55E Chipset
The board integrates AMD A55E, to provide built-in UniChrome Pro 3D / 2D Graphics
with MPEGII decoder, and supports DDR3 1066/1333 memory up to 4G of capacity.
18-bit LVDS LCD interface
The board provides onboard 18-bit LVDS LCD interface, supports up to 1400 x 1050 of
UXGA high resolution.
Flexible Extension Interface
The board also provides one Mini card socket.
Page 9
LE-380 User’s Manual
-7-
1.2 <Product Specification>
General Specification
Form Factor PICO-ITX miniboard
CPU AMD G-Series T56N Processor 1.65GHz
Memory 1 x 204-pin DDR3 1066/1333 SO-DIMM SDRAM up to 4G
Chipset AMD A55E FCH
Watchdog Timer System reset programmable watchdog timer with 1 ~ 255
sec./min. of timeout value
Real Time Clock Chipset integrated RTC with onboard lithium battery
Serial ATA 1 x serial ATAII interface with 300MB/s transfer rate
(Only 2.5” HDD and No RAID Function)
Multi-I/O Port
Chipset Winbond W83627DHG-P
Serial Port Two RS-232 serial port
USB Port Four Hi-Speed USB 2.0 ports with 480Mbps of transfer rate
K/B & Mouse PS/2 keyboard and mouse port
VGA Display Interface
Chipset AMD G-Series T56N Processor
Frame Buffer Up to 512MB shared with system memory
Display Type CRT, LCD monitor with analog display, single channel
LVDS(LP-180X), DVI(LP-180D)
Connector External DB15 female connector
Onboard 20-Pin LVDS and 5-Pin inverter connector
(LP-180X)
Onboard 20-Pin DVI (LP-180D)
Ethernet Interface
Controller 1 x Intel® 82583V Gigabit Ethernet controller
Type Triple speed 10/100/1000Base-T
auto-switching Fast Ethernet
Full duplex, IEEE802.3U compliant
Connector One External RJ45 connector with LED
Audio Interface
Chipset REALTEK ALC888
Interface Stereo audio Line-out and MIC-in
Connector Onboard audio connector with pin header
Expansive Interface
PCIE Mini Card 1 x PCIE Mini Card socket
Power and Environment
Power Requirement DC +5V input with onboard 2-pin connector
Page 10
LE-380 User’s Manual
-8-
Dimension 100 (L) x 72(H) mm
Temperature Operating within 0 ~ 60℃
Storage within -20 ~ 85℃
Ordering Code
LP-180D Same as LP-180 but without VGA, support DVI
LP-180X Same as LP-180 but without VGA, support Chipset
Integrated 18-bit single channel LVDS
The specifications may be different as the actual production.
For further product information please visit the website at
TUhttp://www.commell.com.twUT
Page 11
LE-380 User’s Manual
-
9-

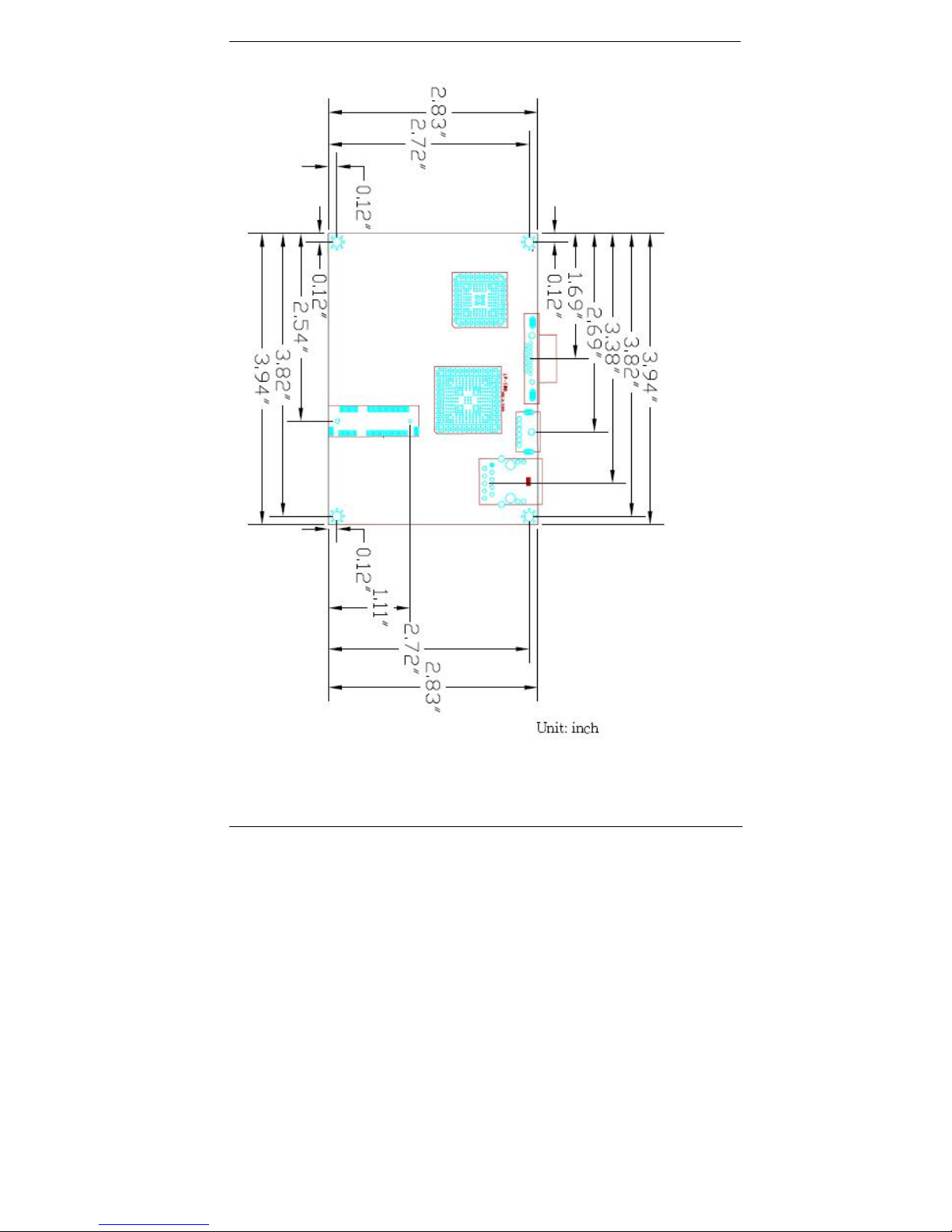

1.3 <Mechanical Drawing>
Page 12
LE-380 User’s Manual
-
10-
W83627DHG-P
CRT / DVI / LVDS
DDR3 SODIMM 4GB max.
2 x Serial Port
PS2 KB/MS
Mini card socket
Giga LAN
1 x SATA
4 x USB port
HD Audio

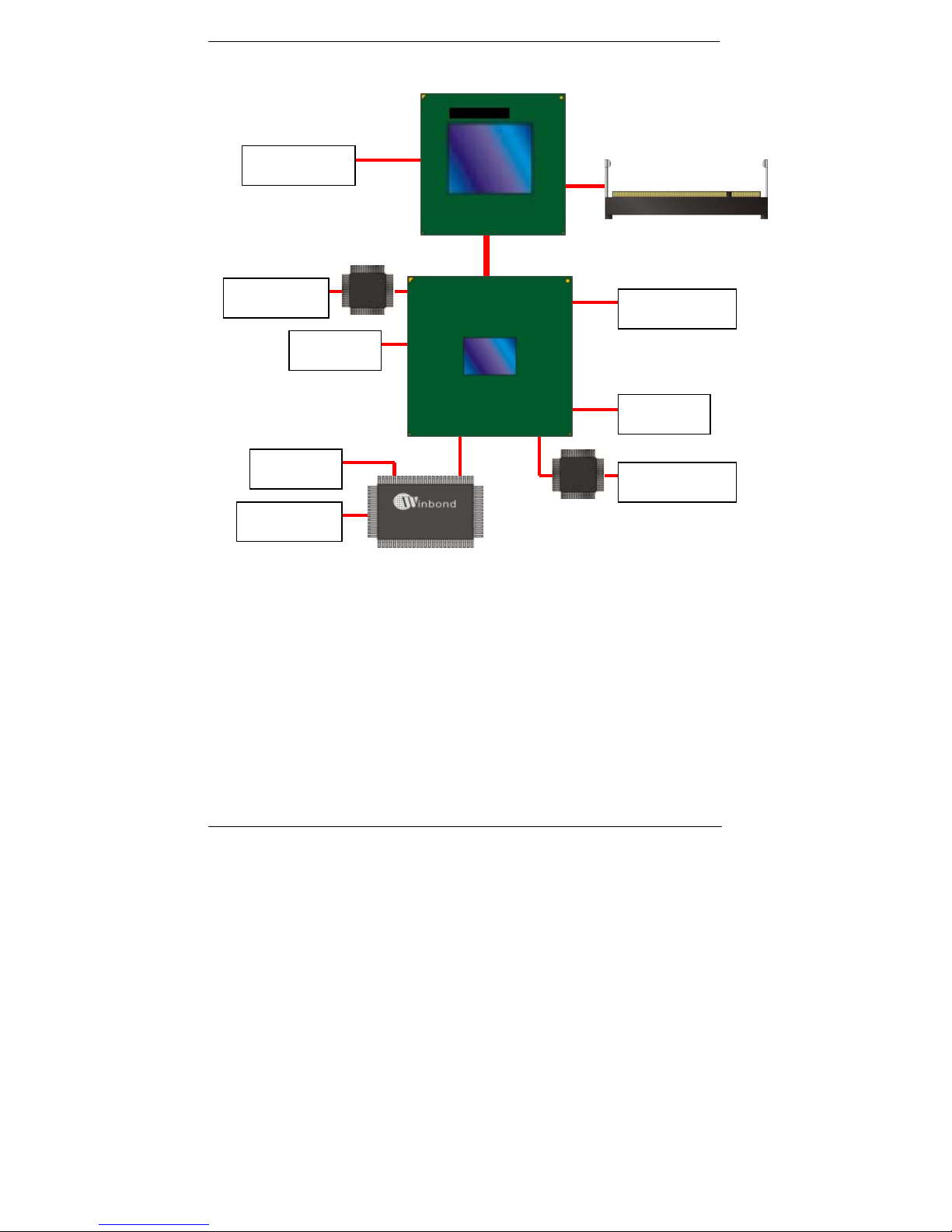

1.4 <Block Diagram>
AMD
G-T56N
A55E
Page 13
LE-380 User’s Manual
-
11-
CN_LPC
CN AUDIO
CN_USB2
CN_USB1
Chapter 2 <Hardware Setup>

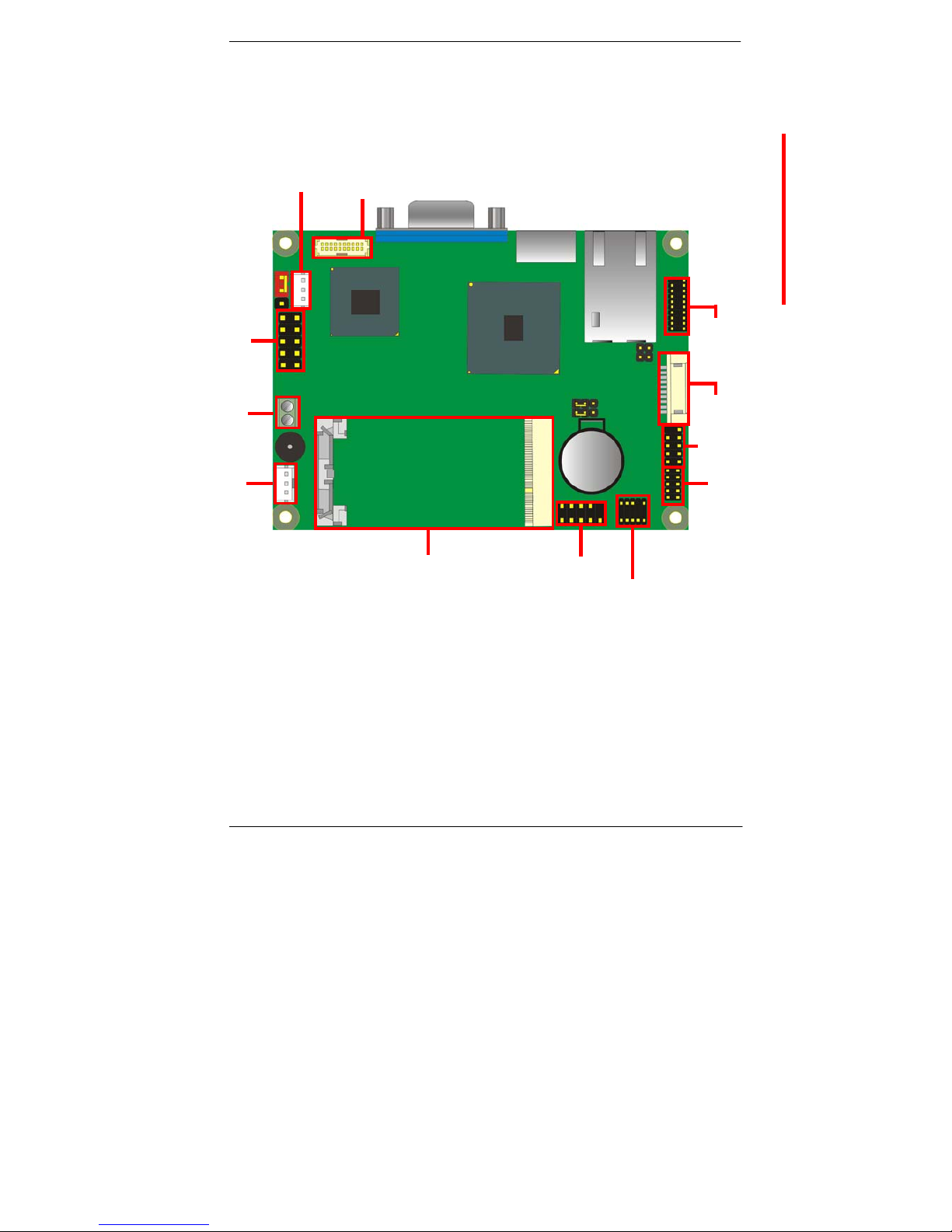

2.1 <Connector Location>
CN_SATA
CN_DDP
CPUFAN
SYSFAN
JFRNT
MINI_CARD
DC_IN
CN_COM1/2
Page 14
LE-380 User’s Manual
-
12-

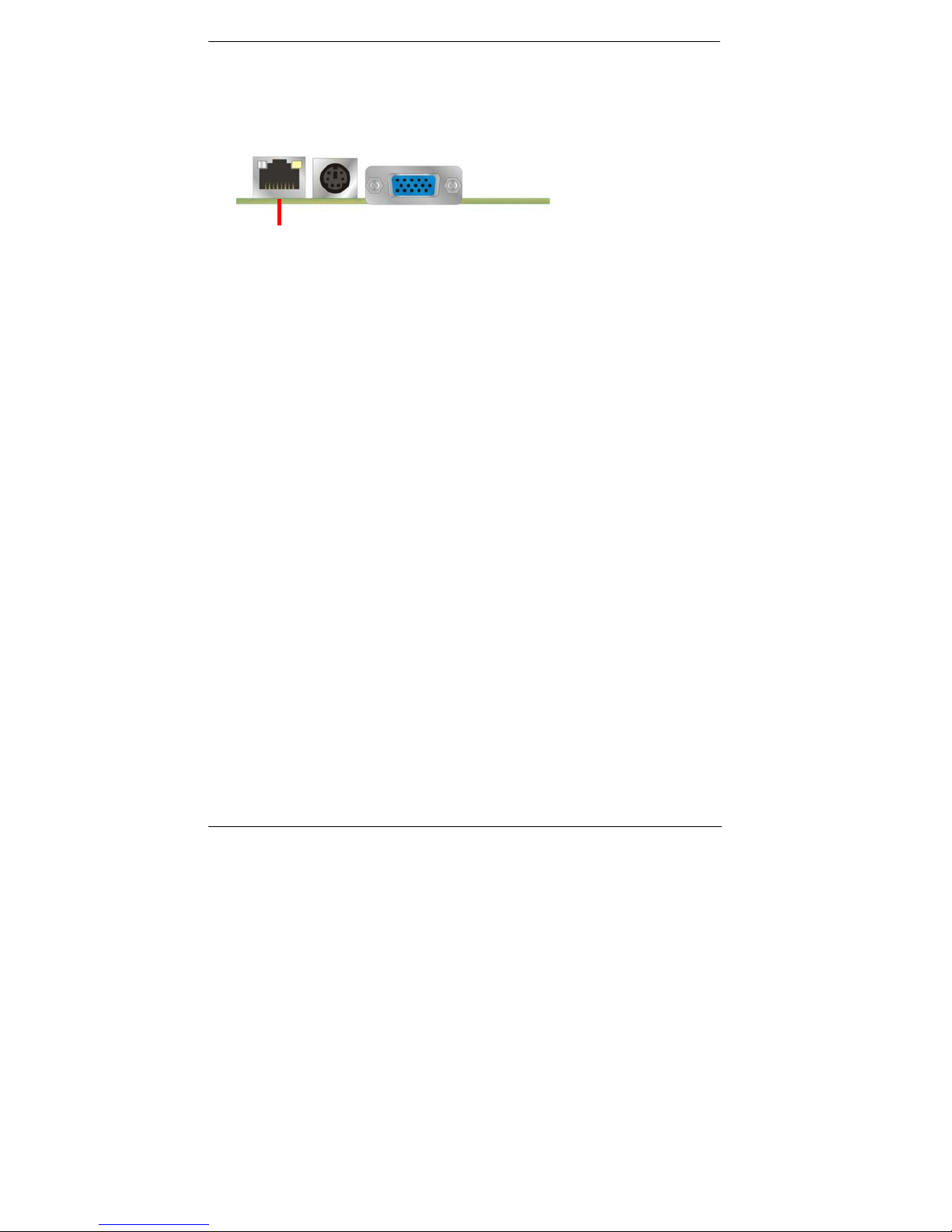

RJ45 PS2 CRT
CN_INV
DC_OUT
SO-DIMM
LP-180
Page 15
LE-380 User’s Manual
-
13-

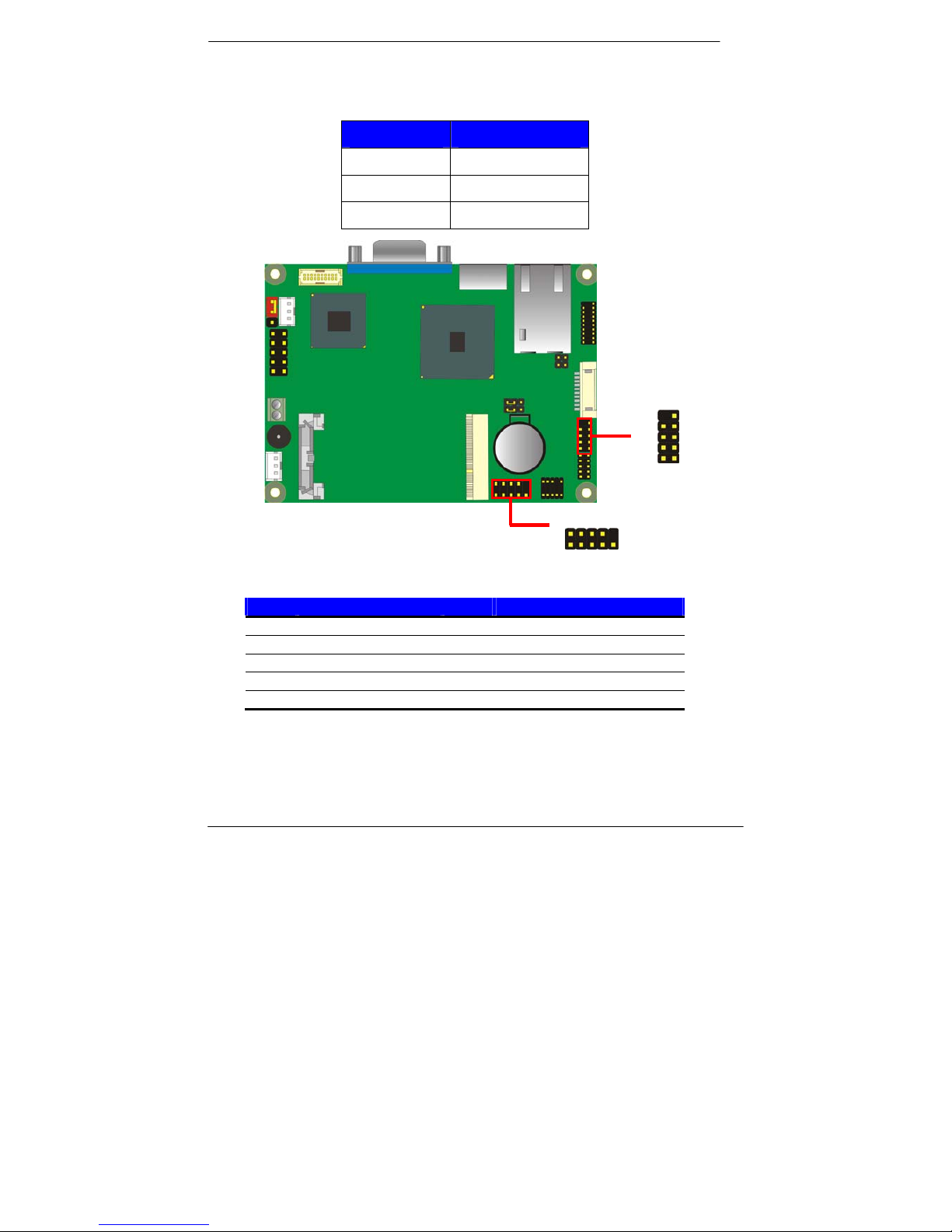

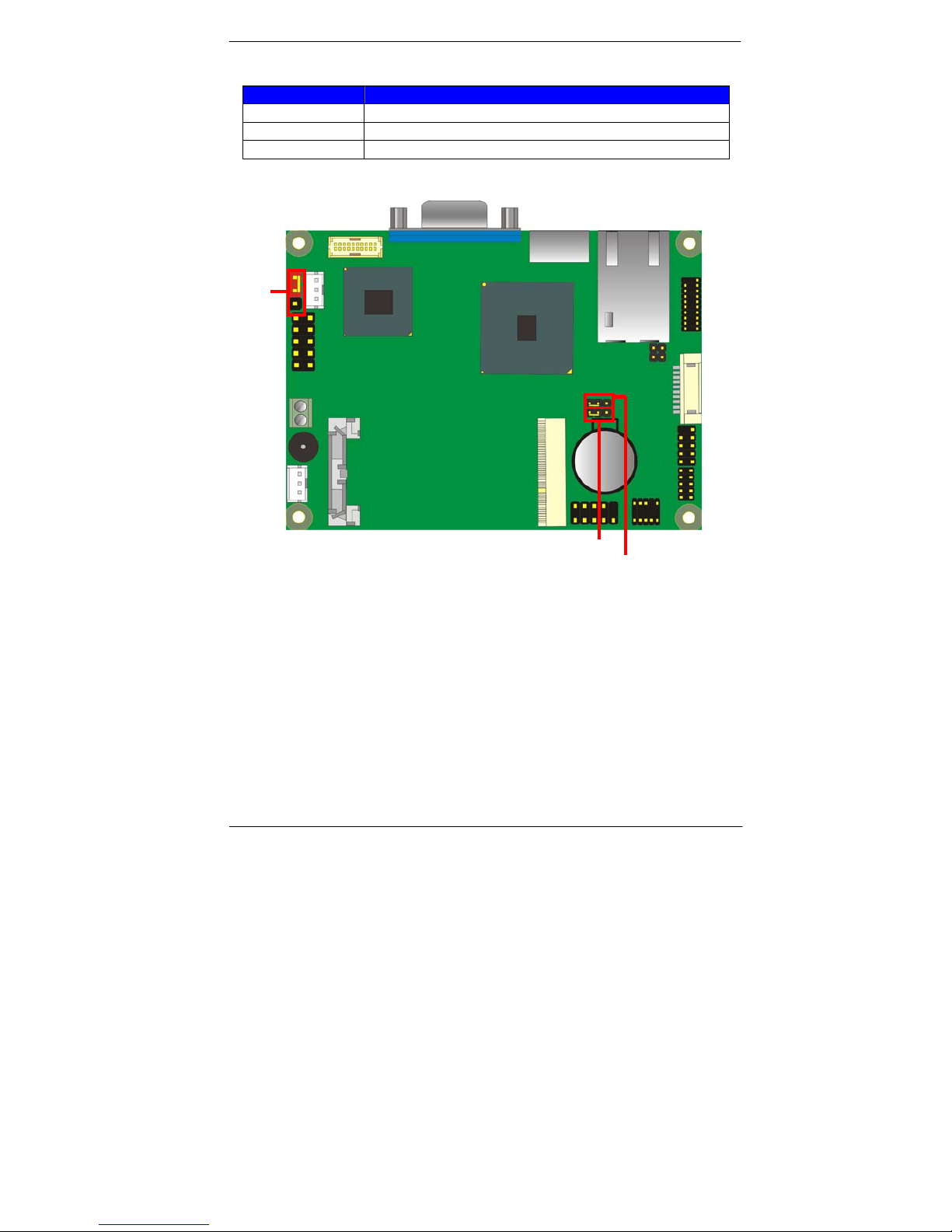

JAT

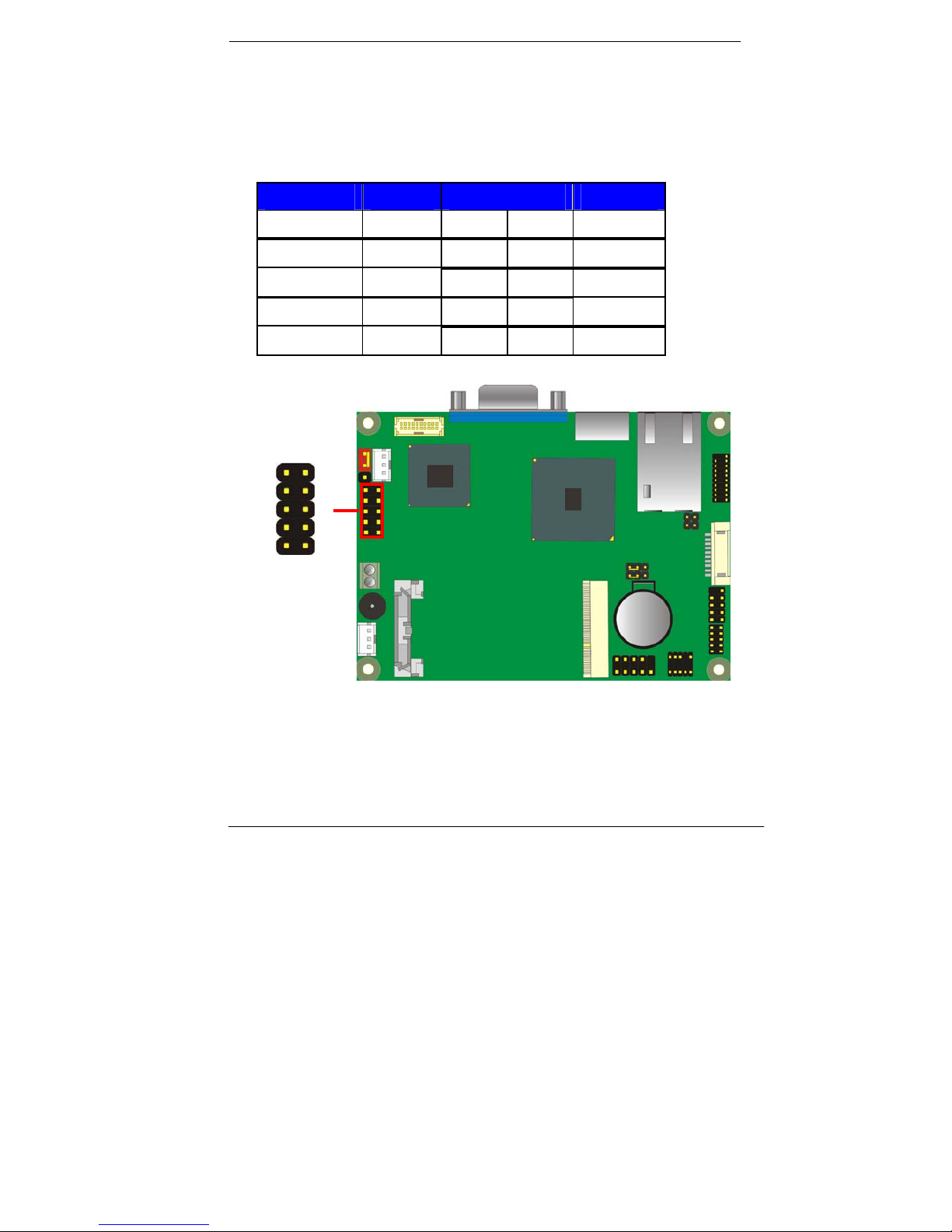

2.2 <Jumper Reference>
Jumper Function
JRTC CMOS Operating/Clear Setting
JAT AT/ATX Mode Setting
JVLCD LCD Panel Voltage Setting
JRTC
JVLCD
Page 16
LE-380 User’s Manual
-
14-
2.3 <Connector Reference>
2.3.1 <Internal Connector>
Connector Function Remark
SO-DIMM 204 -pin DDR3 SO-DIMM SDRAM slot
CN_SATA 10-pin SATA Cable connector
MINI_CARD PCIE mini card socket

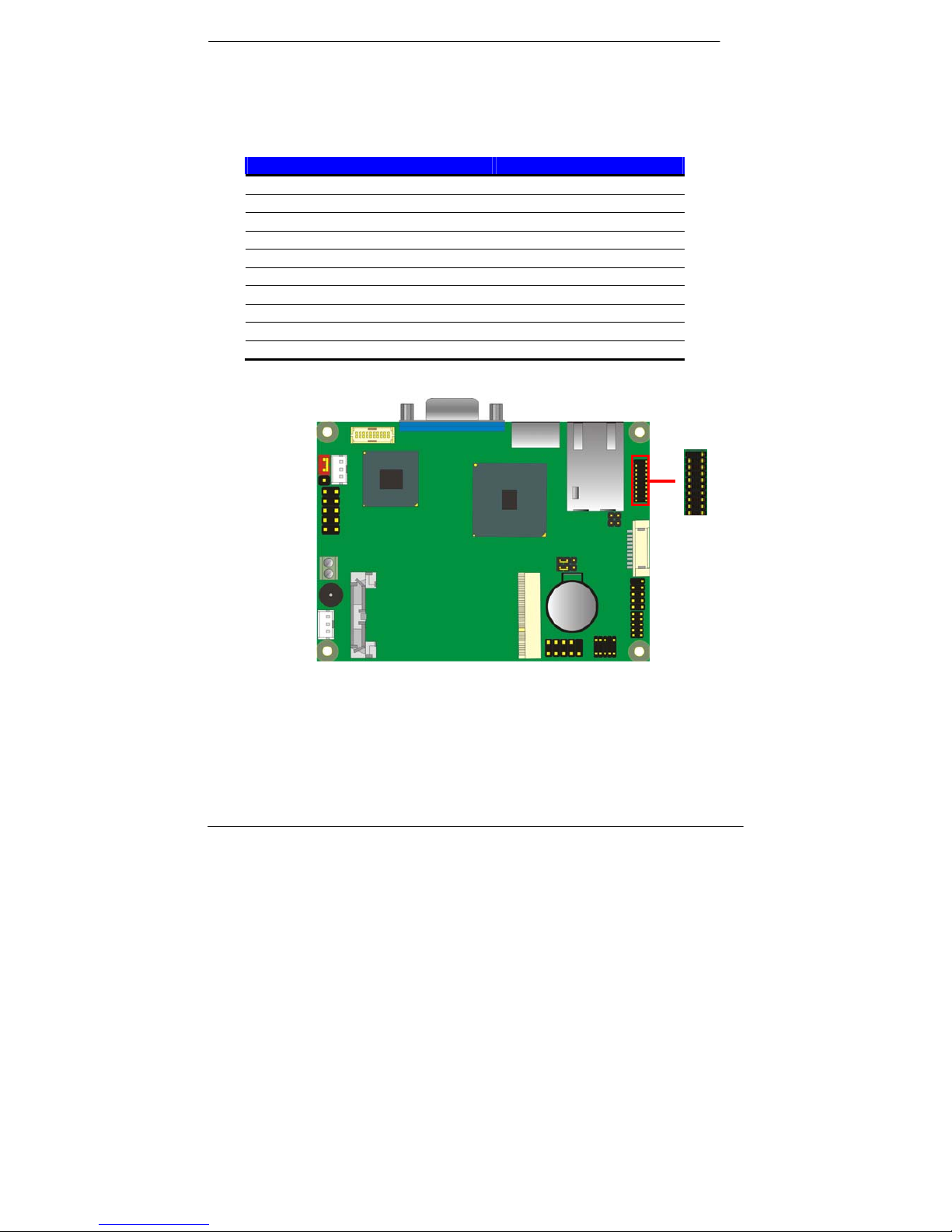

CN_DDP 20 -pin LVDS connector(LP-180X)
20 -pin DVI connector(LP-180D)
CN_INV 5-pin LCD inverter connector(LP-180X)
CN_USB1/2 5 x 2-pin USB connector
CN_AUDIO 5 x 2-pin audio connector
CN_LPC 5 x 2-pin header for LPC Port
JFRNT 10-pin switch/indicator connector
CPUFAN 4-pin CPU cooler fan connector
SYSFAN 3-pin system cooler fan connector

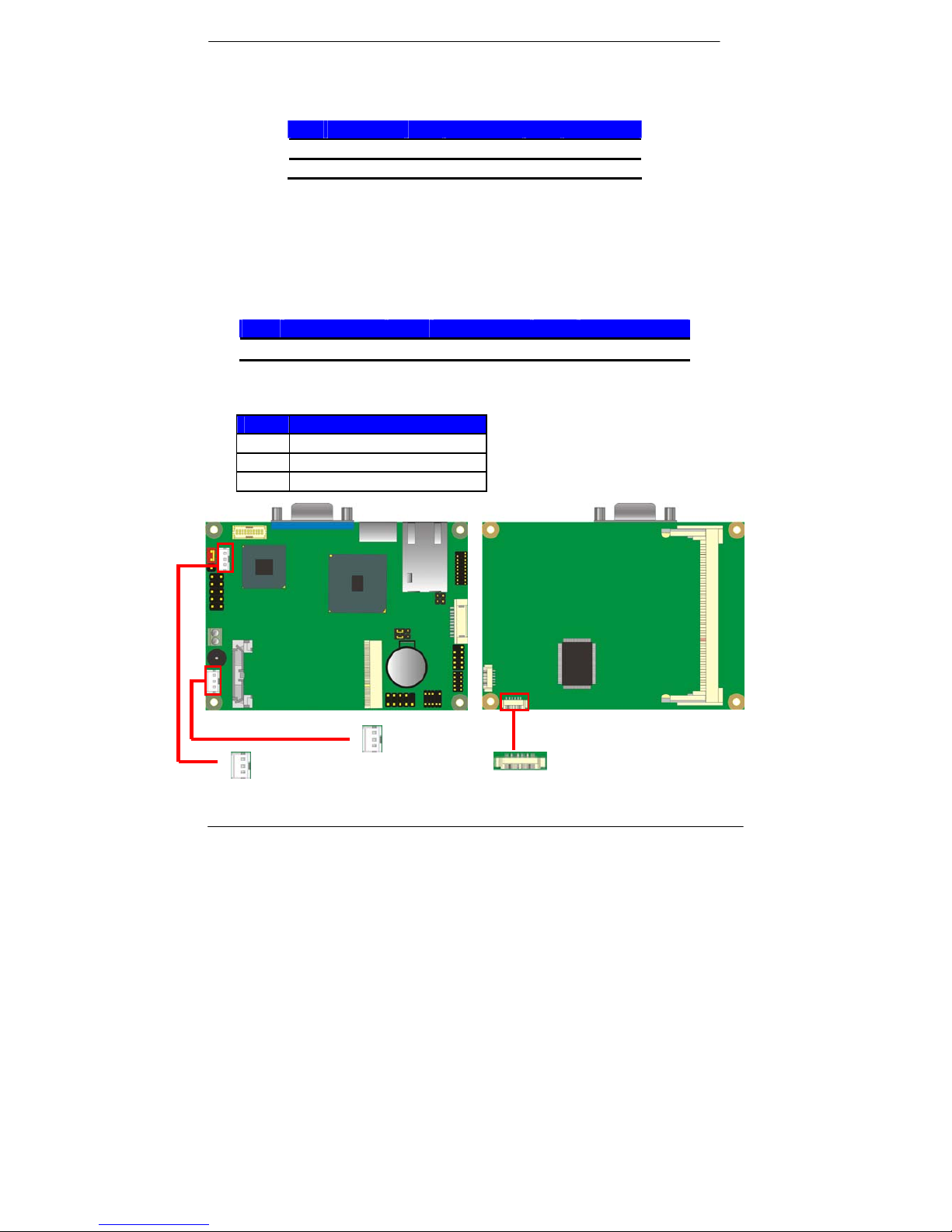

DC_OUT 6-pin power output connector
DC_IN DC input connector
2.3.2 <External Connector>
Connector Function Remark
CRT DB15 VGA connector
PS2 PS/2 keyboard and mouse connector
RJ45 RJ45 LAN connector
Page 17
LE-380 User’s Manual
-
15-

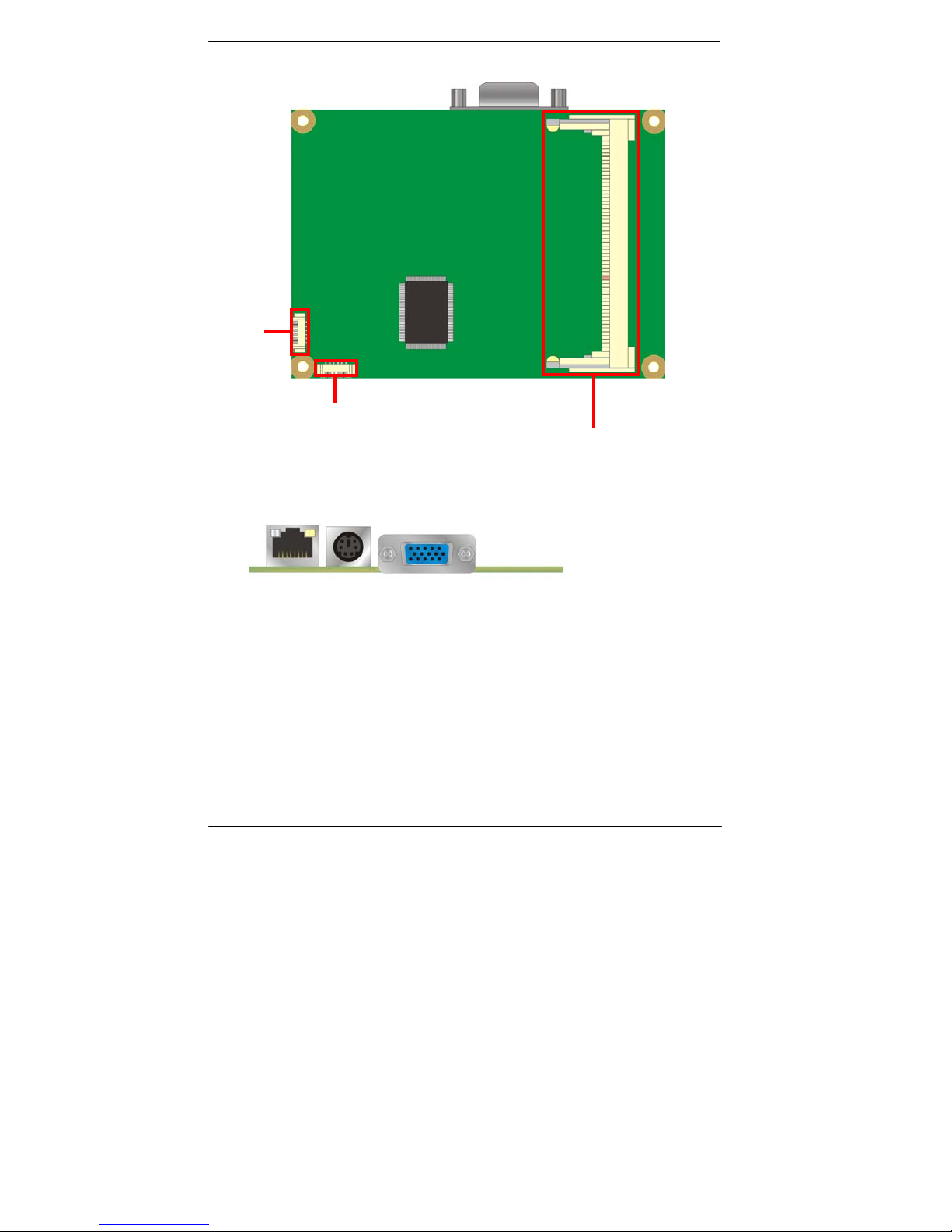

2.4 <CPU and Memory Setup>

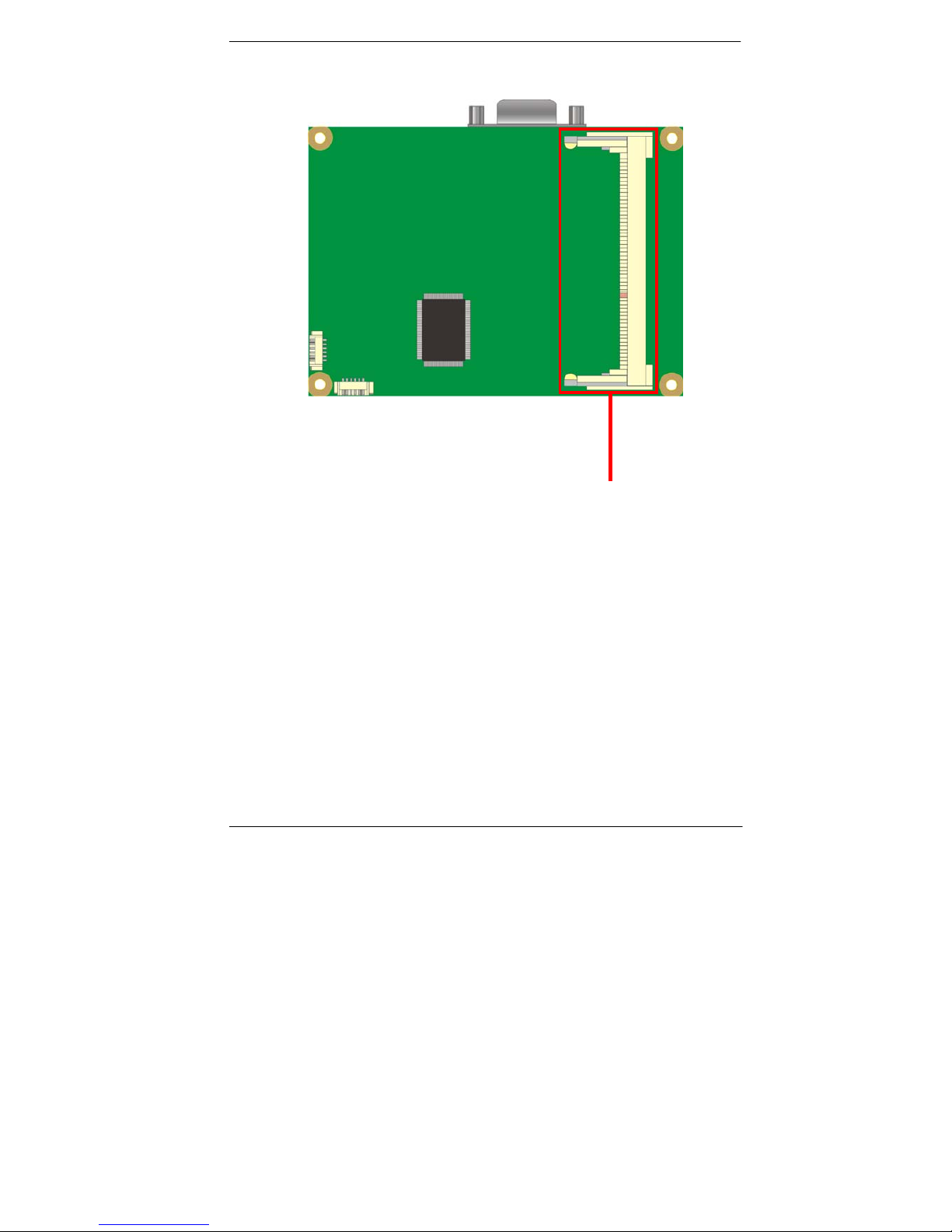

The board provides one 204-pin DDR3 SO-DIMM to support DDR3 1066/1333 memor y
modules up to 4GB.
SO-DIMM
Page 18
LE-380 User’s Manual
-
16-
JAT

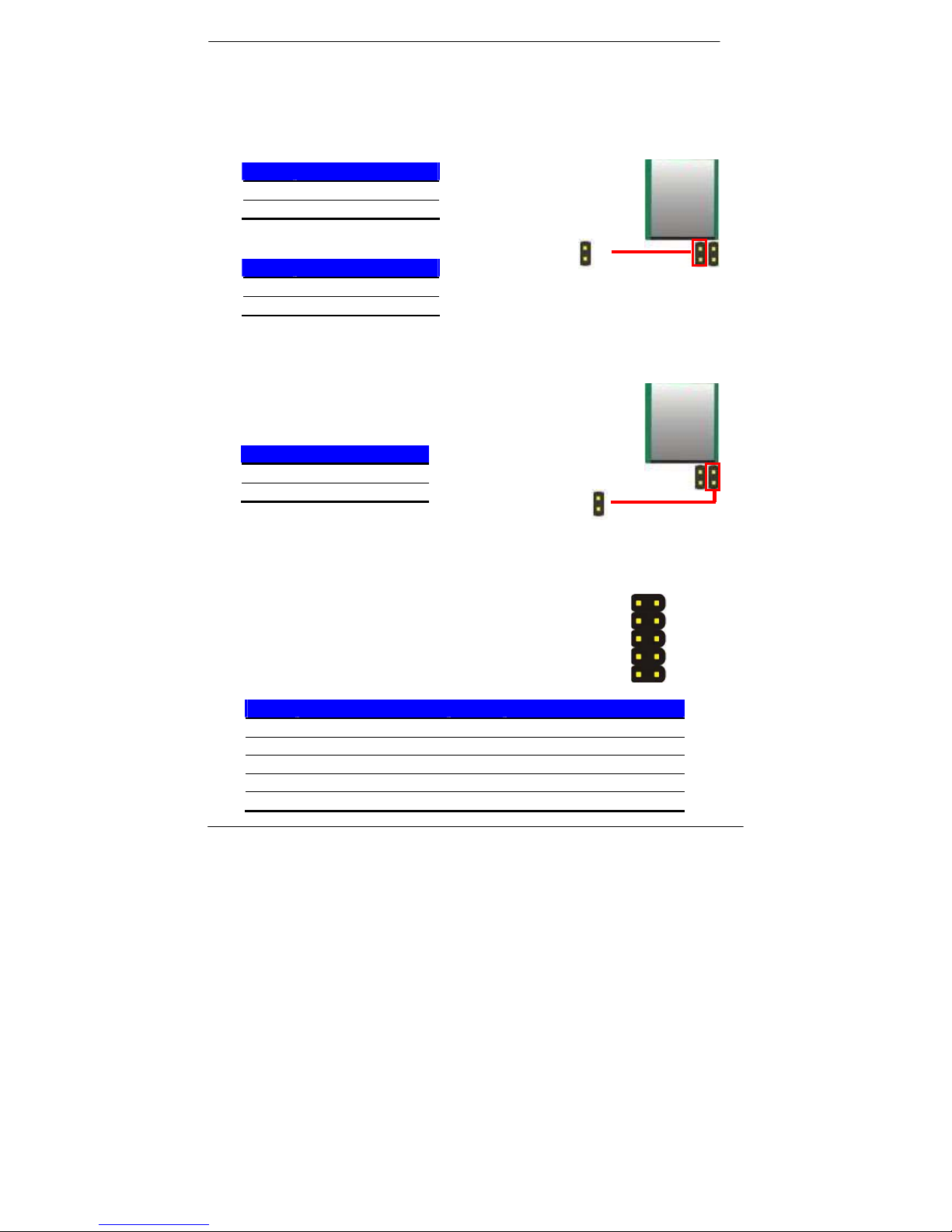

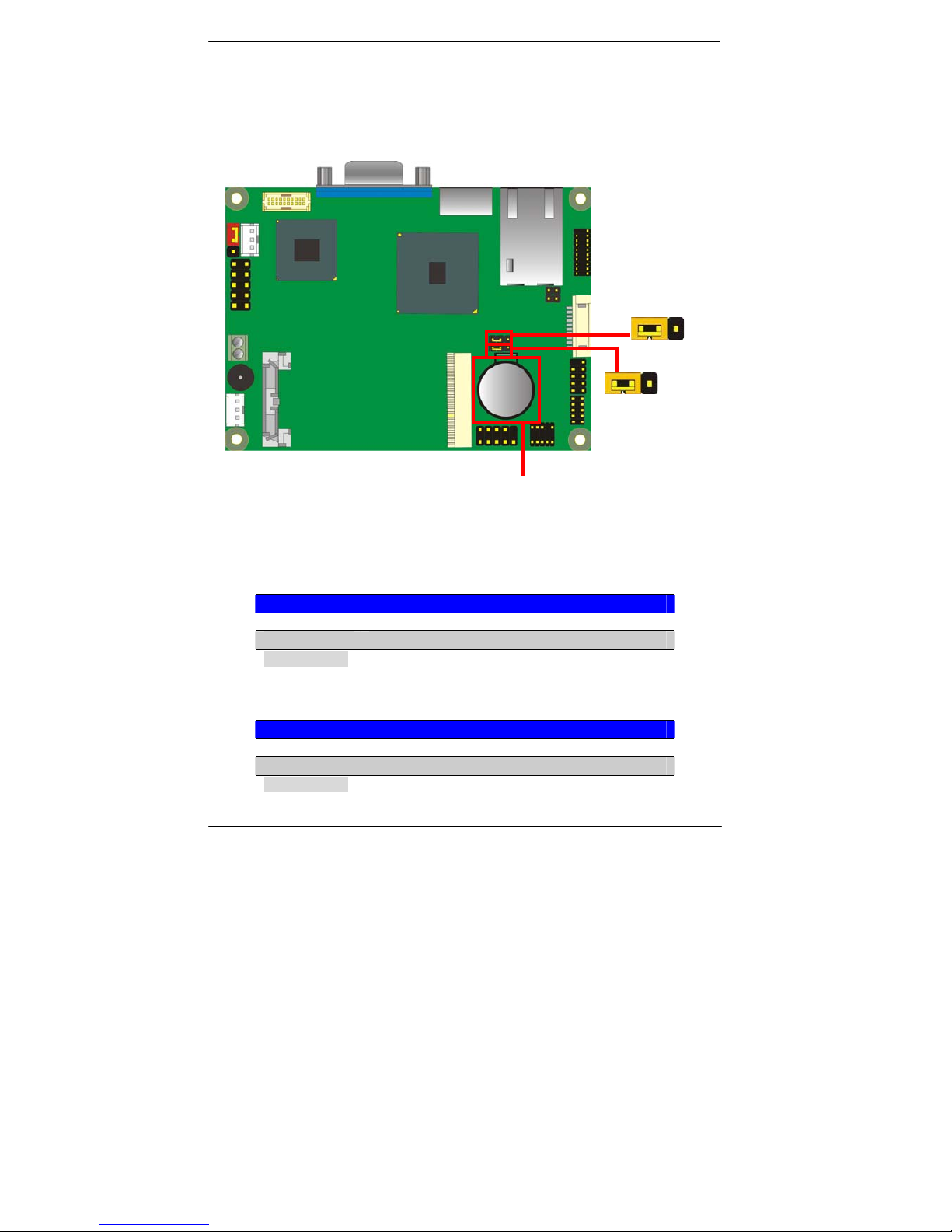

2.5 <CMOS & ATX Setup>
The board’s data of CMOS can be setting in BIOS. If the board refuses to boot due to
inappropriate CMOS settings, please remove battery to clear (reset) the CMOS to its
default values.
The board has a jumper to switch AT power mode (automatic power on) or standard
ATX mode.
Jumper: JAT
Type: onboard 3-pin jumper
JAT Mode
1-2 AT Mode
2-3 ATX Mode
Default setting
Jumper: JRTC
Type: onboard 3-pin jumper
JRTC Mode
1-2 Clear CMOS
2-3 Normal Operation
Default setting
Battery
3 1
JRTC
3 1
Page 19
LE-380 User’s Manual
-
17-
2.6 <SATA & CFast Interface>
Based on AMD A55E, the board provides one Serial AT AII interfaces with up to 300MB/s
of transfer rate.
Remark:
Only catch 2.5” HDD
CN_SATA
DC_OUT
Page 20
LE-380 User’s Manual
-
18-
2.8 <LAN Interface>
The Intel® 82583V supports triple speed of 10/100/1000Base-T, with IEEE802.3
compliance and Wake-On-LAN supported.
LAN
Page 21
LE-380 User’s Manual
-
19-
2.9 <Onboard Display Interface>
Based on AMD G-T56N chipset with built-in AMD Radeon HD 6300 series Graphics, the
board provides one DB15 connector on real external I/O port, and two 20-pin DVI and
LVDS interface with 5-pin LCD backlight inverter connector. The board provides du al
display function with clone mode and extended desktop mode for CRT, DVI and LVDS.
2.9.1 <Analog VGA Interface>

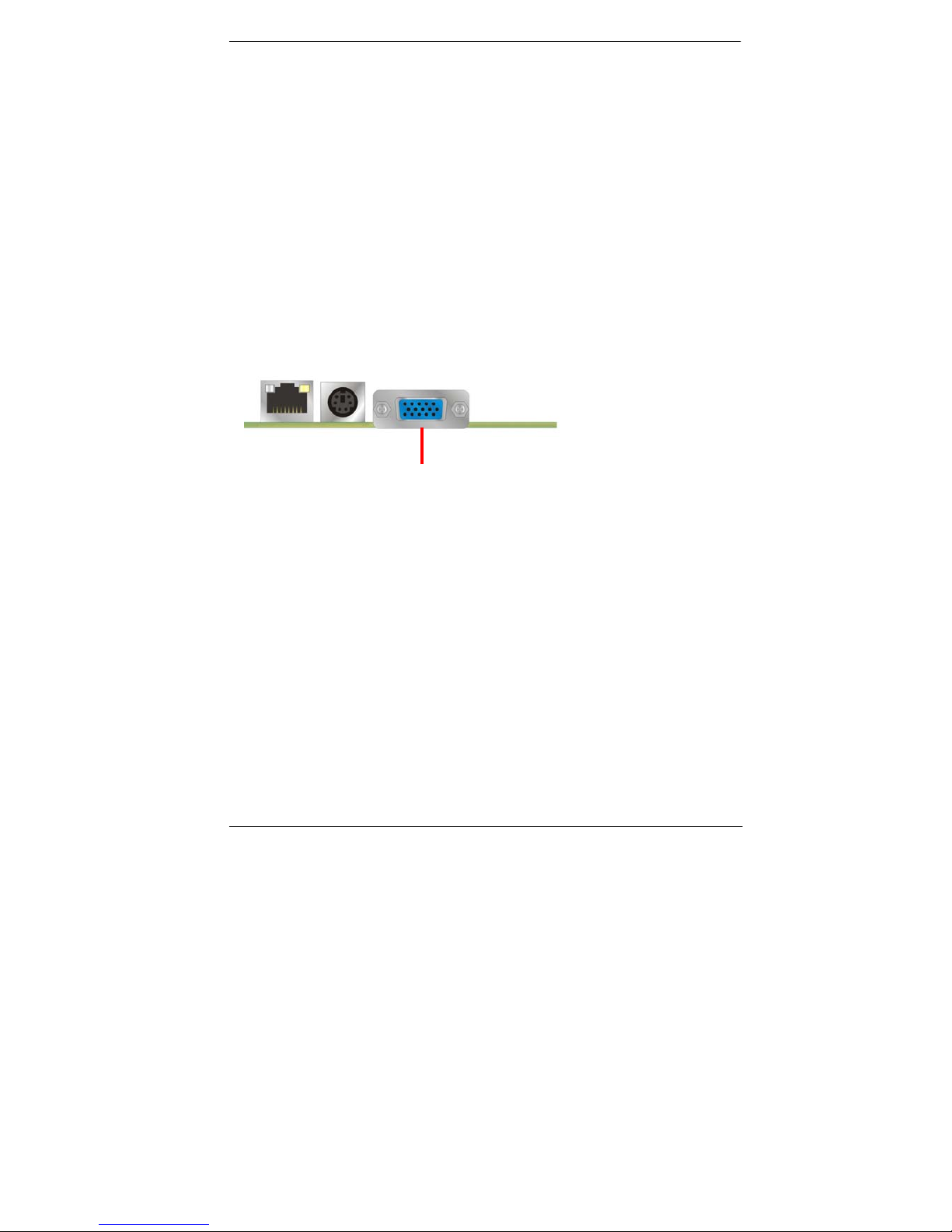

Please connect your CRT or LCD monitor with DB15 male connector to the onboard
DB15 female connector on rear I/O port.
The board supports up to 1920 x 1080 (WUXGA) of resolution.
CRT
Page 22
LE-380 User’s Manual
-
20-

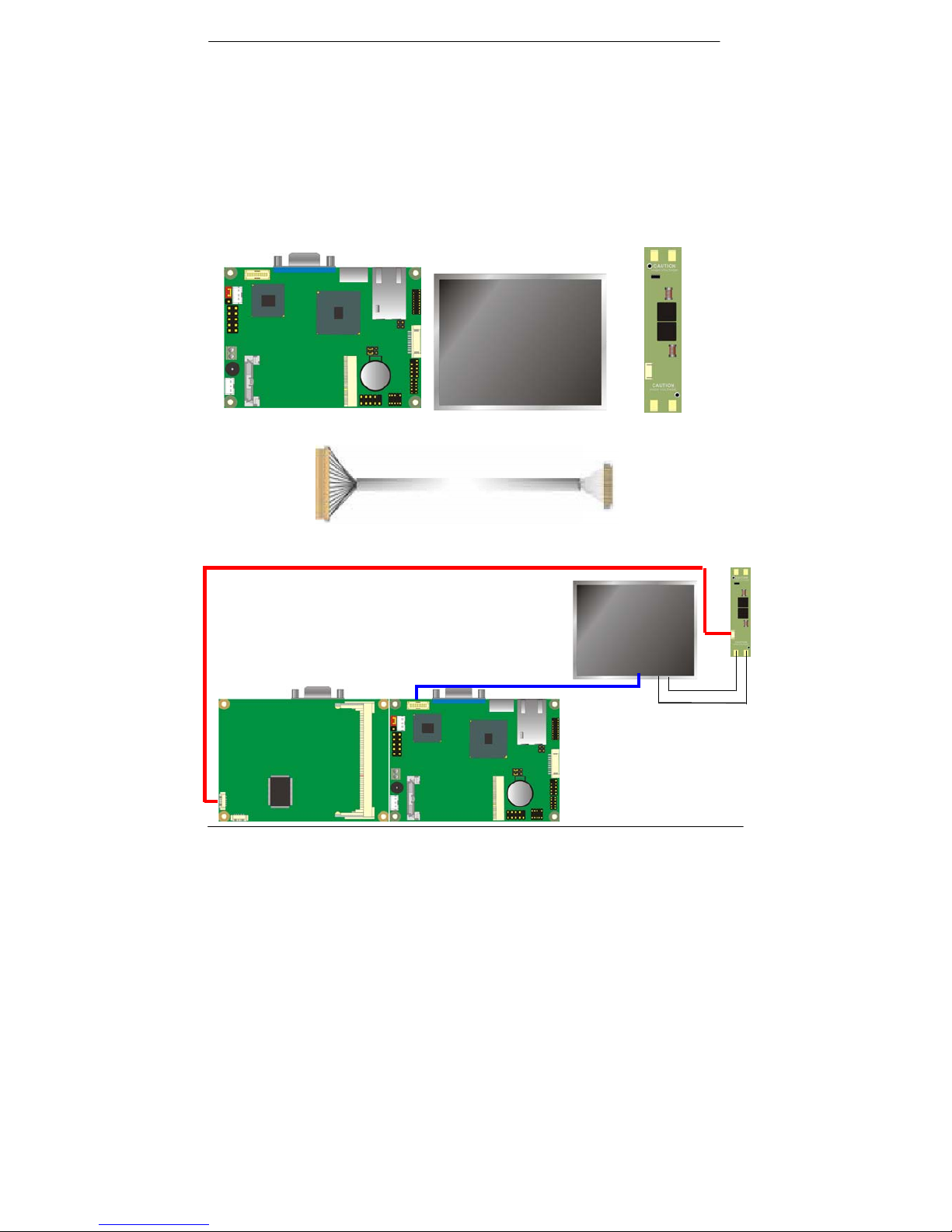

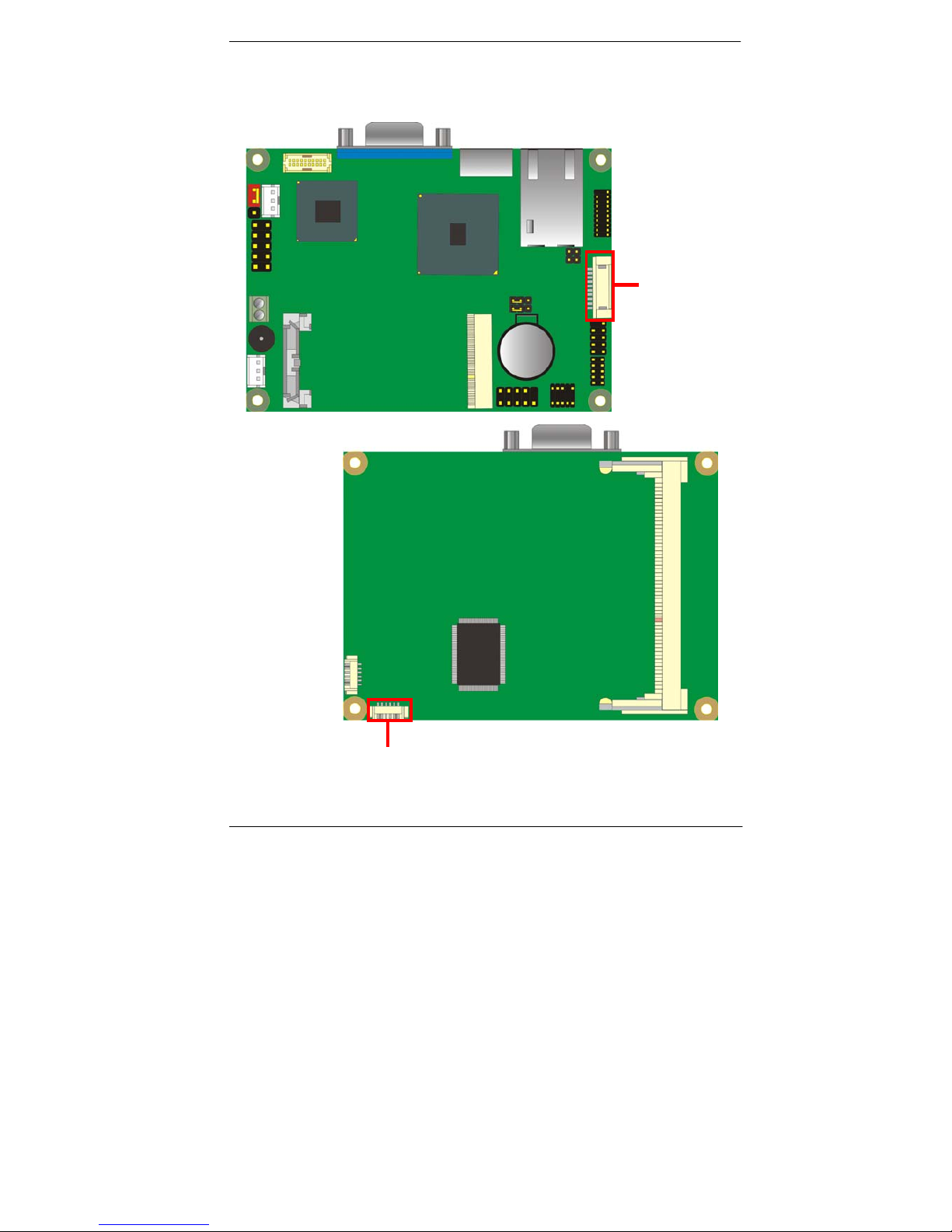

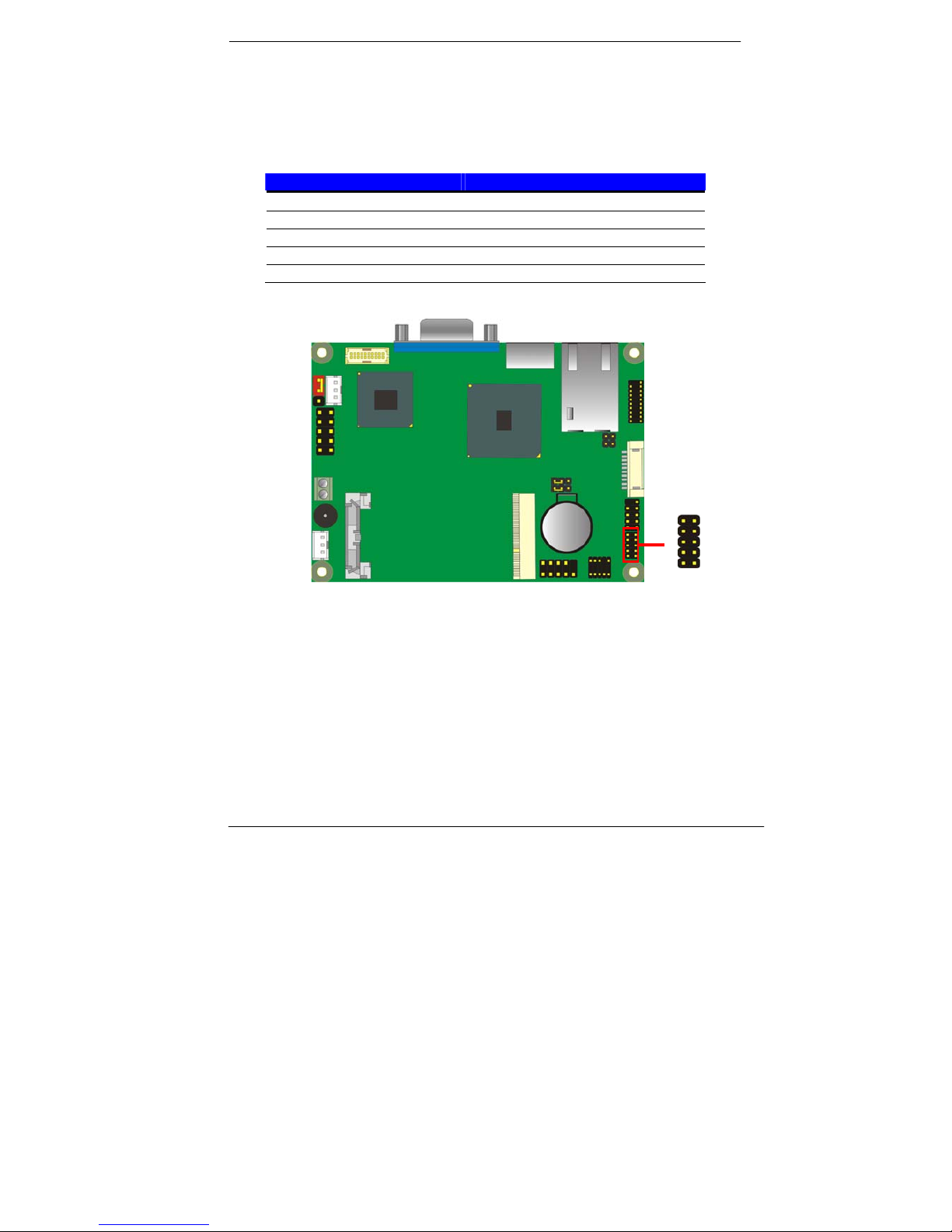

2.9.2 <Digital Display> (LP-180X)

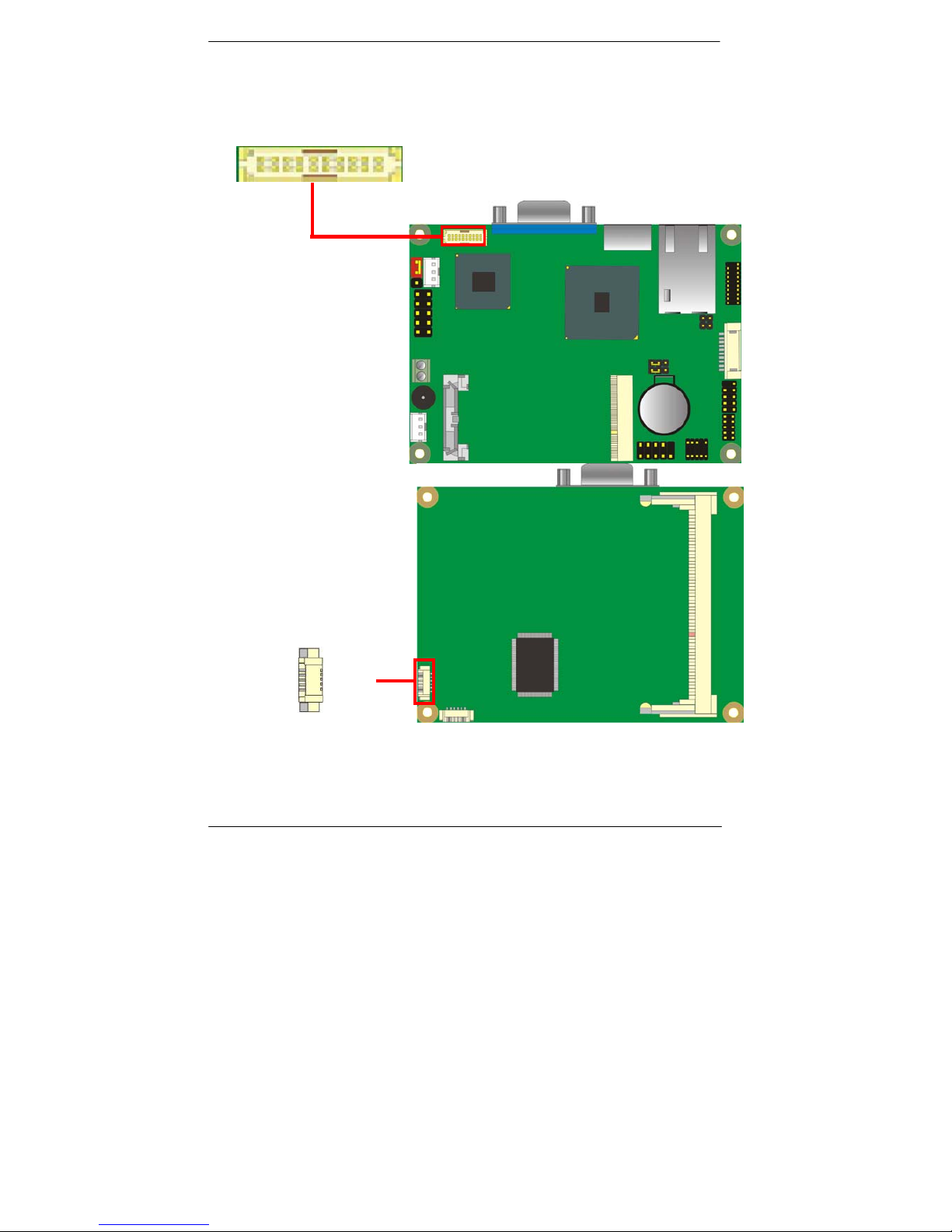

The board provides one 20-pin LVDS connector for 18 bit single channel panel, with one
LCD backlight inverter connector and one jumper for panel voltage setting.
1
5
CN_INV
1
19
2 20
CN_DDP
Page 23
LE-380 User’s Manual
-
21-
Connector: CN_INV
Type: 5-pin Inverter power connector
Connector model: JST B5B-XH-A
Pin Description
1 +3.3V
2 LVDS_VARY_BL
3 +5V
4 GND
5 INV_ON
Jumper: JVLCD
Type: 3-pin Power select jumper
Pin Description
1-2 +5V
2-3 +3.3V
Default: 2-3
Connector: CN_DDP
Type: onboard 20-pin connector for LVDS connector
Connector model: HIROSE DF13-20DP-1.25V
Pin Signal Pin Signal
2 LCDVCC 1 LCDVCC
4 GND 3 HPD0
6 TX0P 5 TX0N
8 TX1N 7 GND
10 GND 9 TX1P
12 TX2P 11 TX2N
14 CLKN 13 GND
16 GND 15 CLKP
18 AUXP 17 AUXN
20 AUXP 19 AUXN
To setup the LCD, you need the component below:
Page 24
LE-380 User’s Manual
-
22-
1. A panel with LVDS interfaces.
2. An inverter for panel’s backlight power.
3. A LCD cable and an inverter cable.
For the cables, please follow the pin assignment of the connector to make a cable, beca use
every panel has its own pin assignment, so we do not provide a standard cable; please find
a local cable manufacture to make cables.
LCD Installation Guide:
1. Preparing the LP-180, LCD panel and the backlight inverter
2. You would need a LVDS type cable.
3.
To connect all of the devices well.
For sample illustrator only
Panel side
Board side
Page 25
LE-380 User’s Manual
-
23-
After setup the devices well, you need to select the LCD panel
type in the BIOS.
The panel type mapping is list below:
LP-180 BIOS panel type selection form
On board Single channel LVDS
18bit
NO. Output format
1 800 x 600
2 1024 x 768
3 1280 x 720
4 1280 x 800
5 1280 x 1024
6 1366 x 768
7 1440 x 900
Page 26
LE-380 User’s Manual
-
24-
2.9.3 <DVI Interface > (LP-180D)
The board also comes with a DVI interface. Supports up to 1600 x 1200 (WUXGA) of
resolution.
Connector: CN_DDP
Type: onboard 20-pin connector for DVI connector
Connector model: HIROSE DF13-20DP-1.25V
Pin Number Assignment Pin Number Assignment
1 LCDVCC 2 LCDVCC
3 HPD0 4 GND
5 TX0N 6 TX0P
7 GND 8 TX1N
9 TX1P 10 GND
11 TX2N 12 TX2P
13 GND 14 CLKN
15 CLKP 16 GND
17 DVI_DA 18 DVI_SL
19 AUXN 20 AUXP
Page 27
LE-380 User’s Manual
-
25-
CN_AUDIO
2 10
1 9
2.10 <Onboard Audio Interface>
The board provides the onboard high definition audio with Realtek ALC888
Connector: CN_AUDIO
Type: 10-pin (2 x 5) 1.27mm x 2.54mm-pitch header
Pin Description Pin Description
1 MIC2_L 2 AGND
3 MIC2_R 4 AVCC
5 FP_OUT_R 6 MIC2_JD
7 SENSE_B 8 N/C
9 FP_OUT_L 10 LINE2_JD
Page 28
LE-380 User’s Manual
-
26-
CN_USB2
CN_USB1
2.11 <USB2.0 Interface>
Based on AMD A55E FCH, the board provides 4 USB2.0 ports. The USB2.0 interface
provides up to 480Mbps of transferring rate.
Interface USB2.0
Controller A55E
Transfer Rate Up to 480Mb/s
Output Current 500mA
Connector: CN_USB
Type: 10-pin (5 x 2) header for USB Port
Pin Description Pin Description
1 VCC 2 VCC
3 D0- 4 D15 D0+ 6 D1+
7 Ground 8 Ground
9 Ground 10 N/C
PS: The USB2.0 will be only active when you connecting with the USB2.0 devices, if you
insert an USB1.1 device, the port will be changed to USB1.1 protocol automatically. The
transferring rate of USB2.0 as 480Mbps is depends on device capacity, exact
transferring rate may not be up to 480Mbps.
1 9
10 9
2 1
Page 29
LE-380 User’s Manual
-
27-
2.12 <GPIO Interface>
The board provides a programmable 8-bit digital I/O interface; you can use this general
purpose I/O port for system control like POS or KIOSK.
Connector: CN_LPC
Type: onboard 2 x 5-pin header, pitch=2.0mm
Pin Description Pin Description
1 LPC_CLK1 2 A_RST#
3 -LFRAME 4 LAD3
5 LAD2 6 LAD1
7 LAD0 8 +3.3V
9 GND 10 GND
CN_LPC
2 1
9 10
Page 30
LE-380 User’s Manual
-
28-
2.13 <Serial Port Jumper Setting >
The board provides two RS232 serial ports
Connector: CN_COM1/2
Type: 20-pin (5 x 2) 1.27mm x 2.54mm-pitch header for COM1/2
Pin Description Pin Description
1 MDCD1- 2 MSIN13 MSO1- 4 MDTR15 N/C 6 MDSR17 MRTS1- 8 MCTS19 MRI1- 10 N/C
11 MDCD2- 12 MSIN213 MSO2- 14 MDTR215 GND 16 MDSR217 MRTS2- 18 MCTS219 MRI2- 20 N/C
20 19
2 1
Page 31
LE-380 User’s Manual
-
29-
2.14 <Power & FAN Connector >
The board requires DC input with 3-pin header, the input voltage range is from 5V for the
input current, please take a reference of the power consumption report on appendix.
2.14.1 <Power Input>

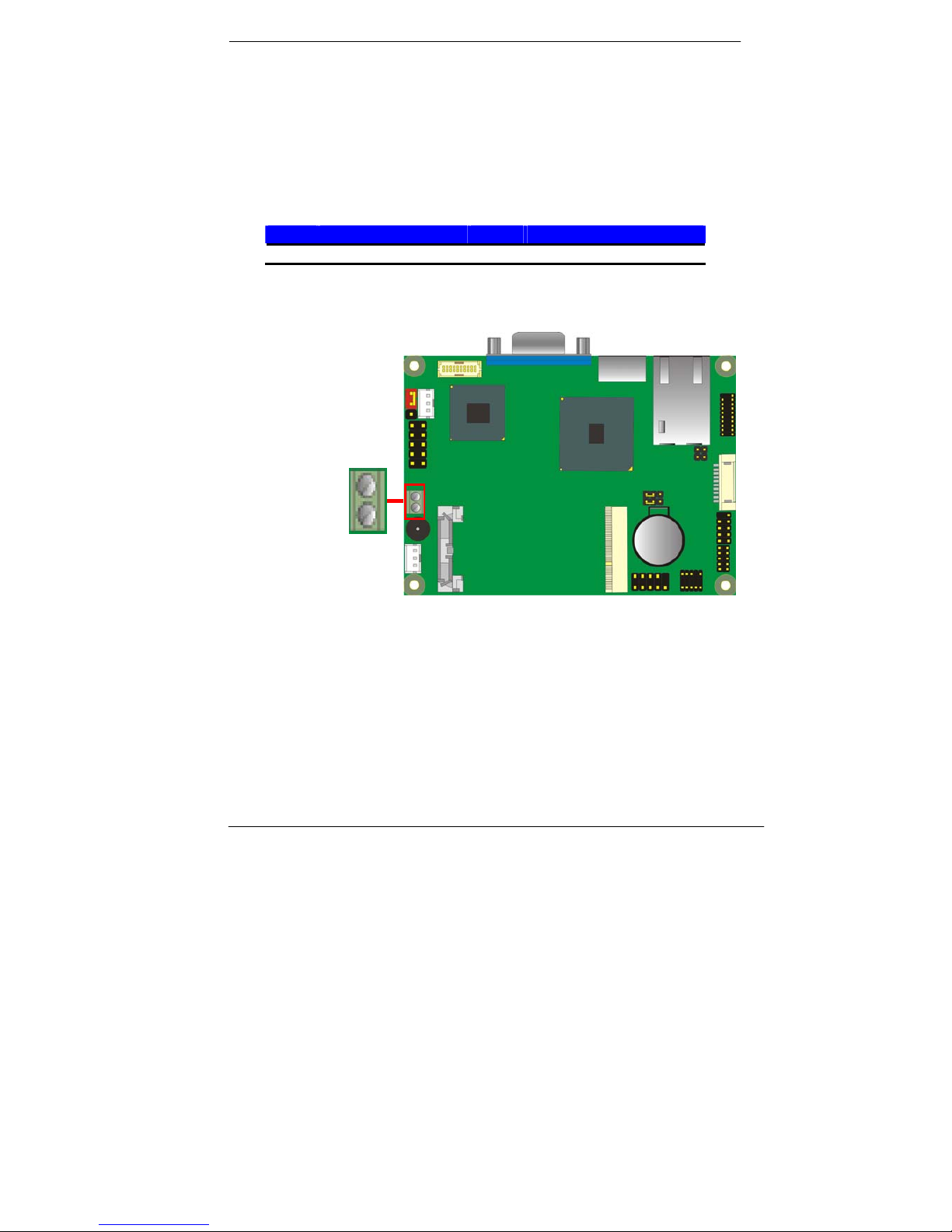

Connector: DC_IN
Type: 2-pin header
Pin Description Pin Description
1 Ground 2 +5V
Remark: DC input voltage only +5V
DC_IN
2
1
Page 32
LE-380 User’s Manual
-
30-
2.14.2 <Power Output>
Connector: DC_OUT
Type: 6-pin connector for +5V output
Pin Description Pin Description Pin Description
1 N/C 2 N/C 3 Ground
4 Ground 5 +5V 6 +5V
Note: Maximum output current 5V/1A
2.14.3 <Fan Connector>
Connector: SYSFAN
Type: 3-pin fan wafer connector
Connector: CPUFAN
Type: 3-pin fan wafer connector
Pin Description
1 Ground
2 +5V
3 P1FAN
Pin Description Pin Description Pin Description
1 Ground 2 +5V 3 CSFAN
SYSFAN
DC
_
OUT
CPUFAN
3
1
1 6
3
1
Page 33
LE-380 User’s Manual
-
31-

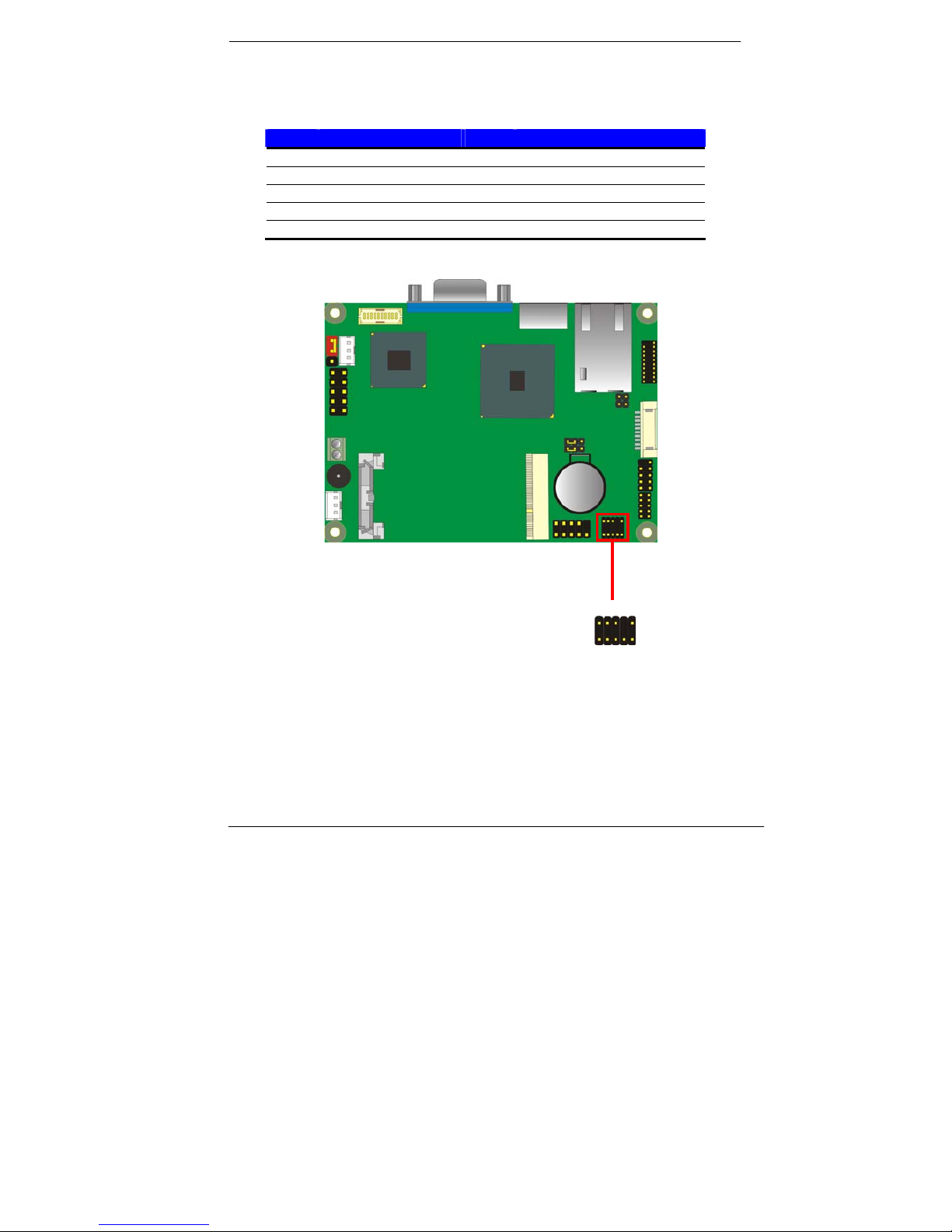

2.15 <Indicator and Switch>
The JFRNT provid es front control panel of the board, such as power button, reset an d
beeper, etc. Please check well before you connecting the cables on the chassis.
Connector: JFRNT
Type: onboard 10-pin (2 x 5) 2.54-pitch header
Function Signal PIN Signal
Power
PWRBT- 1 2 PWRBT+
Speaker
SPK- 3 4 SPK+
HDD LED
HLED- 5 6 HLED+
Power LED
GND 7 8 PWLED+
Reset
Reset- 9 10 GND
10
2
JFRNT
9
1
Page 34
LE-380 User’s Manual
-
32-
(This Page is Left For Blank)
Page 35
LE-380 User’s Manual
-
33-
Chapter 3 <BIOS Setup>
The motherboard uses the Award BIOS for the system configuration. The Award
BIOS in the single board computer is a customized version of the industrial standard
BIOS for IBM PC AT-compatible computers. It supports Intel® x86 and compatible
CPU architecture based processors and computers. The BIOS provides critical
low-level support for the system central processing, memory and I/O sub-systems.
The BIOS setup program of the single board computer let the customers modif y the
basic configuration setting. The settings are stored in a dedicated battery-backed
memory, NVRAM, retains the information when the power is turned off. If the battery
runs out of the power, then the settings of BIOS will come back to the default setting.
The BIOS section of the manual is subject to change without notice and is provide d
here for reference purpose only. The settings and configurations of the BIOS are
current at the time of print, and therefore they may not be exactly the same as that
displayed on your screen.
To activate CMOS Setup program, press ＜DEL＞ ke y immediately after you turn
on the system. The following message “Press DEL to enter SETUP” should appear in
the lower left hand corner of your screen. When you enter the CMOS Setup Utility,

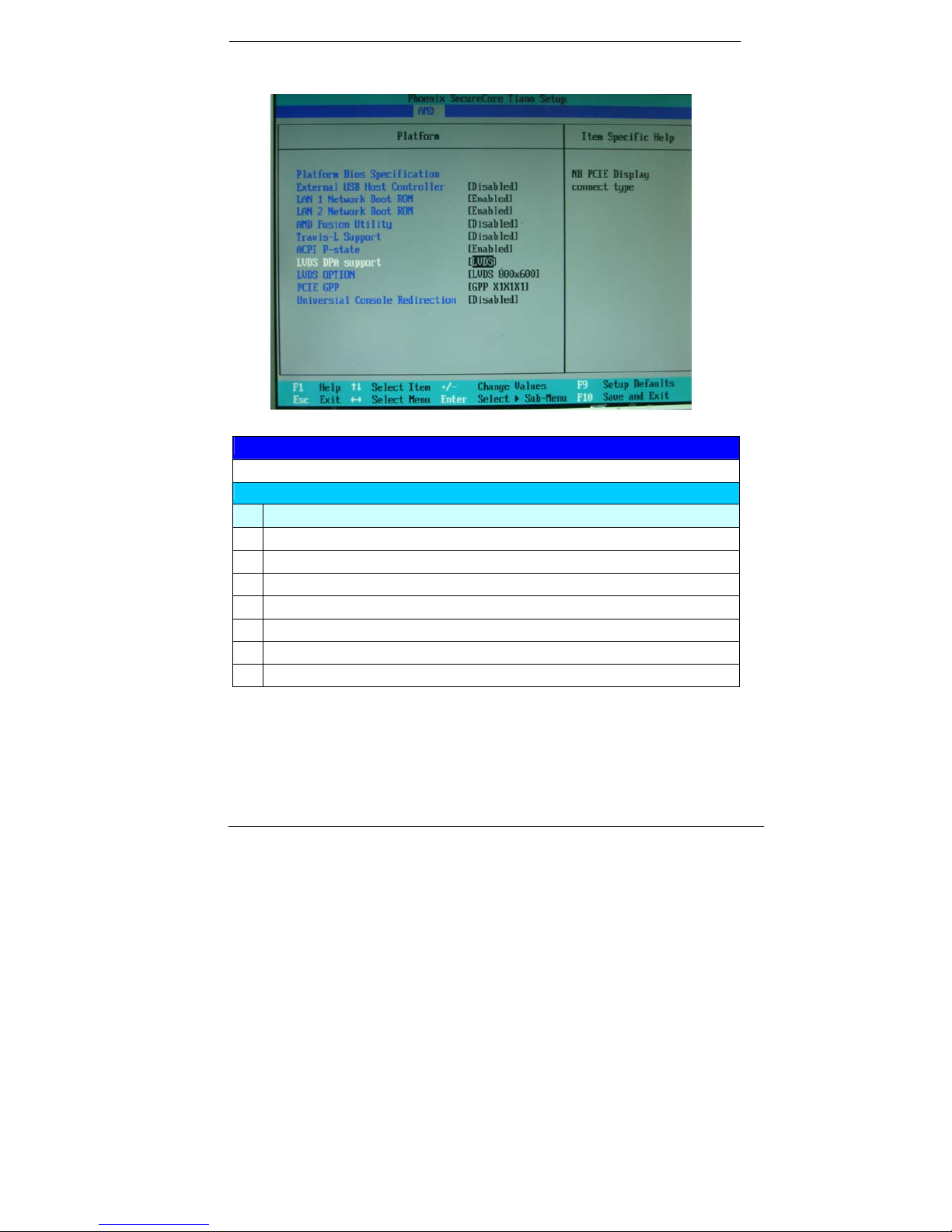

the Main Menu will be displayed as Figure 4-1. You can use arrow keys to select
your function, press ＜Enter＞ key to accept the selection and enter the sub-menu.

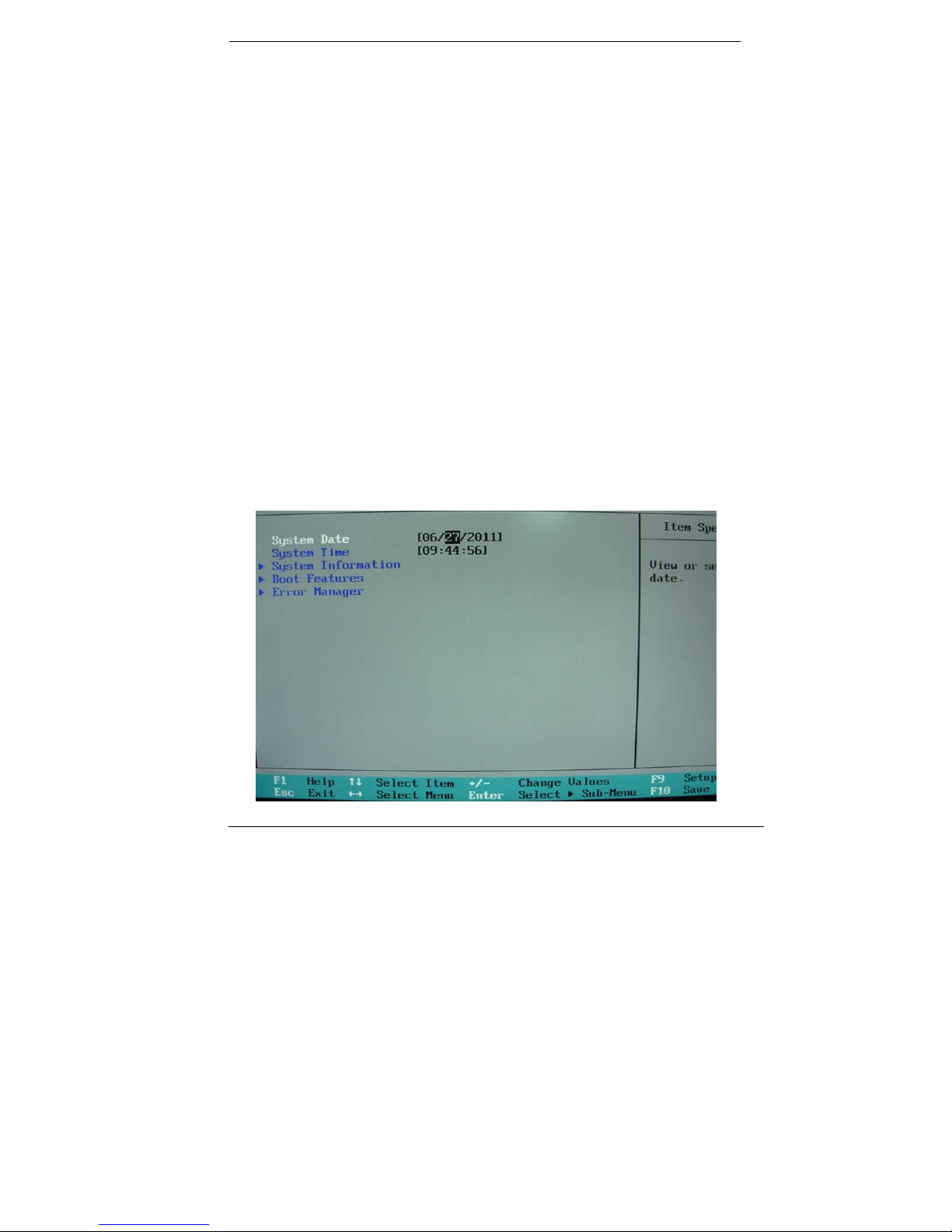

Figure 4-1 CMOS Setup Utility Main Screen
Page 36
LE-380 User’s Manual
-
34-
(This Page is Left for Blank)
Page 37
LE-380 User’s Manual
-
35-

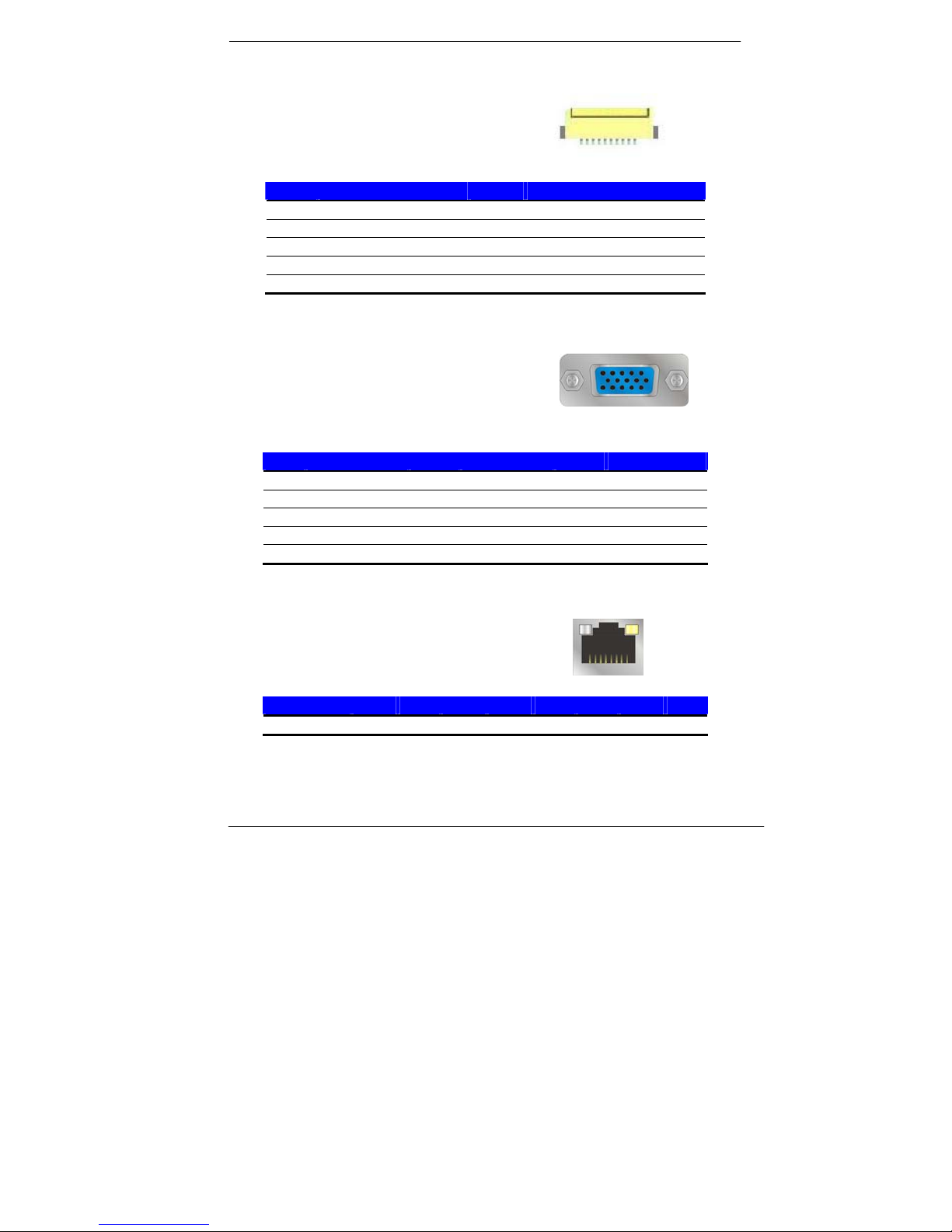

Appendix A <I/O Port Pin Assignment>
A.1 <SATA Port>
Connector: SATA1/2
Type: 10-pin header for SATA Port
Pin Description Pin Description
1 Ground 2 TXP
3 TXN 4 Ground
5 N/C 6 N/C
7 Ground 8 RXN
9 RXP 10 Ground
A.2 < CRT Port >
Connector: CRT
Type: 15-pin D-sub female connector on rear panel
Pin Description Pin Description Pin Description
1 RED 6 Ground 11 N/C
2 GREEN 7 N/C 12 5VCDA
3 BLUE 8 Ground 13 HSYNC
4 N/C 9 LVGA5V 14 VSYNC
5 -CRTATCH 10 -CRTATCH 15 5VCLK
A.3 <LAN Port>
Connector: RJ45
Type: RJ45 connector with LED on rear panel
Pin 1 2 3 4 5 6 7 8
Description TRD0+ TRD0- TRD1+ T RD2+ TRD2- TRD1- T RD3+ TRD3-
5 1
15 11
10 6
8 1
1 10
Page 38
LE-380 User’s Manual
-
36-
A.4 <LAN LED Port>
Connector: JSPD1
Type: 2-pin header for LAN Speed LED connectorRJ45 connector with LED on
rear panel
When Lan speed 10/100Mbps
When Lan speed 1Gbps
Connector: JACT
Type: 5-pin header for LAN Activity LED connector
A.5 <LPC Port>
Connector: JSPD1
Type: 10-pin header for LPC Port
Pin Description Pin Description
1 LPC_CLK 2 RESET3 LFRAME- 4 LAD3
5 LAD2 6 LAD1
7 LAD0 8 +3.3V
9 Ground 10 Ground
Pin Description
1 LED2 LED+
Pin Description
1 LED+
2 LED-
Pin Description
1 LED2 LED+
1
2
2
1
2 1
10 9
Page 39
LE-380 User’s Manual
-
37-
Appendix B <Flash BIOS>
B.1 BIOS Auto Flash Tool
The board is based on Award BIOS and can be updated easily by the BIOS auto
flash tool. You can download the tool online at the address below:
http://www.phoenix.com/en/home/
http://www.commell.com.tw/Support/Support_SBC.htm
File name of the tool is “Pflash.exe”, it’s the utility that can write the data into the
BIOS flash ship and update the BIOS.
B.2 Flash Method
1. Please make a bootable floppy disk.
2. Get the last .bin files you want to update and copy it into the disk.
3. Copy awardflash.exe to the disk.
4. Power on the system and flash the BIOS.
(Example: C:/Pflash /sa /bbl /cvar XXX.bin)
5. Re-star the system.
Any question about the BIOS re-flash please contact your distributors or visit the
web-site at below:
http://www.commell.com.tw/support/support.htm
Page 40
LE-380 User’s Manual
-
38-
Appendix C <System Resources>

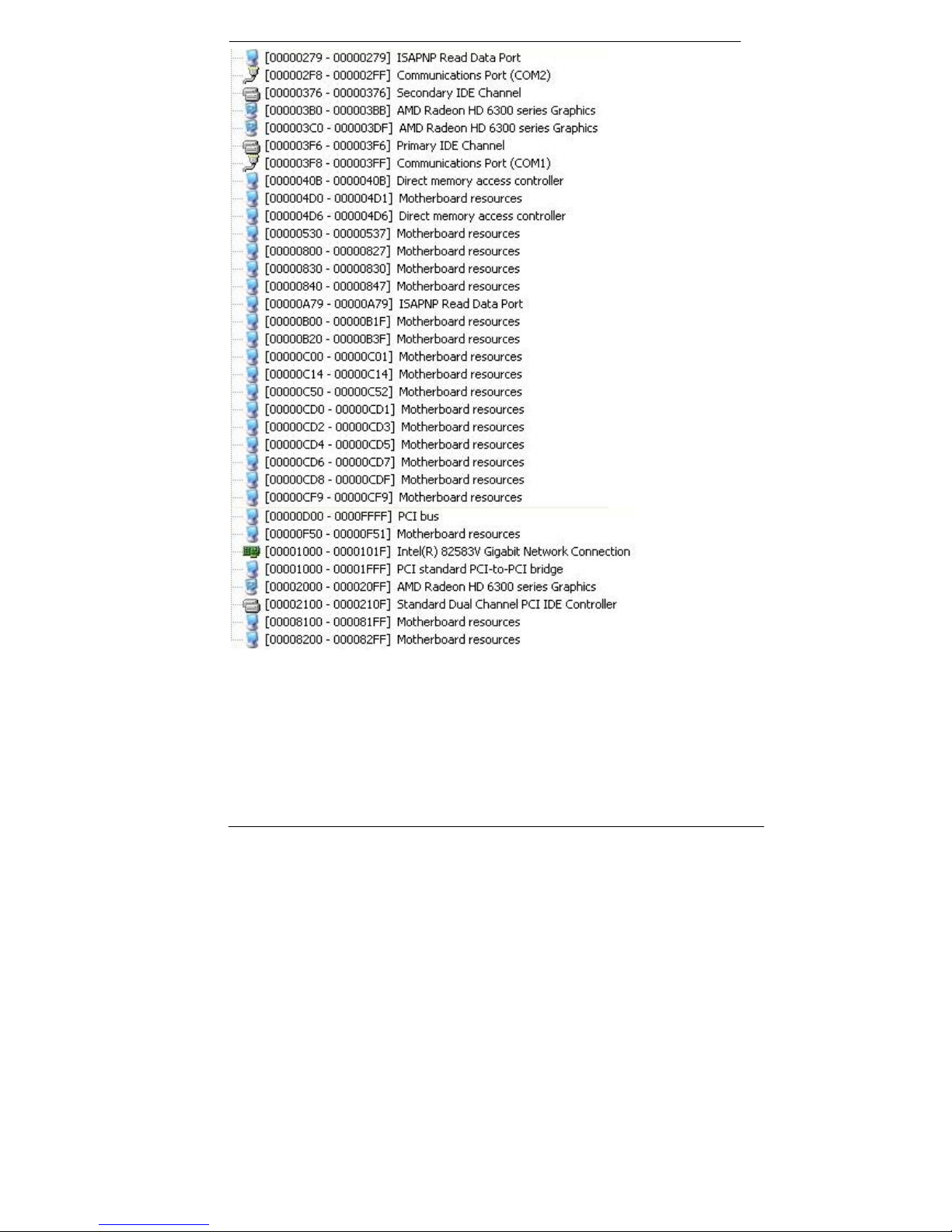

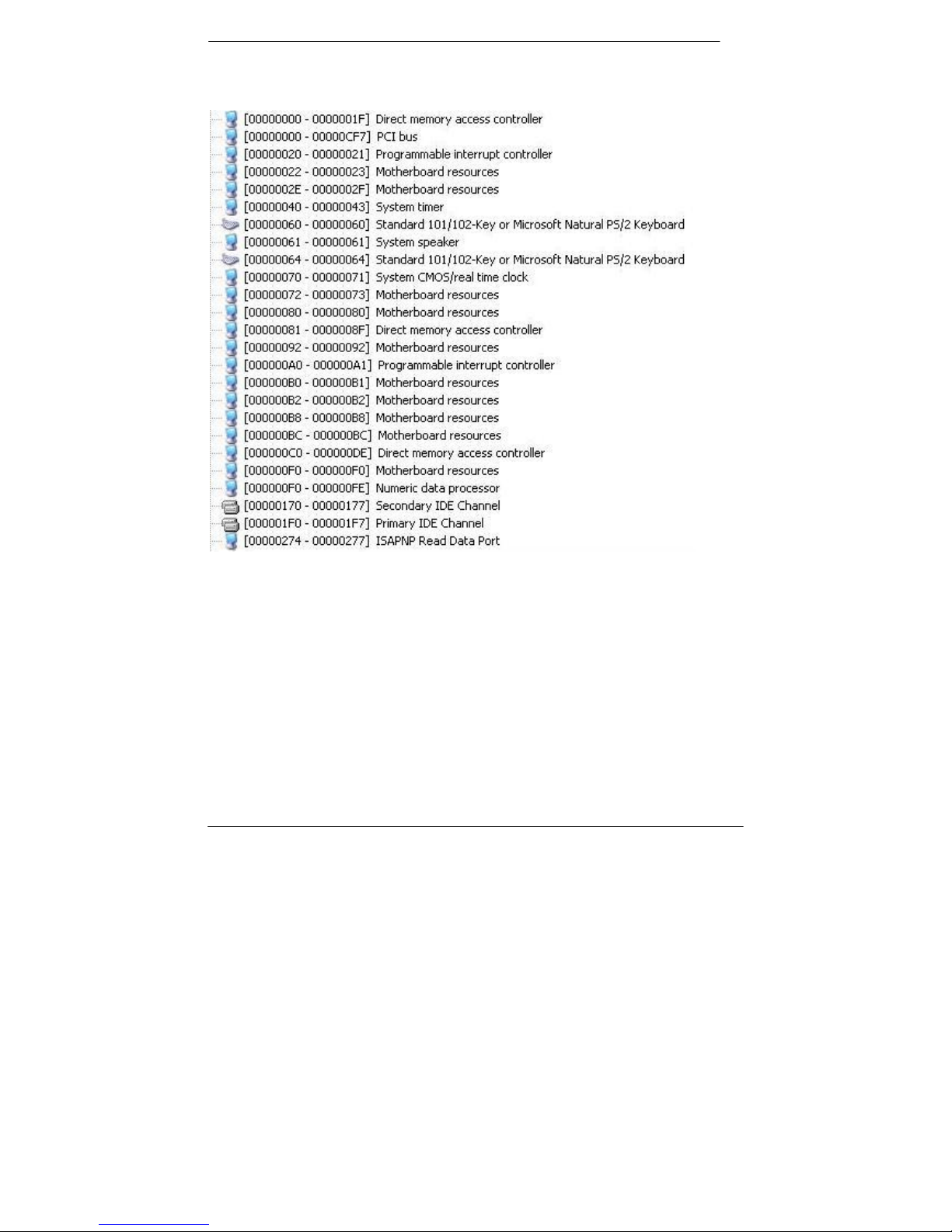

C.1 <I/O Port Address Map>
Page 41
LE-380 User’s Manual
-
39-
Page 42
LE-380 User’s Manual
-
40-

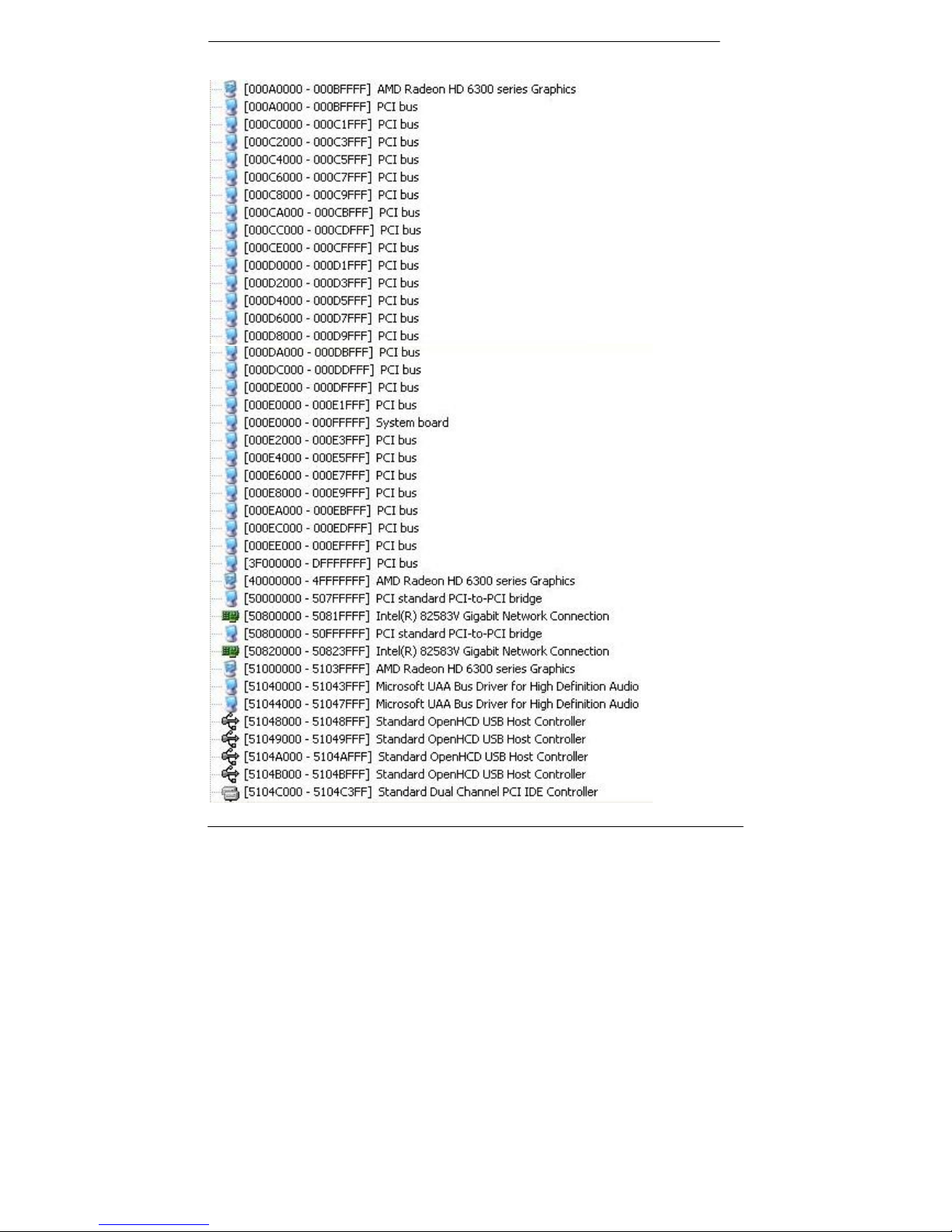

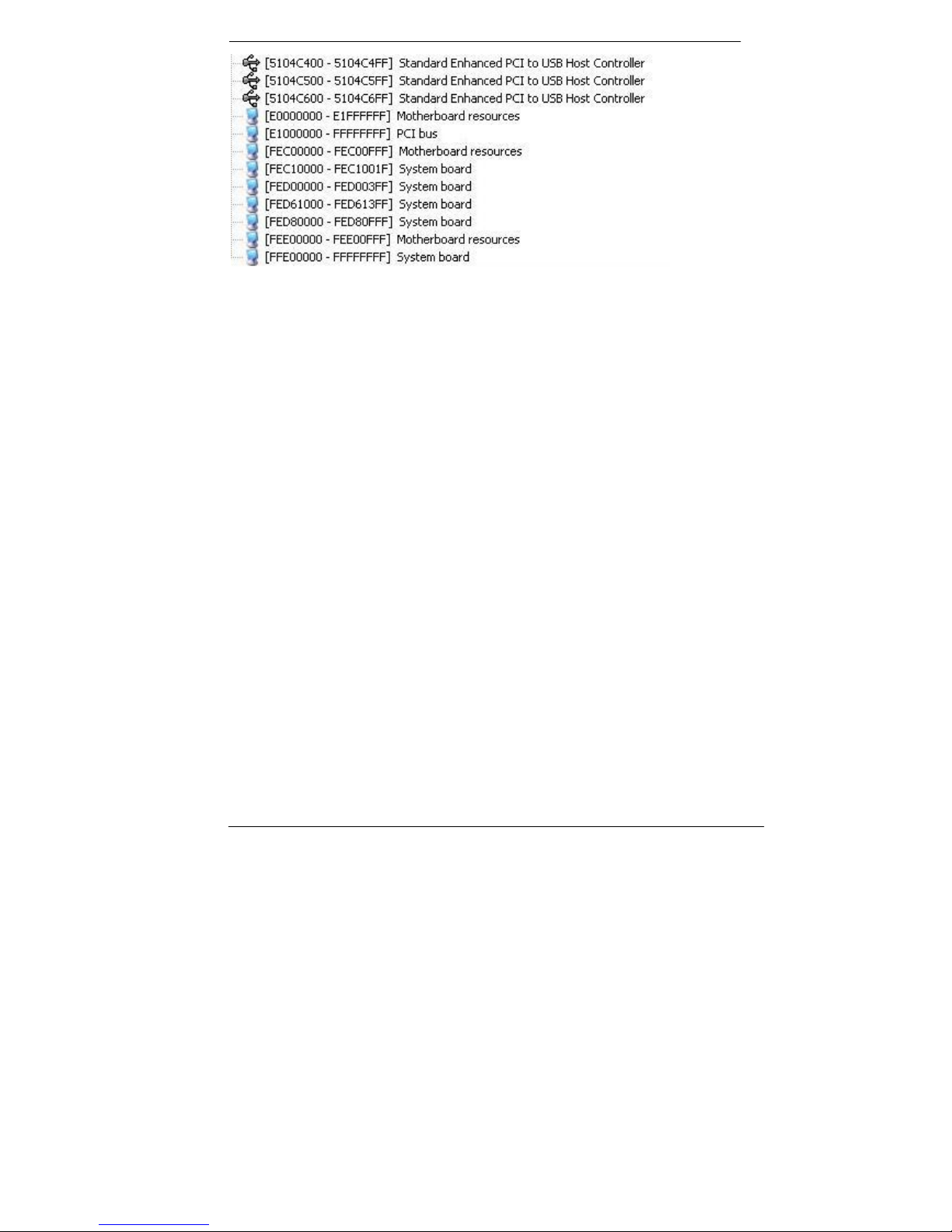

C.2 <Memory Address Map >
Page 43
LE-380 User’s Manual
-
41-
Page 44
LE-380 User’s Manual
-
42-

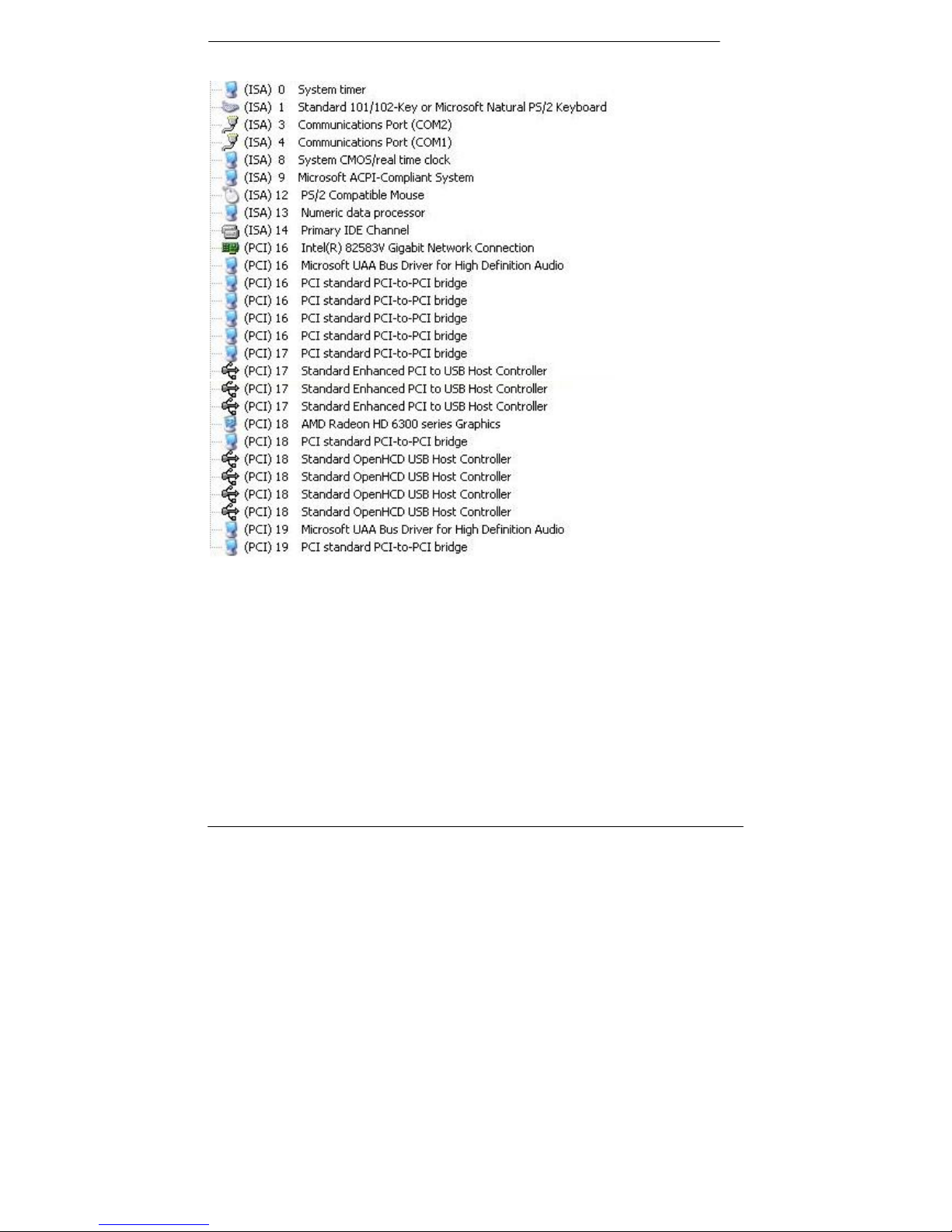

C.3 < System IRQ Resources >
Page 45
LE-380 User’s Manual
-
43-
Page 46
LE-380 User’s Manual
-
44-
Appendix D <Watch Dog timer Setting >
The watchdog timer makes the system auto-reset while it stops to work for a period. The
integrated watchdog timer can be setup as system reset mode by program.
Timeout Value Range
- 1 to 255
- Second or Minute
Program Sample
Watchdog timer setup as system reset with 5 second of timeout
2E, 87
2E, 87
2E, 07
2F, 08 Logical Device 8
2E, 30
2F, 01 Activate
2E, F5
2F, 02 Set as Second*
2E, F6
2F, 05 Set as 5
* Minute: bit 3 = 1; Second: bit 3 = 0
You can select Timer setting in the BIOS, after setting the time options, the system
will reset according to the period of your selection.
Page 47
LE-380 User’s Manual
-
45-
Appendix E <AMD Hing Definition Audio Device >

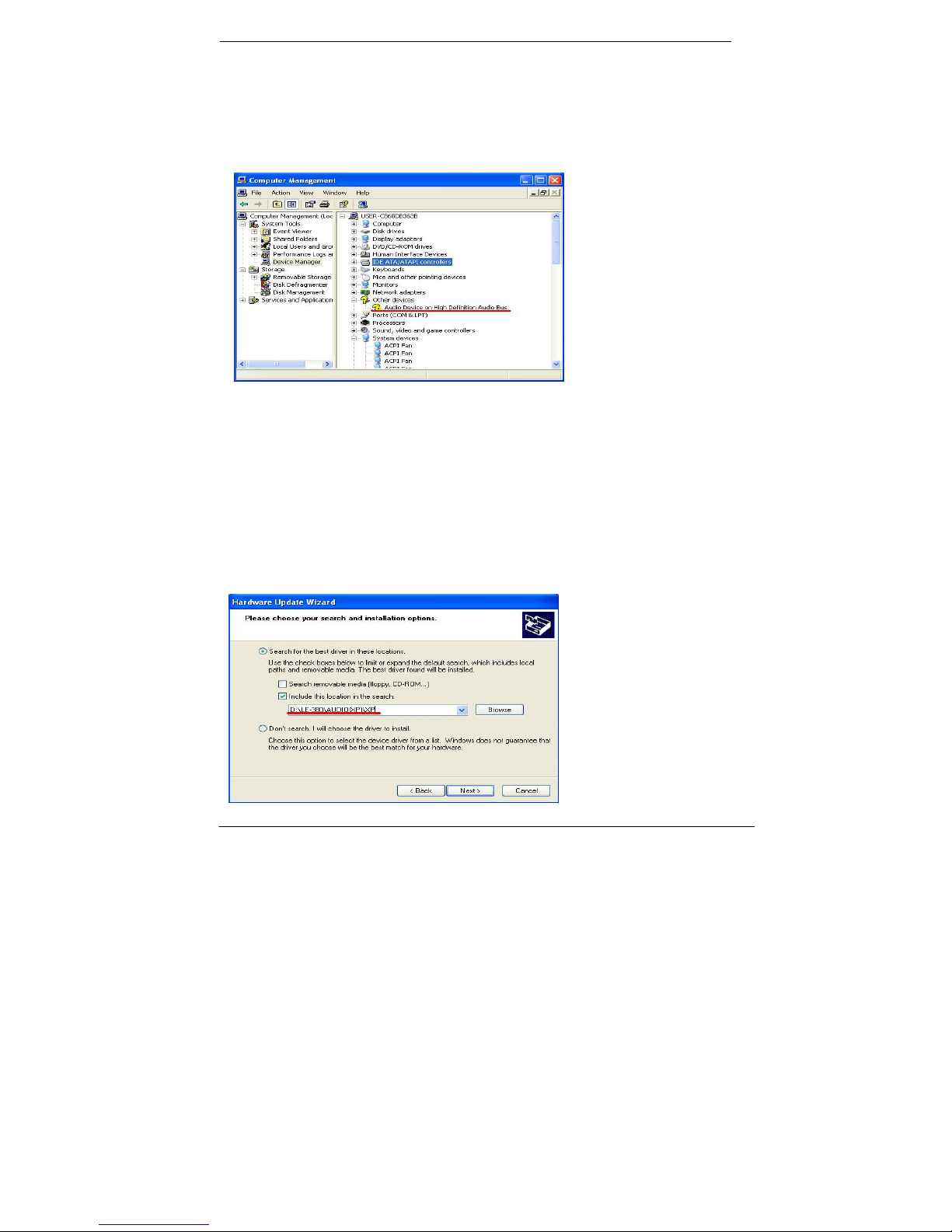

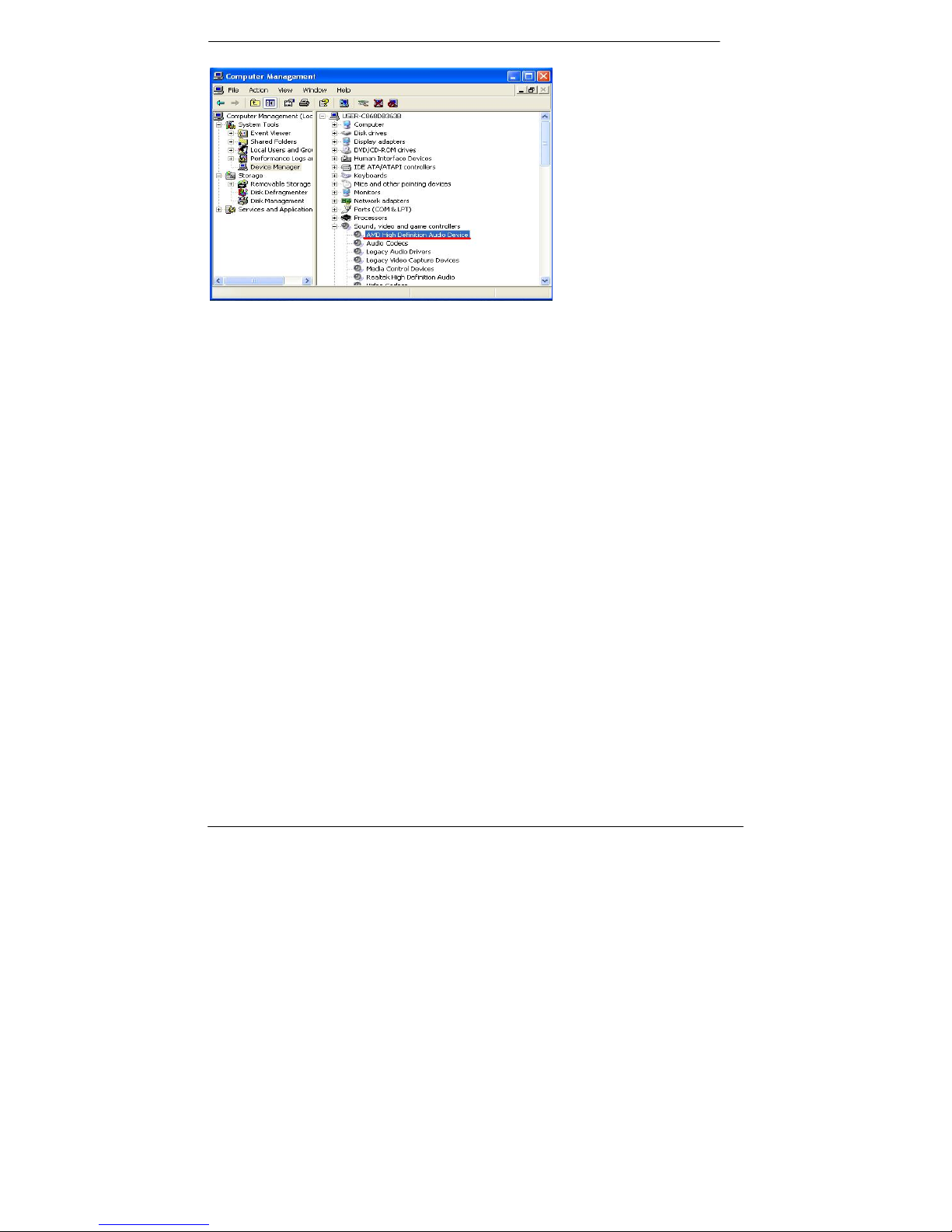

1. Copy the CD Driver folder to disk, Ex: C:\ , D:\ …
2. Please choose “Device Manager”
3. You can see other devices ”Audio Device on High Definition Audio Bus”
4. Please choose “Audio Device on High Definition Audio Bus” then press
Update Driver
5. Please choose ”NO, not this time“
6. Install software for ” Audio Device on High Definition Audio Bus ” Please choose ”Install
from a list or specific location”
7. Please choose “Search for the best driver in these location” Check “Include this location
in the search” then press “Browse”
8. Please select the file location”D:\LE-380\Audio(XP)\XP”
Page 48
LE-380 User’s Manual
-
46-
9. Install finish
(This Page is Left for Blank)
Page 49
LE-380 User’s Manual
-
47-
Contact Information
Any advice or comment about our products and service, or
anything we can help you please don’t hesitate to contact with us.
We will do our best to support you for your products, projects and
business.
Taiwan Commate Computer Inc.
Address
19F., No.94, Sec. 1, Xintai 5th Rd., Xizhi Dist.,
New Taipei
City 22102, Taiwan
TEL +886-2-26963909
FAX +886-2-26963911
Website
TUhttp://www.commell.com.twUT
E-Mail
Commell is our trademark of industrial PC division
Loading...
