LP-177
Pico-ITX Motherboard
User’s Manual
Edition 1.0
2017/04/20
Page 2
LP-177 User’s Manual
-1-
Copyright
Copyright 2017, all rights reserved. This document is copyrighted and all rights are reserved.
The information in this document is subject to change without prior notice to make
improvements to the products.
This document contains proprietary information and protected by copyright. No part of this
document may be reproduced, copied, or translated in any form or any means without prior
written permission of the manufacturer.
All trademarks and/or registered trademarks contains in this document are property of their
respective owners.
Disclaimer
The company shall not be liable for any incidental or consequential damages resulting from
the performance or use of this product.
The company does not issue a warranty of any kind, express or implied, including without
limitation implied warranties of merchantability or fitness for a particular purpose.
The company has the right to revise the manual or include changes in the specifications of
the product described within it at any time without notice and without obligation to notify any
person of such revision or changes.
Trademark
All trademarks are the property of their respective holders.
Any questions please visit our website at TUhttp://www.commell.com.twUT
Page 3
LP-177 User’s Manual
-2-

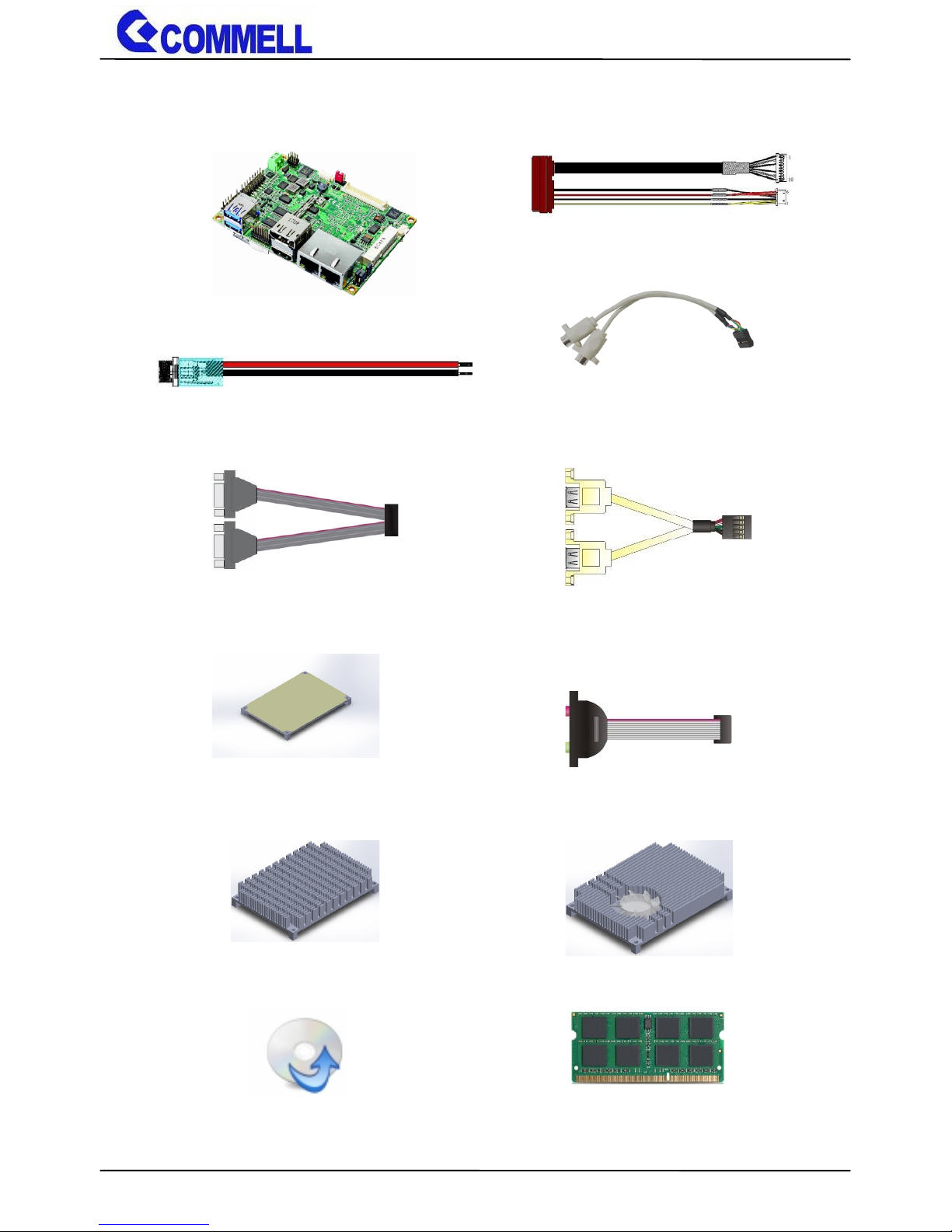

Packing List:
Please check the package content before you starting using the board.
1 x LP-177 Motherboard
1 xDC Input Power Cable
(OALDC-B / 1040513)
+
_
1 x PS/2 Keyboard & Mouse cable
(OALPS2/KM / 1040131)
1 x Audio cable
(OALPJ-HDUNB / 1040123)
1 xUSB2.0 cable
(OALUSBA-3 / 1040173)
1 x Dual COM cable
(OALES-BKU2NB / 1040090)
1 x SATA Cable
(OALSATA22B-PM15SH15) / (1040512)
1 x Heatsink(Optional)
(OHS-176-01 / 2181110026)
1 x DDR3L SO-DIMM (Optional)
(DSDM8GB-DDR3L-1600-SO-1.35V / 1140092)
1 x Cooler fan (Optional)
(OHSF-176 / 2181010025)
1 x Driver CD
(Including User’s Manual)
1 x Heat spreader(Optional)
(OHS-176 / 2181110015)
Page 4
LP-177 User’s Manual
-3-
Index
Chapter 1 <Introduction>..................................................................4
1.1 <Product Overview>............................................................ 4
1.2 <Product Specification> ...................................................... 5
1.3 <Block Diagram>.................................................................6
Chapter 2 <Hardware setup> ........................................................... 7
2.1 <Connector Location and Reference> ................................ 7
2.1.1 <Internal connectors list> ..........................................8
2.1.2 <External connectors list>.........................................8
2.2 <Jumper Location and Reference> .....................................9
2.2.1 <Jumper list> ............................................................ 9
2.2.2 <Clear CMOS and Power on type selection>............9
2.3 <Installing the Memory>....................................................10
2.4 <I/O interface> .................................................................. 11
2.4.1 <Serial ATA interface>............................................. 11
2.4.2 <Ethernet interface>................................................ 11
2.4.3 <Display interface> .................................................12
2.4.4 <Serial Port interface> ............................................ 14
2.4.5 <USB interface>...................................................... 15
2.4.6 <Audio interface>.................................................... 16
2.4.7 <Expansion slot>..................................................... 17
2.4.8 <Front panel switch and indicator> ......................... 18
2.4.9 <Other interface> ....................................................19
2.5 <Power supply> ................................................................ 21
2.5.1 <Power input>......................................................... 21
2.5.2 <Power output>....................................................... 21
Appendix A <Flash BIOS>.............................................................. 22
A.1 BIOS Auto Flash Tool........................................................ 22
A.2 Flash Method ....................................................................22
Appendix B <LCD Panel Type select> ........................................... 23
Appendix C <Programmable Watch Dog Timer>............................ 25
Appendix D <Install Heat Spreader > ............................................. 26
Appendix E <Setup ADP-3355, ADP-3460>...................................28
Appendix F <SuperIO Setting> ...................................................... 29
Contact information ........................................................................ 30
Page 5
LP-177 User’s Manual
-4-
Chapter 1 <Introduction>
1.1 <Product Overview>
LP-177 is pico Motherboard which is design based on Intel® Celeron® Processor N3350,
and Intel® Pentium® Processor N4200 (Apollo Lake SoC), delivering outstanding compute,
graphical, and media performance while operating in an extended range of thermal
conditions. The SoC bases on the Silvermont microarchitecture, utilizing Intel’s
industry-leading 14nm process technology with 3-D Tri-Gate transistors, which deliver
significant improvements in computational performance and energy efficiency.
New features for Apollo Lake
The Intel® Celeron® Processor N3350, and Intel® Pentium® Processor N4200 have a
lower TDP 6W, it provides new HD Graphics to support triple display, 4K resolution,
maximum memory size is up to 8GB of DDR3L, and more enhanced security that is suitable
for a variety of intelligent systems the ideal choice.
All in One multimedia solution
The board provides high performance onboard graphics, 18/24-bit single/dual channel
LVDS interface, DisplayPort, HDMI, and High Definition Audio, to meet the very requirement
of the multimedia application.
Flexible Expansion Interface
The board provides one MiniPCIe and support mSATA.
Apollo Lake only support Windows10 64bit
So far Intel just support Windows 10 64bit. It may lose some drivers if you use other
Windows version.
Page 6
LP-177 User’s Manual
-5-
1.2 <Product Specification>
System
Processor
Intel® Apollo Lake Series Processor N3350/ N4200,
FCBGA1296 package
Chipset
Apollo Lake SoC
Memory
1 x DDR3L DIMM 1866 MHz up to 8GB,
Support Non-ECC, unbuffered memory only
Watchdog Timer
Generates a system reset with internal timer for 1min/s ~ 255min/s
Real Time Clock
Chipset integrated RTC with lithium battery
Expansion
1 x MiniPCIe (support mSATA)
Graphics
Chipset
Intel® HD Graphics
Display Interface
1 x LVDS, 1 x HDMI, 1 x DisplayPort(Optional)
LAN
Chip
2 x Intel® I210-AT Gigabit LAN
I/O
Serial ATA
1 x SATA3
Audio
Realtek ALC262 HD Audio
Internal I/O
1 x SATA3, 2 x RS232, 2 x USB2.0, 1 x LPC, 1 x PS/2,
1 x SMBUS, 1 x LVDS, 1 x LCD inverter, 1 x Audio,
Rear I/O
2 x USB3.0, 1 x LAN, 1 x HDMI, 1 x DisplayPort(Optional).
Mechanical & Environmental
Power Requirement
DC INPUT 5V
Size & Thickness
100mm x 72mm (L x W)
Temperature
Operating within 0°C~60°C (32°F~140°F)
Storage within -20°C~80°C (-4°F~176°F)
Relative Humidity
10%~90%, non-condensing
Page 7
LP-177 User’s Manual
-6-

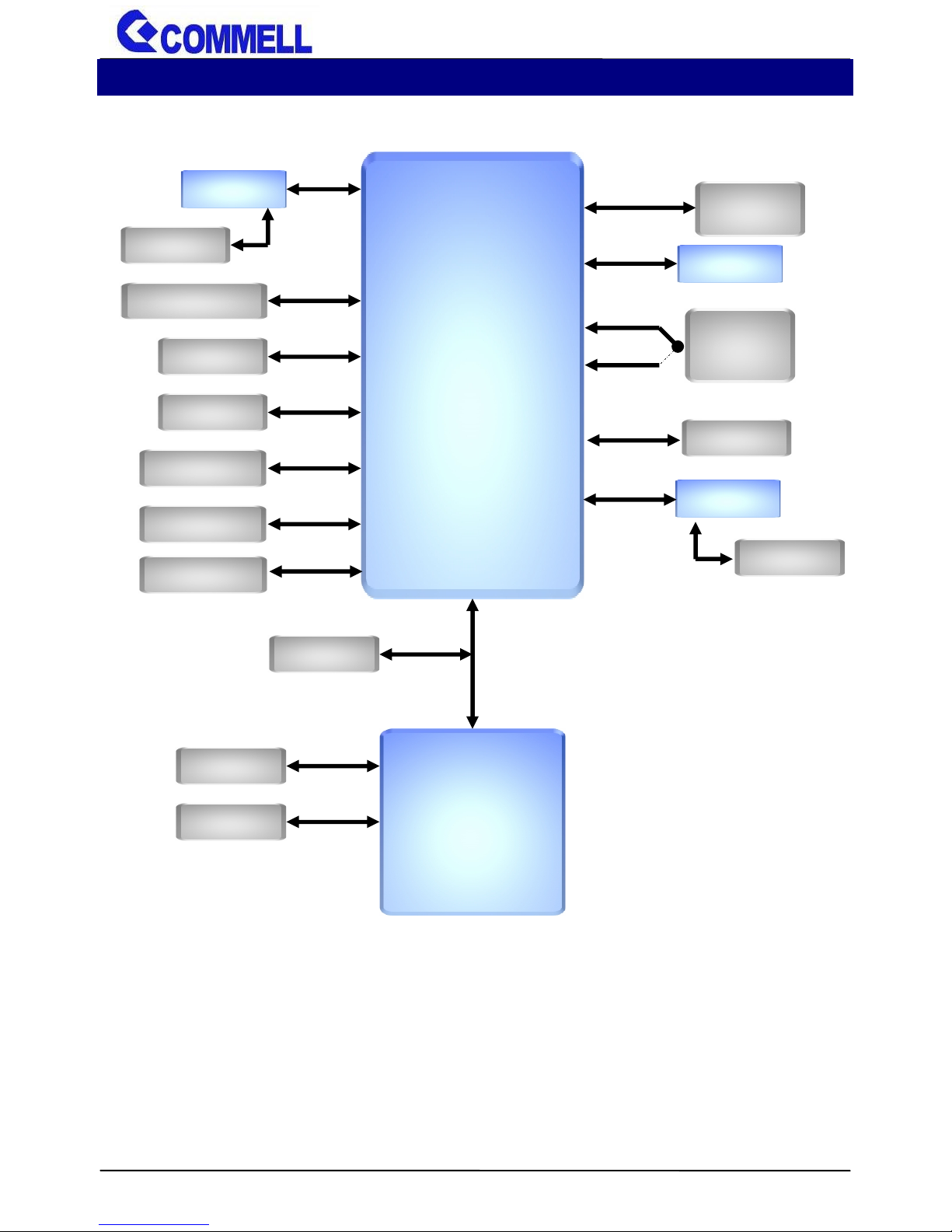

1.3 <Block Diagram>
CPU
Apollo Lake
SoC
DDR3L
SO-DIMM
1 x DisplayPort
1 x HDMI
PTN3460
1 x LVDS
SIO
NCT6102D
DDI
Channel A
eDP
DDI
1 x SATA3
SATA3
2 x USB3.0
2 x USB2.0
USB3.0
USB2.0
SPI Flash
SPI
PCIe x2
2 x I210-AT
HDA
HD Audio
LPC
1 x LPC
ALC262
2 x RS232
1 x SMBUS
PCIe x1
SATA3
MiniPCIe
/ mSATA
1 x PS/2
SMBus
Page 8
LP-177 User’s Manual
-7-
Chapter 2 <Hardware setup>

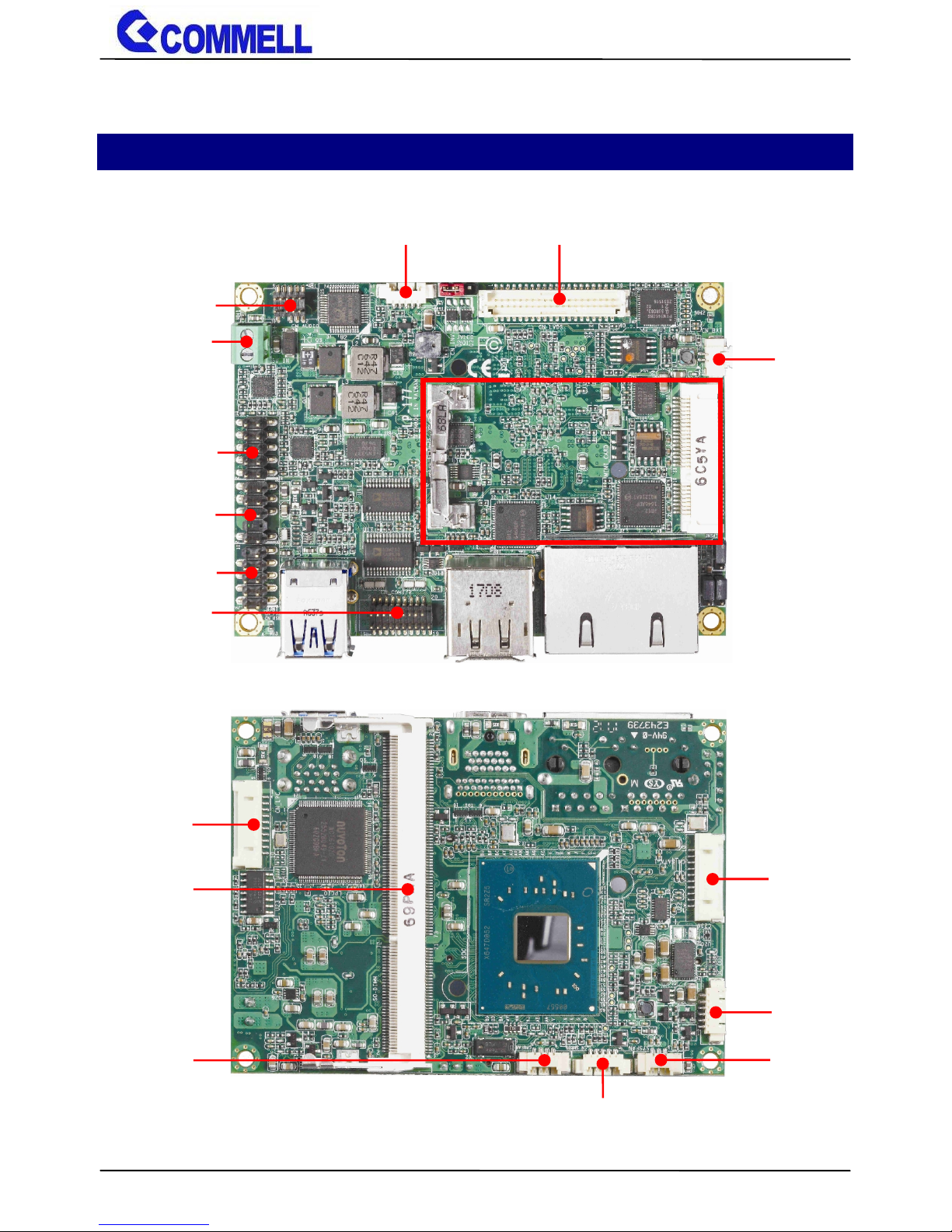

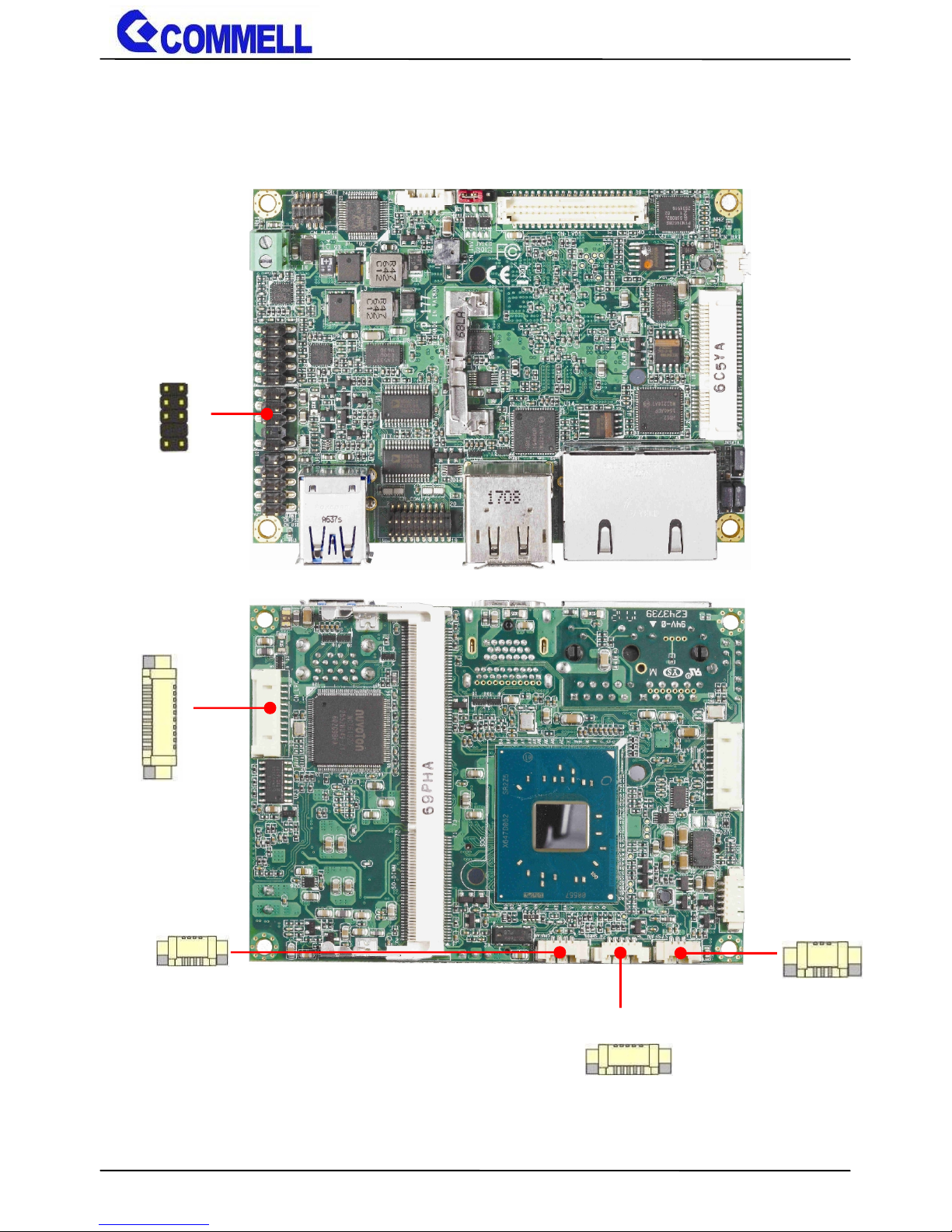

2.1 <Connector Location and Reference>
MINI_CARD
CN_AUDIO
5V_IN
JFRNT
CN_PS2
CN_USB
CN_COM1/2
CN_INV CN_LVDS
CN_LPC
SO-DIMM
CPUFAN
CN_SATA
DC_OUT
SYSFAN
CN_BAT
CN_SMBUS
Page 9
LP-177 User’s Manual
-8-
2.1.1 <Internal connectors list>
Connector
Function
SO-DIMM
204-pin DDR3L SO-DIMM slot
CN_SATA
10-pin Serial ATA3 connector
CN_AUDIO
5 x 2-pin audio pin header
CN_LPC
10 pin LPC pin header
CN_LVDS
20 x 2-pin LVDS connector
CN_INV
5-pin LCD inverter connector
CN_SMBUS
5-pin SMBus connector
CN_COM 1/2
19-pin RS232 connector
CN_USB
5 x 2-pin USB2.0 pin header
CN_PS2
5 x 2-pin PS/2 pin header
CPUFAN
4-pin CPU fan connector
SYSFAN
3-pin system fan connector
JFRNT
5 x 2-pin front panel switch/indicator pin header
MINI_CARD
52-pin MiniPCIe card slot
DC_OUT
6-pin SATA Power connector
5V_IN
2-pin power input Terminal Block (5V Only)
2.1.2 <External connectors list>
Connector
Function
DisplayPort
DisplayPort connector
HDMI
HDMI connector
USB3
2 x USB3.0 connector
RJ45
2 x RJ45 LAN connector

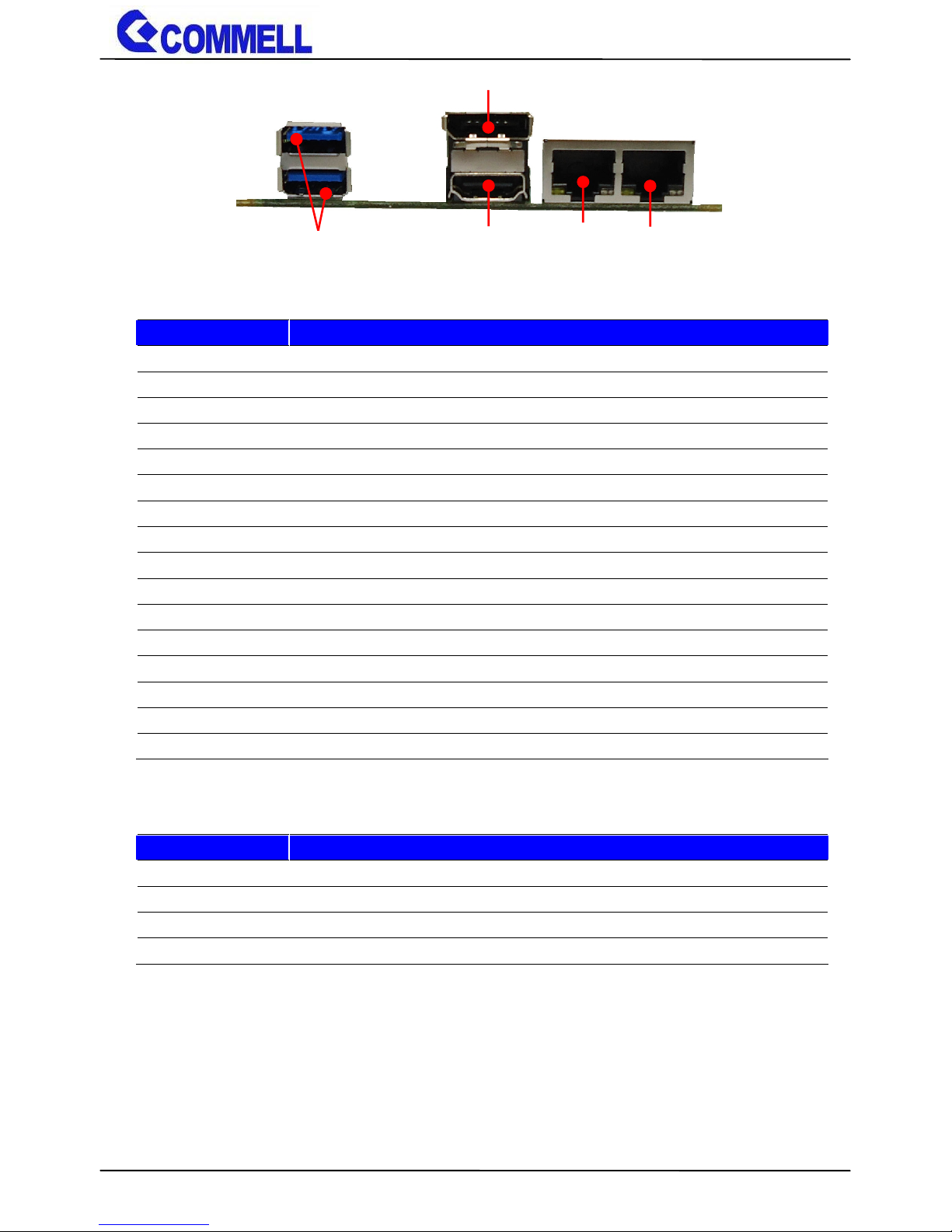

USB3.0 HDMI RJ-45 RJ-45
DisplayPort
Page 10
LP-177 User’s Manual
-9-
2.2 <Jumper Location and Reference>
2.2.1 <Jumper list>
Jumper
Function
JAT
Power mode select
JRTC
CMOS Normal/Clear Setting
JVLCD
Panel Voltage Setting
JMSATA
MiniCard mSATA Setting

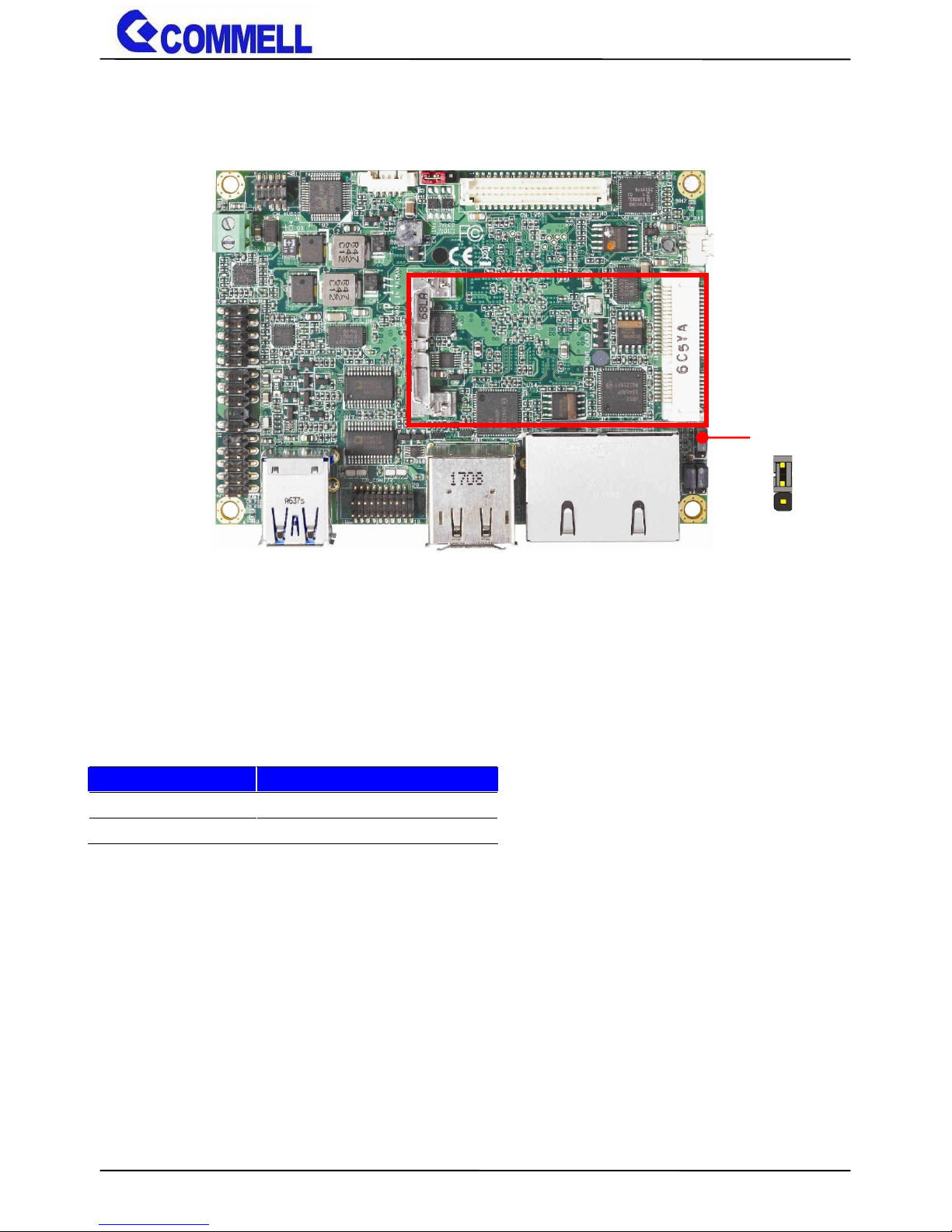

2.2.2 <Clear CMOS and Power on type selection>
JRTC: Clear CMOS data jumper
Jumper settings
Function
1-2
Clear CMOS
2-3
Normal (Default)

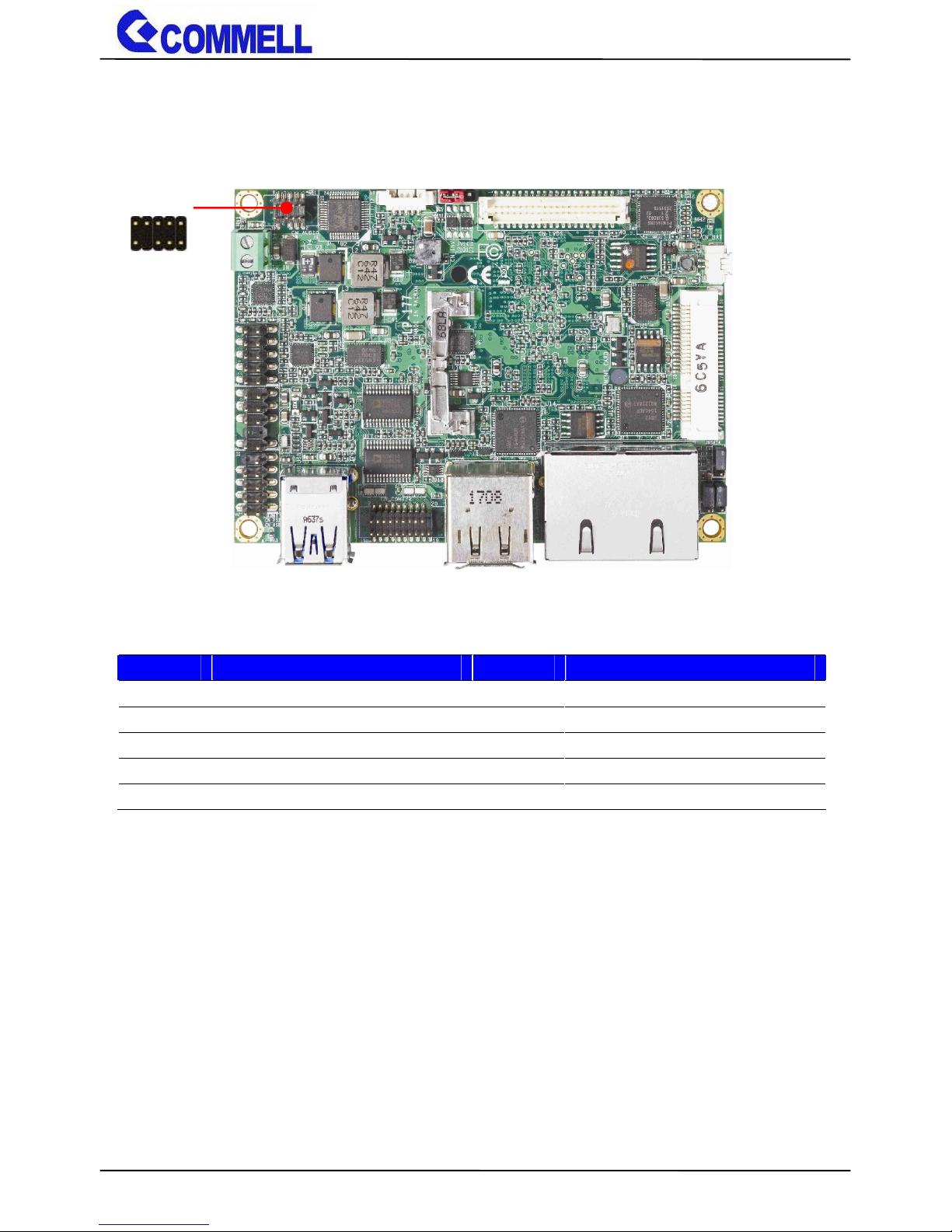

JAT: AT/ATX mode select jumper
Jumper settings
Function
1-2
AT mode
2-3
ATX mode (Default)
JVLCD

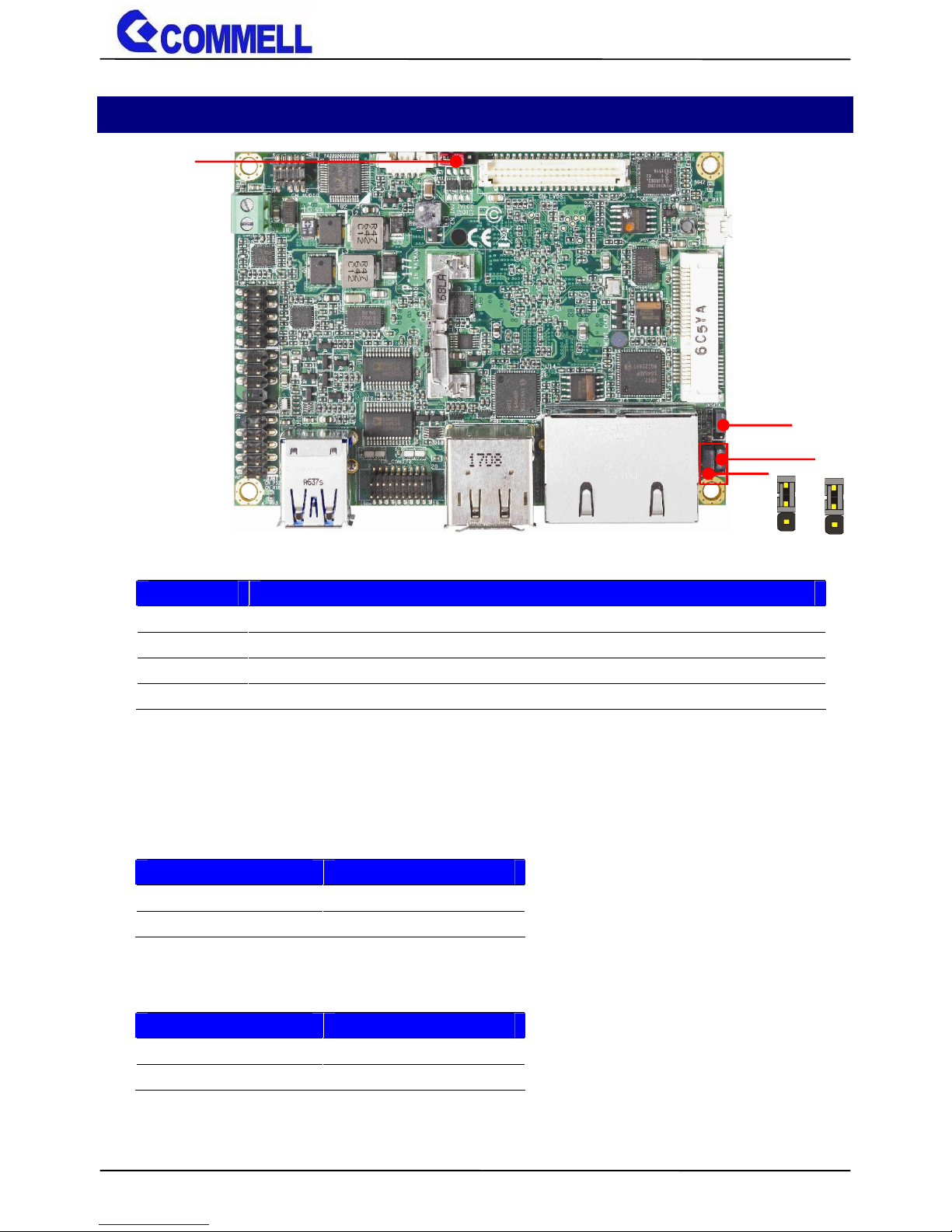

JRTC JAT
1
3
1
3
JMSATA
Page 11
LP-177 User’s Manual
-10-
2.3 <Installing the Memory>
In the process, the board must be powered off.

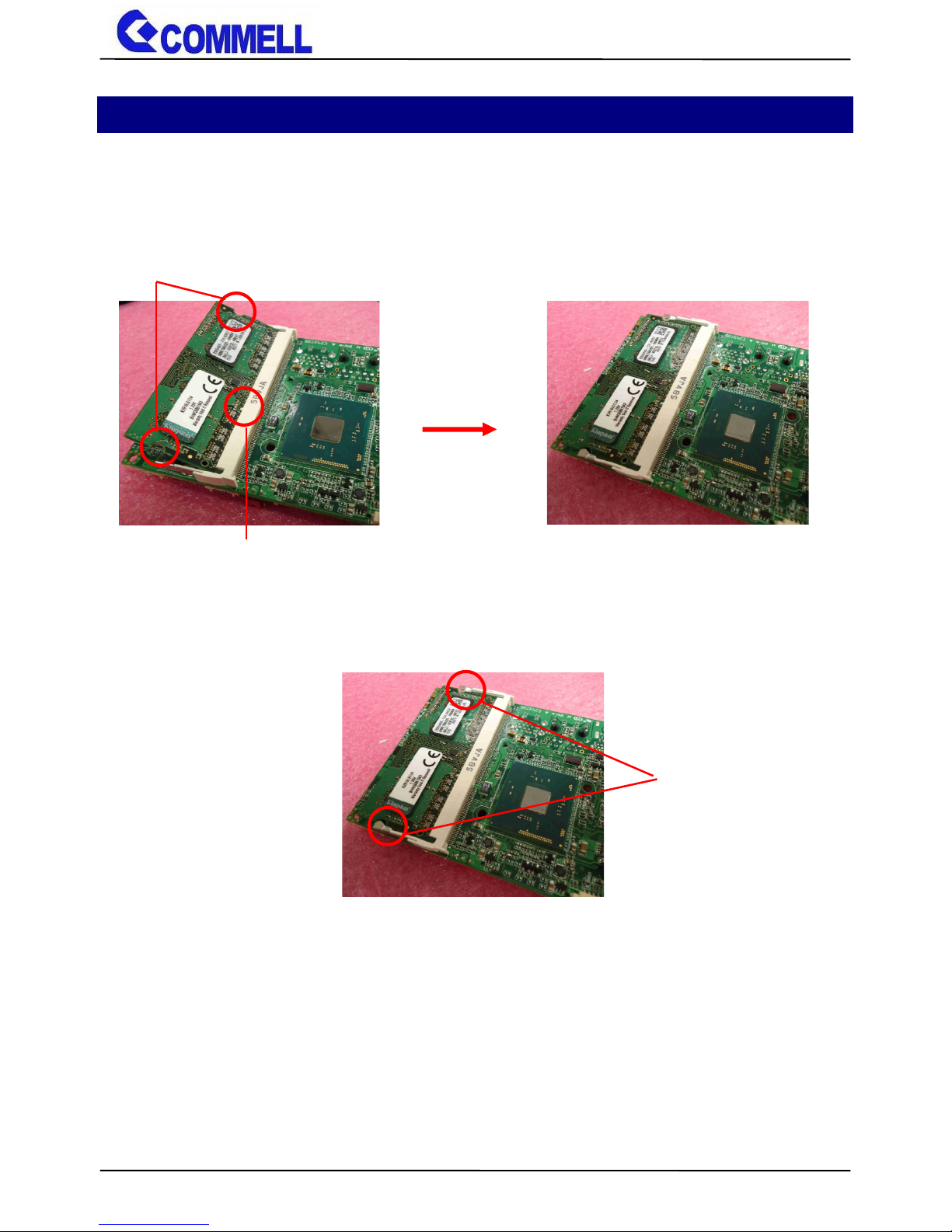

1. Put the memory tilt into the slot. Note the Memory notch key aligned slot key.
2. Then press down till lock into the mounting notch.
3. To remove the memory, push outward on both sides of the latch.
Key
Mounting notch
Press down
Latch
Page 12
LP-177 User’s Manual
-11-
2.4 <I/O interface>
2.4.1 <Serial ATA interface>
CN_SATA: SATA3 10-pin connector
2.4.2 <Ethernet interface>
The board provide I210-AT Gigabit Ethernet which supports WOL on rear I/O.
Find the setting from
Front PageSetup utility
AdvancedSouth Cluster Configuration Miscellaneous Confuguration
Wake on LAN [Disable] (default)
(You have to turn off fast startup in Windows10)
Pin
Signal
1
GND
2
TX+
3
TX-
4
GND
5
NC
6
NC
7
GND
8
RX-
9
RX+
10
GND
CN_SATA
1
10

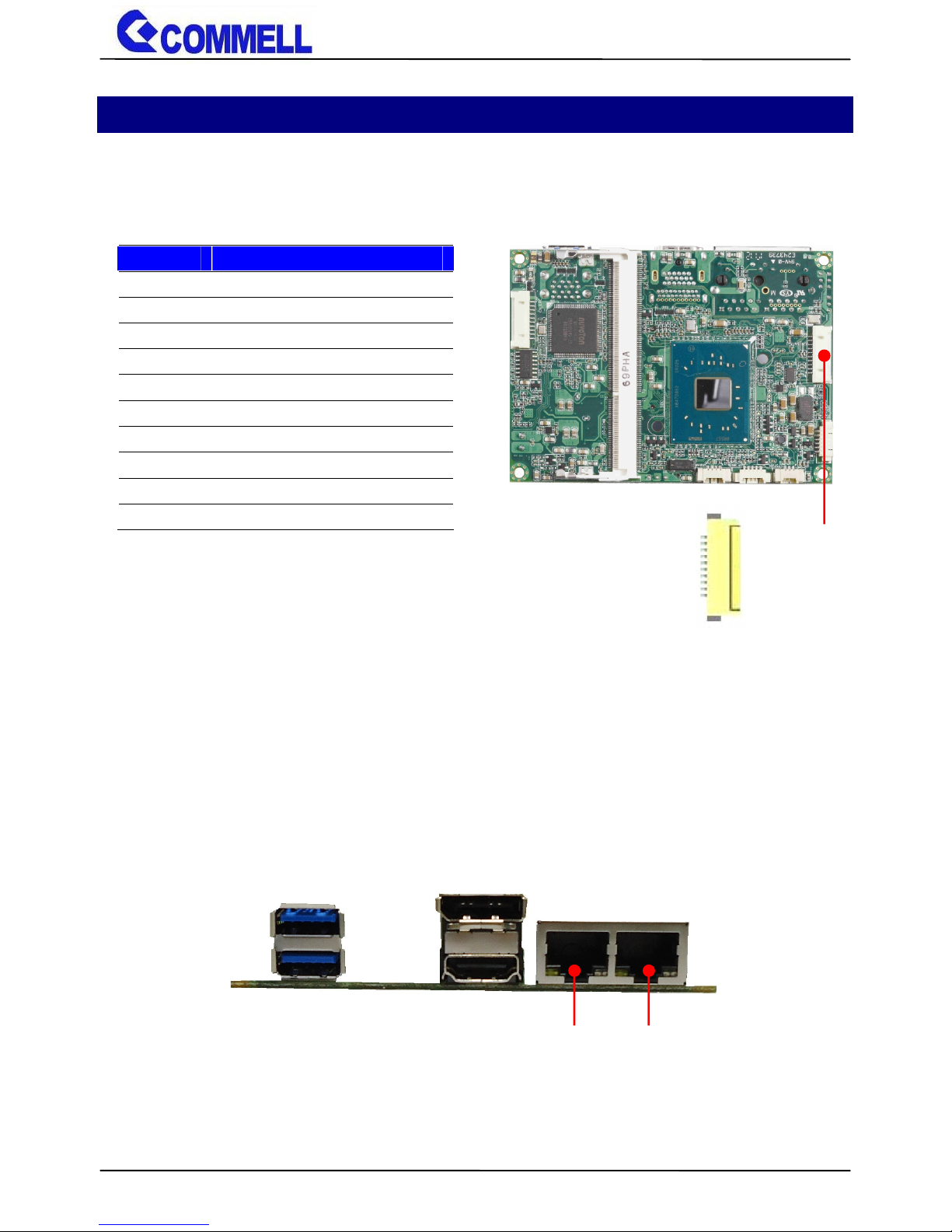

I210-AT
I210-AT
Page 13
LP-177 User’s Manual
-12-

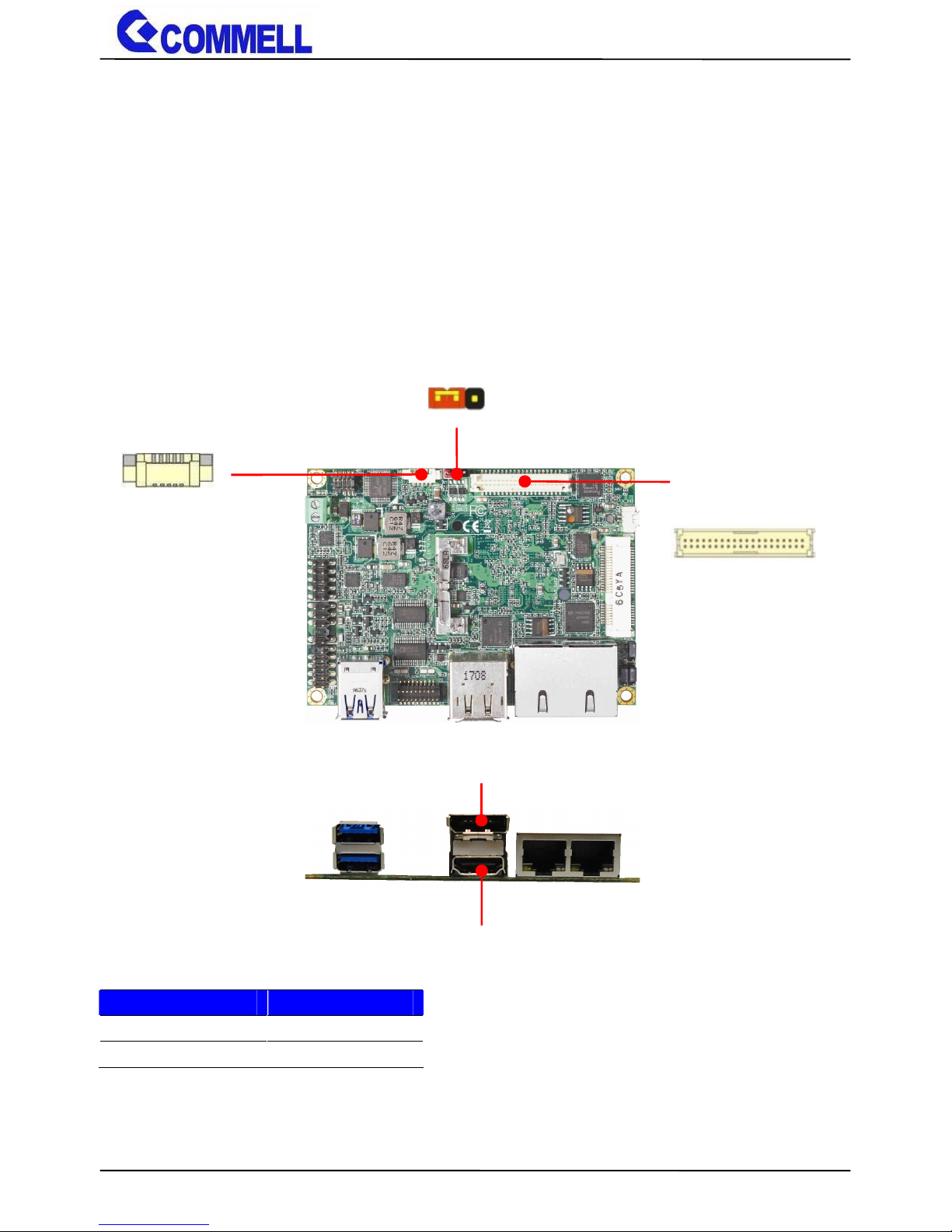

2.4.3 <Display interface>
Based on the Apollo Lake SoC with built-in HD Graphics, the DisplayPort1.2 up to
4096x2160 @ 60Hz on rear I/O.About the internal Display, the HDMI1.4b
resolution up to 3840x2160 @ 30Hz and LVDS (PTN3460) up to 1920x1200 @
60Hz support 18/24-bit color depth and single/dual channel. About select LCD

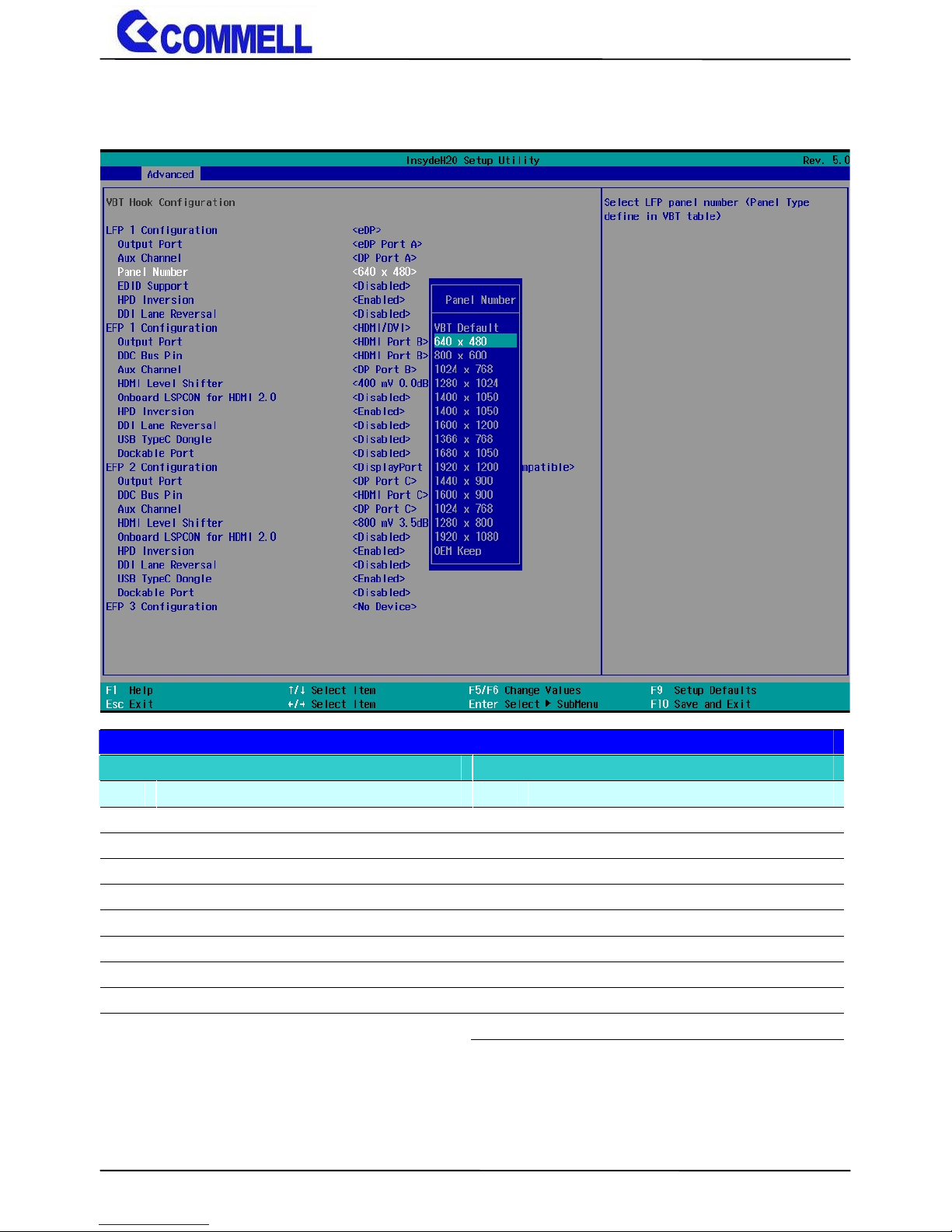

Panel Type in BIOS, please refer Appendix B.The built-in HD Graphics support
triple display function with clone mode and extended mode.
JVLCD: LVDS panel power select jumper
Jumper settings
Function
1-2
3.3V (Default)
2-3
5V
Effective patterns of connection: 1-2 / 2-3
Other may cause damage
CN_LVDS
1
40
2
39
JVLCD
1
3
CN_INV
1
5
DisplayPort
HDMI
Page 14
LP-177 User’s Manual
-13-
CN_LVDS: LVDS 40-pin connector (Model: HIROSE DF13-40DP-1.25V compatible)
Pin
Signal
Pin
Signal
1
Set by JVLCD
2
Set by JVLCD
3
GND
4
Detect (Active low)
5
B_LVDS_0-
6
A_LVDS_0-
7
B_LVDS_0+
8
A_LVDS_0+
9
GND
10
GND
11
B_LVDS_1-
12
A_LVDS_1-
13
B_LVDS_1+
14
A_LVDS_1+
15
GND
16
GND
17
B_LVDS_2-
18
A_LVDS_2-
19
B_LVDS_2+
20
A_LVDS_2+
21
GND
22
GND
23
B_LVDS_3-
24
A_LVDS_CLK-
25
B_LVDS_3+
26
A_LVDS_CLK+
27
GND
28
GND
29
B_LVDS_CLK-
30
A_LVDS_3-
31
B_LVDS_CLK+
32
A_LVDS_3+
33
GND
34
GND
35NC36
LVDS_DDCSCL
37NC38
LVDS_DDCSDA
39NC40
NC
Note: Pin4 only need to be connected to GND
CN_INV: LVDS 5-pin Backlight power connector
Pin
Signal
1
3.3V
2
Backlight Control
3
5V
4
GND
5
Enable Backlight
Page 15
LP-177 User’s Manual
-14-
2.4.4 <Serial Port interface>
CN_COM1/2: RS232 20-pin header (Pitch 1.27mm x 2.54mm)
Pin
Signal
Pin
Signal
1
DCD1
2
RXD1
3
TXD1
4
DTR1
5
GND
6
DSR1
7
RTS1
8
CTS1
9
RI110NC
11
DCD2
12
RXD2
13
TXD2
14
DTR2
15
GND
16
DSR2
17
RTS2
18
CTS2
19
RI220Key
11920
2
CN_COM1/2
Page 16
LP-177 User’s Manual
-15-

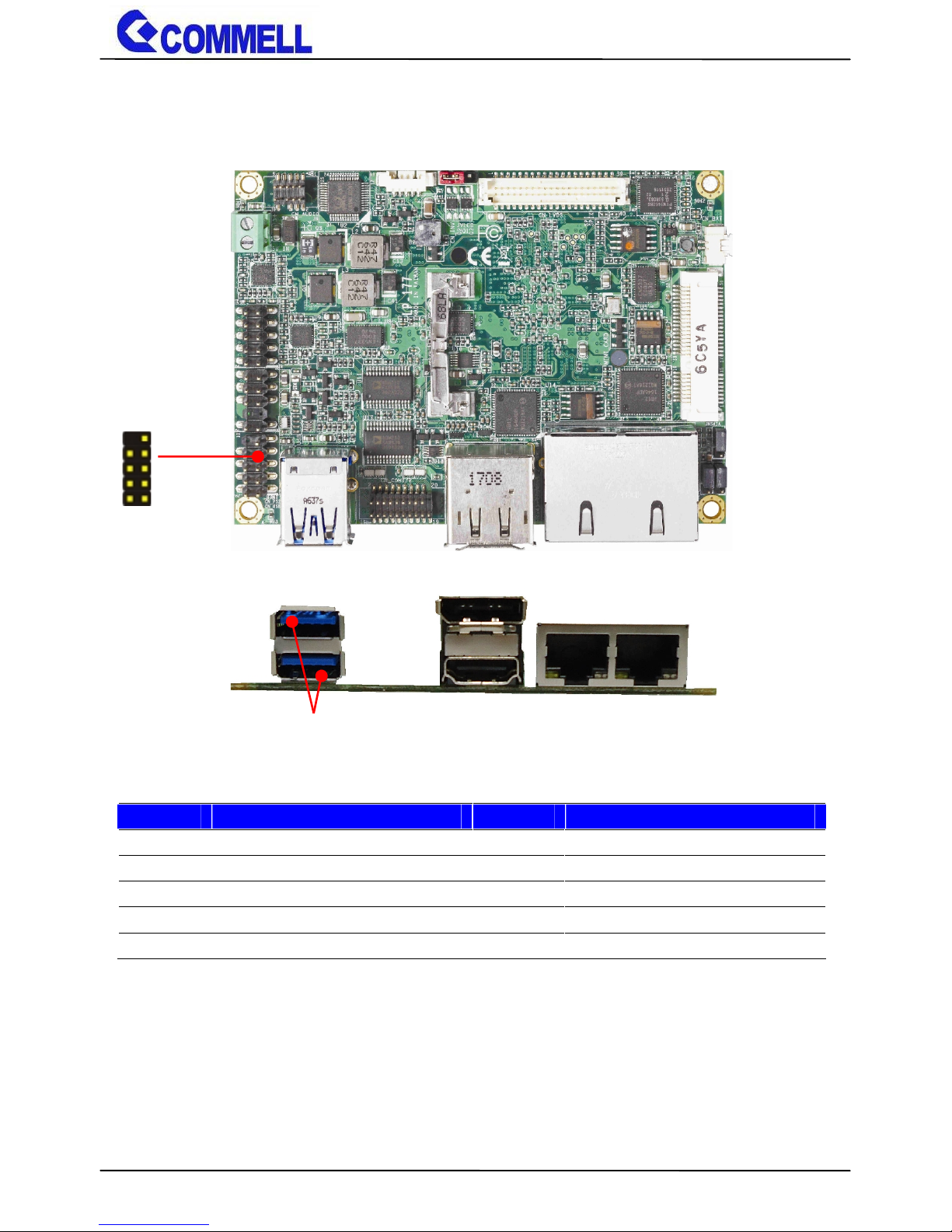

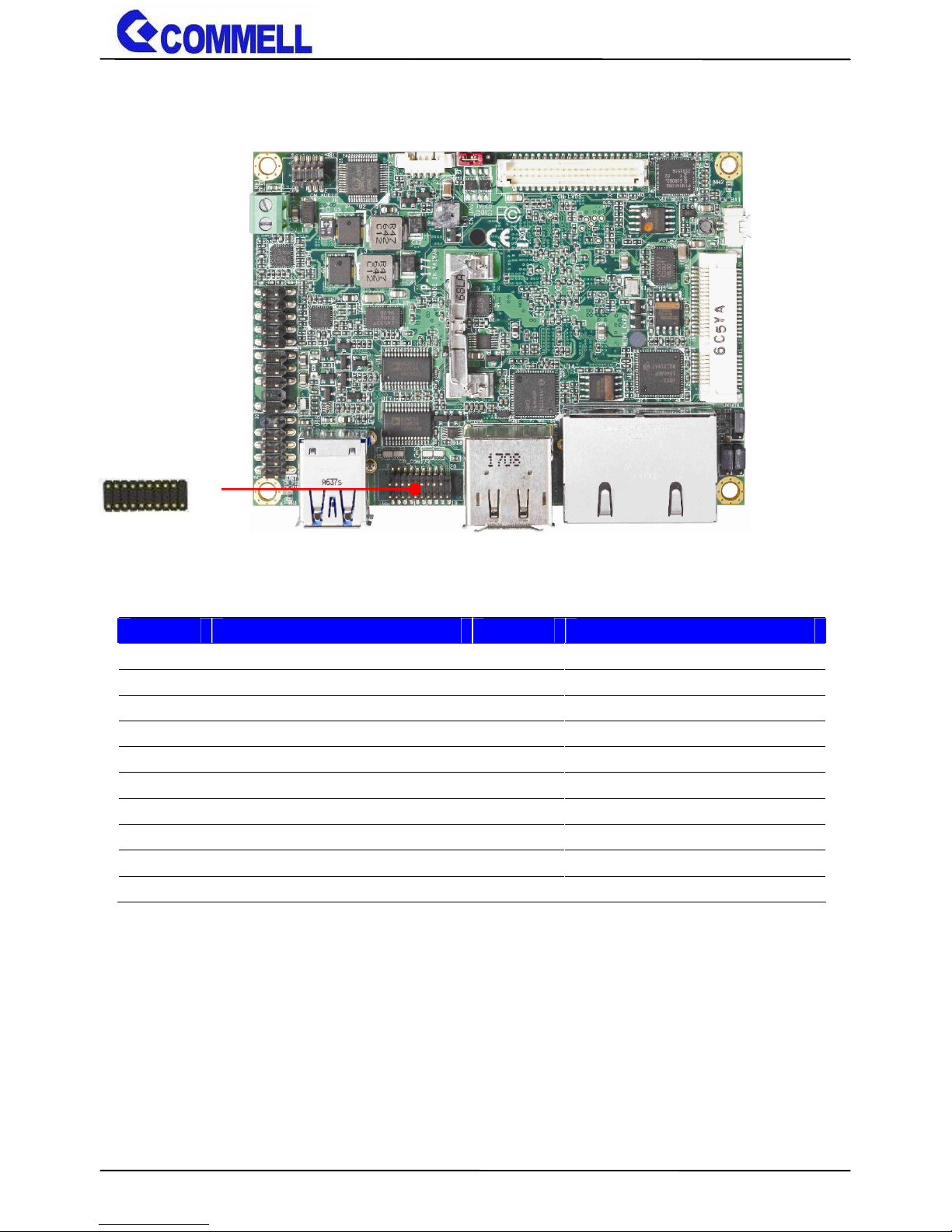

2.4.5 <USB interface>
CN_USB: Front panel USB2.0 10-pin header (Pitch 2.54mm)
Pin
Signal
Pin
Signal
1
5VSB
2
5VSB
3
DATA0-
4
DATA1-
5
DATA0+
6
DATA1+
7
GND
8
GND
9
GND
10
Key
CN_USB
1102
9
USB3.0
Page 17
LP-177 User’s Manual
-16-

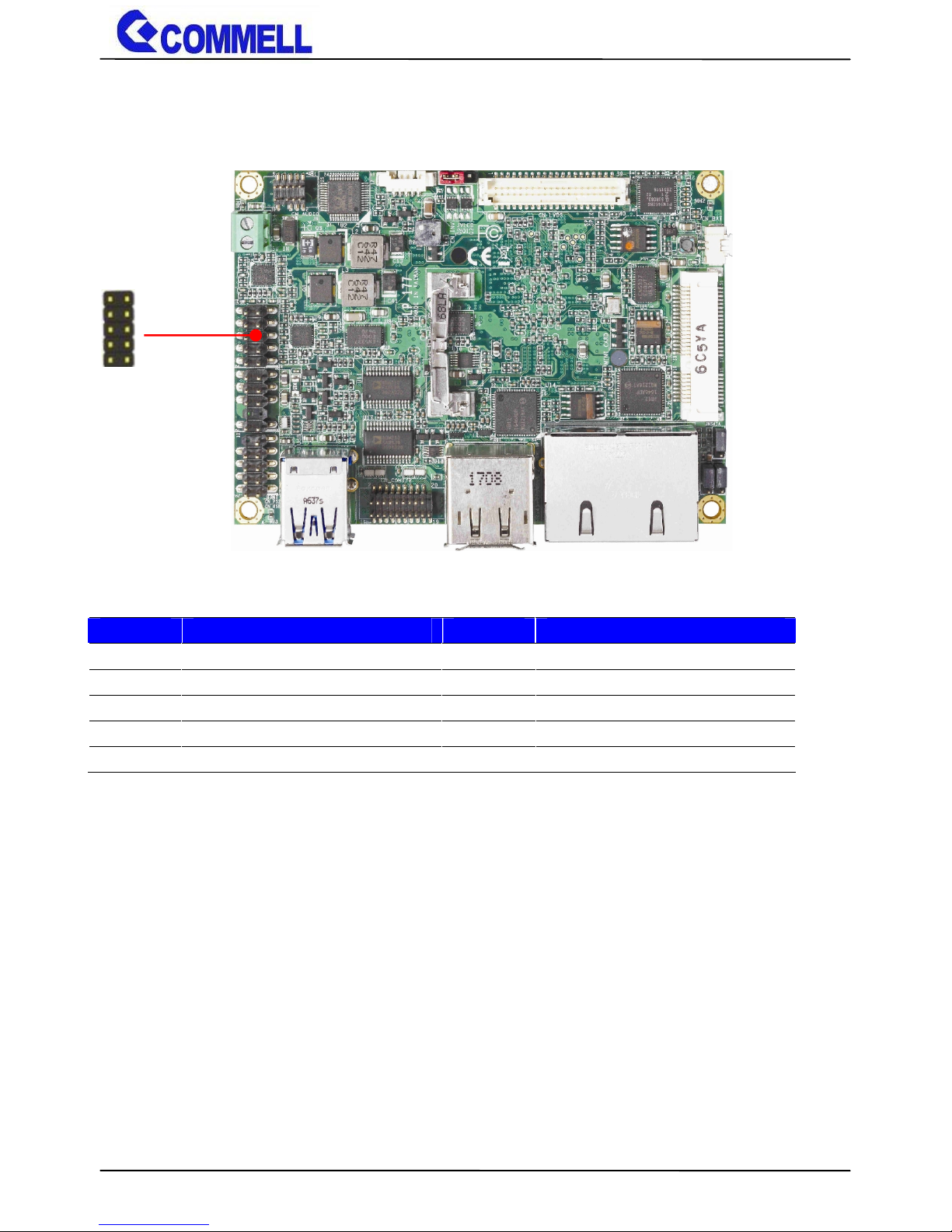

2.4.6 <Audio interface>
CN_AUDIO: Front panel audio 10-pin header (Pitch 1.27mm x 2.54mm)
Pin
Signal
Pin
Signal
1
MIC_L
2
GND
3
MIC_R
4
3.3V
5
FP_OUT_R
6
MIC_DETECT
7
SENSE
8
Key
9
FP_OUT_L
10
FP_OUT_DETECT
CN_AUDIO
2910
1
Page 18
LP-177 User’s Manual
-17-
2.4.7 <Expansion slot>
MINI_CARD support mSATA by JMSATA
MINI_CARD have some special design to compatible our mini-PCIe card.
(ex: MPX-574D2, MPX-210D2 etc)
JMSATA: Setting MINI_CARD to support PCIe/mSATA
Jumper settings
Function
1-2
Support mSATA
2-3
Normal operation (Default)
JMSATA
1
3
MINI_CARD
Page 19
LP-177 User’s Manual
-18-
2.4.8 <Front panel switch and indicator>
JFRNT: Front panel switch and indicator 10-pin header (Pitch 2.54mm)
Pin
Signal
Pin
Signal
1
Power_ON-
2
Power_ON+
3
Speaker-
4
Speaker+
5
HDD_LED-
6
HDD_LED+
7
Power_LED-
8
Power_LED+
9
Reset+
10
Reset-
JFRNT
9
2
1
10
Page 20
LP-177 User’s Manual
-19-
2.4.9 <Other interface>
CN_LPC
CN_SMBUS
1 5
1
SYSFAN
CPUFAN
1 3
CN_PS2
1
2
9
10
1 4
10
Page 21
LP-177 User’s Manual
-20-
CN_LPC: LPC 10-pin header (Pitch 2.00mm)
Pin
Signal
Pin
Signal
1
CLK
2
RST
3
-LFRAME
4
LAD3
5
LAD2
6
LAD1
7
LAD0
8
3.3V
9
SERIRQ
10
GND
CN_PS/2: PS/2 10-pin header (Pitch 2.54mm)
Pin
Signal
Pin
Signal
1
KB_DATA
2
M_DATA
3NC4
NC
5
GND
6
GND
7
VCC
8
VCC
9
KB_CLK
10
M_CLK
CN_SMBUS: SMBus 5-pin connector
CPUFAN: CPU cooler fan 4-pin connector
Pin1234
Signal
GND
5V
Sensor
Control
SYSFAN: System cooler fan 3-pin connector
Pin12
3
Signal
GND
5V
Sensor
Pin
Signal
1
5V
2
NC
3
SMBDAT
4
SMBCLK
5
GND
Page 22
LP-177 User’s Manual
-21-

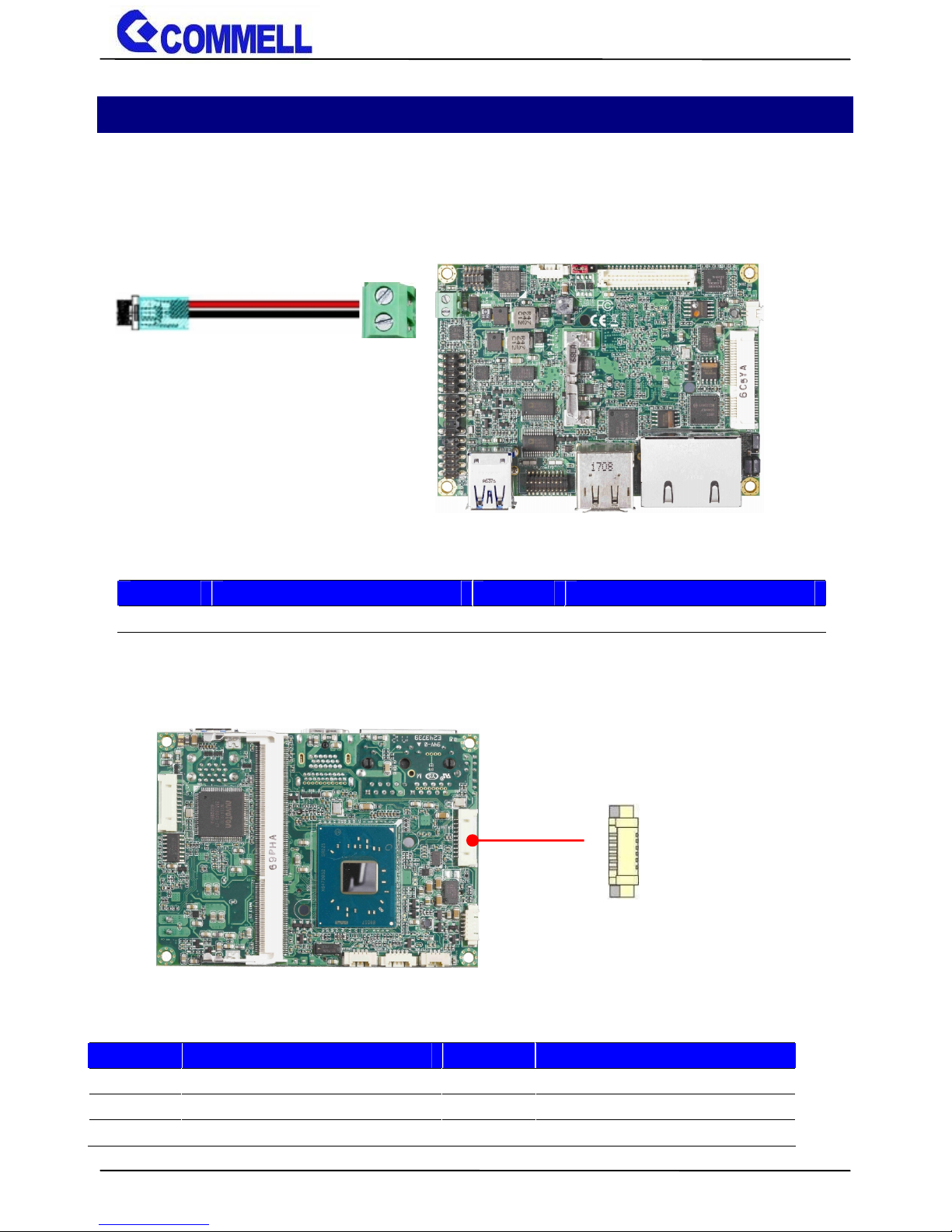

2.5 <Power supply>
2.5.1 <Power input>
5V_IN: Terminal Block 2-pin power connector
Pin
Signal
Pin
Signal
1
GND
2
Power in (5V ONLY)
2.5.2 <Power output>
DC_OUT: SATA power 6-pin connector
Pin
Signal
Pin
Signal
1NC2
NC
3
GND
4
GND
55V6
5V
5V_IN
1
2
DC_OUT
+
_
6
1
Page 23
LP-177 User’s Manual
-22-
Appendix A <Flash BIOS>
A.1 BIOS Auto Flash Tool
The board is based on Insyde BIOS and can be updated easily by the BIOS auto flash
tool. You can download the tool online at the address below:
LP-177 DOS reflash tool
A.2 Flash Method
1. Please make a bootable UFD which can boot into DOS enviroment.
2. Unzip the flash tool and copy it into bootable UFD.
3. Add a bin file to the same folder..
4. Power on the system and flash the BIOS under the DOS environment.
(Command: H2OFFT xxx.bin -all)
5. Power off the system and then power on
Any question about the BIOS re-flash please contact your distributors or visit the
web-site at below:
http://www.commell.com.tw/contact/contact_info.htm
Page 24
LP-177 User’s Manual
-23-
Appendix B <LCD Panel Type select>
According your panel, it need to select the correct resolution in the BIOS.
If there is no fit your panel type, please feedback for us to make OEM modol.
Find the setting from

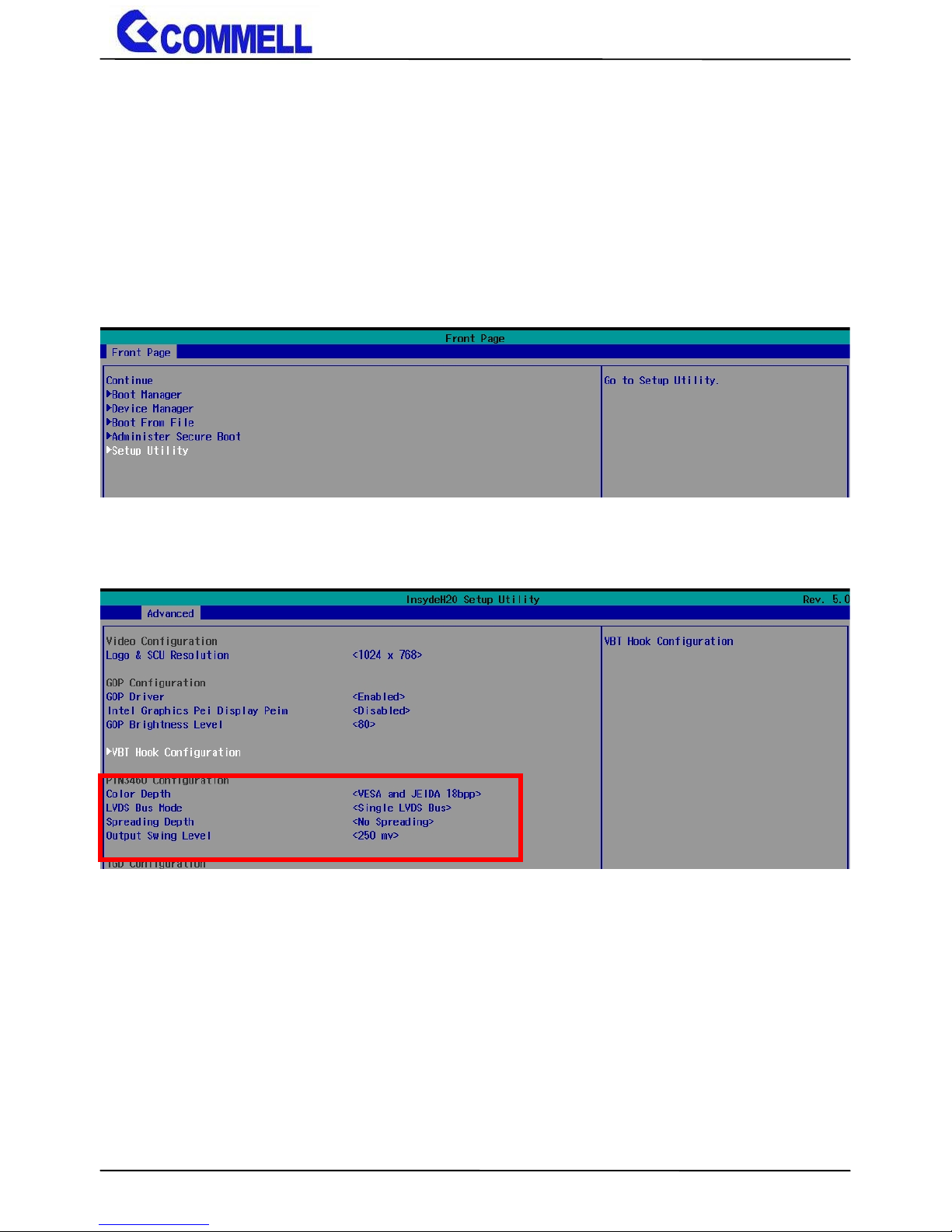

Fornt page-----> Setup Utility
Advanced-----> Uncore Configuration----->VBT Hook Configuration
You can change 18bit /24bit, Single /Dual channel in PTN3460 configuration
Page 25
LP-177 User’s Manual
-24-
There are 16 resolutions in Panel Number.
BIOS panel type selection form (BIOS Version:1.0)
Single / Dual channel
Single / Dual channel
NO.
Type
NO.
Type
1
Auto
9
1366 x 768
2
640 x 480
10
1680 x 1050
3
800 x 600
11
1920 x 1200
4
1024 x 768
12
1400 x 900
5
1280 x 1024
13
1600 x 900
6
1400 x 1050 Reduced Blanking
14
1024 x 768
7
1400 x 1050 non-Reduced Blanking
15
1280 x 800
8
1600 x 1200
16
1920 x 1080
17
OEM keep
Page 26
LP-177 User’s Manual
-25-
Appendix C <Programmable Watch Dog Timer>
Timeout value range
1 to 255 Minute and Second
Program sample
Watchdog timer setup as system reset with 5 second of timeout
-o 4E 87 ;enter configuration
-o 4E 87
-o 4E 07
-o 4F 08 ;select Logical Device
-o 4E 30
-o 4F 01 ; activate WDTO# function
-o 4E F5
-o 4F 00 ;set “00” is second mode, set “04” is minute mode
-o 4E F6
-o 4F 05 ;00h: Timeout Disable
;01h: Timeout occurs after 1 minute only
;02h: Timeout occurs after 2 second/minute
;03h: Timeout occurs after 3 second/minute
;FFh: Timeout occurs after 255 second/minute
(The deviation is approx 1 second.)
For further information, please refer to Nuvoton NCT6102D datasheet
…
Page 27
LP-177 User’s Manual
-26-
Appendix D <Install Heat Spreader >

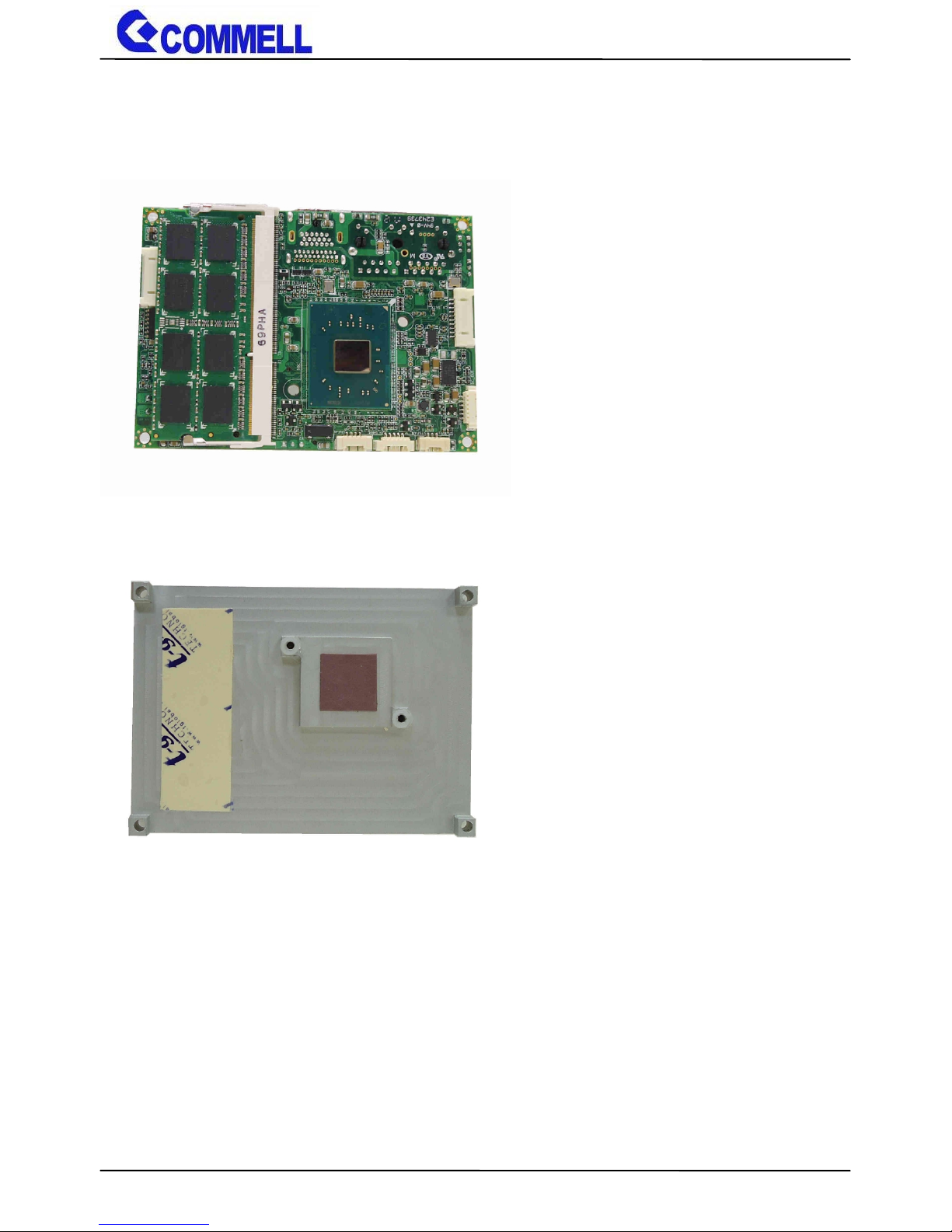

1.Install DDR3L SO-DIMM memory
2.Tear two plastic films carefully
Page 28
LP-177 User’s Manual
-27-

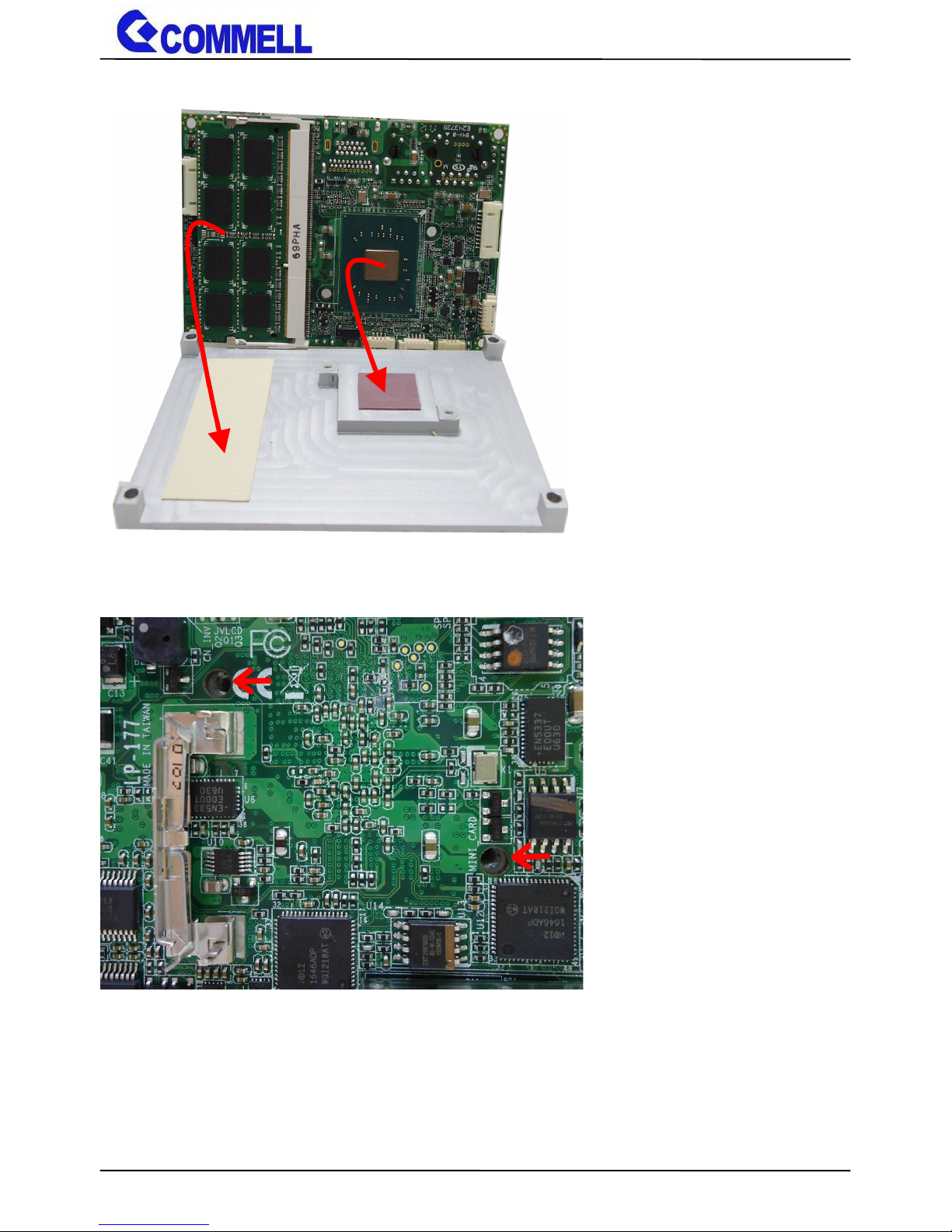

3.Put LP-176 on the heat spreader
4.Align the screw holes
Page 29
LP-177 User’s Manual
-28-

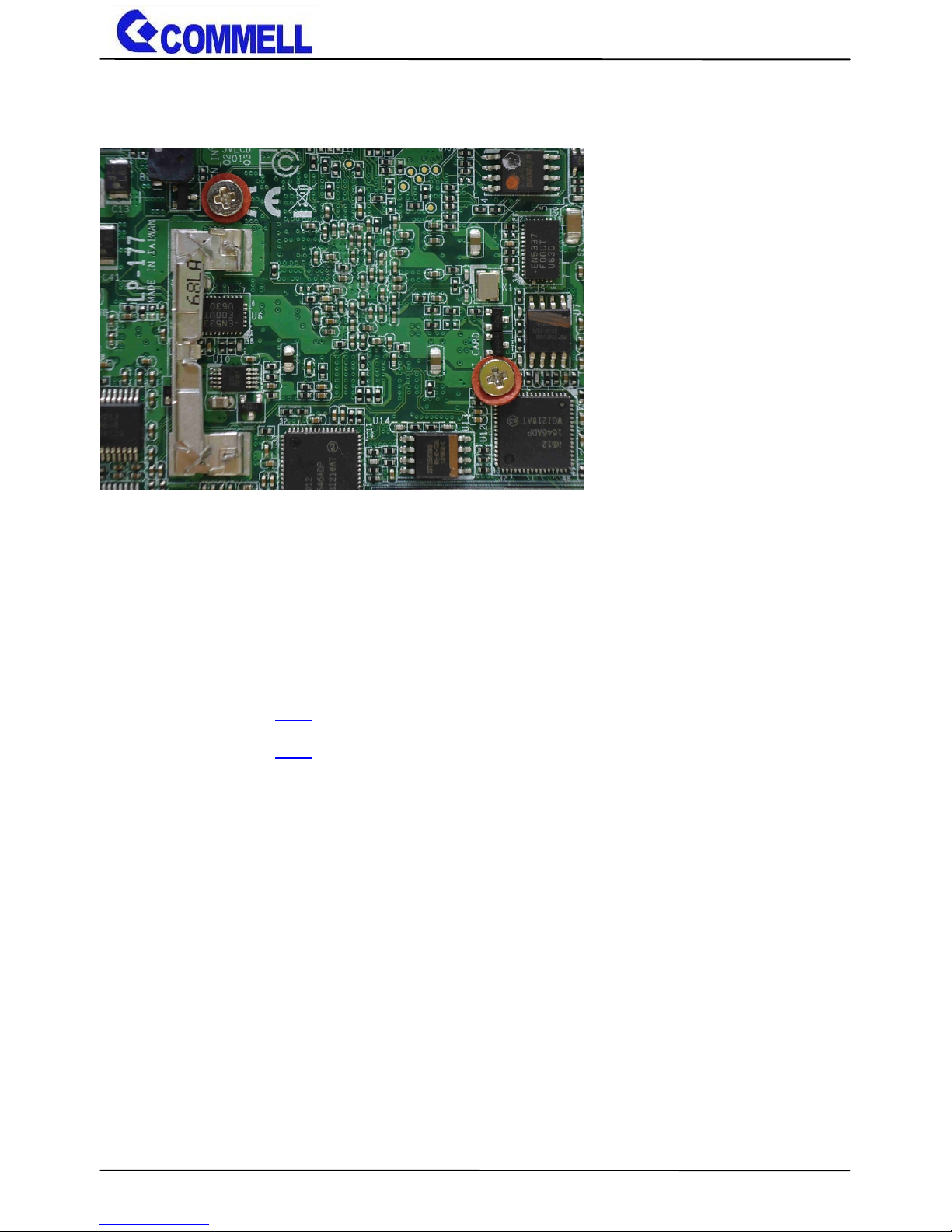

5.Tighten two screws.
The washer is easy broken, so don’t lock too tight.
Appendix E <Setup ADP-3355, ADP-3460>
LP-177T Series have a CRT or 2nd LVDS, it’s no need install extra driver.
For further information, please refer to the manual.
ADP-3355 manual Link
ADP-3460 manual Link
Page 30
LP-177 User’s Manual
-29-

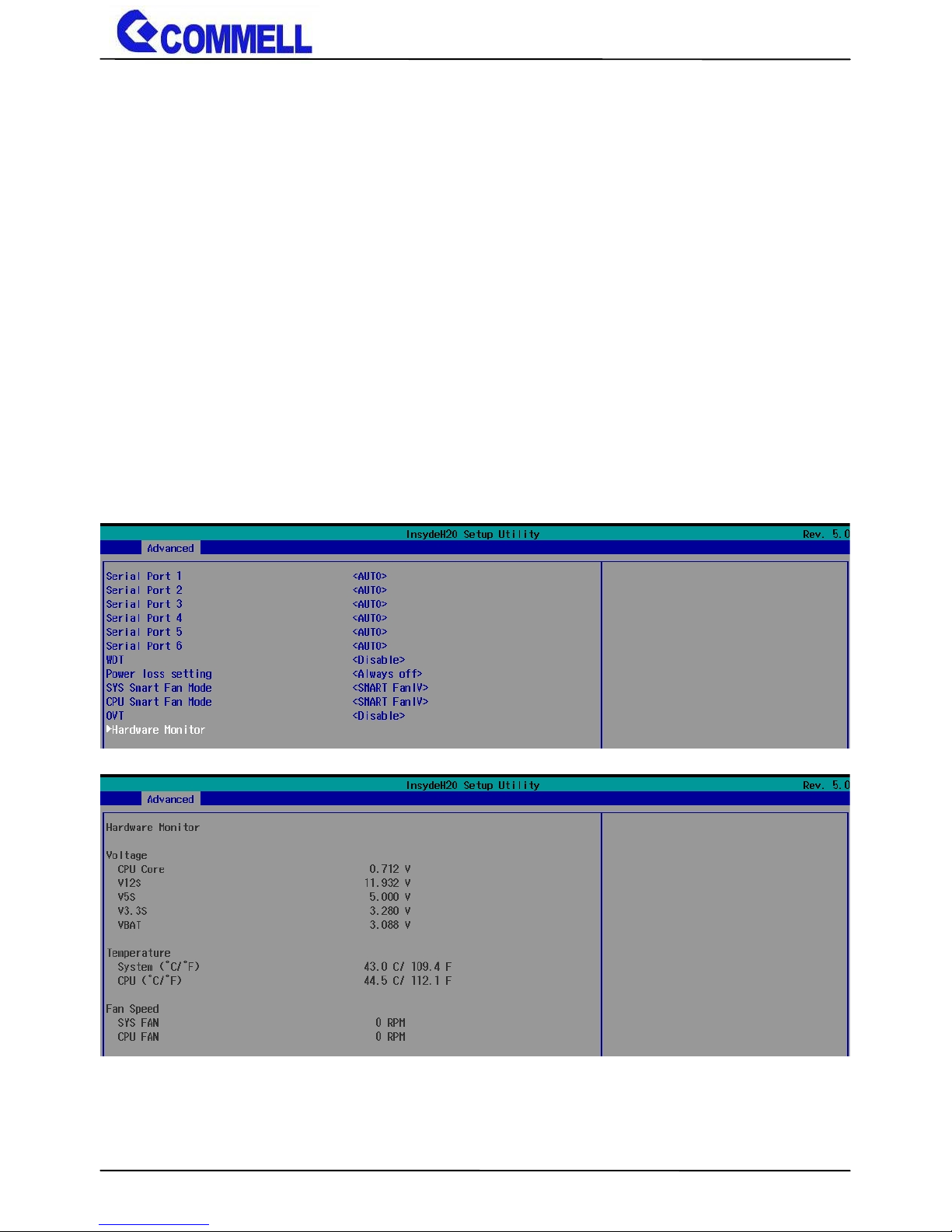

Appendix F <SuperIO Setting>
Press Delete to enter BIOS Setup menu
On Front Page screen, click Setup Utility
On Advenced screen, click SIO NUVOTON6106D
There are 5 functions in the page.
1.WDT(Watch Dog Timer)
2.Power Loss setting
3.Hardware monitor
4.Smart fan
5.OVT (Over temperature)
Page 31
LP-177 User’s Manual
-30-
Contact information
Any advice or comment about our products and service, or anything we can help
you please don’t hesitate to contact with us. We will do our best to support you for
your products, projects and business.
Taiwan Commate computer Inc.
Address
19F., NO.94, Sec. 1, Xintai 5th Rd., Xizhi Dist., New Taipei
City 22102, Taiwan.
TEL
+886-2-26963909
FAX
+886-2-26963911
Website
www.commell.com.tw
E-mail
[email protected] (General infomation)
[email protected] (Technical Support)
Commell is a brand name of Taiwan Commate computer Inc.
Loading...
