LP-176
Pico-ITX Motherboard
User’s Manual
Edition 1.5
2017/06/14
Page 2
LP-176 User’s Manual
-1-
Copyright
Copyright 2016, all rights reserved. This document is copyrighted and all rights are reserved.
The information in this document is subject to change without prior notice to make
improvements to the products.
This document contains proprietary information and protected by copyright. No part of this
document may be reproduced, copied, or translated in any form or any means without prior
written permission of the manufacturer.
All trademarks and/or registered trademarks contains in this document are property of their
respective owners.
Disclaimer
The company shall not be liable for any incidental or consequential damages resulting from
the performance or use of this product.
The company does not issue a warranty of any kind, express or implied, including without
limitation implied warranties of merchantability or fitness for a particular purpose.
The company has the right to revise the manual or include changes in the specifications of
the product described within it at any time without notice and without obligation to notify any
person of such revision or changes.
Trademark
All trademarks are the property of their respective holders.
Any questions please visit our website at TUhttp://www.commell.com.twUT
Page 3
LP-176 User’s Manual
-2-

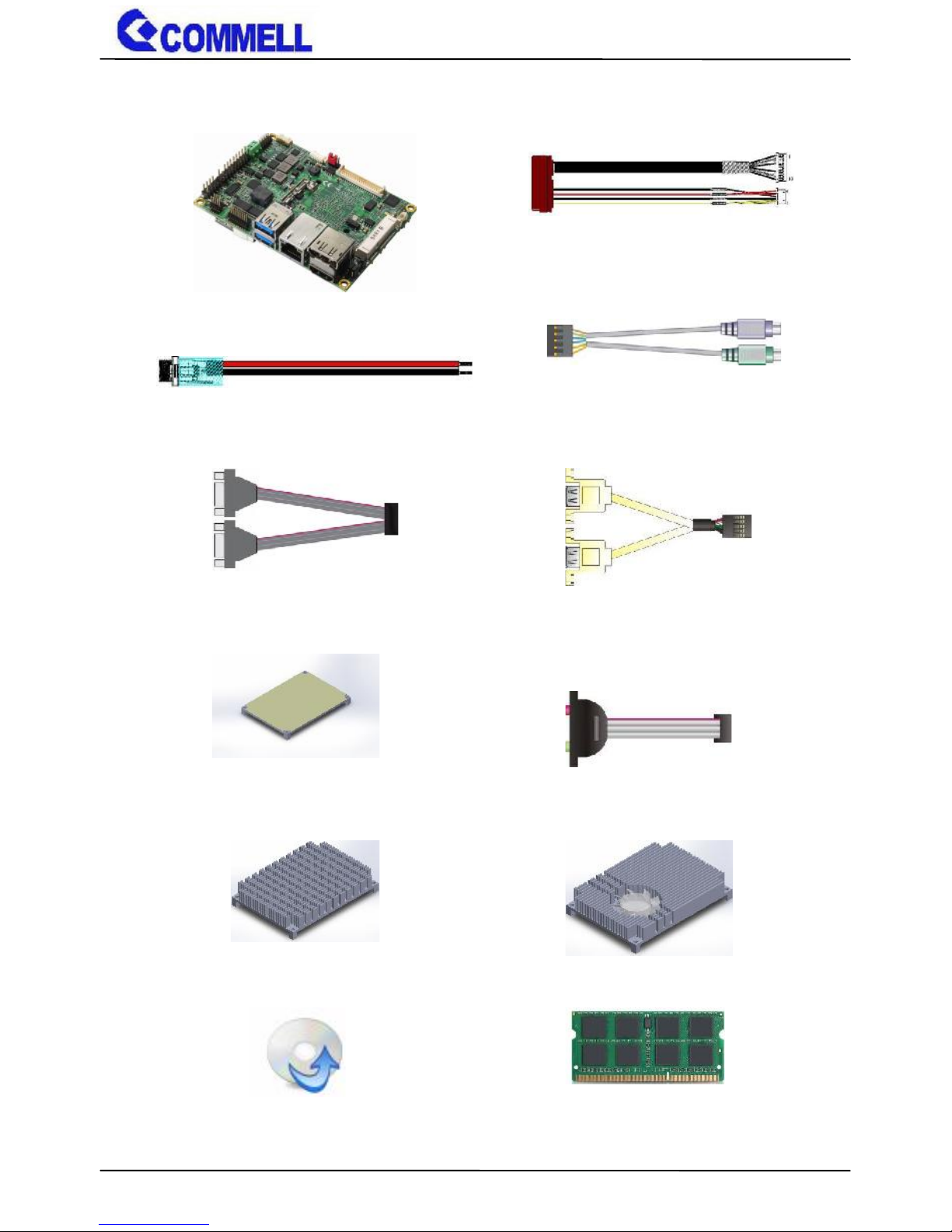

Packing List:
Please check the package content before you starting using the board.
1 x LP-176 Motherboard
1 xDC Input Power Cable
(OALDC-B / 1040513)
+
_
1 x PS/2 Keyboard & Mouse cable
(OALPS2/KM / 1040131)
1 x Audio cable
(OALPJ-HDUNB / 1040123)
1 xUSB2.0 cable
(OALUSBA-3 / 1040173)
1 x Dual COM cable
(OALES-BKU2NB / 1040090)
1 x SATA Cable
(OALSATA22B-PM15SH15) / (1040512)
1 x Heatsink(Optional)
(OHS-176-01 / 2181110026)
1 x DDR3L SO-DIMM (Optional)
(DSDM4GB-DDR3L-1600-SO-1.35V / 1140091)
(DSDM8GB-DDR3L-1600-SO-1.35V / 1140092)
1 x Cooler fan (Optional)
(OHSF-176 / 2181010025)
1 x Driver CD
(Including User’s Manual)
1 x Heat spreader
(OHS-176 / 2181110015)
Page 4
LP-176 User’s Manual
-3-
Index
Chapter 1 <Introduction> .................................................... 4
1.1 <Product Overview>............................................................ 4
1.2 <Product Specification> ...................................................... 5
1.3 <Mechanical Drawing>........................................................ 6
1.4 <Block Diagram>.................................................................8
Chapter 2 <Hardware setup> ............................................... 9
2.1 <Connector Location and Reference> ................................ 9
2.1.1 <Internal connectors list> ........................................10
2.1.2 <External connectors list>....................................... 10
2.2 <Jumper Location and Reference> ................................... 11
2.2.1 <Jumper list> .......................................................... 11
2.2.2 <Clear CMOS and Power on type selection>.......... 11
2.3 <Installing the Memory>....................................................12
2.4 <I/O interface> ..................................................................13
2.4.1 <Serial ATA interface>............................................. 13
2.4.2 <Ethernet interface>................................................ 13
2.4.3 <Display interface> .................................................13
2.4.4 <Serial Port interface> ............................................ 15
2.4.5 <USB interface>...................................................... 16
2.4.6 <Audio interface>.................................................... 16
2.4.7 <Expansion slot>..................................................... 17
2.4.8 <Front panel switch and indicator> ......................... 18
2.4.9 <Other interface> ....................................................18
2.5 <Power supply> ................................................................ 20
2.5.1 <Power input>......................................................... 20
2.5.2 <Power output>....................................................... 21
Appendix A <Flash BIOS> ................................................. 22
A.1 BIOS Auto Flash Tool........................................................ 22
A.2 Flash Method ....................................................................22
Appendix B <LCD Panel Type select>................................. 24
Appendix C <Programmable Watch Dog Timer> .................. 25
Appendix D <Install Heat Spreader > .................................. 26
Appendix E <Setup ADP-3355> .......................................... 28
Contact information.......................................................... 29
Page 5
LP-176 User’s Manual
-4-
Chapter 1 <Introduction>
1.1 <Product Overview>
LP-176 is pico Motherboard which is design based on Intel® Pentium® Processor N3000
Series Processor(Braswell SoC), delivering outstanding compute, graphical, and media
performance while operating in an extended range of thermal conditions. The SoC bases on
the Silvermont microarchitecture, utilizing Intel’s industry-leading 14nm process technology
with 3-D Tri-Gate transistors, which deliver significant improvements in computational
performance and energy efficiency.
New features
The Intel® Pentium® N3000 Series Processor and Atom™ x5 Processor Series have a
lower TDP 6W, it provides new HD Graphics to support triple display, 4K resolution,
maximum memory size is up to 8GB of DDR3L, and more enhanced security that is suitable
for a variety of intelligent systems the ideal choice.
All in One multimedia solution
The board provides high performance onboard graphics, 18/24-bit single/dual channel
LVDS interface, DisplayPort, HDMI, and High Definition Audio, to meet the very requirement
of the multimedia application.
Flexible Expansion Interface
The board provides one MiniPCIe and support mSATA.
Braswell remove EHCI, all USB ports are xHCI
When you install Windows7 with USB device(CDROM, Keyboard, Mouse...), Windows7 can
not identify your usb device. You can use SATA CD-ROM and PS/2 to install Windows7.
Page 6
LP-176 User’s Manual
-5-
1.2 <Product Specification>
System
Processor
Intel® Braswell Series Processor N3710/X5-E8000,
FCBGA1170 package
Chipset
Braswell SoC
Memory
1 x DDR3L DIMM 1600 MHz up to 8GB,
Support Non-ECC, unbuffered memory only
Watchdog Timer
Generates a system reset with internal timer for 1min/s ~ 255min/s
Real Time Clock
Chipset integrated RTC with onboard lithium battery
Expansion
1 x MiniPCIe (support mSATA)
Graphics
Chipset
Intel® HD Graphics
Display Interface
1 x LVDS, 1 x HDMI, 1 x DisplayPort/VGA(Optional)
LAN
Chip
1 x Intel® I210-AT Gigabit LAN
I/O
Serial ATA
1 x SATA3
Audio
Realtek ALC262 HD Audio
Internal I/O
1 x SATA3, 2 x RS232, 2 x USB2.0, 1 x LPC, 1 x PS/2,
1 x SMBUS, 1 x LVDS, 1 x LCD inverter, 1 x Audio, 1 x VGA(Optional).
Rear I/O
2 x USB3.0, 1 x LAN, 1 x HDMI, 1 x DisplayPort(Optional).
Mechanical & Environmental
Power Requirement
DC INPUT 5V
Size & Thickness
100mm x 72mm (L x W)
Temperature
Operating within 0°C~60°C (32°F~140°F)
Storage within -20°C~80°C (-4°F~176°F)
Relative Humidity
10%~90%, non-condensing
Page 7
LP-176 User’s Manual
-6-

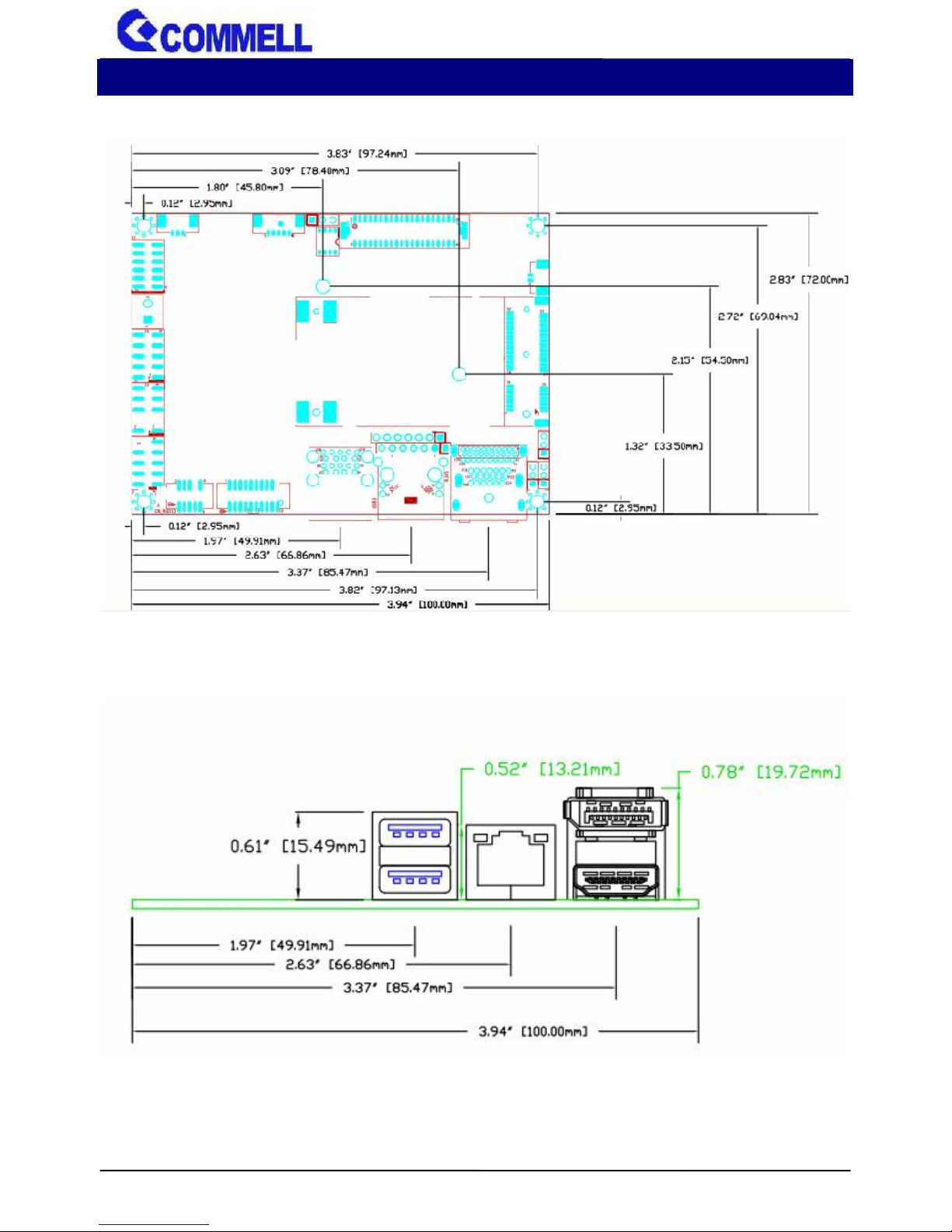

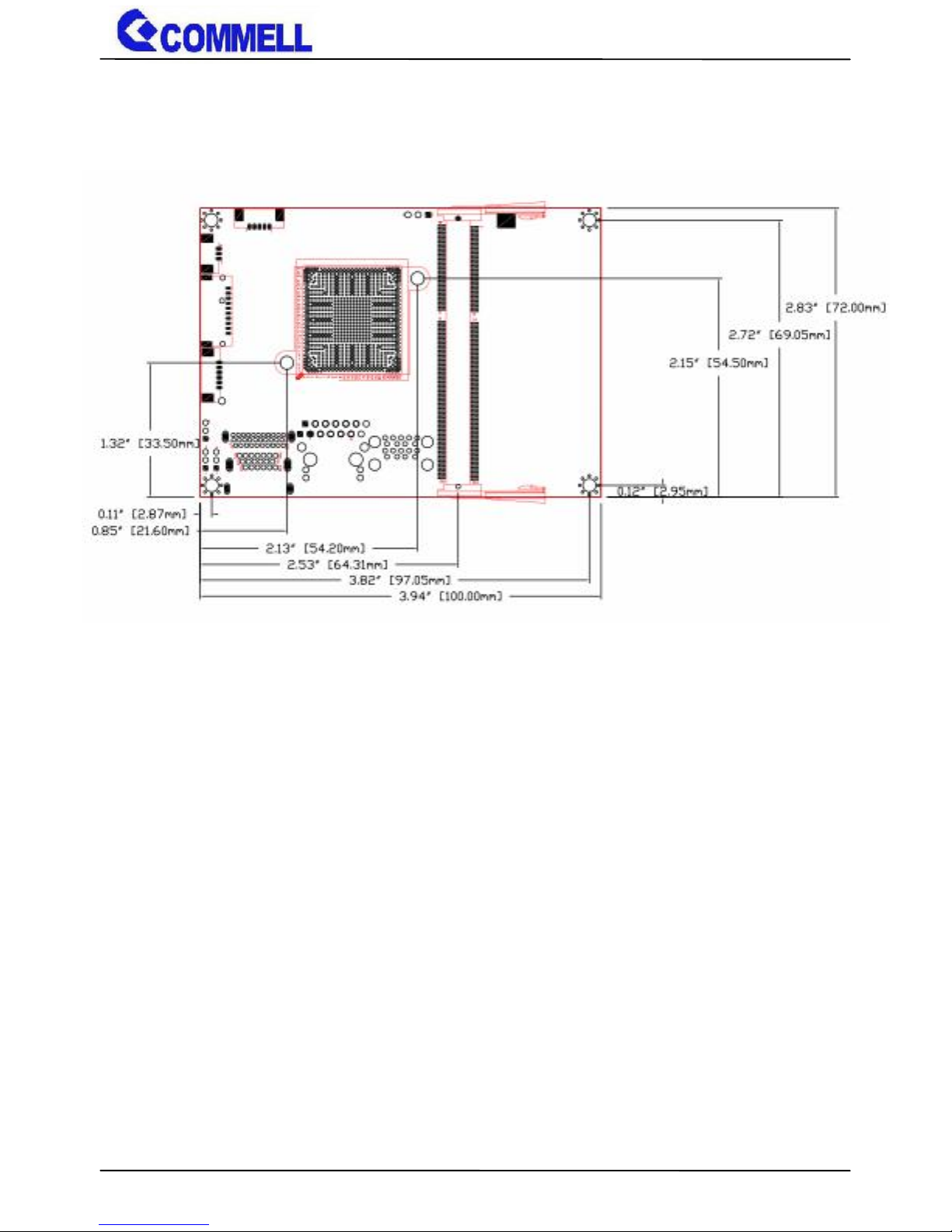

1.3 <Mechanical Drawing>
Page 8
LP-176 User’s Manual
-7-
Page 9
LP-176 User’s Manual
-8-
1.4 <Block Diagram>
CPU
Braswell
SoC
DDR3L
SO-DIMM
1 x DisplayPort
1 x HDMI
PTN3460
1 x LVDS
SIO
NCT6102D
DDI
Channel A
eDP
DDI
1 x SATA3
SATA3
2 x USB3.0
2 x USB2.0
USB3.0
USB2.0
SPI Flash
SPI
PCIe x1
I210-AT
HDA
HD Audio
LPC
1 x LPC
ALC262
2 x RS232
1 x SMBUS
PCIe x1
SATA3
MiniPCIe
/ mSATA
1 x PS/2
SMBus
Page 10
LP-176 User’s Manual
-9-
Chapter 2 <Hardware setup>

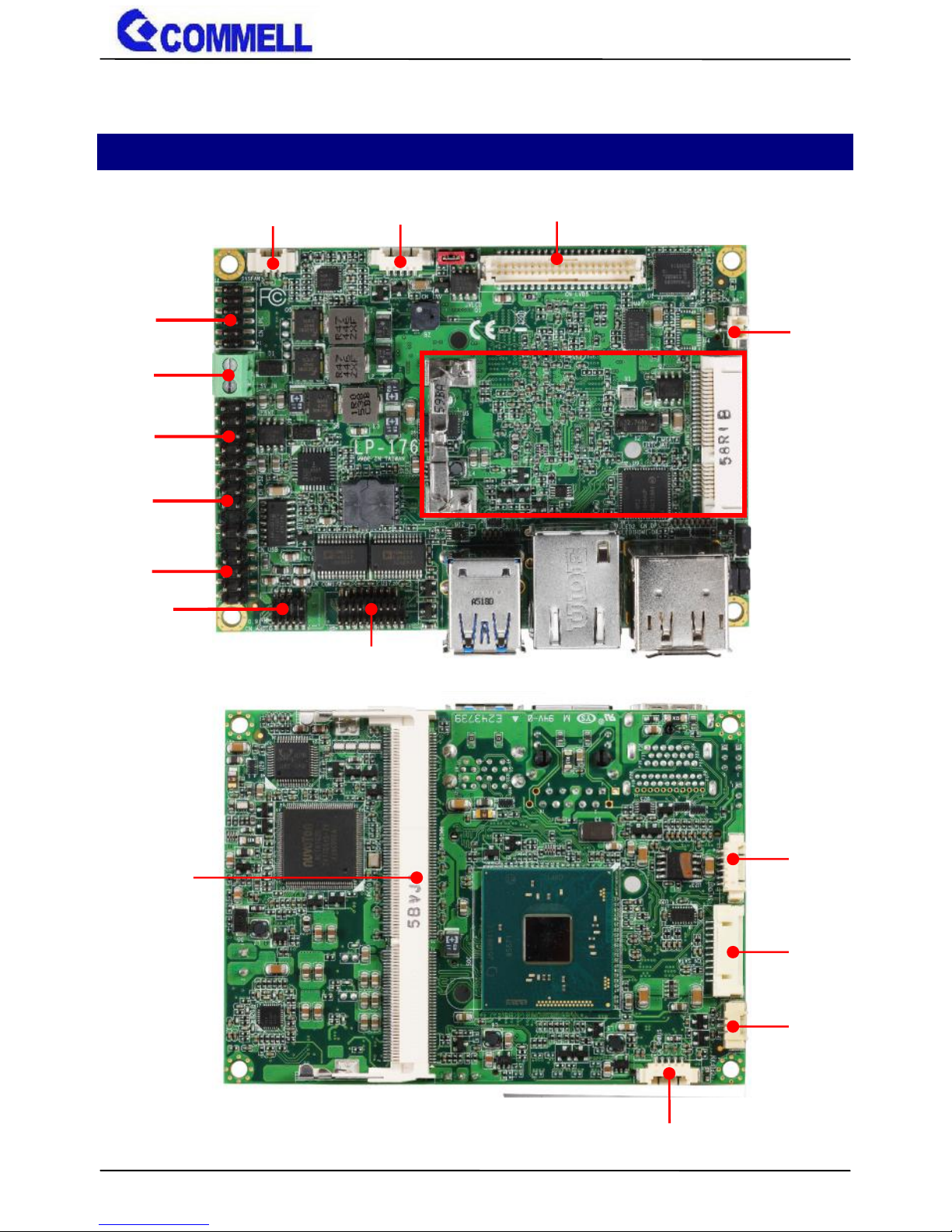

2.1 <Connector Location and Reference>
MINI_CARD
CN_USB
CN_PS2
JFRNT
5V_IN
CN_LPC
CN_LVDS
SYSFAN
CN_INV
SO-DIMM
5V_OUT
CN_AUDIO
CN_COM1/2
CN_BAT
CN_SATA
CPUFAN
SMBUS
Page 11
LP-176 User’s Manual
-10-

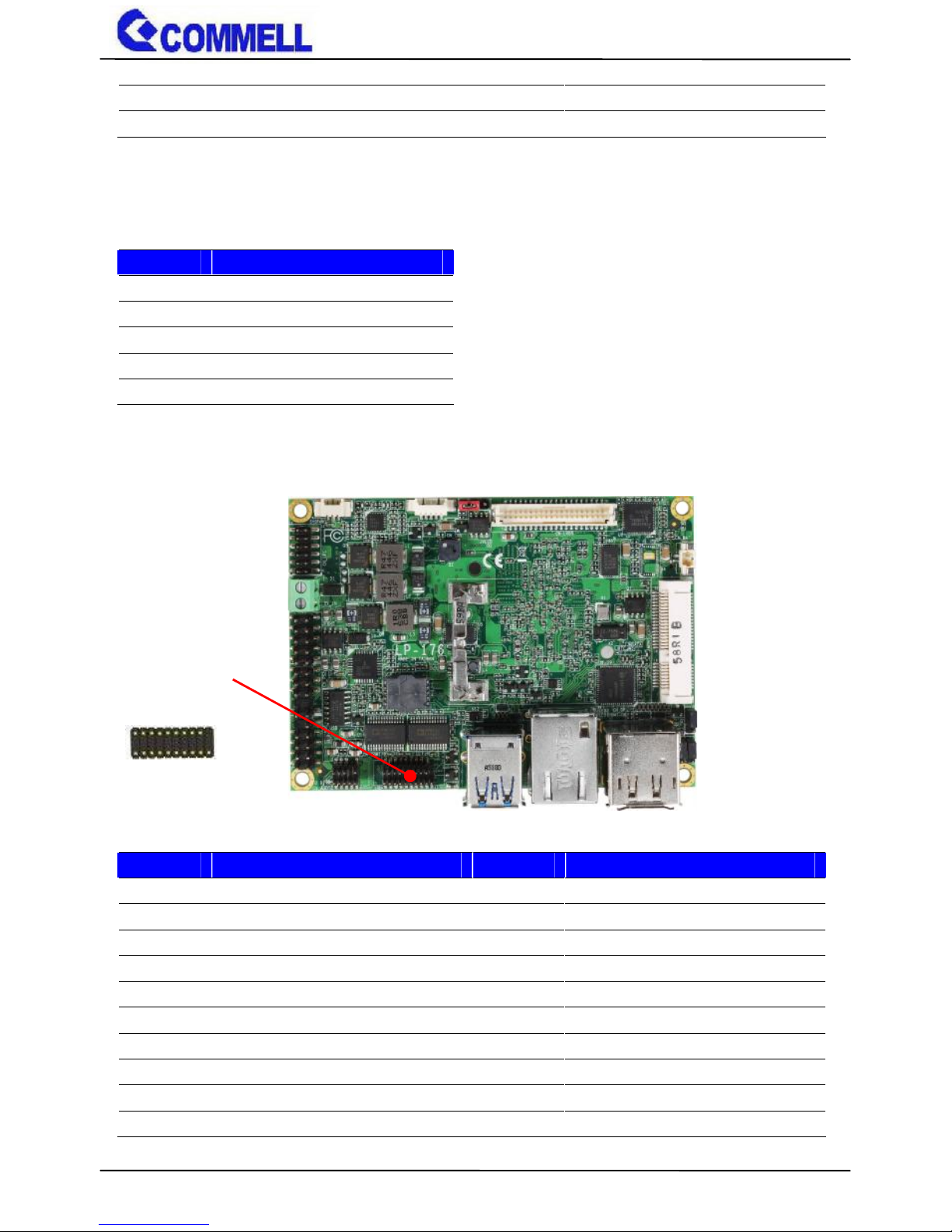

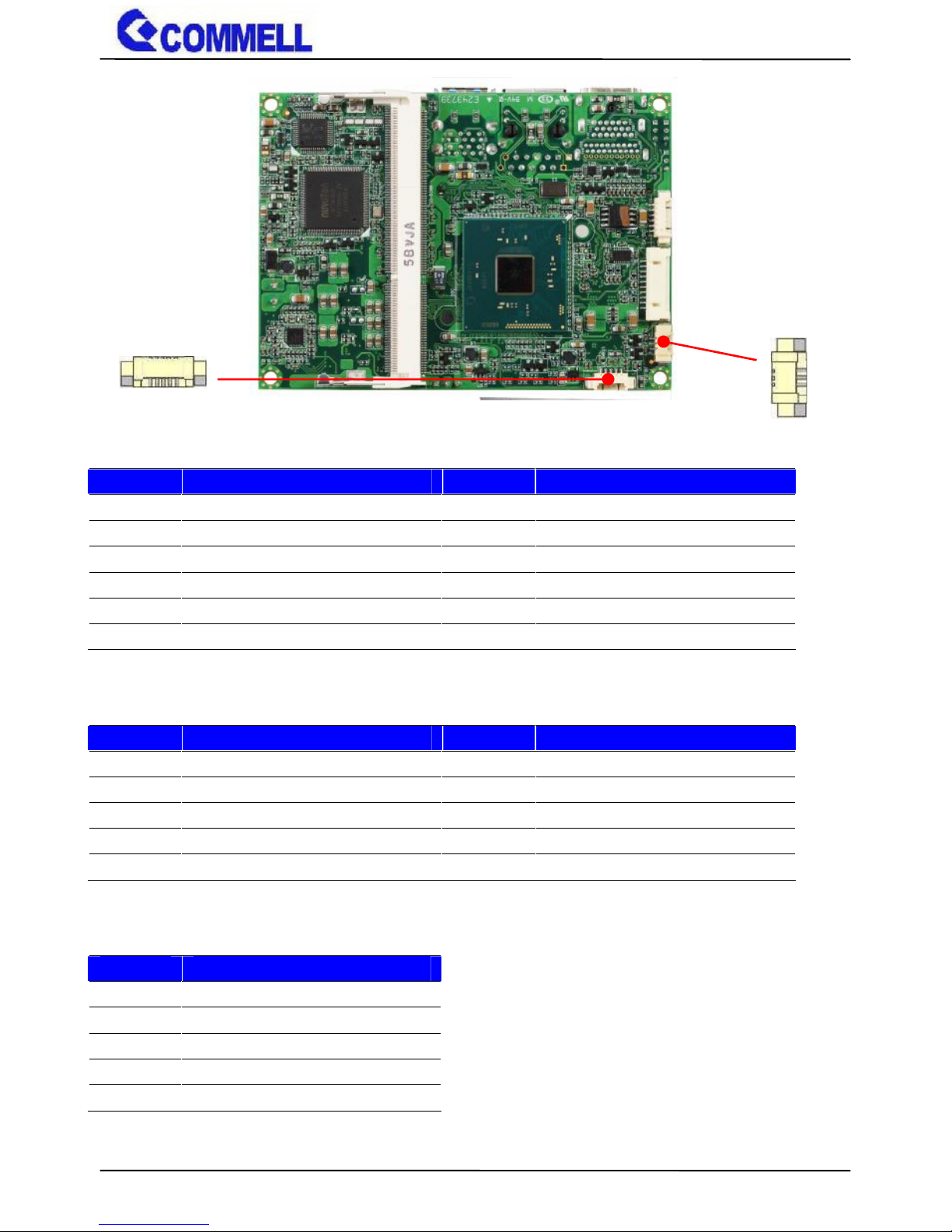

2.1.1 <Internal connectors list>
Connector
Function
SO-DIMM
204-pin DDR3L SO-DIMM slot
CN_SATA
10-pin Serial ATA3 connector
CN_AUDIO
5 x 2-pin audio pin header
CN_LPC
6 x 2-pin LPC pin header
CN_LVDS
20 x 2-pin LVDS connector
CN_INV
5-pin LCD inverter connector
CN_SMBUS
5-pin SMBus connector
CN_COM 1/2
19-pin RS232 connector
CN_USB
5 x 2-pin USB2.0 pin header
CN_PS2
5 x 2-pin PS/2 pin header
CPUFAN
3-pin CPU fan connector
SYSFAN
3-pin system fan connector
JFRNT

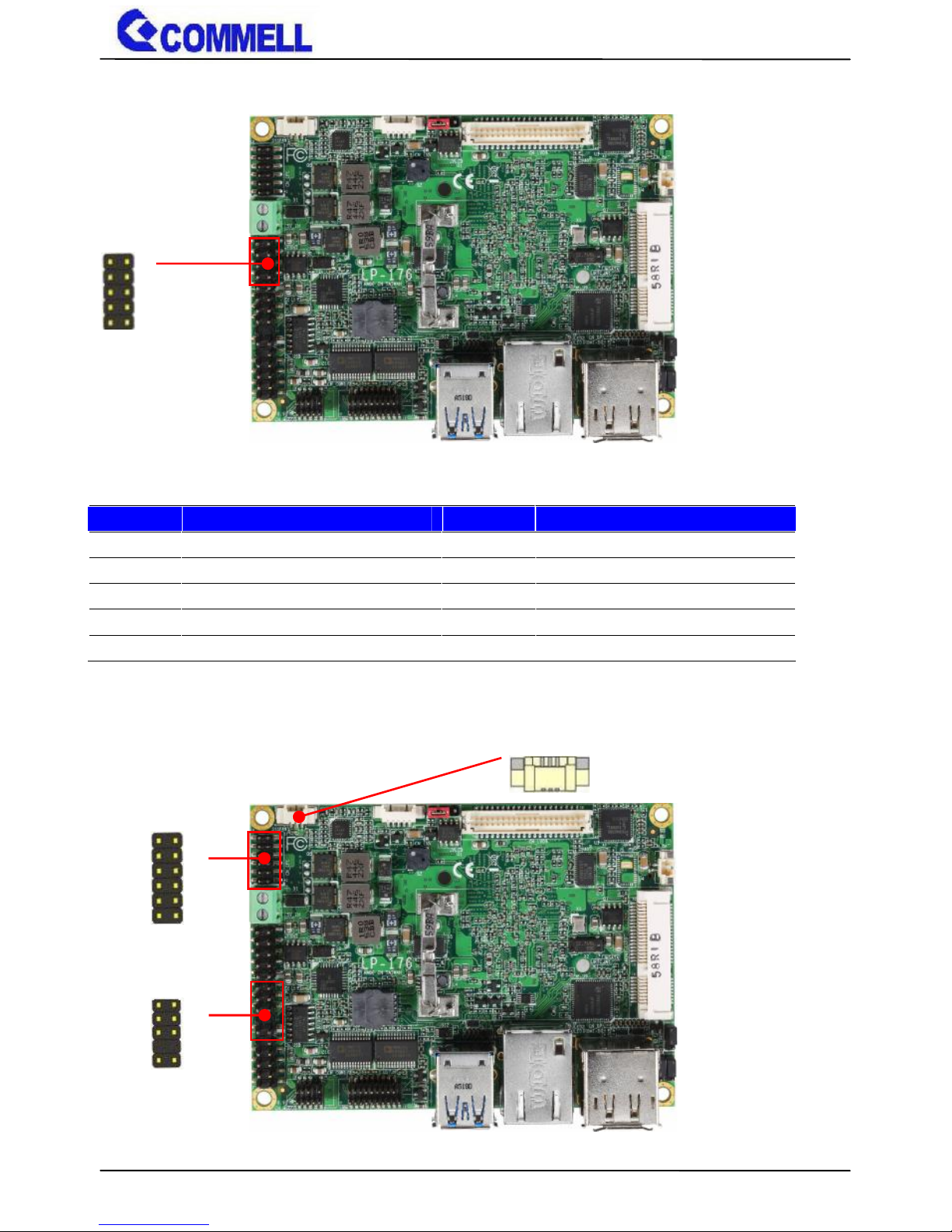

5 x 2-pin front panel switch/indicator pin header
MINI_CARD
52-pin MiniPCIe card slot
5V_OUT
6-pin SATA Power connector
5V_IN

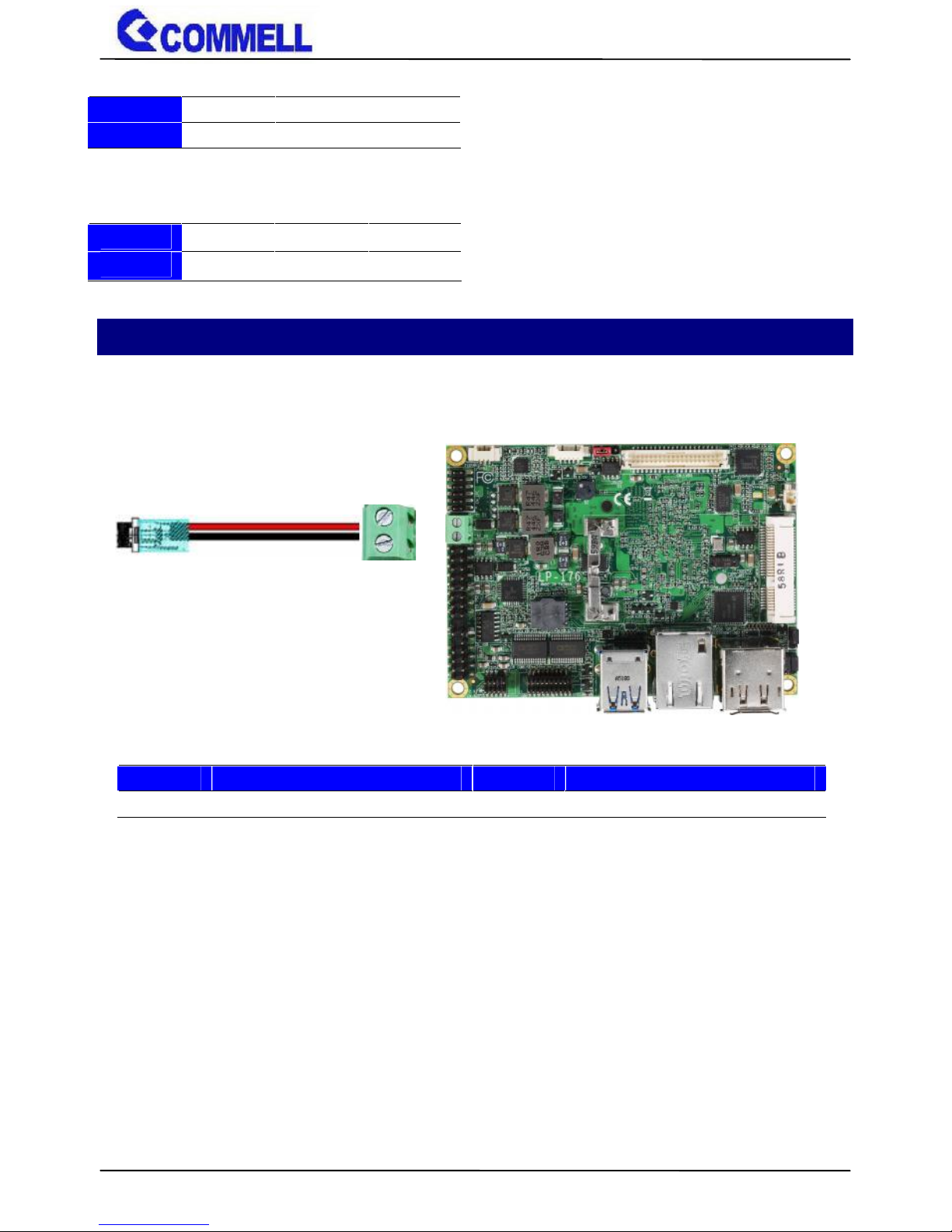

2-pin power input Terminal Block (5V Only)
2.1.2 <External connectors list>
Connector
Function

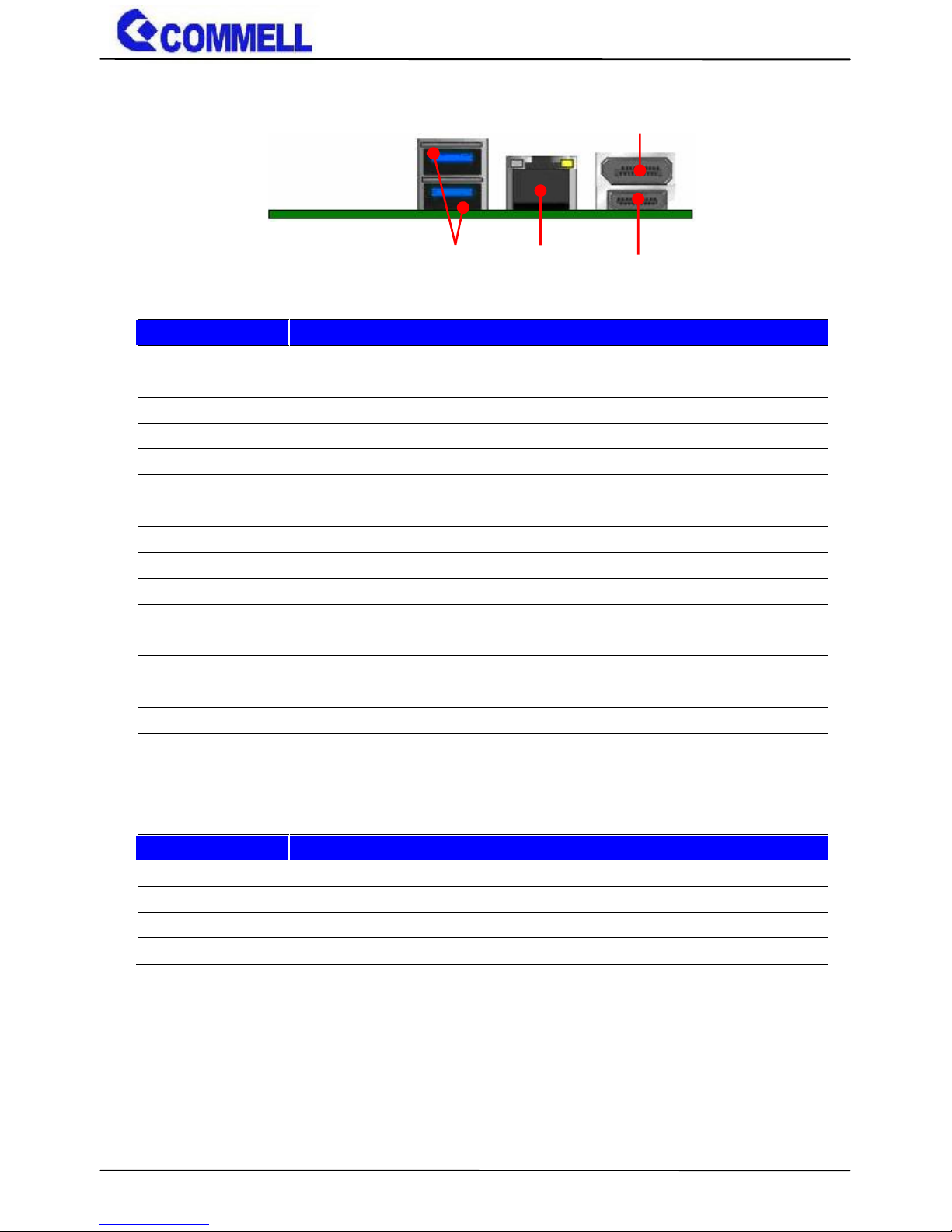

DisplayPort
DisplayPort connector
HDMI
HDMI connector
USB3
2 x USB3.0 connector
RJ45
RJ45 LAN connector
USB3.0
RJ45
DisplayPort
HDMI
Page 12
LP-176 User’s Manual
-11-

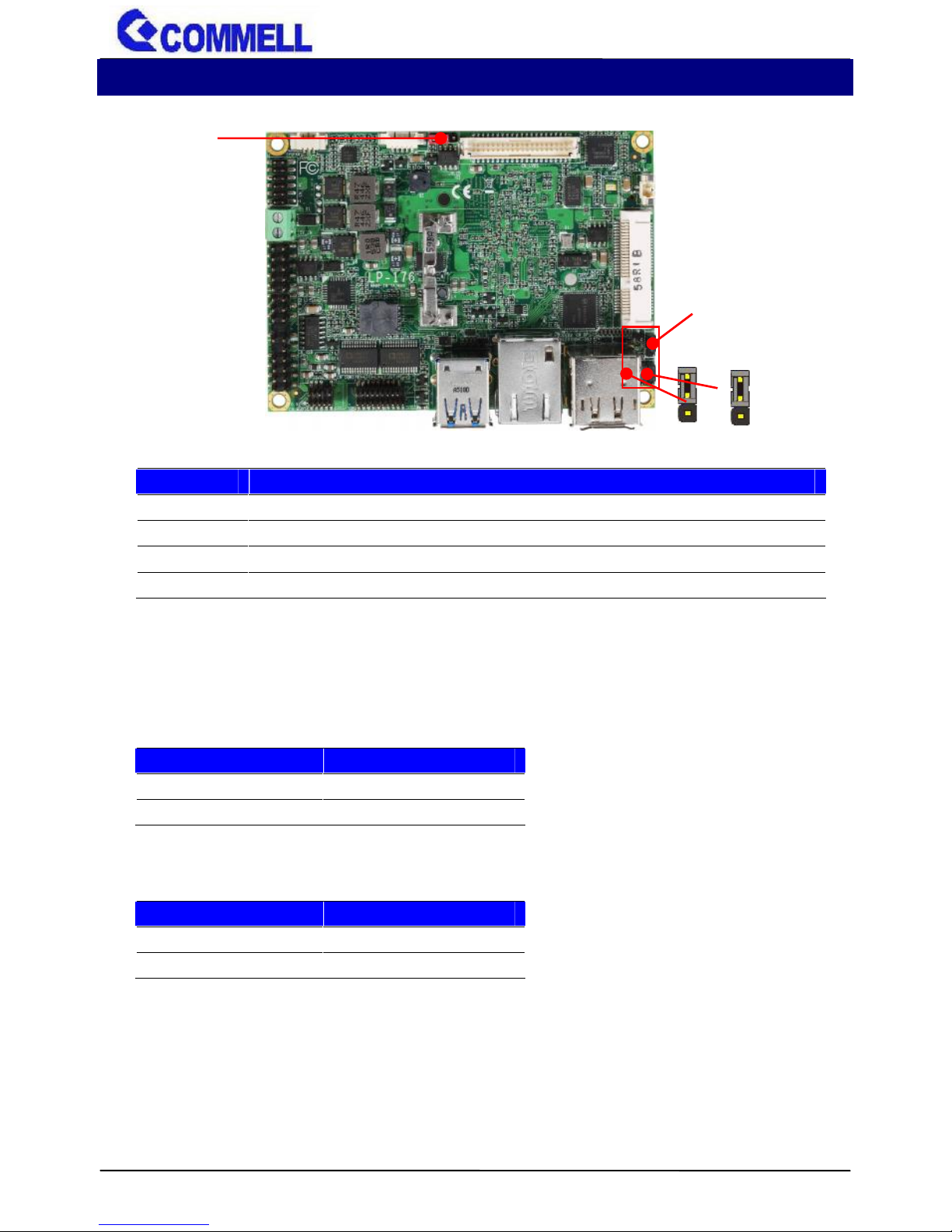

2.2 <Jumper Location and Reference>
2.2.1 <Jumper list>
Jumper
Function
JAT
Power mode select
JRTC
CMOS Normal/Clear Setting
JVLCD
Panel Voltage Setting
JMSATA
MiniCard mSATA Setting

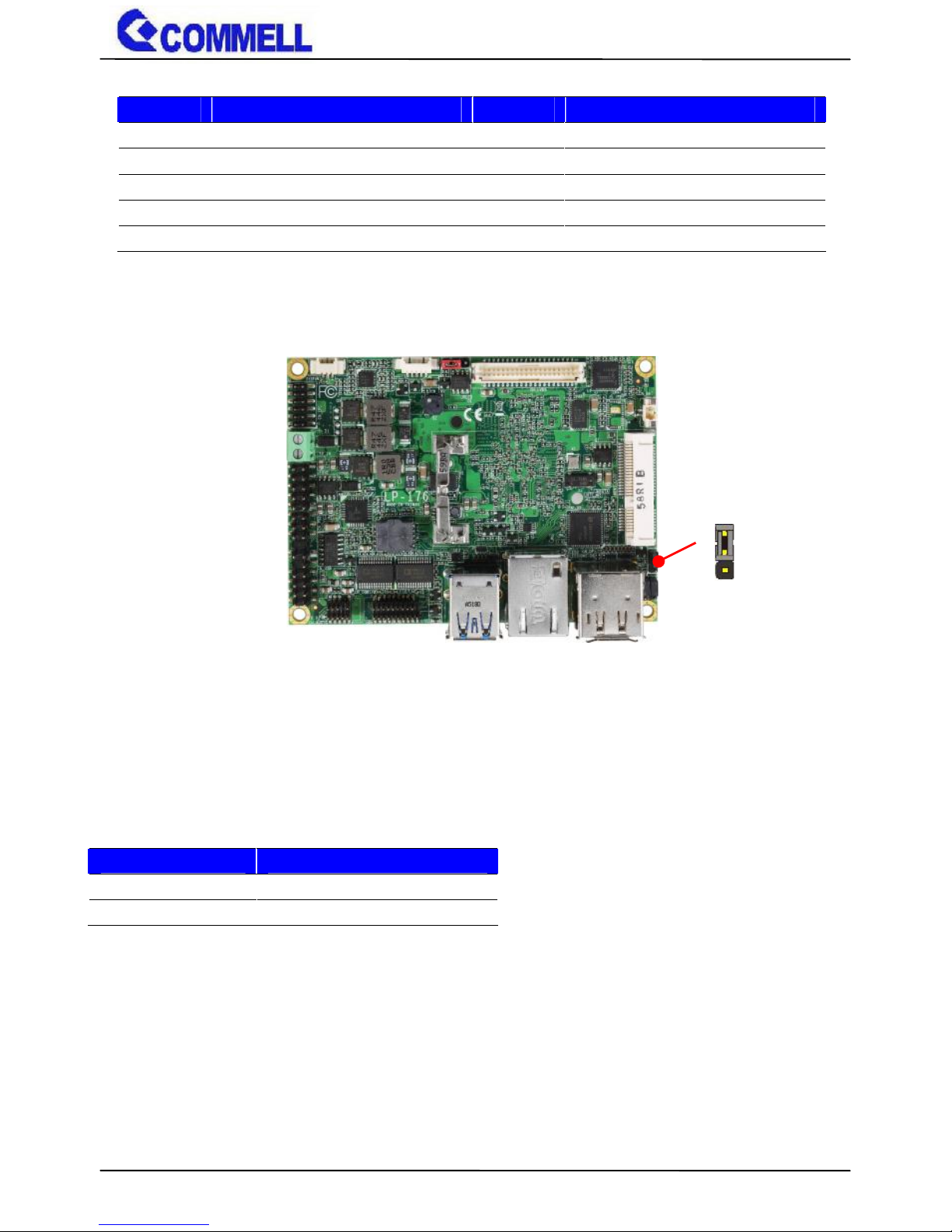

2.2.2 <Clear CMOS and Power on type selection>
JRTC: Clear CMOS data jumper
Jumper settings
Function
1-2
Clear CMOS
2-3
Normal (Default)
JAT: AT/ATX mode select jumper
Jumper settings
Function
1-2
AT mode
2-3
ATX mode (Default)
JVLCD
JAT
JRTC
1
3
1
3
JMSATA
Page 13
LP-176 User’s Manual
-12-

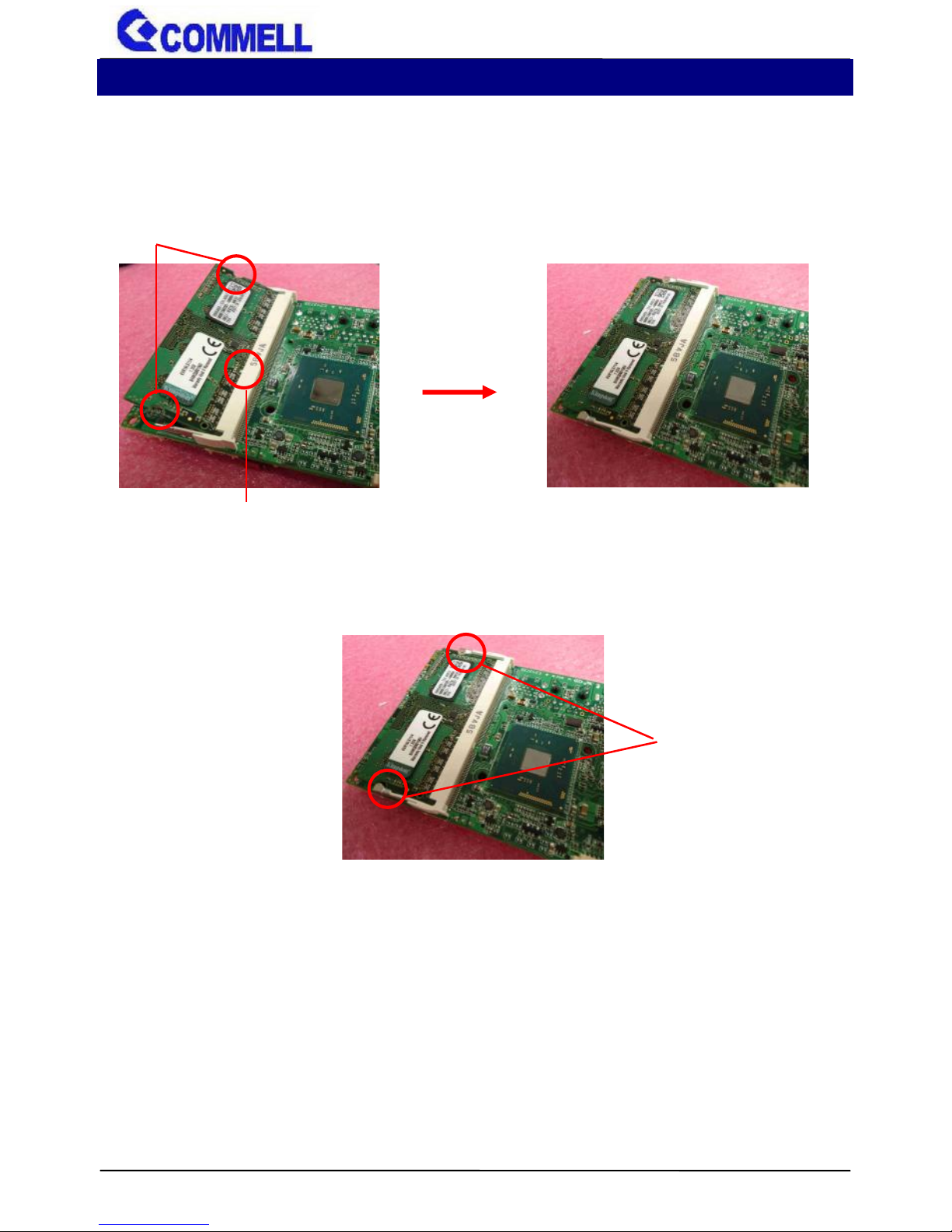

2.3 <Installing the Memory>
In the process, the board must be powered off.
1. Put the memory tilt into the slot. Note the Memory notch key aligned slot key.
2. Then press down till lock into the mounting notch.
3. To remove the memory, push outward on both sides of the latch.
Key
Mounting notch
Press down
Latch
Page 14
LP-176 User’s Manual
-13-

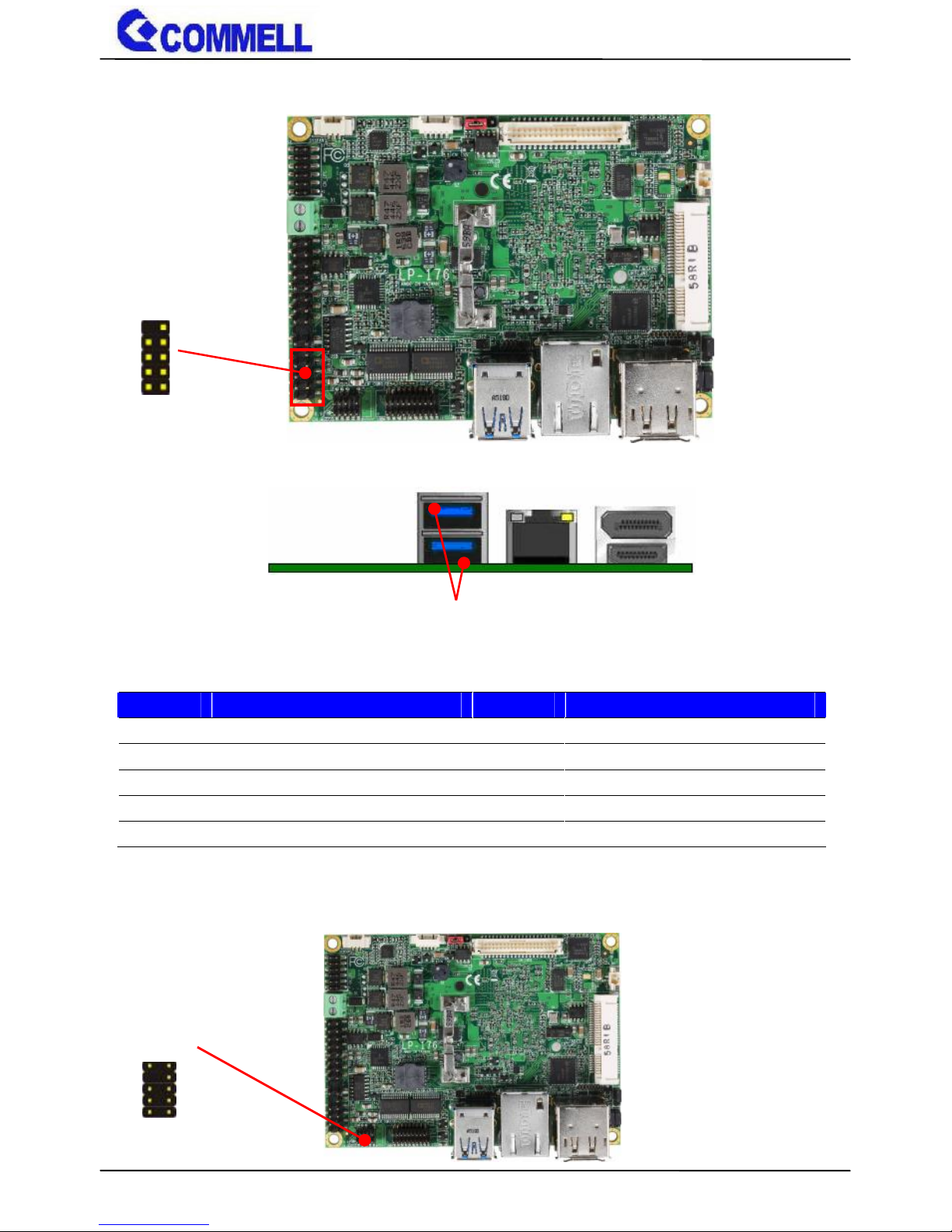

2.4 <I/O interface>

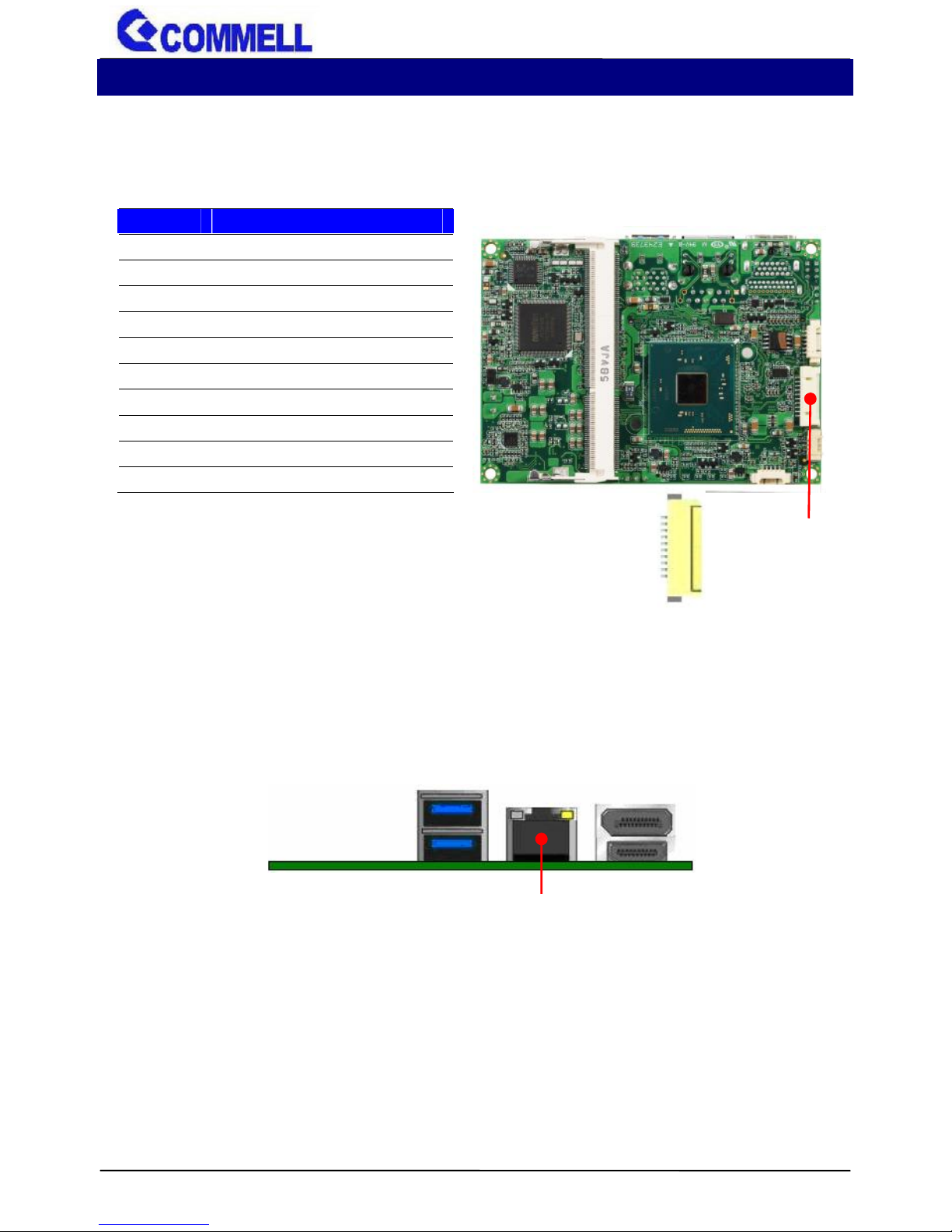

2.4.1 <Serial ATA interface>

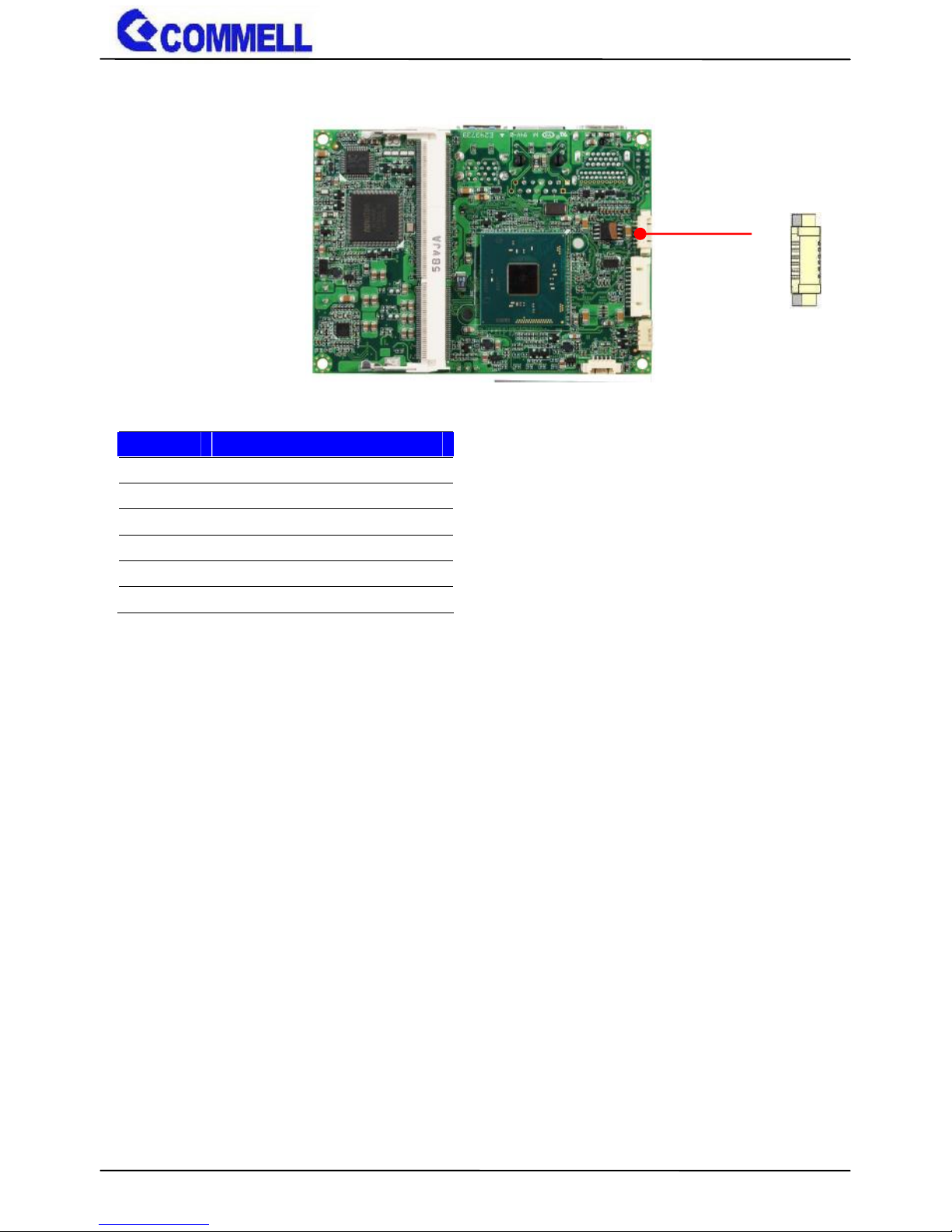

CN_SATA: SATA3 10-pin connector
2.4.2 <Ethernet interface>
The board provide I210-AT Gigabit Ethernet which supports WOL on rear I/O.
Find the setting from
Advanced-----> Power Management-- Wake on LAN Enable [Disable] (default)
2.4.3 <Display interface>
Based on the Braswell SoC with built-in HD Graphics, the DisplayPort up to
3840x2160 @ 30Hz on rear I/O.About the internal Display, the HDMI resolution up
to 3840x2160 @ 30Hz and LVDS (PTN3460) up to 1920x1200 @ 60Hz support
18/24-bit color depth and single/dual channel. About select LCD Panel Type in
BIOS, please refer Appendix B.The built-in HD Graphics support triple display
function with clone mode and extended mode.
Pin
Signal
1
GND
2
TX+
3
TX-
4
GND
5
NC
6
NC
7
GND
8
RX-
9
RX+
10
GND
CN_SATA
10
1
I210-AT
Page 15
LP-176 User’s Manual
-14-

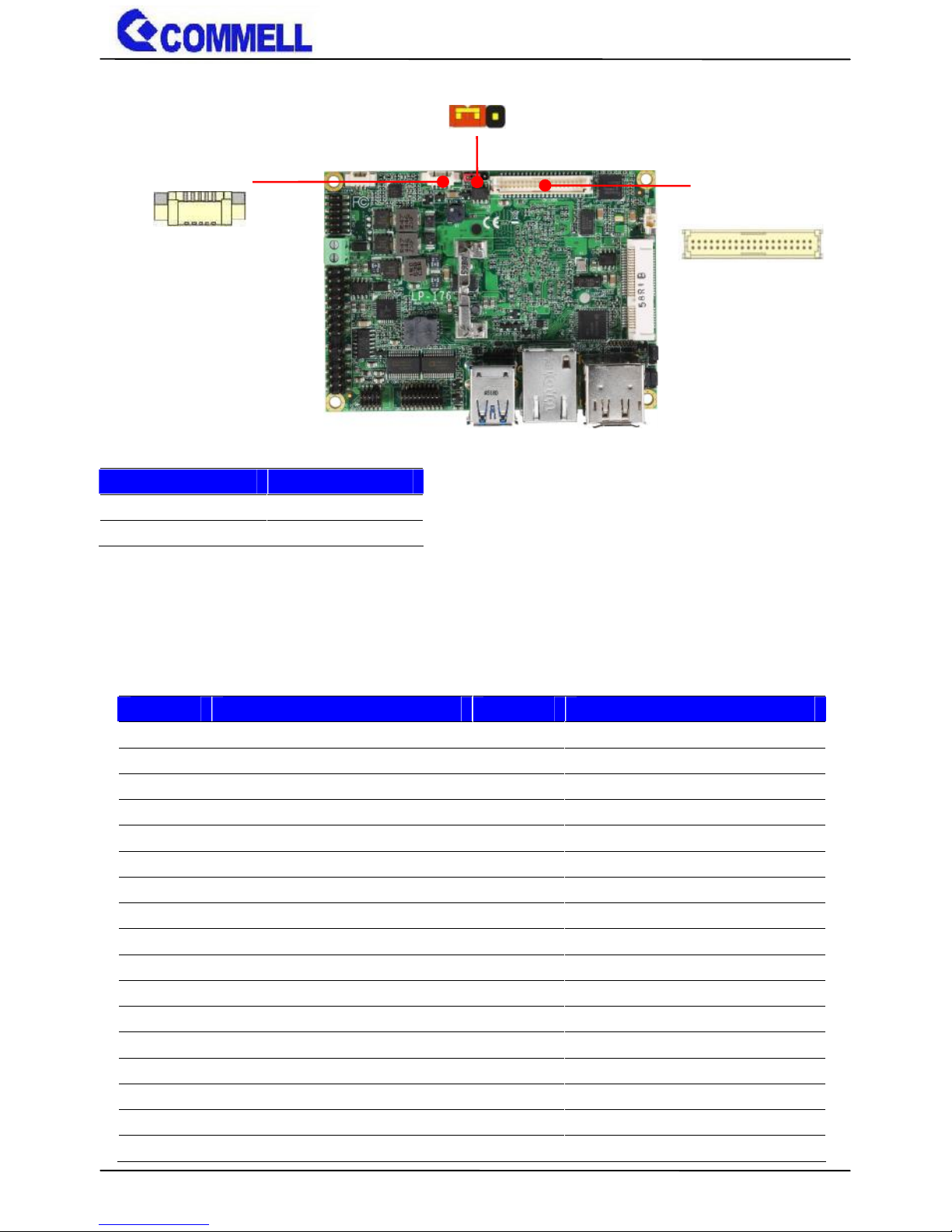

JVLCD: LVDS panel power select jumper
Jumper settings
Function
1-2
3.3V (Default)
2-3
5V
Effective patterns of connection: 1-2 / 2-3
Other may cause damage
CN_LVDS: LVDS 40-pin connector (Model: HIROSE DF13-40DP-1.25V compatible)
Pin
Signal
Pin
Signal
2
Set by JVLCD
1
Set by JVLCD
4
Detect (Active low)
3
GND
6
A_LVDS_0-
5
B_LVDS_0-
8
A_LVDS_0+
7
B_LVDS_0+
10
GND
9
GND
12
A_LVDS_1-
11
B_LVDS_1-
14
A_LVDS_1+
13
B_LVDS_1+
16
GND
15
GND
18
A_LVDS_2-
17
B_LVDS_2-
20
A_LVDS_2+
19
B_LVDS_2+
22
GND
21
GND
24
A_LVDS_CLK-
23
B_LVDS_3-
26
A_LVDS_CLK+
25
B_LVDS_3+
28
GND
27
GND
30
A_LVDS_3-
29
B_LVDS_CLK-
32
A_LVDS_3+
31
B_LVDS_CLK+
34
GND
33
GND
CN_LVDS
1
40
2
39
JVLCD
1
3
CN_INV
1
5
Page 16
LP-176 User’s Manual
-15-
36
LVDS_DDCSCL
35
NC
38
LVDS_DDCSDA
37
NC
40NC39
NC
Note: Pin4 only need to be connected to GND
CN_INV: LVDS 5-pin Backlight power connector
Pin
Signal
1
3.3V
2
Backlight Control
3
5V
4
GND
5
Enable Backlight
2.4.4 <Serial Port interface>
CN_COM1/2: RS232 20-pin header (Pitch 1.27mm x 2.54mm)
Pin
Signal
Pin
Signal
1
DCD1
2
RXD1
3
TXD1
4
DTR1
5
GND
6
DSR1
7
RTS1
8
CTS1
9
RI110NC
11
DCD2
12
RXD2
13
TXD2
14
DTR2
15
GND
16
DSR2
17
RTS2
18
CTS2
19
RI220Key
1
19
20
2
CN_COM1/2
Page 17
LP-176 User’s Manual
-16-
2.4.5 <USB interface>
CN_USB: Front panel USB2.0 10-pin header (Pitch 2.54mm)
Pin
Signal
Pin
Signal
1
5VSB
2
5VSB
3
DATA0-
4
DATA1-
5
DATA0+
6
DATA1+
7
GND
8
GND
9
GND
10
Key
Install USB3.0 Driver If you want to use CN_USB in Windows7.
2.4.6 <Audio interface>
CN_USB
1102
9
CN_AUDIO
1102
9
USB3.0
Page 18
LP-176 User’s Manual
-17-
CN_AUDIO: Front panel audio 10-pin header (Pitch 1.27mm x 2.54mm)
Pin
Signal
Pin
Signal
1
MIC_L
2
GND
3
MIC_R
4
NC
5
FP_OUT_R
6
MIC_DETECT
7
SENSE
8
Key
9
FP_OUT_L
10
FP_OUT_DETECT
2.4.7 <Expansion slot>
MINI_CARD support mSATA by JMSATA
MINI_CARD have some special design to compatible our mini-PCIe card.
(ex: MPX-574D2, MPX-210D2 etc)
JMSATA: Setting MINI_CARD to support PCIe/mSATA
Jumper settings
Function
1-2
Support mSATA
2-3
Normal operation (Default)
1
3
JMSATA
Page 19
LP-176 User’s Manual
-18-
2.4.8 <Front panel switch and indicator>
JFRNT: Front panel switch and indicator 14-pin header (Pitch 2.54mm)
Pin
Signal
Pin
Signal
1
Power_ON-
2
Power_ON+
3
Speaker-
4
Speaker+
5
HDD_LED-
6
HDD_LED+
7
Power_LED-
8
Power_LED+
9
Reset+
10
Reset-
2.4.9 <Other interface>
CN_LPC
12
1
2
11
JFRNT
9
2
1
10
SYSFAN
1
3
CN_PS2
129
10
Page 20
LP-176 User’s Manual
-19-
CN_LPC: LPC 12-pin header (Pitch 2.00mm)
Pin
Signal
Pin
Signal
1
CLK
2
RST
3
-LFRAME
4
LAD3
5
LAD2
6
LAD1
7
LAD0
8
3.3V
9
SERIRQ
10
GND
11
3.3VSB
12
NC
CN_PS/2: PS/2 10-pin header (Pitch 2.54mm)
Pin
Signal
Pin
Signal
1
KB_DATA
2
M_DATA
3NC4
NC
5
GND
6
GND
7
VCC
8
VCC
9
KB_CLK
10
M_CLK
CN_SMBUS: SMBus 5-pin connector
Pin
Signal
1
5V
2
NC
3
SMBDAT
4
SMBCLK
5
GND
CN_SMBUS
1
5
CPUFAN
1
3
Page 21
LP-176 User’s Manual
-20-
CPUFAN: CPU cooler fan 3-pin connector
Pin12
3
Signal
GND
5V
Sensor
SYSFAN: System cooler fan 3-pin connector
Pin12
3
Signal
GND
5V
Sensor
2.5 <Power supply>
2.5.1 <Power input>
5V_IN: Terminal Block 2-pin power connector
Pin
Signal
Pin
Signal
1
GND
2
Power in (5V ONLY)
5V_IN
1
2
+
_
Page 22
LP-176 User’s Manual
-21-
2.5.2 <Power output>
5V_OUT: SATA power 6-pin connector
Pin
Signal
1
NC
2
NC
3
GND
4
GND
5
5V
6
5V
5V_OUT
6
1
Page 23
LP-176 User’s Manual
-22-
Appendix A <Flash BIOS>
A.1 BIOS Auto Flash Tool
The board is based on Phoenix BIOS and can be updated easily by the BIOS auto flash
tool. You can download the tool online at the address below:
LP-176 reflash tool
A.2 Flash Method
1.Extract the zip file(re-flash tool and BIOS file) to root of the USB flash
drive.
2.Insert your USB flash drive in USB port of the board and power
on the system.

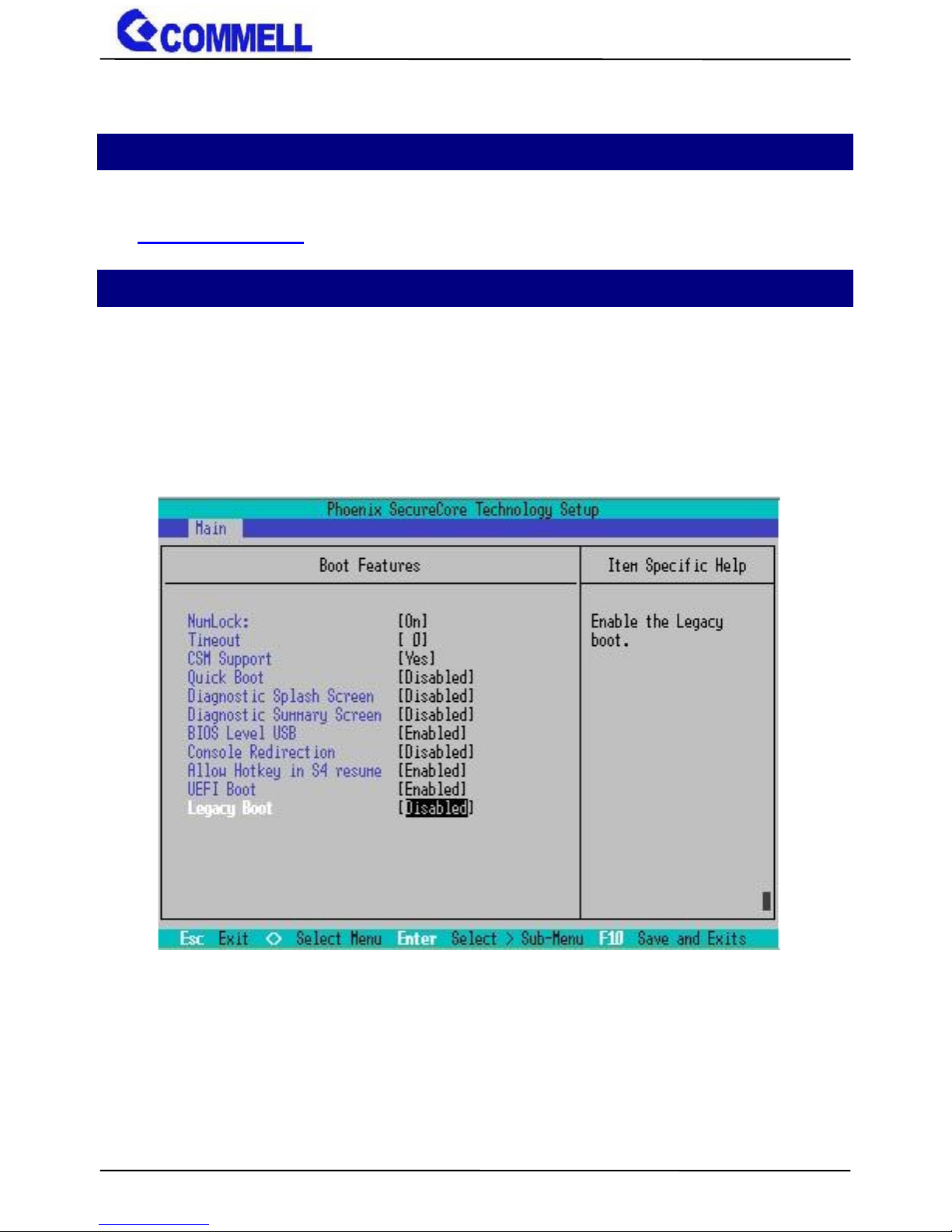

3. Boot to EFI-Shell mode (UEFI Boot Enable, Legacy Boot Disable)
Page 24
LP-176 User’s Manual
-23-

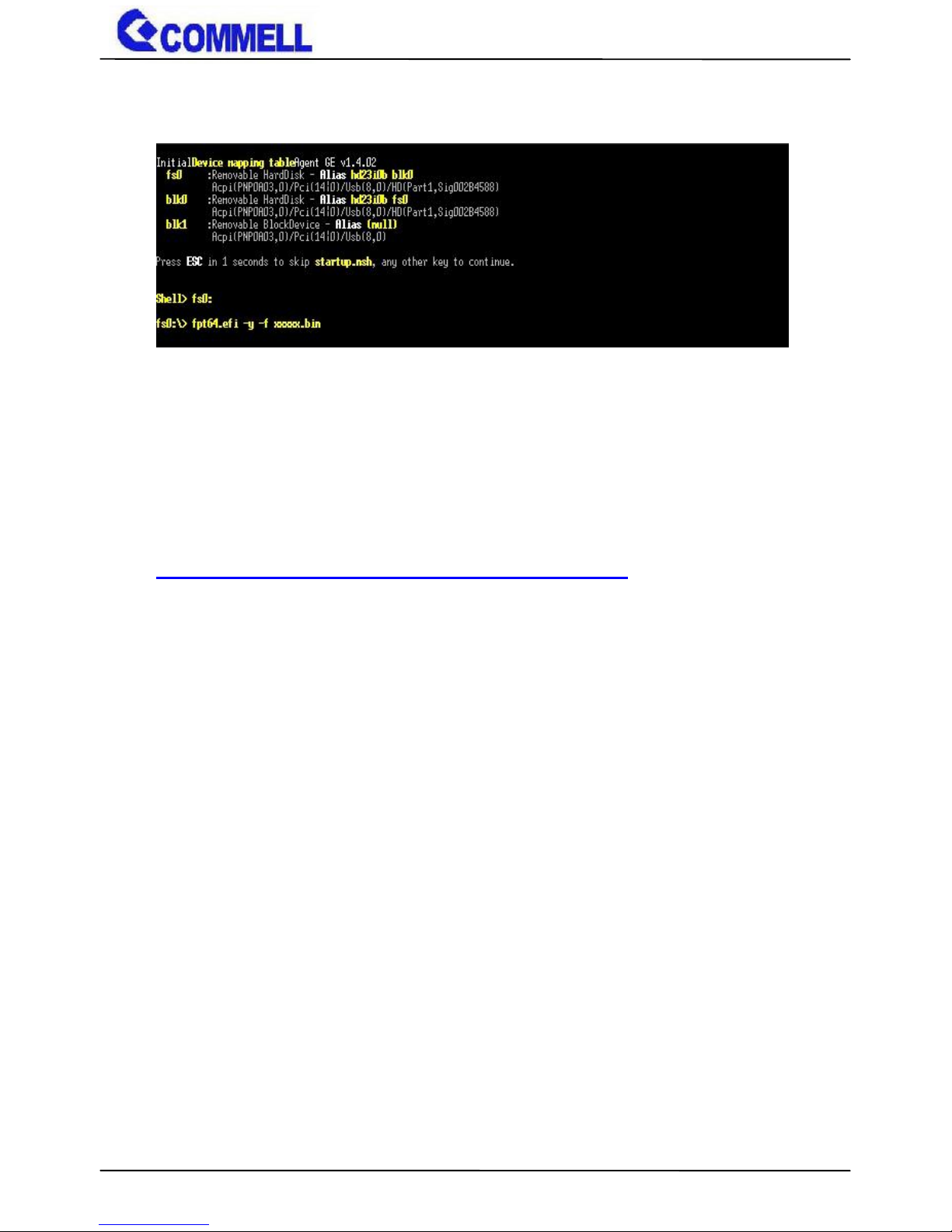

then input the “fs0:” command to switch to the root of the USB flash
drive.
4. Type the ” fpt64.efi -y -f xxxxx.bin” command to start flash BIOS
processes. ( xxx.bin means the BIOS file that you want to update)
5. When it finished all update processes, restart the system.
Any question about the BIOS re-flash please contact your distributors or visit the
web-site at below:
http://www.commell.com.tw/contact/contact_info.htm
Page 25
LP-176 User’s Manual
-24-
Appendix B <LCD Panel Type select>
According your panel, it need to select the correct resolution in the BIOS. If there is
no fit your panel type, please feedback for us to make OEM modol.
Find the setting from
Advanced-----> Uncore Configuration----->LCD Panel Type
BIOS panel type selection form (BIOS Version:1.0)
Single / Dual channel
Single / Dual channel
NO.
Type
NO.
Type
1
Auto
9
1366 x 768
2
640 x 480
10
1680 x 1050
3
800 x 600
11
1920 x 1200
4
1024 x 768
12
1400 x 900
5
1280 x 1024
13
1600 x 900
6
1400 x 1050 Reduced Blanking
14
1024 x 768
7
1400 x 1050 non-Reduced Blanking
15
1280 x 800
8
1600 x 1200
16
1920 x 1080
17
OEM keep
Page 26
LP-176 User’s Manual
-25-
Appendix C <Programmable Watch Dog Timer>
Timeout value range
1 to 255 Minute and Second
Program sample
Watchdog timer setup as system reset with 5 second of timeout
-o 4E 87 ;enter configuration
-o 4E 87
-o 4E 07
-o 4F 08 ;select Logical Device
-o 4E 30
-o 4F 01 ; activate WDTO# function
-o 4E F0
-o 4F 00 ;set “00” is second mode, set “08” is minute mode
-o 4E F1
-o 4F 05 ;00h: Timeout Disable
;01h: Timeout occurs after 1 minute only
;02h: Timeout occurs after 2 second/minute
;03h: Timeout occurs after 3 second/minute
;FFh: Timeout occurs after 255 second/minute
(The deviation is approx 1 second.)
For further information, please refer to Nuvoton NCT6102D datasheet
…
Page 27
LP-176 User’s Manual
-26-
Appendix D <Install Heat Spreader >

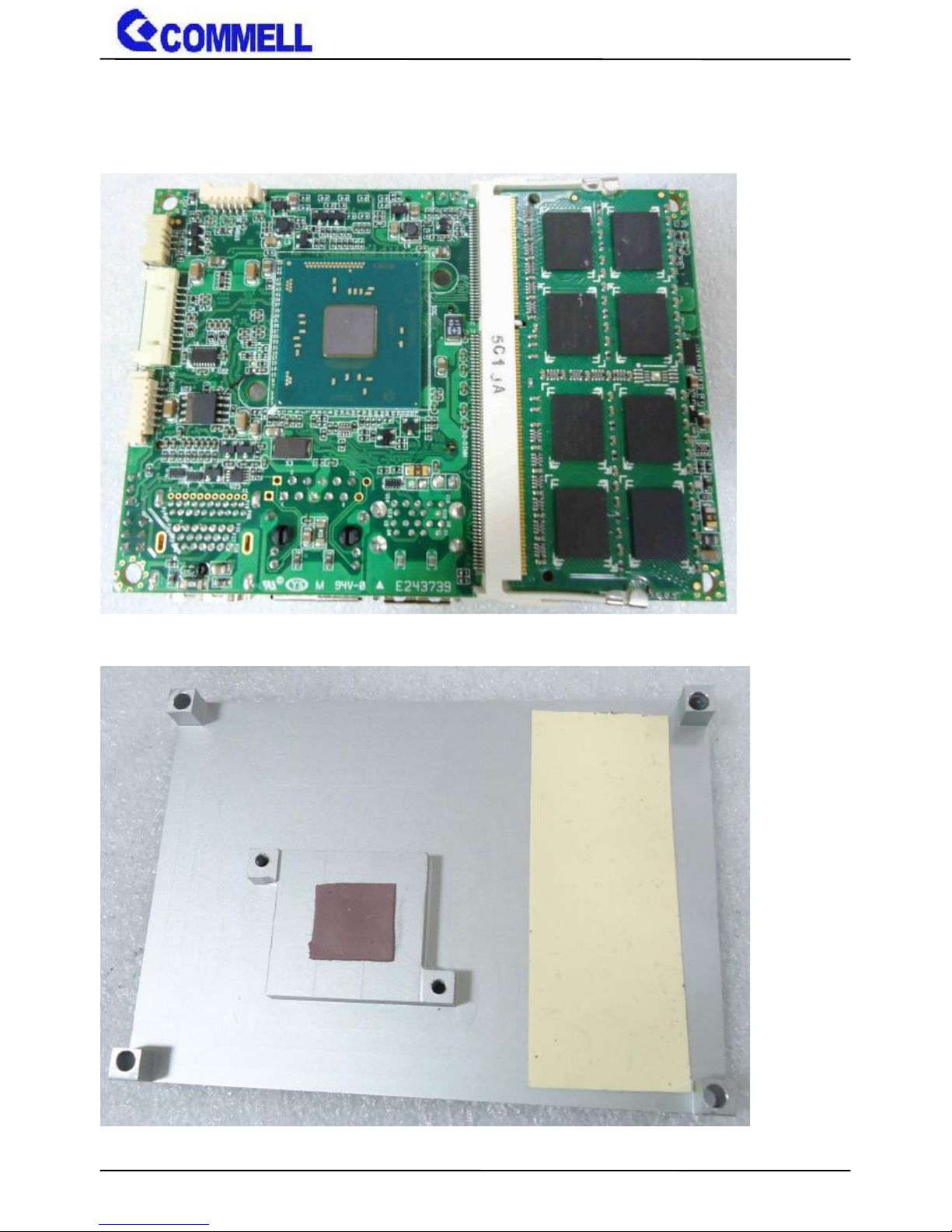

1.Install DDR3L SO-DIMM memory
2.Tear two plastic films carefully
Page 28
LP-176 User’s Manual
-27-

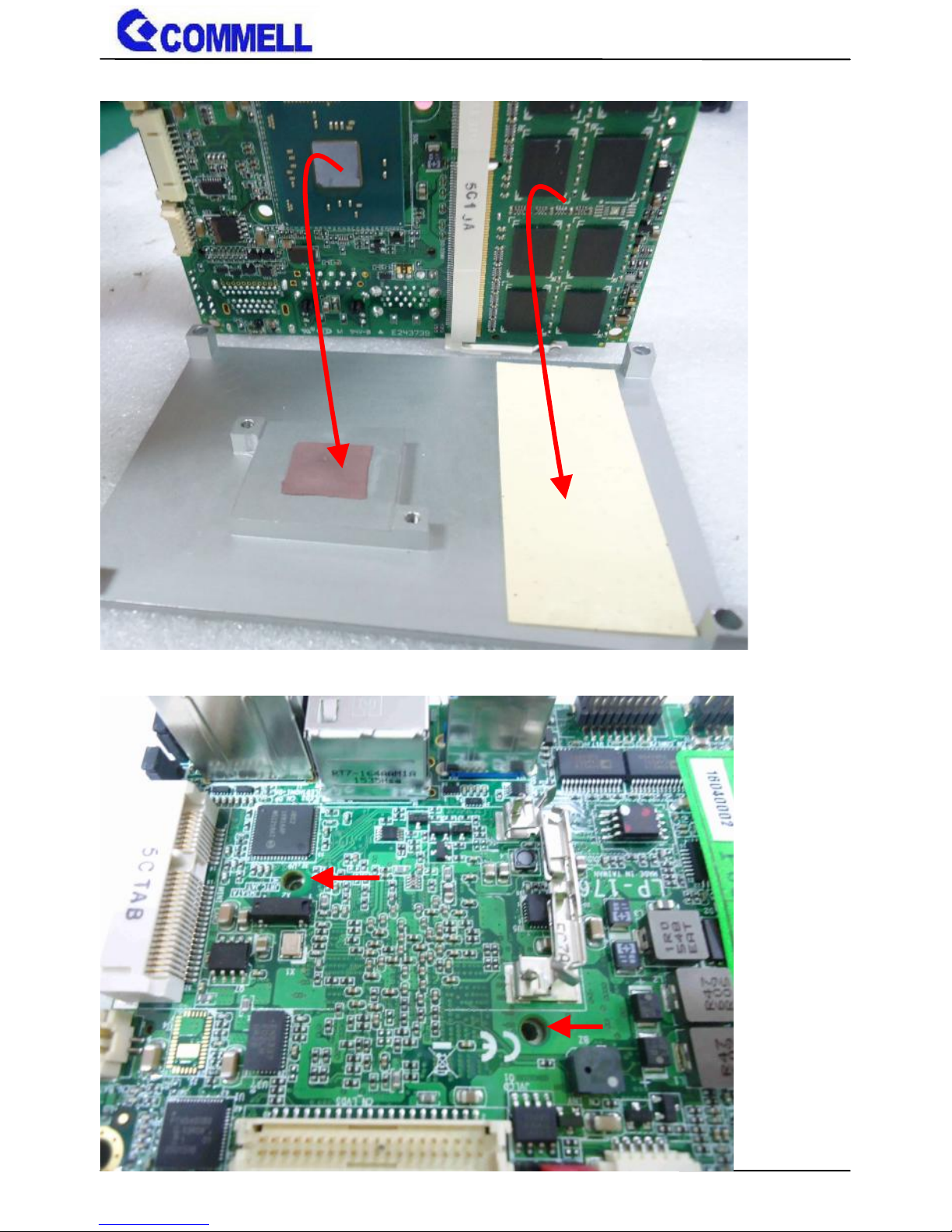

3.Put LP-176 on the heat spreader
4.Align the screw holes
Page 29
LP-176 User’s Manual
-28-
5.Tighten two screws.

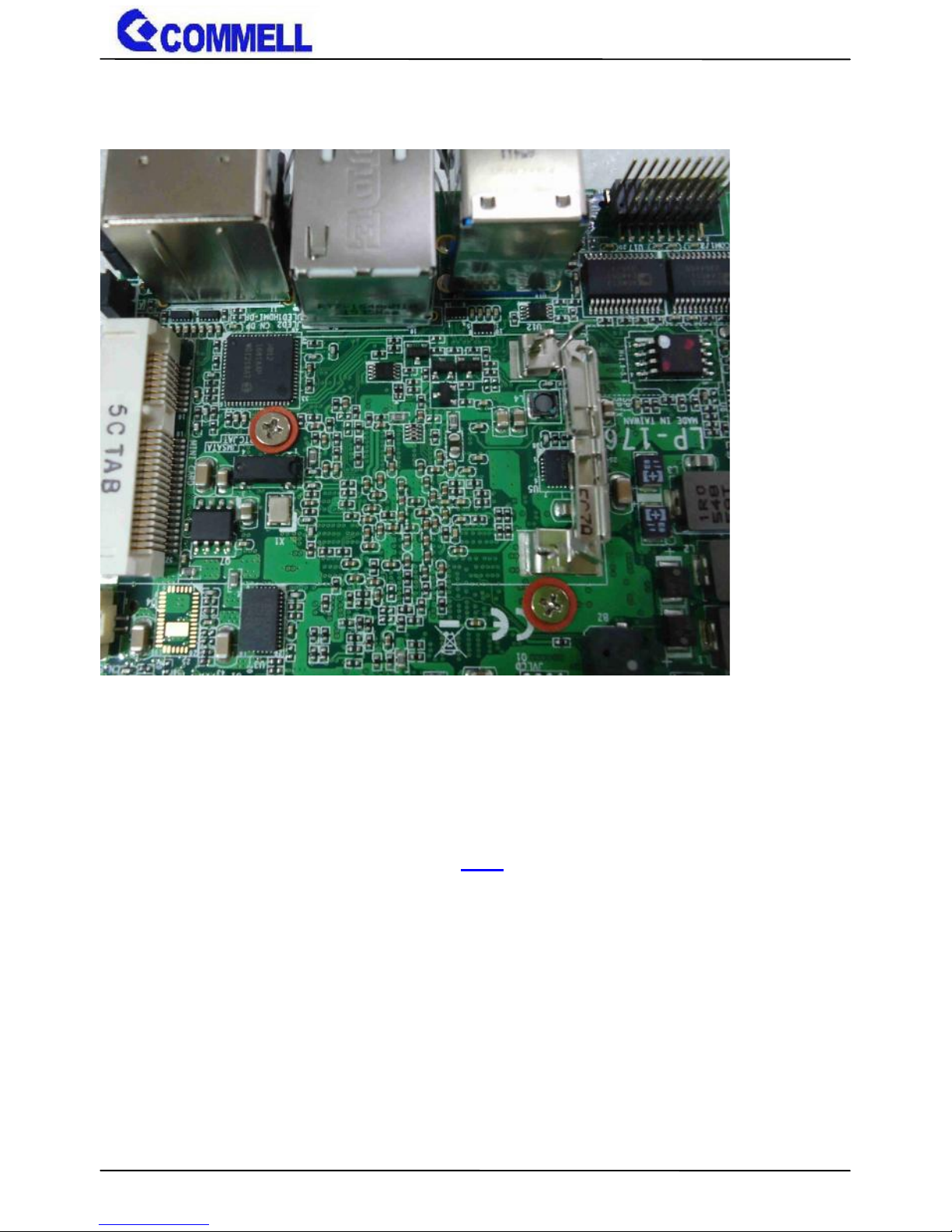

The washer is easy broken, so don’t lock too tight.
Appendix E <Setup ADP-3355>
LP-176NXIT and LP-176EXIT series has a VGA, it’s no need install extra
driver.Here is ADP-3355 Setup manual Link
Page 30
LP-176 User’s Manual
-29-
Contact information
Any advice or comment about our products and service, or anything we can help
you please don’t hesitate to contact with us. We will do our best to support you for
your products, projects and business.
Taiwan Commate computer Inc.
Address
19F., NO.94, Sec. 1, Xintai 5th Rd., Xizhi Dist., New Taipei
City 22102, Taiwan.
TEL
+886-2-26963909
FAX
+886-2-26963911
Website
www.commell.com.tw
E-mail
[email protected] (General infomation)
[email protected] (Technical Support)
Commell is a brand name of Taiwan Commate computer Inc.
Loading...
