Commell HS-871P Manual

HS-871P

Half-size Single Board Computer

User’s manual

Edition 1.2

2005/3/25

HS-871P User’s Manual Preface

Copyright

CopyrightP© 2004 - 2005. All rights reserved. This document is copyrighted and all rights are reserved. The information in this document is subject to change without prior notice to make improvements to the products. This document contains proprietary infor mation and protected by copyright. No part of this document may be reproduced, copied, or translated in any form or any means without prior written permission of the manufacturer. All trademarks and/or registered trade marks contains in this docu ment are property of their respective owners.

Disclaimer

The company shall not be liable for any incidental or consequential damages resulting from the performance or use of this product. The company does not issue a warranty of any kind, express or implied, including without limitation implied warranties of merchantability or fitness for a particular purpose. The company has the right to revise the manual or include changes in the specifications of the product described within it at any ti me without notice and without obligation to notify any person of such revision or changes.

Trademark

All trademarks are the property of their respective holders.

Any quest ions pl ease visit our website at TUhttp://www.commell.com.twUT.

2

HS-871P User’s Manual Packing List

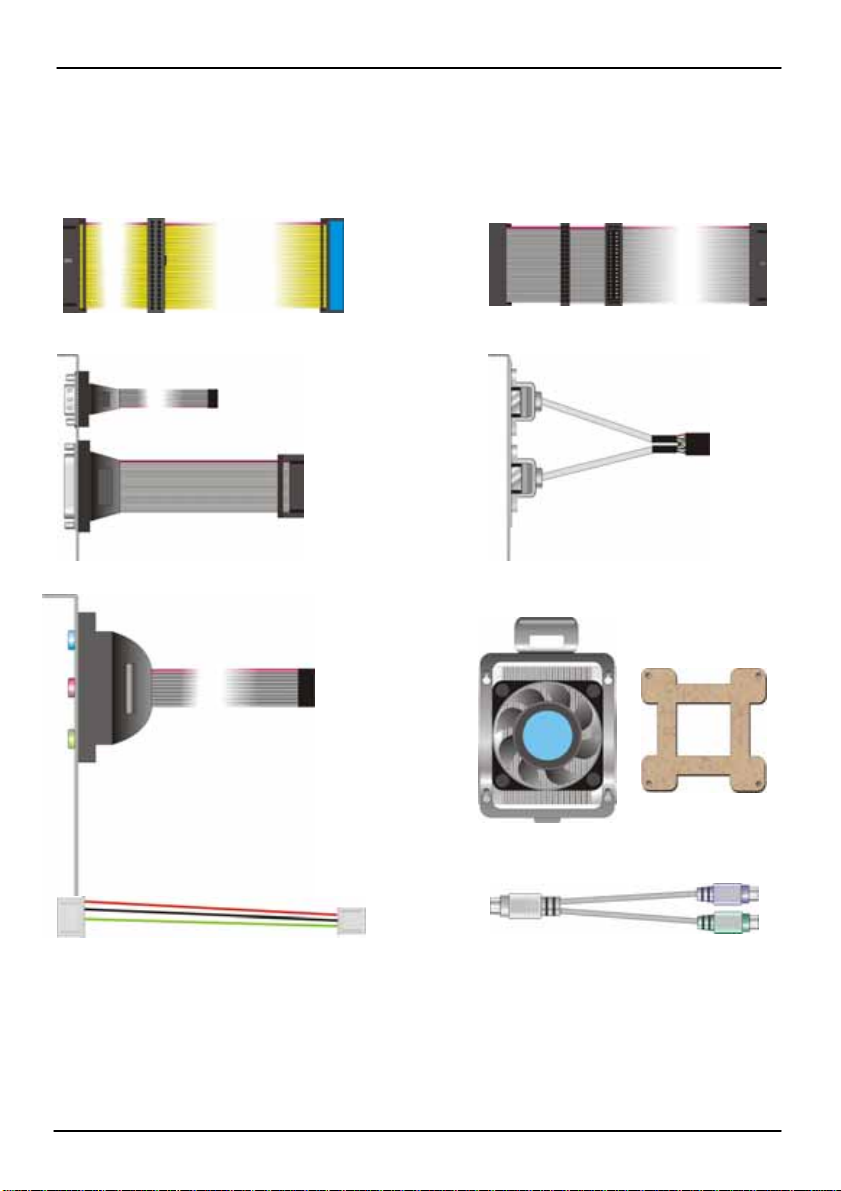

Hardware:

HS-871P Single Board Computer x 1

Cable Kit:

40-pin ATA100 IDE flat cable x 1

DB25 & DB9 cable with bracket x 1 Dual USB cable with bracket x 1

Audio cable wit h br acket x 1

Floppy f l at cable x 1

CPU Co oler x 1

4-pin to 3- pin ATX cable x 1

Other Accessories:

Divers CD (including User’s Manual)

PS/2 Keyboard & Mouse Cable x 1

3

HS-871P User’s Manual Index

Index

Chapter1 <Int roductions>..............................................................................7

1.1 <Product Overview> ..........................................................................7

1.2 <Product Specification> .....................................................................8

1.3 <Component Placement>.................................................................10

1.4 <Block Diagram>............................................................................. 11

Chapter 2 <Hardware Setup>.......................................................................13

2.1 <Connectors Location>.................................................................... 13

2.2 <Jumper Reference>.......................................................................14

2.3 <Connectors Reference>.................................................................15

2.3.1 <Internal Connectors>...........................................................15

2.3.2 < External Connector > ...........................................................15

2.4 <System Setup>..............................................................................16

2.4.1 <CPU setup> ........................................................................ 16

2.4.2 <Memory Module setup>....................................................... 17

2.4.3 <CPU cooler setup>.............................................................. 18

2.4.4 <Complete the system installation>........................................ 19

2.5 <CMOS Setup>...............................................................................20

2.6 <Watchdog Timer Setti ng> ............................................................... 21

2.7 <Embedded Solid State Disk> .......................................................... 22

2.8 <Power and Fan Setup> .................................................................. 23

2.9 <Display Interface>.......................................................................... 24

2.9.1 <Analog VGA i nterface>........................................................ 24

2.9.2 <Digital VGA interface>......................................................... 25

2.10 < Ethernet Network Interface> ........................................................ 29

2.11 <Audio Interface>...........................................................................30

2.12 <GPIO interface>...........................................................................31

2.13 <Switch and Indicator>................................................................... 32

Chapter 3 <Display Mode Setup>................................................................33

4

HS-871P User’s Manual Packing List

Chapter 4 <BIOS Setup>..............................................................................37

Appendix A <I/O ports pin assignment>...................................................... 39

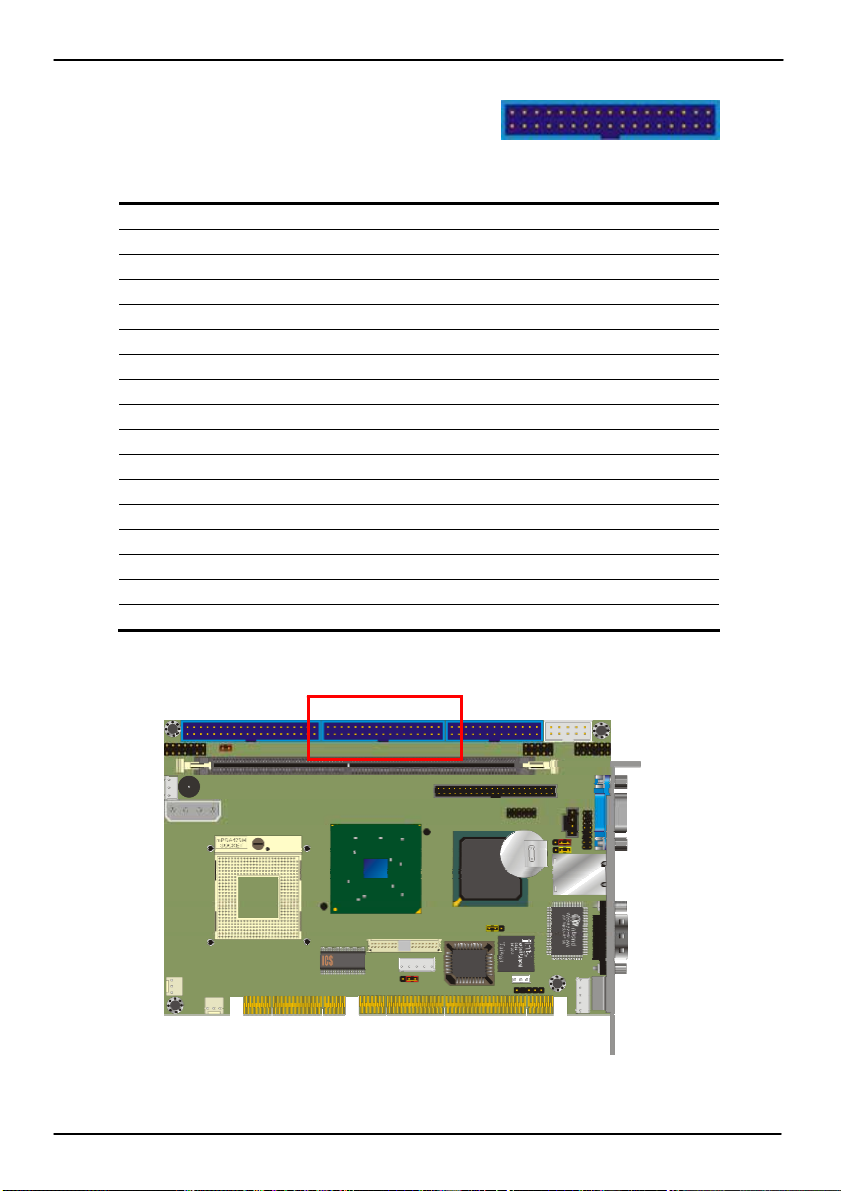

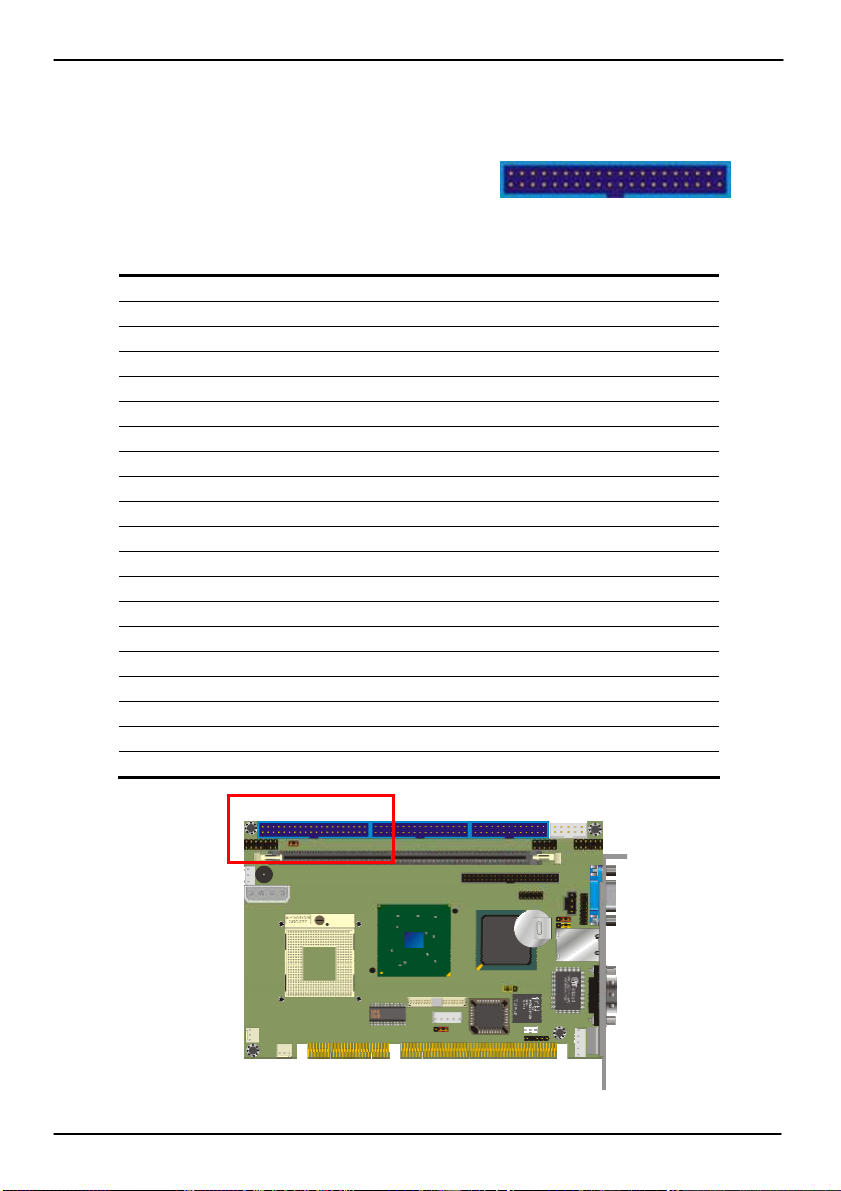

A.1 <IDE Port>......................................................................................39

A.2 <Floppy Port> ................................................................................. 41

A.3 < Parallel Port>............................................................................... 42

A.4 <Serial Port>...................................................................................43

A.4.1 <External DB9 COM>........................................................... 43

A.4.2 <Internal COM2>..................................................................43

A.5 <USB Port> .................................................................................... 44

A.6 <IrDA Port>.....................................................................................44

A.7 <VGA Port>....................................................................................45

A.8 <LAN Port>..................................................................................... 45

A.9 <AT Keyboard Port>........................................................................ 46

A.10 <PS/2 Keyboard & M ouse Port>..................................................... 46

Appendix B <Flash BIOS>...........................................................................47

B.1 BIOS Auto Flash Tool ............................................................ 47

B.2 Flash Method........................................................................ 47

Appendix C <Watchdog T imer Programming Guide>..................................49

Appendix D <Hardware Test>...................................................................... 53

D.1 <Power Consumption>....................................................................53

Contact Information..................................................................................... 54

5

HS-871P User’s Manual

(This Page i s Lef t for Blank)

6

HS-871P User’s Manual Introduction

Chapter1 <Introductions>

1.1 <Product Overview>

The HS-871P is an all-in-one single board computer with PISA bus. Based on Intel Mobile solutions with 852GM chipset, it is bundled with Intel Mobile Celeron 1.2GHz processor, DDR266 SDRAM up to 1GB of capacity, Intel Extreme Graphics Technology of onboard VGA display interface, AC97 2-channel audio, USB2.0 interface and one Gigabit Ethernet controller. To be a powerful multimedia platform, HS-871P is also integrated with 24-bit dual channel LVDS interface and one Compact Flash Type II socket. For these features HS-871P can be easily used for industrial multimedia platform like POS or KIOSK system.

Intel 852GM & ICH4 chipset

Based on Intel 852GM and ICH4 chipset, the board supports Intel Pentiu m 4 –M and Mobile Celeron M with 400MHz of front-side-bus, DDR200/266 memory, 24-bit dual-channel LVDS interface, Intel Extreme Graphic Technology of onboard VGA.

Dual Display Interface

The board supports dual display interface with CRT monitor and LCD panel, for extended desktop or clone mode supported. Users can have t he different resolution or color bit for each display device.

Hi-Speed USB 2.0 Interface

Intel ICH4 built-in Hi-Speed USB 2.0 controller let HS-871P offering up to 480Mbps of Hi-Speed USB 2.0 interfaces.

Product Overview

7

HS-871P User’s Manual Introduction

1.2 <Product Specification>

General Specification

Form Factor Half-size PISA CPU card CPU Intel Pentium 4 –M / Mobile Celeron Processor

Supports up to 1.2GHz Battery Mode is not supported Intel Speed Step Technology is not supported

Memory 1GBytes DDR200/266 SDRAM on one 184-pin DIMM socket

Non-ECC, un-buffered Memory is supported Chipset Intel 82852GM GMCH and 82801DB ICH4 BIOS Phoenix-Award v6.00PG 4Mb PnP flash BIOS Green Function Power saving mode includes doze, standby and suspend modes.

ACPI version 1.0 and APM version 1.2 compliant Watchdog Timer System reset programmable watchdog timer with 1 ~ 255

sec./min. of timeout value Real Time Clock Intel ICH4 built-in RTC with lithium battery Enhanced IDE PCI enhanced IDE interface supports dual channels and up to 4

ATAPI devices at UltraATA/100

One 40-pin and one 44-pin IDE port

DiskOnModule (DOM) embedded flash disk up to 1GBytes

Multi-I/O Port

Chipset Intel 82801DB ICH4 and Winbond W83627HF-AW LPC Super I/O

controller Serial Port One external and one internal RS-232 serial ports with 16C550

compatible UART and 16 bytes FIFO USB Port Two Hi-Speed USB 2.0 ports with 480 Mbps of transfer rate Parallel Port One internal bi-direction parallel port with SPP/ECP/EPP mode Floppy Port One FDD port supports up to two FDD IrDA Port One IrDA compliant Infrared interface supports SIR K/B & Mouse External PS/2 keyboard and mouse ports on rear I/O panel

One internal AT keyboard port GPIO One 12-pin Digital I/O connector with 8-bit programmable I/O

interface

VGA Display Interface

Chipset Intel 852GM GMCH built-in Intel Extreme Graphics Technology Memory Intel dynamic video memory up to 64Mbytes shared with system Display Type CRT, LCD monitor and analog display Connector External DB15 female connector on rear I/O panel

Internal 40-pin LVDS connector

8

Product Specification

HS-871P User’s Manual Introduction Ethernet Interface

Chipset Intel PRO/1000+ LAN interface with Intel 82540EM Type 10Base-T / 100Base-TX/1000Base-T,

auto-switching Fast Ethernet Full duplex, IEEE802.3U compliant

Connector External RJ45 connector with LED on rear I/O panel

Audio Interface

Chipset Intel ICH4 with Realtek ALC201A AC97 3D audio codec Interface 2 channel 3D audio with Line-in, Line-out and MIC-in Connector Internal 10-pin header for line-in/-out, MIC-out, 4-pin header for

CD-in

Solid State Disk Interface

Flash Type Compact Flash Type-I/II for CFC (Compact Flash Card) or IBM

MicroDrive

Capacity Up to 1 GB flash memory

Power and Environment

Power

4-pin onboard +5V/+12V power connector Requirement ATX function Onboard 3-pin PS-ON & 5V standby connector Dimension 185 (L) x 127 (H) mm Temperature Operating within 0 ~ 60P

Storage within -20 ~ 85

o

P

C (32 ~ 140P

o

P

C (-4 ~ 185P

o

P

F)

o

P

F)

Ordering Code

HS-871P Half-size PISA bus single board computer with Intel Mobile

Celeron processor 1.2GHz, onboard VGA, Gigabit LAN, Audio,

Hi-Speed USB 2.0, Compact Flash socket and LVDS interface.

For further product information please visit the website at TUhttp://www.commell.com.twUT

Product Specification

9

HS-871P User’s Manual Introduction

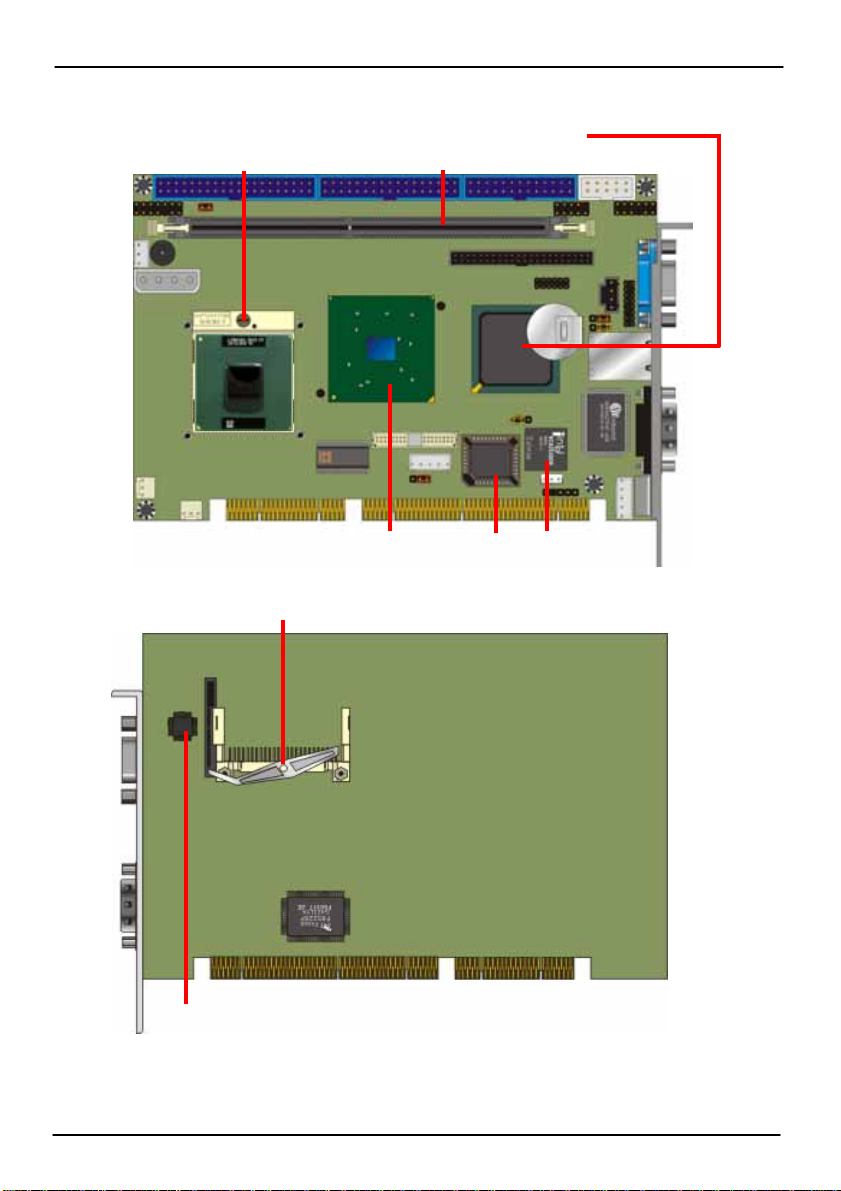

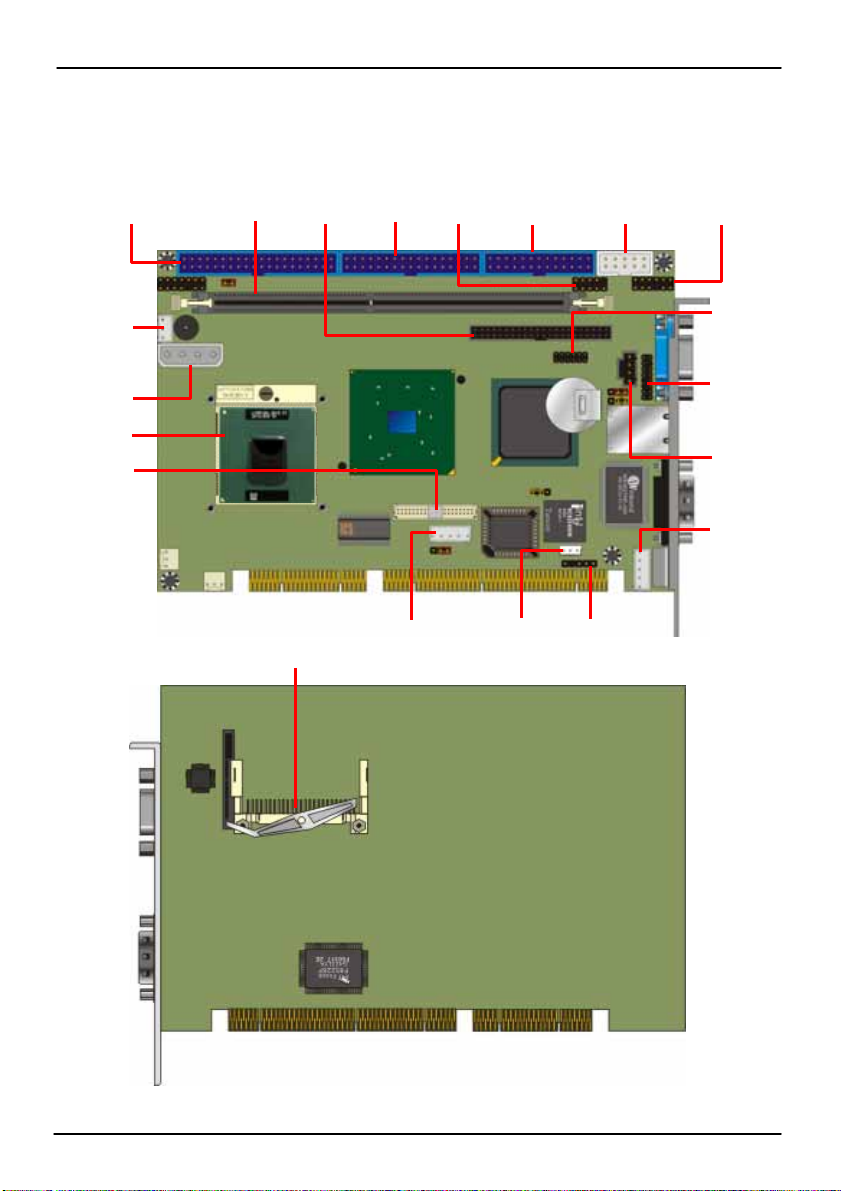

1.3 <Component Placement>

Inte l Mo b ile Ce le ro n

Processor at 400MHz FSB

Compact Flash Socket

1 x DDR266 DIM M up

to 1GB

Intel 852GM

BIOS

ICH4

Intel 82540EM

Gigabit LAN

Audi o Codec

10

Component Placement

HS-871P User’s Manual Introduction

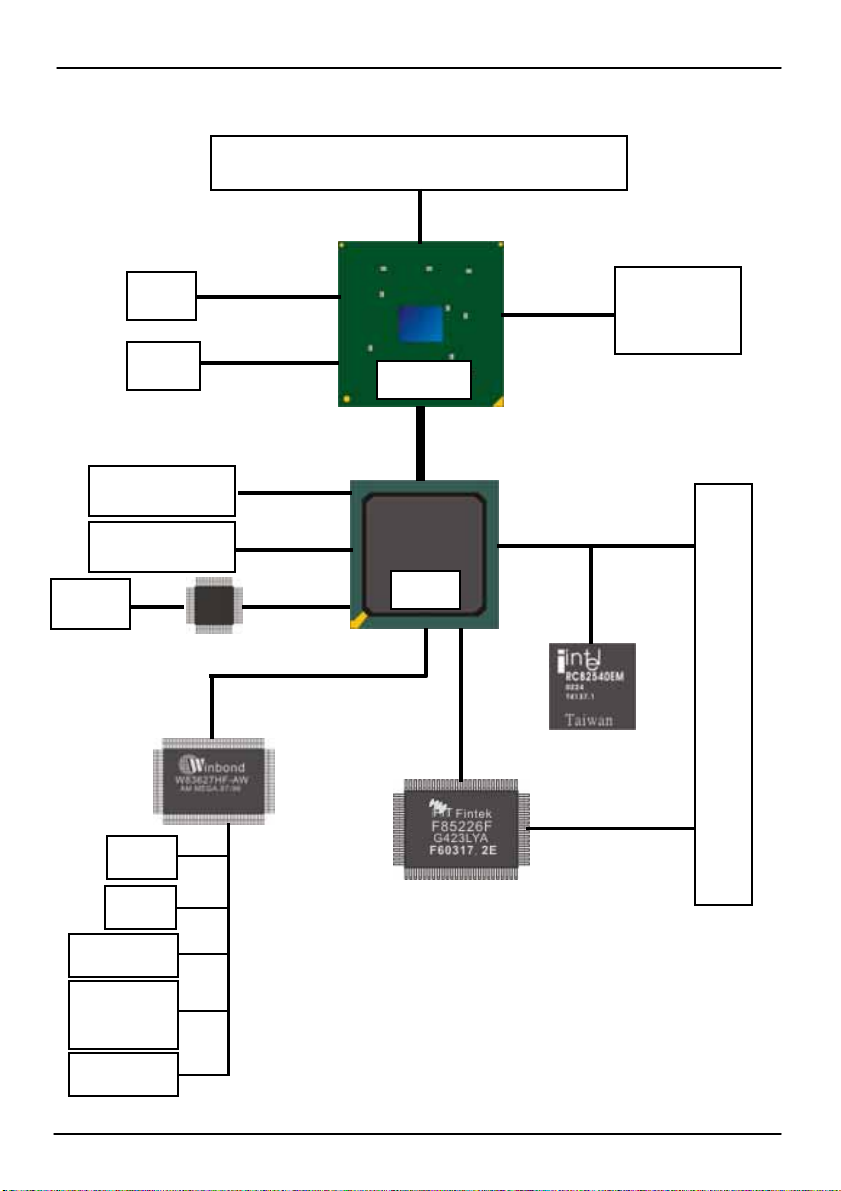

1.4 <Block Diagram>

Audio

CRT

LCD

A TAPI Devices

USB Devices

A

7

Intel Mobile Cel eron 1.2GHz processor

400MHz FSB

LVDS

852GM

UltraATA100

USB2.0

ICH4

LPC

DDR266

PCI Bus

1 x 184-pin DIMM Up to 1GB

PISA Backplane

IrDA

PS/2

COM P ort

Parallel

Port

Floppy

Block Diagram

Gigabit Ethernet

Controller

ISA Bus

11

HS-871P User’s Manual

(This Page i s Lef t for Blank)

12

HS-871P User’s Manual Hardware Setup

Chapter 2 <Hardware Setup>

2.1 <Connect ors Locat ion>

IDE1 DIMM IDE2 FDD CN_USB CN_LPT CN_COM2 CN_AUDIO

CN_PS

CN_PWR

CPU

CN_LVDS

CN_DIO

CN_INV CN_WOL CN_IR

CF

VGA CN_VGA RJ45 CDIN COM1 CN_ATKB

Connectors Location

13

HS-871P User’s Manual Hardware Setup

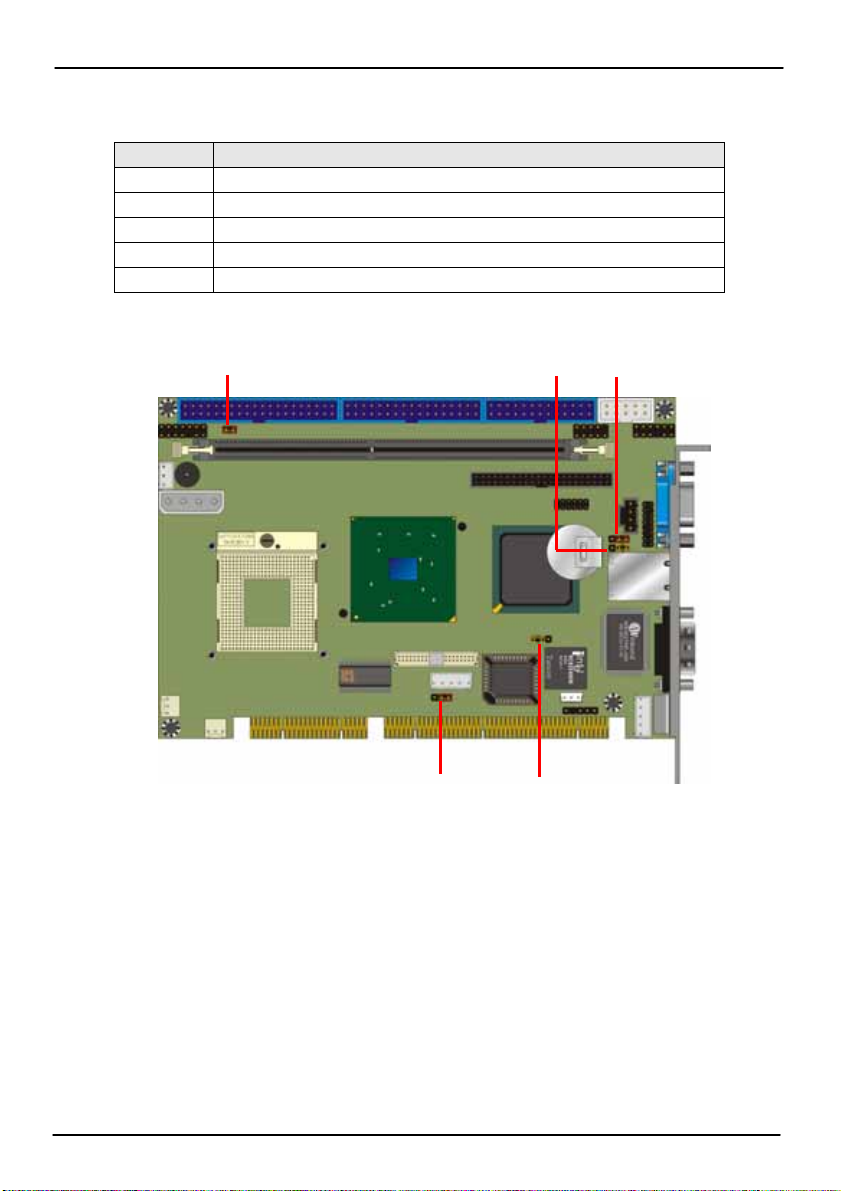

2.2 <Jumper Reference>

Jumper Function JRTC CMOS Operating/Clear Setting JCFSEL Compact Flash Addressing Setting JDOM IDE1 Pin-20 voltage setting JVLCD LCD Panel Voltage Setting JLAN Ethernet Controller Enable/Disable Setting

JDOM JCFSEL JRTC

JVLCD JLAN

14

Jumper Reference

HS-871P User’s Manual Hardware Setup

2.3 <Connect ors Reference>

2.3.1 < Int ernal Connector s>

Connector Function Remark

CPU mPGA479 CPU socket Standard DIMM 184 -pin DDR SDRAM DIMM socket Standard IDE1 40-pin primary IDE connector Standard IDE2 44-pin secondary IDE connector Standard FDD 34-pin floppy connector Standard CN_VGA 8 x 2-pin VGA connector (pitch = 2.0mm) Standard CN_USB 5 x 2-pin USB connector (pitch =2.54mm) Standard CN_COM2 5 x 2-pin serial port connector Standard CN_LVDS 20 x 2-pin LVDS connector Standard CN_INV 5-pin panel inverter connector Standard CN_PS 3-pin ATX function connector Standard CN_PWR 4-pin power input connector Standard CN_AUDIO 5 x 2-pin audio connector Standard CDIN 4-pin CD-ROM audio input connector Standard CN_DIO 6 x 2-pin digital I/O connector Standard CN_WOL 3-pin wake-on-LAN connector Standard CPUFAN 3-pin CPU fan connector Standard SYSFAN 3-pin system fan connector Standard CN_LPT 26-pin parallel port connector Standard CF Compact Flash Type II socket Standard

2.3.2 < Ext er nal Connector>

Connector Function Remark

VGA DB15 VGA connector Standard RJ45 RJ45 LAN connector Standard COM1 Serial port connector Standard PS2 PS/2 Keyboard/Mouse connector Standard

Connector Reference

15

HS-871P User’s Manual Hardware Setup

2.4 <S yst em S et up>

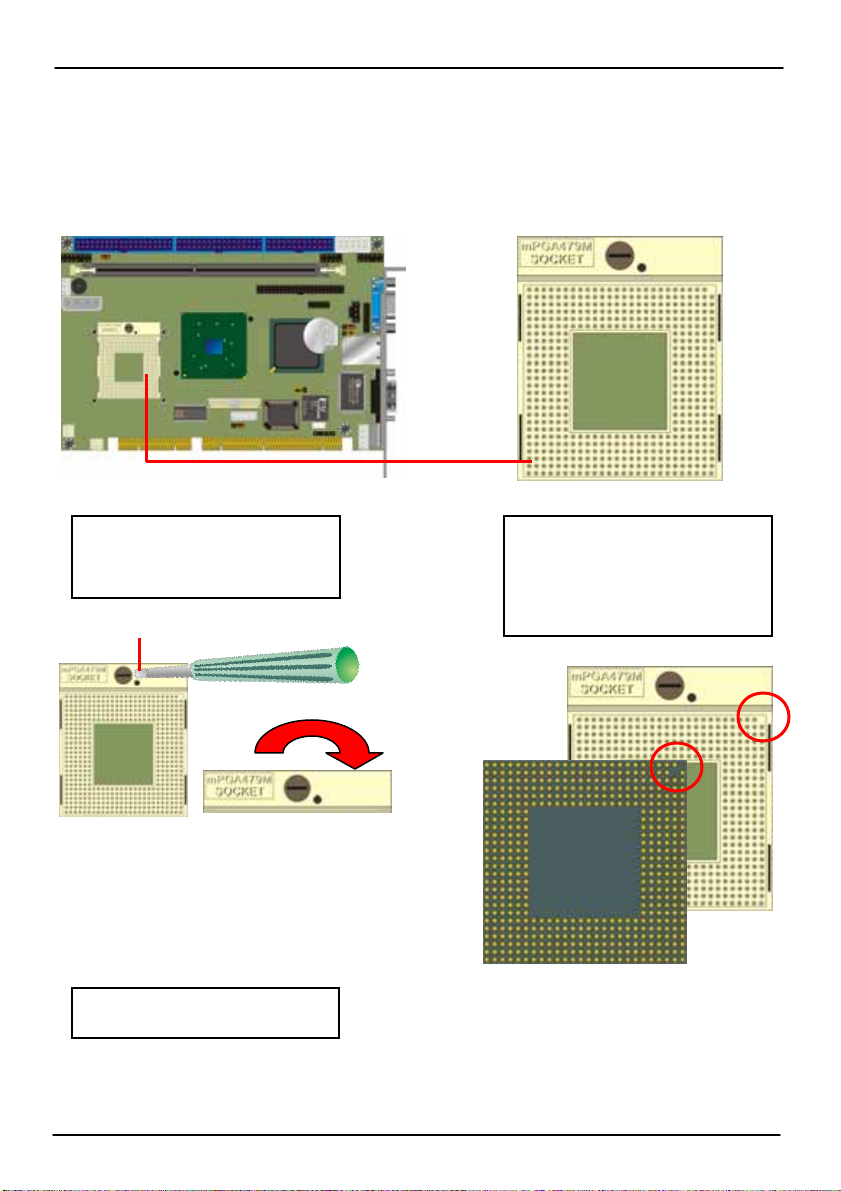

2.4.1 < CPU setup>

HS-871P has one 479-pin CPU socket to support Intel Pentium 4 –M / Mobile Celeron

processor up to 1.2GHz. Please follow the instruction to install the processor well.

1. Use flat-type Screw Driver to unlock the CPU locket

CPU locker

Unlock way

3. Lock the socket well.

2. Fi nd t he pin di r ec tion and instal l the processor on the socket.

16

System Setup

HS-871P User’s Manual Hardware Setup

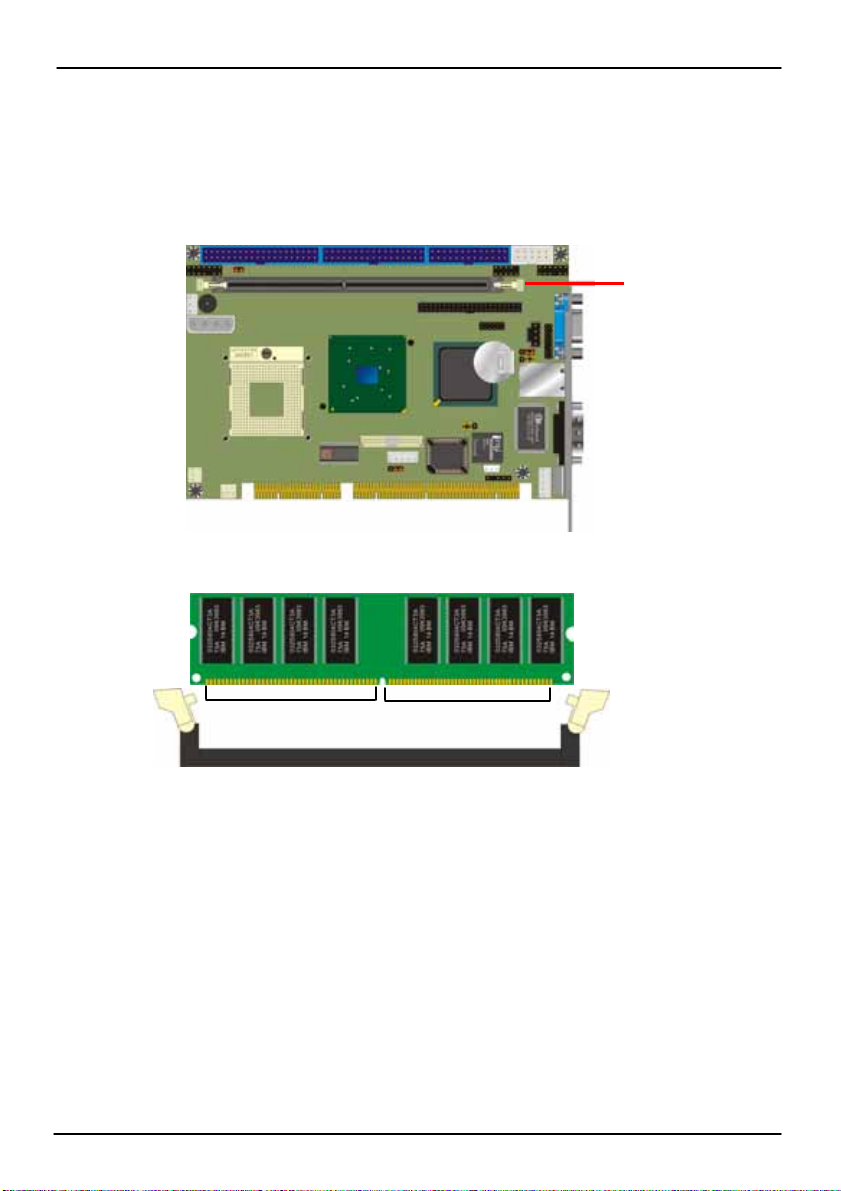

2.4.2 <Memory M odule setup>

HS-871P supports one DDR266 SDRAM up to 1GB of capacity, with non-ECC, un-buffered

memory supported.

DIMM

Please check the pin number t o match the socket side well before instal li ng m e m or y m odul e.

System Setup

80-pin 104-pin

17

HS-871P User’s Manual Hardware Setup

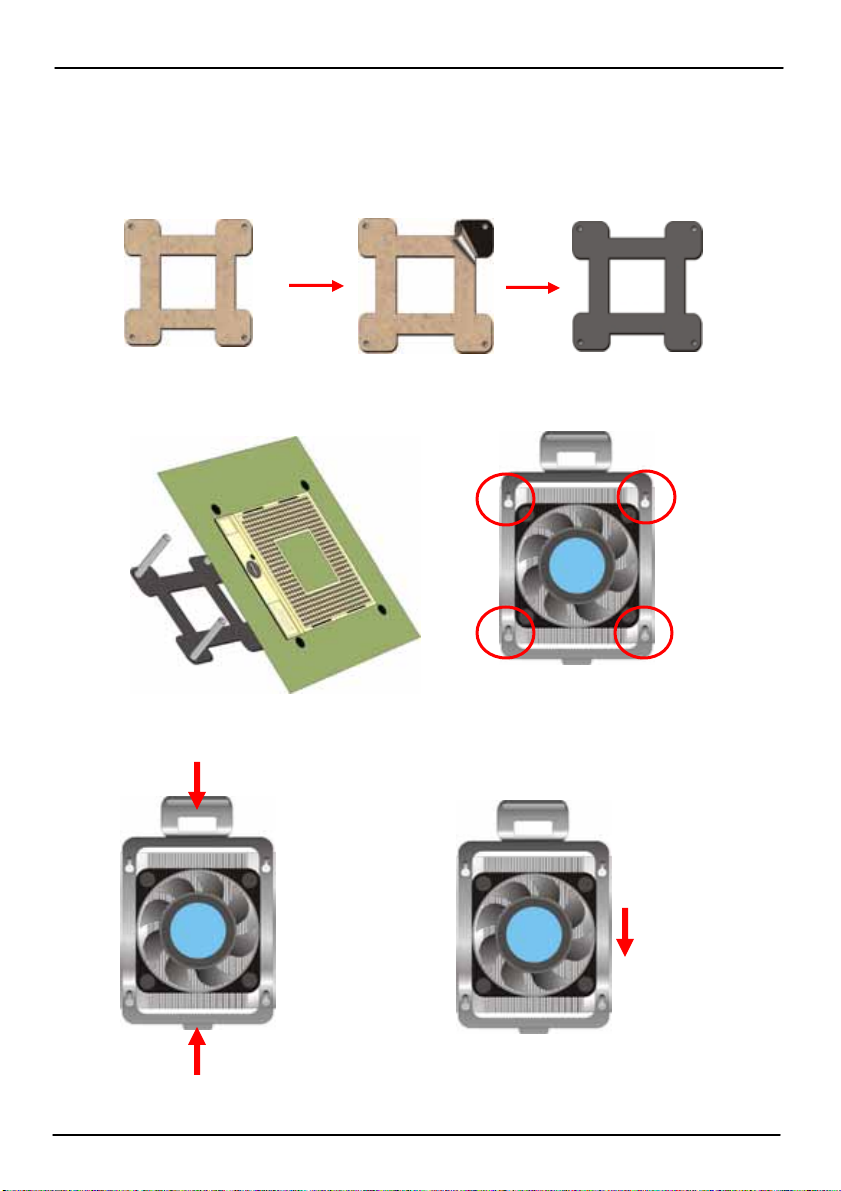

2.4.3 < CPU cooler setup>

There is a cooler attached with the board package, please follow the instructions to install the cooler on the processor.

1. Remove the sticker of the base.

2. Put the base through the fixing hole of the processor and paste on the solder side. Then put the cooler through the base pillar.

3. Press the both sides of the cooler shield down and push it to move front

Press here

Move forward

Press here

18

System Setup

HS-871P User’s Manual Hardware Setup

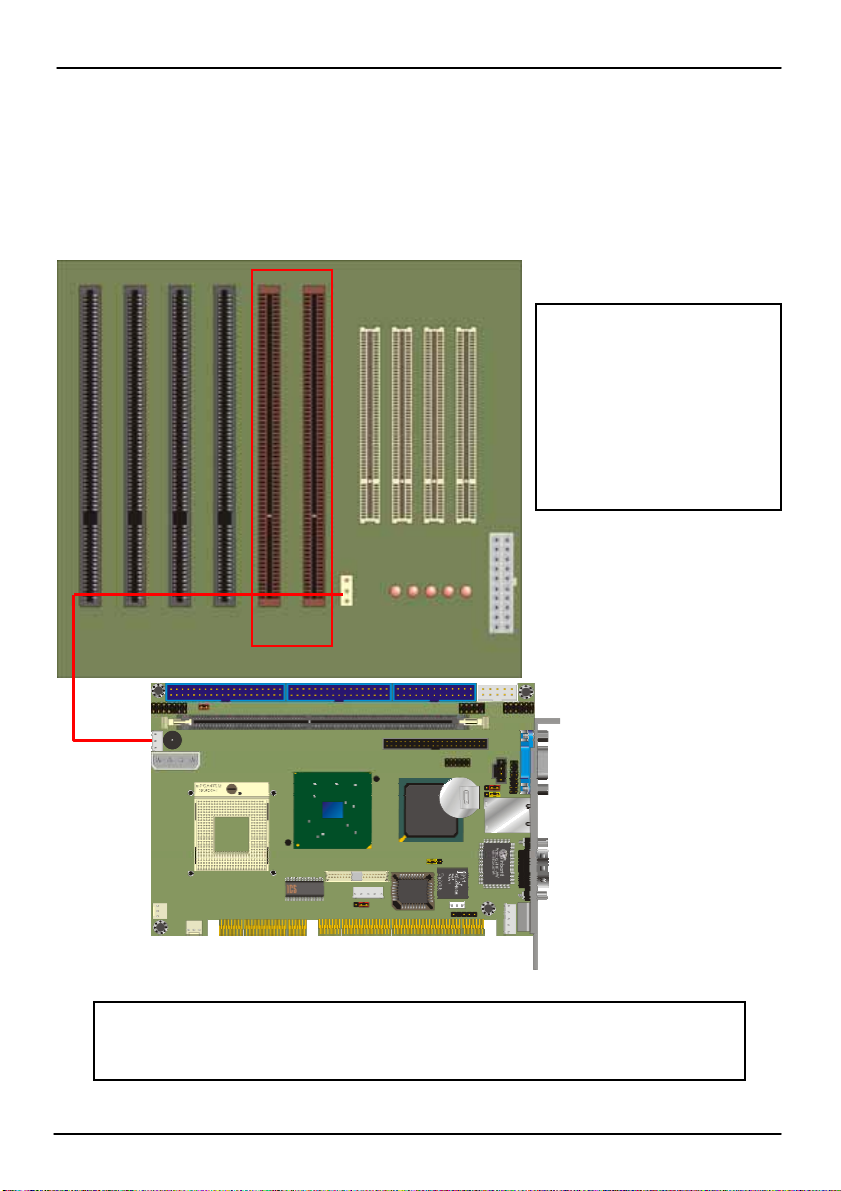

2.4.4 < Complete the system installation>

After installing the CPU, CPU cooler and the memory module, please slot the main board into PISA slot of the backplane carefully. If you connect an AT X power supply with the backplane, you will need to connect an ATX function cable between the main board and the backplane.

JFRNT

CN_PS

PISA Bus Slot

Notice: The ATX function connect or may have diff er ent types on differ ent backplanes, please check the pin assignment for t he c onnect or on the backplane before you install the ATX function cable.

To power s uppl y

A TX connector

To po wer on the syst em, please check chapter 10 t o short the power butt on pin on JFRNT.

System Setup

19

HS-871P User’s Manual Hardware Setup

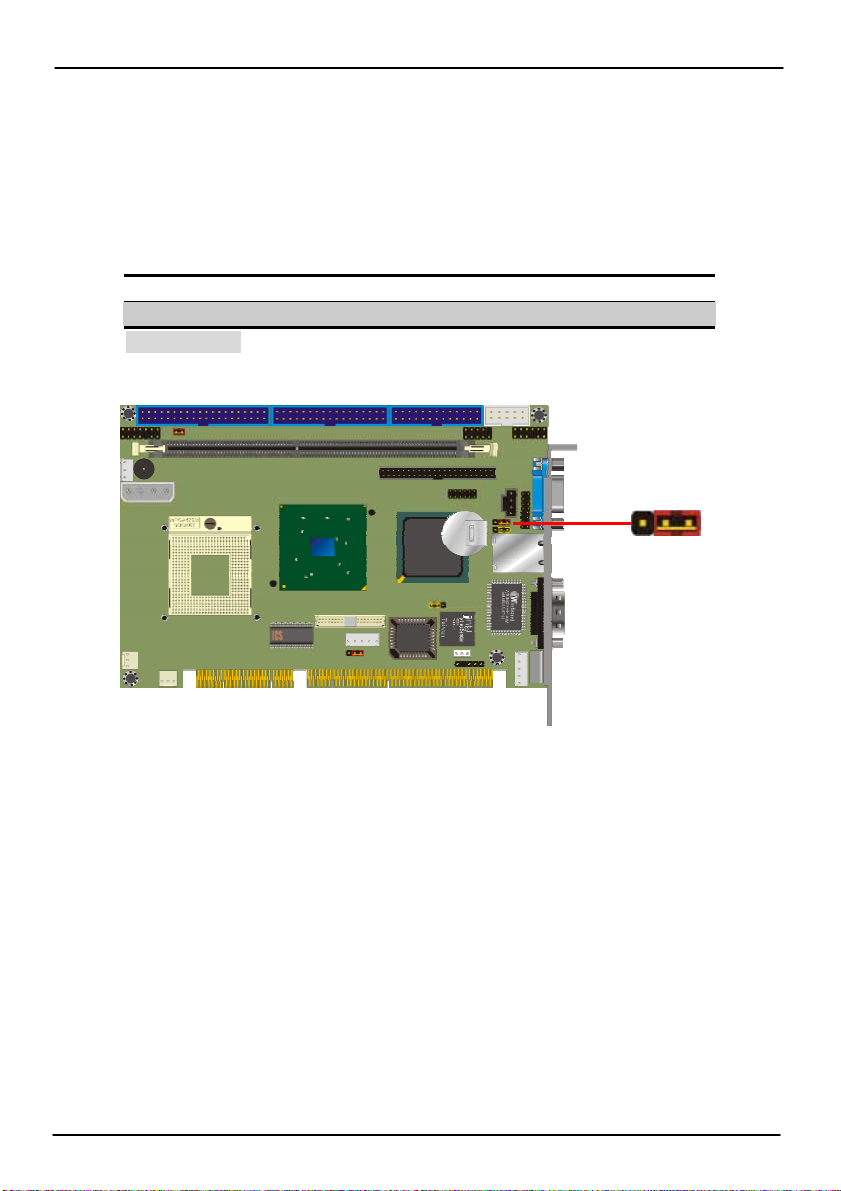

2.5 <CMOS Setup>

The board’s data of CMOS can be setting in B IOS. If the board refuses to boot due to inappropriate CMOS settings, here is how to proceed to clear (reset) the CMOS to its default values.

Jumper: JRTC Type: Onboard 3-pin jumper

JRTC Mode

1-2 Clear CMOS 2-3 Normal Operation

Default setting

JRTC

1 3

20

CMOS Setup

HS-871P User’s Manual Hardware Setup

2.6 <Watchdog Timer Setting>

The watchdog timer makes the system auto-reset while it stops to work for a period. T he integrated watchdog timer can be setup as system reset mode by program.

Timeout Value Range

- 1 to 255

- Second or Minute

Program Sample

Watchdog timer setup as system reset with 5 second of timeout

2E, 87 2E, 87 2E, 07 2F, 08 Logical Device 8 2E, 30 Activate 2F, 01 2E, F5 Set as Second* 2F, 00 2E, F6 Set as 5 2F, 05

* Minute: bit 3 = 0; Second: bit 3 = 1

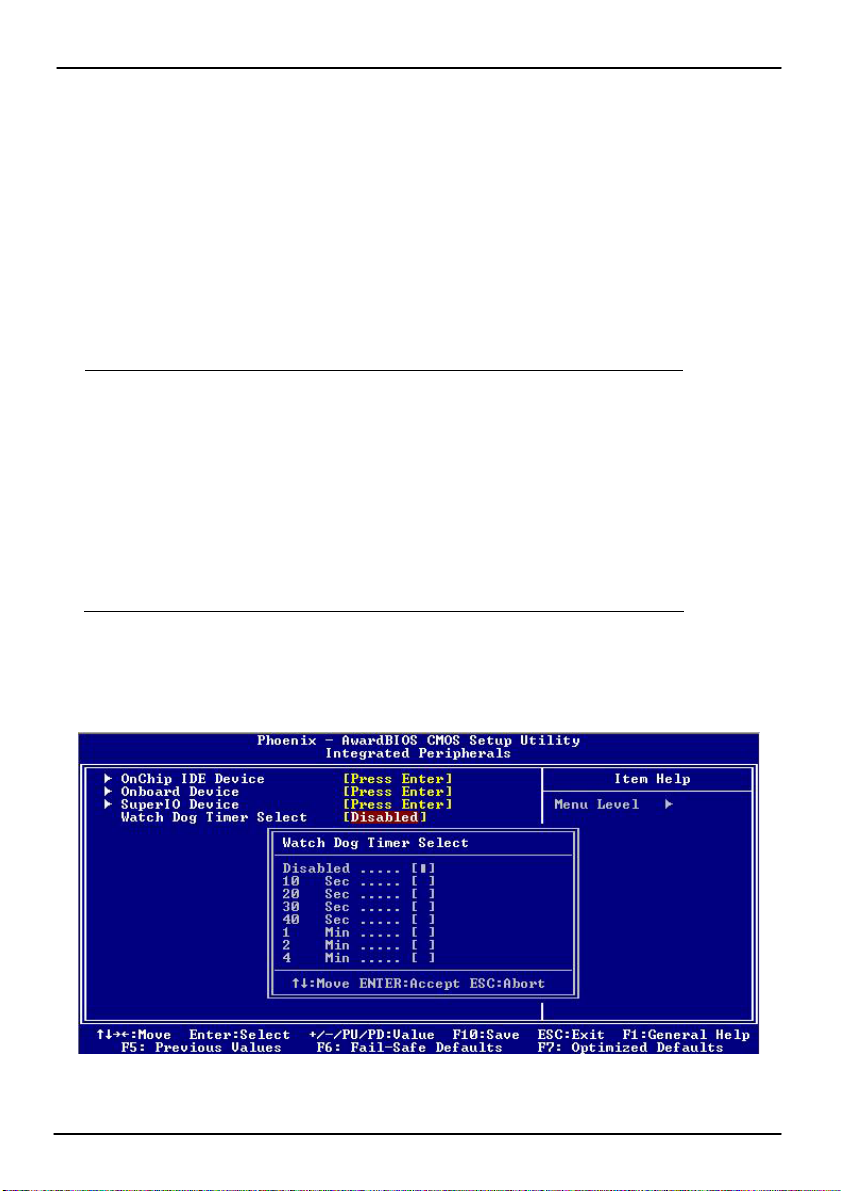

You can select Timer setting in the B IOS, after setting the time options, the syste m will reset according to the period of your selection.

For more specification of watchdog timer program, please check appendix document.

Watchdog Timer Setting

21

HS-871P User’s Manual Hardware Setup

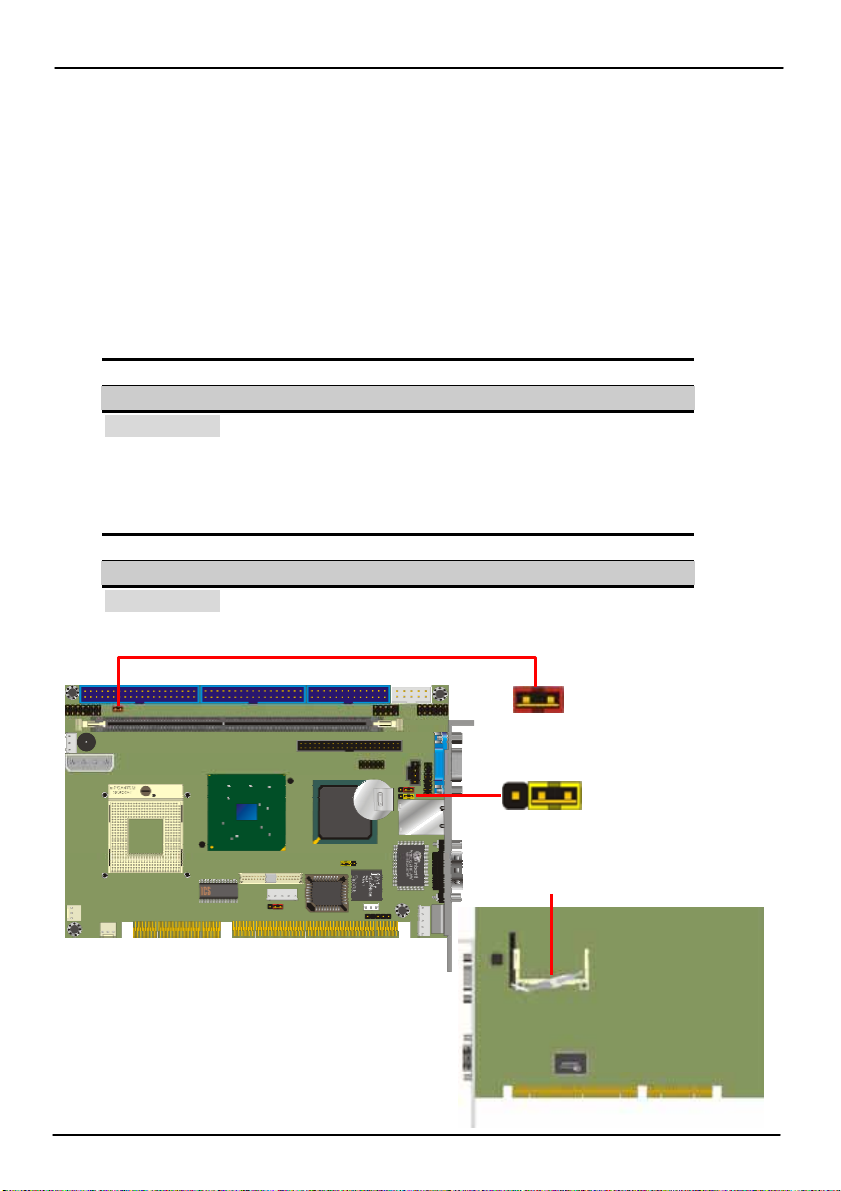

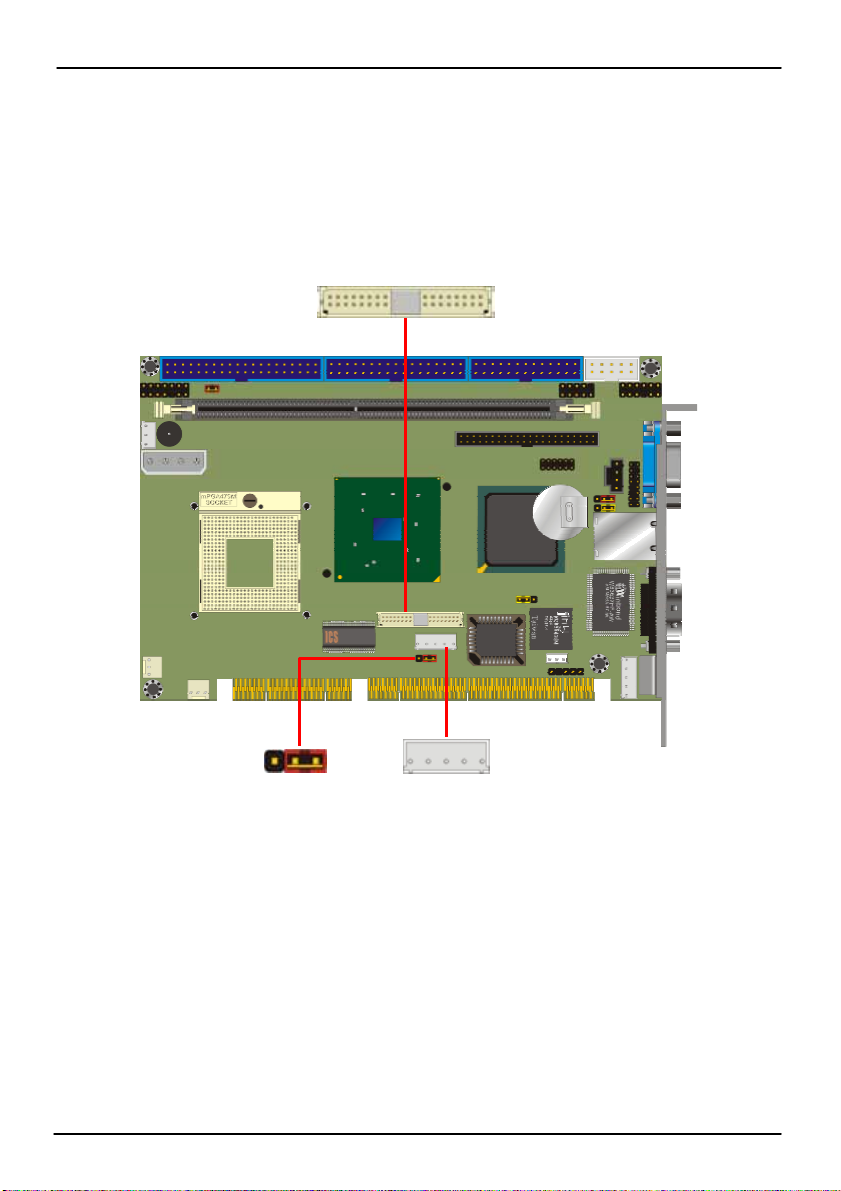

2.7 <E mbedded Solid State Disk>

The HS-871P supports the IDE-based, bootable and driver free DiskOnModule (DOM) embedded flash disk. The onboard 40-pin IDE1 and 44-pin IDE2 bo x header supports normal DOM (DiskOnModule) or M-systems DiskOnChip IDE Pro flash disk with or without the additional VCC power cable. The HS-871P also supports Compact Flash Card Type I/II interface. The jumper JCFSEL provides you to setup the CF card on master or slave mode.

Jumper: JCFSEL Type: onboard 3-pin header

JCFSEL Mode

1-2 Master 2-3 Slave

Default setting

Jumper: JDOM Type: onboard 3-pin header

JDOM Mode

ON IDE1 pin-20 5V power supply enable OFF No 5V power supply on IDE1 pin-20

Default setting

JDOM

JCFSEL

1 3

CF

22

Embedded Solid State Disk

HS-871P User’s Manual Hardware Setup

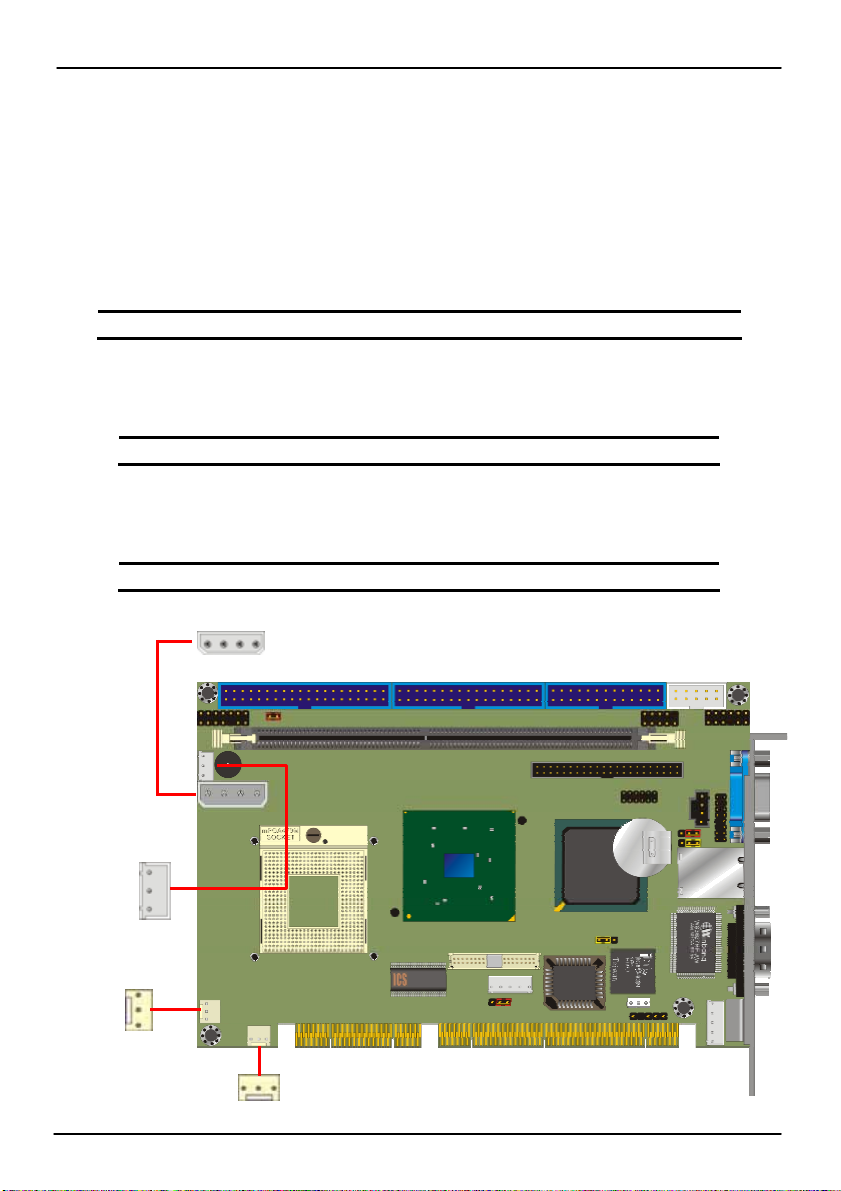

2.8 <Power and Fan Setup>

HS-871P has one 4-pin power input connector expect PISA bus powering; it also has two

fan connectors. For ATX function, you should connect the ATX connector on the backplane with CN_PS on HS-871P.

Connector: CN_PWR Type: 4-pin P-type connector for +5V/+12V input

Pin Description Pin Description Pin Description Pin Description

1 +12V 2 Ground 3 Ground 4 +5V

Connector: CPUFAN, SYSFAN Type: 3-pin fan wafer connector

Pin Description Pin Description Pin Description 1 Ground 2 +12V 3 Fan Control

Connector: CN_PS Type: 3-pin ATX function connector

Pin Description Pin Description Pin Description 1 5V Standby 2 Ground 3 Power On

CN_PWR

1 4

CN_PS 1

3

SYSFAN

1 3

Power and Fan Setup

CPUFAN

1 3

23

HS-871P User’s Manual Hardware Setup

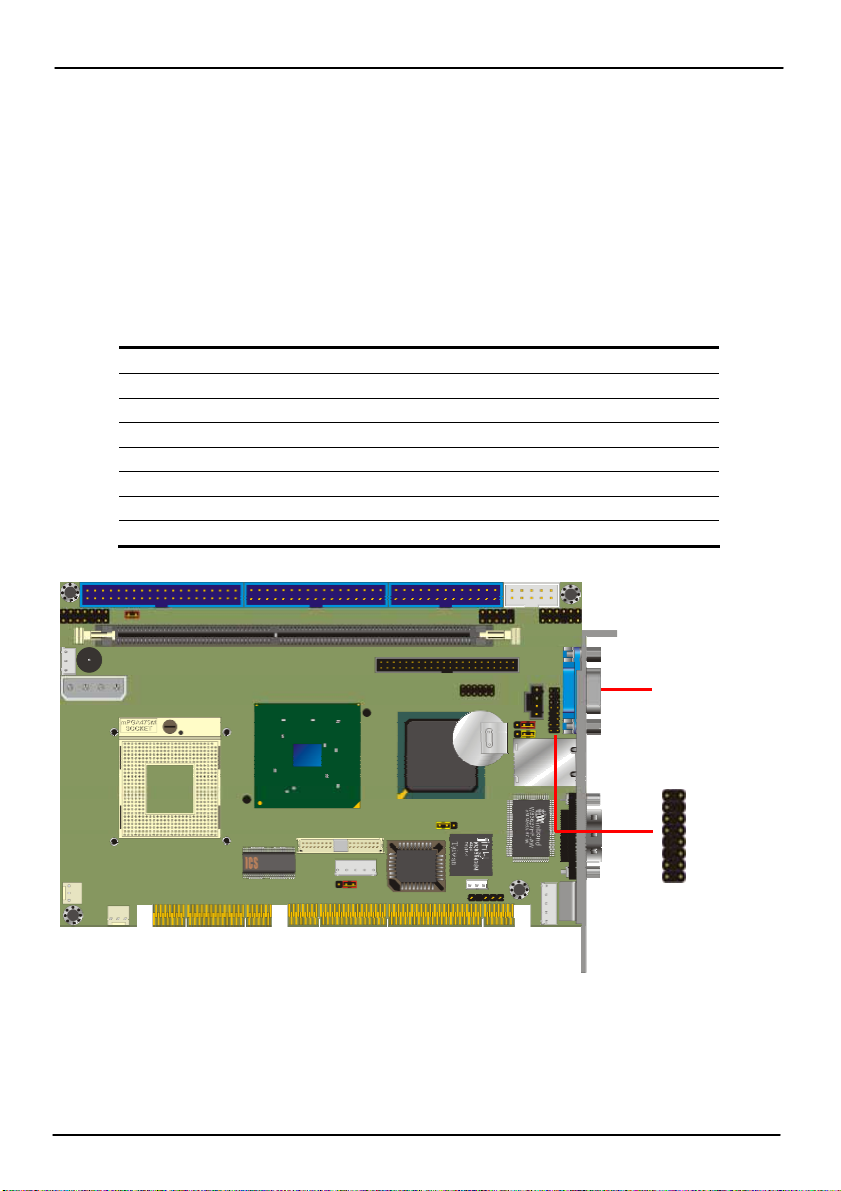

2.9 <Display Interface>

2.9.1 < Analog VGA inter f ace>

The board is integrated with Intel 852G GMCH chipset built-in Intel Extreme Graphics Technology with Intel Dynamic Video Memory up to 64MBytes shared with system memory. The CRT / analog VGA interface includes one external DB15 female connector on bracket and one 8 x 2-pin header connector on board.

(The two interfaces can not be used at the same time)

Connector: CN_VGA Type: 16-pin (2 x 8) pin header (pitch = 2.0mm)

Pin Description Pin Description 1 Red 9 Green

2 Blue 10 N/C 3 Ground 11 Ground 4 Ground 12 Ground 5 N/C 13 Ground 6 N/C 14 Data 7 HSYNC 15 VSYNC 8 Clock 16 N/C

VGA

CN_VGA

1

16

24

Display Interface

HS-871P User’s Manual Hardware Setup

2.9.2 < Digital VGA interface>

The board provides one 20 x 2-pin LVDS interface for LCD panel, it supports 18/24-bit single/dual channel up to 1600 x 1200 of resolution. The jumper JVLCD can let you select your panel whether supports +5V or +3.3V of voltage, and the CN_INV provides panel inverter interface includes backlight controlling and powering.

JVLCD

1 3

1

CN_LVDS

40

CN_INV

1 5

Display Interface

25

HS-871P User’s Manual Hardware Setup

Connector: CN_INV Connector: JVLCD Type: 5-pin LVDS Power Header Type: 3-pin Power select Header

Pin Description Pin Description 1 +12V 1 VCC 2 GND 2 LCDVCC 3 GND 3 VCC3 4 GND 5 ENABKL

Connector: CN_LVDS Type: onboard 40-pin connector for LVDS connector Connector model: HIROSE DF13-40S

Pin Signal Pin Signal

2 LCDVCC 1 LCDVCC 4 GND 3 GND 6 ATX0- 5 BTX0-

8 ATX0+ 7 BTX0+ 10 GND 9 GND 12 ATX1- 11 BTX114 ATX1+ 13 BTX1+ 16 GND 15 GND 18 ATX2- 17 BTX220 ATX2+ 19 BTX2+ 22 GND 21 GND 24 ATXCK- 23 BTX326 ATXCK+ 25 BTX3+ 28 GND 27 GND 30 ATX3- 29 BTXCK32 ATX3+ 31 BTXCK+ 34 GND 33 GND 36 PANELCLK 35 N/C 38 PANELDATA 37 N/C 40 N/C 39 N/C

To setup the LCD, you need the components below:

1. A panel (support up to 24-bit dual channel) with LVDS interfaces.

2. An inverter for panel’s backlight power.

3. A LCD cable and an inverter cable. For the cables, please follow the pin assignment of the connector to make a cable,

because every panel has its own pin assignment, so we do not provide a standard cable; please find a local cable manufacture to make cables.

26

Display Interface

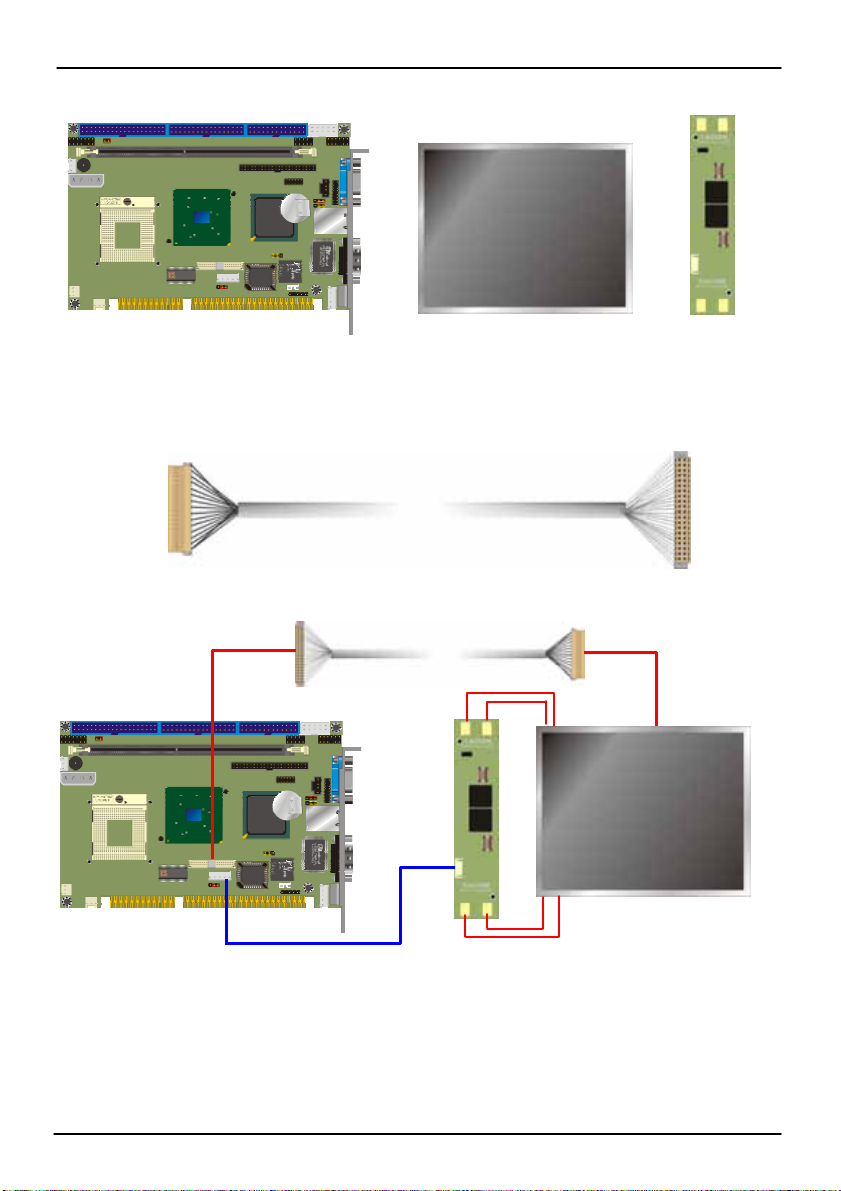

HS-871P User’s Manual Hardware Setup LCD installing guide:

1. Prepare a panel, inverter and HS-871P.

870P SBC

LCD panel

Inverter

2. Please check the datasheet of the panel to see the voltage of the panel, and set the jumper JVLCD to +5V or +3.3V.

3. Prepare a LVDS type LCD cable

Panel si de

For sample ill ustr ator only

Board side

4. Connect all the devices well.

To CN_LVDS

Display Interface

To CN_ INV

27

HS-871P User’s Manual Hardware Setup

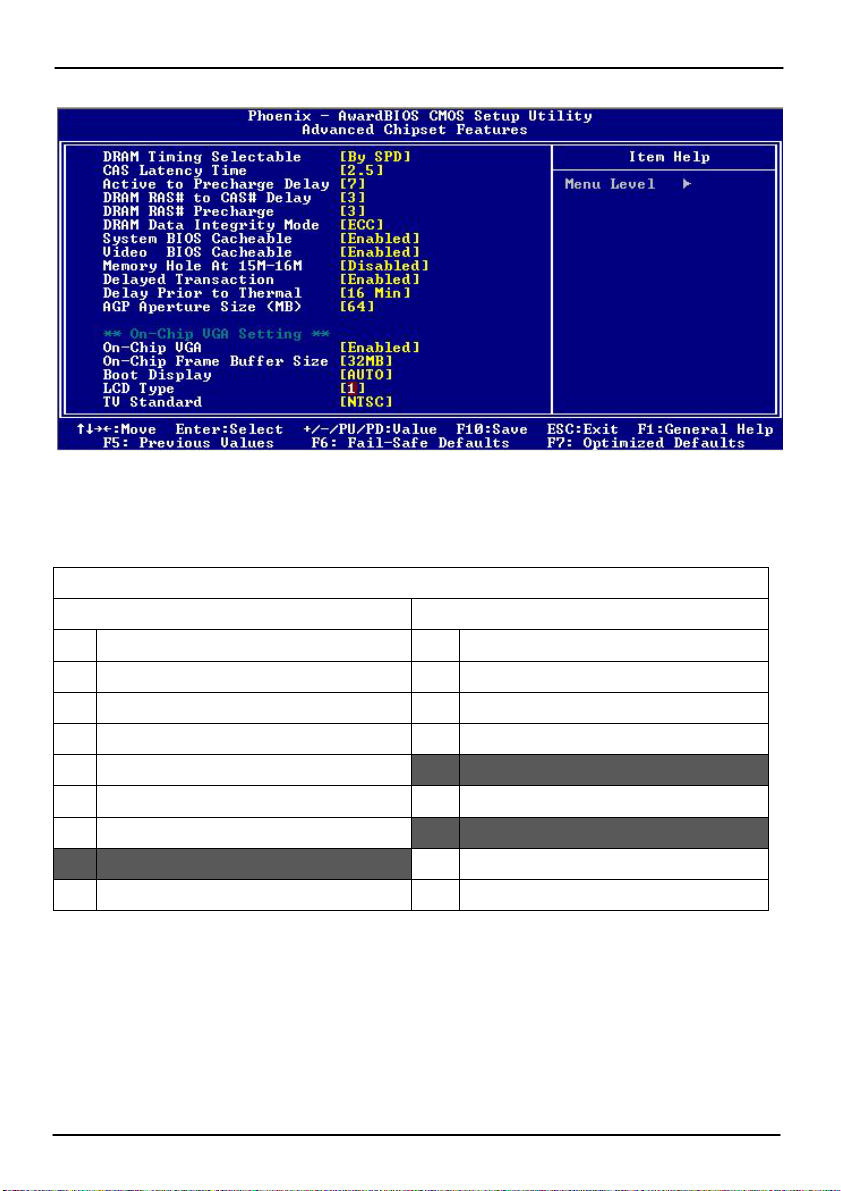

After setup the devices well, you need to select the LCD panel type in the BIOS.

The panel type mapping is list below:

BIOS panel type selection form For 18-bit color For 24-bit color

NO. Output format NO. Output format

1 640 x 480 8 1024 x 768 2 800 x 600 9 1280 x 1024 Dual Channel 3 1024 x 768 10 1400 x 1050 Dual Channel 4 1280 x 1024 11 1600 x 1200 Dual Channel 5 1400 x 1050 Dual Channel @ 108Mhz 13 1024 x 768 Dual Channel 6 1400 x 1050 Dual Channel @ 122Mhz 14 1920 x 1080 Dual Channel 7 1600 x 1200 Dual Channel

12 1024 x 768 Dual Channel

28

Display Interface

HS-871P User’s Manual Hardware Setup

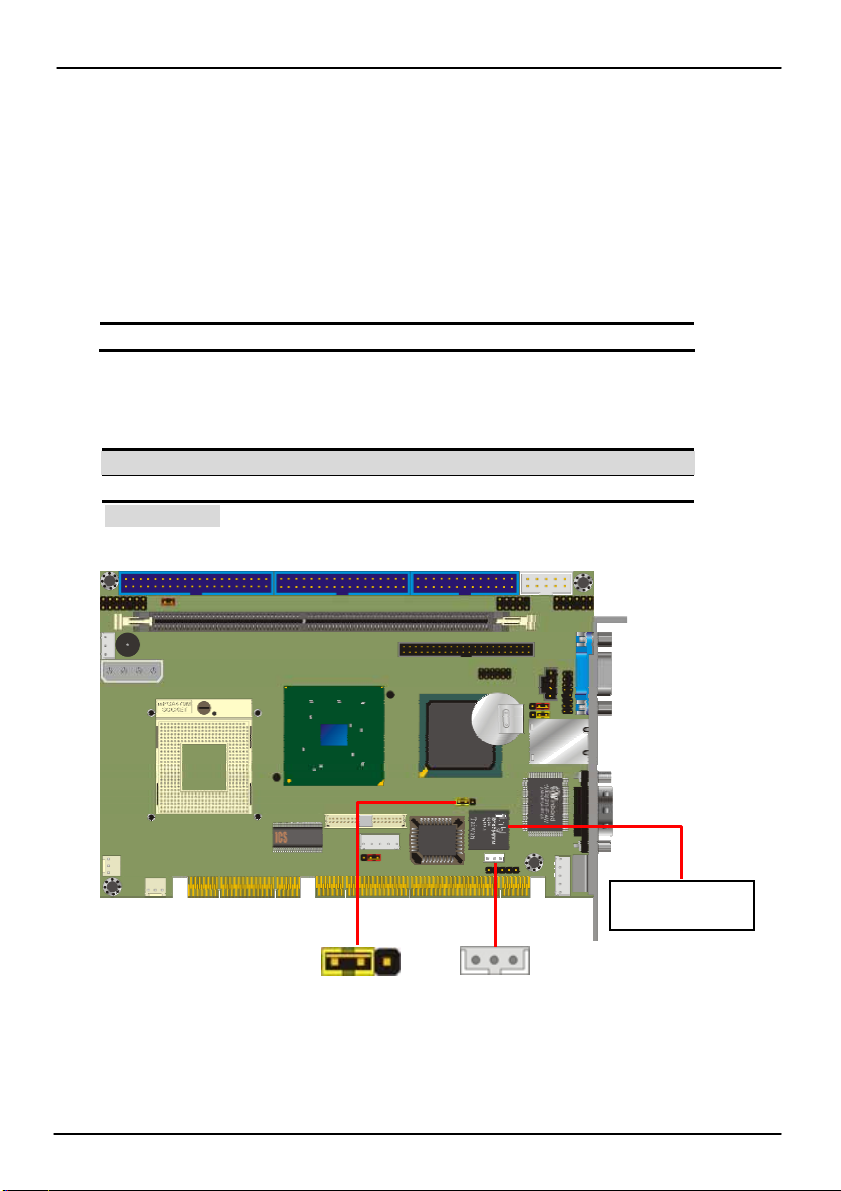

2.10 < E t hernet Network Interface>

The HS-871P is integrated with Intel PRO/1000+ Gigabit Ethernet interface at the type

of 10Base-T/100Base-TX/100Base-T auto-switching Ethernet with full duple x and IEEE

802.3U compliant. The HS-871P Ethernet interface is controlled by Intel 82540EM, and it

provides the external RJ45 connector on rear I/O panel. The jumper JLAN can let you set to enable/disable onboard network function.

Connector: CN_WOL Type: onboard 3-pin (1 x 3) wafer connector

Pin 1 2 3 Description WOL-Ctrl Ground +5V Standby

Jumper: JLAN Type: onboard 3-pin header

JRTC Mode

1-2 Enable Onboard LAN controller 2-3 Disable Onboard LAN controller

Default setting

JLAN

Ethernet Network Interface

1 3

RJ45

Intel 82540EM

CN_WOL

1 3

29

HS-871P User’s Manual Hardware Setup

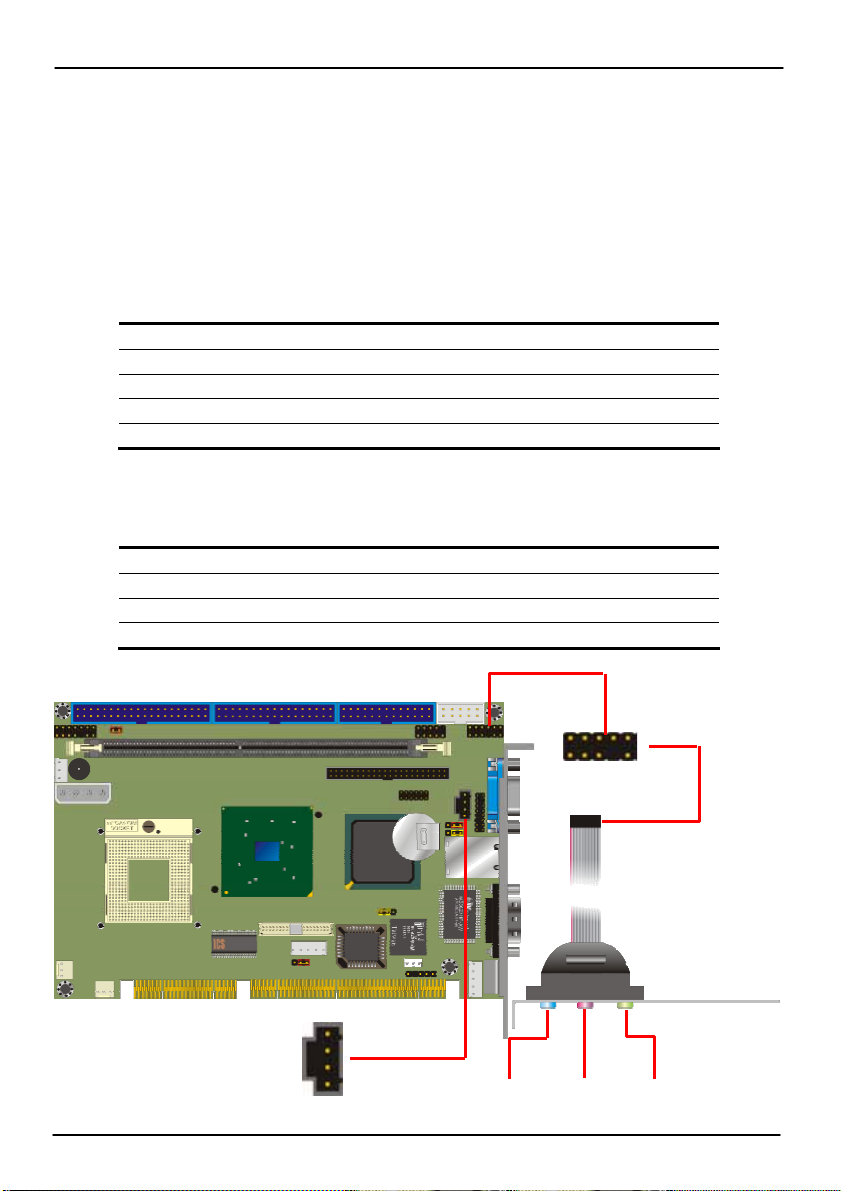

2.11 <Aud io Interf ace>

HS-871P provides a stereo audio interface with Realtek ALC201A AC97 Codec. The CN_AUDIO provides the interface to use attached audio cable, the CDIN can let you connect audio output from CD-ROM drives.

Connector: CN_AUDIO

Type: 10-pin (2 x 5) 2.54-pitch header

Pin Description Pin Description 1 Line – Right 2 Ground

3 Line – Left 4 MIC 5 MIC 6 Ground 7 N/C 8 Line Out – Left 9 Line Out – Right 10 Ground

Connector: CDIN

Type: 4-pin header

Pin Description 1 CD – Left

2 Ground 3 Ground 4 CD – Right

10

1

NADI

1

CDIN

30

Audio Interface

4

Line-in MIC-in Line-out

HS-871P User’s Manual Hardware Setup

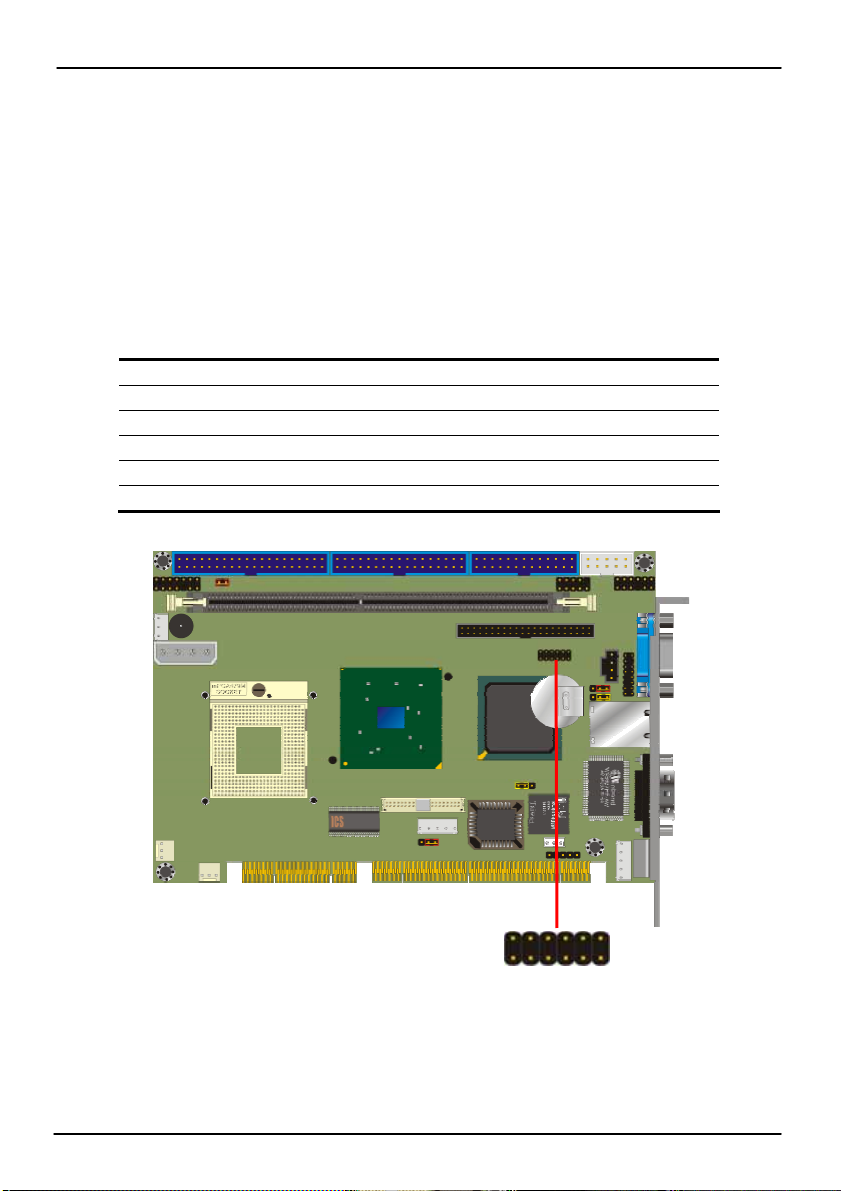

2.12 <GPIO interface>

The board offers 8-bit digital I/O to custo mize its configuration to your control needs. For example, you may configure the digital I/O to control the opening and closing of the cash drawer or to sense the warning signal from a tripped UPS. The following is a detailed description of how the digital I/O is controlled via software programming.

Connector: CN_DIO Type: 12-pin (6 x 2) header (pitch = 2.0mm)

Pin Description Pin Description 1 Ground 2 Ground

3 LGP0 4 LGP4 5 LGP1 6 LGP5 7 LGP2 8 LGP6 9 LGP3 10 LGP7 11 VCC 12 +12V

GPIO Interface

12

CN_DIO

1

31

HS-871P User’s Manual Hardware Setup

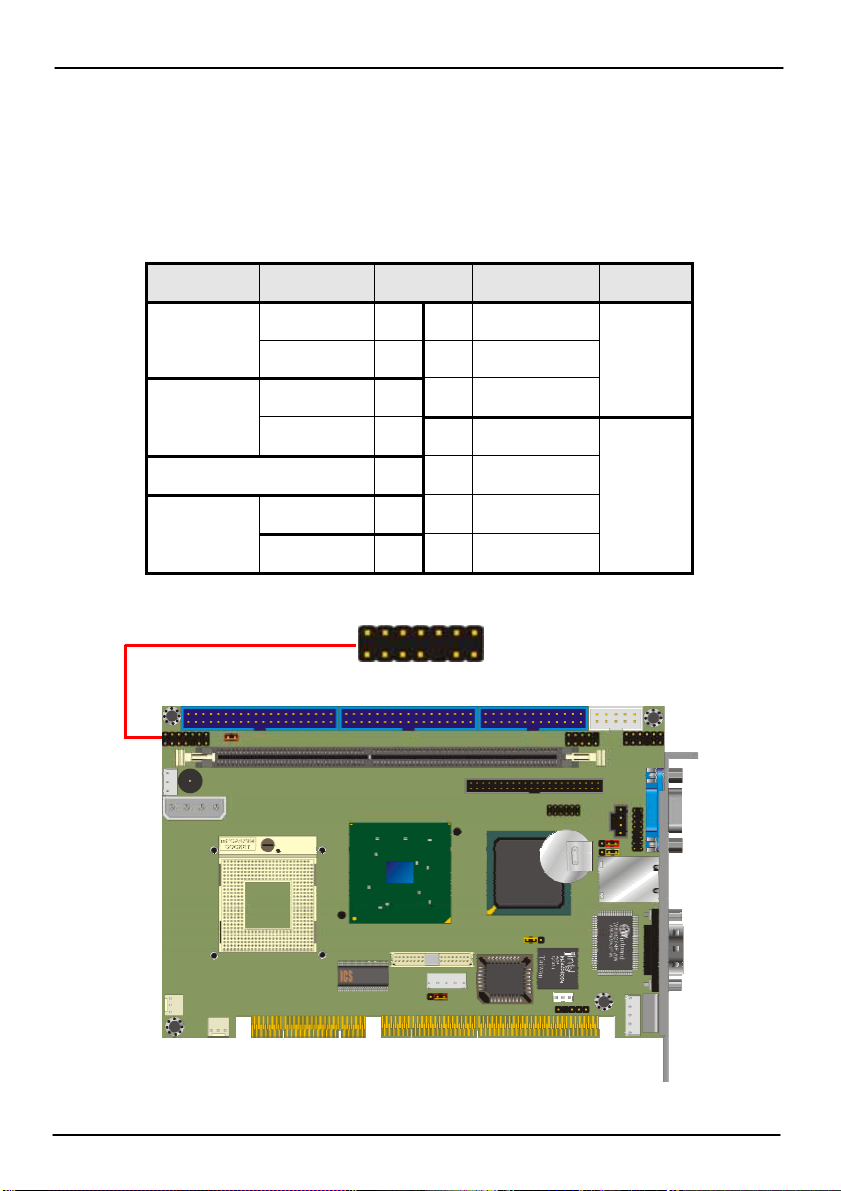

2.13 <S witch and Indicat or>

The JFRNT provides front control panel of the board, such as power button, reset and beeper, etc.

Connector: JFRNT Type: onboard 14-pin (2 x 7) 2.54-pitch header

Function Signal PIN Signal Function

IDE LED

Reset

Power

Button

VCC (+) 1 2 (+) VCC

Power

Active 3 4 N/C

LED

Reset 5 6 GND

GND 7 8 VCC

N/C 9 10 N/C

Speaker

PWRBT 11 12 N/C

5VSB 13 14 SPKIN

14

JFRNT

1

32

Switch and Indicator

HS-871P User’s Manual Display Mode Setup

Chapter 3 <Display Mode Setup>

This chapter shows you how to setup the display device under Windows OS.

Before you using your display device:

1. Check your software

Before you can use the display device properly, please install the VGA driver.

2. Check your hardware

Please setup the display device properly before you boot up the system.

For configure your Display device, please follow the instructions below:

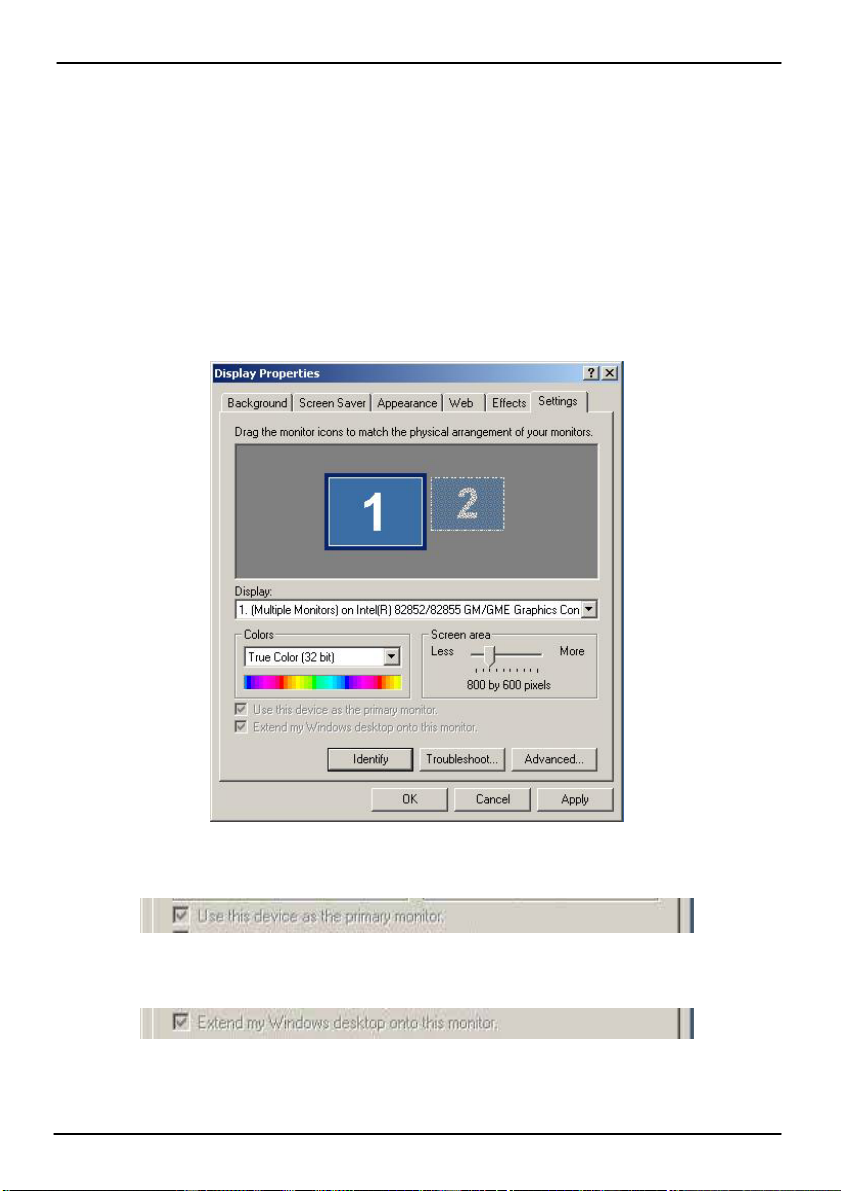

1. Please lunch Display Properties.

You would see two Graphics Controllers. If you connect two display devices, you would be able to setup each device for color bit and resolution.

This item can let you configure which device would be the primary if you connect two display devices.

This item can let you extend your Windows Desktop to second display device. If you click the identify button, the screen will pop up the number sequence of your device.

Display Mode Setup

33

HS-871P User’s Manual Display Mode Setup

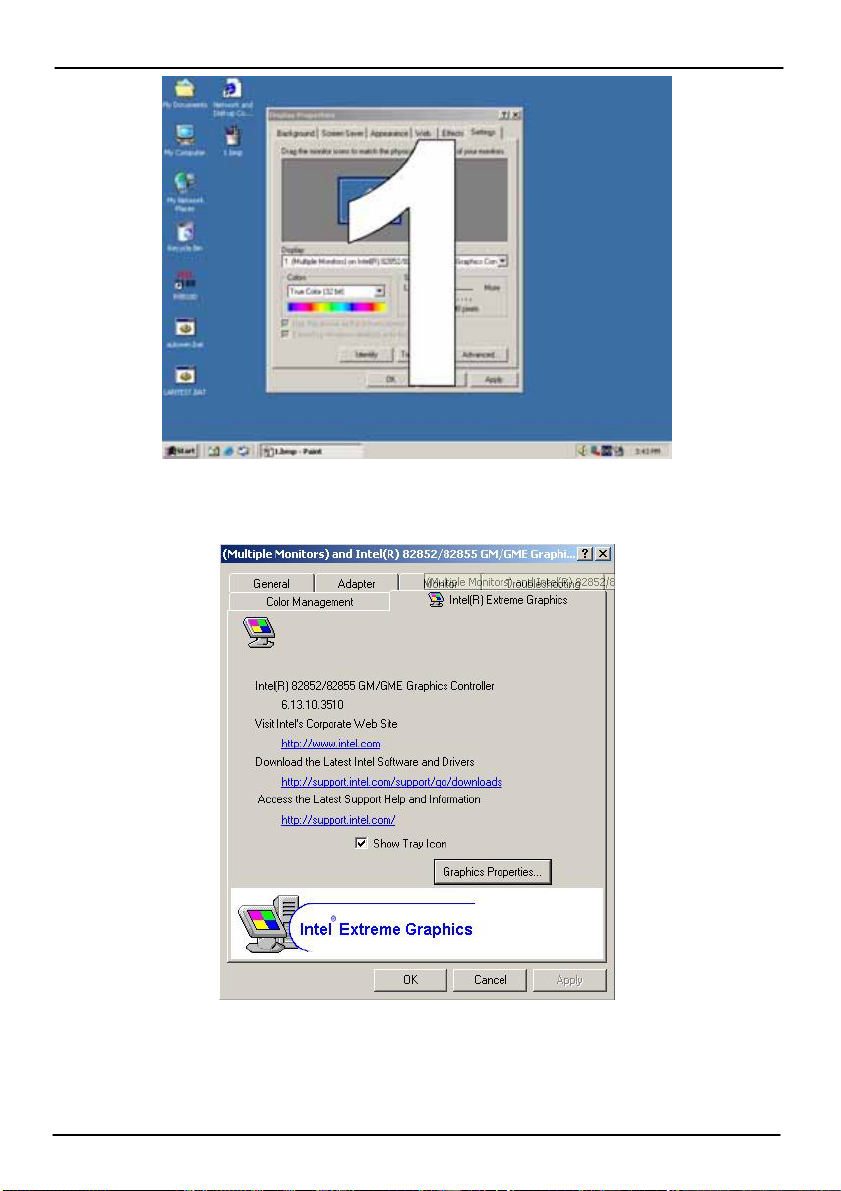

For advanced display settings, please click Advanced… button and choose Intel(R) Extreme Graphics.

Please click Graphics Properties button to enter the advanced setup.

34

Display Mode Setup

HS-871P User’s Manual Display Mode Setup

While you entering the Graphics Properties, you will see the options below:

This opt i on ca n let you confi gure the CRT monitors for Colors, Screen Area (Resolution) and Refresh Ra t e .

Display Mode Setup

This option can let you configure the L C D pa n e l fo r C o lors, S c re e n Area ( Resolut i on) and Full Scr een option.

35

HS-871P User’s Manual Display Mode Setup

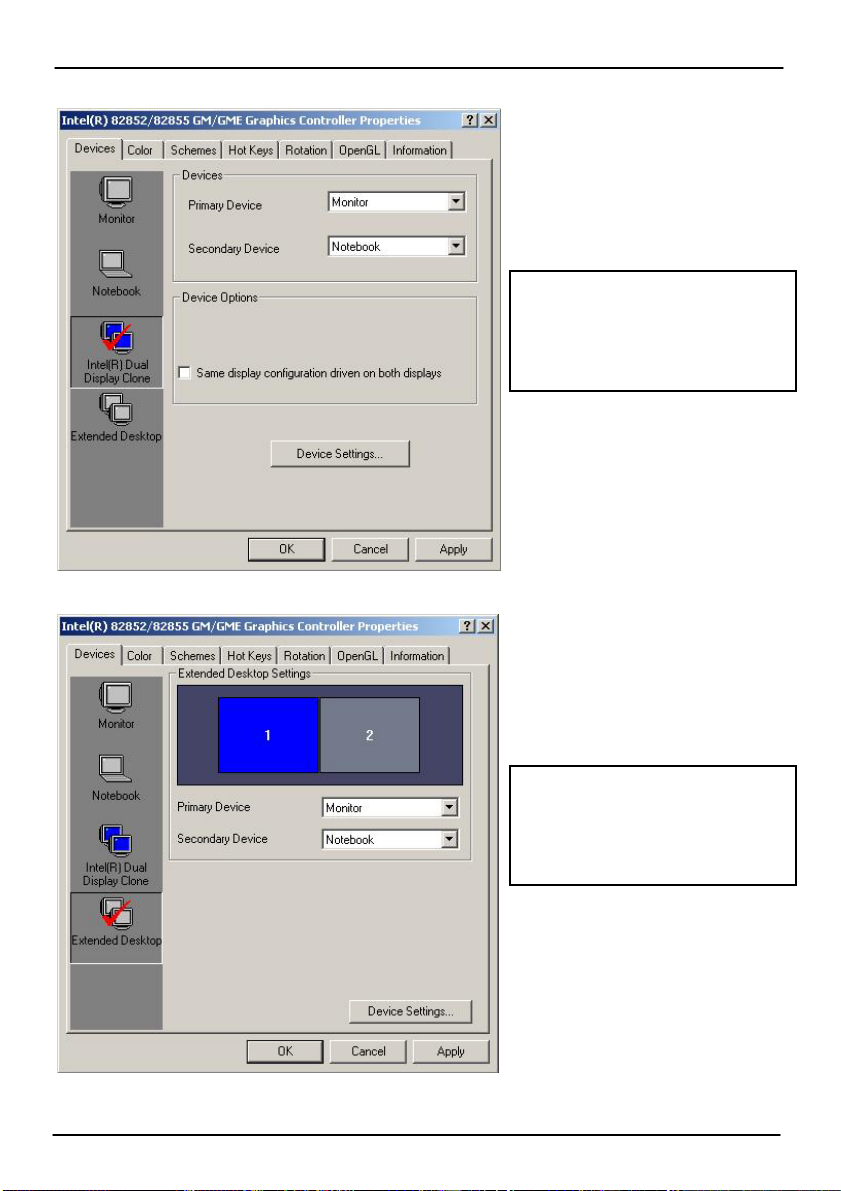

This option can let you configure the Dual Display for clone mode (same displ ay on two devices)

This option can let you configure the Dual Display for Extended Desktop mode

36

Display Mode Setup

HS-871P User’s Manual BIOS Setup

Chapter 4 <BIOS Setup>

The single board computer uses the Award BIOS for the system configuration. The Award BIOS in the single board computer is a customized version of the industrial standard BIOS for IBM PC AT-compatible computers. It supports Intel x86 and compatible CPU architecture based processors and computers. The BIOS provides critical low-level support for the system central processing, memory and I/O sub-systems.

The BIOS setup program of the single board computer let the customers modify the basic configuration setting. The settings are stored in a dedicated battery-backed memory, NVRAM, retains the information when the power is turned off. If the battery runs out of the power, then the settings of BIOS will come back to the default setting.

The BIOS section of the manual is subject to change without notice and is provided here for reference purpose only. The settings and configurations of the B IOS are current at the time of print, and therefore they may not be exactly the same as that displayed on your screen.

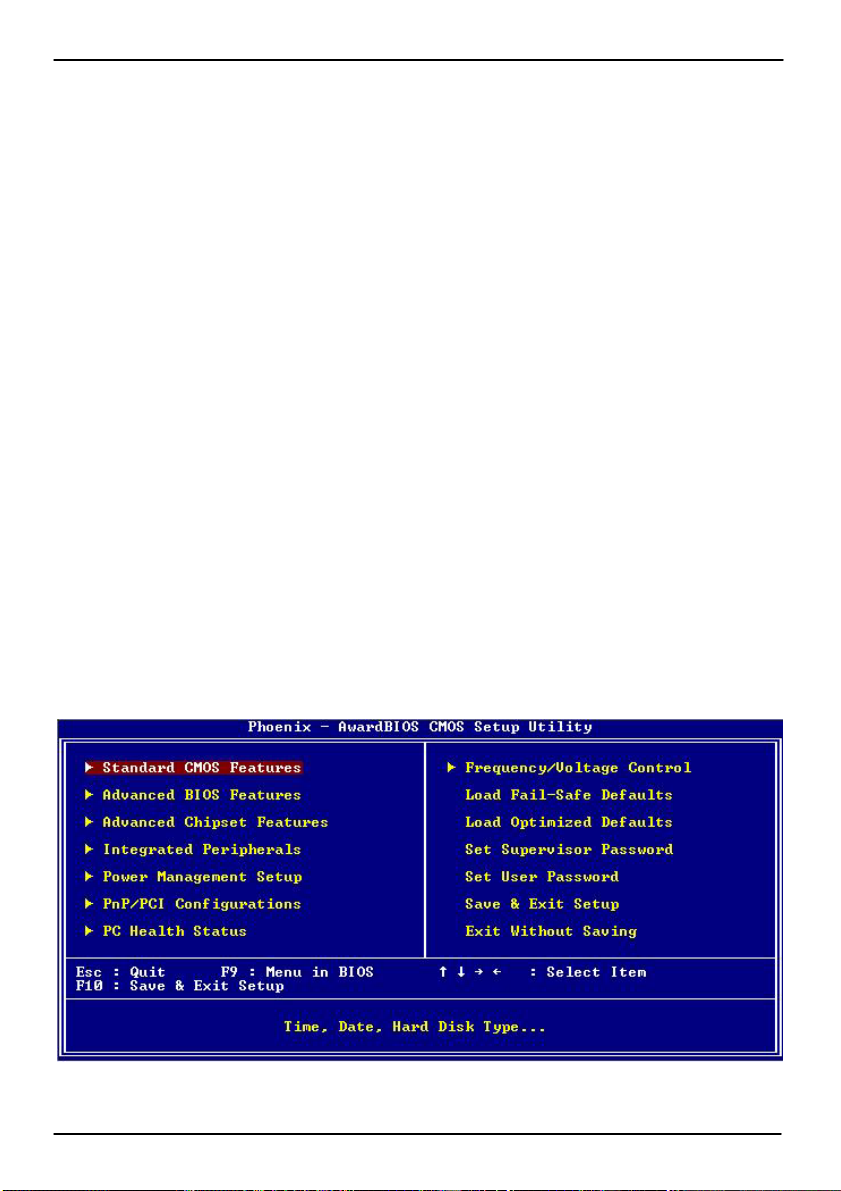

To activate CMOS Setup program, press ＜DEL＞ key immediately after you turn on the system. The following message “Press DEL to enter SETUP” should appear in the lower left hand corner of your screen. When you enter the CMOS Setup Utility, the Main Menu will be displayed as Figure 5-1. You can use arrow keys to select your function, press ＜Enter＞ key to accept the selection and enter the sub-menu.

Figure 5-1 CMOS Setup Utility Main Screen

BIOS Setup

37

HS-871P User’s Manual

(This Page i s Lef t for Blank)

38

HS-871P User’s Manual Appendix A

Appendix A <I/O ports pin assignment>

A.1 <I DE P ort>

Connector: IDE1 Type: 40-pin (20 x 2) box header

Pin Description Pin Description 1 Reset 2 Ground

3 D7 4 D8 5 D6 6 D9 7 D5 8 D10 9 D4 10 D11 11 D3 12 D12 13 D2 14 D13 15 D1 16 D14 17 D0 18 D15 19 Ground 20 VCC 21 REQ 22 Ground 23 IOW-/STOP 24 Ground 25 IOR-/HDMARDY 26 Ground 27 IORDY/DDMARDY 28 IDESEL 29 DACK- 30 Ground 31 IRQ 32 N/C 33 A1 34 CBLID 35 A0 36 A2 37 CS0 (MASTER CS) 38 CS1 (SLAVE CS) 39 LED ACT- 40 Ground

2

1

40

39

IDE Port

39

HS-871P User’s Manual Appendix A

Connector: IDE2

Type: 44-pin (22 x 2) box header

2

1

44

43

Pin Description Pin Description 1 Reset 2 Ground

3 D7 4 D8 5 D6 6 D9 7 D5 8 D10 9 D4 10 D11 11 D3 12 D12 13 D2 14 D13 15 D1 16 D14 17 D0 18 D15 19 Ground 20 N/C 21 REQ 22 Ground 23 IOW-/STOP 24 Ground 25 IOR-/HDMARDY 26 Ground 27 IORDY/DDMARDY 28 Ground 29 DACK- 30 Ground 31 IRQ 32 N/C 33 A1 34 SD 35 A0 36 A2 37 CS1 38 CS3 39 ASP1 40 Ground 41 Vcc 42 Vcc 43 Ground 44 Ground

40

IDE Port

HS-871P User’s Manual Appendix A

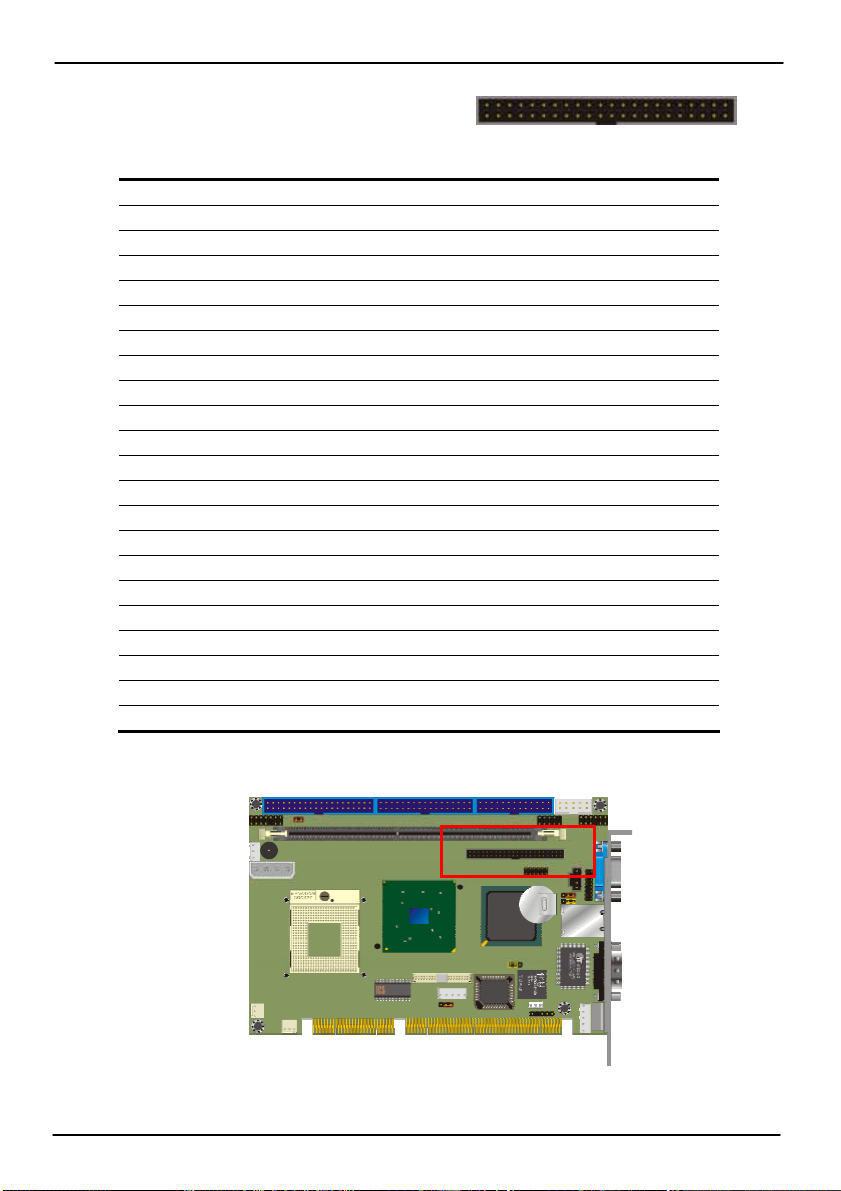

A.2 <Flopp y P ort>

Connector: FDD Type: 34-pin (2 x 17) 2.54-pitch header

Pin Description Pin Description 1 Ground 2 DRIVE DENSITY SELECT 0

3 Ground 4 DRIVE DENSITY SELECT 1 5 Ground 6 N/C 7 Ground 8 INDEX9 Ground 10 MOTOR ENABLE A11 Ground 12 DRIVER SELECT B13 Ground 14 DRIVER SELECT A15 Ground 16 MOTOR ENABLE B17 Ground 18 DIRECTION19 Ground 20 STEP21 Ground 22 WRITE DATA23 Ground 24 WRITE GATE25 Ground 26 TRACK 027 Ground 28 WRITE PROTECT29 Ground 30 READ DATA31 Ground 32 HEAD SELECT33 Ground 34 DISK CHANGE-

2

1

34

33

Floppy Port

41

HS-871P User’s Manual Appendix A

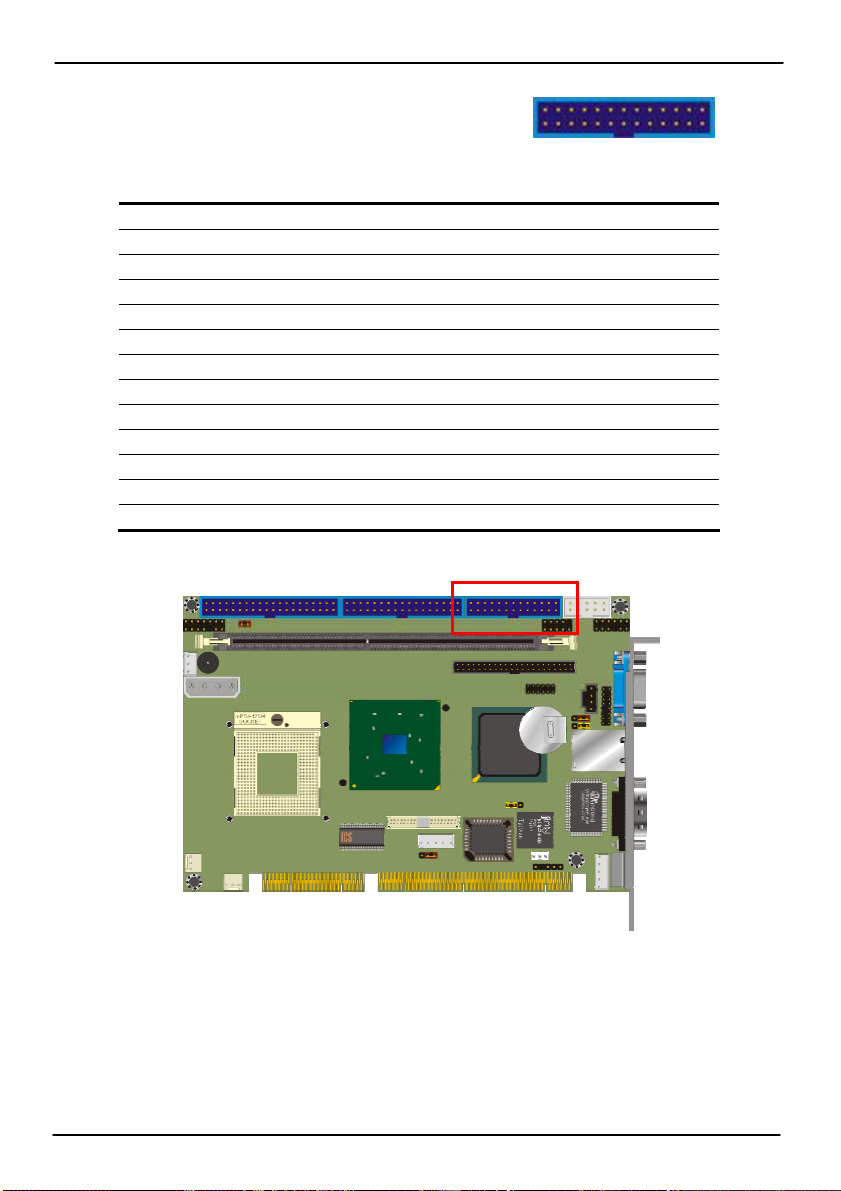

A.3 < Parallel Port>

2

26

Connector: LPT Type: 26-pin (2 x 13) 2.54-pitch box header

1

25

Pin Description Pin Description 1 STROBE- 14 AUTO FEED-

2 D0 15 ERROR3 D1 16 INITIALIZE4 D2 17 SELECT INPUT5 D3 18 Ground 6 D4 19 Ground 7 D5 20 Ground 8 D6 21 Ground 9 D7 22 Ground 10 ACKNOWLEDGE- 23 Ground 11 BUSY 24 Ground 12 PAPER EMPTY 25 Ground 13 SELECT+ 26 N/C

42

Parallel Port

HS-871P User’s Manual Appendix A

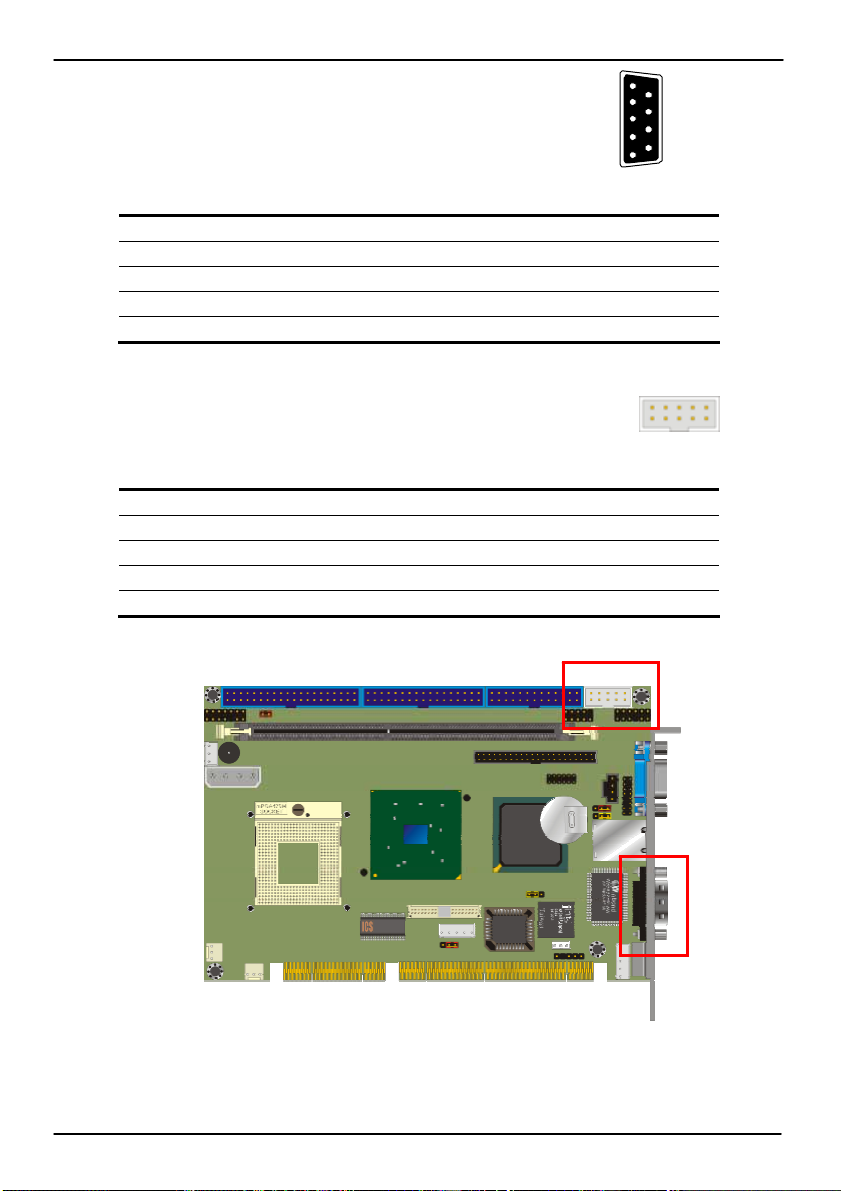

A.4 <Serial Port>

A.4.1 <External DB9 COM >

Connector: COM1 Type: 9-pin D-sub male connector on bracket

Pin Description Pin Description 1 DCD 6 DSR

2 SIN 7 RTS 3 SO 8 CTS 4 DTR 9 RI 5 Ground

A.4.2 <Internal COM2>

Connector: CN_COM2 Type: 10-pin (2 x 5) 2.54-pitch header

Pin Description Pin Description 1 DCD 2 SIN

3 SO 4 DTR 5 Ground 6 DSR 7 RTS 8 CTS 9 RI 10 N/C

1 2 3 4 5

6 7 8 9

2 9 10

1

Serial Port

43

HS-871P User’s Manual Appendix A

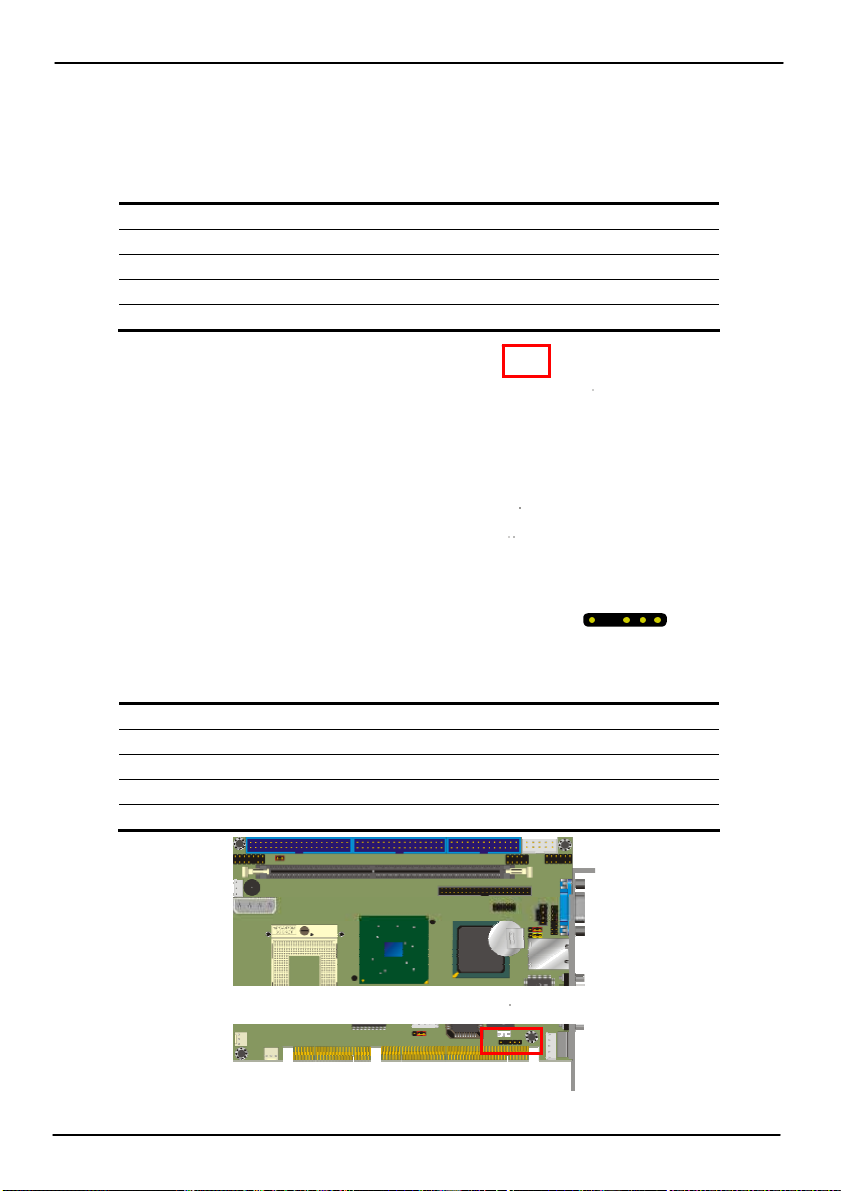

A.5 <USB Port>

Connector: CN_USB Type: 10-pin (2 x 5) header for dual USB Ports

Pin Description Pin Description 1 VCC 2 VCC

3 Data0- 4 Data15 Data0+ 6 Data1+ 7 Ground 8 Ground 9 Ground 10 N/C

A.6 <I rDA Po rt >

Connector: CN_IR Type: 5-pin (1 x 5) 2.54-pitch header for SIR Port

Pin Description 1 VCC

2 N/C 3 IRRXD 4 Ground 5 IRTXD

44

USB Port

HS-871P User’s Manual Appendix A

A.9 <AT Keyboard Port>

Connector: CN_ATKB

1

Type: 5-pin box header

Pin 1 2 3 4 5 Description CLK DATA N/C Ground VCC

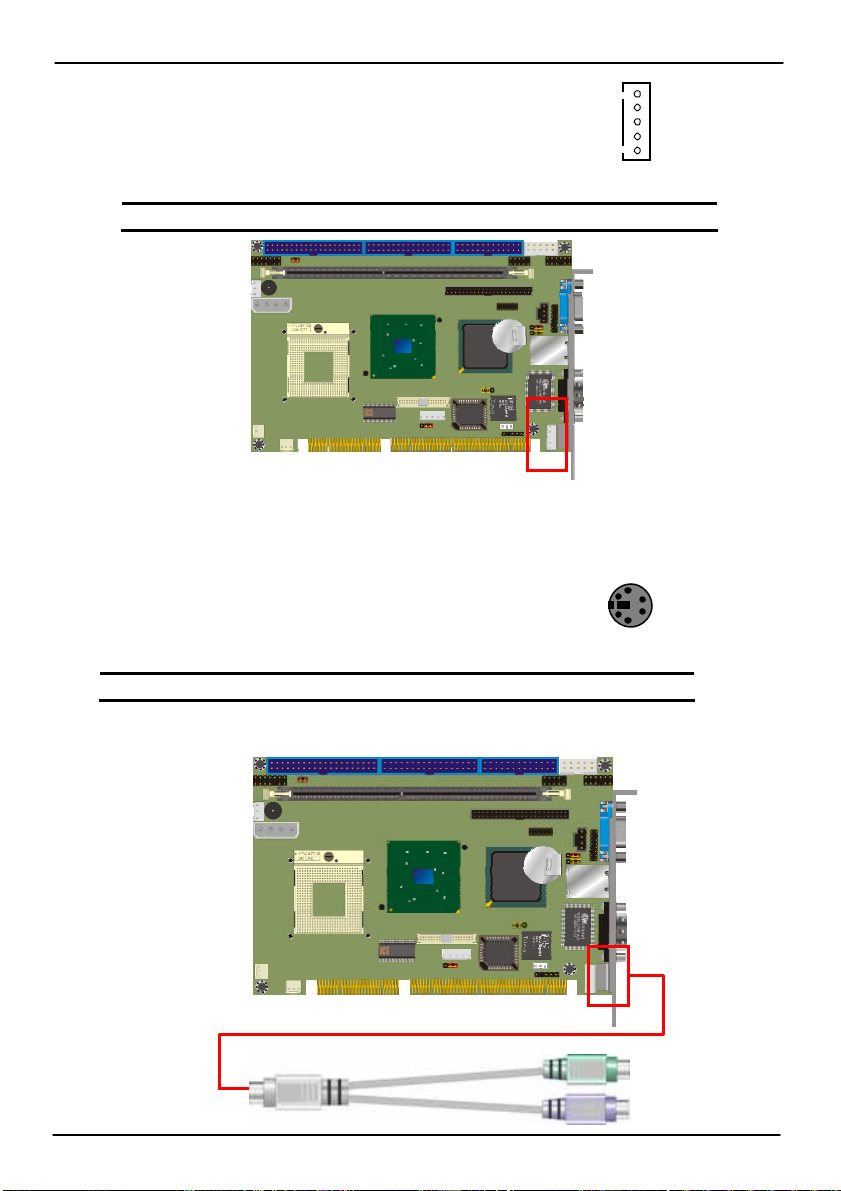

A.10 <P S /2 Keyboard & Mouse Po rt >

Connector: PS2 Type: 6-pin Mini-DIN connector on bracket

3

1

5 6

2

4

Pin 1 2 3 4 5 6 Description KBD MSD Ground VCC KBC MSC

Note: The PS/2 c onnect or supports s t andar d PS/2 keyboar d dir ectly or both PS/2 keyboard and mou se through the PS/2 Y-ty pe cable. The cable is the standard on packing list.

46

AT Keyboard Port

HS-871P User’s Manual Appendix B

Appendix B <Flash BIOS>

B.1 BIOS Auto Flash Tool

The board is based on Award BIOS and can be updated easily by the BIOS auto flash tool. You can download the tool online at the address below:

TUhttp://www.award.comUT TUhttp://www.commell.com.tw/support/support.htmUT

File name of the tool is “awdflash.exe”, it’s the utility that can write the data into the BIOS flash ship and update the BIOS.

B.2 Flash Method

1. Please make a bootable floppy disk.

2. Get the last .bin files you want to update and copy it into the disk.

3. Copy awardflash.exe to the disk.

4. Power on the system and flash the BIOS. (Example: C:/ awardflash XXX.bin)

5. Re-star the system.

Any question about the BIOS re-flash please contact your distributors or visit the web-site at below:

TUhttp://www.commell.com.tw/support/support.htmUT

Flash BIOS

47

HS-871P User’s Manual

(This Page i s Lef t for Blank)

48

(This Page i s Lef t for Blank)

HS-871P User’s Manual Appendix C

Appendix C <Watchdog Timer Programming Guide>

WDT source from : WinBond 83627HF (1) General Description Winbond has a WDT feature inside its chip. We implement its function i nto our circuit . There are many configuration Registors ( CR ) in 83627HF. The following sequence must be followed for CR programming : (*1) Enter the extended function mode (*2) Configure the configuration registers (*3) Exit the extended function mode

EFER : Extended Funct ion En able Registers.( EFER=2Eh in ou r system )

EFIR : Extended Fun ction Index Register. ( Same addr . with EFER. ) EFDR : Extended Funct ion Data R egister .( Located at addr.[ EFIR +1 ] ) For instance ; (*1) Enter extended function mode MOV DX,2EH MOV AL,87H CLI ; disable interrupt OUT DX,AL JMP $+2 OUT DX,AL STI ; enable interrupt (*2) Configurate logical device 1 , configuration register CRF0 MOV DX,2EH MOV AL,07H OUT DX,AL

; point to Logical Dev ice Number Register MOV DX,2FH MOV AL,01H OUT DX,AL

; select logical device 1 MOV DX,2EH MOV AL,0F0H OUT DX,AL MOV DX,2FH MOV AL,3CH OUT DX,AL ; update CRF0 of LD0 with value 3Ch (*3) Exit extended function mode MOV DX,2EH MOV AL,0AAH OUT DX,AL The Configuration Register ( CR ) Definition :

Watchdog Timer Programming Guide

49

HS-871P User’s Manual

** Chip ( Global ) Control Register ( CCR ) : CR02 -->CR2F. CR07 = Logical Device Number Register ( LDNR ) ** Logical Device 0 ( LD0 ) = FDC , with CR : CR30 -->CRF5 . When LDNR (= CR07) = 00h , you can program the CR30 --CRF5 related to FDC feature . ** Logical Device 1 ( LD1 ) = Parallel Port,with CR :CR30 -->CRF0. ** LD2 = UART A ( Serial Port 1) ,with CR :CR30 -->CRF0. ** LD3 = UART B ( Serial Port 2) ,with CR :CR30 -->CRF1. ** LD5 = KBC ,with CR :CR30 -->CRF0. ** LD6 = CIR ,with CR :CR30 -->CR70. ** LD7 = GAME PORT,MIDI PORT & GP I/O Port I,with CR :CR30 -->CRF2. ** LD8 = GP I/O Port II,with CR :CR30 -->CRF7. ** LD9 = GP I/O Port III,with CR :CR30 -->CRF3. ** LDA = ACPI,with CR :CR30 -->CRFF. ** LD B = HARDWARE MONITOR, with C R : CR30 --> CRF0 (2) Related CR for WDT programming CR2B-Bit 4 ; [0] for WDT function ( via Pin89 ) LD8-CRF5-Bit 3; Select WDT count time 0 = second. 1 = minute. LD8-CRF6 ; WDT time-out period , 00h = disabled 01h = 1 second/minute . 02h = 2 seconds/minutes . 03h = 3 seconds/minutes . 04h = 4 seconds/minutes . 05h = 5 seconds/minutes .

..........

FEh = 254 seconds/minutes . FFh = 255 seconds/minutes .

When writing a non-zero value to LD8-CRF6 , this value will be loaded into WDT counter and start to count down .Read this register can not get the WDT time-out period ( the orginal one written into ) , but the current value in WDT counter .

Enable and Refresh WDT : program LD8-CRF6 a non-zero value . Disable WDT : program LD8-CRF2 with 00h .

LD8-CRF7- Bit 4 : WDT Status 1 = WDT time-out happened 0 = WDT counting .

50

Watchdog Timer Programming Guide

HS-871P User’s Manual Appendix C

LD8-CRF7- Bit[3..0] : Select IRQ resource for WDT time-out ( Setting of 2 selects SMI ) (3) WDT Programmimg g uide Step 1 . Enter extended function mode as mentioned as above. Step 2 . Program WDT related CR. (2-1) CR2B-b[4]P[0] ; Set pin output as WDT function (2-2) CR07-P08h ; Point to LD8 (2-3) CRF6-Pxyh

; Program WDT time-out period an d start count down . xy = 00 ; No WDT time-out and counting

xy = 01 ; WDT time-out = 30 sec. and starts counting .

............

(2-4) Read CRF7-b4 if needed ; 0 : WDT counting 1 : WDT time-out happened Step 3. Exit e xtended function mode as mentioned as above. Example (ENABLE WDT AND SET WDT time-out = 5 minutes) Step 1 . MOV DX,2EH MOV AL,87H CLI ; disable interrupt OUT DX,AL JMP $+2 OUT DX,AL STI ; enable interrupt Step 2 . MOV DX,2Eh MOV AL,2BH OUT DX,AL MOV DX,2Fh IN AL,DX ; READ CR2B AND AL,0EFH MOV AH,AL

MOV DX,2Eh MOV AL,2BH OUT DX,AL MOV DX,2Fh MOV AL,AH OUT DX,AL ; CR2B-b[4]P[0]

MOV DX,2Eh MOV AL,07H OUT DX,AL ; point to Logical Device Number Register

Watchdog Timer Programming Guide

51

HS-871P User’s Manual

MOV DX,2Fh MOV AL,08H OUT DX,AL ; select logical device 8 ; MOV DX,2Eh MOV AL,0F5H OUT DX,AL MOV DX,2Fh IN AL,DX ; OR AL,08h ; SELECT MINUTE MOV AH,AL

MOV DX,2Eh MOV AL,0F5h OUT DX,AL MOV DX,2Fh MOV AL,AH OUT DX,AL

MOV DX,2Eh ; SETTING 5 MINUTES MOV AL,0F6h ; ( LD8-CRF6-P05h ) OUT DX,AL MOV DX,2Fh MOV AL,05h OUT DX,AL

Step 3 . Exit extended function mode MOV DX,2Eh MOV AL,0AAH OUT DX,AL REMARK : **** I/O PORT 2Eh --> Index port for programming CR . 2Fh --> Data port for programming CR . **** LD8-CRF6-P05 h :

Program CR index F6h of Logical Device 8

with the value "05h" .

52

Watchdog Timer Programming Guide

HS-871P User’s Manual Appendix D

Appendix D <Hardware Test>

D.1 <Power Consumption>

Hardware

CPU Intel® Mobile Celeron® 1.2GHz Memory UNIGEN DDR333 512MB x 1 HDD Seagate ST340014A (not counted) CDROM SONY DDU1621 DVD-ROM (not counted) Power Supply SEVENTEAM ST-402HLP

Software

OS Windows XP SP1 English Version Application 3DMARK 2003

Test Result

5V 5.42A 27.1W 12V 427mA 5.124W

Power Consumption

53

HS-871P User’s Manual Contact Information

Contact Information

Any advice or comment about our products and ser vice, or anythi ng we can help you please don’t hesitate to contact with us. We will do our best to suppor t you for your products, project s an d business.

Taiwan Commate Computer Inc.

Address 8F, No. 94, Sec. 1, Shin Tai Wu Rd., Shi Chih

Taipei Hsien, Taiwan TEL +886-2-26963909 FAX +886-2-26963911 Website TUhttp://www.commell.com.twUT

54

E-Mail TU[email protected]UT (General Information)

TU[email protected]UT (Technical Support )

mm

ll i r

r

m

rk

f in

ri

l P iviin

Contact Information
