Page 1
FT-8551
5.25” Embedded Miniboard
User’s Manual
Edition: 1.0
2009/2/5
Page 2
FT-8551 User’s Manual
Copyright
Copyright© 2009. All rights reserved. This document is copyrighted and all rights are
reserved. The information in this document is subject to change without prior notice to
make improvements to the products.
This document contains proprietary information and protect ed by copyright. No part of this
document may be reproduced, copied, or translated in any form or any means without prior
written permission of the manufacturer.
All trademarks and/or registered trademarks contains in this document are property of their
respective owners.
Disclaimer
The company shall not be liable for any incidental or consequential damages resulting from
the performance or use of this product.
The company does not issue a warranty of any kind, express or implied, including without
limitation implied warranties of merchantability or fitness for a particular purpose.
The company has the right to revise the manual or include changes in the specifications of
the product described within it at any time without notice and without obligation to notify any
person of such revision or changes.
Trademark
All trademarks are the property of their respective holders.
Any questions please visit our website at http://www.commell.com.tw.
2
Page 3
FT-8551 User’s Manual
Packing List
Please check the package before you use this product
Hardware:
FT-8551 5.25” Embedded Miniboard x 1

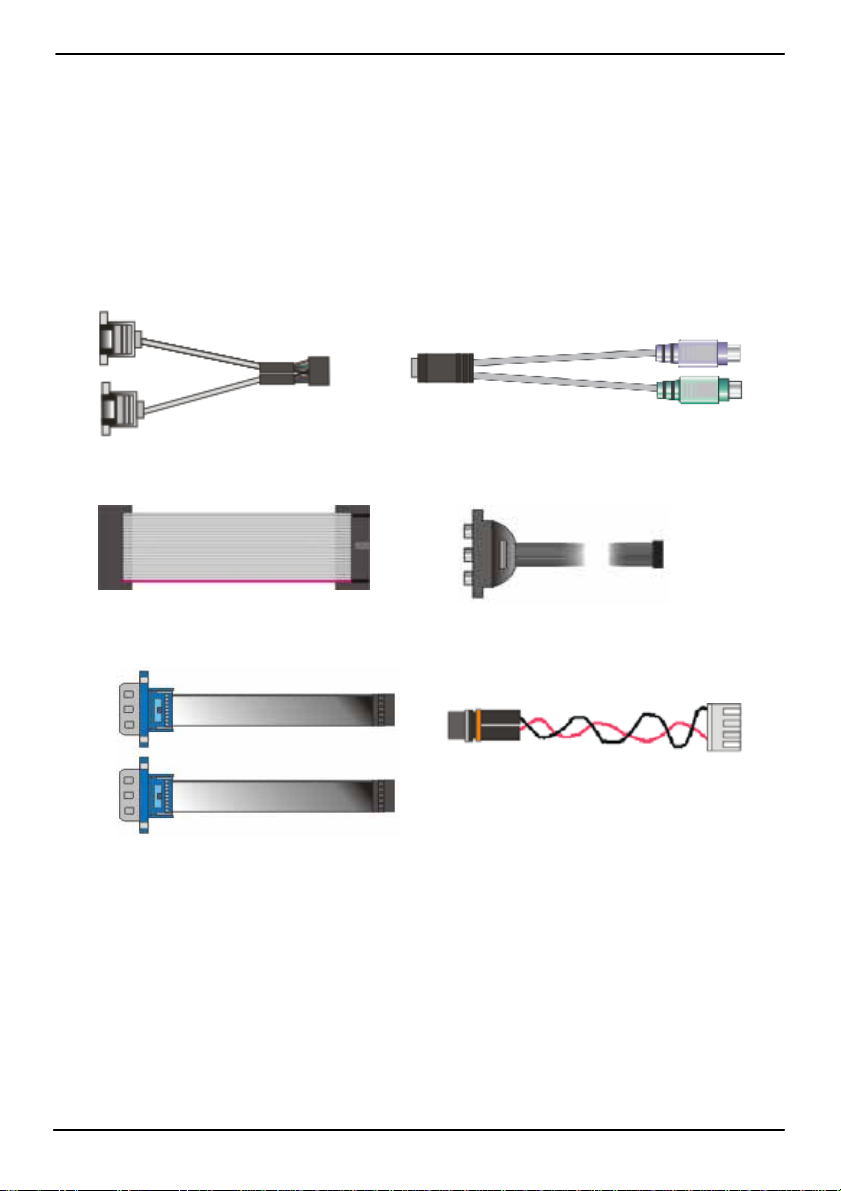

Cable Kit:
USB2.0 cable x1
44-pin IDE cable x1 Audio cable x1
PS2 cable x1
DC_IN cable x1
COM cable x2
3
Page 4
FT-8551 User’s Manual Index
Index
Chapter 1 <Introduction>
1.1 <Product Overview>..........................................................................7
1.2 <Product Specification>........................................................................8
1.3 <Component Placement>...................................................................10
1.4 <Block Diagram>................................................................................ 1 1
....................................................................7
Chapter 2 <Hardware Setup>.........................................................12
2.1 <Connector Location>........................................................................12
2.2 <Jumper Reference>..........................................................................14
2.3 <Connector Reference>.....................................................................15
2.3.1 <Internal Connector>................................................................15
2.3.2 <External I/O connector> ..........................................................15
2.4 <Compact Flash Interface>................................................................16
2.5 <Display Interface>.............................................................................17
2.5.1 <Analog display interface>........................................................17

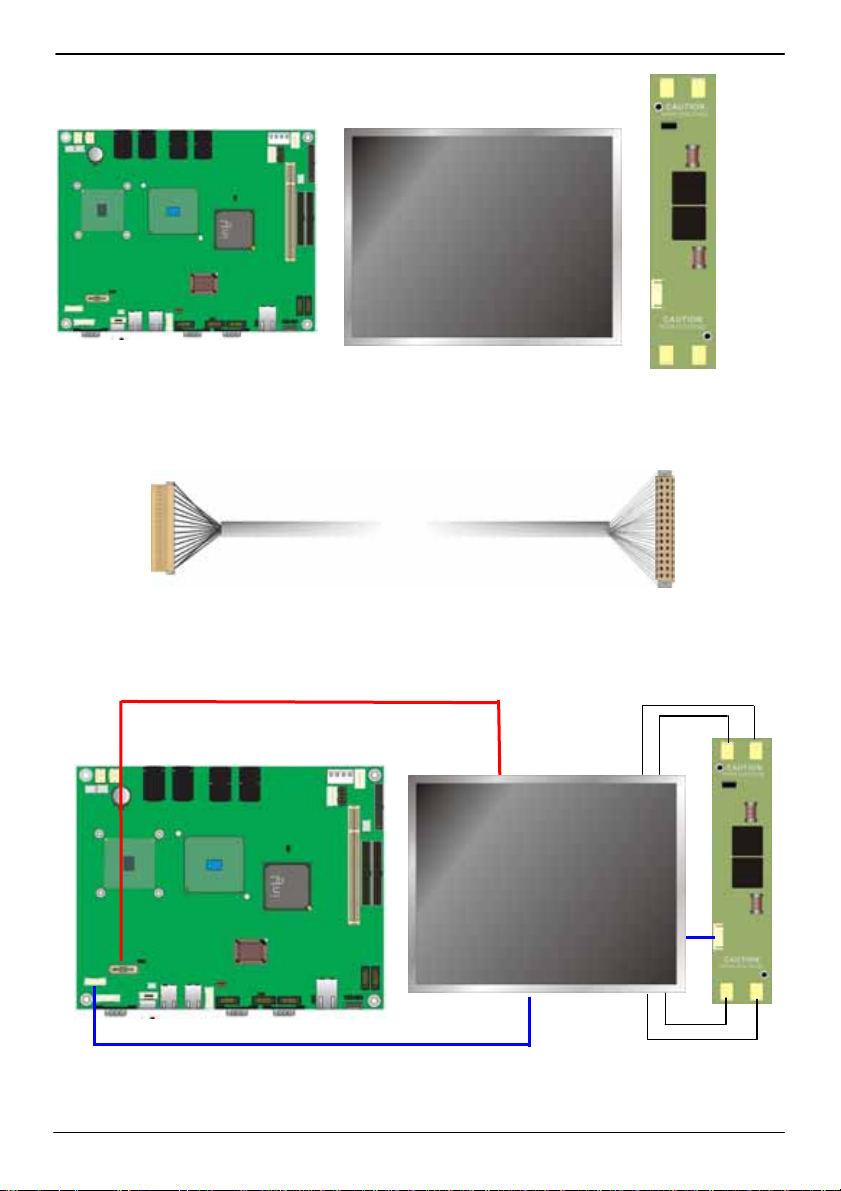

2.5.2 <Digital display interface>.........................................................17

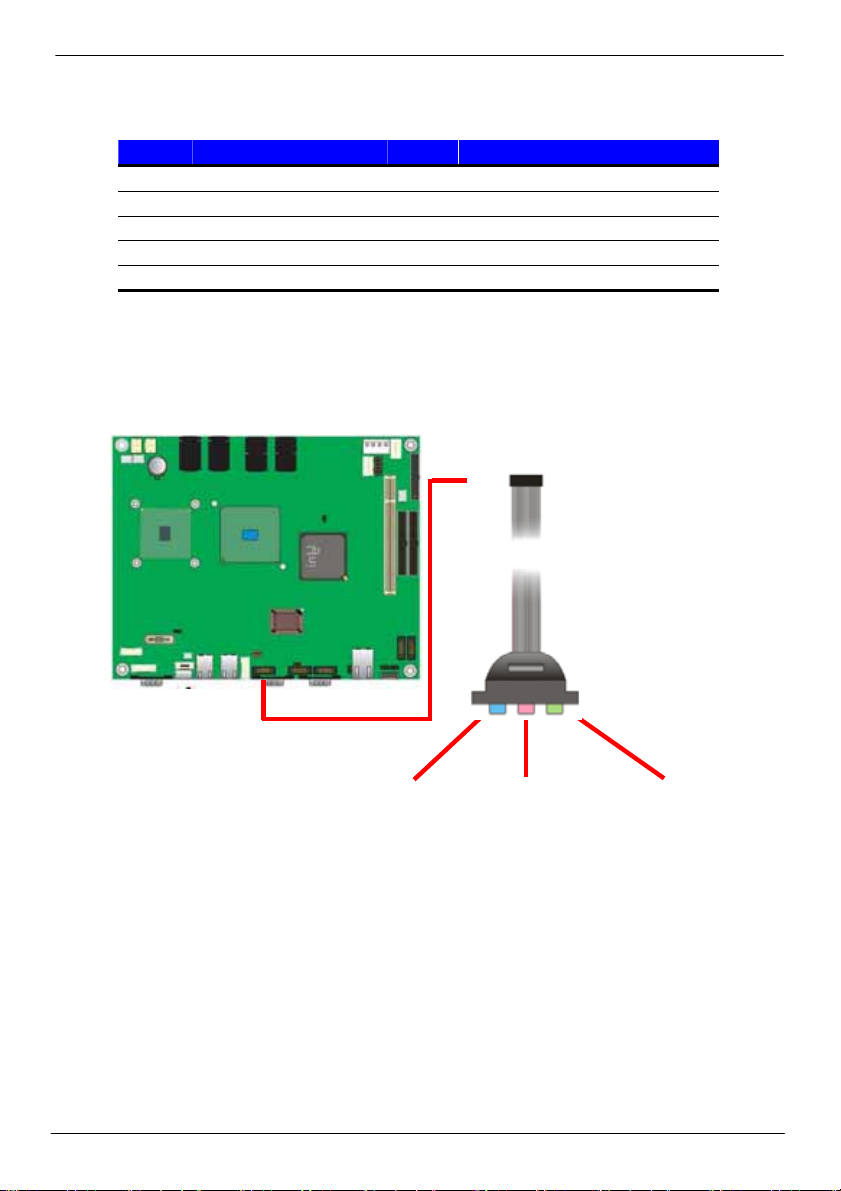

2.6 <Audio Interface>...............................................................................21
2.7 <Ethernet Interface>...........................................................................23

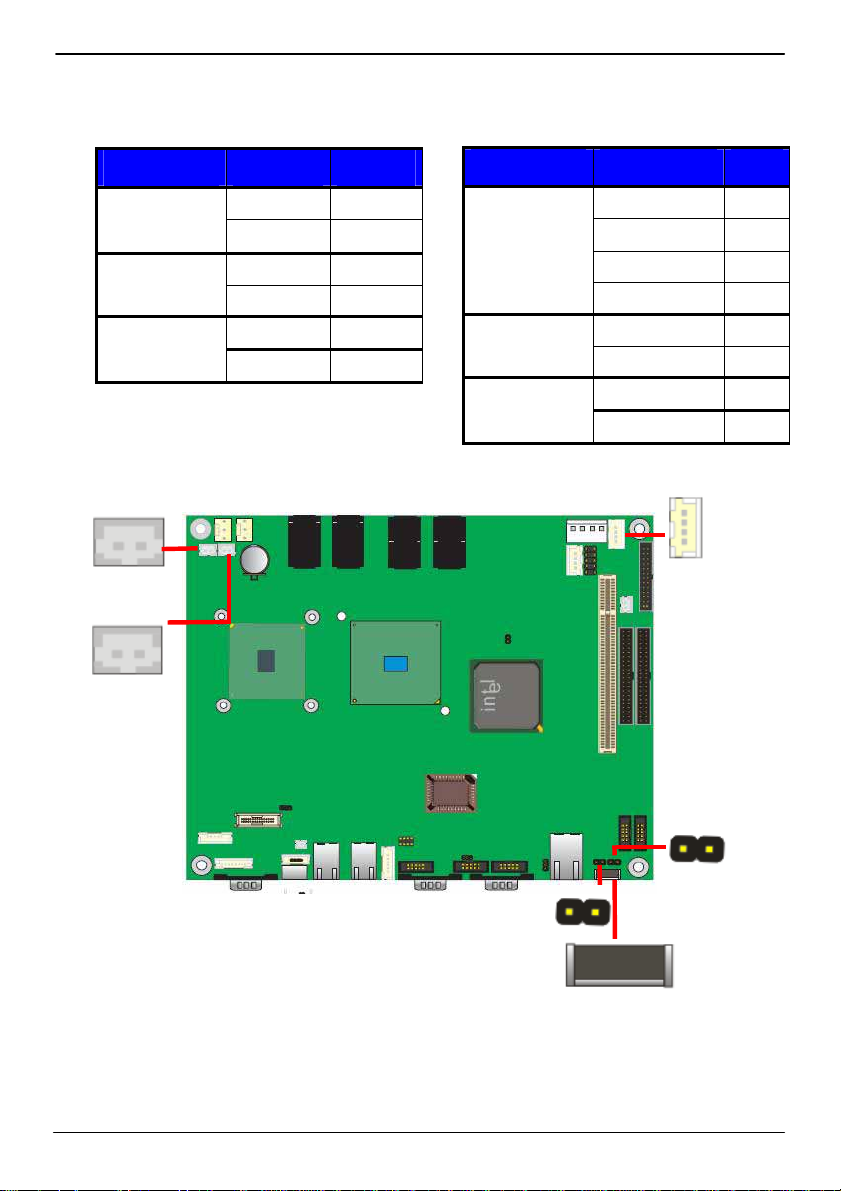

2.8 <Power connector> ............................................................................24
2.9 <GPIO Interface> ...............................................................................26
2.10 <Switch and Indicator>.....................................................................27
Chapter 3 <System Setup>..............................................................29

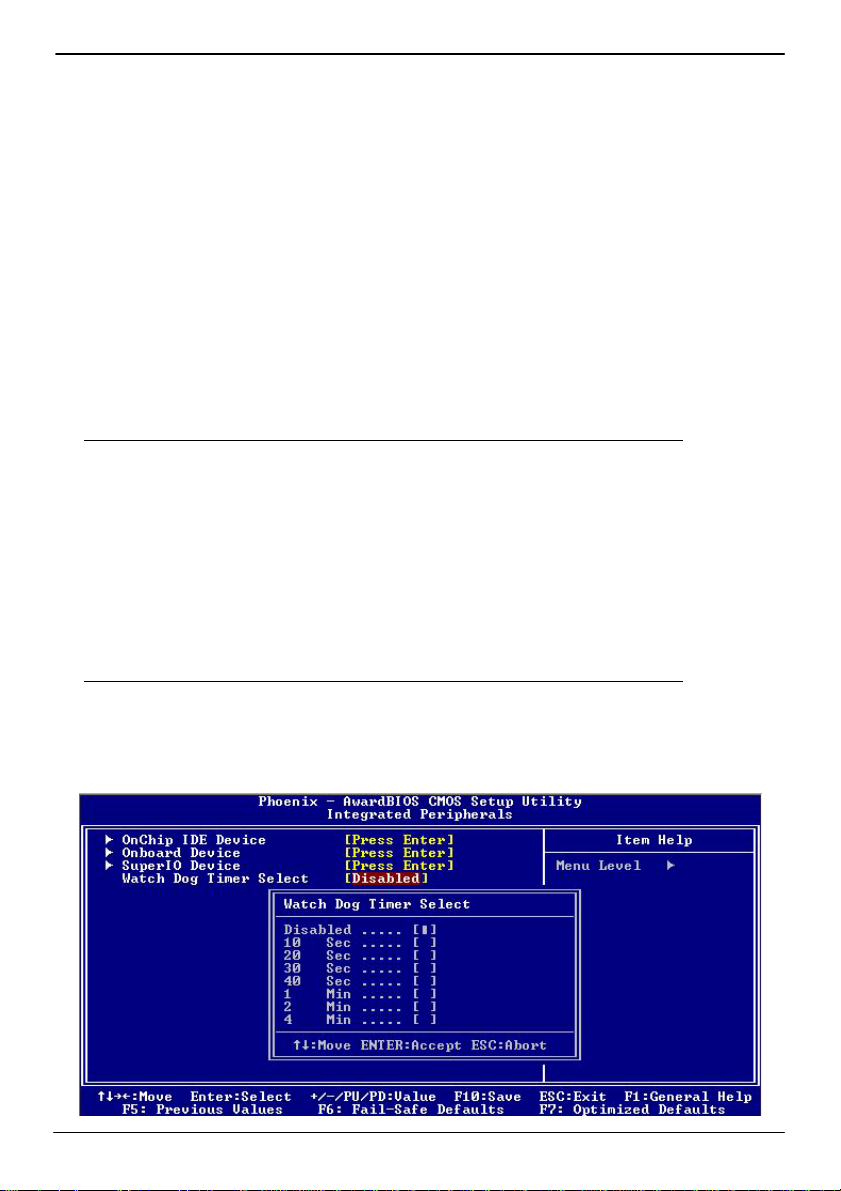

3.1 <Watchdog Timer Setting>.................................................................29
3.2 <Audio Setting>..................................................................................30

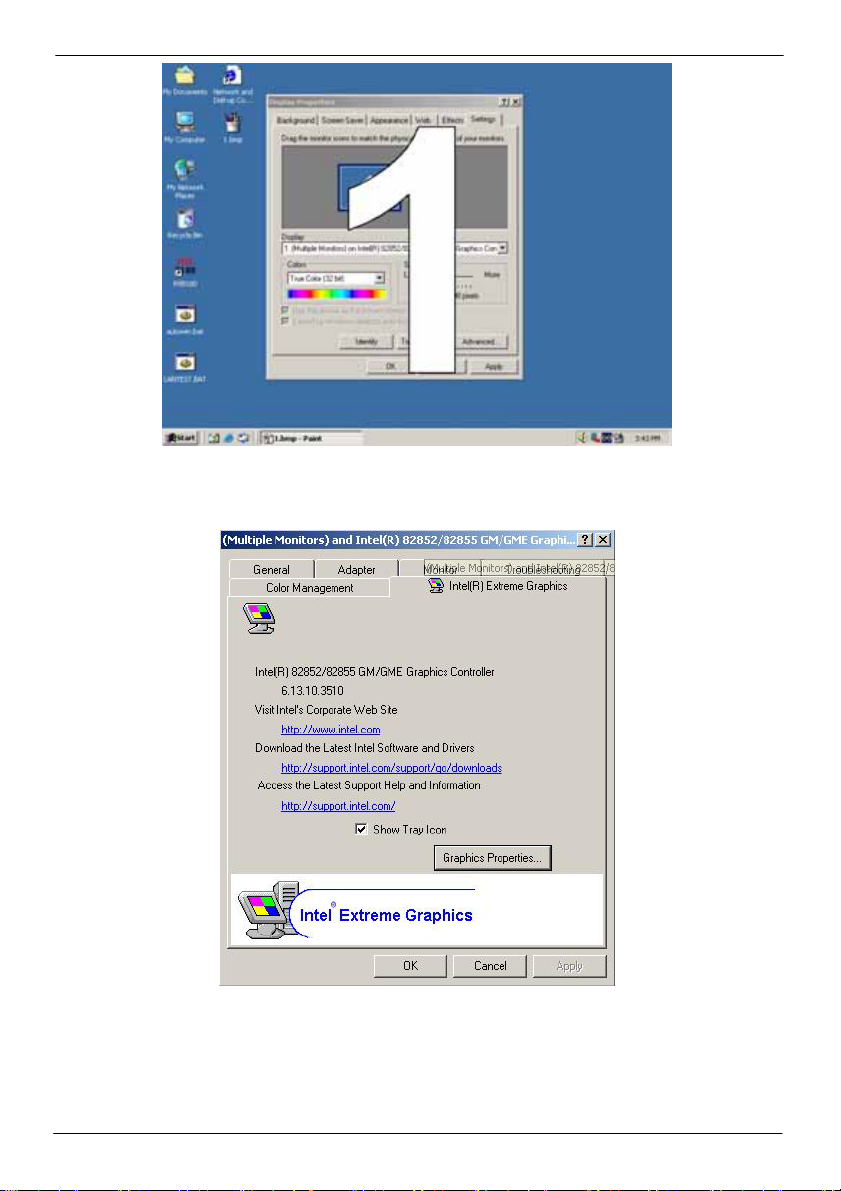

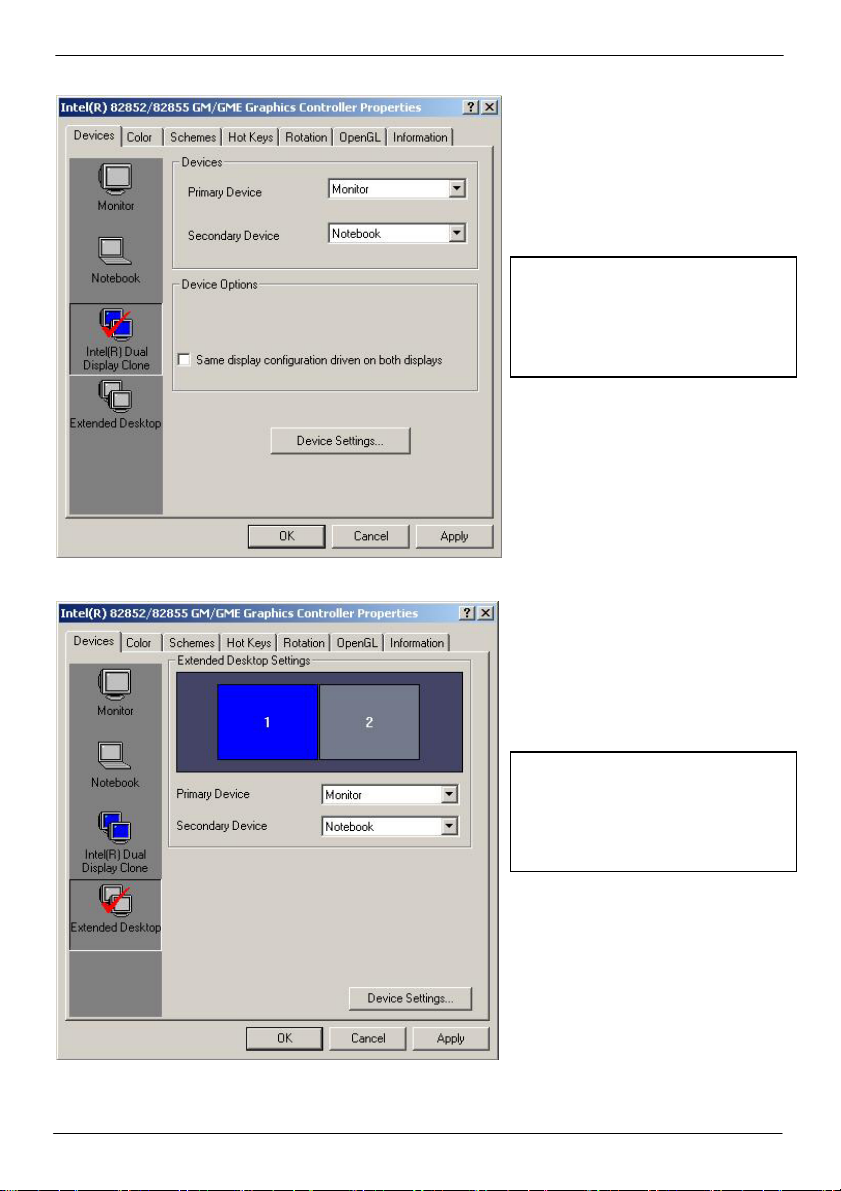

3.3 <Display Device Setup>.....................................................................31

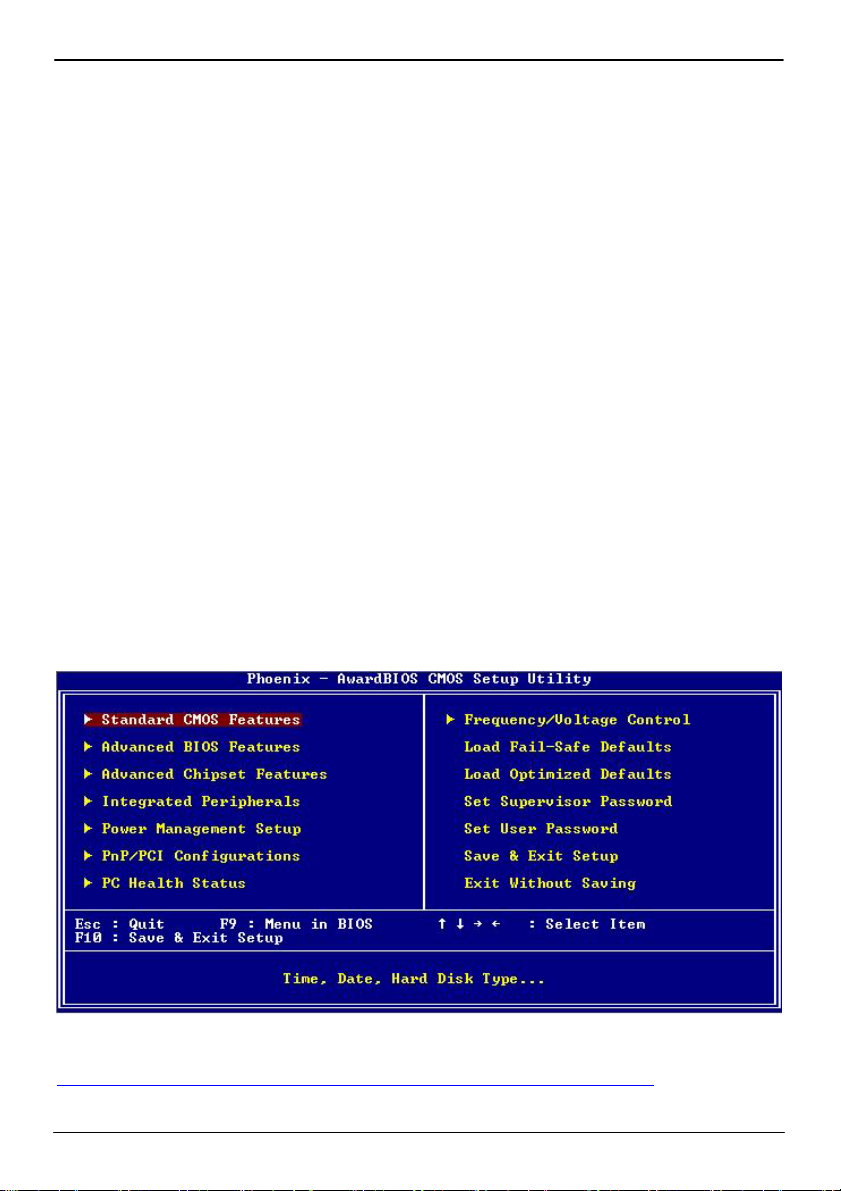

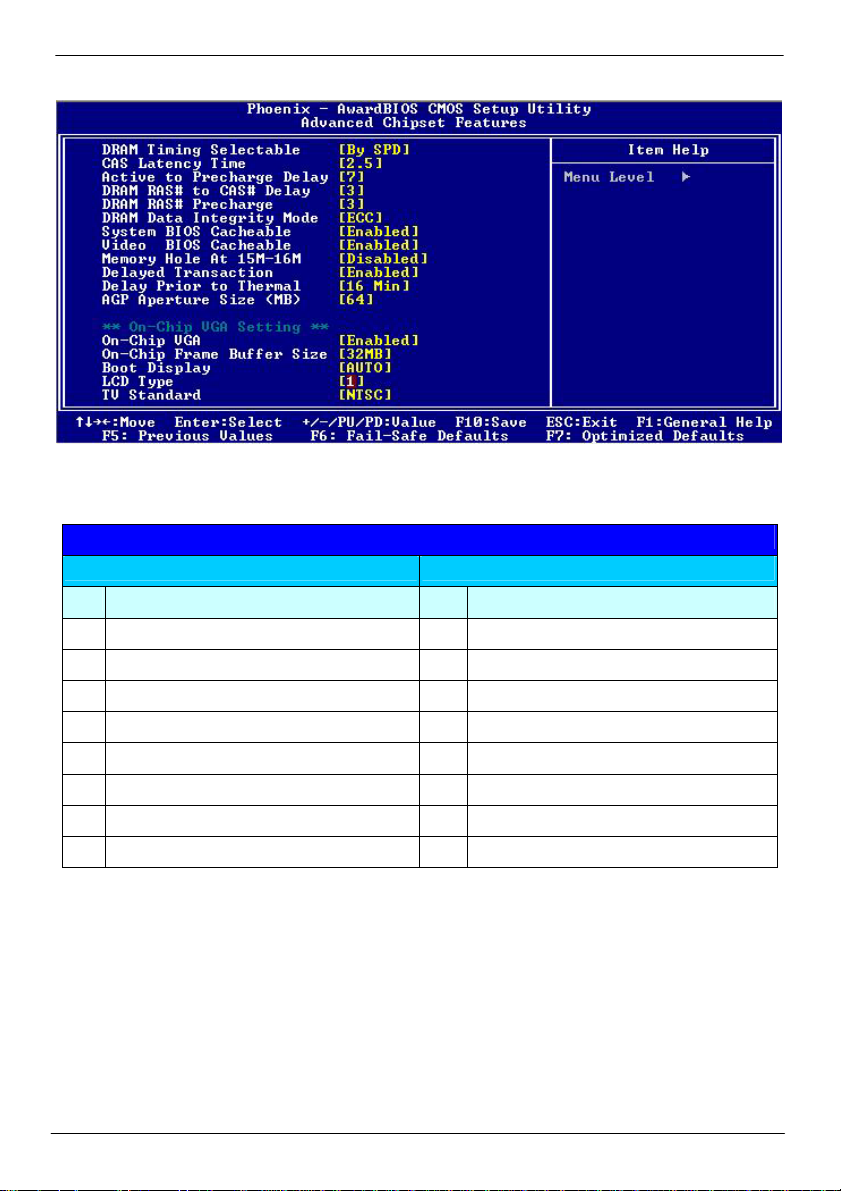

Chapter 4 <BIOS Setup>....................................................................35
Appendix A <I/O Port Pin Assignment>.................................37
A.1 <IDE Port>..........................................................................................37
A.2 < USB Interface >...............................................................................39
A.3 < VGA Port >......................................................................................39
4
Page 5
FT-8551 User’s Manual Index
A.4 < LAN Port >.......................................................................................40
A.5 < Serial Port > ....................................................................................40
A.6 < PS2 Port >....................................................................................... 42
A.7 < Parallel Port > .................................................................................42
Appendix B <Flash BIOS>................................................................44
B.1 <Flash Tool>.......................................................................................44
B.2 <Flash BIOS Procedure>...................................................................44
Appendix C <System Resource>................................................45

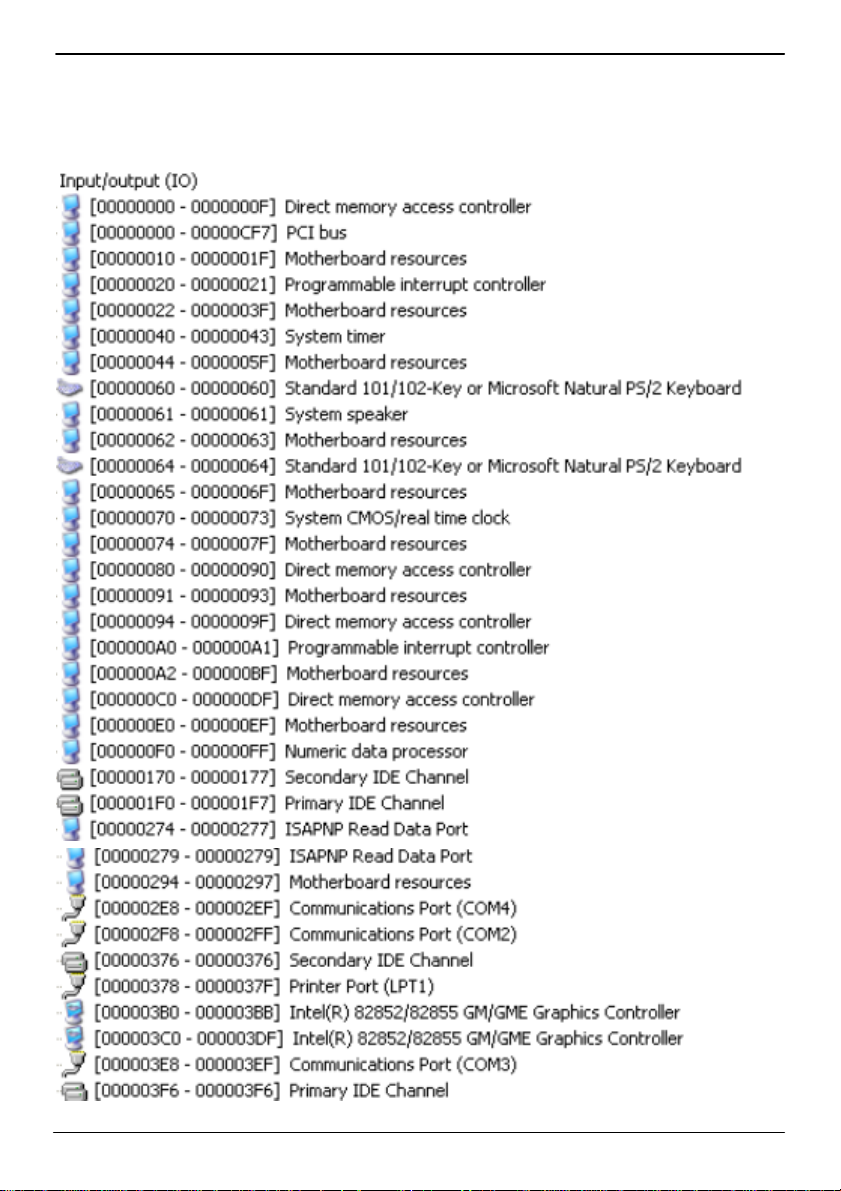

C.1 <I/O Address Map>............................................................................45

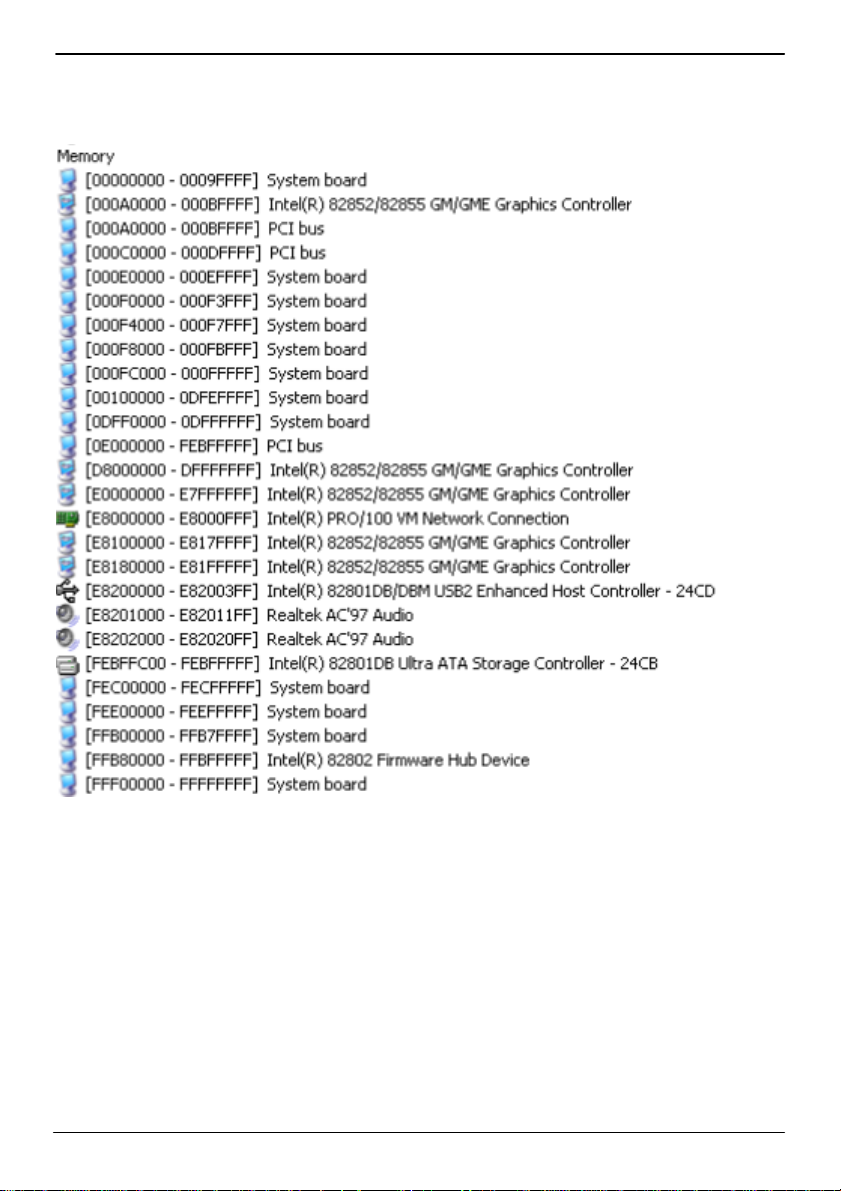

C.2 <Memory Address Map>....................................................................47

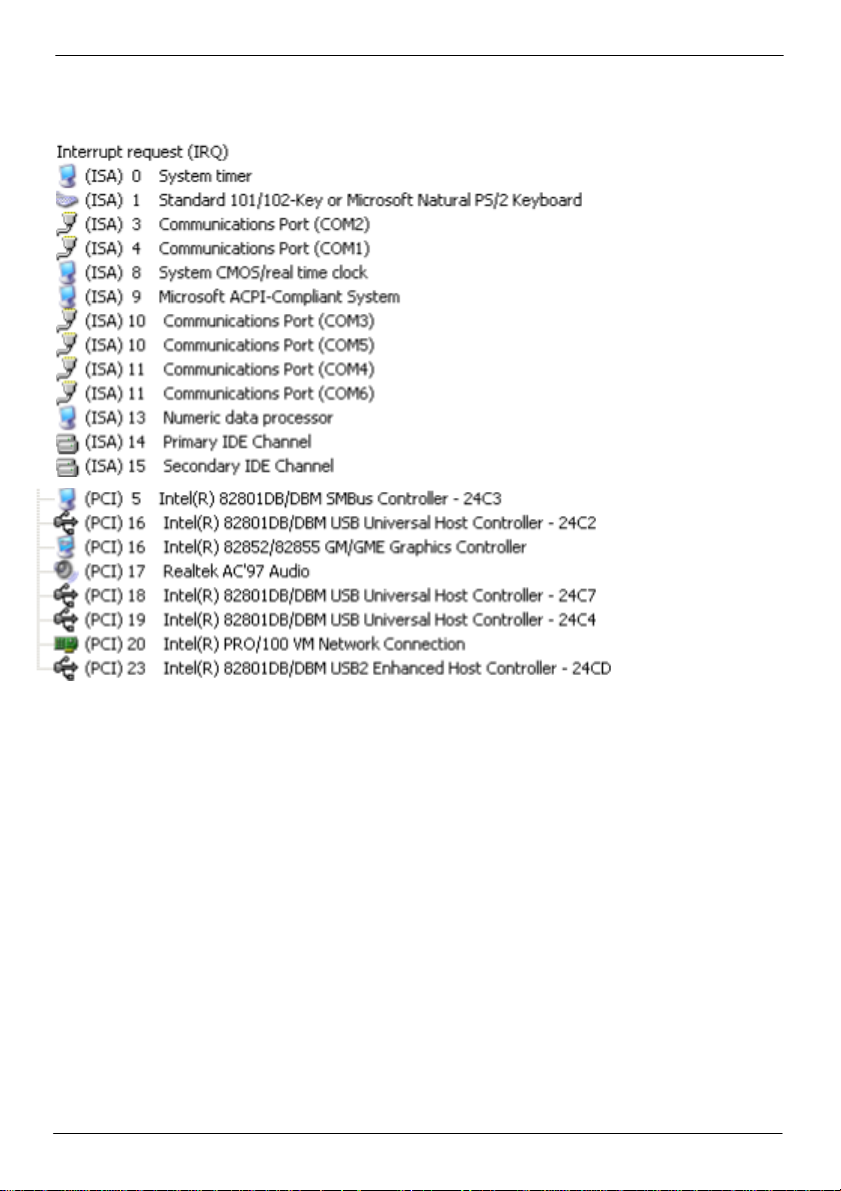

C.3 <System IRQ and DMA Resource>...................................................48
Contact Information..............................................................................49
5
Page 6
FT-8551 User’s Manual
(This Page is Left for Blank)
6
Page 7
FT-8551 User’s Manual Introduction
Chapter 1 <Introduction>
1.1 <Product Overview>
FT-8551 is the 5.25 inch Embedded miniboard, with supporting Intel Celeron M processors
for 400MHz front side bus, Intel 852GM and ICH4 chipset, integrated graphics, DDR
memory, Realtek AC97 Audio, one Intel 82562ET PHY 100 LAN.
Intel Celeron M Processor
The board supports Intel Celeron processors with 400MHz front side bus, 512KB L2 cache,
to provide more powerful performance than before.
Intel 852GM chipset
The board integrates Intel 852GM and ICH4 chipset, to provide new generation of the
mobile solution, supports Intel extreme graphic 2 technology.
All in One multimedia solution
Based on Intel 852GM and ICH4 chipset, the board provides high performance onboard
graphics, 24-bit Dual channel LVDS interface, 2 channels AC97 Audio, to meet the very
requirement of the multimedia application.
Flexible Extension Interface
The board also provides CompactFlash Type I socket, one mini-PCI socket and one PCI
slot.
Product Overview 7
Page 8
FT-8551 User’s Manual Introduction
1.2 <Product Specification>
General Specification
Form Factor 5.25 Embedded mini-board
CPU Package: 478 pin BGA
L2 Cache: 512KB
FSB: 400MHz
Memory On board 256M DDR 266 SDRAM
Chipset Intel 82852GM and ICH4
BIOS Phoenix-Award v6.00PG 4Mb PnP flash BIOS
Green Function Power saving mode includes doze, standby and suspend modes.
ACPI version 1.0
Watchdog Timer System reset programmable watchdog timer with 1 ~ 255
sec./min.
Real Time Clock Intel ICH4 built-in RTC with lithium battery
Enhanced IDE PCI enhanced IDE interface supports dual channels and up to 4
ATAPI devices at UltraATA/33, two 44-pin IDE ports
Multi-I/O Port
Chipset Intel ICH4 and Winbond W83627HG-AW LPC Super I/O controller
Serial Port Six RS-232 serial ports with HIN213 compatible UART
Two external and four internal com ports
USB Port Six Hi-Speed USB 2.0 ports with 480 Mbps of transfer rate
Four external and two internal USB ports
Parallel Port One internal bi-direction parallel port with SPP/ECP/EPP mode
K/B & Mouse Internal PS/2 keyboard and mouse ports on rear I/O panel
GPIO One 10-pin Digital I/O connector with 8-bit programmable I/O
interface
VGA Display Interface
Chipset Intel 852GME GMCH built-in Intel Extreme Graphics 2
With 266 MHz VGA core and 256-bit 3D engine
Frame Buffer Intel DVMT (Dynamic Video Memory Technology) 2.0 up to
64Mbytes shared with system*
Display Type CRT and LCD monitors for analog display
24-bit single/dual channel LCD panel for digital display
Connector Internal / External DB15 female connector on rear I/O panel
Internal 30-pin LVDS connector
Ethernet Interface
Chipset Intel PRO/100+ LAN interface with Intel 82562ET PHY
Type 10Base-T / 100Base
auto-switching Fast Ethernet
Full duplex, IEEE802.3U compliant
Connector External RJ45 connector with LED on rear I/O panel
Product Specification 8
Page 9
FT-8551 User’s Manual Introduction
Audio Interface
Chipset Intel ICH4 with REALTEK ALC203 AC97 3D audio codec
Interface 2 channel 3D audio with front (R/L)
Connector Internal 10-pin header for line-in/-out, MIC-in
Solid State Disk Interface
Flash Type Compact Flash Type-I for Compact Flash Card
Expansion Interface
PCI Slot One PCI slot
Mini-PCI One Mini-PCI type B socket
Power and Environment
Power
Requirement
One 12V (auto switching) DC Adapter connector
4-pin onboard connector
Input Voltage 12V power supply
Dimension 203 (L) x 146 (H) mm, 5.25 inch miniboard
Temperature Operating within 0 ~ 60oC (32 ~ 140oF)
Storage within -20 ~ 85
o
C (-4 ~ 185oF)
Ordering Code
FT-8551
nboard VGA, Intel 100 LAN, USB2.0, Mini-PCI, PCI, Serial Port,
PIO, CF, AC97 Audio, IDE, LPT and LVDS
For further product information please visit the website at http://www.commell.com.tw
Product Specification 9
Page 10
FT-8551 User’s Manual Introduction

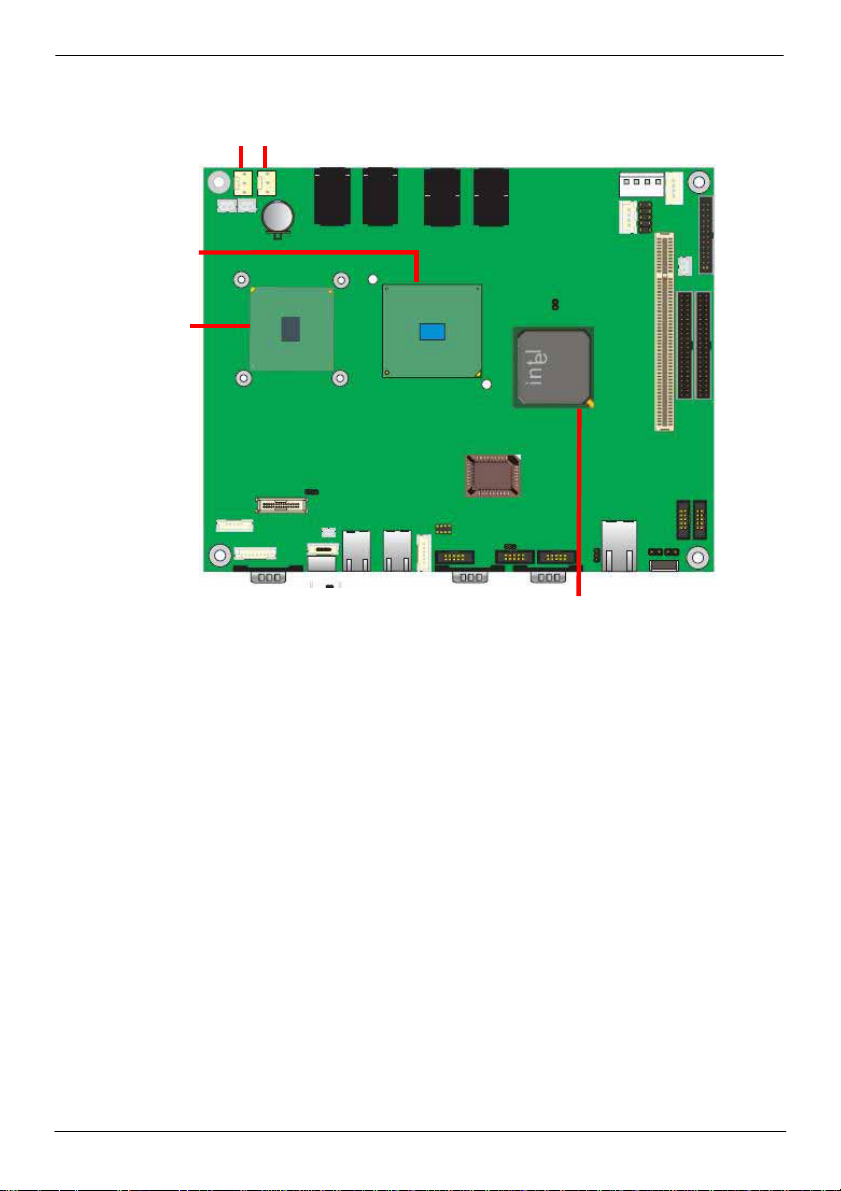

1.3 <Component Placement>
U11
852GM
Northbridge
U12
(Celeron M )
CPU
FAN1FAN2
U10
(ICH4)
Southbridge
Product Specification 10
Page 11
FT-8551 User’s Manual Introduction

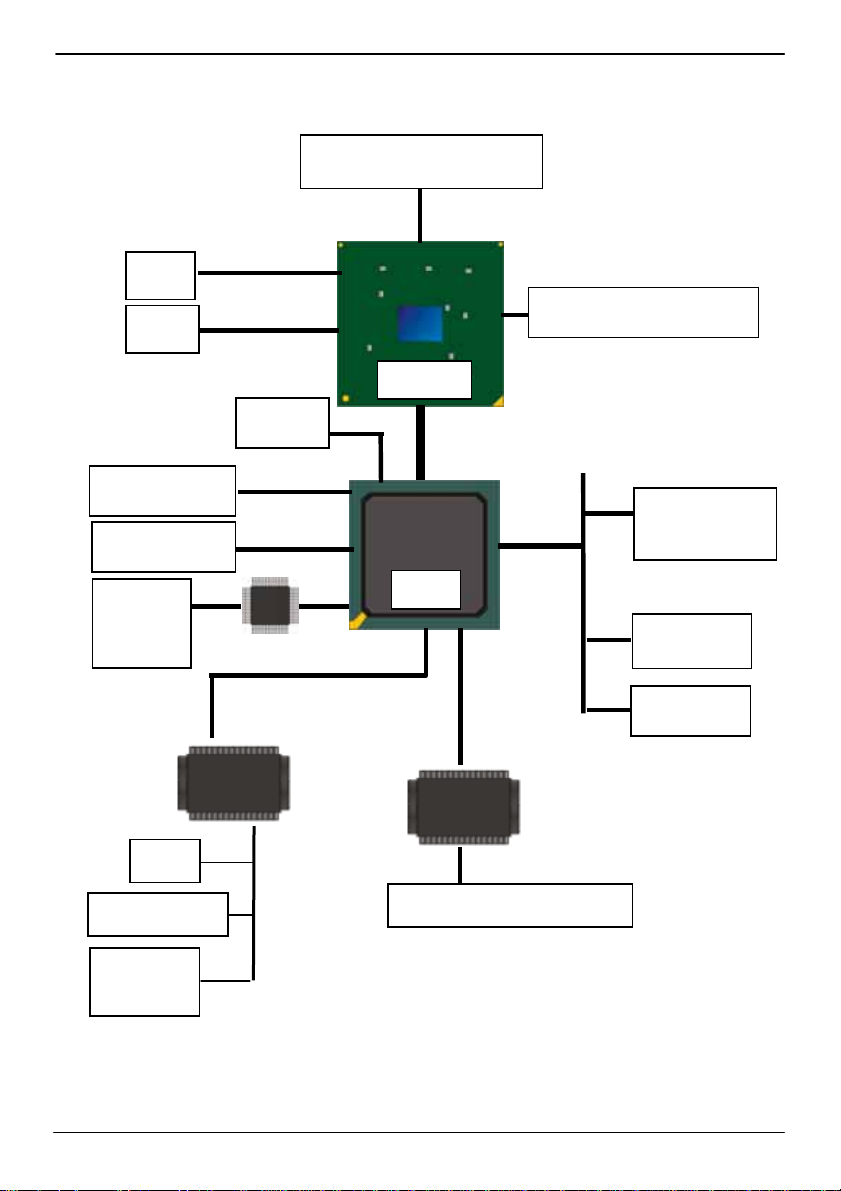

1.4 <Block Diagram>
Intel Celeron M processor
400MHz FSB
CRT
LCD
2 x IDE
6 x USB 2.0
AC97
Audio
W83627HG
PS/2
LVDS
LVDS
1 x CF
UltraATA33
480Mb/s
ALC203
LPC
852GM
ICH4
W83697HG
DDR 266 256MB SD-RAM
PCI Bus
82562 ET PHY
33MHz
100 Ethernet
Controller
Mini-PCI
socket
PCI slot
COM 1/2 Port
Parallel
Port
COM3~COM6 Ports
Block Diagram 11
Page 12
FT-8551 User’s Manual Hardware Setup
Chapter 2 <Hardware Setup>
This chapter contains the information for installation of hardware. The install procedure
includes jumper settings, CPU and memory installation, fan, I/O and panel connections.

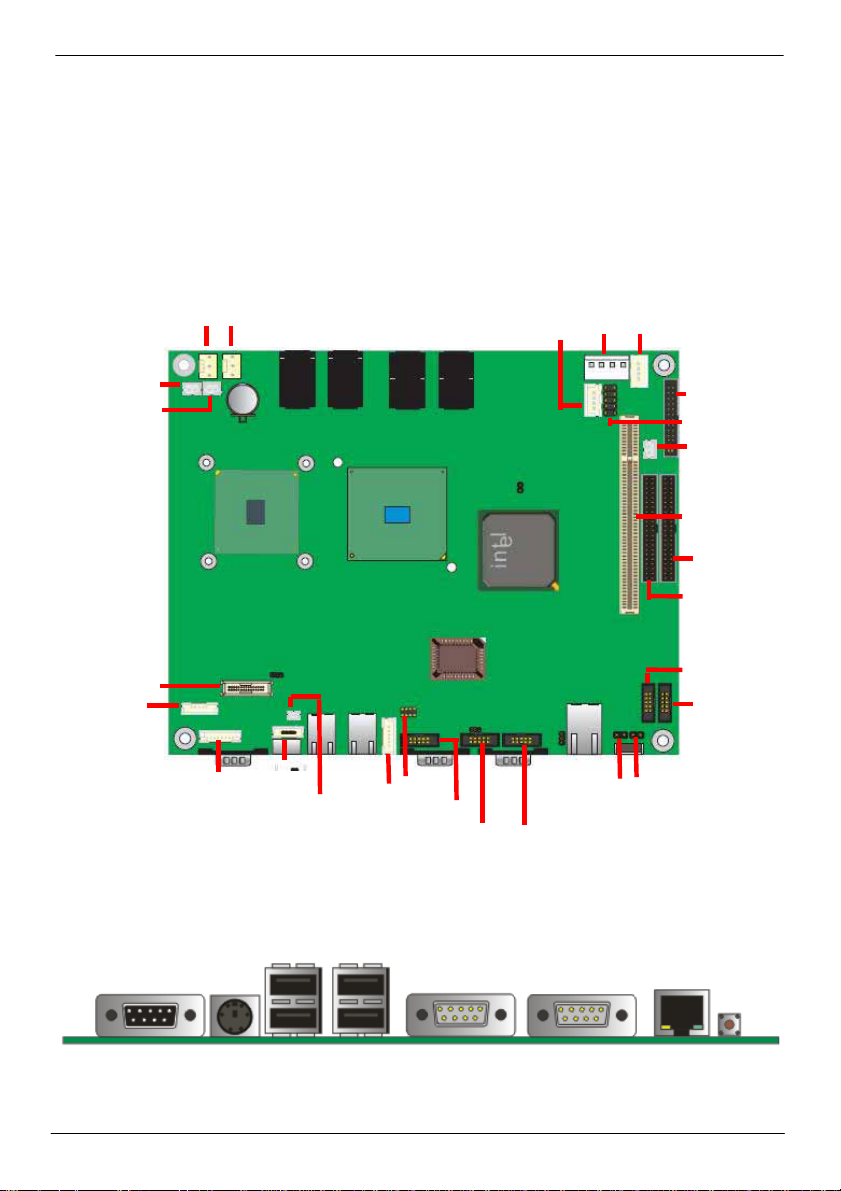

2.1 <Connector Location>
CN26
CN17
CN13
CN27
FAN2 FAN1
CN7
CN35
CN15
CN33
CN16
CN8
CN12
CN34 CN25 CN21
CN31
CN23
CN30
CN31
CN9
LPT
CN18
CN20
PCI1
IDE1
IDE2
CN3 CN4 CN11 CN10 CN2 CN1 LAN1 SW1
Connector Location 12
Page 13

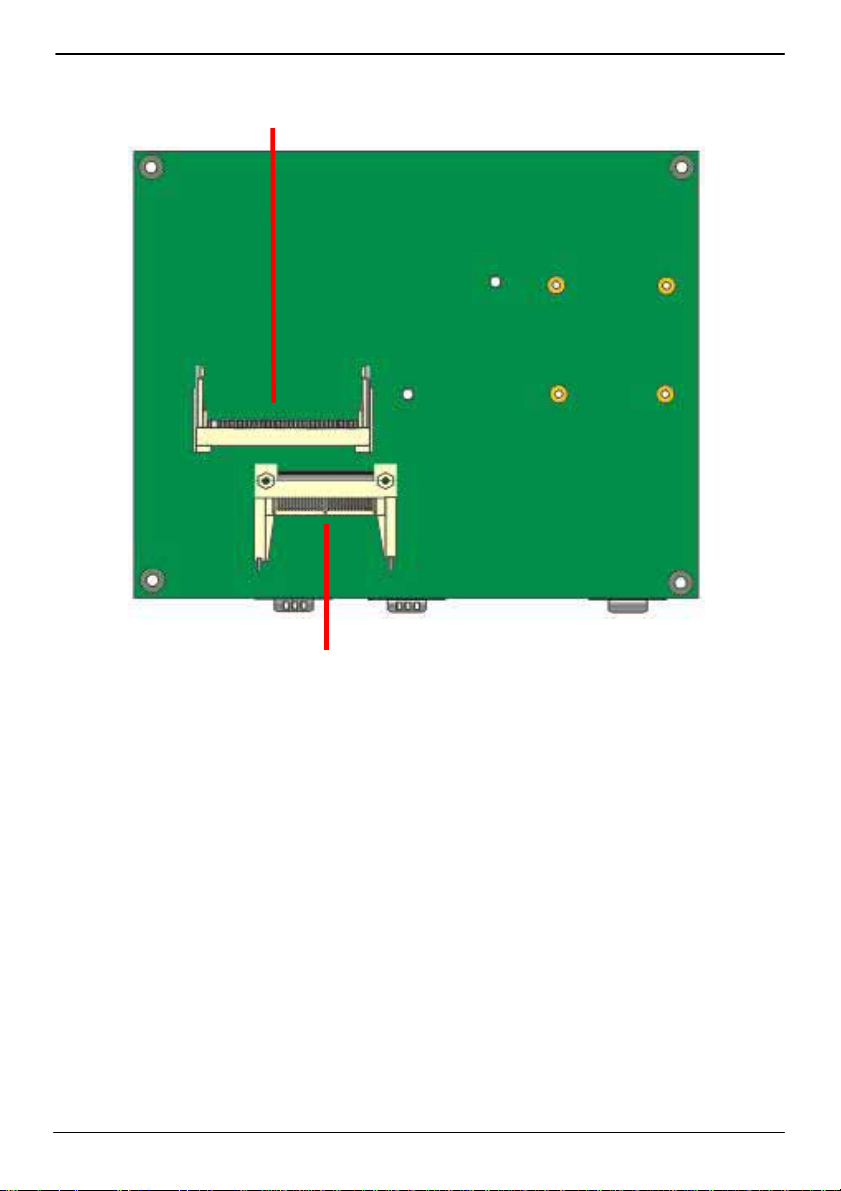

FT-8551 User’s Manual Hardware Setup
PCI2 (Mini-PCI)

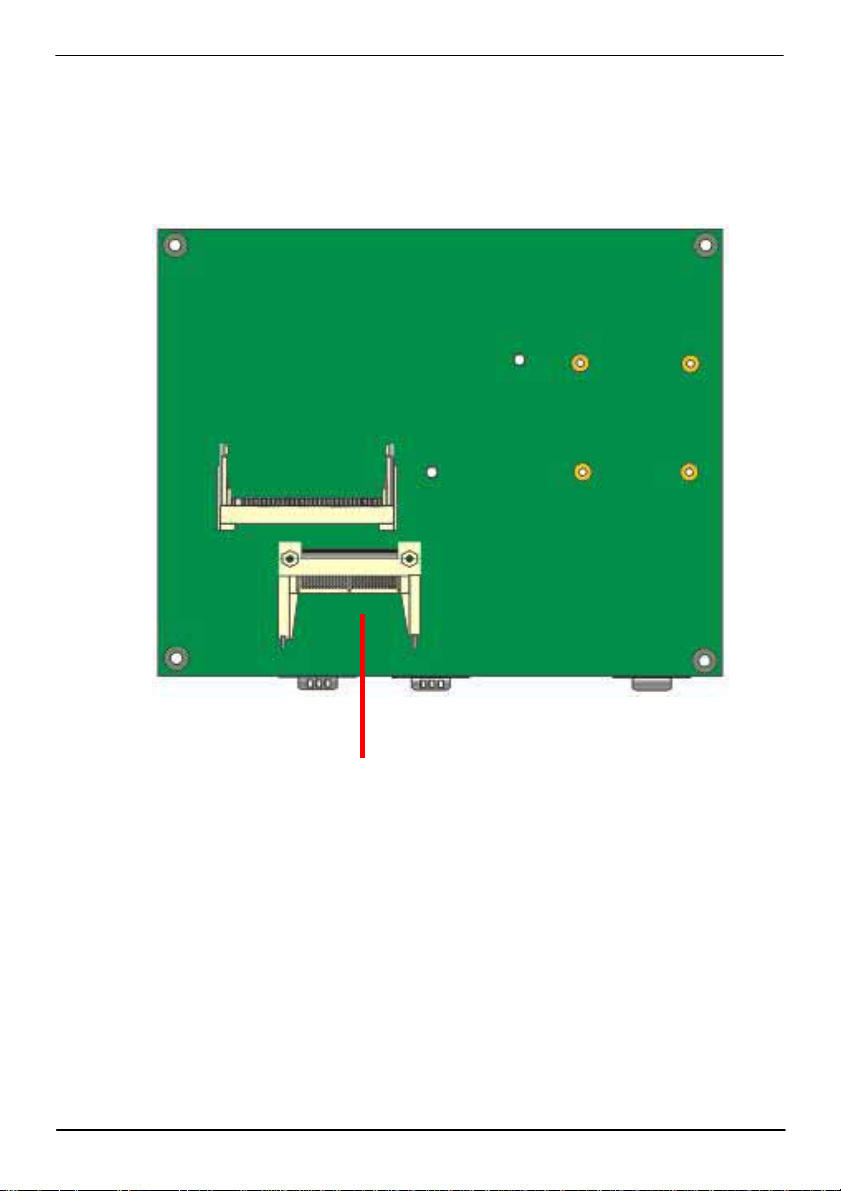

CN28 (Compact Flash)
Connector Location 13
Page 14
FT-8551 User’s Manual Hardware Setup
2
3

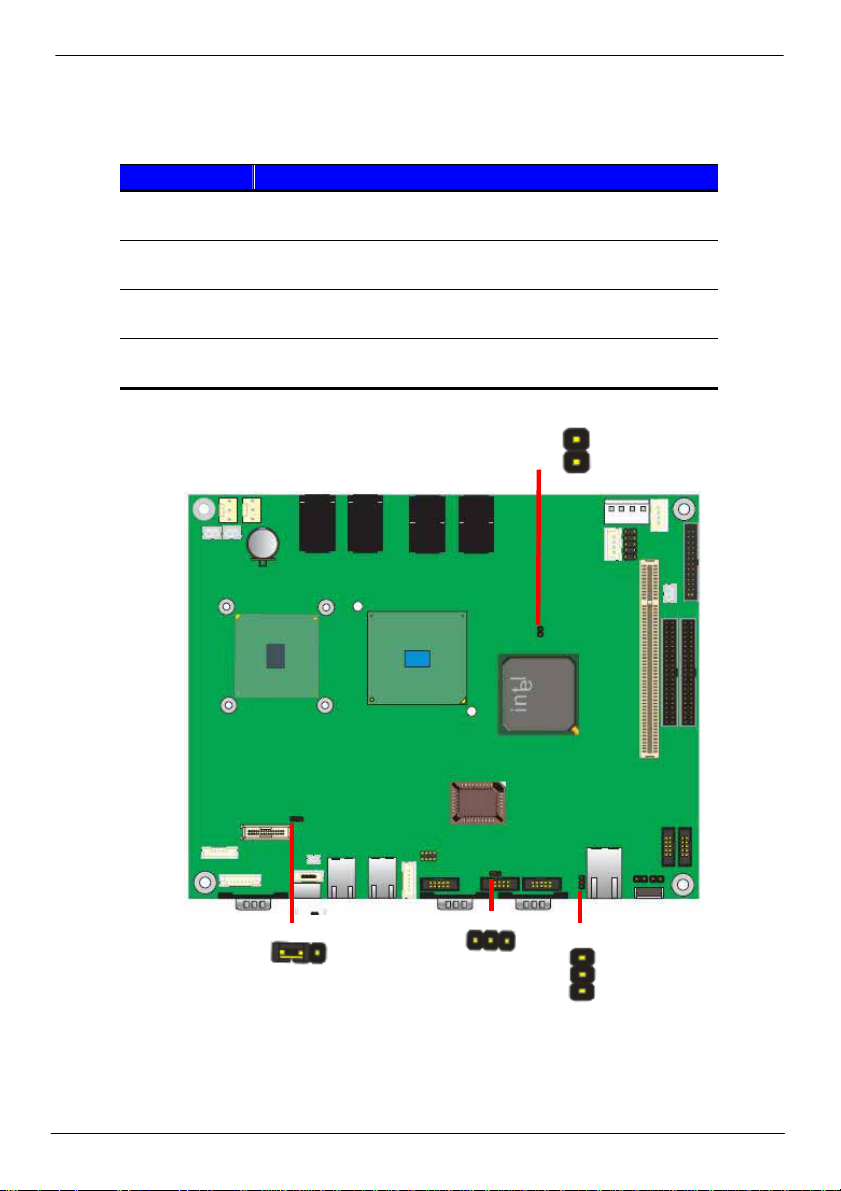

2.2 <Jumper Reference>
Jumper Function
JP4 COMS Operate / Clear Setting (default open)
1-2 open is normal, 1-2 short is clear CMOS
JP1 LCD Panel Voltage Setting (default 1-2)
1-2 short is +3.3V, 2-3 short is +5V
JP2 COM1 PIN-9 Voltage setting (default open)
Open is normal, 1-2 short is +5V, 2-3 short is +12V
JP3 COM2 PIN-9 Voltage setting (default open)
Open is normal, 1-2 short is +5V, 2-3 short is +12V
JP1
1 3
JP4
JP3
1 3
1
JP2
1
Jumper Reference 14
Page 15
FT-8551 User’s Manual Hardware Setup
2.3 <Connector Reference>
2.3.1 <Internal Connector>
Connector Function Remark
IDE1 44-pin Primary IDE Port
IDE2 44-pin Secondary IDE Port
CN16 10-pin Hi-Speed USB 2.0 Port

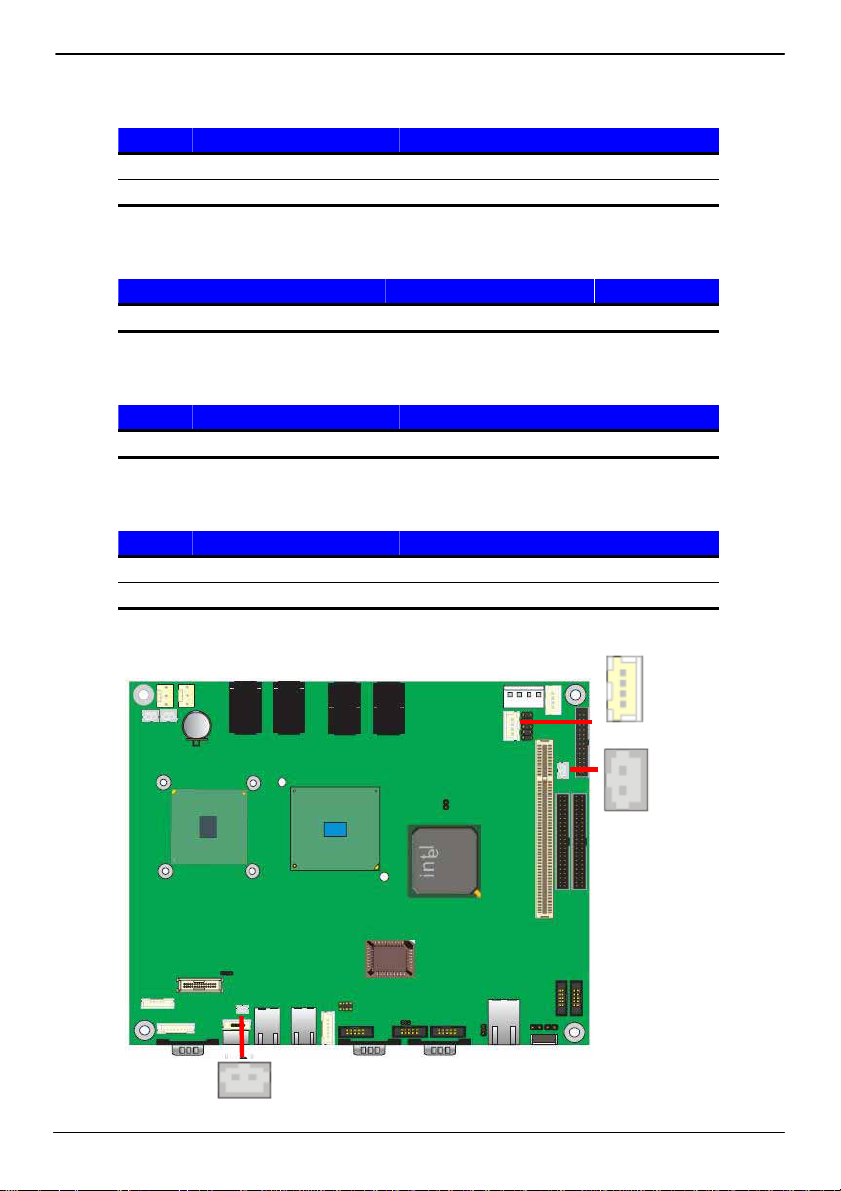

CN25 4-pin AT Power Connector
CN15 2-pin 5V output Connector
CN20 2-pin 5V output Connector
CN30 2-pin reset switch Connector
CN31 2-pin power switch Connector
FAN1 3-pin +12V CPU Fan Connector
FAN2 3-pin +12V System Fan Connector
CN8 10-pin Audio Port
CN17 30-pin LVDS connector
CN13 5-pin LCD Inverter Power Connector

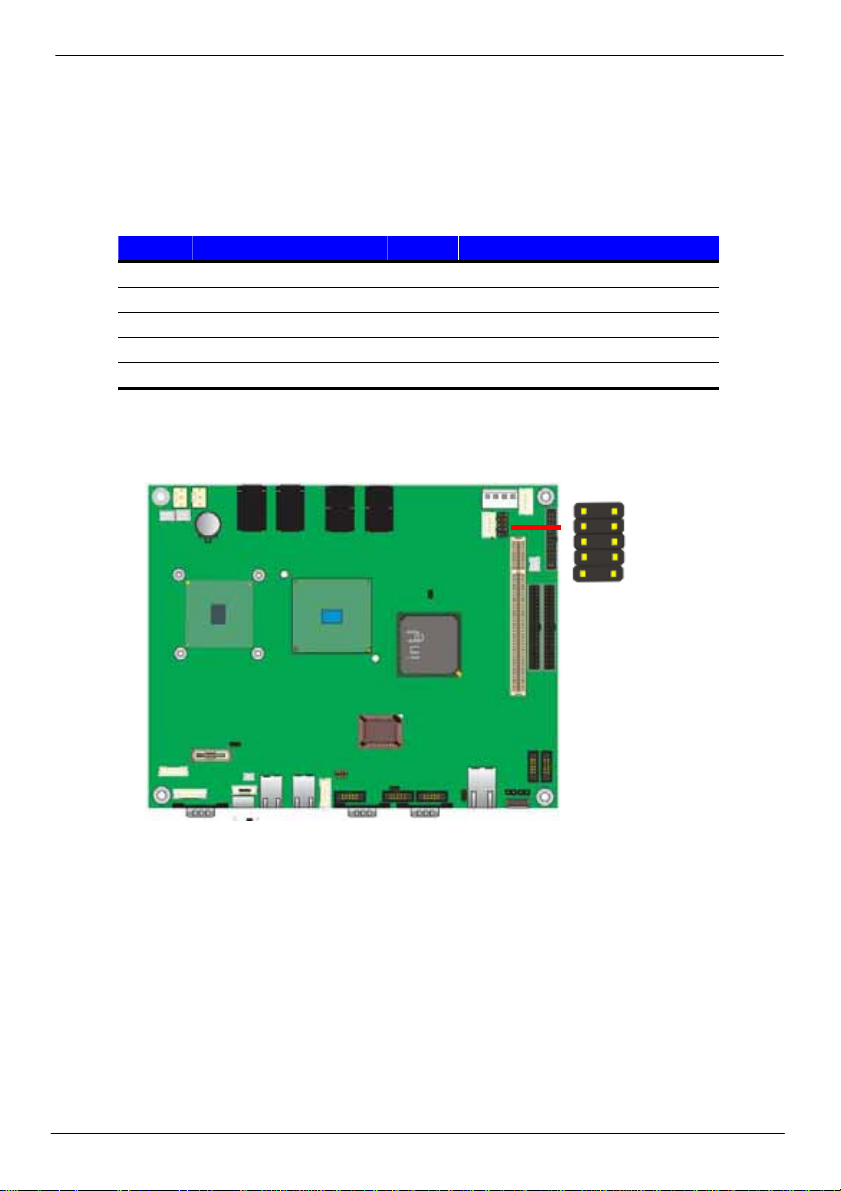

CN18 10-pin programmable I/O connector
LPT 26 pin parallel port
CN9,CN12,CN23,CN24 COM6,COM5,COM3,COM4 Connector
CN33 PS/2 type keyboard and mouse port
CN7 VGA port
CN34 ATX power support
CN21 4-pin power LED and HDD LED
CN26 2-pin power LED
CN27 2-pin HDD LED
CN35 Enable internal KB/MS
2.3.2 <External I/O connector>
Connector Function Remark
CN4 PS/2 type keyboard and mouse port
CN28 Compact Flash Card Interface
CN3 DB15 VGA port
LAN1 RJ45 LAN port
CN5,CN6,CN10,CN11 USB connectors
CN1,CN2 RS232 DB9 serial port
SW1 Power button
PCI1 124-pin PCI slot
PCI2 124-pin Mini-PCI socket
Connector Reference 15
Page 16
FT-8551 User’s Manual Hardware Setup
2.4 <Compact Flash Interface>
The board supports Compact Flash Type I socket for storage flash disk only.
CN28 (Compact Flash)
Compact Flash Interface
16
Page 17
FT-8551 User’s Manual Hardware Setup

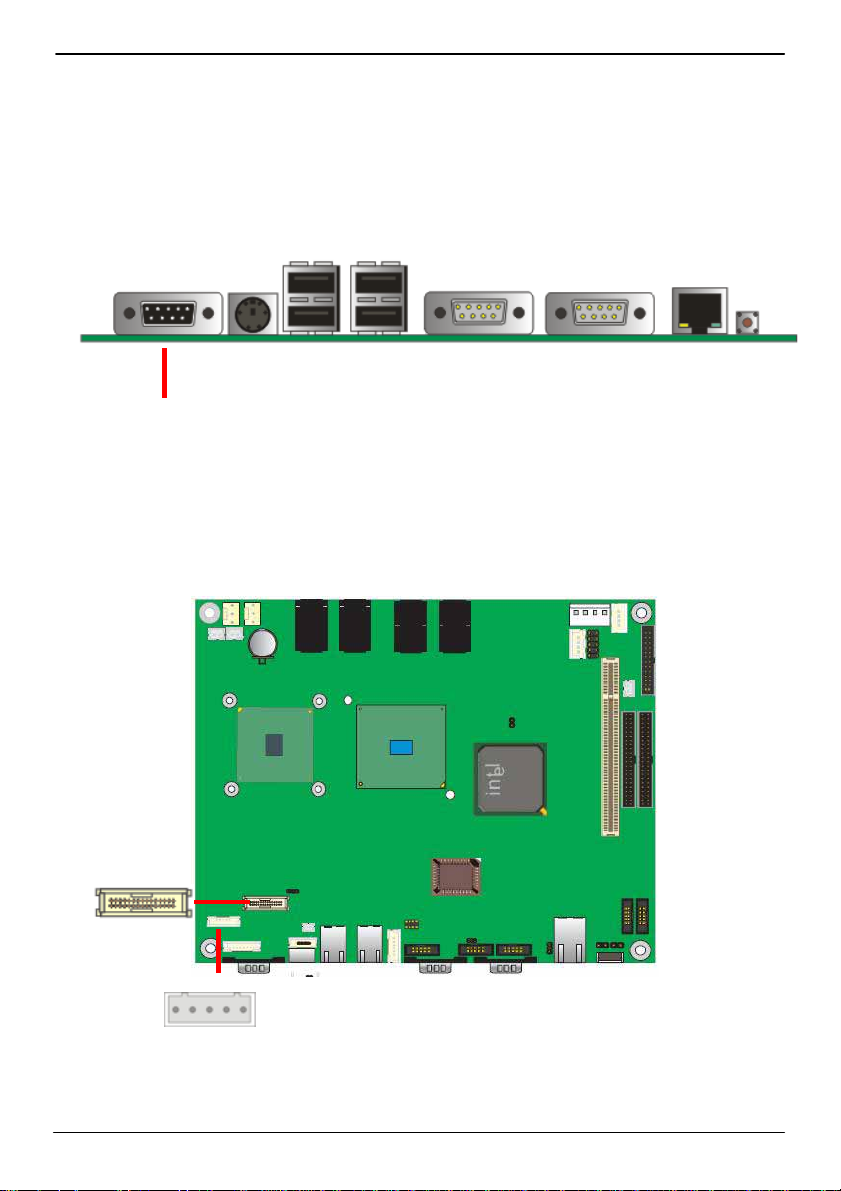

2.5 <Display Interface>
2.5.1 <Analog display interface>
The board is integrated with Intel 855GM GMCH chipset built-in Intel Extreme
Graphics 2 with 266 MHz VGA core, 256-bit 3D engine and Intel Dynamic Video Memor y
up to 64MBytes shared with system memory. The CRT / analog VGA interface includes
one external DB15 female connector on bracket on board.
VGA
2.5.2 <Digital display interface>
The board’s digital video interface provides LVDS flat panel support. The built-in 18/24-bit
dual channel LVDS interface offers the economical solution for LVDS-based LCD display.
30
29
CN17
2
1 5
CN13
Display Interface 17
Page 18
FT-8551 User’s Manual Hardware Setup
Connector: CN13 (Inverter) Connector: JP1
Type: 5-pin inverter Power Header Type: 3-pin LCD Power select Header
Pin Description Pin Description
1 +12V 1 VCC3 (+3.3V)
2 GND 2 LCDVCC
3 NC 3 VCC (+5V)
4 GND
5 ENABKL
Connector: CN17 (LVDS)
Type: onboard 30-pin connector for LVDS connector
Pin Signal Pin Signal
2 LCDVCC 1 LCDVCC
4 ATX0- 3 ATX0+
6 ATX1- 5 ATX1+
8 ATX2- 7 ATX2+
10 ATX3- 9 ATX3+
12 ATXCK- 11 ATXCK+
14 LVDS_DDCPDATA 13 LVDS_DDCPCLK
16 GND 15 GND
18 BTX0- 17 BTX0+
20 BTX1- 19 BTX1+
22 BTX2- 21 BTX2+
24 BTX3- 23 BTX3+
26 BTXCK- 25 BTXCK+
28 LVDS_DDCPDATA 27 LVDS_DDCPCLK
30 GND 29 GND
To setup the LCD, you need the components below:
1. A panel (support up to 24-bit dual channel) with LVDS interfaces.
2. An inverter for panel’s backlight power.
3. A LCD cable and an inverter cable.
For the cables, please follow the pin assignment of the connector to make a cable,
because every panel has its own pin assignment, so we do not provide a standard cable;
please find a local cable manufacture to make cables.
Display Interface 18
Page 19
FT-8551 User’s Manual Hardware Setup
LCD installing guide:
1. Prepare a panel, inverter and FT-8551.
2. Please check the datasheet of the panel to see the voltage of the panel, and set the
jumper JP1 to +5V or +3.3V.
3. Prepare a LVDS type LCD cable
Panel side
Board side
For sample illustrator only
4. Connect all the devices well.
LVDS Cable
Inverter Cable
Display Interface 19
Page 20
FT-8551 User’s Manual Hardware Setup
After setup the devices well, you need to select the LCD panel type in the BIOS.
The panel type mapping is list below:
BIOS panel type selection form
For 18-bit color For 24-bit color
NO. Output format NO. Output format
1 640 x 480 8 1024 x 768
2 800 x 600 9 1280 x 1024 Dual Channel
3 1024 x 768 10 1400 x 1050 Dual Channel
4 1280 x 1024 11 1600 x 1200 Dual Channel
5 1400 x 1050 Dual Channel @ 108Mhz 13 1024 x 768 Dual Channel
6 1400 x 1050 Dual Channel @ 122Mhz 14
7 1600 x 1200 Dual Channel 15 1280 x 768Dual Channel
12 1024 x 768 Dual Channel
Display Interface 20
Page 21
FT-8551 User’s Manual Hardware Setup
2.6 <Audio Interface>
The board integrates Intel ICH4 with REALTEK ALC203 codec for AC97 Rev 2.3; it comes
with the features below:
● Microsoft WHQL/WLP 2.0 audio compliance
● Software selectable for 2-channel sound
● 16-bit Stereo full-duplex CODEC with 48KHz sampling rate
● One software selectable MIC inputs
● EAX™ 1.0 & 2.0, Direct Sound 3D™, A3D™ compatible

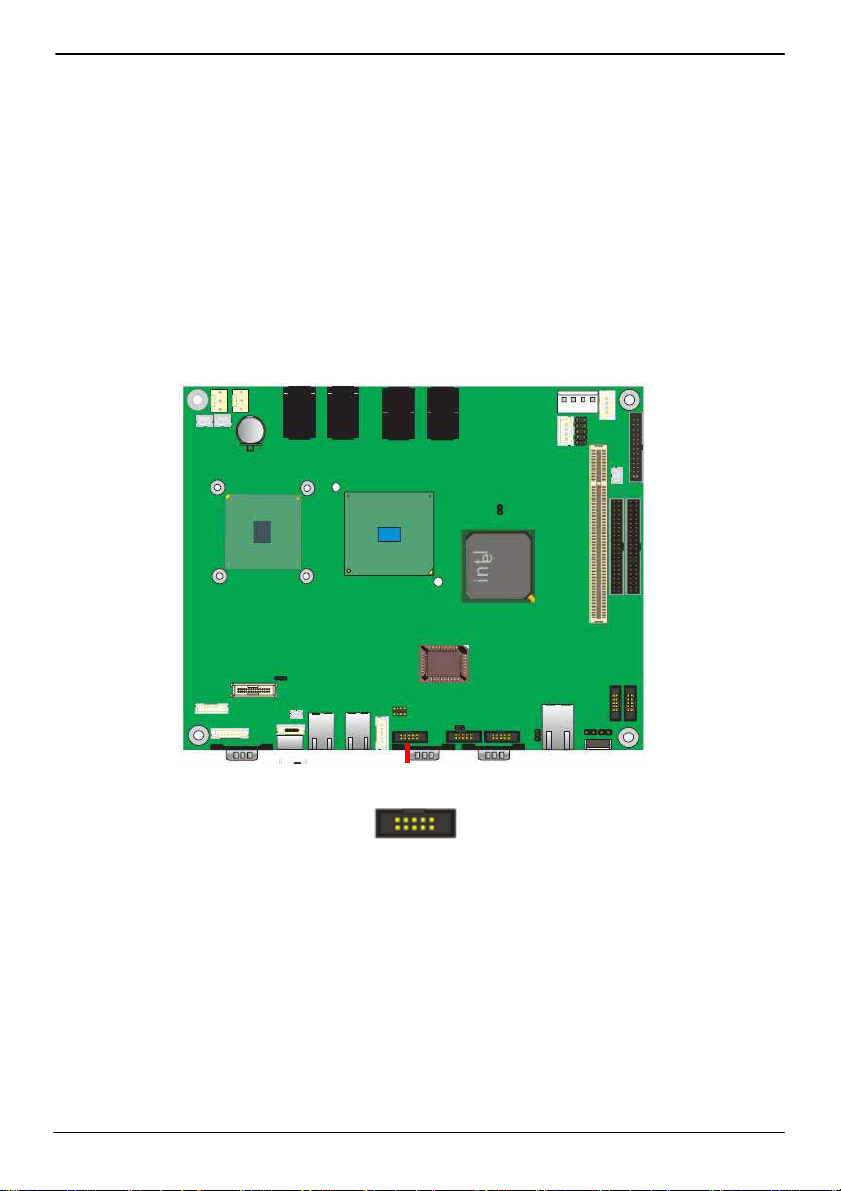

CN8
1
9
AUDIO
2
10
Audio Interface 21
Page 22
FT-8551 User’s Manual Hardware Setup
(
)
Connector: CN32 (AUDIO)
Type: 10-pin (2 x 5) 2.0-pitch header
Pin Description Pin Description
1 Line IN – Left 2 Ground
3 Ground 4 Line IN – Right
5 Line Out – Left 6 Ground
7 Ground 8 Line Out – Right
9 MIC IN 10 Ground
AC97 Audio Cable
Line-in MIC-IN Line-out
blue) (pink) (green
Audio Interface 22
Page 23
FT-8551 User’s Manual Hardware Setup

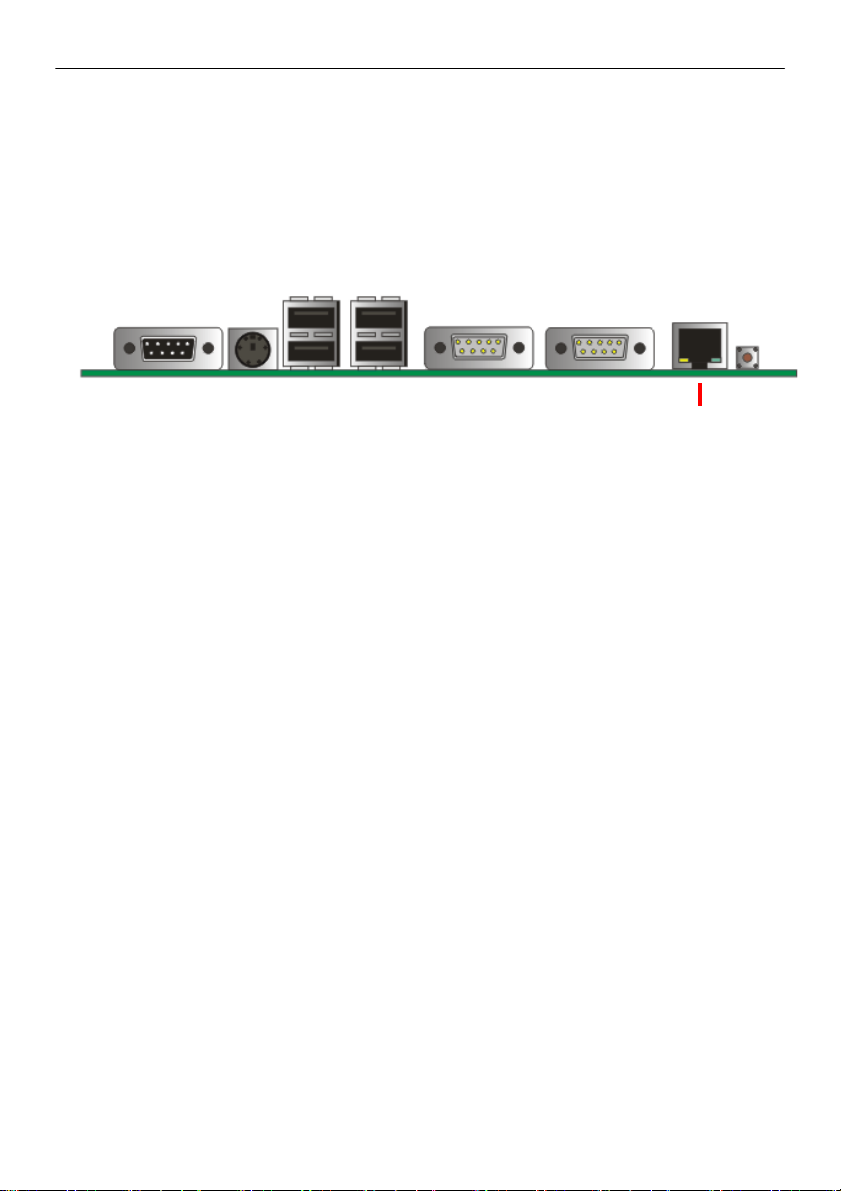

2.7 <Ethernet Interface>
The board integrates with Intel 82562EM controller at the t ype of 10Base-T/100Base-TX
auto-switching Ethernet with full duplex and IEEE 802.3U compliant. The LAN function
comes with a RJ45 jack on the rear I/O panel.
LAN1
Ethernet Interface
23
Page 24
FT-8551 User’s Manual Hardware Setup
314

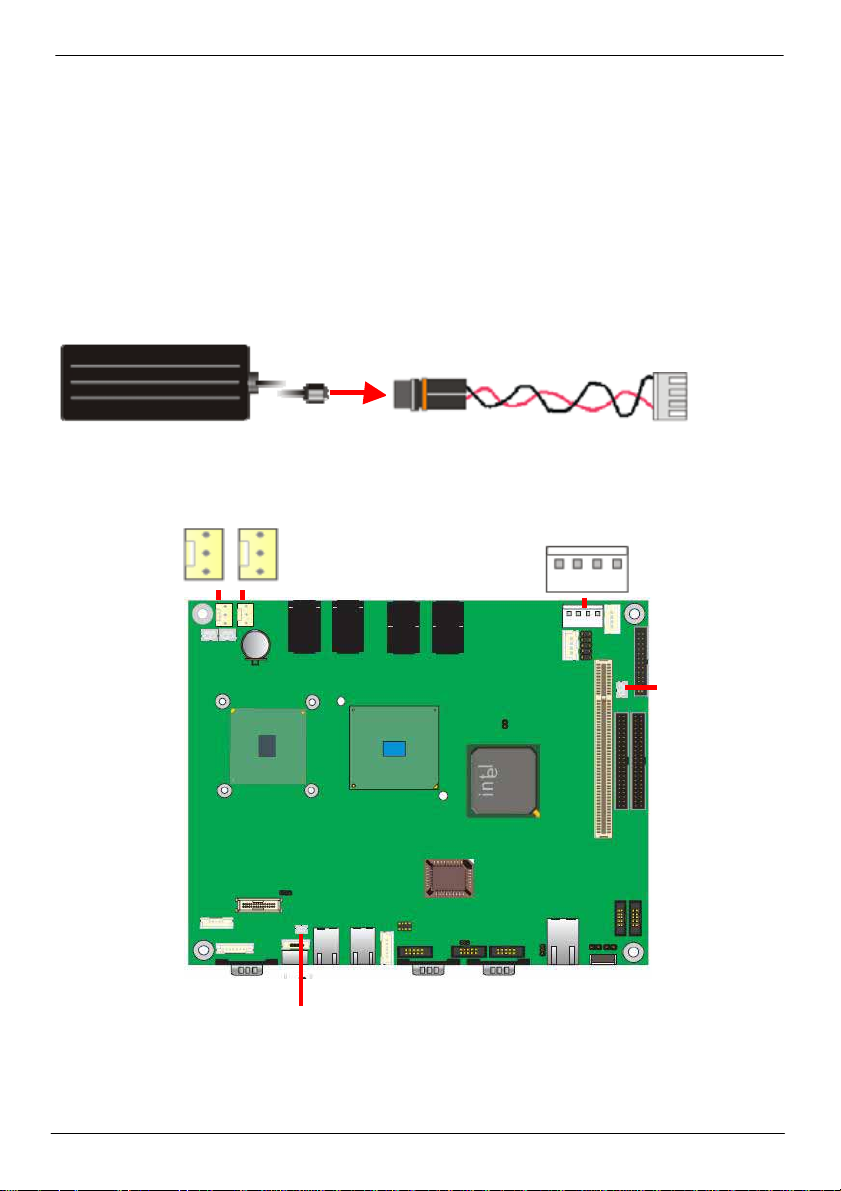

2.8 <Power connector>
The board comes with a 4-pin power connector for DC 12V auto-switching input, The board
has two power connectors for 5V output and it has two fan connectors for CPU and system
cooling.
How to power the board
Use DC 12V adapter with 4-pin connector for DC_IN
DC 12V Adapter
1
1
CN25 (DC_IN)
FAN2
3
FAN1
CN20
CN15
Power and Fan Connector 24
Page 25
FT-8551 User’s Manual Hardware Setup
Connector: CN25
Type: 4-pin DC power connector
Pin Description Pin Description
1 +12V 2 +12V
3 Ground 4 Ground
Connector: FAN1/FAN2
Type: 3-pin fan wafer connector
Pin Description Pin Description Pin Description
1 Ground 2 +12V 3 Fan Control
Connector: CN15/CN20
Type: 2-pin connector for +5V output
Pin Description Pin Description
1 +5V 2 Ground
Connector: CN34
Type: 4-pin connector for ATX power support
Pin Description Pin Description
1 NC 2 VCC5_SB
3 PSON_DRIVE 4 Ground
4
1
CN34
2
1
CN20
1 2
CN15
Power and Fan Connector 25
Page 26
FT-8551 User’s Manual Hardware Setup
2.9 <GPIO Interface>
The board offers 8-bit digital I/O to customize its configuration to your control needs.
For example, you may configure the digital I/O to control the opening and closing of the
cash drawer or to sense the warning signal from a tripped UPS.
Connector: CN18 (GPIO)
Type: 10-pin (5 x 2) header
Pin Description Pin Description
1 GPIO 4 2 GPIO 0
3 GPIO 5 4 GPIO 1
5 GPIO 6 6 GPIO 2
7 GPIO 7 8 GPIO 3
9 GND 10 VCC (+5V)
910
12
CN18 (GPIO)
GPIO Interface 26
Page 27
FT-8551 User’s Manual Hardware Setup
2.10 <Switch and Indicator>
Connector: CN31,CN30,CN26,CN27,CN21,SW1
Power button
Power button
POWER LED
CN26
2
IDE LED
Function Signal PIN
CN31
5VSB 1
PWRBT 2
CN30
Reset
SW1
Reset 1
GND 2
5VSB 1
PWRBT 2
1
1 2
Function Signal PIN
CN21
Power LED
IDE LED
IDE LED 1
VCC 2
Power LED 3
GND 4
CN26
Power LED
CN27
IDE LED
Power LED 1
GND 2
VCC 1
IDE LED 2
4
1
CN21
1 2
1 2
CN30 reset
SW1
CN31
Power button
Switch and Indicator 27
Page 28
FT-8551 User’s Manual
(This Page is Left for Blank)
28
Page 29
FT-8551 User’s Manual System Setup
Chapter 3 <System Setup>
3.1 <Watchdog Timer Setting>
The watchdog timer makes the system auto-reset while it stops to work for a period. The
integrated watchdog timer can be setup as system reset mode by program.
Timeout Value Range
- 1 to 255
- Second or Minute
Program Sample
Watchdog timer setup as system reset with 5 second of timeout
2E, 87
2E, 87
2E, 07
2F, 08 Logical Device 8
2E, 30 Activate
2F, 01
2E, F5 Set as Second*
2F, 00
2E, F6 Set as 5
2F, 05
* Minute: bit 3 = 0; Second: bit 3 = 1
You can select Timer setting in the BIOS, after setting the time options, the system will
reset according to the period of your selection.
Watchdog Timer Setting 29
Page 30
FT-8551 User’s Manual System Setup

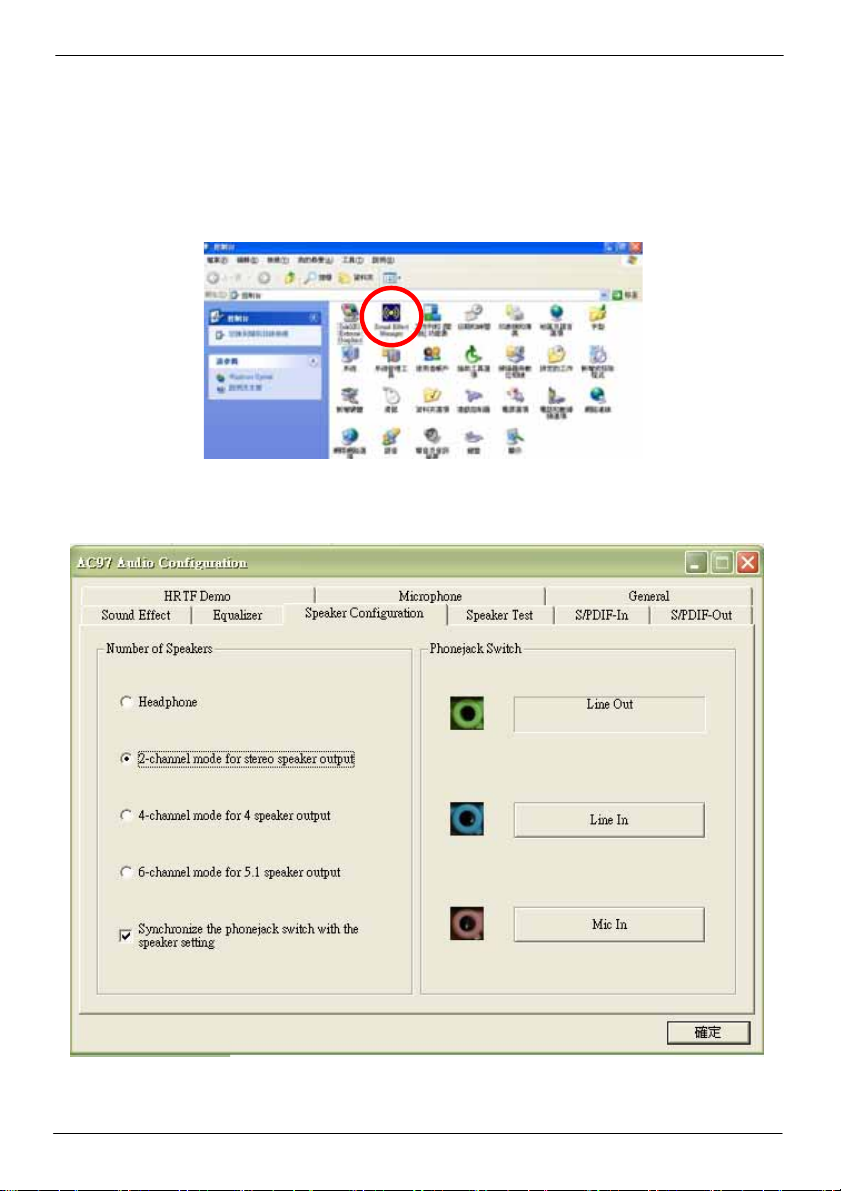

3.2 <Audio Setting>
The board integrates Intel® ICH4 with REALTEK® ALC203 codec. It can support
2-channel sound under system configuration. Please follow the steps below to setup your
sound system.
1. Install REALTEK AC97 Audio driver.
2. Lunch the control panel and Sound Effect Manager.
3. Select Speaker Configuration
4. Select the sound mode to meet your speaker system.
Audio Setup 30
Page 31
FT-8551 User’s Manual System Setup
3.3 <Display Device Setup>
This chapter shows you how to setup the display device under Windows OS.
Before you using your display device:
1. Check your software
Before you can use the display device properly, please install the VGA driver.
2. Check your hardware
Please setup the display device properly before you boot up the system.
For configure your Display device, please follow the instructions below:
1. Please lunch Display Properties.
You would see two Graphics Controllers. If you connect two display devices, you would be
able to setup each device for color bit and resolution.
This item can let you configure which device would be the primary if you connect two
display devices.
This item can let you extend your Windows Desktop to second display device.
If you click the identify button, the screen will pop up the number sequence of your device.
Display Device Setup 31
Page 32
FT-8551 User’s Manual System Setup
For advanced display settings, please click Advanced… button and choose Intel(R)
Extreme Graphics.
Please click Graphics Properties button to enter the advanced setup.
Display Device Setup 32
Page 33
FT-8551 User’s Manual System Setup

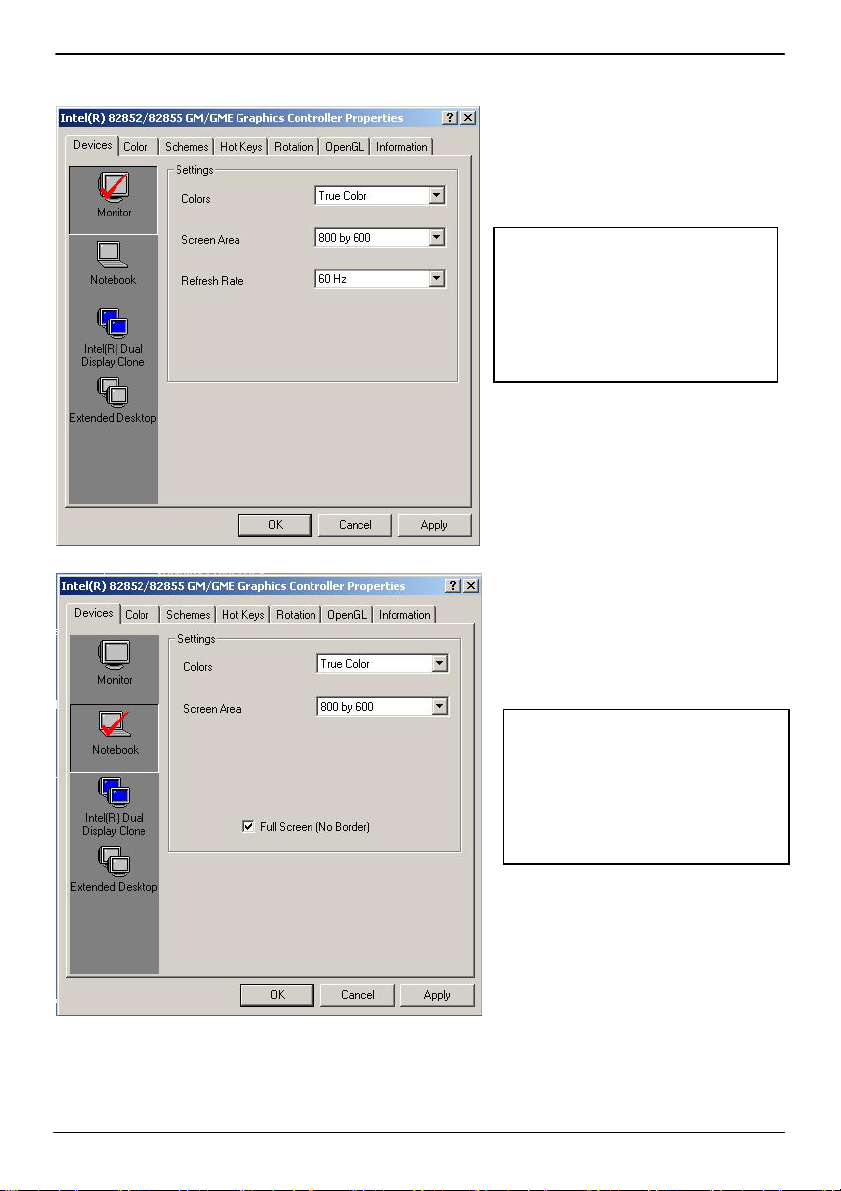

While you entering the Graphics Properties, you will see the options below:
This option can let you configure
the CRT monitors for Colors,
Screen Area (Resolution) and
Refresh Rate.
This option can let you configure
the LCD panel for Colors, Screen
Area (Resolution) and Full Screen
option.
Display Device Setup 33
Page 34
FT-8551 User’s Manual System Setup
This option can let you configure
the Dual Display for clone mode
(same display on two devices)
This option can let you configure
the Dual Display for Extended
Desktop mode
Display Device Setup 34
Page 35
FT-8551 User’s Manual
BIOS Setup
Chapter 4 <BIOS Setup>
The single board computer uses the Award BIOS for the system configuration. The
Award BIOS in the single board computer is a customized version of the industrial standard
BIOS for IBM PC AT-compatible computers. It supports Intel x86 and compatible CPU
architecture based processors and computers. The BIOS provides critical lo w-level suppor t
for the system central processing, memory and I/O sub-systems.
The BIOS setup program of the single board computer let the customers modify the bas ic
configuration setting. The settings are stored in a dedicated battery-backed memory,
NVRAM, retains the information when the power is turned off. If the battery runs out of the
power, then the settings of BIOS will come back to the default setting.
The BIOS section of the manual is subject to change without notice and is provided here for
reference purpose only. The settings and configurations of the BIOS are c urrent at the ti me
of print, and therefore they may not be exactly the same as that displayed on your screen.
To activate CMOS Setup program, press ＜DEL＞ key immediately after you turn on the
system. The following message “Press DEL to enter SETUP” should appear in the lower left
hand corner of your screen. When you enter the CMOS Setup Utility, the Main Menu will be
displayed as Figure 5-1. You can use arrow keys to select your function, press ＜Enter＞
key to accept the selection and enter the sub-menu.
Figure 5-1 CMOS Setup Utility Main Screen
For more BIOS information please visit Phoenix-Award:
http://www.phoenix.com/en/customer+services/bios/awardbios/default1.htm
BIOS Setup
35
Page 36
FT-8551 User’s Manual
(This Page is Left for Blank)
36
Page 37
FT-8551 User’s Manual I/O Port Pin Assignment
Appendix A <I/O Port Pin Assignment>

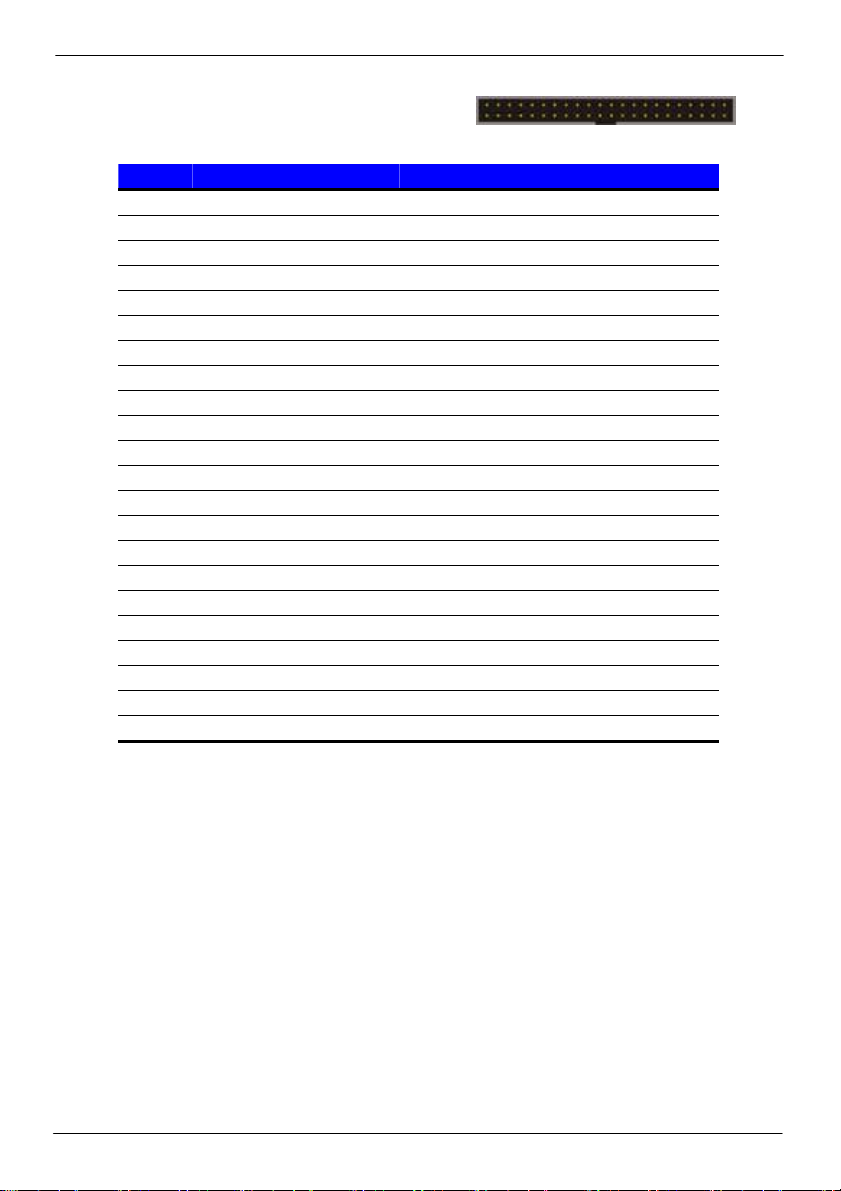

A.1 <IDE Port>
Connector: IDE1
Type: 44-pin (22 x 2) box header
Pin Description Pin Description
1 Reset 2 Ground
3 D7 4 D8
5 D6 6 D9
7 D5 8 D10
9 D4 10 D11
11 D3 12 D12
13 D2 14 D13
15 D1 16 D14
17 D0 18 D15
19 Ground 20 N/C
21 REQ 22 Ground
23 IOW-/STOP 24 Ground
25 IOR-/HDMARDY 26 Ground
27 IORDY/DDMARDY 28 IDESEL
29 DACK- 30 Ground
31 IRQ 32 N/C
33 A1 34 CBLID
35 A0 36 A2
37 CS1 38 CS3
39 IDEACT- 40 Ground
41 VCC 42 VCC
43 Ground 44 Ground
2
1
44
43
IDE Port 37
Page 38
FT-8551 User’s Manual I/O Port Pin Assignment
Connector: IDE2
2
44
Type: 44-pin (22 x 2) box header
1
43
Pin Description Pin Description
1 Reset 2 Ground
3 D7 4 D8
5 D6 6 D9
7 D5 8 D10
9 D4 10 D11
11 D3 12 D12
13 D2 14 D13
15 D1 16 D14
17 D0 18 D15
19 Ground 20 N/C
21 REQ 22 Ground
23 IOW-/STOP 24 Ground
25 IOR-/HDMARDY 26 Ground
27 IORDY/DDMARDY 28 IDESEL
29 DACK- 30 Ground
31 IRQ 32 N/C
33 A1 34 CBLID
35 A0 36 A2
37 CS1 38 CS3
39 IDEACT- 40 Ground
41 VCC 42 VCC
43 Ground 44 Ground
IDE Port 38
Page 39
FT-8551 User’s Manual I/O Port Pin Assignment

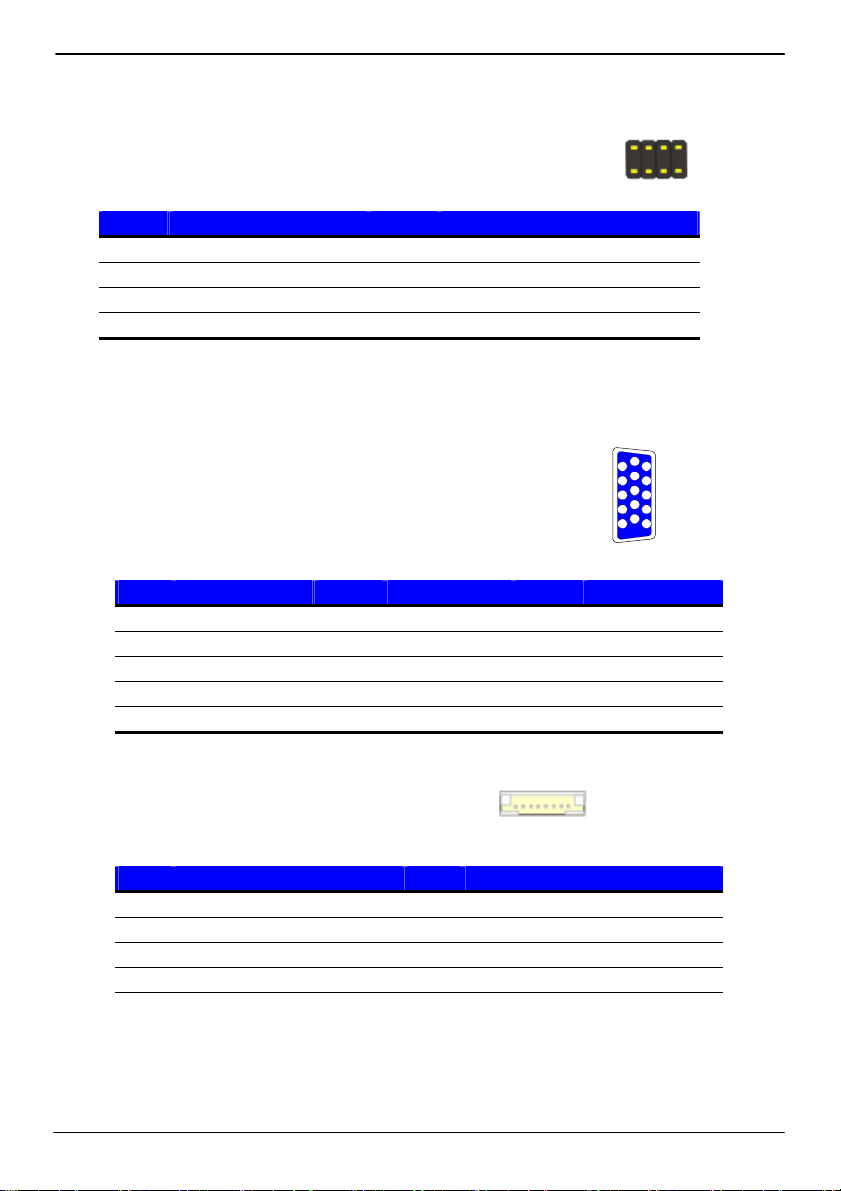

A.2 < USB Interface >
Connector: CN16 (USB)
Type: 8-pin (4 x 2) header for dual USB Ports
Pin Description Pin Description
1 VCC 2 Ground
3 Data0- 4 Data+
5 Data0+ 6 Data7 Ground 8 VCC
A.3 < VGA Port >
Connector: CN3 (VGA)
Type: 15-pin D-sub female connector on bracket
Pin Description Pin Description Pin Description
1 VGA_RED 6 Ground 11 N/C
2 VGA_GREEN 7 Ground 12 5VCDDCDA
3 VGA_BLUE 8 Ground 13 5VHSYNCR
4 N/C 9 VCC_VGA 14 5VVSYNCR
5 Ground 10 Ground 15 5VDDCCL
82
17
6
10
11
12
13
14
15
1
2
3
4
5
Connector: CN7 (CN_VGA)
Type: 8-pin header connector on bracket
18
Pin Description Pin Description
1 VGA_RED 5 5VCDDCDA
2 VGA_GREEN 6 5VDDCCL
3 VGA_BLUE 7 5VHSYNCR
4 Ground 8 5VVSYNCR
39
Page 40
FT-8551 User’s Manual I/O Port Pin Assignment

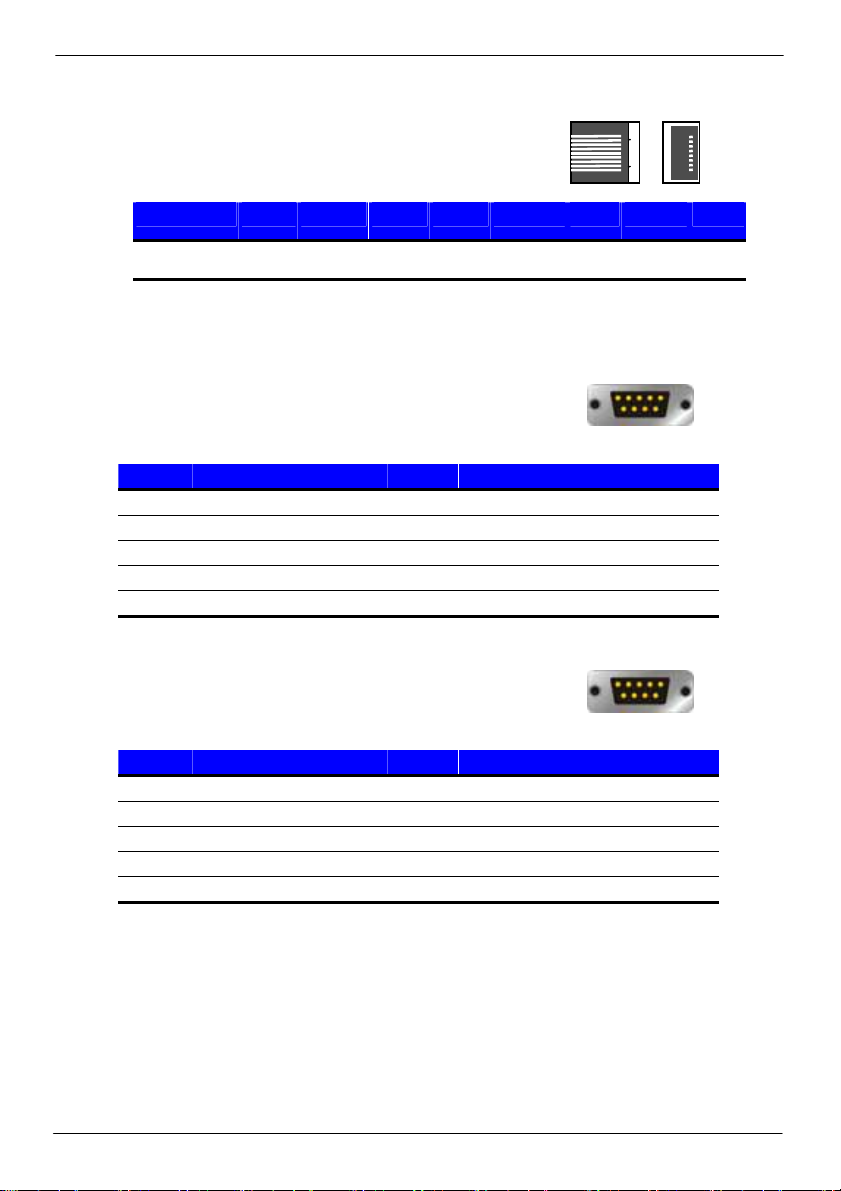

A.4 < LAN Port >
Connector: LAN1 (RJ45)
Type: RJ45 connector with LED on bracket
Pin 1 2 3 4 5 6 7 8
Description MDI0+ MDI0- MDI1+ MDI1- MDI2+ MDI2- MDI3+ MDI3-
A.5 < Serial Port >
5
Connector: CN1 (COM1)
Type: 9-pin D-sub male connector on bracket
Pin Description Pin Description
1 DCD#1 6 DSR#1
2 RXD#1 7 RTS#1
3 TXD#1 8 CTS#1
4 DTR#1 9 RI#1
5 Ground
Connector: CN2 (COM2)
Type: 9-pin D-sub male connector on bracket
Pin Description Pin Description
1 DCD#2 6 DSR#2
2 RXD#2 7 RTS#2
3 TXD#2 8 CTS#2
4 DTR#2 9 RI#2
5 Ground
1
69
1
69
5
40
Page 41
FT-8551 User’s Manual
2
9

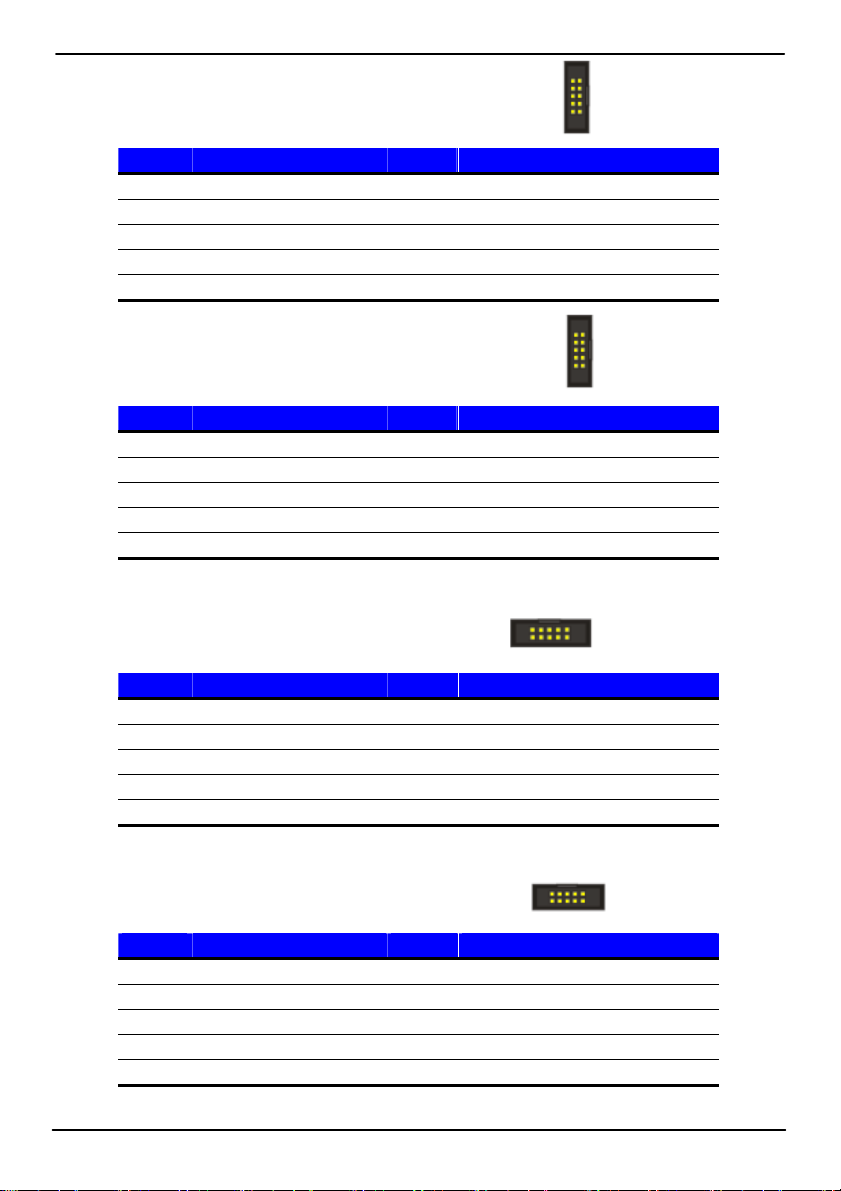

Connector: CN23 (COM3)
Type: 9-pin header connector on bracket
2
Pin Description Pin Description
1 DCD#3 2 DSR#3
3 RXD#3 4 RTS#3
5 TXD#3 6 CTS#3
7 DTR#3 8 RI#3
9 Ground 10 NC
Connector: CN24 (COM4)
Type: 9-pin header connector on bracket
Pin Description Pin Description
1 DCD#4 2 DSR#4
3 RXD#4 4 RTS#4
5 TXD#4 6 CTS#4
7 DTR#4 8 RI#4
9 Ground 10 NC
1
9
Connector: CN12 (COM5)
Type: 9-pin header connector on bracket
9
10
Pin Description Pin Description
1 DCD#5 2 DSR#5
3 RXD#5 4 RTS#5
5 TXD#5 6 CTS#5
7 DTR#5 8 RI#5
9 Ground 10 NC
Connector: CN9 (COM6)
Type: 9-pin header connector on bracket
10
Pin Description Pin Description
1 DCD#6 2 DSR#6
3 RXD#6 4 RTS#6
5 TXD#6 6 CTS#6
7 DTR#6 8 RI#6
9 Ground 10 NC
910
1
2
10
1
2
1
41
Page 42
FT-8551 User’s Manual I/O Port Pin Assignment

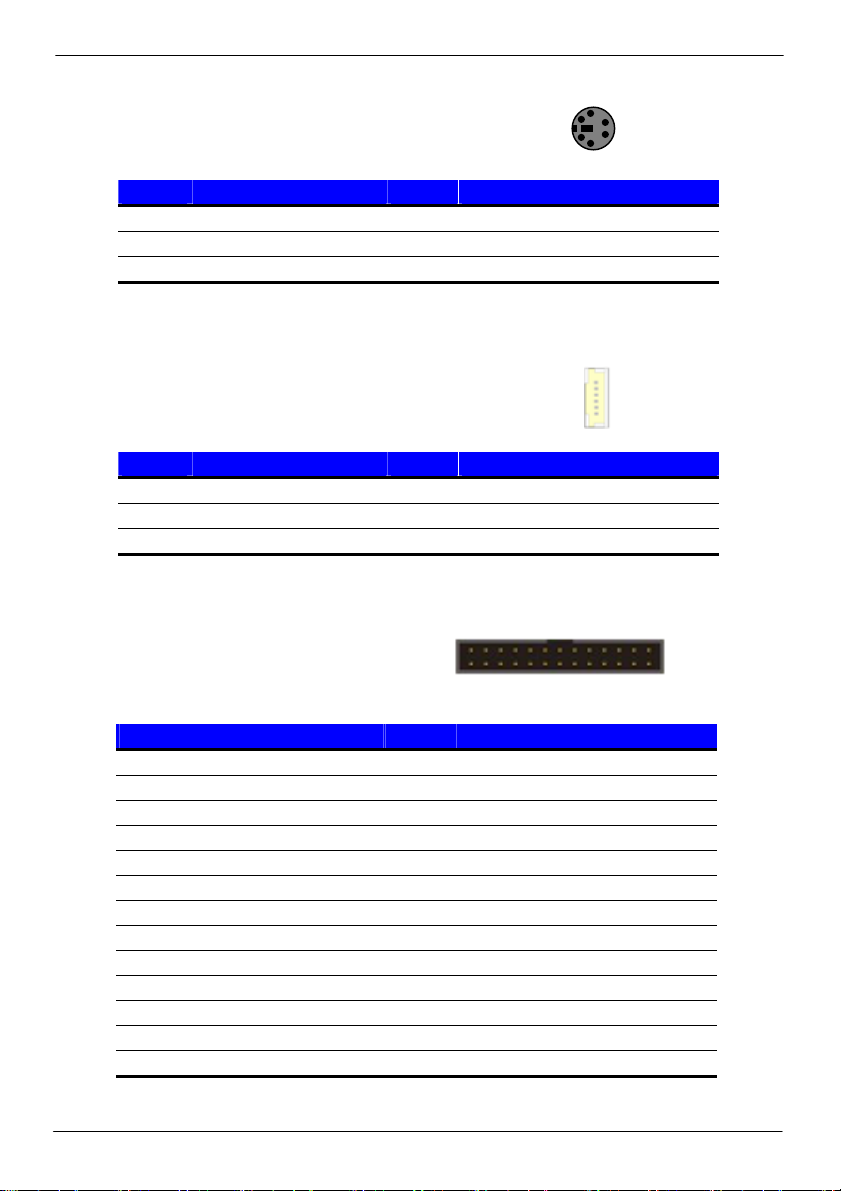

A.6 < PS2 Port >
Connector: CN4 (PS2)
Type: 6-pin Mini-DIN connector on bracket
Pin Description Pin Description
1 KBD_DAT 2 L_MDAT
3 KMGND 4 KB5V
5 KBD_CLK 6 L_MCLK
3
1
5
6
2
4
Connector: CN33 (CN_PS2)
Type: 6-pin header connector on bracket
Pin Description Pin Description
1 KBD_DAT 2 L_MDAT
3 KMGND 4 KB5V
5 KBD_CLK 6 L_MCLK
A.7 < Parallel Port >
Connector: LPT1 (Printer)
Type: 26-Pin box header
Pin Description Pin Description
1 BP_STB 2 AFD3 BP_PRD0 4 ERR5 BP_PRD1 6 INIT7 BP_PRD2 8 SLIN9 BP_PRD3 10 Ground
11 BP_PRD4 12 Ground
13 BP_PRD5 14 Ground
15 BP_PRD6 16 Ground
17 BP_PRD7 18 Ground
19 ACK- 20 Ground
21 BUSY 22 Ground
23 PE 24 Ground
25 SLCT 26 Ground
25
26
6
1
1
2
42
Page 43
FT-8551 User’s Manual
(This Page is Left for Blank)
43
Page 44
FT-8551 User’s Manual Flash BIOS
Appendix B <Flash BIOS>
B.1 <Flash Tool>
The board is based on Award BIOS and can be updated easily by the BIOS auto flash
tool. You can download the tool online at the address below:
http://www.phoenix.com/en/home/
http://www.commell.com.tw/Support/Support_SBC.htm
File name of the tool is “awdflash.exe”, it’s the utility that can write the data into the
BIOS flash ship and update the BIOS.
B.2 <Flash BIOS Procedure>
1. Please make a bootable floppy disk.
2. Get the last .bin files you want to update and copy it into the disk.
3. Copy awardflash.exe to the disk.
4. Power on the system and flash the BIOS. (Example: C:/ awardflash XXX.bin)
5. Restart the system.
Any question about the BIOS re-flash please contact your distributors or visit the
web-site at below:
TUhttp://www.commell.com.tw/support/support.htmUT
44
Page 45
FT-8551 User’s Manual System Resource
Appendix C <System Resource>
C.1 <I/O Address Map>
I/O Address Map 45
Page 46

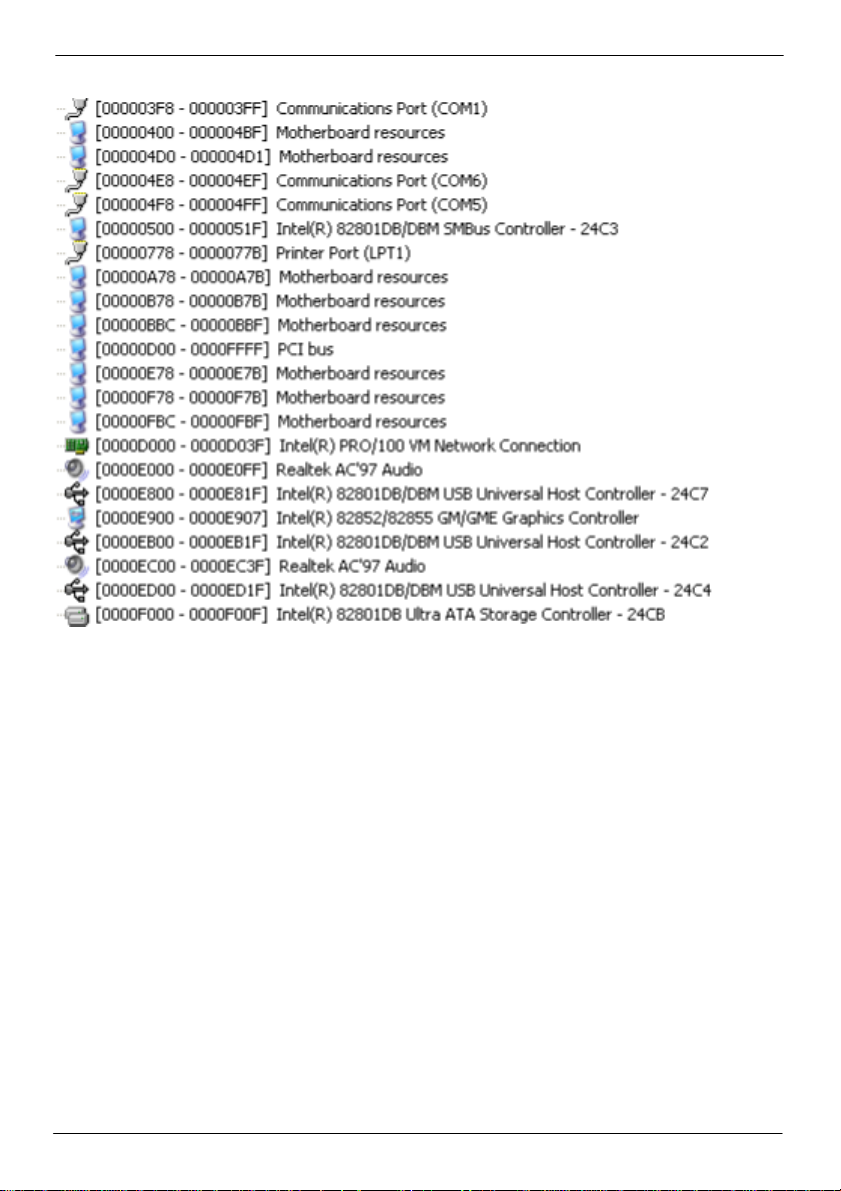

FT-8551 User’s Manual System Resource
I/O Address Map 46
Page 47
FT-8551 User’s Manual System Resource
C.2 <Memory Address Map>
Memory Address Map 47
Page 48
FT-8551 User’s Manual System Resource
C.3 <System IRQ and DMA Resource>
System IRQ and DMA Resource 48
Page 49
FT-8551 User’s Manual Contact information
Contact Information
Any advice or comment about our products and service, or anything
we can help you please don’t hesitate to contact with us. We will do
our best to support you for your products, projects and business
Taiwan Commate Computer Inc.
Address
TEL +886-2-26963909
FAX +886-2-26963911
Website
E-Mail
19F No. 94, Sec. 1, Shin Tai Wu Rd., Shi Chih
Taipei Hsien, Taiwan
Commell is our trademark of industrial PC division
49
Loading...
