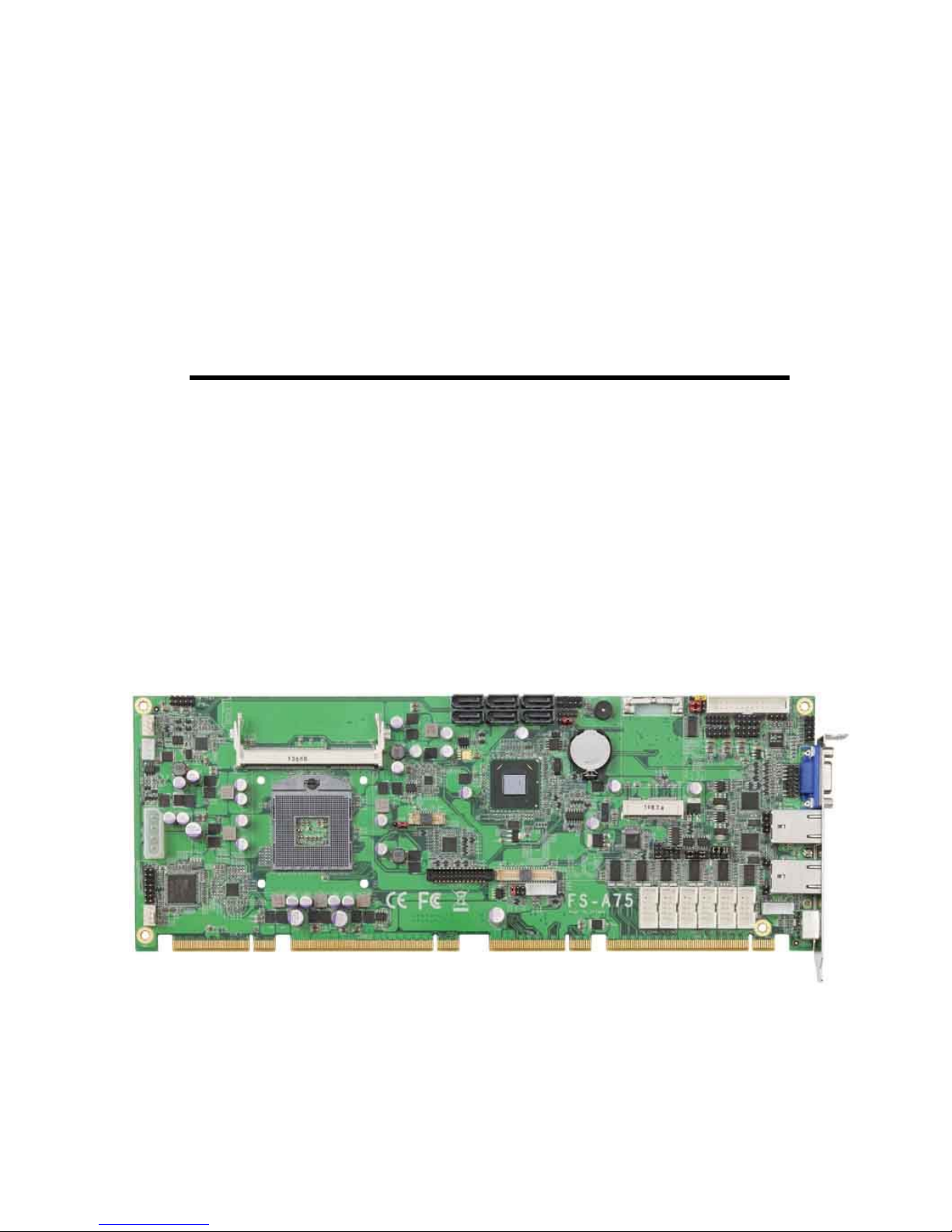

FS-A75
PICMG1.3 Full-size CPU Card
User’s Manual
Edition 1.4
2014/05/15
FS-A75 User’s Manual
-1-
Copyright
Copyright 2011, all rights reserved. This document is copyrighted and all rights are
reserved. The information in this document is subject to change without prior notice to
make improvements to the products.
This document contains proprietary informat ion and protected by copyright. No part of
this document may be reproduced, copied, or translated in any form or any means
without prior written permission of the manufacturer.
All trademarks and/or registered trademarks contains in this docume nt are property of
their respective owners.
Disclaimer
The company shall not be liable for any incidental or consequential dam ages resulting
from the performance or use of this product.
The company does not issue a warranty of any kind, express or implied, including
without limitation implied warranties of merchantability or fitness for a particular purpose.
The company has the right to revise the manual or include changes in the specifications
of the product described within it at any time without notice and without obligation to
notify any person of such revision or changes.
Trademark
All trademarks are the property of their respective holders.
Any questions please visit our website at TUhttp://www.commell.com.twUT
FS-A75 User’s Manual
-2-

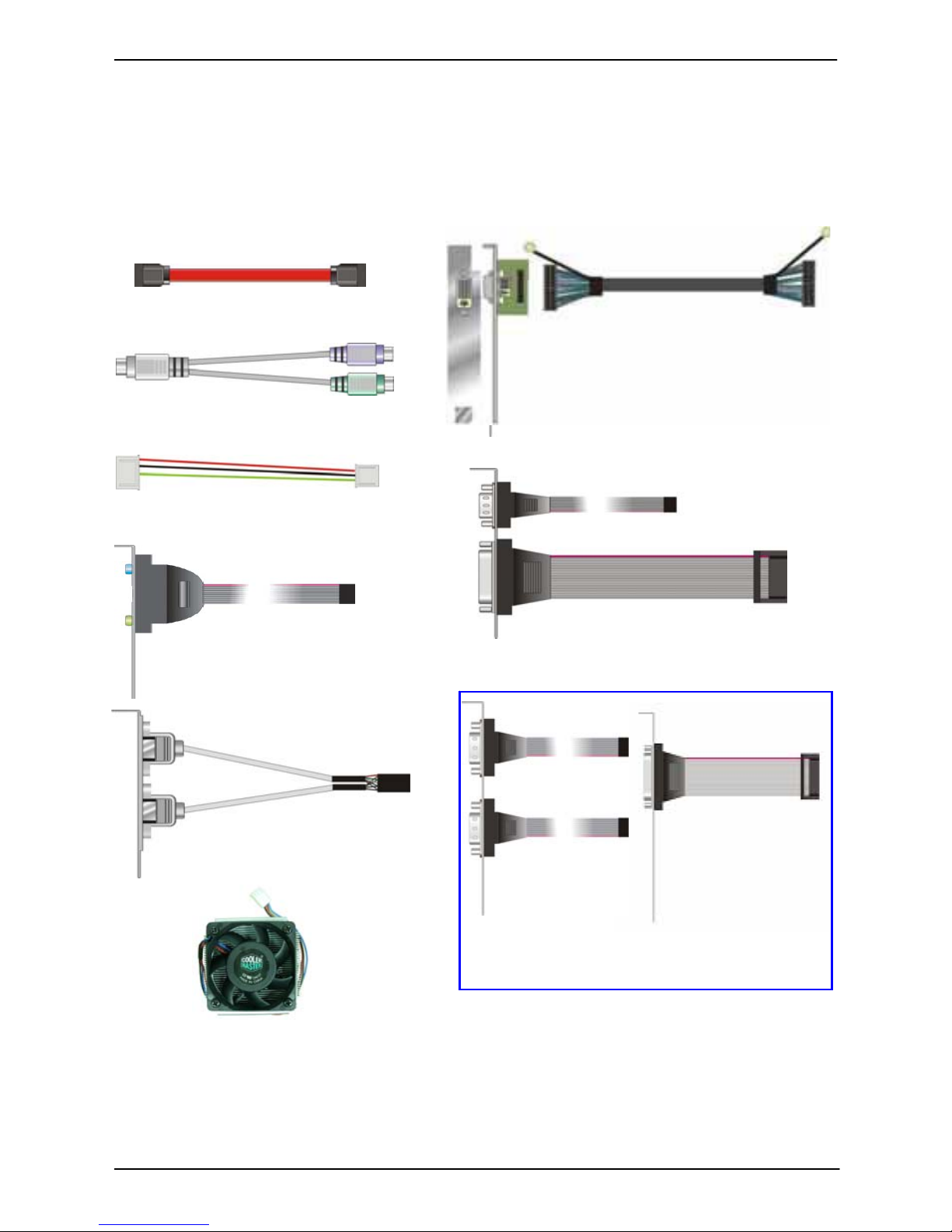

Packing List:
Please check the package content before you starting using the board.
Hardware:
FS-A75 PICMG1.3 Full-size CPU Card motherboard x 1
Cable Kit:
SATA Cable x 2
(OALSATA3-L)/ (1040529)
Printed Matters:
Driver CD (Including User’s Manual) x 1
CPU Cooler x 1
(OHS-P-M-G)/ (1190046)
DVI module with bracket x 1
(BADPDVIP_A & OALDVI-P)
(4120008021 & 1040075)
USB Cable x 1
(OALUSBA-1)/ (1040172)
4-pin to 3-pin ATX cable x 1
(OALATX-C)/ (1040184)
PS/2 Keyboard & Mouse Cable x 1
(OALPS2/MKN)/ (1040551)
Audio Port Cable x 1
(OALPJ-HD)/ (1404120)
DB25 & DB9 cable x 1
(FS-A75TXG/ FS-A75FTXG Only)
(
OAL1S1P)/ (1040041
)
DB9 cable x 1 & DB25 cable x 1
(FS-A75TXG2/ FS-A75FTXG2 Only)
(
OAL2S1P)/ (1040191
)
FS-A75 User’s Manual
-3-
Index
Chapter 1 <Introduction>.............................................................6
1.1 <Product Overview>.....................................................................................6
1.2 <Product Specification>................................................................................7
1.3 <Mechanical Drawing>.................................................................................9
1.4 <Block Diagram>........................................................................................10
Chapter 2 <Hardware Setup>..................................................11
2.1 <Connector Location>................................................................................ 11
2.2 <Jumper Location & Reference>................................................................12
2.3 <Connector Reference>.............................................................................13
2.3.1 <Internal Connectors>.............................................................. 13
2.3.2 <External Connectors>.............................................................13
2.4 <CPU and Memory Setup>........................................................................14
2.4.1 <CPU Setup>.............................................................................14
2.4.2 <Memory Setup>.......................................................................15
2.5 <CMOS & ATX Setup>...............................................................................16
2.6 <Serial ATA Interface>................................................................................17
2.7 <Ethernet Interface>...................................................................................18
2.8 <Onboard Display Interface> .....................................................................19
2.8.1 <Analog Display>.......................................................................19
2.8.2 <Digital Display>........................................................................20
2.8.3 <DVI Interface>..........................................................................25
2.9 <Integrated Audio Interface>...................................................................... 26
2.10 <USB Interface>.......................................................................................28
2.11 <Serial Port>.............................................................................................30
2.12 <PCIE Mini Card and SIM Interface>.......................................................33
2.13 <GPIO and SMBUS Interface>.................................................................34
2.14 <Power Supply and Fan Interface >.........................................................35
2.15 <Switch and Indicator>.............................................................................37
FS-A75 User’s Manual
-4-
Chapter 3 <System Setup>.......................................................38
3.1 <Audio Configuration>................................................................................38
3.2 <Display Properties Setting> ......................................................................39
3.3 <SATA configuration> .................................................................................41
3.4 <SATA RAID Configuration>.......................................................................42
Chapter 4 <BIOS Setup>.............................................................44
Appendix A <I/O Port Pin Assignment>..........................46
A.1 <Serial ATA Port>.......................................................................................46
A.2 <IrDA Port>.................................................................................................46
A.3 <VGA Port>................................................................................................46
A.4 <LAN Port>.................................................................................................46
A.5 <LAN LED Port>.........................................................................................47
A.6 <Parallel Port>............................................................................................47
Appendix B <Flash BIOS>.........................................................48
B.1 <Flash Tool>...............................................................................................48
B.2 <Flash BIOS Procedure> ...........................................................................48
Appendix C <System Resources>......................................49
C.1 <I/O Port Address Map>.............................................................................49
C.2 <Memory Address Map>............................................................................52
C.3 <System DMA & IRQ Resources> .............................................................53
Appendix D <Programming GPIO’s>.................................54
Appendix E <Programming Watchdog Timer >.........55
Contact Information.......................................................................56
FS-A75 User’s Manual
-5-
(This page is left for blank)
FS-A75 User’s Manual
-6-
Chapter 1 <Introduction>
1.1 <Product Overview>
FS-A75 the 2nd Generation Intel of the PICMG1.3 Full-size CPU Card motherboard,
supports 2
nd
Generation Intel® Core™ i7, Core™ i5, Core™ i3 and Celeron® Mobile
Processor and features Intel QM67 chipset, integrated HD Graphics, DDR3 memory,
REALTEK High Definition Audio, Serial ATA with RAID function for a system and Intel
Gigabit LAN.
Intel Sandy Bridge Processor
The 2nd Generation Intel® Core™ processor family mobile is the next generation of
64-bit, multi-core mobile processor built on 32- nanometer process technology. Based
on a new micro-architecture.
New features for Intel QM67 chipset
The board integrates Intel QM67 chipset, supports integrated HD Graphics, built-in high
speed mass storage interface of Serial ATA interface with RAID function, High Definition
Audio with 2 channels surrounding sound.
All in One multimedia solution
Based on Intel QM67 chipset, the board provides high perf ormance onboard graphics,
24-bit dual channel LVDS interface, DVI and 2 channels High Definition Audio, to meet
the very requirement of the multimedia application.
FS-A75 User’s Manual
-
7-
1.2 <Product Specification>
General Specification
Form Factor PICMG 1.3 Full-size CPU Card
CPU 2nd Generation Intel® Core™ i7, Core™ i5, Core™ i3 and Celeron®
Mobile Processor
Package type: rPGA988B
Memory 2 x DDRIII SO-DIMM 1066/1333/1600 MHz up to 16GB
Support Non-ECC, unbuffered memory only
Chipset Intel QM67
Real Time Clock Chipset integrated RTC with onboard lithium battery
Watchdog Timer Generates a system reset with internal timer for 1min/s ~255min/s
Power Management Supports ACPI 3.0 compliant,
Serial ATA Interface 4 x serial ATAII interface with 300MB/s transfer rate
2 x serial ATAIII interface with 600MB/s transfer rate
Support RAID 0, 1, 5, 10 and Intel Rapid Storage Technology
VGA Interface Onboard DSUB15 connector for VGA interface
LVDS Interface Onboard 24-bit dual channel LVDS connector with +3.3V/+5V/+12V
supply
DVI Interface Chrontel CH7318 Transmitter with 26-pin DVI connector
Audio Interface Realtek ALC888 HD Audio
LAN Interface 2 x Intel 82574L Gigabit LAN
GPIO interface Onboard programmable 8-bit Digital I/O interface
Extended Interface PICMG 1.3 Interface Support 1 PCI-Express x16 and 1 PCI-Express x4
or 4 PCI-Express x1 4 PCI bus master, and 4 USB2.0 Interface
and 1 x PCIE mini card socket
Internal I/O Port 5x RS232, 1 x RS232/422/485, 1 x SMBUS, 1 x GPIO, 8 x USB 2.0, 1 x
IrDA, 1 x LVDS,1 x LPT, 6 x Serial ATA, 1 x LCD inverter,
1 x Front panel Audio and 1 x CDIN
External I/O Port DB15 VGA port, RJ45 LAN port, PS/2 Keyboard/Mouse Port
Power Requirement +5V, +12 DC input & 5V
SB
Requirement
Dimension 338 mm x 126 mm (L x W)
Temperature Operating within 0~60 centigrade
Storage within –20~85 centigrade
FS-A75 User’s Manual
-
8-
Ordering Code
FS-A75TXG Intel PGA988B+ QM67 Onboard VGA, LVDS, DVI, USB2.0, COM, HD
Audio, SATAII ,SATAIII, SMBUS, LPC, IrDA, GPIO and PCI Express mini
card, 1 x Giga LAN
Support Four X1 & One X16 PCI Express interface
FS-A75FTXG Intel PGA988B+ QM67 Onboard VGA, LVDS, DVI, USB2.0, COM, HD
Audio, SATAII ,SATAIII, SMBUS, LPC, IrDA, GPIO and PCI Express mini
card, 1 x Giga LAN
Support One X4 & One X16 PCI Express interface
FS-A75TXG2 Intel PGA988B+ QM67 Onboard VGA, LVDS, DVI, USB2.0, COM, HD
Audio, SATAII ,SATAIII, SMBUS, LPC, IrDA, GPIO and PCI Express mini
card, 2 x Giga LAN
Support Four X1 & One X16 PCI Express interface
FS-A75FTXG2 Intel PGA988B+ QM67 Onboard VGA, LVDS, DVI, USB2.0, COM, HD
Audio, SATAII ,SATAIII, SMBUS, LPC, IrDA, GPIO and PCI Express mini
card, 2 x Giga LAN
Support One X4 & One X16 PCI Express interface
The specifications may be different as the actual production.
For further product information please visit the website at
TUhttp://www.commell.com.twUT
FS-A75 User’s Manual
-
9-
1.3 <Mechanical Drawing>
Unit: inch
FS-A75 User’s Manual
-
10-
1.4 <Block Diagram>
QM67
W25X64 SPI
2 x Intel 82574L
1 x RS232/422/485
1 x RS232 & GPIO
1 x LPT & IrDA
2nd Generation Intel® Core™ i7,
Core™ i5, Core™ i3
and Celeron® Mobile Processor
1 x PCI Express x16
2 x 204-pin DDR3
SO-DIMM
1066/1333/1600 MHz
up to 16GB
1 x LVDS
4 x Serial ATAII
12 x USB 2.0
1 x PCI Express mini card
1 x DVI
1 x CRT
2 x Serial ATAIII
4 x RS232
ALC888 HD Audio
F81216
SI383
PCI Bus
1 x PCI Express x4 or
4 x PCI Express x1
FS-A75 User’s Manual
-
11-
Chapter 2 <Hardware Setup>
2.1 <Connector Location>
JFRNT
SYSFAN
SO-DIMM1
DC_IN
CD_IN
CPUFAN
CN_AUDIO
CN_IR
CN_SMBUS
MINI_CARD
SO-DIMM2
SATA2/4/6
SATA1/3/5
CN_USB3
CN_DIO
COM6/5/4/3/2/1
CN_LPC
CN_INV
CN_LVDS
CN_DVI
JSPD2
JACT1
JACT2
CN_LPT
CN_USB4/5
CN_USB6
PS2 COM1 RJ45_1 CRT
FS-A75TXG
FS-A75TXG2
PS2 RJ45_2 RJ45_1 CRT
JSPD1
FS-A75 User’s Manual
-
12-
2.2 <Jumper Location & Reference>
Jumper Function
JRTC CMOS Operating/Clear Setting
JVLCD Panel Voltage Setting
JAT Power mode select
JP1 Com1 Voltage Setting (For Pin 9)
JP2 Com2 Voltage Setting (For Pin 9)
JP3 Com3 Voltage Setting (For Pin 9)
JP4 Com4 Voltage Setting (For Pin 9)
JCSEL1
JCSEL2
CN_COM2 RS-232 RS422 RS485 Setting
CN_IR IrDA Setting
JVUSB USB Voltage Setting
JVLCD
JRTC JAT
JP1
JP2
JVUSB
JP4
JP3
JCSEL1
JCSEL2
FS-A75 User’s Manual
-
13-
2.3 <Connector Reference>
2.3.1 <Internal Connectors>
Connector Function Remark
CPU Socket rPGA988B for PGA988 CPU
SO-DIMM 1/2 204 -pin DD R3 SO-DIMM socket
SATA 1/2 7-pin Serial ATAIII connector
SATA 3/4/5/6 7-pin Serial ATAII connector
DC_IN 4-pin power supply connector
CN_AUDIO 5 x 2-pin audio connector
CD_IN 4-pin CD-ROM audio input connector
CN_DIO 6 x 2-pin digital I/O connector
CN_USB 3/4/5/6 5 x 2-pin USB connector
CPUFAN 4-pin CPU cooler fan connector
SYSFAN 3-pin system cooler fan connector
CN_LVDS 20 x 2-pin LVDS connector
CN_INV 5-pin LCD inverter connector
CN_IR 5-pin IrDA connector
CN_COM 1/2/3/4/5/6 9-pin RS232
CN_LPC 5 x 2-pin LPC connector
JFRNT 14-pin front panel switch/indicator connector
Mini-PCIE 2 x 52-pin Mini-PCIE socket
JAT Power mode select
CN_LPT 13 x 2-pin printer connector
JSPD 1/2 LAN Speed LED connector
JACT 1/2 LAN Activity LED connector
2.3.2 <External Connectors>
Connector Function Remark
RJ45 1/2 1 x RJ45 LAN connector
CRT DB15 and analog VGA connector
PS/2 PS/2 keyboard and mouse connector
FS-A75 User’s Manual
-
14-
2.4 <CPU and Memory Setup>
2.4.1 <CPU Setup>
The board comes with the socket rPGA988 for Intel SandyBridge Processor, Please
follow the instruction to install the CPU properly.
1. Use the flat-type screw drive
to unlock the CPU socket
Unlock wa
y
C
2. Follow the pin direction to install
the processor on the socket
3. Lock the socket
Socket CPU
Check point
FS-A75 User’s Manual
-
15-
2.4.2 <Memory Setup>
The board provides 2 x 204-pin DDR3 SO-DIMM to support 1066/1333/1600MHz DDR3
memory module up to 16GB.
Support Non-ECC, unbuffered memory only.
SO-DIMM1
SO-DIMM2
FS-A75 User’s Manual
-
16-
2.5 <CMOS & ATX Setup>
The board’s data of CMOS can be setting in BIOS. If the board refuses to boot due
to inappropriate CMOS settings, here is how to proceed to clear (reset) the CMOS
to its default values.
Jumper: JRTC
Type: Onboard 3-pin jumper
JRTC Mode
1-2 Clear CMOS
2-3 Normal Op eration
Default setting: 2-3
Jumper: JAT
Type: onboard 3-pin jumper
JAT Mode
1-2 AT Mode
2-3 ATX Mode
Default setting:2-3
JRTC JAT
1 3
Loading...
