CES-470
COM Express Module
User’s Manual
Edition 1.1
2007/6/13
CES-470 User’s Manual
Copyright
Copyright 2006, all rights reserved. This document is copyrighted and all rights are
reserved. The information in this document is subject to change without prior notice to
make improvements to the products.
This document contains proprietary information and pr otected by copyright. No part of
this document may be reproduced, copied, or translated in any form or any means
without prior written permission of the manufacturer.
All trademarks and/or registered trademarks contains in this document are prop erty of
their respective owners.
Disclaimer
The company shall not be liable for any incidental or consequential damages resulting
from the performance or use of this product.
The company does not issue a warranty of any kind, express or implied, including
without limitation implied warranties of merchantability or fitness for a particular purpose.
The company has the right to revise the manual or include changes in the specifications
of the product described within it at any time without notice and without obligation to
notify any person of such revision or changes.
Trademark
All trademarks are the property of their respective holders.
Any questions please visit our website at TUhttp://www.commell.com.twUT
2
CES-470 User’s Manual
Packing List:
Please check the package content before you starting using the board.
Hardware:
CES-470 COM Express module x 1
Cable Kit:
CES-470 heat sink x 1
3
CES-470 User’s Manual
Index
Chapter 1 <Introduction>...............................................................6
1.1 <Product Overview> .................................................................6
1.2 <Product Specification>............................................................7
1.3 <Mechanical Drawing>.............................................................9
1.4 <Block Diagram>....................................................................10
Chapter 2 <Hardware Setup>....................................................12
2.1 <Connector Location>.............................................................12
2.2 <Connector Reference>...........................................................13
2.2.1 <Internal Connectors> .........................................................13
2.3 <CPU and Memory Setup>.....................................................13
2.3.1 <CPU Setup>.....................................................................13
2.3.2 <Memory Setup>................................................................14
2.4 <CMOS Setup>.......................................................................15
Chapter 3 <System Setup>.........................................................16
3.1 <Video Memory Setup>..........................................................16
Chapter 4 <BIOS Setup>...............................................................18
Appendix A <Flash BIOS>...........................................................20
A.1 <Flash Tool>...........................................................................20
A.2 <Flash BIOS Procedure>........................................................20
Appendix B <COM Express Pin assignment>..............20
Contact Information.........................................................................25
4
CES-470 User’s Manual
(This Page is Left for Blank)
5
CES-470 User’s Manual
Chapter 1 <Introduction>
1.1 <Product Overview>
CES-470 is the new generation of the COM express module, with supporting last Intel
Pentium M processors for 533MHz front side bus, Intel 915GM(E) and ICH6-M chipset,
integrated GMA900 graphics, DDR2 memory, support High Definition Audio, Serial ATA,
PCI Express x16, x1 interface and one 10/100M base LAN.
New Intel Pentium M Processor
The module supports last Intel Pentium M processors with 400/533MHz front side bus,
2MB L2 cache, to provide more powerful performance than before.
New features for Intel 915GM(E) chipset
The module integrates Intel 915GM(E) and ICH6-M chipset, to provide new generation
of the mobile solution, supports Intel GMA900 graphics, DDR2 400/533 memory, built-in
high speed mass storage interface of serial ATA, High Definition Audio interface.
All in One multimedia solution
Based on Intel 915GM(E) and ICH6-M chipset, the module provides high performance
onboard graphics, 18-bit dual channel LVDS interface, to meet the very requirement of
the multimedia application.
Flexible Extension Interface
The module support one PCI-Express x16 slot, four PCI-Express x1, it also support four
PCI slots.
6
CES-470 User’s Manual
1.2 <Product Specification>
General Specification
Form Factor COM Express module
CPU Intel® Pentium M / Celeron M processors
Package type: FC-PGA478
L2 Cache: 512KB/1MB/2MB
Front side bus: 400/533MHz
( The Intel® Celeron® M Processor 4xx series have been
designed to work with the Mobile Intel® 945 Express Chipset
Family only .)
Memory 1 x 200-pin DDR2 SoDIMM 400/533MHz SDRAM up to 1GB
Up to 4GB/s of bandwidth.
Unbufferred, none-ECC memory supported only
Chipset Intel® 915GM(E) (Northbridge) and ICH6-M (Southbridge)
BIOS Phoenix-Award v6.00PG 4Mb PnP flash BIOS
Green Function Power saving mode includes doze, standby and suspend modes.
ACPI version 1.0 and APM version 1.2 compliant
Watchdog Timer System reset programmable watchdog timer.
Real Time Clock Intel® ICH6-M built-in RTC with lithium battery
Enhanced IDE Support UltraDMA100 IDE interface supports up to 2 ATAPI devices
Serial ATA Intel® ICH6-M integrates support 2 Serial ATA interfaces
Up to 150MB/s of transfer rate
VGA Display Interface
Chipset Intel® 915GM(E) GMCH (Graphic Memory Controller Hub)
Frame Buffer Up to 128MB shared with system memory
Display Type Support CRT, LCD monitor with analog display
Support 18-bit dual channel LVDS interface
Support HDTV interface
Ethernet Interface
Controller Intel 82562ET PHY
Type 10/100Base-T
auto-switching Fast Ethernet
Full duplex, IEEE802.3U compliant
Expansive Interface
PCI-Express Support x16 PCI-Express slot (compatible with x1 slot) and four x1 slots
PCI-Express x16 Up to 8GB/s of transfer bandwidth
PCI-Express x1 up to 5Gb/s of transfer bandwidth
Power supply: +3.3V, +12V
PCI Support four PCI slots
Power supply: +3.3V, +5V
LPC Support LPC interface
7
CES-470 User’s Manual
Audio Support HD audio or AC97 Codec
Power and Environment
Dimension 125(L) x 95 (H) mm
Temperature Operating within 0 ~ 60P
Storage within -20 ~ 85P
o
P
C (32 ~ 140P
o
P
C (-4 ~ 185P
o
P
F)
o
P
F)
Ordering Code
CES-470 COM Express module for Pentium M Processor
The specifications may be different as the actual production.
For further product information please visit the website at TUhttp://www.commell.com.tw
UT
8
CES-470 User’s Manual
1.3 <Mechanical Drawing>
9
CES-470 User’s Manual
1.4 <Block Diagram>
Intel Pentium M/Celeron M Processors
Intel GMA900 Graphics
PCI-Express x16
LVDS
HDTV
915GM(E)
1 x 200-pin DDR2
SoDIMM400/533MHz
up to 1GB
UltraDMA100 IDE
8 x USB2.0 ports
HD Audio or AC 97
Interface
LPC Interface
2 x Serial ATA ports
Four PCI Express x1
ICH6-M
Four PCI
BIOS
10
CES-470 User’s Manual
(This Page is Left for Blank)
11
CES-470 User’s Manual
Chapter 2 <Hardware Setup>
2.1 <Connector Location>
DDRII SoDIMM
CPU
12
CES-470 User’s Manual
y
2.2 <Connector Reference>
2.2.1 <Internal Connectors>
Connector Function Remark
CPU Socket479 for CPU Standard
DDRII 200 -pin DDR2 SoDIMM slot Standard
2.3 <CPU and Memory Setup>
2.3.1 <CPU Setup>
The module comes with the socket479 for Intel Pentium M/Celeron M processors, it
supports new generation of Intel Pentium M processors with 533MHz of front side bus
and 2MB L2 cache. Please follow the instruction to install the CPU properly.
1. Use the flat-type
screw drive to unlock
the CPU socket
3. Lock the socket
Unlock wa
Check point
2. Follow the pin direction to install
the processor on the socket
13
CES-470 User’s Manual
2.3.2 <Memory Setup>
The module provides one 200-Pin DDRII SoDIMM slot 400/533 memory modules up to
1GB of capacity. Non-ECC, unbuffered memory is supported only.
(1. Insert the DDR So-DIMM module into the socket at 45 degree)
14
(2. Press down the module with a click sound)
CES-470 User’s Manual

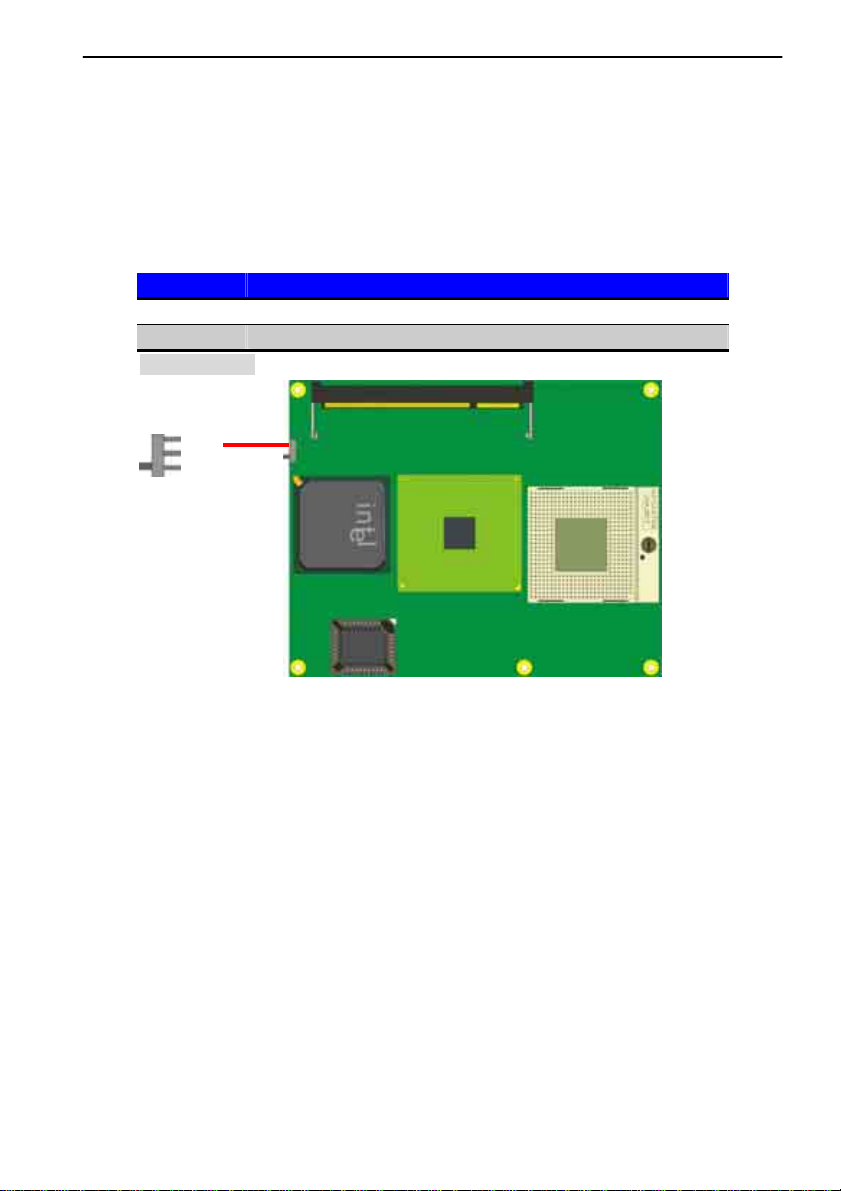

2.4 <CMOS Setup>
The board’s data of CMOS can be setting in BIOS. If the board refuses to boot due to
inappropriate CMOS settings, here is how to proceed to clear (reset) the CMOS to its
default values.
Jumper: JRTC
Type: Onboard 3-pin jumper
JRTC Mode
2-3 Clear CMOS
1-2 Normal Operation
Default setting
3
1
2.5 <Ethernet Interface>
The module integrates with one Intel 82562ET Ethernet PHY. The Intel 82562ET
supports triple speed of 10/100base-T, with IEEE802.3 compliance and Wake-On-LAN
supported.
15
CES-470 User’s Manual
Chapter 3 <System Setup>
3.1 <Video Memory Setup>
Based on Intel® 915GM(E) chipset with GMA (Graphic Media Accelerator) 900, the
board supports Intel® DVMT (Dynamic Video Memory Technology) 3.0, which would
allow the video memory to be allocated up to 128MB.
To support DVMT, you need to install the Intel GMA 900 Driver with supported OS.
BIOS Setup:
On-Chip Video Memory Size: This option combines three items below for setup.
On-Chip Frame Buffer Size:
This item can let you select video memory which been allocated for leg acy VGA and
SVGA graphics support and compatibility. The available option is 1MB and 8MB.
Fixed Memory Size:
This item can let you select a static amount of page-locked graphics memory which will
be allocated during driver initialization. Once you select the memory amount, it will be no
longer available for system memory.
DVMT Memory Size:
This item can let you select a maximum size of dynamic amount usage of video memory,
the system would configure the video memory depends on your application, this item is
strongly recommend to be selected as MAX DVMT.
16
CES-470 User’s Manual
Fixed + DVMT Memory Size:
You can select the fixed amount and the DVMT amount at the same time for a
guaranteed video memory and additional dynamic video memory, please check the
table below for available setting.
128MB~255MB
256MB~511MB
512MB upper
Notice:
System
Memory
On-Chip
Frame
Buffer Size
1MB 32MB 0MB 32MB
1MB 0MB 32MB 32MB
8MB 32MB 0MB 32MB
8MB 0 32MB 32MB
1MB 64MB 0MB 64MB
1MB 0 64MB 64MB
1MB 128MB 0MB 128MB
1MB 0 128MB 128MB
1MB 64MB 64MB 128MB
8MB 64MB 0MB 64MB
8MB 0 64MB 64MB
8MB 128MB 0MB 128MB
8MB 0 128MB 128MB
8MB 64MB 64MB 128MB
1MB 64MB 0 64MB
1MB 0 64MB 64MB
1MB 128MB 0 128MB
1MB 0 128MB 128MB
1MB 64MB 64MB 128MB
8MB 64MB 0 64MB
8MB 0 64MB 64MB
8MB 128MB 0 128MB
8MB 0 128MB 128MB
8MB 64MB 64MB 128MB
Fixed
Memory
Size
DVMT
Memory
Size
Total
Graphic
Memory
1. The On-Chip Frame Buffer Size would be included in the Fixed Memory.
Please select the memory size according to this table.
17
CES-470 User’s Manual
Chapter 4 <BIOS Setup>
The motherboard uses the Award BIOS for the system configuration. The Award BIOS
in the single board computer is a customized version of the industrial standard BIOS for
IBM PC AT-compatible computers. It supports Intel x86 and compatible CPU
architecture based processors and computers. The BIOS provides critical low-level
support for the system central processing, memory and I/O sub-systems.
The BIOS setup program of the single board computer let the customers modify the
basic configuration setting. The settings are stored in a dedicated battery-backed
memory, NVRAM, retains the information when the power is turned off. If the battery
runs out of the power, then the settings of BIOS will come back to the default setting.
The BIOS section of the manual is subject to change without notice and is provided here
for reference purpose only. The settings and configurations of the BIOS are current at
the time of print, and therefore they may not be exactl y the same as that displayed on
your screen.

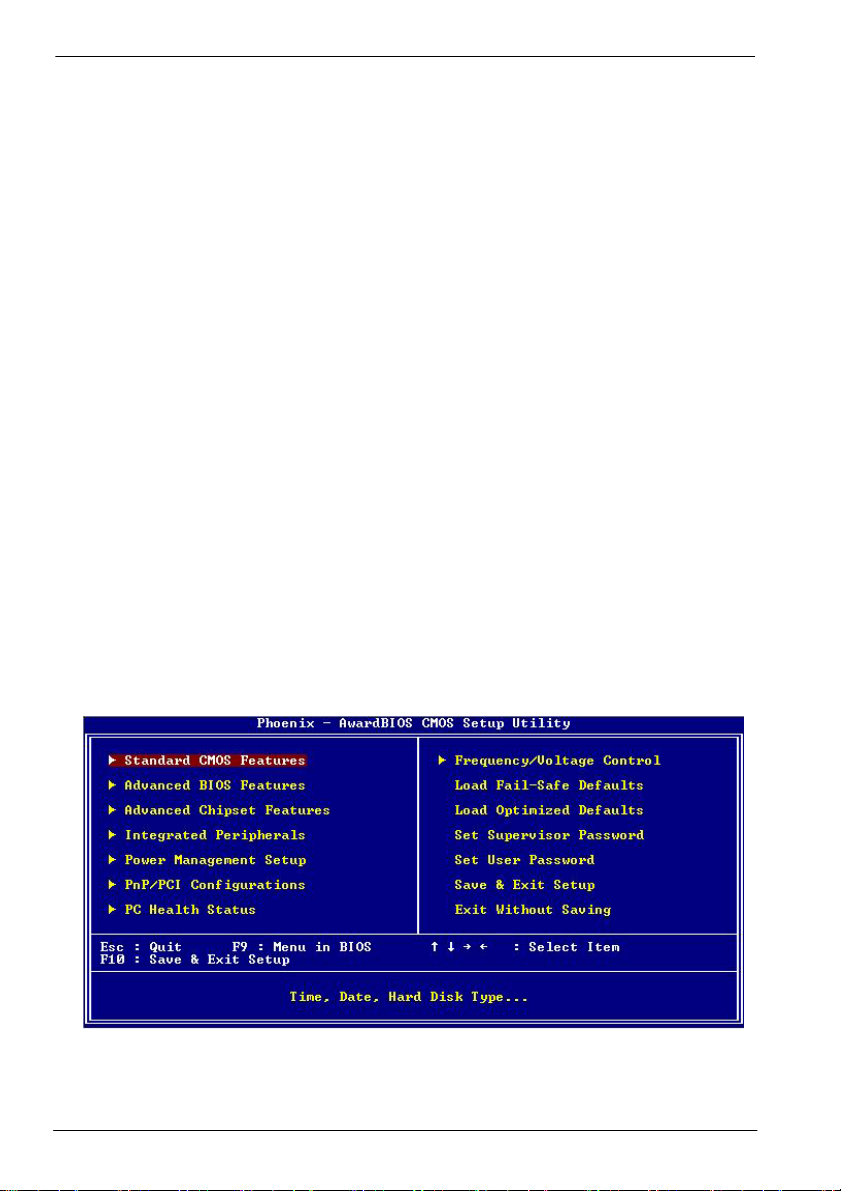

To activate CMOS Setup program, press ＜DEL＞ key immediatel y after you turn on
the system. The following message “Press DEL to enter SETUP” should appear in the
lower left hand corner of your screen. When you enter the CMOS Setup Utility, the Main
Menu will be displayed as Figure 4-1. You can use arrow keys to select your function,
press ＜Enter＞ key to accept the selection and enter the sub-menu.
Figure 4-1 CMOS Setup Utility Main Screen
18
CES-470 User’s Manual
(This Page is Left for Blank)
19
CES-470 User’s Manual
Appendix A <Flash BIOS>
A.1 <Flash Tool>
The board is based on Award BIOS and can be updated easily by the BIOS auto
flash tool. You can download the tool online at the address below:
http://www.phoenix.com/en/home/
http://www.commell.com.tw/Support/Support_SBC.htm
File name of the tool is “awdflash.exe”, it’s the utility that can write the data into the
BIOS flash ship and update the BIOS.
A.2 <Flash BIOS Procedure>
1. Please make a bootable floppy disk.
2. Get the last .bin files you want to update and copy it into the disk.
3. Copy awardflash.exe to the disk.
4. Power on the system and flash the BIOS. (Example: C:/ awardflash XXX.bin)
5. Restart the system.
Any question about the BIOS re-flash please contact your distributors or visit the
web-site at below:
http://www.commell.com.tw/support/support.htm
UT
Appendix B <COM Express Pin assignment>
20
CES-470 User’s Manual
A
A75A
A
A76A
A
A
A
A
A
A
A
A
A
A81A
A
A82A
A
A
A
A
A
A
A
A
A
A87A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A71A
A
A
A73A
A
A74A
A1 GND
A2 N/C
A3 N/C
A4 ETH_SPDA5 3VSB
A6 N/C
A7 N/C
A8 ETH_LINKA9 ETH_RX0A10 ETH_RX0A11 GND
A12 ETH_TX0A13 ETH_TX0A14 ETH CTREF
A15 -SLPS3
A16 SATA0TXP
A17 SATA0TXN
A18 -SLPS4
A19 SATA0RXP
A20 SATA0RXN
A21 GND
A22 SATA2TXP
A23 SATA2TXN
A24 -SLPS5
A25 SATA2RXP
A26 SATA2RXN
A27 -BATLOW
A28 -SATALED
A29 AC SYSNC
A30 -AC RST
A31 GND
A32 AC BCLK
A33 AC SDOUT
A34 N/C
A35 -THERMTRIPA72ATX0A36 USBP6A37 USBP+
38 -USBOC6
39 USBP440 USBP4+
41 GND
42 USBP243 USBP2+
44 -USBOC2
45 USBP046 USBP0+
47 RTCVCC
48 N/C
49 N/C
50 SERIRQ
51 GND
52 N/C
53 N/C
54 N/C
55 N/C
56 N/C
57 GND
58 PCIE_TXP4
59 PCIE_TXN4
60 GND
61 PCIE_TXP3
62 PCIE_TXN3
63 N/C
64 PCIE_TXP2
65 PCIE_TXN2
66 GND
67 N/C
68 PCIE_TXP1
69 PCIE_TXN1
70 GND
TX0+
TX1+
TX1-
TX2+
TX277 LVDD EN
78 N/C
79 N/C
80 GND
CLK+
CLK83 LVDDCLK
84 LVDDDAT
85 N/C
86 -RCIN
20GATE
88 PCIECLK
89 -PCIECLK
90 GND
91 N/C
92 N/C
93 N/C
94 N/C
95 N/C
96 GND
97 +12V
98 +12V
99 +12V
100 GND
101 +12V
102 +12V
103 +12V
104 +12V
105 +12V
106 +12V
107 +12V
108 +12V
109 +12V
110 GND
21
CES-470 User’s Manual
A
B1 GND B38 -USBOC4 B75 BTX2+
B2 ETH ACT- B39 USBP5- B76 BTX2B3 -LFRAME B40 USBP5+ B77 N/C
B4 LAD0 B41 GND B78 N/C
B5 LAD1 B42 USBP3- B79 BKL EN
B6 LAD2 B43 USBP3+ B80 GND
B7 LAD3 B44 -USBOC0 B81 BCLK+
B8 -LDRQ0 B45 USBP1- B82 BCLKB9 -LDRQ1 B46 USBP1+ B83 BKL CRTL
B10 LPC33CLK B47 N/C B84 5VDU
B11 GND B48 N/C B85 5VDU
B12 -ICHBTN B49 -SYSRST B86 5VDU
B13 SMBCLK B50 -CBRST B87 5VDU
B14 SMBDAT
B15 GPI11 B52 N/C B89 CRT R
B16 SATA1TXP B53 N/C B90 GND
B17 SATA1TXN B54 N/C B91 CRT G
B18 -SUSTAT B55 N/C B92 CRT B
B19 SATA1RXP B56 N/C B93 CRT HS
B20 SATA1RXN B57 N/C B94 CRT VS
B21 GND B58 PCIE_RXP4 B95 CRTDCLK
B22 SATA3TXP B59 PCIE_RXN4 B96 CRTDDAT
B23 SATA3TXN B60 GND B97 TVA PB
B24 PWR_GD B61 PCIE_RXP3 B98 TVB Y
B25 SATA3RXP B62 PCIE_RXN3 B99 TVC PR
B26 SATA3RXN B63 N/C B100 GND
B27 WDT B64 PCIE_RXP2 B101 +12V
B28 AC SDIN2 B65 PCIE_RXN2 B102 +12V
B29 AC SDIN1 B66 -PCIEWK B103 +12V
B30 AC SDIN0 B67 -LPCME B104 +12V
B31 GND B68 PCIE RXP1 B105 +12V
B32 ICHSPKR B69 PCIE RXN1 B106 +12V
B33 SMLINK0 B70 GND B107 +12V
B34 SMLINK1 B71 BTX0+ B108 +12V
B35 -THERM B72 BTX0- B109 +12V
B36 USBP7- B73 BTX1+ B110 GND
B37 USBP7+ B74 BTX1-
B51 GND B88 N/C
22
CES-470 User’s Manual
C1 GND C38 -CBE2 C75 PEG RXN7
C2 PDD7 C39AD17 C76 GND
C3 PDD6 C40AD19 C77 N/C
C4 PDD3 C41 GND C78 PEG RXP8
C5 PDD15 C42AD21 C79 PEG RXN8
C6 PDD8 C43AD23 C80 GND
C7 PDD9 C44 -CBE3 C81 PEG RXP9
C8 PDD2 C45AD25 C82 PEG RXN9
C9 PDD13 C46AD27 C83 N/C
C10 PDD1 C47AD29 C84 GND
C11 GND C48AD31 C85 PEG RXP10
C12 PDD14 C49 -PIRQA C86 PEG RXN10
C13 PIORDY C50 -PIRQB C87 GND
C14 -PDIOR C51 GND C88 PEG RXP11
C15 -PME C52 PEG RXP0 C89 PEG RXN11
C16 -GNT2 C53 PEG RXN0 C90 GND
C17 -REQ2 C54 N/C C91 PEG RXP12
C18 -GNT1 C55 PEG RXP1 C92 PEG RXN12
C19 -REQ1 C56 PEG RXN2 C93 GND
C20 -GNT0 C57 N/C C94 PEG RXP13
C21 GND C58 PEG RXP2 C95 PEG RXN13
C22 -REQ0 C59 PEG RXN2 C96 GND
C23 -PCIRST C60 GND C97 N/C
C24 AD0 C61 PEG RXP3 C98 PEG RXP14
C25 AD2 C62 PEG RXN3 C99 PEG RXN14
C26 AD4 C63 N/C C100 GND
C27 AD6 C64 N/C C101 PEG RXP15
C28 AD8 C65 PEG RXP4 C102 PEG RXN16
C29 AD10 C66 PEG RXN4 C103 GND
C30 AD12 C67 N/C C104 +12V
C31 GND C68 PEG RXP5 C105 +12V
C32 AD14 C69 PEG RXN5 C106 +12V
C33 -CBE1 C70 GND C107 +12V
C34 -PERR C71 PEG RXP6 C108 +12V
C35 -PLOCK C72 PEG RXN6 C109 +12V
C36 -DEVSEL C73 SDVODAT C110 GND
C37 -IRDY C74 PEG RXP7
23
CES-470 User’s Manual
D1 GND D38AD18 D75 PEG TXN7
D2 PDD5 D39AD20 D76 GND
D3 PDD10 D40AD22 D77 P66DET
D4 PDD11 D41 GND D78 PEG TXP8
D5 PDD12 D42AD24 D79 PEG TXN8
D6 PDD4 D43AD26 D80 GND
D7 PDD0 D44AD28 D81 PEG TXP9
D8 PDDREQ D45AD30 D82 PEG TXN9
D9 -PDIOW D46 -PIRQC D83 N/C
D10 -PDDACK D47 -PIRQD D84 GND
D11 GND D48 N/C D85 PEG TXP10
D12 IDEIRQ D49 N/C D86 PEG TXN10
D13 PAD0 D50 PCISCLK D87 GND
D14 PAD1 D51 GND D88 PEG TXP11
D15 PAD2 D52 PEG TXP0 D89 PEG TXN11
D16 -PCS1 D53 PEG TXN0 D90 GND
D17 -PCS3 D54 CFG9 D91 PEG TXP12
D18 IDESET D55 PEG TXP1 D92 PEG TXN12
D19 -GNT3 D56 PEG TXN1 D93 GND
D20 -REQ3 D57 N/C D94 PEG TXP13
D21 GND D58 PEG TXP2 D95 PEG TXN13
D22 AD1 D59 PEG TXN2 D96 GND
D23 AD3 D60 GND D97 N/C
D24 AD5 D61 PEG TXP3 D98 PEG TXP14
D25 AD7 D62 PEG TXN3 D99 PEG TXN14
D26 -CBE0 D63 N/C D100 GND
D27 AD9 D64 N/C D101 PEG TXP15
D28 AD11 D65 PEG TXP4 D102 PEG TXN15
D29 AD13 D66 PEG TXN4 D103 GND
D30 AD15 D67 GND D104 +12V
D31 GND D68 PEG TXP5 D105 +12V
D32 PAR D69 PEG TXN5 D106 +12V
D33 -SERR D70 GND D107 +12V
D34 -STOP D71 PEG TXP6 D108 +12V
D35 -TRDY D72 PEG TXN6 D109 +12V
D36 -FRAME D73 SDVOCLK D110 GND
D37 AD16 D74 PEG TXP7
24
CES-470 User’s Manual
Contact Information
Any advice or comment about our products and service, or
anything we can help you please don’t hesitate to contact with us.
We will do our best to support you for your products, projects a
business.
Taiwan Commate Computer Inc.
Address
TEL +886-2-26963909
FAX +886-2-26963911
Website
E-Mail
8F, No. 94, Sec. 1, Shin Tai Wu Rd., Shi Chih
Taipei Hsien, Taiwan
TUhttp://www.commell.com.twUT
TUinfo@commell.com.twUT (General Information)
TUtech@commell.com.twUT (Technical Support)
Commell is our trademark of industrial PC division
25
Loading...
