COMMELL ADP-L2T User Manual

ADP-L2T

User’s Manual

Edition 1.3

ADP-L2T User’s Manual

Copyright

Copyright 2008 all rights reserved. This document is copyrighted and all rights are reserved.
The information in this document is subject to change without prior notice to make
improvements to the products.
This document contains proprietary information and protect ed by copyright. No part of this
document may be reproduced, copied, or translated in any form or any means without prior
written permission of the manufacturer.
All trademarks and/or registered trademarks contains in this document are property of their
respective owners.

Disclaimer

The company shall not be liable for any incidental or consequential damages resulting from
the performance or use of this product.
The company does not issue a warranty of any kind, express or implied, including without
limitation implied warranties of merchantability or fitness for a particular purpose.
The company has the right to revise the manual or include changes in the specifications of
the product described within it at any time without notice and without obligation to notify any
person of such revision or changes.

Trademark

All trademarks are the property of their respective holders.

Any questions please visit our website at TUhttp://www.commell.com.twUT.

2

ADP-L2T User’s Manual

Packing List:

Hardware:

ADP-L2T adapter x1

Cable Kit:

Cable x 1

Product Specification

General Specification

Panel
Dimensions (W x D)
Temperature

For 18-bit TTL LCD Panel

31.50mm x 19.45mm
Operating within 0~60 centigrade

Ordering Code

ADP-L2T

LVDS to TTL adapter for 18bit LCD with Hirose
DF13-40DP-1.25

Component Placement

CN_LVDSC

CN_TFTC

JVLCDC

3

ADP-L2T User’s Manual

Mechanical Drawing

‘

‘

‘

‘

4

ADP-L2T User’s Manual

Connector Reference

Connector: JVLCDC

Type: 3-pin Power select Header

Pin Description
1-2 VCC3 (3.3V)
2-3 VCC (5V)
Default: 1-2

1

Connector: CN_LVDSC

Type: onboard 20-pin connector for LVDS connector
Connector model: HIROSE DF13-20S

Pin Signal Pin Signal

1 LCDVCC 2 LCDVCC
3 GND 4 GND
5 TX0- 6 TX0+
7 GND 8 TX1-

9 TX1+ 10 GND
11 TX2- 12 TX2+
13 GND 14 TXC­15 TXC+ 16 GND
17 N/C 18 N/C
19 GND 20 GND

20 2

19 1

5

ADP-L2T User’s Manual

40

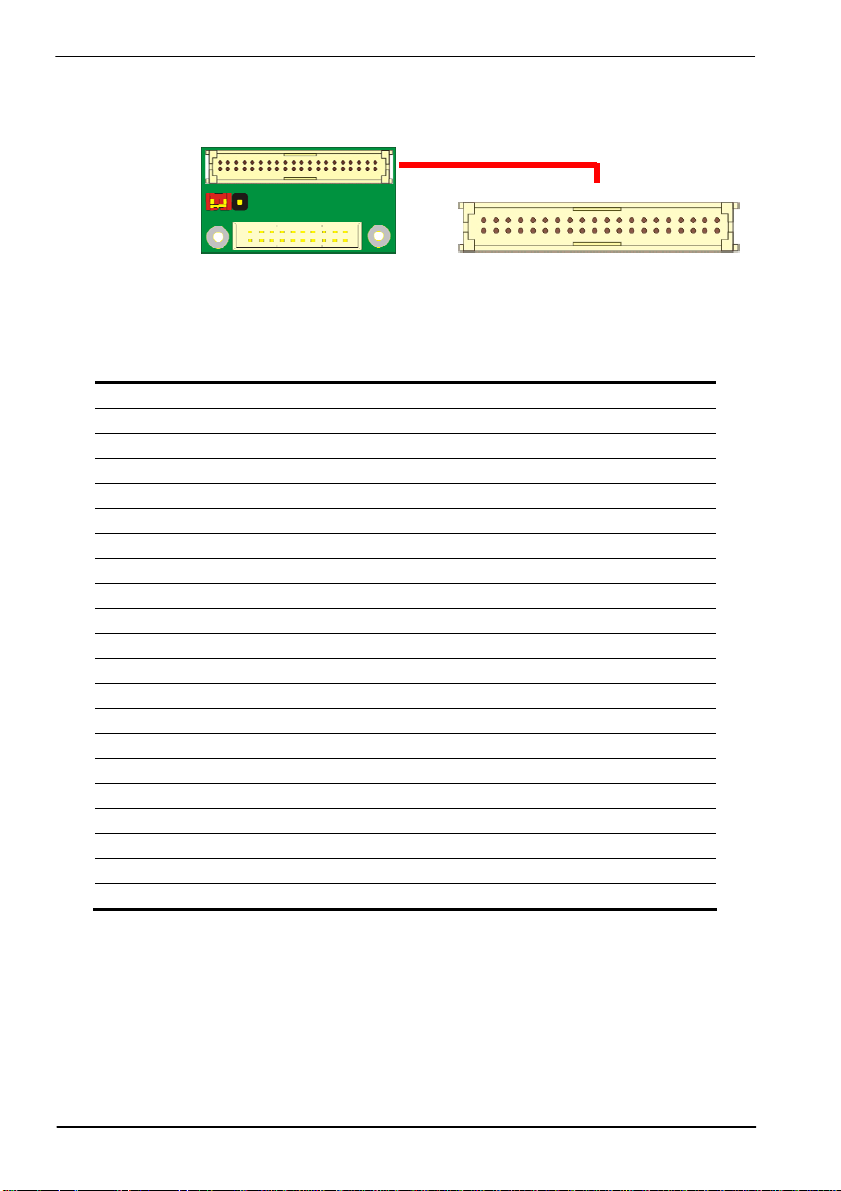

Connector: CN_TFTC

Type: onboard 40-pin connector for LVDS connector
Connector model: HIROSE DF13-40S

Pin Signal Pin Signal

1 N/C 2 N/C
3 GND 4 GND
5 TVCC 6 TVCC
7 GND 8 GND

9 N/C 10 N/C
11 PD2 (B0) 12 PD3 (B1)
13 PD4 (B2) 14 PD5 (B3)
15 PD6 (B4) 16 PD7 (B5)
17 N/C 18 N/C
19 PD10 (G0) 20 PD11 (G1)
21 PD12 (G2) 22 PD13 (G3)
23 PD14 (G4) 24 PD15 (G5)
25 N/C 26 N/C
27 PD18 (R0) 28 PD19 (R1)
29 PD20 (R2) 30 PD21 (R3)
31 PD22 (R4) 32 PD23 (R5)
33 N/C 34 N/C
35 DCLK 36 V sync
37 DE (RM) 38 H sync
39 GND 40 GND

39

2

1

1

6

ADP-L2T User’s Manual

To setup the LCD, you need the component below:

1. A panel with LVDS interfaces.

2. An inverter for panel’s backlight power.

3. A LCD cable and an inverter cable.

For the cables, please follow the pin assignment of the c onnec tor to make a c able, becaus e
every panel has its own pin assignment, so we do not provide a standard cable; please find
a local cable manufacture to make cables.

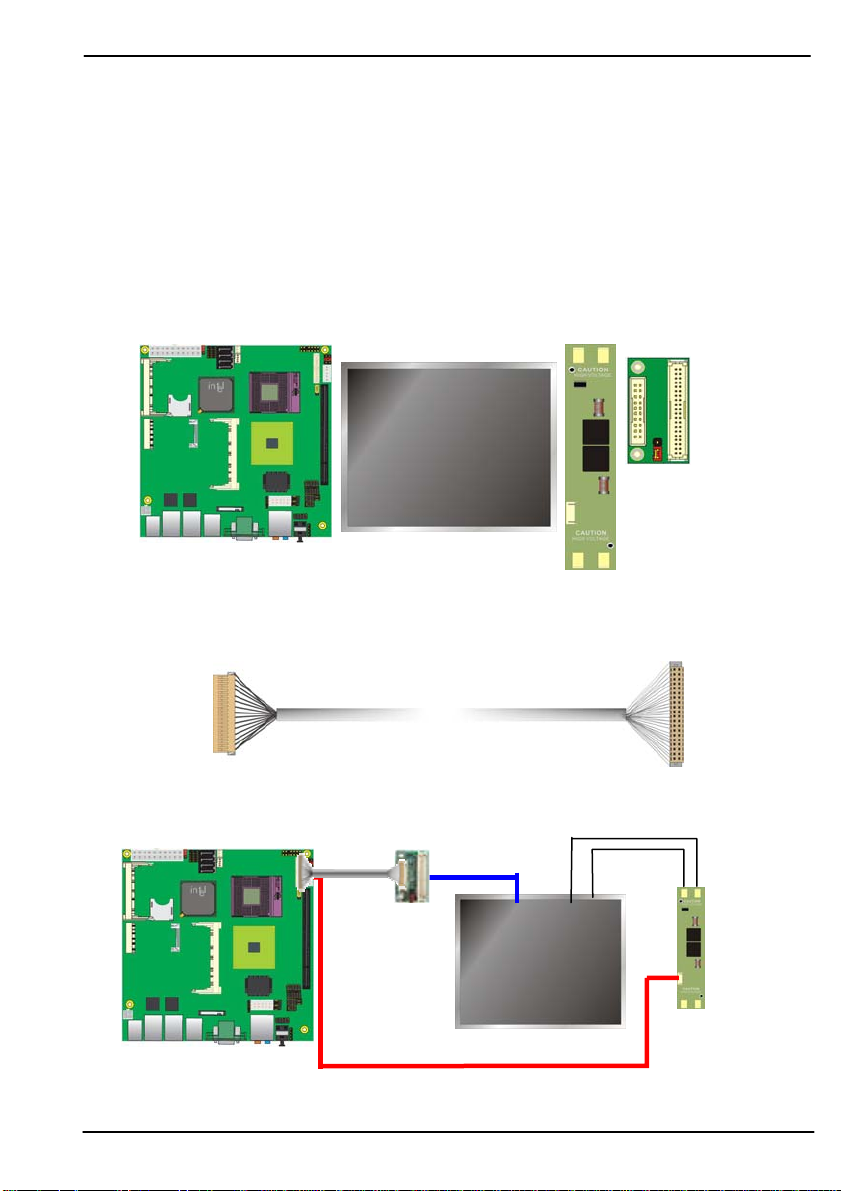

LCD Installation Guide:

1. Preparing the motherboard (LV-67B), LCD panel and the backlight inverter.

2. Please set the jumper JVLCD to +5V

3. You would need a LVDS type cable.

Panel side

For sample illustrator only

4. To connect all of the devices well.

Board side

7

ADP-L2T User’s Manual

Contact Information

Any advice or comment about our products and service, or anything
we can help you please don’t hesitate to contact with us. We will do
our best to support you for your products, projects and business.

Taiwan Commate Computer Inc.

19F., No.94, Sec. 1, Xintai 5th Rd., Xizhi Dist., New Taipei City

Address

TEL [phone]
FAX [phone]

22102, Taiwan (R.O.C.)

Website

E-Mail

Facebook

Twitter https://twitter.com/Taiwan_Commate

TUhttp://www.commell.com.twUT
[e-mail] (General Information)

[e-mail] (Technical Support)

https://www.facebook.com/pages/Taiwan-Commate-Computer-Inc/547993955271899

Commell is the trademark of Taiwan Commate Computer INC.
