MoCOW
Motorised Tilt Stand
USER MANUAL
2
Warnings & Safety Instructions
•
Installation & assembly work must be carried out by properly licenced
technicians or qualified trades people.
•
Incorrect installation can cause the CBMOWCOW-MT unit to fall and cause injury.
This company assumes no responsibility for injuries or damages that may occur
due to improper installation and handling.
•
The unit is designed for use with specific products and weight. Exceeding
maximum weight capacity to the moving frame may damage product and
equipment and could lead to serious personal injury.
•
Adhering to proper installation instructions is critical in ensuring all
components
function properly. A small difference in installation can lead
to a severely skewed and
distorted projection image. In order to obtain a square image without the use of
digital adjustment of the projector, follow the step by step instructions as shown.
•
Installation will require the lifting of heavy components. A minimum of two
people are required.
•
Fully tighten all mounting screws as specified in the installation
instructions. However, attachment points can be damaged if a power drill
is used
to tighten screws. Screws should be turned by hand first before
tightening with a hex key.
Do not over tighten screws. Check fasteners regularly to avoid parts becoming
loose.
•
Do not allow children to climb onto the frame.
•
Make sure cables are not caught between moving parts to ensure cables will not
be damaged. Cable tie all loose cables to avoid damage.
•
When the CBMOWCOW-MT is not in use, switch off the power source.
•
Make sure the fully raised height of the CBMOWCOW-MT does not exceed the
height of the building/room the CBMOWCOW-MT will be used in.
3

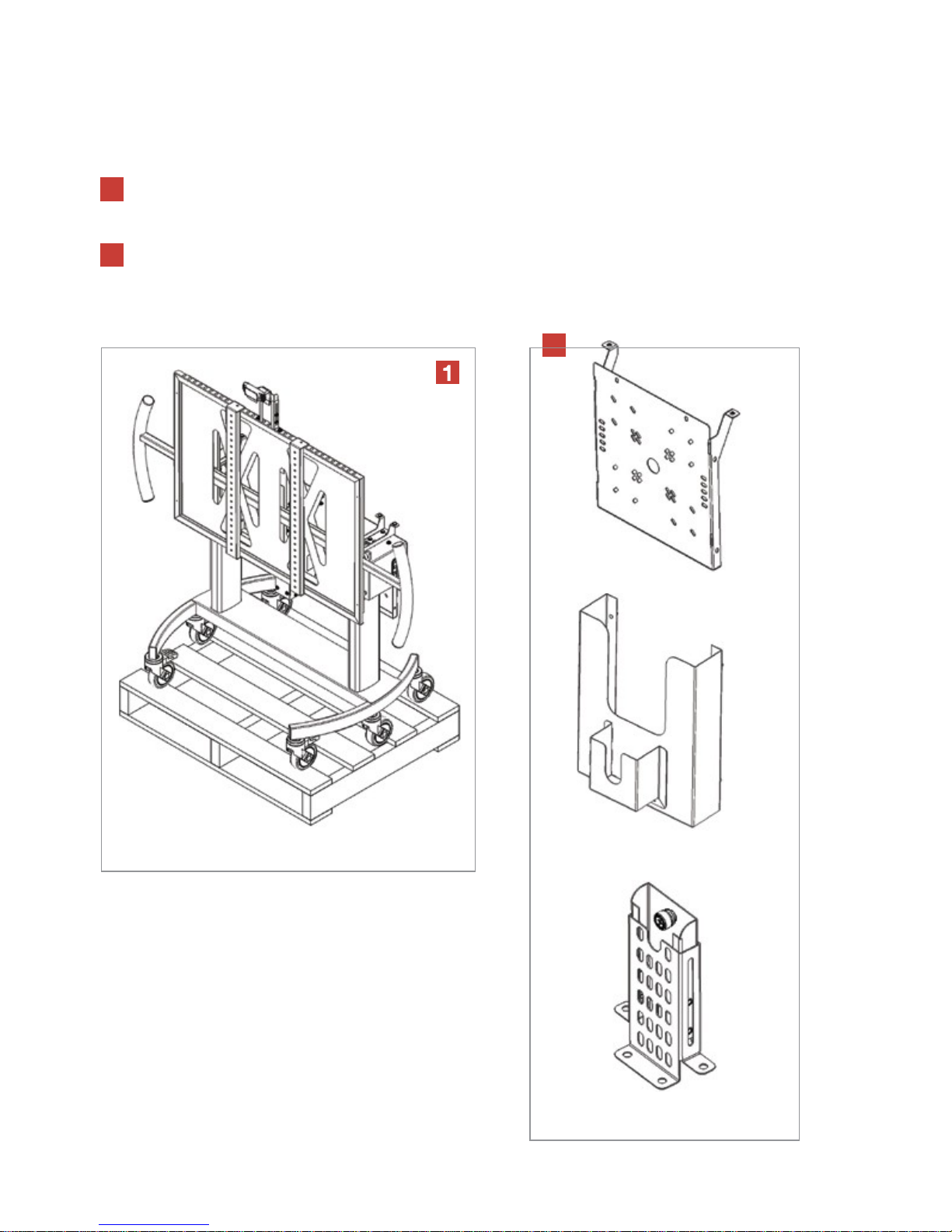

Package Contents
Two Carton
1 Carton 1 for the Base, Frame,
and Accessories
2
Carton 2 for the Column
Base to Column Fixing Kit Frame to
Column Fixing Kit Accessories
Fixing Kit
6

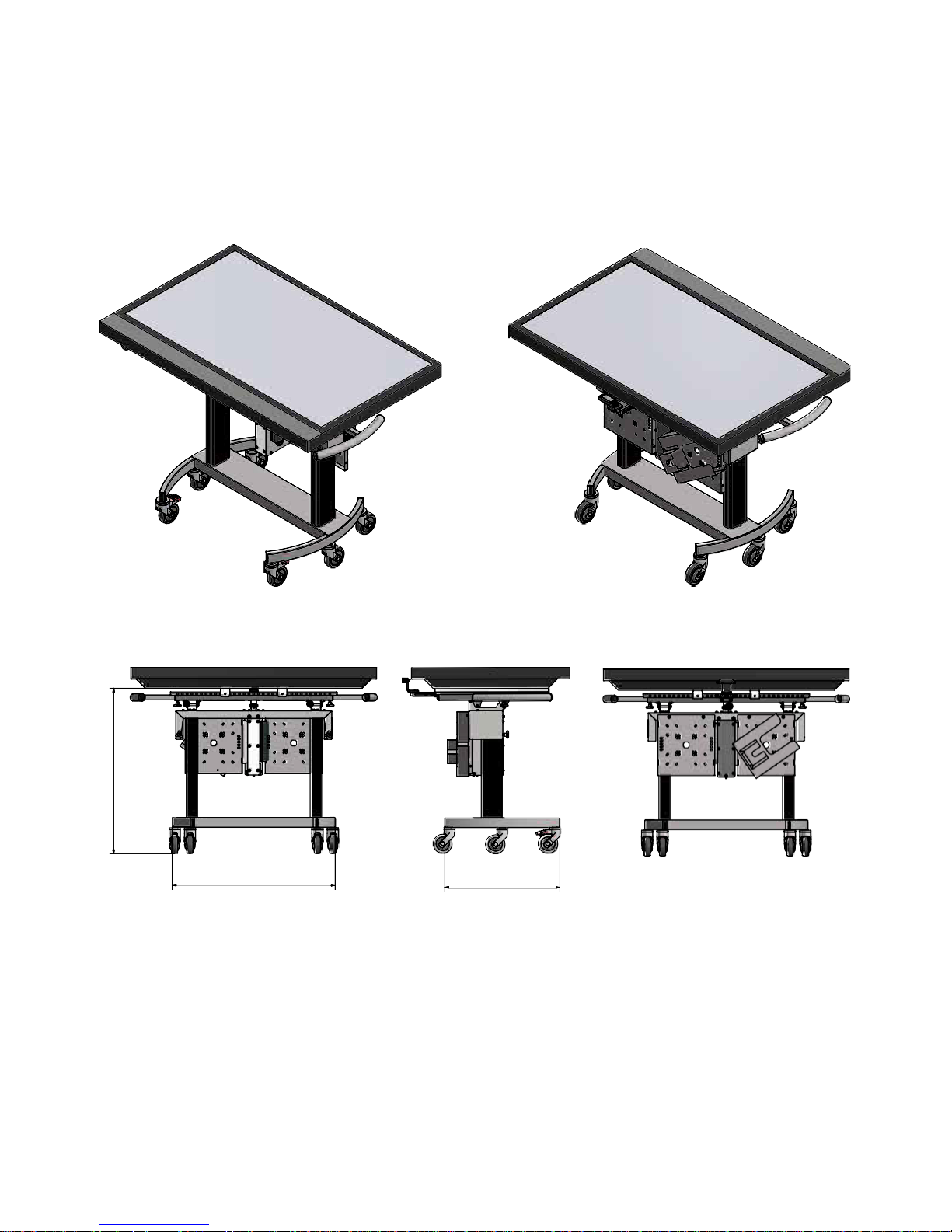

Specifications
856,00
602,50
868,76
5

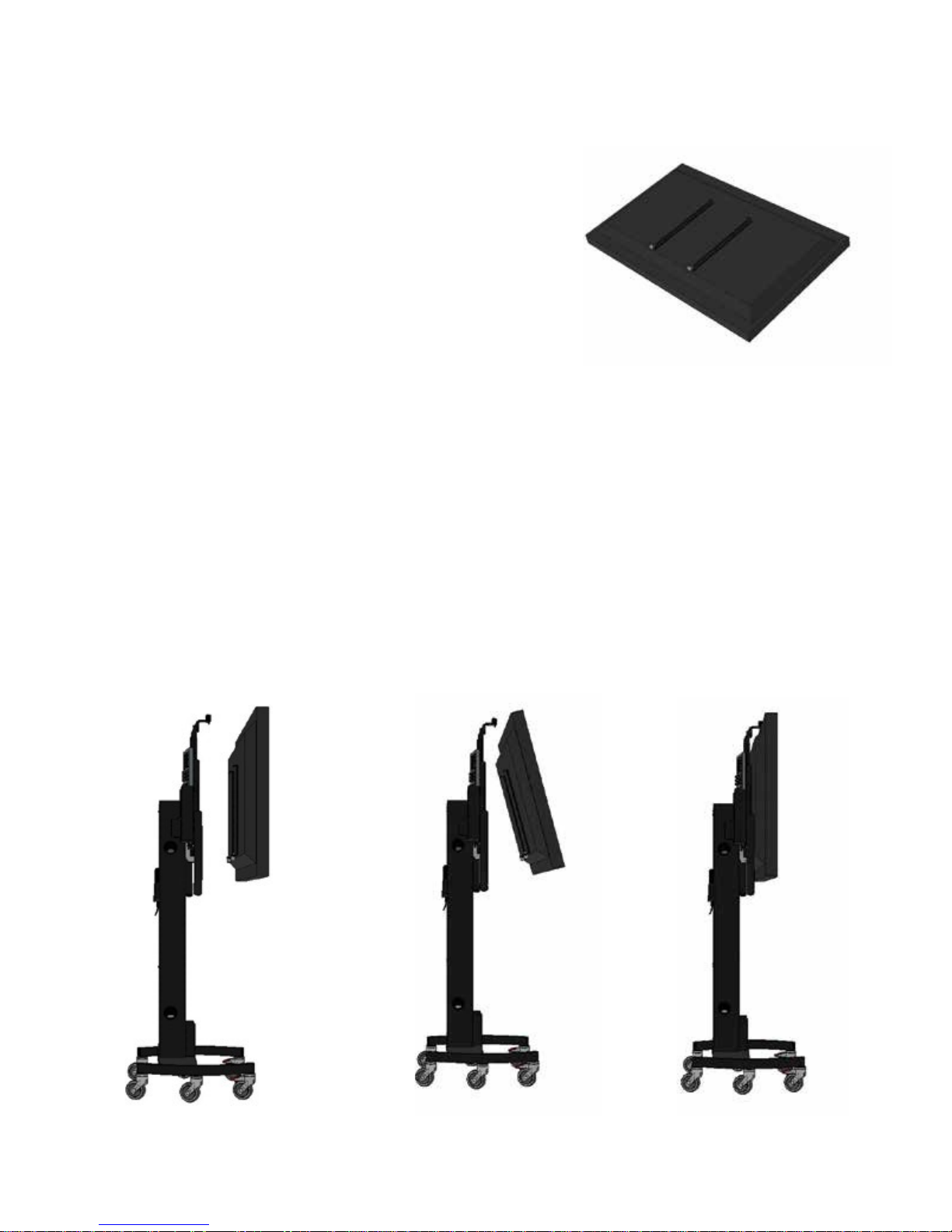

Installation – Attaching the Display
1.
To mount the display onto the
CBMOWCOW-MT, attach hook arms to the
mountingpoints at the back of the display. The
lockof the hook arms should be at the
lowerside of the display screen.
NOTE: Make sure the hook arms are aligned
horizontally, or the picture will become skewed.
2.
Hook the hook arms on the back of the display onto the frame of the
CBMOWCOW-MT (as shown). Adjust the screen horizontally alongthe
crossbar until it is in the desired position. When the display is inthe
desired position, push the locks upwards so the pin of the lockengages a
slot on the underside of the crossbar.
CAUTION: Due to the weight of the display screen and the height of
the mounting crossbars, the lifting of the display should be done
by a minimum of two people.
3.
To unlock/release the screen, turn the key to release the spring
loaded pin in the lock.
6
Instruction – Raising, Lowering & Tilting
1.

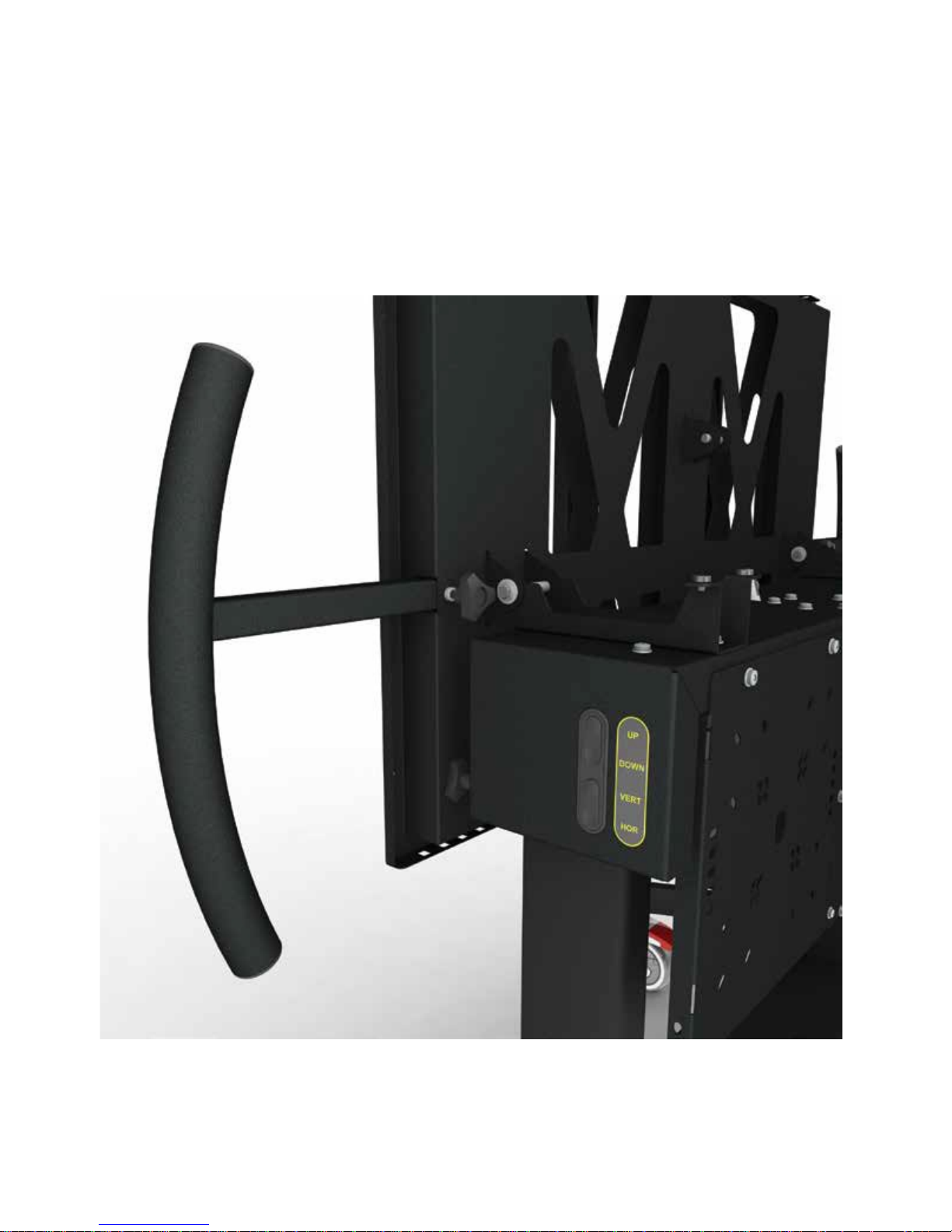

To raise or lower the screen, use the control buttons mounted on the
right hand side of the CBMOWCOW-MT.
2.
To tilt the screen, use the control buttons mounted on the right hand
side of the CBMOWCOW-MT.
