User Manual
WDP-174LM / WDR-174DS
• Thank you for purchasing COMMAX products.
• Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow
instructions to use a product exactly.
• The company is not responsible for any safety accidents caused by abnormal operation of the product.
Contents
1. Introdution ...................................................................2
2. Important Safeguard .................................................. 3
3. Part names and Functions .........................................4
4. Configuration...............................................................6
5. Wiring ..........................................................................7
6. Pairing / Unpairing Method..........................................7
7. How to use ..................................................................9
8. Installation .................................................................10
9. Specifications and Features .....................................12
10. Accessory................................................................13
1
1. Introduction
Your unit is designed so it can be flush mounted on the or used. When flush mounted on the wall, the stand permils you to the
unit for an gular of unit view. The model number is located on the bottom and record the serial number in the space provided
below(available). Refer to these numbers whenever you call upon your COMMAX dealer regarding this product.
Model No. Serial No.
To prevent fire or shock hazard, do not expose the unit to rain or moisture.
“
This symbol is intended to alert the use to the presence of uninsulated
may be of sufficient magnitude to constitute a risk of electric shock to persons.
This symbol is intended to alert the use to the presence of important operating and maintemance(servicing) instructions in the
literature accompanying the appliance
“
dangerous Voltage
”
”
within the product’s enclose that
caution
Risk of electric shock
do not open
CAUTION : To reduce the risk of electric shock, do not remove cover(or back) no user-serviceable
part inside refer servicing to qualified service personnel
2
2. Important Safeguards
▲
Damage Requiring Service: This equipment from the power source and source and refer servicing to qualified service per-
sonnel under the following conditions:
ⓐ when the power is damaged.
ⓑ if liquid has been spilled or objects have fallen into the unit
ⓒ if the equipment has been exposed to rain or water.
ⓓ if the equipment has been dropped or otherwise damaged.
ⓔ when the equipment exhibits a distinct change in performance- this indicates a need for service.
▲
Water and Moisture: Do not use this product near water, for example, near a bath tub, wash bowl, kitchen sink, or laundry
▲
Accessories: The product may fall, causing serious injury to a child or adult, and serious damage to the appliance. Any
▲
Object and Liquid Entry: Never push objects of any kind into this product through openings as they may touch dangerous
▲
Lightning: For added protection for this product before a lightning storm, or when it is left un attached and un used for long
tub, in a wet basement, or near a swimming pool, and the like.
mounting of the manufacture
facturer.
voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any
kind on the product.
periods of time, unplug it from the wall outlt and disconnect the other system. This will prevent damage to the product due to lightning and power-line surges. If you live in an area heavily prone to lightning storms, it is recommended that you invest in power-line, telephone-line, RFcable and actuator/ polarization surge protectors to protect
your appliance system from possible damage
’s instructions, and should use a mounting accessory recommended by the manu-
3
3. Part names and Functions
Item Function
① Power
② Handset
③ Door Release Button
④ Cord
⑤ Power plug
4
Item Function
① Speaker
② Microphone
③ Paging button
④ Door release terminal
Power terminal
⑤
(2-wire with non-polarity)
5
4. Configuration
6
5. Wiring
• Interphone : Plug in the AC power cord.
• Door unit : Connect DC 12V(non-polarity) to 5 in Page 5.
Connect 2 wires from a door release to 4.
6. Pairing / Unpairing Method
A. Paring
1) There are three devices, one is WDP-174LM (main unit) WDP-174LS(sub unit) and WDR174DS (sub unit).
2) There will be a sound of triple beep as powered on.
3) pairing WDP-174LM & WDR-174DS
First power on a main unit with the handset off the hook. Within 30 seconds, press the paging button for duration of 5 seconds. With a sound of beep the main unit is in pairing mode
for 60 seconds.
Secondly, power on a sub unit(WDR-174DS) with DC 12V. Within 15 seconds, press the
paging button for duration of 5 seconds. With a sound of beep the sub unit is in pairing
mode. While the main and sub units are in pairing mode, there will be a double beep sound
to indicate the pairing process start and another triple beep to indicate the completion.
After paring is completed, press the paging button to test.
7
4) pairing WDP-174LM & WDP-174LS
First power on a main unit with the handset off the hook. Within 30 seconds, press the paging button for duration of 5 seconds. With a sound of beep the main unit is in pairing mode
for 60 seconds.
Secondly. Sub unit(WDP-174LS) to action in the same way as main unit While the main and
sub units are in pairing mode, there will be a double beep sound to indicate the pairing
process start and another triple beep to indicate the completion.
5) Once the pairing is completed, there will be a triple beep to indicate the successful connection between the main and sub units every time the power is turned off and back on.
* If paring failed, only the sub unit will make a beep sound.
B. Delete pairing
1) Main unit (WDP-174LM)
Power on with a handset off the hook. Within 30 seconds press the paging button for three
short times and the fourth time for the duration of 5 seconds. There will be a beep sound to
indicate the pairing is deleted.
After deletion is done, there will be a triple beep sound. Please turn the power off and back
on to complete the process.
2) Sub unit(WDP-174LS)
Same as Main unit
8
3) Sub unit (WDR-174DS)
After powered on (DC12V), within 15 seconds press the paging button for three short times
and the fourth time for the duration of 5 seconds. All main units registered will be deleted
with a sound of triple beep. Please turn the power off and back on to complete the process.
7. How to use
1) Press the paging button from the sub unit (WDR-174DS).
2) There will be a paging tone ringing at the main unit (WDP-174LM). and sun unit(WDP-174LS)
3) Pick up the handset to talk.(WDP-174LM/S)
4) Press the door release button while talking to release the door.
- a door release function only works while in talking mode between the main and sub unit and
after the door is released the call is automatically disconnected.
5) Place the handset on the hook to hang up.
6) Turn on the unit and after 30seconds press the call button for 5 seconds while the handset is
hung on its hook lever. When the call button is clicked the bell changes in order of 1→2→3→
2→1
9
8. Installation
SCREW T4X18(2EA)
10
GH1T 4X 50 ZnY(2EA)
SCREW M3
11
9. Specifications and Features
Item Contents(WDP-174LM/S,WDR-174DS)
WDP-174LM/S : 110V~ / 60HZ
Power
WDR-174DS : DC 12V
Power
Consumption
Frequency GFSK
Paging tone Outdoor open area : 200 meters
Operating
Temperature
Dimension including handset : 107 x 195 x 51mm
※ The effective range of wireless devices can vary depending on the environment, especially
around elevator or high voltage cables. A metal gate or wall can also affect it and shorten the
range.
※ Wireless devices have a built-in antenna and the direction of the device placed on a desk or
mounted on a wall may cause a minor noise during vocal communication.
WDP-174LM : 2W
WDP-174LS / WDR-174DS : 1W
Electronic chime
Indoor : 40~50 meters
0
℃ ~ +40℃
WDP-174LM/S : except handset : 107 x 195 x 38mm
WDR-174DS : 91 x 134 x 22mm
220V~ / 50~60HZ
230V~ / 50~60HZ
12

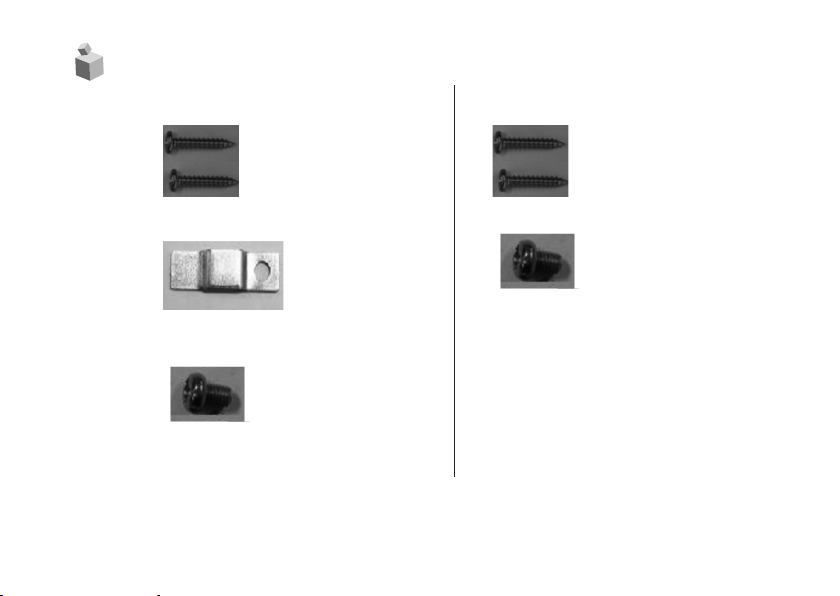

10. Accessory
WDP-174LM
WDR-174DS
Screws for wall mount : 2 Ea.
Bracket
screw for powercord
Screws for wall mount : 2 Ea
Product fixing screw : 1 Ea.
13
513-11, Sangdaewon-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea
Int’l Business Dept. : Tel.; +82-31-7393-540~550 Fax.; +82-31-745-2133
Web site : www.commax.com
PM14WPR17410
Printed In Korea / 2014.04.105
