Home Network User Manual
PMN: Wall PAD
2
Table of Contents
Introduction .................................................................................................................................................. 3
Part name ............................................................................................................................................. 3
Display composition ........................................................................................................................ 4
1 Screen Saver ...................................................................................................................................... 5
1.1. Information provided from the screen saver ........................................................ 5
2 Home Display .................................................................................................................................... 6
3 Notice ................................................................................................................................................... 7
4 Control ................................................................................................................................................. 8
4.1. FCU Control ......................................................................................................................... 8
5 Application ....................................................................................................................................... 10
5.1. Intercom .............................................................................................................................. 11
5.2. Security ................................................................................................................................ 14
5.3. Home History ................................................................................................................... 16
5.4. ETC ......................................................................................................................................... 17
6 Away/Stay Mode ............................................................................................................................ 19
7 Appendix ........................................................................................................................................... 23
7.1. Using the Owner mobile app .................................................................................... 23
7.2. Using the Guest mobile app ...................................................................................... 27
7.3. Etc .......................................................................................................................................... 30
7.4. Name Search(LOBBY PHONE) .....오류! 책갈피가 정의되어 있지 않습니다.
3
Introduction

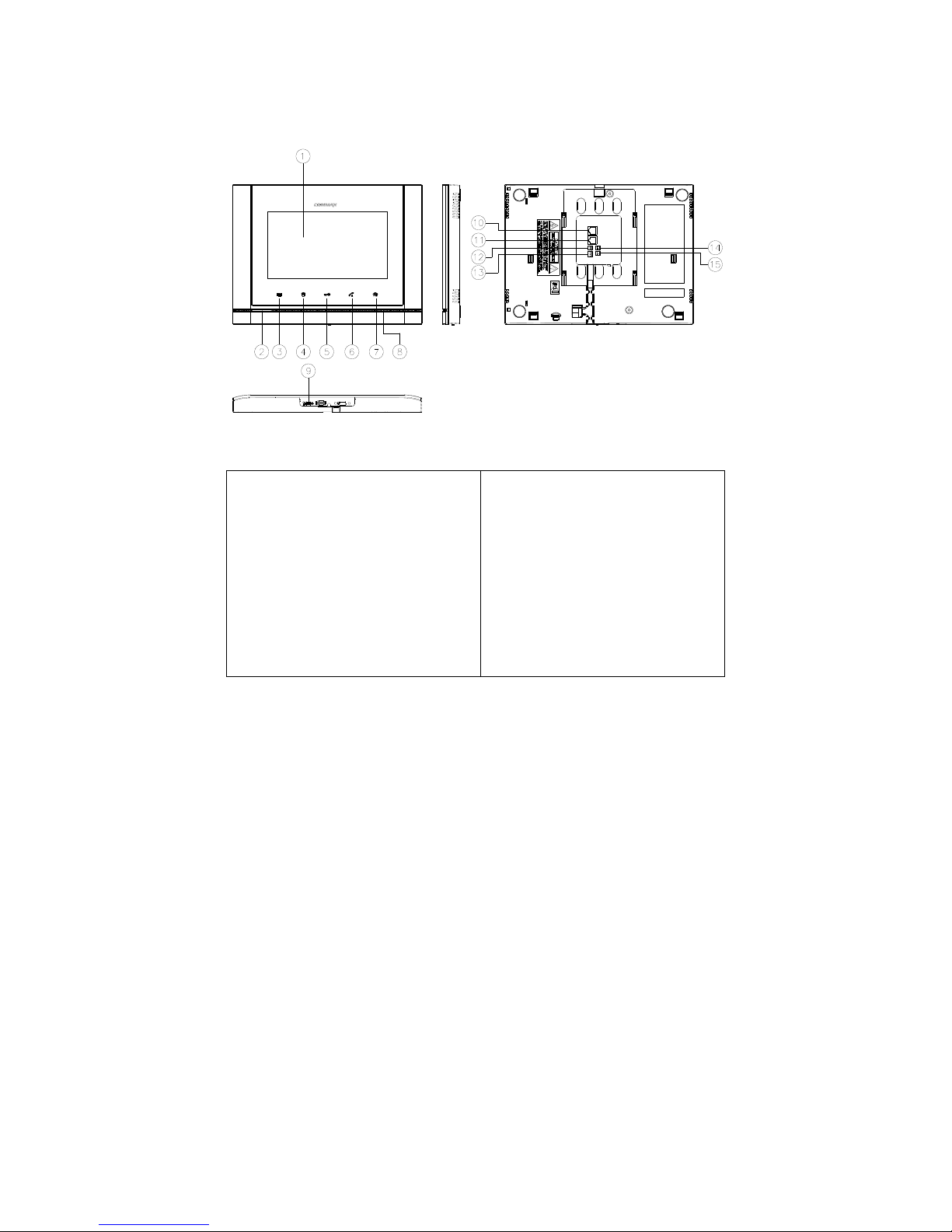

Part name
① TFT LCD
② Speaker
③ Emergency button
④ Call guard station
⑤ Door release button
⑥ Call button
⑦ Home Button
⑧ Microphone
⑨ Power Switch
⑩ PoE
⑪ PIR
1. Sensor_in, 2. GND, 3. VCC
⑫ EM
⑬ RS-485
1. TRX-, 2. TRX+, 3.GND
⑭ DDL VCC (OPTION)
⑮ DDL S/W (OPTION)
4

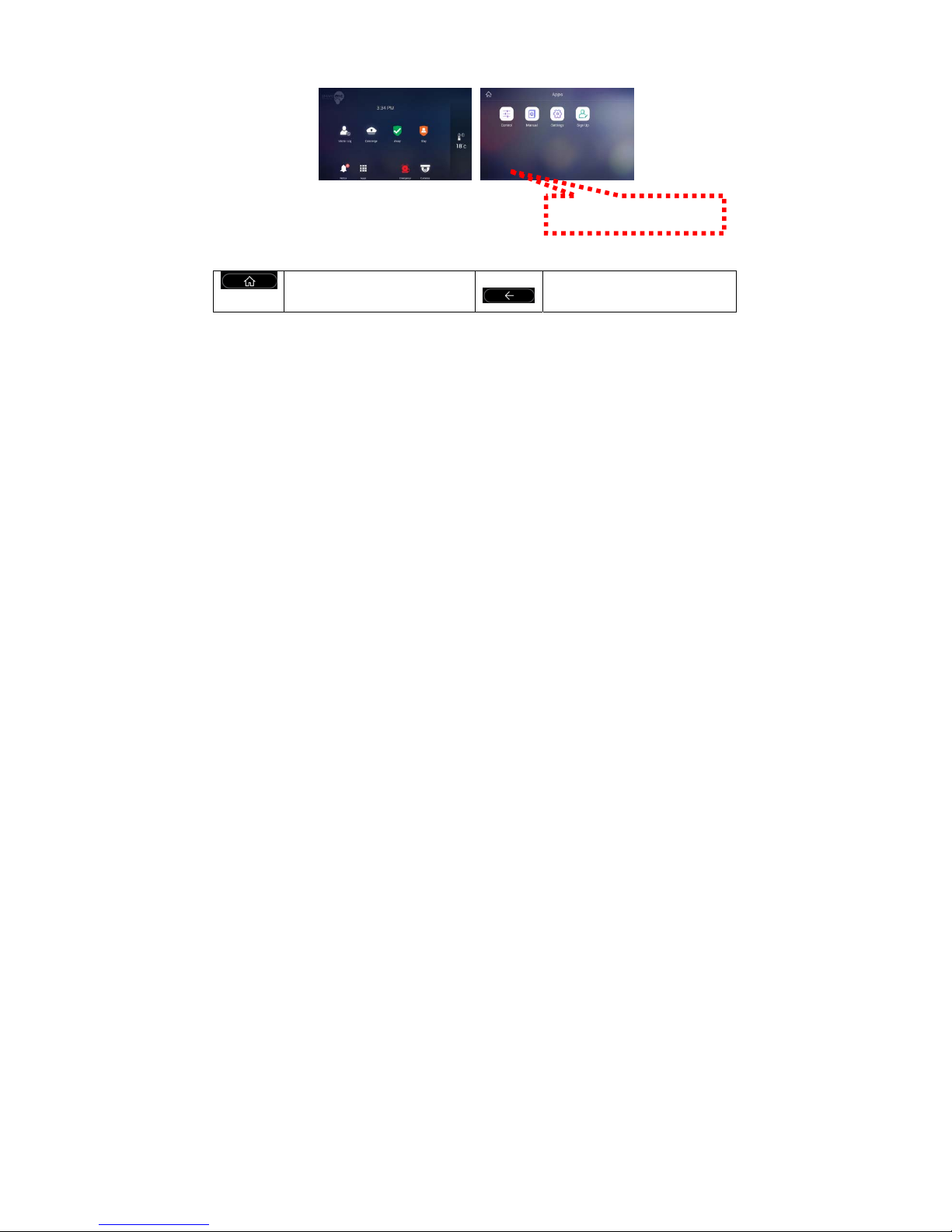

Display composition
Buttons at the Bottom
Go to Home
Back
Press the button
5
1 Screen Saver
We will provide information on the screen sequentially
Press the screen saver to go to the home screen.
1.1. Information provided from the screen saver
[Today's weather information] [Indoor humidity]
[Indoor temperature] [Notice]
※ It is not provided when there is no information.
※ Weather information should be connected to the external Internet to the server.
6

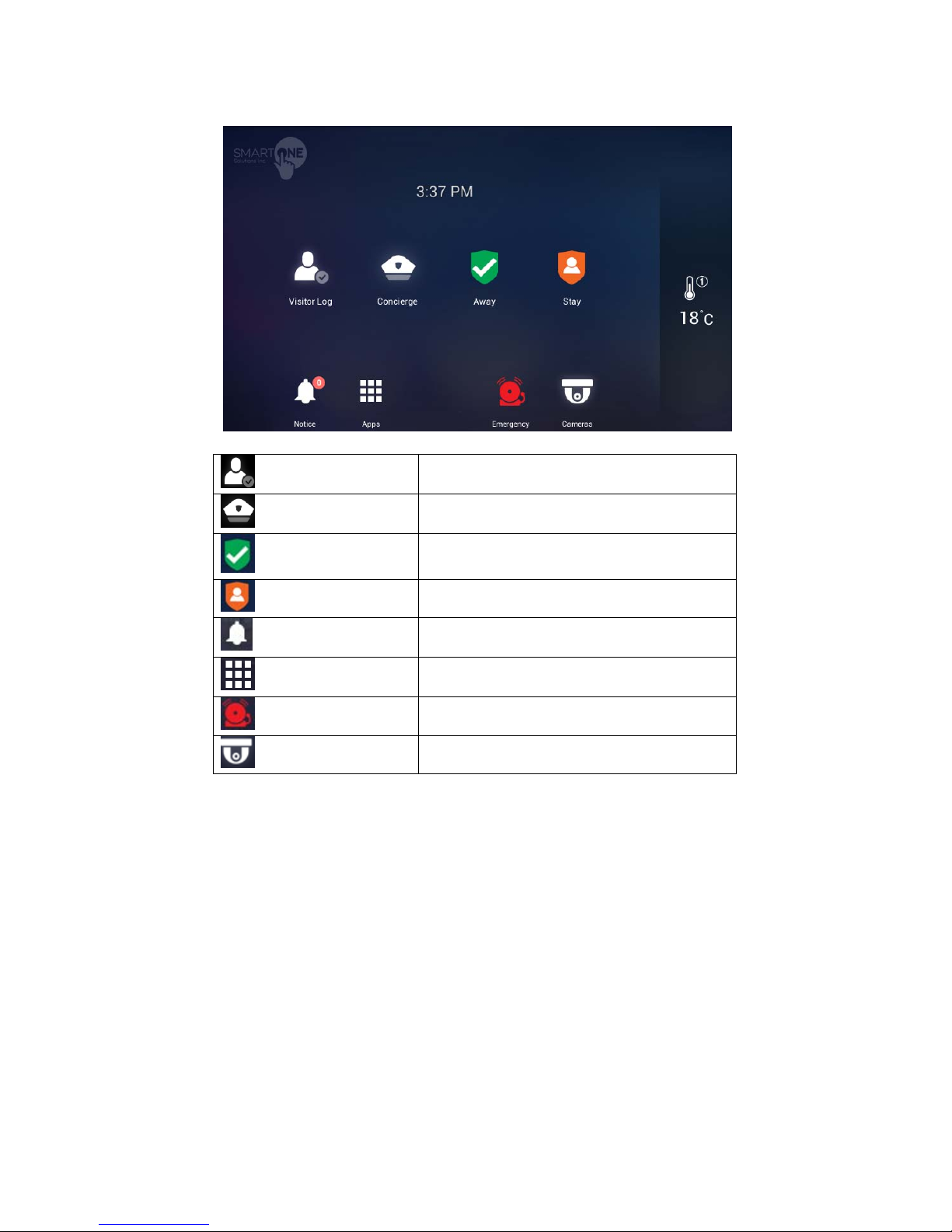

2 Home Display
Visitor Log
Check recorded images of visitors
Concierge
Calling the guard station
Away
Away mode
Stay
Stay mode
Notice
Notice
Apps
The list of installed apps
Emergency
Panic alert
Cameras
CCTV Camera
7

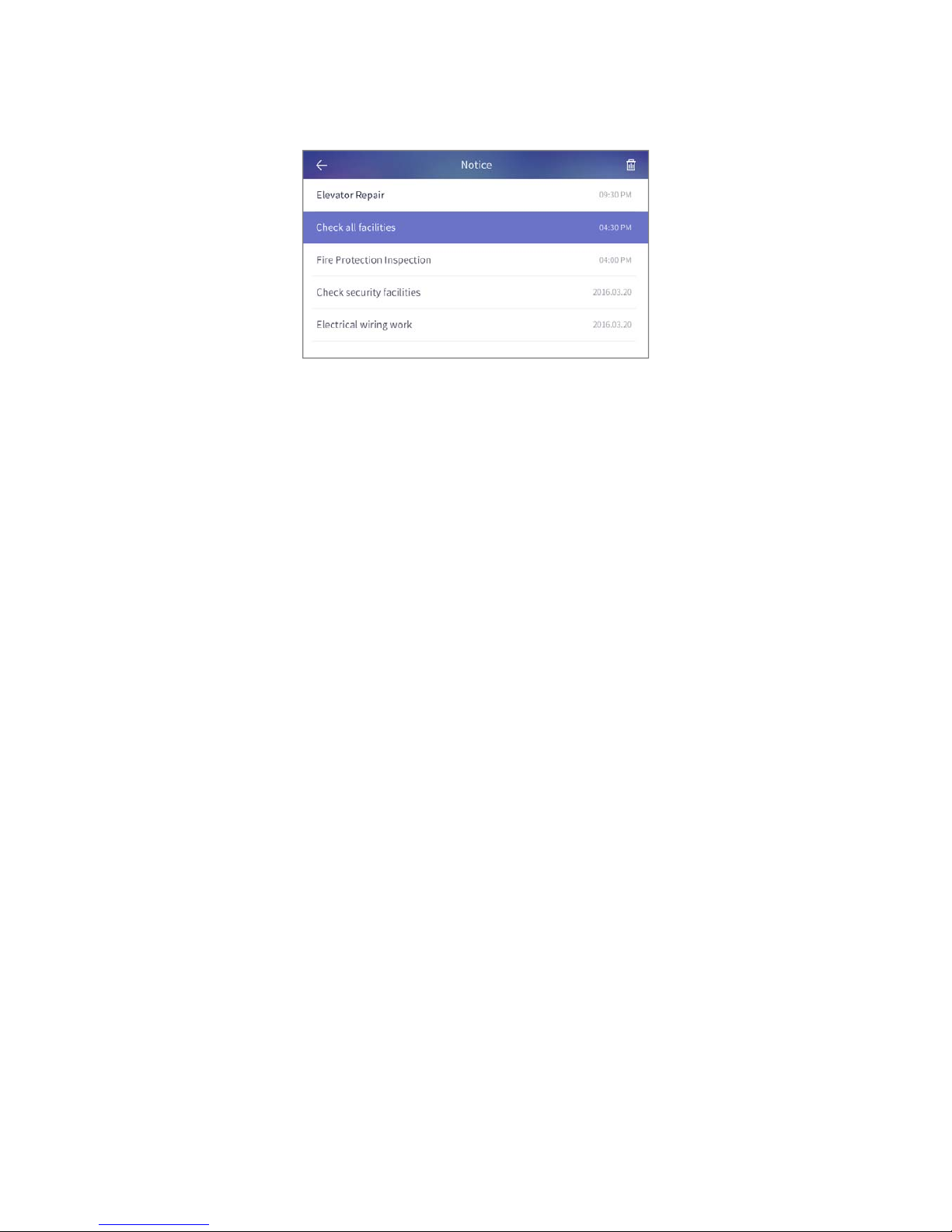

3 Notice
You can check the notices
[Notices]
8
4 Control
4.1. FCU Control
FCU Control
1) Go to the [Indoor] tab.
2) If cold/heating is in operation, the activated image is displayed, and if it
do not work, the disabled image is displayed.
3) You can turn on / off all cooling / heating machines by pressing the power
button of "whole air conditioning / heating".
4) You can enable or disable all cold / heater exit mode by pushing "go out"
button of "whole air conditioning / heating".
5) You can turn on / off the cooling / heating by pressing the power (1)
button of the controlling cold / heater.
6) You can set temperature at one degree difference by pressing the
button(②) .
7) The current temperature is displayed.
[FCU Control]
9
FCU Away mode
1) Go to the [Indoor] tab
2) Press the ‘More’ button
3) Press the "ON" button in the go-out mode to set the go-out mode. Both
the cold / heater will be turned off.
4) Pressing the "OFF" button in the go-out mode releases the go-out mode.
The cold / heating machine will return to the status before going out.
(When you turn on / off the power from away mode setting, you will be
automatically unlocked.)
Change the FCU mode
1) Press the "cooling" button to set the mode for cooling.
2) Press the "Heating" button, the mode is set for heating.
10
5 Application
11

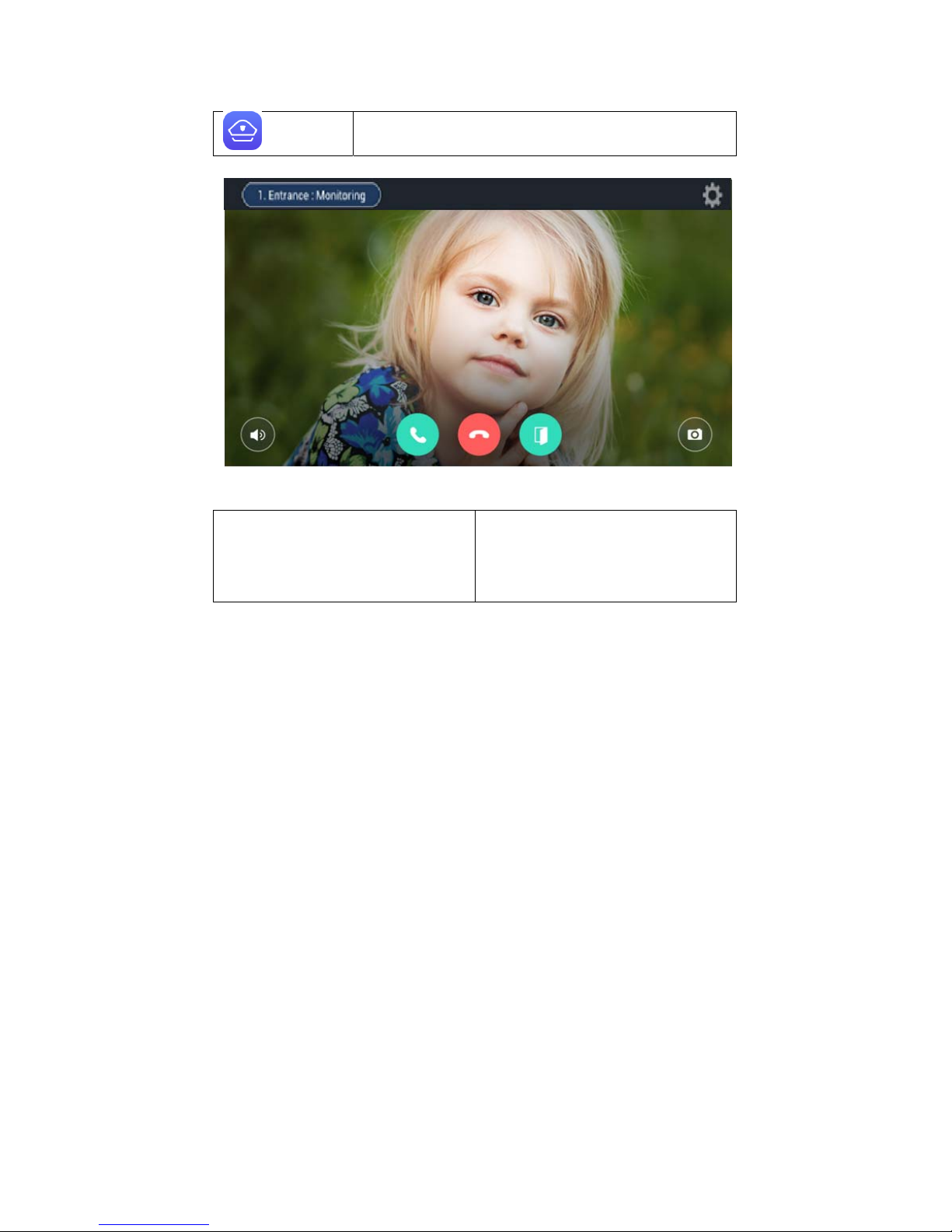

5.1. Intercom
Guard
Calling the security guard station
[The screen of calling connection and calling screen]
① Active Call and Call Waiting
② Display of calling connection
③ Volu m e
④ Call Start
⑤ Call refusal, Cancel
⑥ Door Open
⑦ Save of Visitor image
※ ‘Call display’ can be displayed differently by each type of call from guard station
and entrance
※ Some equipment does not provide CID function.
※ Visitors image can be saved in the storage space.
Images can be stored by 128 cuts. (188MByte standards)
※ The file is same space for visitors image and CCTV Image.
※ Internet telephone cannot be used
①
②
③
④
⑤
⑥
⑦
