User Manual
Color Door Camera DRC-40K
• Thank you for purchasing COMMAX products.
• Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow
instructions to use a product exactly.
• The company is not responsible for any safety accidents caused by abnormal operation of the product.
Contents
1. Introdution ..........................................................................2
2. Important Safeguard...........................................................3
3. Overview ............................................................................4
4. Package contents...............................................................6
5. Wiring and Installation ........................................................7
6. Specification ......................................................................9
1
1. Introduction
Your unit is designed so it can be flush mounted on the or used. When flush mounted on the wall, the stand permils you to the
unit for an gular of unit view. The model number is located on the bottom and record the serial number in the space provided
below(available). Refer to these numbers whenever you call upon your COMMAX dealer regarding this product.
Model No. Serial No.
To prevent fire or shock hazard, do not expose the unit to rain or moisture.
“
This symbol is intended to alert the use to the presence of uninsulated
may be of sufficient magnitude to constitute a risk of electric shock to persons.
This symbol is intended to alert the use to the presence of important operating and maintemance(servicing) instructions in the
literature accompanying the appliance
“
dangerous Voltage
”
”
within the product’s enclose that
caution
Risk of electric shock
do not open
CAUTION : To reduce the risk of electric shock, do not remove cover(or back) no user-serviceable
part inside refer servicing to qualified service personnel
2
2. Important Safeguards
▲
Damage Requiring Service: This equipment from the power source and source and refer servicing to qualified service per-
sonnel under the following conditions:
ⓐ when the power is damaged.
ⓑ if liquid has been spilled or objects have fallen into the unit
ⓒ if the equipment has been exposed to rain or water.
ⓓ if the equipment has been dropped or otherwise damaged.
ⓔ when the equipment exhibits a distinct change in performance- this indicates a need for service.
▲
Water and Moisture: Do not use this product near water, for example, near a bath tub, wash bowl, kitchen sink, or laundry
▲
Accessories: The product may fall, causing serious injury to a child or adult, and serious damage to the appliance. Any
▲
Object and Liquid Entry: Never push objects of any kind into this product through openings as they may touch dangerous
▲
Lightning: For added protection for this product before a lightning storm, or when it is left un attached and un used for long
tub, in a wet basement, or near a swimming pool, and the like.
mounting of the manufacture
facturer.
voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any
kind on the product.
periods of time, unplug it from the wall outlt and disconnect the other system. This will prevent damage to the product due to lightning and power-line surges. If you live in an area heavily prone to lightning storms, it is recommended that you invest in power-line, telephone-line, RFcable and actuator/ polarization surge protectors to protect
your appliance system from possible damage
’s instructions, and should use a mounting accessory recommended by the manu-
3
3. Overview
4
① White LED & Illumination Sensor : Offer clear image at night
②
Microphone : Deliver voice signal from a visitor
③
Camera Lens : Transfer image
* Make sure the lens is always kept clean
④
Speaker : Deliver voice signal to a visitor
⑤
Call Button : Pressed to call to a household
⑥
Angle Adjustment Lever : Adjust lens angle
⑦
Volume Adjuster : Adjust speaker volume
⑧
Monitor Connection Terminal (Polarity with care)
⑨
Door Release Connection Line
5
4.
Package contents
6
5. Wiring and Installation
#1
#2
#3
#4
#1
MONITOR
#2
#3
#4
Audio
GND
DC12V
Video
Door Release Cable
Door Release

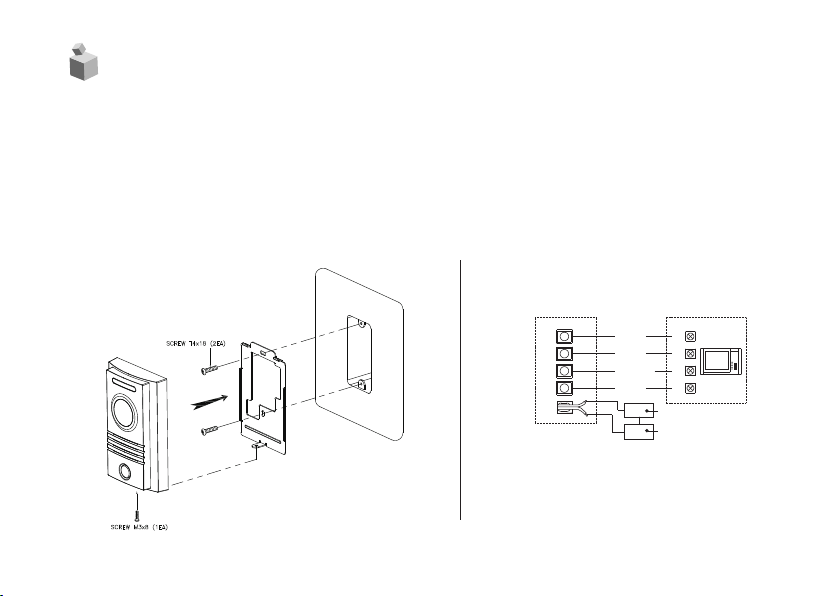

1. Match the fix the whole in the wall and the fixing bracket [FIG.1]
2. Match and connect monitor line as shown below [FIG.2]
(#1: Audio, #2: GND, #3: DC12V, #4: Video)
3. Adjust camera location on the wall by checking the image on monitor screen and
fix its location
4. Connect the Door Release Connection Line as shown below [FIG.2]
5. Tighten a screw at the bottom side of the camera [FIG.1]
[FIG.1] [FIG.2]
7
UU
▶
Position of camera
▶ Installation place
•
Do not install the product where direct lays of the sun reach the camera lens.
•
Adjust the position by using the angle adjustor (in the back).
•
Install a separate lighting at night for better picture quality.
Cautions at a time of installation
▶
1. Do not install where there is much dust, waste or humidity.
2. Make sure to connect accurately.
3. Make sure to fix it tightly so that it does not come off due to vibration.
4. Avoid places where there are direct lays of the sun or where it rains a lot.
5. Take good care of it to prevent dust or cracks on the window of the door camera lens.
8
6. Specification
DRC-40K
DC 12V (Supplied from monitor)
4 wires to a monitor (polarity)
2 wires to the door release (non-polarity)
CMOS IMAGE SENSOR
NTSC or PAL STANDARD.
Simultaneous communication
0.1 Lux (within 300mm)
Embedded night LED (activated at night)
Horizontal 75°, Vertical 55°
Up, down 12 Degrees
-10 ℃(tested up to -40°C) ~ +40 ℃
400g
96(W) x 155(H) x 32.5(D)
Diameter (pie)
Diameter (meter)
Model No.
Rated Voltage / Power Consumption
Sensor Type
Video Transmission Standard
Communication
Minimum Illumination
LED
Effective Viewing Angle
Angle Adjustment
Operating Temperature
Weight (g)
Dimension (mm)
Distance between a door
camera and monitor
Wiring (Main Unit / Door Release)
0.5 0.65 0.8
28m 50m 70m
9
513-11, Sangdaewon-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea
Int’l Business Dept. : Tel.; +82-31-7393-540~550 Fax.; +82-31-745-2133
Web site : www.commax.com
PM1040K00010
Printed In Korea / 2013.11.105
