Commax DR-2GS User Manual

User Manual

DR-2GS

• Thank you for purchasing COMMAX products.

• Thank you for purchasing COMMAX products.

• Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow

• Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow
instructions to use a product exactly.

instructions to use a product exactly.

• The company is not responsible for any safety accidents caused by abnormal operation of the product.

• The company is not responsible for any safety accidents caused by abnormal operation of the product.

Greetings

● Thank you for choosing COMMAX.

● Please read this manual carefully before you use the product.

Table of contents

Greetings ···································································································1

Table of contents ·······················································································1

1. Warnings and caution ·············································································2

2. Overview·································································································4

3. Working Instruction ·················································································4

4. Connection wring diagram and Setting drawing ·····································5

5. Wiring diagram ·······················································································6

6. Components ···························································································7

7. Specication ···························································································7

1

1. Warnings and caution

Please follow the things described below in order to prevent any
danger or property damage.

Prohibition.

Warning

It may cause a serious damage or injury if
violated.

No disassembly

No touch

Caution

It may cause a minor damage or injury if violated.

Please don’t use several
products at the same time on
one power socket.

·It may cause a fire due to an

abnormal overheating.

Please don’ t install the
product in the place where
there is much oil, smoke or
humidity.

·It may cause an electric

shock or fire.

Power & Installation

Warning

Please don’t bend the power
cable excessively or it may
cause an electric shock.

·fire when using a damaged

power cable.

Please don’ t install the
product with the lightening
and thunder.

·It may cause an electric

shock or fire.

Must follow strictly.

Shows plugging out the power cord
without an exception

Shows the warning and caution for an electric shock.

Shows the warning and caution for a fire.

Please don’t handle the power
cable with a wet hand.

·It may cause an electric

shock.

Please don’t use and connect
this product with other
products with different rated
voltage

·It may cause a disorder or

fire.

Please plug out the power
cable from the socket when
not using it for a long period
of time.

·It may shorten the product

lifespan or cause a fire.

When installing the product
that generates heat, please
install the product away from
the wall (10cm) for the
ventilation.

·It may cause a fire due to

the increased internal
temperature.

2

Warning

Please don’t disassemble,
repair or rebuild this product
arbitrarily (please contact the
service center if a repair is
needed.

·It may cause an electric

shock or fire.

Cleaning & UsePower & Installation

Please plug the power cable
firmly into the inner end

·It may cause a fire.

Please be careful when using
an AC circuit breaker since
there is a possibility of an
electric shock.

If an abnormal sound, burning
smell or smoke is coming out
of the product, please plug out
the power cable and contact a
service center.

·It may cause an electric

shock or fire.

Caution

Please hold the plug tightly
when unplugging the power
cable (a part of the copper
wire may be disconnected if
the grabbing is only made on
the cord when pulling out the
cable).

·It may cause an electric

shock or fire

Please check the use voltage
and current for the DC-only
products and use the
appropriate rectifier.

·It may cause a fire.

Please don’t insert any
metallic or burnable materials
into the ventilation hole.

·It may cause an electric

shock or fire.

When connecting the power
cables after cutting the cable,
please install the product with
power off

·It may cause an electric

shock or fire

Please avoid direct rays of the
sun or heating devices at a
time of installation.

·It may cause a fire.

Please use only the designated
batteries for the products of
using DC power.

·It may cause an electric

shock or fire.

When installing the product,
please fix it firmly while using
the wall-mounting unit and
screws.

·It may cause an injury from

the falling object.

Please don’ t install the
product on an unstable place
or small support board.

·It may cause an injury if it

falls down while in use.

When cleaning the product,
please rub it with a soft and
dry cloth after plugging out
the power cable. (Please don’t
use any chemical products
such as wax, benzene, alcohol
or cleanser.)

Cleaning & Use

Please don’t drop the product
on the ground and don’t apply
a shock .

·It may cause a failure.

Please use the designated
connection cable within the
maximum calling distance
designated for the product

·It may reduce the product

performance.

3

2.

Overview

No. PART No. PART

1 Front Panel 6 Call Button
2 Front Panel Screw Hole 7 Door Open/Close Cable
3 Speaker 8 Connection 1 (from guard station, 4pins)
4 Status LED 9 Connection 2 (from guard station, 3pins)
5 C-MIC

3.

Working Instruction

3-1 What you should know

- DR-2GS is designated door phone only applicable for guard station of CDS-2AG, which has the
version of 3.2 or above

- Power source is from the guard station which uses DC 24V

3-2. Call to Guard station

When call button is on, calling to guard station with chime sound

ྙ
ྚ Once guard station receives a call, voice communication will be started.
ྛ During the call, call pause can be requested from guard station.

- During call waiting, when Blue Led is on the Red Led blinks.

- Call waiting will be released within 3 minutes when there is no call in guard station.

ྜ When call from guard station call waiting mode will be finished. (Then, the door open operation

is executed in the guard station)

4

3-3. SECURITY OFFICE DEVICE (CDS-2AG) Manual

ྙ You can call househol d unit when you press SP.P
DR-2GS to guard station.

- At this time, led of ‘SELECT 4’ switch is turned on and DR-2GS that is called is stored.

- However, if another number is already stored in ‘SELECT 4’, DR-2GS that is called newly is stored

ྚ Press building/household unit number and call.
ྛ When you finish the calling a household unit please, take down the receiver (HOOK ON)

then, pick up the receiver (HOOK OFF) and press 'SELECT 4'. Finally, you will see the number
that is called to DR-2GS.

ྜ When you press paging button (#) calling and door opening will be activated.

3-4. ID Setting

- Up to 3 units can be added. The setting can be made in a guard station.

- If ID is duplicated, it may not operate properly.

ྙ Call the guard station.
ྚ After you pick up the receiver, and then press the remote control button.
ྛ 0101 -> Building (*) button -> 99XX (Input ID in XX sections) -> Paging (#) button
ྜ If there is other extension, proceed in the same way.

HONE (Speaker phone) button after you call from

4 .Connection wring diagram and Setting

drawing

* Warning

- When wiring please, connect as below.

(Figure 1)

(Figure 2)

5. Wiring diagram

6

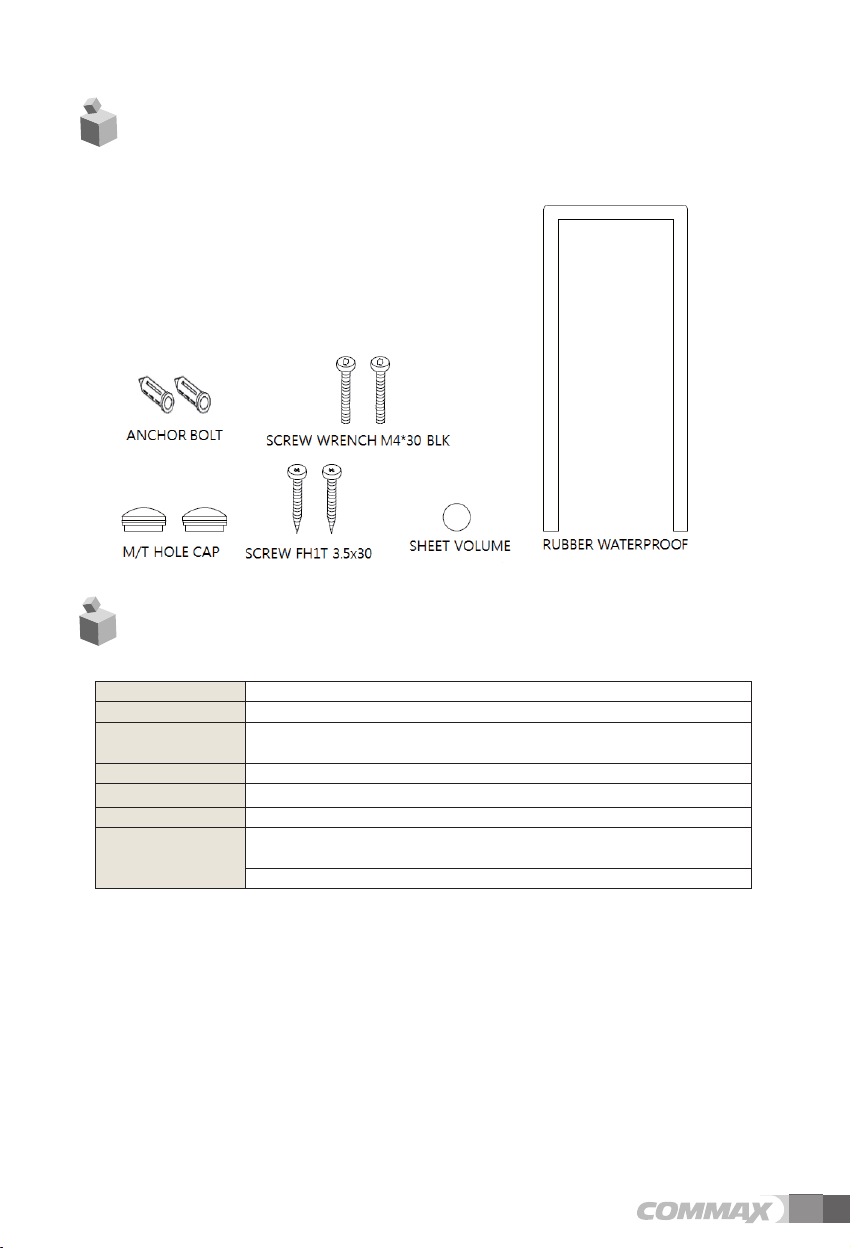

6. Components

7. Specification

Model
Power Source DC 24V (From the guard-station)
Power
Consumption
Comm. Method Simultaneous Communication Method
Operating Temp.

Dimension (mm) 87.5(W)×120(H)×21(D)

Distance

DR-2GS

Max. 100mA

-10୅(tested up to -40୅) ~ +50୅

Max. 50 meters
(Φ 0.5 UTP basis, Expand max 3 units within 50 meters)

UTP Cat 5e. basis. Circuit Resistance less than 10ohms per 100M

513-11, Sangdaewon-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea
Int’l Business Dept. Tel. : [phone]~550 Fax. : [phone]
Web site : www.commax.com

Printed In Korea / 2019

.01.104
