• Thank you for purchasing COMMAX products.
• Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow
instructions to use a product exactly.
• The company is not responsible for any safety accidents caused by abnormal operation of the product.

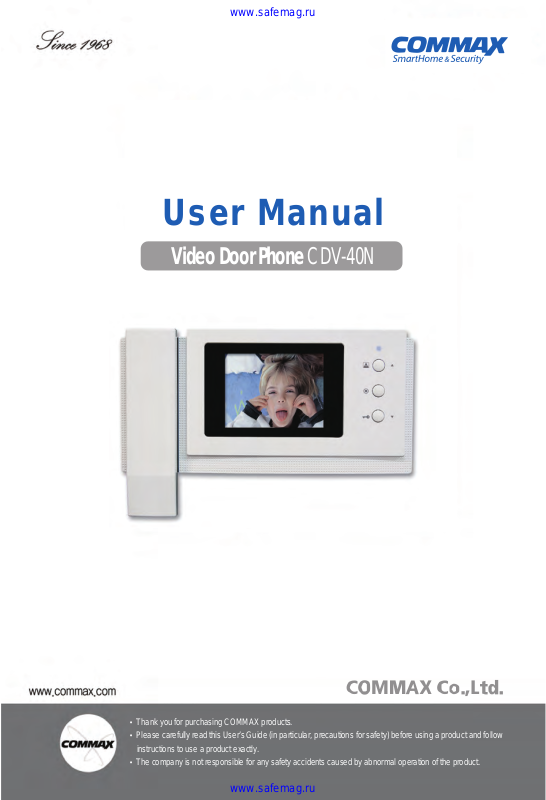

User Manual
www.safemag.ru
www.safemag.ru
Video Door Phone CDV-40N
• Thank you for purchasing COMMAX products.
• Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow
instructions to use a product exactly.
• The company is not responsible for any safety accidents caused by abnormal operation of the product.
Table of contents
www.safemag.ru
www.safemag.ru
1. Greetings ................................................................................................. 1
Warnings and caution.............................................................................. 2
2.
3. Part names and functions......................................................................... 4
4. Operating................................................................................................. 5
5. Installation............................................................................................... 7
6. Wiring...................................................................................................... 8
7. Part list..................................................................................................... 9
8. Miscellaneous...........................................................................................9
9. Specifications .......................................................................................... 9
1. Greetings
● Thank you very much for choosing COMMAX.
● Please read this manual carefully before you use the product.
1
2. Warnings and caution
www.safemag.ru
www.safemag.ru
Please follow the things described below in order to prevent any
danger or property damage.
Prohibition.
Warning
Caution
It may cause a serious damage or
injury if violated.
It may cause a minor damage or
injury if violated.
No disassembly
No touch
Must follow strictly.
Shows plugging out the power cord
without an exception
Shows the warning and caution for an electric shock.
Shows the warning and caution for a fire.
Warning
Please don’t use several
products at the same time on
one power socket.
·It may cause a fire due to an
abn
ormal overheating.
Please don’t install the
product in the place where
there is much oil, smoke or
humidity.
·It may cause an electric
shock or fire.
Power & Installation
Please don’t bend the power
cable excessively or it may
cause an electric shock.
·fire when using a damaged
power cable.
Please don’t install the
product with the lightening
and thunder.
·It may cause an electric
shock or fire.
Please don’t handle the power
cable with a wet hand.
·It may cause an electric
shock.
Please don’t use and connect
this product with other
products with different rated
voltage
·It may cause a disorder or
fire.
Please plug out the power
cable from the socket when
not using it for a long period
of time.
·It may shorten the product
lifespan or cause a fire.
When installing the product
that generates heat, please
install the product away from
the wall (10cm) for the
ventilation.
·It may cause a fire due to
the increased internal
temperature.
2
Warning
www.safemag.ru
www.safemag.ru
Please don’t disassemble,
repair or rebuild this product
arbitrarily (please contact the
service center if a repair is
needed.
·It may cause an electric
shock or fire.
Cleaning & UsePower & Installation
Please plug the power cable
firmly into the inner end
·It may cause a fire.
Please be careful when using
an AC circuit breaker since
there is a possibility of an
electric shock.
If an abnormal sound, burning
smell or smoke is coming out
of the product, please plug out
the power cable and contact a
service center.
·It may cause an electric
shock or fire.
Caution
Please hold the plug tightly
when unplugging the power
cable (a part of the copper
wire may be disconnected if
the grabbing is only made on
the cord when pulling out the
cable).
·It may cause an electric
shock or fire
Please check the use voltage
and current for the DC-only
products and use the
appropriate rectifier.
·It may cause a fire.
Please don’t insert any
metallic or burnable materials
into the ventilation hole.
·It may cause an electric
shock or fire.
When connecting the power
cables after cutting the cable,
please install the product with
power off
·It may cause an electric
shock or fire
Please avoid direct rays of the
sun or heating devices at a
time of installation.
·It may cause a fire.
Please use only the designated
batteries for the products of
using DC power.
·It may cause an electric
shock or fire.
When installing the product,
please fix it firmly while using
the wall-mounting unit and
screws.
·It may cause an injury from
the falling object.
Please don’t install the
product on an unstable place
or small support board.
·It may cause an injury if it
falls down while in use.
Cleaning & Use
When cleaning the product,
please rub it with a soft and
dry cloth after plugging out
the power cable. (Please don’t
use any chemical products
such as wax, benzene, alcohol
or cleanser.)
Please don’t drop the product
on the ground and don’t apply
a shock .
·It may cause a failure.
Please use the designated
connection cable within the
maximum calling distance
designated for the product
·It may reduce the product
performance.
3
3. Part names and functions
www.safemag.ru
www.safemag.ru
⑤ ⑥
①
②
③
④
⑩⑪
⑬
⑦
⑧
⑨
⑫
No. Name Description
1 BRIGHT button Adjust brightness
2 COLOR button Adjust color
3 CONT button Adjust contrast
4 RESET button Returned to default color/brightness/Contrast
5 Handset Handset
6 Screen LCD screen
7
Monitoring / UP button
1. Press this button to check the entrance status
2. Press this button to adjust BRIGHT / COLOR / CONT
8 Interphone call Pick up the handset and call
1. Door release operates if you press this button during the
Door open / DOWN button
9
conversation
2. Press this button to adjust BRIGHT / COLOR / CONT
10 Power On / Off ON/OFF Switch
11 Volume control Control incoming call volume
12 Connection / program terminal Connecting Cameras/Interphone / Program updating
13 Power indicator LED Light
4
4. Operating
www.safemag.ru
www.safemag.ru
1. Calling of visitor
The visitor
presses the
call button on
the camera
A chime
sounds
The visitor’s
image appears
on the monitor
A view of the front door can be seen anytime the
entrance button is pressed and a dialog can be made
with anyone at the front door.
* In case of connecting two cameras
The
visitor
presses
the call
button on the
camera1
The
visitor
presses
the call
button on the
camera2
A chime
sounds
A chime
sounds
The visitor’s
image appears
on the monitor
The visitor’s
image appears
on the monitor
Dialog begins
Dialog duration
60 seconds at
a time
Ends the call
To check
Hang-up the
handset
Press
once
Press
twice
Open the door
TThhee ddoooorr rreelleeaassee ffuunnccttiioon
ooppeerraatteess oonnllyy wwhheenn tthhee vviissiittoorr’’s
iimmaaggee iiss ddiissppllaayyeedd oonn tthhee ssccrreeeen
n
Camera 1
view
Camera 2
view
s
n
2. Communication with the optional Interphone
A visitor
calls from
the entrance
Call
from the
monitor
Dialog between the interphone and camera is possible only when the
visitor’s image is visible on the monitor screen.
simultaneously
"Tu-Tu-Tu"
Sound
A chime rings
from both the
monitor and
interphone
Dialog begins
Dialog begins
conversation can take
place if the monitor or
interphone is
simultaneously
Call to the
monitor
A three-way
picked up
End the dialog
Open the door
Hang-up the
handset
Dialog begins
5
3. BRIGHT / COLOR / CONT setting (Available only in Monitoring status)
www.safemag.ru
www.safemag.ru
1). BRIGHT setting
① Press Monitoring button when the handset is hung on properly. (LED Blinking)
② Press BRIGHT button on the left while the screen is turned on. (Beep sound
once)
③ Power LED is blinked as fast (BRIGHT control mode)
④ Adjust the Brightness as the user wants by pressing UP / DOWN button
⑤ Press the BRIGHT button to save the new setting when the setting is over. (Beep
Beep sound)
2). COLOR setting
① Press Monitoring button when the handset is hung on properly. (LED Blinking)
② Press COLOR button on the left while the screen is turned on. (Beep sound once)
③ Power LED is blinked as fast (COLOR control mode)
④ Adjust the color as the user wants by pressing UP / DOWN button
⑤ Press the Color button to save the new setting when the setting is over. (Beep
Beep sound)
3). CONT setting
① Press Monitoring button when the handset is hung on properly. (LED Blinking)
② Press CONT button on the left while the screen is turned on. (Beep sound once)
③ Power LED is blinked as fast (CONT control mode)
④ Adjust the contrast as the user wants by pressing UP / DOWN button
⑤ Press the CONT button to save the new setting when the setting is over. (Beep
Beep sound)
4). RESET (Video Status initialization)
6
① Keep pressing the reset button for 3Sec while the screen is on (Video status will
be initialized)
5. Installation
www.safemag.ru
www.safemag.ru
1. Installation Method of camera monitor
2. Installation Method of camera
SCREW T4X18(2EA)
Note
① Avoid the range of direct sunlight
② Recommended height is pertinent
from 1450 ~ 1500mm
③ Avoid the installation near magnetic
activity, humid temperatures and gas
Note
① Do not install the camera where
it is exposed to Direct sunlight
② Keep cleaning up its lens to
capture good views.
SCREW M3X8(1EA)
DRC-40CK
7
6. Wiring
www.safemag.ru
www.safemag.ru
1. Camera connector polarity
① Red: Voice
② Blue: GND
③ Yellow: Power (+12V)
④ White: Video
2. Wiring precautions
1) If high voltage cables are present in the vicinity, use a coaxial cable with metal
outer casing.
2) If any internal wires are exposed through mis-wiring, it may cause a short and
become a cause of malfunction or fire.
3) When connecting the monitor and camera, please make sure that the monitor power
is off. (turn on the power after plugging the AC power cord into the outlet)
4) Attend the wiring as it is a polarity
5) make it short for camera 2 connector in case of installing only one camera
※ Image and call quality can be down when the monitor is expanded randomly.
※ Interphone call sound could be different in case additional monitor is
8
Note
connected with Audio line depending on the type of monitor.
7. Parts List
www.safemag.ru
www.safemag.ru
Manual
Body of CDV-40N
T4 X 18(4EA)
Screw for wall mount
Bracket for wall mount
M3 X 6(1EA)
Screw for body
4P Connector (2EA)
8. Miscellaneous
Please carefully read this User's Guide before calling service man
●
After checking the entire check list, please contact customer service center.
We will do our best to make you satisfy with our services.
9. Specifications
Model
Rating Voltage 100-240V~, 50/60Hz
Consumption During Operation : 10W(MAX)
Wiring method Camera unit : 4 wires polarity, To an Interphone : 4 wires polarity
Monitor 4" LCD (10.16cm)
Communication Full duplex (Handset)
Call tone Door unit:electronic chime, Interphone:electronic buzzer
Screen Display 60±10sec
Distance from Camera
(cable thickness)
Working Temperature 0 ~+40℃ (32℉ ~ 104℉)
Dimension(mm) 249(W)X158.5X47.6(D)(Based on Max height of handset)
28m(Φ0.5mm) / 50m(Φ0.65mm) / 70m(Φ0.8mm)
CDV-40N
9
513-11, Sangdaewon-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea
Int’l Business Dept. Tel. : +82-31-7393-540~550 Fax. : +82-31-745-2133
Web site : www.commax.com
www.safemag.ru
www.safemag.ru
PM0740N00010
Printed In Korea / 2011.03.104
Loading...
