User Manual
Color Video Door Phone CMV-70M / CMV-70MD
� Thank you for purchasing COMMAX products.
•Thank you for purchasing COMMAX products.
� Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow
•Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow
instructions to use a product exactly.
instructions to use a product exactly.
� The company is not responsible for any safety accidents caused by abnormal operation of the product.
•The company is not responsible for any safety accidents caused by abnormal operation of the product.
T
able of Contents
1. Warnings and Cautions...........................................................................2
2. Part Names....................................... .............................
3. Package Contents .................................................................... ............3...
4. Installation................................................................................... ..........4.....
5. Wiring. ........................................... ..............................................
Operation .....................................................................................................
6.
... ........4...
7. Settings .................................................................................... .............9....
...............118. Specifications..........................................................................
3............................
5

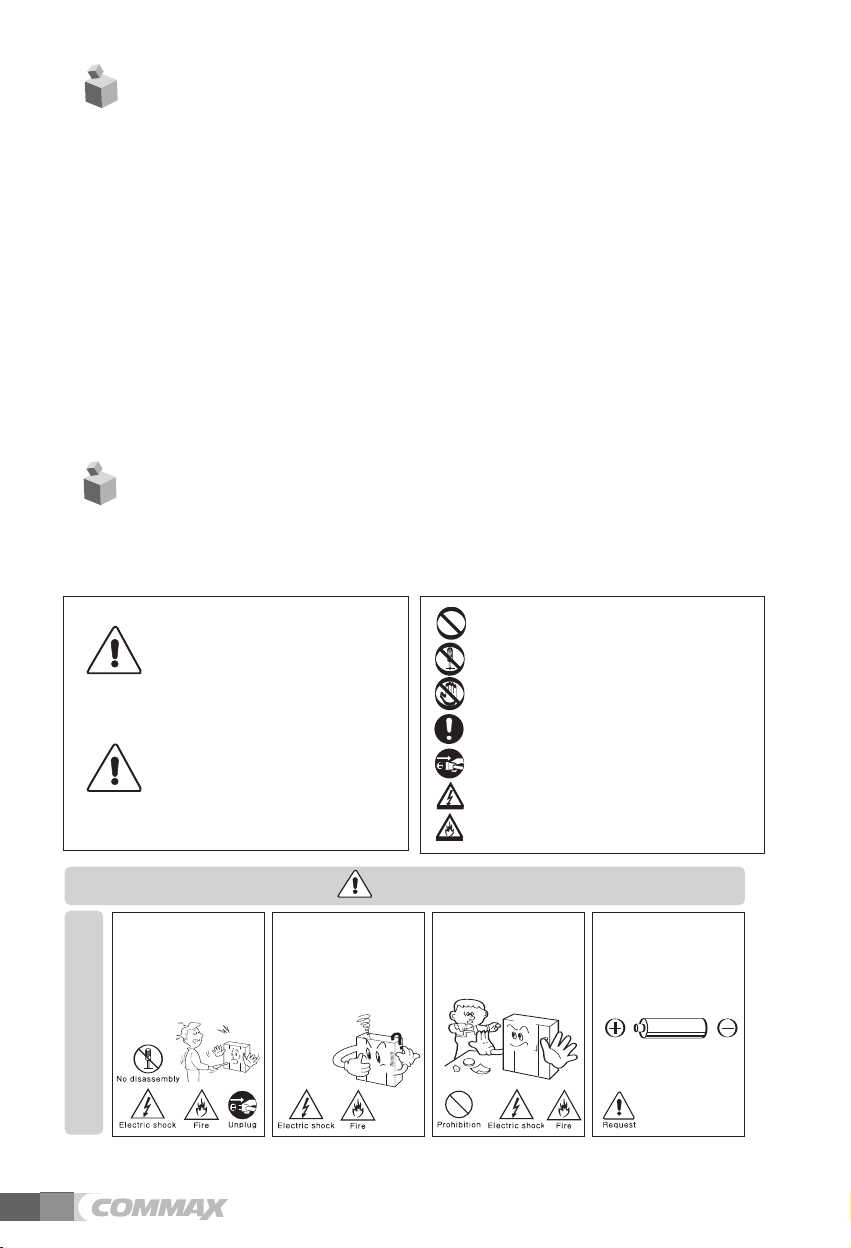

1. W
arnings and caution
Please follow the things described below in order to prevent any
danger or property damage.
Prohibition.
Warning
Caution
Please don’t disassemble,
repair or rebuild this product
arbitrarily (please contact the
service center if a repair is
needed.
·It may cause an electric
shock or fire.
It may cause a serious damage or
injury if violated.
It may cause a minor damage or
injury if violated.
W
If an abnormal sound, burning
smell or smoke is coming out
of the product, please plug out
the power cable and contact a
service center.
·It may cause an electric
shock or fire.
No disassembly
No touch
Must follow strictly.
Shows plugging out the power cord
without an exception
Shows the warning and caution for an electric shock.
Shows the warning and caution for a fire.
arning
Please don’t insert any
metallic or burnable materials
into the ventilation hole.
·It may cause an electric
shock or fire.
Please use only the designated
batteries for the products of
using DC power.
·It may cause an electric
shock or fire.

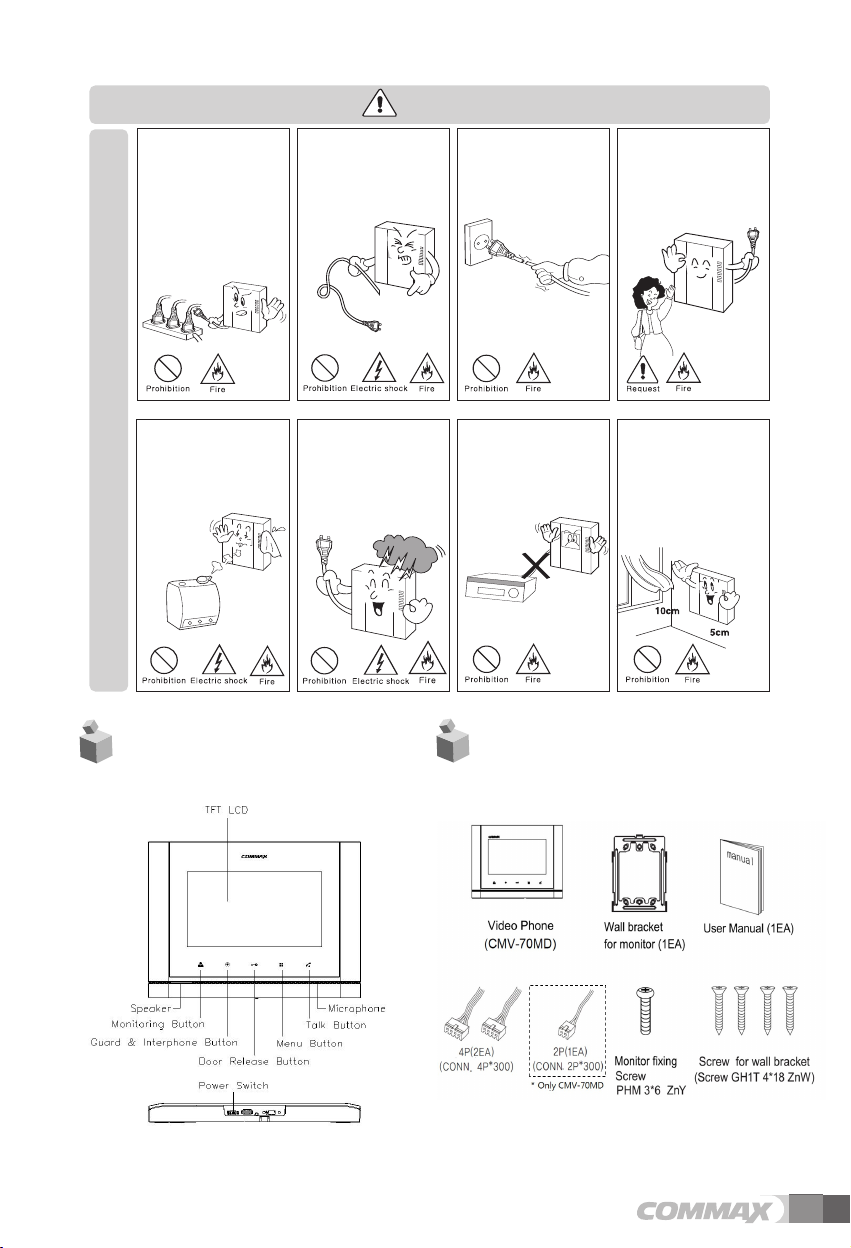

Cleaning & Use
2
Warning
Please don’t use several
products at the same time on
one power socket.
·It may cause a fire due to an
abnormal overheating.
Please don
’t install the
product in the place where
there is much oil, smoke or
humidity.
·It may cause an electric
shock or fire.
Power & Installation
Please don’t bend the power
cable excessively or it may
cause an electric shock.
·fire when using a damaged
power cable.
Please don’t install the
product with the lightening
and thunder.
·It may cause an electric
shock or fire.
Please don’t handle the power
cable with a wet hand.
·It may cause an electric
shock.
Please don’t use and connect
this product with other
products with different rated
voltage
·It may cause a disorder or
fire.
Please plug out the power
cable from the socket when
not using it for a long period
of time.
·It may shorten the product
lifespan or cause a fire.
When installing the product
that generates heat, please
install the product away from
the wall (10cm) for the
ventilation.
·It may cause a fire due to
the increased internal
temperature.
2. Part Names
3. Package Contents
3

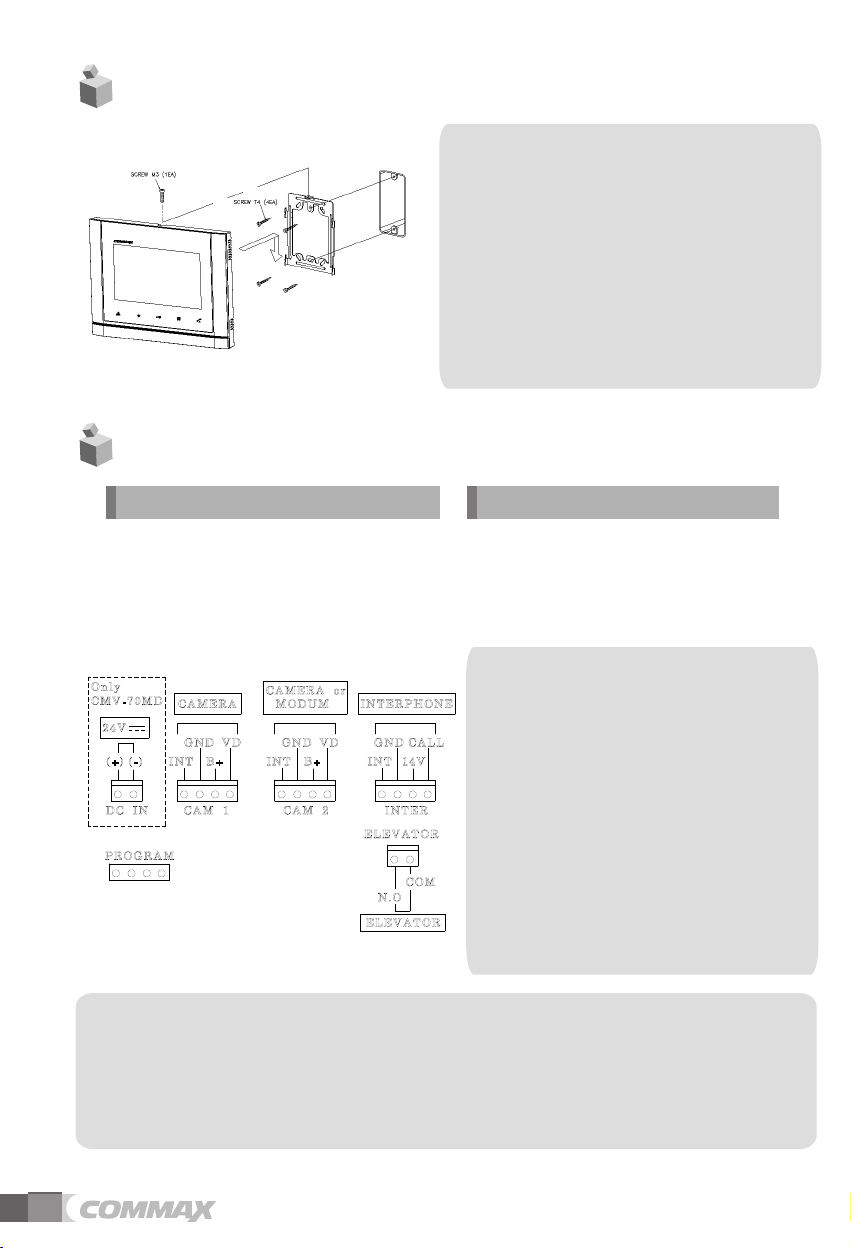

4. Installation
5.Wiring
▷
▷
Polarity of the camera connector
1. Red: Talk (Audio)
2. Blue: GND
3. Yellow: Power (+12V)
4. White: Video
Note
•
Avoid installing the product in
the area of direct sunlight.
•
The position of the unit's body should
fit the standard height range
(Recommended height range is
1450 ~ 1500mm.)
•
Avoid installing the product exposed to
gas exposure, magnetic force,
in humid temperatures, as it may
damage the condition and
performance of the product.
▷
▷
Polarity of interphone connector
1. Red: Talk (Audio)
2. Blue: GND
3. Yellow: Power (+14V)
4. White: Call signal
If you connect with MODUM system, you need
to connect with 'CAMERA2' ports and
floor distributor(Please refer to the manual of
floor distributor for wiring.)
Warning :
-
If you connect with a floor distributor(to connect
with lobby or guard station), you have
to connect with only 'CAMERA2' port.(If you
connect with 'CAMERA1' port and floor
distributor, it will not be operated normally.
- Do not use it with other devices when you use it
with floor distributor, other devices,
When the system power cut off in case of blackout,
each device can't be recognized to
each other because of communication problem.
In this case, re-boot the Video-phone.
※
Note
1. In case, if there is a high-voltage power line in the area of installation, use metal tube
coaxial cable for wiring
2. Beware of wrinkling of line coating and cable stick-outs as it may cause circuit shortage
and
operation
inconvenience.
3. When connecting a monitor with a camera, make sure power switch is turned off.
4
