Lobby Camera Phone CMP-2BC / 4BC
User Manual
1
Table of Contents
1. Greetings
●
Thank you for Purchasing COMMAX Products
●
Please carefully read this User's Manual (in particular, precautions for safety) before using a
product and follow instructions to use a product exactly.
1. Greetings ...............................................................................................1
2. Warnings and Cautions...........................................................................2
3. Overview .................................................................................................4
4. How to use ............................................................................................5
5. Wiring .....................................................................................................5
6. Part List ................................................................................................7
7. Installation ..............................................................................................7
8. Specification ...........................................................................................8
2
2. Warnings and cautions
Please follow the things described below in order to prevent any
danger or property damage.
Warning
Caution
P
rohibition.
No disassembly
N
o touch
M
ust follow strictly.
Shows plugging out the power cord
without an exception
Shows the warning and caution for an electric shock.
Shows the warning and caution for a fire.
I
t may cause a serious damage or
injury if violated.
I
t may cause a minor damage or
injury if violated.
Power & Installation
Warning
Please don’t use several
products at the same time on
one power socket.
·
It may
cause a fire due to an
abnormal overheating.
Please don’
t bend the power
cable excessively or it may
cause an electric shock.
·
fire when using a damaged
power cable.
Please don’
t handle the power
cable with a wet hand.
·
It may cause an electric
shock.
Please plug out the power
cable from the socket when
not using it for a long period
of time.
·
It may shorten the product
lifespan or cause a fire.
Please don’
t install the
product in the place where
there is much oil, smoke or
humidity.
·
It may cause an electric
shock or fire.
Please don’t install the
product with the lightening
and thunder.
·
It may cause an electric
shock or fire.
Please don’
t use and connect
this product with other
products with different rated
voltage
·
It may cause a disorder or
fire.
When installing the product
that generates heat, please
install the product away from
the wall (10cm) for the
ventilation.
·
It may cause a fire due to
the increased internal
temperature.
3
Cleaning & Use
P
lease don’tdisassemble,
repair or rebuild this product
arbitrarily (please contact the
service center if a repair is
n
eeded.
·
I
t may cause an electric
s
hock or fire.
Please plug the power cable
firmly into the inner end
·
It may cause a fire.
Please hold the plug tightly
when unplugging the power
cable (a part of the copper
wire may be disconnected if
the grabbing is only made on
the cord when pulling out the
cable).
·
It may cause an electric
shock or fire
When connecting the power
cables after cutting the cable,
please install the product with
power off
·
It may cause an electric
shock or fire
When installing the product,
please fix it firmly while using
the wall-mounting unit and
screws.
·It may cause an injury from
the falling object.
Please be careful when using
an AC circuit breaker since
there is a possibility of an
electric shock.
When cleaning the product,
please rub it with a soft and
dry cloth after plugging out
the power cable. (Please don’
t
use any chemical products
such as wax, benzene, alcohol
or cleanser.)
Please don’
t drop the product
on the ground and don’
t apply
a shock .
·
It may cause a failure.
Please use the designated
connection cable within the
maximum calling distance
designated for the product
·
It may reduce the product
performance.
Please check the use voltage
and current for the DC-only
products and use the
appropriate rectifier.
·It may cause a fire.
Please avoid direct rays of the
sun or heating devices at a
time of installation.
·
It may cause a fire.
Please don’
t install the
product on an unstable place
or small support board.
·
It may cause an injury if it
falls down while in use.
I
f an abnormal sound, burning
s
mell or smoke is coming out
o
f the product, please plug out
the power cable and contact a
service center.
·
It may cause an electric
shock or fire.
P
lease don’
t
insert any
metallic or burnable materials
into the ventilation hole.
·
It may cause an electric
s
hock or fire.
Please use only the designated
b
atteries for the products of
u
sing DC power.
·
I
t may cause an electric
shock or fire.
Cleaning & UsePower & Installation
Warning
Caution
4

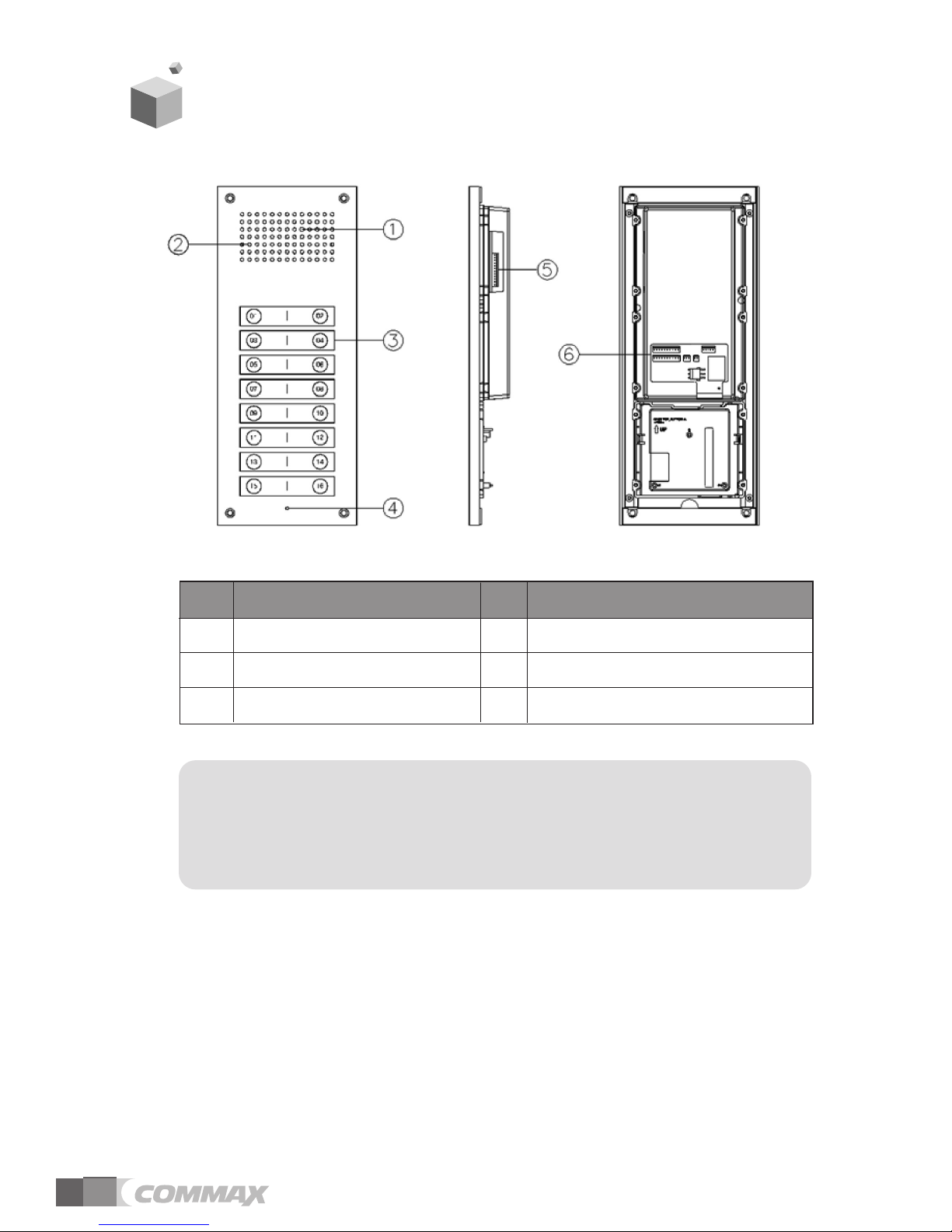

3. Overview
NO. Contents NO. Function
1 Camera
2 Speaker
3
Direct Call Number(2 & 4 rows)
4 C-MIC
5 Extension Port
6 Wire Connection Port
Notice
• This device will be connected with household units through converter.
•This device can be used directly without additional setting.
•This unit can be expended through the extension panels.
5
4. How to use
How to communicate with household
① Press the direct call button of household what you want to call and talk as answered.
②
When you push the wrong household button, it can be cancelled the paging to push it
again.
Warning
① This device can’t be used with household units(4 wire type CDV video door phone),
directly. it should be connected with household unit through COMMAX convertor
(ex. CMD-404CFU).
②
To be careful with wiring to connect with converter(To note the convertor manual).
③
If you use CMD-404CFU, it should be on ‘AUTO’ mode.
5. Wiring
6
Caution
• You can use both 2 and 4 rows extend panels but can’t use
together.(MAX. 5 units)
7
6. Part List
7. Installation
Item Description Q’ty
CONN. 3P(3.96)X250 Wiring Connector 1
CONN. 3PX300 Wiring Connector 1
CONN. 10PX300 Wiring Connector 2
SCREW FHM 4X40 SUS NI Bracket + Flush Mount Bracket 4
WRENCH HEX 2.5# Hex Wrench 1
POWER CORD Adapter Power Cord 1
Caution
1) If installed outdoor, it requires extra molding for water-proof and
rainshield.
2) Recommanded height is pertinent from 1450mm ~ 1500mm
8
Model CMP-2BC / 4BC
Voltage DC 12V
Power Consumption 232mA ( MAX )
Wiring 6 WIRES (POLARITY, Using with Converter unit)
Communication DUPLEX
Camera Angle HORIZONTAL 62°, VERTICAL 46°
PAL HORIZONTAL : 15.735KHz/60Hz,
VERTICAL : 15,625KHz/50HZ
Camera Module C-MOS
Temperature -20°C ~ +50°C
Demension CMP-2BC / 4BC : 130(W) X 315(H) X 38(D)
8. Specification
Scan Frequency
