COMMAX CIP 700SW User Manual

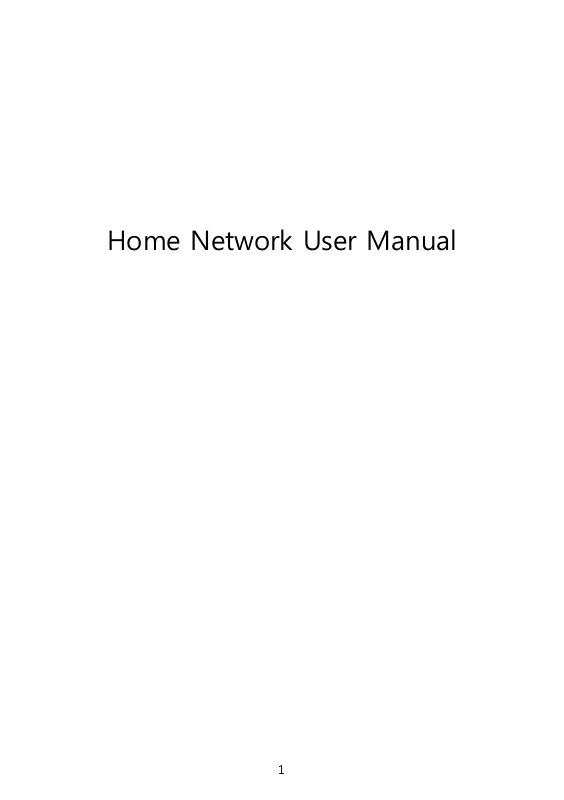

Home Network User Manual
1
Table of Contents
Introduction ....................................................................................................................................................... 3
Part name .................................................................................................................................................. 3
Display composition ............................................................................................................................ 4
1.1. Information provided from the screen saver .......................................................... 5
4.1. FCU Control ............................................................................................................................. 8
5.1. Intercom .................................................................................................................................. 11
5.2. Security .................................................................................................................................... 18
5.3. Home History ....................................................................................................................... 20
5.4. Complex Service ................................................................................................................. 24
5.5. ETC ............................................................................................................................................. 26
7.1. Using the Owner mobile app ....................................................................................... 38
7.2. Using the Guest mobile app ........................................................................................ 42
7.3. Etc............................................................................................................................................... 45
7.4. Name Search(LOBBY PHONE)....................................................................................... 46
8 Specification ......................................................................................................................................... 38
2

Introduction

Part name

① LCD ② Speaker ③ Monitoring individual entrance ④ Call guard station ⑤ Door release button ⑥ Call button
⑦ Home Button ⑧ Microphone ⑨ Power Switch ⑩ PoE + LAN ⑪ Camera connector ⑫ EM ⑬ RS-485
3

Display composition

Buttons at the Bottom
Press the button
Go to Home
Back
4

1 Screen Saver

We will provide information on the screen sequentially
Press the screen saver to go to the home screen.

1.1. Information provided from the screen saver

[Today's weather information] [Indoor humidity]
[Indoor temperature] [Notice]
※ It is not provided when there is no information.
※ Weather information should be connected to the external Internet to the server.
5

2 Home Display

Call
Visitors Viewer

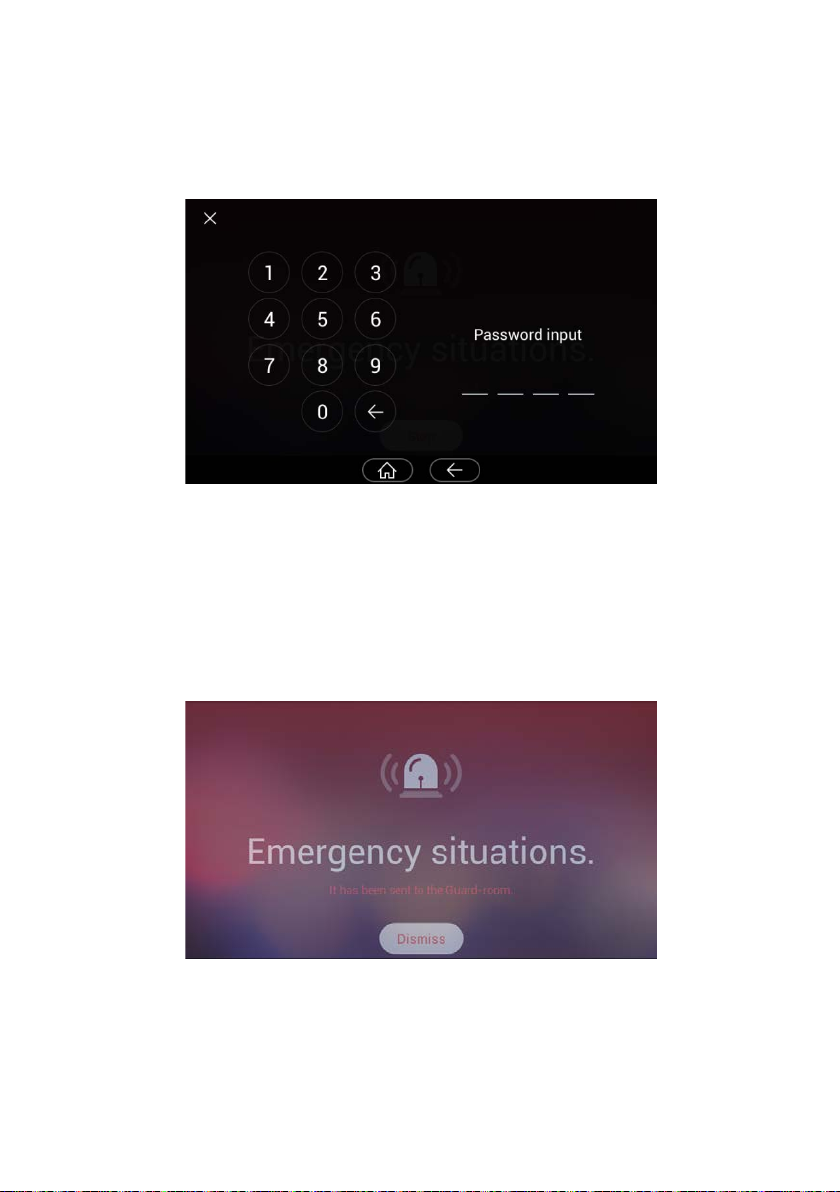

Emergency operation
Guard
Notice
Apps
Scene
Control
My home
Unit-to-unit call
Check recorded images of visitors
Panic alert
Calling the guard station
Notice
The list of all installed apps

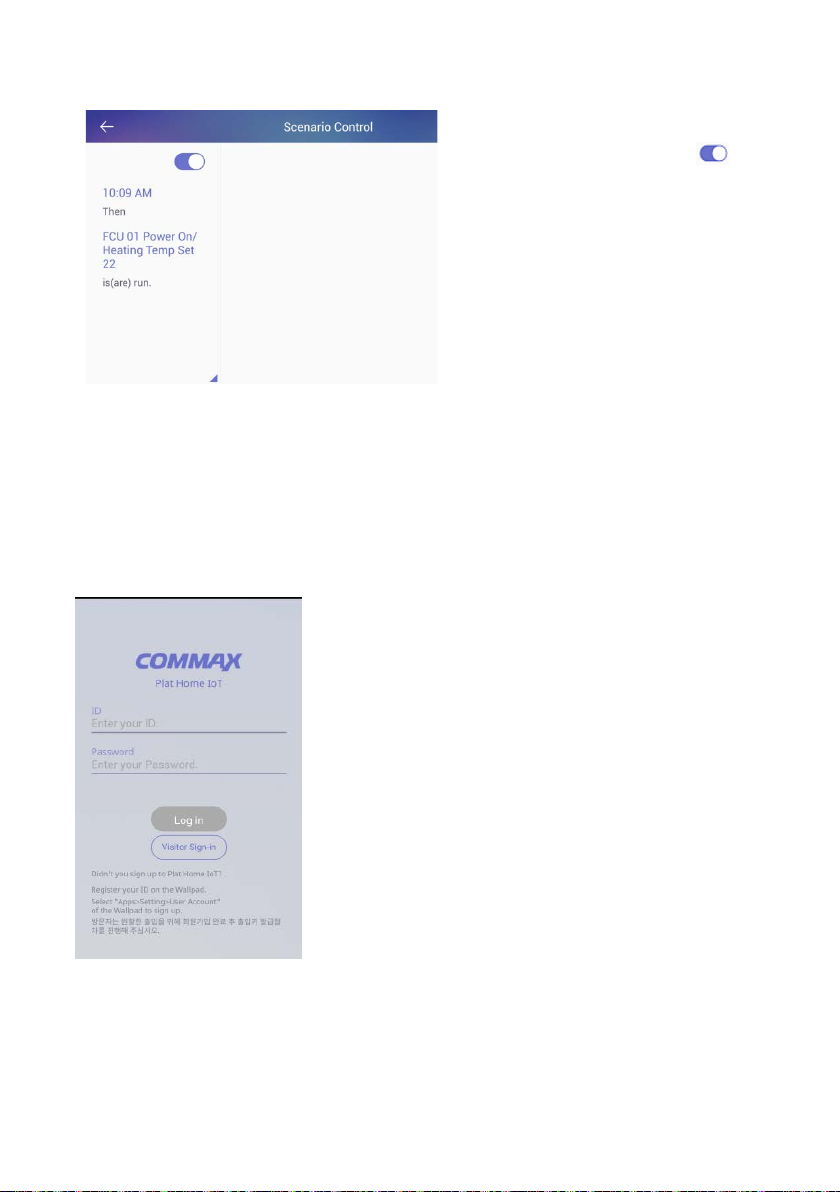

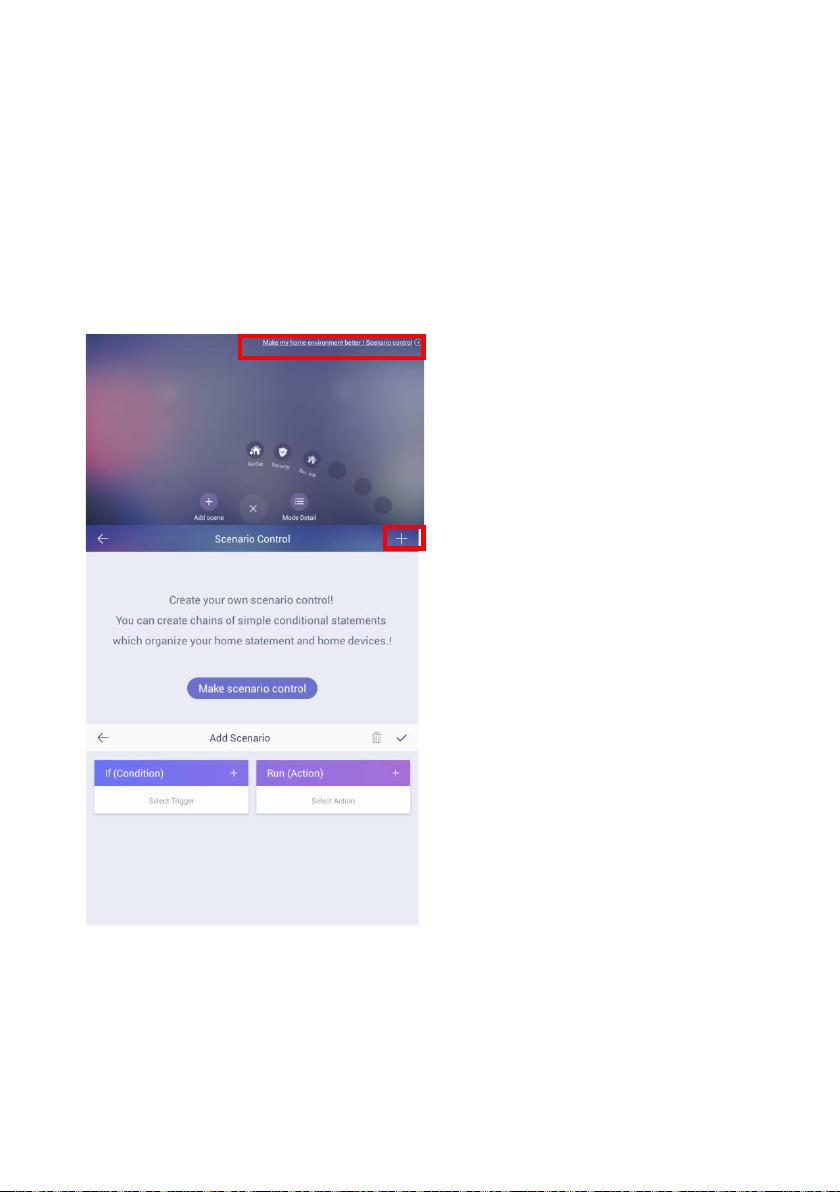

Scene/Scenario control
Device control
Display list of value information of external
environment and our house
6
You can check the notices

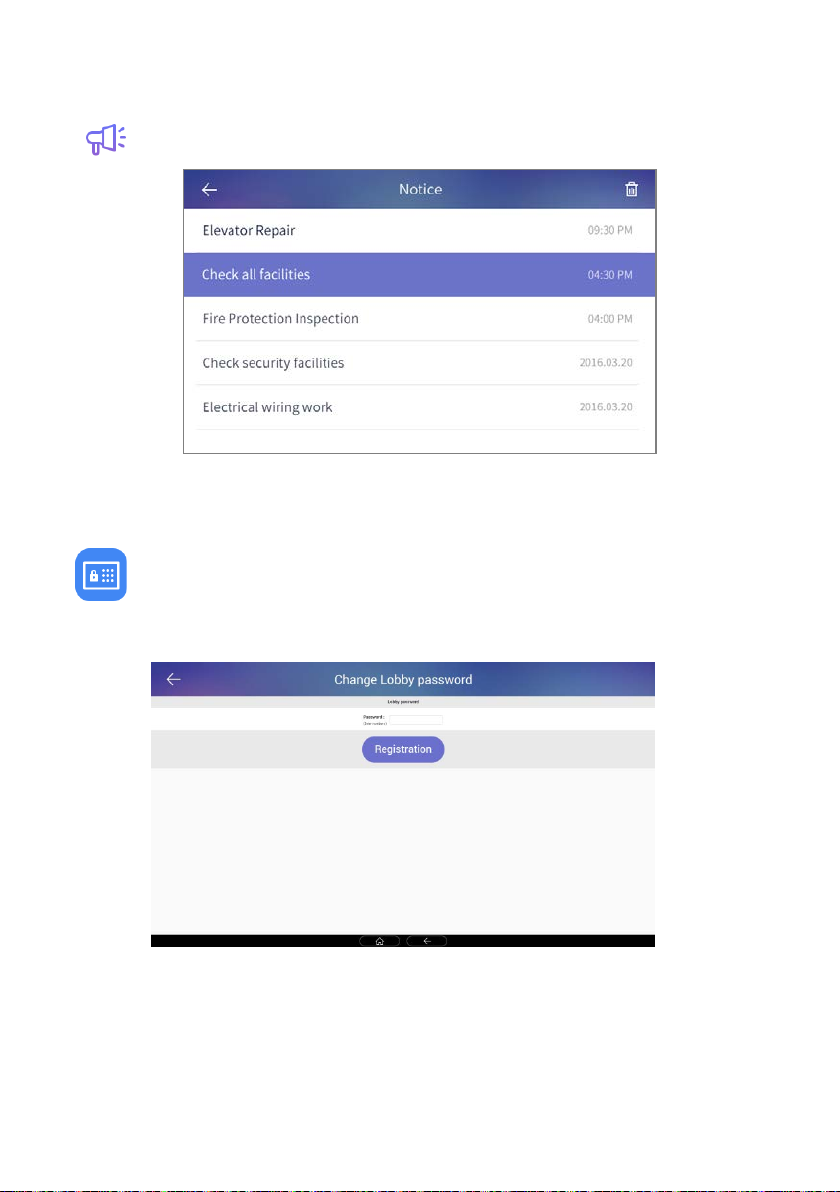

3 Notice

[Notices]
7

4 Control

4.1. FCU Control

FCU Control

1) Go to the [Indoor] tab.
2) If cold/heating is in operation, the activated image is displayed, and if it
do not work, the disabled image is displayed.
3) You can turn on / off all cooling / heating machines by pressing the power
button of "whole air conditioning / heating".
4) You can enable or disable all cold / heater exit mode by pushing "go out"
button of "whole air conditioning / heating".
5) You can turn on / off the cooling / heating by pressing the power (1)
button of the controlling cold / heater.
6) You can set temperature at one degree difference by pressing the
button(②) .
7) The current temperature is displayed.

FCU Away mode

1) Go to the [Indoor] tab
2) Press the ‘More’ button
[FCU Control]
8
3) Press the "ON" button in the go-out mode to set the go-out mode. Both
the cold / heater will be turned off.
4) Pressing the "OFF" button in the go-out mode releases the go-out mode.
The cold / heating machine will return to the status before going out.
(When you turn on / off the power from away mode setting, you will be
automatically unlocked.)

Change the FCU mode

1) Press the "cooling" button to set the mode for cooling.
2) Press the "Heating" button, the mode is set for heating.
9

5 Application

10

5.1. Intercom

Guard
Call
Contacts
Call Log
Calling the security guard station
call to security guard, call between household
Contacts
Call log
11
①
②
③
⑥
④
⑤
[Call Screen]
① Keypad ② Call Log ③ Contacts ④ Neighbor
⑤
Call
Entered a phone number
⑥
Delete
⑦
Calling a guard station
⑧
⑦
⑧
12
①
②
⑦
④
③
[The screen of calling connection and calling screen]
① Active Call and Call Waiting ② Display of calling connection ③ Volume
※ ‘Call display’ can be displayed differently by each type of call from guard station
and entrance
※ Some equipment does not provide CID function.
※ Visitors image can be saved in the storage space.
Images can be stored by 128 cuts. (188MByte standards)
※ The file is same space for visitors image and CCTV Image.
※ Internet telephone cannot be used
⑤
④ Call Start ⑤ Call refusal, Cancel ⑥ Door Open ⑦ Save of Visitor image
⑥
13

5.1.1. Common entrance

Open the door for common entrance
1) During the called of individual and common entrance please press
(Door Open) the button.
Recording visitor ’s image from common entrance
1) Press ‘Capture an image’ button while paging or calling.
2) If successfully recorded, the visitor's photos which are confirmed visitors
on the home screen will be displayed.
Pick up the phone from Common Entrance
1) The visitor will be displayed on the screen with bell sounds
2) If pick up the phone please press button or please reject button.
3) If hang up the phone please press the button.
14

5.1.2. Guard station

Calling a guard station
Calling a guard station
1) To call a guard station, touch ‘Guard station’ icon or touch ‘Guard station’
button in dialing mode
2) To hang up a call, touch ‘End call’ button.
Receiving a call from a guard station
1) When the call is received from a guard station, the touch panel rings and
displays a guard station icon on the screen.
2) To receive a call, touch (Call) button. To reject a call, touch ‘Cancel’
button.
3) To hang up a call, touch ‘End call’ button.
※ Security office and management office cannot see the user’s image.
※ The guard video call is only available for products with video call cameras
※ If you use the call transfer function during the guard station call, the guard
station call is automatically terminated
※ Setting of security office -> Connect to COMMAX and control -> setting to
number -> Security and management office can be settled.
15
