Command access CL180 Installation Instructions Manual

Installation Instructions

Bridge
Rectifier

Bridge
Rectifier

Cyl. Lock
Pocket

Cyl. Lock
Pocket

Cyl. Lock
Pocket

3/8 Wire Raceway

ETH Hinge Pocket

Bridge
Rectifier

Bridge
Rectifier

Plug

Cyl. Lock
Pocket

Cyl. Lock
Pocket

Cyl. Lock
Pocket

3/8 Wire Raceway

ETH Hinge Pocket

Bridge
Rectifier

Wire Transfer Hinge

Bridge
Rectifier

Plug

3/8 Wire Raceway

Cyl. Lock
Pocket

Cyl. Lock
Pocket

Cyl. Lock
Pocket

Bridge
Rectifier

Cyl. Lock
Pocket

CL180

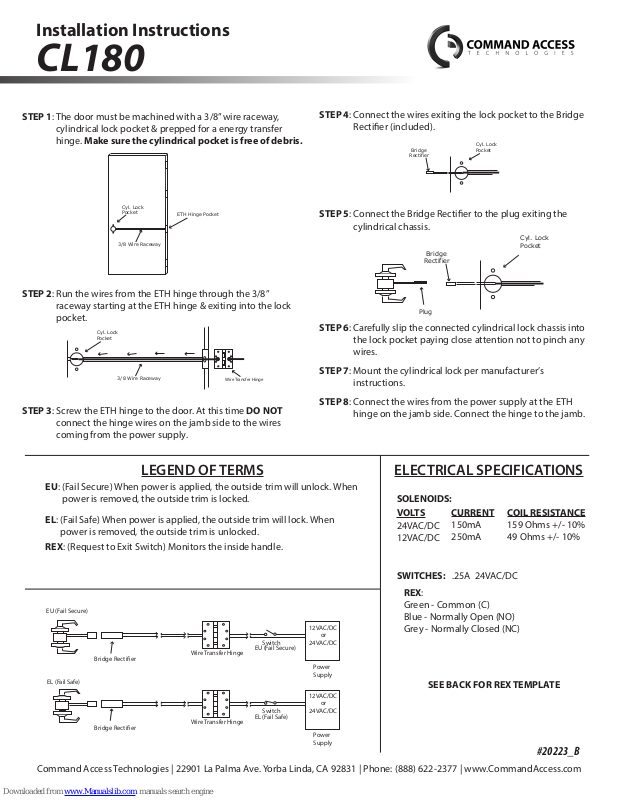

STEP 1: The door must be machined with a 3/8” wire raceway,

cylindrical lock pocket & prepped for a energy transfer
hinge. Make sure the cylindrical pocket is free of debris.

Cyl. Lock
Pocket

3/8 Wire Raceway

STEP 2: Run the wires from the ETH hinge through the 3/8”

raceway starting at the ETH hinge & exiting into the lock

ETH Hinge Pocket

pocket.

Cyl. Lock
Pocket

3/8 Wire Raceway

Wire Transfer Hinge

STEP 3: Screw the ETH hinge to the door. At this time DO NOT

connect the hinge wires on the jamb side to the wires
coming from the power supply.

STEP 4: Connect the wires exiting the lock pocket to the Bridge

Rectier (included).

Bridge
Rectifier

Cyl. Lock
Pocket

STEP 5: Connect the Bridge Rectier to the plug exiting the

cylindrical chassis.

STEP 6: Carefully slip the connected cylindrical lock chassis into

the lock pocket paying close attention not to pinch any

Bridge
Rectifier

Plug

Cyl. Lock
Pocket

wires.

STEP 7: Mount the cylindrical lock per manufacturer’s

instructions.

STEP 8: Connect the wires from the power supply at the ETH

hinge on the jamb side. Connect the hinge to the jamb.

LEGEND OF TERMS

ELECTRICAL SPECIFICATIONS

EU: (Fail Secure) When power is applied, the outside trim will unlock. When

power is removed, the outside trim is locked.

EL: (Fail Safe) When power is applied, the outside trim will lock. When

power is removed, the outside trim is unlocked.

SOLENOIDS:
VO LT S

24VAC/DC
12VAC/DC

CURRENT
150mA
250mA

COIL RESISTANCE
159 Ohms +/- 10%
49 Ohms +/- 10%

REX: (Request to Exit Switch) Monitors the inside handle.

SWITCHES: .25A 24VAC/DC

REX:

EU (Fail Secure)

Bridge Rectifier

EL (Fail Safe)

Bridge Rectifier

Command Access Technologies | 22901 La Palma Ave. Yorba Linda, CA 92831 | Phone: [phone] | www.CommandAccess.com

Wire Transfer Hinge

Wire Transfer Hinge

Switch

EU (Fail Secure)

Switch

EL (Fail Safe)

12VAC/DC

24VAC/DC

Power
Supply

12VAC/DC

24VAC/DC

Power
Supply

or

or

Green - Common (C)
Blue - Normally Open (NO)
Grey - Normally Closed (NC)

SEE BACK FOR REX TEMPLATE

#20223_B

Template for CAT CL180 Cylindrical Lock

1-1/8”

1-1/8”

13/16”

13/16”

Door Edge

3/32” diameter
pilot hole

1-3/8”

1-3/8”

1” diameter hole
x depth of backset

3/32” diameter
pilot hole

5/32” deep
edge prep

15/16”

15/16”

Edge of doorEdge of door

5/16” diameter
through hole

2-1/8” diameter
through hole

5/16” diameter
through hole

2-3/4”

3-3/4”

For REX Prep
1/4” diameter x 3/4” deep
on interior side only
LH/LHR

For REX Prep
1/4” diameter x 3/4” deep
on interior side only
RH/RHR
