Comfort Personal Cleansing 7944, 7945 User manual

National Sanitation Foundation
International Standard
SAVE THESE INSTRUCTIONS FOR PROPER USE OF YOUR WARMER
READ ALL SAFETY CAUTIONS AND OPERATING INSTRUCTIONS.
#7945: 28 individual packages, one per slot
Capacity #7944: 14 individual packages, one per slot
Power Source 115V, 60 Hz, single phase
Heating System 115V AC
Status Indicator System 5 watts, 625mA, 8V DC
Ta rget Product Temperature 125°F ±5°F (51.67°C ±2.75°C)
Ambient Operating Temperature 68 - 72°F (20 - 22°C)
Outer Dimensions (H x W x D) #7944: 17.75" x 14.25" x 14.5" (45.085cm x 36.195cm x 36.83cm)
#7945: 17.75" x 27.75" x 14.5" (45.085cm x 70.485cm x 36.83cm)
Degree of Protection From Electrical Shock Type B Applied Parts
Classification Class I
Y9891B © Sage Products, Inc. 2003
Degree of Protection Against Ingress of Water Ordinary
Mode of Operation Suitable for Continuous Operation
Storage Temperature -22 - 150°F (-30 - 65°C)
Relative Humidity 50 - 70%
UL Standard UL 2601-1 Medical Electrical Equipment
IEC Standard IEC 60601-1
CAN/CSA Standard CAN/CSA C22.2 No. 601.1
Characteristics Powder coated steel exterior, aluminum interior, surfaces and shelves
Fuse Type 8A, 250V
Attention: refer to accompanying documents
Protective earth ground terminal
Type B protection against electrical shock

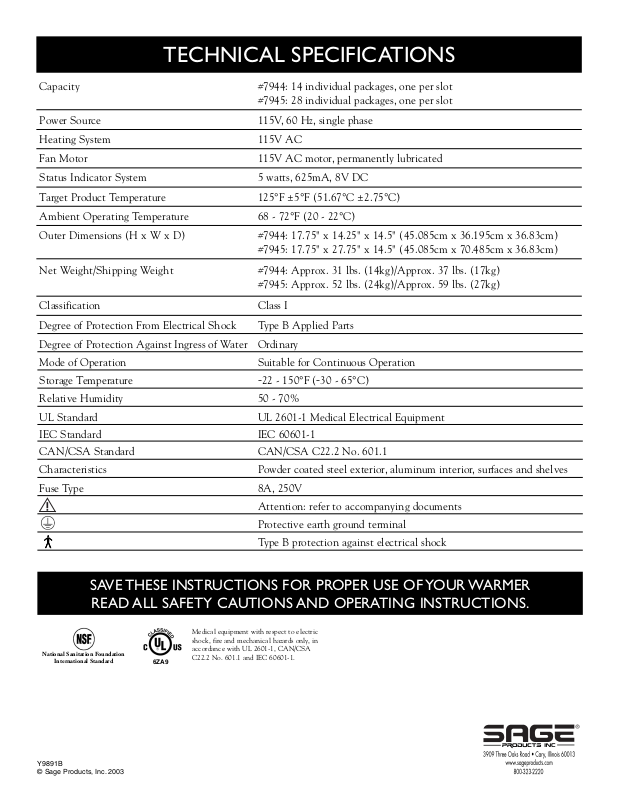

TECHNICAL SPECIFICATIONS
6ZA9
Medical equipment with respect to electric shock, fire and mechanical hazards only, in accordance with UL 2601-1, CAN/CSA C22.2 No. 601.1 and IEC 60601-1.
Net Weight/Shipping Weight #7944: Approx. 31 lbs. (14kg)/Approx. 37 lbs. (17kg)
#7945: Approx. 52 lbs. (24kg)/Approx. 59 lbs. (27kg)
Warmer Operating Instructions
®
Model #7944 (14 count) • Model #7945 (28 count)
Please read and understand these instructions completely prior to operating
the Comfort Personal Cleansing
®
Warmer.
For use with Comfort Personal Cleansing®brand bathing,
incontinence and hair care products only.
This warmer is to be used SOLELY for Sage Comfort Personal Cleansing®products. The warmer has been designed and safety tested to be used exclusively with Comfort Personal Cleansing products. ANY other use of the warmer by the facility, including but not limited to use with other bathing products, can result in overheating, fire or other hazardous conditions and is expressly forbidden.
WARNING:
To reduce the risk of fire, burns, electrical shock, or injury:
1. Read all instructions before using this warmer.
2. Grounding reliability can only be achieved when the equipment is connected to an equivalent receptacle marked “hospital only” or “hospital grade.”
3. Install this warmer only in accordance with the installation instructions found in this manual.
4. DO NOT cover or block any openings on this appliance.
5. DO NOT tamper with or make any adjustments to the control panel, housings, safety switches, or any other part of the Comfort Personal Cleansing Warmer.
6. DO NOT remove any panel or cover.
7. DO NOT store or use this appliance outdoors. DO NOT use this product near water—for example, near a kitchen sink, in a wet basement, or near a swimming pool.
8. DO NOT use this warmer for any material other than Comfort Personal Cleansing products in accordance with instructions on the label.
9. DO NOT let the cord hang over edge of table or counter.
10. This warmer is to be used by adults familiar with its operation and these safety instructions.
11. DO NOT operate this appliance if it has a damaged cord or plug, if it is not working properly, or if it has been damaged or dropped.
12. DO NOT immerse cord or plug in water.
13. Keep cord away from heated surfaces.
14. The warmer is to be serviced only by qualified service personnel. If there are no external or user-serviceable fuses, contact Sage Products for repair or adjustment. If there are external or user-serviceable fuses, check them and replace if necessary. If new fuses do not correct the condition, or if fuses continue to blow, contact Sage Products for repair or adjustment.
15. Use this appliance only for its intended purpose as described in this manual. DO NOT use corrosive chemicals or vapors in this appliance. This type of warmer is specifically designed to warm Comfort Personal Cleansing products. It is NOT designed for industrial or laboratory use. The use of corrosive chemicals in heating or cleaning will damage the appliance and may result in product failure.
IMPORTANT SAFETY INSTRUCTIONS
