Comfort-aire D40a2, D40a2 Installation Template

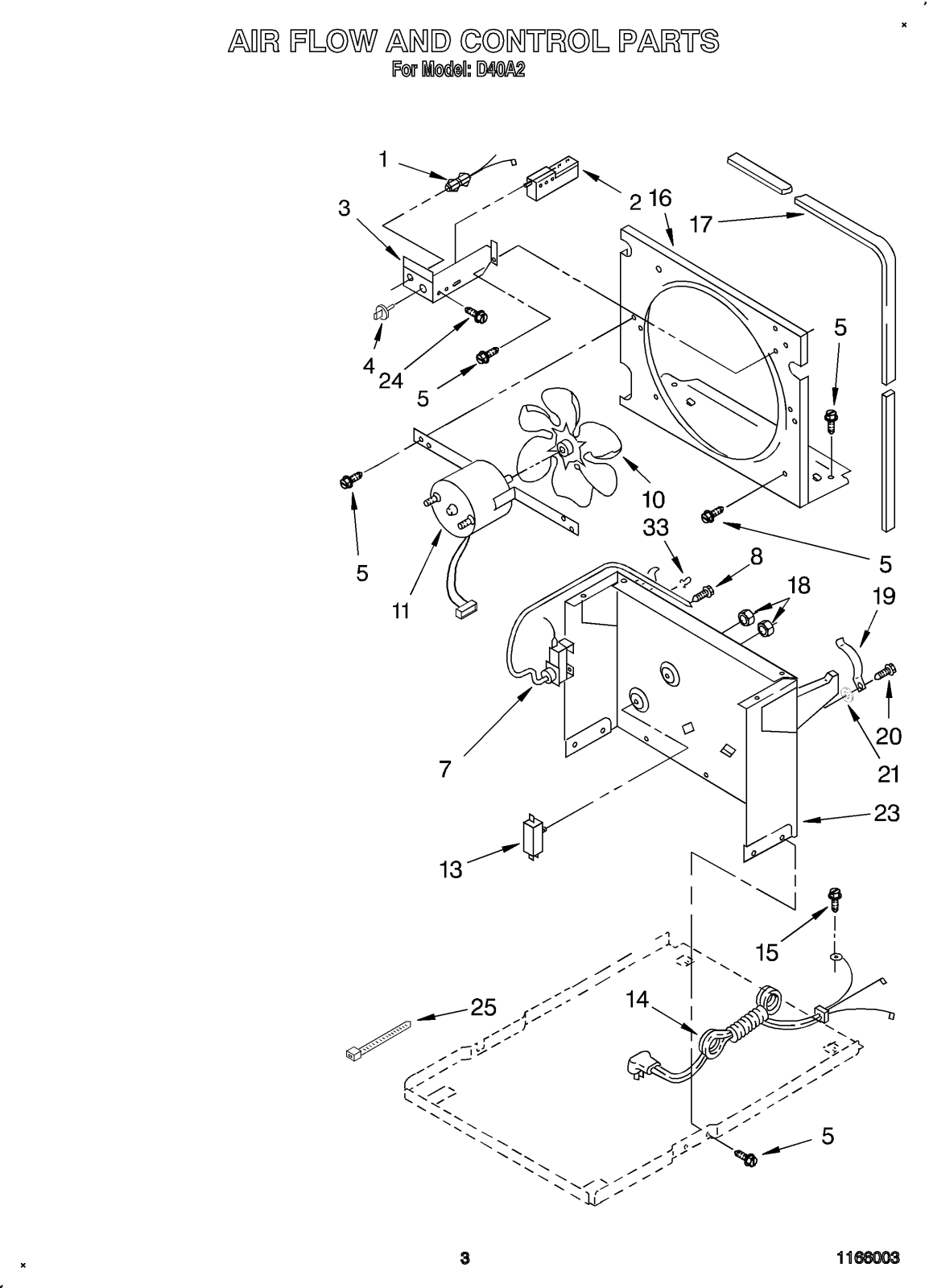

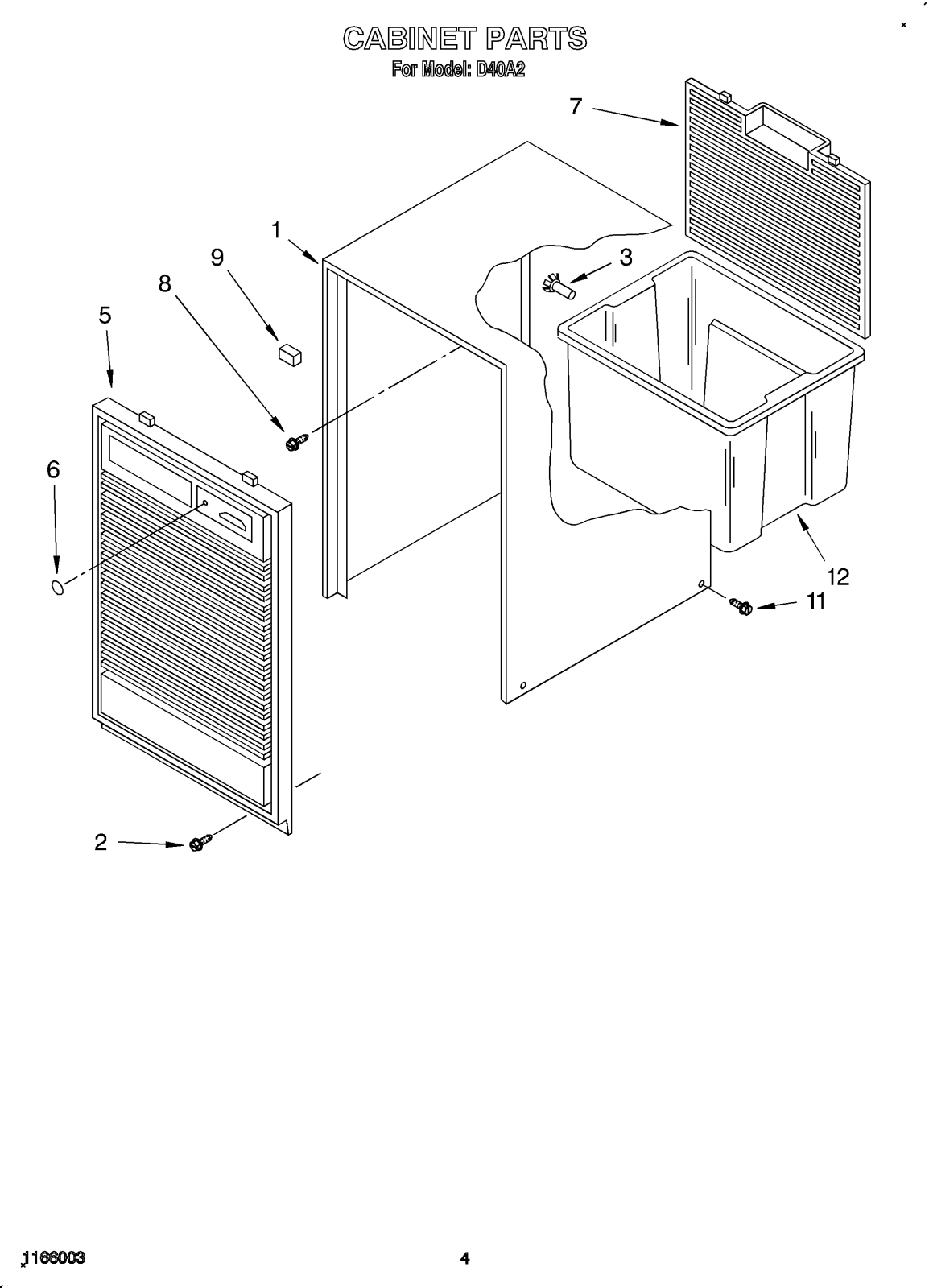

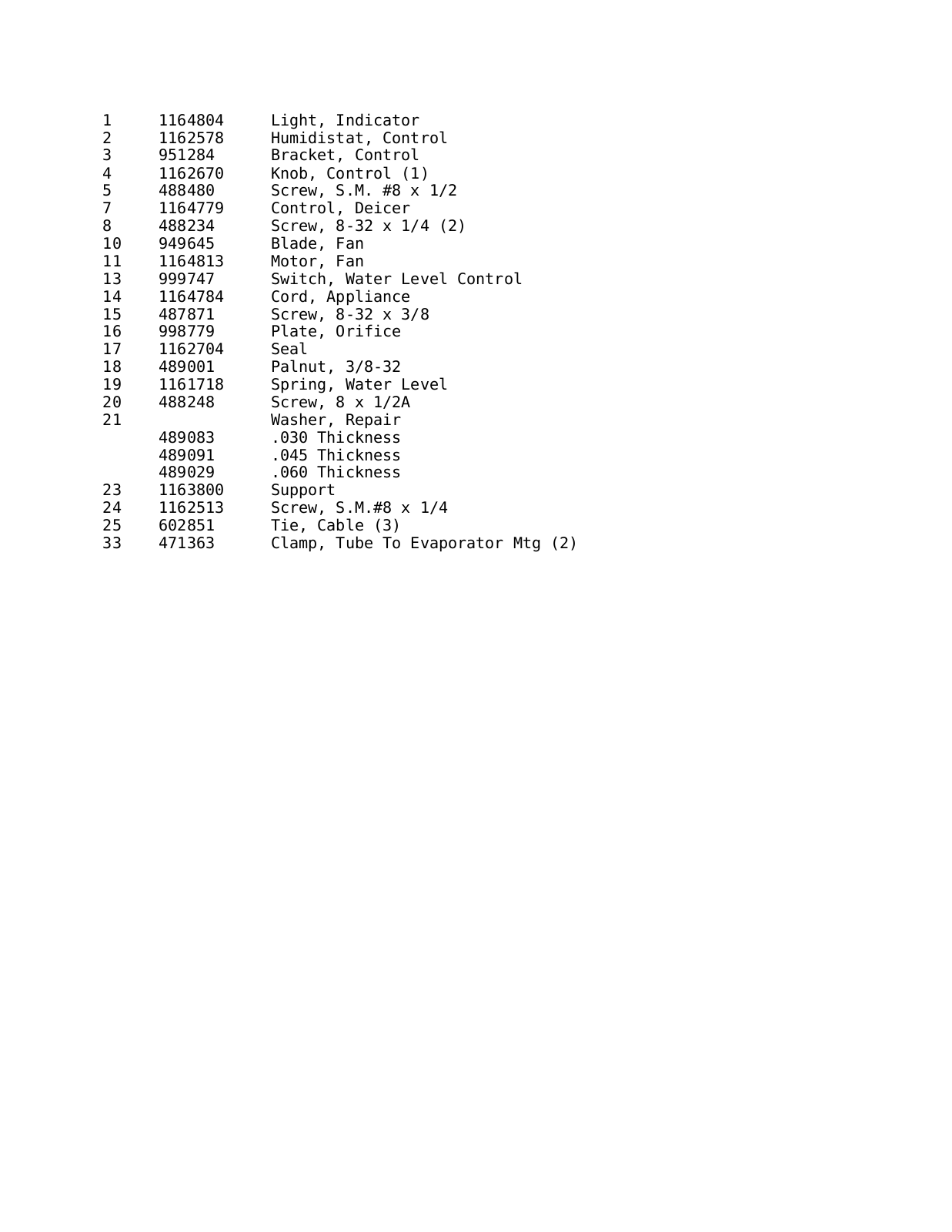

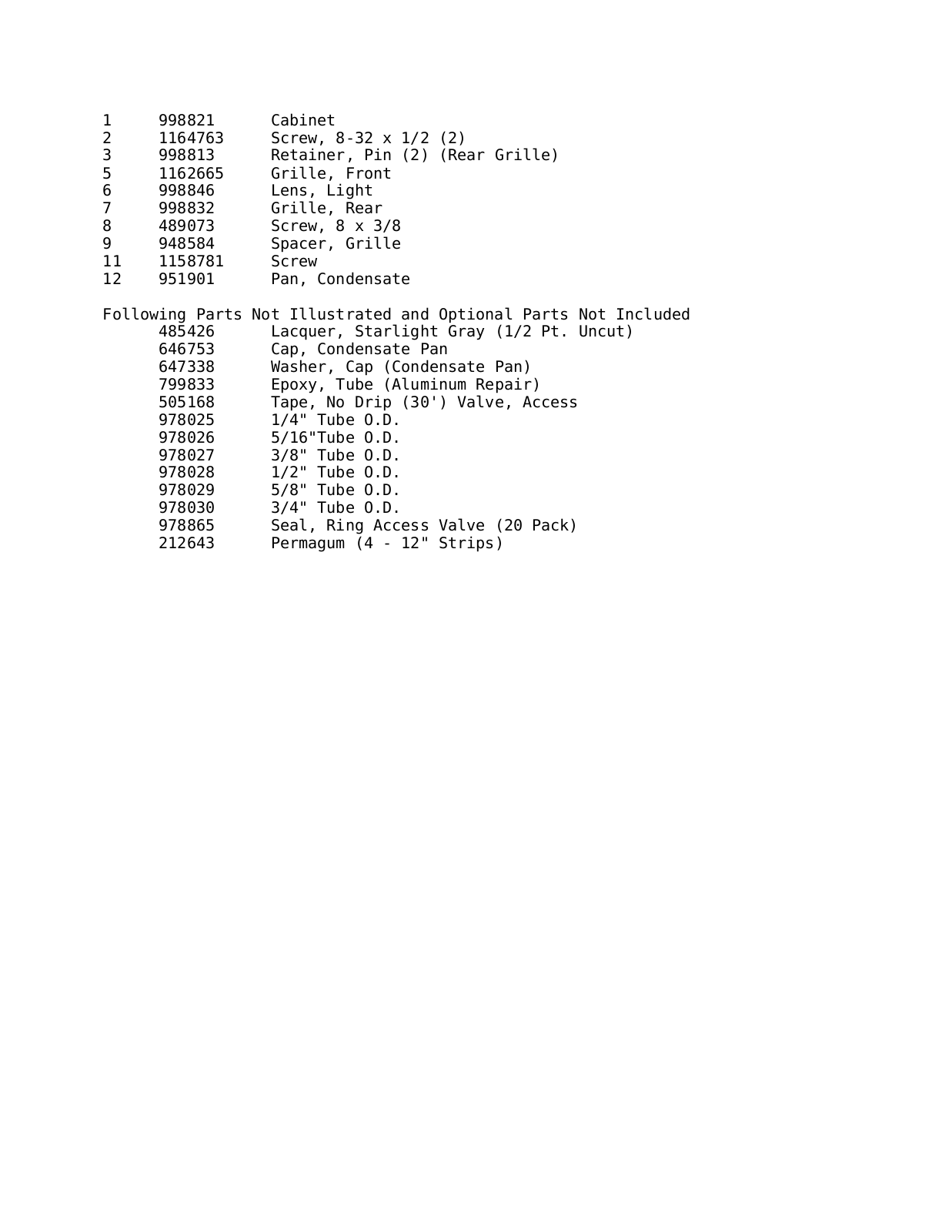

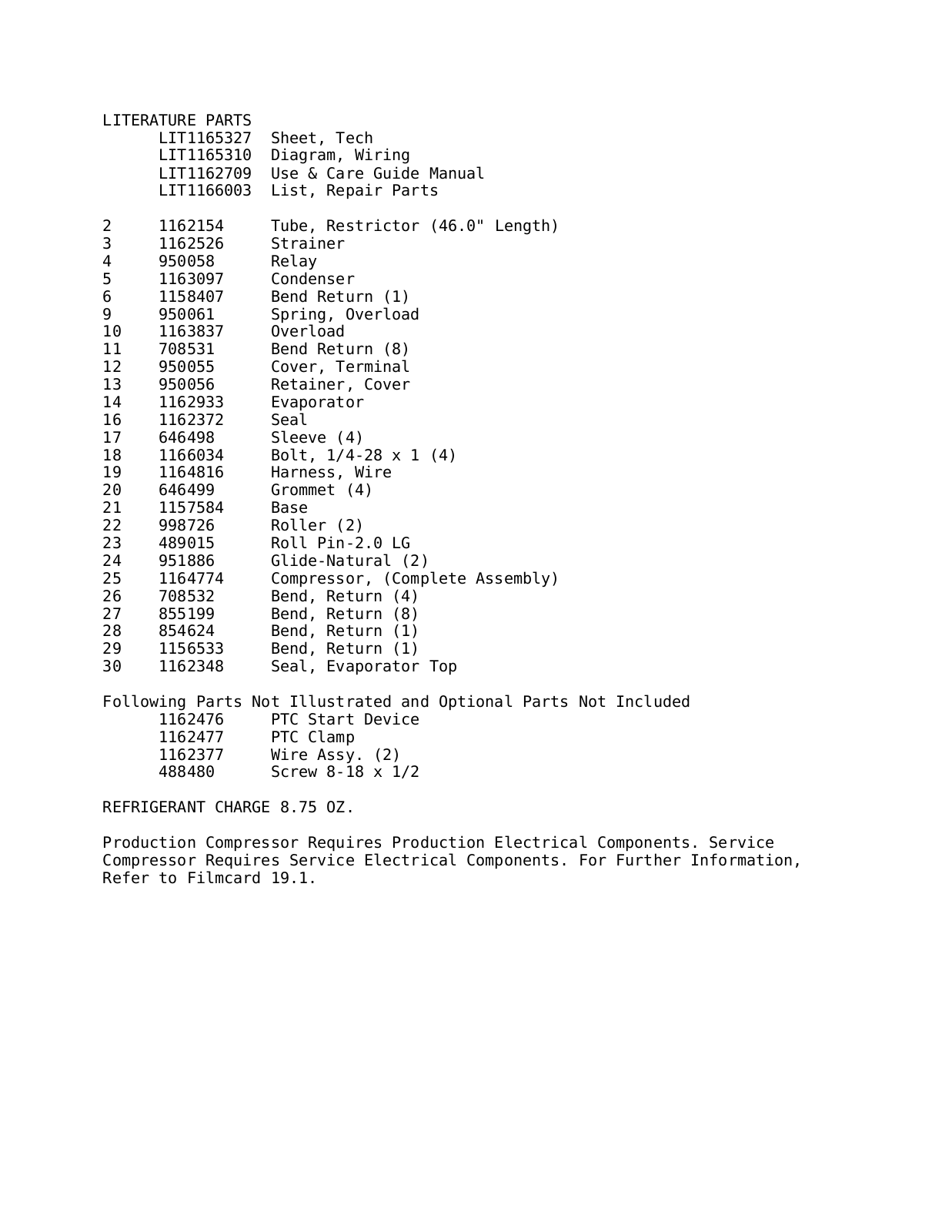

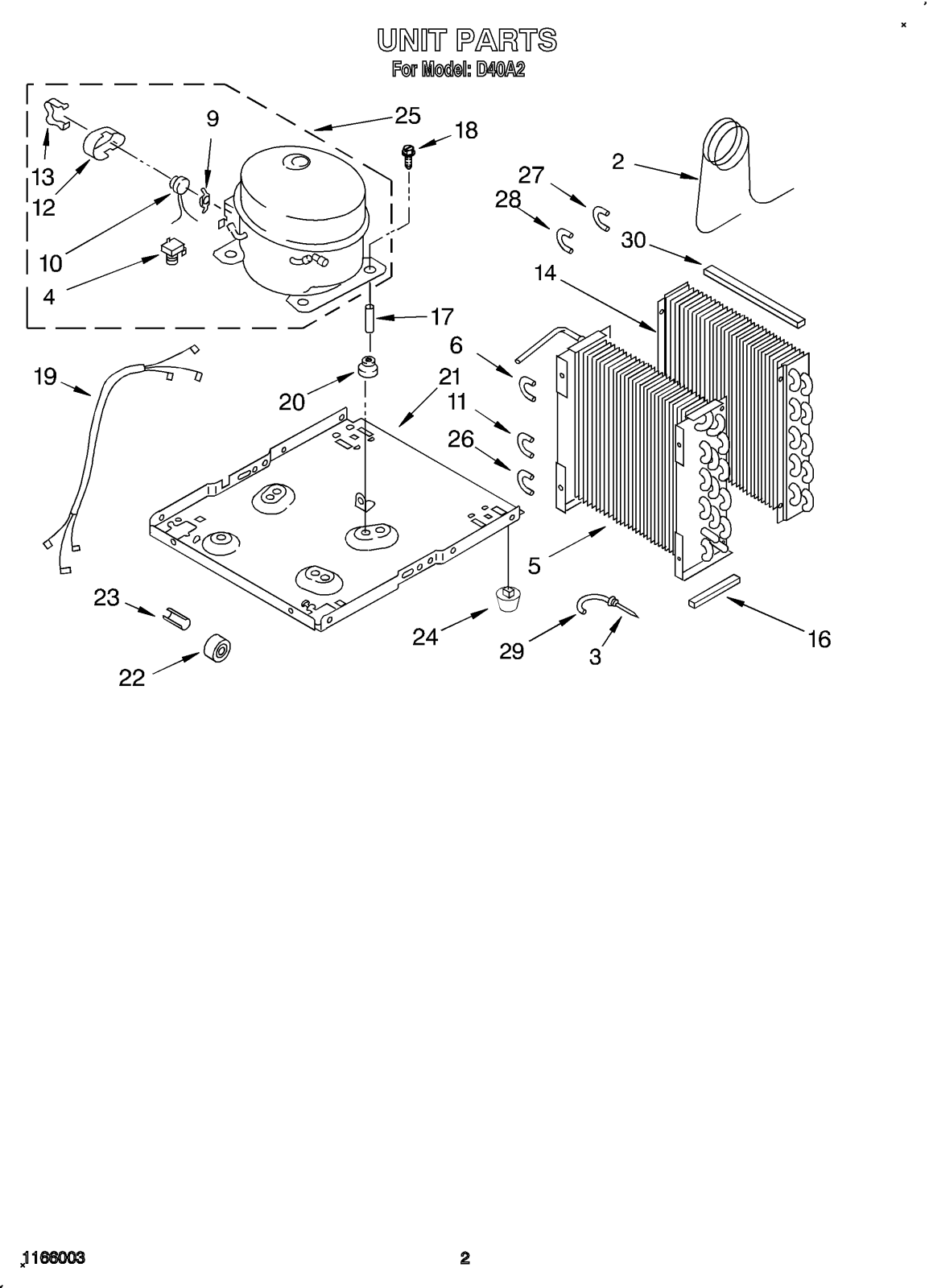

LITERATURE PARTS

LIT1165327 Sheet, Tech
LIT1165310 Diagram, Wiring
LIT1162709 Use & Care Guide Manual
LIT1166003 List, Repair Parts

2 1162154 Tube, Restrictor (46.0" Length)
3 1162526 Strainer
4 950058 Relay
5 1163097 Condenser
6 1158407 Bend Return (1)
9 950061 Spring, Overload
10 1163837 Overload
11 708531 Bend Return (8)
12 950055 Cover, Terminal
13 950056 Retainer, Cover
14 1162933 Evaporator
16 1162372 Seal
17 646498 Sleeve (4)
18 1166034 Bolt, 1/4-28 x 1 (4)
19 1164816 Harness, Wire
20 646499 Grommet (4)
21 1157584 Base
22 998726 Roller (2)
23 489015 Roll Pin-2.0 LG
24 951886 Glide-Natural (2)
25 1164774 Compressor, (Complete Assembly)
26 708532 Bend, Return (4)
27 855199 Bend, Return (8)
28 854624 Bend, Return (1)
29 1156533 Bend, Return (1)
30 1162348 Seal, Evaporator Top

Following Parts Not Illustrated and Optional Parts Not Included

1162476 PTC Start Device
1162477 PTC Clamp
1162377 Wire Assy. (2)
488480 Screw 8-18 x 1/2

REFRIGERANT CHARGE 8.75 OZ.

Production Compressor Requires Production Electrical Components. Service
Compressor Requires Service Electrical Components. For Further Information,
Refer to Filmcard 19.1.
