Wireless ADSL2+ Modem/Router

Model-nr. WRM42

User’s Manual

English version

INDEX

Chapter 1 ................................................................................................................................1

1.1 Introducing the Wireless ADSL2+ modem/router .................. 1

1.2 Features of the Wireless ADSL2+ modem/router ................. 3

Chapter 2 ................................................................................................................................6

2.1 Important note for using the Wireless ADSL2+ modem/router6

2.2 Package Contents ................................................................. 6

2.3 The Front LEDs ..................................................................... 7

2.4 The Rear Ports ...................................................................... 8

2.5 Cabling .................................................................................. 9

Chapter 3 ..............................................................................................................................10

3.1 Before Configuration............................................................ 10

3.2 Factory Default Settings ...................................................... 15

3.3 LAN and WAN Port Addresses ............................................ 16

3.4 Information from your ISP.................................................... 16

3.5 Configuring with your Web Browser .................................... 17

Chapter 4 ..............................................................................................................................18

4.1 Quick Start ........................................................................... 19

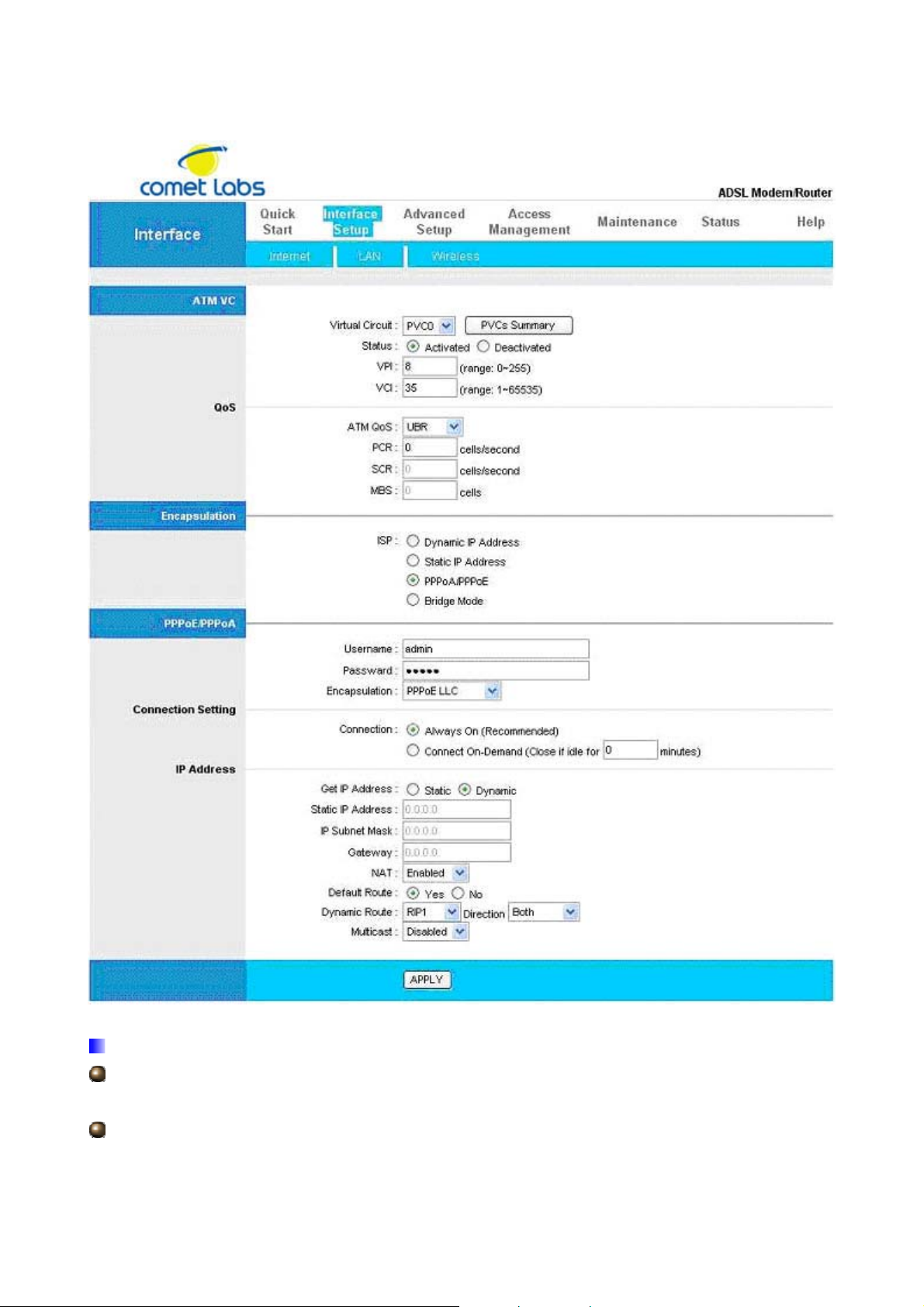

4.2 Interface Setup .................................................................... 24

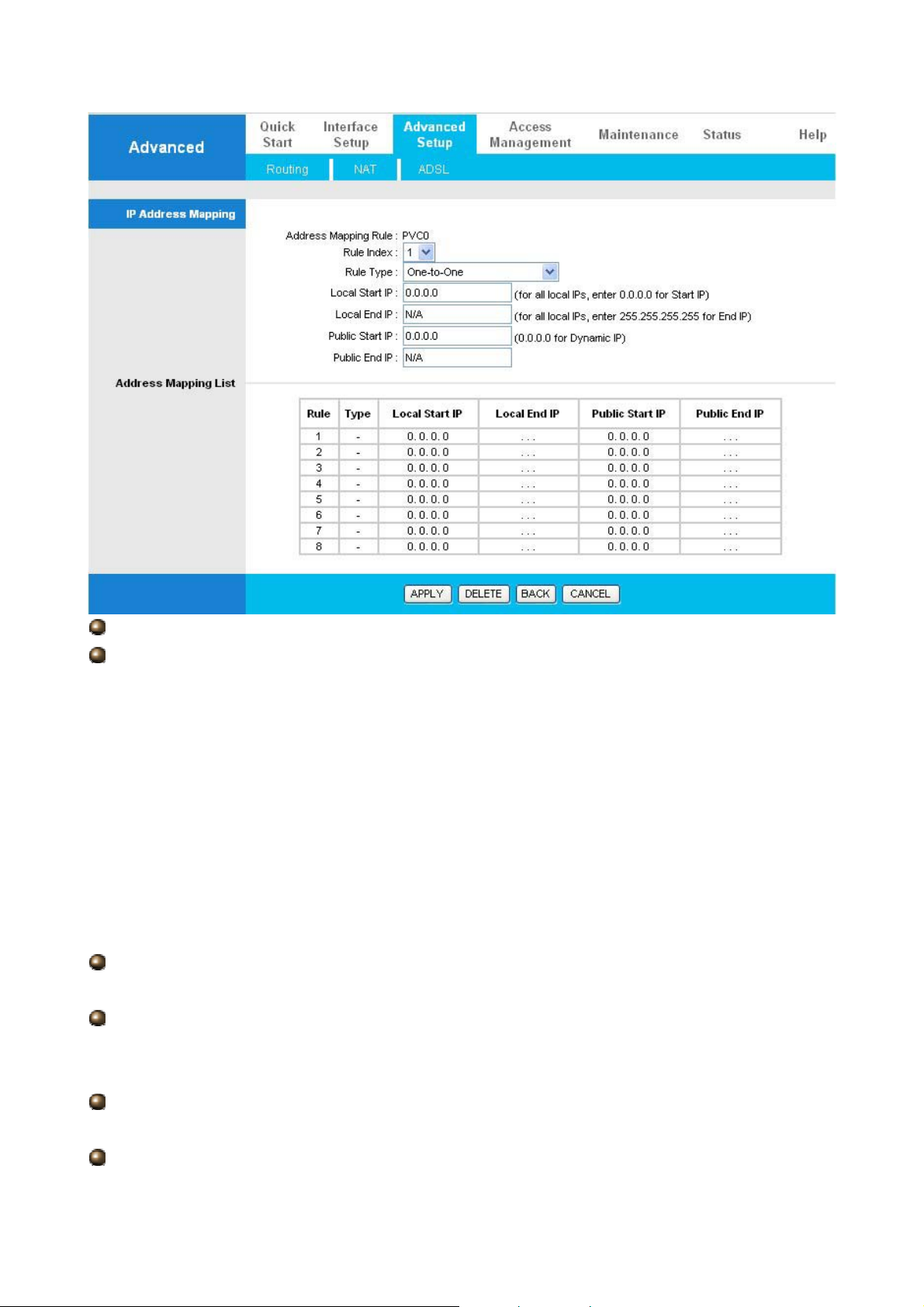

4.3 Advanced Setup................................................................... 33

4.4 Access Management ........................................................... 42

4.5 Maintenance ........................................................................ 48

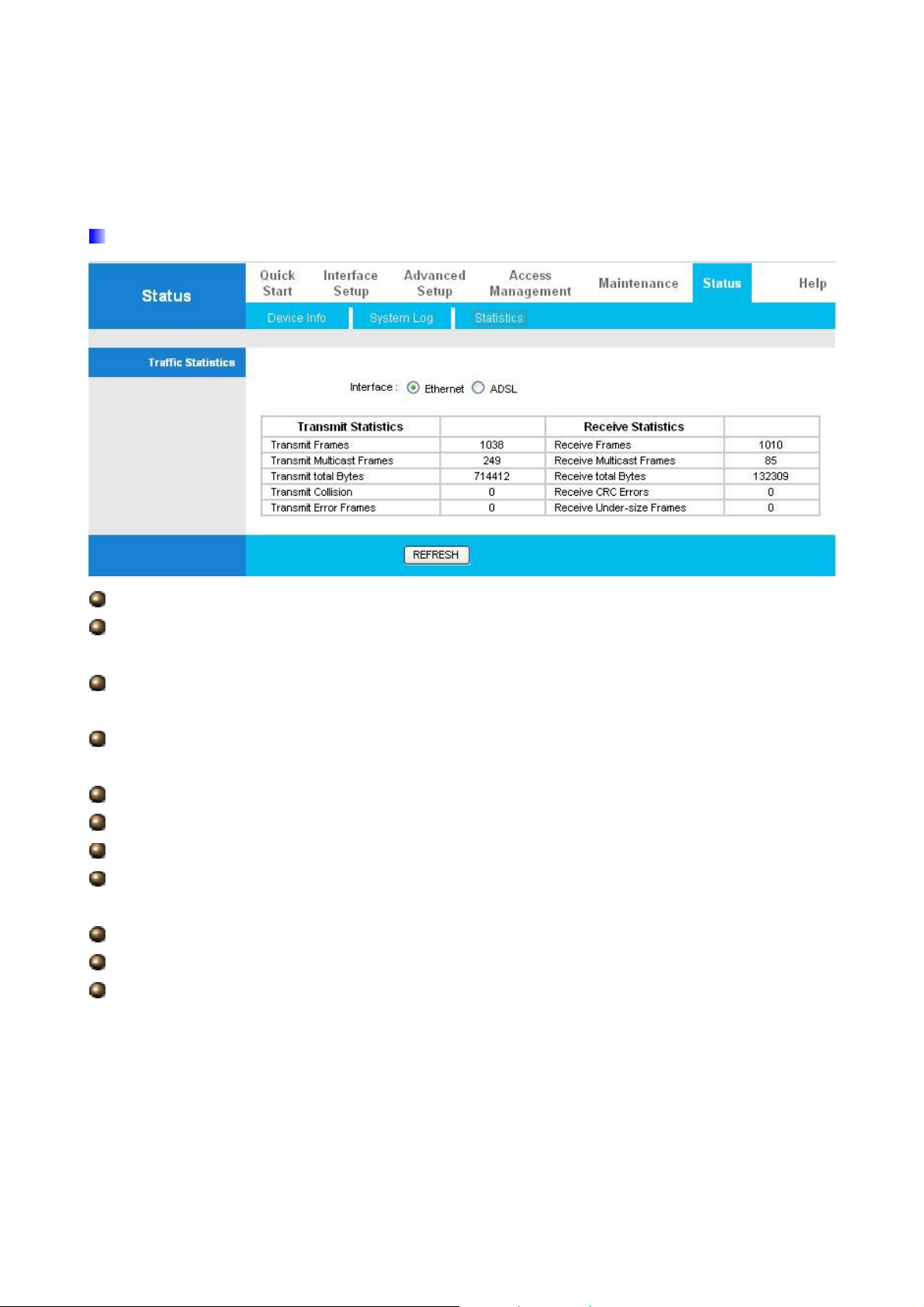

4.6 Status................................................................................... 53

Chapter 5 ..............................................................................................................................58

Chapter 1

Introduction the Wireless ADSL2+ modem/router

1.1 Introducing the Wireless ADSL2+ modem/router

Welcome to the Wireless ADSL2+ modem/router. Your router is an “all-in-one” unit,

combining an ADSL modem, ADSL router and Ethernet network switch, providing everything

you need to get the machines on your network connected to the Internet over your ADSL

broadband connection.

The router complies with ADSL2+ standards for worldwide deployment and supports

downstream rates of up to 24 Mbps and upstream rates of up to 1 Mbps. It is designed for

small office, home office and residential users, enabling even faster speed Internet

connections. User can enjoy ADSL services and broadband multimedia applications such as

interactive gaming, video streaming and real-time audio much easier and faster than ever

before.

The product supports PPPoA (RFC 2364 – PPP (Point-to-Point Protocol) over ATM

Adaptation Layer 5), RFC 1483 encapsulation over ATM (bridged or routed), PPP over

Ethernet (RFC 2516), and IPoA (RFC1577) to establish a connection with ISP. The product

also supports VC-based and LLC-based multiplexing.

It is the perfect solution to connect a small group of PCs to a high-speed broadband Internet

connection. Multi-users can have high-speed Internet access simultaneously.

This product also serves as an Internet firewall, protecting your network from being

accessed by outside users. Not only provide the natural firewall function (Network Address

Translation, NAT), it also provides rich firewall features to secure user’s network. All

incoming data packets are monitored and filtered. Besides, it can also be configured to

block internal users from accessing to the Internet.

The product provides two levels of security support. First, it masks LAN users’ IP addresses

which are invisible to outside users on the Internet, making it much more difficult for a hacker

to target a machine on your network. Secondly, it can block and redirect certain ports to limit

the services that outside users can access. For example, to ensure that games and other

Internet applications will run properly, user can open some specific ports for outside users to

access internal services in network.

DHCP services (Dynamic Host Control Protocol), client and server, allow multiple users to

get their IP addresses automatically on boot up from the product. Simply set local machines

as a DHCP client to accept a dynamically assigned IP address from DHCP server and

reboot. Each time local machine is powered up; the router will recognize it and assign an IP

address to instantly connect it to the

LAN.

For advanced users, Virtual Service function allows the product to provide limited visibility to

local machines with specific services for outside users. An ISP (Internet Service Providers)

provided IP address can be set to the product and then specific services can be rerouted to

specific computers on the local network. For instance, a dedicated web server can be

connected to the Internet via the product and then incoming requests for HTML that are

received by the product can be rerouted to the dedicated local web server, even though the

server now has a different IP address. In this example, the product is on the Internet and

vulnerable to attacks, but the server is protected.

Virtual Server can also be used to re-task services to multiple servers. For instance, the

product can be set to allow separated FTP, Web, and Multiplayer game servers to share the

same Internet-visible IP address while still protecting the servers and LAN users from

hackers.

1.2 Features of the Wireless ADSL2+ modem/router

ADSL Multi-Mode Standard

supports downstream rates of up to 24 Mbps and upstream rates of up to 1 Mbps. It

also supports rate management that allows ADSL subscribers to select an Internet

access speed suiting their needs and budgets. It is compliant with Multi-Mode standard

(ANSI T1.413, Issue 2; G.dmt(G.992.1); G.lite(G992.2)), G.hs (G994.1), G.dmt.bis

(G.992.3), G.dmt.bisplus (G.992.5)). The Annex A and B are supported in different H/W

platforms.

Wireless Ethernet 802.11g (Option with wireless router model)

With built-in 802.11g access point for extending the communication media to WLAN

while providing the WEP, WPA and WPA2 for securing your wireless networks.

Fast Ethernet Switch

A 10/100Mbps fast Ethernet switch is built in with automatic switching between MDI

and MDI-X for 10Base-T and 100Base-TX ports. An Ethernet straight or cross-over

cable can be used directly for auto detection.

Multi-Protocol to Establish a Connection

Supports PPPoA (RFC 2364 - PPP over ATM Adaptation Layer 5), RFC 1483

encapsulation over ATM (bridged or routed), PPP over Ethernet (RFC 2516) and IPoA

(RFC1577) to establish a connection with the ISP. The product also supports

VC-based and LLC-based multiplexing.

Quick Installation Wizard

Supports a WEB GUI page to install this device quickly. With this wizard, end users can

enter the information easily which they get from their ISP, then surf the Internet

immediately.

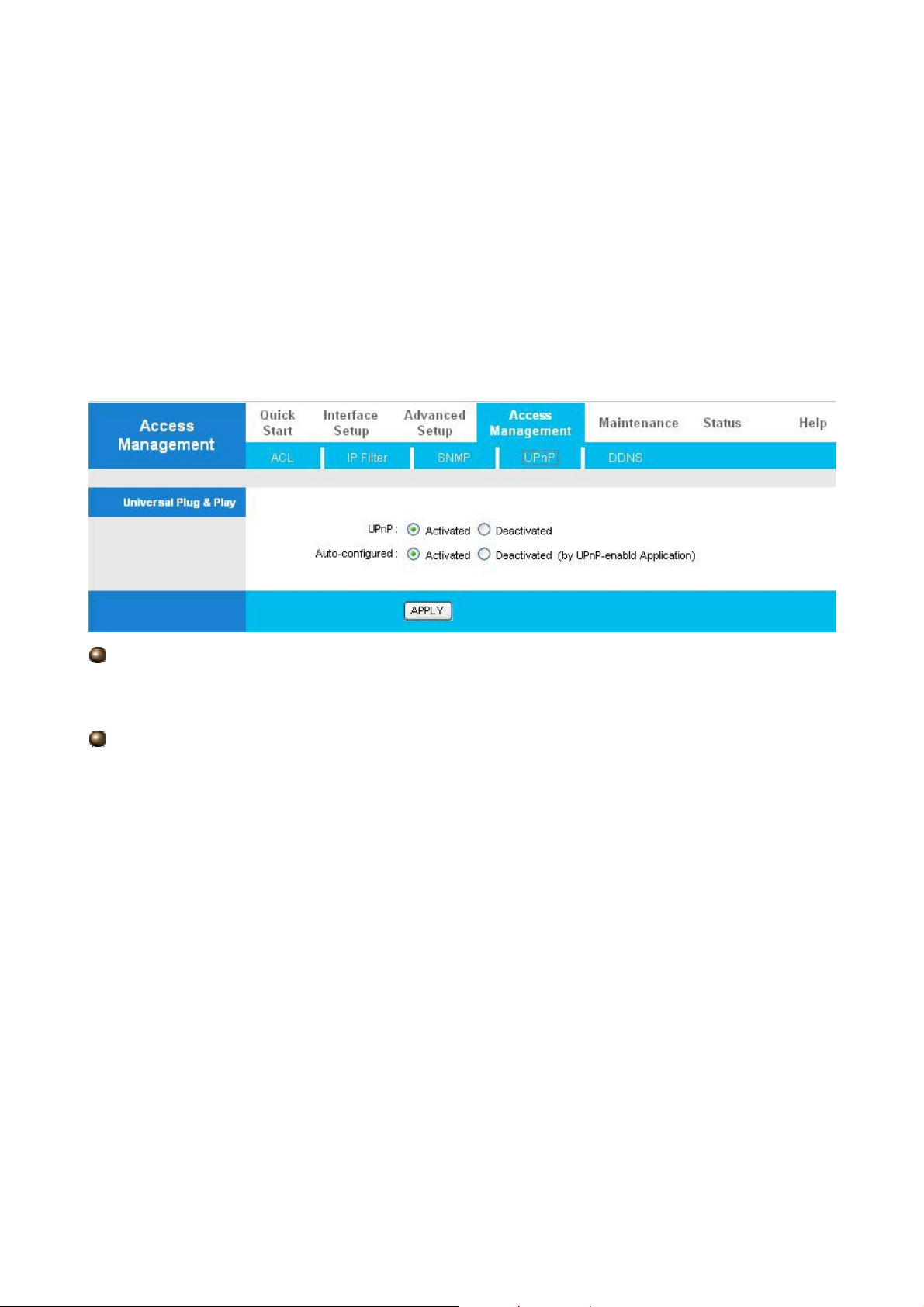

Universal Plug and Play (UPnP) and UPnP NAT Traversal

This protocol is used to enable simple and robust connectivity among stand-alone

devices and PCs from many different vendors. It makes network simple and

affordable for users. UPnP architecture leverages TCP/IP and the Web to enable

seamless proximity networking in addition to control and data transfer among

networked devices. With this feature enabled, users can now connect to Net meeting

or MSN Messenger seamlessly.

Network Address Translation (NAT)

Allows multi-users to access outside resources such as the Internet simultaneously

with one IP address/one Internet access account. Many application layer gateways

(ALG) are supported such as web browser, ICQ, FTP, Telnet, E-mail, News,

Net2phone, Ping, NetMeeting, IP phone and others.

Firewall

Supports simple firewall with NAT technology and provides option for blocking access

from Internet, like Telnet, FTP, TFTP, WEB, SNMP and IGMP.

Domain Name System (DNS) relay

Provides an easy way to map the domain name (a friendly name for users such as

www.yahoo.com) and IP address. When a local machine sets its DNS server with this

router’s IP address, every DNS conversion request packet from the PC to this router

will be forwarded to the real DNS in the outside network.

Dynamic Domain Name System (DDNS)

The Dynamic DNS service allows you to alias a dynamic IP address to a static

hostname. This dynamic IP address is the WAN IP address. For example, to use the

service, you must first apply for an account from a DDNS service like

http://www.dyndns.org/.

PPP over Ethernet (PPPoE): Provides embedded PPPoE client function to establish a

connection. Users can get greater access speed without changing the operation

concept, sharing the same ISP account and paying for one access account. No PPPoE

client software is required for local computer. The Automatic Reconnect and Disconnect

Timeout (Idle Timer) functions are provided, too.

Virtual Server: User can specify some services to be visible from outside users. The

router can detect incoming service request and forward it to the specific local computer

to handle it. For example, user can assign a PC in LAN acting as WEB server inside and

expose it to the outside network. Outside user can browse inside web server directly

while it is protected by NAT. A DMZ host setting is also provided to a local computer

exposed to the outside network, Internet.

Users can specify some services to be visible from outside users. The router can

detect incoming service requests and forward either a single port or a range of ports to

the specific local computer to handle it. For example, a user can assign a PC in the

LAN acting as a WEB server inside and expose it to the outside network. Outside users

can browse inside web servers directly while it is protected by NAT. A DMZ host setting

is also provided to a local computer exposed to the outside network, Internet.

Dynamic Host Configuration Protocol (DHCP) client and server

In the WAN site, the DHCP client can get an IP address from the Internet Service

Provider (ISP) automatically. In the LAN site, the DHCP server can allocate a range of

client IP addresses and distribute them including IP address, subnet mask as well as

DNS IP address to local computers. It provides an easy way to manage the local IP

network.

RIP1/2 Routing

Supports RIP1/2 routing protocol for routing capability.

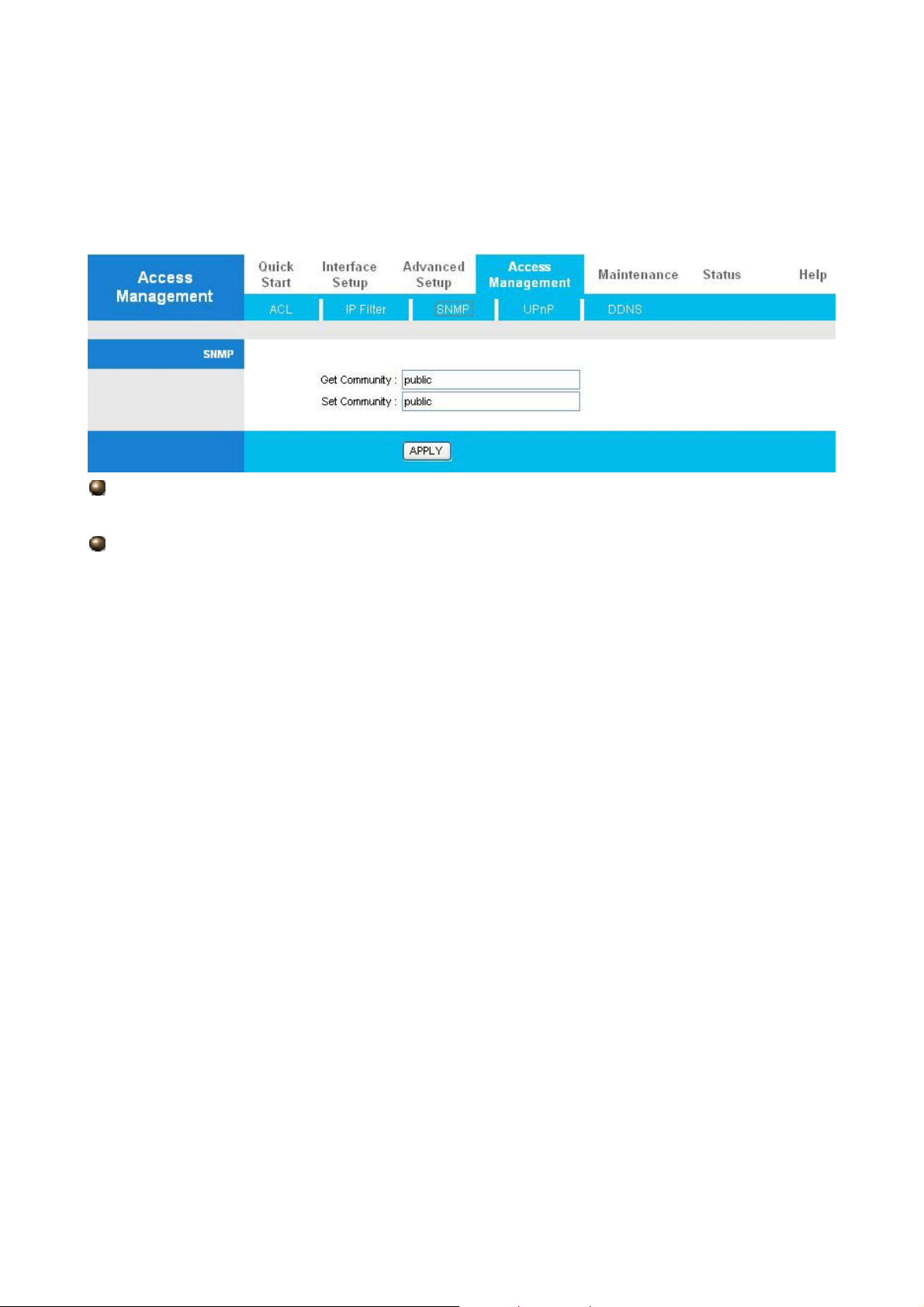

Simple Network Management Protocol (SNMP)

It is an easy way to remotely manage the router via SNMP.

Web based GUI

Supports web based GUI for configuration and management. It is user-friendly and

comes with on-line help. It also supports remote management capability for remote

users to configure and manage this product.

Firmware Upgradeable

Device can be upgraded to the latest firmware through the WEB based GUI.

Rich management interfaces

Supports flexible management interfaces with local console port, LAN port, and WAN

port. Users can use terminal applications through the console port to configure and

manage the device, or Telnet, WEB GUI, and SNMP through LAN or WAN ports to

configure and manage the device.

Chapter 2

Installing the Wireless ADSL2+ modem/router

2.1 Important note for using the Wireless ADSL2+ modem/router

Warning

9 Do not use the router in high humidity or high temperatures.

9 Do not use the same power source for the router as other

equipment.

9 Do not open or repair the case yourself. If the router is too

hot, turn off the power immediately and have it repaired at a

qualified service center.

9 Avoid using this product and all accessories outdoors.

9 Place the router on a stable surface.

9 Only use the power adapter that comes with the package. Using

a different voltage rating power adaptor may damage the router.

2.2 Package Contents

Wireless ADSL2+ modem/router

CD-ROM containing the online manual

RJ-11 ADSL/telephone Cable (1.8M)

Ethernet (CAT-5 LAN) Cable (2M Straight)

AC-AC power adapter (9V AC, 1A) ：for ADSL2+ Modem/Router

Quick Start Guide (105*150*mm)

2.3 The Front LEDs

Wireless ADSL2+ modem/router with 4-port Switch

802.11g Wireless ADSL2+ modem/router model

LED Meaning

1 PPP : Lit steady when there is a PPPoA / PPPoE connection.

2 ADSL:

LAN Port 1-4:

WLAN：

(Wireless model only)

Lit when successfully connected to an ADSL DSLAM

(“linesync”).

Lit when connected to an Ethernet device. Green for 100Mbps; Orange for 10Mbps. Blinking when data is Transmitted / Received.

Lit green when the wireless connection is established. Flashes when sending/receiving data.

5 SYS : Lit when the system is ready.

6 PWR : Lit when power is ON.

2.4 The Rear Ports

Wireless ADSL2+ modem/router with 4-port Switch

802.11g Wireless ADSL2+ modem/router model

Port Meaning

2 RESET

PWR

LAN

ADSL

(LINE)

Power Switch

Connect the supplied power adapter to this jack.

After the device is powered on, press it to reset the device or restore to factory default settings.

0-3 seconds: reset the device 6 seconds above: restore to factory default settings (this is used

when you can not login to the router, e.g. forgot the password)

Connect a UTP Ethernet cable (Cat-5 or Cat-5e) to one of the four LAN ports when connecting to a PC or an office/home network of 10Mbps or 100Mbps.

Connect the supplied RJ-11 (“telephone”) cable to this port when connecting to the ADSL/telephone network.

Power ON/OFF switch

2.5 Cabling

One of the most common causes of problems is bad cabling or ADSL line(s). Make sure that

all connected devices are turned on. On the front of the product is a bank of LEDs. Verify that

the LAN Link and ADSL line LEDs are lit. If they are not, verify that you are using the proper

cables.

Ensure that all other devices connected to the same telephone line as your router (e.g.

telephones, fax machines, analogue modems) have a line filter connected between them

and the wall socket (unless you are using a Central Splitter or Central Filter installed by a

qualified and licensed electrician), and ensure that all line filters are correctly installed and

the right way around. Missing line filters or line filters installed the wrong way around can

cause problems with your ADSL connection, including causing frequent disconnections

Chapter 3

Basic Installation

The router can be configured with your web browser. A web browser is included as a

standard application in the following operating systems: Windows 98/NT/2000/XP/Me, MAC,

Linux, etc. The product provides a very easy and user-friendly interface for configuration.

3.1 Before Configuration

PCs must have an Ethernet interface installed properly and connected to the router either

directly or through an external repeater hub, PCs must have TCP/IP installed and configured

to obtain an IP address through a DHCP server or a fixed IP address that must be in the

same subnet as the router. The default IP address of the router is 192.168.0.1 and the

subnet mask is 255.255.255.0 (i.e. any attached PC must be in the same subnet, and have

an IP address in the range of 192.168.0.2 to 192.168.0.254). The best and easiest way is to

configure the PC to get an IP address automatically from the router using DHCP. If you

encounter any problems accessing the router’s web interface it may also be advisable to

uninstall any kind of software firewall on your PCs, as they can cause problems accessing

the 192.168.0.1 IP address of the router. Users should make their own decisions on how to

best protect their network.

Please follow the steps below for your PC’s network environment installation. First of all,

please check your PC’s network components. The TCP/IP protocol stack and Ethernet

network adapter must be installed. If not, please refer to your Windows-related or other

operating system manuals.

Any TCP/IP capable workstation can be used to communicate with or through the NRM42 model. To configure other types of workstations, please consult the manufacturer’s documentation.

Configuring PC in Windows XP

1. Go to Start / Control Panel (in Classic View). In the Control Panel, double-click on Network Connections

2. Double-click Local Area Connection.

3. In the Local Area Connection Status window, click Properties.

4. Select Internet Protocol (TCP/IP) and click Properties.

5. Select the Obtain an IP address automatically and the Obtain DNS server address automatically radio

buttons.

6. Click OK to finish the configuration.

Configuring PC in Windows 2000

1. Go to Start / Settings / Control Panel.

In the Control Panel, double-click on

Network and Dial-up Connections.

2. Double-click Local Area Connection.

3. In the Local Area Connection Status window click Properties.

4. Select Internet Protocol (TCP/IP) and click Properties.

5. Select the Obtain an IP address automatically and the Obtain DNS server address automatically radio

buttons.

6. Click OK to finish the configuration.

Configuring PC in Windows 98/Me

1.Go to Start / Settings / Control Panel.

In the Control Panel, double-click on

Network and choose the Configuration tab.

2.Select TCP/IP ->NE2000 Compatible,

or the name of your Network Interface Card (NIC) in your PC.

3.Select the Obtain an IP address automatically radio button.

4.Then select the DNS Configuration tab.

5.Select the Disable DNS radio button and click OK to finish the configuration.

Configuring PC in Windows NT4.0

1. Go to Start / Settings / Control Panel.

In the Control Panel, double-click on

Network and choose the Protocols tab.

2.Select TCP/IP Protocol and click Properties.

3.Select the Obtain an IP address from a DHCP server radio button and click OK.

3.2 Factory Default Settings

Before configuring your, you need to know the following default settings.

Web Interface:

Username: admin

Password: password

LAN Device IP Settings:

IP Address: 192.168.0.1

Subnet Mask: 255.255.255.0

ISP setting in WAN site:

PPPoE

DHCP server:

DHCP server is enabled.

Start IP Address: 192.168.0.100

IP pool counts: 100

3.2.1 Username and Password

The default username and password are “admin” and “password” respectively.

Attention

If you ever forget the password to log in, you may press the RESET

button up to 6 seconds to restore the factory default settings.

3.3 LAN and WAN Port Addresses

The parameters of LAN and WAN ports are pre-set in the factory. The default values are

shown below.

LAN Port WAN Port

IP address

192.168.0.1

The PPPoE function is enabled to

Subnet Mask

DHCP server function

255.255.255.0

Enabled

automatically get the WAN port configuration from the

IP addresses for distribution to PCs

100 IP addresses continuing from

192.168.0.100 through

192.168.0.199

ISP, but you have to set the username and password first.

3.4 Information from your ISP

Before configuring this device, you have to check with your ISP (Internet Service Provider)

what kind of service is provided such as PPPoE, PPPoA, RFC1483, or IPoA.

Gather the information as illustrated in the following table and keep it for reference.

PPPoE VPI/VCI, VC-based/LLC-based multiplexing, Username, Password,

Service Name, and Domain Name System (DNS) IP address (it can

be automatically assigned by your ISP when you connect or be set

manually).

PPPoA VPI/VCI, VC-based/LLC-based multiplexing, Username, Password,

and Domain Name System (DNS) IP address (it can be

automatically assigned by your ISP when you connect or be set

manually).

RFC1483 Bridged VPI/VCI, VC-based/LLC-based multiplexing to use Bridged Mode.

RFC1483 Routed VPI/VCI, VC-based/LLC-based multiplexing, IP address, Subnet

mask, Gateway address, and Domain Name System (DNS) IP

address (it is fixed IP address).

3.5 Configuring with your Web Browser

Open your web browser, enter the IP address of your router, which by default is 192.168.0.1,

and click “Go”, a user name and password window prompt will appear. The default

username and password are “admin” and “password”.

Congratulation! You are now successfully logon to the Wireless ADSL2+

modem/router!

Chapter 4

Configuration

At the configuration homepage, the left navigation pane where bookmarks are provided links

you directly to the desired setup page, including:

Quick Start (wizard setup)

Interface Setup (Internet, LAN, Wireless)

Advanced Setup (Routing, NAT, ADSL)

Access Management (ACL, IP Filter, SNMP, UPnP, DDNS)

Maintenance (Administration, Time Zone, Firmware, SysRestart, Diagnostics)

Status

Please see the relevant sections of this manual for detailed instructions on how to configure

your router.

4.1 Quick Start

For detailed instructions on configuring WAN settings, see the Interface Setup section of

this manual.

The information you need for the Quick Start to get you online are your login (often in the

form of username@ispname), your password, and the encapsulation type.

Your ISP can supply all the details you need.

The following is the Quick Start step; please follow according to the instruction step by step.

Step1. Set your new password.

Step2: Choose your time zone

Step3: Set your Internet connection

Step4: Restart your ADSL Router

4.2 Interface Setup

Click this item to access the following sub-items that configure the ADSL router: Internet,

LAN, and Wireless

These functions are described in the following sections.

4.2.1 Internet

ATM VC

Virtual Circuit: VPI (Virtual Path Identifier) and VCI (Virtual Channel Identifier) define a

virtual circuit.

VPI: The valid range for the VPI is 0 to 255. Enter the VPI assigned to you. This field may

already be configured.

VCI: The valid range for the VCI is 32 to 65535. Enter the VCI assigned to you. This field

may already be configured.

ATM QoS: Select CBR to specify fixed (always-on) bandwidth for voice or data traffic.

Select UBR for applications that are non-time sensitive, such as e-mail. Select VBR for burst

traffic and bandwidth sharing with other applications.

PCR: Divide the DSL line rate (bps) by 424 (the size of an ATM cell) to find the Peak Cell

Rate (PCR). This is the maximum rate at which the sender can send cells.

SCR: The Sustain Cell Rate (SCR) sets the average cell rate (long-term) that can be

transmitted.

MBS: Maximum Burst Size (MBS) refers to the maximum number of cells that can be sent

at the peak rate. Type the MBS, which is less than 65535

Encapsulation:

ISP: Select the encapsulation type your ISP uses from the Encapsulation list.

Choices vary depending on what you select in the Mode field.

If you select Bridge in the Mode field, select 1483 Bridged IP.

If you select Routing in the Mode field, select PPPoA, 1483 Bridged IP, 1483 Router IP or

PPPoE.

PPPoE/PPPoA

User Name: Enter the user name exactly as your ISP assigned.

Password: Enter the password associated with the user name above.

Encapsulation: select Bridge in the Mode field; select either PPPoA or RFC 1483.

select Routing in the Mode field, select PPPoA, RFC 1483, ENET ENCAP or PPPoE.

Multiplex: Select the method of multiplexing used by your ISP. Choices are VC or LLC.

Connection: The schedule rule(s) have priority over your Connection settings.

Always on: Select Always on Connection when you want your connection up all the time.

Connect on Demand: Select Connect on Demand when you don't want the connection up

all the time and specify an idle time-out in the Max Idle Timeout field

Get IP Address: Choose Static or Dynamic

Static IP Address: Enter the IP address of ADSL Router in dotted decimal notation, for

example, 192.168.1.254 (factory default).

IP Subnet Mask: The default is 255.0.0.0. User can change it to other such as

255.255.255.0.Type the subnet mask assigned to you by your ISP (if given).

Gateway: You must specify a gateway IP address (supplied by your ISP) when you use

1483 Bridged IP in the Encapsulation field in the previous screen.

Network Address Translation: Select None, Many to One or Many to Many from the

drop-sown list box. Refer to the NAT chapter for more details.

Dynamic Route:

RIP Version: Select the RIP version from RIP-1, RIP-2B and RIP-2M.

RIP Direction: Select the RIP direction from None, Both, In Only and Out Only.

Multicast: IGMP (Internet Group Multicast Protocol) is a network-layer protocol used to

establish membership in a Multicast group - it is not used to carry user data. The router

supports both IGMP version 1 (IGMP-v1) and IGMP-v2. Select None to disable it

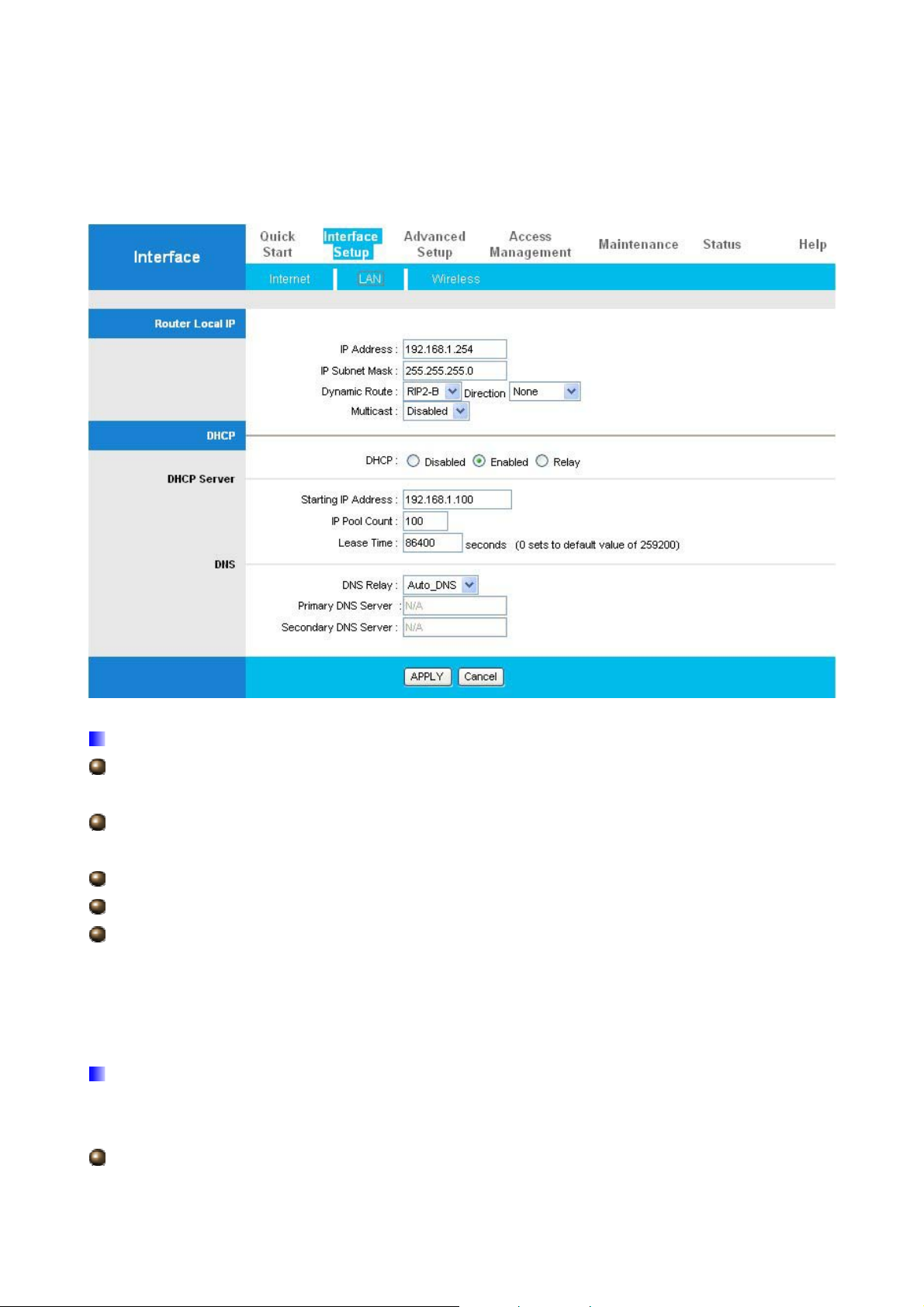

4.2.2 LAN

A Local Area Network (LAN) is a shared communication system to which many computers

are attached and is limited to the immediate area, usually the same building or floor of a

building.

Router Local IP

IP Address: Enter the IP address of ADSL Router in dotted decimal notation, for example,

192.168.0.1 (factory default).

IP Subnet Mask: The default is 255.255.255.0. User can change it to other such as

255.0.0.0.Type the subnet mask assigned to you by your ISP (if given).

Dynamic Route: Select the RIP version from RIP-1, RIP-2B and RIP-2M.

RIP Direction: Select the RIP direction from None, Both, In Only and Out Only.

Multicast: IGMP (Internet Group Multicast Protocol) is a network-layer protocol used to

establish membership in a Multicast group - it is not used to carry user data. The router

supports both IGMP version 1 (IGMP-v1) and IGMP-v2. Select None to disable it

DHCP

DHCP (Dynamic Host Configuration Protocol, RFC 2131 and RFC 2132) allows individual

clients to obtain TCP/IP configuration at start-up from a server.

DHCP:

If set to Enable, your router can assign IP addresses, an IP default gateway and DNS

servers to Windows 95, Windows NT and other systems that support the DHCP client.

If set to disabled, the DHCP server will be disabled.

If set to Relay, the router acts as a surrogate DHCP server and relays DHCP requests and

responses between the remote server and the clients. Enter the IP address of the actual,

remote DHCP server in the Remote DHCP Server field in this case.

When DHCP is used, the following items need to be set.

Starting IP Address: This field specifies the first of the contiguous addresses in the IP

address pool.

IP Pool Count: This field specifies the size or count of the IP address pool.

Lease Time: The current lease time of client.

Primary DNS Server: Enter the IP addresses of the DNS servers. The DNS servers are

passed to the DHCP clients along with the IP address and the subnet mask.

Secondary DNS Server: Enter the IP addresses of the DNS servers. The DNS servers

are passed to the DHCP clients along with the IP address and the subnet mask.

4.2.3 for Wireless ADSL2+ Modem/router model only.

This section introduces the wireless LAN and some basic configurations. Wireless LANs can

be as simple as two computers with wireless LAN cards communicating in a peer-to-peer

network or as complex as a number of computers with wireless LAN cards communicating

through access points which bridge network traffic to the wired LAN.

Wireless LAN

Access Point: Default setting is set to Activated. If you do not have any wireless, both

802.11g and 802.11b, device in your network, select De-actived.

SSID: The SSID is the unique name of a wireless access point (AP) to be distinguished

from another. For security propose, change the value Default to a unique ID name to the AP

which is already built-in to the router’s wireless interface. It is case sensitive and must not

excess 32 characters. Make sure your wireless clients have exactly the SSID as the device,

in order to get connected to your network.

Broadcast SSID: Select No to hide the SSID in so a station cannot obtain the SSID

through passive scanning. Select Yes to make the SSID visible so a station can obtain the

SSID through passive scanning.

Channel ID: The range of radio frequencies used by IEEE 802.11b/g wireless devices is

called a channel. Select a channel from the drop-down list box.

Authentication Type: To prevent unauthorized wireless stations from accessing data

transmitted over the network, the router offers highly secure data encryption, known as WEP

or WPA. If you require high security for transmissions, there are two alternatives to select

from: 64-bit WEP and 128-bit WEP. WEP 128 will offer increased security over WEP 64.

You can disable or enable with WPA or WEP for protecting wireless network. The default

type of wireless is disabled and to allow all wireless computers to communicate with the

access points without any data encryption

Advanced Setting

Beacon interval: The Beacon Interval value indicates the frequency interval of the

beacon. Enter a value between 20 and 1000. A beacon is a packet broadcast by the Router

to synchronize the wireless network.

RTS/CTS Threshold: The RTS (Request To Send) threshold (number of bytes) for

enabling RTS/CTS handshake. Data with its frame size larger than this value will perform

the RTS/CTS handshake. Entering a value above the maximum MSDU (MAC service data

unit) size will turn off the RTS/CTS handshake. Setting this attribute to zero turns on the

RTS/CTS handshake Enter a value between 1500 and 2347..

Fragmentation Threshold: The threshold (number of bytes) for the fragmentation

boundary for directed messages. It is the maximum data fragment size that can be sent.

Enter a value between 256 and 2346.

DMIT: This value, between 1 and 255, indicates the interval of the Delivery Traffic

Indication Message (DTIM).

802.11b/g: The default setting is 802.11b+g (Mixed mode). If you do not know or have

both 11g and 11b devices in your network, then keep the default in mixed mode. From the

drop-down manual, you can select 802.11g if you have only 11g card. If you have only 11b

card, then select 802.11b.

Wireless MAC Address Filter

The MAC filter screen allows you to configure the router to give exclusive access to up to 32

devices (Allow Association) or exclude up to 32 devices from accessing the router (Deny

Association). Every Ethernet device has a unique MAC (Media Access Control) address.

The MAC address is assigned at the factory and consists of six pairs of hexadecimal

characters, for example, 00:AA:BB:00:00:02. You need to know the MAC address of the

devices to configure this screen.

To change your router’s MAC filter settings, click Wireless LAN, MAC Filter to open the MAC

Filter screen. The screen appears as shown.

Active: Select Actived to enable MAC address filtering.

Action: Define the filter action for the list of MAC addresses in the MAC address filter

table.

Select Deny Association to block access to the router, MAC addresses not listed will be

allowed to access the router. Select Allow Association to permit access to the router, MAC

addresses not listed will be denied access to the router.

MAC Address: Enter the MAC addresses (in XX:XX:XX:XX:XX:XX format) of the

wireless station that are allowed or denied access to the router in these address fields.

WEP

Key 1 to Key 4: Enter the key to encrypt wireless data. To allow encrypted data

transmission, the WEP Encryption Key values on all wireless stations must be the same as

the router. There are four keys for your selection. The input format is in HEX style, 5 and 13

HEX codes are required for 64-bitWEP and 128-bitWEP respectively.

If you chose WEP 64-bits, then enter any 5 ASCII characters or 10 hexadecimal characters

("0-9", "A-F").

If you chose WEP 128-bits, then enter 13 ASCII characters or 26 hexadecimal characters

("0-9", "A-F").

You must configure all four keys, but only one key can be activated at any one time. The

default key is key 1.

WPA-PSK

Encryption: TKIP (Temporal Key Integrity Protocol) utilizes a stronger encryption

method and incorporates Message Integrity Code (MIC) to provide protection against

hackers.

Pre-Shared key: The key for network authentication. The input format is in character

style and key size should be in the range between 8 and 64 characters.

4.3 Advanced Setup

4.3.1 Routing

If you have another router with a LAN-to-LAN connection, you may create a static routing on

the router that is the gateway to Internet.

#: Item number

Dest IP: IP address of the destination network

Mask: The destination mask address.

Gateway IP: IP address of the gateway or existing interface that this route uses.

Metric: It represents the cost of transmission for routing purposes. The number need not

be precise, but it must be between 1 and 15.

Device: Media/channel selected to append the route.

Use: Counter for access times.

Edit: Edit the route; this icon is not shown for system default route.

Drop: Drop the route; this icon is not shown for system default route.

ADD Route

Destination IP Address：This is the destination subnet IP address.

IP Subnet Mask：It is the destination IP addresses based on above destination subnet IP

Gateway IP Address：This is the gateway IP address to which packets are to be

forwarded.

Metric：It represents the cost of transmission for routing purposes. The number need not

be precise, but it must be between 1 and 15.

Announced in RIP: This parameter determines if the Prestige will include the route to the

remote node in its RIP broadcasts. Set “Yes”, it is kept private and is not included in RIP

broadcasts. Set “No”, the remote node will be propagated to other hosts through RIP

broadcasts.

4.3.2 NAT

The NAT (Network Address Translation - NAT, RFC 1631) is the translation of the IP address

of a host in a packet. The default setting is Dynamic NAPT. It provides dynamic Network

Address Translation capability between LAN and multiple WAN connections, and the LAN

traffic is routed to appropriate WAN connections based on the destination IP addresses and

Route Table. This eliminates the need for the static NAT session configuration between

multiple LAN clients and multiple WAN connections.

Virtual Circuit: VPI (Virtual Path Identifier) and VCI (Virtual Channel Identifier) define a

virtual circuit. There are eight groups of PVC can be defined and used.

Number of IPs: User can select Single or Multiple.

DMZ

The DMZ Host is a local computer exposed to the Internet. When setting a particular internal

IP address as the DMZ Host, all incoming packets will be checked by the Firewall and NAT

algorithms then passed to the DMZ host, when a packet received does not use a port

number used by any other Virtual Server entries.

DMZ: ~ Disabled: As set in default setting, it disables the DMZ function.

~ Enabled: It activates your DMZ function.

DMZ Host Address: Give a static IP address to the DMZ Host when Enabled radio

button is checked. Be aware that this IP will be exposed to the WAN/Internet.

Select the Apply button to apply your changes.

Virtual Server

In TCP/IP and UDP networks a port is a 16-bit number used to identify which application

program (usually a server) incoming connections should be delivered to. Some ports have

numbers that are pre-assigned to them by the IANA (the Internet Assigned Numbers

Authority), and these are referred to as “well-known ports”. Servers follow the well-known

port assignments so clients can locate them.

If you wish to run a server on your network that can be accessed from the WAN (i.e. from

other machines on the Internet that are outside your local network), or any application that

can accept incoming connections (e.g. Peer-to-peer/P2P software such as instant

messaging applications and P2P file-sharing applications) and are using NAT (Network

Address Translation), then you will usually need to configure your router to forward these

incoming connection attempts using specific ports to the PC on your network running the

application. You will also need to use port forwarding if you want to host an online game

server.

The reason for this is that when using NAT, your publicly accessible IP address will be used

by and point to your router, which then needs to deliver all traffic to the private IP addresses

used by your PCs. Please see the WAN configuration section of this manual for more

information on NAT.

The device can be configured as a virtual server so that remote users accessing services

such as Web or FTP services via the public (WAN) IP address can be automatically

redirected to local servers in the LAN network. Depending on the requested service

(TCP/UDP port number), the device redirects the external service request to the appropriate

server within the LAN network.

Rule Index: Choose the rule number.

Start Port Number: Enter a port number in this field.

End Port Number: Enter a port number in this field.

Local IP Address: Enter your server IP address in this field.

IP Address Mapping

Rule Index: Choose the rule number.

Rule Type:

One-to-one: This is the mode maps one local IP address to one global IP address. Note that

port numbers do not change for the One-to-one NAT mapping type.

Many-to-One: This is the mode maps multiple local IP addresses to one global IP address.

This is equivalent to Many to One (i.e., PAT, port address translation).

Many-to-Many Overload: This is mode maps multiple local IP addresses to shared global IP

addresses.

Many-to-Many No Overload: This is the mode maps each local IP address to unique global

IP addresses.

Server: This type allows you to specify inside servers of different services behind the NAT to

be accessible to the outside world.

Local Start IP: This is the starting Inside Local IP Address (ILA). Local IP addresses are

N/A for Server port mapping.

Local End IP: This is the end Inside Local IP Address (ILA). If your rule is for all local IP

addresses, then enter 0.0.0.0 as the Local Start IP address and 255.255.255.255 as the

Local End IP address. This field is N/A for One-to-one and Server mapping types.

Public Start IP: This is the starting Inside Public IP Address. Enter 0.0.0.0 here if you

have a dynamic IP address from your ISP.

Public End IP: This is the ending Inside Public IP Address. This field is N/A for

One-to-one, Many-to-One and Server mapping types.

Using port forwarding does have security implications, as outside users

will be able to connect to PCs on your network. For this reason you are

advised to use specific Virtual Server entries just for the ports your

application requires, instead of using DMZ. As doing so will result in all

connections from the WAN attempt to access to your public IP of the

DMZ PC specified.

If you have disabled the NAT option in the WAN-ISP section, the

Virtual Server function will hence be invalid.

If the DHCP server option is enabled, you have to be very careful in

assigning the IP addresses of the virtual servers in order to avoid

Attention

conflicts. The easiest way of configuring Virtual Servers is to manually

assign static IP address to each virtual server PC, with an address that

does not fall into the range of IP addresses that are to be issued by the

DHCP server. You can configure the virtual server IP address

manually, but it must still be in the same subnet as the router.

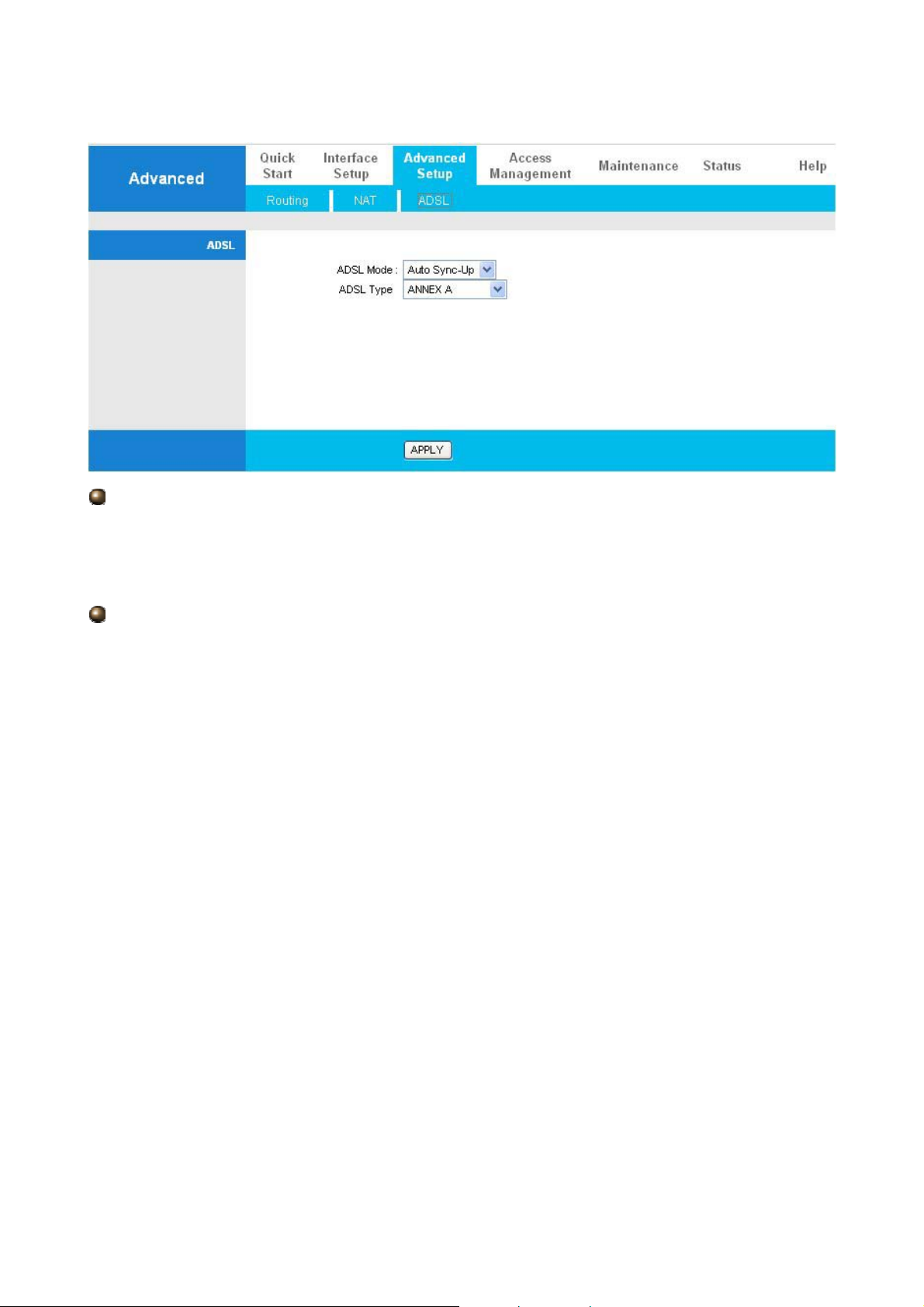

4.3.3 ADSL

ADSL Mode: The default setting is Auto Sync-UP. This mode will automatically detect

your ADSL, ADSL2+, ADSL2, G.dmt, G.lite, and T1.413. But in some area, multimode

cannot detect the ADSL line code well. If it is the case, please adjust the ADSL line code to

G.dmt or T1.413 first. If it still fails, please try the other values such as ALCTL, ADI, etc.

ADSL Type: There are five modes “Open Annex Type and Follow DSLAM’s Setting”, ”Annex A”, ”Annex I”, “Annex A/L”, ”Annex M” and “Annex A/I/L/M” that user can select for this connection.

4.4 Access Management

4.4.1 ACL

Access Control Listing allows you to determine which services/protocols can access which

router interface from which computers.

You can configure the router for remote Telnet access or upload and download router

firmware and configuration files using FTP. To use this feature, your computer must have an

FTP client. And can use the router’s embedded web configurator for configuration and file

management.

ACL Rule Index: This is item number

Secure IP Address: The default 0.0.0.0 allows any client to use this service to remotely

manage the router. Type an IP address to restrict access to a client with a matching IP

address.

Application: Choose a service that you may use to remotely manage the router.

Interface: Select the access interface. Choices are LAN, WAN and Both.

4.4.2 IP Filter

You may use telnet or Web to remotely manage the ADSL Router. User just needs to enable

Telnet or Web and give it an IP address that wants to access the ADSL Router. The default

IP 0.0.0.0 allows any client to use this service to remotely manage the ADSL Router.

IP Filter Set Editing

IP filter Set Index: This is item number

Interface: Select which channel (PVC) to configure.

Direction: Select the access to the Internet (“Outgoing”) or from the Internet

(“Incoming”).or Both.

IP Filter Rule Editing

IP Filter Rule Index: This is item number

Active: Select Yes from the drop down list box to enable IP filter rule.

Source IP Address: The source IP address or range of packets to be monitored.

Subnet Mask: It is the destination IP addresses based on above destination subnet IP

Source Port Number: This Port or Port Ranges defines the port allowed to be used by

the Remote/WAN to connect to the application. Default is set from range 0 ~ 65535. It is

recommended that this option be configured by an advanced user.

Destination IP Address: This is the destination subnet IP address.

Subnet Mask: It is the destination IP addresses based on above destination subnet IP

Destination Port Number: This is the Port or Port Ranges that defines the application.

Protocol: It is the packet protocol type used by the application; select either TCP or UDP

or ICMP

Rule Unmatched: Select action for the traffic un-matching current rule; Forward to leave

it pass through, and NEXT to check it by the next rule.

IP Filter Listing

#: Item number.

Active: Whether the connection is currently active.

Src IP Mask: The source IP address or range of packets to be monitored.

Dest IP Mask: This is the destination subnet IP address.

Src port: This Port or Port Ranges defines the port allowed to be used by the

Remote/WAN to connect to the application. Default is set from range 0 ~ 65535. It is

recommended that this option be configured by an advanced user.

Dest Port: This is the Port or Port Ranges that defines the application.

Protocol: It is the packet protocol type used by the application, select either TCP or UDP

or ICMP

4.4.3 SNMP

Simple Network Management Protocol (SNMP) is a protocol used for exchanging

management information between network devices. SNMP is a member of the TCP/IP

protocol suite. router supports SNMP agent functionality which allows a manager station to

manage and monitor the router through the network.

Get Community: Type the Get Community, which is the password for the incoming

Get-and GetNext requests from the management station.

Set Community: Type the Set Community, which is the password for incoming Set

requests from the management station.

4.4.4 UPnP

UPnP offers peer-to-peer network connectivity for PCs and other network devices, along

with control and data transfer between devices. UPnP offers many advantages for users

running NAT routers through UPnP NAT Traversal, and on supported systems makes tasks

such as port forwarding much easier by letting the application control the required settings,

removing the need for the user to control advanced configuration of their device.

Both the user’s Operating System and the relevant application must support UPnP in

addition to the router. Windows XP and Windows Me natively support UPnP (when the

component is installed), and Windows 98 users may install the Internet Connection Sharing

client from Windows XP in order to support UPnP. Windows 2000 does not support UPnP.

UPnP: Select this checkbox to activate UPnP. Be aware that anyone could use an UPnP

application to open the web configurator's login screen without entering the router’s IP

address

Auto-configured: Select this check box to allow UPnP-enabled applications to

automatically configure the router so that they can communicate through the router, for

example by using NAT traversal, UPnP applications automatically reserve a NAT forwarding

port in order to communicate with another UPnP enabled device; this eliminates the need to

manually configure port forwarding for the UPnP enabled application.

4.4.5 DDNS

The Dynamic DNS function allows you to alias a dynamic IP address to a static hostname,

allowing users whose ISP does not assign them a static IP address to use a domain name.

This is especially useful for hosting servers via your ADSL connection, so that anyone

wishing to connect to you may use your domain name, rather than having to use your

dynamic IP address, which changes from time to time. This dynamic IP address is the WAN

IP address of the router, which is assigned to you by your ISP.

You will first need to register and establish an account with the Dynamic DNS provider using

their website, for example http://www.dyndns.org/

Dynamic DNS: Select this check box to use dynamic DNS.

Service Provider: Select the name of your Dynamic DNS service provider.

My Host Name: Type the domain name assigned to your router by your Dynamic DNS

provider.

E-mail Address: Type your e-mail address.

Username: Type your user name.

Password: Type the password assigned to you.

Wildcard support: Select this check box to enable DYNDNS Wildcard.

4.5 Maintenance

4.5.1 Administrator

In factory setting, the default password is password, and that for user is also password. You

can change the default password to ensure that someone cannot adjust your settings

without your permission. Every time you change your password, please record the password

and keep it at a safe place.

New Password: Type the new password in this field

Confirm Password: Type the new password again in this field.

4.5.2 Time Zone

The router does not have a real time clock on board; instead, it uses the Simple Network

Time Protocol (SNTP) to get the current time from an SNTP server outside your network.

Choose your local time zone. After a successful connection to the Internet, the router will

retrieve the correct local time from the SNTP server you have specified. If you prefer to

specify an SNTP server other than those in the drop-down list, simply enter its IP address as

shown above. Your ISP may provide an SNTP server for you to use.

Synchronize time with: Select the time service protocol that your time server sends

when you turn on the Router.

Time Zone: Choose the time zone of your location. This will set the time difference

between your time zone and Greenwich Mean Time (GMT).

Daylight Saving: Select this option if you use daylight savings time

NTP Server Address: Enter the IP address of your time server. Check with your

ISP/network administrator if you are unsure of this information.

4.5.3 Firmware

Your router’s “firmware” is the software that allows it to operate and provides all its

functionality. Think of your router as a dedicated computer, and the firmware as the software

it runs. Over time this software may be improved and modified, and your router allows you to

upgrade the software it runs to take advantage of these changes.

To upgrade the firmware of router, you should download or copy the firmware to your local

environment first. Press the “Browse…” button to specify the path of the firmware file. Then,

click “Upgrade” to start upgrading. When the procedure is completed, router will reset

automatically to make the new firmware work.

New Firmware Location: Type in the location of the file you want to upload in this field or

click Browse to find it.

Browse: Click Browse... to find the .ras file you want to upload. Remember that you must

decompress compressed (.zip) files before you can upload them.

UPGRADE: Click UPGRADE to begin the upload process. This process may take up to

two minutes.

After two minutes, log in again and check your new firmware version in the System Status

screen.

If the upload was not successful, the following screen will appear. Click Back to go back to

the Firmware screen.

DO NOT power down the router or interrupt the firmware upgrading while

it is still in process. Improper operation could damage the router.

4.5.4 SysRestart

Click SysRestart with option Current Settings to reboot your router (and restore your last

saved configuration).

If you wish to restart the router using the factory default settings (for example, after a

firmware upgrade or if you have saved an incorrect configuration), select Factory Default

Settings to reset to factory default settings.

You may also reset your router to factory settings by holding the small Reset pinhole button

on the back of your router in for 10-12 seconds whilst the router is turned on.

4.5.6 Diagnostics

The Diagnostic Test page shows the test results for the connectivity of the physical layer and

protocol layer for both LAN and WAN sides

4.6 Status

4.6.1 Device Info

Device Information

Firmware version: This is the Firmware version

MAC Address: This is the MAC Address

LAN

IP Address: LAN port IP address.

Sub Net Mask: LAN port IP subnet mask.

DHCP Server: LAN port DHCP role - Enabled, Relay or disabled

WAN

Status: “Not connected” or “Connected”

Virtual Circuit: There are eight groups of PVC can be defined.

VPI: The valid range for the VPI is 0 to 255

VCI: The valid range for the VCI is 32 to 65535

Connection Type: Name of the WAN connection.

VPI/VCI: Virtual Path Identifier and Virtual Channel Identifier

IP Address: WAN port IP address.

Subnet mask: WAN port IP subnet mask.

Default Gateway: The IP address of the default gateway.

DNS Server: WAN port DHCP role - Enabled, Relay or disabled

ADSL

ADSL firmware ver: This is the DSL firmware version associated with your router

Line State: This is the status of your ADSL link.

Annex Mode: To show the router’s type, e.g. Annex A (France, Italy, Spain, ...), Annex B

(Germany).

Max TX Power: This field displays the transmit output power level of the ADSL Router.

4.6.2 System Log

Display system logs accumulated up to the present time. You can trace historical information

with this function.

4.6.3 Statistics

Read-only information here includes port status and packet specific statistics. Also provided

are "Transmit Statistics" and "Receive Statistics".

Ethernet

Interface: This field displays the type of port

Transmit Frames: This field displays the number of frames transmitted in the last

second.

Transmit Multicast Frames: This field displays the number of multicast frames

transmitted in the last second.

Transmit total Bytes: This field displays the number of bytes transmitted in the last

second.

Transmit Collision: This is the number of collisions on this port.

Transmit Error Frames: This field displays the number of error packets on this port.

Receive Frames: This field displays the number of frames received in the last second.

Receive Multicast Frames: This field displays the number of multicast frames received

in the last second.

Receive total Bytes: This field displays the number of bytes received in the last second.

Receive CRC Errors: This field displays the number of error packets on this port.

Receive Under-size Frames: This field displays the number of under-size frames

received in the last second.

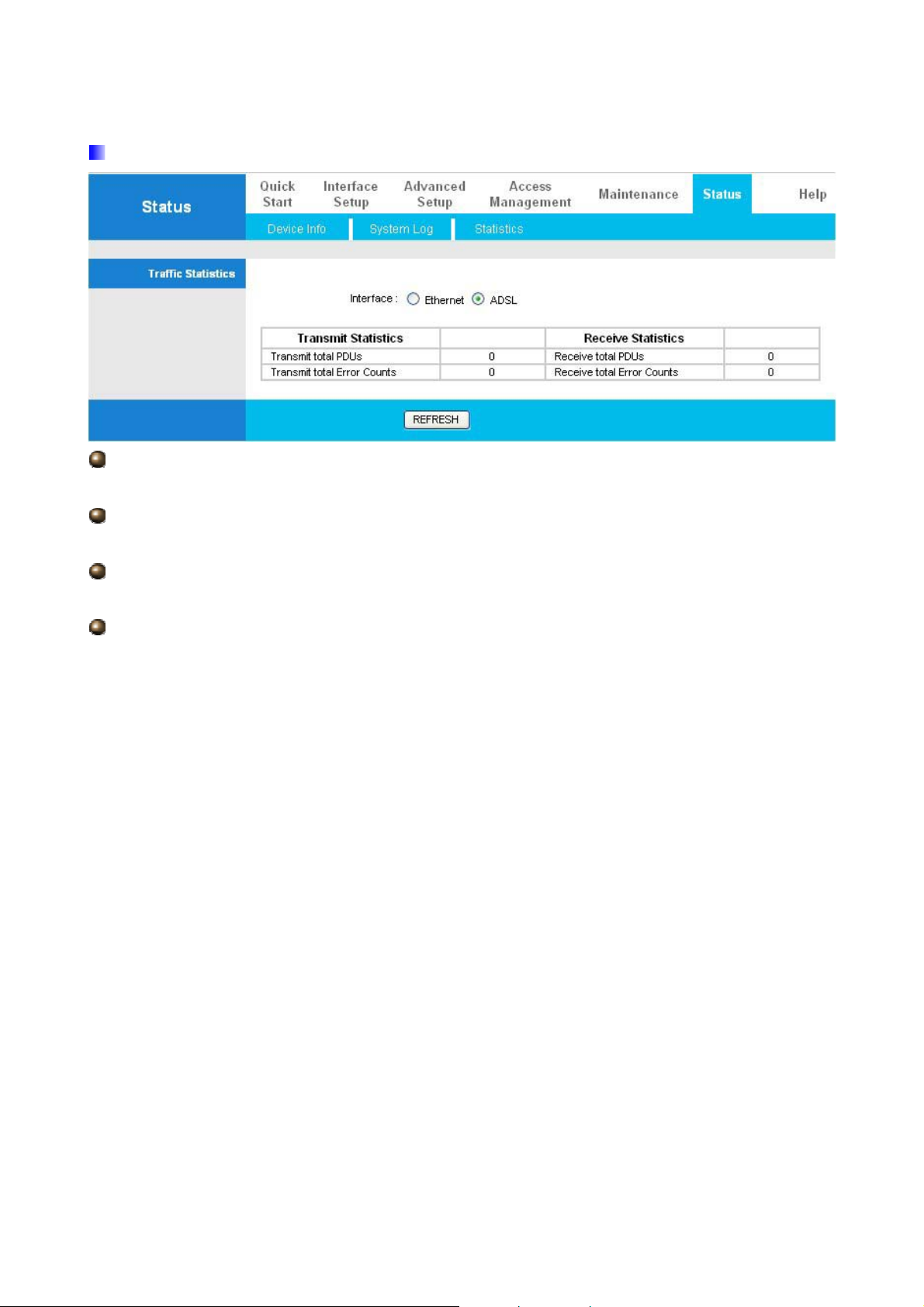

ADSL

Transmit total PDUs: This field displays the number of total PDU transmitted in the last

second.

Transmit total Error Counts: This field displays the number of total error transmitted in

the last second.

Receive total PDUs: This field displays the number of total PDU received in the last

second.

Receive total Error Counts: This field displays the number of total error received in the

last second.

Chapter 5

Troubleshooting

If the Wireless ADSL2+ modem/router is not functioning properly, you can refer first to this

chapter for simple troubleshooting before contacting your service provider. This could save

your time and effort but if the symptoms persist, then consult your service provider.

Problems starting up the router

Problem Corrective Action

None of the LEDs

are on when you

turn on the router.

You have forgotten

your router login

and/or password.

Check the connection between the adapter and the router. If

the error persists, you may have a hardware problem. In this

case you should contact technical support.

Try the default login and password, please refers to Chapter

3. If this fails, you can restore your router to its factory

settings by holding the Reset button on the back of your

router for 6 seconds above.

Problems with the WAN Interface

Problem Corrective Action

Initialization of the

PVC connection

(“linesync”) failed.

Ensure that the telephone cable is connected properly from

the ADSL port to the wall jack. The ADSL LED on the front

panel of the router should be on. Check that your VPI, VCI,

encapsulation type and type of multiplexing settings are the

same as those provided by your ISP. Reboot the router GE. If

you still have problems, you may need to verify these settings

with your ISP.

Frequent loss of

Ensure that all other devices connected to the same

ADSL linesync

(disconnections).

telephone line as your router (e.g. telephones, fax machines,

analogue modems) have a line filter connected between

them and the wall socket (unless you are using a Central

Splitter or Central Filter installed by a qualified and licensed

electrician), and ensure that all line filters are correctly

installed and the right way around. Missing line filters or line

filters installed the wrong way around can cause problems

with your ADSL connection, including causing frequent

disconnections.

Problems with the LAN Interface

Problem Corrective Action

Can’t ping any PCs

on the LAN.

Verify that the IP address and the subnet mask are consistent

Check the Ethernet LEDs on the front panel. The LED should

be on for a port that has a PC connected. If it is off, check the

cables between your router and the PC. Make sure you have

uninstalled any software firewall for troubleshooting.

between the router and the workstations.

Comet labs WRM42 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
