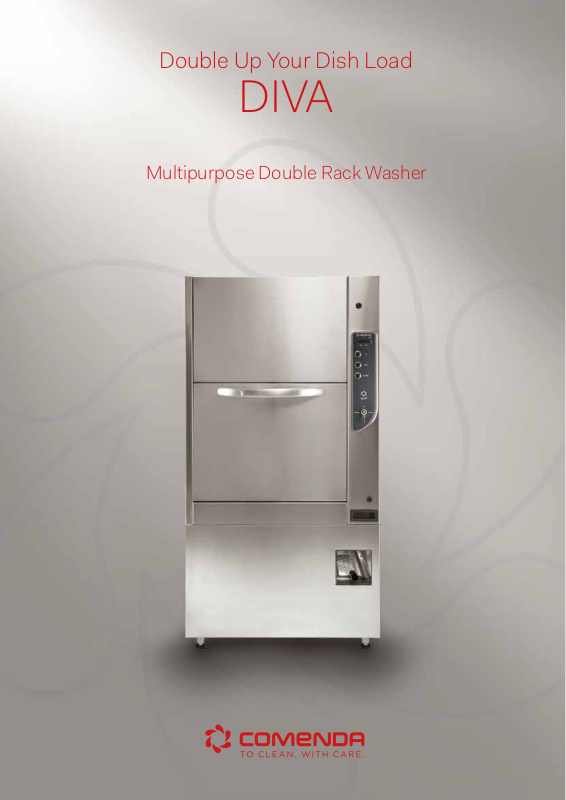

Double Up Your Dish Load
DIVA
Multipurpose Double Rack Washer
DIVA
MORE SPACE
LESS FOOTPRINT
DIVA is the first dishwasher that maximises
your productivity.
Practical and extremely compact, it allows you to
wash twice as many dishes in half the time. We, at
Comenda, have a responsibility to push ourselves
to improve. For this reason, our R&D team meets
with our sales managers and distributors on a
daily basis to make sure we stay in touch with the
needs of the market. This approach represents our
commitment to providing superior client service
and helping our customers solve problems every
day.
That is where DIVA comes from: a multipurpose
front-loading, double rack dishwasher, perfect for
spaces where you need to make the most of every
inch.
4
BENEFITS
DESIGNED TO EASE YOUR OPERATIONS
DIVA
TIME SPACE STAFF
SPACE
DIVA allows you to wash twice as many dishes while
saving 55% of space. Not only is the fully exploited in
terms of height, but it also does not require inlet or outlet
tables.
TIME
Why wash with two cycles what you can wash in one?
DIVA allows you to wash 1320 dishes per hour. It
takes care of your dishes, while you can focus on your
customers.
MAINTENANCE
STAFF
Intuitive and universal, the DIVA control panel allows for
ease of use, no matter who operates it.
MAINTENANCE
The conveniently extractable control panel allows you to
easily access the electrical panel.
5
DIVA
3 IN 1
SIZE DOES NOT MATTER
The innovative design of DIVA allows you to use two racks at
the same time.
By removing the central washing arm, the size of utensils and
pans to wash will never be a problem again.
905mm clearance allows to wash even the bulkiest items in
your kitchen.
1
2
UPPER
RACK
(350 mm clearance)
LOWER
RACK
(430 mm clearance)
mugs, small cups, plates
plates, salad bowls, pans, trays, cutlery.
MEGA
3
COMPARTMENT
(905 mm clearance)
*Maximum passage height excluded: 325 mm
Maximum passage height with Comenda polypropylene rack: 295 mm
** Maximum passage height excluded: 430 mm
Maximum passage height with Comenda polypropylene rack: 405 mm
Maximum passage height with Comenda insert for baking pans: 425 mm
*** Maximum passage height excluded: 905 mm
Maximum passage height with Comenda insert for baking pans: 900 mm
6
trays, baking trays,
GN 2/1, kitchen
utensils.
DIVA
7
DIVA
RANGE
CHOOSE YOUR DIVA
DIVA is available in two different configurations.
Which one suites you most?
DIVA
• Two washing programs
• AISI 304 stainless steel wash and rinse arms
• Rinse aid dosing unit
• Provision for detergent dosing unit
• RCD - Rinse control device
• Double skin insulated body stainless steel AISI 304
• Digital Temperatures Indicators
DIVA PLUS
• Two washing programs
• AISI 304 stainless steel wash and rinse arms
• Rinse aid dosing unit
• Provision for detergent dosing unit
• RCD - Rinse control device
• Double skin insulated body, stainless steel AISI 304
• EOR - Emergency OverRide System by Comenda Key activated electromechanical control. It allows even
unskilled staff to operate the unit in a basic but efficient
mode and cope with unexpected PCB failures during
operations granting consistency in washing with no
downtime.
• RED System - Automatic Soil Removal
• Removable central arm: creating a wash chamber 905
mm clearance.
• Digital Temperatures Indicators
8
DIVA
BUSINESS AREAS
SOLUTIONS FOR EVERY SECTOR
Our cross-sectos expertise, innovation and customization allows
us to provide solutions that work for each type of business.
PUBS, BARS, BISTROTS
& BAKERIES
Creating a food corner to serve
hot dishes always attracts new
customers, but it implies handling
various dish sets quickly and
efficiently. DIVA allows you to wash
twice as fast without taking much
space in your establishment.
HEALTHCARE
FACILITIES, NURSING
HOMES
Three meals a day? At least. When
demand is constant, it’s important
to ensure good hygiene levels. DIVA
allows you to wash twice as many
dishes and, thanks to the integrated
RCD system, the water pressure
and temperature are kept constant
throughout the washing cycle
maintaining the highest hygiene
standards.
9
DIVA
RED
RED SYSTEM
AUTOMATIC SOIL REMOVAL
Inovative and entirely in AISI 304 stainless steel, it
collects all food residue into a removable
filter located below the machine.
Faster operations. Reduce water consumption.
Uncomprompromise hygine. Outstanding results.
WHY COMENDA’S RED SYSTEM?
PERFORMANCE
Guarantees impeccable cleaning.
COMFORT
HYGIENE
Always clean water in the wash tank.
PRESERVES WATER
AND ENERGY
COST-EFFECTIVE
Eliminates manual pre rinse.
SAVES TIME
Washing dishes has never been
easier. The external filter can be
removed and cleaned even while the
machine is running.
10
No need to drain tank water
in- between operations. Rejact rate
reduced to the minimum.
Always the cleanest water at the set
point to grant hygenic results. No
downtime to keep up to speed in peak
times.
DIVA
Multipurpose
Washer
DIMENSIONS
EXTERNAL
DIMENSIONS
(LxPxH mm)
DIVA
DIVA PLUS 905 / 430 / 325
900x780x1800
(AxBxC)
A
C
OVERALL SIZE
(LxPxH mm)
900x1240x2175
(AxDxF)
CLEARANCE
mm
430 / 325
(E1** / E2*)
E*** / E1** / E2*
B
55
D
RACK SIZE
mm
2 RACKS
500X600 MM
E2
E1
WEIGHT
Kg
215 KG
E
F
Cod. 900987EN01.20 - Con riserva di variazione delle caratteristiche tecniche. Foto non vincolanti.
TECHNICAL DATA
ELECTRICAL
SUPPLY
V
DIVA
DIVA PLUS
Diva Plus
Removable central arm: creating
a wash chamber 905 mm clearance
400V/3N/50 Hz 60 4 5 9 1.5 10,5 46
RACKS/H****
OUTPUT
racks/h
RINSE WATER
CONSUMPTION
(l/rack)
Extractable control panel
allows you to easily access the
electrical panel
TANK HEATER
ELEMENT
kW
BOOSTER
HEATER ELE-
MENT
(kW)
* Maximum passage height excluded: 325 mm
Maximum passage height with Comenda polypropylene rack: 295 mm
** Maximum passage height excluded: 430 mm
Maximum passage height with Comenda polypropylene rack: 405 mm
Maximum passage height with Comenda insert for baking pans: 425 mm
*** Maximum passage height excluded: 905 mm
Maximum passage height with Comenda insert for baking pans: 900 mm
**** The theoretical output refers to the unit connected to 55 °C incoming water
temperature and max total installed power.
WASH PUMP
kW
INSTALLED
LOAD
kW
TANK SIZE
l
11
DIVA
REAL TIME SERVICE
READY TO RESPOND
There’s no time for downtime in your operation. That’s why
our products are designed to facilitate quick turnarounds and
replacements.
By easing access to spare parts through our real time app,
Comenda ensures rapid response and complete client
service. For support, count on our extensive network of
distributors and service providers who are ready to assist
when you need us
Select the component
411002
180852
251213
450125
160108
200346
450103
H15818
450103
200303
200927
161325
450114
100893
PROCEED
01
Serial
number
Simply scan the QR code
that features on all our
machinery to gain 24/7 access
XXX-000
Model
to our service platform.
02
333079
180853
180856
180855
110295
200963
270121
Tap into user manuals
as well as detailed electrical
and hydraulic schematics, and
exploded views.
03
Original spare parts can
be easily ordered by clicking on
the exploded view.
12
Machine spec sheets and CAD drawings are available online in the
Comenda Library section at www.comenda.eu
COMPANY
COLLABORATIVELY
COMENDA
Just as you are in the business
of serving people, we’re in the
profession of serving you.
Our development since 1963 as a company has always
championed exceptional performance, cost containment
and highly energy efficient design. Close, active
consultation also ensures that we generate the perfect
solution for our clients. That involves understanding the
challenges our clients face on a daily basis and helping
them to meet their objectives.
That’s the Comenda difference and it carries on through
our commitment to ongoing service and support.
We may be just one component of your overall success,
but we always aim to be at the heart of your operation.
RESEARCH & DEVELOPMENT
A CONTINUOUS CYCLE OF
IMPROVEMENT
We have a responsibility to
push ourselves to improve.
Every detail of Comenda
equipment undergoes
ongoing scrutiny, testing
and refinement.
Through our Research &
Development team and certified
on- site lab we uphold rigorous
scientific principles to develop
proven solutions. We draw on the
expertise of multidisciplinary
engineers and steel industry
professionals along with an extensive
network of sales managers and
distributors who clearly understand
client challenges to ensure our
equipment performs to the highest
calibre.
MADE IN ITALY
Teamed with our ongoing customer
consultation we can directly address
specific issues. That approach may
exceed common expectations in this
industry, but it demonstrates our
commitment to providing superior
client service and a stronger overall
relationship.
13
CONTACTS
Comenda
Via Galileo Galilei 8
20060 Cassina de’ Pecchi (MI)
Italia
T +39 02 952281
sales@comenda.eu
www.comenda.eu
Comenda complies with ISO9001 quality
management system and ISO14001:2015
environmental management system.
