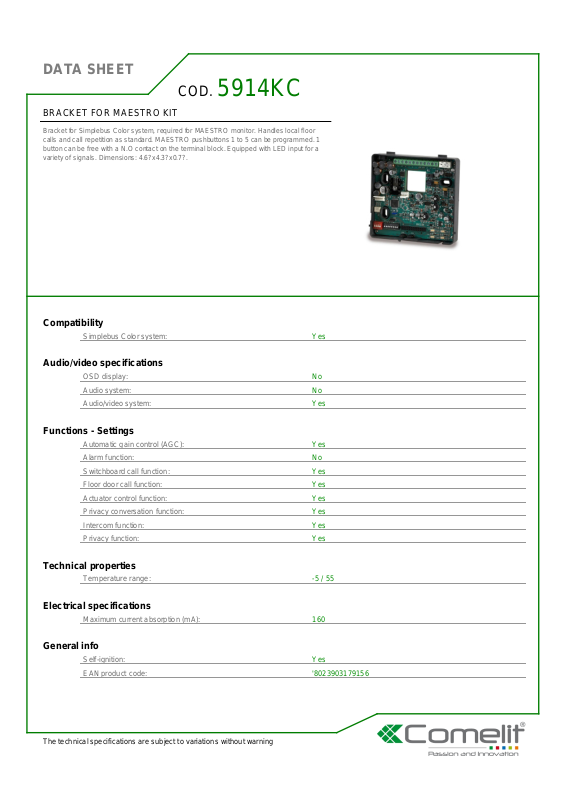

DATA SHEET

COD.

5914KC

BRACKET FOR MAESTRO KIT

Bracket for Simplebus Color system, required for MAESTRO monitor. Handles local floor
calls and call repetition as standard. MAESTRO pushbuttons 1 to 5 can be programmed. 1
button can be free with a N.O contact on the terminal block. Equipped with LED input for a
variety of signals. Dimensions: 4.6?x4.3?x0.7?.

Compatibility

Simplebus Color system: Yes

Audio/video specifications

OSD display: No
Audio system: No
Audio/video system: Yes

Functions - Settings

Automatic gain control (AGC): Yes
Alarm function: No
Switchboard call function: Yes
Floor door call function: Yes
Actuator control function: Yes
Privacy conversation function: Yes
Intercom function: Yes
Privacy function: Yes

Technical properties

Temperature range: -5 / 55

Electrical specifications

Maximum current absorption (mA): 160

General info

Self-ignition: Yes
EAN product code: '8023903179156

The technical specifications are subject to variations without warning

DATA SHEET

Intrastat code: 85176920
Customisable ringtone: Yes
Product height (mm): 110
Product width (mm): 116
Product depth (mm): 19

Packaging

Single pack height (mm): 30
Single pack width (mm): 117
Single pack weight (g): 240
Single pack depth (mm): 160
Single pack volume (dm3): 0,562

The technical specifications are subject to variations without warning
