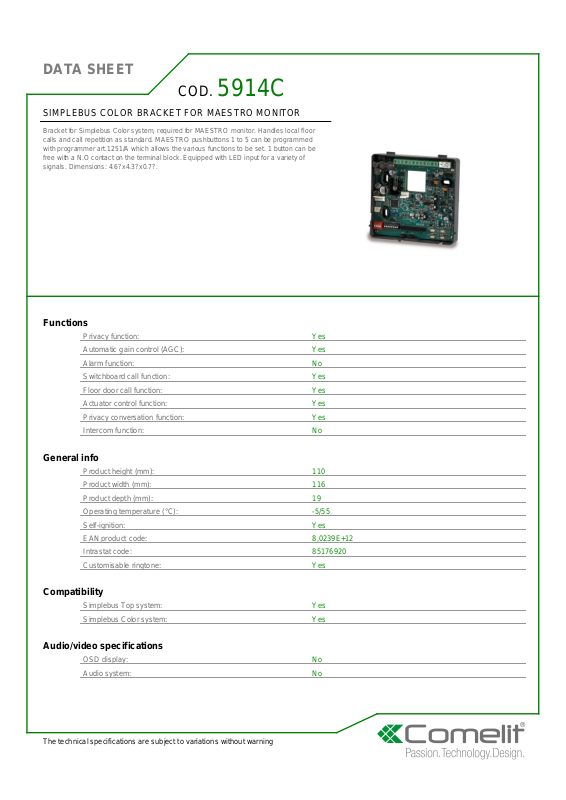

DATA SHEET
COD.
5914C
SIMPLEBUS COLOR BRACKET FOR MAESTRO MONITOR
Bracket for Simplebus Color system, required for MAESTRO monitor. Handles local floor
calls and call repetition as standard. MAESTRO pushbuttons 1 to 5 can be programmed
with programmer art.1251/A which allows the various functions to be set. 1 button can be
free with a N.O contact on the terminal block. Equipped with LED input for a variety of
signals. Dimensions: 4.6?x4.3?x0.7?.
Functions
Privacy function: Yes
Automatic gain control (AGC): Yes
Alarm function: No
Switchboard call function: Yes
Floor door call function: Yes
Actuator control function: Yes
Privacy conversation function: Yes
Intercom function: No
General info
Product height (mm): 110
Product width (mm): 116
Product depth (mm): 19
Operating temperature (°C): -5/55
Self-ignition: Yes
EAN product code: 8,0239E+12
Intrastat code: 85176920
Customisable ringtone: Yes
Compatibility
Simplebus Top system: Yes
Simplebus Color system: Yes
Audio/video specifications
OSD display: No
Audio system: No
The technical specifications are subject to variations without warning
Page 2
DATA SHEET
Audio/video system: Yes
Electrical specifications
Maximum current absorption (mA): 160
Packaging
Single pack height (mm): 50
Single pack width (mm): 120
Single pack weight (Kg): 0,267
Single pack depth (mm): 165
Single pack volume (dm3): 0,99
The technical specifications are subject to variations without warning
