Overview

Standard Features

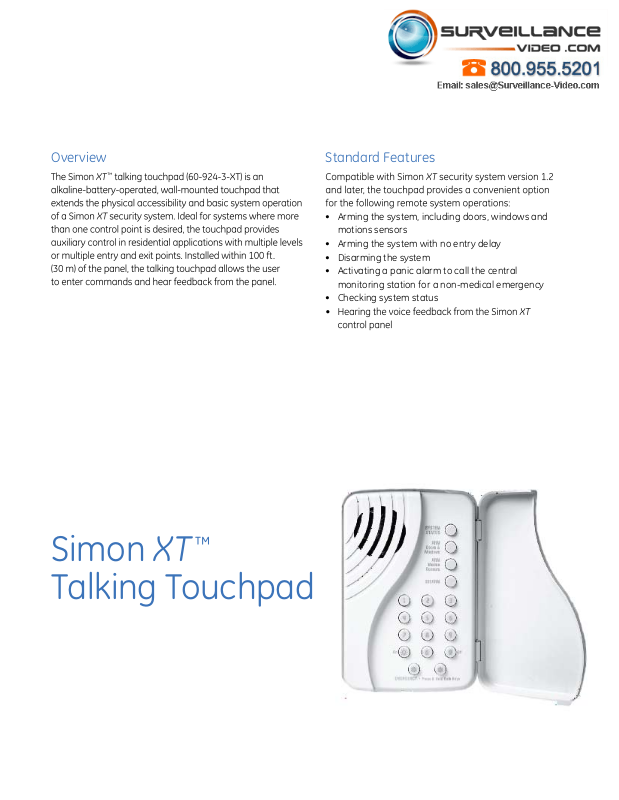

The Simon XT™ talking touchpad (60-924-3-XT) is an
alkaline-battery-operated, wall-mounted touchpad that
extends the physical accessibility and basic system operation
of a Simon XT security system. Ideal for systems where more
than one control point is desired, the touchpad provides
auxiliary control in residential applications with multiple levels
or multiple entry and exit points. Installed within 100 ft.
(30 m) of the panel, the talking touchpad allows the user
to enter commands and hear feedback from the panel.

Compatible with Simon XT security system version 1.2
and later, the touchpad provides a convenient option
for the following remote system operations:

Arming the system, including doors, windows and •
motions sensors
Arming the system with no entry delay•
Disarming the system•
Activating a panic alarm to call the central •
monitoring station for a non-medical emergency
Checking system status•

Hearing the voice feedback from the Simon • XT
control panel

Simon XT™
Talking Touchpad

Compatibility

Simon XT™ (version 1.2 and later)

Electrical

Power requirements: 3 AAA alkaline batteries

Environmental

Operating temperature: 32 to 120°F (0 to 49°C)

Physical

Wall-mount installation
Dimensions (WxDxH): 3.6 x 1.2 x 5.4 in (91 x 30 x 137 mm)
Storage temperature: -40 to 140°F (-34 to 60°C)
Maximum humidity: 90% relative humidity, non-condensing

FCC Compliance

This device complies with part 15 of the FCC rules. Operation is subject to the following conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference that may cause
undesired operation.

Changes or modifications not expressly approved by the party responsible for compliance could void
the user's authority to operate the equipment.

FCC ID: B4Z-839-TWTP
IC: 1175C-839TWTP

Ordering Information

60-924-3-XT Simon XT 2-way RF touchpad

North America
T 888-GE-SECURITY
888-437-3287

Asia
T 852-2907-8108
F 852-2142-5063

Australia
T 61-3-9239-1200
F 61-3-9239-1299

Canada
T 800-267-6317
F 613-737-5517

Europe
T 32-2-725-11-20
F 32-2-721-40 -47

Latin America
T 305-593- 4301
F 305-593-4300

Specifications subject to
change without notice.

© 2009 General Electric Company
All Rights Reserved.
