Comelit 5802 Specsheet

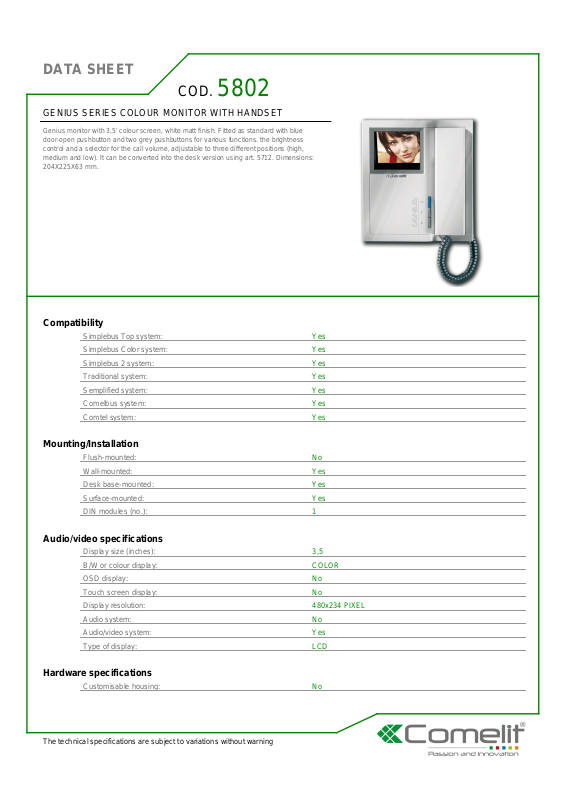

DATA SHEET
COD.
5802
GENIUS SERIES COLOUR MONITOR WITH HANDSET
Genius monitor with 3,5' colour screen, white matt finish. Fitted as standard with blue
door-open pushbutton and two grey pushbuttons for various functions. the brightness
control and a selector for the call volume, adjustable to three different positions (high,
medium and low). It can be converted into the desk version using art. 5712. Dimensions:
204X225X63 mm.
Compatibility
Simplebus Top system: Yes
Simplebus Color system: Yes
Simplebus 2 system: Yes
Traditional system: Yes
Semplified system: Yes
Comelbus system: Yes
Comtel system: Yes
Mounting/Installation
Flush-mounted: No
Wall-mounted: Yes
Desk base-mounted: Yes
Surface-mounted: Yes
DIN modules (no.): 1
Audio/video specifications
Display size (inches): 3,5
B/W or colour display: COLOR
OSD display: No
Touch screen display: No
Display resolution: 480x234 PIXEL
Audio system: No
Audio/video system: Yes
Type of display: LCD
Hardware specifications
Customisable housing: No
The technical specifications are subject to variations without warning
DATA SHEET
Additional buttons: Yes
Total buttons: 3
Sensitive Touch technology: No
Functions - Settings
Switchboard call function: Yes
Induction loop function: No
Privacy function: No
Key button function: Yes
Hands-free function: No
Full Duplex hands-free function: No
Display colour control: No
Display contrast control: No
Display brightness control: Yes
Loudspeaker volume control: No
Microphone volume control: Yes
Ringtone volume control: Yes
Technical properties
Temperature range: -5 / 55
Electrical specifications
Maximum current absorption (mA): 200
General info
EAN product code: '8023903167788
Intrastat code: 85176910
Product height (mm): 225
Product width (mm): 204
Product depth (mm): 63
Product colour: WHITE RAL9003
Packaging
Single pack height (mm): 90
Single pack width (mm): 275
Single pack weight (g): 850
Single pack depth (mm): 248
Single pack volume (dm3): 6,138
The technical specifications are subject to variations without warning
