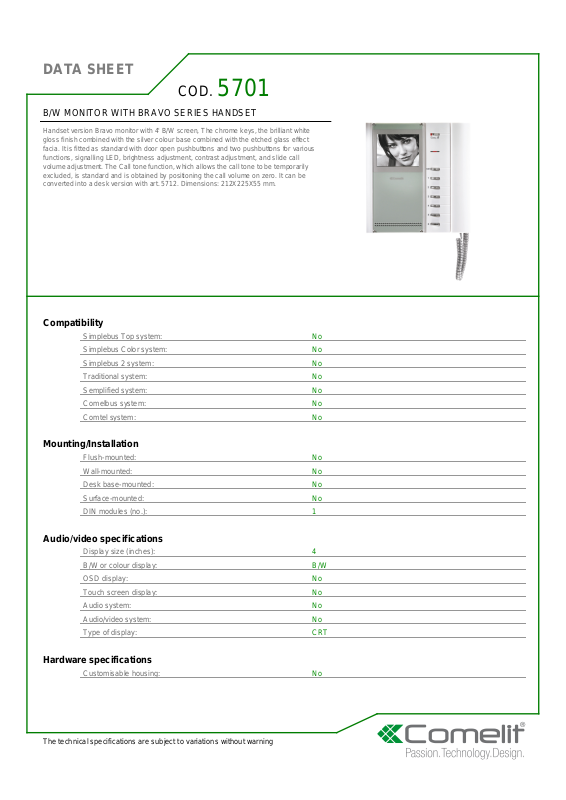

Page 1
DATA SHEET
COD.
5701
B/W MONITOR WITH BRAVO SERIES HANDSET
Handset version Bravo monitor with 4' B/W screen, The chrome keys, the brilliant white
gloss finish combined with the silver colour base combined with the etched glass effect
facia. It is fitted as standard with door open pushbuttons and two pushbuttons for various
functions, signalling LED, brightness adjustment, contrast adjustment, and slide call
volume adjustment. The Call tone function, which allows the call tone to be temporarily
excluded, is standard and is obtained by positioning the call volume on zero. It can be
converted into a desk version with art. 5712. Dimensions: 212X225X55 mm.
Compatibility
Simplebus Top system: No
Simplebus Color system: No
Simplebus 2 system: No
Traditional system: No
Semplified system: No
Comelbus system: No
Comtel system: No
Mounting/Installation
Flush-mounted: No
Wall-mounted: No
Desk base-mounted: No
Surface-mounted: No
DIN modules (no.): 1
Audio/video specifications
Display size (inches): 4
B/W or colour display: B/W
OSD display: No
Touch screen display: No
Audio system: No
Audio/video system: No
Type of display: CRT
Hardware specifications
Customisable housing: No
The technical specifications are subject to variations without warning
Page 2
DATA SHEET
Additional buttons: 4
Total buttons: 7
Sensitive Touch technology: No
Functions - Settings
Switchboard call function: No
Privacy conversation function: No
Induction loop function: No
Privacy function: No
Key button function: No
Hands-free function: No
Full Duplex hands-free function: No
Display colour control: No
Display contrast control: No
Display brightness control: No
Loudspeaker volume control: No
Microphone volume control: No
Ringtone volume control: No
Technical properties
Temperature range (°C): -5/55
Electrical specifications
Maximum current absorption (mA): 600
General info
EAN product code: 8023903155594
Intrastat code: 85176910
Product height (mm): 225
Product width (mm): 212
Product depth (mm): 55
Product colour: WHITE RAL9003, TEMPLATE GREY
Packaging
Single pack height (mm): 90
Single pack width (mm): 275
Single pack weight (g): 1398
Single pack depth (mm): 248
Single pack volume (dm3): 6,138
The technical specifications are subject to variations without warning
