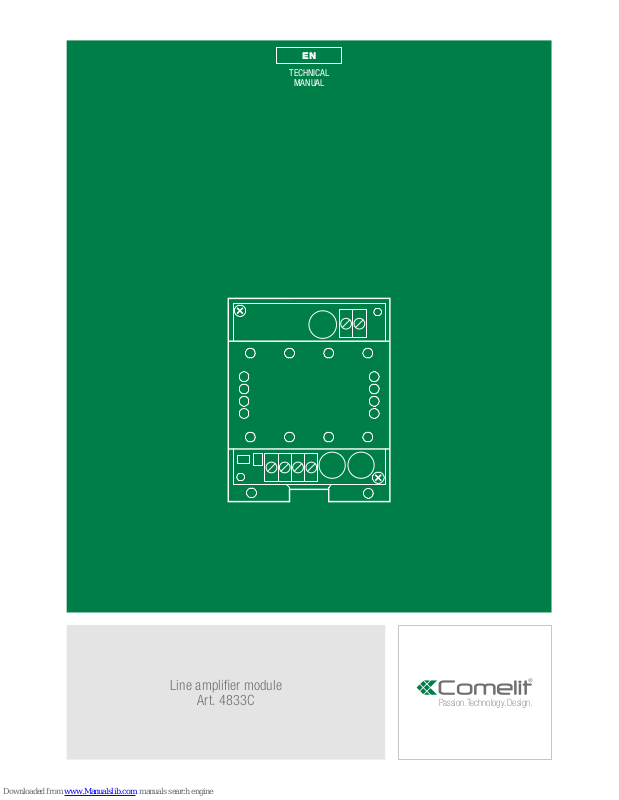

Page 1
EN
TECHNICAL
MANUAL
Line amplifier module
Art. 4833C
Passion.Technology.Design.
Page 2
Warning
Intended use
This Comelit product was designed for use in the creation of audio and video communication systems in residential,
commercial or industrial settings and in public buildings or buildings used by the public.
Installation
All activities connected to the installation of Comelit products must be carried out by qualified technical personnel, with
careful observation of the indications provided in the Manuals / Instruction sheets supplied with those products.
Wires
Cut o the power supply before carrying out any maintenance procedures.
Use wires with a cross-section suited to the distances involved, observing the instructions provided in the system
manual.
We advise against running the system wires through the same duct as the power cables (230V or higher).
Safe usage
To ensure Comelit products are used safely:
• carefully observe the indications provided in the Manuals / Instruction sheets
• make sure the system created using Comelit products has not been tampered with / damaged.
Maintenance
Comelit products do not require maintenance aside from routine cleaning, which should be carried out in accordance
with the indications provided in the Manuals / Instruction sheets.
Any repair work must be carried out
• for the products themselves, exclusively by Comelit Group S.p.A.,
• for systems, by qualified technical personnel.
Disclaimer
Comelit Group S.p.A. does not assume any responsibility for
• any usage other than the intended use
• non-observance of the indications and warnings contained in this Manual / Instruction sheet.
Comelit Group S.p.A. nonetheless reserves the right to change the information provided in this Manual / Instruction
sheet at any time and without prior notice.
2
Page 3
Amplifier for Simplebus TOP systems, to increase the distance between the external unit and mixer 4888C. Regenerates the
video component of the riser signal. Equipped with microcontroller for optimal operation management. Follow the operating
instructions in the technical documentation. Power supply: 12V AC or 20V DC. Only to be mounted on the system section
feeding into the mixers art. 4888C (Simplebus 1 section). Dimensions: 66x85x37 mm (4 DIN modules).

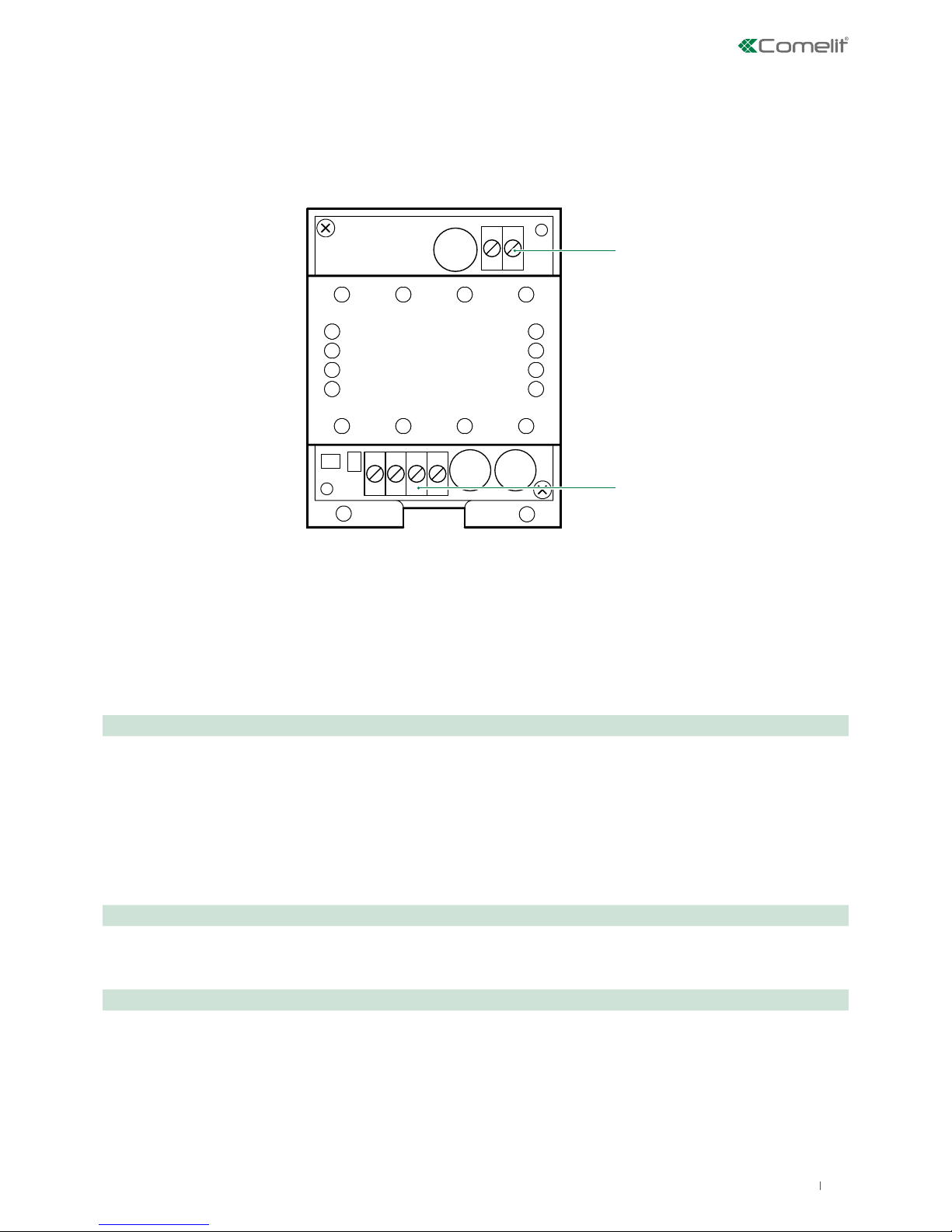

Description
1.
2.
Technical features
MAIN FEATURES
Product height (mm) 85
Product width (mm) 66
Product depth (mm) 37
Operating temperature (°C) -5 ÷ 40
DIN rail mounted Yes
DIN modules (no.) 4
Maximum current absorption (mA) 100
GENERAL DATA
Type of finish Plastic
Product colour White
COMPATIBILITY
Simplebus Top audio/video system Ye s
1. Terminal block MR1
+ - power supply terminals (12V AC or 20V DC)
2. Terminal block MR2
LIN LIN BUS line input
LOUT LOUT BUS line output
3
Page 4

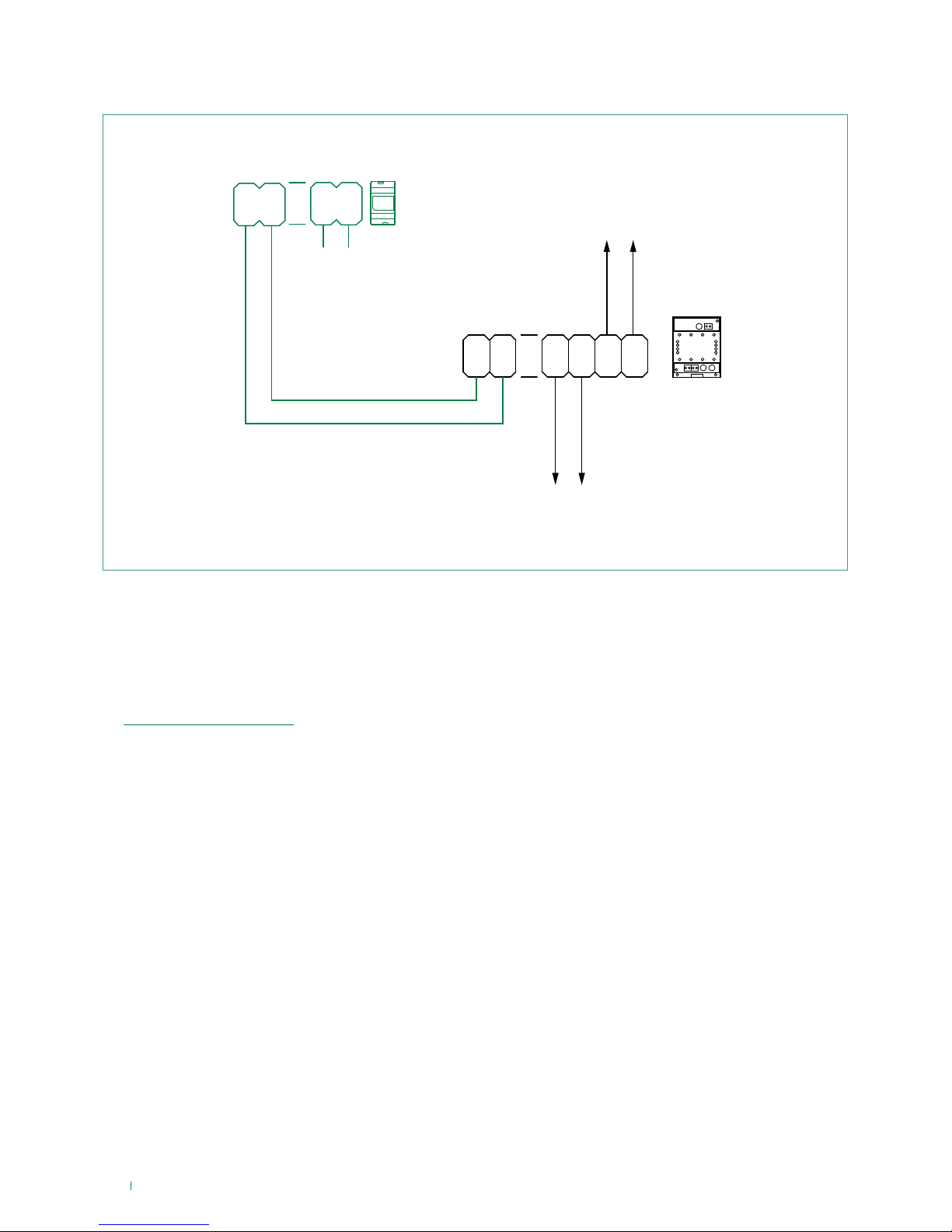

Connection
EXTERNAL UNIT
VIDEO ENTRY
SYSTEM RISER
L
OUT OUT
L
ININ
L L
⁓
+
⁓
-
4833C
1200
~
12V~
230V~
System performance and layouts
For further information of system performance and to view installation layouts, click on the system type that best meets your
requirements:
• SBTOP audio/video system for the creation of audio-video systems for residential complexes.
4
Page 5
www.comelitgroup.com
Via Don Arrigoni, 5 - 24020 Rovetta (BG) - Italy
1ª edizione 09/2018
cod. 2G40002087
