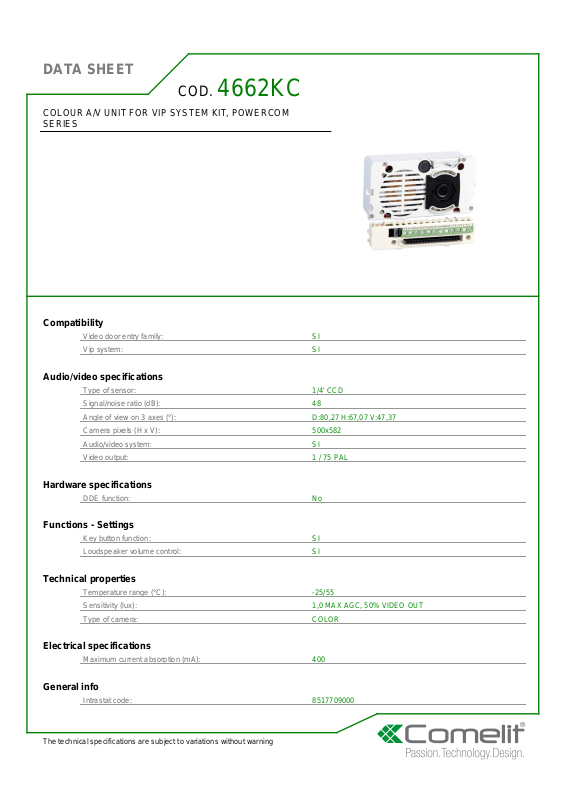

Comelit 4662KC Specsheet

DATA SHEET

COD.

4662KC

COLOUR A/V UNIT FOR VIP SYSTEM KIT, POWERCOM
SERIES

Compatibility

Video door entry family: SI
Vip system: SI

Audio/video specifications

Type of sensor: 1/4' CCD
Signal/noise ratio (dB): 48
Angle of view on 3 axes (°): D:80,27 H:67,07 V:47,37
Camera pixels (H x V): 500x582
Audio/video system: SI
Video output: 1 / 75 PAL

Hardware specifications

DDE function: No

Functions - Settings

Key button function: SI
Loudspeaker volume control: SI

Technical properties

Temperature range (°C): -25/55
Sensitivity (lux): 1,0 MAX AGC, 50% VIDEO OUT
Type of camera: COLOR

Electrical specifications

Maximum current absorption (mA): 400

General info

Intrastat code: 8517709000

The technical specifications are subject to variations without warning

DATA SHEET

S/N ratio dB: 48
Product height (mm): 55
Product width (mm): 102
Product depth (mm): 35

Packaging

Single pack height (mm): 53
Single pack width (mm): 110
Single pack weight (g): 200
Single pack depth (mm): 94
Single pack volume (dm3): 0,548

The technical specifications are subject to variations without warning
