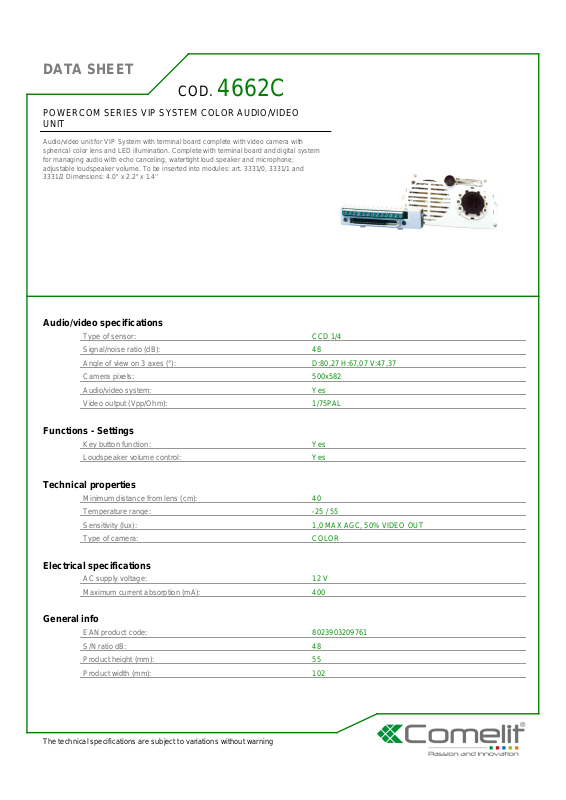

DATA SHEET
COD.
4662C
POWERCOM SERIES VIP SYSTEM COLOR AUDIO/VIDEO
UNIT
Audio/video unit for VIP System with terminal board complete with video camera with
spherical color lens and LED illumination. Complete with terminal board and digital system
for managing audio with echo canceling, watertight loud speaker and microphone;
adjustable loudspeaker volume. To be inserted into modules: art. 3331/0, 3331/1 and
3331/2 Dimensions: 4.0'' x 2.2'' x 1.4''
Audio/video specifications
Type of sensor: CCD 1/4
Signal/noise ratio (dB): 48
Angle of view on 3 axes (°): D:80,27 H:67,07 V:47,37
Camera pixels: 500x582
Audio/video system: Yes
Video output (Vpp/Ohm): 1/75PAL
Functions - Settings
Key button function: Yes
Loudspeaker volume control: Yes
Technical properties
Minimum distance from lens (cm): 40
Temperature range: -25 / 55
Sensitivity (lux): 1,0 MAX AGC, 50% VIDEO OUT
Type of camera: COLOR
Electrical specifications
AC supply voltage: 12 V
Maximum current absorption (mA): 400
General info
EAN product code: 8023903209761
S/N ratio dB: 48
Product height (mm): 55
Product width (mm): 102
The technical specifications are subject to variations without warning
Page 2
DATA SHEET
Product depth (mm): 35
Packaging
Single pack height (mm): 53
Single pack width (mm): 110
Single pack weight (g): 0,2
Single pack depth (mm): 94
The technical specifications are subject to variations without warning
