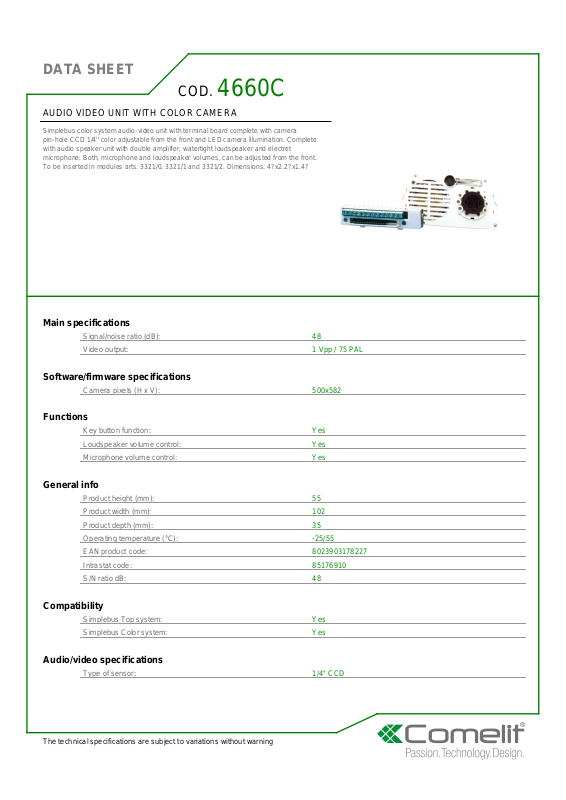

Page 1
DATA SHEET
COD.
4660C
AUDIO VIDEO UNIT WITH COLOR CAMERA
Simplebus color system audio-video unit with terminal board complete with camera
pin-hole CCD 1/4'' color adjustable from the front and LED camera illumination. Complete
with audio speaker unit with double amplifier, watertight loudspeaker and electret
microphone. Both, microphone and loudspeaker volumes, can be adjusted from the front.
To be inserted in modules arts. 3321/0, 3321/1 and 3321/2. Dimensions: 4?x2.2?x1.4?
Main specifications
Signal/noise ratio (dB): 48
Video output: 1 Vpp / 75 PAL
Software/firmware specifications
Camera pixels (H x V): 500x582
Functions
Key button function: Yes
Loudspeaker volume control: Yes
Microphone volume control: Yes
General info
Product height (mm): 55
Product width (mm): 102
Product depth (mm): 35
Operating temperature (°C): -25/55
EAN product code: 8023903178227
Intrastat code: 85176910
S/N ratio dB: 48
Compatibility
Simplebus Top system: Yes
Simplebus Color system: Yes
Audio/video specifications
Type of sensor: 1/4'' CCD
The technical specifications are subject to variations without warning
Page 2
DATA SHEET
Horizontal resolution (TVL): 350
Audio system: No
Audio/video system: Yes
Technical properties
Sensitivity (lux): 1
Type of camera: COLOR
Electrical specifications
Maximum current absorption (mA): 300
Packaging
Single pack height (mm): 53
Single pack width (mm): 110
Single pack weight (Kg): 0,211
Single pack depth (mm): 94
Single pack volume (dm3): 0,548
The technical specifications are subject to variations without warning
