Comdial GCA70-239 User Manual

COMDIAL

Digital Telephone System

Industry-Standard Telephone

User’s Guide

(Interfaced through the ATI-D)

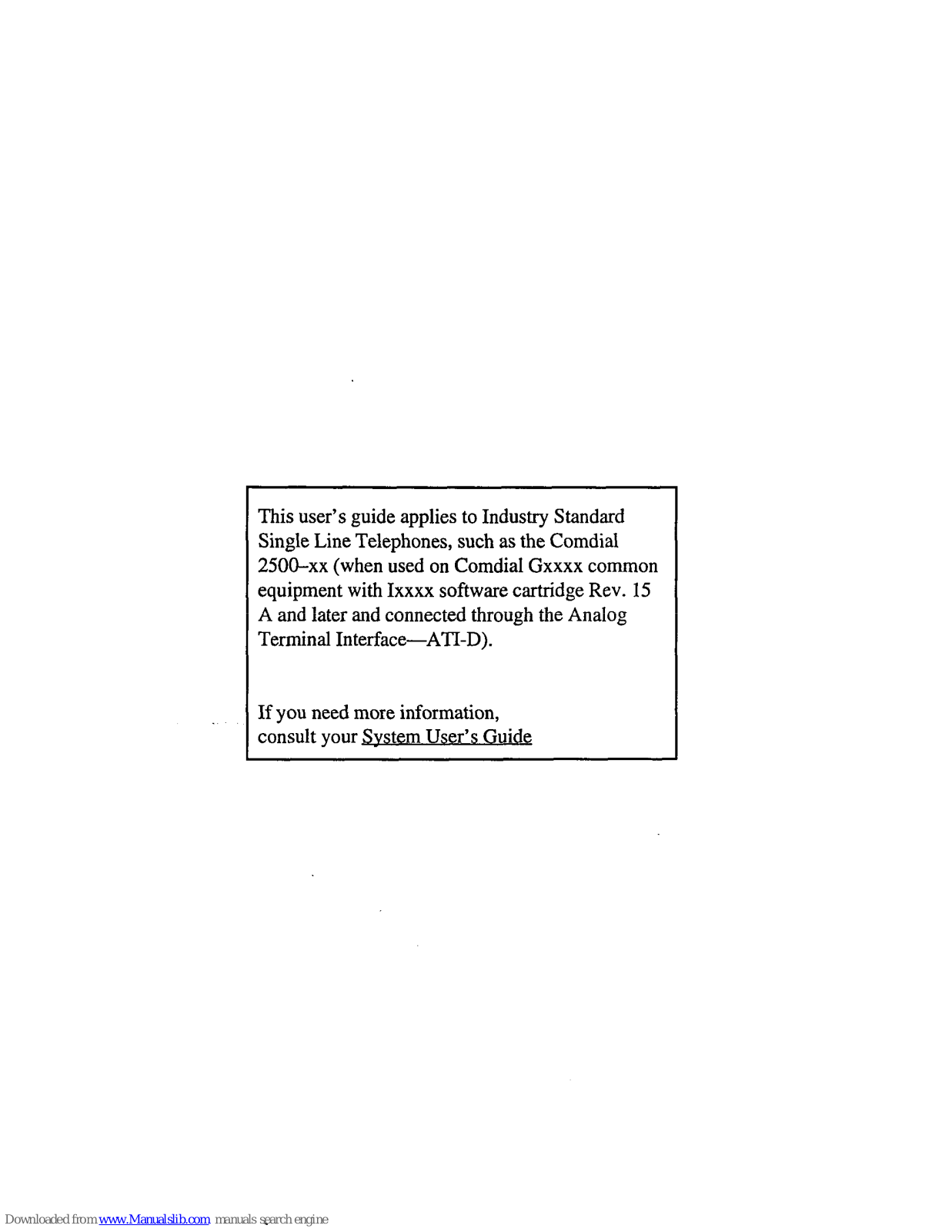

This user’s guide applies to Industry Standard
Single Line Telephones, such as the Comdial
2500-xx (when used on Comdial Gxxxx common
equipment with Ixxxx software cartridge Rev. 15
A and later and connected through the Analog
Terminal Interface-ATI-D).

If you need more information,
consult your System User’s Guide

GCA70-239

Station User’s Guide

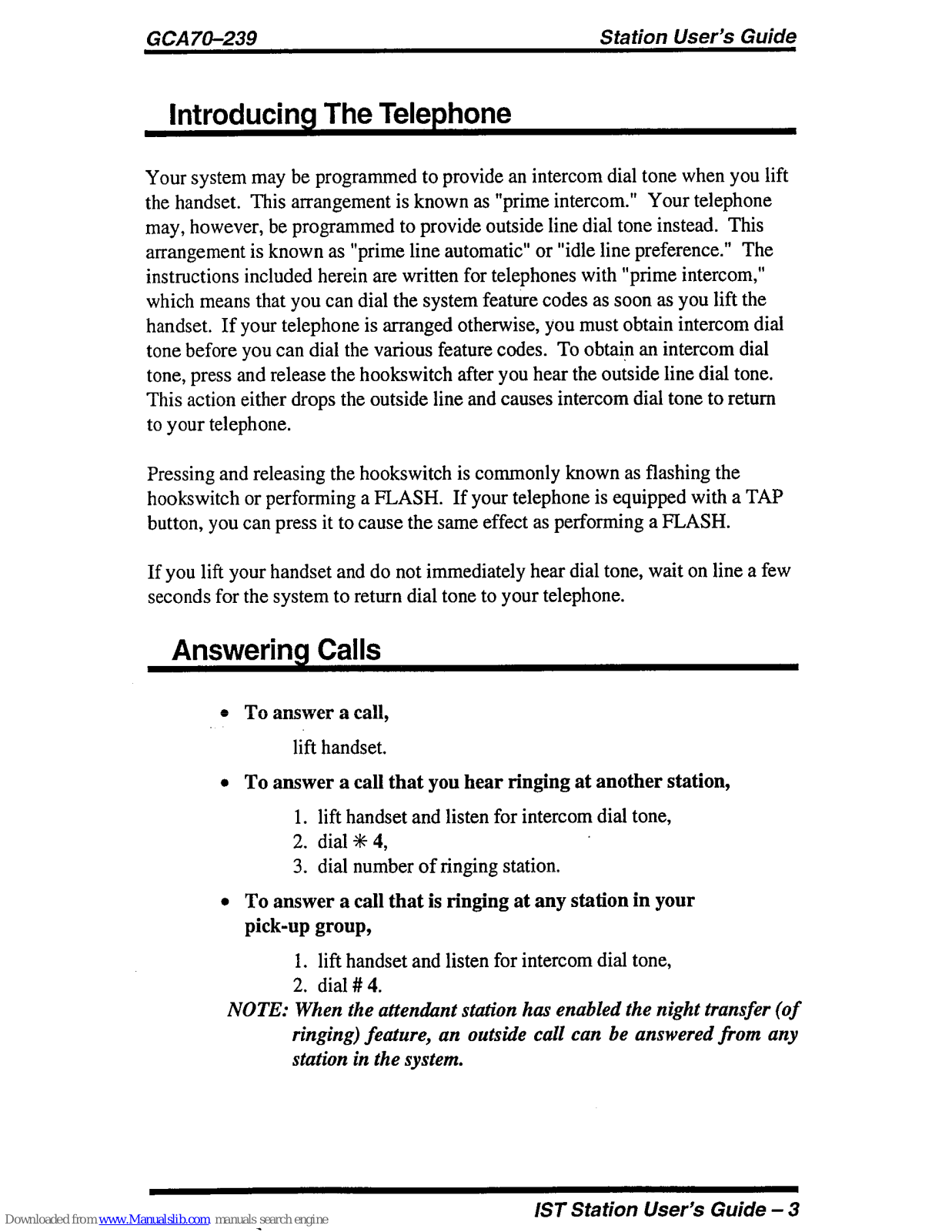

Introducing The Telephone

Your system may be programmed to provide an intercom dial tone when you lift
the handset. This arrangement is known as “prime intercom.” Your telephone
may, however, be programmed to provide outside line dial tone instead. This
arrangement is known as “prime line automatic” or “idle line preference.” The
instructions included herein are written for telephones with “prime intercom,”
which means that you can dial the system feature codes as soon as you lift the
handset. If your telephone is arranged otherwise, you must obtain intercom dial
tone before you can dial the various feature codes. To obtain an intercom dial

tone, press and release the hookswitch after you hear the outside line dial tone.

This action either drops the outside line and causes intercom dial tone to return

to your telephone.

Pressing and releasing the hookswitch is commonly known as flashing the
hookswitch or performing a FLASH. If your telephone is equipped with a TAP
button, you can press it to cause the same effect as performing a FLASH.

If you lift your handset and do not immediately hear dial tone, wait on line a few

seconds for the system to return dial tone to your telephone.

Answering Calls

l

To answer a call,

lift handset.

l

To answer a call that you hear ringing at another station,

1. lift handset and listen for intercom dial tone,

2. dial t 4,

3. dial number of ringing station.

l

To answer a call that is ringing at any station in your
pick-up group,

1. lift handset and listen for intercom dial tone,

2. dial # 4.

NOTE: When the attendant station has enabled the night transfer

(of

ringing)

feature,

an outside call can be answered from any

station in the system.

IST Station User’s Guide - 3

l

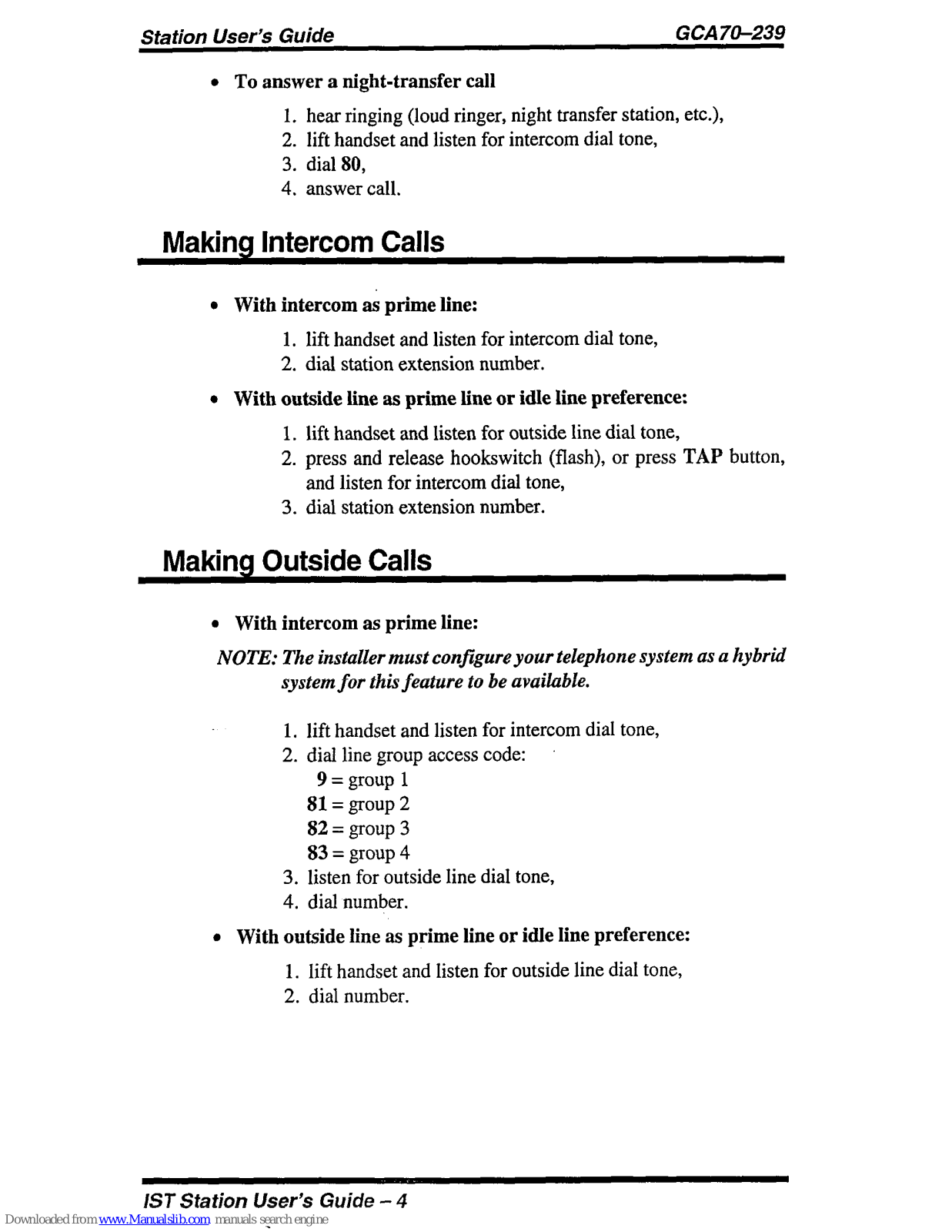

To answer a night-transfer call

1. hear ringing (loud ringer, night transfer station, etc.),

2. lift handset and listen for intercom dial tone,

3. dial 80,

4. answer call.

Making Intercom Calls

l

With intercom as prime line:

1. lift handset and listen for intercom dial tone,

2. dial station extension number.

l

With outside line as prime line or idle line preference:

1. lift handset and listen for outside line dial tone,

2. press and release hookswitch (flash), or press

TAP

button,

and listen for intercom dial tone,

3. dial station extension number.

Making Outside Calls

l

With intercom as prime line:

NOTE: The installer must configure your telephone system as a hybrid

system for this feature to be available.

1. lift handset and listen for intercom dial tone,

2. dial line group access code:
9 = group 1

81= group 2

82 = group 3

83

= group 4

3. listen for outside line dial tone,

4. dial number.

l

With outside line as prime line or idle line preference:

1. lift handset and listen for outside line dial tone,

2. dial number.

/ST Station User’s Guide - 4

GCA 70-239

Station User’s Guide

l

To send a hookflash signal over the outside line during a call,

1. press and release hookswitch (flash), or press TAP if
available,

2. listen for intercom dial tone,

3. dial # 04,

4. listen for host system reply.

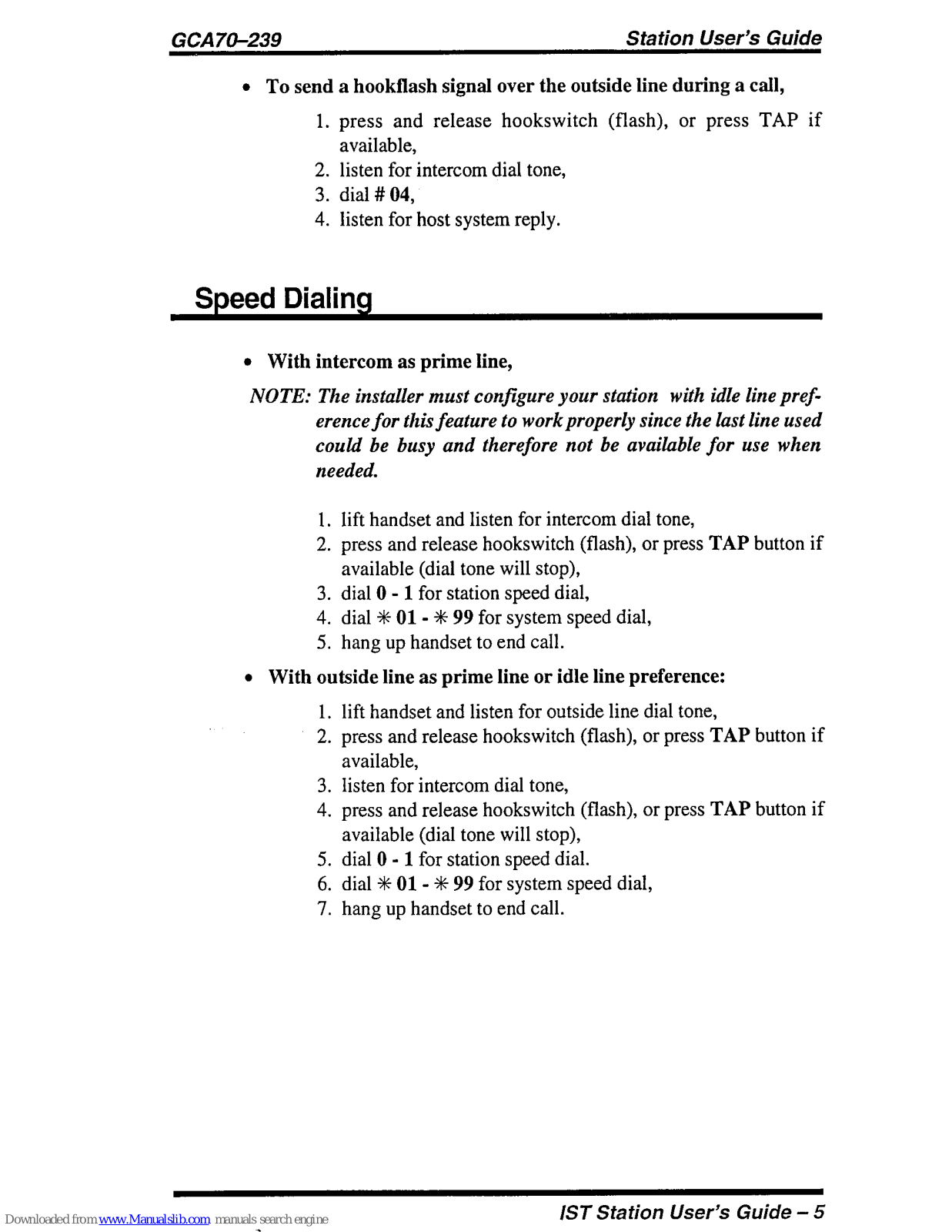

Speed Dialing

l

With intercom as prime line,

NOTE: The installer must configure your station with idle line pref-

erence for this feature to work properly since the last line used
could be busy and therefore not be available for use when
needed.

1. lift handset and listen for intercom dial tone,

2. press and release hookswitch (flash), or press TAP button i

available (dial tone will stop),

3. dial 0 - 1 for station speed dial,

4. dial +K 01 - +I+ 99 for system speed dial,

5. hang up handset to end call.

l

With outside line as prime line or idle line preference:

1. lift handset and listen for outside line dial tone,

2. press and release hookswitch (flash), or press TAP button if

available,

3. listen for intercom dial tone,

4. press and release hookswitch (flash), or press TAP button if

available (dial tone will stop),

5. dial 0 - 1 for station speed dial.

6. dial t 01 - S 99 for system speed dial,

7. hang up handset to end call.

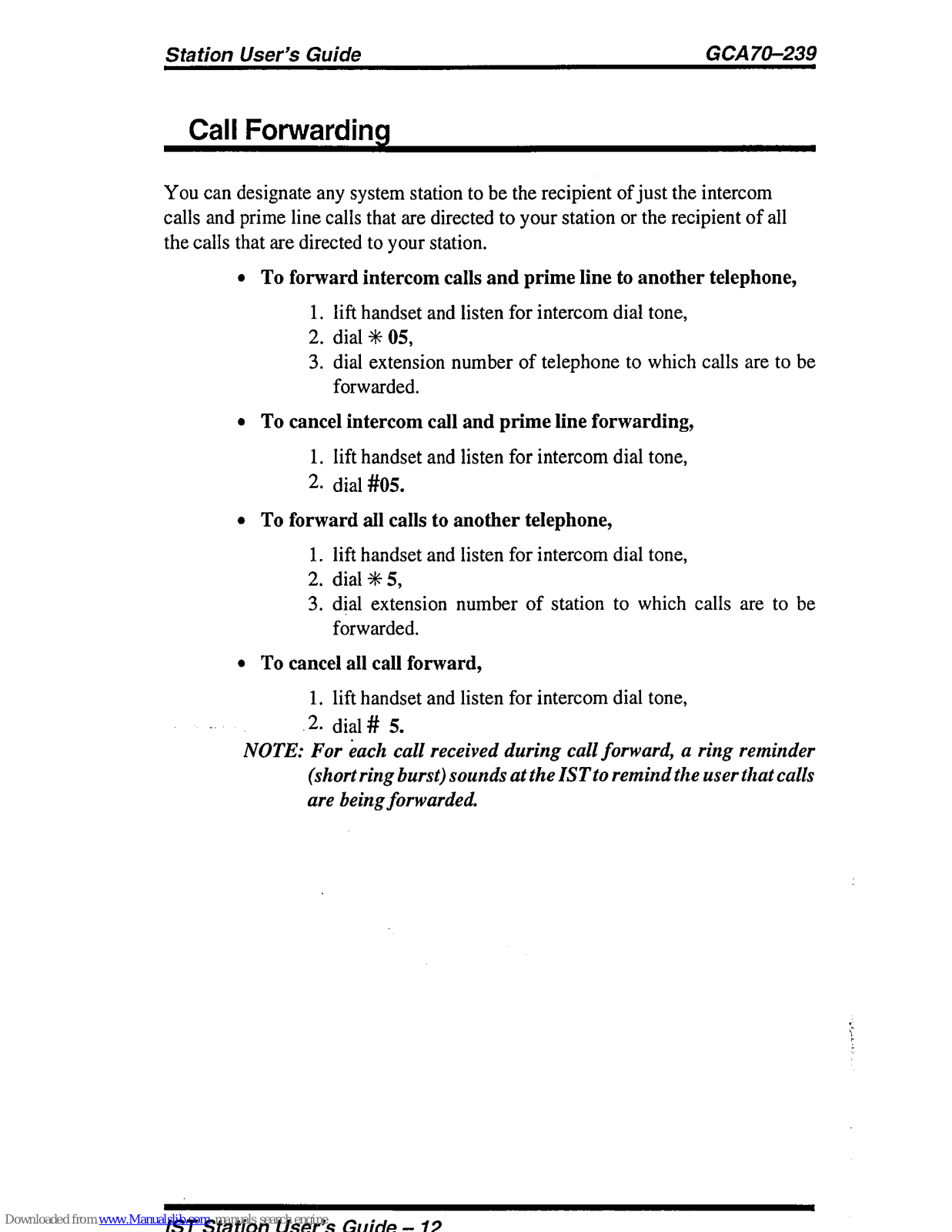

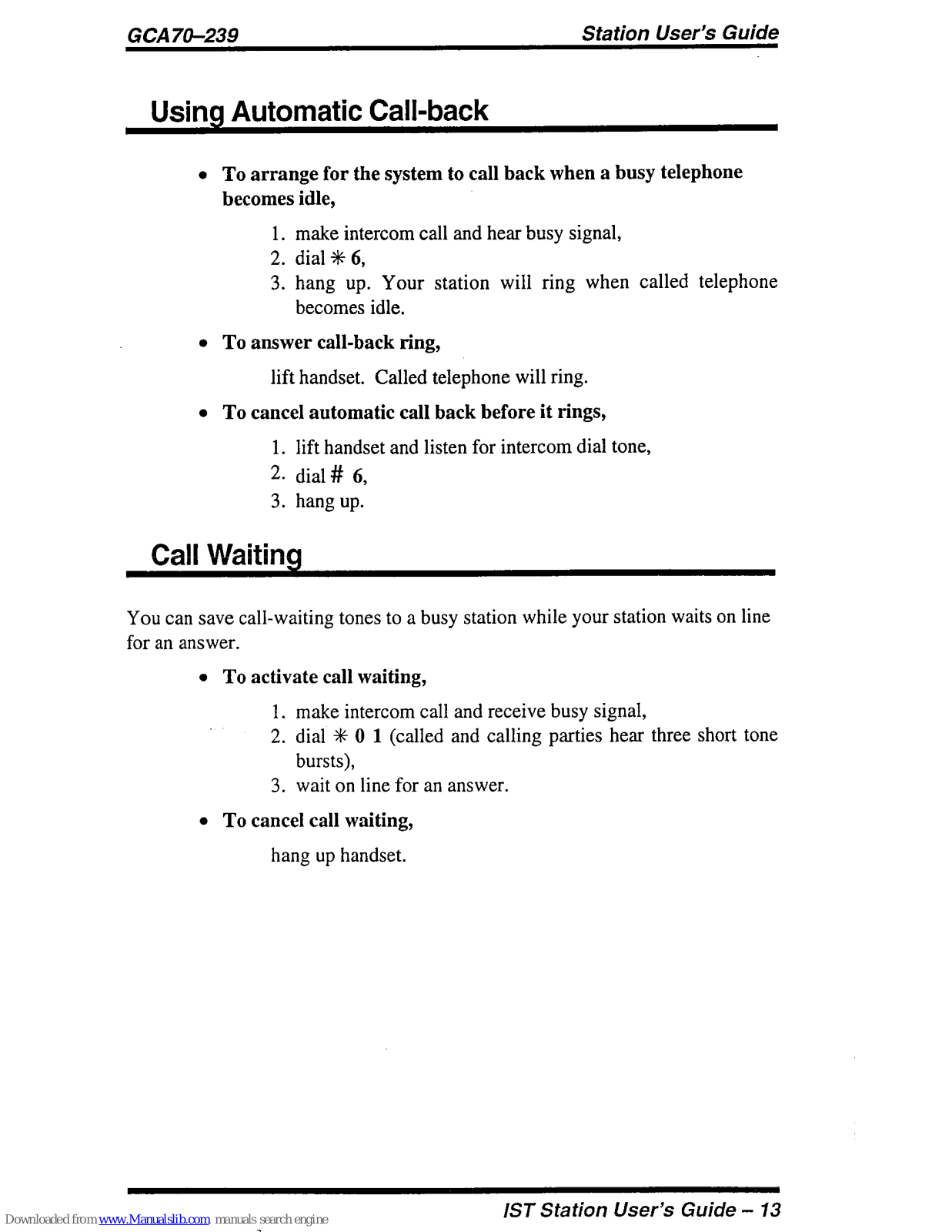

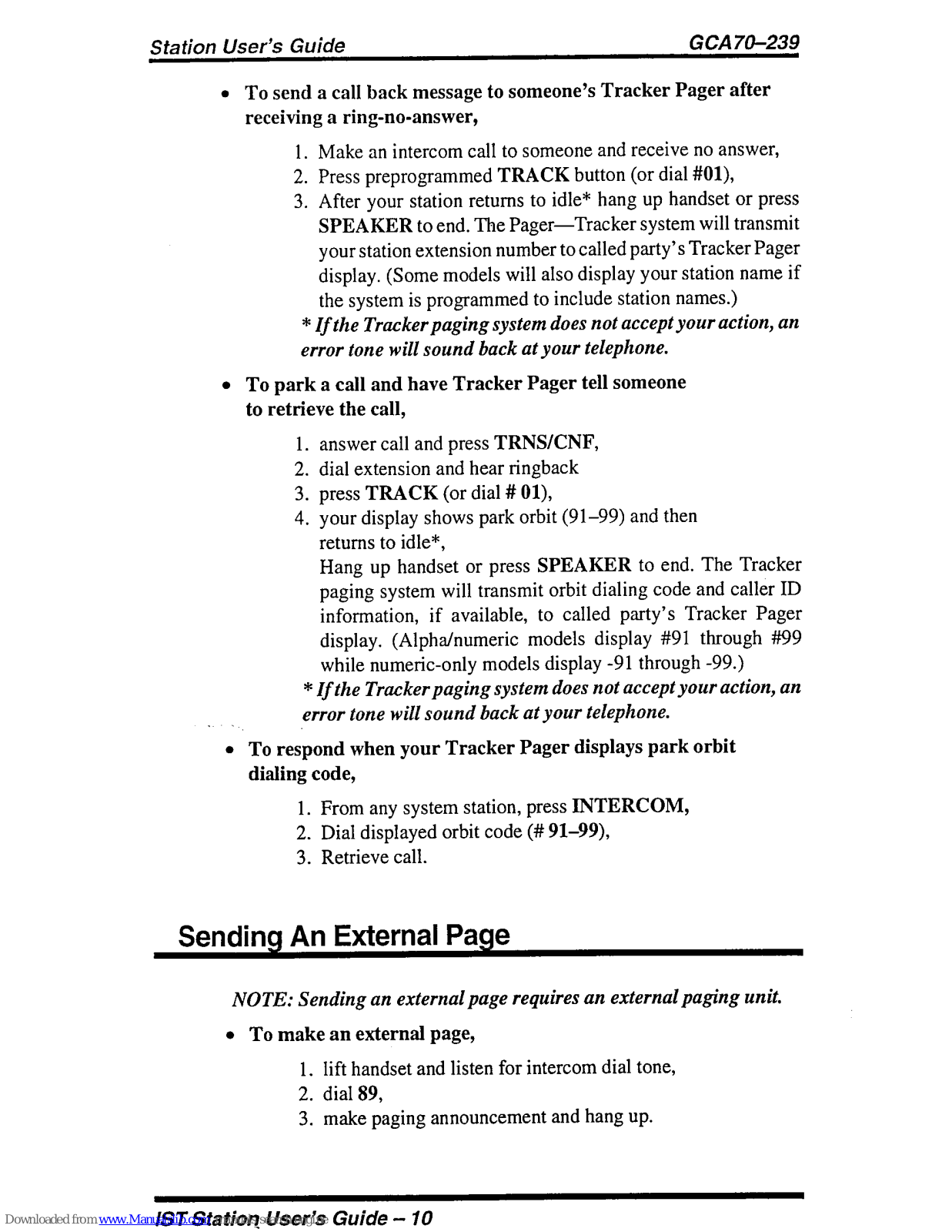

IST Station User’s Guide - 5
